Review

Recent Advances in Mechanical Reinforcement of Zwitterionic Hydrogels

by
Weifeng Lin
1,†,
Xinyue Wei
2,†,
Sihang Liu
2,3,*,
Juan Zhang
2,4,
Tian Yang
3 and
Shengfu Chen
2,*
1
Key Laboratory of Bio-Inspired Smart Interfacial Science and Technology of Ministry of Education, School of Chemistry, Beihang University, Beijing 100191, China
2
Key Laboratory of Biomass Chemical Engineering of Ministry of Education, College of Chemical and Biological Engineering, Zhejiang University, Hangzhou 310027, China
3
State Key Laboratory of Advanced Optical Communication Systems and Networks, Key Laboratory for Thin Film and Microfabrication of the Ministry of Education, UM-SJTU Joint Institute, Shanghai Jiao Tong University, Shanghai 200240, China
4
Zhejiang Poly Pharm Co., Ltd., Hangzhou 311199, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Gels 2022, 8(9), 580; https://doi.org/10.3390/gels8090580
Submission received: 16 August 2022 / Revised: 28 August 2022 / Accepted: 10 September 2022 / Published: 13 September 2022
(This article belongs to the Special Issue Advanced Hydrogels: Preparation, Property, and Biomedical Application)
Browse Figures
Versions Notes

Abstract

:
As a nonspecific protein adsorption material, a strong hydration layer provides zwitterionic hydrogels with excellent application potential while weakening the interaction between zwitterionic units, leading to poor mechanical properties. The unique anti-polyelectrolyte effect in ionic solution further restricts the application value due to the worsening mechanical strength. To overcome the limitations of zwitterionic hydrogels that can only be used in scenarios that do not require mechanical properties, several methods for strengthening mechanical properties based on enhancing intermolecular interaction forces and polymer network structure design have been extensively studied. Here, we review the works on preparing tough zwitterionic hydrogel. Based on the spatial and molecular structure design, tough zwitterionic hydrogels have been considered as an important candidate for advanced biomedical and soft ionotronic devices.

1. Introduction

Hydrogels, as composites of liquid water and solid polymer networks, have many potential applications in biomedicine engineering [1], biosensors [2], and flexible electrolytes [3]. However, their mechanical properties are limited [4]. The mechanical properties of hydrogels are directly related to the polymer network structure and its water content [5]. When water molecules are sufficiently bound to each hydrophilic polymer unit, the polymer network is fully swollen, and the interaction between the polymer chains is blocked by the hydration layer. Once the mechanical energy transferred to the polymer network exceeds the intrinsic fracture toughness, the network of the hydrogel breaks, and the structure collapses rapidly, revealing brittle. When water molecules can only combine with a small number of hydrophilic units to form a hydrated layer, the interaction between polymer chains takes on the function of mechanical energy dissipation, revealing toughness [6].
In the past two decades, the tough hydrogels, which were designed by structural design [7,8], molecular design [9], and multi-component combination [10], have been widely used in tissue engineering [11,12], flexible electrolytes [13,14], and viscous materials with Young’s modulus from several Pa to hundreds MPa [15,16]. Among them, zwitterionic hydrogels have attracted considerable attention due to their long-term anti-fouling properties in physiological environments and their ability to accelerate lithium salt dissociation, especially in biomedical engineering and solid electrolyte-based fields [17,18,19,20]. However, the very low Young’s modulus (a few KPa, similar to the brain or spinal cord) [13] and the rapid swelling in ionic solutions that ultimately leads to the destruction of polymer networks seem to indicate that the excellent application value of zwitterionic hydrogels is severely constrained by their poor mechanical properties.
Based on the current strengthening strategies of hydrogels, the design and application of toughness zwitterionic hydrogels have been widely studied. In this article, we classify the current mechanical strengthening strategies of hydrogels and review their contribution to zwitterionic hydrogels. We hope to show a more comprehensive illustration of the interaction between the molecules, structural design, and other work of zwitterionic hydrogels to further expand their application scenarios. It is worth noting that only zwitterionic polymers with both cationic and anionic functional groups in each side chain unit are discussed in this review [21,22]. Other zwitterionic polymers in a broad sense, such as polyamphiphilic electrolyte hydrogel with copolymerized equimolar cationic and anionic components are not discussed due to the potential loss of basic zwitterionic properties in multivalent ion solution [23,24].

2. Characteristics of Zwitterionic Hydrogels

Compared with the polymers hydrated by hydrogen bonds, the ionic hydration layer of the zwitterionic polymer has higher stability and degree of freedom [25]. On the one hand, the existence of a hydration layer significantly reduces the non-specific binding between proteins and the zwitterionic surface, endowing zwitterionic hydrogels with a unique ability to resist biological contamination [26] and avoid immune recognition [27]. On the other hand, it provides ion channels that can be used at lower temperatures, making zwitterionic hydrogels important candidates for antifreeze solid electrolytes [28,29]. In addition, zwitterionic materials can also modulate reactive oxygen species (ROS) and regulate inflammatory pathways by modulating macrophage polarization from M1 to M2 phenotype [30].
However, the strong hydration layer also hinders the formation of dipole–dipole interaction between zwitterionic units. Even the polymers with a similar charge density of cationic group and anionic group (pSBMA) [31], which is easier to form self-association and respond to external stimuli, the dipole–dipole interaction between zwitterionic polymer units cannot provide enough mechanical energy dissipation, resulting in the lack of mechanical properties of hydrogels. In addition, as the ion concentration increases, the counterions in the solution bind with the polyions, further destroying the dipole–dipole interaction between the zwitterionic units and extending the polymer chain [3,17]. The resulting zwitterionic hydrogels continue to swell, becoming brittle. This behavior of zwitterionic hydrogels is known as the anti-polyelectrolyte effect. From the application point of view, this poses serious problems: (1) as biomedical engineering materials, the mechanical properties of zwitterionic hydrogels can only match part of the soft tissues but are far from the requirements of stiff load-bearing tissues (fracture strength 1–200 MPa, elastic modulus 0.01–3 GPa) [32]; (2) as a quasi-solid electrolyte, zwitterionic hydrogels have to face a trade-off between swelling in ionic solutions and loss of mechanical properties [33].
Therefore, it is necessary to improve the mechanical properties of zwitterionic hydrogels using the available strengthening strategies. Due to the various nomenclature of zwitterionic polymers, in this review, we re-abbreviate the commonly used zwitterionic betaine according to the structure characteristics of zwitterionic units for distinguishing. SB stands for sulfobetaine, CB for carboxybetaine, MA for methacrylate, and AA for acrylamide. For the zwitterionic monomer abbreviated SBxMAy, the spacing between the anionic and cationic functional groups of the zwitterionic unit is x carbon atoms, and the spacing between the zwitterionic unit and the ester or amide bond linking the polymer backbone is y carbon atoms (Table 1).

3. Mechanical Reinforcement Methods

In order to improve the mechanical properties of hydrogels, it is necessary to analyze the microscopic behavior of hydrogels in the process of stress application for a breakthrough. The structural collapse of hydrogels begins with the appearance of cracks [34]. Because of the difference in reactivity among the components in the polymerization process, the hydrogels composed of inhomogeneous networks have a stress concentration region composed of short polymer chains [35]. In the loading process, the polymer chains in the stress concentration region become the “weakness” of the hydrogel, which first failed as a crack [36]. Although the “fracture process zone” at the crack tip can dissipate energy through nonlinear elastic response, the potential energy transferred still exceeds the energy needed for the formation of the new interface (fracture energy threshold), resulting in the destruction of the whole structure of the hydrogel [37]. Therefore, the improvement of mechanical properties of hydrogels mainly focuses on two aspects: eliminating the “weakness” in polymer networks and avoiding crack expansion.

3.1. Eliminating the Weakness in Polymer Networks

Reducing the randomness of radical polymerization is an effective scheme to minimize the stress concentration region in the hydrogel network. The homogeneity of the hydrogel network can be enhanced by prefabricating the polymer with a definite structure and then assembling it into hydrogel by a covalent bond. Polymers that meet the requirements of uniform molecular weight distribution are prepared first and then assembled by molecular couplings, such as tetra-polyethylene glycol (PEG), to exhibit extremely low network heterogeneity (Figure 1a) [38,39,40]. In the theoretical model, the tetra-PEG hydrogels are only bound by the covalent coupling region. However, in practice, the polymer is still entangled, which leads to the deviation from the ideal model [41]. In addition, the need to prepare homogeneous macromonomers also limits the practical application of tetra-PEG hydrogels. Based on cyclic molecular “pulleys” and shaft chains, the slide-ring gel exhibits excellent tensile strain and volumetric weight variation (Figure 1b) [42,43,44]. Slide-ring gel is mainly used in soft electronic equipment. The conformational change between ring and chain has a decisive effect on the mechanical properties of glide ring gel. Reducing the covering area of the ring and increasing the length of the shaft chain can improve the toughness [45,46]. Because of the existence of the ring-chain, the selection of monomer is also limited, and the influence of conformation change on mechanical properties leads to more complex mechanical behavior.
In addition, irradiated cross-linked hydrogels have better network homogeneity than chemical cross-linked hydrogels because the high energy of the irradiated sources eliminates the difference in reaction activity (Figure 1c) [47,48]. In addition, higher irradiation doses can also kill bacteria, allowing hydrogels to be applied under conditions that require strict asepsis [49]. However, irradiation can cause degradation of natural polymer hydrogels, resulting in loss of mechanical properties and structural stability. Therefore, the effect of high-energy irradiation on polymer structure remains to be further studied. In addition to irradiation, controllable radical polymerization has also been applied to the preparation of hydrogels to obtain better polymer chain distribution and uniformity. The hydrogels prepared by reversible addition–fragmentation chain transfer polymerization (RAFT) have better mechanical properties than those prepared by ordinary radical polymerization. Because of the existence of a disulfide structure, the hydrogels often have color and uncomfortable smell [50].
Gels 08 00580 g001 550

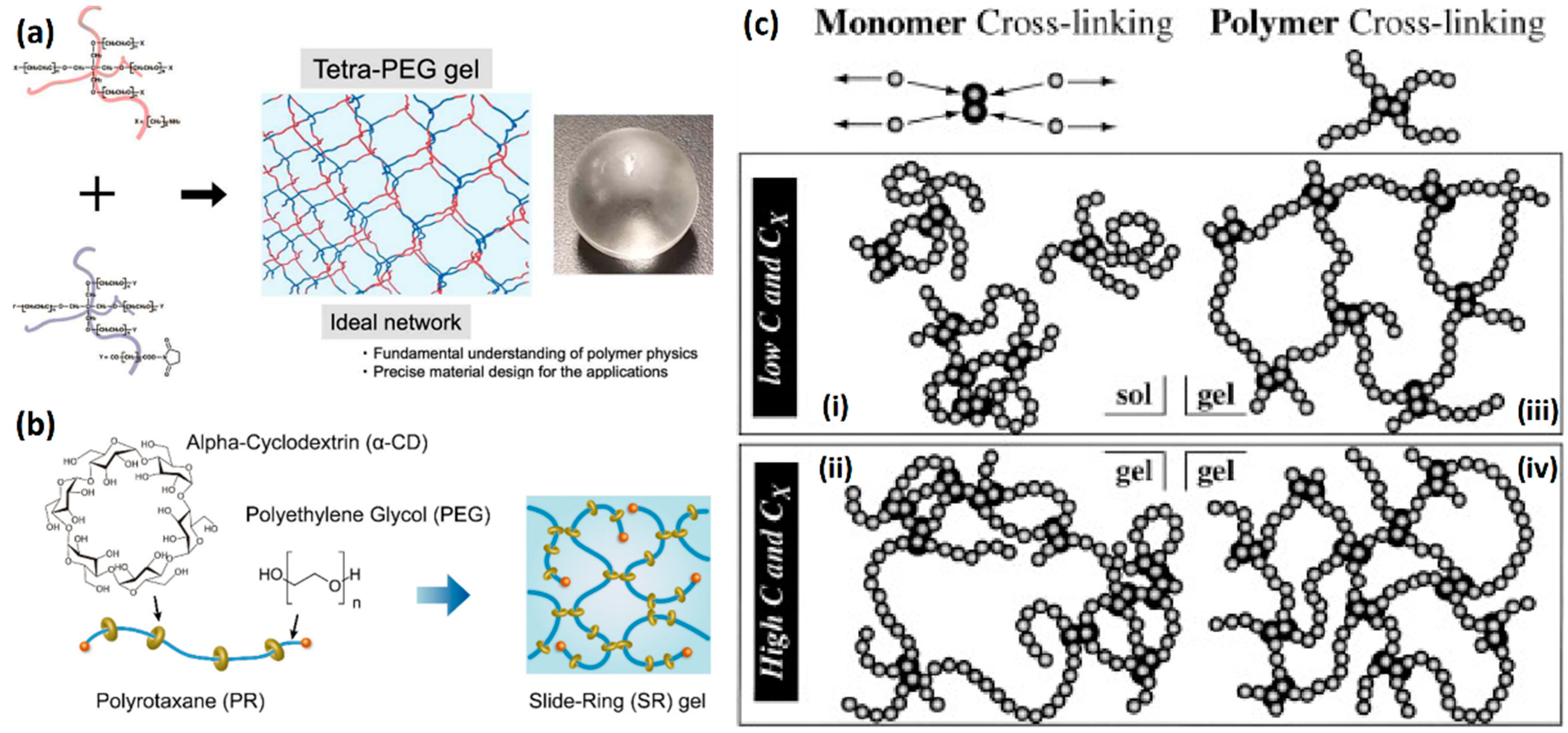

Figure 1. Methods to strengthen hydrogels with the homogenous network: (a) tetra- PEG ion gels are prepared with mutually reactive amine and activated ester end groups; reproduced with permission from [41]; (b) slide-ring hydrogel prepared with linear polymer axis PEG and ring-shaped alpha-cyclodextrin. Reproduced with permission from [44]. Copyright 2021 Elsevier Ltd. All rights reserved; (c) radiation cross-linked hydrogel prepared by γ-ray with better network distribution at both low and high monomer concentration, C, and cross-linking density, Cx. Reproduced with permission from [48]. Copyright 2002 Elsevier Science Ltd. All rights reserved.
Figure 1. Methods to strengthen hydrogels with the homogenous network: (a) tetra- PEG ion gels are prepared with mutually reactive amine and activated ester end groups; reproduced with permission from [41]; (b) slide-ring hydrogel prepared with linear polymer axis PEG and ring-shaped alpha-cyclodextrin. Reproduced with permission from [44]. Copyright 2021 Elsevier Ltd. All rights reserved; (c) radiation cross-linked hydrogel prepared by γ-ray with better network distribution at both low and high monomer concentration, C, and cross-linking density, Cx. Reproduced with permission from [48]. Copyright 2002 Elsevier Science Ltd. All rights reserved.
Gels 08 00580 g001
Uncontrollable entanglement between polymer chains is not expected in the preparation of homogeneous network hydrogels, which makes hydrogels break rapidly and have no self-healing ability. Compared with the homogeneous network hydrogels designed to eliminate the “weakness” of the network, the hydrogels designed for enhancing the energy dissipation pay more attention to how to avoid the crack tip extension and overall failure of the hydrogels [51].

3.2. Avoiding Crack Expansion

Double-network hydrogel(DN) design is a traditional way to enhance the mechanical energy dissipation of hydrogels (Figure 2a1–a3) [52]. The highly swollen rigid first network is broken under excessive stress, and the flexible second network conducts and dissipates mechanical energy. The fractured unit in a rigid network is called a “sacrifice bond” [5]. Double-network hydrogels have developed rapidly over the past two decades due to the combination of both the rigidity of the first network and the toughness of the second network [8,53,54]. The introduction of molecular stents solved the limitation that the first network needs high swelling polyelectrolyte monomers [55,56]. The first network with a dynamic covalent bond as the sacrificial bond also compensates for the permanent mechanical damage in the first network composed of chemical covalent sacrificial bonds, leading to better self-healing properties [57,58]. Dual-cross-link hydrogel not only has the ability to dynamically regulate the distribution of polymer chains but also has the ability to convert mechanical energy to thermal energy by further enhancing the interaction between polymer chains in the network, thus exhibiting high toughness [59,60]. Structures with hydrophobic interaction, π–π stacking, dipole interaction, hydrogen bond interaction, and electrostatic interaction are the most common strengthening elements (Figure 2b1,b2) [61,62,63]. The introduction of strong noncovalent interaction units also gives hydrogels excellent self-healing capabilities [64,65]. In addition, replacing 0-dimensional covalently cross-linked dot and non-covalently cross-linked dot with multi-dimensional structures can deliver more value to hydrogel (Figure 2c1,c2) [66]. Microgel cross-linking sites provide more capacity for elastic potential energy storage, mechanical energy dissipation, and synergistic enhancement of polymer mechanical energy transmission, leading to four times mechanical energy dissipation efficiency [67]. The macromolecular polymer microspheres cross-linking sites provide more cross-linking sites and connect a large number of long and homogeneous polymer chains to control the cross-linking density and distance. The destruction and recombination of physical interactions within microspheres also provide additional mechanical energy dissipation capabilities [68]. Nanostructured fillers can not only store energy, dissipate mechanical energy, and reconstruct polymer networks through the adsorption–desorption process but also endow hydrogels with unique electrical, magnetic, and optical properties [12,69]. As a biomedical engineering material, soft hydrogels and rigid skeleton composites based on biomimetic hydrogels, such as muscles and tendons, exhibit advantages in resisting crack propagation. Scaffold-reinforced hydrogels often exhibit high toughness and crack resistance as cracks propagate through the soft hydrogel to the hard skeleton, which provides strong mechanical energy dissipation capacity, and limits crack propagation (Figure 2d) [70].

4. Recent Advances in Mechanical Reinforced Zwitterionic Hydrogels

Due to the brittleness of the anti-polyelectrolyte effect, zwitterionic hydrogels cannot exhibit their super anti-fouling properties under physiological conditions. Therefore, the improvement of mechanical properties of zwitterionic hydrogels is not only the enhancement of mechanical energy dissipation or elimination of “weakness” units but also the inhibition of the anti-polyelectrolyte effect. Meeting the requirements of anti-fouling performance or ion channel requirements is an essential principle during the mechanical strengthening of zwitterionic hydrogels.

4.1. Multiple Network Hydrogels

As an electrically neutral polymer, the zwitterionic polymer network is soft and stretchable in deionized water, so it is often used as part of the second network in the design of double network hydrogels [71]. Flexible zwitterionic networks with high molar concentrations provide good anti-fouling properties. In contrast, the first network with a high cross-linking degree provides hydrogel rigidity [72,73]. It is noteworthy that zwitterionic polymers often require the addition of cross-linking agents to form interpenetrating networks with the first network due to the lack of physical interaction forces (such as hydrogen bonds, hydrophobic interactions, etc.) that can form sufficient entanglement with the other network [74].
Yin et al. [75] prepared zwitterionic double-network hydrogels with polyelectrolyte poly(2-acrylamido-2-methylpropanesulfonic) (pAMPS) as the first network and zwitterionic pCB1MA2 as the second network. The equilibrium water content of pAMPS/pCB1MA2 double network hydrogel was 78.7%, which was significantly lower than that of pCB1MA2 hydrogel at the same molar concentration. DN hydrogels showed the tensile strain of 6.0 mm/mm, tensile fracture stress of 1.4 MPa, tensile modulus of 0.9 MPa, and work of extension of 2.4 MJ/m3 much higher than those of single network pCB1MA2 hydrogel. The excellent resistance to macrophage adhesion was also maintained. Huang et al. [76] prepared DN hydrogels with cationic monomer (trimethylamino)ethyl methacrylate chloride (TMAEMA) as the first network and zwitterionic sulfobetaine vinylimidazole (SBVI) as the second network. The final hydrogel pTMAEMA/pSBVI exhibited a stable swelling ratio that did not vary with ion concentration. Zwitterionic pTMAEMA/pSBVI3 hydrogels prepared with 1 M TMAEMA and 3 M SBVI showed tensile stress of 0.53 MPa, tensile strain of 2.0 mm/mm, and Young’s modulus of 105 KPa in water, which were 120, 5.7, and 10.5 times of the single network pTMAEMA hydrogels, respectively. Although the swelling ratio of zwitterionic double network hydrogels did not change significantly with ionic strength in solution, there is still a tensile strain decrease (2.0 mm/mm in 0 M to 0.7 mm/mm in 1 M NaCl) and an increase in Young’s modulus (105 KPa in 0 M to 300 KPa in 1 M NaCl). It is worth noting that zwitterionic hydrogels exhibited tensile stress of 0.85 MPa and tensile strain of 1.8 mm/mm in PBS solution, which has a good application prospect in the biomedical field. Zou et al. [77] prepared triple network hydrogels with glutaraldehyde cross-linked chitosan as the first antimicrobial network, zwitterionic pSB3MA2 polymer as the second anti-fouling network, and poly(2-hydroxyethyl acrylate) (pHEA) as the third mechanical to strengthen the network. The triple network hydrogel exhibited excellent toughness at 75% equilibrium water content, with compressive stress of 82 MPa at 95% compressive strain and 0.4 MPa at 10.0 mm/mm tensile strain. In addition to the classical first rigid network and the second flexible zwitterionic network, the double network hydrogels with interpenetrating non-covalent cross-linking network and zwitterionic polymer network have also been widely studied. Interpenetrated network (IPN) hydrogels composed of cellulose nanofiber networks and zwitterionic pSB3MA2 networks exhibited 0.12 MPa tensile stress, 9.2 mm/mm tensile strain, and 24.5 KPa Young’s modulus [29]; hydrogels composed of alginate-Ca2+ networks and zwitterionic pCB1AA3 networks exhibited tensile stress 0.69 MPa, tensile strain 3.3 mm/mm, elastic modulus 0.28 MPa, and also excellent self-healing properties [78].
The purely zwitterionic double network hydrogel assembled by multiple zwitterionic polymer networks has more potential in the application where the performance of anti-fouling is strictly required or needs to be kept for a long time. Huang et al. [79] interpenetrated the second network, pSB3AA3, into the first zwitterionic network, poly(lysine acrylamide) (pLysAA), under acid conditions (pH = 2). The protonated carboxyl groups of the LysAA units provide additional hydrogen bond interactions that enhance the mechanical properties of the double network hydrogels even after swelling in PBS solution at pH = 7 (1.05 MPa tensile stress and 1.1 mm/mm tensile strain). Hydrogels exhibited excellent anti-fouling properties due to a fully zwitterionic network. Subcutaneous 30 days implantation showed no capsule formation between the hydrogels and tissue. Pure zwitterionic elastic network (ZEN) hydrogels with 62% equilibrium water content were prepared using CB2AA3 as a highly swollen elastic network and SB3MA2 as a loose viscous network [80]. ZEN hydrogels achieved compressive stress of 22.3 MPa at 99% compressive strain and kept the original shape after stress release. During the tensile process, ZEN hydrogel also exhibited 1.7 mm/mm tensile strain and 1 MPa tensile stress. In addition, ZEN hydrogels could effectively resist the formation of fibrous capsules after implantation in animals for one year, further confirming the value of zwitterionic hydrogels under physiological conditions. Li et al. [81] used poly(trimethylamine N-oxide) (pTMAO) with stronger hydrophilicity as the first network, followed by the introduction of double self-associated pSB3MA2 networks to prepare pure zwitterionic triple network hydrogels (ZTN). Compared with the double network hydrogel, the swelling of ZTN hydrogel in a seawater environment was further limited, the equilibrium water content was 73%, and the ZTN hydrogel could endure the compressive stress of 19 MPa at 99% compressive strain, which was 31 times the single network pTMAO hydrogel and five times the pTMAO/pSB double network hydrogel, respectively (Figure 3). The design of multiple network hydrogels not only ensured the anti-fouling performance of pure zwitterionic hydrogel, but also enhanced the mechanical properties in an ionic solution, which might provide a feasible solution for the practical application of zwitterionic hydrogels.

4.2. Dual-Cross-Linked Hydrogels

Dual-cross-linked zwitterionic hydrogels exhibit more physical interactions, including hydrophobic interactions [82,83,84], hydrogen bonds [85,86,87], and π–π stacking [88,89,90]. In an ionic solution, the newly added physical interaction can compensate for the loss of mechanical properties caused by the damage of dipole interaction due to further hydration. The methods for preparing the dual-cross-linked hydrogels include: (1) introducing new physical interaction groups by the molecular design of zwitterionic units and (2) introducing comonomers with physical interaction ability.

4.2.1. Zwitterionic Hydrogels Prepared by Molecular Design

For zwitterionic hydrogels that need to maintain long-term anti-fouling requirements in complex physiological environments, the non-specific adsorption behavior of proteins induced by comonomers is considered [80,91]. The molecular design of zwitterionic units and the introduction of functional groups with effective physical interactions have become effective schemes for strengthening pure dual-cross-linked zwitterionic hydrogels. Introducing functional groups with hydrogen bonding interaction or π–π stacking is the most common method (Table 2). With molecular dynamic simulation, introducing hydroxyl groups between the cationic and anionic groups of the zwitterionic unit can reduce the equilibrium water content and improve compressive strength [92]. When one methyl group of cationic quaternary ammonium salt is replaced by a hydroxyl group, the compressive strength and strain of zwitterionic hydrogel increase obviously [93]. However, when both methyl groups were replaced by the hydroxyl group, the compressive strength of zwitterionic CB1MA2-OH2 hydrogels was almost the same as that of CB1MA2 hydrogels, with only a tiny increase in compressive strain [93]. This may be due to the effect of steric hindrance, which results in the shielding of dipole–dipole interaction between zwitterionic units. In addition, the increase of the steric hindrance around the quaternary ammonium results in a decrease in the anti-fouling performance of the zwitterionic hydrogel. Therefore, in the molecular design of zwitterionic unit molecules to enhance the work of hydrogels, the maintenance of the dipole effect is the basic principle.
The introduction of functional groups with the ability of π–π conjugation between the zwitterionic unit and the polymer backbone can limit the swelling behavior of the zwitterionic hydrogel and improve its toughness. Based on carboxybetaine CB1AA3 and sulfobetaine SB3AA3, Liu et al. [94] added triazole groups between amide and zwitterionic units. Unlike the brittleness of CB2MA2 hydrogel in PBS solution (tensile strain 0.1 mm/mm, compressive strain 50%, Young’s modulus 153 KPa), triazole carboxybetaine acrylamide (TR-CB) and triazole sulfobetaine acrylamide (TR-SB) hydrogels exhibit better toughness at the same monomer concentration and cross-linking density, in which compressive strain increased to 79% and 89%, respectively, tensile strain increased to 0.9 mm/mm and 2.5 mm/mm, and Young’s modulus decreased to 20 KPa and 15 KPa. In addition, TR-CB and TR-SB exhibited compressive fracture stress over 1 MPa and tensile fracture stress over 10 KPa, which were 2.5 and 1.3 times of CB2MA2, respectively. The stronger dipole–dipole interaction between zwitterionic SB3 units makes TR-SB exhibit the best toughness. Tough rat islet encapsulated TR-SB showed 30 days blood glucose concentration control after transplantation due to the mitigating foreign body response. Zheng et al. [95] prepared zwitterionic dimethyl-(4-vinylphenyl)ammonium propane sulfonate (DVBAPS) hydrogels by introducing an aromatic structure between the zwitterionic SB3 unit and the polymer backbone. Zwitterionic DVBAPS hydrogels retain the water content of the as-prepared state without further swelling (non-swelling) and exhibit 3.7 mm/mm extension, 80 KPa tensile stress, Young’s modulus of 53 KPa, and over 20 times higher toughness than that of SB3AA3 hydrogel. The zwitterionic units composed of the conjugated N-atom heterocyclic ring and the anionic functional group exhibit both dipole–dipole interaction and π–π stacking [76,96]. The zwitterionic QTR-CB hydrogel with quaternarized triazole group as a cationic functional group exhibited tensile strain of 0.7mm/mm and compressive strain of 78% in PBS solution, which showed tougher than CB2MA2 in ionic solution [94]. The 3-(1-(4-vinylbenzyl)-1H-imidazol-3-ium-3-yl)propane-1sulfonate (VBIPS) hydrogels with both N-heterocyclic cations and aromatic structures exhibited a stronger π-π stacking effect, exhibiting a non-swelling effect similar to DVABPS and a toughness 40 times greater than that of SB3AA3 hydrogels, which overcame the trade-off between electrolyte swelling and mechanical property. (Figure 4) [95].
Gels 08 00580 g004 550

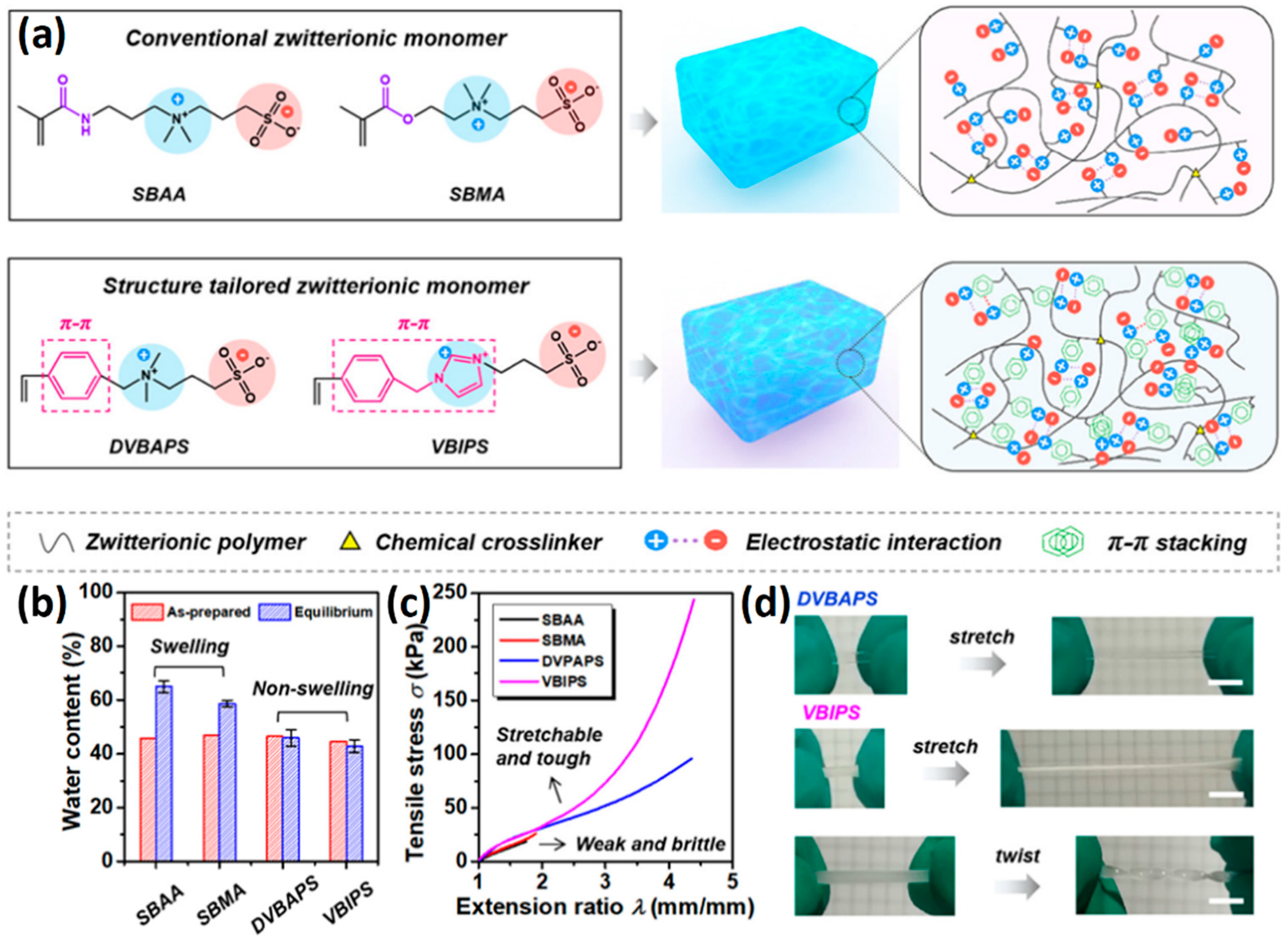

Figure 4. Mechanical strengthening of pure zwitterionic hydrogel based on the molecular design of the zwitterionic unit: (a) schematic illustration for the preparation of zwitterionic hydrogels with π–π stacking; (b) water content of pure zwitteironic hydrogels. The introduction of π–π stacking significantly restricts further swelling of hydrogel from the as-prepared state to the equilibrium state; (c) tensile stress–strain curves of pure zwitterionic hydrogels. Dual-cross-linked pure zwitterionic hydrogels with π–π stacking was both stretchable and tough; (d) stretchability of dual-cross-linked DVBAPS and VBIPS hydrogels. Reproduced with permission from [95]. Copyright 2021, American Chemical Society.
Figure 4. Mechanical strengthening of pure zwitterionic hydrogel based on the molecular design of the zwitterionic unit: (a) schematic illustration for the preparation of zwitterionic hydrogels with π–π stacking; (b) water content of pure zwitteironic hydrogels. The introduction of π–π stacking significantly restricts further swelling of hydrogel from the as-prepared state to the equilibrium state; (c) tensile stress–strain curves of pure zwitterionic hydrogels. Dual-cross-linked pure zwitterionic hydrogels with π–π stacking was both stretchable and tough; (d) stretchability of dual-cross-linked DVBAPS and VBIPS hydrogels. Reproduced with permission from [95]. Copyright 2021, American Chemical Society.
Gels 08 00580 g004
Table
Table 2. Molecular design of zwitterionic hydrogels and their mechanical properties.
Table 2. Molecular design of zwitterionic hydrogels and their mechanical properties.
Dual-Cross-LinkingZwitterionic UnitsComponentsMechanical PropertiesRef.
Hydrogen bondGels 08 00580 i022CB1MA2OH-1: 3M
Crosslinker: 2 mol%
EWC: 71.7%		Compressive strain: 55%
Compressive stress: 0.75 MPa		 [93]
Gels 08 00580 i023CB1MA2OH-2: 3M
Crosslinker: 2 mol%
EWC: 73.7%		Compressive strain: 50%
Compressive stress: 0.45 MPa		 [93]
Gels 08 00580 i024Ectoine: 4.4 M
Crosslinker: 1.5 wt%
EWC(PBS): 82.0%		Compressive stress: 0.32 MPa
Compressive strain: 62%
Compressive modulus: 0.17 MPa		 [97]
Gels 08 00580 i025Marg: 0.4 M
Crosslinker: 1 wt%
EWC: 88.9%		Compressive modulus: 0.21 MPa [98]
π–π stackingGels 08 00580 i026VIPS: 3M
Crosslinker: 0.02 mol%
EWC: 50.0%		Elastic modulus: 18 KPa
Tensile strain: 6.0 mm/mm
Tensile stress: 90 KPa		 [76]
Gels 08 00580 i027SPV: 2.4 M
Crosslinker: 3.0 wt%
EWC: 61.0%		Elastic modulus: 105 KPa
Elastic modulus (KSCN): 36.5 KPa		 [96]
Gels 08 00580 i028QTR-CB: 2 M
Crosslinker: 5.0 mol%
Swelling in PBS		Compressive strain: 78%
Compressive stress: 0.78 MPa
Tensile strain: 0.7 mm/mm
Tensile stress: 0.013 MPa
Young’s modulus: 30 KPa		 [94]
Gels 08 00580 i029TR-CB: 2 M
Crosslinker: 5.0 mol%
Swelling in PBS		Compressive strain: 79%
Compressive stress: 1.0 MPa
Tensile strain: 0.9 mm/mm
Tensile stress: 11 KPa
Young’s modulus: 20 KPa		 [94]
Gels 08 00580 i030TR-SB: 2 M
Crosslinker: 5.0 mol%
Swelling in PBS		Compressive strain: 89%
Compressive stress: 1.05 MPa
Tensile strain: 2.5 mm/mm
Tensile stress: 13 KPa
Young’s modulus: 15 KPa		 [94]
Gels 08 00580 i031DVBAPS: 4 M
Crosslinker: 0.5 mol%
EWC: 48.4%		Tensile strain: 3.7 mm/mm
Tensile stress: 75 KPa
Young’s modulus: 53 KPa		 [95]
Gels 08 00580 i032VBIPS: 4 M
Crosslinker: 0.5 mol%
EWC: 44.2%		Tensile strain: 4.4 mm/mm
Tensile stress: 200 KPa
Young’s modulus: 56 KPa		 [95]

4.2.2. Zwitterionic Ionic Hydrogels Prepared by Multicomponent Copolymerization

Although the mechanical and anti-fouling properties of zwitterionic hydrogels can both be considered by the molecular design of zwitterionic units, this also leads to the complexity of monomer synthesis and the functional limitation of hydrogels. The preparation of zwitterionic hydrogels by copolymerization has a simple process and great potential for functionalization. Although the anti-fouling performance would be compromised, it still has significant research value in the application where it is not necessary to keep strict anti-fouling performance for a long time.
The copolymer with a strong hydrogen bond can provide hydrogen bond interaction and hydrogen bond–dipole interaction for hydrogels, and the hydrated layer on a copolymer can also provide nonspecific protein adsorption resistance, leading to a low-fouling hydrogel. Huangfu et al. [99] prepared the copolymer hydrogel with 16 mm/mm tensile strain, 77.5 KPa tensile stress and 1.9 KPa tensile modulus using a strong hydrogen bond monomer N-(2-amino-2-oxyethyl)acrylamide (NAGA) and zwitterionic SB3MA2 as a wound dressing (Figure 5a1–a3). The introduction of NAGA enables the hydrogel to produce sufficient adhesion with the skin wound and accelerates the wound healing. The p (HEAA-co-SB3AA3) hydrogel prepared by Zhang et al. [100] exhibited 34 mm/mm tensile strain and 0.17 MPa tensile stress. After introducing the conductive polymer PEDOT: PSS, which interacted with zwitterionic polymers by electrostatic interaction, as the interpenetrating network, the hydrogel exhibited 50 mm/mm tensile strain and 0.34 MPa tensile stress. The integration of zwitterionic pSBAA and conductive PEDOT: PSS promoted charge transfer through the optimized conductive path and further acted as a fully polymeric biosensor. Yang et al. [101] also introduced 2-Hydroxyethyl methacrylate (HEMA) with hydrogen bonding ability and 2-(dimethylamino) ethylacrylatemethochloride (DAC) with electrostatic bonding ability to copolymerize with zwitterion SB3MA2. When the molar ratio of the three components was HEMA:DAC:SBMA = 2:4:4, the copolymer hydrogel exhibited tensile strain of 6.8 mm/mm, tensile stress of 330 KPa, and optimum self-healing efficiency (96.5% at room temperature for 10 h).
It is also a general method to inhibit the swelling ability of zwitterionic hydrogels and enhance the mechanical properties by using the comonomers with π–π conjugation and hydrophobic interaction. Guo et al. [102] prepared a tough hydrogel by copolymerizing zwitterionic SB3MA2 with glucose-responsive (3-methacrylamidophenyl) boronic acid (MPBA) in a water/DMSO mixed solution. When SB:MB = 4:1, the hydrogel exhibited 7.5 mm/mm tensile strain, 180 KPa tensile stress and 0.6 KPa elastic modulus, and the hydrogel was able to withstand 7 MPa compressive stress at 78% compressive strain (Figure 5b1–b3). The prepared zwitterionic aromatic skin showed both highly sensitive pressure and glucose detection. Liu et al. [33] polymerized into heterogeneous copolymer networks in lithium electrolytes using zwitterionic monomer 3-(1-vinyl-3-imidazolio)-propanesulfonate (VIPS) as hydrophilic component and 2-methoxyethyl acrylate(MEA) as a lipophilic component. The prepared gel electrolyte PVMGE exhibited non-swelling properties after soaking in the electrolyte for a long time and exhibited compressive stress of 5.8 MPa at 90% compressive strain and high ion conductivity of 1.78 mS/cm (Figure 5c1–c3).
In addition to non-covalent interactions, excellent self-healing properties can also be achieved by introducing dynamic covalent bonds in copolymerized zwitterionic hydrogels. He et al. [103] prepared copolymerized zwitterionic hydrogel with VIPS and acrylate acid (AA), which could form active coordination covalent bonds with multivalent ions. The as-prepared hydrogel could withstand 49% compressive strain and 21.6 MPa compressive stress in Fe3+ ion solution and 70% compressive strain and 12.6 MPa compressive stress in Ca2+ ion solution. Chen et al. [104] prepared two kinds of zwitterionic copolymers by copolymerizing zwitterionic 2-methacryloyloxyethyl phosphorylcholine (MPC) with 5-methacrylamido-1,2-benzoxaborole (MAABO) and dopamine methacrylamide (DMA), respectively. Then, the hydrogels assembled by two zwitterionic copolymers showed excellent self-healing properties by using the dynamic covalent bonds of borate esters.

4.3. Functional Cross-Linkers Reinforced Zwitterionic Hydrogels

In addition to designing interactions in polymer chains, the elevated dimensions of cross-linking sites that have long been regarded as “dots” are also beneficial to the mechanical properties of hydrogels [105]. In the mechanical enhancement of zwitterionic hydrogels, functional cross-linking sites can also be divided into 0 to 3 dimensions. The 0D cross-linking site is considered to be a rigid filler with additional energy storage capacity and the ability to promote the redistribution of flexible networks and mechanical dissipation. Polystyrene resin H103 was used as filler to prepare zwitterionic hydrogels CB2MA2 and SB3MA2, respectively [106]. The compressive modulus of hydrogel (0.044 MPa to 0.281 MPa for SB3MA2 hydrogel and 0.070 MPa to 0.265 MPa for CB2MA2 hydrogel) and compressive fracture strength (1.76 times for SB3MA2 hydrogel and 2.19 times for CB2MA2 hydrogel) were significantly increased by adding H103 rigid resin. Li et al. [22] also used MOF-based MIL101 (Cr) to prepare CB2MA2 hydrogels, increasing their compression modulus from 0.062 MPa to 1.070 MPa and compressive fracture stress from 0.10 MPa to 1.38 MPa. More importantly, based on the strong anti-fouling ability of zwitterionic hydrogels, the introduced 0D nanoparticles mentioned above can act as effective protein-bound toxin adsorbents without protein blocking adsorption sites even in 100% fetal bovine serum.
The 1D cross-linking sites are rod-shaped or tube-shaped. These fillers provide highly ordered structures that enhance the tensile properties of hydrogels and resist fracture extension. Yang et al. [107] introduced 60 mg/mL cellulose nanocrystals (CNC) into the 3D printing ink to prepare SB3MA2-co-AAm hydrogel(Figure 6a1–a3). Hydrogels showed a tensile stress of 0.61 MPa, a tensile strain of 11.3 mm/mm, and the Young’s modulus of 54 KPa, which were 20 times, 2 times, and 7.7 times the original hydrogels without CNC, respectively. Lai et al. [108] introduced cationic cellulose nanocrystals (CCNC) and Al3+ into copolymer hydrogels of SB3MA2 and AA. The stiffness of hydrogels was further enhanced by the addition of COO−-Al3+ dynamic coordination covalent bond and COO−-CCNC+ electrostatic interaction. Hydrogels with 7 wt% CCNC showed tensile strain 11.9 mm/mm, tensile stress 0.66 MPa, Young’s modulus 0.14 MPa, and toughness 4500 KJ/m3, which were 0.85 times, 1.94 times, 1.4 times and 1.5 times the 7 wt% of CNC filled hydrogels, and 0.50 times, 3.67 times, 3.5 times, and 1.8 times of non-nano-filled hydrogels, respectively. Due to the formation of a stronger physical network in water, the nanofiller concentration needed for reinforcing and 3D printing was reduced, leading to better transparency.
The 2D cross-linking sites are nanosheets with large specific surface areas, which exhibit higher mechanical energy storage and dissipation capacity. Pei et al. [109] prepared tissue adhesive polydopamine (PDA) loaded laponite composited zwitterionic SB3MA2 hydrogel, exhibiting tensile strain of 8.0 mm/mm and tensile stress of 0.09 MPa and being able to withstand compressive stress of 6 MPa at 90% compressive strain. The introduction of PDA-loaded laponite endowed zwitterionic hydrogel strong adhesion on organs such as the heart, liver and lungs, which leads to high strain sensitivity for monitoring and diagnostics. Wang et al. [110] introduced graphene oxide (GO) into SB3MA2 hydrogel, significantly increasing the compressive strength (Figure 6b1–b3). The compressive stress of GO reinforced zwitterionic hydrogel increased to 0.36 MPa, which was almost five times the original SB3MA2 hydrogel. Moreover, due to the synergetic interaction between the zwitterionic network and GO nanosheets, the friction coefficients (COF) decreased to 0.006 and showed better lubrication properties.
The 3D cross-linking site has a more fully utilized spatial structure, which can not only provide more elastic potential energy storage, but also be used as a mechanical energy dissipation unit. Fang et al. [111] used Pluronic F127DA, a self-assembled micelle of hydrophobic cores in water, as a 3D cross-linking site in the zwitterionic SB3MA2 network. The hydrogel exhibited 14.2 mm/mm tensile strain, 112 KPa tensile strength, and 1.41 MPa compressive stress at 90% compressive strain. The 3D Pluronic F127 micelle can also release the contained drug as a mechano-responsive delivery system (Figure 6c1–c3). Sun et al. [112] introduced the Pluronic F127DA 3D cross-linking site into the p(HEMA-co-SBMA) copolymer hydrogel. When HEMA:SBMA = 2:3, the hydrogel exhibited a tensile strain of 10.0 mm/mm, a tensile stress of 60 KPa, and a compressive stress of 37 MPa at 98% compressive strain. Li et al. [113] added waterborne polyurethane (PU) emulsion microspheres to the p(SB3MA2-co-AAm) hydrogel. The PU chains were stretched during stress application, providing additional mechanical energy dissipation and more entanglement and friction with the copolymer network.
Gels 08 00580 g006 550

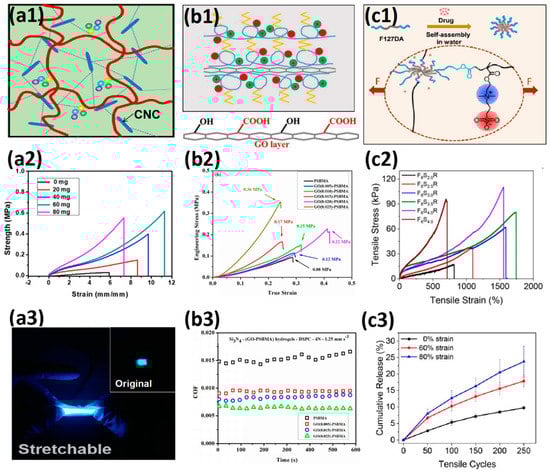

Figure 6. Mechanical strengthening of zwitterionic hydrogels prepared with the functional cross-linker: (a1–a3) zwitterionic hydrogel with 1D CNC nanotubes (a1) showed enhanced tensile strain and toughness of zwitterionic hydrogels (a2) and further acted as an electroluminescent display (a3). Reproduced with permission from [107]. Copyright 2019, American Chemical Society; (b1–b3) zwitterionic hydrogels with 2D graphene oxide nanosheets (b1) showed almost 5 times more stress than the original pSBMA hydrogel (b2). The introduction of graphene oxide nanosheets further decreased COF from 0.015 to 0.006 between Si3N4 ball and hydrogel using DSPC liposomes as lubricants (b3). Reproduced with permission from [110]. Copyright 2019, American Chemical Society; (c1–c3) zwitterionic hydrogels with 3D Pluronic F127DA micelles (c1) showed more than 1500% tensile strain and over 100 KPa tensile stress (c2). Mechano-responsive drug release was observed at strain-limited tensile cycles (c3). Reproduced with permission from [111]. Copyright 2020, American Chemical Society.
Figure 6. Mechanical strengthening of zwitterionic hydrogels prepared with the functional cross-linker: (a1–a3) zwitterionic hydrogel with 1D CNC nanotubes (a1) showed enhanced tensile strain and toughness of zwitterionic hydrogels (a2) and further acted as an electroluminescent display (a3). Reproduced with permission from [107]. Copyright 2019, American Chemical Society; (b1–b3) zwitterionic hydrogels with 2D graphene oxide nanosheets (b1) showed almost 5 times more stress than the original pSBMA hydrogel (b2). The introduction of graphene oxide nanosheets further decreased COF from 0.015 to 0.006 between Si3N4 ball and hydrogel using DSPC liposomes as lubricants (b3). Reproduced with permission from [110]. Copyright 2019, American Chemical Society; (c1–c3) zwitterionic hydrogels with 3D Pluronic F127DA micelles (c1) showed more than 1500% tensile strain and over 100 KPa tensile stress (c2). Mechano-responsive drug release was observed at strain-limited tensile cycles (c3). Reproduced with permission from [111]. Copyright 2020, American Chemical Society.
Gels 08 00580 g006

4.4. Other Reinforcement Method to Prepare Tough Zwitterionic Hydrogel

In addition to the above commonly used methods to enhance the mechanical properties of zwitterionic hydrogels, researchers have also designed more diversified reinforcement strategies. Liu et al. [114] introduced an electrospun skeleton with high toughness to prepare scaffold-reinforced hydrogels based on the high softness and dipole–dipole interaction of zwitterionic polymers. The tensile properties of SRgels were determined mainly by the electrospun skeleton. The ultra-flexibility of zwitterionic hydrogels not only avoids the damage caused by shear force, but also achieves dipole–dipole enhancement due to the pressure by electrospun fibers. The Young’s modulus of SRgel was shown as 2 MPa, similar to the Young’s modulus of artery indicating SRgel might be a potential artificial blood vessel candidate with reliable resistance to coagulation. Fang et al. [115] used the hydrogen bond–dipole interaction between tannic acid and zwitterionic units to enhance zwitterionic SB3MA2 hydrogel. The toughness of zwitterionic hydrogels increased significantly with the increase of tannic acid concentration. The prepared TA-reinforced zwitterionic hydrogel showed compressive strength at 18.4 MPa and resistance to the compressive cyclic test at 0.2 MPa for up to 3500 cycles. Combined with the antioxidant and antibacterial properties of TA, the prepared zwitterionic hydrogel could be a great candidate for diabetic foot ulcers. Jiang et al. [116] prepared microtubule self-assembled hydrogels with β-CD and TDPS, and showed more than 100 KPa elastic modulus. Each microtubule was composed of 2 TDPS and 3 CD molecules. Moreover, in order to avoid the strong hydration ability of zwitterionic ions in water, organogel [72,117,118] prepared by glycerine–water mixture solution and ionogel [119,120,121] prepared by ionic liquid have also received extensive attention. Zhao et al. [119] prepared p(SBMA-co-AAm) hydrogels in ionic liquid 1-ethyl-3-methylimidazolium dicyanamide ( [EMIM] [DCA]). Ionogels showed tensile stress 200 KPa and tensile strain almost 5.0 mm/mm with 2 mol% PEGDA 1000 cross-linker. As a strain sensor, the prepared ionogel exhibited outstanding sensitivity, low detection threshold, and high durability (1000 cycles at 1.0 mm/mm tensile strain).

5. Conclusions and Perspective

Zwitterionic polymers have been widely used in many fields. Zwitterionic hydrogels have great potential in biomedical applications because they are the only materials that can resist fibrous capsule formation after 1 year of implantation. In this work, we reviewed the works for overcoming the mechanical defects of zwitterionic hydrogels in order to realize their practical application. However, the tensile stress of even the toughest zwitterionic hydrogels is still much less than the compressive stress. This is probably due to the lack of forces that can overcome the hydration layer between the zwitterionic units to achieve dipole–dipole interaction during the tensile process. Although the addition of copolymer can improve the tensile properties of zwitterionic hydrogels to some extent, it can also cause the defect of intrinsic zwitterionic anti-fouling properties. As a material with the aim of application, the scheme of mechanical properties enhancement of zwitterionic hydrogels should rely more on the guidance of application scenarios, methods, and frequency. The complexity of the physiological environment also requires more research to ensure the structural stability and long-term effects on animals of various zwitterionic products, including pure zwitterionic hydrogels, multicomponent hydrogels, or hydrogels coating materials. In addition, clinical studies based on zwitterionic hydrogels are still needed. We also need to establish a complete evaluation system to evaluate the balance between anti-fouling and mechanical properties of zwitterionic hydrogels and their ultimate application value. We believe that more practical application-based zwitterionic hydrogels will eventually be introduced and used in various fields with the development of more applications of zwitterionic hydrogels.

Author Contributions

Writing—original draft preparation, W.L., X.W. and S.L.; writing—review and editing, W.L., X.W., S.L., J.Z., T.Y. and S.C.; funding acquisition, S.C. All authors have read and agreed to the published version of the manuscript.

Funding

National Natural Science Foundation of China (21975216, 21674092, and 21474085); Natural Science Foundation of Zhejiang Province (LZ20B040001); the National Key Research and Development Program of China (grant number 2017YFB0702502).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bai, T.; Li, J.Q.; Sinclair, A.; Imren, S.; Merriam, F.; Sun, F.; O’Kelly, M.B.; Nourigat, C.; Jain, P.; Delrow, J.J.; et al. Expansion of primitive human hematopoietic stem cells by culture in a zwitterionic hydrogel. Nat. Med. 2019, 25, 1566–1575. [Google Scholar] [CrossRef] [PubMed]
  2. Zhang, Z.F.; Dou, Q.; Wang, S.W.; Hu, D.B.; Yang, B.; Zhao, Z.P.; Liu, H.L.; Dai, Q. The development of an antifouling interpenetrating polymer network hydrogel film for salivary glucose monitoring. Nanoscale 2020, 12, 22787–22797. [Google Scholar] [CrossRef] [PubMed]
  3. Xiao, S.W.; He, X.M.; Zhao, Z.Q.; Huang, G.B.; Yan, Z.Z.; He, Z.C.; Zhao, Z.P.; Chen, F.; Yang, J.T. Strong anti-polyelectrolyte zwitterionic hydrogels with superior self-recovery, tunable surface friction, conductivity, and antifreezing properties. Eur. Polym. J. 2021, 148, 110350. [Google Scholar] [CrossRef]
  4. Maiti, C.; Imani, K.B.C.; Yoon, J. Recent Advances in Design Strategies for Tough and Stretchable Hydrogels. Chempluschem 2021, 86, 601–611. [Google Scholar] [CrossRef]
  5. Gong, J.P. Why are double network hydrogels so tough? Soft Matter 2010, 6. [Google Scholar] [CrossRef]
  6. Zhao, X. Designing toughness and strength for soft materials. Proc. Natl. Acad. Sci. USA 2017, 114, 8138–8140. [Google Scholar] [CrossRef]
  7. Zhang, Y.; Chen, Q.; Dai, Z.; Dai, Y.; Xia, F.; Zhang, X. Nanocomposite adhesive hydrogels: From design to application. J. Mater. Chem B 2021, 9, 585–593. [Google Scholar] [CrossRef]
  8. Nonoyama, T.; Gong, J.P. Tough Double Network Hydrogel and Its Biomedical Applications. Annu. Rev. Chem. Biomol. Eng. 2021, 12, 393–410. [Google Scholar] [CrossRef]
  9. Omar, J.; Ponsford, D.; Dreiss, C.A.; Lee, T.C.; Loh, X.J. Supramolecular Hydrogels: Design Strategies and Contemporary Biomedical Applications. Chem. Asian J. 2022, 17, e202200081. [Google Scholar] [CrossRef]
  10. Zhao, J.; Narita, T.; Creton, C. Dual Crosslink Hydrogels with Metal-Ligand Coordination Bonds: Tunable Dynamics and Mechanics Under Large Deformation. In Self-Healing and Self-Recovering Hydrogels; Advances in Polymer Science; Springer: Berlin/Heidelberg, Germany, 2020; pp. 1–20. [Google Scholar] [CrossRef]
  11. Dorishetty, P.; Dutta, N.K.; Choudhury, N.R. Bioprintable tough hydrogels for tissue engineering applications. Adv. Colloid Interface Sci 2020, 281, 102163. [Google Scholar] [CrossRef]
  12. Sakr, M.A.; Sakthivel, K.; Hossain, T.; Shin, S.R.; Siddiqua, S.; Kim, J.; Kim, K. Recent trends in gelatin methacryloyl nanocomposite hydrogels for tissue engineering. J. Biomed. Mater. Res. A 2022, 110, 708–724. [Google Scholar] [CrossRef] [PubMed]
  13. Liu, X.; Liu, J.; Lin, S.; Zhao, X. Hydrogel machines. Mater. Today 2020, 36, 102–124. [Google Scholar] [CrossRef]
  14. Yang, C.; Suo, Z. Hydrogel ionotronics. Nat. Rev. Mater. 2018, 3, 125–142. [Google Scholar] [CrossRef]
  15. King, D.R. Macroscale double networks: Highly dissipative soft composites. Polym. J. 2022. [Google Scholar] [CrossRef]
  16. Zhang, L.; Liu, M.; Zhang, Y.; Pei, R. Recent Progress of Highly Adhesive Hydrogels as Wound Dressings. Biomacromolecules 2020, 21, 3966–3983. [Google Scholar] [CrossRef]
  17. Liu, S.; Tang, J.; Ji, F.; Lin, W.; Chen, S. Recent Advances in Zwitterionic Hydrogels: Preparation, Property, and Biomedical Application. Gels 2022, 8, 46. [Google Scholar] [CrossRef]
  18. Zheng, L.; Sundaram, H.S.; Wei, Z.; Li, C.; Yuan, Z. Applications of zwitterionic polymers. React. Funct. Polym. 2017, 118, 51–61. [Google Scholar] [CrossRef]
  19. Blackman, L.D.; Gunatillake, P.A.; Cass, P.; Locock, K.E.S. An introduction to zwitterionic polymer behavior and applications in solution and at surfaces. Chem. Soc. Rev. 2019, 48, 757–770. [Google Scholar] [CrossRef]
  20. Lin, W.; Klein, J. Control of surface forces through hydrated boundary layers. Curr. Opin. Colloid Interface Sci. 2019, 44, 94–106. [Google Scholar] [CrossRef]
  21. Vales, T.P.; Jee, J.P.; Lee, W.Y.; Cho, S.; Lee, G.M.; Kim, H.J.; Kim, J.S. Development of Poly(2-Methacryloyloxyethyl Phosphorylcholine)-Functionalized Hydrogels for Reducing Protein and Bacterial Adsorption. Materials 2020, 13, 943. [Google Scholar] [CrossRef]
  22. Li, Q.S.; Guo, H.S.; Yang, J.; Zhao, W.Q.; Zhu, Y.N.; Sui, X.J.; Xu, T.; Zhang, J.M.; Zhang, L. MOF-Based Antibiofouling Hemoadsorbent for Highly Efficient Removal of Protein-Bound Bilirubin. Langmuir 2020, 36, 8753–8763. [Google Scholar] [CrossRef] [PubMed]
  23. Potaufeux, J.E.; Odent, J.; Notta-Cuvier, D.; Lauro, F.; Raquez, J.M. A comprehensive review of the structures and properties of ionic polymeric materials. Polym. Chem. 2020, 11, 5914–5936. [Google Scholar] [CrossRef]
  24. Li, C.X.; Liu, C.J.; Li, M.L.; Xu, X.; Li, S.Z.; Qi, W.; Su, R.X.; Yu, J. Structures and Antifouling Properties of Self-Assembled Zwitterionic Peptide Monolayers: Effects of Peptide Charge Distributions and Divalent Cations. Biomacromolecules 2020, 21, 2087–2095. [Google Scholar] [CrossRef] [PubMed]
  25. Wu, J.; Lin, W.; Wang, Z.; Chen, S.; Chang, Y. Investigation of the hydration of nonfouling material poly(sulfobetaine methacrylate) by low-field nuclear magnetic resonance. Langmuir 2012, 28, 7436–7441. [Google Scholar] [CrossRef]
  26. Zhang, D.; Ren, B.P.; Zhang, Y.X.; Liu, Y.L.; Chen, H.; Xiao, S.W.; Chang, Y.; Yang, J.T.; Zheng, J. Micro- and macroscopically structured zwitterionic polymers with ultralow fouling property. J. Colloid Interf. Sci. 2020, 578, 242–253. [Google Scholar] [CrossRef] [PubMed]
  27. Zhang, L.; Cao, Z.; Bai, T.; Carr, L.; Ella-Menye, J.R.; Irvin, C.; Ratner, B.D.; Jiang, S. Zwitterionic hydrogels implanted in mice resist the foreign-body reaction. Nat. Biotechnol. 2013, 31, 553–556. [Google Scholar] [CrossRef]
  28. Yang, J.B.; Xu, Z.; Wang, J.J.; Gai, L.G.; Ji, X.X.; Jiang, H.H.; Liu, L.B. Antifreezing Zwitterionic Hydrogel Electrolyte with High Conductivity of 12.6 mS cm(-1) at-40 degrees C through Hydrated Lithium Ion Hopping Migration. Adv. Funct Mater. 2021, 31, 2009438. [Google Scholar] [CrossRef]
  29. Mo, F.; Chen, Z.; Liang, G.; Wang, D.; Zhao, Y.; Li, H.; Dong, B.; Zhi, C. Zwitterionic Sulfobetaine Hydrogel Electrolyte Building Separated Positive/Negative Ion Migration Channels for Aqueous Zn-MnO2 Batteries with Superior Rate Capabilities. Adv. Energy Mater. 2020, 10. [Google Scholar] [CrossRef]
  30. Tang, J.; Xiang, Z.; Bernards, M.T.; Chen, S. Peritoneal adhesions: Occurrence, prevention and experimental models. Acta Biomater. 2020, 116, 84–104. [Google Scholar] [CrossRef]
  31. Shao, Q.; Jiang, S. Molecular understanding and design of zwitterionic materials. Adv. Mater. 2015, 27, 15–26. [Google Scholar] [CrossRef]
  32. Ji, D.; Kim, J. Recent Strategies for Strengthening and Stiffening Tough Hydrogels. Adv. NanoBiomed Res. 2021, 1, 2100026. [Google Scholar] [CrossRef]
  33. Liu, Y.; Hou, L.; Jiao, Y.; Wu, P. Decoupling of Mechanical Strength and Ionic Conductivity in Zwitterionic Elastomer Gel Electrolyte toward Safe Batteries. ACS Appl Mater. Interfaces 2021, 13, 13319–13327. [Google Scholar] [CrossRef] [PubMed]
  34. Bai, R.B.; Yang, J.W.; Suo, Z.G. Fatigue of hydrogels. Eur. J. Mech. A-Solid 2019, 74, 337–370. [Google Scholar] [CrossRef]
  35. Furukawa, H.; Horie, K.; Nozaki, R.; Okada, M. Swelling-induced modulation of static and dynamic fluctuations in polyacrylamide gels observed by scanning microscopic light scattering. Phys. Rev. E 2003, 68, 031406. [Google Scholar] [CrossRef]
  36. Guo, J.; Liu, M.; Zehnder, A.T.; Zhao, J.; Narita, T.; Creton, C.; Hui, C.-Y. Fracture mechanics of a self-healing hydrogel with covalent and physical crosslinks: A numerical study. J. Mech. Phys. Solids 2018, 120, 79–95. [Google Scholar] [CrossRef]
  37. Zhang, X.; Xiang, J.; Hong, Y.; Shen, L. Recent Advances in Design Strategies of Tough Hydrogels. Macromol. Rapid Commun. 2022, 43, e2200075. [Google Scholar] [CrossRef]
  38. Li, X.; Nakagawa, S.; Tsuji, Y.; Watanabe, N.; Shibayama, M. Polymer gel with a flexible and highly ordered three-dimensional network synthesized via bond percolation. Sci. Adv. 2019, 5, eaax8647. [Google Scholar] [CrossRef]
  39. Li, J.; Wang, K.; Wang, J.; Yuan, Y.; Wu, H. High-tough hydrogels formed via Schiff base reaction between PAMAM dendrimer and Tetra-PEG and their potential as dual-function delivery systems. Mater. Today Commun. 2022, 30, 103019. [Google Scholar] [CrossRef]
  40. Ikeda, T. Preparation of (2 × 4)-type tetra-PEG ion gels through Cu-free azide–alkyne cycloaddition. Polym. J. 2020, 52, 1129–1135. [Google Scholar] [CrossRef]
  41. Fujiyabu, T.; Yoshikawa, Y.; Chung, U.-i.; Sakai, T. Structure-property relationship of a model network containing solvent. Sci. Technol. Adv. Mater. 2019, 20, 608–621. [Google Scholar] [CrossRef]
  42. Liu, C.; Morimoto, N.; Jiang, L.; Kawahara, S.; Noritomi, T.; Yokoyama, H.; Mayumi, K.; Ito, K. Tough hydrogels with rapid self-reinforcement. Science 2021, 372, 1078–1081. [Google Scholar] [CrossRef] [PubMed]
  43. Feng, L.; Jia, S.-S.; Chen, Y.; Liu, Y. Highly Elastic Slide-Ring Hydrogel with Good Recovery as Stretchable Supercapacitor. Chem. A Eur. J. 2020, 26, 14080–14084. [Google Scholar] [CrossRef]
  44. Liu, C.; Yokoyama, H.; Mayumi, K.; Ito, K. Crack velocity dependent toughness of polyrotaxane networks: The sliding dynamics of rings on polymer under stretching. Mech. Mater. 2021, 156, 103784. [Google Scholar] [CrossRef]
  45. Wu, J.; Guo, F.; Li, K.; Zhang, L. Sliding Dynamics of Ring Chains on Two Asymmetric/Symmetric Chains in a Simple Slide-Ring Gel. Polymers 2022, 14, 79. [Google Scholar] [CrossRef] [PubMed]
  46. Mayumi, K.; Liu, C.; Yasuda, Y.; Ito, K. Softness, Elasticity, and Toughness of Polymer Networks with Slide-Ring Cross-Links. Gels 2021, 7, 91. [Google Scholar] [CrossRef] [PubMed]
  47. Liu, B.; Huang, W.; Yang, G.; An, Y.; Yin, Y.; Wang, N.; Jiang, B. Preparation of gelatin/poly (γ-glutamic acid) hydrogels with stimulated response by hot-pressing preassembly and radiation crosslinking. Mater. Sci. Eng. C 2020, 116, 111259. [Google Scholar] [CrossRef]
  48. Norisuye, T.; Masui, N.; Kida, Y.; Ikuta, D.; Kokufuta, E.; Ito, S.; Panyukov, S.; Shibayama, M. Small angle neutron scattering studies on structural inhomogeneities in polymer gels: Irradiation cross-linked gels vs chemically cross-linked gels. Polymer 2002, 43, 5289–5297. [Google Scholar] [CrossRef]
  49. Sedlacek, O.; Kucka, J.; Monnery, B.D.; Slouf, M.; Vetrik, M.; Hoogenboom, R.; Hruby, M. The effect of ionizing radiation on biocompatible polymers: From sterilization to radiolysis and hydrogel formation. Polym. Degrad. Stab. 2017, 137, 1–10. [Google Scholar] [CrossRef]
  50. Shen, W.; Chang, Y.; Liu, G.; Wang, H.; Cao, A.; An, Z. Biocompatible, Antifouling, and Thermosensitive Core−Shell Nanogels Synthesized by RAFT Aqueous Dispersion Polymerization. Macromolecules 2011, 44, 2524–2530. [Google Scholar] [CrossRef]
  51. Zhao, X. Multi-scale multi-mechanism design of tough hydrogels: Building dissipation into stretchy networks. Soft Matter 2014, 10, 672–687. [Google Scholar] [CrossRef]
  52. Tanaka, Y.; Kuwabara, R.; Na, Y.-H.; Kurokawa, T.; Gong, J.P.; Osada, Y. Determination of Fracture Energy of High Strength Double Network Hydrogels. J. Phys. Chem. B 2005, 109, 11559–11562. [Google Scholar] [CrossRef] [PubMed]
  53. Yan, X.; Chen, Q.; Zhu, L.; Chen, H.; Wei, D.; Chen, F.; Tang, Z.; Yang, J.; Zheng, J. High strength and self-healable gelatin/polyacrylamide double network hydrogels. J. Mater. Chem. B 2017, 5, 7683–7691. [Google Scholar] [CrossRef] [PubMed]
  54. Xin, H. Double-Network Tough Hydrogels: A Brief Review on Achievements and Challenges. Gels 2022, 8, 247. [Google Scholar] [CrossRef] [PubMed]
  55. Higa, K.; Kitamura, N.; Kurokawa, T.; Goto, K.; Wada, S.; Nonoyama, T.; Kanaya, F.; Sugahara, K.; Gong, J.P.; Yasuda, K. Fundamental biomaterial properties of tough glycosaminoglycan-containing double network hydrogels newly developed using the molecular stent method. Acta Biomater. 2016, 43, 38–49. [Google Scholar] [CrossRef]
  56. Zhao, Y.; Nakajima, T.; Yang, J.J.; Kurokawa, T.; Liu, J.; Lu, J.; Mizumoto, S.; Sugahara, K.; Kitamura, N.; Yasuda, K.; et al. Proteoglycans and Glycosaminoglycans Improve Toughness of Biocompatible Double Network Hydrogels. Adv. Mater. 2014, 26, 436–442. [Google Scholar] [CrossRef] [PubMed]
  57. Sun, J.Y.; Zhao, X.H.; Illeperuma, W.R.K.; Chaudhuri, O.; Oh, K.H.; Mooney, D.J.; Vlassak, J.J.; Suo, Z.G. Highly stretchable and tough hydrogels. Nature 2012, 489, 133–136. [Google Scholar] [CrossRef] [PubMed]
  58. Wang, X.-H.; Song, F.; Qian, D.; He, Y.-D.; Nie, W.-C.; Wang, X.-L.; Wang, Y.-Z. Strong and tough fully physically crosslinked double network hydrogels with tunable mechanics and high self-healing performance. Chem. Eng. J. 2018, 349, 588–594. [Google Scholar] [CrossRef]
  59. Haque, M.A.; Kurokawa, T.; Kamita, G.; Gong, J.P. Lamellar Bilayers as Reversible Sacrificial Bonds To Toughen Hydrogel: Hysteresis, Self-Recovery, Fatigue Resistance, and Crack Blunting. Macromolecules 2011, 44, 8916–8924. [Google Scholar] [CrossRef]
  60. Liu, Y.; He, W.; Zhang, Z.; Lee, B.P. Recent Developments in Tough Hydrogels for Biomedical Applications. Gels 2018, 4, 46. [Google Scholar] [CrossRef] [Green Version]
  61. Wang, W.; Zhang, Y.; Liu, W. Bioinspired fabrication of high strength hydrogels from non-covalent interactions. Prog. Polym. Sci. 2017, 71, 1–25. [Google Scholar] [CrossRef]
  62. Zhang, G.; Chen, Y.; Deng, Y.; Ngai, T.; Wang, C. Dynamic Supramolecular Hydrogels: Regulating Hydrogel Properties through Self-Complementary Quadruple Hydrogen Bonds and Thermo-Switch. ACS Macro Lett. 2017, 6, 641–646. [Google Scholar] [CrossRef] [PubMed]
  63. Li, L.; Yan, B.; Yang, J.; Huang, W.; Chen, L.; Zeng, H. Injectable Self-Healing Hydrogel with Antimicrobial and Antifouling Properties. ACS Appl. Mater. Interfaces 2017, 9, 9221–9225. [Google Scholar] [CrossRef] [PubMed]
  64. Wang, W.; Narain, R.; Zeng, H. Rational Design of Self-Healing Tough Hydrogels: A Mini Review. Front. Chem. 2018, 6, 497. [Google Scholar] [CrossRef]
  65. Zhang, J.; Wang, Y.; Wei, Q.; Wang, Y.; Lei, M.; Li, M.; Li, D.; Zhang, L.; Wu, Y. Self-Healing Mechanism and Conductivity of the Hydrogel Flexible Sensors: A Review. Gels 2021, 7, 216. [Google Scholar] [CrossRef] [PubMed]
  66. Fu, J. Strong and tough hydrogels crosslinked by multi-functional polymer colloids. J. Polym. Sci. Part. B Polym. Phys. 2018, 56, 1336–1350. [Google Scholar] [CrossRef]
  67. Hu, J.; Kurokawa, T.; Nakajima, T.; Sun, T.L.; Suekama, T.; Wu, Z.L.; Liang, S.M.; Gong, J.P. High Fracture Efficiency and Stress Concentration Phenomenon for Microgel-Reinforced Hydrogels Based on Double-Network Principle. Macromolecules 2012, 45, 9445–9451. [Google Scholar] [CrossRef]
  68. Zhao, J.; Jiao, K.; Yang, J.; He, C.; Wang, H. Mechanically strong and thermosensitive macromolecular microsphere composite poly(N-isopropylacrylamide) hydrogels. Polymer 2013, 54, 1596–1602. [Google Scholar] [CrossRef]
  69. Lee, J.; Manoharan, V.; Cheung, L.; Lee, S.; Cha, B.H.; Newman, P.; Farzad, R.; Mehrotra, S.; Zhang, K.; Khan, F.; et al. Nanoparticle-Based Hybrid Scaffolds for Deciphering the Role of Multimodal Cues in Cardiac Tissue Engineering. ACS Nano 2019, 13, 12525–12539. [Google Scholar] [CrossRef]
  70. Li, C.H.; Yang, H.; Suo, Z.G.; Tang, J.D. Fatigue-Resistant elastomers. J. Mech. Phys. Solids 2020, 134, 103751. [Google Scholar] [CrossRef]
  71. Diao, W.; Wu, L.; Ma, X.; Zhuang, Z.; Li, S.; Bu, X.; Fang, Y. Highly stretchable, ionic conductive and self-recoverable zwitterionic polyelectrolyte-based hydrogels by introducing multiple supramolecular sacrificial bonds in double network. J. Appl. Polym. Sci. 2019, 136, 47783. [Google Scholar] [CrossRef]
  72. Cao, L.; Zhao, Z.; Li, J.; Yi, Y.; Wei, Y. Gelatin-Reinforced Zwitterionic Organohydrogel with Tough, Self-Adhesive, Long-Term Moisturizing and Antifreezing Properties for Wearable Electronics. Biomacromolecules 2022, 23, 1278–1290. [Google Scholar] [CrossRef] [PubMed]
  73. Means, A.K.; Ehrhardt, D.A.; Whitney, L.V.; Grunlan, M.A. Thermoresponsive Double Network Hydrogels with Exceptional Compressive Mechanical Properties. Macromol. Rapid Commun. 2017, 38, 1700351. [Google Scholar] [CrossRef] [PubMed]
  74. Osaheni, A.O.; Mather, P.T.; Blum, M.M. Mechanics and tribology of a zwitterionic polymer blend: Impact of molecular weight. Mater. Sci. Eng. C Mater. Biol. Appl. 2020, 111, 110736. [Google Scholar] [CrossRef]
  75. Yin, H.; Akasaki, T.; Lin Sun, T.; Nakajima, T.; Kurokawa, T.; Nonoyama, T.; Taira, T.; Saruwatari, Y.; Ping Gong, J. Double network hydrogels from polyzwitterions: High mechanical strength and excellent anti-biofouling properties. J. Mater. Chem. B 2013, 1, 3685–3693. [Google Scholar] [CrossRef] [PubMed]
  76. Huang, K.T.; Ishihara, K.; Huang, C.J. Polyelectrolyte and Antipolyelectrolyte Effects for Dual Salt-Responsive Interpenetrating Network Hydrogels. Biomacromolecules 2019, 20, 3524–3534. [Google Scholar] [CrossRef]
  77. Zou, W.; Chen, Y.; Zhang, X.; Li, J.; Sun, L.; Gui, Z.; Du, B.; Chen, S. Cytocompatible chitosan based multi-network hydrogels with antimicrobial, cell anti-adhesive and mechanical properties. Carbohydr. Polym. 2018, 202, 246–257. [Google Scholar] [CrossRef]
  78. Zhang, J.; Chen, L.D.; Chen, L.Q.; Qian, S.X.; Mou, X.Z.; Feng, J. Highly antifouling, biocompatible and tough double network hydrogel based on carboxybetaine-type zwitterionic polymer and alginate. Carbohyd. Polym. 2021, 257, 117627. [Google Scholar] [CrossRef]
  79. Huang, K.T.; Hsieh, P.S.; Dai, L.G.; Huang, C.J. Complete zwitterionic double network hydrogels with great toughness and resistance against foreign body reaction and thrombus. J. Mater. Chem. B 2020, 8, 7390–7402. [Google Scholar] [CrossRef]
  80. Dong, D.Y.; Tsao, C.; Hung, H.C.; Yao, F.L.; Tang, C.J.; Niu, L.Q.; Ma, J.R.; MacArthur, J.; Sinclair, A.; Wu, K.; et al. High-strength and fibrous capsule-resistant zwitterionic elastomers. Sci. Adv. 2021, 7, eabc5442. [Google Scholar] [CrossRef]
  81. Li, X.; Tang, C.; Liu, D.; Yuan, Z.; Hung, H.C.; Luozhong, S.; Gu, W.; Wu, K.; Jiang, S. High-Strength and Nonfouling Zwitterionic Triple-Network Hydrogel in Saline Environments. Adv. Mater. 2021, 33, e2102479. [Google Scholar] [CrossRef]
  82. Yang, B.; Wang, C.; Zhang, Y.; Ye, L.; Qian, Y.; Shu, Y.; Wang, J.; Li, J.; Yao, F. A thermoresponsive poly(N-vinylcaprolactam-co-sulfobetaine methacrylate) zwitterionic hydrogel exhibiting switchable anti-biofouling and cytocompatibility. Polym. Chem. 2015, 6, 3431–3442. [Google Scholar] [CrossRef]
  83. Wu, A.; Gao, X.; Liang, L.; Sun, N.; Zheng, L. Interaction among Worm-like Micelles in Polyoxometalate-Based Supramolecular Hydrogel. Langmuir 2019, 35, 6137–6144. [Google Scholar] [CrossRef] [PubMed]
  84. Wu, D.Q.; Zhu, J.; Han, H.; Zhang, J.Z.; Wu, F.F.; Qin, X.H.; Yu, J.Y. Synthesis and characterization of arginine-NIPAAm hybrid hydrogel as wound dressing: In vitro and in vivo study. Acta Biomater. 2018, 65, 305–316. [Google Scholar] [CrossRef]
  85. Pan, W.; Wallin, T.J.; Odent, J.; Yip, M.C.; Mosadegh, B.; Shepherd, R.F.; Giannelis, E.P. Optical stereolithography of antifouling zwitterionic hydrogels. J. Mater. Chem. B 2019, 7, 2855–2864. [Google Scholar] [CrossRef] [PubMed]
  86. Bu, X. Ultratough and Reversibly Stretchable Zwitterionic poly(ionic liquid) Copolymer Hydrogel with High Ionic Conductivity for High-Performance Flexible and Cold-Resistant Supercapacitor. Int. J. Electrochem. Sci. 2020, 15, 2070–2088. [Google Scholar] [CrossRef]
  87. Wang, F.; Wang, S.; Nan, L.; Lu, J.; Zhu, Z.; Yang, J.; Zhang, D.; Liu, J.; Zhao, X.; Wu, D. Conductive Adhesive and Antibacterial Zwitterionic Hydrogel Dressing for Therapy of Full-Thickness Skin Wounds. Front. Bioeng Biotechnol. 2022, 10, 833887. [Google Scholar] [CrossRef]
  88. Guo, H.; Bai, M.; Zhu, Y.; Liu, X.; Tian, S.; Long, Y.; Ma, Y.; Wen, C.; Li, Q.; Yang, J.; et al. Pro-Healing Zwitterionic Skin Sensor Enables Multi-Indicator Distinction and Continuous Real-Time Monitoring. Adv. Funct Mater. 2021, 31, 2106406. [Google Scholar] [CrossRef]
  89. Chen, Y.; Wang, W.; Wu, D.; Nagao, M.; Hall, D.G.; Thundat, T.; Narain, R. Injectable Self-Healing Zwitterionic Hydrogels Based on Dynamic Benzoxaborole-Sugar Interactions with Tunable Mechanical Properties. Biomacromolecules 2018, 19, 596–605. [Google Scholar] [CrossRef]
  90. Liu, X.; Huang, P.; Wang, J.; Wang, X.; He, Y.; Song, P.; Wang, R. Rational Design of Polycationic Hydrogel with Excellent Combination Functions for Flexible Wearable Electronic Devices. Macromol. Mater. Eng. 2021, 307, 2100593. [Google Scholar] [CrossRef]
  91. Bai, T.; Sun, F.; Zhang, L.; Sinclair, A.; Liu, S.J.; Ella-Menye, J.R.; Zheng, Y.; Jiang, S.Y. Restraint of the Differentiation of Mesenchymal Stem Cells by a Nonfouling Zwitterionic Hydrogel. Angew Chem. Int. Ed. 2014, 53, 12729–12734. [Google Scholar] [CrossRef]
  92. He, Y.; Tsao, H.K.; Jiang, S. Improved mechanical properties of zwitterionic hydrogels with hydroxyl groups. J. Phys. Chem. B 2012, 116, 5766–5770. [Google Scholar] [CrossRef] [PubMed]
  93. Cao, B.; Tang, Q.; Li, L.; Humble, J.; Wu, H.; Liu, L.; Cheng, G. Switchable antimicrobial and antifouling hydrogels with enhanced mechanical properties. Adv. Healthc Mater. 2013, 2, 1096–1102. [Google Scholar] [CrossRef] [PubMed]
  94. Liu, Q.S.; Chiu, A.; Wang, L.H.; An, D.; Li, W.C.; Chen, E.Y.; Zhang, Y.; Pardo, Y.; McDonough, S.P.; Liu, L.Y.; et al. Developing mechanically robust, triazole-zwitterionic hydrogels to mitigate foreign body response (FBR) for islet encapsulation. Biomaterials 2020, 230, 119640. [Google Scholar] [CrossRef]
  95. Zheng, S.Y.; Mao, S.; Yuan, J.; Wang, S.; He, X.; Zhang, X.; Du, C.; Zhang, D.; Wu, Z.L.; Yang, J. Molecularly Engineered Zwitterionic Hydrogels with High Toughness and Self-Healing Capacity for Soft Electronics Applications. Chem. Mater. 2021, 33, 8418–8429. [Google Scholar] [CrossRef]
  96. Xue, W.; Huglin, M.B.; Liao, B. Network and thermodynamic properties of hydrogels of poly [1-(3-sulfopropyl)-2-vinyl-pyridinium-betaine]. Eur. Polym. J. 2007, 43, 4355–4370. [Google Scholar] [CrossRef]
  97. Jain, P.; Hung, H.C.; Lin, X.; Ma, J.; Zhang, P.; Sun, F.; Wu, K.; Jiang, S. Poly(ectoine) Hydrogels Resist Nonspecific Protein Adsorption. Langmuir 2017, 33, 11264–11269. [Google Scholar] [CrossRef]
  98. Dong, P.; Shu, X.; Peng, R.; Lu, S.; Xie, X.; Shi, Q. Macroporous zwitterionic composite cryogel based on chitosan oligosaccharide for antifungal application. Mater. Sci. Eng. C Mater. Biol. Appl. 2021, 128, 112327. [Google Scholar] [CrossRef]
  99. Huangfu, Y.; Li, S.; Deng, L.; Zhang, J.; Huang, P.; Feng, Z.; Kong, D.; Wang, W.; Dong, A. Skin-Adaptable, Long-Lasting Moisture, and Temperature-Tolerant Hydrogel Dressings for Accelerating Burn Wound Healing without Secondary Damage. ACS Appl. Mater. Interfaces 2021, 13, 59695–59707. [Google Scholar] [CrossRef]
  100. Zhang, D.; Tang, Y.J.; Zhang, Y.X.; Yang, F.Y.; Liu, Y.L.; Wang, X.Y.; Yang, J.T.; Gong, X.; Zheng, J. Highly stretchable, self-adhesive, biocompatible, conductive hydrogels as fully polymeric strain sensors. J. Mater. Chem. A 2020, 8, 20474–20485. [Google Scholar] [CrossRef]
  101. Yang, J.B.; Du, Y.X.; Li, X.L.; Qiao, C.D.; Jiang, H.H.; Zheng, J.Y.; Lin, C.G.; Liu, L.B. Fatigue-Resistant, Notch-Insensitive Zwitterionic Polymer Hydrogels with High Self-Healing Ability. Chempluschem 2020, 85, 2158–2165. [Google Scholar] [CrossRef]
  102. Guo, H.; Bai, M.; Wen, C.; Liu, M.; Tian, S.; Xu, S.; Liu, X.; Ma, Y.; Chen, P.; Li, Q.; et al. A Zwitterionic-Aromatic Motif-Based ionic skin for highly biocompatible and Glucose-Responsive sensor. J. Colloid Interface Sci. 2021, 600, 561–571. [Google Scholar] [CrossRef] [PubMed]
  103. He, X.; Qiang, S.; Liu, Z.; Wang, M.; Yang, W. Preparation of a novel high-strength polyzwitterionic liquid hydrogel and application in catalysis. RSC Adv. 2015, 5, 101055–101062. [Google Scholar] [CrossRef]
  104. Chen, Y.; Diaz-Dussan, D.; Wu, D.; Wang, W.; Peng, Y.-Y.; Asha, A.B.; Hall, D.G.; Ishihara, K.; Narain, R. Bioinspired Self-Healing Hydrogel Based on Benzoxaborole-Catechol Dynamic Covalent Chemistry for 3D Cell Encapsulation. ACS Macro Lett. 2018, 7, 904–908. [Google Scholar] [CrossRef] [PubMed]
  105. Liu, S.; Xu, L.; Yuan, Z.; Huang, M.; Yang, T.; Chen, S. 3D Interlayer Slidable Multilayer Nano-Graphene Oxide Acrylate Crosslinked Tough Hydrogel. Langmuir 2022, 38, 8200–8210. [Google Scholar] [CrossRef]
  106. Li, Q.; Yang, J.; Cai, N.; Zhang, J.; Xu, T.; Zhao, W.; Guo, H.; Zhu, Y.; Zhang, L. Hemocompatible hemoadsorbent for effective removal of protein-bound toxin in serum. J. Colloid Interface Sci. 2019, 555, 145–156. [Google Scholar] [CrossRef]
  107. Yang, B.; Yuan, W. Highly Stretchable, Adhesive, and Mechanical Zwitterionic Nanocomposite Hydrogel Biomimetic Skin. ACS Appl Mater. Interfaces 2019, 11, 40620–40628. [Google Scholar] [CrossRef]
  108. Lai, P.C.; Yu, S.S. Cationic Cellulose Nanocrystals-Based Nanocomposite Hydrogels: Achieving 3D Printable Capacitive Sensors with High Transparency and Mechanical Strength. Polymers 2021, 13, 688. [Google Scholar] [CrossRef]
  109. Pei, X.; Zhang, H.; Zhou, Y.; Zhou, L.; Fu, J. Stretchable, self-healing and tissue-adhesive zwitterionic hydrogels as strain sensors for wireless monitoring of organ motions. Mater. Horiz 2020, 7, 1872–1882. [Google Scholar] [CrossRef]
  110. Wang, Z.; Li, J.; Jiang, L.; Xiao, S.; Liu, Y.; Luo, J. Zwitterionic Hydrogel Incorporated Graphene Oxide Nanosheets with Improved Strength and Lubricity. Langmuir 2019, 35, 11452–11462. [Google Scholar] [CrossRef]
  111. Fang, K.; Wang, R.; Zhang, H.; Zhou, L.J.; Xu, T.; Xiao, Y.; Zhou, Y.; Gao, G.R.; Chen, J.; Liu, D.L.; et al. Mechano-Responsive, Tough, and Antibacterial Zwitterionic Hydrogels with Controllable Drug Release for Wound Healing Applications. ACS Appl. Mater. Inter. 2020, 12, 52307–52318. [Google Scholar] [CrossRef]
  112. Sun, Y.N.; Lu, S.S.; Li, Q.S.; Ren, Y.W.; Ding, Y.Q.; Wu, H.L.; He, X.H.; Shang, Y.D. High strength zwitterionic nano-micelle hydrogels with superior self-healing, adhesive and ion conductive properties. Eur. Polym. J. 2020, 133, 109761. [Google Scholar] [CrossRef]
  113. Li, X.; Zhang, E.; Shi, J.; Xiong, X.; Lin, J.; Zhang, Q.; Cui, X.; Tan, L.; Wu, K. Waterborne Polyurethane Enhanced, Adhesive, and Ionic Conductive Hydrogel for Multifunctional Sensors. Macromol. Rapid Commun. 2021, 42, e2100457. [Google Scholar] [CrossRef] [PubMed]
  114. Liu, S.H.; Ma, J.; Xu, L.B.; Lin, W.F.; Xue, W.L.; Huang, M.; Chen, S.F. An electrospun polyurethane scaffold-reinforced zwitterionic hydrogel as a biocompatible device. J. Mater. Chem. B 2020, 8, 2443–2453. [Google Scholar] [CrossRef] [PubMed]
  115. Fang, K.; Gu, Q.; Zeng, M.; Huang, Z.; Qiu, H.; Miao, J.; Fang, Y.; Zhao, Y.; Xiao, Y.; Xu, T.; et al. Tannic acid-reinforced zwitterionic hydrogels with multi-functionalities for diabetic wound treatment. J. Mater. Chem. B 2022, 10, 4142–4152. [Google Scholar] [CrossRef] [PubMed]
  116. Jiang, L.; Yan, Y.; Huang, J. Zwitterionic surfactant/cyclodextrin hydrogel: Microtubes and multiple responses. Soft Matter 2011, 7, 10417–10423. [Google Scholar] [CrossRef]
  117. Peng, W.; Han, L.; Gao, Y.; Gong, Z.; Lu, T.; Xu, X.; Xu, M.; Yamauchi, Y.; Pan, L. Flexible organohydrogel ionic skin with Ultra-Low temperature freezing resistance and Ultra-Durable moisture retention. J. Colloid Interface Sci. 2022, 608, 396–404. [Google Scholar] [CrossRef]
  118. Xiao, S.W.; He, X.M.; Qian, J.; Wu, X.H.; Huang, G.B.; Jiang, H.J.; He, Z.C.; Yang, J.T. Natural Lipid Inspired Hydrogel-Organogel Bilayer Actuator with a Tough Interface and Multiresponsive, Rapid, and Reversible Behaviors. Ind. Eng. Chem. Res. 2020, 59, 7646–7658. [Google Scholar] [CrossRef]
  119. Zhao, L.; Wang, B.; Mao, Z.; Sui, X.; Feng, X. Nonvolatile, stretchable and adhesive ionogel fiber sensor designed for extreme environments. Chem. Eng. J. 2022, 433, 133500. [Google Scholar] [CrossRef]
  120. Wang, S.; Zhang, D.; He, X.; Yuan, J.; Que, W.; Yang, Y.; Protsak, I.; Huang, X.; Zhang, C.; Lu, T.; et al. Polyzwitterionic double-network ionogel electrolytes for supercapacitors with cryogenic-effective stability. Chem. Eng. J. 2022, 438, 135607. [Google Scholar] [CrossRef]
  121. Hao, S.; Li, T.; Yang, X.; Song, H. Ultrastretchable, Adhesive, Fast Self-Healable, and Three-Dimensional Printable Photoluminescent Ionic Skin Based on Hybrid Network Ionogels. ACS Appl. Mater. Interfaces 2022, 14, 2029–2037. [Google Scholar] [CrossRef]
Gels 08 00580 g002 550

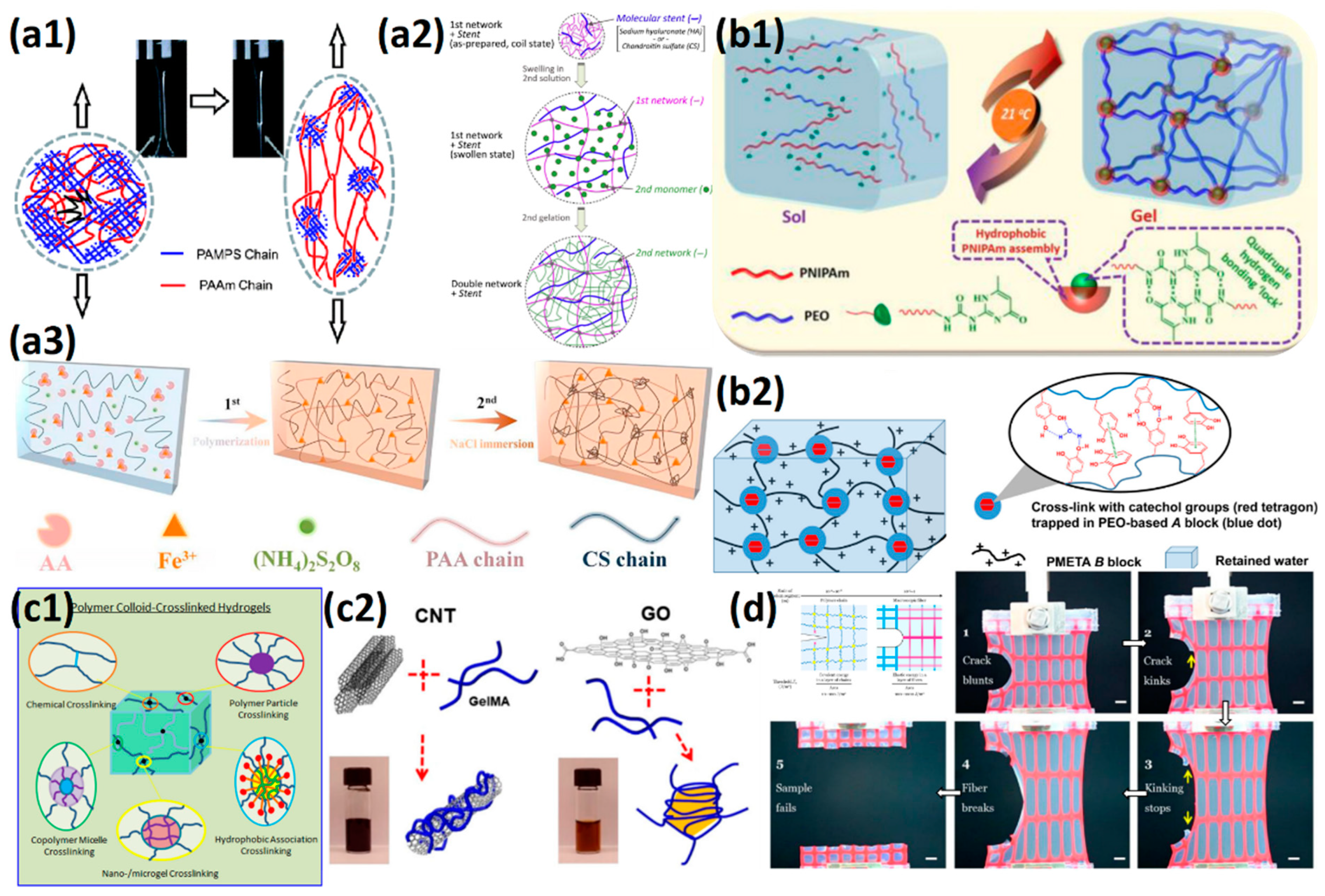

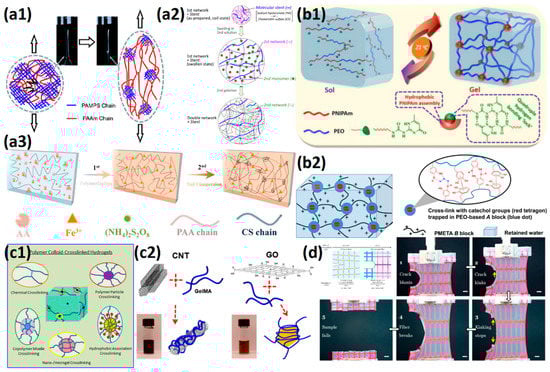

Figure 2. Methods to strengthen hydrogels based on enhancing mechanical energy dissipation: (a1–a3) double network hydrogels with rigid chemical cross-linked polyelectrolyte 1st network and soft 2nd network (a1), hydrophilic molecular stent filled both neutral 1st and 2nd networks (a2) and non-covalent cross-linked 1st and 2nd networks (a3). Reproduced with permission from [5] (Copyright 2010, Royal Society of Chemistry), [55] (Copyright 2016 Acta Materialia Inc. Published by Elsevier Ltd. All rights reserved) and [58] (Copyright 2018 Elsevier B.V. All rights reserved), respectively; (b1,b2) dual-cross-linked hydrogel with hydrogen bond (b1) and π–π stacking (b2). Reproduced with permission from [62] (Copyright 2017, American Chemical Society) and [63] (Copyright 2017, American Chemical Society); (c1,c2) functional cross-linking sites cross-linked hydrogel with polymer units (c1) and nanofillers (c2). Reproduced with permission from [66] (Copyright 2018 Wiley Periodicals, Inc.) and [69] (Copyright 2019, American Chemical Society); (d) scaffold-reinforced elastomer with macroscopic fibers. Reproduced with permission from [70]. Copyright 2019 Elsevier Ltd. All rights reserved.
Figure 2. Methods to strengthen hydrogels based on enhancing mechanical energy dissipation: (a1–a3) double network hydrogels with rigid chemical cross-linked polyelectrolyte 1st network and soft 2nd network (a1), hydrophilic molecular stent filled both neutral 1st and 2nd networks (a2) and non-covalent cross-linked 1st and 2nd networks (a3). Reproduced with permission from [5] (Copyright 2010, Royal Society of Chemistry), [55] (Copyright 2016 Acta Materialia Inc. Published by Elsevier Ltd. All rights reserved) and [58] (Copyright 2018 Elsevier B.V. All rights reserved), respectively; (b1,b2) dual-cross-linked hydrogel with hydrogen bond (b1) and π–π stacking (b2). Reproduced with permission from [62] (Copyright 2017, American Chemical Society) and [63] (Copyright 2017, American Chemical Society); (c1,c2) functional cross-linking sites cross-linked hydrogel with polymer units (c1) and nanofillers (c2). Reproduced with permission from [66] (Copyright 2018 Wiley Periodicals, Inc.) and [69] (Copyright 2019, American Chemical Society); (d) scaffold-reinforced elastomer with macroscopic fibers. Reproduced with permission from [70]. Copyright 2019 Elsevier Ltd. All rights reserved.
Gels 08 00580 g002
Gels 08 00580 g003 550

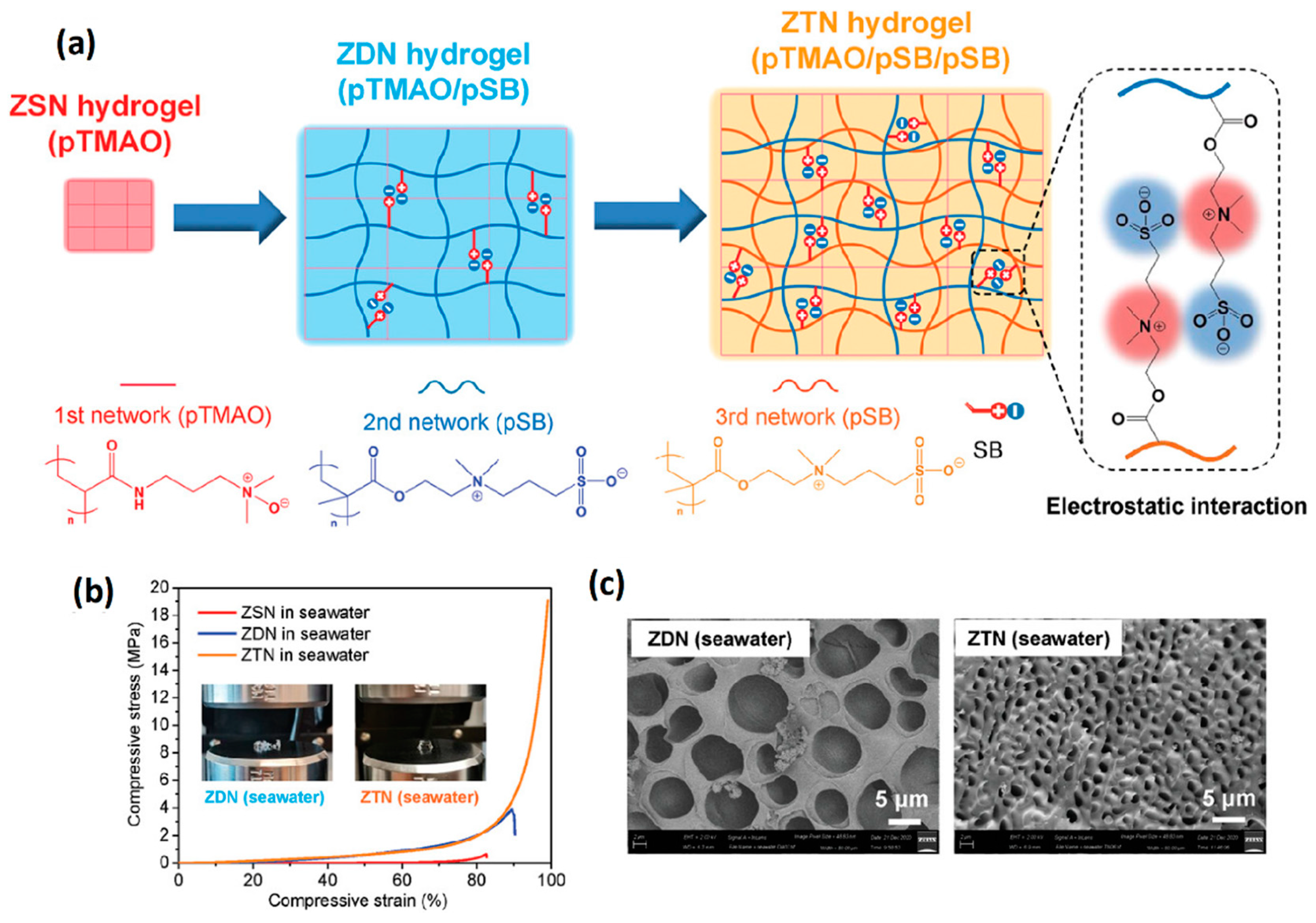

Figure 3. Mechanical strengthening pure zwitterionic hydrogels prepared by multiple networks: (a) schematic illustration of ZTN hydrogel with 1st pTMAO network and double pSBMA networks; (b) uniaxial compression test of pure zwitterionic hydrogels swelling in seawater. The introduction of the 3rd network further increased both compressive stress and toughness; (c) SEM images of multiple network pure zwitterionic hydrogels swelling in seawater. The introduction of the 3rd network further enhances dipole–dipole interaction between zwitterionic units leading to a more compact structure. Reproduced with permission from [81]. Copyright 2021 Wiley-VCH GmbH.
Figure 3. Mechanical strengthening pure zwitterionic hydrogels prepared by multiple networks: (a) schematic illustration of ZTN hydrogel with 1st pTMAO network and double pSBMA networks; (b) uniaxial compression test of pure zwitterionic hydrogels swelling in seawater. The introduction of the 3rd network further increased both compressive stress and toughness; (c) SEM images of multiple network pure zwitterionic hydrogels swelling in seawater. The introduction of the 3rd network further enhances dipole–dipole interaction between zwitterionic units leading to a more compact structure. Reproduced with permission from [81]. Copyright 2021 Wiley-VCH GmbH.
Gels 08 00580 g003
Gels 08 00580 g005 550

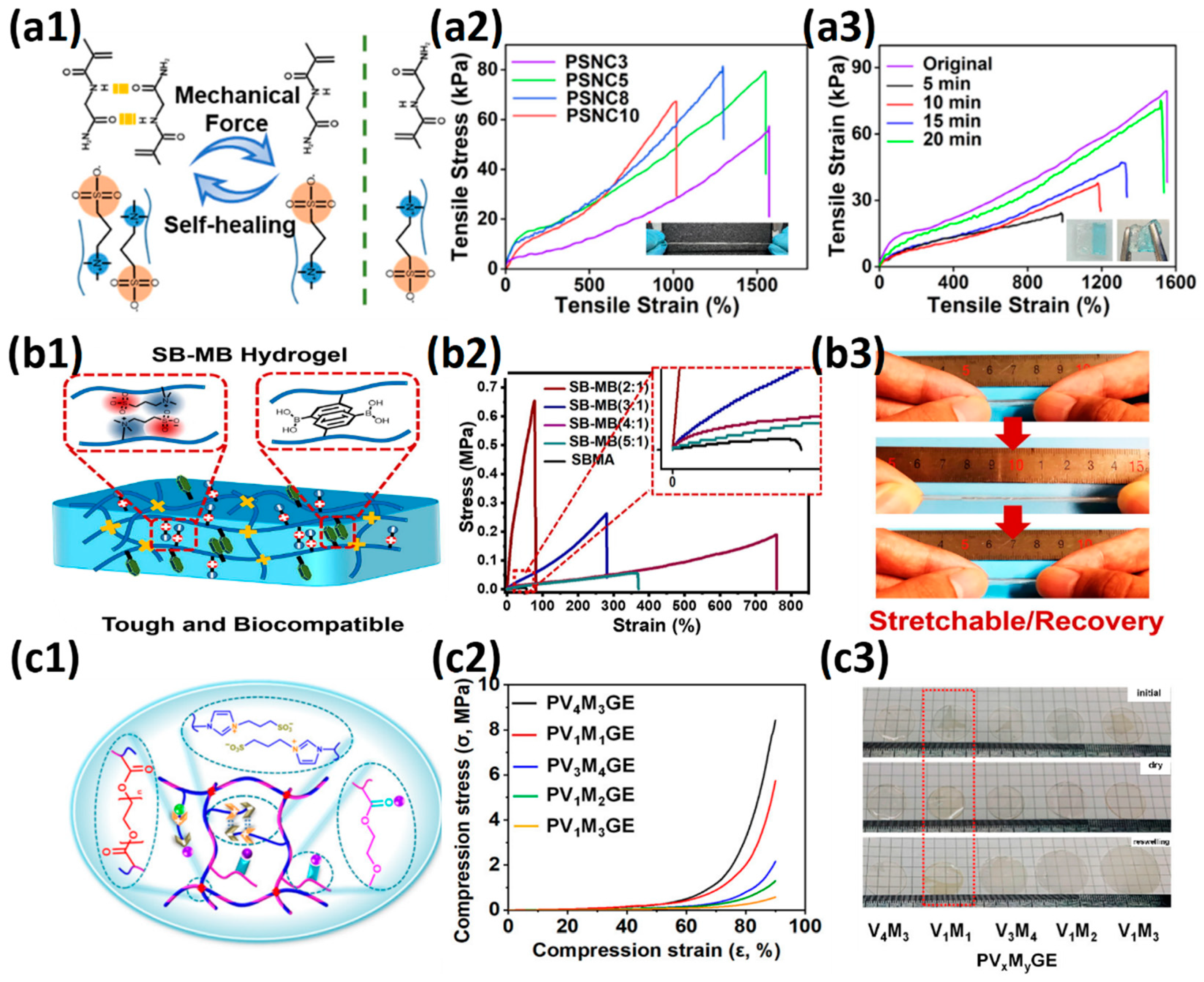

Figure 5. Mechanical strengthening of zwitterionic hydrogels prepared by copolymerization: (a1–a3) zwitterionic hydrogel was prepared with NAGA as a copolymerization component. The dipole–dipole interaction between zwitterionic units and the hydrogen bond interaction between NAGA units synergistically promote the mechanical properties and self-healing ability of hydrogels (a1), leading to stretchable, tough (a2) and rapid self-healing (a3). Reproduced with permission from [99]. Copyright 2021, American Chemical Society; (b1–b3) zwitterionic hydrogel prepared with MPBA as a copolymerization component. The aromatic ring of phenylboronic acid provided additional π–π stacking (b1). The introduction of the MPBA component improved both the toughness and modulus of zwitterionic hydrogels (b2) and also enabled the hydrogels to exhibit good recovery ability (b3). Reproduced with permission from [102]. Copyright 2021 Elsevier Inc. All rights reserved; (c1–c3) zwitterionic hydrogel with oleophilic elastomer pMEA segments (c1). When the weight ratio of zwitterionic VIPS/oleophilic MEA was 1/1, the prepared PV1M1GE showed 6 MPa at 90% compressive strain (c2) and non-swelling in electrolytes (c3). Reproduced with permission from [33]. Copyright 2021, American Chemical Society.
Figure 5. Mechanical strengthening of zwitterionic hydrogels prepared by copolymerization: (a1–a3) zwitterionic hydrogel was prepared with NAGA as a copolymerization component. The dipole–dipole interaction between zwitterionic units and the hydrogen bond interaction between NAGA units synergistically promote the mechanical properties and self-healing ability of hydrogels (a1), leading to stretchable, tough (a2) and rapid self-healing (a3). Reproduced with permission from [99]. Copyright 2021, American Chemical Society; (b1–b3) zwitterionic hydrogel prepared with MPBA as a copolymerization component. The aromatic ring of phenylboronic acid provided additional π–π stacking (b1). The introduction of the MPBA component improved both the toughness and modulus of zwitterionic hydrogels (b2) and also enabled the hydrogels to exhibit good recovery ability (b3). Reproduced with permission from [102]. Copyright 2021 Elsevier Inc. All rights reserved; (c1–c3) zwitterionic hydrogel with oleophilic elastomer pMEA segments (c1). When the weight ratio of zwitterionic VIPS/oleophilic MEA was 1/1, the prepared PV1M1GE showed 6 MPa at 90% compressive strain (c2) and non-swelling in electrolytes (c3). Reproduced with permission from [33]. Copyright 2021, American Chemical Society.
Gels 08 00580 g005
Table
Table 1. Zwitterionic polymers are commonly used as mechanical energy dissipation units through dipole interaction.
Table 1. Zwitterionic polymers are commonly used as mechanical energy dissipation units through dipole interaction.
-R-R0Abbreviation
Gels 08 00580 i001Gels 08 00580 i002Gels 08 00580 i003SB3MA2
Gels 08 00580 i004Gels 08 00580 i005SB3MAA3
SB3AA3
Gels 08 00580 i006Gels 08 00580 i007SB4AA3
Gels 08 00580 i008Gels 08 00580 i009CB1MA2
Gels 08 00580 i010Gels 08 00580 i011CB2MA2
Gels 08 00580 i012Gels 08 00580 i013CB3MA2
Gels 08 00580 i014Gels 08 00580 i015CB2MAA3
CB2AA3
Gels 08 00580 i016Gels 08 00580 i017CB1AA3
Gels 08 00580 i018Gels 08 00580 i019MPC
Gels 08 00580 i020Gels 08 00580 i021LysAA
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lin, W.; Wei, X.; Liu, S.; Zhang, J.; Yang, T.; Chen, S. Recent Advances in Mechanical Reinforcement of Zwitterionic Hydrogels. Gels 2022, 8, 580. https://doi.org/10.3390/gels8090580

AMA Style

Lin W, Wei X, Liu S, Zhang J, Yang T, Chen S. Recent Advances in Mechanical Reinforcement of Zwitterionic Hydrogels. Gels. 2022; 8(9):580. https://doi.org/10.3390/gels8090580

Chicago/Turabian Style

Lin, Weifeng, Xinyue Wei, Sihang Liu, Juan Zhang, Tian Yang, and Shengfu Chen. 2022. "Recent Advances in Mechanical Reinforcement of Zwitterionic Hydrogels" Gels 8, no. 9: 580. https://doi.org/10.3390/gels8090580

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
