Study on the Structure, Thermal Properties and Antibacterial Properties of Phosphorus-Modified PVA/TiO2 Composite Films

by
Alina-Mirela Ipate
1,*,
Diana Serbezeanu
1,
Ioana-Antonia Iftimie
1,
Gabriela Lisa
2,
Cristina-Mihaela Rîmbu
3 and
Tăchiță Vlad-Bubulac
1,*
1
“Petru Poni” Institute of Macromolecular Chemistry, Aleea Gr. Ghica Voda 41A, 700487 Iasi, Romania
2
Department of Chemical Engineering, Faculty of Chemical Engineering and Environmental Protection, Gheorghe Asachi Technical University of Iasi, Bd. Mangeron 73, 700050 Iasi, Romania
3
Department of Public Health, Faculty of Veterinary Medicine “Ion Ionescu de la Brad”, University of Agricultural Sciences and Veterinary Medicine, 8, Mihail Sadoveanu Alley, 707027 Iasi, Romania
*
Authors to whom correspondence should be addressed.
Gels 2025, 11(12), 1020; https://doi.org/10.3390/gels11121020
Submission received: 30 November 2025 / Revised: 16 December 2025 / Accepted: 17 December 2025 / Published: 18 December 2025
(This article belongs to the Special Issue Advances in Gel Films (2nd Edition))
Browse Figures
Versions Notes

Abstract

Phosphorus-modified poly(vinyl alcohol) (PVA) has recently gained increasing attention as a functional polymeric matrix suitable for gel-based systems, owing to its biocompatibility, film-forming ability, and capacity to develop semi-interpenetrating networks. In this work, PVA was chemically modified through the nucleophilic substitution of its hydroxyl groups with the chloride groups of phenyl dichlorophosphate, following a literature-reported method carried out in N,N-dimethylformamide (DMF) as reaction medium, resulting in phosphorus-containing PVA networks (PVA-OP3). Hybrid gel-like films were then prepared by incorporating titanium dioxide nanoparticles (TiO2 NPs), known for their antimicrobial activity, low toxicity, and high stability. The resulting composites were structurally, morphologically, and thermally characterized using FTIR, SEM, and thermogravimetric analysis. The incorporation of TiO2 NPs significantly improved the thermal stability, with T5% increasing from 240 °C for neat PVA-OP3 to 288 °C for the optimal composite, increased the char residue from 4.5% for the neat polymer to 30.1% for PVA-OP3/TiO2-4, and enhanced antimicrobial activity against both Gram-positive and Gram-negative bacteria. These findings demonstrate that PVA-OP3/TiO2 hybrid films possess promising potential as advanced biomaterials for biomedical, protective, and environmental applications.

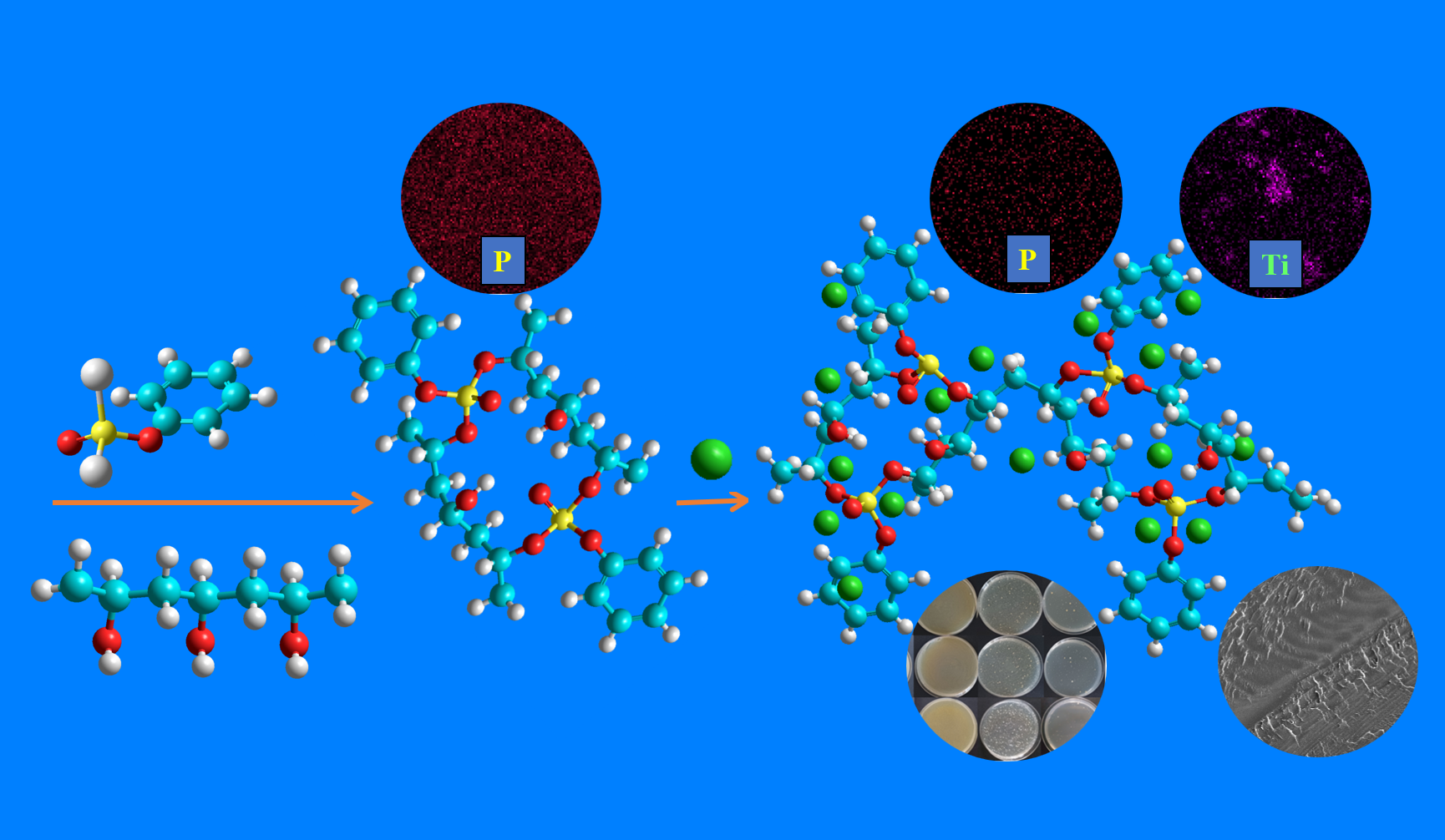

Graphical Abstract

1. Introduction

The development of advanced biomaterials has received increasing attention in recent decades, driven by the demand for multifunctional systems that combine structural integrity with enhanced biological performance [1,2,3,4]. Among the wide range of polymeric materials, polyvinyl alcohol (PVA) has gained considerable attention due to its attractive combination of physicochemical and biological properties, which originate from its highly hydrophilic backbone rich in hydroxyl groups capable of extensive hydrogen bonding. This molecular architecture provides PVA with excellent film-forming ability, mechanical flexibility, and tunable crystallinity, enabling precise control over its structural organization and performance in functional materials. In addition, PVA demonstrates notable biocompatibility, low cytotoxicity, and biodegradability under physiological or enzyme-mediated conditions, which make it suitable for a broad spectrum of biomedical applications, including drug delivery, tissue engineering scaffolds, wound dressings, and bioinks for 3D printing. From a processing standpoint, PVA is readily shaped into hydrogels, nanofibers, thin films, and composite structures due to its solubility in water and compatibility with various crosslinking strategies – ranging from physical crosslinking through freeze–thaw cycles to chemical crosslinking using aldehydes, borates, phosphonic dichloride, or photoactive agents. These characteristics enable control over swelling behavior, mechanical robustness, degradation rate, and permeability, allowing application-specific customization [5,6,7,8,9,10,11].
Furthermore, the abundance of hydroxyl groups offers numerous sites for chemical modification and functionalization. Incorporation of phosphorus-containing functionalities enhances PVA’s chemical reactivity and imparts additional features such as improved thermal stability, flame retardancy, ionic interactions, and increased affinity toward metallic or ceramic nanoparticles [12,13,14]. Such modifications expand the applicability of PVA into fields requiring enhanced performance, including regenerative medicine, advanced coatings, and hybrid nanocomposites. Overall, the intrinsic versatility, biocompatibility, and chemical tunability of PVA position it as a valuable platform for designing next-generation multifunctional materials [12].
Titanium dioxide nanoparticles (TiO2 NPs) are another class of materials widely investigated for biomedical and environmental applications [15,16,17,18]. Their unique features, including low cytotoxicity, chemical stability, photocatalytic activity, and broad-spectrum antimicrobial effects, render them highly versatile [17,19,20]. The incorporation of TiO2 into polymeric matrices not only improves the mechanical and thermal behavior of the composites but also imparts functional properties that are valuable for protective coatings, wound dressings, and antimicrobial films [15,20,21,22,23,24,25,26,27]. A large number of studies have reported the incorporation of TiO2 into polymeric matrices, particularly into PVA, in order to enhance the overall performance of the resulting composites [21,22,24,26,28,29]. The interaction between the polymer chains and nanoparticles facilitates a uniform distribution of the inorganic phase and often leads to intermolecular bonding (hydrogen or electrostatic interactions), thereby reinforcing the structural integrity of the composite [30,31,32].
According to the literature, the combination of PVA with TiO2 has shown several advantages, including improved thermal and mechanical stability, reduced permeability to gases and water vapor, as well as the addition of functional properties such as UV resistance and antibacterial activity [21,22,28,33,34,35,36]. The improved thermal performance has been widely reported and is generally attributed to the presence of TiO2 nanoparticles, which enhance the structural integrity of the polymer matrix and contribute to more efficient thermal barrier effects [37]. The integration of TiO2 into PVA modified with phosphorus can further enhance these effects, as phosphorus groups in the polymer backbone promote stronger compatibility and more uniform dispersion of the nanoparticles. This synergy not only stabilizes the material but also amplifies its antimicrobial and protective functions.
Therefore, by combining PVA modified with phosphorus with TiO2 nanoparticles, it becomes possible to design hybrid films that leverage the complementary advantages of both components. The innovative aspect of this work lies in the chemical phosphorylation of PVA, which induces the formation of semi-interpenetrating networks through phosphate bridges. These networks enhance the structural integrity and thermal stability of the polymer matrix compared with unmodified PVA or conventional PVA/TiO2 composites. Incorporation of TiO2 nanoparticles into the phosphorus-modified PVA matrix further combines these stability improvements with antimicrobial functionality. This strategy provides a versatile and multifunctional platform for hybrid gel-like films, offering clear advantages for biomedical and protective applications over previously reported systems.

2. Results and Discussion

Semi-interpenetrated phosphorylated PVA-OP3/TiO2-0 film and the binary PVA-OP3/TiO2-1 to PVA-OP3/TiO2-5 nanocomposite gel-like films have been obtained by the casting from solution procedure. The details of this procedure are presented in the Section 4. The polymer matrix used as the starting material in this study, PVA-OP3, was prepared in our laboratory following the procedure described elsewhere [12]. The composition of all polymer matrices expressed in mass ratio for all the ingredients utilized in the preparation and the codes of the as-prepared composites are listed in Table 1.

2.1. Morphological and Elemental Analysis of the PVA-OP3/TiO2 Composites

The surface morphology of the PVA-OP3/TiO2 nanocomposites was examined using SEM to investigate the effect of TiO2 loading on the microstructural features of the films (Figure 1a–f). The neat PVA-OP3 sample (Figure 1a) exhibited a relatively smooth and homogeneous fracture surface, characteristic of a continuous polymeric matrix without inorganic fillers. Upon the incorporation of a small amount of TiO2 (Figure 1b), slight surface roughness and fine striations appeared, suggesting good dispersion of the nanoparticles and strong interfacial interactions between TiO2 and the polymer chains [38]. As the TiO2 content increased (Figure 1c,d), the surfaces became progressively rougher, displaying localized irregularities and microcracks indicative of partial nanoparticle agglomeration and reduced matrix continuity [39]. At higher TiO2 concentrations (Figure 1e,f), the fracture surfaces displayed pronounced particle clusters and more irregular fractured regions. These features imply that, at higher loadings, the polymer matrix could no longer ensure effective nanoparticle dispersion. Due to the intrinsically high surface energy of TiO2, elevated filler contents promote particle–particle interactions over particle-polymer interactions, leading to the formation of agglomerated domains. Such agglomerates can be responsible for disrupting the structural uniformity of the matrix and hindering the development of strong interfacial adhesion, ultimately resulting in discontinuous regions and heterogeneous surface morphologies [40,41].
The incorporation of TiO2 within the prepared samples was further confirmed through Energy Dispersive X-ray Spectroscopy (EDX) analysis (Figure 2). The EDX spectra clearly exhibit characteristic peaks corresponding to titanium (Ti) in the energy range of approximately 4–5 keV, which are consistent with the reported values for Ti Kα and Ti Kβ emissions (4.508 keV and 4.93 keV, respectively) [42]. The presence of these peaks verifies the successful introduction of TiO2 into the PVA-OP3 matrix. In addition, the relative intensity of the Ti peaks in the different composite samples provides a qualitative indication of the TiO2 loading, thereby supporting the compositional variations among the PVA-OP3/TiO2-1 to PVA-OP3/TiO2-5 films (Figure 2b–f).
The elemental distribution of the PVA-OP3/TiO2-0 and PVA-OP3/TiO2-5 composites was examined through SEM–EDS mapping to confirm the successful incorporation and dispersion of TiO2 nanoparticles within the polymer matrix (Figure 3). For the PVA-OP3/TiO2-0 sample, the elements C, O, and P—originating from the PVA-OP3 matrix—were homogeneously distributed across the analyzed area. In contrast, the PVA-OP3/TiO2-5 sample exhibited heterogeneous Ti distribution, with distinct regions of Ti enrichment suggesting nanoparticle agglomeration at higher loadings. The elemental mapping thus corroborates the SEM observations, revealing that excessive TiO2 content promotes particle clustering and phase separation within the composite structure.
For the PVA-OP3/TiO2-0 sample, the elements C, O, and P—originating from the PVA-OP3 matrix—were homogeneously distributed across the analyzed area. In contrast, the PVA-OP3/TiO2-5 sample exhibited heterogeneous Ti distribution, with distinct regions of Ti enrichment suggesting nanoparticle agglomeration at higher loadings. The elemental mapping thus corroborates the SEM observations, revealing that excessive TiO2 content promotes particle clustering and phase separation within the composite structure.

2.2. Structural Characterization

FTIR and XRD provide complementary insights into the incorporation of TiO2 within the PVA-OP3 matrix, with FTIR revealing polymer–TiO2 interactions at the molecular level and XRD confirming the presence of the anatase TiO2 phase with retained crystalline structure. The FTIR spectra (Figure 4a) of the investigated samples display the characteristic bands of PVA, along with clear signatures associated with the phosphorus-containing groups and the incorporated TiO2. All spectra display the broad O–H stretching band of PVA centered in the 3200–3600 cm−1 region and the C–H stretching bands near 2900–2950 cm−1; the typical C–O/C–O–C vibrations of the PVA backbone appear in the 1080–1140 cm−1 region. The phosphorus modification gives rise to additional bands in the 1250–900 cm−1 region (assigned to P=O and P–O–C/P–O–P vibrations) [12,13,14,43], which are present in PVA-OP3/TiO2-0 and remain in the composites but change in shape and intensity upon TiO2 addition. Upon TiO2 incorporation, these bands exhibit subtle shifts, changes in intensity, and band broadening, indicating modifications of the local chemical environment. In addition, new absorptions emerge in the 400–700 cm−1 region, attributable to Ti–O–Ti and Ti–O stretching modes [35,36]. The observed spectral changes, including (i) shifts and broadening of the O–H and P-related bands and (ii) growth of Ti–O features, are consistent with specific polymer–nanoparticle interactions. These include hydrogen bonding between PVA hydroxyl groups and TiO2 surface sites, as well as possible coordination of phosphorus-containing groups to titanium atoms, potentially leading to the formation of the Ti–O–P linkages. Such interactions reduce the “free” character of O–H and P=O groups and contribute to the characteristic Ti–O vibrational envelope [35,36,44,45]. Overall, the FTIR data support successful incorporation of TiO2 into the PVA-OP3 matrix and indicate increasing polymer–oxide interaction as the TiO2 content increases.
The X-ray diffractograms (Figure 4b) show a broad polymeric halo centered near 18–20° 2θ for the TiO2-free sample (PVA-OP3/TiO2-0), consistent with the semi-crystalline nature of PVA. Upon incorporation of TiO2, sharp reflections emerge at ≈25.3°, 37.8°, 48.0°, 53.9°, and 62.7°, which correspond to the (101), (004), (200), (105)/(211), and (204) planes of anatase TiO2, respectively. The intensity of these peaks increases progressively with TiO2 loading (from 0.0011 to 0.0388), indicating a higher proportion of crystalline TiO2 in the composite and good preservation of the anatase phase. No additional crystalline phases or significant peak shifts were detected, suggesting that TiO2 remains structurally intact and that interactions with the PVA-OP3 matrix are primarily interfacial rather than substitutional.

2.3. Thermal Stability of the PVA-OP3/TiO2 Composites

The thermal properties of the PVA-OP3/TiO2 composites were evaluated using DSC, TGA, and DTG (Figure 5a,b), and the key parameters are summarized in Table 2. The glass transition temperature (Tg) of neat PVA-OP3/TiO2-0 was 75.33 °C, and a slight increase was observed upon TiO2 incorporation, reaching a maximum of 79.15 °C for PVA-OP3/TiO2-1. This shift indicates restricted segmental mobility of the polymer chains due to interfacial interactions, likely hydrogen bonding, between TiO2 nanoparticles and the PVA-OP3 matrix. At higher TiO2 loadings, Tg values fluctuated slightly but remained above that of the pure polymer, suggesting that the filler maintains a moderate reinforcing effect on chain rigidity. Thermogravimetric parameters (T5%, T30%, and THRI) reveal a consistent enhancement in thermal stability with increasing TiO2 content up to PVA-OP3/TiO2-4. The temperature at 5% mass loss (T5%) increased from 240 °C for the pristine polymer to 288 °C for the PVA-OP3/TiO2-4 sample, while T30% rose from 348 °C to 359 °C. Similarly, the thermal stability index (THRI) improved from 149.4% for the neat polymer to 161.9% for PVA-OP3/TiO2-4, confirming the progressive enhancement of heat resistance. These trends can be attributed to the uniform dispersion of TiO2 nanoparticles, which act as thermal barriers, slow heat transfer, and promote char formation during pyrolysis. At the highest filler content (PVA-OP3/TiO2-5), a slight reduction in T5%, T30%, and THRI was observed compared with PVA-OP3/TiO2-4, suggesting that excessive TiO2 may lead to nanoparticle agglomeration and the formation of localized stress points, consistent with the SEM observation, thereby facilitating degradation. The residual char yield at 700 °C further supports this observation, increasing steadily from 4.5% for the neat polymer to 30.1% for PVA-OP3/TiO2-4, followed by a slight decrease to 24.8% for PVA-OP3/TiO2-5. For the TiO2-containing composites, the TG curves level off near 700 °C, indicating that the main degradation processes have concluded and the residual char yield has stabilized. This behavior demonstrates that moderate TiO2 incorporation enhances the thermal stability and char-forming capability of the composite, whereas continuing loading reduces interfacial efficiency and thermal protection. Overall, the optimal TiO2 concentration for maximizing the thermal resistance of the PVA-OP3 matrix is identified around the PVA-OP3/TiO2-4 formulation. Comparison of the DTG traces (Figure 5b) reveals two dominant degradation features: a major peak centered in the lower-hundreds °C range (primary chain scission/oxidative decomposition of PVA-OP3) and a secondary feature at somewhat higher temperature (further fragmentation/char oxidation). At low to moderate TiO2 loadings, the primary DTG peak is slightly attenuated and marginally shifted to higher temperatures relative to the neat polymer, indicating that well-dispersed TiO2 nanoparticles act as a physical barrier and hinder heat/mass transfer to the polymer chains, thereby improving thermal stability and reducing the instantaneous rate of weight loss. In contrast, the highest TiO2 loading produces a markedly larger and sharper DTG response (greater peak intensity and altered peak shape), together with increased prominence of the secondary degradation feature; this behavior suggests that, beyond an optimal filler concentration, particle aggregation or altered polymer–filler interfacial chemistry can introduce new degradation pathways (or catalytic sites) that accelerate local decomposition.
The heat resistance index (THRI) was determined using the following relationship (Equation (1)) [46]:
T H R I = 0.49   × [ T 5 % + 0.6 ( T 30 % − T 5 % ) ]
The heat-resistance index (THRI) values are presented in Table 2. PVA-OP3/TiO2-0 exhibited a THRI of 149.4. Notably, the PVA-OP3/TiO2-4 sample displayed the highest THRI among the samples tested. The increased THRI observed in the PVA-OP3/TiO2-4 sample can be attributed to its enhanced thermal stability, which is reflected in a higher amount of carbonaceous residue compared to other samples. This suggests that the higher TiO2 content improves the material’s thermal degradation characteristics, leading to greater heat resistance. At higher TiO2 content, the material properties are adversely affected. As shown in Table 2, a slight decrease in the thermal stability of the samples can be observed at higher TiO2 loadings, accompanied by a corresponding reduction in the char yield measured at 700 °C. The enhanced thermal stability of the PVA-OP3/TiO2 composites can be attributed to several synergistic mechanisms. Well-dispersed TiO2 nanoparticles act as physical barriers, hindering heat and mass transfer within the polymer matrix and slowing the degradation of polymer chains. Additionally, interfacial interactions between TiO2 and PVA segments—likely through hydrogen bonding—restrict segmental mobility, further delaying thermal decomposition. During pyrolysis, the presence of TiO2 also promotes the formation of a protective carbonaceous layer, which contributes to higher residual char and improved heat resistance. Together, these effects explain the enhanced T5%, T30%, THRI, and char yield observed in composites with moderate TiO2 content.

2.4. Antimicrobial Activity

The test results showed a progressive increase in antimicrobial activity, correlated with the TiO2 concentrations in the PVA-OP3 composites and with the bacterial species tested (Table 3, Figure 6).
For the Gram-positive species (S. aureus), the logarithmic reduction increased from moderate values (4.523 log for PVA-OP3/TiO2-1) up to an almost complete reduction (7.632 log for PVA-OP3/TiO2-5), corresponding to an efficiency of 99.9999% RL (Reduction Log). For the Gram-negative species (E. coli), the inhibitory activity was more modest, especially for the samples with lower amounts of TiO2 (PVA-OP3/TiO2-1, PVA-OP3/TiO2-2). The highest logarithmic reduction was obtained for the composite containing the largest amount of TiO2 (2.842 log for PVA-OP3/TiO2-5), corresponding to an efficiency of approximately 99.856% RL. By comparing the results with those of the sample without TiO2 (−0.103 log for PVA-OP3/TiO2-0), it can be observed that titanium oxide is responsible for the antimicrobial effect, which becomes more evident as the concentration in the composite increases.
The results of our study indicate that Gram-positive species were more sensitive to TiO2 than the Gram-negative species, consistent with some previously published reports [47], although other studies have reported the opposite trend [48,49]. TiO2 nanoparticles may exert antimicrobial effects both in darkness, through disruption of membrane integrity and induction of osmotic stress, and under light exposure, which accelerates cell-lysis processes through photocatalysis. Essential components of the cell wall are targeted, such as lipopolysaccharides in Gram-negative bacteria and lipoteichoic acids in Gram-positive bacteria, which can lead to membrane depolarization and impairment of the natural barrier. The presence of carbon quantum dots may also significantly enhance the photocatalytic toxicity [50]. These mechanisms may explain the variable efficiency of TiO2 against different types of bacteria.
The variation in sensitivity of the two forms of bacteria is due to the structure of their cell walls. Due to the presence of a thin peptidoglycan layer and a high concentration of lipopolysaccharide in the outer membrane of Gram-negative bacteria, such as E. coli, nanoparticles and reactive oxygen species easily penetrate the membranes and cause membrane destabilization. In contrast, Gram-positive bacteria, such as S. aureus, have a thicker cell wall composed primarily of peptidoglycan and teichoic acid that initially acts as a physical barrier to the entry of nanoparticles [51]. However, this barrier can eventually become compromised as a result of the accumulation of nanoparticles and the generation of oxidative stress (ROS), ultimately providing the basis for the antimicrobial activity demonstrated in our study.
The antimicrobial efficiency of TiO2 nanoparticles ultimately depends on their morphology, crystalline structure, and surface properties, which are determined by the various synthesis methods. Additionally, recent environmentally friendly methods of producing TiO2 using plant-derived compounds or microorganisms provide additional flexibility to influence the characteristics of the TiO2 nanoparticles so as to maximize the interaction of the nanoparticles with the cell wall of the target bacteria. The ability of TiO2 to demonstrate biocidal activity against both Gram-positive and Gram-negative bacteria, including antibiotic-resistant bacteria, is associated with the ability of TiO2 to disrupt cell membranes profoundly, inhibit the function of metal ion transport systems, inhibit the function of the respiratory chain, and create dysfunction in the regulation of cellular signaling pathways [51,52].

3. Conclusions

The combined morphological, compositional, and thermal analyses clearly demonstrate that the incorporation of TiO2 nanoparticles significantly influences both the microstructure and thermal behavior of the PVA-OP3 matrix. SEM observations revealed a transition from a smooth, homogeneous surface in the neat polymer to a progressively rougher and more heterogeneous morphology with increasing TiO2 content, reflecting the formation of filler–polymer interfaces and, at higher loadings, the onset of nanoparticle aggregation. These structural features directly correlate with the thermal stability trends observed in the TGA/DTG analyses, where improved dispersion of TiO2 (up to PVA-OP3/TiO2-4) enhanced heat resistance and char formation through barrier and catalytic stabilization effects. Conversely, excessive TiO2 loading promoted agglomeration, diminishing interfacial adhesion and partially reducing the thermal protection efficiency. Overall, these results suggest that controlled incorporation of TiO2 nanoparticles—particularly at moderate levels—optimizes filler dispersion, polymer–filler interactions, and ultimately the thermal and structural performance of PVA-OP3-based composites. The antimicrobial performance of the PVA-OP3/TiO2 composites is strongly dependent on the TiO2 loading and on the structural characteristics of the target microorganisms. The progressive increase in log-reduction values with higher TiO2 content confirms the decisive contribution of titania to bacterial inactivation, while the distinct responses of S. aureus and E. coli highlight the importance of cell-wall architecture in modulating susceptibility. Taken together, the data support that TiO2-enhanced PVA systems can provide effective and tunable antimicrobial activity, particularly against Gram-positive bacteria.

4. Materials and Methods

4.1. Materials

PVA powder (Mw = 30,000–70,000 Da, degree of hydrolysis = 87–90%) was obtained from Sigma-Aldrich (Sigma-Aldrich Chemie GmbH, Eschenstraße 5, 82024 Taufkirchen, Germany). Phenyl dichlorophosphate (purity = 98%) was sourced from TCI EUROPE N.V. (Zwijndrecht, Belgium). Dimethylformamide (DMF) and Titanium dioxide (21 nm) were also acquired from Sigma-Aldrich.

4.2. Preparation of the Polymer PVA-OP3

PVA powder (Mw = 30,000–70,000 Da; degree of hydrolysis = 87–90%) supplied by Sigma-Aldrich Chemie GmbH (Taufkirchen, Germany) was used to obtain PVA-OP3 through a controlled nucleophilic substitution reaction. In this process, the hydroxyl (–OH) groups on the PVA backbone react with the chlorine (–Cl) atoms of phenyl dichlorophosphate, following the protocol detailed in our previous publications [12]. The amount of phenyl dichlorophosphate and PVA was calculated to ensure a molar ratio of 1:6 in DMF. The PVA-OP3 polymers were purified through dialysis in distilled water for five days. After purification, the sample was dried under vacuum in an oven at 60 °C [12,14].

4.3. Preparation of Composite Films

The PVA-OP3 solution was prepared by dissolving PVA-OP3 powder (1.66 g) in double-distilled water (15 mL) at a concentration of 10% (w/v). The mixture was stirred at room temperature for 24 h to ensure complete dissolution and uniformity. Subsequently, different amounts of TiO2 were added to the PVA-OP3 solution to obtain composite samples designated PVA-OP3/TiO2-1 through PVA-OP3/TiO2-5. Each mixture was magnetically stirred for an additional 30 min to facilitate homogeneous dispersion. To remove entrapped air, the solutions were left undisturbed at room temperature for 2 h. The degassed mixtures were then cast onto Petri dishes in controlled volumes to form thin films, which were dried under ambient conditions (room temperature) for 72 h before characterization. The detailed composition and processing parameters of the samples are summarized in Table 1.

4.4. Methods

4.4.1. FTIR

The chemical structure of the investigated samples was analyzed using a LUMOS Microscope Fourier Transform Infrared (FTIR) spectrophotometer (Bruker Optik GmbH, Ettlingen, Germany) equipped with an attenuated total reflection (ATR) device. Spectra were recorded over a frequency range of 4000–500 cm−1 with a resolution of 4 cm−1.

4.4.2. SEM

A Verios G4 UC Scanning Electron Microscope (Thermo Scientific, Brno, Czech Republic) was used to examine the surface morphology of the samples. To enhance electrical conductivity and prevent charge buildup during electron beam exposure, the samples were coated with a 6 nm layer of platinum using a Leica EM ACE200 Sputter Coater. SEM analysis was conducted in High Vacuum mode with a secondary electron detector (Everhart-Thornley detector, ETD) at an accelerating voltage of 5 kV.

4.4.3. X-Ray Diffraction Analysis

X-ray diffraction (XRD) analysis was carried out using a Rigaku Miniflex 600 diffractometer equipped with CuKα radiation. Data were collected over a 2θ range of 2° to 50°, with a step size of 0.0025° and a scanning speed of 1° per minute.

4.4.4. TGA

Thermal stability was assessed using a Mettler Toledo TGA-SDTA851e thermogravimetric analyzer (Mettler Toledo, Greifensee, Switzerland) under a nitrogen atmosphere. Measurements were conducted under dynamic conditions with a gas flow rate of 20 mL/min and a heating rate of 10 °C/min, within a temperature range of 25–750 °C. The sample mass varied between 1.6 mg and 2.2 mg. The processing of thermogravimetric curves for the thermal characterization of hybrid materials was carried out using the STARe software, version 9.1 (Mettler Toledo).

4.4.5. DSC

Differential scanning calorimetry (DSC) analysis was performed using a Mettler Toledo DSC 1 calorimeter (Mettler Toledo, Switzerland). The experiments were conducted under a nitrogen atmosphere with a flow rate of 150 mL/min and a heating rate of 10 °C/min. Samples were placed in aluminum crucibles with perforated lids to facilitate the release of volatile compounds. Samples with masses between 1.8 and 3.7 mg were subjected to two heating processes and one cooling process in the temperature range of 25–200 °C. The evaluation of the obtained DSC curves was performed using the STARe software, version 9.1 (Mettler Toledo). The inflection point was considered to indicate the glass transition temperature.

4.4.6. Antimicrobial Activity

The antimicrobial activity of the samples PVA-OP3/TiO2-1, PVA-OP3/TiO2-2, PVA-OP3/TiO2-3, PVA-OP3/TiO2-4, and PVA-OP3/TiO2-5 was evaluated using the Time-Kill Assay technique adapted for this type of sample. The antimicrobial potential was tested against the species Staphylococcus aureus ATCC 25923 and Escherichia coli ATCC 25922. The samples were cut to 1 cm diameter and placed in sterile Eppendorf tubes (2 mL). Afterwards, 2 mL of bacterial suspension (1.5 × 108 CFU/mL) was added and the samples were incubated at 37 °C in a microbiological thermostat (Binder, Roth). The testing times were set at 6, 24, and 48 h of incubation. From the microbial suspensions corresponding to the samples tested at 48 h, decimal dilutions 102–108 were prepared. After incubation, 1 mL of microbial suspension was distributed into sterile Petri dishes (90 mm), Mueller-Hinton nutrient agar (Oxoid, Basingstoke, Hampshire, UK) was added, and after homogenization and solidification, the plates were incubated under the same conditions (24 h/37 °C). The tests were performed in duplicate, and for the obtained values the mean and standard deviation (Mean ± SD) were determined. Finally, the logarithmic reduction (LR) and the percentage of logarithmic reduction (%RL) were calculated in comparison with the culture control (0.5 McFarland turbidity of bacterial suspensions).

Author Contributions

Conceptualization, D.S., A.-M.I. and I.-A.I.; methodology, D.S., A.-M.I. and I.-A.I.; software, D.S., G.L. and C.-M.R.; validation, G.L., C.-M.R. and T.V.-B.; formal analysis, G.L., C.-M.R. and D.S.; investigation, D.S., A.-M.I., G.L. and C.-M.R.; resources, D.S., D.S., G.L. and C.-M.R.; writing—review and editing, D.S., G.L., C.-M.R. and T.V.-B. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of the current study are listed within the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Wang, H.; Tian, Z.; Wang, L.; Wang, H.; Zhang, Y.; Shi, Z. Advancements, functionalization techniques, and multifunctional applications in biomedical and industrial fields of electrospun pectin nanofibers: A review. Int. J. Biol. Macromol. 2025, 307, 141964. [Google Scholar] [CrossRef] [PubMed]
  2. Deng, X.; Gould, M.; Ali, M.A. A review of current advancements for wound healing: Biomaterial applications and medical devices. J. Biomed. Mater. Res. B Appl. Biomater. 2022, 110, 2542–2573. [Google Scholar] [CrossRef] [PubMed]
  3. Suhail, Z.; Ashfaq, J.; Channa, I.A.; Sadia, M.; Chandio, A.D.; Sharmmari, B.A.; Pervez, T.; Al-Jahwar, F.K. Synthesis and evaluation of self-healing polyvinyl alcohol-tannic acid membranes for skin bio-applications. J. Appl. Polym. Sci. 2025, 142, e56458. [Google Scholar] [CrossRef]
  4. Abdulsalam, L.; Abubakar, S.; Permatasari, I.; Lawal, A.A.; Uddin, S.; Ullah, S.; Ahmad, I. Advanced Biocompatible and Biodegradable Polymers: A Review of Functionalization, Smart Systems, and Sustainable Applications. Polymers 2025, 17, 2901. [Google Scholar] [CrossRef]
  5. Ding, C.; Qiao, Z. A review of the application of polyvinyl alcohol membranes for fuel cells. Ionics 2022, 28, 1–13. [Google Scholar] [CrossRef]
  6. Doostan, M.; Doostan, M.; Mohammadi, P.; Khoshnevisan, K.; Maleki, H. Wound healing promotion by flaxseed extract-loaded polyvinyl alcohol/chitosan nanofibrous scaffolds. Int. J. Biol. Macromol. 2023, 228, 506–516. [Google Scholar] [CrossRef]
  7. Weis, C.; Odermatt, E.K.; Kressler, J.; Funke, Z.; Wehner, T.; Freytag, D. Poly(vinyl alcohol) membranes for adhesion prevention. J. Biomed. Mater. Res. B Appl. Biomater. 2004, 70, 191–202. [Google Scholar] [CrossRef]
  8. Ben Halima, N. Poly(vinyl alcohol): Review of its promising applications and insights into biodegradation. RSC Adv. 2016, 6, 39823–39832. [Google Scholar] [CrossRef]
  9. Morales, A.; Andrés, M.Á.; Labidi, J.; Gullón, P. UV–vis protective poly(vinyl alcohol)/bio-oil innovative films. Ind. Crops Prod. 2019, 131, 281–292. [Google Scholar] [CrossRef]
  10. Yang, G.; Xie, Z.; Doherty, C.M.; Cran, M.; Ng, D.; Gray, S. Understanding the transport enhancement of poly (vinyl alcohol) based hybrid membranes with dispersed nanochannels for pervaporation application. J. Membr. Sci. 2020, 603, 118005. [Google Scholar] [CrossRef]
  11. Wu, C.; Li, A.; Li, L.; Zhang, L.; Wang, H.; Qi, X.; Zhang, Q. Treatment of oily water by a poly(vinyl alcohol) ultrafiltration membrane. Desalination 2008, 225, 312–321. [Google Scholar] [CrossRef]
  12. Serbezeanu, D.; Vlad-Bubulac, T.; Onofrei, M.D.; Doroftei, F.; Hamciuc, C.; Ipate, A.-M.; Anisiei, A.; Lisa, G.; Anghel, I.; Şofran, I.-E.; et al. Phosphorylated Poly(vinyl alcohol) Electrospun Mats for Protective Equipment Applications. Nanomaterials 2022, 12, 2685. [Google Scholar] [CrossRef] [PubMed]
  13. Vlad-Bubulac, T.; Serbezeanu, D.; Oprea, A.-M.; Carja, I.-D.; Hamciuc, C.; Cazacu, M. Preparation and characterization of new hydrogels based on poly(vinyl alcohol)/phosphoester—chondroitin sulphate. Cent. Eur. J. Chem. 2013, 11, 446–456. [Google Scholar] [CrossRef]
  14. Vlad-Bubulac, T.; Serbezeanu, D.; Perju, E.; Suflet, D.M.; Rusu, D.; Lisa, G.; Filip, T.-A.; Olariu, M.-A. Multifaceted Nanocomposites Combining Phosphorylated PVA, MXene, and Cholesteric Liquid Crystal: Design and Application Insights. Nanomaterials 2025, 15, 1251. [Google Scholar] [CrossRef]
  15. Zhang, W.; Rhim, J.-W. Titanium dioxide (TiO2) for the manufacture of multifunctional active food packaging films. Food Packag. Shelf Life 2022, 31, 100806. [Google Scholar] [CrossRef]
  16. Irshad, M.A.; Nawaz, R.; Rehman, M.Z.U.; Adrees, M.; Rizwan, M.; Ali, S.; Ahmad, S.; Tasleem, S. Synthesis, characterization and advanced sustainable applications of titanium dioxide nanoparticles: A review. Ecotoxicol. Environ. Saf. 2021, 212, 111978. [Google Scholar] [CrossRef]
  17. Ghareeb, A.; Fouda, A.; Kishk, R.M.; El Kazzaz, W.M. Unlocking the potential of titanium dioxide nanoparticles: An insight into green synthesis, optimizations, characterizations, and multifunctional applications. Microb. Cell Factories 2024, 23, 341. [Google Scholar] [CrossRef]
  18. Ziental, D.; Czarczynska-Goslinska, B.; Mlynarczyk, D.T.; Glowacka-Sobotta, A.; Stanisz, B.; Goslinski, T.; Sobotta, L. Titanium Dioxide Nanoparticles: Prospects and Applications in Medicine. Nanomaterials 2020, 10, 387. [Google Scholar] [CrossRef]
  19. Chandoliya, R.; Sharma, S.; Sharma, V.; Joshi, R.; Sivanesan, I. Titanium Dioxide Nanoparticle: A Comprehensive Review on Synthesis, Applications and Toxicity. Plants 2024, 13, 2964. [Google Scholar] [CrossRef]
  20. Liu, Z.; Li, M.; Xie, Q.; Liu, Y.; Huang, J.; Zeng, Q.; Li, X.; Rao, K.; Ning, J.; Zhao, M.; et al. Eradicating fungal biofilm-based infections by ultrasound-assisted semiconductor sensitized upconversion photodynamic therapy. Nat. Commun. 2025, 16, 6499. [Google Scholar] [CrossRef]
  21. Karimi, E.; Raisi, A.; Aroujalian, A. TiO2-induced photo-cross-linked electrospun polyvinyl alcohol nanofibers microfiltration membranes. Polymer 2016, 99, 642–653. [Google Scholar] [CrossRef]
  22. Sakarkar, S.; Muthukumaran, S.; Jegatheesan, V. Tailoring the Effects of Titanium Dioxide (TiO2) and Polyvinyl Alcohol (PVA) in the Separation and Antifouling Performance of Thin-Film Composite Polyvinylidene Fluoride (PVDF) Membrane. Membranes 2021, 11, 241. [Google Scholar] [CrossRef] [PubMed]
  23. Zhang, X.; Wang, Y.; You, Y.; Meng, H.; Zhang, J.; Xu, X. Preparation, performance and adsorption activity of TiO2 nanoparticles entrapped PVDF hybrid membranes. Appl. Surf. Sci. 2012, 263, 660–665. [Google Scholar] [CrossRef]
  24. Yeo, J.H.; Kim, M.; Lee, H.; Cho, J.; Park, J. Facile and Novel Eco-Friendly Poly(Vinyl Alcohol) Nanofilters Using the Photocatalytic Property of Titanium Dioxide. ACS Omega 2020, 5, 5026–5033. [Google Scholar] [CrossRef] [PubMed]
  25. Ma, Y.; Shi, F.; Ma, J. Effect of TiO2 contents on the crystallization kinetics of PVDF in PVDF-diluent-TiO2 blends. Desalination Water Treat. 2015, 56, 752–759. [Google Scholar] [CrossRef]
  26. Khalid, F.; Roy, A.S.; Parveen, A.; Castro-Muñoz, R. Fabrication of the cross-linked PVA/TiO2/C nanocomposite membrane for alkaline direct methanol fuel cells. Mater. Sci. Eng. B 2024, 299, 116929. [Google Scholar] [CrossRef]
  27. Ivorra-Martinez, J.; Ferrer, I.; Aguado, R.; Delgado-Aguilar, M.; Garcia-Romeu, M.L.; Boronat, T. Development of P(3HB-co-3HHx) nanohydroxyapatite (nHA) composites for scaffolds manufacturing by means of fused deposition modeling. Int. J. Bioprinting 2023, 10, 156. [Google Scholar] [CrossRef]
  28. Yu, X.; Mi, X.; He, Z.; Meng, M.; Li, H.; Yan, Y. Fouling resistant CA/PVA/TiO2 imprinted membranes for selective recognition and separation salicylic acid from waste water. Front. Chem. 2017, 5, 2. [Google Scholar] [CrossRef]
  29. Hsu, C.-Y.; Mahmoud, Z.H.; Abdullaev, S.; Ali, F.K.; Ali Naeem, Y.; Mzahim Mizher, R.; Morad Karim, M.; Abdulwahid, A.S.; Ahmadi, Z.; Habibzadeh, S.; et al. Nano titanium oxide (nano-TiO2): A review of synthesis methods, properties, and applications. Case Stud. Chem. Environ. Eng. 2024, 9, 100626. [Google Scholar] [CrossRef]
  30. Musa, A.A.; Bello, A.; Adams, S.M.; Onwualu, A.P.; Anye, V.C.; Bello, K.A.; Obianyo, I.I. Nano-Enhanced Polymer Composite Materials: A Review of Current Advancements and Challenges. Polymers 2025, 17, 893. [Google Scholar] [CrossRef]
  31. Huang, J.; Zhou, J.; Liu, M. Interphase in Polymer Nanocomposites. JACS Au 2022, 2, 280–291. [Google Scholar] [CrossRef] [PubMed]
  32. Rahman, M.M.; Khan, K.H.; Parvez, M.M.H.; Irizarry, N.; Uddin, M.N. Polymer Nanocomposites with Optimized Nanoparticle Dispersion and Enhanced Functionalities for Industrial Applications. Processes 2025, 13, 994. [Google Scholar] [CrossRef]
  33. Kusworo, T.D.; Puspa, M.B.; Kumoro, A.C.; Hanif, M.I.; Othman, M.H.D.; Kurniawan, T.A.; Utomo, D.P. Superior photocatalytic and self-cleaning performance of PVDF-TiO2@NH2-MIL-125(Ti)/PVA membranes for efficient produced water treatment. J. Water Process Eng. 2025, 72, 107415. [Google Scholar] [CrossRef]
  34. Sakarkar, S.; Muthukumaran, S.; Jegatheesan, V. Evaluation of polyvinyl alcohol (PVA) loading in the PVA/titanium dioxide (TiO2) thin film coating on polyvinylidene fluoride (PVDF) membrane for the removal of textile dyes. Chemosphere 2020, 257, 127144. [Google Scholar] [CrossRef]
  35. Kavitha, B.; Sekhar, K.C.; Kumar, K.S.; Narsimlu, N. Influence of NaBr on structural studies of PVA/TiO2 polymer composites. Optik 2023, 272, 170244. [Google Scholar] [CrossRef]
  36. Prasad, R.K.M.; Chidananda, S.H.; Shivanand, B.; Basavarajappa, H.A.; Shivamallu, C.; Chandraiah, R.H.; Dharmashekar, C.; Kollur, S.P. Biological, optical and electrical behaviour of k- carrageenan/PVA/TiO2 nanocomposite film. Int. J. Biol. Macromol. 2025, 319, 145595. [Google Scholar] [CrossRef]
  37. Chen, X. Preparation and property of TiO2 nanoparticle dispersed polyvinyl alcohol composite materials. J. Mater. Sci. Lett. 2002, 21, 1637–1639. [Google Scholar] [CrossRef]
  38. Lou, Y.; Liu, M.; Miao, X.; Zhang, L.; Wang, X. Improvement of the mechanical properties of nano-TiO2/poly(vinyl alcohol) composites by enhanced interaction between nanofiller and matrix. Polym. Compos. 2010, 31, 1184–1193. [Google Scholar] [CrossRef]
  39. Bendaoued, A.; Messaoud, M.; Harzallah, O.; Bistac, S.; Salhi, R. Nano-TiO2 effect on thermal, rheological and structural properties of thermoplastic polypropylene nanocomposites. J. Mater. Res. Technol. 2022, 17, 2313–2325. [Google Scholar] [CrossRef]
  40. Moslehifard, E.; Robati Anaraki, M.; Shirkavand, S. Effect of adding TiO2 nanoparticles on the SEM morphology and mechanical properties of conventional heat-cured acrylic resin. J. Dent. Res. Dent. Clin. Dent. Prospect. 2019, 13, 234–240. [Google Scholar] [CrossRef]
  41. Ashraf, M.A.; Peng, W.; Zare, Y.; Rhee, K.Y. Effects of Size and Aggregation/Agglomeration of Nanoparticles on the Interfacial/Interphase Properties and Tensile Strength of Polymer Nanocomposites. Nanoscale Res. Lett. 2018, 13, 214. [Google Scholar] [CrossRef] [PubMed]
  42. Hamdi, D.A. Investigation the properties of hip implantation structure based on nanotechnology by using radio frequency magnetron sputtering. Int. J. Energy Environ. 2017, 8, 515–522. [Google Scholar]
  43. Serbezeanu, D.; Hamciuc, C.; Vlad-Bubulac, T.; Onofrei, M.-D.; Bargan, A.; Rusu, D.; Suflet, D.M.; Lisa, G. Electrospun Nanofibers Based on Polymer Blends with Tunable High-Performance Properties for Innovative Fire-Resistant Materials. Polymers 2022, 14, 5501. [Google Scholar] [CrossRef] [PubMed]
  44. Arif, M.; Javed, M.; Akhter, T. Crosslinked polymeric networks of TiO2–polymer composites: A comprehensive review. RSC Adv. 2024, 14, 33843–33863. [Google Scholar] [CrossRef]
  45. Chen, Z.; Chen, H.; Li, Y.; Wang, B.; Chen, S.; Chen, Z.-Y.; Huang, Q.; Yu, X.-F.; He, R. Supramolecular networks with high shear stiffening enabled by metal ion-mediated hydrogen bonding enhancement strategy. Nat. Commun. 2025, 16, 8949. [Google Scholar] [CrossRef]
  46. Zhao, P.; Rao, W.; Luo, H.; Wang, L.; Liu, Y.; Yu, C. Novel organophosphorus compound with amine groups towards self-extinguishing epoxy resins at low loading. Mater. Des. 2020, 193, 108838. [Google Scholar] [CrossRef]
  47. Ananpattarachai, J.; Kajitvichyanukul, P. Enhancement of chromium removal efficiency on adsorption and photocatalytic reduction using a bio-catalyst, titania-impregnated chitosan/xylan hybrid film. J. Clean. Prod. 2016, 130, 126–136. [Google Scholar] [CrossRef]
  48. Hitkova, H.; Stoyanova, A.; Ivanova, N.; Sredkova, M.; Popova, V.; Iordanova, R.; Bachvarova-Nedelcheva, A. Study of antibacterial activity of nonhydrolytic synthesized TiO2 against E. coli, P. aeruginosa and S. aureus. J. Optoelectron. Biomed. Mater. 2012, 4, 9–17. [Google Scholar]
  49. Breijyeh, Z.; Karaman, R. Comprehensive Review on Alzheimer’s Disease: Causes and Treatment. Molecules 2020, 25, 5789. [Google Scholar] [CrossRef]
  50. Serov, D.A.; Gritsaeva, A.V.; Yanbaev, F.M.; Simakin, A.V.; Gudkov, S.V. Review of Antimicrobial Properties of Titanium Dioxide Nanoparticles. Int. J. Mol. Sci. 2024, 25, 10519. [Google Scholar] [CrossRef]
  51. Lazić, V.; Nikšić, V.; Nedeljković, J.M. Application of TiO2 in Photocatalytic Bacterial Inactivation. Int. J. Mol. Sci. 2025, 26, 10593. [Google Scholar] [CrossRef]
  52. Baranowska-Wójcik, E.; Szwajgier, D.; Oleszczuk, P.; Winiarska-Mieczan, A. Effects of titanium dioxide nanoparticles exposure on human health—A review. Biol. Trace Elem. Res. 2020, 193, 118–129. [Google Scholar] [CrossRef]
Gels 11 01020 g001
Figure 1. SEM images of the investigated samples PVA-OP3/TiO2-0 (a), PVA-OP3/TiO2-1 (b), PVA-OP3/TiO2-2 (c), PVA-OP3/TiO2-3 (d), PVA-OP3/TiO2-4 (e), PVA-OP3/TiO2-5 (f).
Figure 1. SEM images of the investigated samples PVA-OP3/TiO2-0 (a), PVA-OP3/TiO2-1 (b), PVA-OP3/TiO2-2 (c), PVA-OP3/TiO2-3 (d), PVA-OP3/TiO2-4 (e), PVA-OP3/TiO2-5 (f).
Gels 11 01020 g001
Gels 11 01020 g002

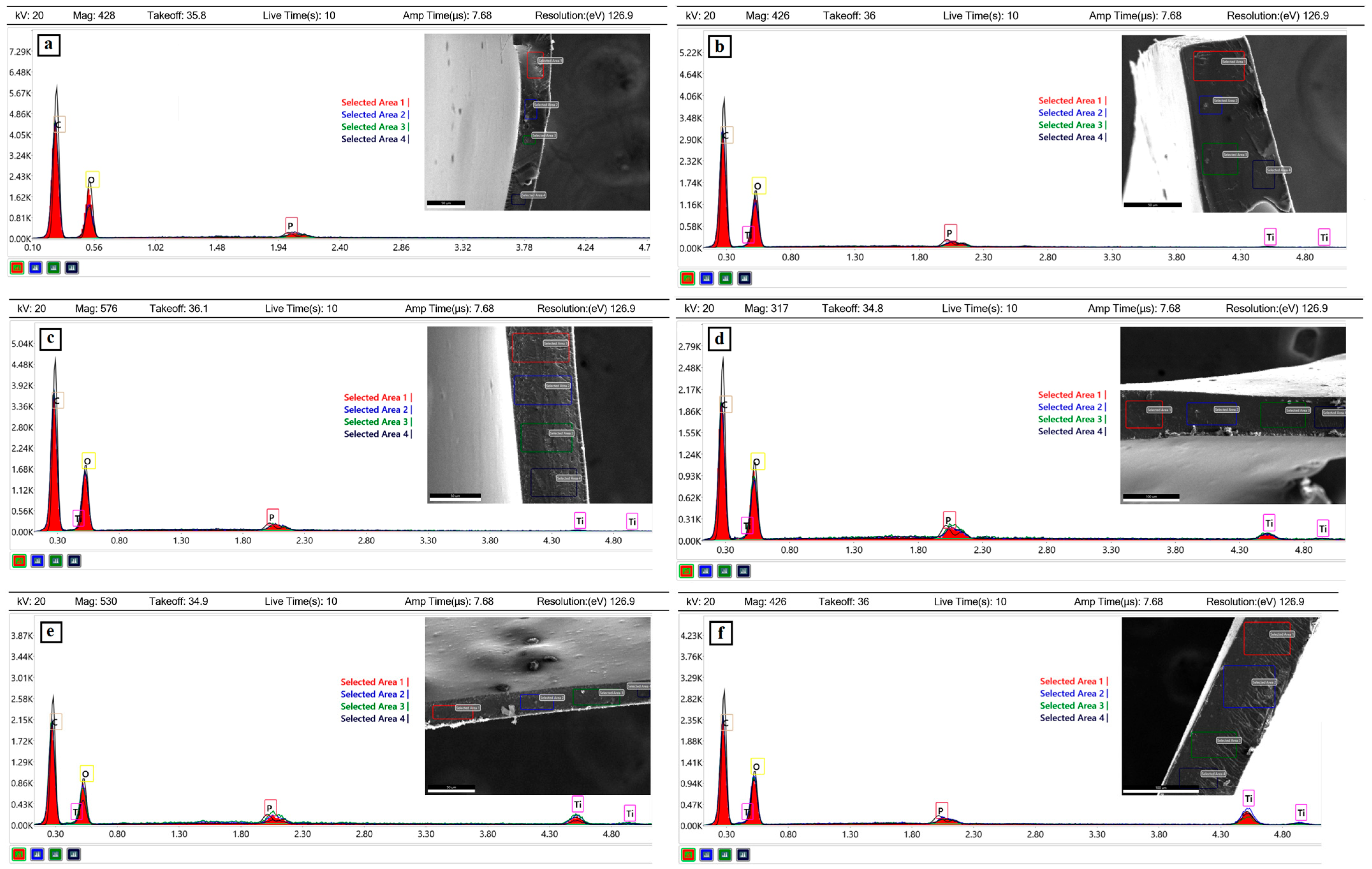

Figure 2. EDX spectra for the investigated samples (a) PVA-OP3/TiO2-0, (b) PVA-OP3/TiO2-1, (c) PVA-OP3/TiO2-2, (d) PVA-OP3/TiO2-3, (e) PVA-OP3/TiO2-4, (f) PVA-OP3/TiO2-5.
Figure 2. EDX spectra for the investigated samples (a) PVA-OP3/TiO2-0, (b) PVA-OP3/TiO2-1, (c) PVA-OP3/TiO2-2, (d) PVA-OP3/TiO2-3, (e) PVA-OP3/TiO2-4, (f) PVA-OP3/TiO2-5.
Gels 11 01020 g002
Gels 11 01020 g003
Figure 3. SEM micrographs and corresponding EDS elemental mapping images of PVA-OP3/TiO2 composites: (top row) PVA-OP3/TiO2-0 and (bottom row) PVA-OP3/TiO2-5.
Figure 3. SEM micrographs and corresponding EDS elemental mapping images of PVA-OP3/TiO2 composites: (top row) PVA-OP3/TiO2-0 and (bottom row) PVA-OP3/TiO2-5.
Gels 11 01020 g003
Gels 11 01020 g004

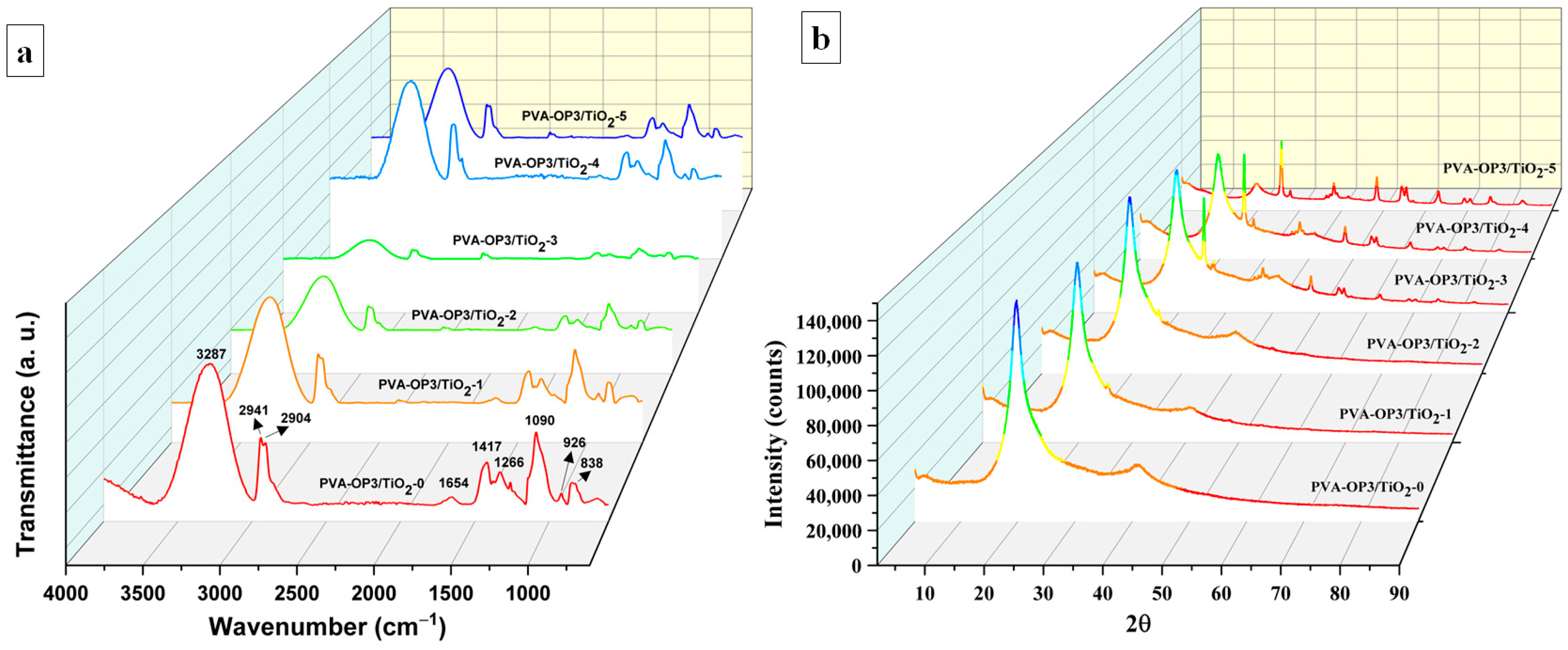

Figure 4. FTIR spectrum (a) of and XRD curves of the PVA-OP3/TiO2 composites (b).
Figure 4. FTIR spectrum (a) of and XRD curves of the PVA-OP3/TiO2 composites (b).
Gels 11 01020 g004
Gels 11 01020 g005

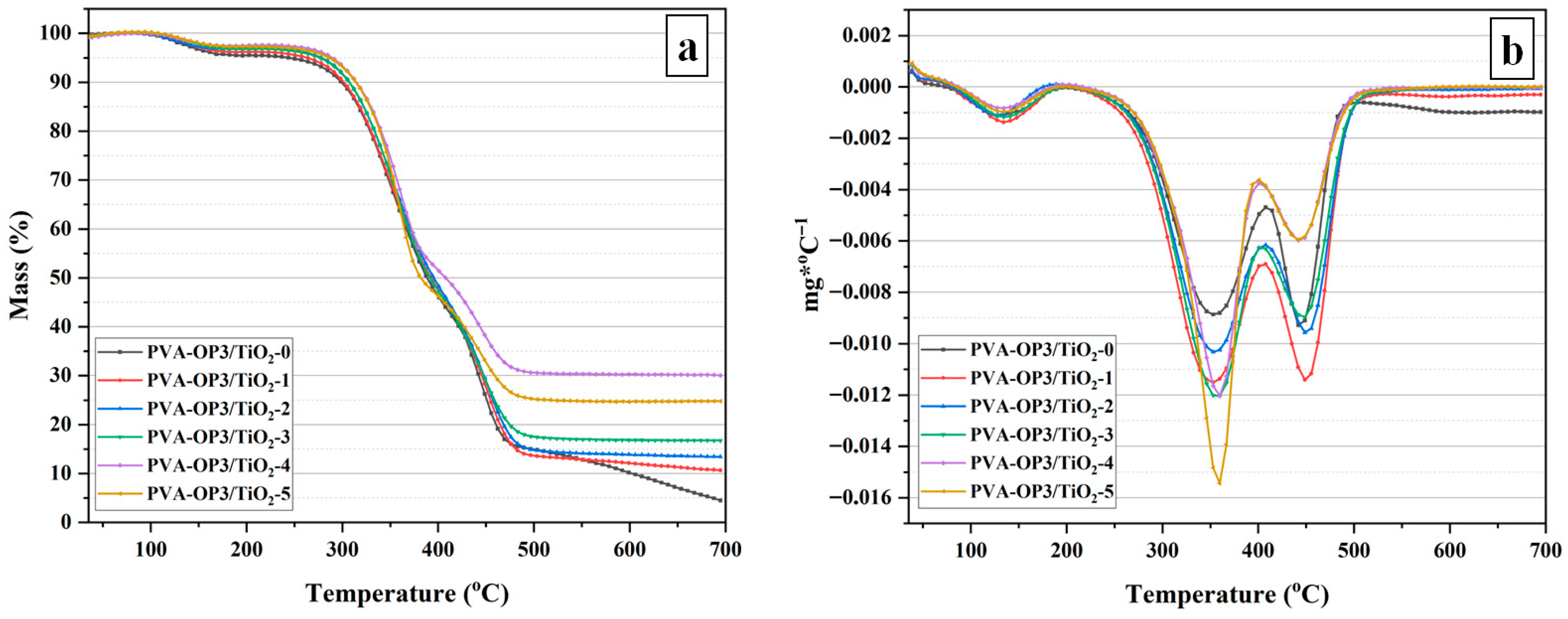

Figure 5. TG (a) and DTG curves (b) of the investigated composites.
Figure 5. TG (a) and DTG curves (b) of the investigated composites.
Gels 11 01020 g005
Gels 11 01020 g006
Figure 6. Time-dependent antibacterial activity of PVA-OP3 and PVA–OP3/TiO2 composites against Staphylococcus aureus and Escherichia coli, after 6, 24, and 48 h of incubation. The left panel shows the colony-forming unit of Staphylococcus aureus, and the right panel shows the colony-forming unit of Escherichia coli.
Figure 6. Time-dependent antibacterial activity of PVA-OP3 and PVA–OP3/TiO2 composites against Staphylococcus aureus and Escherichia coli, after 6, 24, and 48 h of incubation. The left panel shows the colony-forming unit of Staphylococcus aureus, and the right panel shows the colony-forming unit of Escherichia coli.
Gels 11 01020 g006
Table 1. The composition of the investigated films.
Table 1. The composition of the investigated films.
Sample CodePVA-OP3 *
(g)		TiO2
(g)
PVA-OP3/TiO2-00.2-
PVA-OP3/TiO2-10.20.0011
PVA-OP3/TiO2-20.20.0022
PVA-OP3/TiO2-30.20.0115
PVA-OP3/TiO2-40.20.0244
PVA-OP3/TiO2-50.20.0388
* The polymer matrix used as the starting material in this study was prepared in our laboratory, starting from PVA and phenyl dichlorophosphate, following the procedure described in detail in our previous paper [12].
Table 2. Thermal stability of the investigated composites.
Table 2. Thermal stability of the investigated composites.
SamplesTg
(°C)		T5%
(°C)		T30%
(°C)		THRI
(%)
PVA-OP3/TiO2-075.33240348149.4
PVA-OP3/TiO2-179.15261350154.1
PVA-OP3/TiO2-276.89274353157.5
PVA-OP3/TiO2-376.99276354158.2
PVA-OP3/TiO2-477.98288359161.9
PVA-OP3/TiO2-576.33284355160.0
T5%—temperature at which the sample has undergone a 5% weight loss relative to its initial mass during the thermal analysis, T30%—temperature at which the sample has undergone a 30% weight loss relative to its initial mass during the thermal analysis, THRI—heat resistance index.
Table 3. Log-reduction, CFU viability, and antibacterial efficiency of PVA–OP3/TiO2 composites after 48 h incubation.
Table 3. Log-reduction, CFU viability, and antibacterial efficiency of PVA–OP3/TiO2 composites after 48 h incubation.
Sample CodeCS. aureus (UFC × mL–1/48 h)E. coli (UFC × mL–1/48 h)
T0Mean + SDLR (Log10) vs. T0%RL
vs. T0		Mean + SDLR (Log10) vs. T0%RL
vs. T0
PVA-OP3/TiO2-01.5 × 1081.9 × 108 ± 2.83 × 107−0.103−26.671.6 × 108 ± 2.83 × 107−0.028−6.67
PVA-OP3/TiO2-11.5 × 1084500 ± 1984.52399.99701.95 × 107 ± 1.06 × 1070.88687
PVA-OP3/TiO2-21.5 × 108188 ± 29.75.90299.99981 × 107 ± 1.41 × 1051.17693.33
PVA-OP3/TiO2-31.5 × 108229.5 ± 48.85.81599.99984.55 × 106 ± 1.91 × 1061.51896.97
PVA-OP3/TiO2-41.5 × 108109 ± 25.56.13999.99992.15 × 106 ± 2.26 × 1051.84498.567
PVA-OP3/TiO2-51.5 × 1083.5 ± 2.17.63299.99992.16 × 105 ± 6.65 × 1042.84299.856
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ipate, A.-M.; Serbezeanu, D.; Iftimie, I.-A.; Lisa, G.; Rîmbu, C.-M.; Vlad-Bubulac, T. Study on the Structure, Thermal Properties and Antibacterial Properties of Phosphorus-Modified PVA/TiO2 Composite Films. Gels 2025, 11, 1020. https://doi.org/10.3390/gels11121020

AMA Style

Ipate A-M, Serbezeanu D, Iftimie I-A, Lisa G, Rîmbu C-M, Vlad-Bubulac T. Study on the Structure, Thermal Properties and Antibacterial Properties of Phosphorus-Modified PVA/TiO2 Composite Films. Gels. 2025; 11(12):1020. https://doi.org/10.3390/gels11121020

Chicago/Turabian Style

Ipate, Alina-Mirela, Diana Serbezeanu, Ioana-Antonia Iftimie, Gabriela Lisa, Cristina-Mihaela Rîmbu, and Tăchiță Vlad-Bubulac. 2025. "Study on the Structure, Thermal Properties and Antibacterial Properties of Phosphorus-Modified PVA/TiO2 Composite Films" Gels 11, no. 12: 1020. https://doi.org/10.3390/gels11121020

APA Style

Ipate, A.-M., Serbezeanu, D., Iftimie, I.-A., Lisa, G., Rîmbu, C.-M., & Vlad-Bubulac, T. (2025). Study on the Structure, Thermal Properties and Antibacterial Properties of Phosphorus-Modified PVA/TiO2 Composite Films. Gels, 11(12), 1020. https://doi.org/10.3390/gels11121020

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
