Hydrogel-Based Vascularized Organ Tissue Engineering: A Systematized Review on Abdominal Organs

by
Filippos F. Karageorgos
1,
Maria Alexiou
1,
Georgios Tsoulfas
1,* and
Aleck H. Alexopoulos
2,*
1
Department of Transplantation Surgery, Center for Research and Innovation in Solid Organ Transplantation, Aristotle University of Thessaloniki School of Medicine, 54642 Thessaloniki, Greece
2
Chemical Process & Energy Resources Institute, 6th Km Harilaou-Thermi Rd., P.O. Box 60361, 57001 Thessaloniki, Greece
*
Authors to whom correspondence should be addressed.
Gels 2024, 10(10), 653; https://doi.org/10.3390/gels10100653
Submission received: 14 September 2024 / Revised: 5 October 2024 / Accepted: 11 October 2024 / Published: 12 October 2024
(This article belongs to the Special Issue Advanced Gel Materials for Bioengineering)

Abstract

Background: Biomedical engineering, especially tissue engineering, is trying to provide an alternative solution to generate functional organs/tissues for use in various applications. These include beyond the final goal of transplantation, disease modeling and drug discovery as well. The aim of this study is to comprehensively review the existing literature on hydrogel-based vascularized organ (i.e., liver, pancreas, kidneys, intestine, stomach and spleen) tissue engineering of the abdominal organs. Methods: A comprehensive literature search was conducted on the Scopus database (latest search 1 September 2024). The research studies including hydrogel-based vascularized organ tissue engineering in the organs examined here were eligible for the review. Results: Herein, 18 studies were included. Specifically, 10 studies included the liver or hepatic tissue, 5 studies included the pancreas or pancreatic islet tissue, 3 studies included the kidney or renal tissue, 1 study included the intestine or intestinal or bowel tissue, 1 study included the stomach or gastric tissue, and 0 studies included spleen tissue. Conclusion: Hydrogels are biocompatible materials with ideal characteristics for use as scaffolds. Even though organ tissue engineering is a rapidly growing field, there are still many obstacles to overcome to create a fully functional and long-lasting organ.

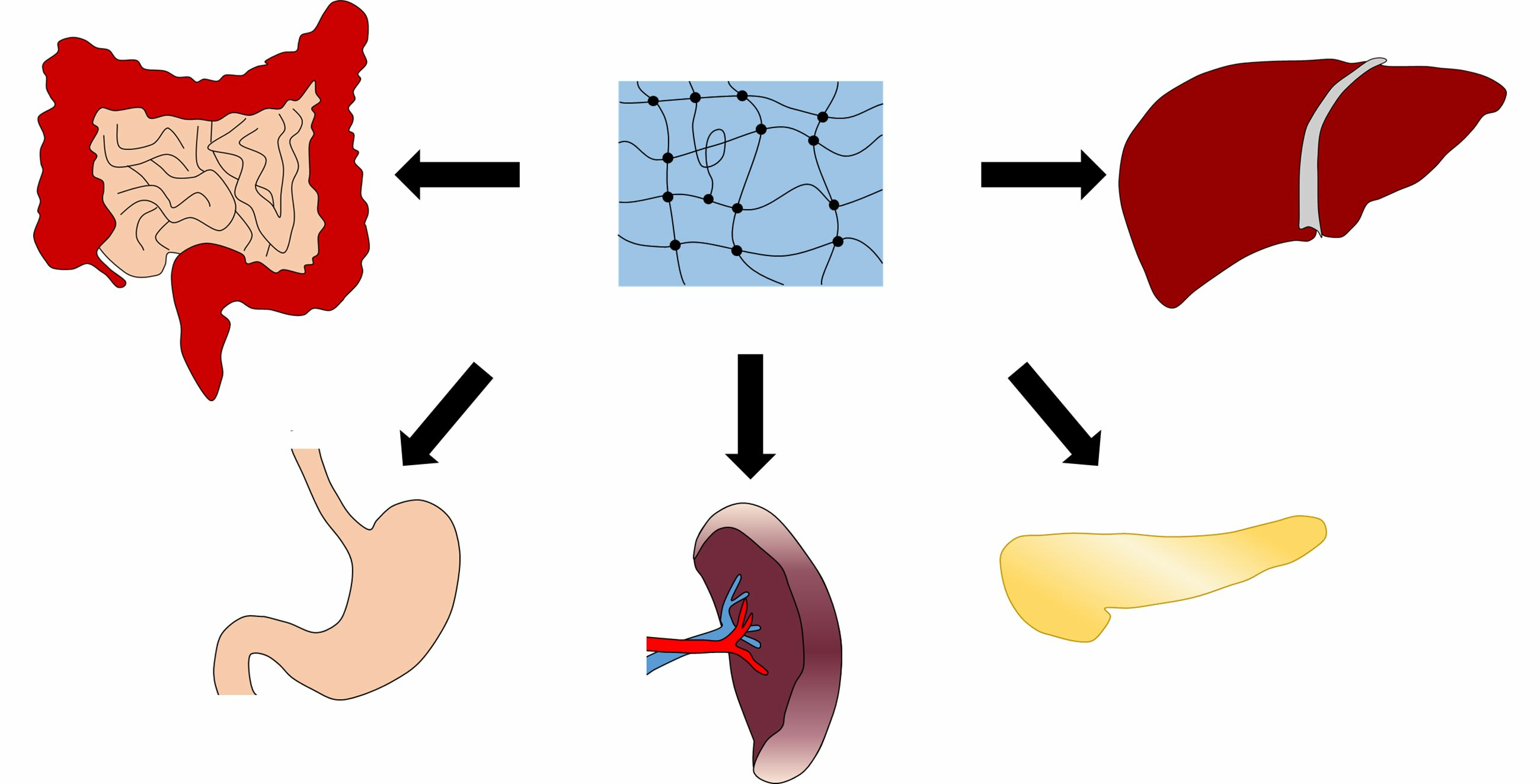

Graphical Abstract

1. Introduction

1.1. Health Necessity of Manufacturing Organs and Organ Shortage

Transplantation consists of the golden standard in many end-stage diseases. Currently, the growing population and the modern way of living create a recipe for an increasing demand for organ transplantation, including the liver, kidneys and heart. Every day, physicians diagnose people with end-stage diseases (e.g., end-stage kidney disease and end-stage liver disease) who need to undergo a transplantation surgery. The modern way of living in combination with the growing population and the growing life expectancy create an increasing gap between the supply and demand of transplantable organs [1,2]. Hopefully, it is believed that the field of tissue engineering will be able to manufacture artificial organs suitable for transplantation.

1.2. Hydrogels in Tissue Engineering

Hydrogels are biocompatible materials constituting of crosslinked polymeric chains. They have the ability to absorb water and not dissolve in it due to their crosslinks. They have adjustable physical and chemical properties and are considered as one of the most suitable materials for tissue engineering applications and in general biomedical applications [3,4,5]. The characteristics of hydrogels (mesh size, molecular weight between crosslinks, polymer volume fraction in the swollen state and elastic and storage moduli) can be tuned in order to create a suitable microenvironment for the desired application. For example, the mesh size (ξ) and the molecular weight between crosslinks (Mc) can be tuned in order to create the desired drug diffusion coefficient or the desired microenvironment for the enclosed cells so as to mimic the extracellular matrix (ECM) in terms of stiffness and pores. Extra advantages arising from the use of hydrogels are the possibility of containing cell-binding sites such as ECM proteins, a high water content and the efficient exchange of metabolites.
Nevertheless, an important problem that limits the use of hydrogels regarding liver tissue engineering applications is the difficulty in integrating different types of tissues, cell structures and cell types in the same scaffold. An additional obstacle is the process of cell migration and proliferation. That is to say that the materials (i.e., hydrogels) cannot fully mimic the pore size distribution of the natural ECM. Moreover, the integrity (e.g., stiffness) of the material, as expressed by the elastic modulus, can vary and mismatch with that of the natural ECM, which can create mechanical shear stress at the interface. Finally, hydrogel–cell adhesion can also be an issue inside a hydrogel. It is something that has to be tuned separately from other parameters via proper material selection (i.e., monomer and branching groups) of the polymer chains.
In organs such as the liver, the ECM consists of a complex mixture of molecules, each of which contributes to the final nature of the material. Therefore, the hydrogels consisting of one type of chain or having unmodified chains with various enhancing molecules may have limitations in their similarity to the ECM and use.
Overall, hydrogels consist of a class of materials with great potential in their usage in liver or kidney tissue engineering (and in other applications of tissue engineering), but rational design with the optimization of the manufactured material with the necessary utilization of mathematical models [5,6,7] has to be included in the process.

1.3. Scope of This Review

The scope of this systematized review [8,9] is to find the cases of hydrogel-based vascularized organ (i.e., liver, pancreas, kidneys, intestine, stomach and spleen) tissue engineering, present them and provide a critical discussion regarding the steps that are necessary for creating fully functional and vascularized artificial organs/tissues.

2. Materials and Methods

2.1. Study Design

This study was conducted partially based on the PRISMA checklist [10]. Only research papers investigating hydrogel-based vascularized organ tissue engineering were included in the study. The organs included were the liver, pancreas, kidneys, intestine, stomach and spleen. The exclusion criteria were as follows: (i) review articles; (ii) data papers; (iii) overviews; (iv) articles creating a vascularized hydrogel but not creating functional tissue/organs from those studied here (e.g., creation of cardiac tissue); (v) articles that created tissue but did not create vascular networks or somehow induce the production of a vascular network and (vi) articles creating tissue from an organ not studied here. No non-English works were found. No search filter restrictions were applied, such as a publication date. Note that the term “functional tissue/organ” in this study includes applications using endothelial cells and one type of cell, either parenchymal cells from the tissue/organ created or cells to differentiate into parenchymal cells from the tissue/organ created that can potentially form a molecule in the organ/tissue (e.g., albumin creation in liver) or that potentially perform a function that occurs in the organ or tissue (e.g., reducing sugar levels in the pancreas).

2.2. Search Strategy

For the search of results, one database (i.e., Scopus database) was utilized. The search term “TITLE-ABS-KEY ((vascularized) AND (liver OR hepatic OR pancreas OR pancreatic OR islet OR renal OR kidney OR nephron OR intestine OR intestinal OR bowel OR spleen OR stomach OR gastric) AND (tissue AND engineering) AND (hydrogel))” was used. FFK conducted the literature search and the selection process of the articles.

2.3. Data Extraction

FFK extracted the relevant data, including the year of publication, the authors, the type of study (i.e., in vitro study or in vivo study), whether the study included simulation tools or mathematical models, the organs/tissues created, the method used for the production of the matrix that included hydrogel(s) and cells, a basic outcome summary and the material used for the hydrogel.

2.4. Data Presentation

A series of tables (i.e., Table 1 and Table 2) present the characteristics of the included studies.

3. Results of Recent Advances

3.1. Study Selection

From the literature search described in the Section 2, a total of 47 articles, books and book chapters have been found. From this number, 35 articles were considered eligible for the study (note that in this step, the articles were eligible according to Scopus, and no review or data papers were included), and full-text examination and data extraction was performed. Finally, after removing non-eligible studies (according to the exclusion criteria mentioned previously (Section 2)) and not being able to find 2 papers, 18 studies were considered for the review [11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28] (Figure 1).

3.2. Study Characteristics

All the studies that were included in the review were published from 2010 to 2024. The studies varied, including different organs/tissues for creation in each or more than one organ/tissue. The studies also varied, since some included in vitro results, some were in vivo, and some included both types (i.e., in vitro and in vivo). A wide range of production methods for the hydrogels was used, including a single syringe, a double syringe, 3D bioprinting, light-induced crosslinking, temperature-induced crosslinking and more (for details see Table 1). Regarding the materials used, collagen, alginate and fibrin are mostly utilized (for more details, see Table 1). The studies’ results are not comparable, since the studies included different materials, cell lines and production methods. Even the culture periods in the in vitro and in vivo studies differed from a few days to 14 weeks [22]. From the eighteen studies, there was one particular study [15] where the authors wanted to see how a system of organs/tissues/organoids could function in an in vitro environment. The authors included a triculture of small intestinal organoids, stomach organoids and induced hepatic tissues co-cultured with HUVECs [15]. The in vitro environment consisted of intestinal media, gastric media and hepatic induction media [15]. Regarding each organ/tissue studied here, 10 results [11,12,13,14,15,16,17,18,19,20] included liver tissue, 5 results [21,22,23,24,25] included pancreatic islet tissue, 3 results included kidney tissue [18,26,27], 1 result included intestinal tissue [28], and 1 result included gastric tissue [16]. Unfortunately, there were no studies including hydrogel-based organ tissue engineering for the spleen. In addition, some studies were for healthy tissues and some for cancerous tissues. The time of testing for each in vivo study was from a few days (i.e., most of the studies) up to 14 weeks (for study [22]). Also, two studies for liver tissue/organ [13,15] included decellularized tissue for their hydrogels.

4. Discussion

4.1. Summary of the Results

From the results of the study, it can be concluded that there is a limited number of applications involving hydrogel-based vascularized tissue/organ creation with both endothelial and parenchymal cells. This limited number of findings might be attributed to the use of only the Scopus database. Additionally, the majority of the tissues constructed here are mainly for the liver (10/18 ≅ 0.556), pancreas (5/18 ≅ 0.278) and kidney (3/18 ≅ 0.167). In addition, equal work has been found for stomach and intestinal hydrogel-based tissue engineering (1/18 ≅ 0.056), and finally, nothing was found on the creation of a hydrogel-based vascularized spleen (0/18 = 0). The latter could be attributed to the fact that even though the spleen is an important part of the human immune system, one can survive without this organ. It is also true that one can live without their pancreas or having diabetes mellitus type I but not without side effects. Specifically. in the first case, there will be problems in regulating blood sugar and in nutrient absorption from food. In the latter case, only blood sugar-regulating problems appear.
From the current applications, it is evident that there are no applications that have been tested for a period of 6 months and more. All these presented applications are studied mostly in the range of days to weeks. If these applications want to proceed in human therapeutic applications, the long-term stability is a crucial issue to pass or fail one application. This information has been added to the revised manuscript. This is a testing period limitation of all these applications, since eventually, they cannot be trusted for long-term usage and potentially for tissue/organ substitution. One of the negative outcomes found from this systematized review is that there is not a universal hydrogel matrix that can be used in hydrogel-based tissue engineering applications. At least the authors use different matrices most of the time, meaning that there is still room for improvement in the material selection. A noteworthy observation is that two studies are using hydrogels made from decellularized tissue from the tissue they are trying to produce [13,15]. Note that the decellularized tissue includes all the ECM elements (e.g., GAG) of the source tissue. This makes the decellularized hydrogel closer to the natural ECM than other hydrogel constructs. Moreover, is worthy to mention that most of the applications in Table 1 are using naturally derived materials (i.e., pre-polymers) for the hydrogels, such as gelatin and fibrin.
One of the positive facts is that the studies seemed to increase in number yearly as we reached the current year. Additionally, it can be observed that more complicated, more advanced and more reliable methods are being created and used in the production of hydrogel-based tissue/organ engineering. These methods include the transition from a single syringe to make a hydrogel to a double syringe to a 3D bioprinter to organs in a chip to robot-automated production of hydrogel-based vascularized organs for tissue engineering. In fact, this can make the results better, more sophisticated and more reliable. Also, the constructs can be more detailed and advanced, allowing them to have more possibilities to perform the job they were designed to.
Another thing that we observed is that there are mainly two strategies to make a vascularized network. The first utilizes a gel patch that is implanted in an organism, which later leads to the growth of a vascularized network. The other strategy includes the creation of pre-vascularized networks that can be implanted or can be used as a drug testing model. Judging by the current findings, it is more possible to design and manufacture drug testing devices than to construct a tissue/organ substitute.
There are efforts to create tissue/organ-like structures capable of being used as a drug testing model [15].

4.2. State-of-the-Art Applications

Summarizing for each organ, the state of the art could not be provided definitively, as the technologies under investigation are following different approaches with different obstacles and uncertainties and are at different stages of development. For instance, the state of the art could be a technology used in vivo, which provides the closest to human use, but in the case of drug toxicity testing, the organ-on-a-chip applications could be considered the state of the art, since without risking any life, a toxicity test could be conducted for numerous drugs. So, the final state-of-the-art technology might not be a single one, but the manufacturing method and the potential use should be taken into account as significant aspects of the technologies under consideration.
Taking this into consideration, for the hepatic organ/tissue, the applications from references [18,19,20] could be considered the state of the art, since reference [18] includes a subtractive manufacturing technique to create the matrix, reference [19] describes a microfluid chip that combines 3D bioprinting and the use of robotic handling, and reference [20] also uses a bioprinting method. For the pancreatic tissue/organ, the state-of-the art title could be given to the applications of reference [22], since their construct was applied to their in vivo experiments for up to 14 weeks, utilizing a two-component synthetic PEG hydrogel. For the kidney organ/tissue, reference [27] could be considered as state of the art, since the authors used their application in in situ renal injury repair, improving the injured renal microenvironment. For the intestinal tissue-related applications, [28] could be considered state of the art, since the authors created an organoid on a chip with multiple potential uses. Finally, for stomach or gastric organ/tissue, the application from reference [16] can be considered state of the art.
Finally, due to the number of applications, it is difficult to find a trend over the years on the production methods and the materials used.

4.3. Comparison of Findings from the Literature

From the research, there were no similar systematized or systematic reviews or reviews for hydrogel-based organ/tissue engineering with an emphasis on hydrogel materials and applications in the abdominal organs that the current review focuses on. There were, however, many interesting non-systematized and non-systematic reviews that include tissue engineering in vascularized composite allotransplantation from Ren et al. [29] or include vascularized organ-on-a-chip systems from Fritschen and Blaeser [30]. Additional interesting reviews include the use of biomaterials for vasculature engineering to construct liver tissue from Lv et al. [31] or include various biomaterials to promote vascularization in organ tissue engineering from Zhao et al. [32]. Finally, a really interesting and detailed review article has been published by Rojek et al. [33] on microfluidic formulation of topological hydrogels for microtissue engineering. This article focuses on microtissue engineering applications, and specifically, it reviews the available microfluidic fabrication methods and critically discusses the available tissue-specific applications.

4.4. Limitations of the Review

Various limitations can be attributed to this systematized review [8,9]. First of all, the article database usage was limited, meaning that more databases should have been used in the initial search. The snowballing technique could also be used. Moreover, the screening and analysis of articles could be conducted by a second person, thus rendering this review a systematic review. Finally, more organs could be included (e.g., heart, lungs, reproductive organs, etc.).

5. Conclusions

In summary, the field of vascularized organ tissue engineering shows a potential solution and research direction to follow regarding artificial organs. Even today, the results, although important, are still not enough to talk about potential organ replacement. The recent applications show the capability of achieving complex tissue creation using various methods, including double syringes for producing the hydrogel matrix, 3D printing with hydrogel-based materials, robot-automated usage for increased precision and speed, hydrogels including a decellularized ECM, microfluidics, organ on a chip and more. Some of the works include pre-vascularized tissues that can be implanted; others include tissues in which the vascularized network will be developed after implantation. In fact, the applications found here, even the in vivo studies, have not been tested for long-enough periods to see the longevity of these interventions for 6 to 12 months. A lot of work has to be conducted to mimic the complexity of human organs that include various tissue cells in a vascularized final matrix.

6. Future Directions

For future directions, there are many things that could be described. The major requirement in the current state is to increase the number of applications/research efforts and combine current technologies. Secondly, the research groups should proceed with technologies/applications that can work in vivo to replicate an organ/tissue and be efficient and functional for a prolonged period of time of 6 month to a year. Thirdly, the research groups should address the problem on its basis, meaning that it is not necessary to make an organ that has the same characteristics and complexity and shape of the impaired organ/tissue but rather to realize the job adequately. Fourthly, the tissues are not just endothelial cells and parenchymal cells. For example, the liver includes a series of cells such as hepatocytes, Kupffer cells and liver sinusoidal endothelial cells, among others. Finally, with the current technological advancements presented here, there should be more involvement of computational simulations and mathematical models to reduce the development time, total effort and financial resources for the in vitro pre-clinical phase. In addition, these methods can also reduce the sacrificed animals for the in vivo pre-clinical phase.
Finally, the researchers have to focus on a major aspect of the creation of a hydrogel-based artificial organ/tissue. This is bioprinting and the ethical dilemmas that arise with it. Even although bioprinting can avoid the ethical dilemmas associated with clinical organ transplantation and/or xenotransplantation, it has unique challenges, which are necessary to address. It is of high importance to define the role of bioprinting organs/tissues and to clarify the limitations and the ethical perspectives. The process of bioprinting is in its infancy, which means that there is a plethora of parameters that are mandatory to be considered [34]. We provide two interesting works for the readers to deepen their knowledge regarding ethics and bioprinting: [35,36].

Author Contributions

Conceptualization, F.F.K.; methodology, F.F.K., M.A., G.T. and A.H.A.; formal analysis, F.F.K.; investigation, F.F.K. and M.A.; data curation, F.F.K.; writing—original draft preparation, F.F.K.; writing—review and editing, F.F.K., M.A., G.T. and A.H.A.; visualization, F.F.K.; supervision, G.T. and A.H.A.; project administration, F.F.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing is not applicable, since no new data were generated.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Karageorgos, F.F.; Neiros, S.; Karakasi, K.-E.; Vasileiadou, S.; Katsanos, G.; Antoniadis, N.; Tsoulfas, G. Artificial Kidney: Challenges and Opportunities. World J. Transplant. 2024, 14, 89025. [Google Scholar] [CrossRef] [PubMed]
  2. Groth, T.; Stegmayr, B.G.; Ash, S.R.; Kuchinka, J.; Wieringa, F.P.; Fissell, W.H.; Roy, S. Wearable and Implantable Artificial Kidney Devices for End-stage Kidney Disease Treatment: Current Status and Review. Artif. Organs 2022, 47, 649–666. [Google Scholar] [CrossRef] [PubMed]
  3. Patel, R.; Patel, D. Injectable Hydrogels in Cardiovascular Tissue Engineering. Polymers 2024, 16, 1878. [Google Scholar] [CrossRef] [PubMed]
  4. Ansari, M.; Darvishi, A.; Sabzevari, A. A Review of Advanced Hydrogels for Cartilage Tissue Engineering. Front. Bioeng. Biotechnol. 2024, 12, 1340893. [Google Scholar] [CrossRef] [PubMed]
  5. Karageorgos, F.F.; Kiparissides, C. Prediction of Viscoelastic Properties of Enzymatically Crosslinkable Tyramine–Modified Hyaluronic Acid Solutions Using a Dynamic Monte Carlo Kinetic Approach. Int. J. Mol. Sci. 2021, 22, 7317. [Google Scholar] [CrossRef]
  6. Karageorgos, F.F.; Vasileiadou, A.C.; Kiparissides, C. Mathematical Modelling of Enzymatically Cross-linked Polymer–Phenol Conjugates Using Deterministic and Stochastic Methods. Can. J. Chem. Eng. 2023, 101, 4871–4885. [Google Scholar] [CrossRef]
  7. Sarvestani, A.S.; He, X.; Jabbari, E. Viscoelastic Characterization and Modeling of Gelation Kinetics of Injectable In Situ Cross-Linkable Poly(Lactide-Co-Ethylene Oxide-Co-Fumarate) Hydrogels. Biomacromolecules 2007, 8, 406–415. [Google Scholar] [CrossRef]
  8. Library Guides: Which Review Is That? A Guide to Review Types: Systematised Review. Available online: https://unimelb.libguides.com/whichreview/systematisedreview (accessed on 3 September 2024).
  9. Grant, M.J.; Booth, A. A Typology of Reviews: An Analysis of 14 Review Types and Associated Methodologies. Health Inf. Libr. J. 2009, 26, 91–108. [Google Scholar] [CrossRef]
  10. Page, M.J.; McKenzie, J.E.; Bossuyt, P.M.; Boutron, I.; Hoffmann, T.C.; Mulrow, C.D.; Shamseer, L.; Tetzlaff, J.M.; Akl, E.A.; Brennan, S.E.; et al. The PRISMA 2020 Statement: An Updated Guideline for Reporting Systematic Reviews. BMJ 2021, 372, n71. [Google Scholar] [CrossRef]
  11. Zhao, Y.; Xu, Y.; Zhang, B.; Wu, X.; Xu, F.; Liang, W.; Du, X.; Li, R. In Vivo Generation of Thick, Vascularized Hepatic Tissue from Collagen Hydrogel-Based Hepatic Units. Tissue Eng. Part C-Methods 2010, 16, 653–659. [Google Scholar] [CrossRef]
  12. Leong, M.F.; Toh, J.K.C.; Du, C.; Narayanan, K.; Lu, H.F.; Lim, T.C.; Wan, A.C.A.; Ying, J.Y. Patterned Prevascularised Tissue Constructs by Assembly of Polyelectrolyte Hydrogel Fibres. Nat. Commun. 2013, 4, 2353. [Google Scholar] [CrossRef] [PubMed]
  13. Agarwal, T.; Narayan, R.; Maji, S.; Ghosh, S.; Maiti, T.K. Decellularized Caprine Liver Extracellular Matrix as a 2D Substrate Coating and 3D Hydrogel Platform for Vascularized Liver Tissue Engineering. J. Tissue Eng. Regen. Med. 2018, 12, e1678–e1690. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, B.; Lai, B.F.L.; Xie, R.; Huyer, L.D.; Montgomery, M.; Radisic, M. Microfabrication of AngioChip, a Biodegradable Polymer Scaffold with Microfluidic Vasculature. Nat. Protoc. 2018, 13, 1793–1813. [Google Scholar] [CrossRef] [PubMed]
  15. Jin, Y.; Kim, J.; Lee, J.S.; Min, S.; Kim, S.Y.; Ahn, D.H.; Kim, Y.-G.; Cho, S.W. Vascularized Liver Organoids Generated Using Induced Hepatic Tissue and Dynamic Liver-Specific Microenvironment as a Drug Testing Platform. Adv. Funct. Mater. 2018, 28, 1801954. [Google Scholar] [CrossRef]
  16. Carpenter, R.; Oh, H.J.; Ham, I.-H.; Kim, D.; Hur, H.; Lee, J. Scaffold-Assisted Ectopic Transplantation of Internal Organs and Patient-Derived Tumors. ACS Biomater. Sci. Eng. 2019, 5, 6667–6678. [Google Scholar] [CrossRef]
  17. Cui, J.; Wang, H.; Shi, Q.; Ferraro, P.; Sun, T.; Dario, P.; Huang, Q.; Fukuda, T. Permeable Hollow 3D Tissue-like Constructs Engineered by on-Chip Hydrodynamic-Driven Assembly of Multicellular Hierarchical Micromodules. Acta Biomater. 2020, 113, 328–338. [Google Scholar] [CrossRef]
  18. Rajasekar, S.; Lin, D.S.Y.; Zhang, F.; Sotra, A.; Boshart, A.; Clotet-Freixas, S.; Liu, A.; Hirota, J.A.; Ogawa, S.; Konvalinka, A.; et al. Subtractive Manufacturing with Swelling Induced Stochastic Folding of Sacrificial Materials for Fabricating Complex Perfusable Tissues in Multi-Well Plates. Lab A Chip 2022, 22, 1929–1942. [Google Scholar] [CrossRef]
  19. Fritschen, A.; Lindner, N.; Scholpp, S.; Richthof, P.; Dietz, J.; Linke, P.; Guttenberg, Z.; Blaeser, A. High-Scale 3D-Bioprinting Platform for the Automated Production of Vascularized Organs-on-a-Chip. Adv. Healthc. Mater. 2024, 13, e2304028. [Google Scholar] [CrossRef]
  20. Jiang, Z.; Jin, B.; Liang, Z.; Wang, Y.; Ren, S.; Huang, Y.; Li, C.; Sun, H.; Li, L.; Liu, L.L.; et al. Liver Bioprinting within a Novel Support Medium with Functionalized Spheroids, Hepatic Vein Structures, and Enhanced Post-Transplantation Vascularization. Biomaterials 2024, 311, 122681. [Google Scholar] [CrossRef]
  21. Jung, B.; Hong, S.; Kim, S.C.; Kim, S.C.; Hwang, C.M.; Hwang, C.M. In Vivo Observation of Endothelial Cell-Assisted Vascularization in Pancreatic Cancer Xenograft Engineering. Tissue Eng. Regen. Med. 2018, 15, 275–285. [Google Scholar] [CrossRef]
  22. Weaver, J.D.; Headen, D.M.; Hunckler, M.D.; Coronel, M.M.; Stabler, C.L.; García, A.J. Design of a Vascularized Synthetic Poly(Ethylene Glycol) Macroencapsulation Device for Islet Transplantation. Biomaterials 2018, 172, 54–65. [Google Scholar] [CrossRef] [PubMed]
  23. Hsu, Y.-J.; Wei, S.-Y.; Lin, T.-Y.; Fang, L.; Hsieh, Y.-T.; Chen, Y.-C. A Strategy to Engineer Vascularized Tissue Constructs by Optimizing and Maintaining the Geometry. Acta Biomater. 2022, 138, 254–272. [Google Scholar] [CrossRef] [PubMed]
  24. Kinney, S.M.; Ortaleza, K.; Vlahos, A.E.; Sefton, M.V. Degradable Methacrylic Acid-Based Synthetic Hydrogel for Subcutaneous Islet Transplantation. Biomaterials 2022, 281, 121342. [Google Scholar] [CrossRef] [PubMed]
  25. Perugini, V.; Flaherty, S.M.; Santin, M. Development of Scaffold-Free Vascularized Pancreatic Beta-Islets in Vitro Models by the Anchoring of Cell Lines to a Bioligand-Functionalized Gelatine Substrate. J. Mater. Sci. Mater. Med. 2022, 33, 37. [Google Scholar] [CrossRef] [PubMed]
  26. Huling, J.; Min, S.-I.; Kim, D.S.; Ko, I.K.; Atala, A.; Yoo, J.J. Kidney Regeneration with Biomimetic Vascular Scaffolds Based on Vascular Corrosion Casts. Acta Biomater. 2019, 95, 328–336. [Google Scholar] [CrossRef]
  27. Zhang, Y.; Yu, L.; Qiu, R.; Ye, G.; Lin, R.; Wang, Y.; Wang, G.; Hu, B.; Hou, H. 3D Hypoxia-Mimicking and Anti-Synechia Hydrogel Enabling Promoted Neovascularization for Renal Injury Repair and Regeneration. Mater. Today Bio 2023, 21, 100694. [Google Scholar] [CrossRef]
  28. Orge, I.D.; Pinto, H.N.; Silva, M.A.; Bidarra, S.J.; Ferreira, S.A.; Calejo, I.; Masereeuw, R.; Mihăilă, S.; Barrias, C.C. Vascular Units as Advanced Living Materials for Bottom-up Engineering of Perfusable 3D Microvascular Networks. Bioact. Mater. 2024, 38, 499–511. [Google Scholar] [CrossRef]
  29. Ren, D.; Chen, J.; Yu, M.; Yi, C.; Hu, X.; Deng, J.; Guo, S. Emerging Strategies for Tissue Engineering in Vascularized Composite Allotransplantation: A Review. J. Tissue Eng. 2024, 15, 1–19. [Google Scholar] [CrossRef]
  30. Fritschen, A.; Blaeser, A. Biosynthetic, Biomimetic, and Self-Assembled Vascularized Organ-on-a-Chip Systems. Biomaterials 2021, 268, 120556. [Google Scholar] [CrossRef]
  31. Lv, W.; Zhou, H.; Aazmi, A.; Yu, M.; Xu, X.; Yang, H.; Huang, Y.Y.S.; Ma, L. Constructing Biomimetic Liver Models through Biomaterials and Vasculature Engineering. Regen. Biomater. 2022, 9, rbac079. [Google Scholar] [CrossRef]
  32. Zhao, W.; Zhu, J.; Hang, J.; Zeng, W. Biomaterials to Promote Vascularization in Tissue Engineering Organs and Ischemic Fibrotic Diseases. MedComm–Biomater. Appl. 2022, 1, e16. [Google Scholar] [CrossRef]
  33. Rojek, K.O.; Ćwiklińska, M.; Kuczak, J.; Guzowski, J. Microfluidic Formulation of Topological Hydrogels for Microtissue Engineering. Chem. Rev. 2022, 122, 16839–16909. [Google Scholar] [CrossRef] [PubMed]
  34. Alexiou, M.V.; Tooulias, A.I. Three-Dimensional Bioprinting in Medical Surgery. In 3D Printing: Applications in Medicine and Surgery; Elsevier: Amsterdam, The Netherlands, 2022; Volume 2, pp. 27–75. [Google Scholar]
  35. Vermeulen, N.; Haddow, G.; Seymour, T.; Faulkner-Jones, A.; Shu, W. 3D Bioprint Me: A Socioethical View of Bioprinting Human Organs and Tissues. J. Med. Ethics 2017, 43, 618–624. [Google Scholar] [CrossRef] [PubMed]
  36. Kirillova, A.; Bushev, S.; Abubakirov, A.; Sukikh, G. Bioethical and Legal Issues in 3D Bioprinting. Int. J. Bioprinting 2020, 6, 7–16. [Google Scholar] [CrossRef]

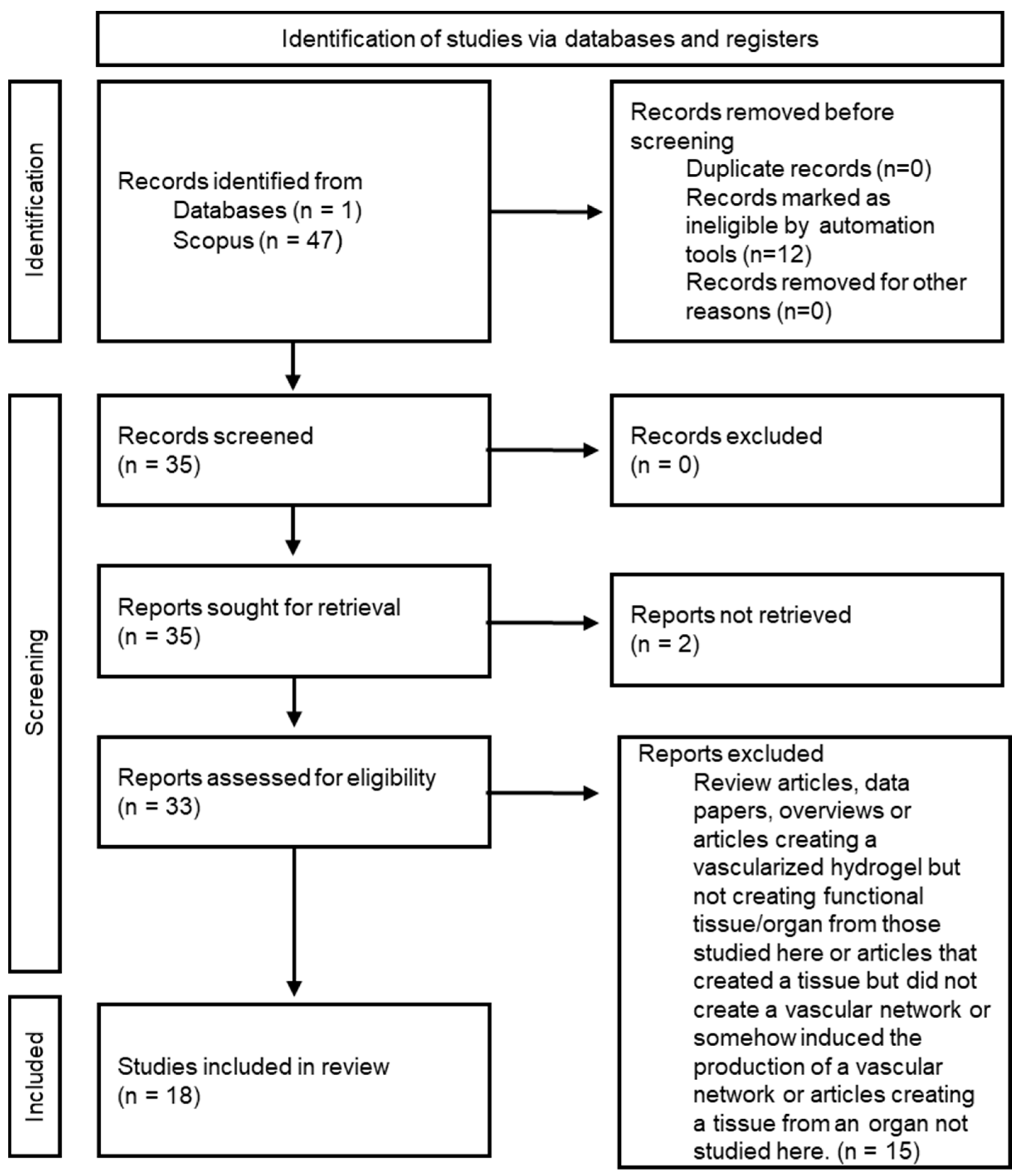

Figure 1. PRISMA flowchart of article selection [10].
Figure 1. PRISMA flowchart of article selection [10].
Gels 10 00653 g001
