Terpenoid Biosynthesis Dominates among Secondary Metabolite Clusters in Mucoromycotina Genomes

by 1,*,†, 2 and 3,*,†
Department of Biometry and Bioinformatics, Institute of Plant Genetics, Polish Academy of Sciences, Strzeszynska 34, 60-479 Poznan, Poland
Institute of Evolutionary Biology, Faculty of Biology, Biological and Chemical Research Centre, University of Warsaw, Zwirki i Wigury 101, 02-089 Warsaw, Poland
Institute of Biochemistry and Biophysics, Polish Academy of Sciences, Pawinskiego 5A, 02-106 Warsaw, Poland
Authors to whom correspondence should be addressed.
These authors contributed equally.
J. Fungi 2021, 7(4), 285;
Received: 26 February 2021 / Revised: 24 March 2021 / Accepted: 6 April 2021 / Published: 9 April 2021
(This article belongs to the Section Fungal Genomics, Genetics and Molecular Biology)


Early-diverging fungi harbour unprecedented diversity in terms of living forms, biological traits and genome architecture. Before the sequencing era, non-Dikarya fungi were considered unable to produce secondary metabolites (SM); however, this perspective is changing. The main classes of secondary metabolites in fungi include polyketides, nonribosomal peptides, terpenoids and siderophores that serve different biological roles, including iron chelation and plant growth promotion. The same classes of SM are reported for representatives of early-diverging fungal lineages. Encouraged by the advancement in the field, we carried out a systematic survey of SM in Mucoromycotina and corroborated the presence of various SM clusters (SMCs) within the phylum. Among the core findings, considerable representation of terpene and nonribosomal peptide synthetase (NRPS)-like candidate SMCs was found. Terpene clusters with diverse domain composition and potentially highly variable products dominated the landscape of candidate SMCs. A uniform low-copy distribution of siderophore clusters was observed among most assemblies. Mortierellomycotina are highlighted as the most potent SMC producers among the Mucoromycota and as a source of novel peptide products. SMC identification is dependent on gene model quality and can be successfully performed on a batch scale with genomes of different quality and completeness.

1. Introduction

Early-diverging fungi were long considered to be devoid of secondary metabolite (SM) clusters; however, this perspective has gradually changed with the advancement of genome sequencing of selected representatives. The reviews by Kerstin Voigt, Ekaterina Shelest and colleagues [1,2] showed that sequences similar to known secondary metabolite clusters (SMCs) can be identified in most analysed Mucoromycota genomes. The identified SMCs harboured key enzymes involved in SM biosynthesis in Dikarya: polyketide synthases (PKS), nonribosomal peptide synthetases (NRPS), terpene cyclases/synthases (TC), and dimethylallyl tryptophan synthases (DMATS). One or several of the core genes are typically surrounded by accessory genes, most often encoding additional enzymes (e.g., transferases, hydroxylases), regulatory transcriptional factors and/or efflux transporters.
The main classes of secondary metabolites in fungi include the respective compounds tied to the above core enzymes: polyketides, nonribosomal peptides, terpenoids and siderophores. The polyketides are produced by PKS clusters coding several proteins forming a multi-domain enzyme that condensates acyl-CoA precursors. Polyketides are typically modified by accessory enzymes, leading to the formation of complex structures. Aflatoxin, patulin and lovastatin belong to the best-studied fungal polyketides [3]. Nonribosomal peptides are catalysed without a mRNA template by a complex enzyme called NRPS. The peptide often includes noncanonical amino acids and is modified by accessory enzymes similar to polyketides. Well-known NRPS include β-lactam antibiotics, cyclosporine A and echinocandin [4]. Terpenes are isoprene polymers which often have multicyclic structures and can also be further modified, leading to the formation of terpenoids. Terpenes and terpenoids often possess scent, flavour or colour, like carotenes. Terpenoid compounds play diverse functional roles: they can serve as toxins (e.g., fusicoccin A of Diaporthe amygdali) or growth-promoting factors (e.g., gibberellin GA14 of Fusarium fujikuroi) [5]. Siderophores are produced for the iron chelation needed for both storage and transport of this element. Iron is usually scarce, and many microorganisms produce siderophores to scavenge insoluble iron forms, e.g., fusarinines of Fusarium spp., coprogen of Pilobolus sp. and asperchromes B1-F3 of Aspergillus ochraceus [6]. Although siderophores are not a biosynthetic class of SMs on its own, they are biosynthesized by an NRPS in the case of hydroxamate-based siderophores (preferably in ascomycetes (e.g., triacetylfusarinine C) and basidiomycetes (e.g., basidioferrin)) or by NRPS-independent siderophore (NIS) biosynthetic enzymes in the case of polycarboxylate siderophores (preferably in early-diverging fungi such as Mucoromycota).
For example, siderophore production has been confirmed in Glomus (glomuferrin) [7], Apophysomyces [8] and Rhizopus delmar (rhizoferrin) [9]. The latter has been further characterised. It belongs to the NIS family [9] and is likely to be regulated by glycosylation [10] (see the example in Figure 1). Experimental studies showed that different Mortierellomycotina representatives produce diverse natural products with interesting properties e.g., malpinin acetylated hexapeptides and malpibaldin cyclic pentapeptides [11]. These compounds have been linked to the presence of several NRPS clusters, for example, in the mycelium of Mortierella alpina. The NRPS of M. alpina are related to bacterial ones and contain atypical epimerase/condensation domains [12]. Podila minutissima (syn. Mortierella minutissima) is used for an enantioselective bioconversion of limonene to perilla alcohol and perillaldehyde [13]. PKS and NRPS cluster presence was recently described in transcriptomes of five Mucor species [14] and Gigaspora margarita [15]. The mycelium of Mucor circinelloides was shown to produce carotenoids and terpenoids [1]. This property of M. circinelloides is used in industrial settings. Finally, SMCs responsible for terpene biosynthesis were recently identified in several Mucor and Rhizopus genomes [9,16]. For instance, Mucor irregularis (syn. Rhizomucor variabilis) produces indole-diterpenes with a fused diterpene ring called rhizovarins [17].
The best-studied compound isolated from basal fungi is a macrolide, rhizoxin, produced by an endosymbiotic bacterium (Mycetohabitans rhizoxinica) of Rhizopus microsporus and encoded by a huge NRPS–PKS cluster [18]. Some fungi harbour the necessary genes themselves; others rely on their endohyphal bacteria (EHB). Similarly, in the Linnemannia elongata (syn. Mortierella elongata) and Mycoavidus cysteinexigens symbiosis, several compounds are produced, and the genome of the bacteria encodes NRPS and other metabolite clusters [19].
Fungal secondary metabolites can also promote plant growth in harsh conditions. This process is mediated by the release of phytohormones; for example, gibberellic acid (a diterpenoid acid) produced by Rhizopus stolonifer [20]), Mortierella antarctica and Podila verticillata (syn. Mortierella verticillata) [21]. Moreover, the plant–fungus interaction can lead to the synthesis of novel compounds which can be produced neither by the host nor the endophyte alone and can vary depending on the host plant species, which have been shown in, for example, a Umbelopsis dimorpha growing on Kadsura angustifolia and wheat bran [22].
Encouraged by the relative scarcity of data on SMCs for fungi other than Dikarya and the abundance of available genomic sequences, we aimed to perform a systematic screening of 157 publicly available Mucoromycota assemblies for the presence of secondary metabolite biosynthetic gene clusters. We applied a scalable procedure using publicly available tools for a batch evaluation of the diversity of SMCs within this group of fungi.

2. Materials and Methods

2.1. Candidate Secondary Metabolite Cluster Prediction

Mucoromycota genomes were downloaded from THE NCBI FTP on 8 June 2020 [23] (all assemblies with their references are listed in Supplementary Table S2). Subsequently, AntiSmash 5.1.2 [24] was used to annotate putative secondary metabolite clusters (SMCs), based on the built-in GLIMMERHMM [25] prediction of gene models (additional command line parameters: “--asf --cb-general --cb-subclusters --cb-knownclusters --smcog-trees --cf-create-clusters --fullhmmer --pfam2go --taxon fungi --genefinding-tool glimmerhmm”). Where possible, an additional round of AntiSmash 5.1.2 was run using existing GFF-formatted annotation. As indicated above, ClusterFinder extension was conducted to extend SMC boundaries. SMC type labels (e.g., ‘NRPS’, ‘NRPS-like’) were assigned based on AntiSmash’S own heuristics (strict and relaxed rule sets). To ensure specificity and sensitivity, protein sequences were scanned with rps-blast against the CDD [26] and PFAM [27] databases and filtered with a list of protein domains used by ClusterFinder rules in additional supervised checks that consisted of manual inspection of domain composition, leading to renaming of the Markov clusters (Supplementary Tables S5 and S6)
All predicted SMCs were separated into individual GenBank files (Supplementary Table S3 lists all the genomic coordinates of the SMCs) and CDS sequences were extracted with the gbf2xml and xtract utilities.

2.2. SMC-Encoded Protein Clustering and Annotation

All putative SMC-encoded proteins were clustered with MCL version 14-137 [28] in a process described in [29]. Based on a sampling of Markov Cluster Algorithm (MCL) cluster silhouette width, a threshold E-value of 1 × 10−10 and an inflation parameter of I = 1.55 were chosen for the final clustering. In parallel, all proteins encoded in each MCL cluster were compared against UniProt/SwissProt (release 2020_03) and MIBIG proteins (release 2.0) with DIAMOND v0.9.34.135 [30]. Hits were computed requiring over 50% coverage of both query and hit protein, using the sensitive mode of DIAMOND. Protein domains and conserved sites were annotated with InterPro (InterProScan-5.45.80 with additional models from PANTHER version 14.1; matches against all optional databases, as well as predictions of coiled coils were conducted. MCL clusters containing representative proteins from at least 10 candidate SMCs were further investigated and labelled manually based on protein domain annotation. Additionally, smaller MCL clusters (at least 2 proteins) were annotated if any DIAMOND hits to the MIBIG ‘biosynthetic’, ‘biosynthetic-additional’ or ‘transporter’ gene categories were found. The annotation results can be found in the Supplementary Tables (Supplementary Table S5, manual annotation of candidate families; Supplementary Table S6, tally of all found similarities to domains/proteins).
All representatives of candidate families representing nonribosomal peptide synthases (NRPS), putative adenylate-forming reductases (called also non-(nonribosomal)peptide synthase-NPS, i.e., NPS_1, NPS_2, LYS2), luciferases (LUC) and PKS/NRPS hybrids (PKS–NRPS) were further annotated in AdenylPred [31]. Notably, this prediction was initially only possible for 380 sequences (out of 562 in total) where the AMP-binding domain matched the underlying HMMer model with sufficient quality. Upon relaxing the HMMSEARCH bitscore threshold (set at 50 by default) and separating out individual adenylate-forming domains, further predictions were obtained. All individual predictions, regardless of the HMMer score, are listed in the Supplementary Table S3 (description of SMCs) and Supplementary Figure S2. We performed this prediction for all proteins clustered in the following candidate families harbouring InterPro matches to adenylate-forming domains: MCL0001-NPS, MCL0003-LYS2, MCL0006-NRPS, MCL0048-PKS/NRPS and MCL0862-NPS_2. Malpicyclin/malpibaldin candidate SMCs were inspected based on BLASTP matches to the reference sequences (QOW41315.1, malpicyclin synthetase; QOW41314.1, malpibaldin synthetase) [32].

2.3. SMC Similarity Network Construction and Visualization

A similarity network was constructed based on an all vs. all SMC candidate comparison. A modified MultiGeneBlast 1.13 [33] script was used (available from, accessed on 15 December 2020), with minor fixes for the following: calculation of query coverage normalised to the length of the query sequence, and the possibility of calculating scores for single matches (by default, at least 2 syntenic hits were required for the detection of SMC similarity). A substantial number of SMCs were found to be either fragmented or incomplete. In particular, the nonpeptide siderophore biosynthetic regions frequently consist of only a single IucC/IucA homologue (IucA_IucC, PF04183). Thus, to properly capture the intercluster similarities, single matches were necessary for network construction. A list of thresholds was set, including a minimum percentage identity for hits of 30%, a minimum sequence coverage of 60% and a maximum distance between syntenic region boundaries of 1 Mbp.
The similarity network was visualised in CytoScape 3.7.2 [34]. The graph edges were weighted based on average sequence identity over all cluster sequences. The Prefuse Force Directed OpenCL layout was used, with 200 iterations plus 50 edge-repulsive iterations, as well as a spring coefficient of 5 × 10−4, the spring length set to 20 and the node mass set to 50. Deterministic layout starting from scratch was also enabled to ensure the consistency of future updates.
Phylogenetic tree reconstruction was performed with FastTree [35], sequence alignments were computed with mafft version 7 [36] and ambiguous columns were removed using Noisy [32]. Trees were visualised in iTol [37].

2.4. Detection of Genes of Putative Bacterial Origin

In the light of evidence of both endosymbiosis and horizontal gene transfer, we endeavoured to perform a background check of clusters/genes of likely bacterial origin. We utilised the Alien Index framework for this purpose [38]. Briefly, we first conducted a search of every protein-coding gene encoded in candidate SMCs vs. the nonredundant protein database (as of 19 March 2021) with DIAMOND. Default parameters were used for the search, except for taxonomic restriction, where only higher fungi (Dikarya) and bacterial hits were considered, and the minimum E-value threshold, which was set to 1e-05. Next, the average value of AI (Alien Index) was calculated for both the entire cluster and just its component genes from the core families (the fatty acid acyl-CoA AMP (FAAL) family was included among the core families for this test). These values are included in the Supplementary Data to this paper as, respectively, avg_AI and avg_AI_core (Supplementary Table S3).

3. Results and Discussion

3.1. Initial Screening

A grand total of 1605 SMCs were initially detected by combining de novo gene prediction and the existing GFF annotation (where possible) with ClusterFinder SMC extension. After double-checking for the presence of characteristic biosynthetic domain signatures (see Methods), the list was curated into a final set of 1215 SMCs with an assigned type of biosynthetic signature (Supplementary Table S3). Notably, inclusion of the existing annotation had a pronounced impact on SMC detection in some taxa. In Glomerales and Diversisporales, successful detection of SMCs was possible only in the presence of pre-existing gene annotation, with the sole exception of a single terpene cluster in Gigaspora margarita BEG34. Likewise, two predicted NRPS in Hesseltinella vesiculosa NRRL 3301 were erroneously joined into a single region and were curated manually (referred to as GCA_002104935__14_gff and GCA_002104935__15_gff in Supplementary Tables S3–S8).
Unexpectedly, in some cases, the application of de novo gene prediction also resulted in the detection of novel candidate SMCs. However, such examples were far fewer in number (26 SMCs vs. 345 stemming from the available annotation). A summary of the detection performance over the available genomes is available in Supplementary Table S4.

3.2. Limits of de Novo Prediction in the Absence of Reference Annotation

A parallel study on early-diverging fungal genomes [39] demonstrated a similar overall abundance of identified SMCs but with minor differences resulting from the already described differences in AntiSmash 4.0 and 5.11 performance and GFF annotation usage [40]. We observed the best SMC completeness for clusters detected on the basis of detailed reference annotation of gene structures. This was particularly evident for Glomerales representatives, where the majority of SMCs were identified solely when GFF annotation was supplied. This is largely explained by the AntiSmash settings for the annotation of fungal data. These included only one de novo gene finder (GLIMMERHMM) with splice signal models of the basidiomycete Cryptococcus. Interestingly, gene models seemed to have less impact on SMC identification in Mucorales.

3.3. De Novo Predicted SMC Candidate Sequences Are Poorly Characterised by Synteny

The clustering of proteins encoded in candidate SMCs (see Supplementary Table S5 for characterisation of the detected domains and similarity to the reference sequences) reveals little overlap with the toolkit present in the MIBIG resource containing curated and confirmed sequences of biosynthetic clusters. In some cases (e.g., NRPS sequences), the low levels of sequence similarity can be attributed to the bacterial source of horizontal transfer (cf. malpibaldin MpbA and malpicyclin MpcA synthases [12]). However, inspection of the combinations of the candidate gene families showed over 60% potential SMCs (760) to be seemingly devoid of candidate accessory genes (defined as similar to MIBIG sequences, represented in multiple SMCs). Possible explanations, assuming correct gene prediction, include single horizontal transfers of evolutionarily distant clusters into fungal hosts (including endosymbiosis) and/or weak selective pressure leading to disjoint biosynthetic loci. As it is, the identified SMCs seem to be distantly related to known Dikarya SMCs, and recent publications support the incidence of horizontal gene transfer (HGT) [39,41].

3.4. Taxonomic Distribution

Genes similar to known secondary metabolite clusters were identified in the majority of analysed (n = 148 out of 157) Mucoromycota genomes (see Supplementary Table S1, Figure 2). Genomes of Mortierellomycotina encode an average of 16 SMCs per genome; the fewest were found in Lobosporangium transversale NRRL 3116 (n = 5) and Mortierellales strain BCC40632 (n = 3). Interestingly Glomeromycotina genomes differed in the number of SMCs, with half of Glomerales isolated devoid of SMCs but the Diversisporales having more than 20 SMCs. However, all seven Glomerales isolates without detected SMCs lacked gene annotation. Mucoromycotina genomes constituted the majority of the analysed dataset and, as expected, displayed intermediate content of SMCs, ranging from 22 SMCs in Rhizopus azygosporus CBS 357.93 to no SMCs candidates in Cunninghamella bertholletiae. Taxa with multiple sequenced strains revealed strong intraspecies diversity; for example, Rhizopus oryzae strains had from 2 up to 11 SMC candidates. This could be either due to assembly quality issues because SMCs tend to accumulate in repeat-rich regions, which are often missing from assemblies, or to real genetic diversity within the species.
Detection of SMCs also depends on the gene calling method and evolutionary distance to the reference genome used for training the gene calling tool. As mentioned before, this was particularly pronounced for Glomeromycotina genomes, which had no SMCs identified when the built-in GlimmerHMM (fungal version) was used. However, several clusters belonging to different types were reported when a GFF annotation was supplied. In consequence, we used genomic annotations when available.

3.5. Cluster Types

The greatest diversity of SMCs types was identified in Mucorales, which is likely a result of organism diversity and the relative abundance of assemblies for this order [42]. Canonical NRPS clusters are present predominantly in Mortierellomycotina (n = 66), whereas NRPS-like clusters with a phosphopantetheine attachment site (PP-binding, PF00550) or male sterility protein (NAD_binding_4, PF07993) and adenylate-forming (AMP-binding, PF00501) domains were identified in most of the analysed Mucormycotina assemblies. The largest category of SMCs is terpene clusters, which have diverse domain composition and potentially highly variable products. A uniform low-copy distribution of siderophore clusters was observed among most assemblies except for Umbelopsis spp.
Canonical PKS or PKS/NRPS clusters were not encoded by the analysed genomes except for Hesseltinella vesiculosa NRRL 3301, Bifiguratus adelaidae AZ0501, Gigaspora margarita BEG34 and all isolates of Syncephalastrum racemosum. It has been recently noticed that several of the putative clusters described in Mucorinae are actually fatty acid synthase (FAS) Type I genes [16]. However, our results show very few clusters related to fatty acid synthesis, with only 10 4’-phosphopantetheinyl transferase superfamily (ACPS, PF01648) domain copies in total. They were marked as “other” by the classifier and rejected from the final list.
Single SMCs of bacteriocin, betalactone, fungal-RiPP and ectoine were identified. Few of these were classified as hybrid SMCs with NRPS cluster fragments due to the presence of adenylation and condensation domains.

3.6. Presence of Bacterial-Like SMCs

We investigated the presence of genes of likely bacterial origin using the Alien Index concept (see Section 2.4). Apart from the clearly bacterial metabolite types (bacteriocins/ectoine), our results also support evidence of bacterial origins for candidate clusters among most NRPS-, PKS- and hybrid PKS/NRPS-containing clusters.
Conversely, the candidate NRPS-like clusters appear to be of fungal origin, with the exception of FAAL-containing clusters (Glomerales, Diversisporales), where the similarity of the core gene to the mycobacterial template was noted. Likewise, the clusters implicated in lysine (LYS2, single outlier) and siderophore (SID) biosynthesis were highly similar to their counterparts in Dikarya. In the case of terpenoids, no evidence of bacterial origin was retained in the AI values, except for a weak signal in the case of TS2-containing clusters among Diversisporales.
Putative bacteriocin biosynthesis clusters contained a domain of unknown function (DUF692, PF05114) coding ORF and displayed high sequence similarity to Stenotrophomonas maltophilia and Pseudomonas sp. sequences. In consequence, their occurrence in fungal genomes is likely from a bacterial source, either as contaminations or associated bacteria. The ectoine cluster present in the R. oryzae genome is the most similar to sequences from Achromobacter marplatensis, which is a member of Burkholderiales. The bacteria from this order are known as endohyphal partners of Mucoromycota representatives [18]. Therefore, we suppose that this SMC is likely of EHB origin. However, it remains an open question whether the abundance of Mortierelles and Diversisporales SMCs is dependent on their symbiotic status with endohyphal bacteria. Some previously named and characterised SMCs have clear sequence similarity to bacterial sequences [12]; others have a patchy taxonomic distribution without a clear evolutionary history. Other early-diverging fungi, Basidiobolales, seem to have acquired diverse SMCs from co-occurring bacteria [39]. The genomes of Gigaspora margarita and its Candidatus Glomeribacter gigasporarum symbiont encode NRPS-PKS hybrid clusters with genes of clear bacterial origin [15]. Interestingly, the sequence signatures are different for the SMC of the host and the symbiont [15]. The authors postulate an HGT scenario from unrelated bacterial donors leading to the emergence of the hybrid SMC in the associated bacteria and host fungi. Moreover, similar SMCs are present in related fungal isolates, pointing at a vertical inheritance following the SMC’s formation.
The supporting evidence for the discussed results is included in the Supplementary Table S3 (Alien Index values for every cluster). Additionally, we have included a graphical summary of AI values broken down by taxa and cluster/core gene family in form of Supplementary Figure S1.

3.7. SMC Sequence Clustering

A network of SMC nodes, created on basis of the MultiGeneBlast all-against-all search, showed the relatedness of SMCs belonging to one type and the interconnectedness of SMCs without prior categorisation (Figure 3; for MultiGeneBlast all-against-all scores, see Supplementary Table S8). While only a few SMCs lacked clear similarity to any other SMC (n = 3), this similarity was contingent on only a single matching gene in a further 176 cases and thus would be undetectable with a default MultiGeneBlast run (this was particularly frequent among siderophore biosynthetic regions, where 59 out of 155 showed no other genes in the matching region). In general, the similarity of core genes was the main driver for cluster similarity (a tendency also corroborated by the results of candidate family analysis, where there were relatively few large gene families shared by multiple SMCs).
Based on AntiSmash labelling, the SMC similarity network (Figure 3A) was dominated by terpene (n = 503, including 10 hybrid clusters) and NRPS-like SMCs (n = 421; 16 hybrid clusters). There were at least five major SMCs groups visible in the network, corresponding to: siderophores, NRPS and NRPS-like, and two related to terpenes. All of them are formed mainly by Mucorales sequences. NRPS-like sequences formed two distant groupings connected to the network of terpene SMCs and a separated NRPS cluster formed by Mortierellales sequences. Siderophore sequences grouped together, forming a well-separated cluster. Bacteriocins formed a separate subgraph, whereas PKS, betalactone and fungal-RiPP SMCs were located in the centre of the network, interconnected with terpene and NRPS clusters. Notably, the identity of visible SMC groups was properly refined by parallel annotation of the candidate gene families (Figure 3B), where conservation of core genes such as squalene synthase homologues was shown to explain the visible groupings (Figure 3B).
Notably, in the unsupervised Markov Cluster Algorithm (MCL) (see Supplementary Table S2 for mapping of candidate families to individual clusters) clustering of all proteins encoded by constituent SMC member genes, no unambiguous core genes were detected in 141 cases. While the clusters as a whole passed the rule-based check of signature activities (e.g., presence of condensation and adenylation domains), an inspection of individual gene annotations (see Supplementary Table S5) typically pointed to distantly related gene families. For example, in NRPS-like clusters, the fatty acyl-AMP ligases (MCL0047, FAAL) fulfilled the detection rule requirements for nine clusters in the absence of a canonical adenylate reductase signature. We decided to retain such cases among the results, as, according to [43], their involvement in the biosynthesis of a particular metabolite is a likely prediction (e.g., unique complex lipids).
The presence/absence of common SMC types for the analysed genomes is summarised in Figure 4. Notably, the only cases of missing even common SMCs is limited to genomes lacking any form of GFF annotation (five genomes of Rhizopus irregularis, 2-Cunninghamella bertholletiae, 1-Glomus cerebriforme, 1-Oehlia diaphana; a further raw assembly of Cunninghamella elegans B9769 contains only a single terpene-like cluster candidate).

3.8. Predominance of Terpene Biosynthesis in Non-Dikarya Genomes

Terpenes are synthesised from isoprenyl diphosphates by terpene synthases. In fungi, terpenoids are predominantly produced from mevalonate. Isopentenyl diphosphate (IPP) and dimethylallyl diphosphate (DMAPP) are condensed into products of diverse size by an isoprenyl diphosphate synthase (IDS) and further modified by terpene synthase (TPS) [44].
This condensation of two geranylgeranyl pyrophosphate (GGPP) units results in the formation of cis-phytoene, which is further isomerized to a trans-phytoene linear polyene structure that is the basic element for further formation of all carotenes (or carotenoids in general). The subsequent activity of cyclases leads to the formation of rings on one or two ends of this chain, and the introduction of conjugated double bonds leads to the formation of the characteristic carotenoid structures (tetraterpenoids). The presence of conjugated double bonds is responsible for providing the characteristic yellow, orange or reddish colours of these hydrocarbons [45]. Apart from plants and bacteria, carotenoids are often present in some fungal lineages. Neurosporaxanthin produced by an ascomycetous fungus (Neurospora crassa) or astaxanthin synthesised by the basidiomycete yeast Xanthophyllomyces dendrorhous are good examples [46,47]. However, β-carotene production seems to be the most widespread in the fungal kingdom and is especially consistent within Mucoromycotina. Its synthesis has been studied, among others, in Phycomyces blakesleeanus, Blakeslea trispora and Mucor circinelloides [47]. All these different carotenoids in fungi can act as protecting agents against oxidative stress [48] or play a photoprotective role [49]. In Mucoromycotina, they are additionally involved in sexual reproduction, as carotenoids are precursors of trisporic acid (C18), which are basic building blocks of sex pheromones in the sexual reproduction of Mucorales [50]. Therefore, the predominance of terpene biosynthesis in this group of fungi seems to manifest.
Tabima et al. (2020) [39] described the dominance of terpene cyclases unique for this group of fungi. Our results support the importance of terpene biosynthesis in Mucoromycotina. Particularly, the presence of squalene- and geranylogeranyl phosphate synthase-coding genes (SQS, SQS_NDUF6 and GGPS) was observed throughout the phylogenetic tree of Mucoromycota, except for the majority of Rhizopus genomes, pointing out the probable loss of this character in this lineage or missing predictions due to a lack of dedicated gene annotation. SQS indicates the canonical squalene synthase found in fungal SMCs, whereas SQS_NDUF6 has similarity to NDUFAF6 (NDUF6, mitochondrial complex assembly factor 6), which is known to contain a nonfunctional squalene/phytoene synthase domain. Interestingly, the terpene biosynthesis-related genes were detected mainly within plant-related Diversisporales and Glomerales, while carotenoid synthesis-related genes were observed mainly within saprotrophic Mucorales (Figure 4). Although carotenoids belong to the tetraterpenoids, they form a well-characterised subgroup that, in several aspects, may be delimited and discussed separately.
Indeed, the retention of a conserved genomic cluster can best be seen among terpenoid SMCs, where carotenoid biosynthesis likely selects for tight linkage of carB and carRA orthologues. The crucial enzymes responsible for the condensation (geranyl diphosphate synthase, GPPS; polyprenyl_synt, PF003480), phytoene and/or squalene synthase activity (SQS_PSY, PF00494), desaturation (phytoene desaturase, PDS; amino-oxidase, PF01593)) and cyclisation (lycopene cyclase activity of LCPS; no Pfam, IPR017825, TIGR03462) steps are all accounted for the detected SMCs (see also Figure 4). Regarding the canonical terpene synthases, these occur in two major candidate families: homologues of lanosterol synthase (yeast ERG7, n = 33) and terpene synthase Type II homologues (n = 4).
The multiple copies of carRA homologs, emerging most likely from the ancestral rounds of whole-genome duplication [51], underpin two large groupings of terpene-type candidate SMC-encoded proteins (MCL0005/MCL0008-carRA_1, carRA_2). This conjoining of carotenoid cyclase with phytoene desaturase homologues, observed across 43 genomes (46 SMCs), suggests that the emergence of a functional carotenoid biosynthetic pathway in fungi, colocalising jointly expressed carRA+carB, could predate the MucoromycotaDikarya split [52]. Interestingly, an atypical hydrolase/carbonic anhydrase superfamily coding gene was identified in a typical carRA+carB carotenoid SMC (33 genomes, 36 SMCs). Apart from the possible desaturase activity, one might speculate the involvement of such an enzyme in pH buffering or in cadmium resistance. Fungi have a documented ability to deal with high cadmium concentrations [53,54] and are known to alter the pH of the substrate while growing [55].

3.9. Heterogeneity of NRPS/NRPS-Like Homologues

Functional NRPS clusters harbour an adenylation (A) domain, a condensation (C) domain and a thioesterase or peptidyl carrier protein (T/PCP) [56]. Due to their similarity with PKS, as well as the frequent presence of PKS/NRPS hybrid core genes, there are often SMCs bearing the features of both NRPS and PKS clusters. In Tabima et al. (2020) [39], the abundance of NRPS/NRPS-like clusters among Mucorales and Mortierellales was shown, while PKS dominated the landscape of Zoopagales genomes. In our study, the abundance of aryl-forming reductase (NPS) was detected in the genomes of Mucorales, Endogonales and Diversisporales.
In the setting of NRPS and NRPS-like clusters, MCL-based clustering revealed the limitations of rule-based SMC detection: the NRPS/NRPS-like labels could easily overlap, as the sequences are frequently fragmented (due to, for example, incomplete gene models). The largest grouping of NRPS-like sequences (MCL0003, n = 116, with an additional 29 SMCs labelled as NRPS; see Supplementary Table S3) concerns Class I adenylate reductases, most likely orthologous to Schizosaccharomyces pombe LYS2, which is an essential aminoadipate reductase involved in the primary metabolic pathway of lysine biosynthesis across fungi [57]. This observation is further corroborated by the AdenylPred results, which classified most of the MCL0003 sequences as “bulky mainly phenyl derivatives aa”, a category which encompasses lysine in the predictor output.
The moderate overlap in predictions between NRPS and NRPS-like predicted types resulted from the detection of a condensation domain in the candidate SMCs (e.g., due to matching of the conserved orthologue group signature SMCOG11207 or the fatty acid ligase similarity mentioned earlier).
An extended analysis of the putative LYS2 orthologues confirms that these candidate SMCs occur predominantly in a single copy per genome (n = 130; see Figure 4), with apparent multiple copies present in the assemblies of seven isolates representing the Rhizopus, Mucor and Apophysomyces genera. Since out of a limited number of isolates lacking the LYS2 signature (n = 11), the majority concern the well-characterised species of Rhizopus oryzae (n = 6) and R. delemar (n = 2); these are more likely to arise from the incompleteness of the assemblies for these particular isolates. Taken together, the ubiquity, uniqueness and readily detectable sequence signature of candidate LYS2 clusters enabled us to conclude that the conserved involvement of Type I reductases in lysine biosynthesis is likely an ancestral conserved trait across Mucoromycota.
Of the other subtypes of NRPS-like sequences, Type II/III adenylate-forming reductases [57] (MCL0001) were present across 127 assemblies, with the highest numbers of SMCs (total n = 304) in Rhizopus microsporus (n = 14), Gigaspora margarita (n = 10) and Gigaspora rosea (n = 8). The densest representation of NRPS-like SMCs was confined to members of Mucorales (n = 251) and two representatives of Diversisporales. Since no examples of Type IV adenylate reductases were noted (no ferredoxin-NADP+ reductase FNR domain in the C-terminal position [57]), one can conclude that most likely the terminal domain swap leading to a division between Type IV (L-serine reductases) and Type III (aryl acid reductases) was most likely confined to Dikarya. Further characterisation, including phylogenetic reconstruction on improved gene models, is necessary to unambiguously resolve whether the analysed representatives belong to Clade II (L-tyrosine reductases; indicative of a Dikarya specific domain swap) or III (indicative of domain swapped Type IV ancestral genes being lost in Mucoromycota). However, a cursory BLASTP search and an approximate maximum likelihood reconstruction of the phylogenetic tree of adenylate-forming reductases with FastTree [34] strongly suggested the latter possibility (a monophyletic clade of Type III reductases).
Prediction of substrate specificity on adenylate forming reductases has shown ‘cinnamate and succinylbenzoate derivatives’ to be the most frequent predicted class (n = 133 candidate SMCs). This AdenylPred class of adenylate-forming reductases encompasses enzymes involved in the production of coumarate, cinnamate, vanillate, caffeate and ferulate. The next most abundant groups of compounds were ‘luciferin’ (n = 57), fatty acids (n = 32; ‘c13 through c17′), and salicylate, 2,3-dihydroxybenzoate, anthranilate, benzoate, naphthoate xanthenurate and quinolate (n = 30; ‘aryl and biaryl derivatives’). Furthermore, 10 SMCs had adenylate-forming reductases predicted to utilise short organic acids (‘c2 through c5′) and aromatic amino acids and lysine (‘bulky mainly phenyl derivatives’). Taken together, the AdenylPred results suggest the substantial diversity of reductase substrates across different aromatic organic compounds of importance.
Among adenylation enzymes, we found that the Glomeromycotina are unique in coding for candidate SMCs containing fatty acid acyl-CoA AMP ligase (FAAL). It has been documented previously that their symbiotic relationship with plants includes the exchange not only of carbohydrates but also of lipids [58]. Pertinently, the Glomeromycotina are unable to produce fatty acids independently of the host plant. Apparently, they have lost Type I fatty acid synthase and retain only a mitochondrial Type II FAS synthetase of unknown molecular function.
In stark contrast to NRPS-like adenylating enzymes, canonical nonribosomal peptide synthases were densely represented only in Mortierella alpina (a number ranging from 19 to 25 across three representatives) and Gigaspora (G. margarita, n = 13; G.rosea, n = 12).
On basis of sequence similarity (core peptide synthase), we were able to unambiguously assign putative SMCs (GCA_001021685__13_glim, GCA_000240685__19_glim, GCA_000507065__21_glim) for the recently described malpicyclin biosynthesis [12], which was present across all three Mortierella alpina isolates (ATCC 32222, B6842, CCTCC M207067) (Figure 5). Interestingly, this core SMC from M. alpina ATCC 32222 and B6842 encompasses three putative accessory genes: a saccharide deacetylase (similar to known chitin deacetylases from SwissProt), a major facilitator superfamily transporter (MFS, sugar transporter homologue) and alpha-methylacyl-CoA racemase/epimerase (also matching carnitine dehydratase SMCOG in AntiSmash predictions). While, at first glance, only the racemase accessory gene is present in the M. alpina CCTCC M207067 isolate, the 5′-terminal location of the SMC (relative to contig ends) suggests full biosynthetic capacity and ties with biosynthesis/transformation/efflux of glycoconjugates across M. alpina. AdenylPred prediction of small hydrophobic amino acid adenylation specificity fits well with the main substrate of leucine/valine residues incorporated into the cyclic peptides. The SMC is often accompanied by a zinc finger transcription factor-coding gene from the GATA zinc finger family (PF00320). The SMC is accompanied by two P-type ATPase genes and a putative toxin comprising a methylase and PIN-fold nuclease DUF1308 [59]. Proteins with such an architecture are numerous in Glomeromycotina (e.g., Rhizophagus irregularis A0A2I1GIJ1_9GLOM) and Zoopagomycota (Thamnocephalis sphaerospora A0A4P9XIN5_9FUNG) genomes and have not been characterised so far.
An additional candidate malpibaldin cluster (GCA_000507065__29_glim, M. alpina B6842) was selected based on sequence similarity to the MalB malpibaldin synthetase protein sequence. However, the number of gaps suggested assembly or detection issues in this case, and no putative accessory genes were annotated. The neighbouring genes are rich in protein repeat domains (Ankirin, leucine-rich repeats) and disordered regions.
The remaining NRPS SMCs identified in Mortierellomycotina genomes likely produce distinct cyclic peptides not characterised so far. These Mortierellomycotina SMCs with potentially novel compounds are likely related to the recently described malpibaldins and malpicyclins. The reductase substrates predicted by AdenylPred for all NPRS clusters are depicted in Supplementary Figure S2.

3.10. Non-NRPS Siderophore Synthases Are Conserved in Early-Diverging Fungi

Fungal siderophores are ferric ion-specific chelators usually secreted under iron-stressed conditions and they are supposed to play crucial roles in several biological processes, including virulence or oxidative stress tolerance. The majority of fungi produce hydroxamate and carboxylate types of siderophores [60]. They can be synthesised in a nonribosomal peptide synthetase (NRPS)-dependent pathway and another NRPS-independent pathway (NRPS-independent siderophore, NIS) [61] and the first one seems to be more common and better studied (e.g., [62]). The presence of NIS enzymes was predicted in Basidiomycota, Mucorales, Ascomycota and Kickxellales representatives [61]. However, in our study, the non-NRPS siderophore synthases were shown to be conserved in early-diverging fungi.
Siderophore SMCs are characterised by a single gene coding an enzyme with a conserved protein architecture with an N-terminally localized IucA_IucC (PF04183) domain followed by a FhuF (PF06276) domain. The identified clusters are evolutionarily related and an approximate maximum likelihood reconstruction of the siderophore evolutionary history performed with FastTree largely recovered the species tree of fungi (Supplementary Figure S3). Interestingly, we did not observe SMCs with the IucA_IucC hallmark using AntiSmash in any of Umbelopsis strains analysed, leading to the hypothesis of siderophore loss in this lineage. However, a BLASTP search with M. alpina CCTCC-M207067 GCA_001021685__6_glim-encoded siderophore synthase against the NR database led to the identification of siderophore synthetases in two recently sequenced Umbelopsis isolates [63] (U. isabellina protein acc. KAG2182392.1, U. vinacea KAG2188916.1), which were not included in this dataset. Siderophore SMCs seem to be vertically inherited and are present in every single clade of the early-diverging fungi sequenced so far, including Holomycota representatives such as Fonticula alba protein XP_009497925.1.

4. Conclusions

Our analysis underscores the blurry boundaries between primary and secondary metabolism, especially in the light of automated annotation based on the incomplete annotation of available resources.
On one hand, the domain/rule-based approach clearly requires supervision in order to filter out the most promising SM biosynthetic genes. As evidenced by the entanglement of NRPS-like candidate clusters with lysine biosynthesis genes, this is often insufficient to understand the relationships between distantly related SM biosynthetic gene candidates.
On the other hand, by bringing in additional, largely unsupervised lines of evidence (such as adenylation domain substrate prediction, homology to sequences of known function and intercluster similarity), the annotation can be improved considerably.
In our case, the combined approach was able to support previous findings that some aspects of secondary metabolism in Mucoromycota are clearly limited in taxonomic distribution (including the identified canonical NRPS clusters in Mortierellomycotina for the recently discovered malpibaldin and malpicyclin synthetases [12]). As evidenced by recent papers, a likely evolutionary source for divergent SMCs is the horizontal transfers from bacterial donors (the PKS-NRPS hybrid clusters found in Diversisporales), possibly facilitated by prior symbiosis.
However, the overview of our results also suggests that the native secondary metabolism-related toolkit of basal fungal lineages is far from scarce. Terpenoid biosynthesis, with a focus on the formation of carotenoid SM-related clusters, can be viewed as an early evolutionary trait, one shared by both Dikarya and Mucoromycotina. Retention of non-NRPS siderophore synthesis is likewise common, even in Glomeromycotina. There is a high diversity of adenylate forming reductases, suggesting that while clusters might not form, the early-diverging fungi do make use of an extensive array of activated substrates, which can be modified by other enzymes encoded in separate genomic loci. It remains an open question how the SMCs are regulated and when they are expressed. In the future, the desired follow-up to our work will proceed through expression studies, followed by precise delineation of cluster boundaries that can be achieved once coexpression is established. Ultimately, for the most promising candidates, this may culminate in direct characterisation of (novel) natural products.

Supplementary Materials

The following are available online at Supplementary Table S1: Number of identified SMCs in each of the assemblies. Supplementary Table S2: Assembly identifiers and references. Supplementary Table S3: Coordinates of all identified candidate SMCs (secondary metabolite clusters). Their positions and predicted frequent candidate gene families (as identified by the MCL approach). SMC description: abbreviated family labels are explained in Table S5, including AdenylPred results where available. Supplementary Table S4: Prediction differences between GLIMMER/GFF-based and the final conjoined approach. Supplementary Table S5: MCL clusters of individual SMC genes. Description of select, manually annotated candidate families (one line per candidate = MCL cluster). Supplementary Table S6: MCL clusters membership lists for all annotated candidate families (one line per candidate). Supplementary Table S7: MCL cluster annotation of members of candidate families in terms of similarity to InterPro domains/motifs and DIAMOND matches vs. UniProt/SwissProt and MIBIG proteins (one line per hit). Supplementary Table S8: SMC comparison results obtained by MultiGeneBlast (all vs. all), subsequently used for CytoScape visualisation. Supplementary Dataset S1: Protein sequences encoded in candidate SMCs (FASTA format). Supplementary Figure S1: Summary breakdown of average Alien Index (AI) values for entire clusters vs. putative core gene family members. For clarity, the clusters are faceted by cluster groups and taxa in separate subplots. Core family gene abbreviations used: LYS2-a, aminoadipate reductases; SID, siderophore synthases (nonribosomal); SQS, squalene synthase; SQS_NDUF6, squalene synthase (homologous to NDUF6); GGPS, geranylogeranyl phosphate synthetase; ERG7, terpene synthase (homologous to lanosterol synthase); TS2, terpene synthase Type 2 (annotated on the basis of presence of terpene cyclase-like 2 InterPro signature; IPR034686), carRA_1, carRA_2-bifunctional lycopene cyclases/phytoene desaturases; NPS-aryl-forming reductase (nonribosomal peptide synthase-like); NRPS, nonribosomal peptide synthase; PKS, polyketide synthase; PKS_NRPS, hybrid polyketide/nonribosomal peptide synthase; FAAL, (long chain) fatty acid acyl-CoA AMP ligase; BAC, bacteriocin; LUC, luciferase (ANL superfamily member, implicated in betalactone-type clusters). Supplementary Figure S2: AdenylPred predictions for NRPS-like, NRPS, LYS2 and NRPS-PKS clusters. Green dots, score > 50 (recommended threshold); white dots, without threshold. Supplementary Figure S3: Maximum Likelihood phylogenetic tree of siderophore synthetase proteins in fungi.

Author Contributions

A.M. and G.K. designed the study. A.M. and G.K. prepared the dataset and performed the genome analyses. G.K., J.P. and A.M. interpreted the data and wrote the manuscript. All authors have read and agreed to the published version of the manuscript.


This work was supported by the Polish National Science Centre grants (2017/25/B/NZ2/01880 to A.M., 2016/21/B/NZ9/01875 to G.K.).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All relevant data are available in the Supplementary Materials.


The authors are grateful to Christopher Dupont from the J Craig Venter Institute for permission to use the genomes from PRJNA475137 bioproject and Kamil Steczkiewicz for assistance in figure preparation.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analysis, or interpretation of data; in the writing of the manuscript or in the decision to publish the results.


  1. Voigt, K.; Wolf, T.; Ochsenreiter, K.; Nagy, G.; Kaerger, K.; Shelest, E.; Papp, T. 15 Genetic and Metabolic Aspects of Primary and Secondary Metabolism of the Zygomycetes. Biochem. Mol. Biol. 2016, 361–385. [Google Scholar] [CrossRef]
  2. Shelest, E.; Voigt, K. 2 Genomics to Study Basal Lineage Fungal Biology: Phylogenomics Suggests a Common Origin. In Fungal Genomics; Springer: Berlin/Heidelberg, Germany, 2014; pp. 31–60. [Google Scholar] [CrossRef]
  3. Throckmorton, K.; Wiemann, P.; Keller, N. Evolution of Chemical Diversity in a Group of Non-Reduced Polyketide Gene Clusters: Using Phylogenetics to Inform the Search for Novel Fungal Natural Products. Toxins 2015, 3572–3607. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Finking, R.; Marahiel, M.A. Biosynthesis of nonribosomal peptides1. Annu. Rev. Microbiol. 2004, 58, 453–488. [Google Scholar] [CrossRef]
  5. Quin, M.B.; Flynn, C.M.; Schmidt-Dannert, C. Traversing the fungal terpenome. Nat. Prod. Rep. 2014, 1449–1473. [Google Scholar] [CrossRef] [PubMed]
  6. Renshaw, J.C.; Robson, G.D.; Trinci, A.P.; Wiebe, M.G.; Livens, F.R.; Collison, D.; Taylor, R.J. Fungal siderophores: Structures, functions and applications. Mycol. Res. 2002, 1123–1142. [Google Scholar] [CrossRef]
  7. Winkelmann, G. A search for glomuferrin: A potential siderophore of arbuscular mycorrhizal fungi of the genus Glomus. Biometals 2017, 30, 559–564. [Google Scholar] [CrossRef] [PubMed]
  8. Prakash, H.; Rudramurthy, S.M.; Gandham, P.S.; Ghosh, A.K.; Kumar, M.M.; Badapanda, C.; Chakrabarti, A. Apophysomyces variabilis: Draft genome sequence and comparison of predictive virulence determinants with other medically important Mucorales. BMC Genom. 2017, 18, 736. [Google Scholar] [CrossRef][Green Version]
  9. Carroll, C.S.; Grieve, C.L.; Murugathasan, I.; Bennet, A.J.; Czekster, C.M.; Liu, H.; Naismith, J.; Moore, M.M. The rhizoferrin biosynthetic gene in the fungal pathogen Rhizopus delemar is a novel member of the NIS gene family. Int. J. Biochem. Cell Biol. 2017, 89, 136–146. [Google Scholar] [CrossRef][Green Version]
  10. Škríba, A.; Patil, R.H.; Hubáček, P.; Dobiáš, R.; Palyzová, A.; Marešová, H.; Pluháček, T.; Havlíáek, V. Rhizoferrin Glycosylation in Rhizopus microsporus. J. Fungi 2020, 6, 89. [Google Scholar] [CrossRef]
  11. Baldeweg, F.; Warncke, P.; Fischer, D.; Gressler, M. Fungal Biosurfactants from Mortierella alpina. Org. Lett. 2019, 21, 1444–1448. [Google Scholar] [CrossRef]
  12. Wurlitzer, J.M.; Stanišić, A.; Wasmuth, I.; Jungmann, S.; Fischer, D.; Kries, H.; Gressler, M. Bacterial-like nonribosomal peptide synthetases produce cyclopeptides in the zygomycetous fungus. Appl. Environ. Microbiol. 2020, 87. [Google Scholar] [CrossRef] [PubMed]
  13. Paduch, R.; Trytek, M.; Król, S.K.; Kud, J.; Frant, M.; Kandefer-Szerszeń, M.; Fiedurek, J. Biological activity of terpene compounds produced by biotechnological methods. Pharm. Biol. 2016, 54, 1096–1107. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Lebreton, A.; Meslet-Cladière, L.; Morin-Sardin, S.; Coton, E.; Jany, J.-L.; Barbier, G.; Corre, E. Comparative analysis of five Mucor species transcriptomes. Genomics 2019, 111, 1306–1314. [Google Scholar] [CrossRef]
  15. Venice, F.; Desirò, A.; Silva, G.; Salvioli, A.; Bonfante, P. The Mosaic Architecture of NRPS-PKS in the Arbuscular Mycorrhizal Fungus Gigaspora margarita Shows a Domain with Bacterial Signature. Front. Microbiol. 2020. [Google Scholar] [CrossRef]
  16. Lebreton, A.; Corre, E.; Jany, J.-L.; Brillet-Guéguen, L.; Pèrez-Arques, C.; Garre, V.; Monsoor, M.; Debuchy, R.; le Meur, C.; Coton, E.; et al. Comparative genomics applied to Mucor species with different lifestyles. BMC Genom. 2020, 21, 135. [Google Scholar] [CrossRef][Green Version]
  17. Gao, S.-S.; Li, X.-M.; Williams, K.; Proksch, P.; Ji, N.-Y.; Wang, B.-G. Rhizovarins A-F, Indole-Diterpenes from the Mangrove-Derived Endophytic Fungus Mucor irregularis QEN-189. J. Nat. Prod. 2016, 79, 2066–2074. [Google Scholar] [CrossRef]
  18. Partida-Martinez, L.P.; Hertweck, C. A gene cluster encoding rhizoxin biosynthesis in “Burkholderia rhizoxina”, the bacterial endosymbiont of the fungus Rhizopus microsporus. Chembiochem 2007, 8, 41–45. [Google Scholar] [CrossRef]
  19. Uehling, J.; Gryganskyi, A.; Hameed, K.; Tschaplinski, T.; Misztal, P.K.; Wu, S.; Desirò, A.; Vande Pol, N.; Du, Z.; Zienkiewicz, A.; et al. Comparative genomics of Mortierella elongata and its bacterial endosymbiont Mycoavidus cysteinexigens. Environ. Microbiol. 2017, 19, 2964–2983. [Google Scholar] [CrossRef]
  20. Hasan, H.A.H. Gibberellin and auxin-indole production by plant root-fungi and their biosynthesis under salinity-calcium interaction. Acta. Microbiol. Immunol. Hung. 2002, 49, 105–118. [Google Scholar] [CrossRef]
  21. Ozimek, E.; Jaroszuk-Ściseł, J.; Bohacz, J.; Korniłłowicz-Kowalska, T.; Tyśkiewicz, R.; Słomka, A.; Nowak, A.; Hanaka, A. Synthesis of Indoleacetic Acid, Gibberellic Acid and ACC-Deaminase by Mortierella Strains Promote Winter Wheat Seedlings Growth under Different Conditions. Int. J. Mol. Sci. 2018, 19, 3218. [Google Scholar] [CrossRef] [PubMed][Green Version]
  22. Qin, D.; Wang, L.; Han, M.; Wang, J.; Song, H.; Yan, X.; Duan, X.; Dong, J. Effects of an Endophytic Fungus Umbelopsis dimorpha on the Secondary Metabolites of Host–Plant Kadsura angustifolia. Front. Microbiol. 2018. [Google Scholar] [CrossRef] [PubMed][Green Version]
  23. Wheeler, D.L.; Barrett, T.; Benson, D.A.; Bryant, S.H.; Canese, K.; Chetvernin, V.; Church, D.M.; DiCuccio, M.; Edgar, R.; Fed-erhen, S.; et al. Database resources of the National Center for Biotechnology Information. Nucleic. Acids. Res. 2020, 48, D9–D16. [Google Scholar]
  24. Blin, K.; Kim, H.U.; Medema, M.H.; Weber, T. Recent development of antiSMASH and other computational approaches to mine secondary metabolite biosynthetic gene clusters. Brief. Bioinform. 2019, 1103–1113. [Google Scholar] [CrossRef] [PubMed]
  25. Majoros, W.H.; Pertea, M.; Salzberg, S.L. TigrScan and GlimmerHMM: Two open source ab initio eukaryotic gene-finders. Bioinformatics 2004, 20, 2878–2879. [Google Scholar] [CrossRef]
  26. Yang, M.; Derbyshire, M.K.; Yamashita, R.A.; Marchler-Bauer, A. NCBI’s Conserved Domain Database and Tools for Protein Domain Analysis. Curr. Protoc. Bioinform. 2020, 69, e90. [Google Scholar] [CrossRef][Green Version]
  27. Mistry, J.; Chuguransky, S.; Williams, L.; Qureshi, M.; Salazar, G.A.; Sonnhammer, E.L.; Tosatto, S.C.; Paladin, L.; Raj, S.; Richardson, L.J.; et al. Pfam: The protein families database in 2021. Nucleic Acids Res. 2021, 49, D412–D419. [Google Scholar] [CrossRef]
  28. Enright, A.J.; Van Dongen, S.; Ouzounis, C.A. An efficient algorithm for large-scale detection of protein families. Nucleic Acids Res. 2002, 30, 1575–1584. [Google Scholar] [CrossRef] [PubMed]
  29. Koczyk, G.; Dawidziuk, A.; Popiel, D. The Distant Siblings-A Phylogenomic Roadmap Illuminates the Origins of Extant Diversity in Fungal Aromatic Polyketide Biosynthesis. Genome. Biol. Evol. 2015, 7, 3132–3154. [Google Scholar] [CrossRef][Green Version]
  30. Buchfink, B.; Xie, C.; Huson, D.H. Fast and sensitive protein alignment using DIAMOND. Nat. Methods 2015, 12, 59–60. [Google Scholar] [CrossRef]
  31. Robinson, S.L.; Terlouw, B.R.; Smith, M.D.; Pidot, S.J.; Stinear, T.P.; Medema, M.H.; Wackett, L.P. Global analysis of adenylate-forming enzymes reveals?-lactone biosynthesis pathway in pathogenic Nocardia. J. Bio. Chem. 2020, 295, 14826–14839. [Google Scholar] [CrossRef]
  32. Dress, A.W.M.; Flamm, C.; Fritzsch, G.; Grünewald, S.; Kruspe, M.; Prohaska, S.J.; Stadler, P.F. Noisy: Identification of problematic columns in multiple sequence alignments. Algorithms Mol. Biol. 2008, 3, 1–10. [Google Scholar] [CrossRef][Green Version]
  33. Medema, M.H.; Takano, E.; Breitling, R. Detecting sequence homology at the gene cluster level with MultiGeneBlast. Mol. Biol. Evol. 2013, 30, 1218–1223. [Google Scholar] [CrossRef] [PubMed]
  34. Shannon, P.; Markiel, A.; Ozier, O.; Baliga, N.S.; Wang, J.T.; Ramage, D.; Amin, N.; Schwikowski, B.; Ideker, T. Cytoscape: A software environment for integrated models of biomolecular interaction networks. Genome Res. 2003, 13, 2498–2504. [Google Scholar] [CrossRef]
  35. Price, M.N.; Dehal, P.S.; Arkin, A.P. FastTree: Computing large minimum evolution trees with profiles instead of a distance matrix. Mol. Biol. Evol. 2009, 26, 1641–1650. [Google Scholar] [CrossRef]
  36. Katoh, K.; Standley, D.M. MAFFT multiple sequence alignment software version 7: Improvements in performance and usability. Mol. Biol. Evol. 2013, 30, 772–780. [Google Scholar] [CrossRef][Green Version]
  37. Letunic, I.; Bork, P. Interactive Tree of Life (iTOL) v4: Recent updates and new developments. Nucleic Acids Res. 2019, 47, W256–W259. [Google Scholar] [CrossRef][Green Version]
  38. Rancurel, C.; Legrand, L.; Danchin, E.G.J. Alienness: Rapid Detection of Candidate Horizontal Gene Transfers across the Tree of Life. Genes 2017, 8, 248. [Google Scholar] [CrossRef]
  39. Tabima, J.F.; Trautman, I.A.; Chang, Y.; Wang, Y.; Mondo, S.; Kuo, A.; Salamov, A.; Grigoriev, I.V.; Stajich, J.E.; Spatafora, J.W. Phylogenomic Analyses of Non-Dikarya Fungi Supports Horizontal Gene Transfer Driving Diversification of Secondary Metabolism in the Amphibian Gastrointestinal Symbiont, Basidiobolus. Genes Genomes Genet. 2020, 10, 3417–3433. [Google Scholar]
  40. Blin, K.; Shaw, S.; Steinke, K.; Villebro, R.; Ziemert, N.; Lee, S.Y.; Medema, M.H.; Weber, T. antiSMASH 5.0: Updates to the secondary metabolite genome mining pipeline. Nucleic Acids Res. 2019, 47, W81–W87. [Google Scholar] [CrossRef][Green Version]
  41. Venice, F.; Ghignone, S.; Salvioli di Fossalunga, A.; Amselem, J.; Novero, M.; Xianan, X.; Toro, K.S.; Morin, E.; Lipzen, A.; Grigoriev, I.V. At the nexus of three kingdoms: The genome of the mycorrhizal fungus Gigaspora margarita provides insights into plant, endobacterial and fungal interactions. Environ. Microbiol. 2020, 22, 122–141. [Google Scholar] [CrossRef]
  42. Gryganskyi, A.; Muszewska, A. Whole genome sequencing and the Zygomycota. Fungal Genom. Biol. 2014, 4. [Google Scholar]
  43. Trivedi, O.A.; Arora, P.; Sridharan, V.; Tickoo, R.; Mohanty, D.; Gokhale, R.S. Enzymic activation and transfer of fatty acids as acyl-adenylates in mycobacteria. Nature 2004, 428, 441–445. [Google Scholar] [CrossRef]
  44. Wei, G.; Eberl, F.; Chen, X.; Zhang, C.; Unsicker, S.B.; Köllner, T.G.; Gershenzon, J.; Chen, F. Evolution of isoprenyl diphosphate synthase-like terpene synthases in fungi. Sci. Rep. 2020, 10, 14944. [Google Scholar] [CrossRef]
  45. Britton, G.; Liaaen-Jensen, S.; Pfander, H. Carotenoids: Handbook; Springer Science & Business Media: Berlin, Germany, 2004. [Google Scholar]
  46. Lin, L.; Xu, J. Fungal Pigments and Their Roles Associated with Human Health. J. Fungi 2020, 6, 280. [Google Scholar] [CrossRef]
  47. Avalos, J.; Carmen Limón, M. Biological roles of fungal carotenoids. Curr. Genet. 2015, 61, 309–324. [Google Scholar] [CrossRef]
  48. Strobel, I.; Breitenbach, J.; Scheckhuber, C.Q.; Osiewacz, H.D.; Sandmann, G. Carotenoids and carotenogenic genes in Podospora anserina: Engineering of the carotenoid composition extends the life span of the mycelium. Curr. Genet. 2009, 55, 175–184. [Google Scholar] [CrossRef]
  49. Idnurm, A.; Rodríguez-Romero, J.; Corrochano, L.M.; Sanz, C.; Iturriaga, E.A.; Eslava, A.P.; Heitman, J. The Phycomyces madA gene encodes a blue-light photoreceptor for phototropism and other light responses. Proc. Natl. Acad. Sci. USA 2006, 103, 4546–4551. [Google Scholar] [CrossRef][Green Version]
  50. Sahadevan, Y.; Richter-Fecken, M.; Kaerger, K.; Voigt, K.; Boland, W. Early and late trisporoids differentially regulate β-carotene production and gene transcript Levels in the mucoralean fungi Blakeslea trispora and Mucor mucedo. Appl. Environ. Microbiol. 2013, 79, 7466–7475. [Google Scholar] [CrossRef][Green Version]
  51. Corrochano, L.M.; Kuo, A.; Marcet-Houben, M.; Polaino, S.; Salamov, A.; Villalobos-Escobedo, J.M.; Grimwood, J.; Álvarez, M.I.; Avalos, J.; Bauer, D. Expansion of Signal Transduction Pathways in Fungi by Extensive Genome Duplication. Curr. Biol. 2016, 26, 1577–1584. [Google Scholar] [CrossRef][Green Version]
  52. Sandmann, G. Molecular evolution of carotenoid biosynthesis from bacteria to plants. Physiol. Plant. 2002, 431–440. [Google Scholar] [CrossRef]
  53. Mohammadian Fazli, M.; Soleimani, N.; Mehrasbi, M.; Darabian, S.; Mohammadi, J.; Ramazani, A. Highly cadmium tolerant fungi: Their tolerance and removal potential. J. Environ. Health Sci. Eng. 2015, 13, 19. [Google Scholar] [CrossRef] [PubMed][Green Version]
  54. Li, H.; Luo, N.; Zhang, L.J.; Zhao, H.M.; Li, Y.W.; Cai, Q.Y.; Wong, M.H.; Mo, C.H. Do arbuscular mycorrhizal fungi affect cadmium uptake kinetics, subcellular distribution and chemical forms in rice? Sci. Total. Environ. 2016, 571, 1183–1190. [Google Scholar] [CrossRef]
  55. Sundari, S.K.; Adholeya, A. Growth profile of ectomycorrhizal fungal mycelium: Emphasis on substrate pH influence. Antonie Van Leeuwenhoek 2003, 83, 209–214. [Google Scholar] [CrossRef] [PubMed]
  56. Vassaux, A.; Meunier, L.; Vandenbol, M.; Baurain, D.; Fickers, P.; Jacques PLeclère, V. Nonribosomal peptides in fungal cell factories: From genome mining to optimized heterologous production. Biotechnol. Adv. 2019, 37, 107449. [Google Scholar] [CrossRef] [PubMed]
  57. Kalb, D.; Lackner, G.; Hoffmeister, D. Functional and Phylogenetic Divergence of Fungal Adenylate-Forming Reductases. Appl. Environ. Microbiol. 2014, 6175–6183. [Google Scholar] [CrossRef] [PubMed][Green Version]
  58. Rich, M.K.; Nouri, E.; Courty, P.-E.; Reinhardt, D. Diet of Arbuscular Mycorrhizal Fungi: Bread and Butter? Trends Plant. Sci. 2017, 22, 652–660. [Google Scholar] [CrossRef][Green Version]
  59. Matelska, D.; Steczkiewicz, K.; Ginalski, K. Comprehensive classification of the PIN domain-like superfamily. Nucleic Acids Res. 2017, 45, 6995–7020. [Google Scholar] [CrossRef]
  60. Khan, A.; Singh, P.; Srivastava, A. Synthesis, nature and utility of universal iron chelator—Siderophore: A review. Microbiol. Res. 2018, 212–213, 103–111. [Google Scholar] [CrossRef]
  61. Carroll, C.S.; Moore, M.M. Ironing out siderophore biosynthesis: A review of non-ribosomal peptide synthetase (NRPS)-independent siderophore synthetases. Crit. Rev. Biochem. Mol. Biol. 2018, 53, 356–381. [Google Scholar] [CrossRef]
  62. Bushley, K.E.; Turgeon, B.G. Phylogenomics reveals subfamilies of fungal nonribosomal peptide synthetases and their evolutionary relationships. BMC Evol. Biol. 2010, 10, 26. [Google Scholar] [CrossRef] [PubMed][Green Version]
  63. Muszewska, A.; Okrasińska, A.; Steczkiewicz, K.; Drgas, O.; Orłowska, M.; Perlińska-Lenart, U.; Aleksandrzak-Piekarczyk, T.; Szatraj, K.; Zielenkiewicz, U.; Piłsyk, S. Metabolic Potential, Ecology and Presence of Associated Bacteria Is Reflected in Genomic Diversity of Mucoromycotina. Front. Microbiol. 2021, 12, 239. [Google Scholar] [CrossRef] [PubMed]

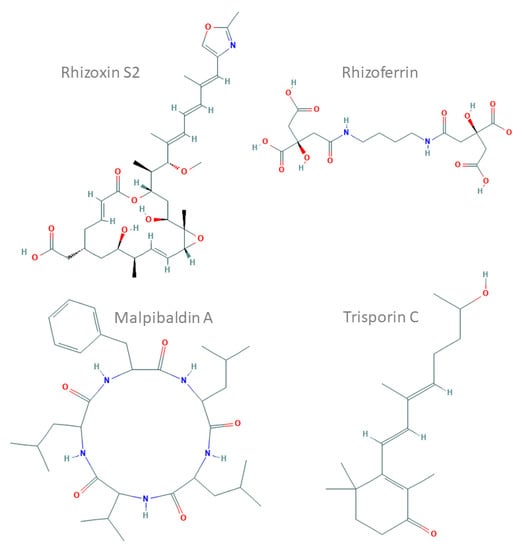

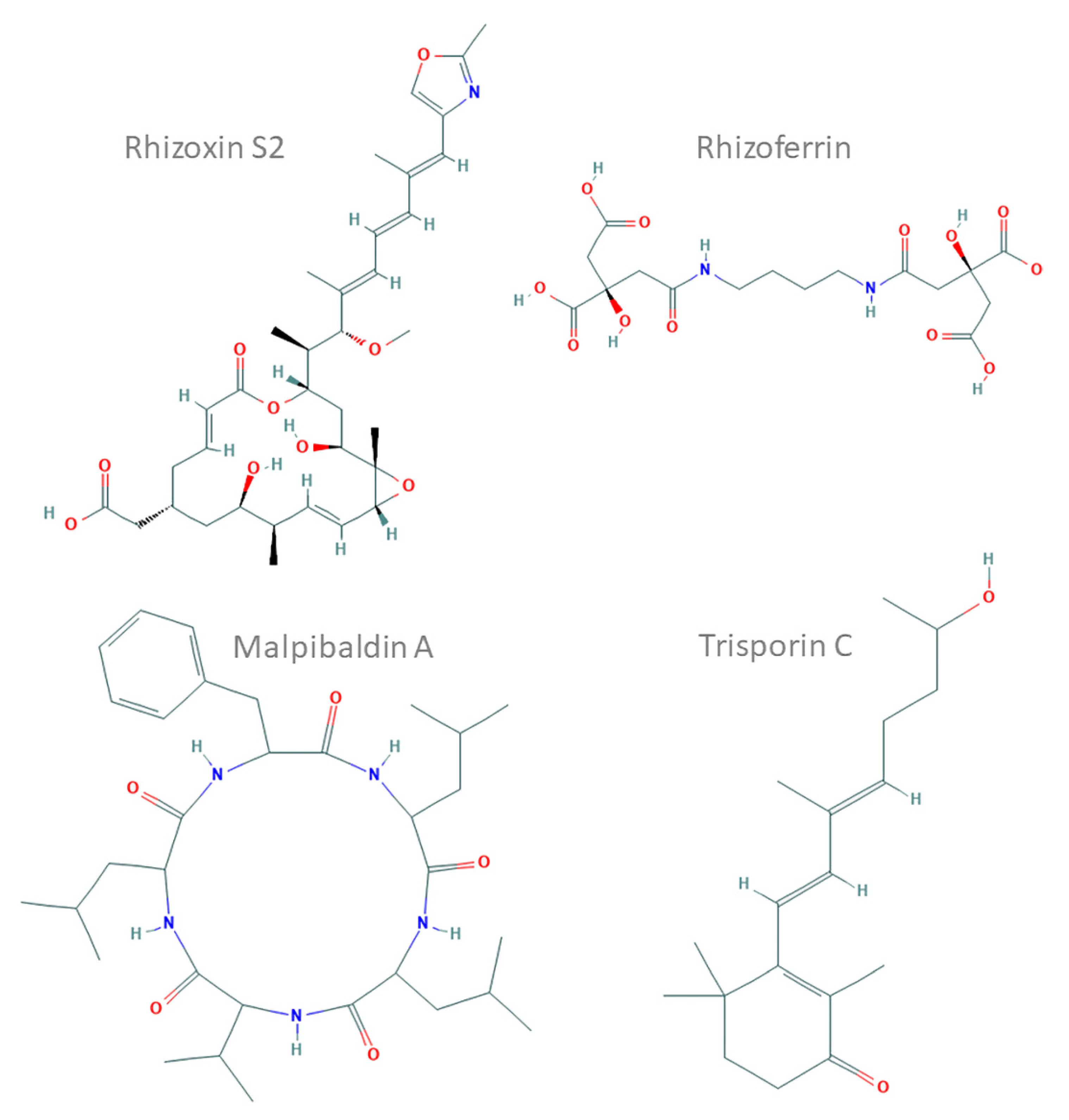

Figure 1. Chemical structures of representative compounds characterised in Mucoromycotina prepared and based on ChEMBL records (compound IDs: 44521071, 9845871, 102170144 and 72981718). Rhizoxin S2, a hybrid nonribosomal peptide synthetase (NRPS)–polyketide synthase (PKS) toxin from Rhizopus microsporus; rhizoferrin, a non-NRPS siderophore from Rhizopus spp.; malpibaldin A, an NRPS cyclopeptide from Mortierella alpina; trisporin C, a carotenoid from Mucor mucedo.
Figure 1. Chemical structures of representative compounds characterised in Mucoromycotina prepared and based on ChEMBL records (compound IDs: 44521071, 9845871, 102170144 and 72981718). Rhizoxin S2, a hybrid nonribosomal peptide synthetase (NRPS)–polyketide synthase (PKS) toxin from Rhizopus microsporus; rhizoferrin, a non-NRPS siderophore from Rhizopus spp.; malpibaldin A, an NRPS cyclopeptide from Mortierella alpina; trisporin C, a carotenoid from Mucor mucedo.
Jof 07 00285 g001

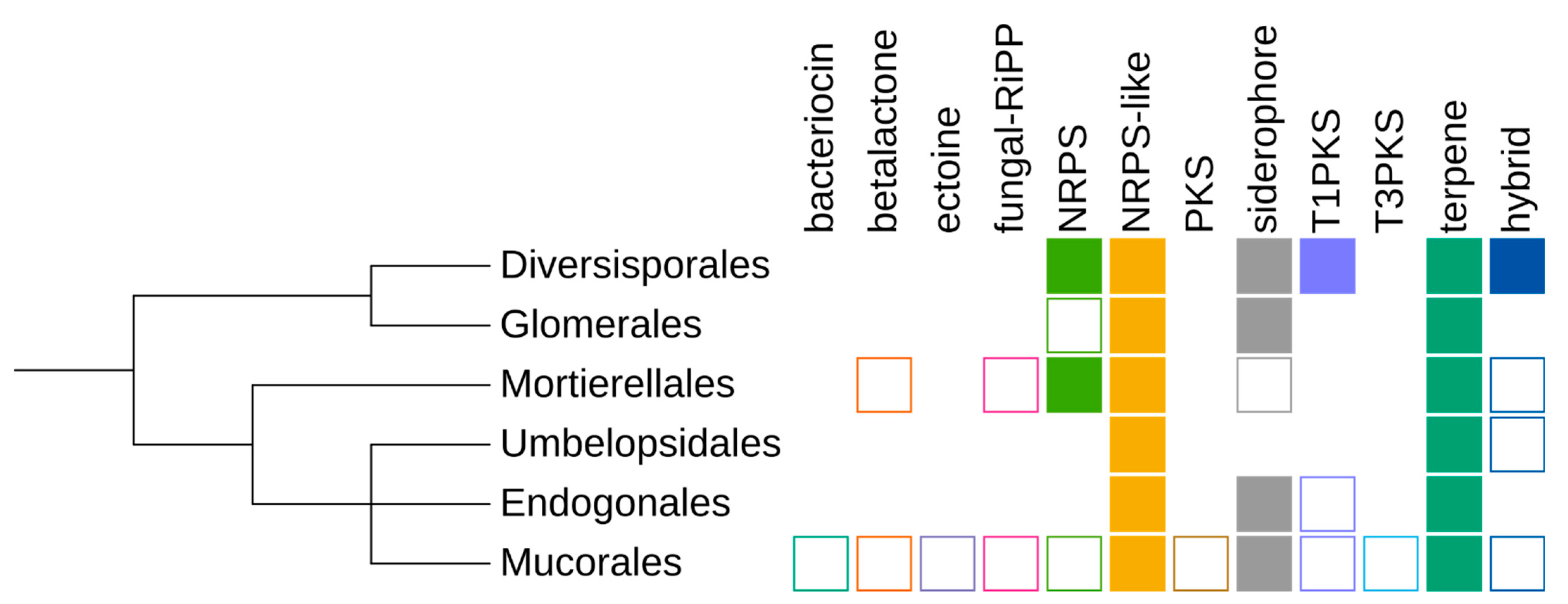

Figure 2. Schematic summary of the taxonomic distribution of particular secondary metabolite cluster (SMC) types. Filled rectangles, clusters of this type are present in more than 50% of isolates of the taxon; empty shape, in less than 50% of isolates; no shape, no clusters.
Figure 2. Schematic summary of the taxonomic distribution of particular secondary metabolite cluster (SMC) types. Filled rectangles, clusters of this type are present in more than 50% of isolates of the taxon; empty shape, in less than 50% of isolates; no shape, no clusters.
Jof 07 00285 g002

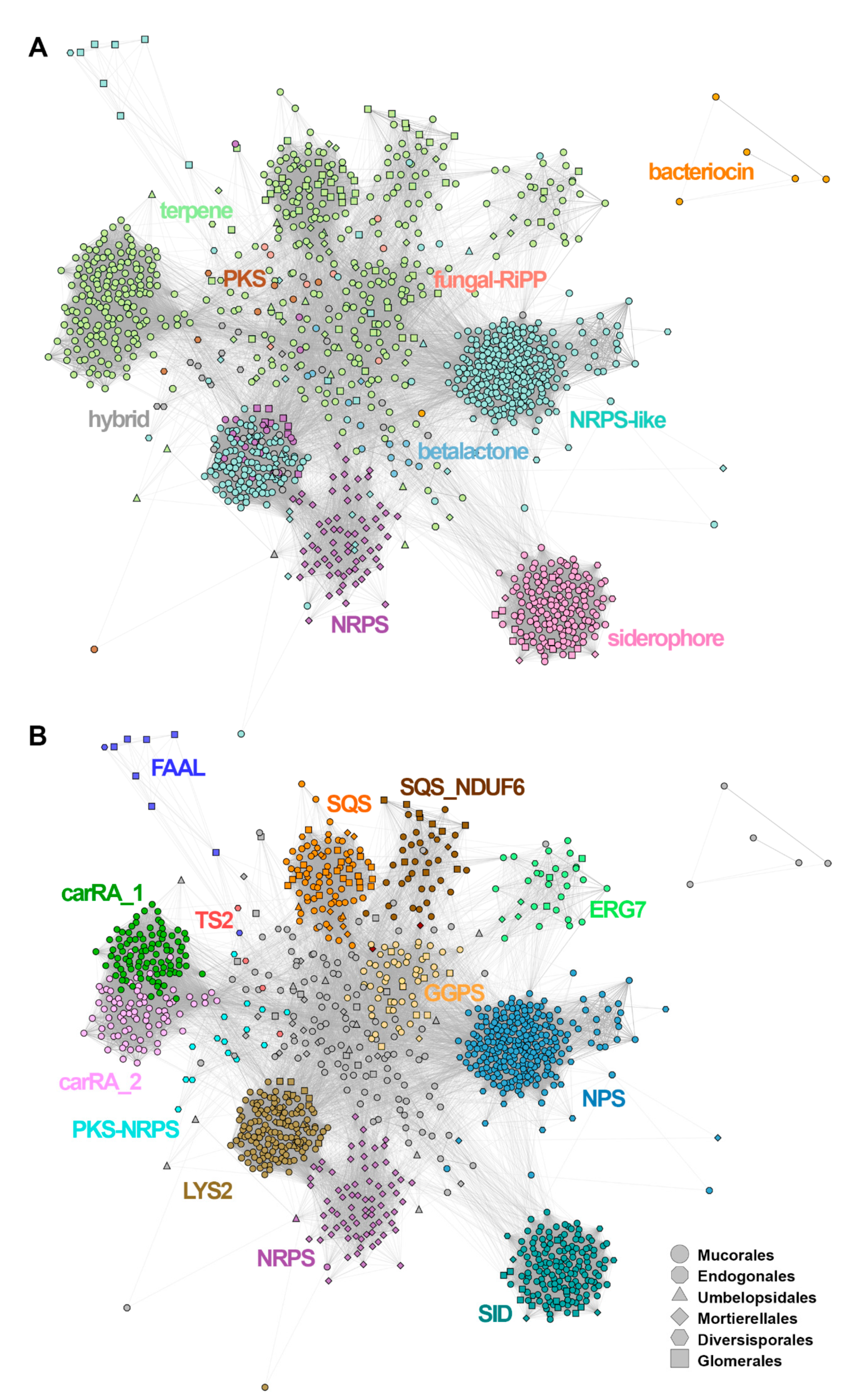

Figure 3. Cytoscape/MultiGeneBlast clustering of the identified SMCs, coloured according to (A) the predicted cluster type (AntiSmash classification rules) and (B) gene families: LYS2-a, aminoadipate reductases; SID, siderophore synthases (nonribosomal); SQS, squalene synthase; SQS_NDUF6, squalene synthase (homologous to NDUF6); GGPS, geranylogeranyl phosphate synthetase; ERG7, terpene synthase (homologous to lanosterol synthase); TS2, terpene synthase type 2, carRA_1, carRA_2-bifunctional lycopene cyclases/phytoene desaturases; NPS, aryl-forming reductase (nonribosomal peptide synthase-like) NRPS’, nonribosomal peptide synthase; PKS, polyketide synthase; PKS-NRPS, hybrid polyketide/nonribosomal peptide synthase; FAAL, fatty acid acyl-CoA AMP ligase.
Figure 3. Cytoscape/MultiGeneBlast clustering of the identified SMCs, coloured according to (A) the predicted cluster type (AntiSmash classification rules) and (B) gene families: LYS2-a, aminoadipate reductases; SID, siderophore synthases (nonribosomal); SQS, squalene synthase; SQS_NDUF6, squalene synthase (homologous to NDUF6); GGPS, geranylogeranyl phosphate synthetase; ERG7, terpene synthase (homologous to lanosterol synthase); TS2, terpene synthase type 2, carRA_1, carRA_2-bifunctional lycopene cyclases/phytoene desaturases; NPS, aryl-forming reductase (nonribosomal peptide synthase-like) NRPS’, nonribosomal peptide synthase; PKS, polyketide synthase; PKS-NRPS, hybrid polyketide/nonribosomal peptide synthase; FAAL, fatty acid acyl-CoA AMP ligase.
Jof 07 00285 g003

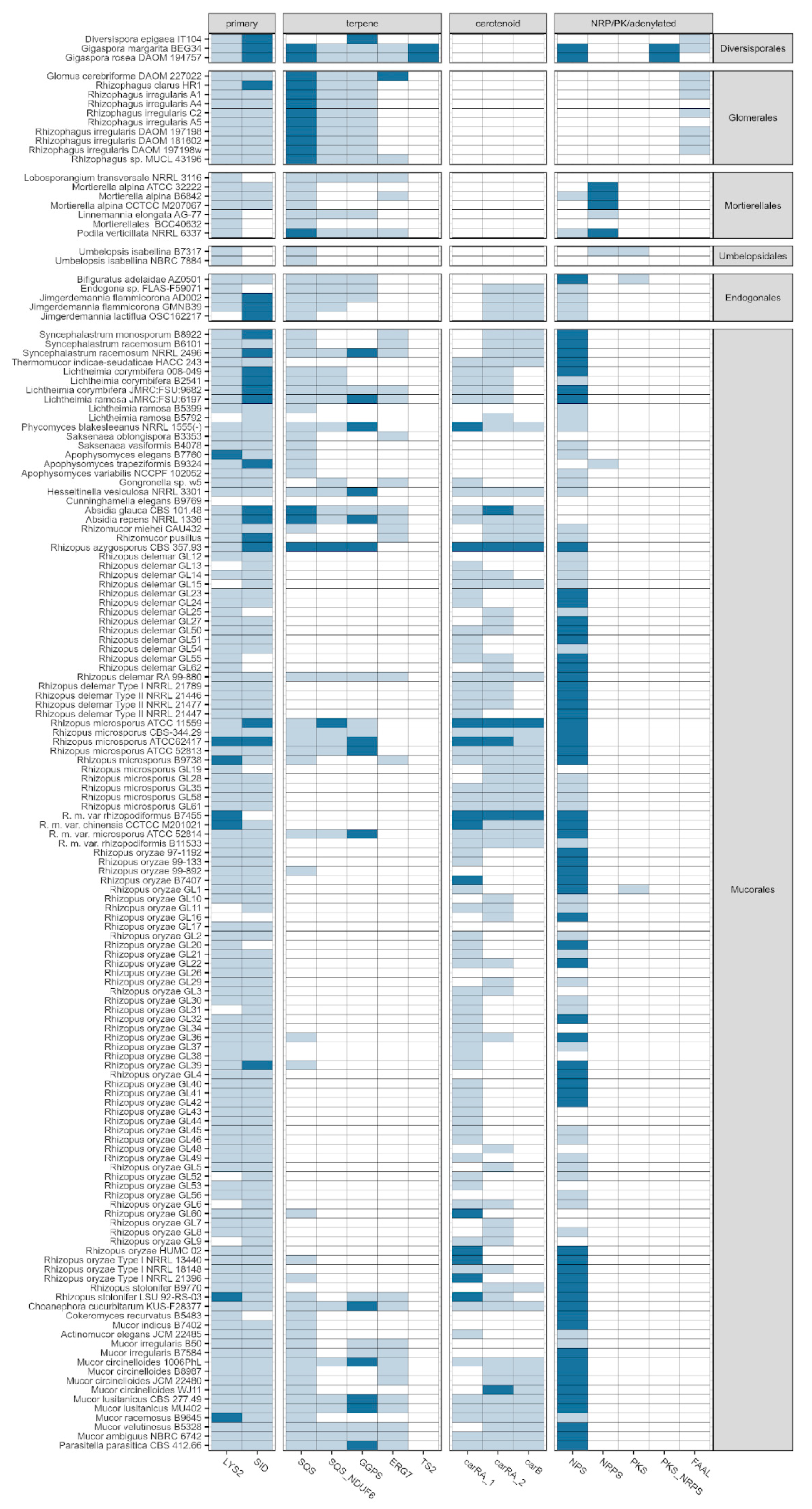

Figure 4. Graphical overview of the presence of crucial SMC member genes according to the results of candidate gene family annotation. Nine isolates lacking any detected SMCs, as well as GFF annotation, were left out (seven Glomeromycota, two Cunninghamella bertholletae). Gene families: LYS2-a, aminoadipate reductases; SID, siderophore synthases (nonribosomal); SQS, squalene synthase; SQS_NDUF6, squalene synthase (homologous to NDUF6); GGPS, geranylogeranyl phosphate synthetase; ERG7, terpene synthase (homologous to lanosterol synthase); TS2, terpene synthase Type 2 (annotated on the basis of the presence of the terpene cyclase-like 2 InterPro signature; IPR034686); carRA_1, carRA_2-bifunctional lycopene cyclases/phytoene desaturases; NPS, aryl-forming reductase (nonribosomal peptide synthase-like), NRPS, nonribosomal peptide synthase; PKS, polyketide synthase; PKS-NRPS, hybrid polyketide/nonribosomal peptide synthase; FAAL, (long chain) fatty acid acyl-CoA AMP ligase. Colours: white, absent; pale blue, single copy; dark blue, multiple copies per genome.
Figure 4. Graphical overview of the presence of crucial SMC member genes according to the results of candidate gene family annotation. Nine isolates lacking any detected SMCs, as well as GFF annotation, were left out (seven Glomeromycota, two Cunninghamella bertholletae). Gene families: LYS2-a, aminoadipate reductases; SID, siderophore synthases (nonribosomal); SQS, squalene synthase; SQS_NDUF6, squalene synthase (homologous to NDUF6); GGPS, geranylogeranyl phosphate synthetase; ERG7, terpene synthase (homologous to lanosterol synthase); TS2, terpene synthase Type 2 (annotated on the basis of the presence of the terpene cyclase-like 2 InterPro signature; IPR034686); carRA_1, carRA_2-bifunctional lycopene cyclases/phytoene desaturases; NPS, aryl-forming reductase (nonribosomal peptide synthase-like), NRPS, nonribosomal peptide synthase; PKS, polyketide synthase; PKS-NRPS, hybrid polyketide/nonribosomal peptide synthase; FAAL, (long chain) fatty acid acyl-CoA AMP ligase. Colours: white, absent; pale blue, single copy; dark blue, multiple copies per genome.
Jof 07 00285 g004

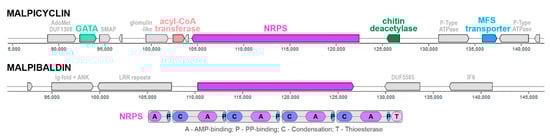

Figure 5. Schematic architecture of malpicyclin (GCA_000507065__21_glim) and malpibaldin (GCA_000507065__29_glim) clusters in the M. alpina B6842 assembly GCA_000507065. The malpibaldin NRPS region is surrounded by repeat-rich and disordered protein coding genes.
Figure 5. Schematic architecture of malpicyclin (GCA_000507065__21_glim) and malpibaldin (GCA_000507065__29_glim) clusters in the M. alpina B6842 assembly GCA_000507065. The malpibaldin NRPS region is surrounded by repeat-rich and disordered protein coding genes.
Jof 07 00285 g005
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Koczyk, G.; Pawłowska, J.; Muszewska, A. Terpenoid Biosynthesis Dominates among Secondary Metabolite Clusters in Mucoromycotina Genomes. J. Fungi 2021, 7, 285.

AMA Style

Koczyk G, Pawłowska J, Muszewska A. Terpenoid Biosynthesis Dominates among Secondary Metabolite Clusters in Mucoromycotina Genomes. Journal of Fungi. 2021; 7(4):285.

Chicago/Turabian Style

Koczyk, Grzegorz, Julia Pawłowska, and Anna Muszewska. 2021. "Terpenoid Biosynthesis Dominates among Secondary Metabolite Clusters in Mucoromycotina Genomes" Journal of Fungi 7, no. 4: 285.

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
