An Optimized Ustilago maydis for Itaconic Acid Production at Maximal Theoretical Yield

by
Johanna Becker
1,†,
Hamed Hosseinpour Tehrani
1,†,
Philipp Ernst
2,†,
Lars Mathias Blank
1 and
Nick Wierckx
2,*
1
iAMB—Institute of Applied Microbiology, ABBt—Aachen Biology and Biotechnology, RWTH Aachen University, Worringerweg 1, 52074 Aachen, Germany
2
Institute of Bio- and Geosciences IBG-1: Biotechnology, Forschungszentrum Jülich, 52425 Jülich, Germany
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this manuscript.
J. Fungi 2021, 7(1), 20; https://doi.org/10.3390/jof7010020
Submission received: 22 November 2020 / Revised: 27 December 2020 / Accepted: 29 December 2020 / Published: 31 December 2020
(This article belongs to the Special Issue Smut Fungi)
Browse Figures
Versions Notes

Abstract

:
Ustilago maydis, a member of the Ustilaginaceae family, is a promising host for the production of several metabolites including itaconic acid. This dicarboxylate has great potential as a bio-based building block in the polymer industry, and is of special interest for pharmaceutical applications. Several itaconate overproducing Ustilago strains have been generated by metabolic and morphology engineering. This yielded stabilized unicellular morphology through fuz7 deletion, reduction of by-product formation through deletion of genes responsible for itaconate oxidation and (glyco)lipid production, and the overexpression of the regulator of the itaconate cluster ria1 and the mitochondrial tricarboxylate transporter encoded by mttA from Aspergillus terreus. In this study, itaconate production was further optimized by consolidating these different optimizations into one strain. The combined modifications resulted in itaconic acid production at theoretical maximal yield, which was achieved under biotechnologically relevant fed-batch fermentations with continuous feed.

1. Introduction

Itaconic acid and its derivatives are found in many application fields, such as the production of paper, paints, and fibers, or in waste water treatment [1,2,3,4] providing a stable market for this bio-based chemical. In 2004, the organic acid was classified as one of the top 12 value-added platform chemicals derived from biomass [5]. There is also a strong interest in this molecule in the medical and pharmaceutical sectors, both as an antibacterial compound [6] and as an immunoregulator for the treatment of autoimmune diseases [7] and viral infections including SARS-COV2 [8]. However, its relatively high production cost compared to fossil counterparts like acrylic acid prevents an even more expanded usage range [9,10]. Given the already high yield, titer, and rate of the industrially established itaconic acid production process with Aspergillus terreus [11], a qualitative breakthrough in other dimensions of the process window is needed. Non-conventional itaconate-producing yeasts like Ustilago, Candida, or Pseudozyma [12,13,14] may offer such a breakthrough because of their unicellular morphology as well as their lower sensitivity to medium impurities. It also enables easier handling and scale-up using cheaper raw substrates or even waste streams [10,15,16]. However, compared to the filamentous ascomycete A. terreus, the product to substrate yield has to be improved to make U. maydis competitive, and this yield also needs to be achievable under industrially relevant conditions [17].
In nature, U. maydis is known for its pathogenicity towards maize (Zea mays) causing corn smut disease [18,19]. To penetrate and invade maize tissue, U. maydis switches from a yeast-like, non-pathogenic to a filamentous, pathogenic cell form [20]. This switch is governed by a complex regulatory pathway which has been investigated in detail (see [21,22] for extensive reviews). Although predominantly growing in its yeast form in fermentation processes, U. maydis can switch to filamentous growth under stress conditions such as the presence of hydrophobic lipids, low pH, or nitrogen deficiency [23,24,25]. Filamentous growth causes issues such as high viscosity, reduced oxygen supply, and cell adherence to reactor walls [9]. This can be avoided through the deletion of fuz7, the product of which plays an essential role in regulating pathogenicity and the switch to filamentous growth [23]. This deletion stabilizes the yeast-like morphology of U. maydis and U. cynodontis without impacting the fitness of the cells under biotechnologically relevant stresses [26,27].
U. maydis produces itaconate as one product from a potpourri of metabolites including organic acids such as malate, succinate, and (S)-2-hydroxyparaconate, polyols such as erythritol and mannitol, and different lipidic products including glycolipids and triglycerides [28,29,30,31,32,33]. It can also metabolize a range of renewable carbon sources, which besides sugar also include glycerol [34], galacturonic acid [35], cellulose [36], xylan [37], and pectin [38]. Although these features make U. maydis an attractive candidate for industrial applications [9,39,40], it also poses a drawback because often multiple products are produced simultaneously. This hinders handling and downstream processing, and it also reduces yield on substrate by diverting carbon flux away from the main product [41]. If itaconic acid is to become a bulk chemical, yield is the most relevant production parameter because substrate cost is the decisive price-determining factor. For itaconate production from glucose, the reported maximal theoretical yield is 0.72 gITA gglu−1, which equals 1 molITA mol glu−1. The yield achieved in practice is affected by different factors such as cell density, the metabolic pathway leading up to itaconate (i.e., anaplerosis), bottlenecks in the itaconate biosynthesis pathway itself, side product formation, redox cofactor balancing, and cell maintenance demand [42,43].
In previous studies several knockouts, promotor replacements and overexpression of genes were implemented to increase itaconate production, reduce by-product formation, and stabilize the unicellular morphology [10,26,41,44,45]. Those metabolic engineering approaches resulted in several itaconate hyper-producing Ustilago strains with individual modifications. In this study, these modifications are consolidated into one strain, based on the previously engineered U. maydis ITA chassis [41]. The resulting strain K14 produces itaconate from glucose at maximum theoretical yield. The catalytic vigor of the strain was demonstrated in fed-batch cultures.

2. Materials and Methods

2.1. Media and Culture Conditions

All strains used in this work are listed in Table 1. U. maydis strains were grown in YEPS medium containing 10 g L−1 yeast extract, 10 g L−1 peptone, and 10 g L−1 sucrose. As screening medium for production experiments, U. maydis was cultivated in modified Tabuchi medium (MTM) according to Geiser et al. [30]. Besides varying glucose and buffer (2-(N-morpholino) ethanesulfonic acid (MES; pH adjusted to 6.5 with NaOH) or CaCO3) concentrations, this medium contained 0.8 g L−1 NH4Cl, 0.2 g L−1 MgSO4·7H2O, 0.01 g L−1 FeSO4·7H2O, 0.5 g L−1 KH2PO4, 1 mL L−1 vitamin solution, and 1 mL L−1 trace element solution. The vitamin solution contained (per liter) 0.05 g D-biotin, 1 g D-calcium panthotenate, 1 g nicotinic acid, 25 g myo-inositol, 1 g thiamine hydrochloride, 1 g pyridoxol hydrochloride, and 0.2 g para-aminobenzoic acid. The trace element solution contained (per liter) 1.5 g EDTA, 0.45 g ZnSO4·7H2O, 0.10 g MnCl2·4H2O, 0.03 g CoCl2·6H2O, 0.03 g CuSO4·5H2O, 0.04 g Na2MoO4·2H2O, 0.45 g CaCl2·2H2O, 0.3 g FeSO4·7H2O, 0.10 g H3BO3, and 0.01 g KI. When using CaCO3, medium components were added relative to the total volume of solids plus liquid, leading to a higher aqueous concentration of soluble components. Shaking cultures of U. maydis were performed in 24-well System Duetz® plates with a filling volume of 1.5 mL (shaking diameter = 50 mm, n = 300 rpm, T = 30 °C and Φ = 80%) [46] or in 500 mL shaking flasks with a filling volume of 50 mL (shaking diameter = 25 mm, n = 200 rpm, T = 30 °C and Φ = 80%). When using System Duetz®, cultures were inoculated in parallel into multiple plates in order to ensure continuous oxygenation by taking a complete plate as sacrificial sample for each sample point.
Pulsed fed-batch fermentations were performed in New Brunswick BioFlo® 115 bioreactors (Eppendorf, Germany) as described in [10]. Fed-batch fermentations with continuous feed were performed in a 2.0 L DASGIP® Bioblock bioreactor (Eppendorf, Germany) with a starting volume of 1.0 L. The medium contained 120 g L−1 glucose, 0.8 g L−1 or 4 g L−1 NH4Cl, 0.2 g L−1 MgSO4·7H2O, 0.01 g L−1 FeSO4·7H2O, 0.5 g L−1 KH2PO4, 1 mL L−1 vitamin solution as specified above, 1 mL L−1 trace element solution as specified above, and 1 g L−1 yeast extract. When the glucose concentration reached approximately 50 g L−1, a constant feed of a 50% glucose solution was started. Feeding rates of 0.75 and 2.8 g h−1 were estimated from the glucose consumption rates of previous pulsed fed-batch fermentations under similar conditions. During cultivation, the pH was controlled by automatic addition of 5 M NaOH and 1 M HCl. 0.5 mL Antifoam 204 (Sigma Life Science, St. Louis, O, USA) was added manually every 24 h to avoid foam formation. The dissolved oxygen (DO) was controlled at 30% by using a cascade mode including stirring 800–1200 rpm, air flow 1-2 L min−1 and the addition of pure oxygen. The CO2 formation was determined with the DASGIP GA4 module, employing infrared (IR) sensors (BlueSens). The cultivations were performed at 30 °C. Bioreactors were inoculated to an optical density measured at a wavelength of 600 nm (OD600) of 0.75 from a 48 h preculture in 50 mL MTM.

2.2. Analytical Methods

When using CaCO3 as buffer, 1 mL culture broth was taken for OD600 and high-performance liquid chromatography (HPLC) analysis. The CaCO3 was dissolved 1:1 with 4 M HCl prior to further measurements as described in Zambanini et al. [49]. Cell densities were measured by determining the absorption at 600 nm with an Ultrospec 10 Cell Density Meter (Amersham Biosciences, UK).
For HPLC analysis, all samples were filtered with Rotilabo® (CA, 0.2 µm, Ø 15 mm) or Acrodisc® (GHP, 0.2 µm, Ø 13 mm) syringe filters and diluted 1:5 or 1:10 with 5 mM H2SO4 or deionized water. Products in the supernatant were analyzed using a DIONEX UltiMate 3000 HPLC System (Thermo Scientific, Waltham, Massachusetts, USA) or a Agilent 1260 Infinity HPLC system (Agilent, Waldbronn, Germany) with an ISERA Metab-AAC column 300 × 7.8 mm column (ISERA, Düren, Germany). As mobile phase, 5 mM H2SO4 with a constant flow rate of 0.6 mL min−1 and a temperature of 40 °C was used. When using the DIONEX UltiMate 3000 HPLC System, detection was carried out by a DIONEX UltiMate 3000 Variable Wavelength Detector set to 210 nm and a SHODEX RI-101 detector (Showa Denko Europe GmbH, Munich, Germany). When using the Agilent 1260 Infinity HPLC system, detection was undertaken by a diode array detector (DAD) at 210 nm and a refraction index (RI) detector. Analytes were identified via retention time and ultraviolet (UV)/RI ratio compared to corresponding standards.
All values are the arithmetic mean of at least two biological replicates. For n = 2, error bars indicate the deviation from the mean and for n > 2 error bars indicate the standard error of the mean. Statistical significance was evaluated by t test (two-tailed distribution, heteroscedastic, p ≤ 0.05).

2.3. Plasmid Cloning and Strain Engineering

Plasmids were constructed by Gibson assembly [50] using the NEBuilder® HiFi DNA Assembly Cloning Kit (New England Biolabs (NEB), Ipswich, MA, USA). Primers were ordered as DNA oligonucleotides from Eurofins Genomics (Ebersberg, Germany). As polymerase, Q5® High-Fidelity DNA Polymerase (NEB) was used. Detailed information about utilized primers and plasmids are listed in Table 2 and Supplemental Table S1. Competent E. coli DH5α were used for standard cloning and plasmid maintenance according to Sambrook et al. [51]. Plasmids were confirmed by polymerase chain reaction (PCR) or sequencing. Generation of protoplasts and transformation of U. maydis were performed according to Brachmann et al. [52]. Genomic DNA of U. maydis was isolated according to Hoffman et al. [53]. For the deletion of fuz7, homologous recombination with 1000 bp flanking regions including FRT-sites and a hygromycin resistance cassette were used [54]. Successful integration and deletion was verified by PCR and sequencing. For the overexpression of mttA, the plasmid Petef-Cbx-AT_mttA was used [48].
Quantitative PCR was applied to determine the copy number of mttA integrated into the U. maydis genome using Luna® Universal qPCR Master Mix (NEB, Frankfurt, Germany). Primers were designed using “GenScript Real-Time PCR (TaqMan) Primer Design” tool (Gen Script, Piscataway, New Jersey, USA). Primer sequences are given in Table 3. As reference genes, UMAG_02592 and UMAG_03726 were amplified with the primer pairs JB-126/JB-127 and JB-128/JB-129. Primers JB-132/JB-133 specifically bound within the mttA sequence (Supplemental Table S1). Amplification curves were taken by Bio-Rad CFX ConnectTM Real-Time PCR Detection system and data were analyzed by using Bio-Rad CFX ManagerTM 3.1 software (Bio-Rad Laboratories, Hercules, CA, USA) using the ∆Ct method according to Pfaffl [55].

3. Results and Discussion

3.1. Prevention of Filamentous Growth by fuz7 Deletion and Its Influence on Itaconate Production

In previous work, itaconate production with Ustilago has been significantly improved. The characterization and upregulation of the itaconate gene cluster [44,56,57] as well as the engineering of the mitochondrial carrier for cis-aconitate [48] has laid the foundation for this improvement. Those achievements were combined with further modifications including the deletion of genes responsible for itaconate oxidation (cyp3) and (glyco)lipid production (MEL, UA, dgat), resulting in the U. maydis MB215 ITA chassis (∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef) with reduced by-product formation [41]. Filamentous growth was observed for this strain, similar to other engineered U. maydis variants [10]. The morphology switch is likely induced by the additional stress imposed by the metabolic engineering itself, and the resulting high itaconate titers and associated low pH. This drawback can be overcome by the deletion of fuz7 (UMAG_01514) [26,27]. The influence of this knockout in the U. maydis MB215 ITA chassis was assessed in System Duetz® cultivations in MTM containing 50 g L−1 glucose and 100 mM MES (Figure 1). Under these conditions, the ∆fuz7 strain produced 1.3-fold more itaconate than the reference ITA chassis strain (Figure 1A, Table 3). Full consumption of glucose by both strains resulted in an equivalently improved yield of the ∆fuz7 strain to 0.45 ± 0.01 gITA gglu−1. The overall production rate was increased by 12% and the maximal rate even by 26% (Table 3).
These results clearly illustrate the benefit of preventing filamentous growth. In these deeply engineered strains of U. maydis, cells start to adhere to the walls of the culture plates during the production phase, likely as a result of the combined stress of ammonium limitation, low pH and increasing product concentrations [23,24,25]. This adhesion has been described in detail in Hosseinpour-Tehrani et al. [10]. The resulting cell accumulations likely encounter oxygen, buffer, and nutrition heterogeneities, leading to limitations for cells deeper within the clumps. The accumulation on the walls was reflected in decreasing optical density values after 72 h (Figure 1B) and a decreasing itaconate productivity (Figure 1A). This is in contrast to the fuz7 mutant, which showed a constant itaconate production rate in the production phase until glucose was depleted.

3.2. Overexpression of mttA from A. terreus and Its Impact on Itaconate Production

The transport of cis-aconitate from the mitochondria to the cytosol is the rate-limiting step in the itaconate production pathway of U. maydis [44,56]. In the ITA chassis, this bottleneck is addressed through the overexpression of mtt1 caused by the promoter exchange of the itaconate cluster regulator encoded by ria1 [41,56]. However, the mttA transporter from A. terreus was shown to cause a higher metabolic flux towards itaconate than its U. maydis counterpart Mtt1 [10,48]. Overexpression of both mtt1 and mttA further enhances itaconate production. Therefore, a PetefmttA construct was targeted to the ip-locus on the genome of the novel ∆fuz7 strain.
Targeted integration of CbxR constructs into the ip-locus is not perfect. Often, multicopy integration and/or ectopic insertion into random genomic sites occurs. Therefore, several clones were picked to identify the best itaconate producer. Insertion of at least one mttA copy was verified by PCR for five clones resulting in the strains listed in Table 3. The strains significantly differed from each other regarding itaconate production, glucose consumption, and growth (Figure 2).
With the exception of K3, all mttA transformants outperformed the reference strain with 18–32% improvements in titer (Figure 2A, Table 3). Clones K3, K9, and K14 did not consume all glucose during 120 h of cultivation (Figure 2A), which further boosted the yield. All mttA transformants achieved a higher yield than the reference (Table 3), with K14 reaching 0.64 ± 0.03 gITA gGlu−1, which is 89% of the theoretical maximum. Strains K8 and K10 had the highest rates, which were 25% and 32% higher, respectively, compared to the reference. Overexpression of mttA also had a strong impact on the growth (Figure 2B). While U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef ∆fuz7 reached OD600 values above 30, all mttA transformants remained well below this value. A similar effect was observed in other mttA overexpressing strains, where growth and glucose consumption were also strongly decreased [48]. The constitutive Petef promoter causes expression of mttA during the growth phase [58]. It is assumed that this forces cis-aconitate export from the mitochondria to the cytosol, leading to the observed growth defects.
The trends regarding OD600, yield, and rate were similar under screening conditions with a higher substrate concentration and CaCO3 as buffer (Figure 3, Table 3). Much higher titers of up to 56.5 ± 1.7 g L−1 were reached compared to the MES-buffered cultivation due to the higher buffer capacity of CaCO3, higher substrate concentration, and in situ precipitation of calcium itaconate, which alleviates product inhibition.

3.3. Correlation between Copy Number of PetefmttA and Impact on Itaconate Production

In order to test whether these differences in production parameters and growth are a result of differences in the copy number of PetefmttA, the copy number was determined by quantitative PCR. Primer efficiencies and Ct values of mttA and two reference genes, UMAG_02595 and UMAG_03726, were 2.014 for JB-126/JB-127 (R2 = 0.999), 1.994 for JB-128/JB-129 (R2 = 0.999), and 1.976 for JB-132/JB-133 (R2 = 1.0). Ratios between mttA and each reference gene were calculated independently according to Pfaffl et al. [55] and the resulting mean of both ratios was rounded to an integer value. As positive control, U. maydis MB215 ∆UMAG_05079 PetefmttA was used. This strain was previously proven to be a single-copy mttA transformant by Southern blot [48], which was confirmed by the qPCR method. For the mttA transformants, copy numbers between 1 and 4 were determined (Table 4).
Cells of strain K8 with a single mttA copy reached the highest OD600 and itaconate production rate (Figure 4). The transformants with higher copy numbers showed lower OD600 and production rates, but significantly higher yields. Transformant K3 represents an outlier, which is most apparent in the direct comparison to K14 having the same copy number of 3. Possibly, one or more copies of the mttA construct were inserted into a different locus, which may lead to different expression levels or to defects in growth due to gene disruption. Overall, transformant K14 showed the best balance of high yield with minimal reduction in growth and production rates. Therefore, this strain was selected for further characterization.

3.4. Evaluation of Itaconate Production with the Novel Engineered Strain K14 in a Bioreactor

The final consolidated U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef ∆fuz7 PetefmttA_K14, henceforth named strain K14 for ease of reference, was deeply engineered to reduce by-product formation, to stabilize the yeast-like morphology, and to alleviate bottlenecks in the itaconate production pathway. This engineering strongly impacted growth, and thus might also affect its catalytic vigor under stress. To assess the performance of the novel engineered strain K14 under more industrially relevant conditions, fed-batch bioreactor experiments were performed.
Previously, in situ crystallization of calcium itaconate was successfully used to achieve very high titers with U. maydis MB215 ∆cyp3 ∆Pria1::Petef ∆fuz7 PetefmttA [10]. Under similar conditions with 200 g L−1 glucose and 4 g L−1 NH4Cl in the presence of CaCO3, strain K14 achieved very similar yield, titer and rate of itaconate production (Supplemental Table S2). A titer of 205.6 ± 1.1 g L−1 itaconate was achieved within 481 h with an overall productivity of 0.43 ± 0.00 g L−1 h−1 and a yield of 0.32 ± 0.00 gITA gglu−1 (Figure 5). Although a very high titer was reached under these conditions due to the alleviation of product inhibition, the yield is relatively low compared to the shaken cultures. After the fermentation, extensive clumping of solids attached to reactor walls and components was discovered, indicating that the shown itaconate production from broth samples during cultivation may be an underestimation. Although the in situ precipitation of itaconate is a very promising strategy, it clearly requires extensive optimization of solids feeding and reactor mixing in order to realize the full potential of the engineered strain.
The intermittent stress imposed by the pulsed feeding strategy likely also negatively affected production. This is especially apparent in NaOH-titrated pulsed fed-batch fermentations, where only 60 g L−1 itaconate was produced with a yield of 0.42 gITA gglu−1 (Supplemental Figure S1). Although this is a considerable improvement compared to a similar fermentation with U. maydis MB215 ∆cyp ∆Pria1::Petef ∆fuz7 PetefmttA [10] (Supplemental Table S2), the achieved yield is still far lower than that obtained in shake flasks. This indicates that the strain modifications, especially the overexpression of mttA, reduced the tolerance of the engineered strains to osmotic stress. Consequently, the novel engineered strain was cultivated in fed-batch fermentations with continuous feed to achieve a lower baseline glucose concentration. High-density fermentations with 4 g L−1 NH4Cl (Figure 6) as well as low-density fermentations with 0.8 g L−1 NH4Cl (Figure 7) were performed. A starting glucose concentration of 120 g L−1 was allowed to drop to approximately 50 g L−1 during growth, at which point a constant feed of 0.75 or 2.8 g h−1 was started, for the low and high-density fermentation, respectively.
In the high density fermentation, 74.9 ± 1.25 g L−1 itaconate was produced by the U. maydis strain K14 within 140 h with an overall productivity of 0.53 ± 0.01 g L−1 h−1 and a yield of 0.54 ± 0.02 gITA gglu−1 (Figure 6). The low density fermentation resulted in a similar itaconate titer of 75.7 ± 1.3 g L−1. The five-fold reduction in NH4Cl as growth limiting nutrient only resulted in an approximately two-fold reduction of the maximum OD600 value as well as of the overall production rate (Supplemental Table S2). A similar trend was observed previously for both itaconate- and malate-producing strains [44,49]. The lower substrate requirement for biomass formation enabled a higher yield of 0.66 ± 0.02 gITA gglu−1 (Figure 7). Compared to the low-density pulsed fed batch (Supplemental Figure S1), the fed batch with continuous feed increased the titer by 27%, the overall productivity by 14% and the yield by 57%. These results clearly illustrate the benefit of the lower glucose concentration, probably due to a reduced osmotic stress and the absence of osmo shocks caused by glucose pulses. A similar trend was observed for an engineered U. cynodontis strain, where a constant glucose feed controlled by an in-line glucose sensor significantly increased the production parameters, while lowering the production of erythritol as an osmoprotectant [27]. Erythritol production was not observed in our U. maydis cultures, which is in good accordance with previous studies [28,30]. However, this species can tolerate over 2.5 osmol L−1 [3] and is known to produce other osmotically active compounds when exposed to such extreme osmotic conditions. Salmerón-Santiago et al. [59] reported that U. maydis cells treated with 1 M sorbitol accumulated an increased level of trehalose, probably functioning as an osmoprotectant. The trehalase activity in these cells was increased at the same time, indicating cellular mechanisms for a rapid adaption of the trehalose content. Cervantes-Chávez et al. [60] found that U. maydis mutants with a disrupted trehalose biosynthesis pathway were more sensitive to osmotic stress than the wildtype. Assuming that the itaconate produced and the 0.5–1 M glucose pulses had a similar effect, it is reasonable to assume that the U. maydis cells were stressed during the pulsed fed-batch fermentations. This stress, combined with the drain of carbon posed by the synthesis of compatible solutes, likely caused the lower itaconate yield.
The yield of 0.66 ± 0.02 gITA gglu−1 is the highest yield ever reported for U. maydis, and it is also higher than most reported yields achieved with A. terreus [43]. In fact, the low-density fermentation achieved the theoretical maximal yield during the production phase. When disregarding the glucose consumed during the first 24 h in the growth phase, the yield was 0.72 ± 0.02 gITA gglu−1, or 1.00 ± 0.03 molITA molglu−1.

4. Conclusions

This study explored the limits of microbial itaconic acid production with U. maydis by combinatorial metabolic and morphological engineering. These modifications, especially the overexpression of mttA, had a major effect on growth of the final strain U. maydis K14. This reduction in growth affected its performance in fed-batch reactors, but this effect could be avoided by reducing the glucose concentration with a continuous feeding strategy. Under these conditions, itaconate was produced from glucose at 100% of the theoretical maximum yield during the production phase in a low-density fermentation. Looking forward, osmotolerance of U. maydis may be enhanced by laboratory evolution. Furthermore, production of itaconic acid at low pH values is also paramount. Although U. maydis grows relatively poorly at low pH, the shaken cultures clearly indicate that the K14 strain is able to produce itaconic acid at pH levels below 4. A pH shift between growth and production may therefore enable low-pH production. Since substrate cost is usually the main price determining factor for commodity products, the high yield achieved in this work will significantly contribute to the establishment of an Ustilago-based industrial itaconate production process, further enabled by the facile, yeast-like growth of this strain.

Supplementary Materials

The following are available online at https://www.mdpi.com/2309-608X/7/1/20/s1, Figure S1: Low-density pulsed fed-batch fermentation of U. maydis strain K14, Table S1: Oligonucleotides used for deletion and overexpression constructs, Table S2: Production parameters of two engineered U. maydis MB215 strains in two different types of fed-batch fermentations.

Author Contributions

All authors contributed significantly to the work. J.B., H.H.T. and P.E. contributed equally to this work. Conceptualization, N.W. and L.M.B.; methodology, J.B., H.H.T. and P.E.; validation, J.B., H.H.T. and P.E.; formal analysis, J.B., H.H.T. and P.E; resources, N.W. and L.M.B.; data curation, J.B., H.H.T., P.E., and N.W.; writing—original draft preparation, J.B.; writing—review and editing, P.E. and N.W.; visualization, J.B., H.H.T., P.E. and N.W.; supervision, N.W. and L.M.B.; project administration, N.W. and L.M.B.; funding acquisition, N.W. All authors have read and agreed to the published version of the manuscript.

Funding

The work of J.B. and H.H.T. was funded by the German Federal Ministry of Food and Agriculture (BMEL), through the Specialist agency renewable raw materials e. V. (FNR) as part of the ERA-IB project ‘TTRAFFIC’ (FKZ 22030515). The work of P.E. was funded by the German Federal Ministry of Education and Research (BMBF) as part of the ‘BioökonomieRevier_INNO” project “UpRePP” (FKZ 031B0918A). N.W. acknowledges funding from the Bio Based Industries Joint Undertaking under the European Union’s Horizon 2020 research and innovation programme under grant agreement No 887711 for the project Glaukos. The lab of L.M.B. was partially funded by the German Research Foundation (DFG) under Germany’s Excellence Strategy—Exzellenzcluster 2186 ‘The Fuel Science Center’ (ID:390919832).

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article or supplementary material.

Acknowledgments

We thank Kerstin Schipper and Michael Feldbrügge (Institute for Microbiology, Heinrich-Heine University Düsseldorf) for pUMa1523 and pFLPexpC.

Conflicts of Interest

N.W., L.M.B. and H.H.T. are inventors of patent applications on morphological engineering and organic acid production with Ustilago and related fungi. The other authors declare no conflict of interest.

References

  1. Okabe, M.; Lies, D.; Kanamasa, S.; Park, E.Y. Biotechnological production of itaconic acid and its biosynthesis in Aspergillus terreus. Appl. Microbiol. Biotechnol. 2009, 84, 597–606. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Willke, T.; Vorlop, K.D. Biotechnological production of itaconic acid. Appl. Microbiol. Biotechnol. 2001, 56, 289–295. [Google Scholar] [CrossRef] [PubMed]
  3. Klement, T.; Milker, S.; Jäger, G.; Grande, P.M.; Domínguez de María, P.; Büchs, J. Biomass pretreatment affects Ustilago maydis in producing itaconic acid. Microbial. Cell Factories 2012, 11, 43. [Google Scholar] [CrossRef] [Green Version]
  4. Steiger, M.G.; Wierckx, N.; Blank, L.M.; Mattanovich, D.; Sauer, M. Itaconic acid—An emerging building block. In Industrial Biotechnology, Products and Processes; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2017. [Google Scholar]
  5. Werpy, T.; Petersen, G. Top Value Added Chemicals from Biomass: Volume i—Results of Screening for Potential Candidates from Sugars and Synthesis Gas; DOE/GO-102004-1992; TRN: US200427%%671 United States 10.2172/15008859 TRN: US200427%%671 NREL English; National Renewable Energy Lab.: Golden, CO, USA, 2004.
  6. Michelucci, A.; Cordes, T.; Ghelfi, J.; Pailot, A.; Reiling, N.; Goldmann, O.; Binz, T.; Wegner, A.; Tallam, A.; Rausell, A.; et al. Immune-responsive gene 1 protein links metabolism to immunity by catalyzing itaconic acid production. Proc. Natl. Acad. Sci. USA 2013, 110, 7820–7825. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Mills, E.L.; Ryan, D.G.; Prag, H.A.; Dikovskaya, D.; Menon, D.; Zaslona, Z.; Jedrychowski, M.P.; Costa, A.S.H.; Higgins, M.; Hams, E.; et al. Itaconate is an anti-inflammatory metabolite that activates nrf2 via alkylation of keap1. Nature 2018, 556, 113–117. [Google Scholar] [CrossRef]
  8. Olagnier, D.; Farahani, E.; Thyrsted, J.; Blay-Cadanet, J.; Herengt, A.; Idorn, M.; Hait, A.; Hernaez, B.; Knudsen, A.; Iversen, M.B.; et al. Sars-cov2-mediated suppression of nrf2-signaling reveals potent antiviral and anti-inflammatory activity of 4-octyl-itaconate and dimethyl fumarate. Nat. Commun. 2020, 11, 4938. [Google Scholar] [CrossRef] [PubMed]
  9. Klement, T.; Büchs, J. Itaconic acid—A biotechnological process in change. Bioresour. Technol. 2013, 135, 422–431. [Google Scholar] [CrossRef]
  10. Hosseinpour Tehrani, H.; Becker, J.; Bator, I.; Saur, K.; Meyer, S.; Rodrigues Lóia, A.C.; Blank, L.M.; Wierckx, N. Integrated strain- and process design enable production of 220 g l−1 itaconic acid with Ustilago maydis. Biotechnol. Biofuels 2019, 12, 263. [Google Scholar] [CrossRef]
  11. Hevekerl, A.; Kuenz, A.; Vorlop, K.-D. Influence of the ph on the itaconic acid production with Aspergillus terreus. Appl. Microbiol. Biotechnol. 2014, 98, 10005–10012. [Google Scholar] [CrossRef]
  12. Tabuchi, T.; Sugisawa, T.; Ishidori, T.; Nakahara, T.; Sugiyama, J. Itaconic acid fermentation by a yeast belonging to the genus candida. Agric. Biol. Chem. 1981, 45, 475–479. [Google Scholar] [CrossRef]
  13. Levinson, W.E.; Kurtzman, C.P.; Kuo, T.M. Production of itaconic acid by pseudozyma antarctica nrrl y-7808 under nitrogen-limited growth conditions. Enzym. Microb. Technol. 2006, 39, 824–827. [Google Scholar] [CrossRef]
  14. Krull, S.; Lünsmann, M.; Prüße, U.; Kuenz, A. Ustilago rabenhorstiana—An alternative natural itaconic acid producer. Fermentation 2020, 6, 4. [Google Scholar] [CrossRef] [Green Version]
  15. Wierckx, N.; Agrimi, G.; Lübeck, P.S.; Steiger, M.G.; Mira, N.P.; Punt, P.J. Metabolic specialization in itaconic acid production: A tale of two fungi. Curr. Opin. Biotechnol. 2020, 62, 153–159. [Google Scholar] [CrossRef] [PubMed]
  16. Regestein, L.; Klement, T.; Grande, P.; Kreyenschulte, D.; Heyman, B.; Maßmann, T.; Eggert, A.; Sengpiel, R.; Wang, Y.; Wierckx, N.; et al. From beech wood to itaconic acid: Case study on biorefinery process integration. Biotechnol. Biofuels 2018, 11, 279. [Google Scholar] [CrossRef]
  17. Straathof, A.J.J.; Wahl, S.A.; Benjamin, K.R.; Takors, R.; Wierckx, N.; Noorman, H.J. Grand research challenges for sustainable industrial biotechnology. Trends Biotechnol. 2019, 37, 1042–1050. [Google Scholar] [CrossRef]
  18. Kämper, J.; Kahmann, R.; Bölker, M.; Ma, L.-J.; Brefort, T.; Saville, B.J.; Banuett, F.; Kronstad, J.W.; Gold, S.E.; Müller, O.; et al. Insights from the genome of the biotrophic fungal plant pathogen Ustilago maydis. Nature 2006, 444, 97–101. [Google Scholar] [CrossRef]
  19. Kahmann, R.; Steinberg, G.; Basse, C.; Feldbrügge, M.; Kämper, J. Ustilago maydis, the Causative Agent of Corn Smut Disease; Kronstad, J.W., Ed.; Fungal Pathology; Springer: Dordrecht, The Netherlands, 2000; pp. 347–371. [Google Scholar]
  20. Christensen, J.J. Corn smut caused by Ustilago maydis. Monogr. Am. Phytopathol. Soc. 1963, 2. [Google Scholar] [CrossRef]
  21. Kahmann, R.; Kämper, J. Ustilago maydis: How its biology relates to pathogenic development. New Phytol. 2004, 164, 31–42. [Google Scholar] [CrossRef]
  22. Brefort, T.; Doehlemann, G.; Mendoza-Mendoza, A.; Reissmann, S.; Djamei, A.; Kahmann, R. Ustilago maydis as a pathogen. Annu. Rev. Phytopathol. 2009, 47, 423–445. [Google Scholar] [CrossRef] [Green Version]
  23. Klose, J.; De Sá, M.M.; Kronstad, J.W. Lipid-induced filamentous growth in Ustilago maydis. Mol. Microbiol. 2004, 52, 823–835. [Google Scholar] [CrossRef]
  24. Lovely, C.B.; Aulakh, K.B.; Perlin, M.H. Role of hsl7 in morphology and pathogenicity and its interaction with other signaling components in the plant pathogen Ustilago maydis. Eukaryot. Cell 2011, 10, 869–883. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Lovely, C.B.; Perlin, M.H. Cla4, but not rac1, regulates the filamentous response of Ustilago maydis to low ammonium conditions. Commun. Integr. Biol. 2011, 4, 670–673. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Hosseinpour Tehrani, H.; Tharmasothirajan, A.; Track, E.; Blank, L.M.; Wierckx, N. Engineering the morphology and metabolism of ph tolerant Ustilago cynodontis for efficient itaconic acid production. Metab. Eng. 2019, 54, 293–300. [Google Scholar] [CrossRef] [PubMed]
  27. Hosseinpour Tehrani, H.; Saur, K.; Tharmasothirajan, A.; Blank, L.M.; Wierckx, N. Process engineering of ph tolerant Ustilago cynodontis for efficient itaconic acid production. Microb. Cell Factories 2019, 18, 213. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Guevarra, E.D.; Tabuchi, T. Accumulation of itaconic, 2-hydroxyparaconic, itatartaric, and malic acids by strains of the genus ustilago. Agric. Biol. Chem. 1990, 54, 2353–2358. [Google Scholar] [CrossRef] [Green Version]
  29. Feldbrügge, M.; Kellner, R.; Schipper, K. The biotechnological use and potential of plant pathogenic smut fungi. Appl. Microbiol. Biotechnol. 2013, 97, 3253–3265. [Google Scholar] [CrossRef]
  30. Geiser, E.; Wiebach, V.; Wierckx, N.; Blank, L.M. Prospecting the biodiversity of the fungal family ustilaginaceae for the production of value-added chemicals. Fungal Biol. Biotechnol. 2014, 1, 2. [Google Scholar] [CrossRef] [Green Version]
  31. Bölker, M.; Basse, C.W.; Schirawski, J. Ustilago maydis secondary metabolism-from genomics to biochemistry. Fungal Genet. Biol. FG B 2008, 45 (Suppl. 1), S88–S93. [Google Scholar]
  32. Aguilar, L.R.; Pardo, J.P.; Lomelí, M.M.; Bocardo, O.I.L.; Juárez Oropeza, M.A.; Guerra Sánchez, G. Lipid droplets accumulation and other biochemical changes induced in the fungal pathogen Ustilago maydis under nitrogen-starvation. Arch. Microbiol. 2017, 199, 1195–1209. [Google Scholar] [CrossRef]
  33. Moon, H.-J.; Jeya, M.; Kim, I.-W.; Lee, J.-K. Biotechnological production of erythritol and its applications. Appl. Microbiol. Biotechnol. 2010, 86, 1017–1025. [Google Scholar] [CrossRef]
  34. Zambanini, T.; Tehrani, H.H.; Geiser, E.; Sonntag, C.K.; Buescher, J.M.; Meurer, G.; Wierckx, N.; Blank, L.M. Metabolic engineering of Ustilago trichophora tz1 for improved malic acid production. Metab. Eng. Commun. 2017, 4, 12–21. [Google Scholar] [CrossRef] [PubMed]
  35. Müller, M.J.; Stachurski, S.; Stoffels, P.; Schipper, K.; Feldbrügge, M.; Büchs, J. Online evaluation of the metabolic activity of Ustilago maydis on (poly) galacturonic acid. J. Biol. Eng. 2018, 12, 1–17. [Google Scholar] [CrossRef] [PubMed]
  36. Schlembach, I.; Tehrani, H.; Blank, L.M.; Büchs, J.; Wierckx, N.; Regestein, L.; Rosenbaum, M. Consolidated bioprocessing of cellulose to itaconic acid by a co-culture of Trichoderma reesei and Ustilago maydis. Biotechnol. Biofuels 2020, 13, 1–18. [Google Scholar] [CrossRef] [PubMed]
  37. Geiser, E.; Reindl, M.; Blank, L.M.; Feldbrügge, M.; Wierckx, N.; Schipper, K. Activating intrinsic carbohydrate-active enzymes of the smut fungus Ustilago maydis for the degradation of plant cell wall components. Appl. Environ. Microbiol. 2016, 82, 5174–5185. [Google Scholar] [CrossRef] [Green Version]
  38. Stoffels, P.; Müller, M.J.; Stachurski, S.; Terfrüchte, M.; Schröder, S.; Ihling, N.; Wierckx, N.; Feldbrügge, M.; Schipper, K.; Büchs, J. Complementing the intrinsic repertoire of Ustilago maydis for degradation of the pectin backbone polygalacturonic acid. J. Biotechnol. 2020, 307, 148–163. [Google Scholar] [CrossRef]
  39. Maassen, N.; Panakova, M.; Wierckx, N.; Geiser, E.; Zimmermann, M.; Bölker, M.; Klinner, U.; Blank, L.M. Influence of carbon and nitrogen concentration on itaconic acid production by the smut fungus Ustilago maydis. Eng. Life Sci. 2014, 14, 129–134. [Google Scholar] [CrossRef]
  40. Olicón-Hernández, D.R.; Araiza-Villanueva, M.G.; Pardo, J.P.; Aranda, E.; Guerra-Sánchez, G. New insights of Ustilago maydis as yeast model for genetic and biotechnological research: A review. Curr. Microbiol. 2019, 76, 1–10. [Google Scholar] [CrossRef]
  41. Becker, J.; Hosseinpour Tehrani, H.; Gauert, M.; Mampel, J.; Blank, L.M.; Wierckx, N. An Ustilago maydis chassis for itaconic acid production without by-products. Microb. Biotechnol. 2020, 13, 350–362. [Google Scholar] [CrossRef] [Green Version]
  42. Karaffa, L.; Kubicek, C.P. Citric acid and itaconic acid accumulation: Variations of the same story? Appl. Microbiol. Biotechnol. 2019, 103, 2889–2902. [Google Scholar] [CrossRef] [Green Version]
  43. Kuenz, A.; Krull, S. Biotechnological production of itaconic acid—Things you have to know. Appl. Microbiol. Biotechnol. 2018, 102, 3901–3914. [Google Scholar] [CrossRef]
  44. Geiser, E.; Przybilla, S.K.; Engel, M.; Kleineberg, W.; Büttner, L.; Sarikaya, E.; Hartog, T.D.; Klankermayer, J.; Leitner, W.; Bölker, M.; et al. Genetic and biochemical insights into the itaconate pathway of Ustilago maydis enable enhanced production. Metab. Eng. 2016, 38, 427–435. [Google Scholar] [CrossRef]
  45. Zambanini, T.; Hosseinpour Tehrani, H.; Geiser, E.; Merker, D.; Schleese, S.; Krabbe, J.; Buescher, J.M.; Meurer, G.; Wierckx, N.; Blank, L.M. Efficient itaconic acid production from glycerol with Ustilago vetiveriae tz1. Biotechnol. Biofuels 2017, 10, 131. [Google Scholar] [CrossRef]
  46. Duetz, W.A.; Rüedi, L.; Hermann, R.; O’Connor, K.; Büchs, J.; Witholt, B. Methods for intense aeration, growth, storage, and replication of bacterial strains in microtiter plates. Appl. Environ. Microbiol. 2000, 66, 2641–2646. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Hewald, S.; Josephs, K.; Bölker, M. Genetic analysis of biosurfactant production in Ustilago maydis. Appl. Environ. Microbiol. 2005, 71, 3033–3040. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Hosseinpour Tehrani, H.; Geiser, E.; Engel, M.; Hartmann, S.K.; Hossain, A.H.; Punt, P.J.; Blank, L.M.; Wierckx, N. The interplay between transport and metabolism in fungal itaconic acid production. Fungal Genet. Biol. FG B 2019, 125, 45–52. [Google Scholar] [CrossRef]
  49. Zambanini, T.; Sarikaya, E.; Kleineberg, W.; Buescher, J.M.; Meurer, G.; Wierckx, N.; Blank, L.M. Efficient malic acid production from glycerol with Ustilago trichophora tz1. Biotechnol. Biofuels 2016, 9, 67. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Gibson, D.G.; Young, L.; Chuang, R.Y.; Venter, J.C.; Hutchison, C.A., 3rd; Smith, H.O. Enzymatic assembly of DNA molecules up to several hundred kilobases. Nat. Methods 2009, 6, 343–345. [Google Scholar] [CrossRef] [PubMed]
  51. Sambrook, J.; Russell, D.W. Preparation and transformation of competent e. coli using calcium chloride. CSH Protoc. 2006, 2006. [Google Scholar] [CrossRef]
  52. Brachmann, A.; König, J.; Julius, C.; Feldbrügge, M. A reverse genetic approach for generating gene replacement mutants in Ustilago maydis. Mol. Genet. Genom. 2004, 272, 216–226. [Google Scholar] [CrossRef] [PubMed]
  53. Hoffman, C.S.; Winston, F. A ten-minute DNA preparation from yeast efficiently releases autonomous plasmids for transformaion of Escherichia coli. Gene 1987, 57, 267–272. [Google Scholar] [CrossRef]
  54. Khrunyk, Y.; Münch, K.; Schipper, K.; Lupas, A.N.; Kahmann, R. The use of flp-mediated recombination for the functional analysis of an effector gene family in the biotrophic smut fungus Ustilago maydis. New Phytol. 2010, 187, 957–968. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Pfaffl, M.W. A new mathematical model for relative quantification in real-time rt-pcr. Nucleic Acids Res. 2001, 29, e45. [Google Scholar] [CrossRef] [PubMed]
  56. Geiser, E.; Przybilla, S.K.; Friedrich, A.; Buckel, W.; Wierckx, N.; Blank, L.M.; Bölker, M. Ustilago maydis produces itaconic acid via the unusual intermediate trans-aconitate. Microb. Biotechnol. 2016, 9, 116–126. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Geiser, E.; Hosseinpour Tehrani, H.; Meyer, S.; Blank, L.M.; Wierckx, N. Evolutionary freedom in the regulation of the conserved itaconate cluster by ria1 in related ustilaginaceae. Fungal Biol. Biotechnol. 2018, 5, 14. [Google Scholar] [CrossRef]
  58. Zambanini, T.; Hartmann, S.K.; Schmitz, L.M.; Büttner, L.; Hosseinpour Tehrani, H.; Geiser, E.; Beudels, M.; Venc, D.; Wandrey, G.; Büchs, J.; et al. Promoters from the itaconate cluster of Ustilago maydis are induced by nitrogen depletion. Fungal Biol. Biotechnol. 2017, 4, 11. [Google Scholar] [CrossRef] [Green Version]
  59. Salmerón-Santiago, K.G.; Pardo, J.P.; Flores-Herrera, O.; Mendoza-Hernández, G.; Miranda-Arango, M.; Guerra-Sánchez, G. Response to osmotic stress and temperature of the fungus Ustilago maydis. Arch. Microbiol. 2011, 193, 701–709. [Google Scholar] [CrossRef]
  60. Cervantes-Chávez, J.A.; Valdés-Santiago, L.; Bakkeren, G.; Hurtado-Santiago, E.; León-Ramírez, C.G.; Esquivel-Naranjo, E.U.; Landeros-Jaime, F.; Rodríguez-Aza, Y.; Ruiz-Herrera, J. Trehalose is required for stress resistance and virulence of the basidiomycota plant pathogen Ustilago maydis. Microbiology 2016, 162, 1009–1022. [Google Scholar] [CrossRef]
Jof 07 00020 g001 550

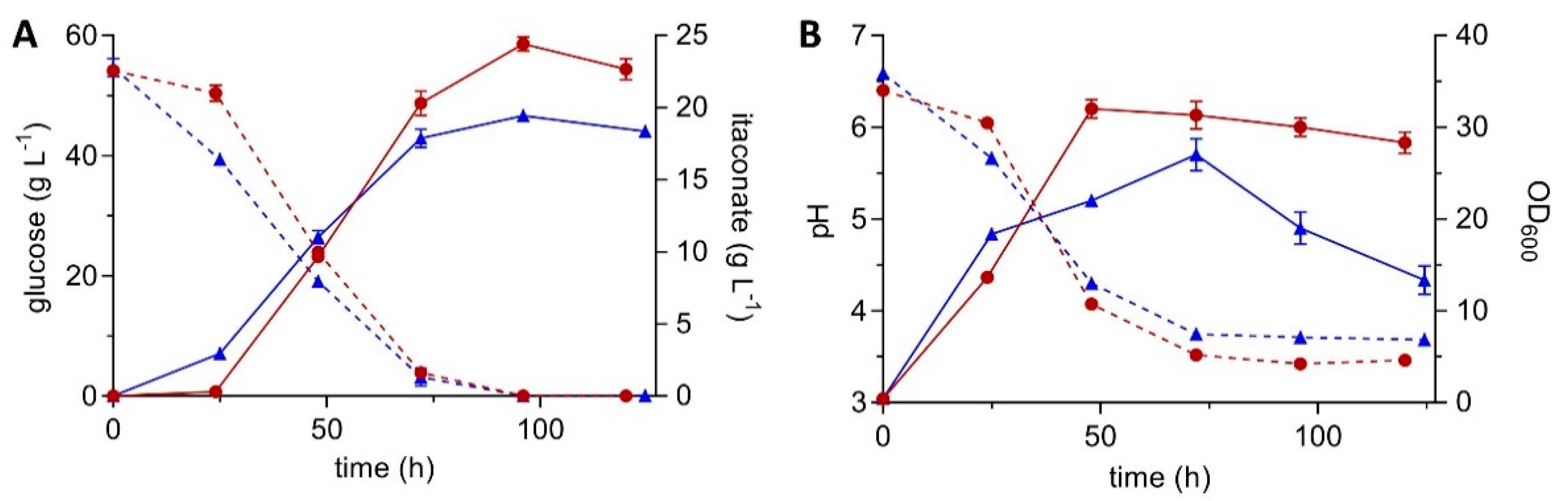

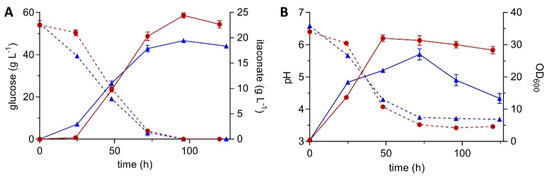

Figure 1. System Duetz® cultivation of morphology-engineered U. maydis MB215 strains in modified Tabuchi medium (MTM) with 50 g L−1 glucose and 100 mM (2-(N-morpholino) ethanesulfonic acid (MES), incubated in 24-well plates with a filling volume of 1.5 mL (shaking diameter = 50 mm, n = 300 rpm, T = 30 °C and Φ = 80%). (A) Concentrations of itaconate (continuous lines) and glucose (dotted lines), (B) optical density measured at a wavelength of 600 nm (OD600, continuous lines) and pH (dotted lines) of U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef (▲) and the same strain with additional fuz7 deletion (●). Error bars indicate the standard error of the mean (n = 3).
Figure 1. System Duetz® cultivation of morphology-engineered U. maydis MB215 strains in modified Tabuchi medium (MTM) with 50 g L−1 glucose and 100 mM (2-(N-morpholino) ethanesulfonic acid (MES), incubated in 24-well plates with a filling volume of 1.5 mL (shaking diameter = 50 mm, n = 300 rpm, T = 30 °C and Φ = 80%). (A) Concentrations of itaconate (continuous lines) and glucose (dotted lines), (B) optical density measured at a wavelength of 600 nm (OD600, continuous lines) and pH (dotted lines) of U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef (▲) and the same strain with additional fuz7 deletion (●). Error bars indicate the standard error of the mean (n = 3).
Jof 07 00020 g001
Jof 07 00020 g002 550

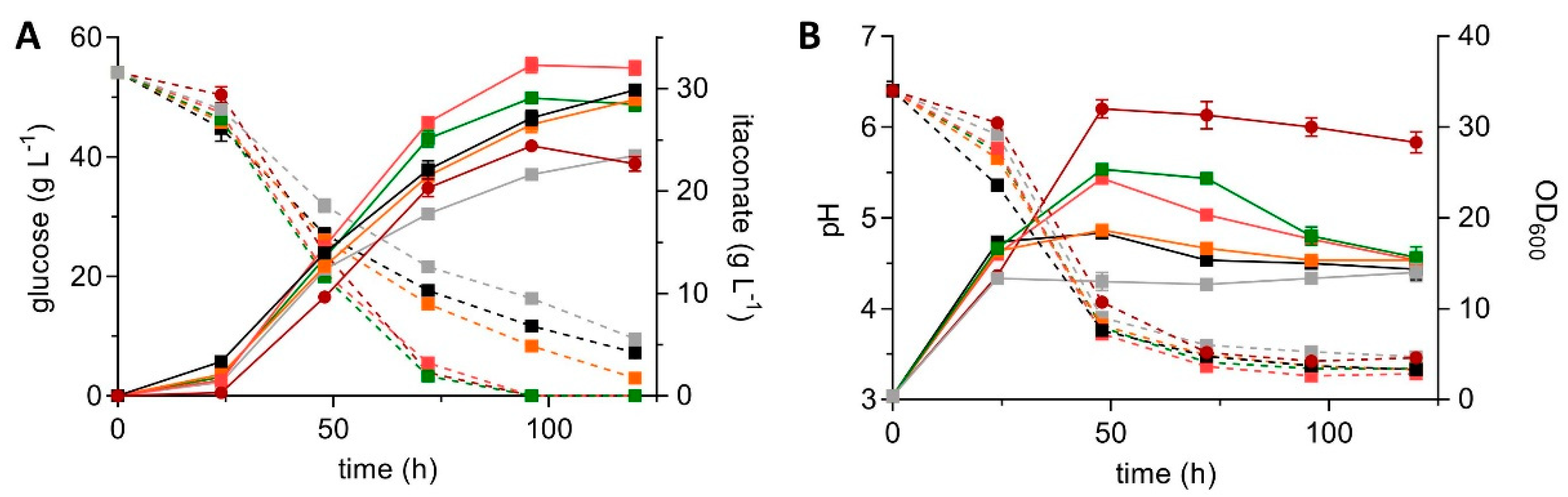

Figure 2. System Duetz® cultivation of U. maydis MB215 strains expressing mttA in MTM with 50 g L−1 glucose and 100 mM MES, incubated in 24-well plates with a filling volume of 1.5 mL (shaking diameter = 50 mm, n = 300 rpm, T = 30 °C and Φ = 80%). Itaconate production (continuous lines) and glucose consumption (dotted lines) (A) are shown, as well as OD600 (continuous lines) and pH (dotted lines) (B) of U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef ∆fuz7 (red) and five PetefmttA transformants named K3 (grey), K8 (green), K9 (orange), K10 (pink), and K14 (black). Error bars indicate the standard error of the mean (n = 3).
Figure 2. System Duetz® cultivation of U. maydis MB215 strains expressing mttA in MTM with 50 g L−1 glucose and 100 mM MES, incubated in 24-well plates with a filling volume of 1.5 mL (shaking diameter = 50 mm, n = 300 rpm, T = 30 °C and Φ = 80%). Itaconate production (continuous lines) and glucose consumption (dotted lines) (A) are shown, as well as OD600 (continuous lines) and pH (dotted lines) (B) of U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef ∆fuz7 (red) and five PetefmttA transformants named K3 (grey), K8 (green), K9 (orange), K10 (pink), and K14 (black). Error bars indicate the standard error of the mean (n = 3).
Jof 07 00020 g002
Jof 07 00020 g003 550

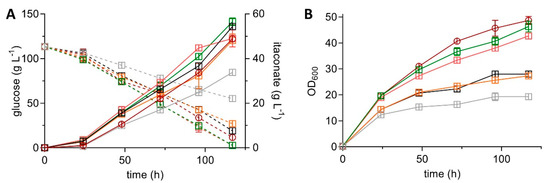

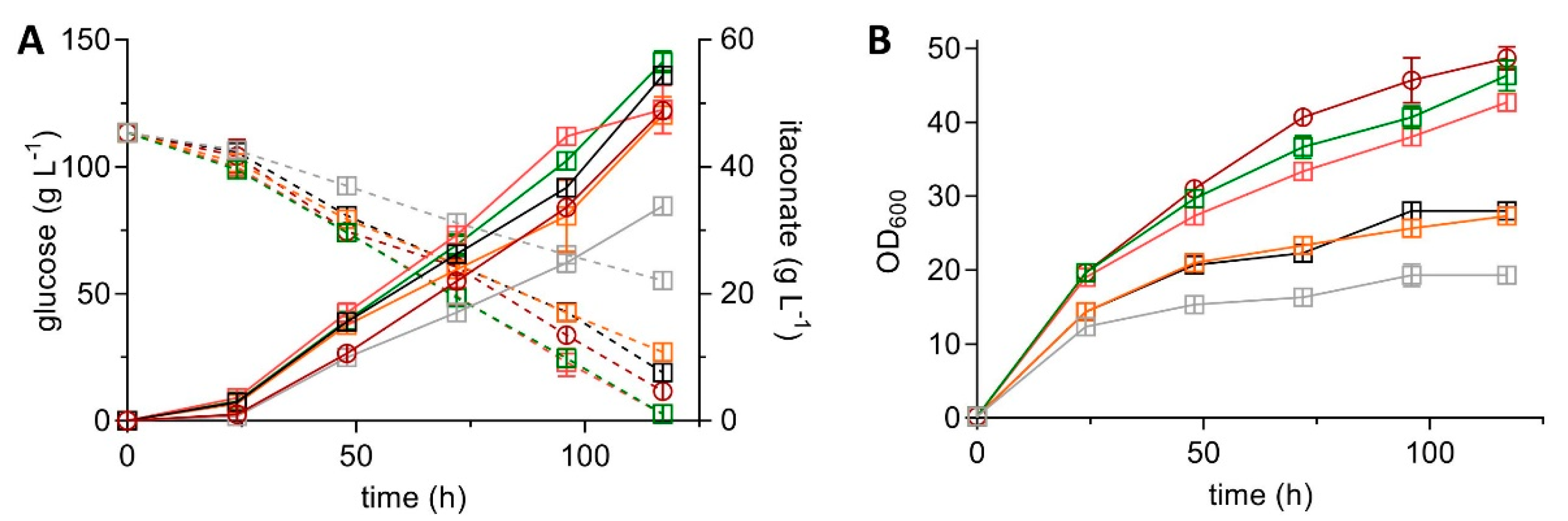

Figure 3. System Duetz® cultivation of six U. maydis MB215 mutants in MTM with 100 g L−1 glucose and 66 g L−1 CaCO3, incubated in 24-well plates with a filling volume of 1.5 mL (shaking diameter = 50 mm, n = 300 rpm, T = 30 °C and Φ = 80%). Concentrations of itaconate (continuous lines) and glucose (dotted lines) (A) are shown, as well as OD600 (B) of U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef ∆fuz7 (red) and five PetefmttA transformants U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef ∆fuz7 PetefmttA, K3 (grey), K8 (green), K9 (orange), K10 (pink), and K14 (black). Error bars indicate the standard error of the mean (n = 3).
Figure 3. System Duetz® cultivation of six U. maydis MB215 mutants in MTM with 100 g L−1 glucose and 66 g L−1 CaCO3, incubated in 24-well plates with a filling volume of 1.5 mL (shaking diameter = 50 mm, n = 300 rpm, T = 30 °C and Φ = 80%). Concentrations of itaconate (continuous lines) and glucose (dotted lines) (A) are shown, as well as OD600 (B) of U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef ∆fuz7 (red) and five PetefmttA transformants U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef ∆fuz7 PetefmttA, K3 (grey), K8 (green), K9 (orange), K10 (pink), and K14 (black). Error bars indicate the standard error of the mean (n = 3).
Jof 07 00020 g003
Jof 07 00020 g004 550

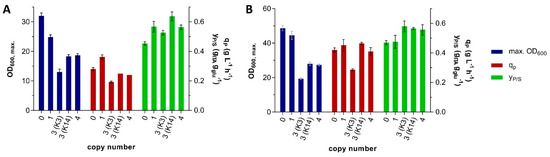

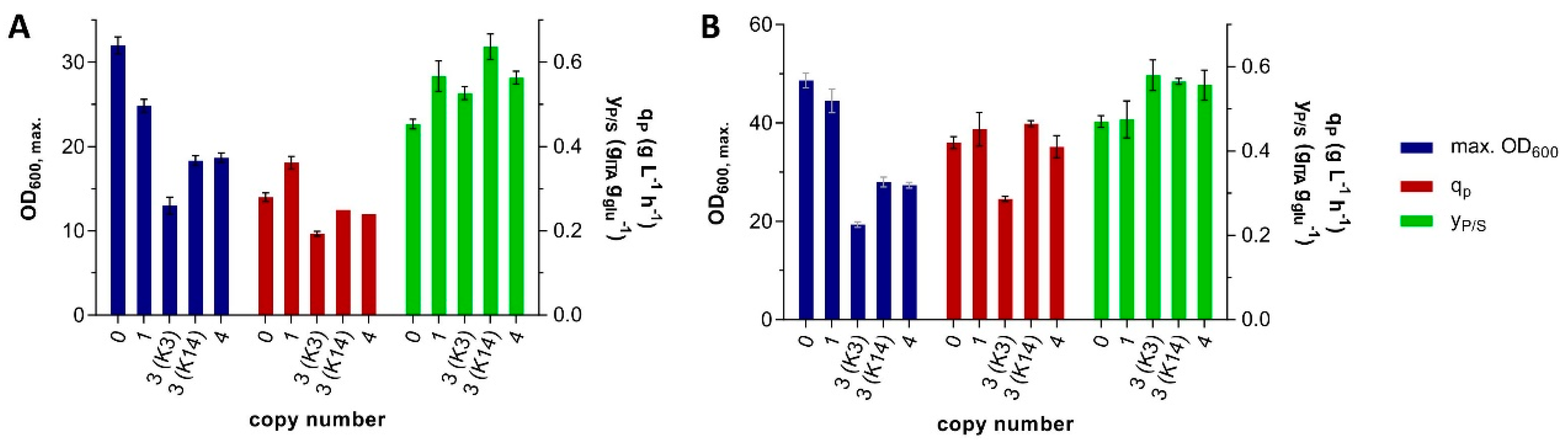

Figure 4. Production parameters of U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef ∆fuz7 transformants with different mttA copy numbers incubated in MTM with 50 g L−1 glucose and 100 mM MES (A) and with 100 g L−1 glucose and 66 g L−1 CaCO3 (B). Error bars indicate the standard error of the mean (n = 3).
Figure 4. Production parameters of U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef ∆fuz7 transformants with different mttA copy numbers incubated in MTM with 50 g L−1 glucose and 100 mM MES (A) and with 100 g L−1 glucose and 66 g L−1 CaCO3 (B). Error bars indicate the standard error of the mean (n = 3).
Jof 07 00020 g004
Jof 07 00020 g005 550

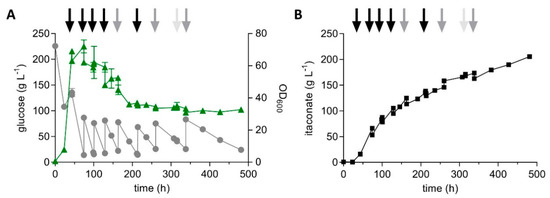

Figure 5. High-density pulsed fed-batch fermentation of U. maydis strain K14. (A) concentration of glucose (●) and OD600 values (▲) and (B) concentration of itaconate (■) during fermentation in a bioreactor containing batch medium (200 g L−1 glucose, 4 g L−1 NH4Cl, CaCO3 as buffering agent, 30 °C, 1000 rpm, top pitched blade impeller, bottom Rushton impeller). Arrows indicate the addition of 80 g glucose + 50 g CaCO3 (black arrow), 80 g glucose (grey arrow), or 50 g CaCO3 (light grey arrow). Error bars indicate the deviation from the mean (n = 2).
Figure 5. High-density pulsed fed-batch fermentation of U. maydis strain K14. (A) concentration of glucose (●) and OD600 values (▲) and (B) concentration of itaconate (■) during fermentation in a bioreactor containing batch medium (200 g L−1 glucose, 4 g L−1 NH4Cl, CaCO3 as buffering agent, 30 °C, 1000 rpm, top pitched blade impeller, bottom Rushton impeller). Arrows indicate the addition of 80 g glucose + 50 g CaCO3 (black arrow), 80 g glucose (grey arrow), or 50 g CaCO3 (light grey arrow). Error bars indicate the deviation from the mean (n = 2).
Jof 07 00020 g005
Jof 07 00020 g006 550

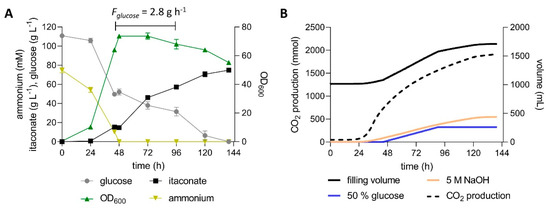

Figure 6. High-density fed-batch fermentation with continuous feed of U. maydis strain K14. (A) concentration of glucose, itaconate and ammonium, and OD600 values and (B) filling volume, CO2 production and the added volumes of 5 M NaOH and 50% glucose during fermentation in a bioreactor containing batch medium with 120 g L−1 glucose and 4 g L−1 NH4Cl. The pH was kept at 6.5 by automatic titration with NaOH. Cultures were fed with an additional 130 g glucose at a rate of 2.8 g h−1 during the indicated time interval. Error bars indicate the deviation from the mean (n = 2).
Figure 6. High-density fed-batch fermentation with continuous feed of U. maydis strain K14. (A) concentration of glucose, itaconate and ammonium, and OD600 values and (B) filling volume, CO2 production and the added volumes of 5 M NaOH and 50% glucose during fermentation in a bioreactor containing batch medium with 120 g L−1 glucose and 4 g L−1 NH4Cl. The pH was kept at 6.5 by automatic titration with NaOH. Cultures were fed with an additional 130 g glucose at a rate of 2.8 g h−1 during the indicated time interval. Error bars indicate the deviation from the mean (n = 2).
Jof 07 00020 g006
Jof 07 00020 g007 550

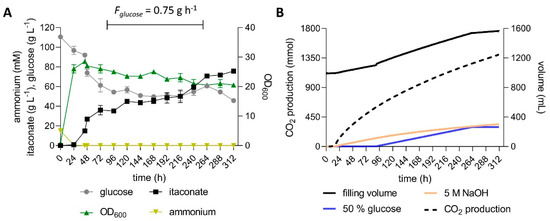

Figure 7. Low-density fed-batch fermentation with continuous feed of U. maydis strain K14. (A) concentration of glucose, itaconate and ammonium, and OD600 values and (B) filling volume, CO2 production and the added volumes of 5 M NaOH and 50% glucose during fermentation in a bioreactor containing batch medium with 120 g L−1 glucose, 0.8 g L−1 NH4Cl. The pH was kept at 6.5 by automatic titration with NaOH. Cultures were fed with an additional 130 g glucose at a rate of 0.75 g h−1 during the indicated time interval. Error bars indicate the deviation from the mean (n = 2).
Figure 7. Low-density fed-batch fermentation with continuous feed of U. maydis strain K14. (A) concentration of glucose, itaconate and ammonium, and OD600 values and (B) filling volume, CO2 production and the added volumes of 5 M NaOH and 50% glucose during fermentation in a bioreactor containing batch medium with 120 g L−1 glucose, 0.8 g L−1 NH4Cl. The pH was kept at 6.5 by automatic titration with NaOH. Cultures were fed with an additional 130 g glucose at a rate of 0.75 g h−1 during the indicated time interval. Error bars indicate the deviation from the mean (n = 2).
Jof 07 00020 g007
Table
Table 1. U. maydis MB215 strains used in this study.
Table 1. U. maydis MB215 strains used in this study.
Strain DesignationResistanceReference
U. maydis MB215 [47]
U. maydis MB215 ∆cyp3 ∆Pria1::Petef [10]
U. maydis MB215 ∆UMAG_05079 PetefmttAhygR, cbxR[48]
U. maydis MB215 ∆cyp3 ∆fuz7 ∆Pria1::Petef PetefmttA_K14hygR, cbxR[10]
U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef (=ITA chassis) [41]
U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef ∆fuz7 this study
U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef ∆fuz7 PetefmttA_K3cbxRthis study
U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef ∆fuz7 PetefmttA_K8cbxRthis study
U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef ∆fuz7 PetefmttA_K9cbxRthis study
U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef ∆fuz7 PetefmttA_K10cbxRthis study
U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef ∆fuz7 PetefmttA_K14 (=K14 strain)cbxRthis study
Table
Table 2. Plasmids used in this study.
Table 2. Plasmids used in this study.
PlasmidDescriptionReference
pJET1.2/bluntOri ColE1; AmpRThermo Scientific, Germany
pFLPexpCPcrg1 promoter; synthetic FLP recombinase gene; CbxR; ARS; AmpRProf. M. Feldbrügge, Heinrich-Heine University Düsseldorf, Germany
pUMa1523FRTm1-HygR-FRTm1 cassette; GentRDr. K. Schipper, Heinrich-Heine University Düsseldorf, Germany
pJET1.2-fuz7 5′-UTR flank -FRTm1-HygR-FRTm1-fuz7 3′-UTR flankpJET1.2 with 5′- and 3′-UTR flank of UMAG_01514 as deletion construct; HygR; FRT m1 recombination sitesthis study
Petef -Cbx-AT_mttAconstitutive Petef promoter, dicodon-optimized version of A. terreus ATEG_09970 (mttA), cbxR, ampR[48]
Table
Table 3. ITA production parameters of engineered strains of the U. maydis MB215 ITA chassis (∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef). ±values indicate the standard error of the mean (n = 3). Symbols refer to Figure 1, Figure 2 and Figure 3.
Table 3. ITA production parameters of engineered strains of the U. maydis MB215 ITA chassis (∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef). ±values indicate the standard error of the mean (n = 3). Symbols refer to Figure 1, Figure 2 and Figure 3.
Conditions.SymbolStrain ModificationITA Titermax
(g L−1)		qP a
(g L−1 h−1)		qP,max b
(g L−1 h−1)		yP/S c
(gITA gglu−1)
100 mM MES,
50 g L−1 glucose		▲control19.4 ± 0.30.25 ± 0.010.35 ± 0.020.36 ± 0.02
●∆fuz724.4 ± 0.50.28 ± 0.010.44 ± 0.030.45 ± 0.01
■PetefmttA_K323.5 ± 0.60.20 ± 0.000.46 ± 0.020.53 ± 0.01
■PetefmttA_K829.1 ± 0.10.35 ± 0.010.49 ± 0.030.54 ± 0.01
■PetefmttA_K928.9 ± 0.30.24 ± 0.000.44 ± 0.010.57 ± 0.01
■PetefmttA_K1032.3 ± 0.80.37 ± 0.000.54 ± 0.010.60 ± 0.02
■PetefmttA_K1429.9 ± 0.70.25 ± 0.000.44 ± 0.010.64 ± 0.03
66 g L−1
CaCO3,
100 g L−1
glucose		○∆fuz748.8 ± 1.30.42 ± 0.010.70 ± 0.070.47 ± 0.01
□PetefmttA_K333.8 ± 0.50.29 ± 0.000.43 ± 0.060.58 ± 0.04
□PetefmttA_K856.5 ± 1.70.48 ± 0.010.74 ± 0.090.51 ± 0.02
□PetefmttA_K948.1 ± 2.90.41 ± 0.020.52 ± 0.020.56 ± 0.03
□PetefmttA_K1049.0 ± 3.80.42 ± 0.030.64 ± 0.070.44 ± 0.03
□PetefmttA_K1454.4 ± 0.20.46 ± 0.000.82 ± 0.010.57 ± 0.00
a Overall itaconate production rate ([glucose] > 5.5 g L−1). b Maximum itaconate production rate. c Yield itaconate per consumed glucose.
Table
Table 4. Determination of PetefmttA copy number in five U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef ∆fuz7 PetefmttA transformants by quantitative polymerase chain reaction (PCR). ±values indicate the standard error of the mean (n = 3).
Table 4. Determination of PetefmttA copy number in five U. maydis MB215 ∆cyp3 ∆MEL ∆UA ∆dgat ∆Pria1::Petef ∆fuz7 PetefmttA transformants by quantitative polymerase chain reaction (PCR). ±values indicate the standard error of the mean (n = 3).
U. maydis StrainCt Value
UMAG_
02595		Ct Value
UMAG_
03726		Ct Value
mttA		Ratio mttA to UMAG_
02595		Ratio mttA to UMAG_
03726		Rounded Mean
wildtype27.6 ± 0.1027.9 ± 0.2935.9 ± 1.200.00.00
∆UMAG_05079::PetefmttA25.7 ± 0.1425.8 ± 0.2425.7 ± 0.321.01.01
PetefmttA_K328.3 ± 0.1228.4 ± 0.3126.7 ± 0.363.23.13
PetefmttA_K827.8 ± 0.1027.9 ± 0.1128.5 ± 0.210.70.61
PetefmttA_K928.2 ± 0.2728.5 ± 0.1626.4 ± 0.183.73.94
PetefmttA_K1026.8 ± 0.1726.6 ± 0.3526.6 ± 0.101.20.91
PetefmttA_K1426.6 ± 0.0327.0 ± 0.1325.2 ± 0.132.83.33
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Becker, J.; Hosseinpour Tehrani, H.; Ernst, P.; Blank, L.M.; Wierckx, N. An Optimized Ustilago maydis for Itaconic Acid Production at Maximal Theoretical Yield. J. Fungi 2021, 7, 20. https://doi.org/10.3390/jof7010020

AMA Style

Becker J, Hosseinpour Tehrani H, Ernst P, Blank LM, Wierckx N. An Optimized Ustilago maydis for Itaconic Acid Production at Maximal Theoretical Yield. Journal of Fungi. 2021; 7(1):20. https://doi.org/10.3390/jof7010020

Chicago/Turabian Style

Becker, Johanna, Hamed Hosseinpour Tehrani, Philipp Ernst, Lars Mathias Blank, and Nick Wierckx. 2021. "An Optimized Ustilago maydis for Itaconic Acid Production at Maximal Theoretical Yield" Journal of Fungi 7, no. 1: 20. https://doi.org/10.3390/jof7010020

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
