Review

Review and Current Perspectives on DNA Topoisomerase I and II Enzymes of Fungi as Study Models for the Development of New Antifungal Drugs

by
Dulce Andrade-Pavón
1,2,*,†,
Omar Gómez-García
3,* and
Lourdes Villa-Tanaca
1
1
Laboratorio de Biología Molecular de Bacterias y Levaduras, Departamento de Microbiología, Escuela Nacional de Ciencias Biológicas, Instituto Politécnico Nacional, Prol. de Carpio y Plan de Ayala. Col. Sto. Tomás, Ciudad de México 11340, Mexico
2
Departamento de Fisiología, Escuela Nacional de Ciencias Biológicas, Instituto Politécnico Nacional, Av. Wilfrido Massieu 399, Nueva Industrial Vallejo, Gustavo A. Madero, Ciudad de México 07738, Mexico
3
Departamento de Química Orgánica, Escuela Nacional de Ciencias Biológicas, Instituto Politécnico Nacional, Prol. de Carpio y Plan de Ayala. Col. Sto. Tomás, Ciudad de México 11340, Mexico
*
Authors to whom correspondence should be addressed.
†
In memory of my father Leonardo Andrade Capetillo.
J. Fungi 2024, 10(9), 629; https://doi.org/10.3390/jof10090629
Submission received: 26 July 2024 / Revised: 25 August 2024 / Accepted: 29 August 2024 / Published: 3 September 2024
(This article belongs to the Special Issue Advances in Antifungal Drugs, 2nd Edition)
Browse Figures
Versions Notes

Abstract

:
Fungal infections represent a growing public health problem, mainly stemming from two phenomena. Firstly, certain diseases (e.g., AIDS and COVID-19) have emerged that weaken the immune system, leaving patients susceptible to opportunistic pathogens. Secondly, an increasing number of pathogenic fungi are developing multi-drug resistance. Consequently, there is a need for new antifungal drugs with novel therapeutic targets, such as type I and II DNA topoisomerase enzymes of fungal organisms. This contribution summarizes the available information in the literature on the biology, topology, structural characteristics, and genes of topoisomerase (Topo) I and II enzymes in humans, two other mammals, and 29 fungi (including Basidiomycetes and Ascomycetes). The evidence of these enzymes as alternative targets for antifungal therapy is presented, as is a broad spectrum of Topo I and II inhibitors. Research has revealed the genes responsible for encoding the Topo I and II enzymes of fungal organisms and the amino acid residues and nucleotide residues at the active sites of the enzymes that are involved in the binding mode of topoisomerase inhibitors. Such residues are highly conserved. According to molecular docking studies, antifungal Topo I and II inhibitors have good affinity for the active site of the respective enzymes. The evidence presented in the current review supports the proposal of the suitability of Topo I and II enzymes as molecular targets for new antifungal drugs, which may be used in the future in combined therapies for the treatment of infections caused by fungal organisms.

1. Introduction

Fungal infections represent an emerging disease that has become a public health problem worldwide, causing high rates of morbidity and mortality in hospitalized patients with an immune system weakened by a disease and/or treatment [1,2,3,4,5,6]. Whereas fungi of the genus Candida [7,8,9], especially Candida albicans [10,11,12], used to be the principal agent of hospital infections, in recent years, new multi-drug-resistant pathogens have emerged, such as C. auris, C. haemulonii [13,14,15,16,17], and non-Candida fungi (e.g., Aspergillus spp., Fusarium spp., and species of the order Mucorales) [18,19,20]. These pathogens have claimed the lives of patients in intensive care units, including those infected with the SARS-CoV-2 virus [21,22,23,24,25,26,27,28,29].
Various mechanisms of drug resistance have been identified for pathogenic fungi, including the mutation and/or overexpression of the enzyme targeted by the antifungal agent, an alteration in the enzymes related to the synthesis of ergosterol, the creation of efflux pumps of the ATP-binding cassette (ABC) or major facilitator (MF) superfamilies, and the formation of biofilms [30,31,32,33]. Indeed, several strains of Candida have developed resistance to polyenes, azoles, and echinocandins, representing all three classes of antifungal drugs prescribed to eliminate them [8,34,35,36,37,38]. Likewise, cases exist of clinical isolates of Aspergillus, Fusarium, and the causal agents of mucormycosis with the same pattern of multi-drug resistance [39,40,41,42,43,44,45].
Due to the drug resistance of a growing number of pathogenic fungi, there is an urgent need to find more effective antifungal treatments with novel targets. The DNA topoisomerase (Topo) I and II enzymes of fungi have been proposed as plausible alternative targets for drug therapy [46,47,48]. The current contribution is a bibliographic review of the information available on the biology, topology, structural characteristics, DNA sequences, and genes of Topo I and II enzymes in humans, two other mammals, and 29 fungal organisms (including Basidiomycetes and Ascomycetes). The evidence of these enzymes as alternative targets for antifungal therapy is presented, as is a broad spectrum of Topo I and II inhibitors. Research has revealed the genes responsible for encoding the Topo I and II enzymes of fungal organisms, and the amino acid residues and nucleotide residues at the active site of the enzymes that are involved in the binding of known topoisomerase inhibitors. According to molecular docking studies, antifungal Topo I and II inhibitors have good affinity for the active site of the respective enzymes. It should be possible to design and synthesize analogues of such inhibitors with structural modifications capable of improving their efficacy on a wide variety of fungal organisms and reducing their toxicity. The current contribution aims to emphasize the potential of Topo I and II enzymes as targets for the design of new antifungal drugs and to explore the differences between the two enzymes.

2. DNA Topoisomerases: Definition and Classification

DNA topoisomerase enzymes are able to solve topological problems stemming from the replication, transcription, recombination, and remodeling of DNA chromatin in cells. Topo I and II are two large groups of enzymes that perform this function by allowing for the introduction of breaks in one or both DNA strands [49,50,51,52,53]. They are highly conserved in the three domains of cellular life (Archaea, Bacteria, and Eukarya) and in viruses [54]. They are called Topo I and II because Topo I cuts one strand of DNA and Topo II cuts both strands of the DNA chain. DNA topoisomerases are divided into two classes: type I enzymes (topoisomerases I, III and V) and type II enzymes (topoisomerases II, IV and VI) [52].
Topo I, a monomeric enzyme, relaxes positively or negatively supercoiled DNA without requiring energy from ATP. It breaks only one strand of DNA and only relaxes supercoiled DNA. Topo I enzymes are subdivided into two groups, depending on whether they form the covalent enzyme–substrate intermediate with the 5′ end (IA) or the 3′ end (IB) of the cleaved segment. The intermediate is generated at the active site of the enzyme by a nucleophilic attack of the hydroxyl group of a tyrosine on a phosphate group of the nucleotide chain, creating a transient phosphodiester bond capable of breaking the DNA chain.
Topo II enzymes exist in both eukaryotic and prokaryotic organisms. Eukaryotes express Topo IIA, the essential and main type of the enzyme. This enzyme participates in the relaxation of DNA in a negative and positive way in the presence of ATP and Mg2+. The Topo II enzyme in yeasts is a homodimer and plays a role in the relief of torsional strain during DNA replication, with a preference for the relaxation of positive supercoils ahead of the fork. In addition, yeast Topo II supports the transcription of long genes (>3 kb), and its absence stalls fork progression, which cannot be rescued by Topo I [55,56,57].
The two isoforms of Topo II in vertebrates are Topo IIα and IIβ. They have almost 77% sequence homology, differing in the C-terminal region. In particular, the C-terminus of Topo IIα shifts the activity of the enzyme toward the preferential relaxation of positive supercoils, whereas the equivalent region of Topo IIβ does not appear to express any supercoil preference. These differences may be linked to particular cellular functions. Topo IIα is critical for cellular viability and plays essential roles during DNA replication, mitosis, cell-cycle regulated expression, chromosome condensation, segregation, and replication. On the other hand, Topo IIβ is associated with the repair, transcription, and development of DNA [58,59].
In bacteria, Topo II is subdivided into Topo IV and DNA gyrase. The former utilizes the hydrolysis of ATP to relax supercoiled DNA, decatenate replication products, and knot and unknot DNA. DNA gyrase introduces supercoils in the double-stranded DNA chain in the presence of ATP [60,61,62]. Topo VI was first detected in the archaeal hyperthermophile Sulfolobus shibatae and has since been found throughout the archaea, in a few bacterial species and, intriguingly, in eukaryotes such as plants and algae [62,63].
Topo III, a well-conserved enzyme in prokaryotes, eukaryotes, and archaea, is a type IA topoisomerase that relaxes and decatenates DNA but also has the ability to cleave and decatenate RNA molecules. Topo V has been described as a type IB topoisomerase as it shows similarities to eukaryotic topo I and can relax negatively and positively supercoiled DNA through a controlled rotation/swivel mechanism by nicking one strand on the DNA and allowing the other strand to rotate around it. To date, it has been found in only one genus of Archaea (Methanopyrus) [52].

3. Characteristics of the Genes That Code for Topo I and II of Fungal Organisms

The sequences of the amino acids in Topo I and Topo II were downloaded from the NCBI database, and the genes of these enzymes were identified for each of the 29 fungi and three mammals (Homo sapiens, Mus musculus, and Rattus norvegicus) herein examined. The DNA sequences were determined, and the ones corresponding to H. sapiens were compared to those of the other 31 organisms (Table 1), with one representative organism chosen for Ascomycetes (Candida auris) and one for Basidiomycetes (Cryptococcus neoformans). The comparison confirmed the existence of Topo Iβ and Topo II⍺ in all thirty-two organisms. In Saccharomyces cerevisiae and Schizosaccharomyces pombe, the genes were identified that code for Topo I, which is dispensable for growth, and for Topo II, which is absolutely necessary to “decatenate” linked chromosomes and prepare chromosomes for segregation at mitosis. Topo II in S. cerevisiae is reportedly regulated by the cell cycle [51,52]. Unlike yeast cells, most mammalian cells appear to contain two type II topoisomerases isoforms, termed IIα and IIβ [51].
The amino acid sequences of the Topo Iβ and Topo II⍺ enzymes of H. sapiens were compared to the corresponding sequences of the other thirty-one organisms currently under study, finding from 28.6 to 100% identity and similarity (Tables S1 and S2, Supplementary Materials). These values were obtained from the alignment of two sequences of interest on the EMBOSS Water-Smith server (https://www.ebi.ac.uk/jdispatcher/psa/emboss_water) (accessed on 1 July 2024).
The active site was identified for Topo I and Topo II by means of multiple sequence alignment (Figure S1, Supplementary Material) on the Clustal Omega program (https://www.ebi.ac.uk/jdispatcher/msa/clustalo) (accessed on 1 July 2024), as were the catalytic amino acid residues involved in the mechanism of action. Such residues proved to be highly conserved in the three groups of organisms herein studied (mammals, Ascomycota, and Basidiomycota) (Figure 1a,b), as described in previous reports [47,64,65,66,67].

4. Biology of DNA Topoisomerase I and II Enzymes of Fungal Organisms

Strains of C. albicans with a deletion in the Topo I gene are deficient in their ability to form germ tubes and grow hyphae after serum induction in vitro. The depletion of the protein under conditions of promoter repression revealed that the Topo I gene is not essential for the in vitro growth of C. albicans. Nevertheless, the morphological changes stemming from the cultivation of C. albicans in a minimal medium showed an important role of Topo I in cellular processes [68]. Additionally, when C. albicans strains with a Topo I deletion were administered to mice, some attenuation of virulence was detected. With the deletion of both copies of the enzyme, a more pronounced attenuation was observed [68].
Similarly, the Topo I and II enzymes of S. cerevisiae have proven to be non-essential for the viability of yeast. One study demonstrated the viability of mutants of Topo I and II in which 1.7 kb of each of the sequences was deleted [69]. During temperature-shift experiments using cells from a single mutant (affecting Topo II), mitotic blocks were able to prevent cell death at a nonpermissive temperature. However, during the same treatment of cells from a double mutant (affecting both Topo I and II), mitotic blocks were ineffective in preventing cell death [69]. These findings suggest that in yeast cells, Topo I plays an auxiliary role in the function of Topo II. Moreover, another study demonstrated the viability of seven top1 (mak1) mutants, including those with gene disruptions. Thus, DNA topoisomerase I is not essential for yeast viability [70]. According to the first study carried out with S. pombe, two type I topoisomerase mutants were found to be viable. The second study conducted on the same yeast strain established the viability of a null strain made by Topo I gene disruption, although the generation time turned out to be 20% longer for the null versus wild-type strain [71,72].
In S. cerevisiae strains with a null mutation in the Topo I or Topo II gene, there is a 50- to 200-fold higher frequency of mitotic recombination in the ribosomal DNA (rDNA) pool compared to positive controls. Consequently, both Topo I and Topo II are required for the suppression of recombination in this region of the genome [73]. In Topo I from S. cerevisiae, the substitution of conserved residues in active site tyrosine (Tyr-727) produces alterations in the sensitivity of the yeast to camptothecin, while the substitution of alanine (A) by threonine (T) at position 722 in Topo I (T722A) enhances the stability of the DNA covalent intermediate. The cytotoxicity of camptothecin for Topo I T722A was attributed to its capacity to decrease DNA religation. The greater covalent complex formation of N726H in Topo I was ascribed to a relative increase in the rate of DNA cleavage [74]. Interestingly, the interaction of proline (P) A653P (used to substitute alanine) with the T718A mutation at the active site of Topo I suppresses the lethal phenotype caused by the T718A substitution but does not restore enzyme sensitivity to camptothecin. The specific activity of the double mutant is diminished in vivo and in vitro, consistent with a decline in DNA binding [75].
Furthermore, Topo I disruption delays the induction of a double-strand break (DSB) and shortens the window of this occurrence. In contrast, temperature-sensitive Topo II mutants are characterized by an elevated level of DSB signals on synapsed chromosomes and a marked delay in meiotic chromosome remodeling. These findings reveal an independent function of Topo I and II in the modulation of the meiotic chromosome structure and recombination [76].
When a top1 gene disruption mutant was constructed in U. maydis, the robust topoisomerase I activity found in wild-type U. maydis was lost, and a subtle coloration phenotype became evident during cell senescence [77], as previously described for S. cerevisiae [78].
Finally, when a second functional copy of the Topo I gene was introduced into the genome of C. neoformans, the yeast could be readily disrupted by homologous recombination. On the other hand, after the fusion of the Topo I gene to the GAL7 gene promoter, the GAL7::TOP1 fusion gene was modestly regulated by the carbon source in a serotype A strain of C. neoformans. The resulting overexpression of Topo I conferred sensitivity to heat shock, gamma-rays, and camptothecin. In an animal model of cryptococcal meningitis, Topo I regulation was not crucial for the establishment of an infection but might have influenced the initial stress response of the host. As can be appreciated, Topo I is essential in the human pathogen C. neoformans [79].

5. Structural Characteristics of DNA Topoisomerase I Enzymes of Fungal Organisms

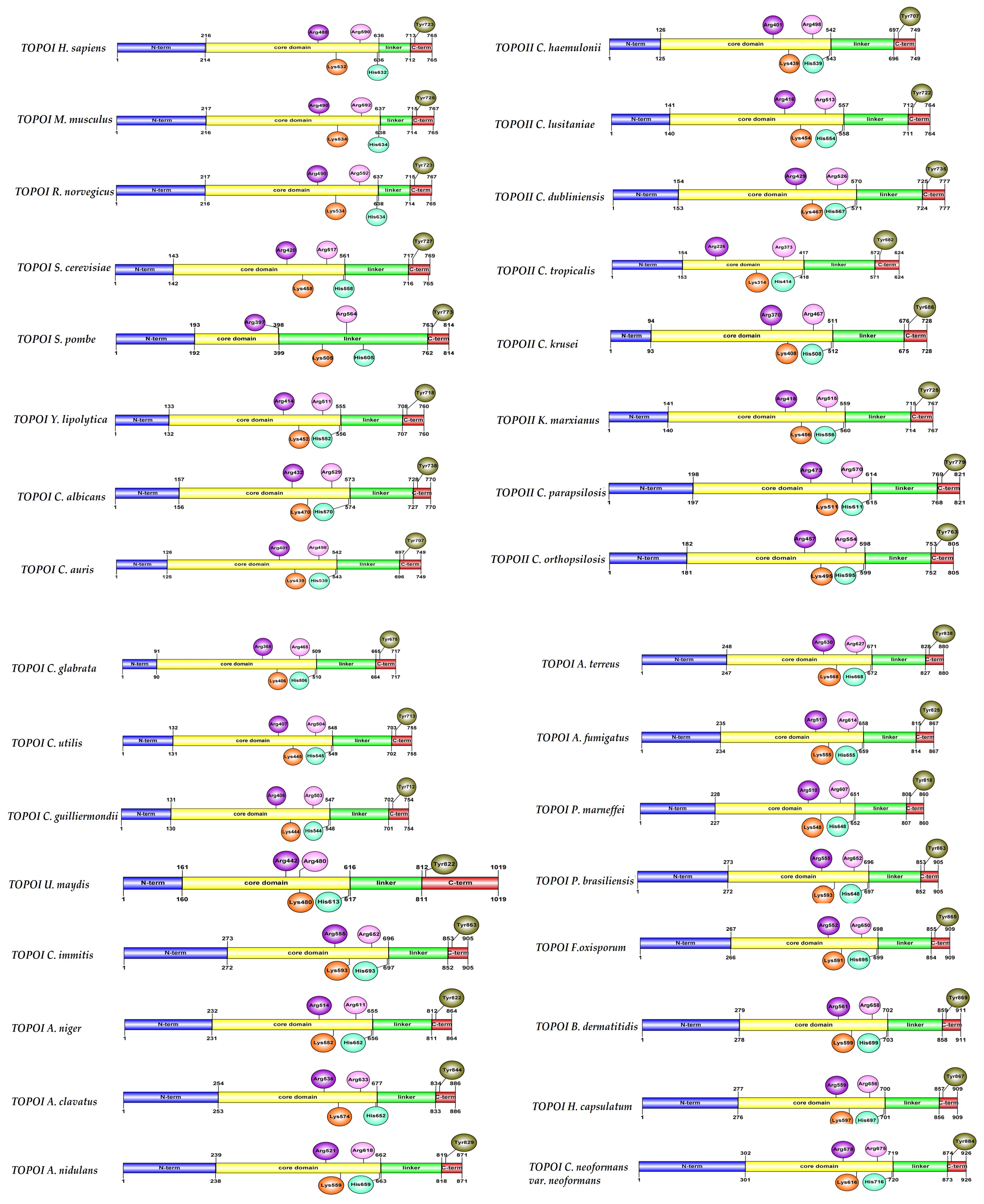

A similarity was found when comparing the structural characteristics of the Topo I enzymes of H. sapiens and the 29 fungal organisms presently analyzed. There was also similarity between the corresponding Topo II enzymes (Figure 2 and Figure 3). The human Topo I gene encodes a protein with 765 amino acids and a theoretical molecular mass of 91 kDa. Crystallographic studies [51,52] have revealed four structural domains in the human protein (N-terminus, core, linker, and C-terminus). The N-terminal domain is hydrophilic in nature, has nuclear localization signals, and is dispensable for the in vitro activity of Topo I (as is the linker domain). It is not highly conserved among eukaryotic organisms, as the length of its sequences shows great variability. The core domain is linked to the N-terminus and the linker.
In the linker of the human protein, there are predominantly hydrophobic amino acids, with the remaining amino acids being hydrophilic. This region of the enzyme may exhibit amphipathic properties. It binds the core with the C-terminal domain, which contains the catalytic center involved in transiently cutting one of the DNA strands [51,52]. Four of the five amino acid residues at the catalytic site of the enzyme are located in the core domain (Arg488, Lys532, Arg590, and His632), while residue Tyr723 is in the C-terminal domain. The latter residue forms a covalent bond with the phosphodiester backbone of the cleaved single strand of DNA. According to one report, Tyr727 plays a similar role in S. cerevisiae [51,52,80,81,82]. The aforementioned characteristics of Topo I of H. sapiens are observed in the same enzyme of all twenty-nine fungal organisms examined presently (Figure 2). Since the architecture of these enzymes is highly conserved, the mechanisms of action of inhibitors of human Topo I are probably similar to those of inhibitors of fungal Topo I [51].

6. Structural Characteristics of DNA Topoisomerase II Enzymes of Fungal Organisms

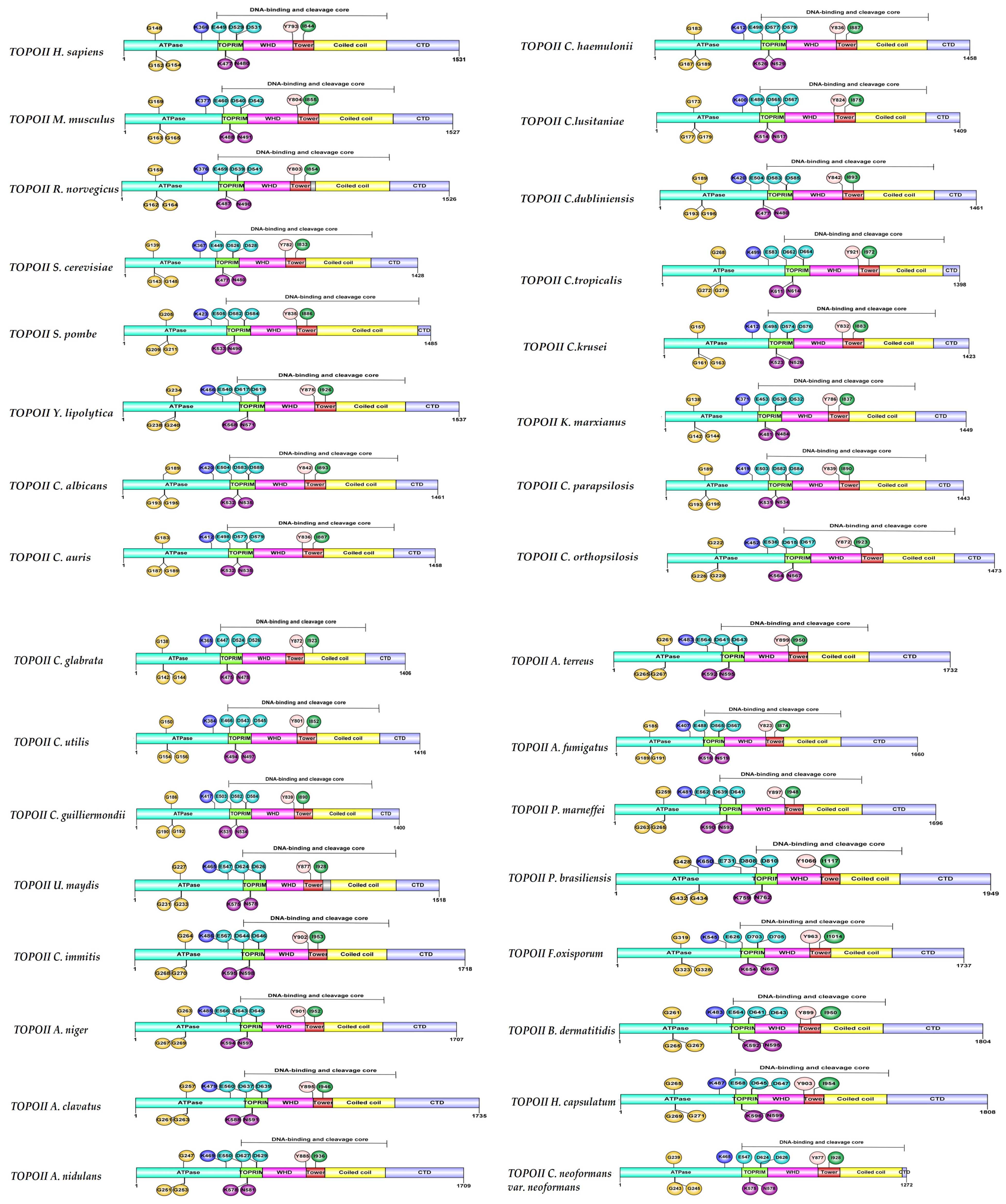

Crystallographic studies have shown Topo II enzymes in yeasts to be homodimers. Each monomer has three functional domains, which closely correspond to those established in Topo II of S. cerevisiae and S. pombe [66].
The N-terminal domain has an ATPase function and is the most conserved among species. Its residues participate in dimer contacts. Toprim (topoisomerase-primase) is a structurally conserved catalytic domain of ~100 amino acids involved in DNA strand breakage and rejoining. It has two conserved motifs, one centered at a conserved glutamate and the other at two conserved aspartates (D × D). These residues are highly conserved in the Topo II enzymes of fungal organisms (Figure 3). Both motifs are preceded by conserved hydrophobic regions thought to form β-strands. A role is probably played by the glutamate residue in catalysis and by the D × D motif in the coordination of Mg2+ (required for the activity of all Toprim-containing enzymes) [83,84,85,86].
Topo II enzymes have a DNA binding/cleavage domain, a coiled-coil domain, and the C-terminal domain (CTD). The catalytic domain has two subdomains, termed the winged-helix domain (WHD) and the tower domain. The WHD is a five-helix bundle-bearing catalytic tyrosine, which is strictly conserved. The tower domain has a compact “spire” with two antiparallel β-strands packed against a four-helix bundle and a loose “base” consisting of mixed structural elements [52,65,83,85,86,87].

7. Phylogenetic Analysis of Type I and II DNA Topoisomerases of Fungal Organisms

According to phylogenetic studies, the main families of DNA topoisomerases are not homologous, indicating their independent origin. However, some of them share homologous subunits, which were probably recruited independently to bring about needed topoisomerase activities. Topo I and II enzymes have been found in all currently sequenced eukaryotic genomes (including fungal organisms), suggesting the presence of both in the last common eukaryotic ancestor [54,88,89].
A phylogenetic analysis of the Topo II enzyme sequences of Candida species demonstrated the close relationship of some species (C. albicans, C. dubliniensis, C. parapsilosis, and C. tropicalis) in relation to the ADPT cluster and of other species (S. cerevisiae, C. kefyr, and C. glabrata) in regard to the SCGK cluster. This same pattern has been described in other reports on Topo II of Candida spp. [90]. A phylogenetic study carried out on dermatophytes also evidenced the Topo II enzyme sequence [91].

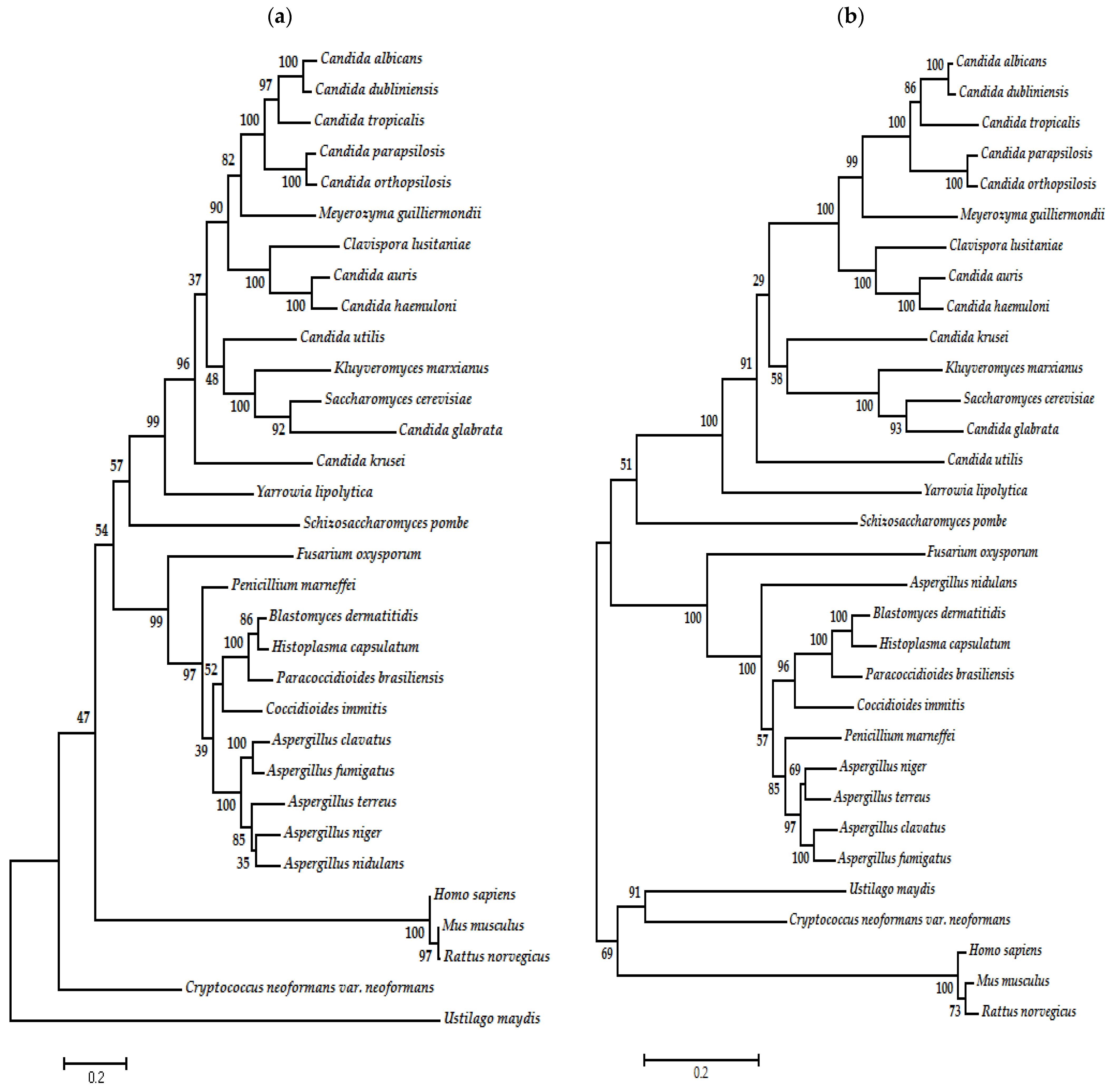

With the sequences of Topo I and II enzymes, two phylogenetic trees of fungal organisms of medical importance were constructed (Figure 4a,b), observing that some species of Candida are more related. Certain Ascomycetes (Candida, Saccharomyces, Aspergillus, Blastomyces, Histoplasma, Penicillium, Fusarium, Coccidioides, and Paracoccidioides) and Basidiomycetes (Cryptococcus and Ustilago) have a close relationship with respect to both Topo I and Topo II. The Topo I and II enzymes of mammals have greater similarity to the same enzymes of Basidiomycetes than those of Ascomycetes.

8. Topo I and II Enzymes of Fungi as Targets for Antifungal Therapy

Topo I and Topo II enzymes were proposed as targets for the discovery of new antifungal drugs for the first time in a report on the opportunistic pathogenic yeast C. albicans [81,82,83]. This species was isolated and purified through column procedures, followed by the determination of its enzymatic activity and its inhibition by known inhibitors of Topo I (camptothecin) and Topo II (etoposide and its derivatives). An inhibitory effect on the yeast was observed [47,92].
Heterologous expression studies have been conducted for Topo I and II enzymes. The Topo I gene of C. albicans has been isolated, cloned, and expressed in S. cerevisiae (a yeast of biotechnological interest), and the recombinant protein obtained was considered a tool for the development of therapeutic agents with antifungal activity [46,68,93]. Similar cloning and characterization studies have been carried out for the gene that codes for the Topo I enzyme of A. nidulans and U. maydis as well as the Topo II enzyme of A. nidulans. The corresponding recombinant proteins were also employed as tools for testing antifungal agents against the respective enzymes [77,94,95].
Consequently, yeast cells have been suggested as an ideal eukaryotic model for evaluating the effects of inhibitors of type I and II DNA topoisomerases [96,97,98,99,100]. Mutant yeast cells lacking Topo I are reported to be highly resistant to camptothecin, while those lacking Topo II are highly resistant to etoposide and amsacrine. Camptothecin and agents targeting Topo II of yeast cells reportedly act as topoisomerase poisons.
S. cerevisiae has been utilized as a prototype to establish Topo I and II enzymes as molecular targets and provide information on the activity of topoisomerase inhibitors [100,101,102].

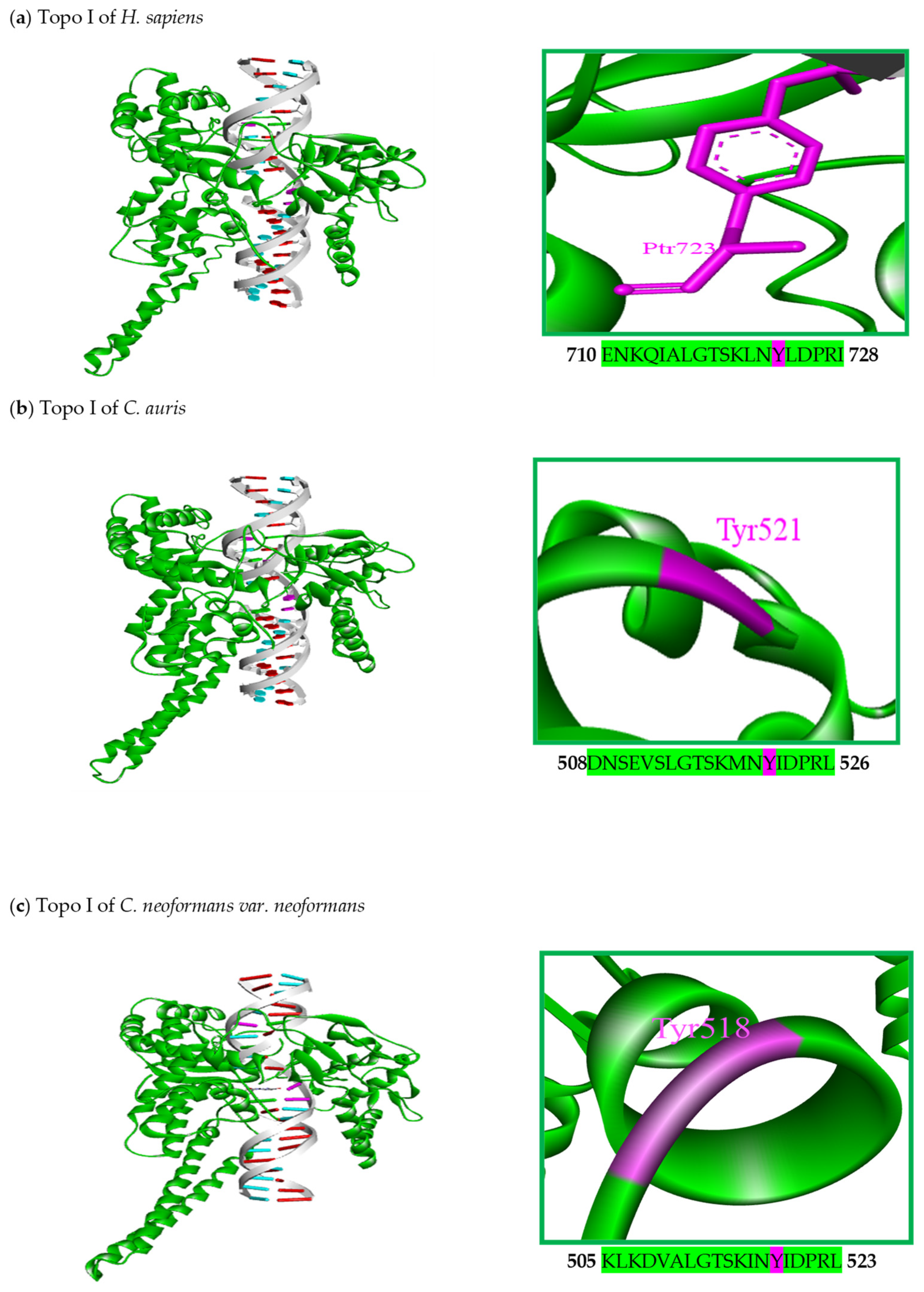

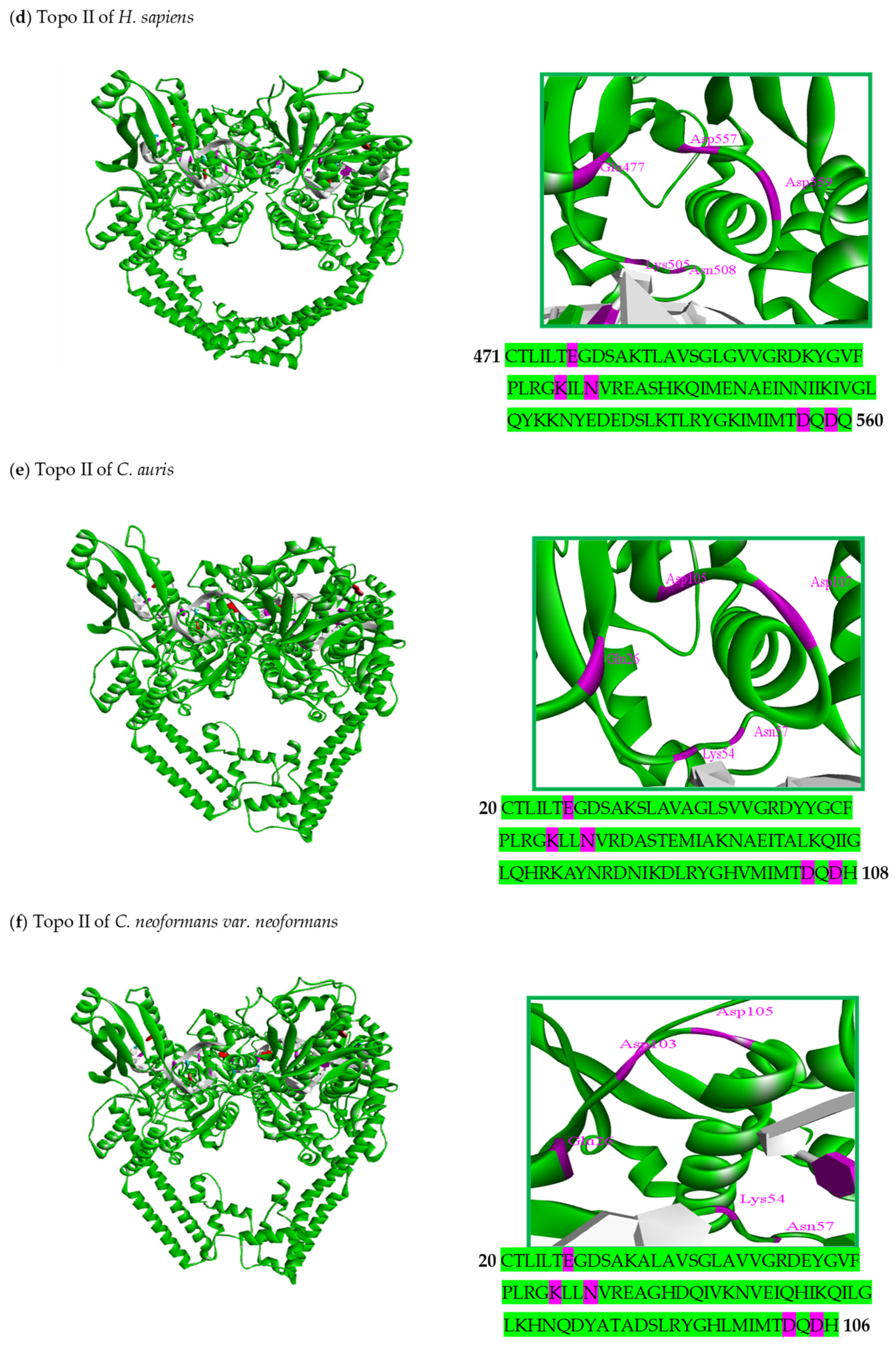

Based on studies that compare the amino acid sequences from Topo I and II, the 3D structure of the proteins can be predicted. The 3D structures were obtained for the Topo I and II enzymes of the 29 fungal organisms and three mammals herein included. The models were built with the homology modeling technique on the MODELLER program (1 July 2024) [101]. The crystallized proteins of Topo I (PDB: 1sc7) and Topo II (PDB: 3qx3) from H. sapiens in complex with a DNA chain of 22 base pairs were downloaded from the protein data bank (PDB, http://www.rcsb.org/) (accessed on 1 July 2024) and served as the template. The modeled protein was analyzed by the PROCHEK server to verify its quality (https://www.ebi.ac.uk/thornton-srv/software/PROCHECK/) (accessed on 1 July 2024). For the purpose of clarity, Figure 5a–f portray the 3D models of Topo I and II for only one representative organism of Ascomycetes (Candida auris), Basidiomycetes (C. neoformans), and mammals (H. sapiens). The amino acid sequence for the active site of each enzyme is shown, as are the amino acid residues involved in catalysis. Both the sequence and the residues are conserved. The overlapping of the models (Figure S1a,b, Supplementary Material) reveals the high structural identity between them. The quality of the model was evaluated by generating Ramachandran diagrams (Figure S2, Supplementary Material), as in other studies [47,102]. The quality was confirmed by the finding of up to 90% of the amino acid residues in favorable areas. Likewise, the calculation of the value of the root mean square deviation (RMSD) of the models (Table S3, Supplementary Material) resulted in values less than 1.2 Angstrom, which also indicates the quality of the models. Since the respective proteins have not yet been crystallized, the generation of these 3D models was very important to facilitate molecular docking studies, which were used to predict the binding mode and interaction energies between the DNA topoisomerases of fungal organisms and Topo I and II inhibitors.
On the right side of each model, there is an illustration of the active site (green) and the amino acid residues involved in coupling (fuchsia). A great similarity can be appreciated between the structural domains of the Topo I and II enzymes of the three families, evidencing the likelihood of a similar mechanism of action of their corresponding inhibitors. Hence, Topo I and II seem to be suitable targets for the design and development of new antifungal agents [79].

9. Selected Inhibitors of Topo I and II and Their Mechanism of Action

The two main classes of Topo I inhibitors are poisons and suppressors [103]. Poisons cause DNA strand breaks through the stabilization of topoisomerase II covalently bound to DNA in the intermediate form (the cleavable complex). Suppressors impede mitotic recombination processes by relaxing negative superhelicity [103].
Sensitivity to poisons increases with Topo I overexpression [104,105], while resistance to poisons is most commonly caused by a decrease in Topo I activity [50,106]. Camptothecin and its derivatives (topotecan, 10-hydroxy camptothecin, irinotecan, and rubitecan) stabilize the covalent Topo I-DNA cleavage complex by preventing DNA religation. Hence, they inhibit DNA relaxation and induce cleavage complexes (protein-linked DNA single-strand breaks) [103]. Since Topo I is the primary target of camptothecin, yeast cells with the Topo I gene deleted are resistant to this inhibitor. On the other hand, the expression of wild-type Topo I restores sensitivity to camptothecin [104,105]. In eukaryotic cells with high levels of resistance to camptothecin, mutations render the enzyme insensitive to the drug [107].
According to recent studies, the molecular mechanism of inhibition appears to be uncompetitive, considering that camptothecin does not bind to either the enzyme or the DNA substrate. Rather, it interacts with the enzyme–DNA complex to form a reversible nonproductive complex with Topo I [108].
Topotecan and irinotecan, two clinical drugs, are semisynthetic, water-soluble derivatives of camptothecin (the alkaloid plant compound) (Figure 6). Topotecan acts by forming a stable covalent complex with the DNA/Topo I aggregate, the so-called cleavable complex responsible for the cytotoxic properties of the drug [109]. Even though Topo I expression is independent of the cell cycle, the inhibition of Topo I through topotecan is most effective in the S phase [110]. Due to the formation of a stable cleavable complex, the DNA relaxation and subsequent replication are locked, resulting in the specific inhibition of Topo I. This has several implications for the biology of the cell. Firstly, S phase cells are irreversibly damaged by the irreversible strand break and the subsequent blocking of DNA synthesis and transcription. Furthermore, the replication forks are destroyed. Such irreversible damage leads to apoptosis and cell death [111].

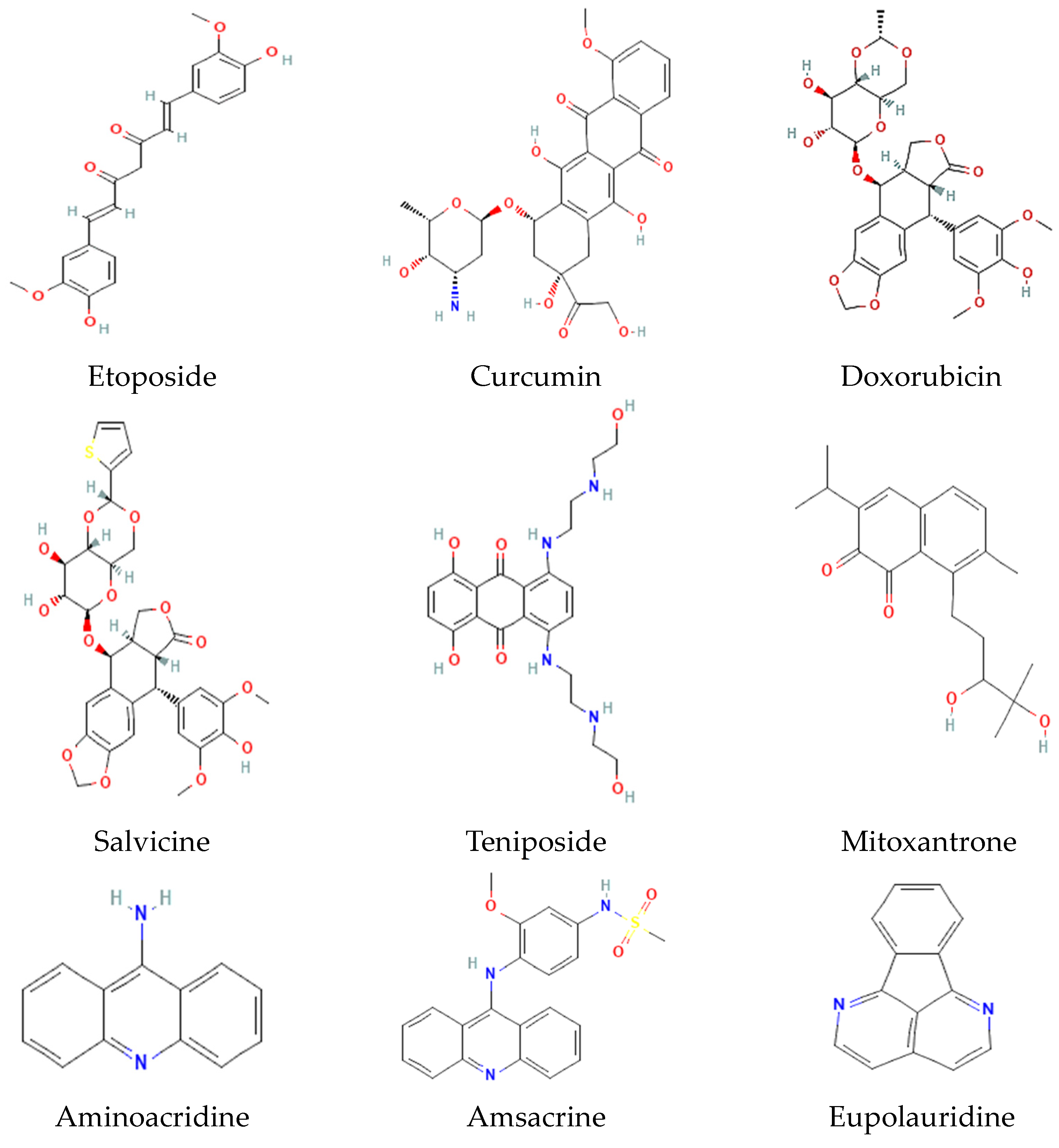

Like Topo I inhibitors, Topo II inhibitors (Figure 7) are classified as poisons and catalytic inhibitors. The former encompasses the majority of clinical antitumor agents (etoposide, doxorubicin, mitoxantrone, salvicine, and teniposide) and represents frontline therapies for a wide spectrum of solid and hematological malignancies. They kill cancer cells by increasing the level of covalent Topo II-DNA complexes and preventing the cleaved DNA strand(s) from religation, thus causing the accumulation of double-strand breaks. The ‘classic’ Topo II poisons are characterized by their ability to induce DNA double-strand breakage through the stabilization of covalent complexes between the enzyme and DNA (cleavable complexes). This stabilization gives rise to mutations and eventually cell death. Some of the most relevant antitumor drugs that target and poison Topo II are anthracyclines (doxorubicin), epipodophyllotoxins (etoposide and teniposide), anthracenediones (mitoxantrone), and aminoacridines [112].
In the last few years, a novel group of drugs of diverse chemical nature has been reported as being non-classic ‘true’ catalytic inhibitors of mammalian Topo II. Unlike Topo II poisons, they lack the ability to stabilize the cleavable complex [113]. Hence, doses capable of efficiently inducing endoreduplication can be administered without provoking high levels of DNA and chromosome damage [114]. Additionally, they inhibit various genetic processes that involve the enzyme, such as DNA replication [115]. These drugs purportedly encompass aclarubicin, chloroquine, and the bisdioxopiperazines. However, whether the latter behave as Topo II poisons or inhibitors has been questioned. Catalytic inhibitors target the nuclear enzyme within the cell and interfere with various fundamental genetic processes (e.g., replication and transcription) and chromosome dynamics.
Based on distinct DNA binding patterns, Topo II poisons can be further divided into DNA intercalating and DNA non-intercalating agents. The latter (e.g., etoposide (1), teniposide (2), and quinolone) has relatively weak interactions with DNA and exert their function by trapping Topo II-DNA complexes. In contrast, DNA intercalating agents, such as doxorubicin, amsacrine, and mitoxantrone (which usually have coplanar aromatic frameworks), reversibly insert themselves into the base pairs of DNA and disrupt enzymes involved in DNA transcription and replication [116].
On the other hand, Topo II catalytic inhibitors are thought to kill tumor cells by inhibiting the essential enzymatic activity of the enzyme, thus impeding the conjunction of Topo II with DNA. They do not generate higher levels of Topo II covalent complexes, block the enzyme ATP-binding site (as do purine analogues), prevent the cleavage of DNA (as does merbarone), or inhibit the hydrolysis of ATP (as do bisdioxipiperazine analogues) [117]. The primary mechanism of action of etoposide and teniposide is the inhibition of the catalytic activity of eukaryote Topo II and the consequent stabilization of the normally transient covalent intermediate formed between the DNA substrate and the enzyme. Although teniposide is not substantially more potent than etoposide in terms of catalytic inhibition or stabilization of the DNA–enzyme intermediate, it is more readily taken up by cells. Hence, there is a greater accumulation of teniposide within the cells, causing a more robust cytotoxic capacity [79].

10. Selected Inhibitors of Topo I and II as Antifungal Agents

The first study to propose DNA topoisomerase inhibitors as antifungal agents dates back 30 years. The investigation was conducted on C. albicans and A. niger and supports the hypothesis that topoisomerase enzymes can be key targets for new antifungal agents [117]. According to another publication on camptothecin derivatives (selective inhibitors of the Topo I enzyme), certain structural modifications in the lead compound have significant effects on fungal cells. In addition, some of the derivatives display synergistic antifungal activity in combination with amphotericin B (a reference antifungal drug) [79]. As a result of these pioneering efforts, DNA topoisomerase inhibitors began to be considered as an alternative target for antifungal treatment.
In the 1990s, yeast strains constructed with mutations in the Topo II enzyme were reported to have resistance to Topo II inhibitors (etoposide and amsacrine) and high sensitivity to a Topo I inhibitor (camptothecin) [118]. Subsequent research discovered the bisdioxopiperazine-induced inhibition of Topo II of S. cerevisiae [119]. Moreover, different analogues of the antitumor drug rebeccamycin have exhibited activity against Topo I but not Topo II of C. albicans [120]. Eupolauridine proved to be capable of stabilizing the cleavage complex formed by the DNA topoisomerases of C. albicans and humans. Since topoisomerases have a greater response in humans, they are utilized as targets for the discovery of antifungal drugs [81,121].
Eupolauridine has been proven to completely inhibit the DNA relaxation activity of fungal Topo I of S. cerevisiae and other yeast strains but does not stabilize the cleavage complex [122]. Such stabilization is the mechanism of action of camptothecin, a selective Topo I inhibitor. To examine whether the inhibition of Topo I is the main mode of antifungal activity of eupolauridine, the authors used strains of S. cerevisiae with alterations in the Topo I gene. In the absence of Topo I, the antifungal activity of eupolauridine did not decrease. Rather, cells that lacked the enzyme were more sensitive to the drug, and the activity of eupolauridine was more evident in cells overexpressing Topo II. Thus, this enzyme is its actual target [122]. New analogues of eupolauridine were synthesized and tested, displaying activity against C. albicans and C. neoformans [123].
Mutations in Topo I have induced resistance to camptothecin, while mutations in Topo II have generated strong resistance to amsacrine and etoposide, two inhibitors of the enzyme [124]. Therefore, such drugs act on the DNA topoisomerases of yeast cells [125,126,127]. The in vitro evaluation of Topo II inhibitors of C. albicans has been facilitated by the cloning, expression, and characterization of the Topo II gene of yeast. The model is highly sensitive to the effects of amsacrine and doxorubicin [128].
Aminocatechol A-3253, a Topo I inhibitor, has activity against several pathogenic fungi, including C. albicans and A. niger. It produces a stronger effect on the Topo I of Candida than the same enzyme isolated from human cells [129].
As can be appreciated, C. albicans has been the Candida species most commonly chosen to test DNA topoisomerase inhibitors as an antifungal alternative. In 2010, the minimum inhibitory concentrations (MICs) of 10 inhibitors (of Topo I and II and other yeast enzymes) were determined in clinical isolates of C. albicans. Since growth and morphology were affected, the inhibitors were proposed as antifungal agents to treat C. albicans infections [130]. Two years later, eight inhibitors of Topo I and II were assessed on the growth of A. fumigatus, A. niger, C. glabrata, and C. neoformans [131]. They proved to be promising lead compounds for the development of new antifungal agents.
The most recent findings on Topo I and II inhibitors show that they reduce the growth, viability, and toxicity of C. dubliniensis and C. glabrata and act synergistically in the presence of fluconazole. Thus, Candida species are a good model for further research on topoisomerase inhibitors [47,132], and Topo II is a useful molecular target for the discovery of new drugs. Additionally, it is important to examine possible differences in the effects exerted by known inhibitors on fungal and human Topo II enzymes [48].

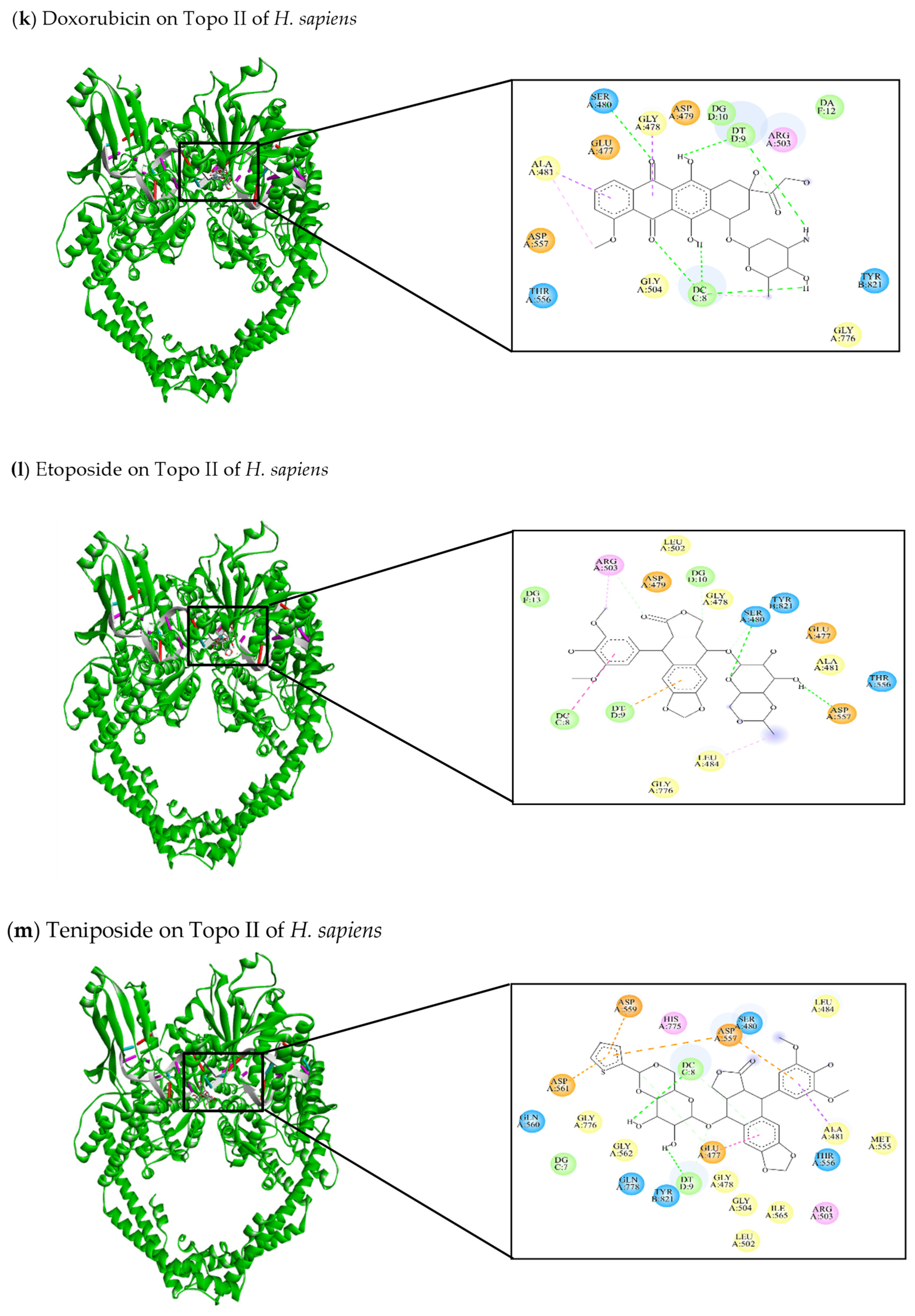

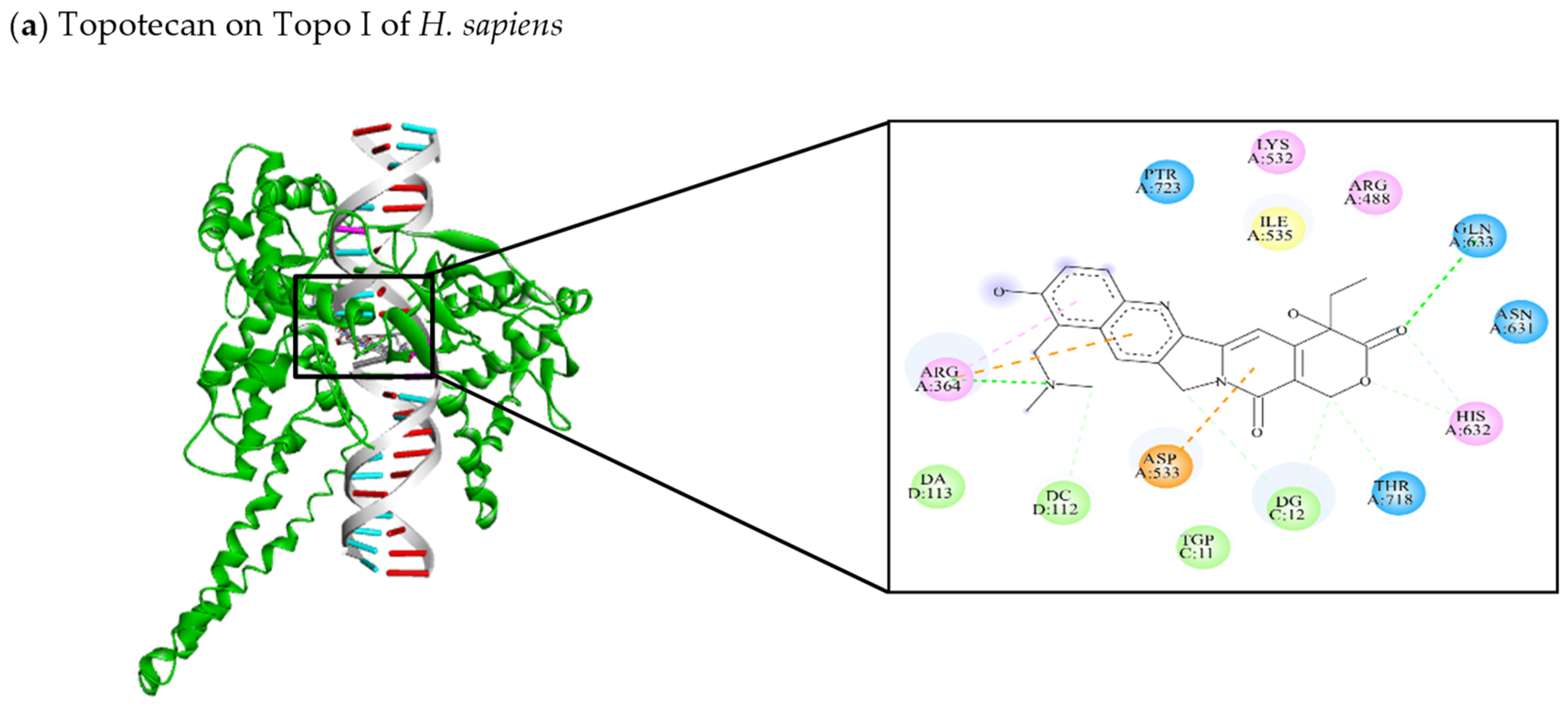

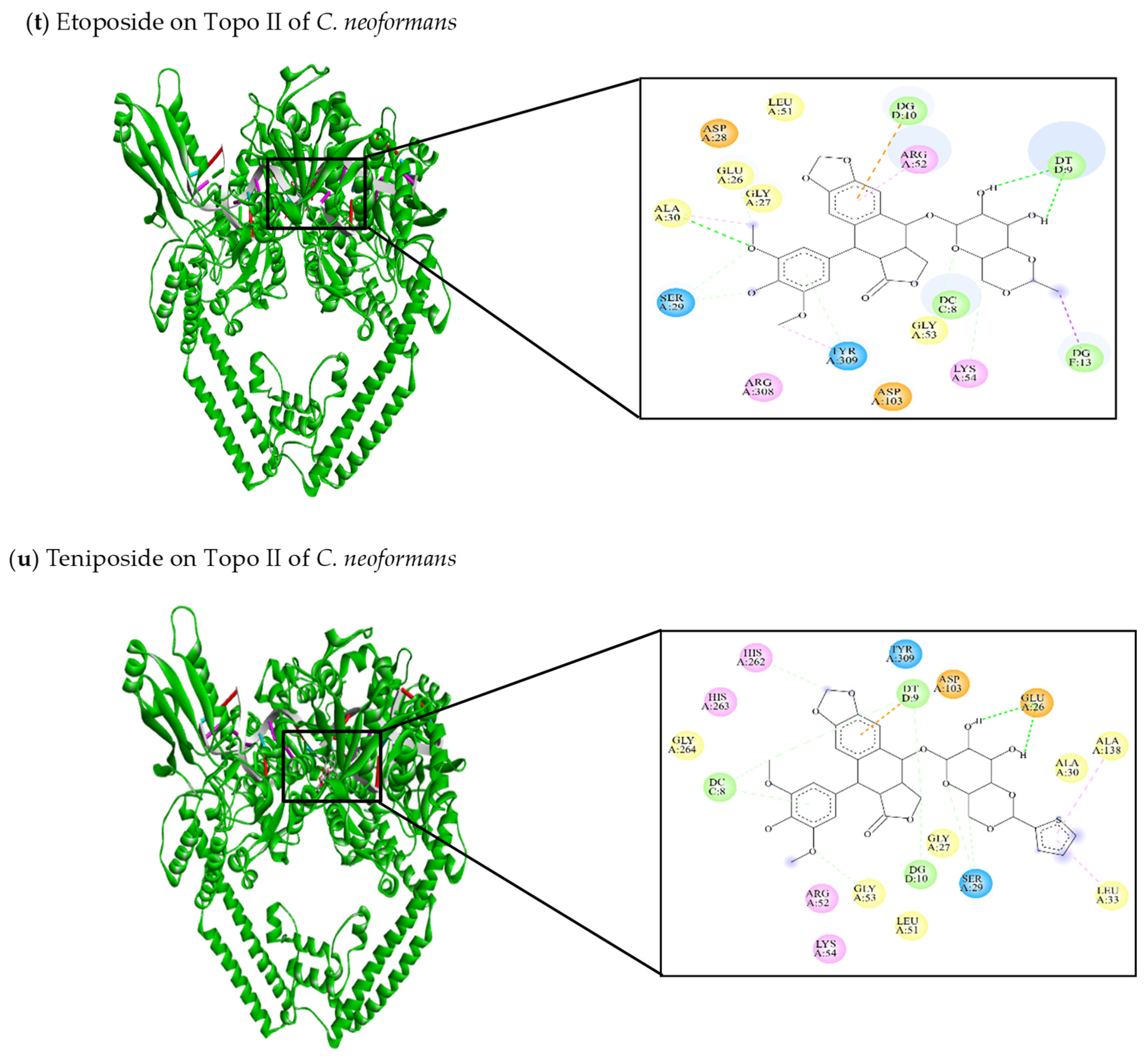

Docking studies have analyzed the binding mode as well as the probable mechanism by which inhibitors and their analogues recognize amino acid residues of the active site of Topo I and II enzymes. DNA molecular docking studies have been employed to compare the effects of topoisomerase inhibitors when targeting enzymes in yeasts versus H. sapiens [48,133,134,135,136,137]. The interactions of known inhibitors of Topo I (topotecan, irinotecan, and camptothecin) or Topo II (etoposide, teniposide, curcumin, and doxorubicin) with the respective enzymes of C. auris, C. neoformans, and H. sapiens are illustrated in Figure 8a–u.

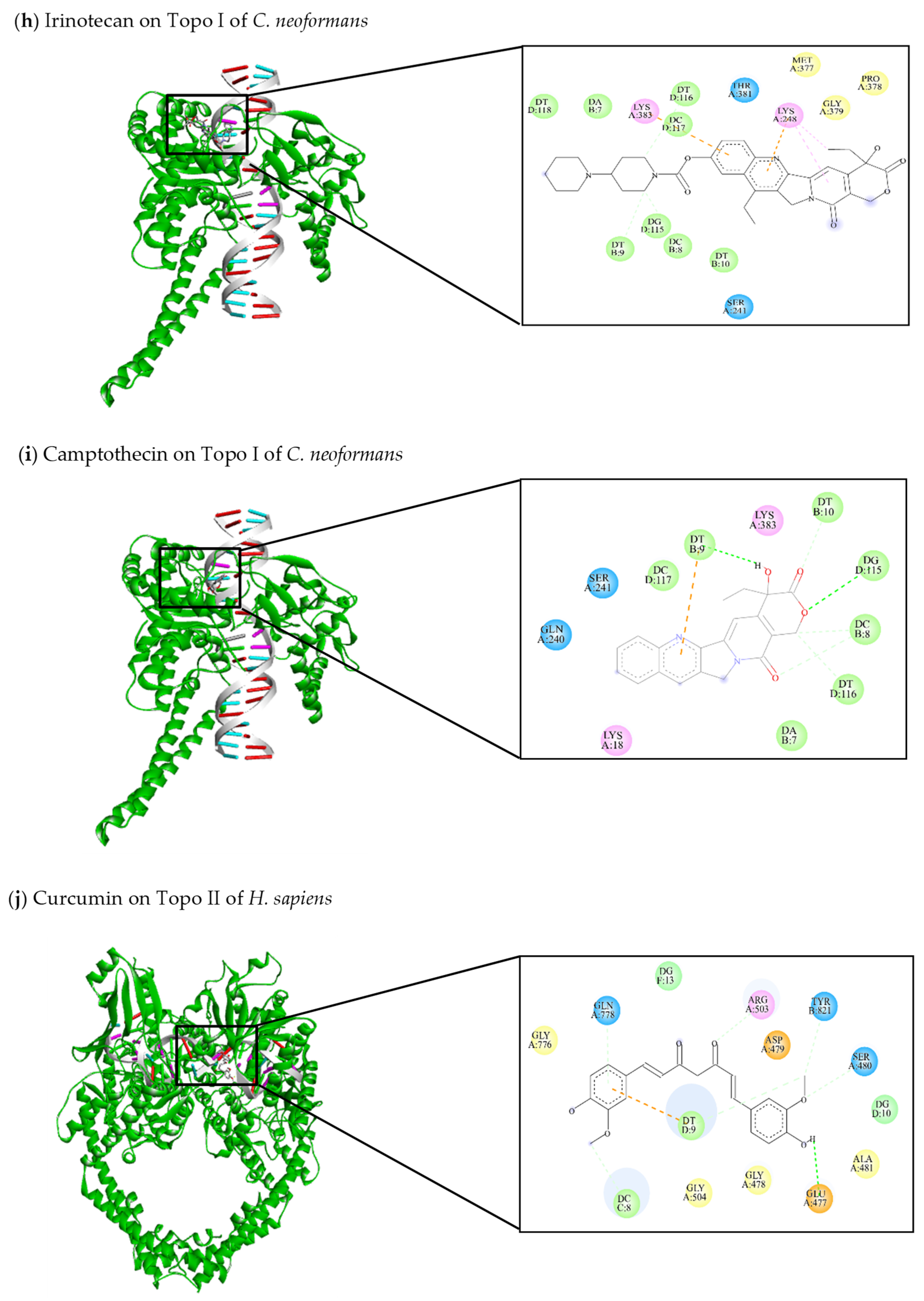

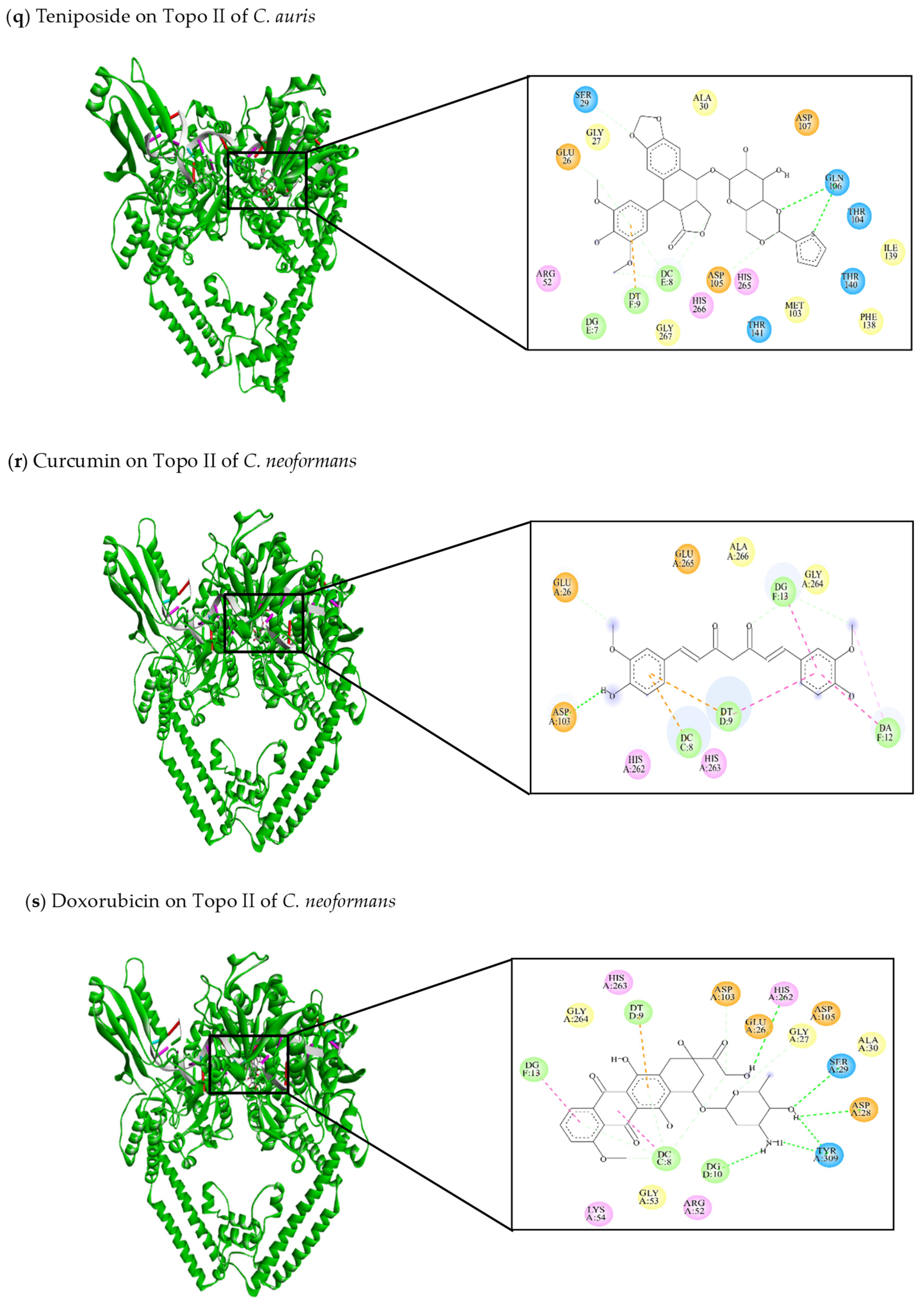

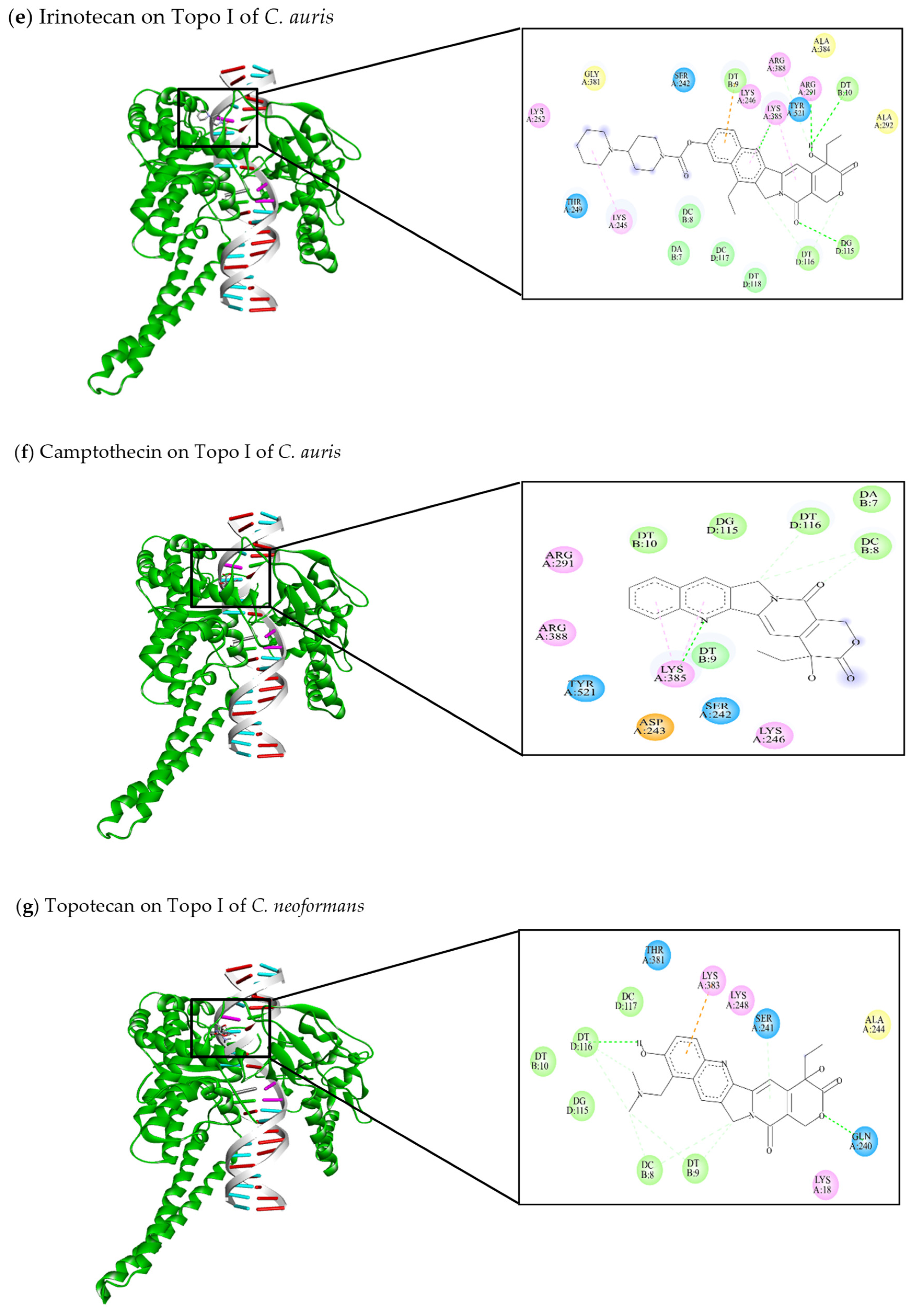

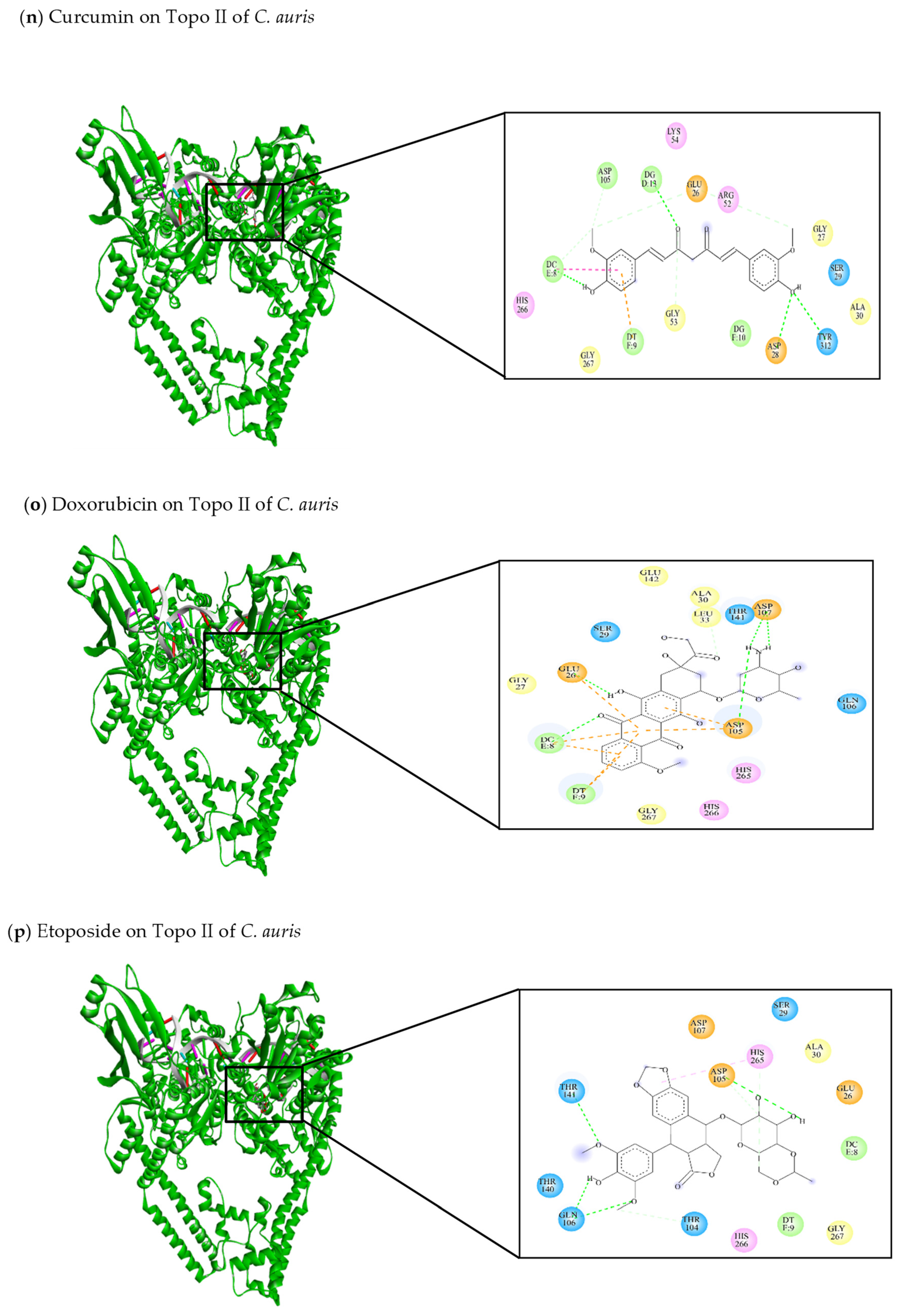

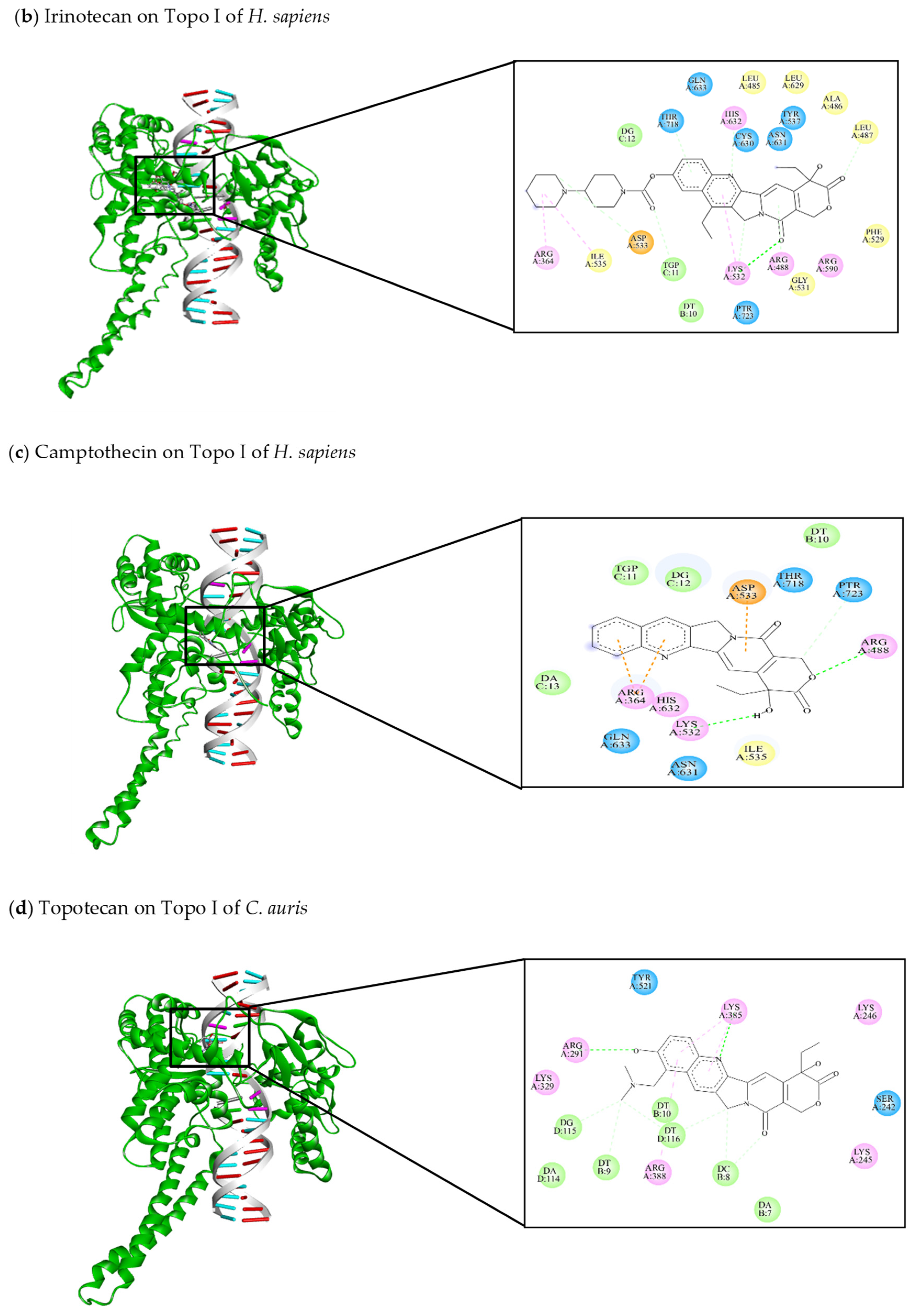

Molecular docking was carried out with the 3D models for Topo I and II enzymes constructed by utilizing the crystallized structure of the human protein as a template. Hence, water molecules were removed and hydrogen atoms and Kollman charges were added to this crystallized structure. The 2D structures of the DNA topoisomerase inhibitors were downloaded from the Zinc database (https://zinc.docking.org/) (accessed on 1 July 2024) and optimized with Gaussian 16W and Gaussian 6.0 software to find the minimum energy conformation. Docking was performed on Autodock version 4.0 [138]. The grid box dimensions for Topo I were 58 × 76 × 72 A˚, centered at X = 89.899, Y = −0.426, and Z = 1.754, with a 0.375 A˚ spacing. The grid box dimensions for Topo II were 106 × 72 × 80 A˚, centered at X = 29.958, Y = 99.966, and Z = 42.272, with a 0.375 A˚ spacing. Where applicable, twists, torsion angles, atomic partial charges, and nonpolar hydrogens were added to the ligands. The hybrid Lamarckian genetic algorithm (with predetermined parameters) was applied for minimization. Of a total of 100 conformations, the one with the lowest binding energy (kcal/mol) was adopted. The docking results were viewed and edited in Discovery Studio.
The binding energy values of the docking interactions (listed in Table 2, expressed in kcal/mol) indicate the affinity of a compound for the active site of an enzyme. More negative values evidence greater affinity. The docking study also reveals the DNA and amino acid residues of the enzyme involved in binding, the hydrophilic and hydrophobic interactions generated between the residues and inhibitors, and the probable mechanism of action of the inhibitors. There are no recent reviews comparing the topology and structural characteristics of human and fungal Topo I and II enzymes. This is the first review that encompasses the general aspects of both enzymes and the in vitro and in silico interactions with their respective inhibitors. The valuable information gathered herein points to the importance of these inhibitors as an alternative in therapy against opportunistic human pathogenic fungi.
The amino acid residues Arg364, Arg488, Lys532, Asp533, Ile535, Asn631, His632, Gln633, Thr718, and PTR723 and nucleotide residues TGP11 and DG12 are reported to be present in Topo I of H. sapiens (Figure 8). They are highly conserved in the interactions with inhibitors of the enzyme. As mentioned in the table, topotecan and irinotecan [102,139,140,141,142] show a hydrophilic interaction with Thr718 (C-C), while some of the three Topo I inhibitors (topotecan, irinotecan, and camptothecin) exhibit hydrophobic interactions with Arg364 (π-cation), Arg364 (π-alkyl), and Asp533 (π-anion). In the interactions between Topo I of C. auris and its inhibitors, various amino acid residues (Ser242, Lys245, Lys246, Arg291, Lys329, Lys385, Arg388, and Tyr521) and nucleotide residues (DA7, DC8, DT9, DT10, DG115, and DT116) are conserved. Hydrophilic interactions are predominant for Arg291 (C-HO) with topotecan and irinotecan and for Lys385 (C-HO) with all three inhibitors. On the other hand, there is a hydrophobic interaction between Lys385 (π-alkyl) and all three Topo I inhibitors. Regarding Topo I of C. neoformans, Ser241, Lys248, Thr381, and Lys383 participate in the interactions with the three inhibitors, and Lys18 and Gln240 are involved in binding with irinotecan and camptothecin [47,99,142,143,144]. Additionally, the nucleotide residues DC8, DT9, DT10, DC117, DG115, and DT116 participate in inhibitor binding. Nucleotide residues DT9 (C-C) and DT116 (C-C) play a role in the predominantly hydrophilic interactions with the three inhibitors, and the hydrophobic interaction of Lys383 (π-anion) with topotecan and irinotecan is conserved [99,139,140,141,142].
Regarding the Topo II enzyme of H. sapiens, the amino acid residues Glu477, Gly478, Asp479, Ser480, Ala481, Arg503, Gly504, Gly776, Gln778, and Tyr821 and nucleotide residues DC8 and DT9 are among those described in the literature as part of the active site (Figure 8) [47,144,145]. The hydrophilic interactions of Ser480 (C-HO) with curcumin and doxorubicin [47,144,145], and of Arg503 (C-C) with curcumin and etoposide [141,144,145,146], are conserved, while there is a hydrophobic interaction of Ala481 (π-sigma) with doxorubicin and teniposide [101,145,147]. In Topo II of C. auris, the amino acid residues Glu26, Gly27, Asp28, Ser29, Ala30, Arg52, Gly53, Lys54, Asp105, His266, Gly267, and Tyr312 and the nucleotide residues DC8 and DT9 are conserved. Hydrophilic interactions have been identified for Asp105 (C-HO) with doxorubicin and etoposide [14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100,101,102,103,104,105,106,107,108,109,110,111,112,113,114,115,116,117,118,119,120,121,122,123,124,125,126,127,128,129,130,131,132,133,134,135,136,137,138,139,140,141,142,143,144,145,146,147], Gln106 (C-HO) with etoposide and teniposide [145,146], and Glu26 (C-C) with curcumin and teniposide [144,146]. A hydrophobic interaction exists for DT9 (π-anion) with curcumin, doxorubicin, and teniposide. In relation to Topo II of C. neoformans, the amino acid residues Glu26, Asp103, His262, His263, Gly264, Glu265, and Ala266 and nucleotide residues DC8, DT9, DG10, and DG13 are conserved. The hydrophilic interaction of Glu26 with curcumin is of the C-C type, while with teniposide, it is of the C-HO type. Etoposide and teniposide retain the interaction with Ser29 (C-C). There is a hydrophobic π-anion interaction of DT9 with all three Topo II inhibitors. Although only some of the conserved interactions between residues and one, two, or more Topo I and II inhibitors are presently mentioned, all such amino acid and nucleotide residues are at the active site of the enzymes. Since the active sites of the enzymes are apparently conserved in relation to H. sapiens [144,145,146,147,148] and Candida species, known inhibitors of these enzymes in H. sapiens could possibly be used as antifungal agents.
Table 2. Results of the interactions between known inhibitors and the Topo I or Topo II enzymes of a representative mammal (H. sapiens), Ascomycete (C. auris), and Basidiomycete (C. neoformans).
Table 2. Results of the interactions between known inhibitors and the Topo I or Topo II enzymes of a representative mammal (H. sapiens), Ascomycete (C. auris), and Basidiomycete (C. neoformans).
CompoundBinding Energy
(kcal/mol)		Residues
Interacting with
the Ligand		Nucleotide
Residues		Polar
Interactions		Hydrophobic
Interactions
Topo I of H. sapiens
[104,141,142,143] Topotecan−9.42Arg364, Arg488, Lys532, Asp533, Ile535, Asn631, His632, Gln633, Thr718, PTR723TGP11, DG12, DC112, DA113Arg364 (C-HO) Gln633 (C-HO)
His632 (C-C)
Thr718 (C-C)
DG12 (C-C)
DC112 (C-C)		Arg364 (π-cation)
Arg364 (π-alkyl)
Asp533 (π-anion)
[144]
Irinotecan		−11.47Arg364, Leu485, Ala486, Leu487, Arg488, Phe 529, Gly531, Lys532, Asp533, Ile535, Tyr537, Cys630, Leu629, Asn631, His632, Gln633, Thr718, PTR723DT10, DG12, TGP11Lys532 (C-HO)
Lys532 (C-C)
Asp533 (C-C)
Cys630 (C-C)
Thr718 (C-C)
TGP11 (C-C)		Lys532 (π-alkyl)
Arg364 (π-alkyl)
Ile535 (π-alkyl)
[46,103,145,146]
Camptothecin		−9.3Arg364, Arg488, Lys532, Asp533, Ile535, Asn631, His632, Gln633, Thr718, PTR723DT10, TGP11, DG12, DA13Arg488 (C-HO)
Lys532 (C-HO)
PTR723 (C-C)		Arg364 (π-cation)
Asp533 (π-anion)
Topo I of C. auris
This review
Topotecan		−9.08Ser242, Lys245, Lys246, Arg291, Lys329, Lys385, Arg388, Tyr521DA7, DC8, DT9, DT10, DA114, DG115, DT116Arg291 (C-HO)
Lys385 (C-HO)
DC8 (C-C)
DT9 (C-C)
DG115 (C-C)
DT116 (C-C)		Lys385 (π-alkyl)
Arg388 (π-alkyl)
This review
Irinotecan		−11.62Ser242, Lys245, Lys246, Thr249, Lys252, Arg291, Ala292, Gly381, Ala384, Lys385, Arg388, Tyr521DA7, DC8, DT9, DT10, DG115, DT116, DC117, DT118Arg291 (C-HO)
Lys385 (C-HO)
DT10 (C-HO)
DG115 (C-HO)
DT116 (C-C)		Lys245 (π-alkyl)
Arg291 (π-alkyl)
DT9 (π-anion)
This review
Camptothecin		−9.26Ser242, Asp243, Lys246, Arg291, Lys385, Arg388, Tyr521DA7, DC8, DT9, DT10, DG115, DT116Lys385 (C-HO)
DC8 (C-C)
DT116 (C-C)		Lys385 (π-alkyl)
Topo I of C. neoformans
This review
Topotecan		−9.28Lys18, Gln240, Ser241, Ala244, Lys248, Thr381, Lys383DC8, DT9, DT10, DC117, DG115, DT116Gln240 (C-HO)
DC8 (C-C)
DT9 (C-C)
DT116 (C-C)		Lys383 (π-anion)
This review
Irinotecan		−10.67Ser241, Lys248, Met377, Pro378, Gly379, Thr381, Lys383DA7, DC8, DT9, DT10, DG115, DT116, DC117, DT118DT9 (C-C)
DG115 (C-C)
DT116 (C-C)		Lys248 (π-alkyl)
Lys383 (π-anion)
This review
Camptothecin		−8.4Lys18, Gln240, Ser241, Lys383DA7, DC8, DT9, DT10, DG115, DT116, DC117DT9 (C-HO)
DG115 (C-HO)
DC8 (C-C)
DT10 (C-C)
DT116 (C-C)		DT9 (π-anion)
Topo II of H. sapiens
[47,144]
Curcumin		−8.73Glu477, Gly478, Asp479, Ser480, Ala481, Arg503, Gly504, Gly776, Gln778, Tyr821DC8, DT9, DG10, DG13Glu477 (C-HO)
Ser480 (C-C)
Gln778 (C-C)
Arg503 (C-C)
Tyr821 (C-C)
DT9 (C-C)		DT9 (π-anion)
[145]
Doxorubicin		−9.67Glu477, Gly478, Asp479, Ser480, Ala481, Arg503, Gly504, Thr556, Asp557, Gly776, Tyr821DC8, DT9, DG10, DA12Ser480 (C-HO)
DC8 (C-HO)
DT9 (C-HO)		Gly478 (π-sigma)
Ala481 (π-Alkyl)
Ala481 (π-sigma)
[47,141,145,146]
Etoposide		−7.2Glu477, Gly478, Asp479, Ser480, Ala481, Leu484, Leu502, Arg503, Thr556, Asp557, Gly776, Tyr821DC8, DT9, DG10, DG13Ser480 (C-HO)
Asp557 (C-HO)
Arg503 (C-C)		Leu484 (π-alkyl)
Arg503 (π-alkyl)
DC8 (π-alkyl)
DT9 (π-anion)
[103,146]
Teniposide		−7.0Glu477, Gly478, Ser480, Ala481, Leu484, Leu502, Arg503, Gly504, Met555, Thr556, Asp557, Asp559, Gln560, Asp561, Gly562, Ile565, His775, Gly776, Gln778, Tyr821DG7, DC8, DT9Glu477 (C-C)
DC8 (C-HO)
DT9 (C-HO)		Ala481 (π-sigma)
Glu477 (π-π stacked)
Asp557 (π-anion)
Asp559 (π-anion)
Asp561 (π-anion)
Topo II of C. auris
This review
Curcumin		−8.27Glu26, Gly27, Asp28, Ser29, Ala30, Arg52, Gly53, Lys54, Asp105, His266, Gly267, Tyr312DC8, DT9, DG10, DG13Glu26 (C-C)
Asp28 (C-HO)
Gly53 (C-C)
Asp105 (C-C)
Tyr312 (C-HO)
DC8 (C-HO)
DG13 (C-HO)		DC8 (π-π stacked)
DT9 (π-anion)
This review
Doxorubicin		−9.53Glu26, Gly27, Ser29, Ala30, Leu33, Asp105, Gln106, Asp107, Thr141, Glu142, His265, His266, Gly267DC8, DT9Glu26 (C-HO)
Asp105 (C-HO)
Asp107 (C-HO)
Leu33 (C-C)		Glu26 (π-anion)
Asp105 (π-anion)
Asp107 (π-anion)
DC8 (π-anion)
DT9 (π-anion)
This review
Etoposide		−7.48Glu26, Ser29, Ala30, Thr104, Asp105, Gln106, Asp107, Thr140, Thr141, His265, His266, Gly267DC8, DT9Thr104 (C-C)
Asp105 (C-HO)
Gln106 (C-HO)
Thr141 (C-HO)		His265 (π-alkyl)
This review
Teniposide		−8.54Glu26, Gly27, Ser29, Ala30, Arg52, Met103, Thr104, Asp105, Gln106, Asp107, Phe138, Ile139, Thr140, Thr141, His265, His266, Gly267DG7, DC8, DT9Glu26 (C-C)
Ser29 (C-C)
Gln106 (C-HO)
DC8 (C-C)		DT9 (π-anion)
Topo II of C. neoformans
This review
Curcumin		−8.4Glu26, Asp103, His262, His263, Gly264, Glu265, Ala266DC8, DT9, DA12, DG13Glu26 (C-C)
Asp103 (C-HO)
DG13 (C-C)		DC8 (π-anion)
DT9 (π-anion)
DA12 (π-alkyl)
DA12 (π-π stacked)
DT9 (π-π stacked)
This review
Doxorubicin		−11.04Glu26, Gly27, Asp28, Ser29, Ala 30, Arg52, Gly53, Lys54, Asp103, Asp105, His262, His263, Gly264, Tyr309DC8, DT9, DG10, DG13Gly27 (C-C)
Asp28 (C-HO)
Ser29 (C-HO)
Asp103 (C-C)
His262 (C-HO)
Tyr309 (C-HO)
DC8 (C-C)		DC8 (π-alkyl)
DT9 (π-anion)
DG13 (π-alkyl)
This review
Etoposide		−9.4Glu26, Gly27, Asp28, Ser29, Ala30, Leu51, Arg52, Gly53, Lys54, Asp103, Arg308, Tyr309DC8, DT9, DG10, DG13Ser29 (C-C)
Ala30 (C-HO)
Tyr309 (C-C)
DC8 (C-C)
DT9 (C-HO)		Ala30 (π-alkyl)
Arg52 (π-alkyl)
Tyr309 (π-alkyl)
DG13 (π-sigma)
This review
Teniposide		−10.58Glu26, Gly27, Ser29, Ala30, Leu33, Leu51, Arg52, Gly53, Lys54, Asp103, Ala138, His262, His263, Gly264, Tyr309DC8, DT9, DG10Glu26 (C-HO)
Ser29 (C-C)
Gly53 (C-C)
His262 (C-C)
DC8 (C-C)
DG10 (C-C)		Leu33 (π-alkyl)
Ala138 (π-alkyl)
DT9 (π-anion)
According to the interactions observed in the molecular docking results, we can observe that, in all cases, the human topoisomerase I inhibitors showed electrostatic interactions of type π-anion with Asp533, and this interaction takes place between the electron-deficient aromatic ring of pyridone of topotecan or camptothecin and the carboxylate group rich in electron density. This interaction was not observed in the case of topoisomerase I of C. auris and C. neoformans; therefore, the introduction of an electron-withdrawing group (for example, NO2, CN, Cl, F, Br) in the pyridone ring of Topo I inhibitors would increase the interaction with Asp33 and, in general, with acidic amino acids and would make these compounds more selective towards human topoisomerase I enzyme. Regarding the topoisomerase II enzyme, although curcumin and doxorubicin do not have structural similarity with etoposide and teniposide, it is evident that all these inhibitors showed a greater number of interactions with basic amino acids at the active site of C. auris and C. neoformans compared to what was observed in H. sapiens. It is well known that electron-donating groups, such as OMe, OH, NH2, and SH in aromatic rings, which increase the electron density, favor the interaction with basic amino acids due to the latter having cationic groups and can experience electrostatic interactions. Therefore, the introduction of additional electron-donating groups in these drugs would make these inhibitors more selective towards topo II of C. auris and C. neoformans.

11. Therapeutic Potential of Topo I and II Inhibitors in Fungal Organisms

Reports in the literature have clearly pointed to the therapeutic potential of using known and proposed Topo I and II inhibitors for fungal infections. For example, acridine thiosemicarbazide derivatives exhibit antifungal activity with an MIC of 10–80 μM. In recent studies, researchers have obtained a selective derivative of acridine, named M14, with anticandidal and anti-dermatophyte activity. This compound inhibits the growth of all reference and clinical strains of Candida and dermatophytes, with an MIC ranging from 7.81 to 31.25 μg/mL. The presence of this acridine derivative prevents C. albicans biofilm formation and reduces the viability of preformed biofilms at concentrations lower than the MIC [148]. Microscopic evaluation of the hyphal growth of C. albicans in the presence of M14 evidences the complete inhibition of the yeast-to-mycelia transformation. Similarly, severe inhibition of the hyphal growth of Trichophyton rubrum has been reported [149].
Aclarubicin and idarubicin are effective against Aspergillus niger, C. glabrata, C. albicans, and C. neoformans, with MICs ranging from 1.8 to 8.4 μg/mL. The results of the viability assay indicate a fungistatic mode of action of aclarubicin [132,133].
Camptothecin and etoposide inhibit the growth of the C. albicans ATTC 18804 strain at an MIC of 50 μg/mL [132], while derivatives of camptothecin (topotecan and irinotecan) inhibit the growth of C. glabrata, A. fumigatus, A. niger, and C. neoformans at an MIC of 42.1 and 57.8 μg/mL, respectively [133]. Camptothecin and etoposide are capable of inhibiting the C. glabrata CBS138 strain at an MIC of 2.5 and 5 μg/mL, respectively. Camptothecin, curcumin, and etoposide inhibit C. dubliniensis at MICs ranging from 0.078 to 0.312 μg/mL.
As can be appreciated, the reported compounds or their analogues could possibly be used against a wide variety of fungal infections.

12. Future Perspectives on Topo I and II Enzymes as Alternative Targets for Antifungal Drugs

Given the increasing prevalence of fungal infections among immunocompromised patients in hospitals, the limited options for antifungal therapy, and the sharp rise in the development of multi-drug-resistant strains of pathogenic fungi, there is an urgent need to discover new drugs with novel therapeutic targets. Type I and II DNA topoisomerase enzymes in fungal organisms represent a plausible alternative target due to their structural characteristics. Topoisomerase inhibitors have been shown to effectively decrease yeast growth, and topoisomerase enzymes have served as a model to evaluate new inhibitors. Taking known inhibitors as lead compounds, analogues can be designed and synthesized with structural modifications aimed at attaining improved efficacy on a wide variety of fungal organisms and reduced toxicity. In silico studies such as molecular dynamics carried out with a biological matrix provide valuable clues about the behavior of a Topo I or II inhibitor when binding at the active site of the enzyme. Future research is needed to elaborate recombinant proteins of Topo I and II enzymes of fungal organisms in order to employ them as study models for examining the inhibitory activity of new antifungal compounds. Additionally, the generation of point mutants at the active site of the enzymes will help to reveal the role of certain amino acid residues in the activity of proposed inhibitors. Finally, it is important to continue the search for new strategies to synthesize possible Topo I and II inhibitors.

13. Conclusions

DNA topoisomerase enzymes are the molecular targets of some anticancer agents and antimicrobials. Although they were suggested as antifungal targets in the 1990s, very little research has focused on the structural differences between their fungal and human forms. Because of the scarcity of in silico studies, however, little is known about their binding mode and probable mechanism of action. The present review summarizes the available information on the biology, topology, structural characteristics, DNA sequences, and genes of Topo I and II enzymes. A close phylogenetic relationship was found between the enzymes of the thirty-two organisms herein analyzed. A comparison was made between the way Topo I and Topo II inhibitors bind to the amino acid and DNA residues of the active site of the enzymes. Topo I and II enzymes have proven to be valuable models for testing proposed antifungal agents aimed at combating a wide spectrum of pathogenic fungi. According to the results of molecular docking, irinotecan and doxorubicin presented the best binding energy values, which makes them worthy of further research to develop derivatives with greater antifungal potential. However, it is necessary to validate the findings of molecular docking with molecular dynamics.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jof10090629/s1, Figure S1: Alignment of the amino acid sequences of the active site region of the DNA topoisomerase I and II enzymes of the families of organisms under study; Figure S2: Overlapping of the 3D models from Topo I (a) and Topo II (b) of 29 fungal and 3 mammalian organisms (including H. sapiens); Figure S3: Ramachandran plot of the models of Topo I (a,b) and Topo II (c,d) from representative organism (C. auris and C. neoformans, respectively); Table S1: Analysis of the identity and similarity of Topo I enzymes from mammals and fungi; Table S2: Analysis of the identity and similarity of Topo II enzymes from mammals and fungi; Table S3: RMSD value of Topo I and II 3D models of representative organisms.

Author Contributions

Conceptualization, D.A.-P.; methodology, D.A.-P.; software, D.A.-P.; validation, D.A.-P., O.G.-G. and L.V.-T.; formal analysis, D.A.-P., O.G.-G. and L.V.-T.; investigation, D.A.-P.; resources, D.A.-P.; original draft, D.A.-P.; review and editing, D.A.-P., O.G.-G. and L.V.-T.; supervision, D.A.-P. and O.G.-G.; funding acquisition, D.A.-P. and O.G.-G. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by SIP-IPN [20241196, 20230613, 20242029, 20232242, 20240946, 20231481].

Acknowledgments

The authors would like to thank Bruce Allan Larsen for proofreading this manuscript. D.A.-P., O.G.-G. and L.V.-T. received support from EDI-IPN and SNI CONACyT.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Angarone, M. Fungal infections in cancer patients. Cancer Treat. Res. 2014, 161, 129–155. [Google Scholar] [PubMed]
  2. Garbee, D.D.; Pierce, S.S.; Manning, J. Opportunistic fungal infections in critical care units. Crit. Care Nurs. Clin. N. Am. 2017, 29, 67–79. [Google Scholar] [CrossRef] [PubMed]
  3. Lockhart, S.R.; Guarner, J. Emerging and reemerging fungal infections. Semin. Diagn. Pathol. 2019, 36, 177–181. [Google Scholar] [CrossRef]
  4. Suleyman, G.; Alangaden, G.J. Nosocomial fungal infections: Epidemiology, infection control, and prevention. Infect. Dis. Clin. N. Am. 2021, 35, 1027–1053. [Google Scholar] [CrossRef]
  5. Spallone, A.; Schwartz, I.S. Emerging fungal infections. Infect. Dis. Clin. N. Am. 2021, 35, 261–277. [Google Scholar] [CrossRef] [PubMed]
  6. Parsons, M.G.; Diekema, D.J. What Is New in Fungal Infections? Mod. Pathol. 2023, 36, 100187. [Google Scholar] [CrossRef] [PubMed]
  7. Mavor, A.L.; Thewes, S.; Hube, B. Systemic fungal infections caused by Candida species: Epidemiology, infection process and virulence attributes. Curr. Drug Targets 2005, 6, 863–874. [Google Scholar] [CrossRef]
  8. Lee, Y.; Puumala, E.; Robbins, N.; Cowen, L.E. Antifungal drug resistance: Molecular mechanisms in Candida albicans and beyond. Chem. Rev. 2021, 121, 3390–3411. [Google Scholar] [CrossRef]
  9. Ismadi, Y.K.M.; Mohamad, S.; Harun, A. Species-specific PCR primers for simultaneous detection of Aspergillus fumigatus, Aspergillus terreus, Candida albicans and Candida glabrata in invasive fungal infections. Malays. J. Pathol. 2023, 45, 397–403. [Google Scholar]
  10. Ruhnke, M. Epidemiology of Candida albicans infections and role of non-Candida-albicans yeasts. Curr. Drug Targets 2006, 7, 495–504. [Google Scholar] [CrossRef]
  11. Silva, L.N.; de Mello, T.P.; de Souza Ramos, L.; Branquinha, M.H.; dos Santos, A.L. New and promising chemotherapeutics for emerging infections involving drug-resistant non-albicans Candida species. Curr. Top. Med. Chem. 2019, 19, 2527–2553. [Google Scholar] [CrossRef] [PubMed]
  12. Gómez-Gaviria, M.; Ramírez-Sotelo, U.; Mora-Montes, H.M. Non-albicans Candida Species: Immune Response, Evasion Mechanisms, and New Plant-Derived Alternative Therapies. J. Fungi 2022, 9, 11. [Google Scholar] [CrossRef] [PubMed]
  13. Ben-Ami, R.; Berman, J.; Novikov, A.; Bash, E.; Shachor-Meyouhas, Y.; Zakin, S.; Finn, T. Multidrug-resistant Candida haemulonii and C. Auris, tel aviv, Israel. Emerg. Infect. Dis. 2017, 23, 195. [Google Scholar] [CrossRef] [PubMed]
  14. Du, H.; Bing, J.; Hu, T.; Ennis, C.L.; Nobile, C.J.; Huang, G. Candida auris: Epidemiology, biology, antifungal resistance, and virulence. PLoS Pathog. 2020, 16, e1008921. [Google Scholar] [CrossRef] [PubMed]
  15. Gómez-Gaviria, M.; Martínez-Álvarez, J.A.; Chávez-Santiago, J.O.; Mora-Montes, H.M. Candida haemulonii Complex and Candida auris: Biology, Virulence Factors, Immune Response, and Multidrug Resistance. Infect. Drug Resist. 2023, 16, 1455–1470. [Google Scholar] [CrossRef]
  16. Francisco, E.C.; de Jong, A.W.; Colombo, A.L. Candida haemulonii species complex: A mini-review. Mycopathologia 2023, 188, 909–917. [Google Scholar] [CrossRef]
  17. Ruiz de Alegría-Puig, C.; Rodríguez-Lozano, J.; Agüero-Balbin, J. Identification and antifungal susceptibility testing of Candida haemulonii complex isolated from clinical samples. Folia Microbiol. 2024, 69, 165–171. [Google Scholar] [CrossRef]
  18. Góralska, K.; Blaszkowska, J.; Dzikowiec, M. Neuroinfections caused by fungi. Infection 2018, 46, 443–459. [Google Scholar] [CrossRef]
  19. von Lilienfeld-Toal, M.; Wagener, J.; Einsele, H.; Cornely, O.A.; Kurzai, O. Invasive fungal infection: New treatments to meet new challenges. Dtsch. Arztebl. Int. 2019, 116, 271. [Google Scholar]
  20. Godoy, M.C.; Dalla Pria, H.R.F.; Truong, M.T.; Shroff, G.S.; Marom, E.M. Invasive fungal pneumonia in immunocompromised patients. Radiol. Clin. N. Am. 2022, 60, 497–506. [Google Scholar] [CrossRef]
  21. Koehler, P.; Bassetti, M.; Chakrabarti, A.; Chen, S.C.; Colombo, A.L.; Hoenigl, M.; Cornely, O.A. Defining and managing COVID-19-associated pulmonar aspergilosis: The 2020 ECMM/ISHAM consensus criteria for research and clinical guidance. Lancet Infect. Dis. 2021, 21, e149–e162. [Google Scholar] [CrossRef] [PubMed]
  22. Casalini, G.; Giacomelli, A.; Ridolfo, A.; Gervasoni, C.; Antinori, S. Invasive fungal infections complicating COVID-19: A narrative review. J. Fungi 2021, 7, 921. [Google Scholar] [CrossRef] [PubMed]
  23. Hoenigl, M.; Seidel, D.; Sprute, R.; Cunha, C.; Oliverio, M.; Goldman, G.H.; Ibrahim, A.S.; Carvalho, A. COVID-19-associated fungal infections. Nat. Microbiol. 2022, 7, 1127–1140. [Google Scholar] [CrossRef] [PubMed]
  24. Vinayagamoorthy, K.; Pentapati, K.C.; Prakash, H. Prevalence, risk factors, treatment and outcome of multidrug resistance Candida auris infections in coronavirus disease (COVID-19) patients: A systematic review. Mycoses 2022, 65, 613–624. [Google Scholar] [CrossRef] [PubMed]
  25. Kariyawasam, R.M.; Dingle, T.C.; Kula, B.E.; Vandermeer, B.; Sligl, W.I.; Schwartz, I.S. Defining COVID-19–associated pulmonary aspergillosis: Systematic review and meta-analysis. Clin. Microbiol. Infect. 2022, 28, 920–927. [Google Scholar] [CrossRef]
  26. Khojasteh, S.; Jafarzdeh, J.; Hosseini, S.A.; Hagan, I.; Turki, H.; Gharehbolagh, S.A.; Abastabar, M.; Mahmoudi, S. Candida auris and COVID-19: A health threatening combination. Curr. Med. Mycol. 2022, 8, 44. [Google Scholar] [CrossRef]
  27. Tsai, C.S.; Lee, S.S.J.; Chen, W.C.; Tseng, C.H.; Lee, N.Y.; Chen, P.L.; Li, M.C.; Syue, L.S.; Lo, C.L.; Ko, W.C.; et al. COVID-19-associated candidiasis and the emerging concern of Candida auris infections. J. Microbiol. Immunol. Infect. 2023, 56, 672–679. [Google Scholar] [CrossRef]
  28. Özbek, L.; Topçu, U.; Manay, M.; Esen, B.H.; Bektas, S.N.; Aydın, S.; Özdemir, B.; Khostelidi, S.N.; Klimko, N.; Cornely, O.; et al. COVID-19-associated mucormycosis: A systematic review and meta-analysis of 958 cases. Clin. Microbiol. Infect. 2023, 29, 722–731. [Google Scholar] [CrossRef]
  29. Usuda, D.; Kato, M.; Sugawara, Y.; Shimizu, R.; Inami, T.; Tsuge, S.; Sakurai, R.; Kawai, K.; Matsubara, S.; Tanaka, R.; et al. Secondary pulmonary infection by Fusarium solani and Aspergillus niger during systemic steroid treatment for COVID-19: A case report. World J. Clin. Cases 2023, 11, 6280. [Google Scholar] [CrossRef]
  30. Perlin, D.S.; Rautemaa-Richardson, R.; Alastruey-Izquierdo, A. The global problem of antifungal resistance: Prevalence, mechanisms, and management. Lancet Infect. Dis. 2017, 17, e383–e392. [Google Scholar] [CrossRef]
  31. Sharma, C.; Chowdhary, A. Molecular bases of antifungal resistance in filamentous fungi. Int. J. Antimicrob. Agents 2017, 50, 607–616. [Google Scholar] [CrossRef]
  32. Wiederhold, N.P. Antifungal resistance: Current trends and future strategies to combat. Infect. Drug Resist. 2017, 10, 249–259. [Google Scholar] [CrossRef]
  33. Pereira, R.; dos Santos Fontenelle, R.O.; De Brito, E.H.S.; De Morais, S.M. Biofilm of Candida albicans: Formation, regulation and resistance. J. Appl. Microbiol. 2021, 131, 11–22. [Google Scholar] [CrossRef] [PubMed]
  34. Campoy, S.; Adrio, J.L. Antifungals. Biochem. Pharmacol. 2017, 133, 86–96. [Google Scholar] [CrossRef] [PubMed]
  35. Ben-Ami, R.; Kontoyiannis, D.P. Resistance to antifungal drugs. Infect. Dis. Clin. N. Am. 2021, 35, 279–311. [Google Scholar] [CrossRef] [PubMed]
  36. Gow, N.A.; Johnson, C.; Berman, J.; Coste, A.T.; Cuomo, C.A.; Perlin, D.S.; Bicanic, T.; Harrison, T.S.; Wiederhold, N.; Bromley, M.; et al. The importance of antimicrobial resistance in medical mycology. Nat. Commun. 2022, 13, 5352. [Google Scholar] [CrossRef]
  37. Lupetti, A.; Danesi, R.; Campa, M.; Del Tacca, M.; Kelly, S. Molecular basis of resistance to azole antifungals. Trends Mol. Med. 2022, 8, 76–81. [Google Scholar] [CrossRef]
  38. Pristov, K.E.; Ghannoum, M.A. Resistance of Candida to azoles and echinocandins worldwide. Clin. Microbiol. Infect. 2019, 25, 792–798. [Google Scholar] [CrossRef]
  39. Wiederhold, N.P.; Patterson, T.F. Emergence of azole resistance in Aspergillus. Semin. Respir. Crit. Care Med. 2015, 36, 673–680. [Google Scholar] [CrossRef]
  40. Dannaoui, E. Antifungal resistance in mucorales. Int. J. Antimicrob. Agents 2017, 50, 617–621. [Google Scholar] [CrossRef]
  41. García-Rubio, R.; Cuenca-Estrella, M.; Mellado, E. Triazole resistance in Aspergillus species: An emerging problem. Drugs 2017, 77, 599–613. [Google Scholar] [CrossRef] [PubMed]
  42. Ellsworth, M.; Ostrosky-Zeichner, L. Isavuconazole: Mechanism of action, clinical efficacy, and resistance. J. Fungi 2020, 6, 324. [Google Scholar] [CrossRef] [PubMed]
  43. Pérez-Cantero, A.; Lopez-Fernandez, L.; Guarro, J.; Capilla, J. Azole resistance mechanisms in Aspergillus: Update and recent advances. Int. J. Antimicrob. Agents 2020, 55, 105807. [Google Scholar] [CrossRef] [PubMed]
  44. Pasula, S.; Chandrasekar, P.H. Azole resistance in Aspergillus species: Promising therapeutic options. Expert. Opin. Pharmacother. 2021, 22, 2071–2078. [Google Scholar] [CrossRef] [PubMed]
  45. Lamoth, F.; Lewis, R.E.; Kontoyiannis, D.P. Investigational antifungal agents for invasive mycoses: A clinical perspective. Clin. Infect. Dis. 2022, 75, 534–544. [Google Scholar] [CrossRef]
  46. Shen, L.L.; Baranowski, J.; Fostel, J.; Montgomery, D.A.; Lartey, P.A. DNA topoisomerases from pathogenic fungi: Targets for the discovery of antifungal drugs. Antimicrob. Agents Chemother. 1992, 36, 2778–2784. [Google Scholar] [CrossRef]
  47. Tagle-Olmedo, T.; Andrade-Pavón, D.; Martínez-Gamboa, A.; Gómez-García, O.; García-Sierra, F.; Hernández-Rodríguez, C.; Villa-Tanaca, L. Inhibitors of DNA topoisomerases I and II applied to Candida dubliniensis reduce growth, viability, the generation of petite mutants and toxicity, while acting synergistically with fluconazole. FEMS Yeast Res. 2021, 21, foab023. [Google Scholar] [CrossRef]
  48. Kondaka, K.; Gabriel, I. Targeting DNA Topoisomerase II in Antifungal Chemotherapy. Molecules 2022, 27, 7768. [Google Scholar] [CrossRef]
  49. Gellert, M. DNA topoisomerases. Annu. Rev. Biochem. 1981, 50, 879–910. [Google Scholar] [CrossRef]
  50. Wang, J.C. DNA topoisomerases. Annu. Rev. Biochem. 1996, 65, 635–692. [Google Scholar] [CrossRef]
  51. Champoux, J.J. DNA topoisomerases: Structure, function, and mechanism. Annu. Rev. Biochem. 2001, 70, 369–413. [Google Scholar] [CrossRef]
  52. Bush, N.G.; Evans-Roberts, K.; Maxwell, A. DNA topoisomerases. EcoSal Plus 2015, 6, 10–1128. [Google Scholar] [CrossRef] [PubMed]
  53. Joshi, R.S.; Nikolaou, C.; Roca, J. Structure and chromosomal organization of yeast genes regulated by Topoisomerase II. Int. J. Mol. Sci. 2018, 19, 134. [Google Scholar] [CrossRef]
  54. Forterre, P.; Gribaldo, S.; Gadelle, D.; Serre, M.C. Origin and evolution of DNA topoisomerases. Biochimie 2007, 89, 427–446. [Google Scholar] [CrossRef] [PubMed]
  55. Roca, J. The mechanisms of DNA topoisomerases. Trends Biochem. Sci. 1995, 20, 156–160. [Google Scholar] [CrossRef] [PubMed]
  56. Wigley, D.B. Structure and mechanism of DNA topoisomerases. Annu. Rev. Biophys. Biomol. Struct. 1995, 24, 185–208. [Google Scholar] [CrossRef]
  57. Bugreev, D.V.; Nevinsky, G.A. Structure and mechanism of action of type IA DNA topoisomerases. Biochemistry 2009, 74, 1467–1481. [Google Scholar] [CrossRef]
  58. Vos, S.M.; Tretter, E.M.; Schmidt, B.H.; Berger, J.M. All tangled up: How cells direct, manage and exploit topoisomerase function. Nat. Rev. Mol. Cell Biol. 2011, 12, 827–841. [Google Scholar] [CrossRef]
  59. Ju, B.G.; Lunyak, V.V.; Perissi, V.; Garcia-Bassets, I.; Rose, D.W.; Glass, C.K.; Rosenfeld, M.G. A topoisomerase IIβ-mediated dsDNA break required for regulated transcription. Science 2006, 312, 1798–1802. [Google Scholar] [CrossRef]
  60. Chikamori, K.; G Grozav, A.; Kozuki, T.; Grabowski, D.; Ganapathi, R.; K Ganapathi, M. DNA topoisomerase II enzymes as molecular targets for cancer chemotherapy. Curr. Cancer Drug Targets 2010, 10, 758–771. [Google Scholar] [CrossRef]
  61. Madabhushi, R. The roles of DNA topoisomerase IIβ in transcription. Int. J. Mol. Sci. 2018, 19, 1917. [Google Scholar] [CrossRef]
  62. Hirsch, J.; Klostermeier, D. What makes a type IIA topoisomerase a gyrase or a Topo IV? Nucleic Acids Res. 2021, 49, 6027–6042. [Google Scholar] [CrossRef]
  63. McKie, S.J.; Desai, P.R.; Seol, Y.; Allen, A.M.; Maxwell, A.; Neuman, K.C. Topoisomerase VI is a chirally-selective, preferential DNA decatenase. eLife 2022, 11, e67021. [Google Scholar] [CrossRef] [PubMed]
  64. Kunze, N.; Yang, G.C.; Dölberg, M.; Sundarp, R.; Knippers, R.; Richter, A. Structure of the human type I DNA topoisomerase gene. J. Biol. Chem. 1991, 266, 9610–9616. [Google Scholar] [CrossRef]
  65. Austin, C.A.; Marsh, K.L. Eukaryotic DNA topoisomerase IIβ. Bioessays 1998, 20, 215–226. [Google Scholar] [CrossRef]
  66. Deneke, J.; Burgin, A.B.; Wilson, S.L.; Chaconas, G. Catalytic residues of the telomere resolvase ResT: A pattern similar to, but distinct from, tyrosine recombinases and type IB topoisomerases. J. Biol. Chem. 2004, 279, 53699–53706. [Google Scholar] [CrossRef] [PubMed]
  67. Brochier-Armanet, C.; Gribaldo, S.; Forterre, P. A DNA topoisomerase IB in Thaumarchaeota testifies for the presence of this enzyme in the last common ancestor of Archaea and Eucarya. Biol. Direct. 2008, 3, 54. [Google Scholar] [CrossRef]
  68. Jiang, W.; Gerhold, D.; Kmiec, E.B.; Hauser, M.; Becker, J.M.; Koltin, Y. The topoisomerase I gene from Candida albicans. Microbiology 1997, 143, 377–386. [Google Scholar] [CrossRef]
  69. Goto, T.; Wang, J.C. Cloning of yeast TOP1, the gene encoding DNA topoisomerase I, and construction of mutants defective in both DNA topoisomerase I and DNA topoisomerase II. Proc. Natl. Acad. Sci. USA 1985, 82, 7178–7182. [Google Scholar] [CrossRef]
  70. Thrash, C.; Bankier, A.T.; Barrell, B.G.; Sternglanz, R. Cloning, characterization, and sequence of the yeast DNA topoisomerase I gene. Proc. Natl. Acad. Sci. USA 1985, 82, 4374–4378. [Google Scholar] [CrossRef]
  71. Uemura, T.; Morino, K.; Uzawa, S.; Shiozaki, K.; Yanagida, M. Cloning and sequencing of Schizosaccharomyces pombe DNA topoisomerase I gene, and effect of gene disruption. Nucleic Acids Res. 1987, 15, 9727–9739. [Google Scholar] [CrossRef]
  72. Uemura, T.; Yanagida, M. Isolation of type I and II DNA topoisomerase mutants from fission yeast: Single and double mutants show different phenotypes in cell growth and chromatin organization. EMBO J. 1984, 3, 1737–1744. [Google Scholar] [CrossRef]
  73. Christman, M.F.; Dietrich, F.S.; Fink, G.R. Mitotic recombination in the rDNA of S. cerevisiae is suppressed by the combined action of DNA topoisomerases I and II. Cell 1988, 55, 413–425. [Google Scholar] [CrossRef] [PubMed]
  74. Fiorani, P.; Bjornsti, M.A. Mechanisms of DNA Topoisomerase I-Induced Cell Killing in the Yeast: Saccharomyces cerevisiae. Ann. N. Y. Acad. Sci. 2000, 922, 65–75. [Google Scholar] [CrossRef] [PubMed]
  75. Losasso, C.; Cretaio, E.; Palle, K.; Pattarello, L.; Bjornsti, M.A.; Benedetti, P. Alterations in linker flexibility suppress DNA topoisomerase I mutant-induced cell lethality. J. Biol. Chem. 2007, 282, 9855–9864. [Google Scholar] [CrossRef]
  76. Heldrich, J.; Sun, X.; Vale-Silva, L.A.; Markowitz, T.E.; Hochwagen, A. Topoisomerases modulate the timing of meiotic DNA breakage and chromosome morphogenesis in Saccharomyces cerevisiae. Genetics 2020, 215, 59–73. [Google Scholar] [CrossRef]
  77. Gerhold, D.; Thiyagarajan, M.; Kmiec, E.B. The topoisomerase I gene from Ustilago maydis: Sequence, disruption and mutant phenotype. Nucleic Acids Res. 1994, 22, 3773–3778. [Google Scholar] [CrossRef] [PubMed]
  78. Choder, M. A general topoisomerase I-dependent transcriptional repression in the stationary phase in yeast. Genes Dev. 1991, 5, 2315–2326. [Google Scholar] [CrossRef]
  79. Del Poeta, M.; Chen, S.F.; Von Hoff, D.; Dykstra, C.C.; Wani, M.C.; Manikumar, G.; Perfect, J.R. Comparison of in vitro activities of camptothecin and nitidine derivatives against fungal and cancer cells. Antimicrob. Agents Chemother. 1999, 43, 2862–2868. [Google Scholar] [CrossRef]
  80. Lynn, R.M.; Bjornsti, M.A.; Caron, P.R.; Wang, J.C. Peptide sequencing and site-directed mutagenesis identify tyrosine-727 as the active site tyrosine of Saccharomyces cerevisiae DNA topoisomerase I. Proc. Natl. Acad. Sci. USA 1989, 86, 3559–3563. [Google Scholar] [CrossRef]
  81. Sharma, A.; Mondragón, A. DNA topoisomerases. Curr. Opin. Struct. Biol. 1995, 5, 39–47. [Google Scholar] [CrossRef] [PubMed]
  82. Reguera, R.M.; Pérez-Pertejo, Y.; Redondo, C.M.; Díaz-González, R.; Balaña-Fouce, R. La ADN topoisomerasa tipo I de protozoos patógenos como Diana terapéutica de fármacos antitumorales. Medicina 2007, 67, 747–757. [Google Scholar]
  83. Aravind, L.; Leipe, D.D.; Koonin, E.V. Toprim—A conserved catalytic domain in type IA and II topoisomerases, DnaG-type primases, OLD family nucleases and RecR proteins. Nucleic Acids Res. 1998, 26, 4205–4213. [Google Scholar] [CrossRef] [PubMed]
  84. Allemand, F.; Mathy, N.; Brechemier-Baey, D.; Condon, C. The 5S rRNA maturase, ribonuclease M5, is a Toprim domain family member. Nucleic Acids Res. 2005, 33, 4368–4376. [Google Scholar] [CrossRef]
  85. Fu, G.; Wu, J.; Liu, W.; Zhu, D.; Hu, Y.; Deng, J.; Wang, D.C. Crystal structure of DNA gyrase B′ domain sheds lights on the mechanism for T-segment navigation. Nucleic Acids Res. 2009, 37, 5908–5916. [Google Scholar] [CrossRef] [PubMed]
  86. Berger, J.M. Type II DNA topoisomerases. Curr. Opin. Struct. Biol. 1998, 8, 26–32. [Google Scholar] [CrossRef] [PubMed]
  87. Erdős, M.; Lányi, Á.; Balázs, G.; Casanova, J.L.; Boisson, B.; Maródi, L. Inherited TOP2B mutation: Possible confirmation of mutational hotspots in the TOPRIM domain. J. Clin. Immunol. 2021, 41, 817–819. [Google Scholar] [CrossRef]
  88. Gadelle, D.; Filie, J.; Buhler, C.; Forterre, P. Phylogenomics of type II DNA topoisomerases. Bioessays 2003, 25, 232–242. [Google Scholar] [CrossRef]
  89. Coelho, J.; Martins, C.; Ferreira, F.; Leitao, A. African swine fever virus ORF P1192R codes for a functional type II DNA topoisomerase. Virology 2015, 474, 82–93. [Google Scholar] [CrossRef]
  90. Kato, M.; Ozeki, M.; Kikuchi, A.; Kanbe, T. Phylogenetic relationship and mode of evolution of yeast DNA topoisomerase II gene in the pathogenic Candida species. Gene 2001, 272, 275–281. [Google Scholar] [CrossRef]
  91. Shamsizadeh, F.; Pchelin, I.M.; Makimura, K.; Alshahni, M.M.; Satoh, K.; Katiraee, F.; Rezaei-Matehhkolaei, A. DNA topoisomerase 2 gene polymorphism in dermatophytes. Mycoses 2020, 63, 694–703. [Google Scholar] [CrossRef]
  92. Fostel, J.M.; Montgomery, D.A.; Shen, L.L. Characterization of DNA topoisomerase I from Candida albicans as a target for drug discovery. Antimicrob. Agents Chemother. 1992, 36, 2131–2138. [Google Scholar] [CrossRef] [PubMed]
  93. Fostel, J.; Montgomery, D.; Lartey, P. Comparison of responses of DNA topoisomerase I from Candida albicans and human cells to four new agents which stimulate topoisomerase-dependent DNA nicking. FEMS Microbiol. Lett. 1996, 138, 105–111. [Google Scholar] [CrossRef]
  94. Van Dross, R.T.; Rao, K.V.; Eisenberg, E.; Sanders, M.M. Cloning and characterization of the Aspergillus nidulans DNA topoisomerase I gene. Gene 1997, 203, 169–174. [Google Scholar] [CrossRef]
  95. Kim, K.H.; Akashi, T.; Mizuguchi, I.; Kikuchi, A. Cloning and characterization of the gene encoding Aspergillus nidulans DNA topoisomerase II. Gene 1999, 236, 293–301. [Google Scholar] [CrossRef]
  96. Nitiss, J.L. Yeast as a genetic model system for studying topoisomerase inhibitors. Adv. Pharmacol. 1994, 29, 201–226. [Google Scholar]
  97. Zheng, H.; Yu, Y.S. TOP2 gene is involved in the pathogenicity of Candida albicans. Mol. Cell. Biochem. 2012, 364, 45–52. [Google Scholar] [CrossRef]
  98. Reid, R.J.; Benedetti, P.; Bjornsti, M.A. Yeast as a model organism for studying the actions of DNA topoisomerase-targeted drugs. Biochim. Biophys. Acta 1998, 1400, 289–300. [Google Scholar] [CrossRef]
  99. Nitiss, J.L.; Nitiss, K.C. Yeast systems for demonstrating the targets of anti-topoisomerase II agents. In DNA Topoisomerase Protocols; Springer: Berlin, Germany, 2001; pp. 315–327. [Google Scholar]
  100. Woo, M.H.; Vance, J.R.; Bjornsti, M.A. Studying DNATopoisomerase I-Targeted Drugs in the Yeast: Saccharomyces cerevisiae. Methods Mol. Biol. 2001, 95, 303–313. [Google Scholar] [PubMed]
  101. Webb, B.; Sali, A. Comparative protein structure modeling using Modeller. Curr. Protoc. Protein Sci. 2016, 86, 5–6. [Google Scholar] [CrossRef] [PubMed]
  102. Andrade-Pavón, D.; Gómez-García, O. Etoposide and Camptothecin Reduce Growth, Viability, the Generation of Petite Mutants, and Recognize the Active Site of DNA Topoisomerase I and II Enzymes in Candida glabrata. Indian J. Microbiol. 2021, 61, 306–314. [Google Scholar] [CrossRef] [PubMed]
  103. Pommier, Y.; Pourquier, P.; Fan, Y.I.; Strumberg, D. Mechanism of action of eukaryotic DNA topoisomerase I and drugs targeted to the enzyme. Biochim. Biophys. Acta 1998, 1400, 83–106. [Google Scholar] [CrossRef] [PubMed]
  104. Bjornsti, M.A.; Benedetti, P.; Viglianti, G.A.; Wang, J.C. Expression of human DNA topoisomerase I in yeast cells lacking yeast DNA topoisomerase I: Restoration of sensitivity of the cells to the antitumor drug camptothecin. Cancer Res. 1989, 49, 6318–6323. [Google Scholar] [PubMed]
  105. Madden, K.R.; Champoux, J.J. Overexpression of human topoisomerase I in baby hamster kidney cells: Hypersensitivity of clonal isolates to camptothecin. Cancer Res. 1992, 52, 525–532. [Google Scholar] [PubMed]
  106. Pommier, Y. Diversity of DNA topoisomerases I and inhibitors. Biochimie 1998, 80, 255–270. [Google Scholar] [CrossRef] [PubMed]
  107. Gupta, M.; Fujimori, A.; Pommier, Y. Eukaryotic DNA topoisomerases i. Biochim. Biophys. Acta 1995, 1262, 1–14. [Google Scholar] [CrossRef] [PubMed]
  108. Liu, L.F.; Desai, S.D.; LI, T.K.; Mao, Y.; Sun, M.E.I.; SIM, S.P. Mechanism of action of camptothecin. Ann. N. Y. Acad. Sci. 2000, 922, 1–10. [Google Scholar] [CrossRef]
  109. Hsiang, Y.H.; Liu, L.F. Identification of mammalian DNA topoisomerase I as an intracellular target of the anticancer drug camptothecin. Cancer Res. 1988, 48, 1722–1726. [Google Scholar]
  110. Del Bino, G.; Lassota, P.; Darzynkiewicz, Z. The S-phase cytotoxicity of camptothecin. Exp. Cell Res. 1991, 193, 27–35. [Google Scholar] [CrossRef]
  111. Kollmannsberger, C.; Mross, K.; Jakob, A.; Kanz, L.; Bokemeyer, C. Topotecan–a novel topoisomerase I inhibitor: Pharmacology and clinical experience. Oncology 1999, 56, 1–12. [Google Scholar] [CrossRef]
  112. Liu, L.F. DNA topoisomerase poisons as antitumor drugs. Annu. Rev. Biochem. 1989, 58, 351–375. [Google Scholar] [CrossRef] [PubMed]
  113. Hu, W.; Huang, X.S.; Wu, J.F.; Yang, L.; Zheng, Y.T.; Shen, Y.M.; Li, X. Discovery of novel topoisomerase II inhibitors by medicinal chemistry approaches. J. Med. Chem. 2018, 61, 8947–8980. [Google Scholar] [CrossRef] [PubMed]
  114. Cortés, F.; Pastor, N. Induction of endoreduplication by topoisomerase II catalytic inhibitors. Mutagenesis 2003, 18, 105–112. [Google Scholar] [CrossRef]
  115. Andoh, T.; Ishida, R. Catalytic inhibitors of DNA topoisomerase II. Biochim. Biophys. Acta 1998, 1400, 155–171. [Google Scholar] [CrossRef]
  116. Long, B.H. Mechanisms of action of teniposide (VM-26) and comparison with etoposide (VP-16). Semin. Oncol. 1992, 19, 3–19. [Google Scholar]
  117. Shen, L.L.; Fostel, J.M. DNA topoisomerase inhibitors as antifungal agents. Adv. Pharmacol. 1994, 29, 227–244. [Google Scholar]
  118. Nitiss, J.L.; Liu, Y.X.; Hsiung, Y. A temperature sensitive topoisomerase II allele confers temperature dependent drug resistance on amsacrine and etoposide: A genetic system for determining the targets of topoisomerase II inhibitors. Cancer Res. 1993, 53, 89–93. [Google Scholar]
  119. Ishida, R.; Hamatake, M.; Wasserman, R.A.; Nitiss, J.L.; Wang, J.C.; Andoh, T. DNA topoisomerase II is the molecular target of bisdioxopiperazine derivatives ICRF-159 and ICRF-193 in Saccharomyces cerevisiae. Cancer Res. 1995, 55, 2299–2303. [Google Scholar]
  120. Anizon, F.; Belin, L.; Moreau, P.; Sancelme, M.; Voldoire, A.; Prudhomme, M.; Meyer, T. Syntheses and biological activities (topoisomerase inhibition and antitumor and antimicrobial properties) of rebeccamycin analogues bearing modified sugar moieties and substituted on the imide nitrogen with a methyl group. J. Med. Chem. 1997, 40, 3456–3465. [Google Scholar] [CrossRef]
  121. Hufford, C.D.; Liu, S.; Clark, A.M.; Oguntimein, B.O. Anticandidal activity of eupolauridine and onychine, alkaloids from Cleistopholis patens. J. Nat. Prod. 1987, 50, 961–964. [Google Scholar] [CrossRef]
  122. Khan, S.I.; Nimrod, A.C.; Mehrpooya, M.; Nitiss, J.L.; Walker, L.A.; Clark, A.M. Antifungal activity of eupolauridine and its action on DNA topoisomerases. Antimicrob. Agents Chemother. 2002, 46, 1785–1792. [Google Scholar] [CrossRef] [PubMed]
  123. Taghavi-Moghadam, S.; Kwong, C.D.; Secrist III, J.A.; Khan, S.I.; Clark, A.M. The synthesis and biological evaluation of alkyl and benzyl naphthyridinium analogs of eupolauridine as potential antimicrobial and cytotoxic agents. Bioorg. Med. Chem. 2016, 24, 6119–6130. [Google Scholar] [CrossRef]
  124. Jannatipour, M.; Liu, Y.X.; Nitiss, J.L. The top2-5 mutant of yeast topoisomerase II encodes an enzyme resistant to etoposide and amsacrine. J. Biol. Chem. 1993, 268, 18586–18592. [Google Scholar] [CrossRef]
  125. Knab, A.M.; Fertala, J.; Bjornsti, M.A. Mechanisms of camptothecin resistance in yeast DNA topoisomerase I mutants. J. Biol. Chem. 1993, 268, 22322–22330. [Google Scholar] [CrossRef] [PubMed]
  126. Knab, A.M.; Fertala, J.; Bjornsti, M.A. A Camptothecin-resistant DNA Topoisomerase I Mutant Exhibits Altered Sensitivities to Other DNA Topoisomerase Poisons. J. Biol. Chem. 1995, 270, 6141–6148. [Google Scholar] [CrossRef] [PubMed]
  127. Reid, R.J.; Kauh, E.A.; Bjornsti, M.A. Camptothecin sensitivity is mediated by the pleiotropic drug resistance network in yeast. J. Biol. Chem. 1997, 272, 12091–12099. [Google Scholar] [CrossRef]
  128. Keller, B.A.; Patel, S.; Fisher, L.M. Molecular cloning and expression of the Candida albicans TOP2 gene allows study of fungal DNA topoisomerase II inhibitors in yeast. Biochem. J. 1997, 324, 329–339. [Google Scholar] [CrossRef]
  129. Fostel, J.; Montgomery, D. Identification of the aminocatechol A-3253 as an in vitro poison of DNA topoisomerase I from Candida albicans. Antimicrob. Agents Chemother. 1995, 39, 586–592. [Google Scholar] [CrossRef]
  130. Kwok, S.C.; Schelenz, S.; Wang, X.; Steverding, D. In vitro effect of DNA topoisomerase inhibitors on Candida albicans. Med. Mycol. 2010, 48, 155–160. [Google Scholar] [CrossRef]
  131. Steverding, D.; Evans, P.; Msika, L.; Riley, B.; Wallington, J.; Schelenz, S. In vitro antifungal activity of DNA topoisomerase inhibitors. Med. Micol. 2012, 50, 333–336. [Google Scholar] [CrossRef]
  132. Fan, Y.; Weinstein, J.N.; Kohn, K.W.; Shi, L.M.; Pommier, Y. Molecular modeling studies of the DNA− topoisomerase I ternary cleavable complex with camptothecin. J. Med. Chem. 1998, 41, 2216–2226. [Google Scholar] [CrossRef]
  133. Staker, B.L.; Feese, M.D.; Cushman, M.; Pommier, Y.; Zembower, D.; Stewart, L.; Burgin, A.B. Structures of three classes of anticancer agents bound to the human topoisomerase I− DNA covalent complex. J. Med. Chem. 2005, 48, 2336–2345. [Google Scholar] [CrossRef]
  134. Basili, S.; Moro, S. Novel camptothecin derivatives as topoisomerase I inhibitors. Expert Opin. Ther. Pat. 2009, 19, 555–574. [Google Scholar] [CrossRef]
  135. Wu, C.C.; Li, Y.C.; Wang, Y.R.; Li, T.K.; Chan, N.L. On the structural basis and design guidelines for type II topoisomerase-targeting anticancer drugs. Nucleic Acids Res. 2013, 41, 10630–10640. [Google Scholar] [CrossRef]
  136. Kumar, A.; Bora, U. Molecular docking studies of curcumin natural derivatives with DNA topoisomerase I and II-DNA complexes. Interdiscip. Sci. 2014, 6, 285–291. [Google Scholar] [CrossRef] [PubMed]
  137. Tan, H.; Wang, G.; Li, J.; Meng, G.; Liu, Z.; Dong, M.; Zhang, Q. Synthesis of novel 10-hydroxycamptothecin derivatives utilizing topotecan hydrochloride as ortho-quinonemethide precursor. Bioorg. Med. Chem. 2015, 23, 118–125. [Google Scholar] [CrossRef] [PubMed]
  138. Morris, G.M.; Huey, R.; Lindstrom, W.; Sanner, M.F.; Belew, R.K.; Goodsell, D.S.; Olson, A.J. AutoDock4 and AutoDockTools4: Automated docking with selective receptor flexibility. J. Comput. Chem. 2009, 30, 2785–2791. [Google Scholar] [CrossRef] [PubMed]
  139. Rocha-Del Castillo, E.; Gómez-García, O.; Andrade-Pavón, D.; Villa-Tanaca, L.; Ramírez-Apan, T.; Nieto-Camacho, A.; Gómez, E. Dibutyltin (IV) complexes derived from L-DOPA: Synthesis, molecular docking, cytotoxic and antifungal activity. Chem. Pharm. Bull. 2018, 66, 1104–1113. [Google Scholar] [CrossRef]
  140. Andrade, D.; Gómez, O.; Álvarez-Toledano, C. Exploring the binding mode of triflamide derivatives at the active site of Topo I and Topo II enzymes: In silico analysis and precise molecular docking. J. Chem. Sci. 2020, 132, 50. [Google Scholar]
  141. Singh, S.; Das, T.; Awasthi, M.; Pandey, V.P.; Pandey, B.; Dwivedi, U.N. DNA topoisomerase-directed anticancerous alkaloids: ADMET-based screening, molecular docking, and dynamics simulation. Biotechnol. Appl. Biochem. 2016, 63, 125–137. [Google Scholar] [CrossRef]
  142. Song, Z.L.; Wang, M.J.; Li, L.; Wu, D.; Wang, Y.H.; Yan, L.T.; Lee, K.H. Design, synthesis, cytotoxic activity and molecular docking studies of new 20 (S)-sulfonylamidine camptothecin derivatives. Eur. J. Med. Chem. 2016, 115, 109–120. [Google Scholar] [CrossRef] [PubMed]
  143. Drwal, M.N.; Agama, K.; Wakelin, L.P.; Pommier, Y.; Griffith, R. Exploring DNA topoisomerase I ligand space in search of novel anticancer agents. PLoS ONE 2011, 6, e25150. [Google Scholar] [CrossRef] [PubMed]
  144. Laco, G.S.; Collins, J.R.; Luke, B.T.; Kroth, H.; Sayer, J.M.; Jerina, D.M.; Pommier, Y. Human topoisomerase I inhibition: Docking camptothecin and derivatives into a structure-based active site model. Biochemistry 2002, 41, 1428–1435. [Google Scholar] [CrossRef] [PubMed]
  145. El-Zoghbi, M.S.; El-Sebaey, S.A.; Al-Ghulikah, H.A.; Sobh, E.A. Design, synthesis, docking, and anticancer evaluations of new thiazolo [3, 2-a] pyrimidines as topoisomerase II inhibitors. J. Enzym. Inhib. Med. Chem. 2023, 38, 2175209. [Google Scholar] [CrossRef] [PubMed]
  146. Wu, C.C.; Li, T.K.; Farh, L.; Lin, L.Y.; Lin, T.S.; Yu, Y.J.; Chan, N.L. Structural basis of type II topoisomerase inhibition by the anticancer drug etoposide. Science 2011, 333, 459–462. [Google Scholar] [CrossRef]
  147. Singh, S.; Pandey, V.P.; Yadav, K.; Yadav, A.; Dwivedi, U.N. Natural products as anti-cancerous therapeutic molecules targeted towards topoisomerases. Curr. Protein Pept. Sci. 2020, 21, 1103–1142. [Google Scholar] [CrossRef]
  148. Gabriel, I. ‘Acridines’ as new horizons in antifungal treatment. Molecules 2020, 25, 1480. [Google Scholar] [CrossRef]
  149. de Oliveira, D.B.C.; Silva, L.B.; da Silva, B.V.; Borges, T.C.; Marques, B.C.; dos Santos, M.B.; Andrade, A.A. A new acridone with antifungal properties against Candida spp. and dermatophytes, and antibiofilm activity against C. albicans. J. Appl. Microbiol. 2019, 127, 1362–1372. [Google Scholar] [CrossRef]
Jof 10 00629 g001
Figure 1. Sequence logos of the conserved motifs found in topoisomerase I (a) and II (b) enzymes pertaining to the families of the organisms under study. Group 1 consists of mammals (Homo sapiens, Mus musculus, and Rattus norvegicus), group 2 of Ascomycetes, and group 3 of Basidiomycetes. The catalytic amino acid residues involved in the mechanism of action are highlighted in red boxes.
Figure 1. Sequence logos of the conserved motifs found in topoisomerase I (a) and II (b) enzymes pertaining to the families of the organisms under study. Group 1 consists of mammals (Homo sapiens, Mus musculus, and Rattus norvegicus), group 2 of Ascomycetes, and group 3 of Basidiomycetes. The catalytic amino acid residues involved in the mechanism of action are highlighted in red boxes.
Jof 10 00629 g001
Jof 10 00629 g002
Figure 2. Schematic representation of Topo I enzymes from 32 organisms. Structural studies on the human enzyme divide this protein into four structural domains: the N-terminal hydrophilic domain (blue), the hydrophobic central “core” domain (yellow), the linker domain (green), and the C-terminal domain (red). The core domain interacts with DNA, and the linker domain connects the core with the catalytic site. The amino acids that are part of the catalytic site are portrayed in circles: purple (Arg), orange (Lys), pink (Arg), cyan (His), and green (Tyr).
Figure 2. Schematic representation of Topo I enzymes from 32 organisms. Structural studies on the human enzyme divide this protein into four structural domains: the N-terminal hydrophilic domain (blue), the hydrophobic central “core” domain (yellow), the linker domain (green), and the C-terminal domain (red). The core domain interacts with DNA, and the linker domain connects the core with the catalytic site. The amino acids that are part of the catalytic site are portrayed in circles: purple (Arg), orange (Lys), pink (Arg), cyan (His), and green (Tyr).
Jof 10 00629 g002
Jof 10 00629 g003
Figure 3. Schematic representation of Topo II enzymes from 32 organisms. The following domains are shown: ATPase (cyan), toprim (topoisomerase-primase, green), WHD (winged-helix domain, fuchsia), tower (red), coiled coil (yellow), and CTD (C-terminal domain, purple). The amino acids that are part of the catalytic site (Gly, Lys, Glu, Aps, Tyr, and Ile) are portrayed in circles of distinct colors.
Figure 3. Schematic representation of Topo II enzymes from 32 organisms. The following domains are shown: ATPase (cyan), toprim (topoisomerase-primase, green), WHD (winged-helix domain, fuchsia), tower (red), coiled coil (yellow), and CTD (C-terminal domain, purple). The amino acids that are part of the catalytic site (Gly, Lys, Glu, Aps, Tyr, and Ile) are portrayed in circles of distinct colors.
Jof 10 00629 g003
Jof 10 00629 g004
Figure 4. The maximum likelihood phylogenetic tree of 32 representative DNA topoisomerases of type I (a) and II (b) from mammals and fungi, constructed with the MEGA 6 program and the WAG + G model (bootstrap values are on the branches, out of 100 runs).
Figure 4. The maximum likelihood phylogenetic tree of 32 representative DNA topoisomerases of type I (a) and II (b) from mammals and fungi, constructed with the MEGA 6 program and the WAG + G model (bootstrap values are on the branches, out of 100 runs).
Jof 10 00629 g004
Jof 10 00629 g005aJof 10 00629 g005b
Figure 5. Flat ribbon illustration of the 3D models of DNA of topoisomerase I (a–c) and DNA topoisomerase II (d–f) in complex with the DNA of the representative organism. The active site amino acids of each of the proteins are highlighted in fuchsia. For the construction of the Topo I and Topo II models of C. auris and C. neoformans, the crystallized structures of Topo I (PDB: 1sc7) and Topo II (PDB: 3qx3) from H. sapiens were used as templates.
Figure 5. Flat ribbon illustration of the 3D models of DNA of topoisomerase I (a–c) and DNA topoisomerase II (d–f) in complex with the DNA of the representative organism. The active site amino acids of each of the proteins are highlighted in fuchsia. For the construction of the Topo I and Topo II models of C. auris and C. neoformans, the crystallized structures of Topo I (PDB: 1sc7) and Topo II (PDB: 3qx3) from H. sapiens were used as templates.
Jof 10 00629 g005aJof 10 00629 g005b
Jof 10 00629 g006
Figure 6. Chemical structure of selected inhibitors of Topo I.
Figure 6. Chemical structure of selected inhibitors of Topo I.
Jof 10 00629 g006
Jof 10 00629 g007
Figure 7. Chemical structure of selected inhibitors of Topo II.
Figure 7. Chemical structure of selected inhibitors of Topo II.
Jof 10 00629 g007
Jof 10 00629 g008aJof 10 00629 g008bJof 10 00629 g008cJof 10 00629 g008dJof 10 00629 g008eJof 10 00629 g008fJof 10 00629 g008gJof 10 00629 g008h
Figure 8. Illustration of the interactions between known inhibitors and Topo I or Topo II of a representative mammal (H. sapiens), Ascomycete (C. auris), and Basidiomycete (C. neoformans) (a–u). The images on the left portray the binding of the inhibitor to the enzyme. On the right, the 2D models depict different types of bonds in dotted lines: conventional hydrogen (dark green), carbon hydrogen (light green), π-π stacked (fuchsia), π-alkyl (pink), π-sigma (purple), π-anion, and π-actin (orange). The amino acids are illustrated in circles: pink (basic), orange (acid), blue (polar), and yellow (non-polar).
Figure 8. Illustration of the interactions between known inhibitors and Topo I or Topo II of a representative mammal (H. sapiens), Ascomycete (C. auris), and Basidiomycete (C. neoformans) (a–u). The images on the left portray the binding of the inhibitor to the enzyme. On the right, the 2D models depict different types of bonds in dotted lines: conventional hydrogen (dark green), carbon hydrogen (light green), π-π stacked (fuchsia), π-alkyl (pink), π-sigma (purple), π-anion, and π-actin (orange). The amino acids are illustrated in circles: pink (basic), orange (acid), blue (polar), and yellow (non-polar).
Jof 10 00629 g008aJof 10 00629 g008bJof 10 00629 g008cJof 10 00629 g008dJof 10 00629 g008eJof 10 00629 g008fJof 10 00629 g008gJof 10 00629 g008h
Table 1. Details of the sequences of Topo I and Topo II enzymes from mammals and fungi.
Table 1. Details of the sequences of Topo I and Topo II enzymes from mammals and fungi.
OrganismAccession
Number		FamilyGene Length
(bp)		Protein
Size (aa)		Accession
Number		FamilyGene Length
(bp)		Protein Size (aa)
Homo sapiensNP_003277Topo I3734765NP_001058Topo II56951531
Mus musculusNP_033434Topo I3859767XP_006533217Topo II52331527
Rattus norvegicusNP_072137Topo I2304767P41516Topo II45811526
Saccharomyces cerevisiaeNP_014637Topo I2310769AAM005481Topo II42871428
Schizosaccharomyces pombeNP_596209Topo I2761814NP_595805Topo II66261485
Yarrowia lipolyticaKAB8283935Topo I2283760RDW22562Topo II65131537
Candida albicansXP_714305Topo I2343780KHC76731Topo II43861461
Candida aurisPSK79030Topo I2250749PSK77735Topo II43771458
Candida haemuloniiXP_025340562Topo I2250749XP_025343359Topo II43771458
Clavispora lusitaniaeOVF09121Topo I2295764OVF06965Topo II42301409
Candida dubliniensisXP_002420888Topo I2334777XP_002420251Topo II43861461
Candida tropicalisXP_002548660Topo I2334777XP_002549527Topo II41971398
Candida kruseiAWT08596Topo I2187728XP_029322551Topo II42721423
Kluyveromyces marxianusBAP69451Topo I2304767XP_022678261Topo II43501449
Candida parapsilosisKAF6043449
Topo I2466821CCE43879Topo II43321443
Candida orthopsilosisXP_003870756Topo I2418805XP_003867280Topo II44221473
Candida glabrataXP_445795Topo I2154717KTB13451Topo II42211406
Candida utilisXP_020072437Topo I2772755XP_020068929Topo II43241416
Meyerozyma guilliermondiiEDK40177Topo I2265754XP_001483297Topo II42031400
Ustilago maydisXP_011388171Topo I30601019XP_011389948Topo II45571518
Coccidioides immitisXP_001245381Topo I3335905TPX24629Topo II51571718
Aspergillus nigerGAQ33639Topo I2595864XP_001392968Topo II52681707
Aspergillus clavatusXP_001269805Topo I2661886XP_001268423Topo II52081735
Aspergillus nidulansAAO19447Topo I2990871XP_663010Topo II51301709
Aspergillus terreusGES60315Topo I2643880XP_001212600Topo II51991732
Aspergillus fumigatusKAF4263330
Topo I2604867XP_751245Topo II49831660
Penicillium marneffeiKFX43083Topo I2583860XP_002145834Topo II52161696
Paracoccidioides brasiliensisODH53586Topo I2718905XP_010761698Topo II58501949
Fusarium oxysporumXP_031047401Topo I4701909EWZ41880Topo II52141737
Blastomyces dermatitidisEEQ86368Topo I2736911EGE78098Topo II54151804
Histoplasma capsulatumEEH11244Topo I2730909XP_001536323Topo II54271808
Cryptococcus neoformans var. neoformansXP_572925Topo I2953926XP_566700Topo II41821272
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Andrade-Pavón, D.; Gómez-García, O.; Villa-Tanaca, L. Review and Current Perspectives on DNA Topoisomerase I and II Enzymes of Fungi as Study Models for the Development of New Antifungal Drugs. J. Fungi 2024, 10, 629. https://doi.org/10.3390/jof10090629

AMA Style

Andrade-Pavón D, Gómez-García O, Villa-Tanaca L. Review and Current Perspectives on DNA Topoisomerase I and II Enzymes of Fungi as Study Models for the Development of New Antifungal Drugs. Journal of Fungi. 2024; 10(9):629. https://doi.org/10.3390/jof10090629

Chicago/Turabian Style

Andrade-Pavón, Dulce, Omar Gómez-García, and Lourdes Villa-Tanaca. 2024. "Review and Current Perspectives on DNA Topoisomerase I and II Enzymes of Fungi as Study Models for the Development of New Antifungal Drugs" Journal of Fungi 10, no. 9: 629. https://doi.org/10.3390/jof10090629

APA Style

Andrade-Pavón, D., Gómez-García, O., & Villa-Tanaca, L. (2024). Review and Current Perspectives on DNA Topoisomerase I and II Enzymes of Fungi as Study Models for the Development of New Antifungal Drugs. Journal of Fungi, 10(9), 629. https://doi.org/10.3390/jof10090629

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
