Article

Characterization of a High-Affinity Copper Transporter CTR1a in the White-Nose Syndrome Causing Fungal Pathogen Pseudogymnoascus destructans

by
Saika Anne
1,†,
Alyssa D. Friudenberg
2,† and
Ryan L. Peterson
1,2,*
1
Department of Biology, Texas State University, 601 University Drive, San Marcos, TX 78666, USA
2
Department of Chemistry and Biochemistry, Texas State University, 601 University Drive, San Marcos, TX 78666, USA
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
J. Fungi 2024, 10(10), 729; https://doi.org/10.3390/jof10100729
Submission received: 28 August 2024 / Revised: 10 October 2024 / Accepted: 12 October 2024 / Published: 21 October 2024
Browse Figures
Review Reports Versions Notes

Abstract

:
Copper is an essential micronutrient and the ability to scavenge tightly bound or trace levels of copper ions at the host–pathogen interface is vital for fungal proliferation in animal hosts. Recent studies suggest that trace metal ion acquisition is critical for the establishment and propagation of Pseudogymnoascus destructans, the fungal pathogen responsible for white-nose syndrome (WNS), on their bat host. However, little is known about these metal acquisition pathways in P. destructans. In this study, we report the characterization of the P. destructans high-affinity copper transporter VC83_00191 (PdCTR1a), which is implicated as a virulence factor associated with the WNS disease state. Using Saccharomyces cerevisiae as a recombinant expression host, we find that PdCTR1a can efficiently traffic Cu ions into the yeast cytoplasm. Complementary studies in the native P. destructans fungus provide evidence that PdCTR1a transcripts and protein levels are dictated by Cu-bioavailability in the growth media. Our study demonstrates that PdCTR1a is a functional high-affinity copper transporter and is relevant to Cu homeostasis pathways in P. destructans.

1. Introduction

The psychrophilic fungus Pseudogymnoascus destructans is responsible for white-nose syndrome (WNS) disease which causes burn-like infection lesions on the wings and muzzle of bats [1,2,3]. This infectious fungal disease is prevalent in North America and affects many cave-dwelling bat species [4]. Since WNS was first detected in a New York cave ecosystem in 2006, P. destructans has spread across North America and can be found in 40 US states and 9 Canadian provinces [5,6]. WNS has killed millions of North American bats and can cause up to 100% mortality in some bat populations [7]. Currently, 12 bat species have been confirmed with WNS, including the gray bat, northern long-eared bat, Indiana bat, and tricolor bat, which are endangered North American bat species [5]. There is no approved treatment for WNS. However, there are ongoing efforts that aim to slow P. destructans transmission rates and to reduce the fungal burden on infected hibernating bats to help preserve North American bat biodiversity.
Pseudogymnoascus destructans spores are resilient and P. destructans is known to utilize a wide range of nitrogen and carbon sources to propagate efficiently in diverse environmental conditions including the soil, cave hibernacula, and susceptible bat hosts [8,9,10]. Recent studies support the hypothesis that P. destructans may have originated as a soil-dwelling plant-infecting pathogen that adapted to thrive on bat animal hosts [11]. Thus, P. destructans may be an example of an “accidental pathogen” that is able to utilize its evolved growth mechanisms to thrive on susceptible bat hosts [12]. Supporting this hypothesis is the observation that white-nose syndrome disease does not infect all bats equally and the transcript levels of P. destructans virulence factors correlate to fungal biomass [13]. This may indicate that genes naturally supporting the saprophytic lifestyle of P. destructans may have a dual role in establishing and propagating on the animal host.
The ability of microbial fungal pathogens to secure trace metal micronutrients such as copper are essential to maintaining cellular redox homeostasis needed for efficient propagation [14,15,16,17]. Animal hosts have the ability to restrict access to essential metal ions, known as the process of nutritional immunity, which can involve the mobilization of metals to other tissues or the secretion of metal-binding proteins such as calprotectin and the S100 family of proteins [18,19,20]. Transcriptomics studies into the host transcriptional response at active fungal infection sites on WNS-positive bats detect elevated levels of S100 transcripts [21], suggesting that the bat host may be employing a metal-withholding strategy to slow P. destructans propagation on infected tissue. Complementary P. destructans transcriptomics studies have revealed that several high-affinity metal transporter genes are associated with WNS fungal pathology [22]. Together, these transcriptomics studies in addition to the chemical identification of siderophores [23] and riboflavin [24] at P. destructans infection sites indicate that the environmental niche at the host–pathogen interface is devoid of essential transition metal micronutrients.
The ability of pathogenic fungi to scavenge essential copper micronutrients from their host is important for fungal propagation and fungal invasion across host tissues. This copper is needed to supply essential copper cofactors to metalloenzyme virulence factors such as Cu superoxide dismutases (Cu-SODs) [25] and laccases [26]. Fungal pathogens can utilize two primary pathways to scavenge essential copper including the high-affinity copper transporters (CTRs) or isocyanide calkophore small molecules [27,28]. The family of copper transporters (CTRs) is the most conserved and well-studied class of Cu-scavenging proteins in the fungal kingdom and are essential virulence factors in many human-infecting fungal pathogens [29,30]. Recent transcriptomics studies at WNS disease sites have implicated the putative CTR transporter VC83_00191 as an essential virulence factor in P. destructans [22].
In this work, we identify P. destructans VC83_00191, designated as PdCTR1a, as a functional high-affinity copper transporter that participates in the P. destructans Cu stress response. Using baker’s yeast Saccharomyces cerevisiae, we demonstrate that recombinant PdCTR1a localizes to the plasma membrane and can efficiently traffic Cu ions into the yeast cytoplasm. Complementary studies in the native P. destructans fungus indicate that P. destructans PdCTR1a and the second CTR transporter VC83_04814, designated as PdCTR1b, are transcriptionally regulated by Cu stress. Furthermore, we detect the presence of PdCTR1a protein in P. destructans lysates grown under copper-restrictive growth conditions. These data present the first biochemical characterization of putative P. destructans transmembrane protein as virulence factors implicated in WNS disease and the investigation of the copper cell biology P. destructans.

2. Materials and Methods

2.1. Strains and Media

The Saccharomyces cerevisiae strains used in this study include the BY4741 (MATa his3Δ1 leu2Δ0 met15Δ0 ura3Δ0) and BY4741ctr1Δ (MATa his3Δ1 leu2Δ0 met15Δ0 ura3Δ0 ctr1:kanMX) from the Yeast Knockout collection (Horizon Discovery Group plc). Pseudogymnoascus destructans, formally Geomyces destructans MYA-4855 (Strain ID 20631-21), was purchased from the American Tissue Culture Collection (ATCC). All fungi were propagated using YPD or chemically defined growth media. All manipulations with S. cerevisiae and P. destructans were performed at 28 °C or 15 °C, respectively.
Chemically defined Synthetic Complete growth media SC-His and SC-Ura consisted of the base formulation of 1.7 g/L Yeast Nitrogen Base (YNB), 5.0 g/L ammonium sulfate, 20 g/L glucose, 1.83 g/L SC-His-Ura (Sunrise Science Products; Knoxville, TN, USA). One hundred milligrams per liter of uracil (TCI Chemicals; Portland, OR, USA) or L-Histidine (RPI; Mt. Prospect, IL, USA) was added to the SC-base formulation to generate SC-His or SC-Ura respective growth media. Solid-supported agarose SC-His and SC-Ura plates were made by adding 20 g/L agarose and 1 pellet (~200 mg) of sodium hydroxide before autoclave sterilization. SC-His plates containing glycerol and ethanol carbon sources were made in a similar process with 20 g/L agarose, 1.83 g/L SC-His-Ura, 5.0 g/L ammonium sulfate, 100 mg/L uracil, 2% (v/v) ethanol, 2% (v/v) glycerol, and a pellet of sodium hydroxide. Rich YPD growth media consisted of 10 g/L yeast extract, 20 g/L peptone, and 20 g/L glucose; 20 g/L of agarose was added prior to autoclave sterilization to make solid growth plates.

2.2. Bioinformatic Methods

Copper transporter (CTR) homologs from Saccharomyces cerevisiae, Cryptococcus neoformans, and Pseudogymnoascus destructans were retrieved from the NCBI Gene databank with the gene accession identifiers YPR124W, YHR175W, CNAG_00979, CNAG_01872, CNAG_07701 VC83_00191, and VC83_04814. Multiple sequence alignments were performed using Clustal omega [31]. The server DeepTMHMM prediction server (Technical University of Denmark) was used to assign CTR homolog transmembrane domains [32].

2.3. Recombinant Plasmid Construction

The generation of cytosolic cyGFP and PdCTR1a-GFP expression cassettes driven by the S. cerevisiae Ctr1 promoter and terminator was achieved using a synthesized gene block purchased from Twist Bioscience (San Francisco, CA, USA) that was placed in the BSA1-restriction sites of the holding vector pYTK-DN6 (Addgene.org; Watertown, MA, USA) [33]. The native S. cerevisiae Ctr1 promoter consisted of the 610 bp sequence region prior to the Ctr1 start codon and Ctr1 terminator consisted of 510 bp sequence region after the Ctr1 stop codon. The gene block encoding for Pseudogymnoascus destructans CTR1a isoform was codon optimized for S. cerevisiae by Twist Bioscience and was engineered to include a dual Strep-tag II linker between the CTR1a and GFP proteins.
The GFP yeast expression plasmids pAF23 and pAF24 were generated using the PCR-amplified products containing engineered primers oRLP497 and oRLP498 with Spe1/EcoR1-compatible restriction site overhangs after BSA1 restriction enzyme digest. The resulting insert was incorporated into the unique EcoR1 and Spe1 sites in the multi-cloning site of pRS313. The complete sequence of plasmids pAF23 and pAF24 is available in the Supplemental File S2 and these plasmids can be requested from Addgene.org (Watertown, MA, USA).

2.4. Generation of Recombinant Yeast Strains

The plasmids pRS313, pAF23, and pAF24 were transformed using the Li-Acetate PEG transformation protocol [34] into S. cerevisiae BY4741 (WT) and BY4741ctr1Δ (ctr1Δ) yeast backgrounds referred to as WT and ctr1Δ strains from here on forward. The six recombinant S. cerevisiae strains used in this study are overviewed in Table 1.

2.5. Generation of PdCTR1a Anti-Serum

Custom anti-serum products were achieved using the standard 90-New Zealand rabbit antibody services from Cocalico Biologicals, Inc. (Reamstown, PA, USA; Assurance number D16-00398 (A3669-01)). The peptide fragments KARQEARWLDCEMHRRYC and GKPGLRERVALHKDAKC were selected as the PdCTR1a antigen targets and coupled to Keyhole limpet hemocyanin (KLH) as the carrier protein. The co-injection of both PdCTR1a peptide/KLH constructs was used for antibody production in rabbit hosts.

2.6. Flow Cytometry Assays

Yeast strains were cultivated in SC-His medium supplemented with 50 μM CuSO4 and 100 μM Bathocuproine disulfonate (BCS) overnight. The following morning, cells were harvested at an optical density of ~0.8 at 600 nm (OD600) and subsequently diluted 1/10 in Milli-Q water prior to flow cytometry analysis. Cellular GFP fluorescence was quantified using a Beckman Coulter Cytoflex-S flow cytometer using the 488-nm blue laser line and 530/30 nm band-pass (GFP) filter. Data analysis was performed using Foreada (floreada.io); GFP fluorescence intensity was normalized to empty vector yeast given an intensity value of 103 fluorescence units. Mean fluorescence intensity (MFI) was determined in floreada.io using the statistical analysis tool. Statistical analysis was performed on six biological replicates for each culture condition and is shown in Supplemental File S3.

2.7. Dot Blot Assay

Dot blot experiments were performed using freshly prepared yeast cultures grown on SC-His plates at room temperature for 3 days. Cultured yeast was transferred from the growth plate to a microcentrifuge tube containing 1 mL of liquid SC-His media. The OD600 of this solution was acquired using the Cary 60 UV-Vis Spectrophotometer. Samples were normalized to yield 1 mL of a 1 OD600 stock solution in Milli-Q water. Subsequential 1:10 dilutions serial dilutions were made using Milli-Q water and 5 μL of each sample was deposited onto solid SC-His or SC-His with 2% glycerol and 2% ethanol + 5.0 μM supplemental copper sulfate growth plates. The resulting plates were incubated at 28 °C for 5–6 days. Images of the growth plates were captured using a digital camera.

2.8. Western Blot Analysis

Recombinant S. cerevisiae yeast transformants were cultivated in 10 mL of SC-His media at 30 °C to mid-log phase (OD600 = 0.8–1.0). Subsequently, yeast cells were harvested, and total proteins were collected using a trichloroacetic acid (TCA) extraction protocol adapted from Cox et al. [35]. Total protein levels in yeast lysates were estimated using a BCA Protein Assay Kit (Pierce Thermofisher, Rockford, IL, USA) according to the manufacturer’s specifications. SDS-PAGE and Western blot analysis were performed using 100 µg/lane of total protein. For antigen detection, the PVDF membrane was incubated with TSU-8 (PdCTR1a specific) anti-seria at a 1:2000 dilution in 1× TBST containing 1% non-fat milk powder. After incubation, the membrane was washed three times with 1× TBST for 5 min each time. Finally, the membrane was incubated with a secondary antibody, a goat anti-rabbit secondary antibody coupled to Alexa Fluor 647 (AF647) at a 1:10,000 dilution for an hour. Excess secondary antibody was removed by washing the membrane three times with 1X TBST for 5 min each time. Western blot images were collected using a Bio-Rad ChemiDoc MP imaging system. The monoclonal antibodies GF28R (eBioscience) and YL1/2 (Invitrogen) were used to assess total GFP and α-tubulin expression levels, respectively.
Western blot detection of PdCTR1a in its native Pseudogymnoascus destructans host was performed on P. destructans lysates of fungi grown on chemically defined SC-Ura growth plates. P. destructans spores were used to inoculate fresh SC-Ura growth plates alone or SC-Ura growth plates supplemented with 500 µM CuSO4 or 800 µM BCS and cultivated for 10 days at 15 °C. Fungal cells were suspended in 2.0 mL of TE buffer by gently rubbing the mycelium mat with an incubation loop. After harvesting, the cells were washed twice with 1X TE buffer. Protein was extracted using the same trichloroacetic acid (TCA) protocol [35]. A total of 110 µg of protein per lane was loaded onto a 4–12% gradient SDS-PAGE gel. Before transferring the protein to a PVDF membrane, the gels were stained with 4% trichloroethanol (TCE) solution for an hour and then washed once with deionized water [36,37]. The gels were imaged using the Bio-Rad stain-free gel system to assess total protein levels. Following imaging, the gels were transferred to a PVDF membrane using an iBlot 3 Western Blot Transfer System. The subsequent steps were similar to the yeast Western blotting protocol described above using TSU-8 anti-sera (1:2000 dilution) and a goat anti-rabbit AF647 conjugated secondary antibody.

2.9. ICP-MS

Yeast strains were cultured overnight in 50 mL of Sc-His media at 30 °C until reaching an OD600 nm of approximately 0.8 to 1.0. The cells were harvested by centrifugation and washed sequentially with 1× TE buffer and then with Milli-Q water to remove residual media components and buffer salts. Subsequently, the washed cell pellet was resuspended in 1 mL of Milli-Q water, and the OD600 was recorded for cell density estimation. For metal ion analysis, 500 µL of the resuspended cells was mixed with 500 µL of 67–70% nitric acid (TraceMetal grade) and incubated at 75 °C for 1 h, at which time 250 µL of 30% hydrogen peroxide (H2O2) was added. The following mixture was heated to 95 °C for 1 h or until the yeast was fully digested. The volume was adjusted to 10 mL with Milli-Q water after cooling the digested solution to room temperature. The final metal concentration was determined using Agilent 8900 Inductively Coupled Plasma–Mass Spectrometer (ICP-MS), using a 23 multi-element standard IV (Centipur / Merck KGaA, Darmstadt, Germany).

2.10. RT-qPCR

The fungus P. destructans was cultured for 10 days on 1.5% agar-supported SC-Ura media under three conditions: Control (SC-Ura), high copper (SC-Ura + 500 µM CuSO4), and low copper (SC-Ura + 800 µM BCS). After cultivation, cells were harvested and washed with 1× TE buffer to remove residual media components. Total RNA was extracted using the TRIZOL method according to the manufacturer’s specifications. Subsequently cDNA libraries were synthesized using the NEB LunaScript® RT SuperMix Kit following the manufacturer’s guidelines using 100 ng of total P. destructans RNA as an input. The resulting cDNA library was diluted 20-fold and used as a template for real-time quantitative-PCR (qPCR) analysis. A typical 20 µL qPCR reaction consisted of 10 µL of Luna Universal qPCR Master Mix (2×), 0.5 µL each of forward and reverse primers (see SI Table S2) (10 µM each, resulting in 0.25 µM final concentration each), and 2 µL of cDNA template. The qPCR cycling protocol included an initial denaturation step at 95 °C for 60 s, followed by denaturation at 95 °C for 15 s for 40–45 cycles. Each cycle included an extension step at 60 °C for 30 s, with fluorescence detection using the FAM scan mode on the real-time instrument. Post-cycling, a melt curve analysis was conducted by heating from 60 °C to 95 °C with varied time intervals to assess PCR product specificity. The resulting data were analyzed using the ΔΔCt method using P. destructans actin transcripts (VC83_07844) as a reference gene standard [38].

2.11. Yeast Fixation for Microscopy

The fixation of yeast was performed as described by Uzunova et al. [39] Briefly, yeast samples were grown overnight in SC-His liquid media supplemented with 100 μM BCS to an OD600 value of 0.8–1.0. One mL of the culture was spun at 3000× g at 4 °C for 10 min. The supernatant was discarded and the resulting yeast pellet was suspended in 100 μL of paraformaldehyde-sucrose solution (4 g/100 mL paraformaldehyde, 3.4 g/100 mL sucrose). The samples were vortexed for 5–15 s. The samples were then incubated at room temperature for 15 min. Following incubation, the samples were spun at 3000× g for 1 min. The supernatant was removed, and the yeast pellet was washed using 500 μL of potassium phosphate and sorbitol solution (1.20 M sorbitol, 0.1 M potassium phosphate, pH = 7.5) and stored for up to 4 weeks at 4 °C protected from light. ProLong Gold Antifade mounting media with DAPI (Invitrogen, Eugene, OR, USA) was added to a microscope slide. To the droplet, 2–5 μL of the stored, fixed cells were added and mixed. The cover slip was added and sealed with clear nail polish. Microscope images were collected on a Zeiss Axio Observer 7 system (Oberkochen, Germany) at 1000× total magnification equipped with an 820 monochrome digital camera, aptotome-3, and DAPI/GFP filter sets. The Zeiss Zen 3.10 software package was used for image processing.

3. Results

3.1. Identification of PdCTR Homologs

The family of high-affinity copper transporters (CTRs) facilitates the trafficking of reduced Cu(I) ions across the plasma membrane using characteristic N-terminal MXXM/MXM Cu-binding motifs and three plasma membrane-spanning alpha helix domains. Analysis of the P. destructions genome for CTR homologs identifies two putative CTR genes, VC83_00191(PdCTR1a) and VC83_04814(PdCTR1b). The PdCTR1a and PdCTR1b isoforms are 206 and 149 amino acids in size, respectively, and display 23% sequence identity. Similar to structural similarity observed in the CTR isoforms found in Saccharomyces cerevisiae and Cryptococcus neoformans, PdCTR isoforms display three predicted transmembrane domains and a methionine-rich region at their N-terminus (Figure 1a). There are two distinct N-terminal methionine-rich regions found in PdCTR1a, which are flanking a series of flexible GSSH motifs that may assist in extracellular Cu-binding (Figure 1b) [40,41]. Conserved methionine residues, which can assemble the Cu–methionine selectivity filter to discriminate against oxidized Cu2+ and reduced Cu+ ions in mature cell surface trimeric CTR assemblies, are present and can be found in the second transmembrane helix domain and are predicted to localize near the cell surface (Figure 1b,c) [41,42]. Multiple sequence alignment of P. destructans, S. cerevisiae, and C. neoformans CTR isoforms cluster suggest PdCTR1a is closely related to the high-affinity CTR1 Cu-transporter found in C. neoformans, whereas PdCTR1b is most closely related to the low-affinity Cu transporter CTR2 found in S. cerevisiae (Figure 1d and Supplemental Figure S1). Together, these data support that the P. destructans genome encodes for two putative CTR genes that can be used to capture extracellular copper to fulfill its basic nutritional copper requirements.

3.2. Recombinant Expression of PdCTR1a-GFP in Saccharomyces cerevisiae

To test the functionality of PdCTR1 isoforms, we constructed a pRS313-based plasmid system using the native S. cerevisiae Ctr1 promoter and terminator to drive the recombinant expression of cytosolic GFP or the PdCTR1a-GFP fusion protein (see Supplemental File S2 for plasmid information). This strategy relies on the Cu-sensing MAC1 transcription factor to drive recombinant expression only under Cu-deficient growth conditions, thereby avoiding the transcription of recombinant proteins and when cellular Cu quotas are sufficient [43]. Flow cytometry analysis of S. cerevisiae BY4741 (WT) and BY4741ctr1Δ (ctr1Δ) yeast transformed with empty vector (i.e., pRS313) or the recombinant expression of cytosolic GFP or PdCTR1a-GFP driven by the Ctr1 promoter display distinct fluorescence profiles when cultured under different copper stress conditions in Synthetic Complete-Histidine (SC-His) growth media (Figure 2). In all experimental conditions, logarithmic yeast cultures harboring GFP expression cassettes exhibit an approximate 5–100-fold increase in GFP fluorescence intensity when compared to the empty vector controls. The highest levels of GFP fluorescence were found in yeast grown in the presence of 100 μΜ of the copper chelator BCS (Figure 2c). Both WT and ctr1Δ yeast backgrounds display comparable and non-significant differences in expression levels for each plasmid construct when cultured with BCS. Cytosolic GFP expression strains display the highest GFP levels with mean fluorescence intensity (MFI) of approximately 3 × 105 units, and the PdCTR1a-GFP construct is slightly lower at approximately 0.75 × 105 units. This suggests that the Cu-sensing MAC1 transcription factor is active and the Ctr1 promoter can drive recombinant GFP construct across the two yeast backgrounds. However, supplementing SC-His growth media with 50 μM copper sulfate leads to minimal GFP fluorescence profiles in both WT and ctr1Δ yeast, with approximately a 5–10-fold increase when compared to empty vector control strains (Figure 2b). This implies that cellular copper levels are sufficient to repress MAC1 transcription factor binding to the Ctr1 promoter under growth conditions supplemented with excess copper sulfate in both the WT and ctr1Δ yeast backgrounds.
Further growth experiments in standard SC-His growth media alone reveal that the Ctr1 promoter is active in both WT and ctr1Δ yeast backgrounds due to elevated production of cyGFP (Figure 2a). An approximately 2.5-fold increase in MFI cyGFP levels is detected in ctr1Δ yeast vs. the WT control strain. The similar MFI for cyGFP of 3.5 × 105 fluorescence intensity units in ctr1Δ yeast cultured in SC-His and SC-His + BCS media is consistent with the notion that ctr1Δ are Cu-deficient when cultured in standard SC-His media. However, no significant difference in GFP MFI levels is detected when PdCTR1a-GFP is expressed in WT and ctr1Δ yeast backgrounds (Figure 2a). The ability of PdCTR1a-GFP within a ctr1Δ yeast background to yield similar levels of GFP found in WT yeast strains suggests PdCTR1a-GFP can restore intracellular Cu levels closer to wild-type levels and is a functional copper permease.
The localization patterns of PdCTR1a-GFP fusion protein were determined using fluorescence microscopy on fixed WT and ctr1Δ yeast samples grown in SC-His supplemented with 100 μM BCS (Figure 3). Imaging of the empty vector or plasmids encoding for the recombinant expression of cytosolic GFP control strains was also performed (Figure 3). In PdCTR1a-GFP expressing strains, we observe diffuse and low levels of GFP fluorescence that localize to the perinuclear region and/or cellular surface compartment. These PdCTR1a-GFP localization patterns are distinct from the cytosolic GFP expression strains that display large levels of GFP fluorescence signals and are located throughout the cytoplasm. Together, these data indicate that PdCTR1a-GFP fusion protein is stably expressed in BY4741 yeast and the PdCTR1a protein may be associated with plasma membranes.
To validate the expression fidelity of the PdCTR1a-GFP fusion protein, we examined the cellular contents of all yeast strains constructed under Cu-limited growth conditions by Western blot. Based on flow cytometry analysis, we anticipated observing similar levels of cytosolic GFP or PdCTR1a-GFP protein across the WT and ctr1Δ yeast backgrounds. In fact, we observe a cytosolic GFP protein band migrating at approximately 34 kDa and a band corresponding to the PdCTR1a-GFP fusion protein migrating at approximately 55 kDa when probed with an anti-GFP-specific antibody (Figure 4b). The successful expression of the PdCTR1a-GFP fusion protein is further supported by Western immunoblot detection of the PdCTR1a-GFP fusion protein using anti-PdCTR1a serum against raised against PdCTR1a residues K86-Y102 and G107-K122 (Figure 4b). These data, in conjunction with the flow cytometry and imagining studies, support the notion that S. cerevisiae can serve as a recombinant host for the study of Pd copper transporters.

3.3. PdCTR1a-GFP Complements Saccharomyces Cerevisiae BY4741ctr1Δ to Increase Cu Fitness Under Cu Stress Conditions

Due to the similarities between PdCTR1a isoforms and other high-affinity CTR homologs, we tested the ability of PdCTR1a to complement the Cu respiratory growth defect in ctr1Δ yeast (Figure 4a) [40,41,44,45]. Whereas both WT and ctr1Δ yeast grow efficiently on glucose media, when grown on nonfermentable carbon sources (i.e., EtOH/glycerol), ctr1Δ yeast cannot fulfill the cellular copper quota needed to efficiently load cytochrome C oxidase for efficient respiration [46]. Poor growth behavior is even observed in BY4741ctr1Δ yeast, with an additional 5 μM copper sulfate added to SC-His EtOH/glycerol growth conditions. However, the expression of the PdCTR1a-GFP in ctr1Δ yeast can partially rescue this Cu-respiratory growth defect (Figure 4a), presumably by increasing total cellular copper levels. To test this notion, we quantified the total cellular copper levels of all yeast strains constructed under Cu-replete and Cu-limited growth conditions. No significant difference in cellular Cu levels are found between WT and ctr1Δ yeast when they are grown under Cu-replete growth conditions. All strains display an average cellular copper level of approximately 2 × 10−11 moles Cu/OD (Figure 4c). However, when challenged with low levels of the extracellular copper chelator BCS, ctr1Δ yeast harboring empty vectors and cytosolic GFP vectors exhibit approximately a four-fold reduction in cellular copper levels. This behavior is not observed in the ctr1Δ yeast that is capable of expressing PdCTR1a-GFP where total cellular copper content remains near wild-type levels, suggesting that the PdCTR1a-GFP is functionally redundant to S. cerevisiae Ctr1 protein (Ctr1p) under the tested Cu stress growth conditions.

3.4. Characterization of PdCTR1 Isoforms in P. destructans Under Cu Stress Growth Conditions

The presence of two CTR1 isoforms, PdCTR1a and PdCTR1b, in the P. destructans genome, suggests they have the capacity to participate in fungal copper homeostasis, but their roles in their native fungal host are not defined. Thus, we next turned to characterize the transcriptional response of PdCTR1a and PdCTR1b genes in P. destructans under copper stress growth conditions using chemically defined SC-Ura growth media. The transcriptional regulation of PdCTR1a and PdCTR1b genes under control, high copper, and Cu-withholding growth conditions using PdActin (VC83_07844) as an internal reference standard is displayed in Figure 5a. Here, both PdCTR1 isoforms display similar trends in transcriptional control based on copper bioavailability. We find that adding the copper chelator BCS leads to a 7.1 increase in PdCTR1a transcripts and a 6.5 increase in PdCTR1b transcripts levels versus control conditions, whereas the addition of copper sulfate to the growth media represses both PdCTR1a and PdCTR1b total transcript levels. The PdCTR1a isoform, however, is more severely impacted by added copper. An approximate 33-fold reduction in PdCTR1a transcripts and 2.5-fold reduction in PdCTR1b transcripts, respectively, are found versus control SC-Ura growth conditions. Together, these data suggest that the PdCTR1a and PdCTR1b transcripts are regulated by a copper-sensing transcription factor.
Based on the recombinant PdCTR1a-GFP expression experiments performed in S. cerevisiae, there was the opportunity to use the validated PdCTR1a anti-serum to probe PdCTR1a expression levels in its native P. destructans fungal host. We performed Western immunoblot analysis of P. destructans whole-cell lysates using TSU8 PdCTR1a anti-serum to probe for PdCTR1a expression levels and used TCE staining to assess total protein loading levels (Figure 5b). Probing with TSU8 serum, we identify a consistent band at ~55 kDa that is found in all P. destructans lysates. However, when P. destructans is cultured with the Cu chelator BCS, we identified a new and unique protein band at ~30 kDa, which we attribute to PdCTR1a protein. Taken together with the qRT-PCR experiments in Pd, PdCTR1a is a biomarker for Cu-withholding stress at both the transcriptional and translational levels.

4. Discussion

The family of Cu transporters (CTRs) plays important roles in the import of essential Cu micronutrients across lipid bilayers into the cytosolic of eukaryotic cells from yeast to man [47,48]. To adapt and survive in animal hosts, many infectious fungal pathogens often have redundant high-affinity CTR transporters to scavenge copper from extracellular copper pools to fulfill their basic copper metabolic requirements over the course of host colonization and infection [14]. Thus, CTR transporters, along with several copper metalloenzymes, including Cu/Zn-SODs [49,50,51] and laccases [52,53] which the copper CTR transporters supply, are important virulence factors in many animal-infecting fungal pathogens. Recent RNA-Seq studies on active P. destructans infection sites of white-nose syndrome bats suggest P. destructans is starved of trace metal micronutrients [21,22]. The presence of elevated transcripts of S100 proteins suggests the bat host may be employing a mechanism of nutritional immunity to limit essential metal micronutrient availability to limit P. destructans growth. Similar transcriptomic studies aimed at describing how the P. destructans transcriptome changes during bat-host colonization have identified PdCTR1a as an essential virulence factor to assist in trace copper acquisition [22]. This paper describes the biochemical characterization of the virulence factor PdCTR1a using S. cerevisiae as a model system and in the P. destructans native host.
The metal cell biology of baker’s yeast Saccharomyces cerevisiae is well defined, and it is an excellent recombinant protein expression platform for studying the basic function of protein homologs in organisms, like P. destructans, which lack easily accessible genetic manipulation technologies. The genome of the laboratory BY4741 yeast strain encodes for two functional CTR transporter proteins: Ctr1p and Ctr2p. The Ctr1p transporter is the primary high-affinity Cu transporter that supplies most copper import during low-copper growth conditions and contains a C-terminal regulon [54] that is degraded in the presence of high copper levels [55], whereas Ctr2p primarily localizes to the vacuole [56] and may assist in mobilizing intracellular copper pools or as a low-affinity Cu transporter when localized to the plasma membrane [57]. Localization studies with recombinant PdCTR1a-GFP suggest that PdCTR1a is trafficked as a functional Cu transporter to the S. cerevisiae cell surface plasma membrane to deliver copper to the cytoplasm. The ability to rescue the Cu respiratory growth defect in ctr1Δ yeast corroborates this cell surface localization pattern and our ICP-MS studies with ctr1Δ yeast grown in the presence of the Cu chelator BCS validates PdCTR1a copper trafficking activity. Our observations describing PdCTR1a-GFP activity in BY4741ctr1Δ yeast are comparable to other studies that have been used to assign a function to high-affinity Cu transporters from other eukaryote species [40,41,44,45,58]. However, in our experiments, PdCTR1a-GFP requires low levels of supplemental Cu (i.e., 5 μM) to restore this respiratory growth defect. We interpret these results as our recombinant expression construct using the S. cerevisiae Ctr1 promoter results in lower levels of recombinant protein to the strong constitutively GPD promoter used in previous studies [40,42,43,44]. An alternative explanation for the need for low levels of supplemental copper could be that PdCTR1a has a lower affinity for Cu than the native S. cerevisiae Ctr1p or that an additional protein cofactor is needed to assist in Cu delivery to PdCTR1a. In Cryptococcus neoformans, the glycophosphatidyl inositol (GPI) anchor protein Bim1p was shown to assist in high-affinity Cu delivery to its Ctr1 homolog [59]. Surprisingly, the P. destructans genome also encodes for three Bim1p homologs, and one or more Bim1p homologs may be needed to assist in boosting PdCTR1a Cu trafficking activity.
Our study also describes the transcriptional regulation of PdCTR1a and PdCTR1b isoforms in the native P. destructans fungus. We find that both CTR isoforms are transcriptionally active and likely participate in the Cu stress response. In Saccharomyces cerevisiae, the regulation of ctr1 and ctr2 transcripts are controlled through different transcription factors. High affinity CTR1 transcript levels are regulated through the Cu-sensing Mac1 [43] transcription factor under copper deficiency, whereas CTR2 transcript levels respond to iron and copper withholding stress [60,61]. Our data are consistent with the notion that both PdCTR1a and PdCTR1b isoforms respond to copper withholding stress in the native P. destructans fungus. However, the identity of this transcription factor is not clear. We cannot identify Cu-binding consensus sequences for MAC1 (5′-TTTGC(T/G)C(A/G)-3′) [62] and CUF1 (‘5-AA(T/G)GGC(T/G)C-3′) [63] nor CuSE (5′-D(T/A)DDHGCTGD-3′) [64] in the PdCTR1a and PdCTR1b promoter region. This may infer that P. destructans uses another Cu-sensing transcription factor(s) or an alternative Cu-responsive element sequence. Further studies are needed to identify the transcription factors or elements that regulate PdCTR1a and PdCTR1b transcription levels.
In the native P. destructans fungus, we were also able to detect PdCTR1a protein under conditions that correlated with the transcriptional regulation patterns observed in our RT-qPCR study. We observe a unique band at approximately 30 kDa, which we assign to PdCTR1a, when P. destructans is cultured with the Cu chelator BCS. While we anticipate the primary driver for high-affinity CTR transporters is at the transcriptional level, regulation of CTR activity and stability can be influenced at the post-translational level, specifically at the C-terminus [54,65]. Previous studies with S. cerevisiae showed that CTR1p turnover is largely regulated by the E3 ubiquitin ligase Rsp5 targeting two lysine residues at the C-terminal region in response to sudden cellular copper flux [55]. While the predicted C-terminal domain of PdCTR1a does not encode for any lysine residues past the third predicted transmembrane, there are several potential lysine residues in the cytosolic region between the first and second transmembrane that may participate in modulating PdCTR1a protein turnover in the native P. destructans fungus. Additionally, both PdCTR1a and PdCTR1b isoforms contain the possible copper metal binding sequences EGH and ACH, respectively, at their C-terminus, which may facilitate Cu delivery to Cu chaperones such as Atox1 [65]. Further studies into the mechanisms of PdCTR1a protein trafficking and degradation are important for P. destructans copper homeostasis and they should be addressed in future studies.

5. Conclusions

In summary, this report describes the biochemical and metal cell biology of P. destructans PdCTR1a which has been implemented as an essential fungal virulence factor. Recombinant studies in S. cerevisiae confirm that PdCTR1a is a bonafide high-affinity copper transporter that can localize to the cell surface plasma to import essential Cu micronutrients. Complementary studies in the native P. destructans fungus provide evidence that PdCTR1a transcripts are regulated by copper bioavailability in the growth media and PdCTR1a protein can be detected in P. destructans cultured under Cu-restrictive growth conditions. Our data support the notion that PdCTR1a can be used as a biomarker for P. destructans Cu stress in white-nose syndrome samples.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jof10100729/s1. Supplemental File S1. Multiple sequence alignments of CTR homologs from P. destructans, S. cerevisiae, and C. neoformans. Supplemental File S2. Information on the plasmids used in this study. Supplemental File S3. Flow cytometry histograms of recombinant yeast strains used in this study cultured under Cu stress conditions; Supplemental Figure S1. Flow cytometry of recombinant Saccharomyces cerevisiae strains. GFP fluorescence profiles of BY4741 (WT) and BY4741ctr1Δ (ctr1Δ) yeast harboring empty vector (EV), cytosolic-GFP (CyGFP) or PdCTR1A-GFP under the control of the S. cerevisiae Ctr1 promoter and terminator. Yeast was grown to the log phase in SC-His under varying Cu-stress conditions: (a) control (i.e., SC-His), (b) SC-His + 50 μM Cu-sulfate, (c) SC-His + 100 μM BCS. A total of 10,000 events are displayed per trace. Traces are normalized to the background fluorescence of yeast harboring the pRS313 empty vector plasmid alone set to an intensity of ~1 × 103 eGFP fluorescent units; Supplemental Table S1: Calculated mean fluorescence intensity for flow cytometry histograms. Supplemental Table S2. List of primers used in this study.

Author Contributions

Conceptualization, A.D.F., S.A. and R.L.P.; methodology, A.D.F., S.A. and R.L.P.; validation, A.D.F., S.A. and R.L.P.; formal analysis, A.D.F., S.A. and R.L.P.; investigation, A.D.F., S.A. and R.L.P.; resources, A.D.F., S.A. and R.L.P.; data curation, A.D.F., S.A. and R.L.P.; writing—original draft, A.D.F., S.A. and R.L.P.; writing—review and editing, A.D.F., S.A. and R.L.P.; visualization, A.D.F., S.A. and R.L.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported through grants from the NIH (Grant Number R16GM14716; T34GM136483; R25GM102783) and the NSF (Grant Number: 1757843).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors on request.

Acknowledgments

We would also like to thank L.K. Lewis for the yeast strains and plasmids used in this study, as well as Hugo Perdrozo and Verónica Contreras-Shannon for helpful discussions. A.D.F., S.A. and R.L.P. would like to thank the Texas State University for financial support.

Conflicts of Interest

The authors declare that no conflicts of interest exist.

References

  1. Pikula, J.; Amelon, S.K.; Bandouchova, H.; Bartonička, T.; Berkova, H.; Brichta, J.; Hooper, S.; Kokurewicz, T.; Kolarik, M.; Köllner, B.; et al. White-nose syndrome pathology grading in nearctic and palearctic bats. PLoS ONE 2017, 12, e0180435. [Google Scholar] [CrossRef] [PubMed]
  2. Lorch, J.M.; Meteyer, C.U.; Behr, M.J.; Boyles, J.G.; Cryan, P.M.; Hicks, A.C.; Ballmann, A.E.; Coleman, J.T.H.; Redell, D.N.; Reeder, D.M.; et al. Experimental infection of bats with Geomyces destructans causes white-nose syndrome. Nature 2011, 480, 376–378. [Google Scholar] [CrossRef] [PubMed]
  3. Gargas, A.; Trest, M.T.; Christensen, M.; Volk, T.J.; Blehert, D.S. Geomyces destructans sp. nov. associated with bat white-nose syndrome. Mycotaxon 2009, 108, 147–154. [Google Scholar] [CrossRef]
  4. Lorch, J.M.; Palmer, J.M.; Lindner, D.L.; Ballmann, A.E.; George, K.G.; Griffin, K.; Knowles, S.; Huckabee, J.R.; Haman, K.H.; Anderson, C.D.; et al. First Detection of Bat White-Nose Syndrome in Western North America. mSphere 2016, 1, e00148-16. [Google Scholar] [CrossRef]
  5. Available online: https://www.whitenosesyndrome.org (accessed on 15 August 2024).
  6. Blehert, D.S.; Hicks, A.C.; Behr, M.; Meteyer, C.U.; Berlowski-Zier, B.M.; Buckles, E.L.; Coleman, J.T.H.; Darling, S.R.; Gargas, A.; Niver, R.; et al. Bat White-Nose Syndrome: An Emerging Fungal Pathogen? Science 2009, 323, 227. [Google Scholar] [CrossRef]
  7. Frick, W.F.; Pollock, J.F.; Hicks, A.C.; Langwig, K.E.; Reynolds, D.S.; Turner, G.G.; Butchkoski, C.M.; Kunz, T.H. An emerging disease causes regional population collapse of a common North American bat species. Science 2010, 329, 679–682. [Google Scholar] [CrossRef]
  8. Raudabaugh, D.B.; Miller, A.N. Nutritional Capability of and Substrate Suitability for Pseudogymnoascus destructans, the Causal Agent of Bat White-Nose Syndrome. PLoS ONE 2013, 8, e78300. [Google Scholar] [CrossRef]
  9. Urbina, J.; Chestnut, T.; Allen, J.M.; Levi, T. Pseudogymnoascus destructans growth in wood, soil and guano substrates. Sci. Rep. 2021, 11, 763. [Google Scholar] [CrossRef]
  10. Fischer, N.M.; Dool, S.E.; Puechmaille, S.J. Seasonal patterns of Pseudogymnoascus destructans germination indicate host-pathogen coevolution. Biol. Lett. 2020, 16, 20200177. [Google Scholar] [CrossRef]
  11. Meteyer, C.U.; Dutheil, J.Y.; Keel, M.K.; Boyles, J.G.; Stukenbrock, E.H. Plant pathogens provide clues to the potential origin of bat white-nose syndrome. Virulence 2022, 13, 1020–1031. [Google Scholar] [CrossRef]
  12. Casadevall, A.; Pirofski, L.A. Accidental virulence, cryptic pathogenesis, martians, lost hosts, and the pathogenicity of environmental microbes. Eukaryot. Cell 2007, 6, 2169–2174. [Google Scholar] [CrossRef] [PubMed]
  13. Davy, C.M.; Donaldson, M.E.; Bandouchova, H.; Breit, A.M.; Dorville, N.A.S.; Dzal, Y.A.; Kovacova, V.; Kunkel, E.L.; Martinkova, N.; Norquay, K.J.O.; et al. Transcriptional host-pathogen responses of Pseudogymnoascus destructans and three species of bats with white-nose syndrome. Virulence 2020, 11, 781–794. [Google Scholar] [CrossRef] [PubMed]
  14. Besold, A.N.; Culbertson, E.M.; Culotta, V.C. The Yin and Yang of copper during infection. J. Biol. Inorg. Chem. 2016, 21, 137–144. [Google Scholar] [CrossRef] [PubMed]
  15. García-Santamarina, S.; Thiele, D.J. Copper at the fungal pathogen-host axis. J. Biol. Chem. 2015, 290, 18945–18953. [Google Scholar] [CrossRef]
  16. Gerwien, F.; Skrahina, V.; Kasper, L.; Hube, B.; Brunke, S. Metals in fungal virulence. FEMS Microbiol. Rev. 2018, 42, fux050. [Google Scholar] [CrossRef]
  17. Solomon, E.I.; Heppner, D.E.; Johnston, E.M.; Ginsbach, J.W.; Cirera, J.; Qayyum, M.; Kieber-Emmons, M.T.; Kjaergaard, C.H.; Hadt, R.G.; Tian, L. Copper active sites in biology. Chem. Rev. 2014, 114, 3659–3853. [Google Scholar] [CrossRef]
  18. Hennigar, S.R.; McClung, J.P. Nutritional Immunity: Starving Pathogens of Trace Minerals. Am. J. Lifestyle Med. 2014, 10, 170–173. [Google Scholar] [CrossRef]
  19. Hood, M.I.; Skaar, E.P. Nutritional immunity: Transition metals at the pathogen-host interface. Nat. Rev. Microbiol. 2012, 10, 525–537. [Google Scholar] [CrossRef]
  20. Kehl-Fie, T.E.; Skaar, E.P. Nutritional immunity beyond iron: A role for manganese and zinc. Curr. Opin. Chem. Biol. 2010, 14, 218–224. [Google Scholar] [CrossRef]
  21. Field, K.A.; Johnson, J.S.; Lilley, T.M.; Reeder, S.M.; Rogers, E.J.; Behr, M.J.; Reeder, D.A.M. The White-Nose Syndrome Transcriptome: Activation of Anti-fungal Host Responses in Wing Tissue of Hibernating Little Brown Myotis. PLoS Pathog. 2015, 11, 1005168. [Google Scholar] [CrossRef]
  22. Reeder, S.M.; Palmer, J.M.; Prokkola, J.M.; Lilley, T.M.; Reeder, D.A.M.; Field, K.A. Pseudogymnoascus destructans transcriptome changes during white-nose syndrome infections. Virulence 2017, 8, 1695–1707. [Google Scholar] [CrossRef] [PubMed]
  23. Mascuch, S.J.; Moree, W.J.; Hsu, C.C.; Turner, G.G.; Cheng, T.L.; Blehert, D.S.; Kilpatrick, A.M.; Frick, W.F.; Meehan, M.J.; Dorrestein, P.C.; et al. Direct detection of fungal siderophores on bats with white-nose syndrome via fluorescence microscopy-guided ambient ionization mass spectrometry. PLoS ONE 2015, 10, 119668. [Google Scholar] [CrossRef] [PubMed]
  24. Flieger, M.; Bandouchova, H.; Cerny, J.; Chudiéková, M.; Kolarik, M.; Kovacova, V.; Martínková, N.; Novák, P.; Šebesta, O.; Stodùlková, E.; et al. Vitamin B2 as a virulence factor in Pseudogymnoascus destructans skin infection. Sci. Rep. 2016, 6, srep33200. [Google Scholar] [CrossRef] [PubMed]
  25. Broxton, C.N.; Culotta, V.C. SOD Enzymes and Microbial Pathogens: Surviving the Oxidative Storm of Infection. PLoS Pathog. 2016, 12, 8–13. [Google Scholar] [CrossRef]
  26. Zhu, X.; Williamson, P.R. Role of laccase in the biology and virulence of Cryptococcus neoformans. FEMS Yeast Res. 2004, 5, 1–10. [Google Scholar] [CrossRef]
  27. Nickles, G.R.; Oestereicher, B.; Keller, N.P.; Drott, M.T. Mining for a new class of fungal natural products: The evolution, diversity, and distribution of isocyanide synthase biosynthetic gene clusters. Nucleic Acids Res. 2023, 51, 7220–7235. [Google Scholar] [CrossRef]
  28. Won, T.H.; Bok, J.W.; Nadig, N.; Venkatesh, N.; Nickles, G.; Greco, C.; Lim, F.Y.; González, J.B.; Turgeon, B.G.; Keller, N.P.; et al. Copper starvation induces antimicrobial isocyanide integrated into two distinct biosynthetic pathways in fungi. Nat. Commun. 2022, 13, 4828. [Google Scholar] [CrossRef]
  29. Sun, T.S.; Ju, X.; Gao, H.L.; Wang, T.; Thiele, D.J.; Li, J.Y.; Wang, Z.Y.; Ding, C. Reciprocal functions of Cryptococcus neoformans copper homeostasis machinery during pulmonary infection and meningoencephalitis. Nat. Commun. 2014, 5, 5550. [Google Scholar] [CrossRef]
  30. Mackie, J.; Szabo, E.K.; Urgast, D.S.; Ballou, E.R.; Childers, D.S.; MacCallum, D.M.; Feldmann, J.; Brown, A.J.P. Host-Imposed Copper Poisoning Impacts Fungal Micronutrient Acquisition during Systemic. Infections. PLoS ONE 2016, 11, e0158683. [Google Scholar] [CrossRef]
  31. Sievers, F.; Higgins, D.G. Clustal Omega, accurate alignment of very large numbers of sequences. Methods Mol. Biol. 2014, 1079, 105–116. [Google Scholar] [CrossRef]
  32. Hallgren, J.; Tsirigos, K.D.; Pedersen, M.D.; Armenteros, J.J.A.; Marcatili, P.; Nielsen, H.; Krogh, A.; Winther, O. DeepTMHMM predicts alpha and beta transmembrane proteins using deep neural networks. Bioarchives 2022. [Google Scholar] [CrossRef]
  33. Novarina, D.; Koutsoumpa, A.; Milias-Argeitis, A. A user-friendly and streamlined protocol for CRISPR/Cas9 genome editing in budding yeast. Star. Protoc. 2022, 3, 101358. [Google Scholar] [CrossRef] [PubMed]
  34. Gietz, R.D.; Schiestl, R.H. High-efficiency yeast transformation using the LiAc/SS carrier DNA/PEG method. Nat. Protoc. 2007, 2, 31–34. [Google Scholar] [CrossRef] [PubMed]
  35. Cox, J.S.; Chapman, R.E.; Walter, P. The unfolded protein response coordinates the production of endoplasmic reticulum protein and endoplasmic reticulum membrane. Mol. Biol. Cell 1997, 8, 1805–1814. [Google Scholar] [CrossRef]
  36. Chudakov, D.M.; Matz, M.V.; Lukyanov, S.; Lukyanov, K.A. Fluorescent proteins and their applications in imaging living cells and tissues. Physiol. Rev. 2010, 90, 1103–1163. [Google Scholar] [CrossRef]
  37. Chopra, A.; Willmore, W.G.; Biggar, K.K. Protein quantification and visualization via ultraviolet-dependent labeling with 2,2,2-trichloroethanol. Sci. Rep. 2019, 9, 13923. [Google Scholar] [CrossRef]
  38. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  39. Uzunova, S.D.; Zarkov, A.S.; Ivanova, A.M.; Stoynov, S.S.; Nedelcheva-Veleva, M.N. The subunits of the S-phase checkpoint complex Mrc1/Tof1/Csm3: Dynamics and interdependence. Cell Div. 2014, 9, 4. [Google Scholar] [CrossRef]
  40. Zhou, H.; Thiele, D.J. Identification of a Novel High Affinity Copper Transport Complex in the Fission Yeast Schizosaccharomyces pombe. J. Biol. Chem. 2001, 276, 20529–20535. [Google Scholar] [CrossRef]
  41. Puig, S.; Lee, J.; Lau, M.; Thiele, D.J. Biochemical and genetic analyses of yeast and human high affinity copper transporters suggest a conserved mechanism for copper uptake. J. Biol. Chem. 2002, 277, 26021–26030. [Google Scholar] [CrossRef]
  42. Ren, F.; Logeman, B.L.; Zhang, X.; Liu, Y.; Thiele, D.J.; Yuan, P. X-ray structures of the high-affinity copper transporter Ctr1. Nat. Commun. 2019, 10, 1386. [Google Scholar] [CrossRef] [PubMed]
  43. Peña, M.M.O.; Koch, K.A.; Thiele, D.J. Dynamic Regulation of Copper Uptake and Detoxification Genes in Saccharomyces cerevisiae. Mol. Cell. Biol. 1998, 18, 2514–2523. [Google Scholar] [CrossRef] [PubMed]
  44. Pena, M.M.O.; Puig, S.; Thiele, D.J. Characterization of the Saccharomyces cerevisiae high affinity copper transporter Ctr3. J. Biol. Chem. 2000, 275, 33244–33251. [Google Scholar] [CrossRef] [PubMed]
  45. Riggio, M.; Lee, J.; Scudiero, R.; Parisi, E.; Thiele, D.J.; Filosa, S. High affinity copper transport protein in the lizard Podarcis sicula: Molecular cloning, functional characterization and expression in somatic tissues, follicular oocytes and eggs. Biochim. Biophys. Acta—Gene Struct. Expr. 2002, 1576, 127–135. [Google Scholar] [CrossRef]
  46. Glerum, D.M.; Shtanko, A.; Tzagoloff, A. Characterization of COX17, a yeast gene involved in copper metabolism and assembly of cytochrome oxidase. J. Biol. Chem. 1996, 271, 14504–14509. [Google Scholar] [CrossRef]
  47. Smith, A.D.; Logeman, B.L.; Thiele, D.J. Copper Acquisition and Utilization in Fungi. Annu. Rev. Microbiol. 2017, 71, 597–623. [Google Scholar] [CrossRef]
  48. Festa, R.A.; Thiele, D.J. Copper: An essential metal in biology. Curr. Biol. 2011, 21, R877–R883. [Google Scholar] [CrossRef]
  49. Cox, G.M.; Harrison, T.S.; McDade, H.C.; Taborda, C.P.; Heinrich, G.; Casadevall, A.; Perfect, J.R. Superoxide dismutase influences the virulence of Cryptococcus neoformans by affecting growth within macrophages. Infect. Immun. 2003, 71, 173–180. [Google Scholar] [CrossRef]
  50. Narasipura, S.D.; Ault, J.G.; Behr, M.J.; Chaturvedi, V.; Chaturvedi, S. Characterization of Cu,Zn superoxide dismutase (SOD1) gene knock-out mutant of Cryptococcus neoformans var. gattii: Role in biology and virulence. Mol. Microbiol. 2003, 47, 1681–1694. [Google Scholar] [CrossRef]
  51. Hwang, C.S.; Rhie, G.E.; Oh, J.H.; Huh, W.K.; Yim, H.S.; Kang, S.O. Copper- and zinc-containing superoxide dismutase (Cu/ZnSOD) is required for the protection of Candida albicans against oxidative stresses and the expression of its full virulence. Microbiology 2002, 148, 3705–3713. [Google Scholar] [CrossRef]
  52. Salas, S.D.; Bennett, J.E.; Kwon-Chung, K.J.; Perfect, J.R.; Williamson, P.R. Effect of the laccase gene CNLAC1, on virulence of Cryptococcus neoformans. J. Exp. Med. 1996, 184, 377–386. [Google Scholar] [CrossRef] [PubMed]
  53. Mednick, A.J.; Nosanchuk, J.D.; Casadevall, A. Melanization of Cryptococcus neoformans affects lung inflammatory responses during cryptococcal infection. Infect. Immun. 2005, 73, 2012–2019. [Google Scholar] [CrossRef] [PubMed]
  54. Wu, X.; Sinani, D.; Kim, H.; Lee, J. Copper transport activity of yeast Ctr1 is down-regulated via its C terminus in response to excess copper. J. Biol. Chem. 2009, 284, 4112–4122. [Google Scholar] [CrossRef] [PubMed]
  55. Liu, J.; Sitaram, A.; Burd, C.G. Regulation of copper-dependent endocytosis and vacuolar degradation of the yeast copper transporter, Ctr1p, by the Rsp5 ubiquitin ligase. Traffic 2007, 8, 1375–1384. [Google Scholar] [CrossRef]
  56. Portnoy, M.E.; Schmidt, P.J.; Rogers, R.S.; Culotta, V.C. Metal transporters that contribute copper to metallochaperones in Saccharomyces cerevisiae. Mol. Genet. Genom. 2001, 265, 873–882. [Google Scholar] [CrossRef]
  57. Rees, E.M.; Lee, J.; Thiele, D.J. Mobilization of Intracellular Copper Stores by the Ctr2 Vacuolar. J. Biol. Chem. 2004, 279, 54221–54229. [Google Scholar] [CrossRef]
  58. Marvin, M.E.; Williams, P.H.; Cashmore, A.M. The Candida albicans CTR1 gene encodes a functional copper transporter. Microbiology (Reading) 2003, 149, 1461–1474. [Google Scholar] [CrossRef]
  59. Garcia-Santamarina, S.; Probst, C.; Festa, R.A.; Ding, C.; Smith, A.D.; Conklin, S.E.; Brander, S.; Kinch, L.N.; Grishin, N.V.; Franz, K.J.; et al. A lytic polysaccharide monooxygenase-like protein functions in fungal copper import and meningitis. Nat. Chem. Biol. 2020, 16, 337–344. [Google Scholar] [CrossRef]
  60. Qi, J.; Han, A.; Yang, Z.; Li, C. Metal-sensing transcription factors Mac1p and Aft1p coordinately regulate vacuolar copper transporter CTR2 in Saccharomyces cerevisiae. Biochem. Biophys. Res. Commun. 2012, 423, 424–428. [Google Scholar] [CrossRef]
  61. Rees, E.M.; Thiele, D.J. Identification of a vacuole-associated metalloreductase and its role in Ctr2-mediated intracellular copper mobilization. J. Biol. Chem. 2007, 282, 21629–21638. [Google Scholar] [CrossRef]
  62. Borghouts, C.; Osiewacz, H.D. GRISEA, a copper-modulated transcription factor from involved in senescence and morphogenesis, is an ortholog of MAC1 in. Mol. Gen. Genet. 1998, 260, 492–502. [Google Scholar] [CrossRef] [PubMed]
  63. Garcia-Santamarina, S.; Festa, R.A.; Smith, A.D.; Yu, C.H.; Probst, C.; Ding, C.; Homer, C.M.; Yin, J.; Noonan, J.P.; Madhani, H.; et al. Genome-wide analysis of the regulation of Cu metabolism in Cryptococcus neoformans. Mol. Microbiol. 2018, 108, 473–494. [Google Scholar] [CrossRef]
  64. Beaudoin, J.; Labbe, S. The fission yeast copper-sensing transcription factor Cuf1 regulates the copper transporter gene expression through an Ace1/Amt1-like recognition sequence. J. Biol. Chem. 2001, 276, 15472–15480. [Google Scholar] [CrossRef] [PubMed]
  65. Kahra, D.; Kovermann, M.; Wittung-Stafshede, P. The C-Terminus of Human Copper Importer Ctr1 Acts as a Binding Site and Transfers Copper to Atox1. Biophys. J. 2016, 110, 95–102. [Google Scholar] [CrossRef] [PubMed]
Jof 10 00729 g001

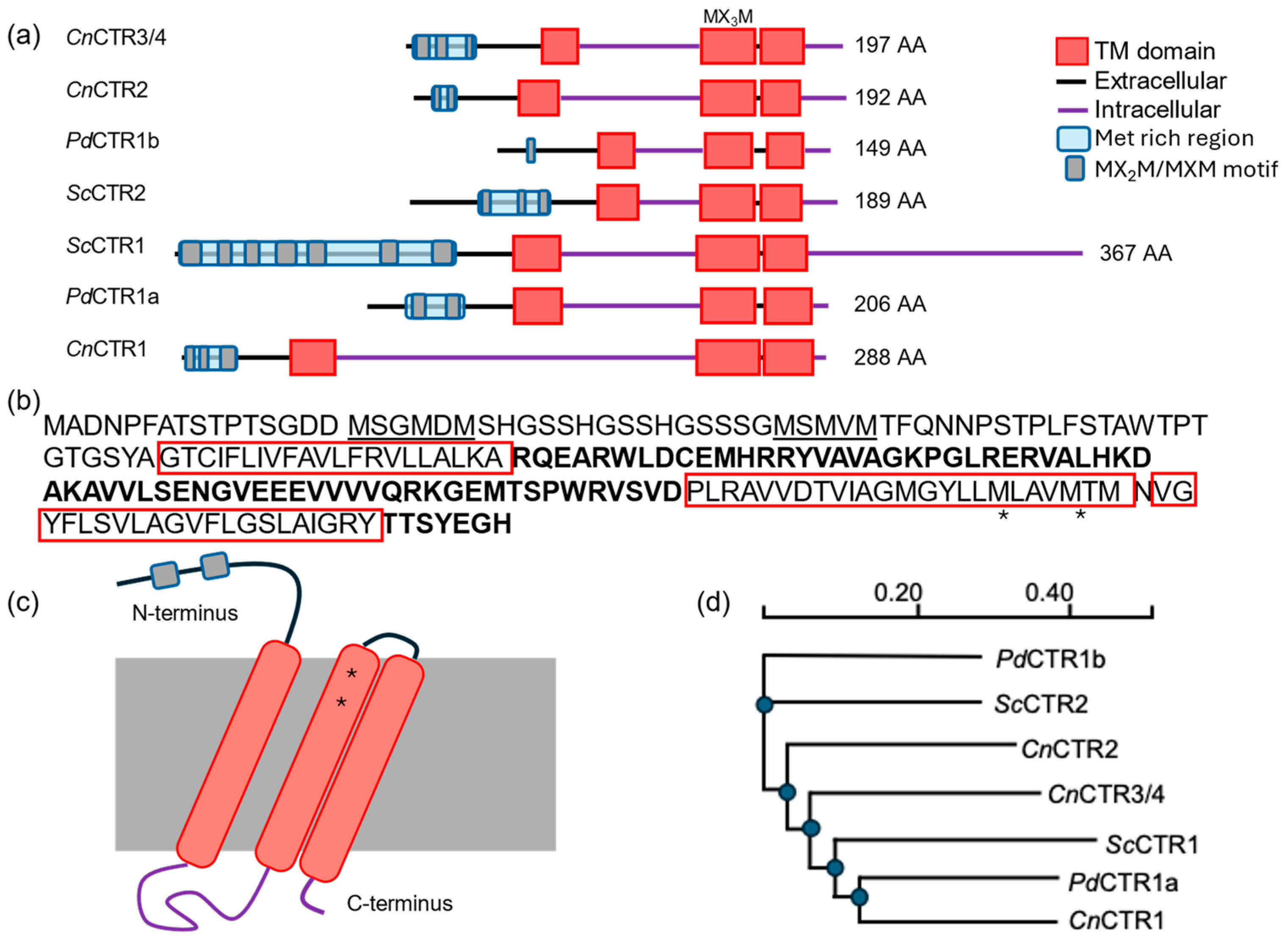

Figure 1. Domain architecture and similarity of P. destructans Cu-transporter isoforms (CTRs): (a) A cartoon representation of CTR isoforms found in S. cerevisiae (Sc), C. neofromans (Cn), and P. destructans (Pd) as predicted by DeepTMHMM. Extracellular regions are displayed as black lines and cytosolic regions as purple lines. Predicted transmembrane helixes are indicated as red boxes. Predicted extracellular Cu-binding Met-rich regions are displayed by a blue box with Met-rich domains indicated as grey ovals. (b) The amino acid sequence of PdCTR1a. Met-rich regions are underlined and transmembrane domains are boxed in red. Cytosolic regions are indicated in bold and conserved methionine residues in the Cu-selectivity filter are indicated by a * symbol. (c) Cartoon representation of the PdCTR1a isoform. The plasma membrane is indicated by the large grey box. The coloring scheme for PdCTR1a isoform is defined above in (a) with the approximate location of the conserved methionine residues in the Cu-selectivity filter designated by a * symbol. (d) Phylogeny of Sc, Cn, and Pd CTR isoforms as predicted by Clustal omega.
Figure 1. Domain architecture and similarity of P. destructans Cu-transporter isoforms (CTRs): (a) A cartoon representation of CTR isoforms found in S. cerevisiae (Sc), C. neofromans (Cn), and P. destructans (Pd) as predicted by DeepTMHMM. Extracellular regions are displayed as black lines and cytosolic regions as purple lines. Predicted transmembrane helixes are indicated as red boxes. Predicted extracellular Cu-binding Met-rich regions are displayed by a blue box with Met-rich domains indicated as grey ovals. (b) The amino acid sequence of PdCTR1a. Met-rich regions are underlined and transmembrane domains are boxed in red. Cytosolic regions are indicated in bold and conserved methionine residues in the Cu-selectivity filter are indicated by a * symbol. (c) Cartoon representation of the PdCTR1a isoform. The plasma membrane is indicated by the large grey box. The coloring scheme for PdCTR1a isoform is defined above in (a) with the approximate location of the conserved methionine residues in the Cu-selectivity filter designated by a * symbol. (d) Phylogeny of Sc, Cn, and Pd CTR isoforms as predicted by Clustal omega.
Jof 10 00729 g001
Jof 10 00729 g002

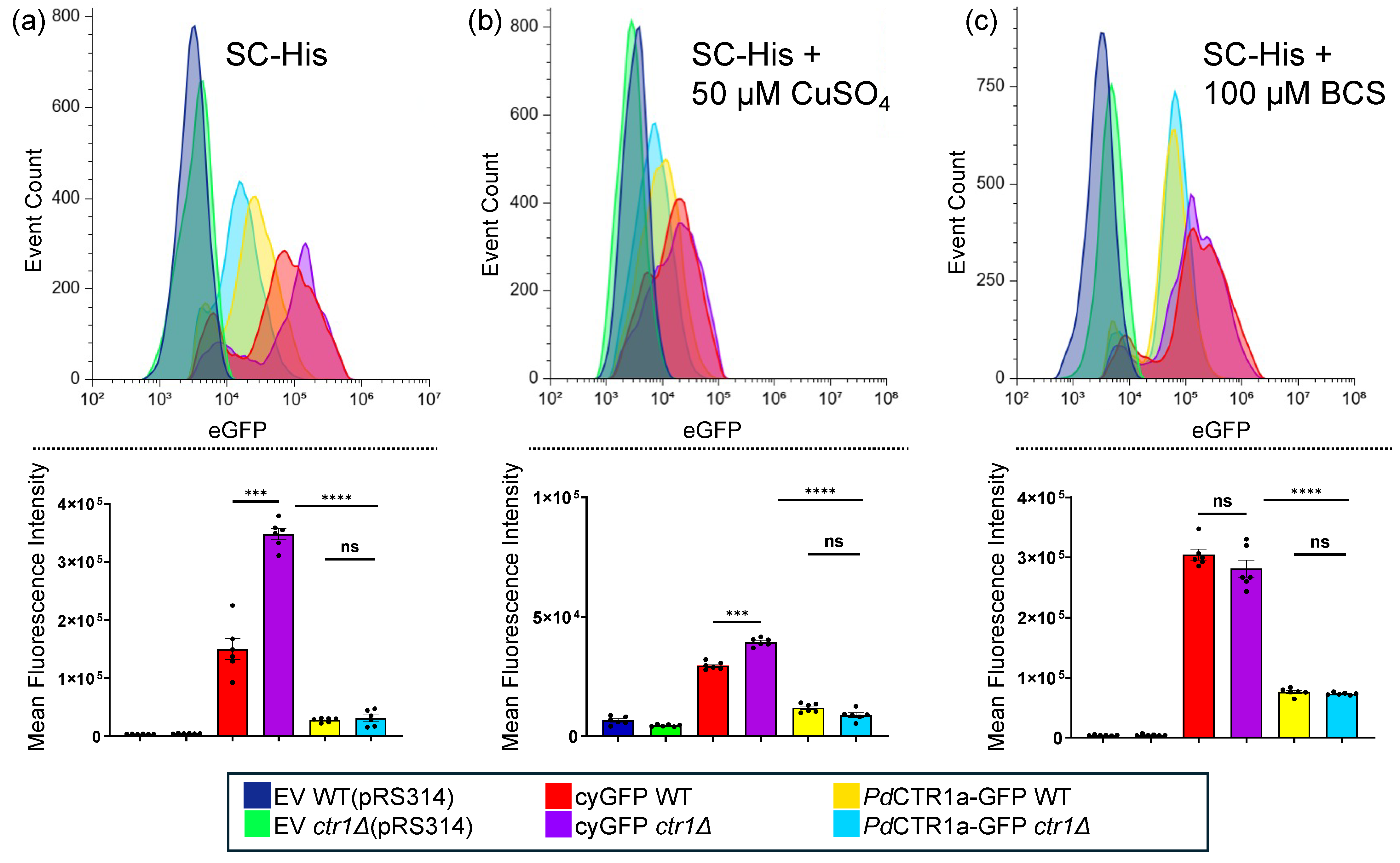

Figure 2. Flow cytometry of recombinant Saccharomyces cerevisiae strains. Top: Representative GFP fluorescence profiles of BY4741 (WT) and BY4741ctr1Δ (ctr1Δ) yeast harboring empty vector (EV), cytosolic-GFP (CyGFP), or PdCTR1A-GFP under the control of the S. cerevisiae Ctr1 promoter and terminator. Bottom: Mean fluorescence intensity of flow cytometry histogram of strains described above (n = 6). Yeast was grown to the log phase in SC-His under varying Cu stress conditions: (a) control (i.e., SC-His), (b) SC-His + 50 μM Cu-sulfate, (c) SC-His + 100 μM BCS. A total of 10,000 events are displayed per trace. Traces are normalized to the background fluorescence of yeast harboring the pRS313 empty vector plasmid alone set to an intensity of ~1 × 103 eGFP fluorescent units. Significance was determined by a two-tailed paired test. Differences were considered significant at p < 0.05. Significance level was *** = p < 0.001, **** = p < 0.0001, and ns = non-significant.
Figure 2. Flow cytometry of recombinant Saccharomyces cerevisiae strains. Top: Representative GFP fluorescence profiles of BY4741 (WT) and BY4741ctr1Δ (ctr1Δ) yeast harboring empty vector (EV), cytosolic-GFP (CyGFP), or PdCTR1A-GFP under the control of the S. cerevisiae Ctr1 promoter and terminator. Bottom: Mean fluorescence intensity of flow cytometry histogram of strains described above (n = 6). Yeast was grown to the log phase in SC-His under varying Cu stress conditions: (a) control (i.e., SC-His), (b) SC-His + 50 μM Cu-sulfate, (c) SC-His + 100 μM BCS. A total of 10,000 events are displayed per trace. Traces are normalized to the background fluorescence of yeast harboring the pRS313 empty vector plasmid alone set to an intensity of ~1 × 103 eGFP fluorescent units. Significance was determined by a two-tailed paired test. Differences were considered significant at p < 0.05. Significance level was *** = p < 0.001, **** = p < 0.0001, and ns = non-significant.
Jof 10 00729 g002
Jof 10 00729 g003
Figure 3. Fluorescent microscopy images of recombinant Saccharomyces cerevisiae strains. Mid-log yeast was cultured in SC-His media supplemented with 100 μM BCS and fixed prior to imaging (see Section 2.11 for microscopy details). Images of fixed yeast samples taken under brightfield conditions and single channel fluorescent images using GFP and DAPI filter sets were performed at 1000× total magnification. Single and merged multi-channel images are displayed as indicated on the top legend. The left legend indicates the recombinant expression plasmid, and the yeast background is indicated below in parenthesis.
Figure 3. Fluorescent microscopy images of recombinant Saccharomyces cerevisiae strains. Mid-log yeast was cultured in SC-His media supplemented with 100 μM BCS and fixed prior to imaging (see Section 2.11 for microscopy details). Images of fixed yeast samples taken under brightfield conditions and single channel fluorescent images using GFP and DAPI filter sets were performed at 1000× total magnification. Single and merged multi-channel images are displayed as indicated on the top legend. The left legend indicates the recombinant expression plasmid, and the yeast background is indicated below in parenthesis.
Jof 10 00729 g003
Jof 10 00729 g004

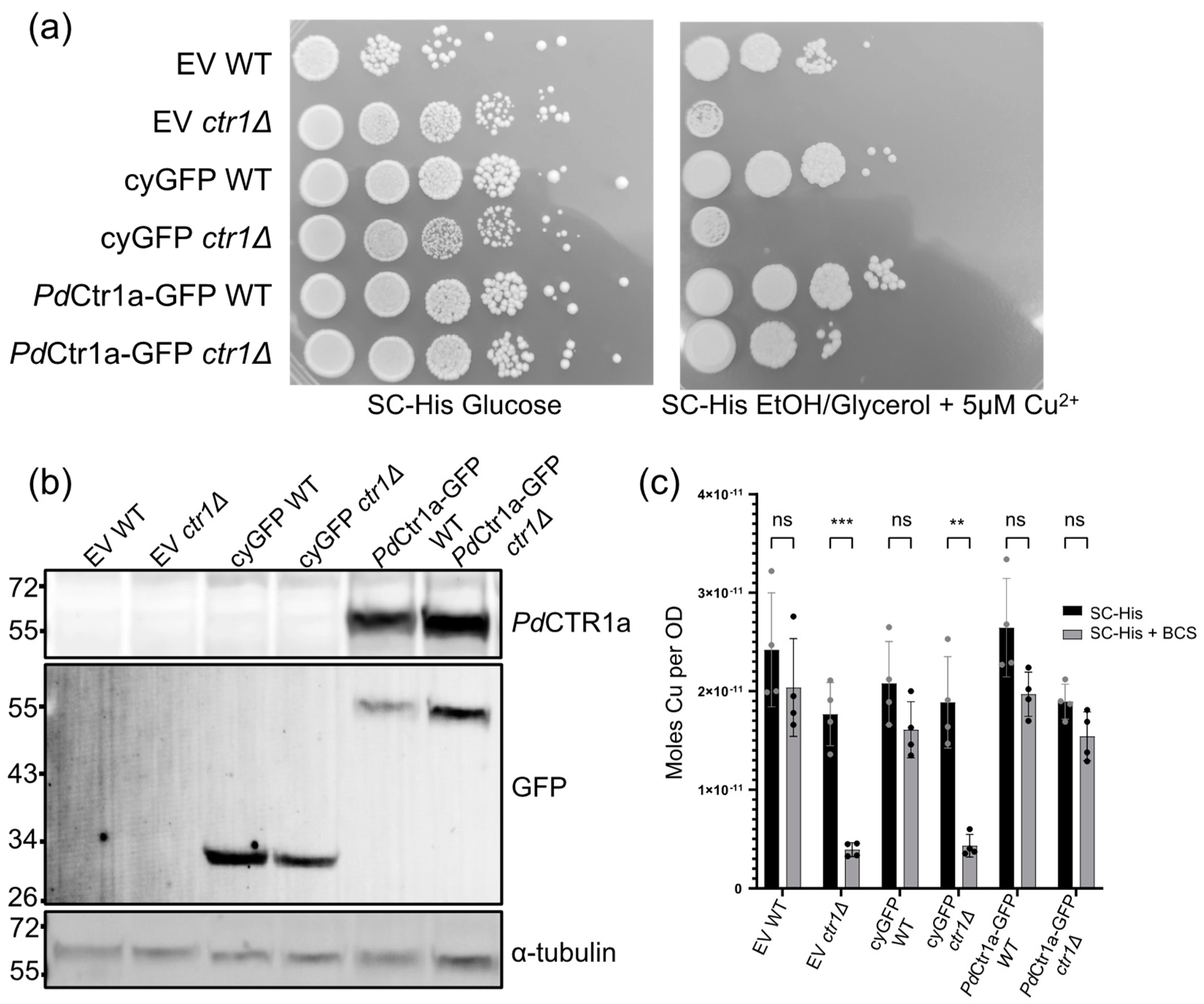

Figure 4. Characterization of S. cerevisiae PdCTR1a-GFP-expressing strains: (a) PdCTR1a-GFP partially rescues the Cu respiratory growth defect of ctr1Δ yeast. Wild-type (WT) and ctr1Δ strains were grown on SC-His selection media using glucose (left) or glycerol/ethanol (right) as a sole carbon source. Strains harboring the empty vector (EV), cytosolic GFP (CyGFP), and PdCTR1a-GFP fusion are shown. Ten-fold serial dilutions of yeast are displayed and imaged after 4 days (glucose) and 9 days (glycerol/ethanol). (b) Western immunoblot of WT and ctr1Δ-containing strains harboring the EV, cyGFP, and PdCTR1a-GFP expression plasmids under SC-His + BCS growth conditions. Bottom panel probes for α-tubulin as a loading control. Middle panel probes for GFP and exhibits signals for both cyGFP and PdCTR1a-GFP expression strains. Top panel probes for PdCTR1a using TSU8 anti-serum. Protein molecular weight markers (kDa) are displayed on the left of each blot. (c) Yeast total cellular copper levels as determined by inductively coupled plasma–mass spectrometry (ICP-MS). Significance was determined by ANOVA with multiple unpaired t-tests. Differences were considered significant at p < 0.05. Significance levels were ** = p < 0.01, *** = p < 0.001, and ns = non-significant.
Figure 4. Characterization of S. cerevisiae PdCTR1a-GFP-expressing strains: (a) PdCTR1a-GFP partially rescues the Cu respiratory growth defect of ctr1Δ yeast. Wild-type (WT) and ctr1Δ strains were grown on SC-His selection media using glucose (left) or glycerol/ethanol (right) as a sole carbon source. Strains harboring the empty vector (EV), cytosolic GFP (CyGFP), and PdCTR1a-GFP fusion are shown. Ten-fold serial dilutions of yeast are displayed and imaged after 4 days (glucose) and 9 days (glycerol/ethanol). (b) Western immunoblot of WT and ctr1Δ-containing strains harboring the EV, cyGFP, and PdCTR1a-GFP expression plasmids under SC-His + BCS growth conditions. Bottom panel probes for α-tubulin as a loading control. Middle panel probes for GFP and exhibits signals for both cyGFP and PdCTR1a-GFP expression strains. Top panel probes for PdCTR1a using TSU8 anti-serum. Protein molecular weight markers (kDa) are displayed on the left of each blot. (c) Yeast total cellular copper levels as determined by inductively coupled plasma–mass spectrometry (ICP-MS). Significance was determined by ANOVA with multiple unpaired t-tests. Differences were considered significant at p < 0.05. Significance levels were ** = p < 0.01, *** = p < 0.001, and ns = non-significant.
Jof 10 00729 g004
Jof 10 00729 g005

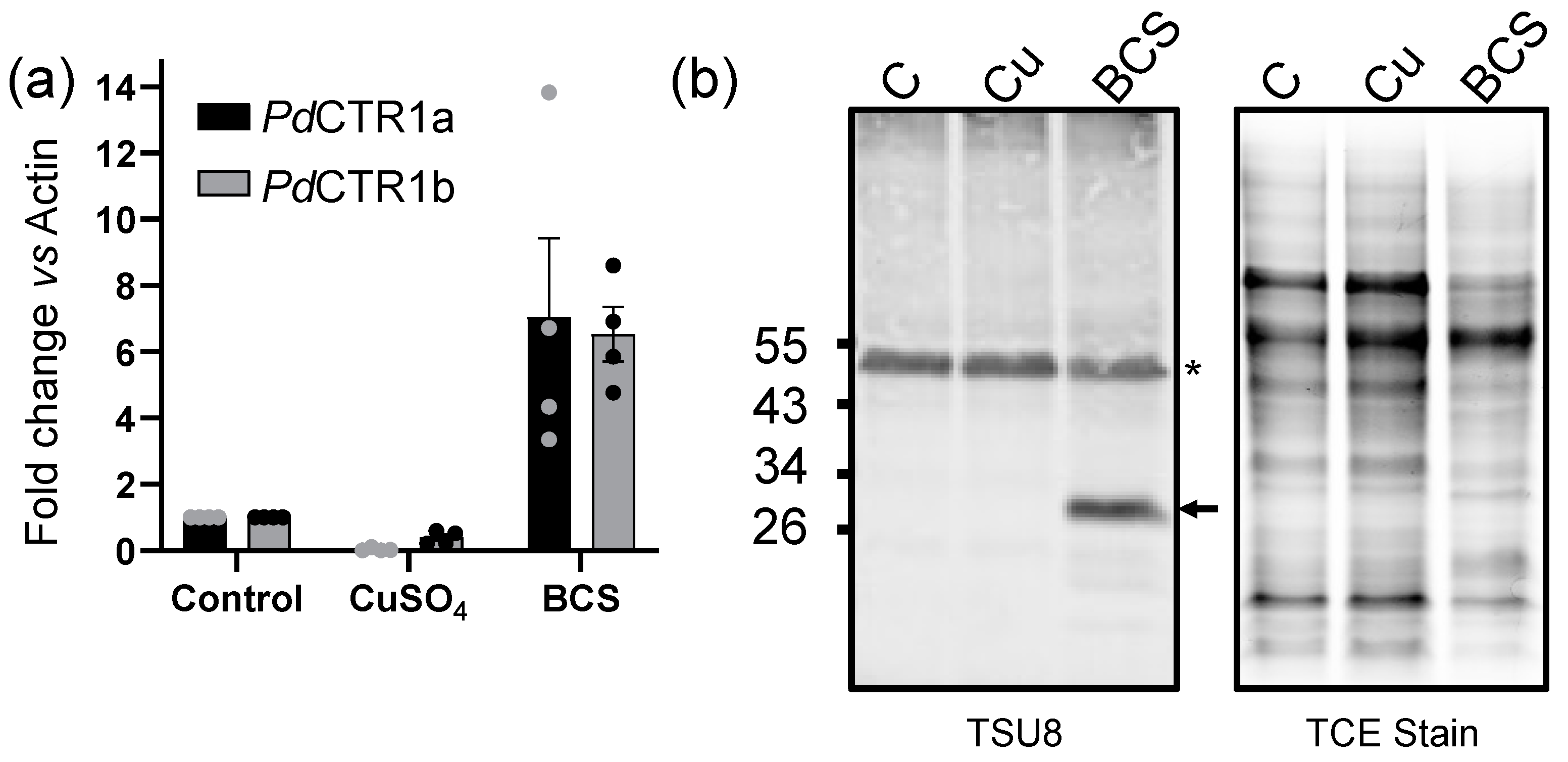

Figure 5. The CTR1 isoform PdCTR1a and PdCTR1b are transcriptionally regulated by extracellular bioavailable Cu levels and expressed in Cu-starved Pd cells. (a) Real-time quantitative PCR (RT-qPCR) of PdCTR1a (black bars) and PdCTR1b (grey bars) isoforms under Cu stress growth conditions (see experimental section). Transcript levels are reported using the ΔΔCT method using PdActin (VC83_07844) as the internal housekeeping gene. Experiments represent four biological replicates with the control levels normalized to 1.0. (b) Isoform PdCTR1a protein is present in Cu-starved Pd cells. The left panel is a Western immunoblot of Pd lysates using TSU8 anti-PdCTR1a anti-serum (see experimental section). * represents a non-target peptide found in all Pd samples in the TSU8 anti-serum and the assigned PdCTR1a is indicated by an arrow. The right panel is the TCE-stained gel image used to quantity equivalent protein loading levels of Pd lysates. Lane legends: “C”—control (i.e., SC-Ura), “Cu”—SC-Ura + 500 μM Cu-sulfate, “BCS”—SC-Ura + 800 μM BCS.
Figure 5. The CTR1 isoform PdCTR1a and PdCTR1b are transcriptionally regulated by extracellular bioavailable Cu levels and expressed in Cu-starved Pd cells. (a) Real-time quantitative PCR (RT-qPCR) of PdCTR1a (black bars) and PdCTR1b (grey bars) isoforms under Cu stress growth conditions (see experimental section). Transcript levels are reported using the ΔΔCT method using PdActin (VC83_07844) as the internal housekeeping gene. Experiments represent four biological replicates with the control levels normalized to 1.0. (b) Isoform PdCTR1a protein is present in Cu-starved Pd cells. The left panel is a Western immunoblot of Pd lysates using TSU8 anti-PdCTR1a anti-serum (see experimental section). * represents a non-target peptide found in all Pd samples in the TSU8 anti-serum and the assigned PdCTR1a is indicated by an arrow. The right panel is the TCE-stained gel image used to quantity equivalent protein loading levels of Pd lysates. Lane legends: “C”—control (i.e., SC-Ura), “Cu”—SC-Ura + 500 μM Cu-sulfate, “BCS”—SC-Ura + 800 μM BCS.
Jof 10 00729 g005
Table 1. Table of yeast strains used in this study.
Table 1. Table of yeast strains used in this study.
Strain NameYeast BackgroundLab Plasmid/Yeast
Nomenclature		Plasmid/ComponentsSource
Empty Vector (EV) WTBY4741 WTpRS313/AF38pRS313This study
Empty Vector (EV) ctr1ΔBY4741 (ctr1Δ)pRS313/AF39This study
CyGFP WTBY4741 WTPAF23/AF40pRS313, Ctr1 promoter, CTR terminator, yeGFP, This study
CyGFP ctr1ΔBY4741 (ctr1Δ)PAF23/AF41This study
PdCtr1a-GFP WTBY4741 WTPAF24/AF44pRS313, Ctr1 promoter, CTR terminator, VC83_00191-yeGFP fusionThis study
PdCtr1a-GFP ctr1ΔBY4741 (ctr1Δ)PAF24/AF45This study
BY4741 (WT)

BY4741 (ctr1Δ)		MATa his3Δ1 leu2Δ0 met15Δ0 ura3Δ0 Horizon Discovery Group plc
MATa his3Δ1 leu2Δ0 met15Δ0 ura3Δ0 ctr1:kanMX Horizon Discovery Group plc
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Anne, S.; Friudenberg, A.D.; Peterson, R.L. Characterization of a High-Affinity Copper Transporter CTR1a in the White-Nose Syndrome Causing Fungal Pathogen Pseudogymnoascus destructans. J. Fungi 2024, 10, 729. https://doi.org/10.3390/jof10100729

AMA Style

Anne S, Friudenberg AD, Peterson RL. Characterization of a High-Affinity Copper Transporter CTR1a in the White-Nose Syndrome Causing Fungal Pathogen Pseudogymnoascus destructans. Journal of Fungi. 2024; 10(10):729. https://doi.org/10.3390/jof10100729

Chicago/Turabian Style

Anne, Saika, Alyssa D. Friudenberg, and Ryan L. Peterson. 2024. "Characterization of a High-Affinity Copper Transporter CTR1a in the White-Nose Syndrome Causing Fungal Pathogen Pseudogymnoascus destructans" Journal of Fungi 10, no. 10: 729. https://doi.org/10.3390/jof10100729

APA Style

Anne, S., Friudenberg, A. D., & Peterson, R. L. (2024). Characterization of a High-Affinity Copper Transporter CTR1a in the White-Nose Syndrome Causing Fungal Pathogen Pseudogymnoascus destructans. Journal of Fungi, 10(10), 729. https://doi.org/10.3390/jof10100729

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
