Review

Platelet-Rich Plasma and Related Orthobiologics for the Treatment of Equine Musculoskeletal Disorders—A Bibliometric Analysis from 2000 to 2024

by
Jorge U. Carmona
1,*,
Luis H. Carmona-Ramírez
2 and
Catalina López
3
1
Grupo de Investigación Terapia Regenerativa, Departamento de Salud Animal, Universidad de Caldas, Manizales 170004, Colombia
2
Grupo de Investigación EFE, Facultad de Educación, Universidad Católica de Manizales, Manizales 170004, Colombia
3
Grupo de Investigación Patología Clínica Veterinaria, Departamento de Salud Animal, Universidad de Caldas, Manizales 170004, Colombia
*
Author to whom correspondence should be addressed.
Vet. Sci. 2024, 11(8), 385; https://doi.org/10.3390/vetsci11080385
Submission received: 2 July 2024 / Revised: 20 August 2024 / Accepted: 20 August 2024 / Published: 21 August 2024
(This article belongs to the Section Veterinary Biomedical Sciences)

Abstract

:

Simple Summary

Platelet-rich plasma and related orthobiologics, such as platelet lysates, autologous conditioned serums, and autologous protein solutions, are relatively new regenerative therapies used in the medical management of chronic musculoskeletal disorders in horses. Numerous papers have been published in this area; however, there is no information on the bibliometric impact of these papers in the published veterinary literature. A bibliometric analysis was performed using the bibliometrix R package to evaluate the documents registered in the WOS and Scopus databases from 2000 to 2024. The obtained registers were evaluated considering their overview, sources, authors, documents, words, trending topics, clustering, conceptual structure, and social structure. Frontiers in Veterinary Science, Journal of Equine Veterinary Science, BMC Veterinary Research, and the American Journal of Veterinary Research were the most used sources to publish these papers. Universidad de Caldas, Colorado State University, University of California-Davis, and University of Leipzig were the most productive institutions, while the USA, Brazil, and Colombia had the highest production in this field. The most frequently used keywords were horse, platelet-rich plasma, equine, osteoarthritis, and autologous conditioned serum. The trending topics in this field are platelet lysates and orthobiologics. The collaborative network of authors, institutions, and countries is clustered and isolated in small research groups.

Abstract

(1) Background: There is increasing interest in the use of platelet-rich plasma and related orthobiologics for the treatment of chronic musculoskeletal disorders in horses; however, there is no information on the bibliometric impact of the literature published in this area. (2) Methods: A bibliometric analysis was performed using the bibliometrix R package by analyzing the documents registered in the WOS and Scopus databases from 2000 to 2024. The included registers were evaluated according to the menu of results from the biblioshiny web app (overview, sources, authors, documents, words, trending topics, clustering, conceptual structure, and social structure). (3) Conclusions: The documents produced were mainly published in Frontiers in Veterinary Science, Journal of Equine Veterinary Science, BMC Veterinary Research, and the American Journal of Veterinary Research). The most productive institutions were Universidad de Caldas, Colorado State University, University of California-Davis, and University of Leipzig, and the most productive countries were the USA, Brazil, and Colombia. Horse, platelet-rich plasma, equine, osteoarthritis, and autologous conditioned serum were the most frequently used keywords. The trending topics in this area are platelet lysates and orthobiologics. The collaboration network of authors, institutions, and countries shows an isolated development of individual author networks with modest collaboration between institutions and countries.

1. Introduction

Regenerative medicine is a growing field of medical science (in both human and veterinary medicine) that seeks to explore different therapeutic approaches based on the clinical use of cells, proteins (namely growth factors (GFs) and cytokines), and even gene editing to regenerate cells, tissues, or organs affected by congenital, traumatic, ischemic, and chronic inflammatory diseases, among others, in pediatric to geriatric patients [1,2,3,4,5].
Chronic musculoskeletal diseases, such as osteoarthritis (OA), and inflammatory/degenerative conditions of tendons and ligaments are common in humans [6,7,8] and horses [1,2,9,10], causing pain (clinically manifested by lameness in horses) and functional loss of mobility, affecting the quality of life of patients and limiting their productivity [11,12].
Over the past 24 years, several therapeutic approaches based on the concept of “regenerative medicine” have become real options in the field of equine orthopedics [1,5,13,14,15]. These regenerative therapeutic strategies generally include the use of pure bone marrow aspirates [16,17,18], stem cells [19,20,21,22], and orthobiologics such as platelet-rich plasma (PRP) [23,24], platelet lysates [25,26], autologous protein solution (APS), and autologous conditioned serum (ACS) [27,28,29,30,31,32,33]. It should be noted that horses are one of the most important animal models for studying the pathophysiological mechanisms of chronic musculoskeletal disorders and for evaluating the response to experimental treatments that could potentially be used in humans. Therefore, the results observed in horses treated with this type of orthobiologics may apply to humans [34,35].
Currently, the use of hemocomponent-based orthobiologics for the treatment of chronic musculoskeletal disorders in horses may be more popular than the use of stem cells because they are easier to obtain and their cost is low compared to stem cell treatments [36]. Although there are no specific guidelines for the use of regenerative medicine-based medications in horses [1], these types of orthobiologics are generally used as first-line treatments, with the use of stem cells reserved for refractory cases [36,37].
According to an extensive literature search, there are no published studies evaluating the bibliometric impact on the use of PRP and related orthobiologics for the treatment of chronic musculoskeletal disorders in horses. Therefore, the aims of the present study were (1) to know the chronological bibliometric development of peer-reviewed publications developed in the field of PRP and related orthobiologics for the treatment of chronic musculoskeletal diseases in horses from 2000 to the present; (2) to determine how this bibliometric body is shaped and influenced by key authors, institutions, and countries; and (3) to identify the use of most common keywords, trending topics, clustering, conceptual structures, and social structures related to the topic.
The relevance of this bibliometric review stems from the fact that there are currently no published studies evaluating the quantity and quality of the papers published in this research field. Therefore, the use of bibliometrics allows us to evaluate how academic works influence and are related to the development of a specific research field in terms of credibility, quality, and impact. In addition, this type of review is useful to evaluate the state of the art, hotspots, trends, and frontiers of specific research topics [38].

2. Materials and Methods

2.1. Database Selection and Keyword Search

Web of Science (WOS) (Clarivate Analytics, London, UK) and Scopus (Elsevier B.V. Amsterdam, The Netherlands) were selected for this scientometric study. WOS allows for searching more than 12,000 journals published in 45 languages in various fields of science. Scopus includes more than 27,950 active series. Both databases allow bibliometric analysis, including citation tracking, citation counts, and H-index calculations, among other citation analysis tools [39,40].

2.2. Search Equation and Filter Application

The following search equation was used for this bibliometric analysis:
(“platelet-rich plasma” or “platelet concentrate” or “platelet lysate” or “platelet supernatant” or “platelet lyophi*” or “autologous protein solution” or “autologous conditioned serum”) and (horse* or equine or equus or equid*) and (osteoarthritis or “degenerative joint disease*” or “joint disease*”) or “joint disease*” or joint* or arthritis or cartilage* or chondro* or “joint degeneration” or tendinitis or tendinopathy or desmitis or desmopathy or laminitis).
After obtaining the results of each database, they were first filtered by subject area (Veterinary Sciences only (WOS) or Veterinary Sciences (Scopus)) and by year (2000–2024).

2.3. Register Screening and Selection Criteria

The registers retrieved from each database were merged using the R library (library(bibliometrix)), by using the merge() function, which was programmed to detect duplicate documents. After receiving this preliminary database, J.U.C. and C.L. reviewed them individually for further screening, taking into account the title, keywords, and abstract of each registry and evaluating whether the selected registries were effectively related to the search area evaluated in the bibliometric analysis. The final decision to exclude registries was made by consensus among the researchers. The types of documents considered for this bibliometric analysis were articles and reviews, according to the biblioshiny web application [41]. Documents such as proceedings papers, book chapters, conference papers, editorial materials, notes, preprints, and early access were not included.

2.4. Data Analysis

The data from the definitive database were analyzed with the R package bibliometrix (R4.4.0) [41] and visualized with the biblioshiny web app to perform bibliometric processing and visual knowledge map analysis, taking into account the general menu of the app, which includes overview, sources, authors (authors, affiliations, and countries), documents, words, trending topics, clustering, conceptual structure, and social structure.

3. Results

From a total of 561 documents, 258 registers were obtained from WOS, and 303 documents were obtained from SCOPUS. Subsequently, the merge() function of the R package allowed for the exclusion of 152 duplicate documents, resulting in a total of 409 records. Then, 180 registers were discharged after manual revision, for a total of 229 validated documents.
The records discharged were those that did not reach the requirements to be included in this study, since their title, abstract, and keywords were not related to the research field evaluated.
This revised database was uploaded to the biblioshiny web app to refine the registers by excluding documents that were not considered articles or reviews. Finally, a total of 218 registers were obtained for the bibliometric analysis, of which 189 documents were written in English, 10 in German, 10 in Portuguese, 8 in Spanish, and 1 document was published in Italian. It should be noted that 184 registers corresponded to articles and 34 to reviews (Figure 1).

3.1. Overview

The first registered document describing a procedure for obtaining equine platelet-rich plasma using a semi-automated kit was published in 2004 [42]. From that moment until the present, the scientific production in this field has been researched in 59 published sources (journals), with an annual growth rate of 9.37% and an average age per document of 7.39 years. In addition, the average number of citations per document was 16.89, with a total number of references used of 1212.
A total of 715 authors have written in this field, with an average of 4.99 authors per document. The percentage of international co-authorships was 2.74%. The authors used a total of 421 keywords. The connections of countries to journals and institutions regarding the scientific production of platelet-rich plasma and related orthobiologics for the treatment of equine chronic musculoskeletal diseases from 2000 to 2024 is shown in Figure 2.

3.2. Sources

The top 10 most relevant journals (sources) in which articles or reviews on PRP and related orthobiologics have been published were Frontiers in Veterinary Science (26 registers), Journal of Equine Veterinary Science (24 registers), BMC Veterinary Research (11 registers), Equine Veterinary Journal (11 registers), Pferdeheilkunde (11 registers), American Journal of Veterinary Research (11 registers), Archivos de Medicina Veterinaria (10 registers), Veterinary Clinics of North America (8 registers), Equine Veterinary Education (7 registers), and Research in Veterinary Science (7 registers).
Table 1 shows the rank, frequency, cumulative frequency, and zone of the top ten sources according to Bradford’s law.
Figure 3 shows the local impact (measured by the H-index) of the top 10 sources (journals) over the observation window (2000–2024) on this topic.

3.3. Authors

According this bibliometric analysis, the top 10 most relevant authors on this topic are Carmona, J. (29 registers), López, C. (18 registers), Prades, M. (10 registers), Frisbie, D. (8 registers), Giraldo, C. (8 registers), Ortved, K. (7 registers), Seo, J. (7 registers), Tablin, F. (7 registers), Conti V, (6 registers), and Lischer, C. (6 registers).
On the other hand, the top 10 most local cited authors are shown in Figure 4. The bibliometric productivity on the evaluated topic of this work according to Lotka’s law is presented in Figure 5, while the author’s impact measured by the H-index is shown in Figure 6.
The top 10 most relevant affiliations were Universidad de Caldas, Colombia (39 registers); Colorado State University, USA (20 registers); University of California-Davis, USA (16 registers); University of Leipzig, Germany (16 registers); Obihiro University of Agriculture and Veterinary Medicine, Japan (11 registers); Cornell University, USA (10 registers); Universitat Autònoma de Barcelona, Spain (10 registers); University of Pennsylvania, USA (10 registers); Universidade Federal de Santa Maria, Brazil (8 registers); and Universidade Federal de Viçosa, Brazil (6 registers).
The top 10 countries that produced the largest quantity of registers about this bibliometric subject study were the USA (83 registers), Brazil (47 registers), Colombia (38 registers), Germany (30 registers), Italy (19 registers), UK (13 registers), Japan (12 registers), Spain (9 registers), Denmark (5 registers), and Canada (4 registers).

3.4. Documents

Table 2 shows the most cited documents worldwide according to this bibliometric analysis.

3.5. Words

The top 10 most frequent keywords used were horse (81 occurrences), platelet-rich plasma (47 occurrences), equine (44 occurrences), osteoarthritis (35 occurrences), growth factors (24 occurrences), autologous conditioned serum (22 occurrences), platelet rich plasma (22 occurrences), prp (20 occurrences), tendon (19 occurrences), and regenerative medicine (18 occurrences). The 25 most common keywords used in the documents included in this bibliometric analysis are shown in Figure 7.

3.6. Trending Topics

The evolution of trending topics according to the author keywords on the field of this bibliometric analysis is shown in Figure 8. The top five trending topics include platelet-rich plasma, autologous conditioned serum, osteoarthritis, platelet lysate, and orthobiologics.

3.7. Clustering

The coupling analysis of the documents of the evaluated topics by references, considering the global citation score, and the cluster labeling by author keywords revealed three dominant clusters that provide key insights into the major themes and research trends in this research area. Cluster 1 includes the keywords “gel and growth factors”.
Cluster 2 focuses on “osteoarthritis, platelet-rich plasma, and autologous conditioned serum”. Cluster 3 focuses on “platelet-rich plasma, bone marrow, and mesenchymal stem cells”. This last cluster has the highest centrality (3.31) and the largest impact (1.61).

3.8. Conceptual Structure

Co-occurrence network analysis of the author keywords revealed four clusters mainly related to the keywords horse (cluster 1, betweenness: 495.85, closeness: 0.020, and page rank: 0. 147), platelet-rich plasma (cluster 2, betweenness: 48.62, closeness: 0.015, and page rank: 0.069), and osteoarthritis (cluster 2, betweenness: 42.20, closeness: 0.014, and page rank: 0.057) (Figure 9).
The general thematic evolution of the author keywords between 2000 and 2024 is shown in Figure 10. The evolution of keywords considering the generation of clusters according to niche themes, motor themes, basic themes, and emerging or declining themes by cutting year (2012, 2015, 2019, and 2021) is shown in Table 3.

3.9. Social Structure

The collaboration network of this bibliometric analysis for authors (Figure 11), institutions (Figure 12), and countries (Figure 13) is isolated and small. In general, it can be noted that there is a scarce collaboration between researchers, institutions, and countries, and the development of this body of research could be isolated with different perceptions about this topic in the function of researchers.

4. Discussion

Bibliometric analysis, also known as systematic scientometric review, is a computational methodology useful for identifying the most relevant set of peer-reviewed publications on a given topic. In addition, this methodology can be used to understand various aspects of research, such as trends, hotspots, and gaps in knowledge within a given scientific field [51]. This computational tool makes it possible to assess the scientific contribution of authors and their institutions in different countries and how they are connected to researchers in other countries and even in different research fields [52,53].
To the authors’ knowledge, this is the first bibliometric study to evaluate the scientific production in the field of the use of PRP and related orthobiologics, such as ACS, APS, and platelet lysates, among others, for the treatment of chronic musculoskeletal disorders in horses. However, there are several studies evaluating the bibliometric impact on the use of PRP in human orthopedics [53,54,55,56,57].
On the other hand, the present study may be the first to use information from two major databases (WOS and Scopus), using the merge() function of the R package to remove duplicate records from these databases. This action allowed the integration of the two databases and the obtaining of a greater number of records to improve the power of this bibliometric analysis. Furthermore, it is important to note that a manual review of the records is essential to screen the registries and to avoid the inclusion of documents that could alter the final results of the bibliometric study.
This analysis showed that the scientific production of this field of research is mainly published in four journals (sources). This fact could be confirmed by applying Bradford’s law [58], which states that the majority of documents on a given topic could be published in a reduced number of journals dedicated to that particular research topic, together with certain marginal sources and many other general or dispersed journals. Therefore, the journals focused on a given research area could act as a family of successive generations of decreasing relatedness, with each generation larger than the previous one. The practical application of Bradford’s law provides the mechanisms to select the journals that are not only the most productive but also the most relevant to cover a given area of knowledge [59].
In terms of authors’ production, according to the number of articles published, the number of citations, and the H-index impact, researchers from Colombia and Spain lead the top 10 lists. This fact could be confirmed by Lotka’s law, a bibliometric law that postulates that most of the authors publish a small number of documents, while a few authors publish the majority of relevant documents in a given research field [60].
The most productive institutions in this research area were Universidad de Caldas, Colorado State University, University of California-Davis, and University of Leipzig. This production coincides to some extent with the production of authors. However, when academic production is measured in terms of countries, the United States, Brazil, and Colombia yield the most production. This fact can be explained by the fact that the USA and Brazil have a large number of researchers and institutions that produce scientific literature in this field, compared to Colombia, where only a single institution (Universidad de Caldas) is responsible for producing research on this topic.
The most frequently used author keywords were horse, platelet-rich plasma, equine, osteoarthritis, and autologous conditioned serum. The size of the keyword “platelet-rich plasma” in the cloud plot could be larger because other keywords such as “platelet rich plasma” and “prp” have the same meaning as “platelet-rich plasma”. It is important to consider that the author keywords are closely related to the trending topics in this field of research, where new investigations on platelet lysates appear or the term “orthobiologic” begins to be used.
Clustering by coupling analysis revealed three major clusters that integrate the research in this area. In general, one cluster focuses on basic studies measuring the concentration of growth factors in equine platelet-rich gel supernatants [61,62]. Another cluster of investigations focused on the role of PRP and ACS as treatments for OA [14,32], while another cluster emphasized the effect of PRP on bone marrow and mesenchymal stem cells [45,63]. On the other hand, the conceptual structure analysis evidenced three primary author keywords (horse, platelet-rich plasma, and osteoarthritis) clusters around which secondary keywords revolved, such as biologics, arthroscopy, tendon, sport medicine, and so on.
Regarding the thematic evolution of this bibliometric analysis, few changes could be observed in the use of author keywords over time, although a large number of author keywords were used during 2023–2015 and 2016–2019, indicating that scientific production was more extensive and diverse during these periods. This fact could be corroborated by analyzing the evolution of the cluster map by cutting year, which could indicate that the research interest in this field is either decreasing in or has been concentrating on specific topics (clusters) over the last five years.
The analysis of the collaboration network in terms of authors, institutions, and countries of this bibliometric analysis indicates an isolated development of individual author networks, with modest collaborations between institutions and countries. This fact could indicate the necessity of developing joint research on the use of platelet-rich plasma and related hemocomponents for the treatment of chronic musculoskeletal disorders in horses to consolidate the knowledge obtained and to open new avenues of investigations in this field. Furthermore, this situation demonstrates that the great disparity in the use of author keywords and the formation of non-related clusters could be a symptom of the scarce association of the main factors (authors, institutions, and countries) that shape this field of veterinary science.

5. Conclusions

This bibliometric study carried out between 2000 and 2024 allows us to conclude that the academic production of documents (articles and reviews) in the field of the use of PRP and related orthobiologics for the treatment of musculoskeletal disorders in horses has been mainly published in four journals (Frontiers in Veterinary Science, Journal of Equine Veterinary Science, BMC Veterinary Research, and the American Journal of Veterinary Research). The most productive institutions on this topic were Universidad de Caldas, Colorado State University, University of California-Davis, and University of Leipzig, and the most productive countries were the USA, Brazil, and Colombia. Horse, platelet-rich plasma, equine, osteoarthritis, and autologous conditioned serum were the most common keywords used by the authors. The trending topics in this area are platelet lysates and orthobiologics. It is possible that the research interest in this field has either decreased or concentrated on specific topics in the last 5 years. The collaboration network of authors, institutions, and countries shows an isolated development of individual author networks with modest collaboration between institutions and countries.

Author Contributions

Conceptualization, J.U.C., L.H.C.-R. and C.L.; methodology, J.U.C., L.H.C.-R. and C.L.; software, L.H.C.-R.; validation, J.U.C., L.H.C.-R. and C.L.; formal analysis, J.U.C., L.H.C.-R. and C.L.; writing—original draft preparation; writing—review and editing, J.U.C., L.H.C.-R. and C.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research did not receive any external funding. The APC was funded by the Vicerectoría de Investigaciones y Postgrados, Universidad de Caldas, Manizales, Colombia.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Pérez Fraile, A.; González-Cubero, E.; Martínez-Flórez, S.; Olivera, E.R.; Villar-Suárez, V. Regenerative Medicine Applied to Musculoskeletal Diseases in Equines: A Systematic Review. Vet. Sci. 2023, 10, 666. [Google Scholar] [CrossRef]
  2. Reis, I.L.; Lopes, B.; Sousa, P.; Sousa, A.C.; Caseiro, A.R.; Mendonça, C.M.; Santos, J.M.; Atayde, L.M.; Alvites, R.D.; Maurício, A.C. Equine Musculoskeletal Pathologies: Clinical Approaches and Therapeutical Perspectives-A Review. Vet. Sci. 2024, 11, 190. [Google Scholar] [CrossRef]
  3. Kim, D.S.; Bae, S. Impact and challenges of enactment for advanced regenerative medicine in South Korea. Front. Bioeng. Biotechnol. 2022, 10, 972865. [Google Scholar]
  4. Lu, C.; Le, Q. Advances in Organoid Technology: A Focus on Corneal Limbal Organoids. Stem Cell Rev. Rep. 2024, 20, 1227–1235. [Google Scholar]
  5. Boone, L.; Peroni, J. Introduction to Equine Biologic and Regenerative Therapies. Vet. Clin. N. Am. Equine Pract. 2023, 39, 419–427. [Google Scholar]
  6. Wilfong, J.M.; Badley, E.M.; Perruccio, A.V. Old before their time? The impact of osteoarthritis on younger adults. Arthritis Care Res. 2024. [Google Scholar] [CrossRef]
  7. Carmont, M.R.; Gunnarsson, B.; Brorsson, A.; Nilsson-Helander, K. Musculotendinous ruptures of the achilles tendon had greater heel-rise height index compared with mid-substance rupture with non-operative management: A retrospective cohort study. J. ISAKOS 2024, 9, 148–152. [Google Scholar]
  8. Wang, N.; Wang, H.; Shen, L.; Liu, X.; Ma, Y.; Wang, C. Aging-Related Rotator Cuff Tears: Molecular Mechanisms and Implications for Clinical Management. Adv. Biol. 2024, 8, e2300331. [Google Scholar]
  9. M’Cloud, W.R.C.; Guzmán, K.E.; Panek, C.L.; Colbath, A.C. Stem cells and platelet-rich plasma for the treatment of naturally occurring equine tendon and ligament injuries: A systematic review and meta-analysis. J. Am. Vet. Med. Assoc. 2024, 262 (Suppl. S1), S50–S60. [Google Scholar]
  10. Carlier, S.; Depuydt, E.; Van Hecke, L.; Martens, A.; Saunders, J.; Spaas, J.H. Safety assessment of equine allogeneic tenogenic primed mesenchymal stem cells in horses with naturally occurring tendon and ligament injuries. Front. Vet. Sci. 2024, 11, 1282697. [Google Scholar]
  11. McGowan, T.W.; Pinchbeck, G.; Phillips, C.J.; Perkins, N.; Hodgson, D.R.; McGowan, C.M. A survey of aged horses in Queensland, Australia. Part 2: Clinical signs and owners’ perceptions of health and welfare. Aust. Vet. J. 2010, 88, 465–471. [Google Scholar] [PubMed]
  12. McGowan, C.M.; Ireland, J.L. Welfare, Quality of Life, and Euthanasia of Aged Horses. Vet. Clin. N. Am. Equine Pract. 2016, 32, 355–367. [Google Scholar]
  13. Peng, C.; Yang, L.; Labens, R.; Gao, Y.; Zhu, Y.; Li, J. A systematic review and meta-analysis of the efficacy of platelet-rich plasma products for treatment of equine joint disease. Equine Vet. J. 2024, 56, 858–869. [Google Scholar] [PubMed]
  14. Mayet, A.; Zablotski, Y.; Roth, S.P.; Brehm, W.; Troillet, A. Systematic review and meta-analysis of positive long-term effects after intra-articular administration of orthobiologic therapeutics in horses with naturally occurring osteoarthritis. Front. Vet. Sci. 2023, 10, 1125695. [Google Scholar]
  15. McCarrel, T.M. Equine Platelet-Rich Plasma. Vet. Clin. N. Am. Equine Pract. 2023, 39, 429–442. [Google Scholar]
  16. Maleas, G.; Mageed, M. Effectiveness of Platelet-Rich Plasma and Bone Marrow Aspirate Concentrate as Treatments for Chronic Hindlimb Proximal Suspensory Desmopathy. Front. Vet. Sci. 2021, 8, 678453. [Google Scholar]
  17. Chu, C.R.; Fortier, L.A.; Williams, A.; Payne, K.A.; McCarrel, T.M.; Bowers, M.E.; Jaramillo, D. Minimally Manipulated Bone Marrow Concentrate Compared with Microfracture Treatment of Full-Thickness Chondral Defects: A One-Year Study in an Equine Model. J. Bone Joint Surg. Am. 2018, 100, 138–146. [Google Scholar] [PubMed]
  18. Russell, J.W.; Russell, T.M.; Vasey, J.R.; Hall, M.S. Autologous bone marrow aspirate for treatment of superficial digital flexor tendonitis in 105 racehorses. Vet. Rec. 2016, 179, 69. [Google Scholar] [PubMed]
  19. Burk, J.; Wittenberg-Voges, L.; Schubert, S.; Horstmeier, C.; Brehm, W.; Geburek, F. Treatment of Naturally Occurring Tendon Disease with Allogeneic Multipotent Mesenchymal Stromal Cells: A Randomized, Controlled, Triple-Blinded Pilot Study in Horses. Cells 2023, 12, 2513. [Google Scholar] [CrossRef]
  20. Carvalho Ade, M.; Badial, P.R.; Álvarez, L.E.C.; Yamada, A.L.; Borges, A.S.; Deffune, E.; Hussni, C.A.; Alves, A.L.G. Equine tendonitis therapy using mesenchymal stem cells and platelet concentrates: A randomized controlled trial. Stem Cell Res. Ther. 2013, 4, 85. [Google Scholar]
  21. Renzi, S.; Riccò, S.; Dotti, S.; Sesso, L.; Grolli, S.; Cornali, M.; Carlin, S.; Patruno, M.; Cinotti, S.; Ferrari, M. Autologous bone marrow mesenchymal stromal cells for regeneration of injured equine ligaments and tendons: A clinical report. Res. Vet. Sci. 2013, 95, 272–277. [Google Scholar] [PubMed]
  22. Geburek, F.; Roggel, F.; van Schie, H.T.M.; Beineke, A.; Estrada, R.; Weber, K.; Hellige, M.; Rohn, K.; Jagodzinski, M.; Welke, B.; et al. Effect of single intralesional treatment of surgically induced equine superficial digital flexor tendon core lesions with adipose-derived mesenchymal stromal cells: A controlled experimental trial. Stem Cell Res. Ther. 2017, 8, 129. [Google Scholar] [PubMed]
  23. Geburek, F.; Gaus, M.; van Schie, H.T.; Rohn, K.; Stadler, P.M. Effect of intralesional platelet-rich plasma (PRP) treatment on clinical and ultrasonographic parameters in equine naturally occurring superficial digital flexor tendinopathies—A randomized prospective controlled clinical trial. BMC Vet. Res. 2016, 12, 191. [Google Scholar]
  24. Garrett, K.S.; Bramlage, L.R.; Spike-Pierce, D.L.; Cohen, N.D. Injection of platelet- and leukocyte-rich plasma at the junction of the proximal sesamoid bone and the suspensory ligament branch for treatment of yearling Thoroughbreds with proximal sesamoid bone inflammation and associated suspensory ligament branch desmitis. J. Am. Vet. Med. Assoc. 2013, 243, 120–125. [Google Scholar]
  25. Tyrnenopoulou, P.; Diakakis, N.; Karayannopoulou, M.; Savvas, I.; Koliakos, G. Evaluation of intra-articular injection of autologous platelet lysate (PL) in horses with osteoarthritis of the distal interphalangeal joint. Vet. Q. 2016, 36, 56–62. [Google Scholar]
  26. Fukuda, K.; Kuroda, T.; Tamura, N.; Mita, H.; Miyata, H.; Kasashima, Y. Platelet Lysate Enhances Equine Skeletal Muscle Regeneration in A Bupivacaine-Induced Muscle Injury Model(☆). J. Equine Vet. Sci. 2022, 112, 103892. [Google Scholar]
  27. Brown, K.A.; Gregorio, E.N.; Barot, D.; Usimaki, A.; Linardi, R.L.; Missanelli, J.R.; You, Y.; Robinson, M.A.; Ortved, K.F. Single-dose nonsteroidal anti-inflammatory drugs in horses have no impact on concentrations of cytokines or growth factors in autologous protein solution and platelet-rich plasma. Am. J. Vet. Res. 2024, 85. [Google Scholar] [CrossRef]
  28. Ortved, K.F. Equine Autologous Conditioned Serum and Autologous Protein Solution. Vet. Clin. N. Am. Equine Pract. 2023, 39, 443–451. [Google Scholar]
  29. Toner, S.; Crosby, C. Pro-stride and extracorporeal shockwave therapy as treatment of lateral collateral desmopathy of the proximal interphalangeal joint in a Dutch Warmblood gelding. Can. Vet. J. 2023, 64, 268–274. [Google Scholar]
  30. Gaesser, A.M.; Underwood, C.; Linardi, R.L.; Even, K.M.; Reef, V.B.; Shetye, S.S.; Mauck, R.L.; King, W.J.; Engiles, J.B.; Ortved, K.F. Evaluation of Autologous Protein Solution Injection for Treatment of Superficial Digital Flexor Tendonitis in an Equine Model. Front. Vet. Sci. 2021, 8, 697551. [Google Scholar]
  31. Camargo Garbin, L.; Morris, M.J. A Comparative Review of Autologous Conditioned Serum and Autologous Protein Solution for Treatment of Osteoarthritis in Horses. Front. Vet. Sci. 2021, 8, 602978. [Google Scholar]
  32. Velloso Alvarez, A.; Boone, L.H.; Pondugula, S.R.; Caldwell, F.; Wooldridge, A.A. Effects of Autologous Conditioned Serum, Autologous Protein Solution, and Triamcinolone on Inflammatory and Catabolic Gene Expression in Equine Cartilage and Synovial Explants Treated With IL-1β in Co-culture. Front. Vet. Sci. 2020, 7, 323. [Google Scholar]
  33. Bertone, A.L.; Ishihara, A.; Zekas, L.J.; Wellman, M.L.; Lewis, K.B.; Schwarze, R.A.; Barnaba, A.R.; Schmall, M.L.; Kanter, P.M.; Genovese, R.L. Evaluation of a single intra-articular injection of autologous protein solution for treatment of osteoarthritis in horses. Am. J. Vet. Res. 2014, 75, 141–151. [Google Scholar]
  34. McCoy, A.M. Animal Models of Osteoarthritis: Comparisons and Key Considerations. Vet. Pathol. 2015, 52, 803–818. [Google Scholar] [PubMed]
  35. Dias, I.R.; Viegas, C.A.; Carvalho, P.P. Large Animal Models for Osteochondral Regeneration. Adv. Exp. Med. Biol. 2018, 1059, 441–501. [Google Scholar] [PubMed]
  36. Knott, L.E.; Fonseca-Martinez, B.A.; O’Connor, A.M.; Goodrich, L.R.; McIlwraith, C.W.; Colbath, A.C. Current use of biologic therapies for musculoskeletal disease: A survey of board-certified equine specialists. Vet. Surg. 2022, 51, 557–567. [Google Scholar] [PubMed]
  37. Camargo Garbin, L.; Lopez, C.; Carmona, J.U. A Critical Overview of the Use of Platelet-Rich Plasma in Equine Medicine over the Last Decade. Front. Vet. Sci. 2021, 8, 641818. [Google Scholar]
  38. Wei, N.; Xu, Y.; Li, Y.; Shi, J.; Zhang, X.; You, Y.; Sun, Q.; Zhai, H.; Hu, Y. A bibliometric analysis of T cell and atherosclerosis. Front. Immunol. 2022, 13, 948314. [Google Scholar]
  39. Pranckutė, R. Web of Science (WoS) and Scopus: The Titans of Bibliographic Information in Today’s Academic World. Publications 2021, 9, 12. [Google Scholar] [CrossRef]
  40. Joshi, A. Comparison between Scopus & ISI Web of science. J. Glob. Values. 2016, 7, 1–11. [Google Scholar]
  41. Aria, M.; Cuccurullo, C. bibliometrix: An R-tool for comprehensive science mapping analysis. J. Informetr. 2017, 11, 959–975. [Google Scholar]
  42. Sutter, W.W.; Kaneps, A.J.; Bertone, A.L. Comparison of hematologic values and transforming growth factor-beta and insulin-like growth factor concentrations in platelet concentrates obtained by use of buffy coat and apheresis methods from equine blood. Am. J. Vet. Res. 2004, 65, 924–930. [Google Scholar]
  43. Frisbie, D.D.; Kawcak, C.E.; Werpy, N.M.; Park, R.D.; McIlwraith, C.W. Clinical, biochemical, and histologic effects of intra-articular administration of autologous conditioned serum in horses with experimentally induced osteoarthritis. Am. J. Vet. Res. 2007, 68, 290–296. [Google Scholar]
  44. Waselau, M.; Sutter, W.W.; Genovese, R.L.; Bertone, A.L. Intralesional injection of platelet-rich plasma followed by controlled exercise for treatment of midbody suspensory ligament desmitis in Standardbred racehorses. J. Am. Vet. Med. Assoc. 2008, 232, 1515–1520. [Google Scholar]
  45. Del Bue, M.; Riccò, S.; Ramoni, R.; Conti, V.; Gnudi, G.; Grolli, S. Equine adipose-tissue derived mesenchymal stem cells and platelet concentrates: Their association in vitro and in vivo. Vet. Res. Commun. 2008, 32 (Suppl. 1), S51–S55. [Google Scholar]
  46. Argüelles, D.; Carmona, J.U.; Pastor, J.; Iborra, A.; Viñals, L.; Martínez, P.; Bach, E.; Prades, M. Evaluation of single and double centrifugation tube methods for concentrating equine platelets. Res. Vet. Sci. 2006, 81, 237–245. [Google Scholar]
  47. Carmona, J.U.; Argüelles, D.; Climent, F.; Prades, M. Autologous Platelet Concentrates as a Treatment of Horses with Osteoarthritis: A Preliminary Pilot Clinical Study. J. Equine Vet. Sci. 2007, 27, 167–170. [Google Scholar]
  48. Hraha, T.H.; Doremus, K.M.; McIlwraith, C.W.; Frisbie, D.D. Autologous conditioned serum: The comparative cytokine profiles of two commercial methods (IRAP and IRAP II) using equine blood. Equine Vet. J. 2011, 43, 516–521. [Google Scholar] [PubMed]
  49. Textor, J.A.; Tablin, F. Activation of equine platelet-rich plasma: Comparison of methods and characterization of equine autologous thrombin. Vet. Surg. 2012, 41, 784–794. [Google Scholar]
  50. Argüelles, D.; Carmona, J.U.; Climent, F.; Muñoz, E.; Prades, M. Autologous platelet concentrates as a treatment for musculoskeletal lesions in five horses. Vet. Rec. 2008, 162, 208–211. [Google Scholar] [PubMed]
  51. Chen, C.; Song, M. Visualizing a field of research: A methodology of systematic scientometric reviews. PLoS ONE 2019, 14, e0223994. [Google Scholar]
  52. Chen, W.; Yang, Y.; Tang, G. Mapping knowledge structure and research trends of knee osteoarthritis with meniscus in two decades: A bibliometric analysis. Front. Surg. 2022, 9, 939003. [Google Scholar]
  53. Xiao, Z.; Chen, W.; Wei, Z.; Zhang, Q.; Tang, G. Global trends and hotspots in the application of platelet-rich plasma in knee osteoarthritis: A bibliometric analysis from 2008 to 2022. Medicine 2023, 102, e35854. [Google Scholar]
  54. Ren, B.; Lv, X.; Tu, C.; Li, Z. Research trends of platelet-rich plasma application in orthopaedics from 2002 to 2020: A bibliometric analysis. Int. Orthop. 2021, 45, 2773–2790. [Google Scholar] [PubMed]
  55. Xu, J.; Du, W.; Xue, X.; Chen, M.; Zhou, W.; Luo, X. Global research trends on platelet-rich plasma for tendon and ligament injuries from the past two decades: A bibliometric and visualized study. Front. Surg. 2023, 10, 1113491. [Google Scholar]
  56. Cui, Y.; Lin, L.; Wang, Z.; Wang, K.; Xiao, L.; Lin, W.; Zhang, Y. Research trends of platelet-rich plasma therapy on knee osteoarthritis from 2011 to 2021: A review. Medicine 2023, 102, e32434. [Google Scholar] [PubMed]
  57. Cash, C.; Scott, L.; Walden, R.L.; Kuhn, A.; Bowman, E. Bibliometric analysis of the top 50 highly cited articles on platelet-rich plasma in osteoarthritis and tendinopathy. Regen. Med. 2022, 17, 491–506. [Google Scholar]
  58. Bradford, S.C. Sources of information on specific subjects. Engineering 1934, 137, 85–86. [Google Scholar]
  59. Alvarado, R.U. El crecimiento de la literatura sobre la ley de Bradford. Investig. Bibl. Arch. Bibl. E Inf. 2016, 30, 51–72. [Google Scholar]
  60. Lotka, A.J. The frequency distribution of scientific productivity. J. Wash. Acad. Sci. 1926, 16, 317–323. [Google Scholar]
  61. Marycz, K.; Toker, N.Y.; Grzesiak, J.; Wrzeszcz, K.; Golonka, P. The therapeutic effect of autogenic adipose derived stem cells combined with autogenic platelet rich plasma in tendons disorders in horses in vitro and in vivo research. J. Anim. Vet. Adv. 2012, 11, 4324–4331. [Google Scholar]
  62. Carmona, J.U.; López, C.; Prades, M. Uso de concentrados autólogos de plaquetas obtenidos mediante el método del tubo como tratamiento de artropatías en caballos. Arch. De. Med. Vet. 2009, 41, 175–179. [Google Scholar]
  63. Fortier, L.A.; Smith, R.K. Regenerative medicine for tendinous and ligamentous injuries of sport horses. Vet. Clin. N. Am. Equine Pract. 2008, 24, 191–201. [Google Scholar]

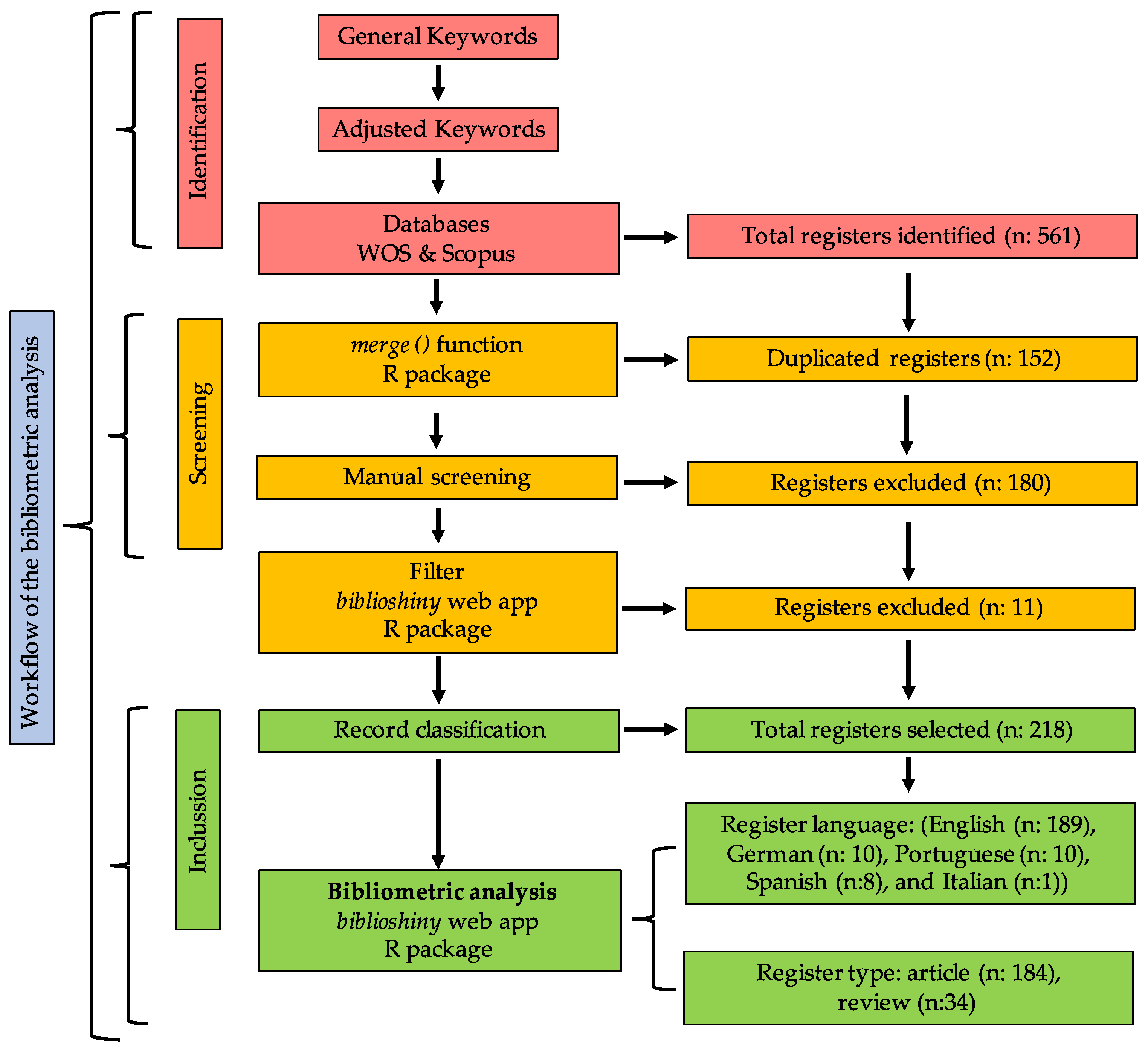

Figure 1. Workflow of the study and results of the registers selected for the bibliometric analysis.
Figure 1. Workflow of the study and results of the registers selected for the bibliometric analysis.
Vetsci 11 00385 g001
Figure 2. Three-field plot of the connections from the top 10 institutions (left) with the top 10 countries (middle) and the top 10 sources of papers on PRP and related orthobiologics for the treatment of chronic musculoskeletal diseases in horses from 2000 to 2024. AU_UN: author institution; AU_CO: author country; SC: source (journal).
Figure 2. Three-field plot of the connections from the top 10 institutions (left) with the top 10 countries (middle) and the top 10 sources of papers on PRP and related orthobiologics for the treatment of chronic musculoskeletal diseases in horses from 2000 to 2024. AU_UN: author institution; AU_CO: author country; SC: source (journal).
Vetsci 11 00385 g002

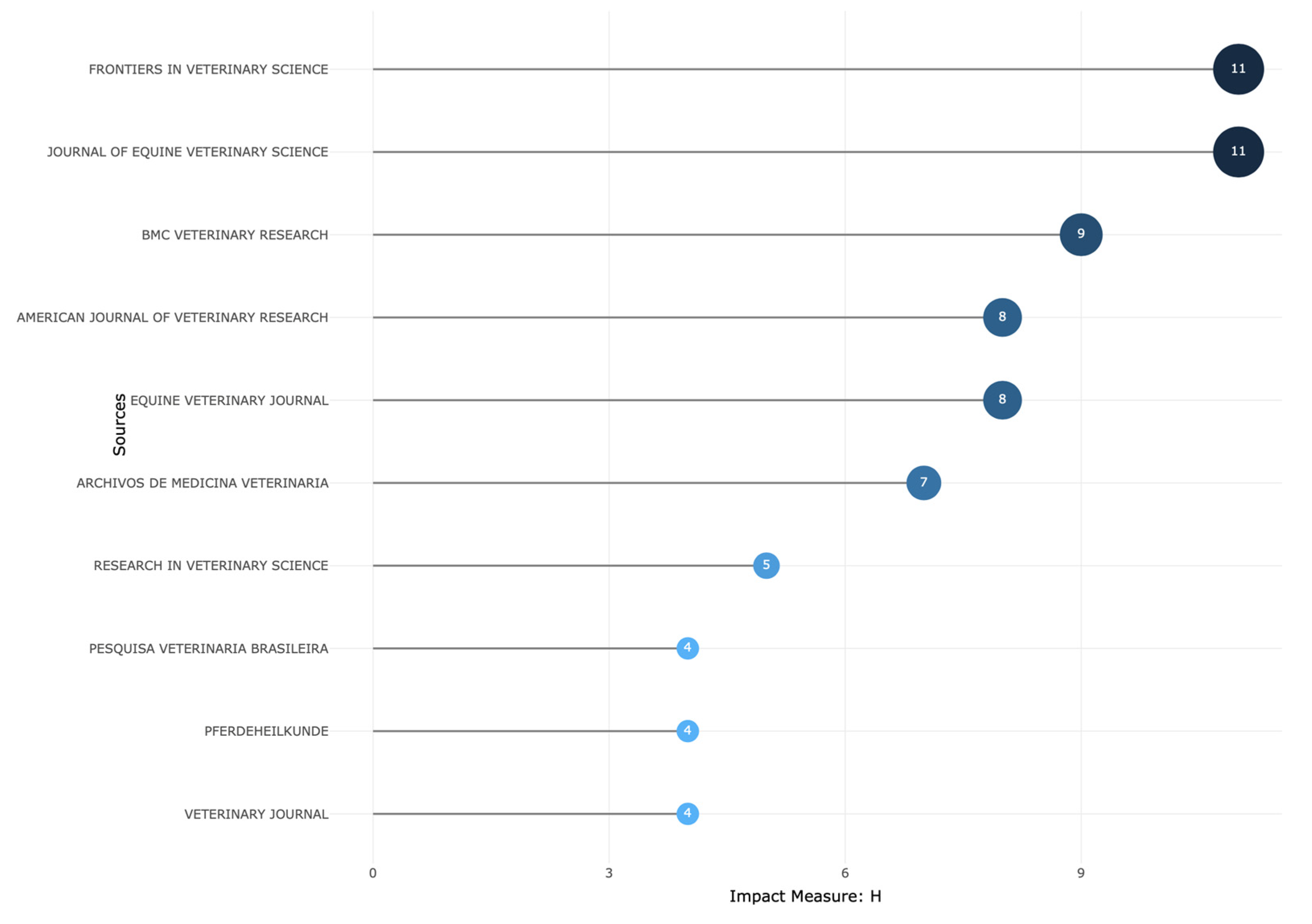

Figure 3. Top 10 journals local impact as measured by H-index that have published articles and reviews on PRP and related orthobiologics as treatments for equine musculoskeletal disorders (2000–2024).
Figure 3. Top 10 journals local impact as measured by H-index that have published articles and reviews on PRP and related orthobiologics as treatments for equine musculoskeletal disorders (2000–2024).
Vetsci 11 00385 g003

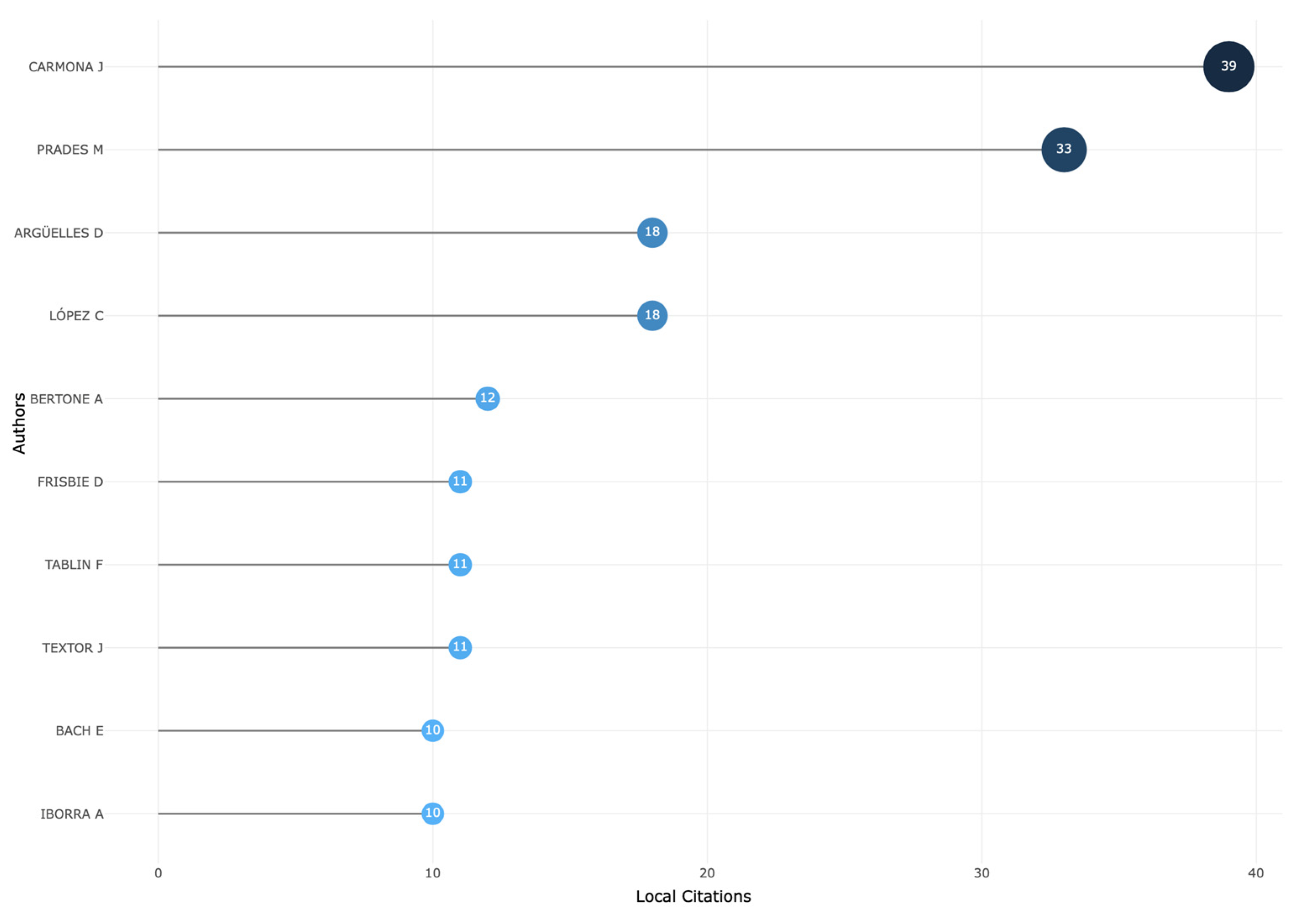

Figure 4. Top 10 most cited local authors who published articles and reviews on PRP and related orthobiologics as treatments for equine musculoskeletal disorders (2000–2024).
Figure 4. Top 10 most cited local authors who published articles and reviews on PRP and related orthobiologics as treatments for equine musculoskeletal disorders (2000–2024).
Vetsci 11 00385 g004

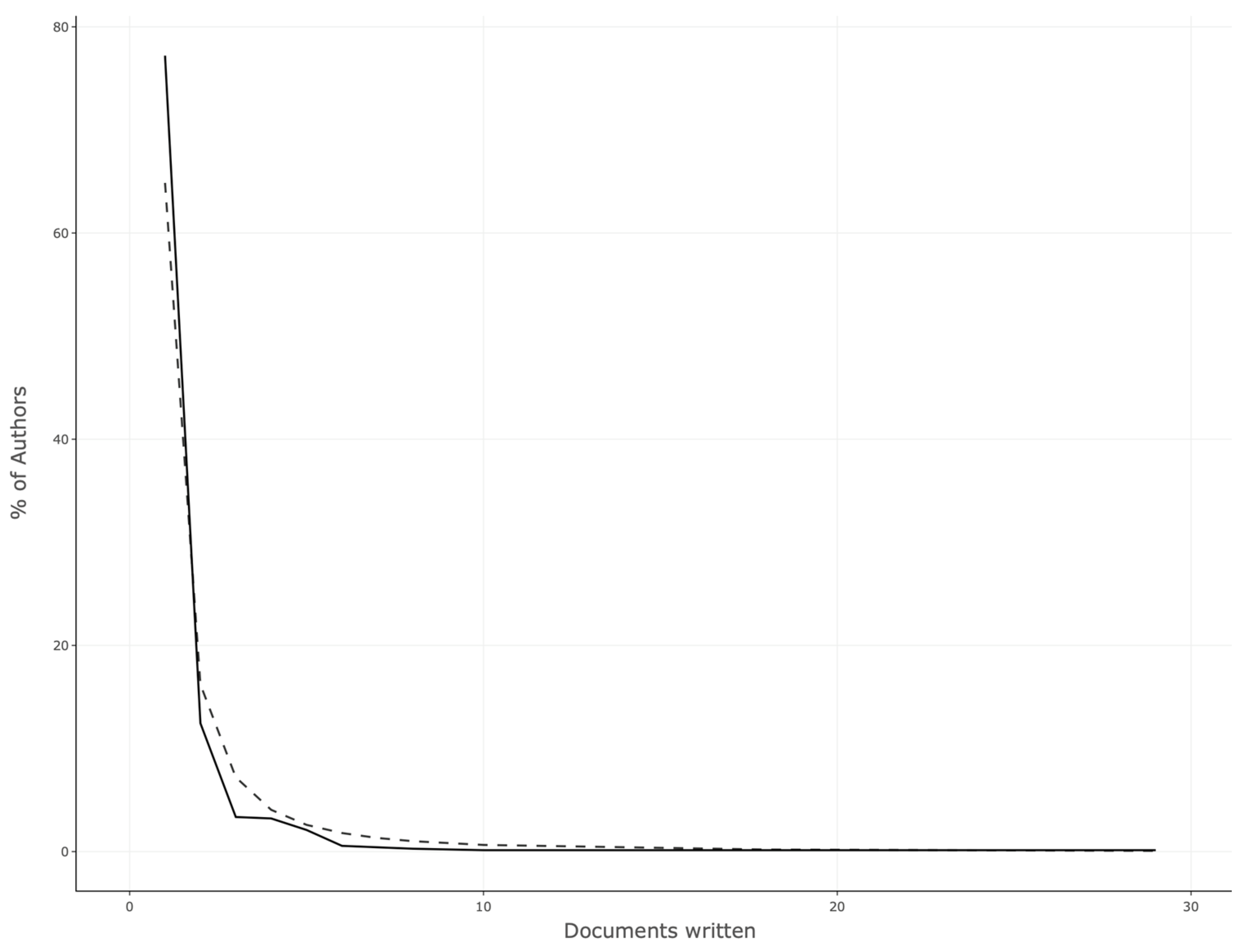

Figure 5. Author productivity measured with Lotka’s law.
Figure 5. Author productivity measured with Lotka’s law.
Vetsci 11 00385 g005

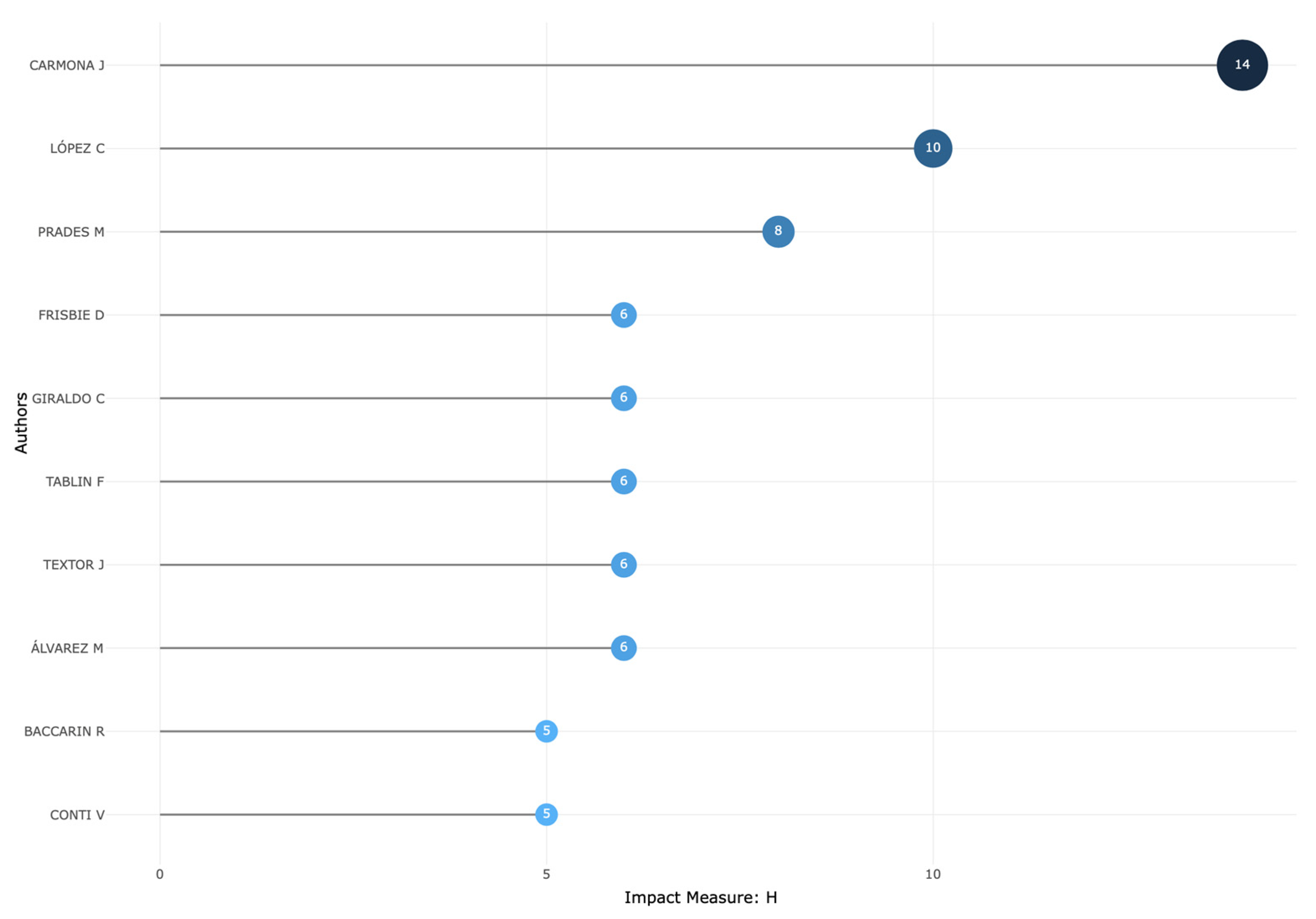

Figure 6. Top 10 authors’ local impact as measured by H-index, who have published articles and reviews on PRP and related orthobiologics as treatments for equine musculoskeletal disorders (2000–2024).
Figure 6. Top 10 authors’ local impact as measured by H-index, who have published articles and reviews on PRP and related orthobiologics as treatments for equine musculoskeletal disorders (2000–2024).
Vetsci 11 00385 g006

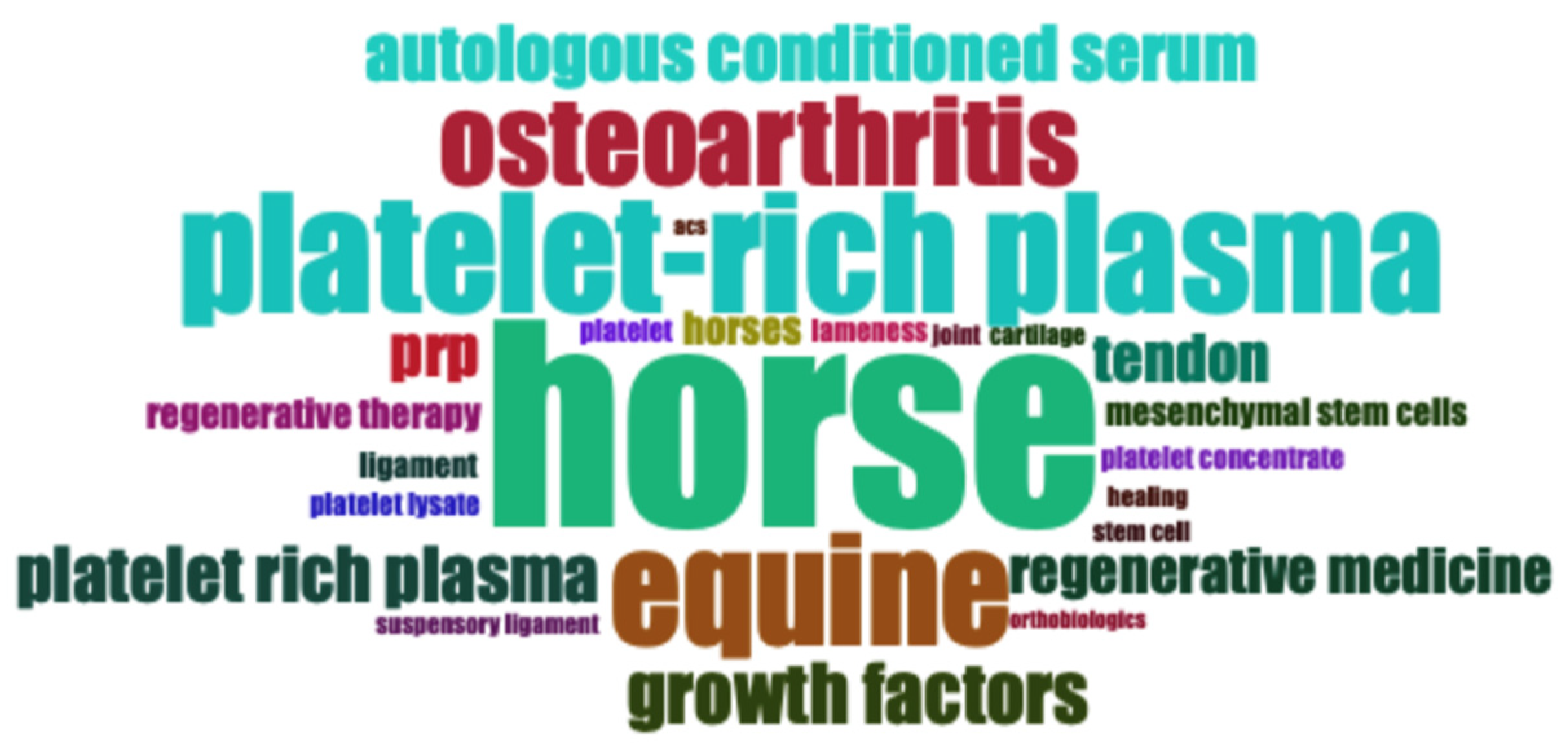

Figure 7. Top 25 most used keywords over time (2000–2024).
Figure 7. Top 25 most used keywords over time (2000–2024).
Vetsci 11 00385 g007

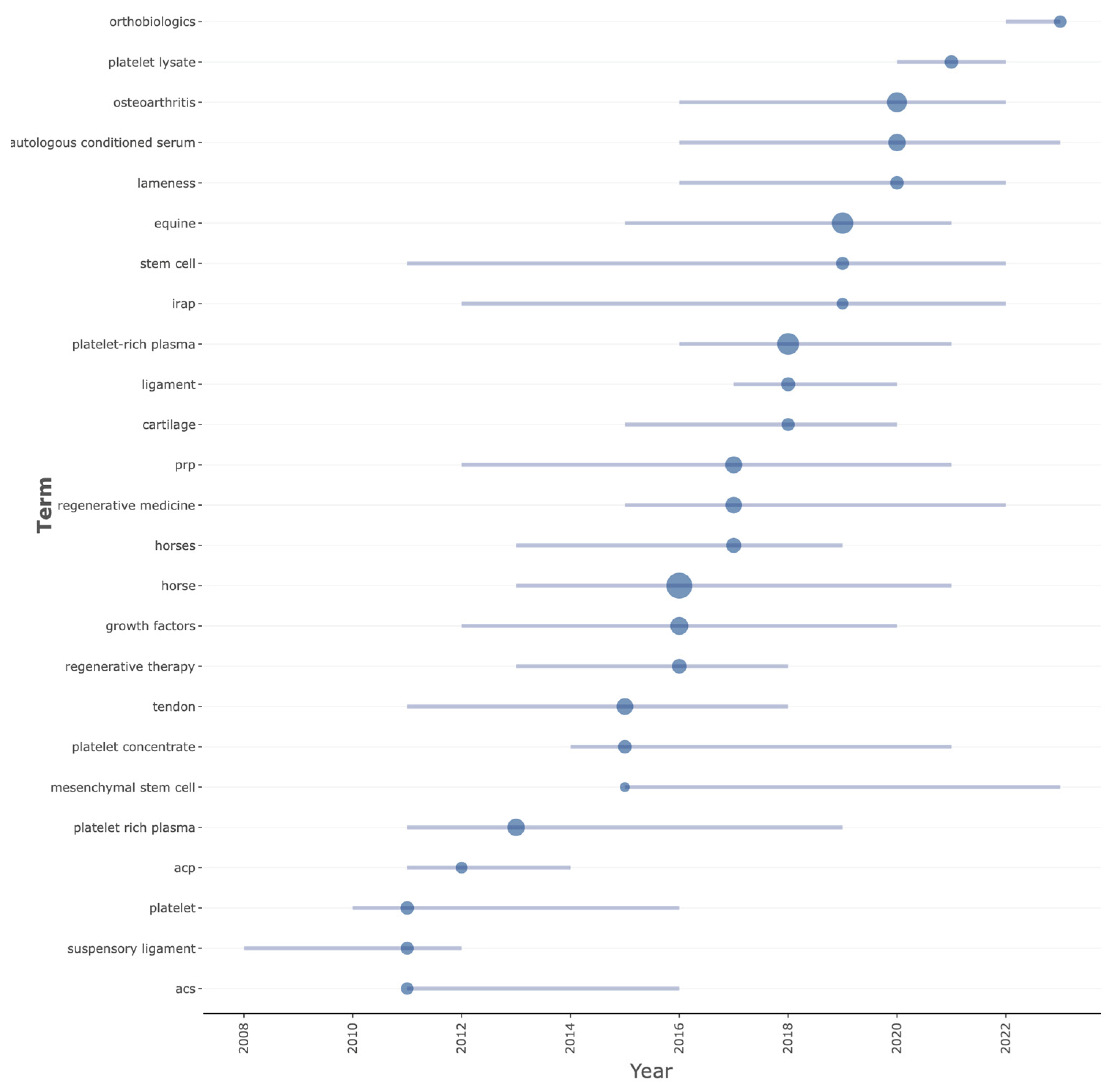

Figure 8. Trending topics in author keywords over time on PRP and related orthobiologicals as treatments for equine musculoskeletal disorders (2000–2024).
Figure 8. Trending topics in author keywords over time on PRP and related orthobiologicals as treatments for equine musculoskeletal disorders (2000–2024).
Vetsci 11 00385 g008

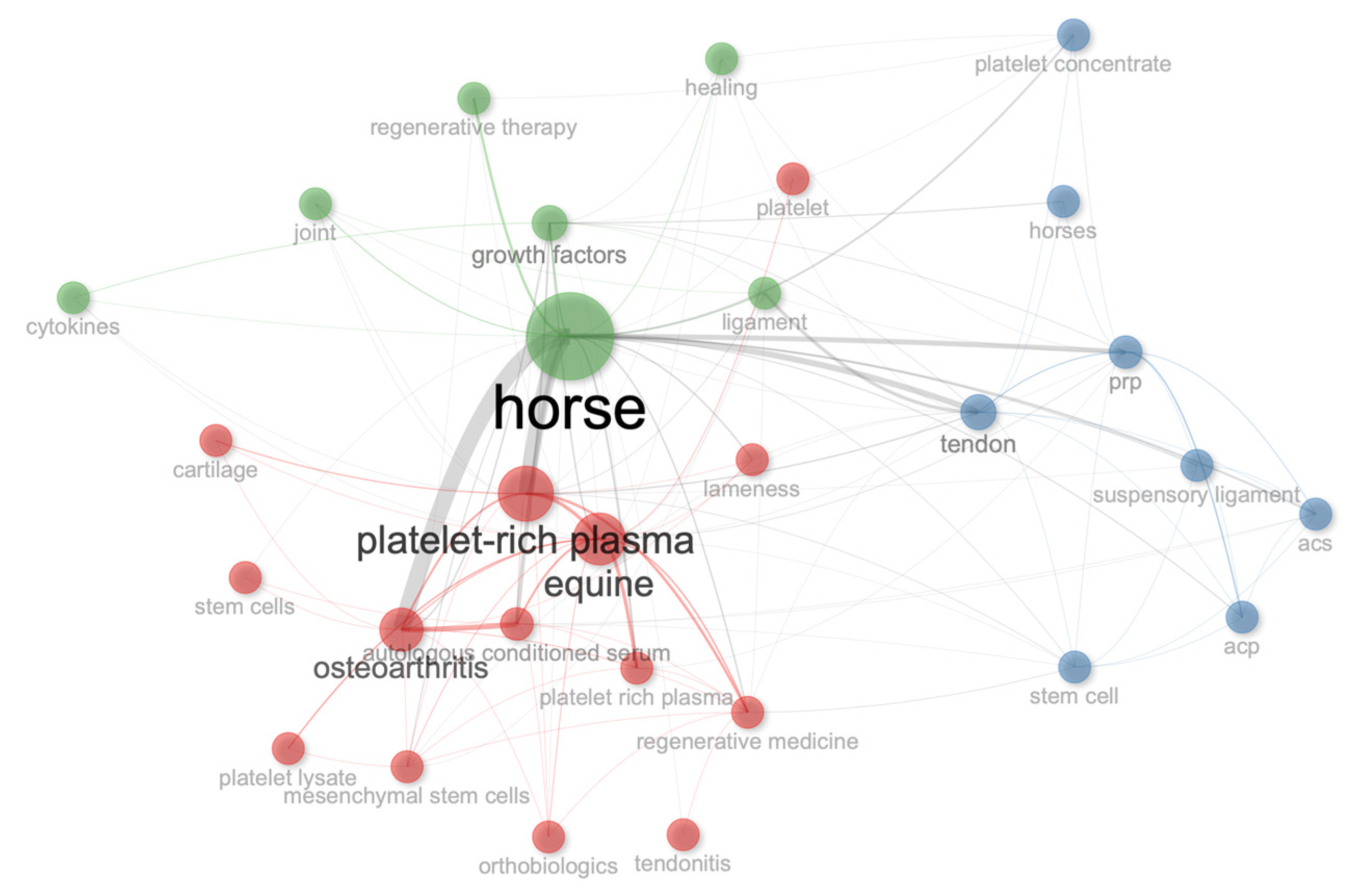

Figure 9. Co-occurrence network analysis of author keywords.
Figure 9. Co-occurrence network analysis of author keywords.
Vetsci 11 00385 g009

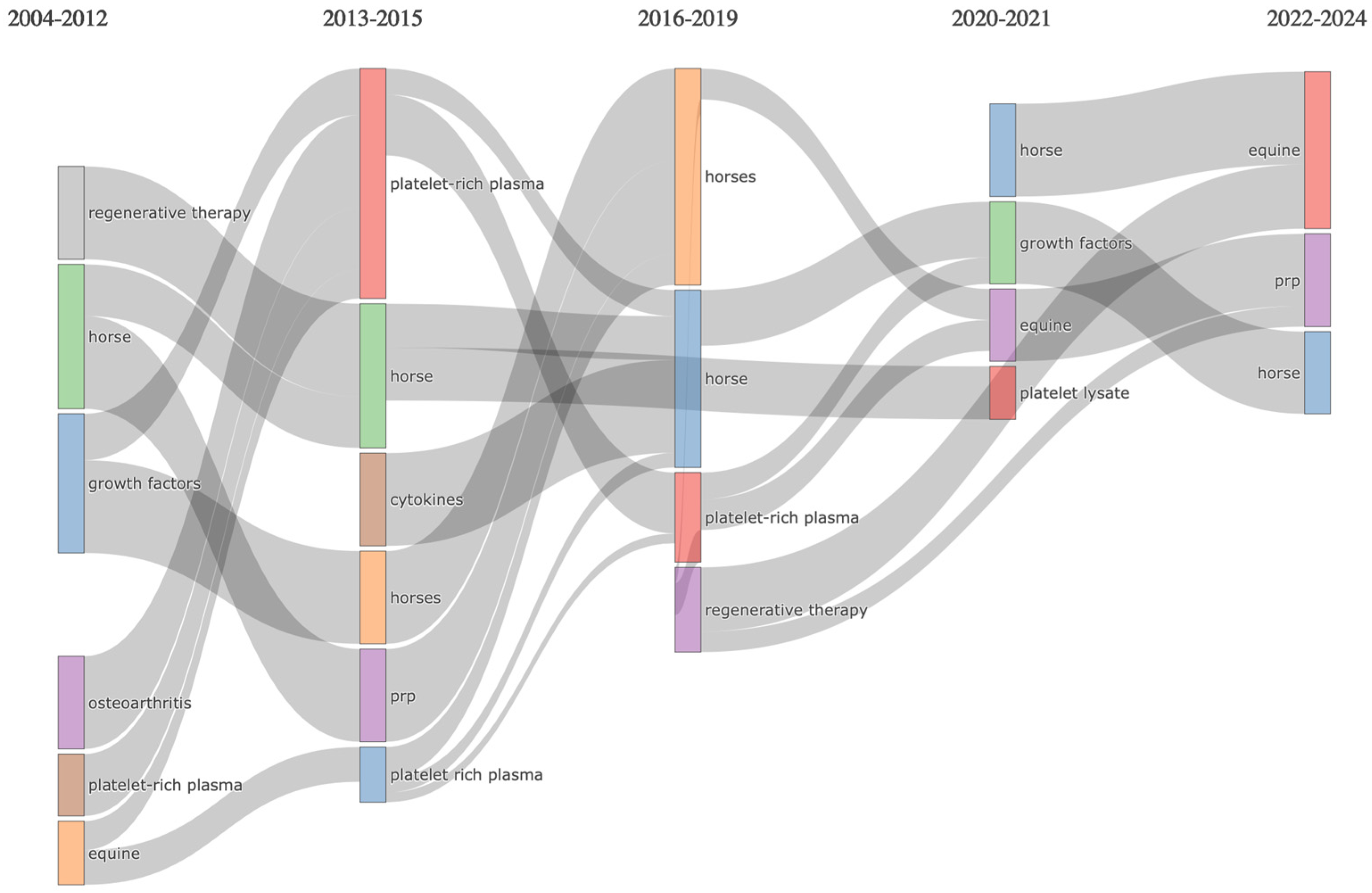

Figure 10. Connection plot of the thematic evolution of author keywords (2000–2024).
Figure 10. Connection plot of the thematic evolution of author keywords (2000–2024).
Vetsci 11 00385 g010

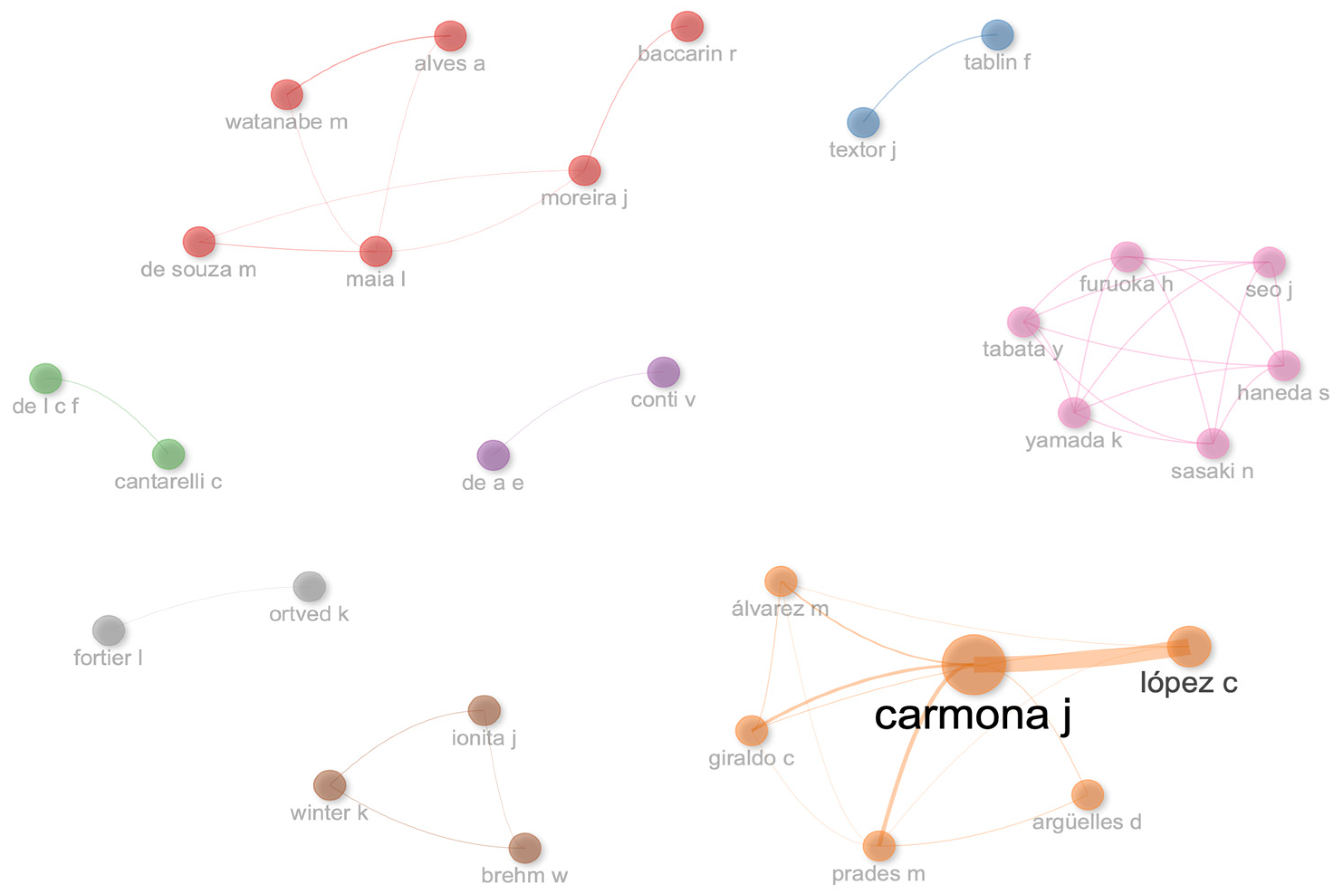

Figure 11. Collaboration network for authors.
Figure 11. Collaboration network for authors.
Vetsci 11 00385 g011

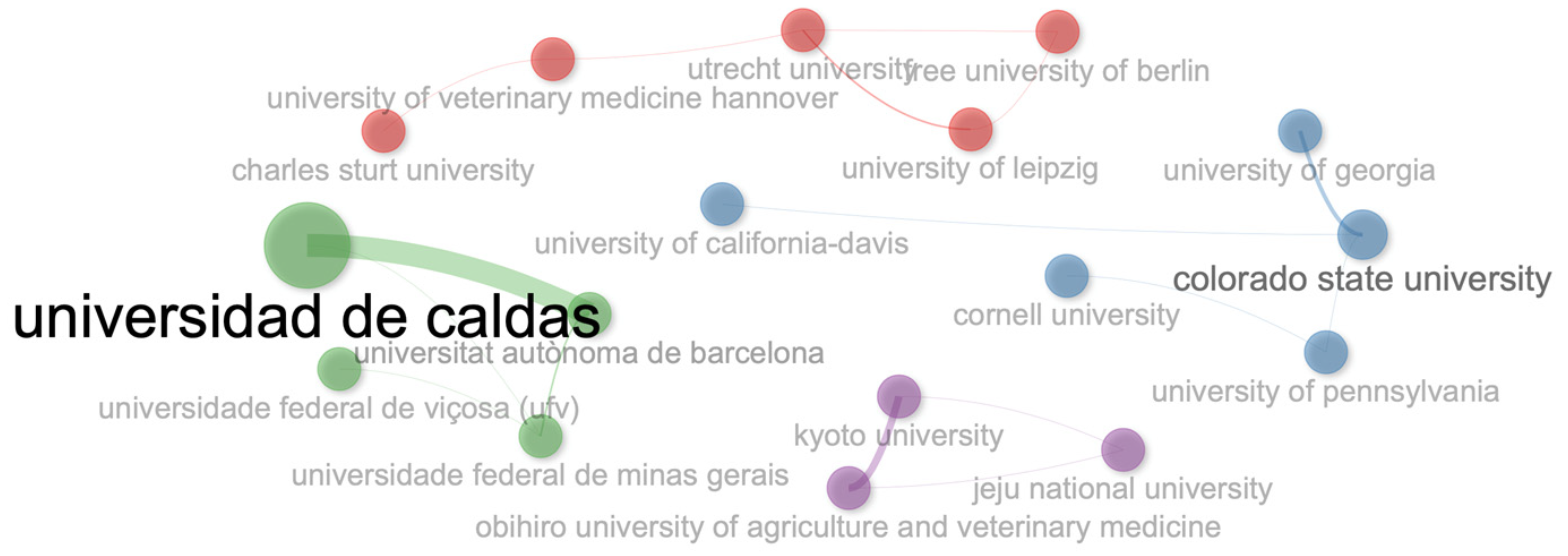

Figure 12. Collaboration network for institutions.
Figure 12. Collaboration network for institutions.
Vetsci 11 00385 g012

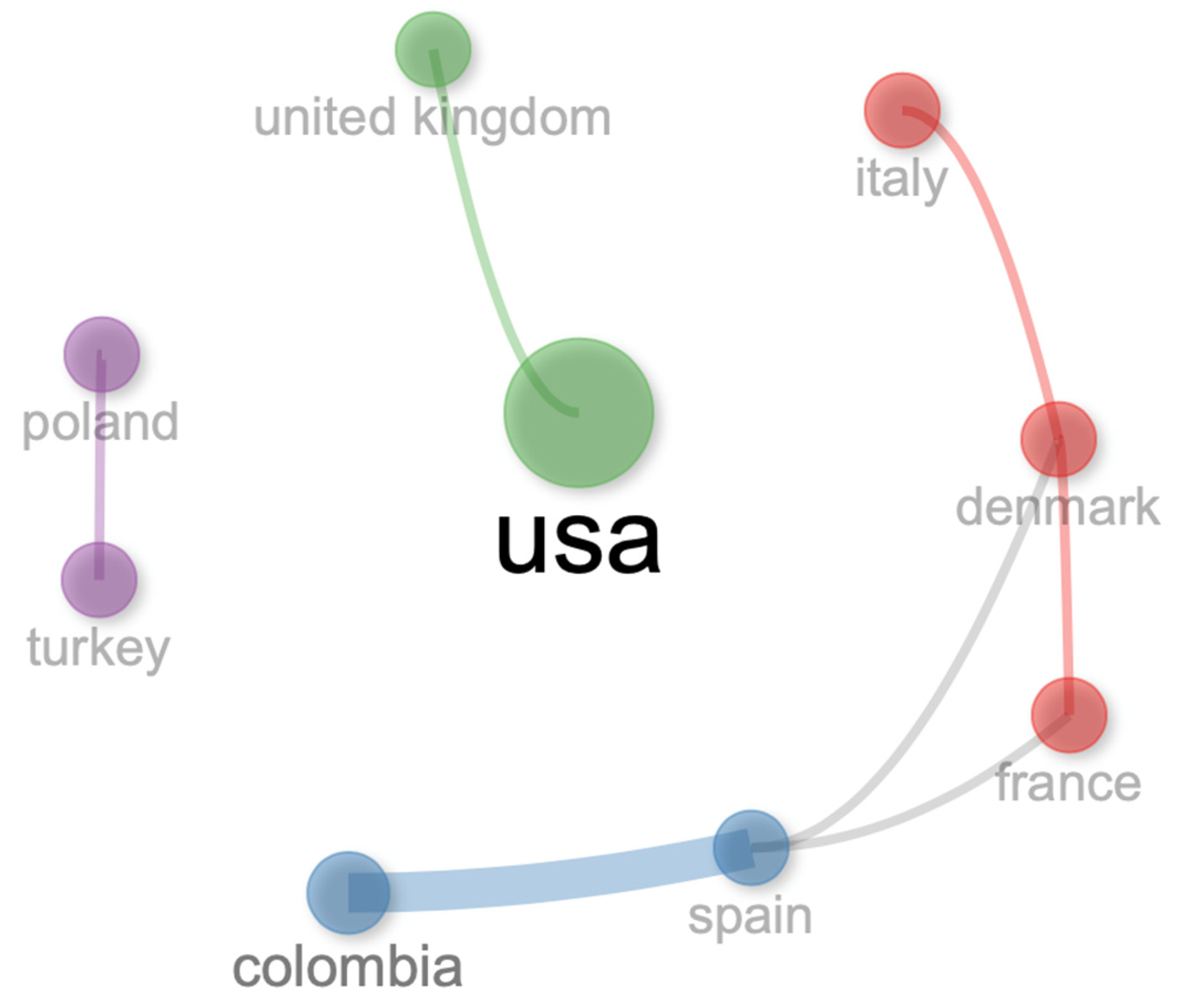

Figure 13. Collaboration network for countries.
Figure 13. Collaboration network for countries.
Vetsci 11 00385 g013
Table 1. Top ten core sources according to Bradford’s law.
Table 1. Top ten core sources according to Bradford’s law.
SourceRankFrequencyCumulative FrequencyZone
Frontiers in Veterinary Science12626Zone 1
Journal of Equine Veterinary Science22450Zone 1
BMC Veterinary Research31161Zone 1
Equine Veterinary Journal41172Zone 1
Pferdeheilkunde51183Zone 2
American Journal of Veterinary Research61093Zone 2
Archivos de Medicina Veterinaria710103Zone 2
Veterinary Clinics of North America—Equine Practice88111Zone 2
Equine Veterinary Education97118Zone 2
Research in Veterinary Science107125Zone 2
Table 2. Top 10 most global cited documents on PRP and related orthobiologicals as treatments for equine musculoskeletal disorders (2000–2024).
Table 2. Top 10 most global cited documents on PRP and related orthobiologicals as treatments for equine musculoskeletal disorders (2000–2024).
AuthorsSourceTopicDTTCTCPYNTC
Frisbie et al. [43]American Journal of Veterinary ResearchAutologous conditioned serum (ACS) and experimental osteoarthritis (OA)Article20711.501.90
Waselau et al. [44]Journal of the American Veterinary Medical Association Platelet-rich plasma (PRP) and suspensory ligament desmitisArticle1116.532.14
Del Bue et al. [45]Veterinary Research CommunicationsPRP plus mesenchymal stem cells and tendonitisArticle945.531.81
Argüelles et al. [46]Research in Veterinary SciencePRP techniqueArticle934.891.00
Fortier et al. [46]Veterinary Clinics of North America—Equine PracticeRegenerative medicine and tenodesmic lesionsReview935.471.79
Carmona et al. [47]Journal of Equine Veterinary SciencePRP and OAArticle804.440.74
Sutter et al. [42]American Journal of Veterinary ResearchPRP techniqueArticle783.711.00
Hraha et al. [48]Equine Veterinary JournalACS and IRAP techniquesArticle785.433.21
Textor et al. [49]Veterinary SurgeryPRP and exogenous activationArticle765.853.06
Argüelles et al. [50]Veterinary RecordPRP and tenodesmic lesionsArticle754.411.45
DT = document type; TC = total citations; TCPY = total citations per year; NTC = normalized total citations.
Table 3. General thematic evolution of author keywords by cutting year (2012, 2015, 2019, and 2021) according to four themes.
Table 3. General thematic evolution of author keywords by cutting year (2012, 2015, 2019, and 2021) according to four themes.
Cutting YearNiche ThemesMotor ThemesBasic ThemesEmerging or Declining Themes
2012Cluster 1 (growth factors, horse, collagenase)Cluster 1 (horse, tendon, prp)
Cluster 2 (equine, platelet-rich plasma, mesenchymal stem cells)
Cluster 1 (platelet-rich plasma, bone marrow, autologous conditioned serum)Cluster 1 (regenerative therapy)
Cluster 2 (platelet)
2015Cluster 1 (comparison, prp).
Cluster 2 (platelet rich plasma, mesenchymal stem cell, tissue engineering)
Cluster 1 (horse, platelet concentrate, regenerative therapy).
Cluster 2 (platelet rich plasma, mesenchymal stem cell, tissue engineering).
Cluster 3 (osteoarthritis, autologous conditioned serum, stem cells)
Cluster 1 (platelet-rich plasma, equine, growth factors).
Cluster 2 (osteoarthritis, autologous conditioned serum, stem cells)
Cluster 1 (cytokines).
Cluster 2 (horses)
2019Cluster 1 (cryopreservation, dmso, platelet-rich plasma (prp)).
Cluster 2 (osteoarthritis, cartilage, aggrecan)
Cluster 3 (ultrasound)
Cluster 4 (autologous conditioned serum)
Cluster 1 (platelet-rich plasma, regenerative medicine, tendon)
Cluster 2 (osteoarthritis, cartilage, aggrecan)
Cluster 3 (growth factors, regenerative therapy, cytokines)
Cluster 1 (equine, mesenchymal stem cells, stem cells).
Cluster 2 (growth factors, regenerative therapy, cytokines)
Cluster 3 (horse, autologous conditioned serum, acs)
Cluster 4 (horses, platelet rich plasma (prp)
Cluster 1 (growth factor).
Cluster 2 (growth factors, regenerative therapy, cytokines)
2021Cluster 1 (growth factors, prp, healing)Cluster 1 (equine, sports medicine, biological therapies)
Cluster 2 (horse, osteoarthritis, autologous conditioned serum)
Cluster 1 (platelet-rich plasma)
Cluster 2 (horse, osteoarthritis, autologous conditioned serum)
Cluster 1 (platelet-rich plasma)
Cluster 2 (platelet lysate)
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Carmona, J.U.; Carmona-Ramírez, L.H.; López, C. Platelet-Rich Plasma and Related Orthobiologics for the Treatment of Equine Musculoskeletal Disorders—A Bibliometric Analysis from 2000 to 2024. Vet. Sci. 2024, 11, 385. https://doi.org/10.3390/vetsci11080385

AMA Style

Carmona JU, Carmona-Ramírez LH, López C. Platelet-Rich Plasma and Related Orthobiologics for the Treatment of Equine Musculoskeletal Disorders—A Bibliometric Analysis from 2000 to 2024. Veterinary Sciences. 2024; 11(8):385. https://doi.org/10.3390/vetsci11080385

Chicago/Turabian Style

Carmona, Jorge U., Luis H. Carmona-Ramírez, and Catalina López. 2024. "Platelet-Rich Plasma and Related Orthobiologics for the Treatment of Equine Musculoskeletal Disorders—A Bibliometric Analysis from 2000 to 2024" Veterinary Sciences 11, no. 8: 385. https://doi.org/10.3390/vetsci11080385

APA Style

Carmona, J. U., Carmona-Ramírez, L. H., & López, C. (2024). Platelet-Rich Plasma and Related Orthobiologics for the Treatment of Equine Musculoskeletal Disorders—A Bibliometric Analysis from 2000 to 2024. Veterinary Sciences, 11(8), 385. https://doi.org/10.3390/vetsci11080385

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
