A Dataset of Service Time and Related Patient Characteristics from an Outpatient Clinic

Haolin Feng; Yiwu Jia; Siyi Zhou; Hongyi Chen; Teng Huang

doi:10.3390/data8030047

,

and

¹

School of Business, Sun Yat-sen University, Guangzhou 510275, China

²

Lingnan College, Sun Yat-sen University, Guangzhou 510275, China

³

Hangu TCM Innovation and Research Institute, Guangzhou 510627, China

^*

Author to whom correspondence should be addressed.

Data2023, 8(3), 47;https://doi.org/10.3390/data8030047

Version Notes

Order Reprints

Abstract

Outpatient clinics’ productivity largely depends on their appointment scheduling systems. It is crucial for appointment scheduling to understand the intrinsic heterogeneity in patient and service types and act accordingly. This article describes an outpatient clinic dataset of consultation service time with heterogeneous characteristics. The dataset contains 6637 consultation records collected from 381 half-day sessions between 2018 and 2019. Each record includes encrypted session and patient IDs, consultation start and (approximated) end times, the month and day of the week, whether it was on a holiday, the patient’s visit count for a specific medical condition, gender, whether the consultation was cancer-related, and the distance from the patient’s mailing address to the clinic. These features can be used to classify patients into heterogeneous groups in studies of appointment scheduling. Therefore, this dataset with rich, heterogeneous patient characteristics provides a valuable opportunity for healthcare operations management researchers to develop, test, and benchmark the performance of their models and methods. It can also be used for studying appointment scheduling in other service industries. More generally, it provides pedagogical value in areas related to management science and operations research, applied statistics, and machine learning.

Dataset:https://github.com/fenghaolin/HanguData (DOI:10.5281/zenodo.7444721)

Dataset License: CC-BY-NC-SA 4.0

Keywords:

healthcare systems; appointment scheduling; outpatient clinic; patient heterogeneity; data-driven methods; machine learning

1. Summary

Due to the rising demand for healthcare services and increased healthcare spending, healthcare organizations are under constant pressure to improve the efficiency of their operations [,]. Empirical evidence shows that operational efficiency is critical to the quality of patients’ experience []. In addition, with the growing emphasis on patient-centered care, clinics, and hospitals are expected to improve the quality of care and guarantee access to care []. To address such challenges, various techniques have been proposed to optimize healthcare operations management (HOM) decisions such as nurse staffing and surgery planning [], as well as outpatient appointment scheduling [,,,].

Outpatient appointment scheduling (AS) is a crucial aspect of delivering effective and efficient healthcare services to patients []. It focuses on finding appointment rules by optimizing a specific measure such as the weighted sum of patients’ waiting time, physician overtime, and system idle time [,]. A well-managed appointment scheduling system can strike a balance between the productivity of patients and that of the healthcare providers [].

Outpatient AS has been widely studied since the 1950s [,]. Some studies do not rely on observational data of service time but on theoretical probability distributions [,,,]. For those that do use data [,,,], their datasets are mostly withheld for privacy concerns []. As a result, publicly available datasets that could benefit the entire HOM research community are scarce. According to [], no other U.S. healthcare system had made the wait times publicly available before them. Similarly, there is a shortage of publicly accessible real datasets on outpatient consultation service time. In fact, we have not found any besides the one we are making available.

We believe that real-world datasets describing the operations of healthcare service systems will benefit HOM researchers and practitioners, so we have made public this Hangu dataset containing service time and related feature information. This dataset holds practical value for management science and operations research (MS/OR) scholars working on healthcare appointment scheduling and the machine learning community. Here, we explain the value of the dataset:

Accurate estimation of the service time is critical in designing efficient healthcare service systems. MS/OR studies on the operations of healthcare service systems typically model the uncertainty in service time by theoretical probability distributions or by approximating the empirical ones. Public datasets that are useful for the latter are rare. Our dataset is a realistic test bench for MS/OR researchers to evaluate their appointment scheduling algorithms and help develop new ones.
Leveraging the rich feature information in the Hangu dataset, researchers can explore various ways of dealing with heterogeneity among patients, which helps determine the service time they need. Research shows that the larger the number of subgroups, the smaller the variability within each subgroup, thus the more predictable the service time becomes [,,]. However, too many subgroups complicate the appointment scheduling decisions and make such decisions difficult to use in practice. One could explore the Hangu dataset together with similar ones and develop innovative methods for outpatient appointment scheduling.
Researchers in the machine learning community can use the dataset to develop and test techniques for properly distinguishing patient types, as well as for accurately predicting their service time [,]. These are critical for analyzing the efficiency of a healthcare system [].

2. Data Description

The data were obtained from our partner clinic, Hangu, a private outpatient clinic specializing in traditional Chinese medicine (TCM). Hangu was established by two experienced physicians formerly employed at a large public hospital in Guangzhou, China. It operates at multiple facilities in Guangzhou and Shenzhen, the two megacities in Guangdong province, China. While TCM physicians have their own specialties, it is typical that they treat patients with a variety of medical conditions, from minor illnesses to severe chronic conditions. Despite the differences in medical philosophy, the operation of Hangu mirrors that of modern Western medicine clinics. Patients make appointments through phone calls or online, and a clinic staff assigns them each an appointment slot for consultation. Currently, Hangu’s appointment scheduling is simply on a first-come-first-appoint basis. Such a simple approach does not utilize heterogeneous patient characteristics, and it is a practice commonly adopted by many clinics [,,].

This dataset pertains to the consultations provided by a stellar physician at a Guangzhou facility in 381 half-day sessions. The data cover all consultations provided by this physician in 2018 and 2019. Note that although Hangu operates six days a week, the physician in question, who is also a cofounder of Hangu, does not see patients every day due to other responsibilities within the clinic. Each session includes records of multiple patient consultations, resulting in a total of 6637 records in the final dataset stored in Data.csv. The details of data collection and processing are described in Section 3.

Table 1 provides a preview of the full dataset stored in Data.csv, and it contains all the consultations that occurred in a half-day session. Each row of Table 1 represents one consultation record, and each column is a variable. We briefly explain the meaning of the records using the first row of Table 1 as an example:

Table 1. Data of a sample session.

This record describes a consultation for a patient with ID ‘HAA052B7CD’.
The value of Visit.No is 7, indicating that the patient had seen the physician for the same medical condition six times before this visit.
M.Cancer being ‘TRUE’ means the main condition to consult for was a type of cancer.
S.Cancer being ‘FALSE’ means that the patient did not have other types of cancer other than the main condition.
StartTime refers to the starting moment of the consultation.
After being seen by the physician, the patient would make on-site payments at the front desk, and PayTime records the payment time. In the example row, the payment was made at 8:44:28.
Address documents the patient’s mailing address. In this example, the Address is ‘Out of city’, indicating that the patient resides outside the city of Guangzhou but within Guangdong province.
ServTime, measured in seconds, is the derived service duration of the consultation. This example row shows that the derived service duration for this consultation was 691 s. The details of its derivation are provided in Section 3.

The meanings of the other variables are straightforward, and Table 2 provides the definition of all the variables in the data.

Table 2. Variable descriptions.

3. Methods

We now describe how we obtained, processed, and analyzed the data. Section 3.1 explains the operational rather than clinical nature of the data, and it explains the usage approval obtained. Section 3.2 describes the collection and preprocessing of the raw data. Section 3.3 details the process of computing the derived service time. Section 3.4 introduces how to handle outliers. Section 3.5 presents the exploratory data analysis of the prepared data and insights about the results.

3.1. Data Usage Approval

The current study is an operational study rather than a clinical one. The data were collected retrospectively, and no medical records other than whether the visit was cancer-related were included in the data. The data were fully anonymized and handled within the regulations set by the clinic’s administration. Because of the encrypted IDs, all identifiable information was removed, and it becomes fully untraceable. The administration of the clinic reviewed the research plan and the data involved, and they found no violation of any ethical principle in the study. Therefore, they granted the research team the approval to conduct the research and to use the data extracted from their information system (approval document No.20230119001).

3.2. Create the Raw Data Files

Authorized clinic personnel directly extracted the clinic’s stellar physician’s 2018 and 2019 consultation records from the clinic’s information system. Then, the following steps were taken to protect patients’ private information:

The records were reviewed by the clinic and marked whether the consultation was related to cancer (the M.Cancer and S.Cancer in Table 2), and then the original diagnosis information was removed.
Each patient was assigned a unique ID by Hangu, which was then encrypted during the creation of the raw dataset. We ensured that each patient’s encrypted ID is unique, yet patients’ true identities are deidentified after such encryption.
The date of each session was removed. Potentially useful information related to the date was preserved in the following way:
–
The date information was turned into the variables Month and DayOfWeek.
–
We added a variable indicating whether a session occurred during a working day or a holiday. The dates of public holidays in China depend on the lunar calendar and the solar one; thus, the national holiday arrangement changes yearly. When tagging each session, we checked the 2018 and 2019 official public holiday arrangements [,].
–
Each session was given a unique ID between 1 and 381, which preserved the actual chronological order. Future data users can recreate all the sessions of the focal physician and the order and length of each patient’s consultation.

Raw_1.csv was created following the above steps. In total, 6853 consultation-related records of the 381 half-day sessions are included in Raw_1.csv, and Table 3 provides a preview. Like the final dataset in Data.csv, each row represents one consultation record, and the meaning of the variables are explained both in Table 2 and in the text by example (c.f. Section 2).

Table 3. A preview of the raw data file Raw_1.csv.

The clinic also keeps records of a subset of patients’ mailing addresses. Raw_1.csv includes 2469 unique patients, 1199 of whom have mailing addresses in the clinic’s information system. We utilized JioNLP [], a python package for Chinese NLP preprocessing, to automatically extract the city and province information from the original address. Then, we converted such information into the variable Address that takes one of the three values: {‘In the city’, ‘Out of city’, or ‘Out of province’}. The meaning of these values is provided in Table 2. The encoded address records are stored in Raw_2.csv, and Table 4 is a preview of it.

Table 4. First few rows of the address data.

3.3. Compute the Service Time

Note that Hangu’s information system does not record the actual service duration. Here, we provide a way to compute it given available information in Raw_1.csv.

At the start of each consultation, the physician opens the patient’s electronic record, which records the actual starting time, which may differ from the appointment time. We took the difference between the starting times of consecutive patients’ consultations and named this quantity D1. When the following two assumptions are satisfied, D1 is an accurate measurement of the service time:

1.: The next patient was ready when the physician completed the previous patient’s consultation.
2.: The physician did not leave for other business or personal tasks during a session.

While patients’ true arrival times were not tracked by the clinic, we can still assess whether the first assumption is a reasonable one. According to Hangu’s staff, almost all patients arrived no later than their appointment time. This might be because after making an appointment, the patients get reminders one day before the appointment date and at an earlier time on the same day. Empirical studies also report that an overwhelming majority of patients arrive early rather than late []. Moreover, it was very rare that the physician would leave the consultation room for other tasks. Therefore, it is plausible to use D1 as the service time.

However, when either assumption is violated, D1 would be an overestimation of the actual service time. For example, when the next patient was late, the first patient’s D1 would contain the actual service time and the time that the physician waited for the next patient. To account for such events and improve the estimation accuracy, we further use the payment time, recorded in the variable PayTime, which only happens after the consultation. We calculated the difference between a patient’s PayTime and StartTime and named it D2. When both D1 and D2 are available, the smaller one is a more accurate estimation of the service time. We define the service time as Equation (1).

S e r v T i m e = m i n (D 1, D 2)

(1)

D1 is not available for the last consultation in each half-day session, since there would not be a subsequent patient. Occasionally, PayTime is unavailable in the system, leading to missing values of D2. In either case, ServTime was set to be equal to either D1 or D2 (depending upon their availability). ServTime was encoded as ‘NA’ if both D1 and D2 were unavailable, and there are 28 such occurrences.

After adding ServTime to the raw data of consultation records, we merged the resulting data with the address data in Raw_2.csv via the patients’ encrypted ID. Missing mailing addresses were encoded as ‘NA’. The merged data were saved in Merged_ServiceTime.csv.

3.4. Final Processing

In this subsection, we document how we identified the outliers and handled the missing values.

First, we identified 20 records with a derived service time longer than one hour (

S e r v T i m e > 3600

seconds). Most of them are the last consultation in the half-day sessions. The clinic’s manager explains that the last patient will occasionally make the payment later because the front desk leaves for lunch. Therefore, without a follow-up patient’s starting time, a possibly delayed payment leads to a very large ServTime. In addition, 167 ServTime’s are less than three minutes. These short consultations may result from occasional abnormalities, such as the physician accidentally clicking a wrong patient’s record or getting interrupted by another patient. We dealt with the abnormalities following the advice of the clinic’s manager, i.e., service times larger than 60 min or less than 3 min were considered outliers. There are 187 records identified. Filtering out such outliers and the 28 missing values in ServTime, the remaining data have 6638 records left.

Lastly, we removed one consultation record with a missing value in the variable Visit.No.

After the above processing procedure, there are 6637 records remaining in the final dataset Data.csv.

Note that, in the final dataset, 2392 records have a missing value in Address (encoded as ‘NA’). The reason for keeping the records with no address is that not providing a mailing address is a patient preference, and thus it carries information related to patient characteristics.

3.5. Exploratory Data Analysis

This subsection presents the exploratory data analysis results of the prepared dataset in Data.csv. All the numbers and figures can be reproduced by the Jupyter Notebook script Data_process_stat.ipynb in the Supplementary Materials. The same script can also reproduce the calculation of the derived service time in Section 3.3.

First, we provide a basic summary of each categorical/logical variable.

The number of consultations per session: The mean and median are 17.42 and 18, respectively, while the minimum and the maximum are 4 and 32, respectively.

Number of sessions per day of the week: Tuesday: 6; Wednesday: 177; Friday: 10; Saturday: 188.

The number of sessions on working vs. non-working days: 203 sessions happened on working days and 178 on nonworking days.

The number of morning- vs. afternoon- sessions: Morning: 191; Afternoon: 190.

The number of consultations grouped by Gender: Female: 3943; Male: 2694.

The number of consultations grouped by M.Cancer: 620 consultations have the variable M.Cancer being ‘TRUE’ and 6017 ‘FALSE’.

The number of consultations grouped by S.Cancer: 67 out of 6637 consultation records correspond to S.Cancer being ‘TRUE’.

Next, we look at the numerical variables Visit.No and ServTime.

The mean and median of Visit.No are 6.83 and 2, and the minimum and the maximum are 1 and 170. Figure 1 visualizes Visit.No’s distribution. It is highly skewed to the right. While the majority of the records have their

V i s i t . N o \leq 2

, there are more than 1000 records that have their

V i s i t . N o \geq 10

. This means that a sizable amount of consultation records come from recurrent consultations for the same medical condition.

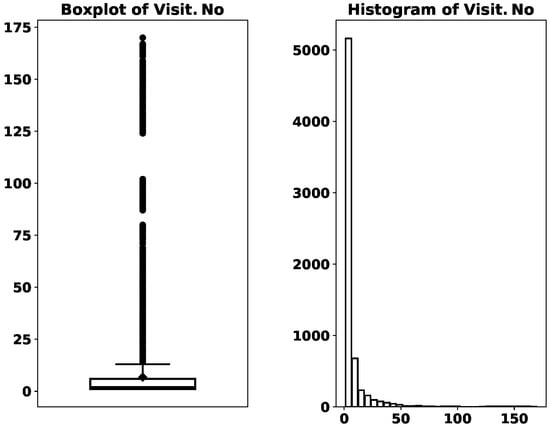

Figure 1. The boxplot and the histogram of Visit.No.

The distribution of ServTime can be found in Figure 2. The boxplot shows that its mean (a dot above the median line) is slightly larger than its median, and the distribution is moderately skewed to the right. While it is fairly common in the appointment scheduling literature that the service time is assumed to be exponentially distributed [,,], the histogram in Figure 2 suggests otherwise, at least in the outpatient clinic in question. It will be interesting and value-adding to test the performance of those methods, developed under stylized assumptions, using realistic datasets such as ours.

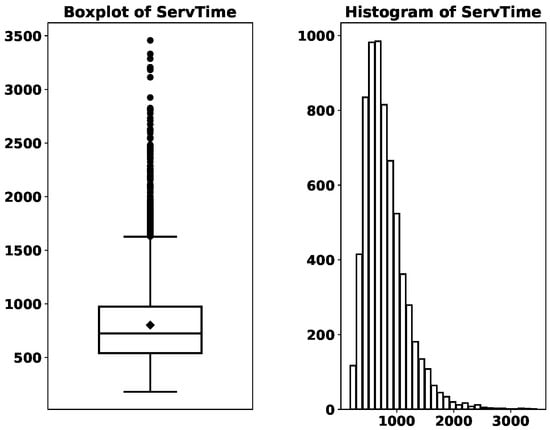

Figure 2. The boxplot and histogram of ServTime.

We are interested in the service times and informative characteristics distinguishing them. Therefore, we explore the distribution of ServTime grouped by different categorical/logical variables. Figure 3, Figure 4, Figure 5, Figure 6, Figure 7, Figure 8 and Figure 9 depict the derived service-time distributions grouped by Month, WorkingDay, AM_PM, Gender, M.Cancer, S.Cancer, and Address, respectively. From these figures, we can find that they have noticeable effects on the distributions of ServTime.

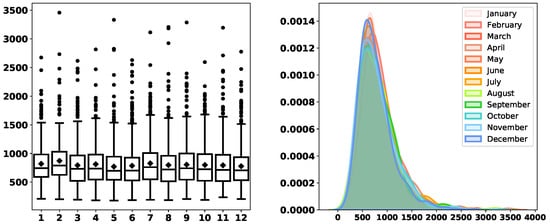

Figure 3. ServTime distribution grouped by Month.

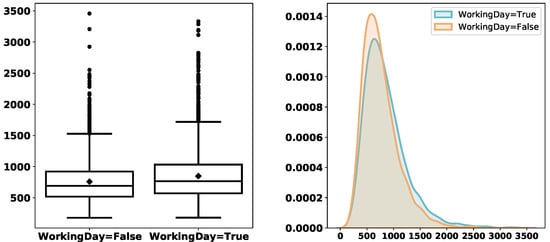

Figure 4. ServTime distribution grouped by WorkingDay.

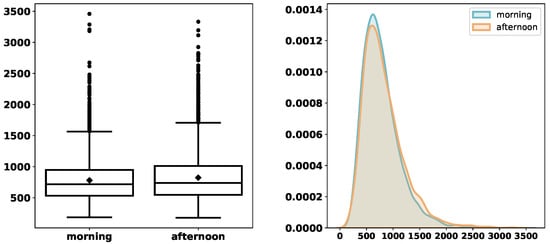

Figure 5. ServTime distribution grouped by AM_PM.

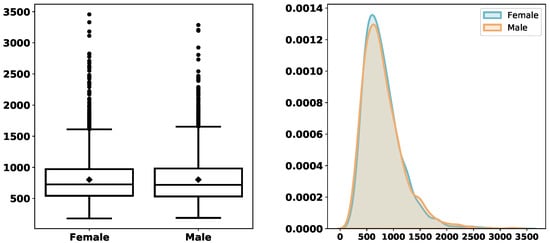

Figure 6. ServTime distribution grouped by Gender.

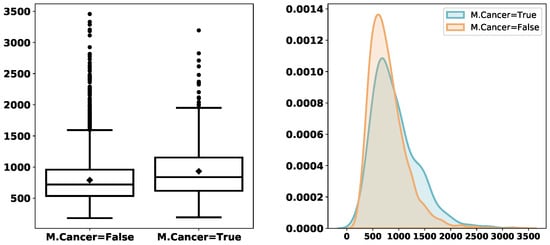

Figure 7. ServTime distribution grouped by M.Cancer.

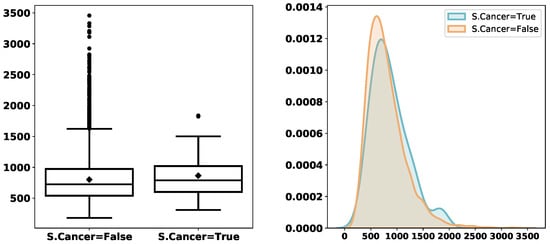

Figure 8. ServTime distribution grouped by S.Cancer.

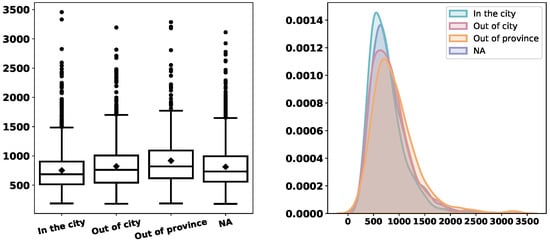

Figure 9. ServTime distribution grouped by Address.

Extant studies constantly find that the service time of a first-time visit and that of a follow-up one follow different distributions. Hence, we explore the distribution of ServTime based on whether Visit.No is equal to 1 or not. This essentially converts Visit.No into a logical variable whose value depends on whether Visit.No is equal to 1. Figure 10 illustrates that first-time visits overall take a longer service time. Table 5 further compares the ServTime of

V i s i t . N o = 1

and that of

V i s i t . N o > 1

with different grouping. Overall, both means and medians of ServTime are larger in the case of

V i s i t . N o = 1

, no matter which categorical variable is used for grouping.

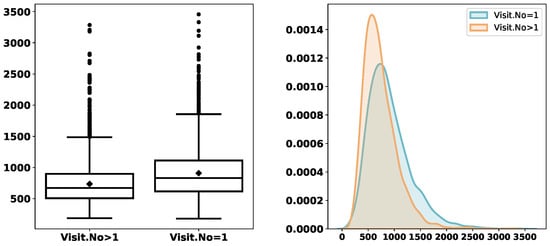

Figure 10. ServTime distribution grouped by Visit.No.

Table 5. Means and medians of ServTime in different groups.

Lastly, we regress ServTime on the rest of the variables. Table 6 summarizes the regression result. The coefficients of Visit.No, M.Cancer, Address, and AM_PM are statistically significant at the

0.001

level of significance. The coefficient of Visit.No is

- 1.12

. This means that an extra previous visit for the same condition, on average, reduces the service time by

1.12

seconds. The coefficient of M.Cancer is

137.51

. This means that consultations mainly for cancer on average are

137.51

seconds longer than those mainly not for cancer. Address is a factor with four levels: {‘In the city’, ‘Out of city’, ‘Out of province’, and ‘NA’}. ‘In the city’ is the baseline. The regression result suggests that the consultation of a patient with no address provided, on average, takes

46.67

seconds more than the baseline; the consultation of a patient from outside of the city but within the province, on average, takes

61.47

seconds more than the baseline; and the consultation of a patient from another province, on average, takes

152.43

seconds more than the baseline. The Address variable may be related to customer loyalty or illness severity. An intuitive interpretation is that a patient is unlikely to travel a long distance to consult for some minor health issue. The coefficient of AM_PM_morning is

- 49.37

. This suggests that, if other things are equal, on average, a consultation in the morning is

49.37

seconds shorter than its afternoon counterpart. Of course, all these interpretations are based on the linear regression model. Future users of the data should conduct a more comprehensive analysis to gain more insights.

Table 6. Regression results (

R^{2} = 0.049

).

4. User Notes

A major advantage of this dataset is the service time records that come with heterogeneous characteristics regarding patient demographics, medical conditions, and previous visit information. The exploratory data analysis here sheds some light on how some characteristics may affect the service time. Indeed, more in-depth analysis and feature engineering are demanded to make more accurate predictions of the service time. Making this dataset public provides valuable opportunities for HOM researchers. Here, we suggest some of them:

To showcase the effectiveness and efficiency of newly developed models and methods for outpatient AS. For example, ref. [] propose a data-driven approach to handle service-time heterogeneity in outpatient AS, in which this dataset is utilized to demonstrate the effectiveness of the proposed method.
To enable research reproducibility. Studies focusing on developing new optimization methods for outpatient AS can report their methods’ performance on public datasets such as this one in their numerical experiments, so that follow-up studies can reproduce and extend them.
To enable fair performance comparison. Despite the rich literature on outpatient AS, existing studies typically withhold the data in use. It is difficult to make fair performance comparisons among different methods. Making real datasets publicly available can help solve this issue.

Note that the patients’ scheduled appointment times and their no-show records are not available in this dataset. In the literature [,,,,,], researchers assume that a patient either does not show up or arrives punctually at the scheduled appointment time, and patients are served in the order of their scheduled appointments. One can assume that patients in our records exhibit similar behaviors to those mentioned in the literature. When studying no-shows, researchers make assumptions about hypothetical no-show rates in the absence of real no-show data. For example, ref. [] simulates patient call-in sequences and assumes heterogeneous no-show rates in experiments.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/data8030047/s1.

Author Contributions

H.F.: conceptualization, supervision, investigation, and formal analysis, writing—original draft; Y.J.: data curation and writing—original draft; S.Z.: data curation, formal analysis, visualization, and writing—original draft; H.C.: investigation, data curation; T.H.: project administration and writing—original draft. All authors have read and agreed to the published version of the manuscript.

Funding

Haolin Feng’s work is partially supported by the National Natural Science Foundation of China [grant numbers 72071217, 71721001]. Teng Huang’s work is supported by the National Natural Science Foundation of China [grant number 72101277] and the China Postdoctoral Science Foundation [grant number 2021M703664].

Institutional Review Board Statement

The work does not involve human subjects, animal tests, or cell lines. Experiments involve no human participants and are only numerical/computational. The data are fully anonymized and untraceable, and the data and the study have been reviewed and approved by the clinic’s administration (No.2023011901).

Informed Consent Statement

It is a retrospective study with the data extracted from the clinic’s information system. All identifiable information was removed, and it becomes fully untraceable. After reviewing the data being shared, the administration of the clinic confirmed that the data were fully anonymized and handled within the regulations set by the clinic’s administration. Therefore, the clinic approves the usage of the data (approval document No.20230119001).

Data Availability Statement

The data can be obtained from https://github.com/fenghaolin/HanguData (accessed on 22 February 2023).

Acknowledgments

The authors would like to thank Hangu’s administration for allowing the data to be shared publicly.

Conflicts of Interest

The funding support for the work has been acknowledged in the ‘Funding’ section. While the data reported here were collected during a collaborated project led by the first author (Haolin Feng) and the clinic investigating the appointment scheduling of the system, the authors do not receive any funding from the clinic. The authors declare that they have no known competing financial interests or personal relationships which have, or could be perceived to have, influenced the work reported in this article.

Abbreviations

The following abbreviations are used in this manuscript:

HOM	Healthcare operations management
AS	Appointment scheduling
TCM	Traditional Chinese medicine
MS	Management science
OR	Operations research
