Biomanufacturing Biotinylated Magnetic Nanomaterial via Construction and Fermentation of Genetically Engineered Magnetotactic Bacteria

by
Junjie Xu
1,2,
Shijiao Ma
1,
Haolan Zheng
1,
Bo Pang
1,
Shuli Li
1,
Feng Li
3,
Lin Feng
2,* and
Jiesheng Tian
1,*
1
State Key Laboratory of Agrobiotechnology, College of Biological Sciences, China Agricultural University, Beijing 100193, China
2
School of Mechanical Engineering & Automation, Beihang University, Beijing 100083, China
3
College of Life Science, Huaibei Normal University, Huaibei 235000, China
*
Authors to whom correspondence should be addressed.
Bioengineering 2022, 9(8), 356; https://doi.org/10.3390/bioengineering9080356
Submission received: 5 June 2022 / Revised: 25 July 2022 / Accepted: 26 July 2022 / Published: 30 July 2022
(This article belongs to the Special Issue Recent Advances in Micro/Nano Robots and Their Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
Biosynthesis provides a critical way to deal with global sustainability issues and has recently drawn increased attention. However, modifying biosynthesized magnetic nanoparticles by extraction is challenging, limiting its applications. Magnetotactic bacteria (MTB) synthesize single-domain magnetite nanocrystals in their organelles, magnetosomes (BMPs), which are excellent biomaterials that can be biologically modified by genetic engineering. Therefore, this study successfully constructed in vivo biotinylated BMPs in the MTB Magnetospirillum gryphiswaldense by fusing biotin carboxyl carrier protein (BCCP) with membrane protein MamF of BMPs. The engineered strain (MSR−∆F−BF) grew well and synthesized small-sized (20 ± 4.5 nm) BMPs and were cultured in a 42 L fermenter; the yield (dry weight) of cells and BMPs reached 8.14 g/L and 134.44 mg/L, respectively, approximately three-fold more than previously reported engineered strains and BMPs. The genetically engineered BMPs (BMP−∆F−BF) were successfully linked with streptavidin or streptavidin-labelled horseradish peroxidase and displayed better storage stability compared with chemically constructed biotinylated BMPs. This study systematically demonstrated the biosynthesis of engineered magnetic nanoparticles, including its construction, characterization, and production and detection based on MTB. Our findings provide insights into biomanufacturing multiple functional magnetic nanomaterials.

1. Introduction

The heightened awareness of actively mitigating climate change, reducing pollution, and improving food security has driven the need for biomanufacturing. Biosynthesis provides a key platform for bioproduction [1], including green synthesis of biodiesel [2,3,4], ethanol [5,6], organic acids [7,8], and biopolymers [9]. Compared with those, fossil-based to bio-based material production represents a more significant challenge in biosynthesis technology and high-volume output [1].
Among various materials, magnetic nanomaterials display a higher specific area and increased magnetic, optical, and electrical stability and are widely applied in imaging [10,11], cancer treatment [12], biosensors [13], gene delivery [14], and agriculture sectors [15,16]. Traditional chemical synthesis of Fe3O4 nanoparticles (NPs) is performed by precipitating Fe2+/Fe3+ [17,18]. Organic solvents (e.g., methacrylic acid, esters, oleyl alcohol, and oleic acid) were used as stabilizers or surfactants in the manufacturing process, possessing severe adverse environmental effects and eventually causing harm to human health. Compared with traditional synthesis, green synthesis of nanomaterials using different biological entities, such as plant debris, and microorganism cells, overcomes many destructive effects of physical and chemical techniques [19,20,21]. These include synthesizing nanomaterials at mild pH, pressure, and temperature, without requiring toxic or hazardous substances and without adding external reducing, capping, and stabilizing agents [22,23]. However, modifying the synthesized NPs is challenging.
MTBs are environmental microorganisms that can synthesize single-domain magnetite (Fe3O4) nanocrystals in their organelles, magnetosomes (BMPs) [24,25,26]. BMP synthesis is strictly controlled by a set of genes [27]. Thus, BMPs display high chemical purity, a narrow size range, and consistent crystal morphology [28]. BMPs can be extracted through cell lysis and magnetic adsorption [29,30]. BMPs are biocompatible, without cytotoxic, genotoxic, immunotoxic, and hemolytic effects [31,32,33,34]. Compared with artificial NPs, BMPs have higher transverse relaxivity (r2) and more effective signal decay, and they can be used as magnetic resonance imaging (MRI) contrast agents [35,36]. Moreover, the outer membrane of BMPs makes them easily modified with drugs, antibodies, and nucleic acids, widely used in drug delivery, antigen recovery and detection, and gene transfection [37,38,39].
BMPs can be modified chemically and biologically. Chemical modification is performed by using a chemical crosslinking agent, coupling functional molecules to the BMP surface. However, most crosslinking agents are toxic and cannot ensure the activity of the molecules modified on the BMPs. Biological methods are the most efficient mode for BMPs modification. Recombinant MTB strains can be constructed using the BMP surface display technique to produce genetically engineered BMPs [40,41,42,43], which makes functional molecules directional and arranges them in order on the BMP surface, avoiding crosslinking [44]. However, the yield of recombinant strain and BMPs is low, approximately 0.59 ± 0.03 g/L and 14.8 ± 0.5 mg/L, respectively [45].
Biotin binds specifically with streptavidin/avidin, forming a biotin–avidin system (BAS). BAS is one of the most available tools for biological research, used in protein purification, protein localization analysis, and immobilization [46,47,48,49]. In this study, we adopted the BMP surface display technique to construct biotinylated BMPs in Magnetospirillum gryphiswaldense, the model strain for analyzing BMPs synthesis and bioproduction [50]. Moreover, we attempted to increase the throughput of engineered BMPs.
In this study, we successfully constructed a recombinant strain (MSR−∆F−BF) for biotinylated BMP (BMP−∆F−BF) production, evaluated the cell yield, and engineered BMPs in a 42 L fermenter. BMP−∆F−BF extraction conditions were developed and optimized. BMP−∆F−BF coupled with streptavidin was invested and compared with commercially and chemically constructed biotin-labeled beads.

2. Materials and Methods

2.1. Bacterial Strains and Culture Conditions

The plasmids, mutants, and bacterial strains used in this study are listed in Table 1. E. coli S17-1 BF harboring plasmid pBBR−bccp−mamF was used as a donor strain for biparental conjugation; it was cultured in Luria–Bertani (LB) medium containing kanamycin (50 μg/mL). The mamF mutant strain (MSR−∆F) was used as the recipient strain and cultured at 30 °C for 24 h in sodium lactate/ammonium chloride/yeast extract (LAY) medium containing gentamycin (5 μg/mL) and nalidixic acid (5 μg/mL), as described previously [40]. MSR-1 transformants termed MSR−∆F−BF were constructed through biparental conjugation and cultured in a LAY medium containing gentamycin (5 μg/mL), kanamycin (5 μg/mL), and nalidixic acid (5 μg/mL). Furthermore, the expression of target proteins was induced by adding isopropyl β-D-1-thiogalactopyranoside (95.32 μg/mL) during the logarithmic period, and the mixture was cultured for another 12 h.
The cell growth and magnetic response of MSR−∆F−BF were measured, and wild-type MSR-1 and MSR−∆F were used as controls. The cell density (OD565) and magnetic response (Cmag) were measured every 2 h using a UV–visible spectrophotometer in the bacteria culture process (UNICO2100; UNICO Instrument Co., Shanghai, China). MSR−∆F−BF cell growth and Cmag curves were constructed to detect the status of strain growth and magnetosome synthesis.

2.2. Construction of Recombinant Strains MSR−∆F−BF

The recombinant plasmids were constructed as shown in Figure 1A. The mamF and bccp genes were amplified from the genomic DNA of MSR-1 using corresponding primers. The initiation codon of mamF and termination codon of bccp were removed during amplification. mamF and bccp were then fused into bccp-mamF using fusion PCR, with a hydrophilic polypeptide linker (Gly4Ser)3 between fusion genes. bccp-mamF was cloned into a broad host-vector pBBR1MCS-2 to construct the recombinant plasmids pBBR−bccp−mamF. The pBBR−bccp−mamF was transformed into MSR−∆F by biparental conjugation to construct a recombinant strain, MSR−∆F−BF. Selecting MSR−∆F as the host strain can increase the amount of biotin displayed on engineered BMPs. The authigenic biotin ligase link biotin to a lysine residue of biotin carboxyl carrier protein (BCCP) displayed on BMP provided a recombinant magnetosome, BMP−∆F−BF. The MSR−∆F native mamF gene in the genome was replaced by the gentamycin-resistance gene. To detect the expression of fusion genes bccp−mamF, the gfp−marked expression plasmids pBBR−bccp−mamF-gfp were constructed. Western blotting was performed to evaluate the green fluorescent protein (GFP) expression level.

2.3. Transmission Electron Microscope (TEM) Observation

A TEM was used to observe the morphology of cell and magnetosomes of MSR−∆F−BF, MSR−WT, and MSR−∆F. The strains were cultured in LAY media for 24 h at 30 °C and collected by centrifugation at 12,000 rpm for 2 min at 4 °C. Pellets were rinsed three times with ddH2O. Cultured strains (1 mL) were suspended in 50 μL ddH2O. Then, 10 μL of the suspension was dropped onto a copper mesh for 10 min, dried for 30 min using infrared light, and observed under a TEM (model JEM-1230, JEOL; Tokyo, Japan).
Structural details of the magnetosomes in MSR−∆F−BF were determined using a high-resolution transmission electron microscope (HRTEM) at ESPCI (Paris, France) on a JEOL 2010F microscope at 200 kV, equipped with a Gatan cooled CCD camera (1024 × 1024 pixels). For each particle, the structural parameters of the crystals were determined from the two-dimensional fast Fourier transform of the HRTEM image. The magnetic properties of BMP−∆F−BF were determined using a vibrating sample magnetometer (Model 3900; Princeton Measurements Corporation, Princeton, USA, sensitivity 5.0 × 10–10 Am2) from the Paleomagnetism and Geochronology Laboratory.

2.4. Submerged Culture of M. gryphiswaldense MSR−∆F−BF

The recombinant strain M. gryphiswaldense MSR−∆F−BF was cultured in a 42 L fermenter (BioFlo 110; New Brunswick Scientific, New Jersey, USA). Cell and magnetosome yields were calculated, as described previously [44]. The inoculum (5 mL) stored at −80 °C was activated in a 50 mL LAY medium containing gentamycin (5 μg/mL), kanamycin (5 μg/mL), and nalidixic acid (5 μg/mL) at 100 rpm at 30 °C for 24 h. After subculturing thrice, 10% (v/v) inoculum was transferred to the 42 L fermenter for submerged culture.
The 42 L fermenter was filled with a 30 L culture medium containing 20 g (70–80%) sodium lactate, 5.0 g NH4Cl, 6.0 g MgSO4.7H2O, 15.0 g K2HPO4.3H2O, 15.0 g yeast extract, and 17.5 mL Wolfe mineral solution. The feeding medium contained 500 g lactic acid, 90 mL NH3.H2O, 6.0 g MgSO4.7H2O, 15.0 g yeast extract, 15.0 g K2HPO4.3H2O, 10.0 g FeCl3.6H2O, and 17.5 mL Wolfe mineral solution was dissolved in 700 mL ddH2O. The culture and feeding medium were sterilized for 30 min at 121 °C. Gentamycin (5 μg/mL), kanamycin (5 μg/mL), and nalidixic acid (5 μg/mL) were added before inoculation. The pH was maintained at 6.8 by automated supplementation of the feeding medium supplemented with high concentration of lactate, and the temperature was maintained at 30 °C. The initial airflow was 0.5 L/min, and the stirring rate was 100 rpm. Once the dissolved oxygen (dO2) decreased to 15%, we increased the airflow to 1 L/min and maintained dO2 between 0% and 1% by regulating agitation (10 rpm every 2 h). When the dO2 decreased to 5%, 7.5 mL 1M isopropyl β-d-1-thiogalactopyranoside (IPTG) was added to induce the bccp-mamF gene expression. The cell density and magnetic response were measured every 4 h during the fermentation process.

2.5. Extraction and Characterization of BMP−∆F−BF

Fermenter−cultured MSR−∆F−BF was collected by centrifugation at 10,000 rpm at 4 °C for 15 min. The collected cells were resuspended in 20 mM phosphate−buffered saline (PBS) with a mass volume ratio of 1:10 (pH 7.4) and disrupted using an ultrasonic homogenizer (Ningbo Scientz Biotechnology Co., Ltd, Ningbo, China) for 20 min at 3 s/time with a time interval of 5 s at 400 W to lyse the cells. BMPs were collected from the disrupted cell suspension using a columnar neodymium−boron magnet. The supernatant was discarded, and the separated magnetosomes were resuspended in 10 mM PBS (pH 7.4), sonicated for 15 min at 3 s/time with a time interval of 5 s at 150 W, and washed twice. Then, we reduced the power to 100 W and washed the sample several times until the supernatant protein concentration was lower than 0.1 mg/mL. The purified BMP−∆F−BF was resuspended in 25% glycerol and stored at 4 °C.
Purified BMP−∆F−BF and wild-type BMP were observed under a TEM. For this purpose, a small number of BMPs was suspended in 1 mL of deionized water and thoroughly dispersed by ultrasonication for 10 min. Then, 10 μL of the suspension was dropped onto a copper mesh for 10 min, air-dried, and observed under a TEM. Hydrated radii and zeta potential of BMP−∆F−BF were detected at Nanjing Dongna Biological Technology Co., Ltd., Nanjing, China.

2.6. Preparation of Biotin−Labeled BMPs with NHS−Biotin

BMPs are membrane-enclosed magnetite nanocrystals. The primary amines of the BMP membrane were biotinylated by NHS−Biotin to achieve biotin-labeled BMPs (BMP−biotin). Then, 2 mg wild-type BMP was suspended in 1 mL 10 mM PBS (pH 7.4), and 13.5 μL 20 mM NHS−Biotin was added. The reaction mixture was ultrasonicated (70 W) for 1 min, incubated with shaking (200 rpm) for 30 min at 25 °C, and placed over a magnet to isolate BMP−biotin. BMP−biotin was suspended in a 25% glycerol and stored at 4 °C.

2.7. Detection of the Streptavidin−HRP Linkage Rate of BMP−∆F−BF and BMP−biotin

The linkage rate of BMP−∆F−BF and BMP−biotin with HRP−streptavidin was compared with commercial biotin-labeled magnetic beads (MB−biotin; superparamagnetic iron oxide; particle size 20–50 nm; Nanocs, Natick, MA, USA). BMP−∆F−BF, BMP−biotin, and MB−biotin were incubated with 1% bovine serum albumin (BSA) and stored at 4 °C. One−step ELISA was used to detect the linkage rate. A 96−well microtiter plate coated with 300 μL 2% BSA was incubated at 4 °C overnight and washed thrice with 250 μL 10 mM PBST (pH 7.4). Then, 2 mg BMP−∆F−BF, BMP−biotin, and MB−biotin each were added (each BMPs and MB three parallel) and captured using a magnetic rack. The sample was then washed thrice with PBST, and 100 μL 1:2000 diluted HRP-streptavidin (Beijing Solarbio Science & Technology, Beijing, China) was added to each well, with coupling for 1 h at 600 rpm at room temperature, captured by a magnetic rack and washed five times with PBST. The color was developed using 100 μL tetramethylbenzidine (TMB) for each well, reacted for 3 min at room temperature, and then 50 μL 2 M H2SO4 was added to stop the reaction. The supernatant was transferred to a new 96−well microtiter. Absorbance at 450 nm was measured on a microplate reader (blank control, only BMPs and MB incubated, no HRP-streptavidin). The OD450 value was calculated to compare the BMPs and MB linkage rates.

3. Results

3.1. Construction of the Engineered Strain MSR−∆F−BF

Previously, we adopted the “BMP surface display technique” to exhibit the functional molecule (protein A) on BMPs [40] used for the detection or diagnostic immunoassays, having a high Ab-conjugation and antigen-adsorption capability [44]. Here, we fused BCCP expression with BMPs abundant membrane protein (MamF) to display biotin on BMPs (Figure 1A). Firstly, a fusion expression vector was constructed. The bccp and mamF genes were fused into the bccp-mamF gene by fusion PCR then cloned into a broad host-vector pBBR1MSC-2 to construct fusion expression vector pBBR−bccp−mamF. Then, pBBR−bccp−mamF was transformed into MSR−∆F by biparental conjugation to construct an engineered strain, MSR−∆F−BF. The authigenic biotin ligase can link biotin to a lysine residue of BCCP protein, obtained biotin-labeled engineered BMPs (BMP−∆F−BF). MSR−∆F native mamF gene in the genome was replaced by the gentamicin-resistance gene. Choosing MSR−∆F as the host strain can increase the amount of biotin displayed on engineered BMPs.
To detect the expression of the fusion gene, a gfp-labeled three-gene fusion expression vector was constructed. The expression of fusion protein BCCP-MamF-GFP on engineered BMPs was confirmed by Western blotting (Figure 1B and Figure S1). Compared with wild-type BMPs (BMP−WT), engineered BMPs displayed a specific band at 55 kDα. TEM observation indicated that no BMPs were synthesized in MSR−∆F, whereas new small-size BMPs were synthesized in MSR−∆F−BF (Figure 1C). The fusion gene expression complemented the disruption of the mamF gene in MSR−∆F−BF, confirming that the fusion gene was successfully expressed in MSR−∆F−BF.
The MSR−∆F−BF cell growth and BMP synthesis states were detected in the flask and compared with MSR−∆F and wild-type MSR-1. Flask-cultured MSR−∆F−BF growth was slower than that of MSR−WT but faster than that of MSR−∆F. OD565 reached the highest (~0.98) at 22 h, approaching MSR−WT (~1.01) at 20 h (Figure 1D). As no BMPs were synthesized in MSR−∆F, no Cmag value was detected. The highest Cmag value of MSR−∆F−BF was ~0.3 at 16 h, 3.33-fold lower than that of MSR−WT (~1.0) at 12 h (Figure 1E), because the BMP size in MSR−∆F−BF was smaller than that in MSR−WT. These results indicate that the constructed MSR−∆F−BF grows well and can synthesize BMPs. MSR−∆F−BF can be used for producing of biotinylated BMPs.

3.2. Magnetic Properties Analysis of MSR−∆F−BF

MSR−∆F−BF displayed a lower Cmag value, and the synthesized BMP size was smaller than that of MSR−WT. TEM showed that MSR−∆F−BF synthesized BMPs displayed sufficient spaces between the particles. In this section, we firstly adopted high-resolution TEM and fast Fourier transform to analyze the BMP composition of MSR−∆F−BF. The BMP−∆F−BF crystal shape remained a hexagonal octahedron, and a few possessed an irregular shape (Figure 2A). Despite the small size of BMP−∆F−BF, it exhibited a typical ferroferric oxide lattice structure.
To elucidate the magnetic properties of BMPs in MSR−∆F−BF, the hysteresis loops were measured (at room temperature) and compared with that of MSR−WT. Hysteresis loops for MSR−WT displayed a bigger gap between two lines than that for MSR−∆F−BF (Figure 2B). The coercivity and saturation magnetization values for MSR−∆F−BF were 2.24 and 4.26, respectively, much smaller than those for MSR−WT (7.65 and 12.55, respectively) (Table 2). Compared with MSR−WT, MSR−∆F−BF synthesized small-size BMPs, which decreased its magnetic properties, but the core constituent was still noted as Fe3O4. This property displays better applicability, and the dispersibility of BMP−∆F−BF will be better than that of BMP−WT. Subsequent experiments will attest to this viewpoint.

3.3. Submerged Culture of MSR−∆F−BF in Bioreactor

Large-scale cultivation of the engineered strains is the basis for engineered BMP application. However, MTB large-scale cultivation is challenging, especially the cultivation of engineered strains. Similarly, MTB such as Magnetospirillum gryphiswaldense MSR-1, Magnetospirillum magnetotacticum MS-1, Magnetospirillum magneticum AMB-1, Magnetovibrio blakemorei MV-1, and Desulfovibrio magneticus RS-1 can only be cultivated on the laboratory scale. The BMP production level is low. The order of the BMP yield is MSR-1 > AMB-1 > MS-1 [53]. Previously, Zhang et al. achieved the highest cell yield of 9.16 g/L and BMP yield of approximately 356.52 mg/L by optimizing the MSR-1 fed-batch culture feeding medium [54]. Later, we reported the yield cultivation of an engineered strain (M. gryphiswaldense ∆F-FA) on a large scale and achieved the highest cell and BMP dry weight of 2.26 g/L and 62.29 mg/L, respectively [44].
We attempted to culture M. gryphiswaldense MSR−∆F−BF in a 42 L fermenter and detected the cell and magnetosome yield. BMP synthesis began when dO2 decreased to ~1% (Figure 3A). Low dO2 concentration inhibited cell growth; however, high dO2 concentration influenced BMP synthesis. Thus, dO2 concentration control is significant for MSR-1 fermentation. The gradual increase in dO2 caused a significant increase in biomass. Therefore, we controlled the dO2 value between 0% and 1% by regulating the airflow and agitation speed to ensure bacterial growth and BMP synthesis. Cmag reached 1.3 after 48 h of culturing and then began to decline. MSR−∆F−BF fermentation was complete when the Cmag value decreased to ~0.8 (Figure 3B). The maximum cell and BMP yield were 8.14 g/L and 134.44 mg/L, respectively, ~3-fold higher than those of M. gryphiswaldense ∆F-FA. These findings indicate that MSR−∆F−BF is potentially useful for industrial fermentation processes, although further optimization of culture conditions is necessary.

3.4. Preparation and Characterization of BMP−∆F−BF

Fermented cells were stored at −80 °C and used for engineered magnetosome purification. Cells at 1 g wet weight were suspended in 10 mL PBS, high-power ultrasonication was applied to disrupt the cell, and BMP−∆F−BF was separated using a magnet (Figure 4A). Then, BMP−∆F−BF was washed several cycles by a low-power ultrasonic bath to remove cell debris on BMPs. After washing six times, the supernatant protein concentration was lower than 0.1 mg/mL and nearly stable, indicating that no associated proteins dropped from BMP−∆F−BF (Figure 4B). TEM showed the extracted BMP−∆F−BF; no protein fragment was observed in the background, providing purified engineered BMPs (Figure 4C).
The dispersibility of nanomaterial in solution played a key role in applications. As mentioned above, the engineered strain MSR−∆F−BF synthesized small-sized BMPs and displayed weak magnetism compared with wild type. Therefore, BMP−∆F−BF showed good dispersibility in the solution. First, we measured the purified BMP−∆F−BF particle size using the ImageJ software (National Institutes of Health, Bethesda, MD, USA). The average particle size was 20 ± 4.5 nm, smaller than that of MSR−WT (35 ± 7.8 nm). BMP−∆F−BF and BMP−WT displayed a narrow diameter distribution (Figure 4D). Then, the hydrated radii and zeta potential of BMP−∆F−BF in a water-based suspension system were detected and compared with BMP−WT and commercial MB−biotin (Table 3). The BMP−∆F−BF hydrated radii value was 53.52 ± 10.23 nm, much smaller than the wild type (113.9 ± 62.19 nm) and MB−biotin (669.3 ± 288.5 nm). The zeta potential reflected the particle surface charge, with a value above +30 mV or below −30 mV indicating good particle dispersity. BMP−∆F−BF’s zeta potential was −23.6 ± 6.12 mV, close to −30 mV, lower than wild type (−17.7 ± 6.78 mV) and MB−biotin (−17.5 ± 3.84 mV). These results indicated that the smaller particle sizes and lower BMP–∆F–BF magnetic properties exhibit outstanding dispersity in water–based suspension systems and render them suitable candidates for further BMP–∆F–BF applications.

3.5. Detection of BMP−∆F−BF Coupling Streptavidin Rate

The linkage rate of BMP−∆F−BF to streptavidin was detected and compared with BMP−biotin, constructed through chemical modification and commercial MB−biotin. First, the conditions for the linkage between BMP−∆F−BF and streptavidin were optimized, including the coupling time, buffer, and BMP−∆F−BF and streptavidin weight rate (Figure 5A). The bonding between biotin and avidin displayed the strongest affinity (Kd = 10~15 M), leading to the linkage time (Figure 5A1) and buffer (Figure 5A2) having no significant influence on the streptavidin linkage rate. BMP−∆F−BF (0.1 mg) was used to bind with different amounts of streptavidin (ranging from 0.1–0.5 mg) to optimize the linkage weight rate of BMP−∆F−BF and streptavidin (Figure 5A3). As streptavidin’s weight increased, BMP−∆F−BF linkage with streptavidin increased, and the streptavidin nonspecific absorption of BMP−WT increased. When the BMP−∆F−BF and streptavidin weight rate was 1:3, the rate of BMP−∆F−BF linkage with streptavidin was considerably higher than BMP−WT nonspecific absorption and 1:1 and 1:2 conditions, indicating suitable conditions for BMP−∆F−BF linkage with streptavidin.
BMP−∆F−BF linkage with the streptavidin rate was compared with chemically modified BMP−biotin. The schematic diagram of BMP−biotin construction is shown in Figure 5B. BMP in vitro biotinylation was constructed by incubating with NHS-biotin. The -NHS group of NHS-biotin can react with the -NH2 group of the BMP membrane and modify biotin onto BMP, forming biotin-labeled BMP. BMP−∆F−BF linkage with the HRP-labeled streptavidin (Streptavidin−HRP) rate was compared with those of BMP−biotin and commercial MB−biotin (Figure 5C). BMP−∆F−BF and BMP−biotin linkage with streptavidin rates were almost the same, lower than MB−biotin. However, as the storage time increased to 75 d, BMP−biotin and MB−biotin linkage with the Streptavidin−HRP rate markedly decreased, and the BMP−∆F−BF linkage rate became more stable. One possible explanation is that nonspecific chemical modification helped the reaction with all amino groups on BMP. Biological modification is specific to the BMPs transmembrane protein (e.g., MamF) as an anchoring protein, ensuring stable protein expression on BMPs.

4. Discussion

Interest in nanomaterials and especially nanoparticles has exploded in the past decades primarily due to their novel or enhanced physical and chemical properties compared to the bulk material. These extraordinary properties have created a multitude of innovative applications in the fields of medicine and pharma, electronics, agriculture, chemical catalysis, the food industry, and many others. More recently, nanoparticles are also being synthesized “biologically” through the use of plant− or microorganism−mediated processes, as an ecofriendly alternative to the expensive, energy−intensive, and potentially toxic physical and chemical synthesis methods [55]. Among these organisms, MTB are unique as they synthesize magnetic nanoparticles in their organelles (magnetosome) under strict and fine genetic control [24,25,26].
Magnetosomes are excellent biomaterials, but only a few MTBs could achieve tractability and straightforward cultivation because of their restricted living conditions. Only two strains in the genus Magnetospirillum—M. gryphiswaldense MSR−1 and M. magneticum AMB-1—could be cultivated in bulk. Unfortunately, the magnetosome productions of these strains were much lower than the chemical synthesized magnetic nanoparticles [29], and the productions by those engineered stains were even lower [44]. In this study, we used MSR-1 as a host strain for the bioproduction of biotinylated magnetosomes; the engineered magnetosomes yield ~134.44 mg/L, over twofold higher than the latest report by another recombinant strain [44]. In addition, there are several advantages to this recombinant strain and bioengineered magnetosomes. First, the strain MSR−∆F−BF was cultivated in a 42 L fermenter, while stains in most other reports (including wild−type and recombinant strains) were cultivated in a shaking flask or 5 L fermenter [29], which implied that MSR−∆F−BF could be cultivated more suitably at an industrial scale. Second, in terms of the size of the bioengineered particle, BMP−∆F−BF (20 ± 4.5 nm) was smaller than BMP−WT (35 ± 7.8 nm), which meant better dispersity in the water−based suspension system. Third, compared with commercial biotin−labeled magnetic beads and chemically constructed biotinylated magnetosomes, BMP−∆F−BF has better storage stability.
The process of magnetosome biotinylation in this work could also be considered an effective biotin surface display technique. The surface display is a recombinant technology that expresses target proteins on the surface of biomembranes, biostructures, or even biomolecules, and can be applied to almost all types of biological entities from viruses to mammalian cells. Phage display, mRNA display, ribosome display, bacteria display, and yeast display are among the most commonly used methods. These techniques have been used for various biotechnical and biomedical applications such as therapy of disease, drug screening, biocatalysts, library screening, quantitative assays, and biosensors [56,57,58]. However, most functional molecules expressed on the surface of display platforms are proteins or peptides. The successful display of biotin on the magnetosome surface suggested the possibility and strategies display biomolecules beyond proteins by bioengineering methods, which would greatly increase the applicable scopes of the above systems.
Up until now, biotin has been the only nonprotein biomolecule employed in the magnetosome surface display system. Biotin is widely distributed in animal and plant tissues and has a molecular weight of 244.31 Da with two ring structures: imidazolone ring, the main site noncovalently binding with avidin/streptavidin or special receptors with high specificity and affinity [59]; and thiophene ring, with the pentanoic acid as the side chain at C2, whose carboxyl terminal is the only structure to bond covalently with other biomolecules [60]. Biotin carboxyl carrier proteins (BCCPs) are molecules of 69~73 amino acid residues, to which a biotin group is covalently attached through a lysine residue [61]. The avidin/biotin couple is popular in the conjugation of nanosystems. Biotinylated nanoparticles were widely used for biological research and biomedical applications, including the sensing of analytes or the delivery of drugs [62,63]. In this work, fusion expression of mamF and bccp genes resulted in magnetosome surface modification by functional biotins in vivo, without grafting and conjugation steps of artificial nanoparticles.
Particularly, bioengineered biotinylation of magnetosomes brings an important new function to the display system. It is known that biotin receptors are overexpressed in different tumor cells, including breast, ovarian, and lung cancer [64,65]. Thus, the approach of biotin functionalization has been explored as an attractive strategy for tumor nuclear magnetic resonance imaging, targeted-drug, and gene−delivery systems [66,67,68,69]. Consequently, BMP−∆F−BF could be an excellent potential candidate as an imaging agent and targeted-delivery carrier for tumors.
In brief, we systematically introduced the bioengineering and biofabrication process of biotinylated magnetosomes. Both the strategy and resulting engineered magnetosome could be promising examples for preparing multiple functional biogenic magnetic nanomaterials.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/bioengineering9080356/s1, Figure S1: The sodium dodecylsulphate polyacrylamide gel electrophoresis (SDS-PAGE) result of BMP−∆F−BF and BMP−WT.

Author Contributions

J.T. and J.X. conceived the idea and designed the study. J.X., S.M., S.L., H.Z. and B.P. conducted the experiment. J.T., F.L. and J.X. conducted the theoretical research. L.F. gave suggestions on the improvement of the article. The article was prepared by J.X. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the National Natural Science Foundation of China (No. 81871488), Key Project of Inter-Governmental International Scientific and Technological Innovation Cooperation (2016YFE0108900). Critical Project of Inter-Governmental International Scientific and Technological Innovation Cooperation (2019YFE0115800) and the Project for Extramural Scientists of State Key Laboratory of Agro-biotechnology (2020SKLAB6-6). China Postdoctoral Science Foundation (2021M700330).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available from the first author (J.X.) upon reasonable request.

Acknowledgments

We thank Tongwei Zhang for the help in the analysis of magnetic properties. We appreciate Yu Zhang for the assistance in the detection of hydrated radii, zeta potential, and polydispersity.

Conflicts of Interest

The authors declare no competing financial interests.

Abbreviations

BMPs: magnetosomes; MTB, magnetotactic bacteria; BMP−biotin, chemically modified biotin-labeled BMP; MB−biotin, commercial biotin-labeled magnetic beads. BMP−∆F−BF, genetically engineered biotin-labeled magnetosomes.

References

  1. Clarke, L.; Kitney, R. Developing synthetic biology for industrial biotechnology applications. Biochem. Soc. Trans. 2020, 48, 113–122. [Google Scholar] [CrossRef] [PubMed]
  2. Karpagam, R.; Jawaharraj, K.; Gnanam, R. Review on integrated biofuel production from microalgal biomass through the outset of transesterification route: A cascade approach for sustainable bioenergy. Sci. Total Environ. 2021, 766, 144236. [Google Scholar] [CrossRef] [PubMed]
  3. Tian, M.; Yang, L.; Wang, Z.; Lv, P.; Fu, J.; Miao, C.; Li, M.; Liu, T.; Luo, W. Improved methanol tolerance of Rhizomucor miehei lipase based on Nglycosylation within the alpha-helix region and its application in biodiesel production. Biotechnol. Biofuels 2021, 14, 237. [Google Scholar] [CrossRef] [PubMed]
  4. Sun, X.; Atiyeh, H.K.; Li, M.; Chen, Y. Biochar facilitated bioprocessing and biorefinery for productions of biofuel and chemicals: A review. Bioresour. Technol. 2020, 295, 122252. [Google Scholar] [CrossRef] [PubMed]
  5. Chau, T.H.T.; Nguyen, A.D.; Lee, E.Y. Boosting the acetol production in methanotrophic biocatalyst Methylomonas sp. DH-1 by the coupling activity of heteroexpressed novel protein PmoD with endogenous particulate methane monooxygenase. Biotechnol. Biofuels Bioprod. 2022, 15, 7. [Google Scholar] [CrossRef] [PubMed]
  6. Andrews, F.; Faulkner, M.; Toogood, H.S.; Scrutton, N.S. Combinatorial use of environmental stresses and genetic engineering to increase ethanol titres in cyanobacteria. Biotechnol. Biofuels 2021, 14, 240. [Google Scholar] [CrossRef]
  7. Sun, Y.; Li, X.; Wu, L.; Li, Y.; Li, F.; Xiu, Z.; Tong, Y. The advanced performance of microbial consortium for simultaneous utilization of glucose and xylose to produce lactic acid directly from dilute sulfuric acid pretreated corn stover. Biotechnol. Biofuels 2021, 14, 233. [Google Scholar] [CrossRef] [PubMed]
  8. Lee, J.S.; Lin, C.J.; Lee, W.C.; Teng, H.Y.; Chuang, M.H. Production of succinic acid through the fermentation of Actinobacillus succinogenes on the hydrolysate of Napier grass. Biotechnol. Biofuels Bioprod. 2022, 15, 9. [Google Scholar] [CrossRef] [PubMed]
  9. Liao, H.; Ying, W.; Li, X.; Zhu, J.; Xu, Y.; Zhang, J. Optimized production of xylooligosaccharides from poplar: A biorefinery strategy with sequential acetic acid/sodium acetate hydrolysis followed by xylanase hydrolysis. Bioresour. Technol. 2022, 347, 126683. [Google Scholar] [CrossRef] [PubMed]
  10. Tay, Z.W.; Chandrasekharan, P.; Chiu-Lam, A.; Hensley, D.W.; Dhavalikar, R.; Zhou, X.Y.; Yu, E.Y.; Goodwill, P.W.; Zheng, B.; Rinaldi, C.; et al. Magnetic Particle Imaging-Guided Heating in vivo Using Gradient Fields for Arbitrary Localization of Magnetic Hyperthermia Therapy. ACS Nano 2018, 12, 3699–3713. [Google Scholar] [CrossRef]
  11. Wang, X.; Chen, L.; Ge, J.; Afshari, M.J.; Yang, L.; Miao, Q.; Duan, R.; Cui, J.; Liu, C.; Zeng, J.; et al. Rational Constructed Ultra-Small Iron Oxide Nanoprobes Manifesting High Performance for T1-Weighted Magnetic Resonance Imaging of Glioblastoma. Nanomaterials 2021, 11, 2601. [Google Scholar] [CrossRef] [PubMed]
  12. Dai, Y.; Bai, X.; Jia, L.; Sun, H.; Feng, Y.; Wang, L.; Zhang, C.; Chen, Y.; Ji, Y.; Zhang, D.; et al. Precise Control of Customized Macrophage Cell Robot for Targeted Therapy of Solid Tumors with Minimal Invasion. Small 2021, 17, e2103986. [Google Scholar] [CrossRef] [PubMed]
  13. Kurt, H.; Pishva, P.; Pehlivan, Z.S.; Arsoy, E.G.; Saleem, Q.; Bayazit, M.K.; Yuce, M. Nanoplasmonic biosensors: Theory, structure, design, and review of recent applications. Anal. Chim. Acta 2021, 1185, 338842. [Google Scholar] [CrossRef] [PubMed]
  14. Yan, Y.; Zhu, X.; Yu, Y.; Li, C.; Zhang, Z.; Wang, F. Nanotechnology Strategies for Plant Genetic Engineering. Adv. Mater. 2021, 34, e2106945. [Google Scholar] [CrossRef] [PubMed]
  15. Peters, R.J.B.; Bouwmeester, H.; Gottardo, S.; Amenta, V.; Arena, M.; Brandhoff, P.; Marvin, H.J.P.; Mech, A.; Moniz, F.B.; Pesudo, L.Q.; et al. Nanomaterials for products and application in agriculture, feed and food. Trends Food Sci. Technol. 2016, 54, 155–164. [Google Scholar] [CrossRef]
  16. Finglas, P.M.; Yada, R.Y.; Toldrá, F. Nanotechnology in foods: Science behind and future perspectives. Trends Food Sci. Technol. 2014, 40, 125–126. [Google Scholar] [CrossRef]
  17. Song, C.; Sun, W.; Xiao, Y.; Shi, X. Ultrasmall iron oxide nanoparticles: Synthesis, surface modification, assembly, and biomedical applications. Drug Discov. Today 2019, 24, 835–844. [Google Scholar] [CrossRef] [PubMed]
  18. Nabiyouni, G.; Julaee, M.; Ghanbari, D.; Aliabadi, P.C.; Safaie, N. Room temperature synthesis and magnetic property studies of Fe3O4 nanoparticles prepared by a simple precipitation method. J. Ind. Eng. Chem. 2015, 21, 599–603. [Google Scholar] [CrossRef]
  19. Ahmadi, S.; Fazilati, M.; Nazem, H.; Mousavi, S.M. Green Synthesis of Magnetic Nanoparticles Using Satureja hortensis Essential Oil toward Superior Antibacterial/Fungal and Anticancer Performance. BioMed Res. Int. 2021, 2021, 8822645. [Google Scholar] [CrossRef] [PubMed]
  20. Kamath, V.; Chandra, P.; Jeppu, G.P. Comparative study of using five different leaf extracts in the green synthesis of iron oxide nanoparticles for removal of arsenic from water. Int. J. Phytoremediation 2020, 22, 1278–1294. [Google Scholar] [CrossRef] [PubMed]
  21. Arjaghi, S.K.; Alasl, M.K.; Sajjadi, N.; Fataei, E.; Rajaei, G.E. Green Synthesis of Iron Oxide Nanoparticles by RS Lichen Extract and its Application in Removing Heavy Metals of Lead and Cadmium. Biol. Trace Elem. Res. 2021, 199, 763–768. [Google Scholar] [CrossRef] [PubMed]
  22. Soni, V.; Raizada, P.; Singh, P.; Cuong, H.N.; Saini, A.; Saini, R.V.; Nadda, A.K.; Nguyen, V.H. Sustainable and green trends in using plant extracts for the synthesis of biogenic metal nanoparticles toward environmental and pharmaceutical advances: A review. Environ. Res. 2021, 202, 111622. [Google Scholar] [CrossRef] [PubMed]
  23. Kezic, S.; Nunez, R.; Hallmann, S.; Havmose, M.S.; Johansen, J.D.; John, S.M.; Macan, M.; Symanzik, C.; Uter, W.; Weinert, P.; et al. Occupational exposure of hairdressers to airborne hazardous chemicals: A scoping review. Int. J. Eenviron. Res. Public Health 2022, 19, 4176. [Google Scholar] [CrossRef] [PubMed]
  24. Uebe, R.; Schuler, D. Magnetosome biogenesis in magnetotactic bacteria. Nat. Rev. Microbiol. 2016, 14, 621–637. [Google Scholar] [CrossRef]
  25. Siponen, M.I.; Legrand, P.; Widdrat, M.; Jones, S.R.; Zhang, W.J.; Chang, M.C.; Faivre, D.; Arnoux, P.; Pignol, D. Structural insight into magnetochrome-mediated magnetite biomineralization. Nature 2013, 502, 681–684. [Google Scholar] [CrossRef] [PubMed]
  26. Lower, B.H.; Bazylinski, D.A. The bacterial magnetosome: A unique prokaryotic organelle. J. Mol. Microbiol. Biotechnol. 2013, 23, 63–80. [Google Scholar] [CrossRef] [PubMed]
  27. Vargas, G.; Cypriano, J.; Correa, T.; Leao, P.; Bazylinski, D.A.; Abreu, F. Applications of Magnetotactic Bacteria, Magnetosomes and Magnetosome Crystals in Biotechnology and Nanotechnology: Mini-Review. Molecules 2018, 23, 2438. [Google Scholar] [CrossRef] [PubMed]
  28. Arakaki, A.; Nakazawa, H.; Nemoto, M.; Mori, T.; Matsunaga, T. Formation of magnetite by bacteria and its application. J. R. Soc. Interface 2008, 5, 977–999. [Google Scholar] [CrossRef] [PubMed]
  29. Basit, A.; Wang, J.; Guo, F.; Niu, W.; Jiang, W. Improved methods for mass production of magnetosomes and applications: A review. Microb. Cell Factories 2020, 19, 197. [Google Scholar] [CrossRef] [PubMed]
  30. Edouard, A.; Darine, A.H.; Olivier, S.; Maxime, T.; Alain, T.; Nadege, B.; Florence, G.; Franceois, G.; Imene, C. Nanaoprobe synthesized by Magnetotactic bacteria, detecting flourescence variations under dissociation of rhodamine B from magnetosomes following temperature, pH changes, or the application of radiation. ACS Appl. Mater. Interfaces 2017, 9, 36562–36572. [Google Scholar]
  31. Nan, X.; Teng, Y.; Tian, J.; Hu, Z.; Fang, Q. A comprehensive assessment of the biocompatibility of Magnetospirillum gryphiswaldense MSR-1 bacterial magnetosomes in vitro and in vivo. Toxicology 2021, 462, 152949. [Google Scholar] [CrossRef] [PubMed]
  32. Sun, J.B.; Tang, T.; Duan, J.H.; Xu, P.X.; Wang, Z.L.; Zhang, Y.; Wu, L.Y.; Li, Y. Biocompatibility of bacterial magnetosome: Acute toxicity, immunotoxicity and cytotoxicity. Nanotoxicology 2020, 4, 271–283. [Google Scholar] [CrossRef] [PubMed]
  33. Yan, L.; Yue, X.X.; Zhang, S.; Chen, P.; Xu, Z.L.; Li, Y.; Li, H.Y. Biocompatibility evaluation of magnetosomes formed by Acidithiobacillus ferrooxidans. Mater. Sci. Eng. C 2012, 32, 1802–1807. [Google Scholar] [CrossRef] [PubMed]
  34. Liu, R.T.; Liu, J.; Tong, J.Q.; Tang, T.; Kong, W.C.; Wang, X.W.; Li, Y.; Tang, J.T. Heating effect and biocompatibility of bacterial magnetosomes as potential materials used in magnetic fluid hyperthermia. Prog. Nat. Sci. Mater. Int. 2012, 22, 31–39. [Google Scholar] [CrossRef]
  35. Nan, X.H.; Lai, W.J.; Li, D.; Tian, J.S.; Hu, Z.Y.; Fang, Q.J. Biocompatibility of bacterial magnetosomes as MRI contrast agent: A Long-Term in vivo Follow-Up study. Nanomaterials 2021, 11, 1235. [Google Scholar] [CrossRef] [PubMed]
  36. Boucher, M.; Geffroy, F.; Bellanger, L.; Selingue, E.; Pignol, D.; Ginet, N.; Meriaux, S. Genetically tailored magnetosomes used as MRI probe for molecular imaging of brain tumor. Biomaterials 2017, 121, 167–178. [Google Scholar] [CrossRef] [PubMed]
  37. He, J.; Tian, J.; Xu, J.; Wang, K.; Li, J.; Gee, S.J.; Hammock, B.D.; Li, Q.X.; Xu, T. Strong and oriented conjugation of nanobodies onto magnetosomes for the development of a rapid immunomagnetic assay for the environmental detection of tetrabromobisphenol-A. Anal. Bioanal. Chem. 2018, 410, 6633–6642. [Google Scholar] [CrossRef]
  38. Xiang, Z.; Yang, X.; Xu, J.; Lai, W.; Wang, Z.; Hu, Z.; Tian, J.; Geng, L.; Fang, Q. Tumor detection using magnetosome nanoparticles functionalized with a newly screened EGFR/HER2 targeting peptide. Biomaterials 2017, 115, 53–64. [Google Scholar] [CrossRef] [PubMed]
  39. Wang, J.; Geng, Y.; Zhang, Y.; Wang, X.; Liu, J.; Basit, A.; Miao, T.; Liu, W.; Jiang, W. Bacterial magnetosomes loaded with doxorubicin and transferrin improve targeted therapy of hepatocellular carcinoma. Nanotheranostics 2019, 3, 284–298. [Google Scholar] [CrossRef] [PubMed]
  40. Xu, J.; Hu, J.; Liu, L.; Li, L.; Wang, X.; Zhang, H.; Jiang, W.; Tian, J.; Li, Y.; Li, J. Surface expression of protein A on magnetosomes and capture of pathogenic bacteria by magnetosome/antibody complexes. Front. Microbiol. 2014, 5, 136. [Google Scholar] [CrossRef] [PubMed]
  41. Mickoleit, F.; Lanzloth, C.; Schuler, D. A Versatile Toolkit for Controllable and Highly Selective Multifunctionalization of Bacterial Magnetic Nanoparticles. Small 2020, 16, e1906922. [Google Scholar] [CrossRef] [PubMed]
  42. Honda, T.; Tanaka, T.; Yoshino, T. Stoichiometrically Controlled Immobilization of Multiple Enzymes on Magnetic Nanoparticles by the Magnetosome Display System for Efficient Cellulose Hydrolysis. Biomacromolecules 2015, 16, 3863–3868. [Google Scholar] [CrossRef] [PubMed]
  43. Zhang, Y.; Ni, Q.; Xu, C.; Wan, B.; Gang, Y.; Zheng, G.; Yang, Z.; Tao, J.; Wen, J.; Zhang, J.; et al. Smart bacterial magnetic nanoparticles for Tumor-Targeting magnetic resonance imaging of HER2-postive breast cancer. ACS Appl. Mater. Interfaces 2019, 11, 2654–3665. [Google Scholar]
  44. Xu, J.; Liu, L.; He, J.; Ma, S.; Li, S.; Wang, Z.; Xu, T.; Jiang, W.; Wen, Y.; Li, Y.; et al. Engineered magnetosomes fused to functional molecule (protein A) provide a highly effective alternative to commercial immunomagnetic beads. J. Nanobiotechnology 2019, 17, 37. [Google Scholar] [CrossRef] [PubMed]
  45. Yang, C.; Takeyama, H.; Tanaka, T.; Matsunaga, T. Effects of growth medium composition, iron sources and atmospheric oxygen concentrations on production of luciferase-bacterial magnetic particle comples by a recombinant Magnetospirillum magneticum AMB-1. Enzym. Microb. Technol. 2001, 29, 13–19. [Google Scholar] [CrossRef]
  46. Fernandez-Suarez, M.; Chen, T.S.; Ting, A.Y. Protein-protein interaction detection in vitro and in cells by proximity biotinylation. J. Am. Chem. Soc. 2008, 130, 9251–9253. [Google Scholar] [CrossRef] [PubMed]
  47. Klein, S.; Stern, D.; Seeber, F. Expression of in vivo biotinylated recombinant antigens SAG1 and SAG2A from Toxoplasma gondii for improved seroepidemiological bead-based multiplex assays. BMC Biotechnol. 2020, 20, 53. [Google Scholar] [CrossRef] [PubMed]
  48. Boer, E.; Rodriguez, P.; Bonte, E.; Krijgsveld, J.; Katsantoni, E.; Heck, A.; Grosveld, F.; Strouboulis, J. Efficient biotinylation and single-step purification of tagged transcription factors in mammalian cells and transgenic mice. Proc. Natl. Acad. Sci. USA 2003, 100, 7480–7485. [Google Scholar] [CrossRef]
  49. Maeda, Y.; Yoshino, T.; Matsunaga, T. Novel nanocomposites consisting of in vivo-biotinylated bacterial magnetic particles and quantum dots for magnetic separation and fluorescent labeling of cancer cells. J. Mater. Chem. 2009, 19, 6361–6366. [Google Scholar] [CrossRef]
  50. Zwiener, T.; Dziuba, M.; Mickoleit, F.; Ruckert, C.; Busche, T.; Kalinowski, J.; Uebe, R.; Schuler, D. Towards a ‘chassis’ for bacterial magnetosome biosynthesis: Genome streamlining of Magnetospirillum gryphiswaldense by multiple deletions. Microb. Cell Factories 2021, 20, 35. [Google Scholar] [CrossRef]
  51. Hanahan, D. Studies on transformation of Escherichia coli with plasmids. J. Mol. Biol. 1983, 166, 557–580. [Google Scholar] [CrossRef]
  52. Simon, R.; Priefer, U.; Puhler, A. A broad host range mobilization system for in vivo genetic engineering: Transposon mutagenesis in Gram negative bacteria. Bio/Technol. 1983, 1, 784–791. [Google Scholar] [CrossRef]
  53. Ali, I.; Peng, C.; Khan, Z.M.; Naz, I. Yield cultivation of magnetotactic bacteria and magnetosomes: A review. J. Basic Microbiol. 2017, 57, 643–652. [Google Scholar] [CrossRef]
  54. Zhang, Y.; Zhang, X.; Jiang, W.; Li, Y.; Li, J. Semicontinuous Culture of Magnetospirillum gryphiswaldense MSR-1 Cells in an Autofermentor by Nutrient-Balanced and Isosmotic Feeding Strategies. Appl. Environ. Microbiol. 2011, 77, 5851–5856. [Google Scholar] [CrossRef] [PubMed]
  55. Joudeh, N.; Linke, D. Nanoparticle classification, physicochemical properties, characterization, and applications: A comprehensive review for biologists. J. Nanobiotechnology 2022, 20, 262. [Google Scholar] [CrossRef] [PubMed]
  56. Park, M. Surface Display Technology for Biosensor Applications: A Review. Sensors 2020, 20, 2775. [Google Scholar] [CrossRef] [PubMed]
  57. Kunamneni, A.; Ogaugwu, C.; Bradfute, S.; Durvasula, R. Ribosome Display Technology: Applications in Disease Diagnosis and Control. Antibodies 2020, 9, 28. [Google Scholar] [CrossRef] [PubMed]
  58. Kamalinia, G.; Grindel, B.J.; Takahashi, T.T.; Millward, S.W.; Roberts, R.W. Directing evolution of novel ligands by mRNA display. Chem. Soc. Rev. 2021, 50, 9055–9103. [Google Scholar] [CrossRef]
  59. Chaiet, L.; Wolf, F.J. The properties of streptavidin, a biotin binding protein produced by Streptomycetes. Arch. Biochem. Biophys. 1964, 106, 1–5. [Google Scholar] [CrossRef]
  60. Lombard, J.; Moreira, D. Early evolution of the biotin dependent carboxylase family. BMC Evol. Biol. 2011, 11, 232. [Google Scholar] [CrossRef] [PubMed]
  61. Chen, Y.; Elizondo-Noriega, A.; Cantu, D.C.; Reilly, P.J. Structural classification of biotin carboxyl carrier proteins. Biotechnol. Lett. 2012, 34, 1869–1875. [Google Scholar] [CrossRef] [PubMed]
  62. Jain, A.; Cheng, K. The Principles and Applications of Avidin-Based Nanoparticles in Drug Delivery and Diagnosis. J. Control. Release 2017, 245, 27–40. [Google Scholar] [CrossRef] [PubMed]
  63. Ren, W.; Han, J.; Uhm, S.; Jang, Y.; Kang, C.; Kim, J.H.; Kim, J. Recent Development of Biotin Conjugation in Biological Imaging, Sensing, and Target Delivery. Chem. Commun. 2015, 51, 10403–10418. [Google Scholar] [CrossRef] [PubMed]
  64. Shi, J.F.; Wu, P.; Jiang, Z.H.; Wei, X.Y. Synthesis and Tumor Cell Growth Inhibitory Activity of Biotinylated Annonaceous Acetogenins. Eur. J. Med. Chem. 2014, 71, 219–228. [Google Scholar] [CrossRef] [PubMed]
  65. Chen, S.; Zhao, X.; Chen, J.; Chen, J.; Kuznetsova, L.; Wong, S.S.; Ojima, I. Mechanism-Based Tumor-Targeting Drug Delivery System. Validation of Efficient Vitamin Receptor-Mediated Endocytosis and Drug Release. Bioconjugate Chem. 2010, 21, 979–987. [Google Scholar] [CrossRef] [PubMed]
  66. Khramtsov, P.; Kropaneva, M.; Bochkova, M.; Kiselkov, D.; Timganova, V.; Zamorina, S.; Rayev, M. Nuclear magnetic resonance immunoassay of tetanus antibodies based on the displacement of magnetic nanoparticles. Anal. Bioanal. Chem. 2021, 413, 1461–1471. [Google Scholar] [CrossRef] [PubMed]
  67. Nosrati, H.; Barzegari, P.; Danafar, H.; Manjili, H.K. Biotin-Functionalized Copolymeric PEG-PCL Micelles for in vivo TumourTargeted Delivery of Artemisinin. Artif. Cells Nanomed. Biotechnol. 2019, 47, 104–114. [Google Scholar] [CrossRef] [PubMed]
  68. Wang, Y.; van Steenbergen, M.J.; Beztsinna, N.; Shi, Y.; Lammers, T.; van Nostrum, C.F.; Hennink, W.E. Biotin-Decorated All-HPMA Polymeric Micelles for Paclitaxel Delivery. J. Control. Release 2020, 328, 970–984. [Google Scholar] [CrossRef] [PubMed]
  69. Rompicharla, S.V.K.; Kumari, P.; Bhatt, H.; Ghosh, B.; Biswas, S. Biotin Functionalized PEGylated Poly (Amidoamine) Dendrimer Conjugate for Active Targeting of Paclitaxel in Cancer. Int. J. Pharm. 2019, 557, 329–341. [Google Scholar] [CrossRef] [PubMed]
Bioengineering 09 00356 g001 550

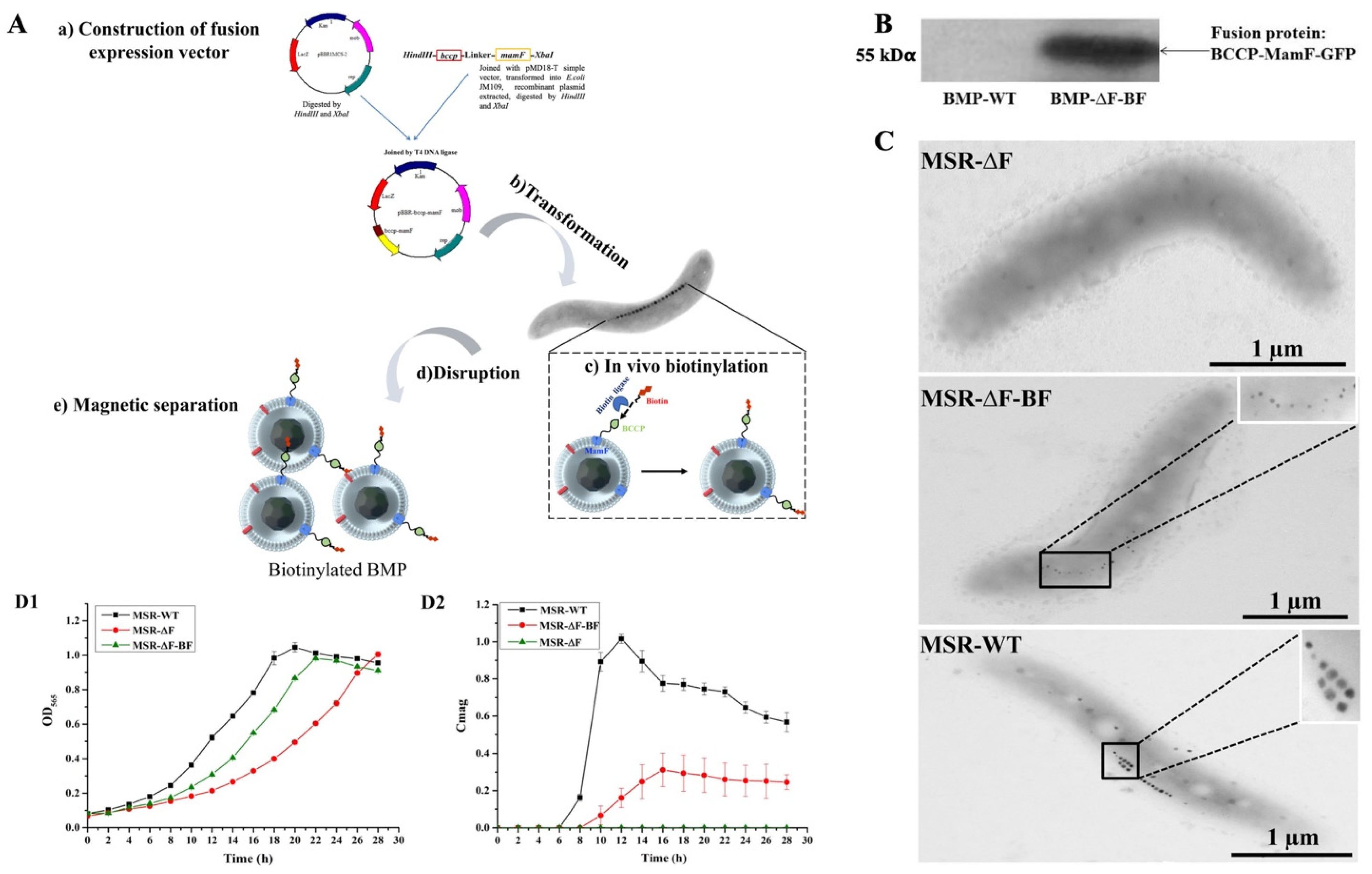

Figure 1. Construction and growth of the engineered bacteria MSR−∆F−BF and BMP synthesis detection. (A) Schematic diagram of MSR−∆F−BF construction and biotinylated BMP extraction. (a) construction of bccp and mamF genes fusion expression vector (pBBR−bccp−mamF); (b) transformation of pBBR−bccp−mamF to MSR−∆F by biparental conjugation to construct the engineered strain (MSR−∆F−BF); (c) in vivo biotinylated BMP by biotin ligase linkage of biotin to BCCP on BMP; (d) ultrasonic homogenizer-disrupted cell; (e) magnetically separated biotinylated BMP from cell debris. (B) Western blotting detects the fusion protein display on engineered BMP. (C) TEM micrograph of MSR−∆F, MSR−∆F−BF, and MSR−WT; there were no BMPs in MSR−∆F cell, small−sized BMPs in MSR−∆F−BF cell, and normal particle size BMPs in MSR−WT cell. The results indicated that the fusion gene was successfully expressed and complemented the disruption of the mamF gene in MSR−∆F−BF, suggesting MSR−∆F−BF could synthesize of BMPs successfully. (D) Cell growth curve (D1) and Cmag curve (D2); MSR−∆F−BF cell growth rate was close to MSR−WT and faster than MSR−∆F. Cmag value was lower in MSR−WT.
Figure 1. Construction and growth of the engineered bacteria MSR−∆F−BF and BMP synthesis detection. (A) Schematic diagram of MSR−∆F−BF construction and biotinylated BMP extraction. (a) construction of bccp and mamF genes fusion expression vector (pBBR−bccp−mamF); (b) transformation of pBBR−bccp−mamF to MSR−∆F by biparental conjugation to construct the engineered strain (MSR−∆F−BF); (c) in vivo biotinylated BMP by biotin ligase linkage of biotin to BCCP on BMP; (d) ultrasonic homogenizer-disrupted cell; (e) magnetically separated biotinylated BMP from cell debris. (B) Western blotting detects the fusion protein display on engineered BMP. (C) TEM micrograph of MSR−∆F, MSR−∆F−BF, and MSR−WT; there were no BMPs in MSR−∆F cell, small−sized BMPs in MSR−∆F−BF cell, and normal particle size BMPs in MSR−WT cell. The results indicated that the fusion gene was successfully expressed and complemented the disruption of the mamF gene in MSR−∆F−BF, suggesting MSR−∆F−BF could synthesize of BMPs successfully. (D) Cell growth curve (D1) and Cmag curve (D2); MSR−∆F−BF cell growth rate was close to MSR−WT and faster than MSR−∆F. Cmag value was lower in MSR−WT.
Bioengineering 09 00356 g001
Bioengineering 09 00356 g002 550

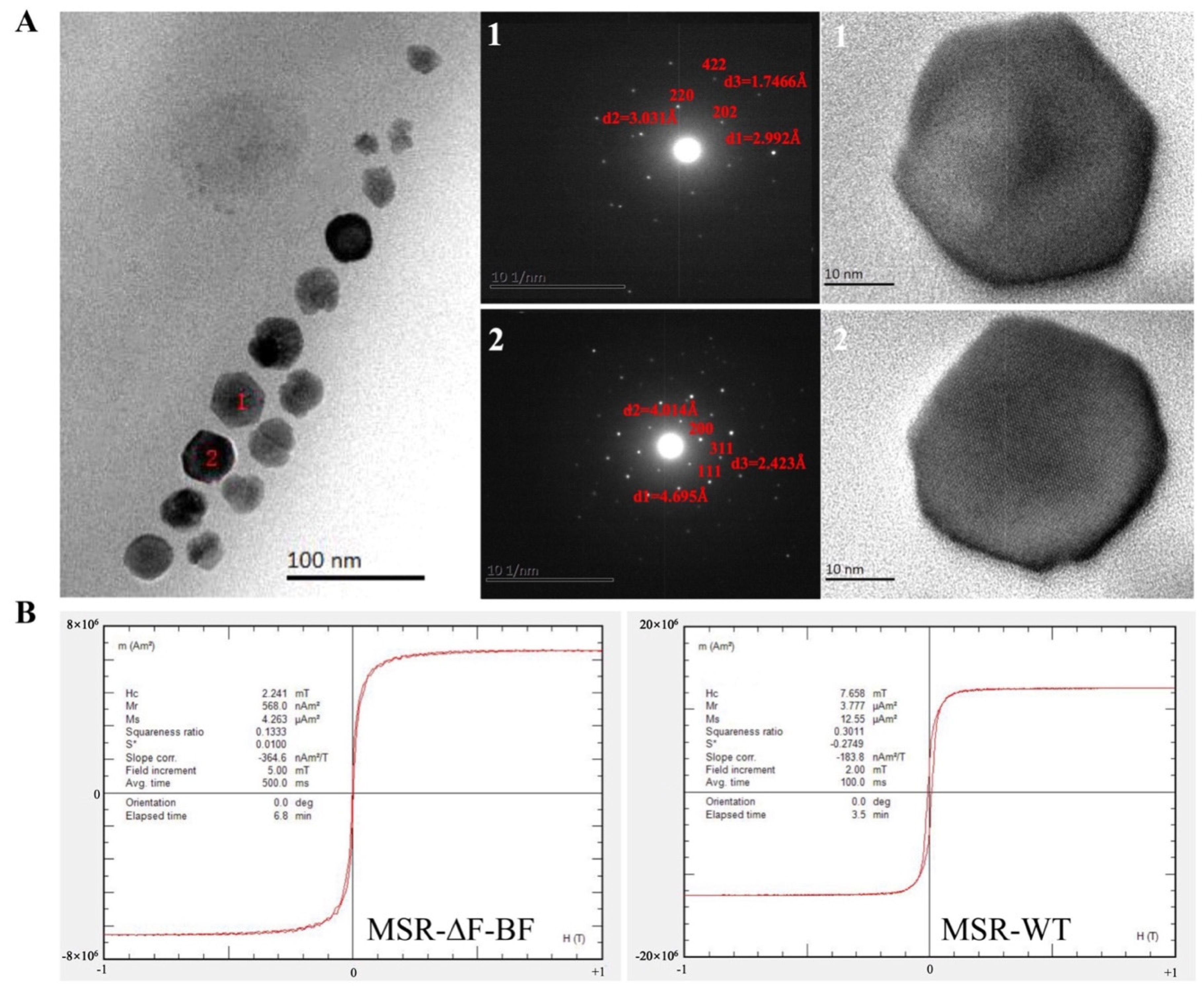

Figure 2. (A) High−resolution TEM and fast Fourier transform analysis of the crystal composition of BMP−∆F−BF; the core constituent of BMP−∆F−BF was Fe3O4 NPs. (B) Magnetic property analysis of MSR−∆F−BF, S*: static moment.
Figure 2. (A) High−resolution TEM and fast Fourier transform analysis of the crystal composition of BMP−∆F−BF; the core constituent of BMP−∆F−BF was Fe3O4 NPs. (B) Magnetic property analysis of MSR−∆F−BF, S*: static moment.
Bioengineering 09 00356 g002
Bioengineering 09 00356 g003 550

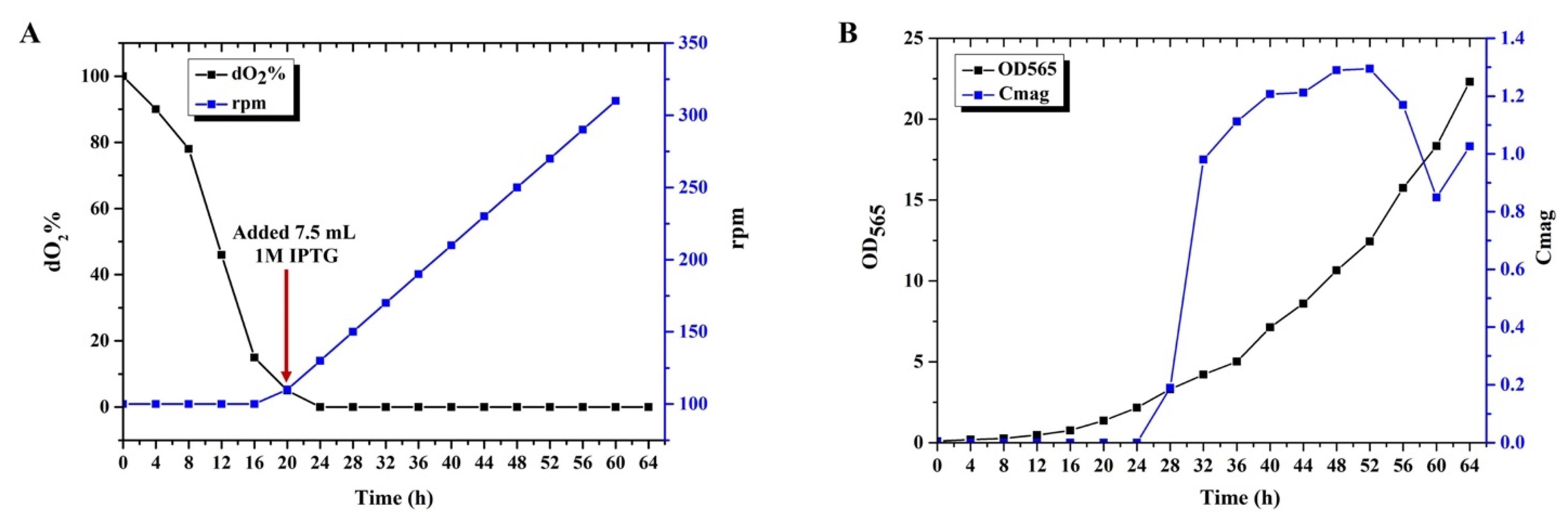

Figure 3. Submerged culture of MSR−∆F−BF in a 42 L fermenter (A) rpm and dO2% values as a function of time. As the cell grew, the dO2% in the broth was consumed continuously. dO2% decreased to ~5%, and IPTG was added to introduce fusion gene expression. dO2% decreased to ~1%; the agitation speed was added at 10 rpm/2 h to maintain microaerobic condition. (B) MSR−∆F−BF cell growth and Cmag value curve. The highest OD565 and Cmag reached ~22 and ~1.3, respectively.
Figure 3. Submerged culture of MSR−∆F−BF in a 42 L fermenter (A) rpm and dO2% values as a function of time. As the cell grew, the dO2% in the broth was consumed continuously. dO2% decreased to ~5%, and IPTG was added to introduce fusion gene expression. dO2% decreased to ~1%; the agitation speed was added at 10 rpm/2 h to maintain microaerobic condition. (B) MSR−∆F−BF cell growth and Cmag value curve. The highest OD565 and Cmag reached ~22 and ~1.3, respectively.
Bioengineering 09 00356 g003
Bioengineering 09 00356 g004 550

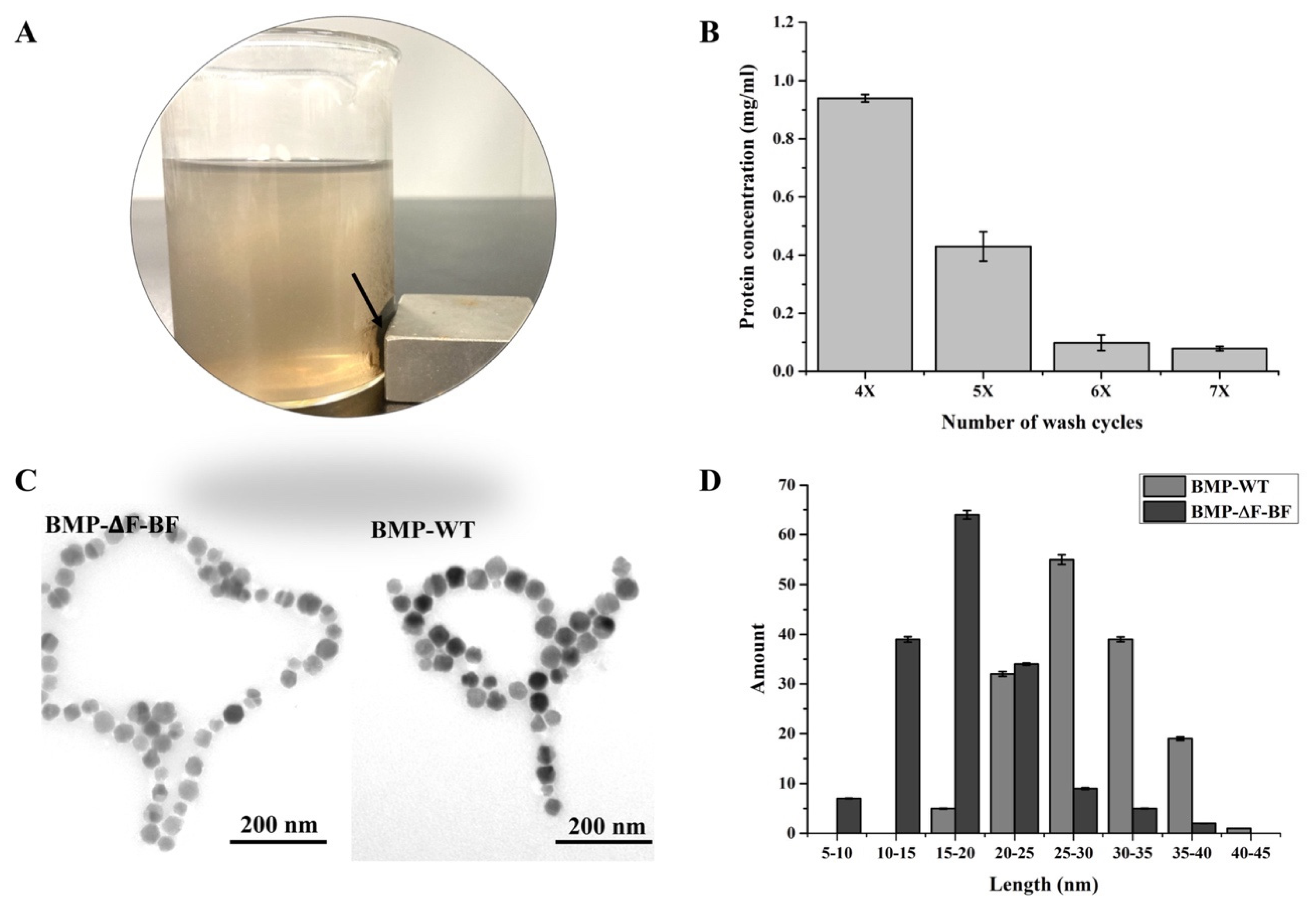

Figure 4. Purification of BMP–∆F–BF. (A) Magnetic–rack–separated BMP–∆F–BF (arrow). (B) Protein concentration in the supernatant following various numbers of wash cycles. After washing six times, the protein concentration was lower than 0.1 mg/mL, and as the wash cycle increased, the protein concentration stopped decreasing. (C) TEM micrograph of purified BMP–∆F–BF after washing six times. There was no stain on the photo background, and BMP–∆F–BF was well purified. (D) Particle size distribution of BMP–∆F–BF and BMP–WT.
Figure 4. Purification of BMP–∆F–BF. (A) Magnetic–rack–separated BMP–∆F–BF (arrow). (B) Protein concentration in the supernatant following various numbers of wash cycles. After washing six times, the protein concentration was lower than 0.1 mg/mL, and as the wash cycle increased, the protein concentration stopped decreasing. (C) TEM micrograph of purified BMP–∆F–BF after washing six times. There was no stain on the photo background, and BMP–∆F–BF was well purified. (D) Particle size distribution of BMP–∆F–BF and BMP–WT.
Bioengineering 09 00356 g004
Bioengineering 09 00356 g005 550
Figure 5. Comparison of streptavidin linkage rate with BMP−∆F−BF, BMP−biotin, and MB−biotin. (A) Optimization of conditions for conjugation of streptavidin to BMP−∆F−BF: (A1) linkage temperature, (A2) linkage buffer, 1:10 mmol/L Tris-HCl, pH 7.4, 2:10 mmol/L Hepes, pH 7.4, 3:10 mmol/L Gly, pH 7.4, 4:10 mmol/L Na2HPO3-C6H8O7, pH 7.4, 5:10 mmol/L PBS, pH 7.4; (A3) streptavidin weight. Linkage temperature and buffer have no significant influence on the streptavidin linkage rate of BMP−∆F−BF. When BMP−∆F−BF and streptavidin weight rate was 1:3, BMP−∆F−BF linkage with streptavidin rate was markedly higher than BMP−WT nonspecific absorption (A3), which were suitable conditions for BMP−∆F−BF linkage with streptavidin. (B) Schematic of chemically conjugated biotin to BMP and BMP co-incubated with NHS-biotin. The -NHS group can react with -NH2 group of BMP modified streptavidin to the surface of BMP, forming biotin-labeled BMP. (C) Comparison of Streptavidin−HRP linkage rate of BMP−∆F−BF, BMP−biotin, and MB−biotin. (D) Comparison of Streptavidin−HRP linkage rate of BMP−∆F−BF, BMP−biotin, and MB−biotin at different storage times. The biosynthesized BMP−∆F−BF linkage rate was more stable than that of BMP−biotin and MB−biotin. Data are presented as the mean  ±  s.d. (n  =  3 biological replicates per group) and statistically analyzed using the two-sided Student’s t-test: ** p < 0.01, *** p < 0.001.
Figure 5. Comparison of streptavidin linkage rate with BMP−∆F−BF, BMP−biotin, and MB−biotin. (A) Optimization of conditions for conjugation of streptavidin to BMP−∆F−BF: (A1) linkage temperature, (A2) linkage buffer, 1:10 mmol/L Tris-HCl, pH 7.4, 2:10 mmol/L Hepes, pH 7.4, 3:10 mmol/L Gly, pH 7.4, 4:10 mmol/L Na2HPO3-C6H8O7, pH 7.4, 5:10 mmol/L PBS, pH 7.4; (A3) streptavidin weight. Linkage temperature and buffer have no significant influence on the streptavidin linkage rate of BMP−∆F−BF. When BMP−∆F−BF and streptavidin weight rate was 1:3, BMP−∆F−BF linkage with streptavidin rate was markedly higher than BMP−WT nonspecific absorption (A3), which were suitable conditions for BMP−∆F−BF linkage with streptavidin. (B) Schematic of chemically conjugated biotin to BMP and BMP co-incubated with NHS-biotin. The -NHS group can react with -NH2 group of BMP modified streptavidin to the surface of BMP, forming biotin-labeled BMP. (C) Comparison of Streptavidin−HRP linkage rate of BMP−∆F−BF, BMP−biotin, and MB−biotin. (D) Comparison of Streptavidin−HRP linkage rate of BMP−∆F−BF, BMP−biotin, and MB−biotin at different storage times. The biosynthesized BMP−∆F−BF linkage rate was more stable than that of BMP−biotin and MB−biotin. Data are presented as the mean  ±  s.d. (n  =  3 biological replicates per group) and statistically analyzed using the two-sided Student’s t-test: ** p < 0.01, *** p < 0.001.
Bioengineering 09 00356 g005
Table
Table 1. Strains and plasmids used in this study.
Table 1. Strains and plasmids used in this study.
Strain and PlasmidDescriptionSource or
Reference
Strains
Magnetospirillum gryphiswaldense MSR-1Wild-type magnetotactic bacteria, NxrDSM 6361
Magnetospirillum gryphiswaldense MSR−∆FmamF-defective mutant, Nxr GmrRef [40]
Magnetospirillum gryphiswaldense MSR−∆F−BFmamF mutant harboring pBBR−bccp−mamF, Nxr Gmr KmrThis study
E. coli DH5αendA1 hsdR17(rK− mK+) supE44 thi-1 recA1 gyrA (Nalr) recA1 ∆(lacZYA-argF)U169 deoR[Φ80dlacZ∆M15]Ref [51]
E. coli S17-1thi endA recA hsdR with RP4-2-Tc::Mu-Km::Tn7 integrated into the chromosome; SmrRef [52]
Plasmids
pMD18-T simpleClone vector, AmprTakara
pBBR1MCS-2Broad-host-range shuttle vector, KmrLab collection
pBBR−bccp−mamF-gfppBBR1MCS-2 containing bccp-mamF-gfp, KmrThis study
pBBR−bccp−mamFpBBR1MCS-2 containing bccp-mamF, KmrThis study
Table
Table 2. Coercivity and saturation magnetization values of MSR−∆F−BF and MSR−WT.
Table 2. Coercivity and saturation magnetization values of MSR−∆F−BF and MSR−WT.
StrainsCoercivity
(Hc, mT)		Saturation Magnetization
(Ms, µ Am2)
MSR−∆F−BF2.244.26
MSR−WT7.6512.55
Table
Table 3. Hydrated radii, zeta potential and polydispersity of BMP–∆F–BF, BMP–WT and MB–biotin.
Table 3. Hydrated radii, zeta potential and polydispersity of BMP–∆F–BF, BMP–WT and MB–biotin.
Magnetosomes/
Magnetic Beads		Hydrated Radii (nm)Zeta Potentials (mV)Polydispersity
BMP–WT113.9 ± 62.19−17.7 ± 6.780.48
BMP–∆F–BF53.52 ± 10.23−23.6 ± 6.120.35
MB–biotin669.3 ± 288.5−17.5 ± 3.840.59
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Xu, J.; Ma, S.; Zheng, H.; Pang, B.; Li, S.; Li, F.; Feng, L.; Tian, J. Biomanufacturing Biotinylated Magnetic Nanomaterial via Construction and Fermentation of Genetically Engineered Magnetotactic Bacteria. Bioengineering 2022, 9, 356. https://doi.org/10.3390/bioengineering9080356

AMA Style

Xu J, Ma S, Zheng H, Pang B, Li S, Li F, Feng L, Tian J. Biomanufacturing Biotinylated Magnetic Nanomaterial via Construction and Fermentation of Genetically Engineered Magnetotactic Bacteria. Bioengineering. 2022; 9(8):356. https://doi.org/10.3390/bioengineering9080356

Chicago/Turabian Style

Xu, Junjie, Shijiao Ma, Haolan Zheng, Bo Pang, Shuli Li, Feng Li, Lin Feng, and Jiesheng Tian. 2022. "Biomanufacturing Biotinylated Magnetic Nanomaterial via Construction and Fermentation of Genetically Engineered Magnetotactic Bacteria" Bioengineering 9, no. 8: 356. https://doi.org/10.3390/bioengineering9080356

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
