Advances in Magnetic Nanoparticles Engineering for Biomedical Applications—A Review

Fraunhofer Institute for Microengineering and Microsystems IMM, Carl-Zeiss-Straße 18-20, 55129 Mainz, Germany
Physikalisch-Technische Bundesanstalt, Abbestraße 2-12, 10587 Berlin, Germany
Author to whom correspondence should be addressed.
Bioengineering 2021, 8(10), 134;
Submission received: 13 August 2021 / Revised: 16 September 2021 / Accepted: 27 September 2021 / Published: 30 September 2021


Magnetic iron oxide nanoparticles (MNPs) have been developed and applied for a broad range of biomedical applications, such as diagnostic imaging, magnetic fluid hyperthermia, targeted drug delivery, gene therapy and tissue repair. As one key element, reproducible synthesis routes of MNPs are capable of controlling and adjusting structure, size, shape and magnetic properties are mandatory. In this review, we discuss advanced methods for engineering and utilizing MNPs, such as continuous synthesis approaches using microtechnologies and the biosynthesis of magnetosomes, biotechnological synthesized iron oxide nanoparticles from bacteria. We compare the technologies and resulting MNPs with conventional synthetic routes. Prominent biomedical applications of the MNPs such as diagnostic imaging, magnetic fluid hyperthermia, targeted drug delivery and magnetic actuation in micro/nanorobots will be presented.

1. Introduction

In 1959, Richard Feynman drew the attention of scientists to the significance of size and miniaturization of materials with his famous lecture “There is plenty of room at the bottom” [1,2]. After the starting gun had been fired, many methods were developed to manipulate atoms chemically to form nanoparticles and engineer nanomaterials. Subsequently, the scientific community became fascinated with the enhanced functional properties of nanomaterials compared to the corresponding bulk materials [3], and opening the door for plenty of technical and medical applications.
In this way, the unique properties of magnetic nanoparticles (MNPs) have been broadly studied for potential biomedical applications in the last decades. In particular, their magnetic properties strongly differ from bulk materials and become size-dependent [4,5]. A deeper understanding of the magnetic behavior of MNPs with respect to size was gained by applying domain theory [6], realizing that the behavior of magnetic material changes if the geometrical extension is reduced below a critical value, the so-called critical diameter dcr, which is normally a few tens of nanometers [7]. MNPs below this size only consist of one single magnetic domain, where all individual atomic magnetic moments of a MNP are uniformly coupled to exhibit a huge total magnetic moment. Above a certain temperature, thermal fluctuations permanently flip the magnetic moment of the MNPs into random directions so that no remnant magnetization will be measured for the MNP sample. Applying a magnetic field will (partially) align these moments leading to the strong magnetization of the MNPs that are exploited for the following applications: imaging, movement, heating or molecular sensing. MNPs with diameters > dcr will comprise several magnetic domains, where inside each domain the individual magnetic moments are coupled and pointing in the same direction. By applying an external magnetic field, the structure of the domains can be altered, since it becomes energetically more favorable to form a larger domain with all moments aligned in the same direction. After removing the magnetic field, the MNP sample will exhibit remnant magnetization and show the typical hysteretic behavior, providing a powerful mechanism to produce heat in magnetic fluid hyperthermia. Additionally, MNPs with sizes between 10 nm and 100 nm were reported to be suitable for successful clinical application. While MNPs with diameters below 10 nm are removed by renal clearance from the body, MNPs above 100 nm are eliminated by macrophages, mostly after accumulation in the liver and spleen [8]. Besides size, MNP core morphology is crucial for medical applications. 1D-nanostructures like rods or tubes exhibit longer circulation times than spherical MNPs due to an opsonin-independent phagocytosis [8,9]. MNPs with high saturation magnetization enable lower doses, and therefore minimize undesirable side effects [10]. Thus, nanorods and nanocubes show enhanced performance in magnetic hyperthermia therapy over spherical counterparts due to higher magnetization saturation [10,11]. In addition, the hollow nanotubes can be exploited for drug loading inside and functionalization at the surface [12]. On the other hand, rod-shaped structures exhibit higher toxicity than sphere-shaped MNPs [13,14]. However, not only the size and morphology, but also size distribution and chemical composition of the MNP core and coating are relevant characteristics [15]. Hence, specific MNP types have been designed for and utilized in a broad range of applications (Figure 1) such as diagnostic imaging [16,17,18], targeted drug delivery [19,20], magnetic fluid hyperthermia [21,22] and combined applications thereof, called theranostics [23,24]. Every application requires tailored MNPs with specific magnetic and structural properties, for which reproducible and reliable synthesis approaches to manufacture high-quality MNPs are mandatory [25]. Additionally, synthesis parameters e.g., temperature, educts concentration, mixing ratios, solvents and surface ligands must be controlled and adjusted to produce suitable MNPs. For a successful translation into clinical applications, requirements on the scalability, reproducibility and biocompatibility of the process and resulting MNPs are further aspects of utmost importance [26,27].
In the last few decades, numerous bottom-up synthesis routes based on conventional batch processes have been developed, such as co-precipitation [28,29,30], sol-gel [31,32], ultrasonication [33], thermal decomposition [34,35], microemulsion [36,37] and microwave assisted synthesis [38,39], as well as top-down methods such as e.g., laser ablation and mechanical milling [40]. Because of the broad size and shape distribution of MNPs often produced by the top-down methods [41], bottom-up methods are preferable for medical applications. There, seed nucleation occurs when the precursors reach supersaturation (Figure 2). Subsequently, the particles grow by diffusion of solutes to the surface of the particles until a final size is reached, which is controlled by the solute concentration [42]. Stabilizing of the individual MNPs is crucial to prevent their aggregation to larger clusters [43]. During the nucleation and growth of the MNPs, factors such as surface energy, growth rate and temperature affect the final size, the size distribution, the crystal structure and the morphology, and thereby the magnetic properties of the product [43,44].

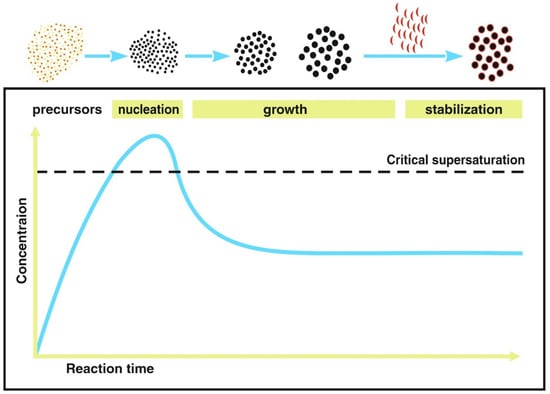

Figure 2. Steps during MNP synthesis in a bottom-up approach. When precursors reach supersaturation the nucleation of seeds occurs followed by growth. The stabilization of the MNP cores is carried out to prevent aggregation. Figure adapted from Ref [45].
Figure 2. Steps during MNP synthesis in a bottom-up approach. When precursors reach supersaturation the nucleation of seeds occurs followed by growth. The stabilization of the MNP cores is carried out to prevent aggregation. Figure adapted from Ref [45].
Bioengineering 08 00134 g002
Co-precipitation according to Massart’s method [46] is the most commonly used and simplest conventional method for MNP production. Herein, a mixture of Fe2+/Fe3+ is precipitated by adding an alkaline, such as sodium hydroxide (NaOH) or ammonium hydroxide (NH4OH) at room or elevated temperatures (typically up to 100 °C). The pH-value of the reaction has a key role in controlling the properties of resulting MNPs [47]. Bhandari et al. presented a single step co-precipitation method for synthesizing curcumin functionalized MNPs that were employed to detect polychlorinated biphenyl 126, an inflammatory agent, in cell applications [48]. Thermal decomposition is another common MNP synthesis approach that relies on reactions of organometallic compounds, such as iron(iii) acetylacetonate Fe(acac)3, tris (acetylacetonato)iron(iii) (Fe(C5H7O2)3) or iron pentacarbonyl (Fe(CO)5) [6] at higher temperatures (typically 300 °C). Resulting MNPs consist of high-quality nanocrystals with narrow size distribution and uniformity in size and shape. Hyeon et al. fabricated cubic-shaped MNPs with sizes between 20–160 nm using Fe(acac)3, oleic acid and benzyl ether at 290 °C by varying reaction conditions [49]. A pioneer work on MNP production via thermal decomposition was presented by Krishnan group. By using iron(iii)-oleate as precursor and heating at 318 °C, they tailored polyethylene glycol (PEG)-coated MNPs with diameter of 26–28 nm and size and shape uniformity for cardio- and cerebrovascular imaging applications [35,50]. In most batch approaches for MNP synthesis, a sufficiently homogeneous mixing and uniform heat transfer cannot be achieved due to the large size of the reaction volumes, especially in scaled-up batches [25,51]. Therefore, the control and adjustment of seed and growth conditions are inevitably reduced. This disadvantage circumvents microfluidic synthesis, an approach that by minimizing the synthesis equipment to a small chip size, achieves higher and more rapid control of reaction parameters such as mixing ratio, temperature and heat transfer, resulting in increased MNP size and shape uniformity with a narrower size distribution compared to batch synthesis [25,43]. Another unique approach is employed by nature in the biosynthesis, using magnetotactic bacteria (MTB), with outstanding uniformity of size and shape [52,53,54].
In the following, we review the latest developments in the synthesis of MNPs focusing on microfluidic methods. We compare those with conventional batch approaches and magnetosomes biosynthesis (Figure 3) regarding process requirements and efficiency for biomedical applications such as imaging, hyperthermia, drug delivery and magnetic actuation using micro/nanorobots.

2. Microfluidic Synthesis

In the last few decades, continuous flow processes, particularly using microfluidics have become a competitive and growing research field [55,56,57,58,59]. Scientists aim to optimize these methods to raise the quality of the produced MNPs and avoid typical drawbacks of conventional batch synthesis routes. Among others, these include inhomogeneous distribution of temperature, leading to hot spots that effect the reaction velocity locally and insufficient mixing, which cause concentration gradients. Both factors originate high batch-to-batch variability and a lack of reproducible product quality. As economic and ecologic drawbacks of conventional methods, e.g., the thermal decomposition method, high power demand due to reaction temperatures above 300 °C can be mentioned, as well as the use of organic solvents and toxic agents that might be present as undesirable residues in the final product [51,60,61,62,63]. Reaction routes in organic solvents are also generally time-consuming, as subsequent phase transfer to aqueous media is unavoidable before MNPs can act as imaging or therapeutic agents in biomedical applications. Microfluidic techniques have been discovered as promising approaches addressing the above-mentioned issues of conventional synthesis processes [64]. In microfluidic systems, the formation of products takes place in microchannels inside small devices called microreactors. The tiny paths increase the control of reaction parameters due to the high surface to volume ratio. Resulting in the following advantages: sufficient mixing in millisecond range and improved (rapid) heat and mass transfer. Additionally, the procedures offer other advantages such as flexible design and fabrication, fast change and screening of reaction parameters, cost efficiency, improved product quality, high throughput, higher reproducibility and the feasibility of automating the entire production process, including purification [27,65,66]. In contrast to conventional synthetic routes, continuous flow microreactors provide the separation of the two major steps during the formation of MNPs; (i) a rapid nucleation of the NP seeds occurs inside the microreactor, while the (ii) comparatively slow growth of NP takes place in the connected capillary, or ripening zone. Thus, a spatial and temporal separation of nucleation and growth can be achieved, leading to a high control of the particle formation process [67]. Generally, there are two main principles of mixing in the microreactor, (i) single-phase (continuous flow microfluidics) and (ii) multi-phase (droplet-phase or plaque flow microfluidics) [67,68]. In a single-phase or a continuous flow microfluidic system (Figure 3A), two or more miscible fluid streams containing the reagents flowing in a laminar stream are mixed in a homogenous phase by diffusion. Since the flow is laminar (turbulence free, e.g., Reynolds number < 10) [67], mixing is achieved by intermolecular diffusion. The mixing time is influenced by the flow rate and width of channels. A more effective mixing can be achieved at higher Reynolds numbers due to turbulent advection through the folding and stretching of fluid streams [67]. Technically, this can be implemented, e.g., by using staggered herringbone mixers (Figure 3B), enabling helical flows [69]. T-junction, Y-mixing, capillary, coaxial tubes and different designs of static micromixers are also utilized as microreactors in microfluidic particle formation processes. The phase-homogeneity offers reliable control of reaction parameters, such as temperature and reaction time, which makes continuous microfluidic synthesis suitable for both non-magnetic [67,70], as well as for magnetic nanoparticle production [71,72,73]. Furthermore, the technique is capable for multi-step syntheses and the subsequent modification of the product [74]. In another approach, the droplet-phase or segmented flow microfluidic synthesis, two immiscible phases, either gas-liquid or liquid-liquid (typically an oil phase and a water phase) form a droplet. The formed droplets containing the reactants work as tiny reactors and are transported in a segmented flow. In this way, variations in the residence time due to the parabolic flow in continuous flow profile can be reduced. However, the control of droplet formation and the homogeneity of droplet size are crucial. Moreover, droplet coalescence has to be avoided to provide the same reaction conditions in each droplet, and to ensure a reliable processing [75]. The generation of droplets in segmented flow can be achieved by several techniques, which include T-junction, flow focusing and co-flow [76,77]. As shown in Figure 3C, the droplet is formed in a T-junction by shear forces and liquid-liquid interfacial tension at the surface of the capillary. The liquid with the lower interfacial tension (than the capillary wall) will form a continuous phase, while the other liquid acts as a dispersed phase [75]. Capillary width and geometry, the flow rate and viscosity of the streams all influence the droplet formation [78]. The viscosity of the continuous phase, together with viscous drag forces versus the surface tension of the capillary, determine the break-up of droplets, and is therefore a significant parameter influencing the droplet formation [79]. In the second way of flow segmentation (see Figure 3D), flow focusing, the continuous phase is injected from two sides symmetrically, and combined with the dispersed phase of the central channel. After passage through a narrow orifice into the outlet capillary, stable droplets are formed [75,78]. Flow rate and geometric parameters of the setup influence the droplet characteristics [80]. In the third way, displayed in Figure 3E, a co-flow is used to produce segmented flow, where the dispersed phase is symmetrically enclosed by the continuous phase, both flowing in the same direction inside coaxial microchannels [81,82]. Segmented flow processing efficiently prevents the clogging and contamination of microchannels. Examples of MNP synthesis using segmented flow methods are reported in literature [83,84,85]. In contrast to continuous flow single phase processing, multistep reactions are challenging in segmented flow [67]. Moreover, to set up microfluidic processes for MNP synthesis successfully, numerous aspects have to be taken into consideration. These include: Flow profile inside the mixing structures as well as in capillary growth zones, capillary forces and material dependent surface effects, that can cause precipitation and agglomeration of MNPs on microwalls [86], leading to clogging of the capillary and finally process abortion [67]. Depending on the envisioned application, a careful material selection of the microfluidic device has to be performed. Photolithographic manufactured poly(dimethylsiloxane) (PDMS) microchips find broad application as the required equipment is easily available in many laboratories. However, their operation is limited regarding the process parameters such as flow rates, temperature and pressure. Usually, these chips can be run in a microliter per minute range. More resistant to pressure and temperature and suitable for higher flow rates are micromixers manufactured of stainless steel. However, the microstructuring of this inert material requires special and expensive microfabrication machining that is only available at specialized institutions and companies. Regarding possible throughputs and production scales, different approaches can be chosen. For scale up through parallelization, multiple micromixers are operated in parallel (or several parallel mixing structures are combined into one device), while for internal scale up the dimensions of the microchannels inside the microreactor are adjusted [87,88]. Scale-up through parallelization often lacks reliable processing, because as soon as one single channel is clogged, flow rates and flow profiles of all parallel mixers are disturbed. Consequently, the product quality immediately decreases, and the whole run has to be discarded. Hessel et al. enlarged the fluid inlets for an internal scale up and reached a flow rate of up to 8 L/h for liquids at the viscosity of water and a pressure of 1.5 bar [88]. Lin et al. reported the high mass production of 4.4 g/h of iron oxide MNPs in their microfluidic system [89]. The throughput of the method here depends on educt concentrations, flow rates, and the temperature of the synthesis, which determine the structure and magnetic characteristics of the product [25].

3. Magnetosomes Biosynthesis

An elegant biotechnological alternative to the chemical synthesis of MNPs is magnetosome biosynthesis using MTB, which was first discoveredby Bellini in 1963 and Blackmore in 1975 independently [90,91]. Magnetosomes are single-domain MNPs and membrane-enveloped [92,93]. The membrane is composed mainly of phospholipids and proteins [94]. In magnetosome biosynthesis, a variety of MTB are used as reactors for the formation of biomineralized crystals, which are aligned in chain-like agglomerates. In general, magnetosomes are uniform in shape and size within a specific strain but vary among different bacteria strains [52,53,54,95]. Magnetosome production depends on the cultivation of MTB for 36 to 60 h in complex media, supplemented with components that are essential for bacteria growth and magnetosome formulation such as yeast extract, minerals, ferric citrate, sodium lactate, magnesium sulfate and sodium thioglocate and ammonium chloride [96]. Additionally, a medium rich of iron ions, low dissolved oxygen concentration, neutral pH and moderate temperature range are some requirements for optimal biosynthesis [97]. The formation mechanism of magnetosomes is still not fully understood but can generally be divided into four major steps: (i) formation of the vesicle; (ii) magnetosome proteins are sorted to the vesicle membrane; (iii) iron is transported into the vesicle and mineralized as magnetite crystals; and (iv) magnetosomes are gathered in a chain-like structure and located for segregation during cell division. These steps of a complex process are controlled by over 40 genes, which encode the magnetosome-associated proteins. Thus, gen engineering and sequence modifications have key roles in synthesis optimization [53]. After cultivation, magnetosomes should be extracted from MTB to be used for medical applications. Four main extraction methods were reported to lyse bacterial cells including: (i) mixing MTB with 5 M NaOH; (ii) sonication; (iii) French press; and (iv) pressure homogenization [96]. After extraction, a careful purification of the magnetosomes is required to remove undesirable components such as surface proteins and potential immunogenic lipid components [98]. Magnetosomes bioproduction offers a powerful and sophisticated MNP system for biomedical applications. However, mass production (mass production in gram scale and cultivation time between 36 to 60 days [52]) remains challenging. Furthermore, extensive purification of magnetosomes from bacterial cell components are inevitable for in-vivo applications. The complexity of process design and development, as well as the relatively long preparation time for a new developed mutant, are some limitations that have to be addressed in further developments to increase industrial relevance. Studies aimed at a comprehensive understanding of the role of specific genes and their potential for process optimization are still ongoing [99].

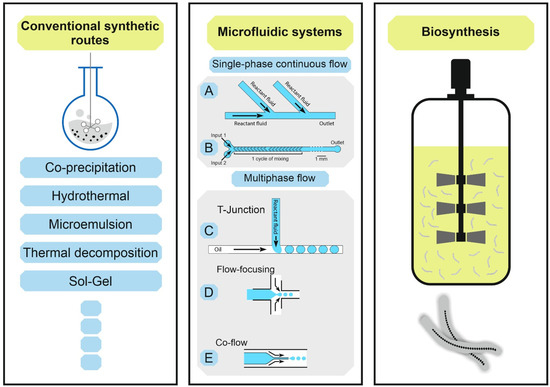

Figure 3. Synthetic routes of MNPs, left conventional synthetic routes in batch processes, middle microfluidic system with (A) homogenous continuous flow, (B) staggered herringbone mixer used in continuous flow (adopted from [100]), multiphase segmented flow (C) T-junction, (D) flow-focusing and (E) co-flow (adopted from [101]), right is biosynthesis using MTB in fermenter.
Figure 3. Synthetic routes of MNPs, left conventional synthetic routes in batch processes, middle microfluidic system with (A) homogenous continuous flow, (B) staggered herringbone mixer used in continuous flow (adopted from [100]), multiphase segmented flow (C) T-junction, (D) flow-focusing and (E) co-flow (adopted from [101]), right is biosynthesis using MTB in fermenter.
Bioengineering 08 00134 g003

4. Comparison of Different Syntheses

Recently, numerous techniques were developed to manufacture MNPs for different purposes (Figure 3). Conventional synthetic routes in batch are still dominant for many production processes. Although microfluidic and biosynthesis technologies promise enhanced production properties, especially for medical applications, they suffer from some drawbacks. In Table 1, we summarized the advantages and disadvantages of each technology.

5. Applications of MNPs

Magnetic nanoparticles have unique structural and magnetic properties that make them favorable as a tool for targeted transportation of active substances, generation of heat or local probe for imaging. In addition to their biocompatibility, stability, flexible surface modification, MNPs exhibit high magnetic moments that are utilized for biomedical applications [14,129,130]. Especially, iron oxide MNPs based on magnetite (Fe3O4) and maghemite (γ-Fe2O3) have been comprehensively studied. Resovist and Endorem are two examples of iron oxide MNPs that have been developed and applied as T2-weighted contrast agents for clinical magnetic resonance imaging [129,131]. Coating the surface of MNPs prevents aggregation in physiological tissue and bloodstream and enhances the biocompatibility. Often, it is a crucial step to prevent unwanted interactions of MNPs with their local biological environment as proteins and cells, and thus avoid their toxicity [132,133]. Commonly used coating materials are dextran [134,135,136] polyethylene glycol (PEG) [50,137] peptides [138] and serum albumin [132,139,140]. In this section, we present the latest developments in the translation of MNPs into biomedical applications like magnetic imaging, drug delivery, hyperthermia, and magnetic actuation.

5.1. Magnetic Imaging and Cell Tracking

Early diagnosis of diseases is advantageous in all treatment cases. Thus, imaging modalities have recently gained significant attention and are still developing. Magnetic resonance imaging (MRI) and magnetic particle imaging (MPI) are non-invasive imaging techniques that uses MNPs as contrast agents to deliver a high-resolution image without using ionizing radiation [132,141]. MRI detects the nuclear magnetic resonance signal of 1H atoms after applying radiofrequency pulses. Hence, tissue environment rich of water molecules will generate a different MR signal than a carbohydrate or fat rich environment, leading to contrasted images to discriminate between different tissues [142]. Magnetic contrast agents can shorten the T1 (longitudinal) and T2 (or transverse) relaxation time of surrounding water protons. Thus, signal intensity of T1-weighted images (positive contrast) will appear brighter and T2-weighted (negative) images will appear darker, leading to images with higher resolution. The relaxivities r1 = 1/T1 and r2 = 1/T2 are used to characterize the MNPs [18,143,144]. Ultrasmall iron oxide nanoparticles (USIO NP) were reported in various studies as T1-, T2- and dual-weighted contrast agents in in-vitro as well as in-vivo experiments [141,145,146,147,148,149,150,151]. Shen et al. manufactured exceedingly small magnetic iron oxide nanoparticles (ES-MIONs) with a core diameter dc = 3.6 nm by conventional co-precipitation and stabilization with polyacrylic acid (PAA). They resulted in r1 = 8.8 and r2 = 22.7 L·mmol1s1 and a ratio of r2/r1 = 2.6 at a field strength of 1.5 T [152]. Whereas Besenhard et al. used continuous flow co-precipitation employing a millifluidic multistage flow reactor to produce dextran stabilized USIO NP. They obtained diameters of dc = 5.4 (core diameter) and dh = 19 nm (hydrodynamic diameter) and higher relaxivity values r1 = 10.7 L·mmol1s1 and r2 = 36.9 L·mmol1s1 with a ratio of r2/r1 = 3.4 at a field strength of 1.5 T [153].
In contrast, MPI directly detects the non-linear dynamic magnetic response of the MNPs exposed to an (sinusoidally) oscillating magnetic field. Additional magnetic field gradients are used for spatial encoding of the MNP distribution in the measured object. MPI provides high spatial resolution (below one millimeter) and excellent temporal resolution (1–10 ms) [154]. Theoretical calculations and experimental studies showed that optimized MNPs for MPI measurement are about dc = 30 nm, which is not easily accessible by conventional synthesis routes [35,111]. The MPI performance of MNPs is characterized by the amplitude of the third harmonic normalized to the iron amount of the sample, A3* and the concentration-independent ratio between 5th and 3rd harmonic, A5/A3. Ferguson and Krishnan et al. reported 26–28 nm ±1.5 nm single-core MNPs with polyethylene glycol coating produced through thermal decomposition at 320 °C. The resulting MNPs have shown two to three-fold higher signal amplitudes compared to Resovist [35]. Resovist has been developed as MRI liver contrast agent and due to its good MPI performance became a gold standard for MPI measurements, even though it was withdrawn from the market, and they are not optimized for MPI [25].
Since MPI specifically detects the MNPs, the MP images are background-free, but do not provide any anatomical information. Thus, the combination of high-resolution 3D anatomical MRI data with molecular tracking of MNP tracers using MPI represents a promising hybrid MPI/MRI modality [155,156]. In a previous work, we presented our continuously synthesized MNPs via a micromixer in aqueous solution. After stabilization with tannic acid, the MNPs were coated with albumin which enhanced their colloidal stability in a physiological environment like a bloodstream. The MNPs exhibit diameters of dc = 27.7 nm and dh = 42 nm and relaxivity values r1 = 6.2 L·mmol1s1 and r2 = 600 L·mmol1s1, r2 and a r1/r2 ratio and for MPI, a higher value for A3* = 26 Am2/kg(Fe), A5/A3 ratio compared to Resovist (Table 2), which makes these MNPs promising for clinical applications in the above-mentioned hybrid MP/MR imaging modality [132].
The magnetic performance of magnetosomes as potential contrast agents for MRI and MPI has also been studied [157]. Heinke et al. extracted magnetosomes and various mutants thereof from wild-type bacteria of the strain Magnetospirillum gryphiswaldense. They isolated magnetosomes with diameters of 36.5 nm for the wild type and of 23.0 nm to 44.2 nm for the mutants. Due to long range magnetic interactions in the larger crystallites, they formed chains and agglomerates. The r1- and r2 relativities and ratio r2/r1 of magnetosomes were determined at 0.94 T and 39 °C and showed higher r2 relaxivities (T2-weighted) compared to Resovist (Table 2). The MPI measurements resulted in a 2.9- to 7.2-fold higher A3*-value compared to Resovist [158].
Additionally, MPI and MRI can be utilized for cell tracking. Wang et al. developed cubic-shaped MNPs (edge length = 22 nm, dh = 43 nm) for MPI to reveal in real time the migration and distribution pattern of transplanted bonemesenchymal stem cells given to hindlimb ischemia mice [159]. Song et al. coated 16 nm MNPs with a semiconducting polymer to fabricate the so called janus nanoparticles. After implanting these into mice, they showed efficient cell labeling and sensitive MPI tracking [160].

5.2. Hyperthermia

Hyperthermia is a powerful method for treating cancer cells by exposing tissue to elevated temperatures in a range of 42 °C to 48 °C. Since tumor cells are more sensitive to higher temperatures compared to healthy tissue, it can motivate either apoptosis (if the achieved temperature of the cells is below 45 °C) or necrosis (above 45 °C). Both apoptosis and necrosis have the capability to fight cancer cells with less damage of healthy human cells [161]. MNPs can be used to generate locally constrained heat at poorly accessible tissue regions by a magnetic fluid hyperthermia (MFH). An external alternating magnetic field of proper amplitude and frequency can be employed to generate heat by MNPs [162,163,164,165]. The enforced reorientation of the magnetic moments of the MNPs (either by the Néel mechanism of the moments inside the crystal structure or by Brownian rotation of the whole MNP) provides dissipative heat [166]. The efficiency of magnetic materials to generate heat in alternating magnetic fields is described by the specific absorption rate (SAR) or specific loss power (SLP). Besides frequency and amplitude of the applied magnetic field, the SAR strongly depends on structural and magnetic properties as shape, size distribution, crystallinity, saturation magnetization, anisotropy, relaxation time, concentration, and particle–particle interactions [167]. For larger MNPs (>100 nm), the main source of heat generated is hysteresis loss. Generally, large MNPs have higher saturation magnetization and therefore a larger hysteresis loop, leading to higher heating efficiency and heat generation [168]. As a disadvantage of the large size, an increased aggregation tendency might reduce the SAR and make the MNPs suboptimal for targeted delivery into tumor cells [169]. In smaller MNPs consisting of only one single magnetic domain, Néel and Brownian mechanisms are relevant for heat generation [163]. Different synthesis strategies were developed regarding size, shape and anisotropy with promising results [22,170,171,172]. Continuously synthesized MNPs showed remarkably high SAR-values and are promising candidates for hyperthermia treatment [111]. Another promising candidate for hyperthermia is magnetosomes. Their large core size and cubic shape structure results in large heat production of both individual magnetosomes, as well as chains made of them [173,174,175]. However, magnetic field amplitudes should be higher than 10 mT to fully exploit the advantage of magnetosomes, otherwise the losses of heat per cycle will be smaller than those of chemically produced MNPs [176,177]. Le Fèvre coated magnetosomes with poly-L-lysine after removing the endotoxins. Magnetosomes-poly-L-lysine lead to improved antitumor efficacy with complete tumor regression achieved in 50% compared to 20% for conventional MNPs in the treatment of glioblastoma in mice [178]. The work of Gandia et al. [179] showed that magnetosome chains are advantageous to enhance the hyperthermia efficiency than isolated magnetosomes, as investigated by Muela et al. [180].
For efficient clinical application, low doses of MNPs with high SAR value are favorable. Therefore, it is crucial to further understand and optimize the heat dissipation mechanism. Additionally, changes of the pH value, viscosity, and heat transfer of the surrounding environment of the living tissue should be taken into consideration [111].

5.3. Drug Delivery

By conjugation of MNPs with drugs, a powerful transport system becomes available that can even help to reduce undesirable properties of drugs like poor solubility, toxicity, nonspecific delivery and short circulation half-lives [129]. Thus, MNPs are attractive nanocarriers for targeted therapeutic drug delivery. Drug delivery can be achieved by two mechanisms. “Passive targeting” depends on the enhanced permeability and retention (EPR) effect. Generally, tumor growth is accompanied by the development of a surrounding leaky vessel system and therefore, MNPs can diffuse and accumulate within the tumor tissue [181,182]. “Active targeting” relies on guiding and accumulating the MNPs (and drugs) using externally applied magnetic field gradients [183], sometimes assisted by surface functionalization of MNPs with biomarkers [129].
Huang et al. produced MNPs via thermal decomposition and coated with Polyethylene glycol/Polyethyleneimine resulting in diameters dc = 9–14 nm and dh ≈ 67 nm. These MNPs were then conjugated with folic acid for diagnosis and treatment of breast cancer and loaded with Doxorubicin, an anticancer drug. The MNPs were tested to target a xenograft MCF-7 breast cancer tumor in nude mice. Due to a high relaxivity r2 = 81.8 L·mmol−1·s−1), they could successfully be monitored by MRI [184]. Similar results were achieved by Yang et al. using heparin coated MNPs with diameters dc = 10 nm and dh = 125 nm that were conjugated with the chemotherapeutic agent Doxorubicin [185]. Huang et al. used a microfluidic chip to embed SPIO-NP (dc = 7 nm) into chitosan matrix and encapsulate Vinlastine. The composite resulted in well-defined spherical microparticles in a diameter range of 360 to 420 µm. The drug release of the chemotherapeutic agent was achieved by pulsatile external magnetic field [186]. Successful use of magnetosomes as nanocarriers was also reported by Long et al. Here, the chemotherapeutic agent Doxorubicin and asiRNA therapeutic agent were simultaneously conjugated to the magnetosomes using polyethyleneimine and succinimidyl 6-hydrazinonicotinate acetone hydrazone (SANH) as a bifunctional linker. Results showed that the Doxorubicin stayed stabile in normal pH blood environment and 40% of the drug was released at a pH-value of 5.5 after 280 h (pH-sensitive drug release). The nanocarrier was also capable to inhibit the proliferation of HeLa cells, and even to induce apoptosis [187].
A good prospect in clinical tumor treatment offers the combination of more than one method. Piehler et al. showed that functionalization of MNPs produced by conventional precipitation method with diameter of dc = 12 ± 3 nm with doxorubicin combined with magnetic fluid hyperthermia at 43 °C for 1 h results in tumor regression in vivo evidencing the increased therapeutic effect of the combination compared to the efficiency if either only magnetic fluid hyperthermia or intratumorally application of free doxorubicin has been carried out [188].

5.4. Gene Therapy

Gene therapy aims to treat diseases by transfer (or infection) of DNA or RNA sequences into targeted cells, generally by using viral vectors [189]. Alternatively, non-viral vectors can be used. Non-viral carrier systems offer crucial advantages for medical applications, such as stability, enzymatic degradation and low immunogenicity, as well as low toxicity and the ability to diffuse through cell membrane. Magnetofection is a non-viral method for transfection of nucleic acids using MNPs as carriers controlled by external magnetic fields [6,190]. For example, Zuvin et al. synthesized green fluorescent protein DNA-bearing polyethyleneimine-coated MNPs (average dc ≈ 30 nm und dh = 84 nm). On MCF7 human breast cancer cells, an increase of transfection efficacy after magnetic field exposure could be demonstrated [191,192]. Li et al. used magnetosome-like iron oxide nanochains to achieve gene transfection to mesenchymal stem cells to inhibit tumor growth of glioma mode rats [193]. Yang et al. fabricated galactose (Gal) and polyethyleneimine (PEI) MNPs (Gal-PEI-MNPs dh = 98.2 nm) to deliver siRNA to liver cancer cells and inhibited tumor growth in these cells [194].

5.5. Magnetic Actuation Using Micro/Nanorobots

An external magnetic field is a powerful means to remotely control the behavior of cells containing MNPs. Magneto-mechanical forces of the MNPs driven by an external magnetic field can destroy cells or cellular organelles in an anti-cancer treatment [195,196,197]. The mechanical forces of the MNPs are strong enough to destroy lysosomal membranes and lead to the permeabilization of membrane and subsequently initiate cell apoptosis [198,199,200]. Lunov et al. loaded clustered dextran coated MNPs with diameter dc ≈ 5 nm to liver cancer cells and achieved a lysosome-activated apoptosis by mechanical actuation using pulsed magnetic fields [201].
MNPs have been recently used to fabricate magnetic robots of micro- or even nanometer dimensions: These small-scale devices are intended to minimize invasive procedures in surgery or to avoid exposure to radiation [202]. Magnetic micro/nanorobots consist of two components, a biotemplate, a flexible part often in a shape of helix or filament to enhance the mobility in physiological fluids like bloodstream and a magnetic component containing MNPs for magnetically driven actuation by magnetic field gradients [203].
Magnetotatic bacteria are a natural example of nanorobots that can be used for drug delivery. Felfoul et al. transported in-vivo drug-loaded nanoliposomes into hypoxic regions of a tumor using magnetococcus marinus bacteria (strain MC-1) [204]. Another example is biohybrid magnetic robots as reported by Yan et al. fabricated from spirulina microalgae as a biological matrix via a facile dip-coating of MNPs. The movements of a swarm of the microrobots (microswimmers) inside rodent stomach have been successfully tracked using MRI [205]. Alapan et al. reported bacteria-driven microswimmer using red blood cells as autologous carriers for guided drug delivery. Red blood cells loaded with doxorubicin and MNPs were fixed on the Escherichia coli MG1655 via a biotin-avidin-biotin binding complex, and the microswimmers were directed using an external magnetic field gradient. After the treatment, the bacteria were removed using the on-demand light-activated hyperthermia [206].

5.6. MNPs in Theranostic Applications

In the last decades, theranostic nanomaterials have emerged that combine therapeutic components with diagnostic imaging capabilities of MNPs. They are promising for theranostic applications due to their biocompatibility, biodegradability, and surface modification capabilities. For diagnosis, the MNPs are tracers in imaging and cell tracking, while for therapeutic applications, their hyperthermia and drug delivery properties are utilized. Cho et al. demonstrated the assembly of 20 nm cubic MNPs (produced by thermal decomposition) into larger nanostructures up to 100 nm using serum albumin. The assembly showed high r2 relaxivity (~500 L·mmol1·s1 at 1.41 T) in MRI and were successfully detected after injection into mice bearing U87-MG tumor cells. Additionally, tumor growth reduction was achieved by magnetic hyperthermia treatment [207]. A combination of MPI and drug delivery in vivo was presented by Zhu et al. They prepared nanocomposites of poly(lactide-co-glycolide acid) and MNPs (PLGA-MNPs) nanoclusters loaded with doxorubicin. The nanoclusters induced gradual decomposition in tumor environment at pH = 6.5. The disassembly of the iron oxide core cluster (detected by MPI) and the release rate of the drug over time showed linear correlation (R2 = 0.99) [208]. Lu et al. developed MRI-visible nanocarriers using MNPs to monitor the targeted delivery of siRNA to neuronal stem cells, and at the same time, to direct their neuronal differentiation through gene silencing in stroke therapy. Additionally, an improvement in recovery of neural function from ischemic strokes in rats was achieved [209].

6. Clinical Translation of MNPs

In 2009 already, Ferumoxytol (Feraheme), a MNP-based drug capped by polyglucose sorbitol carboxymethyl ether [210], was approved by the US Food and Drug Administration (FDA) for treatment of iron deficiency anemia in adult patients with chronic kidney disease (CKD) [211]. Moreover, since Ferumoxytol is uptaken by macrophages, it can be applied for imaging of macrophages, tumors or vascular lesions by MRI [212]. Magforce AG developed aminosilane-coated MNPs to treat solide tumors locally by hyperthermia. The MNPs can be presented to tumor directly or into the resection cavity wall. Subsequently, tumor cells are destroyed or become more sensitive to radiotherapy or chemotherapy. Currently, two centers in Germany started to commercially treat brain tumor patients and further clinical studies are under review by the FDA [213]. However, although several studies have demonstrated successful preclinical applications, many factors hinder the implementation of MNPs in versatile theranostic applications. These include high process complexity, high cost and long tumor treatment trial period, low drug delivery accumulation of MNPs in the target region and the possible lack of enhanced permeability and retention (EPR-effect) in a human solid tumor compared to mouse models [214]. However, the most significant factors preventing clinical translation are toxicity and safety of MNPs. MNP toxicity can be associated with toxicity of the precursor(s) used for preparation, coating, chemical composition, oxidation state of MNPs, protein interaction and high dosage [215,216]. Therefore, further improvements in these fields are required for the safe clinical translation of MNPs.

7. Conclusions

Magnetic nanoparticles have become an attractive and increasingly important part of diagnostics and therapeutic treatment of diseases. They are widely investigated and developed for a broad range of biomedical applications, each using one or more of their magnetic properties to generate a specific effect that is controlled from outside by magnetic fields. The wide variety of applications demonstrate the significance, but at the same time the need for reliable, reproducible and on top economic as well as ecological methods for successful translation into clinical applications.
Nevertheless, many challenges remain in finding and engineering an ideal magnetic nanoparticle system for an envisaged biomedical application. This is reflected in the major efforts still ongoing in further developing synthesis methods of magnetic materials. Although considerable achievements have been made in these synthesis approaches, there still is huge demand for advanced synthesis methods. With microfluidic synthesis and biosynthesis of magnetosomes, two advanced techniques have been presented, both very powerful approaches to provide magnetic entities with outstanding structural and magnetic quality.
The actual state of extensive research on microfluidic synthesis methods of MNPs and the advantages over conventional (batch) synthesis methods have been discussed above. However, looking at the MNPs presently in biomedical applications as presented in Section 5, it is striking that mostly all diagnostic and therapeutic approaches rely on MNPs that have been synthesized by conventional synthesis methods. The reason for this is assumed to be constraints in the microfluidic approach regarding clogging of the reactor, sufficient throughput, effective purification strategies, GMP-compliant production, or scalability.
Aqueous synthesis as a method to continuously produce single core MNPs without immunogenic membrane and endotoxins is a very attractive approach, especially if combined with in line purification and in line process control. Thus, this straightforward, fast, and efficient approach additionally offers a high automation potential. However, in order to reach the MNP quality as provided in biosynthesis of magnetosomes, further optimization is required.
Although MNPs hold great promise in biomedical applications, there are still problems that have to be solved before the translation into clinical settings becomes feasible. One of the major challenges are the biocompatibility and the toxicity of the MNPs in the long term. Further detailed and comprehensive studies are required to resolve the effects of composition, morphology, size, shape, and structure of MNPs on their clearance and fate from a living organism. Further advancing techniques such as continuous microfluidic synthesis and biosynthesis will make a significant contribution to tailor MNPs for safe and effective clinical applications.

Author Contributions

A.B. wrote the manuscript; R.B. and F.W. reviewed and edited the manuscript; work was supervised by R.B.; and funding acquisition, R.B. and F.W. All authors have read and agreed to the published version of the manuscript.


This research was funded by Deutsche Forschungsgemeinschaft (DFG) within the researchgrants “Core Facility: Metrology of Ultra-Low Magnetic Fields”, grant numbers KO 5321/3 and TR408/11” and the collaborative research center “Matrix in Vision” (SFB 1340/1 2018, No 372486779, project A02). Financial support by the German Federal Ministry of Education and Research (BMBF), grant number 13XP5113, is gratefully acknowledged. A.B. thanks the Friedrich Ebert Stiftung for a PhD fellowship supporting his work related to this project. R.B. thanks the Fraunhofer-Gesellschaft for the support within the Fraunhofer TALENTA program. This work was furthermore supported in the framework of the Fraunhofer Lighthouse Project QMag.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.


Many thanks to Helen Onyema for proof reading of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Mani, S.A.; Sachdeva, S.; Mani, A.; Vora, H.R.; Gholap, S.S.; Kaur Sodhi, J. Nano-robotics: The future of health and dental care. IJPI 2021, 6, 6–10. [Google Scholar] [CrossRef]
  2. Lee, A.P. 2020 vision: Celebrating the 20th year of Lab on a Chip. Lab Chip 2020, 20, 1889–1890. [Google Scholar] [CrossRef]
  3. Baig, N.; Kammakakam, I.; Falath, W. Nanomaterials: A review of synthesis methods, properties, recent progress, and challenges. Mater. Adv. 2021, 2, 1821–1871. [Google Scholar] [CrossRef]
  4. Tong, S.; Quinto, C.A.; Zhang, L.; Mohindra, P.; Bao, G. Size-Dependent Heating of Magnetic Iron Oxide Nanoparticles. ACS Nano 2017, 11, 6808–6816. [Google Scholar] [CrossRef]
  5. Patsula, V.; Moskvin, M.; Dutz, S.; Horák, D. Size-dependent magnetic properties of iron oxide nanoparticles. J. Phys. Chem. Solids 2016, 88, 24–30. [Google Scholar] [CrossRef]
  6. Palanisamy, S.; Wang, Y.-M. Superparamagnetic iron oxide nanoparticulate system: Synthesis, targeting, drug delivery and therapy in cancer. Dalton Trans. 2019, 48, 9490–9515. [Google Scholar] [CrossRef]
  7. Estelrich, J.; Escribano, E.; Queralt, J.; Busquets, M.A. Iron oxide nanoparticles for magnetically-guided and magnetically-responsive drug delivery. Int. J. Mol. Sci. 2015, 16, 8070–8101. [Google Scholar] [CrossRef] [Green Version]
  8. Arami, H.; Khandhar, A.; Liggitt, D.; Krishnan, K.M. In vivo delivery, pharmacokinetics, biodistribution and toxicity of iron oxide nanoparticles. Chem. Soc. Rev. 2015, 44, 8576–8607. [Google Scholar] [CrossRef] [PubMed]
  9. Arnida; Janát-Amsbury, M.M.; Ray, A.; Peterson, C.M.; Ghandehari, H. Geometry and surface characteristics of gold nanoparticles influence their biodistribution and uptake by macrophages. Eur. J. Pharm. Biopharm. 2011, 77, 417–423. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Andrade, R.G.D.; Veloso, S.R.S.; Castanheira, E.M.S. Shape Anisotropic Iron Oxide-Based Magnetic Nanoparticles: Synthesis and Biomedical Applications. Int. J. Mol. Sci. 2020, 21, 2455. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Abenojar, E.C.; Wickramasinghe, S.; Bas-Concepcion, J.; Samia, A.C.S. Structural effects on the magnetic hyperthermia properties of iron oxide nanoparticles. Prog. Nat. Sci. Mater. Int. 2016, 26, 440–448. [Google Scholar] [CrossRef] [Green Version]
  12. Son, S.J.; Bai, X.; Nan, A.; Ghandehari, H.; Lee, S.B. Template synthesis of multifunctional nanotubes for controlled release. J. Control. Release 2006, 114, 143–152. [Google Scholar] [CrossRef]
  13. Lee, J.H.; Ju, J.E.; Kim, B.I.; Pak, P.J.; Choi, E.-K.; Lee, H.-S.; Chung, N. Rod-shaped iron oxide nanoparticles are more toxic than sphere-shaped nanoparticles to murine macrophage cells. Environ. Toxicol. Chem. 2014, 33, 2759–2766. [Google Scholar] [CrossRef] [PubMed]
  14. Arias, L.S.; Pessan, J.P.; Vieira, A.P.M.; Lima, T.M.T.d.; Delbem, A.C.B.; Monteiro, D.R. Iron Oxide Nanoparticles for Biomedical Applications: A Perspective on Synthesis, Drugs, Antimicrobial Activity, and Toxicity. Antibiotics 2018, 7, 46. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Kolhatkar, A.G.; Jamison, A.C.; Litvinov, D.; Willson, R.C.; Lee, T.R. Tuning the magnetic properties of nanoparticles. Int. J. Mol. Sci. 2013, 14, 15977–16009. [Google Scholar] [CrossRef] [Green Version]
  16. Jeon, M.; Halbert, M.V.; Stephen, Z.R.; Zhang, M. Iron Oxide Nanoparticles as T1 Contrast Agents for Magnetic Resonance Imaging: Fundamentals, Challenges, Applications, and Prospectives. Adv. Mater. 2021, 33, e1906539. [Google Scholar] [CrossRef]
  17. Vazquez-Prada, K.X.; Lam, J.; Kamato, D.; Xu, Z.P.; Little, P.J.; Ta, H.T. Targeted Molecular Imaging of Cardiovascular Diseases by Iron Oxide Nanoparticles. Arterioscler. Thromb. Vasc. Biol. 2021, 41, 601–613. [Google Scholar] [CrossRef]
  18. Salehipour, M.; Rezaei, S.; Mosafer, J.; Pakdin-Parizi, Z.; Motaharian, A.; Mogharabi-Manzari, M. Recent advances in polymer-coated iron oxide nanoparticles as magnetic resonance imaging contrast agents. J. Nanopart. Res. 2021, 23, 1467. [Google Scholar] [CrossRef]
  19. Le Thu Huong, T.; Nam, N.H.; Doan, D.H.; My Nhung, H.T.; Quang, B.T.; Nam, P.H.; Thong, P.Q.; Phuc, N.X.; Thu, H.P. Folate attached, curcumin loaded Fe3O4 nanoparticles: A novel multifunctional drug delivery system for cancer treatment. Mater. Chem. Phys. 2016, 172, 98–104. [Google Scholar] [CrossRef]
  20. Unnikrishnan, B.S.; Sen, A.; Preethi, G.U.; Joseph, M.M.; Maya, S.; Shiji, R.; Anusree, K.S.; Sreelekha, T.T. Folic acid-appended galactoxyloglucan-capped iron oxide nanoparticles as a biocompatible nanotheranostic agent for tumor-targeted delivery of doxorubicin. Int. J. Biol. Macromol. 2021, 168, 130–142. [Google Scholar] [CrossRef]
  21. Dutz, S.; Hergt, R. Magnetic nanoparticle heating and heat transfer on a microscale: Basic principles, realities and physical limitations of hyperthermia for tumour therapy. Int. J. Hyperth. 2013, 29, 790–800. [Google Scholar] [CrossRef]
  22. Hedayatnasab, Z.; Dabbagh, A.; Abnisa, F.; Wan Daud, W.M.A. Polycaprolactone-coated superparamagnetic iron oxide nanoparticles for in vitro magnetic hyperthermia therapy of cancer. Eur. Polym. J. 2020, 133, 109789. [Google Scholar] [CrossRef]
  23. Dadfar, S.M.; Roemhild, K.; Drude, N.I.; Stillfried, S.; von Knüchel, R.; Kiessling, F.; Lammers, T. Iron oxide nanoparticles: Diagnostic, therapeutic and theranostic applications. Adv. Drug Deliv. Rev. 2019, 138, 302–325. [Google Scholar] [CrossRef]
  24. Ren, X.; Chen, H.; Yang, V.; Sun, D. Iron oxide nanoparticle-based theranostics for cancer imaging and therapy. Front. Chem. Sci. Eng. 2014, 8, 253–264. [Google Scholar] [CrossRef]
  25. Baki, A.; Löwa, N.; Remmo, A.; Wiekhorst, F.; Bleul, R. Micromixer Synthesis Platform for a Tuneable Production of Magnetic Single-Core Iron Oxide Nanoparticles. Nanomaterials 2020, 10, 1845. [Google Scholar] [CrossRef] [PubMed]
  26. Balasubramanian, V.; Liu, Z.; Hirvonen, J.; Santos, H.A. Nanomedicine: Bridging the Knowledge of Different Worlds to Understand the Big Picture of Cancer Nanomedicines. Adv. Healthc. Mater. 2018, 7, 1870005. [Google Scholar] [CrossRef] [Green Version]
  27. Liu, Z.; Fontana, F.; Python, A.; Hirvonen, J.T.; Santos, H.A. Microfluidics for Production of Particles: Mechanism, Methodology, and Applications. Small 2020, 16, e1904673. [Google Scholar] [CrossRef] [PubMed]
  28. Rane, A.V.; Kanny, K.; Abitha, V.K.; Thomas, S. Chapter 5—Methods for Synthesis of Nanoparticles and Fabrication of Nanocomposites. In Micro and Nano Technologies; Elsevier: Amsterdam, The Netherlands, 2018; pp. 121–139. [Google Scholar] [CrossRef]
  29. Jesus, A.C.B.; Jesus, J.R.; Lima, R.J.S.; Moura, K.O.; Almeida, J.M.A.; Duque, J.G.S.; Meneses, C.T. Synthesis and magnetic interaction on concentrated Fe3O4 nanoparticles obtained by the co-precipitation and hydrothermal chemical methods. Ceram. Int. 2020, 46, 11149–11153. [Google Scholar] [CrossRef]
  30. Ali, A.; Zafar, H.; Zia, M.; Ul Haq, I.; Phull, A.R.; Ali, J.S.; Hussain, A. Synthesis, characterization, applications, and challenges of iron oxide nanoparticles. Nanotechnol. Sci. Appl. 2016, 9, 49–67. [Google Scholar] [CrossRef] [Green Version]
  31. Fernandes, M.T.C.; Garcia, R.B.R.; Leite, C.A.P.; Kawachi, E.Y. The competing effect of ammonia in the synthesis of iron oxide/silica nanoparticles in microemulsion/sol–gel system. Colloids Surf. A Physicochem. Eng. Asp. 2013, 422, 136–142. [Google Scholar] [CrossRef]
  32. Sundar, S.; Venkatachalam, G.; Kwon, S. Sol-Gel Mediated Greener Synthesis of γ-Fe2O3 Nanostructures for the Selective and Sensitive Determination of Uric Acid and Dopamine. Catalysts 2018, 8, 512. [Google Scholar] [CrossRef] [Green Version]
  33. Badnore, A.U.; Salvi, M.A.; Jadhav, N.L.; Pandit, A.B.; Pinjari, D.V. Comparison and Characterization of Fe3O4 Nanoparticles Synthesized by Conventional Magnetic Stirring and Sonochemical Method. Adv. Sci. Lett. 2018, 24, 5681–5686. [Google Scholar] [CrossRef]
  34. Unni, M.; Uhl, A.M.; Savliwala, S.; Savitzky, B.H.; Dhavalikar, R.; Garraud, N.; Arnold, D.P.; Kourkoutis, L.F.; Andrew, J.S.; Rinaldi, C. Thermal Decomposition Synthesis of Iron Oxide Nanoparticles with Diminished Magnetic Dead Layer by Controlled Addition of Oxygen. ACS Nano 2017, 11, 2284–2303. [Google Scholar] [CrossRef] [PubMed]
  35. Hufschmid, R.; Teeman, E.; Mehdi, B.L.; Krishnan, K.M.; Browning, N.D. Observing the colloidal stability of iron oxide nanoparticles in situ. Nanoscale 2019, 11, 13098–13107. [Google Scholar] [CrossRef] [PubMed]
  36. Okoli, C.; Sanchez-Dominguez, M.; Boutonnet, M.; Järås, S.; Civera, C.; Solans, C.; Kuttuva, G.R. Comparison and functionalization study of microemulsion-prepared magnetic iron oxide nanoparticles. Langmuir 2012, 28, 8479–8485. [Google Scholar] [CrossRef]
  37. Malik, M.A.; Wani, M.Y.; Hashim, M.A. Microemulsion method: A novel route to synthesize organic and inorganic nanomaterials. Arab. J. Chem. 2012, 5, 397–417. [Google Scholar] [CrossRef] [Green Version]
  38. Aivazoglou, E.; Metaxa, E.; Hristoforou, E. Microwave-assisted synthesis of iron oxide nanoparticles in biocompatible organic environment. AIP Adv. 2018, 8, 48201. [Google Scholar] [CrossRef] [Green Version]
  39. Fernández-Barahona, I.; Muñoz-Hernando, M.; Herranz, F. Microwave-Driven Synthesis of Iron-Oxide Nanoparticles for Molecular Imaging. Molecules 2019, 24, 1224. [Google Scholar] [CrossRef] [Green Version]
  40. Arbain, R.; Othman, M.; Palaniandy, S. Preparation of iron oxide nanoparticles by mechanical milling. Miner. Eng. 2011, 24, 1–9. [Google Scholar] [CrossRef]
  41. Hudson, R.; Feng, Y.; Varma, R.S.; Moores, A. Bare magnetic nanoparticles: Sustainable synthesis and applications in catalytic organic transformations. Green Chem. 2014, 16, 4493–4505. [Google Scholar] [CrossRef]
  42. Tartaj, P.; Morales, M.a.d.P.; Veintemillas-Verdaguer, S.; Gonz lez-Carre o, T.; Serna, C.J. The preparation of magnetic nanoparticles for applications in biomedicine. J. Phys. Condens. Matter 2003, 36, R182–R197. [Google Scholar] [CrossRef]
  43. Mosayebi, J.; Kiyasatfar, M.; Laurent, S. Synthesis, Functionalization, and Design of Magnetic Nanoparticles for Theranostic Applications. Adv. Healthc. Mater. 2017, 6. [Google Scholar] [CrossRef] [PubMed]
  44. Krishna, K.S.; Li, Y.; Li, S.; Kumar, C.S.S.R. Lab-on-a-chip synthesis of inorganic nanomaterials and quantum dots for biomedical applications. Adv. Drug Deliv. Rev. 2013, 65, 1470–1495. [Google Scholar] [CrossRef] [PubMed]
  45. LaMer, V.K.; Dinegar, R.H. Theory, Production and Mechanism of Formation of Monodispersed Hydrosols. J. Am. Chem. Soc. 1950, 72, 4847–4854. [Google Scholar] [CrossRef]
  46. Massart, R. Preparation of aqueous magnetic liquids in alkaline and acidic media. IEEE Trans. Magn. 1981, 17, 1247–1248. [Google Scholar] [CrossRef]
  47. LaGrow, A.P.; Besenhard, M.O.; Hodzic, A.; Sergides, A.; Bogart, L.K.; Gavriilidis, A.; Thanh, N.T.K. Unravelling the growth mechanism of the co-precipitation of iron oxide nanoparticles with the aid of synchrotron X-Ray diffraction in solution. Nanoscale 2019, 11, 6620–6628. [Google Scholar] [CrossRef] [Green Version]
  48. Bhandari, R.; Gupta, P.; Dziubla, T.; Hilt, J.Z. Single step synthesis, characterization and applications of curcumin functionalized iron oxide magnetic nanoparticles. Mater. Sci. Eng. C 2016, 67, 59–64. [Google Scholar] [CrossRef] [Green Version]
  49. Kim, D.; Lee, N.; Park, M.; Kim, B.H.; An, K.; Hyeon, T. Synthesis of Uniform Ferrimagnetic Magnetite Nanocubes. J. Am. Chem. Soc. 2009, 131, 454–455. [Google Scholar] [CrossRef]
  50. Khandhar, A.P.; Keselman, P.; Kemp, S.J.; Ferguson, R.M.; Goodwill, P.W.; Conolly, S.M.; Krishnan, K.M. Evaluation of PEG-coated iron oxide nanoparticles as blood pool tracers for preclinical magnetic particle imaging. Nanoscale 2017, 9, 1299–1306. [Google Scholar] [CrossRef] [Green Version]
  51. Gutierrez, L.; Gomez, L.; Irusta, S.; Arruebo, M.; Santamaria, J. Comparative study of the synthesis of silica nanoparticles in micromixer–microreactor and batch reactor systems. Chem. Eng. J. 2011, 171, 674–683. [Google Scholar] [CrossRef]
  52. Basit, A.; Wang, J.; Guo, F.; Niu, W.; Jiang, W. Improved methods for mass production of magnetosomes and applications: A review. Microb. Cell Fact. 2020, 19, 197. [Google Scholar] [CrossRef]
  53. Uebe, R.; Schüler, D. Magnetosome biogenesis in magnetotactic bacteria. Nat. Rev. Microbiol. 2016, 14, 621–637. [Google Scholar] [CrossRef] [PubMed]
  54. Barber-Zucker, S.; Zarivach, R. A Look into the Biochemistry of Magnetosome Biosynthesis in Magnetotactic Bacteria. ACS Chem. Biol. 2017, 12, 13–22. [Google Scholar] [CrossRef] [PubMed]
  55. Daw, R.; Finkelstein, J. Lab on a chip. Nature 2006, 442, 367. [Google Scholar] [CrossRef] [Green Version]
  56. Sackmann, E.K.; Fulton, A.L.; Beebe, D.J. The present and future role of microfluidics in biomedical research. Nature 2014, 507, 181–189. [Google Scholar] [CrossRef]
  57. Shang, L.; Cheng, Y.; Zhao, Y. Emerging Droplet Microfluidics. Chem. Rev. 2017, 117, 7964–8040. [Google Scholar] [CrossRef]
  58. Yu, Y.; Shang, L.; Guo, J.; Wang, J.; Zhao, Y. Design of capillary microfluidics for spinning cell-laden microfibers. Nat. Protoc. 2018, 13, 2557–2579. [Google Scholar] [CrossRef]
  59. Zou, M.; Wang, J.; Yu, Y.; Sun, L.; Wang, H.; Xu, H.; Zhao, Y. Composite Multifunctional Micromotors from Droplet Microfluidics. ACS Appl. Mater. Interfaces 2018, 10, 34618–34624. [Google Scholar] [CrossRef]
  60. Zhang, L.; Chen, Q.; Ma, Y.; Sun, J. Microfluidic Methods for Fabrication and Engineering of Nanoparticle Drug Delivery Systems. ACS Appl. Bio. Mater. 2020, 3, 107–120. [Google Scholar] [CrossRef]
  61. Augustine, R.; Hasan, A. Chapter 11—Multimodal applications of phytonanoparticles. In Micro and Nano Technologies; Elsevier: Amsterdam, The Netherlands, 2020; pp. 195–219. [Google Scholar] [CrossRef]
  62. Liu, D.; Cito, S.; Zhang, Y.; Wang, C.-F.; Sikanen, T.M.; Santos, H.A. A versatile and robust microfluidic platform toward high throughput synthesis of homogeneous nanoparticles with tunable properties. Adv. Mater. 2015, 27, 2298–2304. [Google Scholar] [CrossRef] [PubMed]
  63. Liu, Y.; Jiang, X. Why microfluidics? Merits and trends in chemical synthesis. Lab Chip 2017, 17, 3960–3978. [Google Scholar] [CrossRef]
  64. Zhao, X.; Bian, F.; Sun, L.; Cai, L.; Li, L.; Zhao, Y. Microfluidic Generation of Nanomaterials for Biomedical Applications. Small 2020, 16, e1901943. [Google Scholar] [CrossRef] [PubMed]
  65. Han, Z.; Jiang, X. Chapter 10—Microfluidic Synthesis of Functional Nanoparticles. In Nanotechnology and Microfluidics; Wiley: Hoboken, NJ, USA, 2019; pp. 319–345. [Google Scholar] [CrossRef]
  66. Amreen, K.; Goel, S. Review—Miniaturized and Microfluidic Devices for Automated Nanoparticle Synthesis. ECS J. Solid State Sci. Technol. 2021, 10, 17002. [Google Scholar] [CrossRef]
  67. Ma, J.; Lee, S.M.-Y.; Yi, C.; Li, C.-W. Controllable synthesis of functional nanoparticles by microfluidic platforms for biomedical applications—A review. Lab Chip 2017, 17, 209–226. [Google Scholar] [CrossRef]
  68. Yu, B.; Lee, R.J.; Lee, L.J. Microfluidic Methods for Production of Liposomes. In Liposomes: Part G, 1st ed.; Düzgüneş, N., Ed.; Academic Press: Boston, MA, USA; Elsevier: Amsterdam, The Netherlands, 2009; pp. 129–141. ISBN 9780123813794. [Google Scholar]
  69. Jung, H.I.; Park, J.E.; Jung, S.Y.; Kang, T.G.; Ahn, K.H. Flow and mixing characteristics of a groove-embedded partitioned pipe mixer. Korea-Aust. Rheol. J. 2020, 32, 319–329. [Google Scholar] [CrossRef]
  70. Shrimal, P.; Jadeja, G.; Patel, S. A review on novel methodologies for drug nanoparticle preparation: Microfluidic approach. Chem. Eng. Res. Des. 2020, 153, 728–756. [Google Scholar] [CrossRef]
  71. Ohannesian, N.; Leo, C.T.; de Martirosyan, K.S. Dextran coated superparamagnetic iron oxide nanoparticles produced by microfluidic process. Mater. Today Proc. 2019, 13, 397–403. [Google Scholar] [CrossRef]
  72. Suryawanshi, P.L.; Sonawane, S.H.; Bhanvase, B.A.; Ashokkumar, M.; Pimplapure, M.S.; Gogate, P.R. Synthesis of iron oxide nanoparticles in a continuous flow spiral microreactor and Corning® advanced flow™ reactor. Green Process. Synth. 2018, 7, 1–11. [Google Scholar] [CrossRef]
  73. Aşık, M.D.; Kaplan, M.; Çetin, B.; Sağlam, N. Synthesis of iron oxide core chitosan nanoparticles in a 3D printed microfluidic device. J. Nanopart. Res. 2021, 23, 433. [Google Scholar] [CrossRef]
  74. Ying, Y.; Chen, G.; Zhao, Y.; Li, S.; Yuan, Q. A high throughput methodology for continuous preparation of monodispersed nanocrystals in microfluidic reactors. Chem. Eng. J. 2008, 135, 209–215. [Google Scholar] [CrossRef]
  75. Song, H.; Chen, D.L.; Ismagilov, R.F. Reactions in droplets in microfluidic channels. Angew. Chem. Int. Ed. Engl. 2006, 45, 7336–7356. [Google Scholar] [CrossRef] [Green Version]
  76. Seo, M.; Paquet, C.; Nie, Z.; Xu, S.; Kumacheva, E. Microfluidic consecutive flow-focusing droplet generators. Soft Matter 2007, 3, 986. [Google Scholar] [CrossRef]
  77. Abedini-Nassab, R.; Pouryosef Miandoab, M.; Şaşmaz, M. Microfluidic Synthesis, Control, and Sensing of Magnetic Nanoparticles: A Review. Micromachines 2021, 12, 768. [Google Scholar] [CrossRef] [PubMed]
  78. Sohrabi, S.; Kassir, N.; Keshavarz Moraveji, M. Droplet microfluidics: Fundamentals and its advanced applications. RSC Adv. 2020, 10, 27560–27574. [Google Scholar] [CrossRef]
  79. Garstecki, P.; Fuerstman, M.J.; Stone, H.A.; Whitesides, G.M. Formation of droplets and bubbles in a microfluidic T-junction-scaling and mechanism of break-up. Lab Chip 2006, 6, 437–446. [Google Scholar] [CrossRef]
  80. Lashkaripour, A.; Rodriguez, C.; Ortiz, L.; Densmore, D. Performance tuning of microfluidic flow-focusing droplet generators. Lab Chip 2019, 19, 1041–1053. [Google Scholar] [CrossRef]
  81. Cramer, C.; Fischer, P.; Windhab, E.J. Drop formation in a co-flowing ambient fluid. Chem. Eng. Sci. 2004, 59, 3045–3058. [Google Scholar] [CrossRef]
  82. Zhang, J.; Xu, W.; Xu, F.; Lu, W.; Hu, L.; Zhou, J.; Zhang, C.; Jiang, Z. Microfluidic droplet formation in co-flow devices fabricated by micro 3D printing. J. Food Eng. 2021, 290, 110212. [Google Scholar] [CrossRef]
  83. Frenz, L.; El Harrak, A.; Pauly, M.; Bégin-Colin, S.; Griffiths, A.D.; Baret, J.-C. Droplet-based microreactors for the synthesis of magnetic iron oxide nanoparticles. Angew. Chem. Int. Ed. Engl. 2008, 47, 6817–6820. [Google Scholar] [CrossRef]
  84. Siavashy, S.; Soltani, M.; Ghorbani-Bidkorbeh, F.; Fallah, N.; Farnam, G.; Mortazavi, S.A.; Shirazi, F.H.; Tehrani, M.H.H.; Hamedi, M.H. Microfluidic platform for synthesis and optimization of chitosan-coated magnetic nanoparticles in cisplatin delivery. Carbohydr. Polym. 2021, 265, 118027. [Google Scholar] [CrossRef]
  85. Kašpar, O.; Koyuncu, A.H.; Hubatová-Vacková, A.; Balouch, M.; Tokárová, V. Influence of channel height on mixing efficiency and synthesis of iron oxide nanoparticles using droplet-based microfluidics. RSC Adv. 2020, 10, 15179–15189. [Google Scholar] [CrossRef]
  86. Sengupta, P.; Khanra, K.; Chowdhury, A.R.; Datta, P. Lab-on-a-chip sensing devices for biomedical applications. In Bioelectronics and Medical Devices: From Materials to Devices-Fabrication, Applications and Reliability; Elsevier: Amsterdam, The Netherlands, 2019; pp. 47–95. [Google Scholar] [CrossRef]
  87. Schönfeld, F.; Hessel, V.; Hofmann, C. An optimised split-and-recombine micro-mixer with uniform chaotic mixing. Lab Chip 2004, 4, 65–69. [Google Scholar] [CrossRef]
  88. Hessel, V.; Löwe, H.; Stange, T. Micro chemical processing at IMM--from pioneering work to customer-specific services. Lab Chip 2002, 2, 14N–21N. [Google Scholar] [CrossRef]
  89. Lin, S.; Lin, K.; Lu, D.; Liu, Z. Preparation of uniform magnetic iron oxide nanoparticles by co-precipitation in a helical module microchannel reactor. J. Environ. Chem. Eng. 2017, 5, 303–309. [Google Scholar] [CrossRef]
  90. Frankel, R.B. The discovery of magnetotactic/magnetosensitive bacteria. Chin. J. Ocean. Limnol. 2009, 27, 1–2. [Google Scholar] [CrossRef] [Green Version]
  91. Blakemore, R. Magnetotactic bacteria. Science 1975, 190, 377–379. [Google Scholar] [CrossRef] [PubMed]
  92. Rosenfeldt, S.; Mickoleit, F.; Jörke, C.; Clement, J.H.; Markert, S.; Jérôme, V.; Schwarzinger, S.; Freitag, R.; Schüler, D.; Uebe, R.; et al. Towards standardized purification of bacterial magnetic nanoparticles for future in vivo applications. Acta Biomater. 2021, 120, 293–303. [Google Scholar] [CrossRef] [PubMed]
  93. Vargas, G.; Cypriano, J.; Correa, T.; Leão, P.; Bazylinski, D.A.; Abreu, F. Applications of Magnetotactic Bacteria, Magnetosomes and Magnetosome Crystals in Biotechnology and Nanotechnology: Mini-Review. Molecules 2018, 23, 2438. [Google Scholar] [CrossRef] [Green Version]
  94. Grünberg, K.; Müller, E.-C.; Otto, A.; Reszka, R.; Linder, D.; Kube, M.; Reinhardt, R.; Schüler, D. Biochemical and Proteomic Analysis of the Magnetosome Membrane in Magnetospirillum gryphiswaldense. Appl. Environ. Microbiol. 2004, 70, 1040–1050. [Google Scholar] [CrossRef] [Green Version]
  95. McCausland, H.C.; Komeili, A. Magnetic genes: Studying the genetics of biomineralization in magnetotactic bacteria. PLoS Genet. 2020, 16, e1008499. [Google Scholar] [CrossRef] [Green Version]
  96. Alphandéry, E.; Chebbi, I.; Guyot, F.; Durand-Dubief, M. Use of bacterial magnetosomes in the magnetic hyperthermia treatment of tumours: A review. Int. J. Hyperth. 2013, 29, 801–809. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  97. Lin, W.; Pan, Y.; Bazylinski, D.A. Diversity and ecology of and biomineralization by magnetotactic bacteria. Environ. Microbiol. Rep. 2017, 9, 345–356. [Google Scholar] [CrossRef] [PubMed]
  98. Liu, Y.; Li, G.R.; Guo, F.F.; Jiang, W.; Li, Y.; Li, L.J. Large-scale production of magnetosomes by chemostat culture of Magnetospirillum gryphiswaldense at high cell density. Microb. Cell Fact. 2010, 9, 99. [Google Scholar] [CrossRef] [Green Version]
  99. Yan, L.; Zhang, S.; Chen, P.; Liu, H.; Yin, H.; Li, H. Magnetotactic bacteria, magnetosomes and their application. Microbiol. Res. 2012, 167, 507–519. [Google Scholar] [CrossRef] [PubMed]
  100. Shenoy, V.J.; Edwards, C.E.R.; Helgeson, M.E.; Valentine, M.T. Design and characterization of a 3D-printed staggered herringbone mixer. BioTechniques 2021, 70, 285–289. [Google Scholar] [CrossRef]
  101. Li, W.; Zhang, L.; Ge, X.; Xu, B.; Zhang, W.; Qu, L.; Choi, C.-H.; Xu, J.; Zhang, A.; Lee, H.; et al. Microfluidic fabrication of microparticles for biomedical applications. Chem. Soc. Rev. 2018, 47, 5646–5683. [Google Scholar] [CrossRef] [PubMed]
  102. Chang, C.-H.; Paul, B.K.; Remcho, V.T.; Atre, S.; Hutchison, J.E. Synthesis and post-processing of nanomaterials using microreaction technology. J. Nanopart. Res. 2008, 10, 965–980. [Google Scholar] [CrossRef]
  103. Cabeza, V.S. High and Efficient Production of Nanomaterials by Microfluidic Reactor Approaches. In Advances in Microfluidics—New Applications in Biology, Energy, and Materials Sciences; Yu, X.-Y., Ed.; InTech: London, UK, 2016; ISBN 978-953-51-2785-7. [Google Scholar]
  104. Hamdallah, S.I.; Zoqlam, R.; Erfle, P.; Blyth, M.; Alkilany, A.M.; Dietzel, A.; Qi, S. Microfluidics for pharmaceutical nanoparticle fabrication: The truth and the myth. Int. J. Pharm. 2020, 584, 119408. [Google Scholar] [CrossRef]
  105. Zhao, C.-X.; He, L.; Qiao, S.Z.; Middelberg, A.P.J. Nanoparticle synthesis in microreactors. Chemical Engineering Science 2011, 66, 1463–1479. [Google Scholar] [CrossRef]
  106. Hong, T.; Lu, A.; Liu, W.; Chen, C. Microdroplet Synthesis of Silver Nanoparticles with Controlled Sizes. Micromachines 2019, 10, 274. [Google Scholar] [CrossRef] [Green Version]
  107. Watt, J.; Hance, B.G.; Anderson, R.S.; Huber, D.L. Effect of Seed Age on Gold Nanorod Formation: A Microfluidic, Real-Time Investigation. Chem. Mater. 2015, 27, 6442–6449. [Google Scholar] [CrossRef]
  108. Uson, L.; Sebastian, V.; Arruebo, M.; Santamaria, J. Continuous microfluidic synthesis and functionalization of gold nanorods. Chem. Eng. J. 2016, 285, 286–292. [Google Scholar] [CrossRef] [Green Version]
  109. Wang, J.; Song, Y. Microfluidic Synthesis of Nanohybrids. Small 2017, 13, 1604084. [Google Scholar] [CrossRef]
  110. Cornejo, E.; Subramanian, P.; Li, Z.; Jensen, G.J.; Komeili, A. Dynamic Remodeling of the Magnetosome Membrane Is Triggered by the Initiation of Biomineralization. mBio 2016, 7, e01898-15. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  111. Bleul, R.; Baki, A.; Freese, C.; Paysen, H.; Kosch, O.; Wiekhorst, F. Continuously manufactured single-core iron oxide nanoparticles for cancer theranostics as valuable contribution in translational research. Nanoscale Adv. 2020, 2, 4510–4521. [Google Scholar] [CrossRef]
  112. Taher, Z.; Legge, C.; Winder, N.; Lysyganicz, P.; Rawlings, A.; Bryant, H.; Muthana, M.; Staniland, S. Magnetosomes and Magnetosome Mimics: Preparation, Cancer Cell Uptake and Functionalization for Future Cancer Therapies. Pharmaceutics 2021, 13, 367. [Google Scholar] [CrossRef]
  113. Zaloga, J.; Stapf, M.; Nowak, J.; Pöttler, M.; Friedrich, R.; Tietze, R.; Lyer, S.; Lee, G.; Odenbach, S.; Hilger, I.; et al. Tangential Flow Ultrafiltration Allows Purification and Concentration of Lauric Acid-/Albumin-Coated Particles for Improved Magnetic Treatment. Int. J. Mol. Sci. 2015, 16, 19291–19307. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  114. Sun, J.; Tang, T.; Duan, J.; Xu, P.-x.; Wang, Z.; Zhang, Y.; Wu, L.; Li, Y. Biocompatibility of bacterial magnetosomes: Acute toxicity, immunotoxicity and cytotoxicity. Nanotoxicology 2010, 4, 271–283. [Google Scholar] [CrossRef]
  115. Alphandéry, E.; Idbaih, A.; Adam, C.; Delattre, J.-Y.; Schmitt, C.; Guyot, F.; Chebbi, I. Development of non-pyrogenic magnetosome minerals coated with poly-l-lysine leading to full disappearance of intracranial U87-Luc glioblastoma in 100% of treated mice using magnetic hyperthermia. Biomaterials 2017, 141, 210–222. [Google Scholar] [CrossRef] [Green Version]
  116. Niculescu, A.-G.; Chircov, C.; Bîrcă, A.C.; Grumezescu, A.M. Nanomaterials Synthesis through Microfluidic Methods: An Updated Overview. Nanomaterials 2021, 11, 864. [Google Scholar] [CrossRef]
  117. Niu, G.; Ruditskiy, A.; Vara, M.; Xia, Y. Toward continuous and scalable production of colloidal nanocrystals by switching from batch to droplet reactors. Chem. Soc. Rev. 2015, 44, 5806–5820. [Google Scholar] [CrossRef]
  118. Xu, Y.; Musumeci, V.; Aymonier, C. Chemistry in supercritical fluids for the synthesis of metal nanomaterials. React. Chem. Eng. 2019, 4, 2030–2054. [Google Scholar] [CrossRef]
  119. Khan, I.U.; Serra, C.A.; Anton, N.; Vandamme, T. Microfluidics: A focus on improved cancer targeted drug delivery systems. J. Control. Release 2013, 172, 1065–1074. [Google Scholar] [CrossRef] [PubMed]
  120. Sicignano, L.; Tomaiuolo, G.; Perazzo, A.; Nolan, S.P.; Maffettone, P.L.; Guido, S. The effect of shear flow on microreactor clogging. Chem. Eng. J. 2018, 341, 639–647. [Google Scholar] [CrossRef]
  121. Kumar, K.; Nightingale, A.M.; Krishnadasan, S.H.; Kamaly, N.; Wylenzinska-Arridge, M.; Zeissler, K.; Branford, W.R.; Ware, E.; deMello, A.J.; deMello, J.C. Direct synthesis of dextran-coated superparamagnetic iron oxide nanoparticles in a capillary-based droplet reactor. J. Mater. Chem. 2012, 22, 4704. [Google Scholar] [CrossRef]
  122. Song, Y.; Hormes, J.; Kumar, C.S.S.R. Microfluidic synthesis of nanomaterials. Small 2008, 4, 698–711. [Google Scholar] [CrossRef]
  123. Heinzler, R.; Fischöder, T.; Elling, L.; Franzreb, M. Toward Automated Enzymatic Glycan Synthesis in a Compartmented Flow Microreactor System. Adv. Synth. Catal. 2019, 361, 4506–4516. [Google Scholar] [CrossRef] [Green Version]
  124. Pan, L.-J.; Tu, J.-W.; Ma, H.-T.; Yang, Y.-J.; Tian, Z.-Q.; Pang, D.-W.; Zhang, Z.-L. Controllable synthesis of nanocrystals in droplet reactors. Lab Chip 2017, 18, 41–56. [Google Scholar] [CrossRef] [PubMed]
  125. Löwa, N.; Gutkelch, D.; Welge, E.-A.; Welz, R.; Meier, F.; Baki, A.; Bleul, R.; Klein, T.; Wiekhorst, F. Novel Benchtop Magnetic Particle Spectrometer for Process Monitoring of Magnetic Nanoparticle Synthesis. Nanomaterials 2020, 10, 2277. [Google Scholar] [CrossRef]
  126. Bemetz, J.; Wegemann, A.; Saatchi, K.; Haase, A.; Häfeli, U.O.; Niessner, R.; Gleich, B.; Seidel, M. Microfluidic-Based Synthesis of Magnetic Nanoparticles Coupled with Miniaturized NMR for Online Relaxation Studies. Anal. Chem. 2018, 90, 9975–9982. [Google Scholar] [CrossRef]
  127. Hu, Y.; Liu, B.; Wu, Y.; Li, M.; Liu, X.; Ding, J.; Han, X.; Deng, Y.; Hu, W.; Zhong, C. Facile High Throughput Wet-Chemical Synthesis Approach Using a Microfluidic-Based Composition and Temperature Controlling Platform. Front. Chem. 2020, 8, 579828. [Google Scholar] [CrossRef] [PubMed]
  128. Hamdous, Y.; Chebbi, I.; Mandawala, C.; Le Fèvre, R.; Guyot, F.; Seksek, O.; Alphandéry, E. Biocompatible coated magnetosome minerals with various organization and cellular interaction properties induce cytotoxicity towards RG-2 and GL-261 glioma cells in the presence of an alternating magnetic field. J. Nanobiotechnol. 2017, 15, 74. [Google Scholar] [CrossRef] [PubMed]
  129. Vangijzegem, T.; Stanicki, D.; Laurent, S. Magnetic iron oxide nanoparticles for drug delivery: Applications and characteristics. Expert Opin. Drug Deliv. 2019, 16, 69–78. [Google Scholar] [CrossRef] [PubMed]
  130. Wu, W.; Wu, Z.; Yu, T.; Jiang, C.; Kim, W.-S. Recent progress on magnetic iron oxide nanoparticles: Synthesis, surface functional strategies and biomedical applications. Sci. Technol. Adv. Mater. 2015, 16, 23501. [Google Scholar] [CrossRef]
  131. Reimer, P.; Schuierer, G.; Balzer, T.; Peters, P.E. Application of a superparamagnetic iron oxide (Resovist) for MR imaging of human cerebral blood volume. Magn. Reson. Med. 1995, 34, 694–697. [Google Scholar] [CrossRef]
  132. Baki, A.; Remmo, A.; Löwa, N.; Wiekhorst, F.; Bleul, R. Albumin-Coated Single-Core Iron Oxide Nanoparticles for Enhanced Molecular Magnetic Imaging (MRI/MPI). Int. J. Mol. Sci. 2021, 22, 6235. [Google Scholar] [CrossRef]
  133. Dulińska-Litewka, J.; Łazarczyk, A.; Hałubiec, P.; Szafrański, O.; Karnas, K.; Karewicz, A. Superparamagnetic Iron Oxide Nanoparticles-Current and Prospective Medical Applications. Materials 2019, 12, 617. [Google Scholar] [CrossRef] [Green Version]
  134. Unterweger, H.; Dézsi, L.; Matuszak, J.; Janko, C.; Poettler, M.; Jordan, J.; Bäuerle, T.; Szebeni, J.; Fey, T.; Boccaccini, A.R.; et al. Dextran-coated superparamagnetic iron oxide nanoparticles for magnetic resonance imaging: Evaluation of size-dependent imaging properties, storage stability and safety. Int. J. Nanomed. 2018, 13, 1899–1915. [Google Scholar] [CrossRef] [Green Version]
  135. Su, H.; Liu, Y.; Wang, D.; Wu, C.; Xia, C.; Gong, Q.; Song, B.; Ai, H. Amphiphilic starlike dextran wrapped superparamagnetic iron oxide nanoparticle clsuters as effective magnetic resonance imaging probes. Biomaterials 2013, 34, 1193–1203. [Google Scholar] [CrossRef]
  136. Predescu, A.M.; Matei, E.; Berbecaru, A.C.; Pantilimon, C.; Drăgan, C.; Vidu, R.; Predescu, C.; Kuncser, V. Synthesis and characterization of dextran-coated iron oxide nanoparticles. R. Soc. Open Sci. 2018, 5, 171525. [Google Scholar] [CrossRef] [Green Version]
  137. Kim, D.K.; Zhang, Y.; Kehr, J.; Klason, T.; Bjelke, B.; Muhammed, M. Characterization and MRI study of surfactant-coated superparamagnetic nanoparticles administered into the rat brain. J. Magn. Magn. Mater. 2001, 225, 256–261. [Google Scholar] [CrossRef]
  138. Chee, H.L.; Gan, C.R.R.; Ng, M.; Low, L.; Fernig, D.G.; Bhakoo, K.K.; Paramelle, D. Biocompatible Peptide-Coated Ultrasmall Superparamagnetic Iron Oxide Nanoparticles for In Vivo Contrast-Enhanced Magnetic Resonance Imaging. ACS Nano 2018, 12, 6480–6491. [Google Scholar] [CrossRef]
  139. Hosseinpour Moghadam, N.; Salehzadeh, S.; Rakhtshah, J.; Hosseinpour Moghadam, A.; Tanzadehpanah, H.; Saidijam, M. Preparation of a highly stable drug carrier by efficient immobilization of human serum albumin (HSA) on drug-loaded magnetic iron oxide nanoparticles. Int. J. Biol. Macromol. 2019, 125, 931–940. [Google Scholar] [CrossRef]
  140. Toropova, Y.G.; Zelinskaya, I.A.; Gorshkova, M.N.; Motorina, D.S.; Korolev, D.V.; Velikonivtsev, F.S.; Gareev, K.G. Albumin covering maintains endothelial function upon magnetic iron oxide nanoparticles intravenous injection in rats. J. Biomed. Mater. Res. A 2021, 10, 2017–2026. [Google Scholar] [CrossRef]
  141. Ta, H.T.; Li, Z.; Hagemeyer, C.E.; Cowin, G.; Zhang, S.; Palasubramaniam, J.; Alt, K.; Wang, X.; Peter, K.; Whittaker, A.K. Molecular imaging of activated platelets via antibody-targeted ultra-small iron oxide nanoparticles displaying unique dual MRI contrast. Biomaterials 2017, 134, 31–42. [Google Scholar] [CrossRef]
  142. Jacobs, R.E.; Cherry, S.R. Complementary emerging techniques: High-resolution PET and MRI. Curr. Opin. Neurobiol. 2001, 11, 621–629. [Google Scholar] [CrossRef]
  143. Yurt, A.; Kazancı, N. Investigation of magnetic properties of various complexes prepared as contrast agents for MRI. J. Mol. Struct. 2008, 892, 392–397. [Google Scholar] [CrossRef]
  144. Shokrollahi, H. Contrast agents for MRI. Mater. Sci. Eng. C Mater. Biol. Appl. 2013, 33, 4485–4497. [Google Scholar] [CrossRef] [PubMed]
  145. Song, C.; Sun, W.; Xiao, Y.; Shi, X. Ultrasmall iron oxide nanoparticles: Synthesis, surface modification, assembly, and biomedical applications. Drug Discov. Today 2019, 24, 835–844. [Google Scholar] [CrossRef] [PubMed]
  146. Smits, L.P.; Tiessens, F.; Zheng, K.H.; Stroes, E.S.; Nederveen, A.J.; Coolen, B.F. Evaluation of ultrasmall superparamagnetic iron-oxide (USPIO) enhanced MRI with ferumoxytol to quantify arterial wall inflammation. Atherosclerosis 2017, 263, 211–218. [Google Scholar] [CrossRef]
  147. Wei, H.; Bruns, O.T.; Kaul, M.G.; Hansen, E.C.; Barch, M.; Wiśniowska, A.; Chen, O.; Chen, Y.; Li, N.; Okada, S.; et al. Exceedingly small iron oxide nanoparticles as positive MRI contrast agents. Proc. Natl. Acad. Sci. USA 2017, 114, 2325–2330. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  148. Mo, H.; Fu, C.; Wu, Z.; Liu, P.; Wen, Z.; Hong, Q.; Cai, Y.; Li, G. IL-6-targeted ultrasmall superparamagnetic iron oxide nanoparticles for optimized MRI detection of atherosclerotic vulnerable plaques in rabbits. RSC Adv. 2020, 10, 15346–15353. [Google Scholar] [CrossRef]
  149. Hedgire, S.; Krebill, C.; Wojtkiewicz, G.R.; Oliveira, I.; Ghoshhajra, B.B.; Hoffmann, U.; Harisinghani, M.G. Ultrasmall superparamagnetic iron oxide nanoparticle uptake as noninvasive marker of aortic wall inflammation on MRI: Proof of concept study. Br. J. Radiol. 2018, 91, 20180461. [Google Scholar] [CrossRef]
  150. Harris, M.; Ceulemans, M.; Verstraete, C.; Bloemen, M.; Manshian, B.; Soenen, S.J.; Himmelreich, U.; Verbiest, T.; de Borggraeve, W.M.; Parac-Vogt, T.N. Ultrasmall iron oxide nanoparticles functionalized with BODIPY derivatives as potential bimodal probes for MRI and optical imaging. Nano Select. 2021, 2, 406–416. [Google Scholar] [CrossRef]
  151. Wei, H.; Tan, T.; Cheng, L.; Liu, J.; Song, H.; Li, L.; Zhang, K. MRI tracing of ultrasmall superparamagnetic iron oxide nanoparticle-labeled endothelial progenitor cells for repairing atherosclerotic vessels in rabbits. Mol. Med. Rep. 2020, 22, 3327–3337. [Google Scholar] [CrossRef]
  152. Shen, Z.; Chen, T.; Ma, X.; Ren, W.; Zhou, Z.; Zhu, G.; Zhang, A.; Liu, Y.; Song, J.; Li, Z.; et al. Multifunctional Theranostic Nanoparticles Based on Exceedingly Small Magnetic Iron Oxide Nanoparticles for T1-Weighted Magnetic Resonance Imaging and Chemotherapy. ACS Nano 2017, 11, 10992–11004. [Google Scholar] [CrossRef]
  153. Besenhard, M.O.; Panariello, L.; Kiefer, C.; LaGrow, A.P.; Storozhuk, L.; Perton, F.; Begin, S.; Mertz, D.; Thanh, N.T.K.; Gavriilidis, A. Small iron oxide nanoparticles as MRI T1 contrast agent: Scalable inexpensive water-based synthesis using a flow reactor. Nanoscale 2021, 13, 8795–8805. [Google Scholar] [CrossRef]
  154. Gleich, B.; Weizenecker, J. Tomographic imaging using the nonlinear response of magnetic particles. Nature 2005, 435, 1214–1217. [Google Scholar] [CrossRef] [PubMed]
  155. Kaul, M.G.; Weber, O.; Heinen, U.; Reitmeier, A.; Mummert, T.; Jung, C.; Raabe, N.; Knopp, T.; Ittrich, H.; Adam, G. Combined Preclinical Magnetic Particle Imaging and Magnetic Resonance Imaging: Initial Results in Mice. Rofo 2015, 187, 347–352. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  156. Franke, J.; Heinen, U.; Lehr, H.; Weber, A.; Jaspard, F.; Ruhm, W.; Heidenreich, M.; Schulz, V. System Characterization of a Highly Integrated Preclinical Hybrid MPI-MRI Scanner. IEEE Trans. Med. Imaging 2016, 35, 1993–2004. [Google Scholar] [CrossRef]
  157. Fdez-Gubieda, M.L.; Alonso, J.; García-Prieto, A.; García-Arribas, A.; Fernández Barquín, L.; Muela, A. Magnetotactic bacteria for cancer therapy. J. Appl. Phys. 2020, 128, 70902. [Google Scholar] [CrossRef]
  158. Heinke, D.; Kraupner, A.; Eberbeck, D.; Schmidt, D.; Radon, P.; Uebe, R.; Schüler, D.; Briel, A. MPS and MRI efficacy of magnetosomes from wild-type and mutant bacterial strains. Int. J. Magn. Part. Imaging 2017, 3. [Google Scholar] [CrossRef]
  159. Wang, Q.; Ma, X.; Liao, H.; Liang, Z.; Li, F.; Tian, J.; Ling, D. Artificially Engineered Cubic Iron Oxide Nanoparticle as a High-Performance Magnetic Particle Imaging Tracer for Stem Cell Tracking. ACS Nano 2020, 14, 2053–2062. [Google Scholar] [CrossRef] [PubMed]
  160. Song, G.; Chen, M.; Zhang, Y.; Cui, L.; Qu, H.; Zheng, X.; Wintermark, M.; Liu, Z.; Rao, J. Janus Iron Oxides @ Semiconducting Polymer Nanoparticle Tracer for Cell Tracking by Magnetic Particle Imaging. Nano Lett. 2018, 18, 182–189. [Google Scholar] [CrossRef]
  161. Ding, Z.; Liu, P.; Hu, D.; Sheng, Z.; Yi, H.; Gao, G.; Wu, Y.; Zhang, P.; Ling, S.; Cai, L. Redox-responsive dextran based theranostic nanoparticles for near-infrared/magnetic resonance imaging and magnetically targeted photodynamic therapy. Biomater. Sci. 2017, 5, 762–771. [Google Scholar] [CrossRef]
  162. Behrouzkia, Z.; Joveini, Z.; Keshavarzi, B.; Eyvazzadeh, N.; Aghdam, R.Z. Hyperthermia: How Can It Be Used? Oman Med. J. 2016, 31, 89–97. [Google Scholar] [CrossRef]
  163. Laurent, S.; Dutz, S.; Häfeli, U.O.; Mahmoudi, M. Magnetic fluid hyperthermia: Focus on superparamagnetic iron oxide nanoparticles. Adv. Colloid Interface Sci. 2011, 166, 8–23. [Google Scholar] [CrossRef]
  164. Blanco-Andujar, C.; Teran, F.J.; Ortega, D. Chapter 8—Current Outlook and Perspectives on Nanoparticle-Mediated Magnetic Hyperthermia. In Metal Oxides; Elsevier: Amsterdam, The Netherlands, 2018; pp. 197–245. [Google Scholar] [CrossRef]
  165. Mahmoudi, K.; Bouras, A.; Bozec, D.; Ivkov, R.; Hadjipanayis, C. Magnetic hyperthermia therapy for the treatment of glioblastoma: A review of the therapy’s history, efficacy and application in humans. Int. J. Hyperth. 2018, 34, 1316–1328. [Google Scholar] [CrossRef] [Green Version]
  166. Bohara, R.A.; Thorat, N.D.; Pawar, S.H. Role of functionalization: Strategies to explore potential nano-bio applications of magnetic nanoparticles. RSC Adv. 2016, 6, 43989–44012. [Google Scholar] [CrossRef]
  167. Bordelon, D.E.; Cornejo, C.; Grüttner, C.; Westphal, F.; DeWeese, T.L.; Ivkov, R. Magnetic nanoparticle heating efficiency reveals magneto-structural differences when characterized with wide ranging and high amplitude alternating magnetic fields. J. Appl. Phys. 2011, 109, 124904. [Google Scholar] [CrossRef]
  168. Carrey, J.; Mehdaoui, B.; Respaud, M. Simple models for dynamic hysteresis loop calculations of magnetic single-domain nanoparticles: Application to magnetic hyperthermia optimization. J. Appl. Phys. 2011, 109, 83921. [Google Scholar] [CrossRef]
  169. Dennis, C.L.; Jackson, A.J.; Borchers, J.A.; Hoopes, P.J.; Strawbridge, R.; Foreman, A.R.; van Lierop, J.; Grüttner, C.; Ivkov, R. Nearly complete regression of tumors via collective behavior of magnetic nanoparticles in hyperthermia. Nanotechnology 2009, 20, 395103. [Google Scholar] [CrossRef] [Green Version]
  170. Salimi, M.; Sarkar, S.; Hashemi, M.; Saber, R. Treatment of Breast Cancer-Bearing BALB/c Mice with Magnetic Hyperthermia using Dendrimer Functionalized Iron-Oxide Nanoparticles. Nanomaterials 2020, 10, 2310. [Google Scholar] [CrossRef]
  171. Bender, P.; Fock, J.; Frandsen, C.; Hansen, M.F.; Balceris, C.; Ludwig, F.; Posth, O.; Wetterskog, E.; Bogart, L.K.; Southern, P.; et al. Relating Magnetic Properties and High Hyperthermia Performance of Iron Oxide Nanoflowers. J. Phys. Chem. C 2018, 122, 3068–3077. [Google Scholar] [CrossRef] [Green Version]
  172. Dadfar, S.M.; Camozzi, D.; Darguzyte, M.; Roemhild, K.; Varvarà, P.; Metselaar, J.; Banala, S.; Straub, M.; Güvener, N.; Engelmann, U.; et al. Size-isolation of superparamagnetic iron oxide nanoparticles improves MRI, MPI and hyperthermia performance. J. Nanobiotechnol. 2020, 18, 22. [Google Scholar] [CrossRef] [PubMed]
  173. Timko, M.; Molcan, M.; Hashim, A.; Skumiel, A.; Muller, M.; Gojzewski, H.; Jozefczak, A.; Kovac, J.; Rajnak, M.; Makowski, M.; et al. Hyperthermic Effect in Suspension of Magnetosomes Prepared by Various Methods. IEEE Trans. Magn. 2013, 49, 250–254. [Google Scholar] [CrossRef]
  174. Martinez-Boubeta, C.; Simeonidis, K.; Makridis, A.; Angelakeris, M.; Iglesias, O.; Guardia, P.; Cabot, A.; Yedra, L.; Estradé, S.; Peiró, F.; et al. Learning from nature to improve the heat generation of iron-oxide nanoparticles for magnetic hyperthermia applications. Sci. Rep. 2013, 3, 1652. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  175. Alphandéry, E.; Guyot, F.; Chebbi, I. Preparation of chains of magnetosomes, isolated from Magnetospirillum magneticum strain AMB-1 magnetotactic bacteria, yielding efficient treatment of tumors using magnetic hyperthermia. Int. J. Pharm. 2012, 434, 444–452. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  176. Alphandéry, E.; Faure, S.; Raison, L.; Duguet, E.; Howse, P.A.; Bazylinski, D.A. Heat Production by Bacterial Magnetosomes Exposed to an Oscillating Magnetic Field. J. Phys. Chem. C 2011, 115, 18–22. [Google Scholar] [CrossRef] [Green Version]
  177. Hergt, R.; Dutz, S.; Röder, M. Effects of size distribution on hysteresis losses of magnetic nanoparticles for hyperthermia. J. Phys. Condens. Matter 2008, 20, 385214. [Google Scholar] [CrossRef]
  178. Le Fèvre, R.; Durand-Dubief, M.; Chebbi, I.; Mandawala, C.; Lagroix, F.; Valet, J.-P.; Idbaih, A.; Adam, C.; Delattre, J.-Y.; Schmitt, C.; et al. Enhanced antitumor efficacy of biocompatible magnetosomes for the magnetic hyperthermia treatment of glioblastoma. Theranostics 2017, 7, 4618–4631. [Google Scholar] [CrossRef] [PubMed]
  179. Gandia, D.; Gandarias, L.; Rodrigo, I.; Robles-García, J.; Das, R.; Garaio, E.; García, J.Á.; Phan, M.-H.; Srikanth, H.; Orue, I.; et al. Unlocking the Potential of Magnetotactic Bacteria as Magnetic Hyperthermia Agents. Small 2019, 15, 1902626. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  180. Muela, A.; Muñoz, D.; Martín-Rodríguez, R.; Orue, I.; Garaio, E.; Abad Díaz de Cerio, A.; Alonso, J.; García, J.Á.; Fdez-Gubieda, M.L. Optimal Parameters for Hyperthermia Treatment Using Biomineralized Magnetite Nanoparticles: Theoretical and Experimental Approach. J. Phys. Chem. C 2016, 120, 24437–24448. [Google Scholar] [CrossRef] [Green Version]
  181. Karageorgis, A.; Dufort, S.; Sancey, L.; Henry, M.; Hirsjärvi, S.; Passirani, C.; Benoit, J.-P.; Gravier, J.; Texier, I.; Montigon, O.; et al. An MRI-based classification scheme to predict passive access of 5 to 50-nm large nanoparticles to tumors. Sci. Rep. 2016, 6, 21417. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  182. Dopfer, O.; Fujii, M. Probing Solvation Dynamics around Aromatic and Biological Molecules at the Single-Molecular Level. Chem. Rev. 2016, 116, 5432–5463. [Google Scholar] [CrossRef] [PubMed]
  183. Bietenbeck, M.; Florian, A.; Faber, C.; Sechtem, U.; Yilmaz, A. Remote magnetic targeting of iron oxide nanoparticles for cardiovascular diagnosis and therapeutic drug delivery: Where are we now? Int. J. Nanomed. 2016, 11, 3191–3203. [Google Scholar] [CrossRef] [Green Version]
  184. Huang, Y.; Mao, K.; Zhang, B.; Zhao, Y. Superparamagnetic iron oxide nanoparticles conjugated with folic acid for dual target-specific drug delivery and MRI in cancer theranostics. Mater. Sci. Eng. C Mater. Biol. Appl. 2017, 70, 763–771. [Google Scholar] [CrossRef]
  185. Yang, Y.; Guo, Q.; Peng, J.; Su, J.; Lu, X.; Zhao, Y.; Qian, Z. Doxorubicin-Conjugated Heparin-Coated Superparamagnetic Iron Oxide Nanoparticles for Combined Anticancer Drug Delivery and Magnetic Resonance Imaging. J. Biomed. Nanotechnol. 2016, 12, 1963–1974. [Google Scholar] [CrossRef]
  186. Huang, K.-S.; Yang, C.-H.; Wang, Y.-C.; Wang, W.-T.; Lu, Y.-Y. Microfluidic Synthesis of Vinblastine-Loaded Multifunctional Particles for Magnetically Responsive Controlled Drug Release. Pharmaceutics 2019, 11, 212. [Google Scholar] [CrossRef] [Green Version]
  187. Long, R.-M.; Dai, Q.-L.; Zhou, X.; Cai, D.-H.; Hong, Y.-Z.; Wang, S.-B.; Liu, Y.-G. Bacterial magnetosomes-based nanocarriers for co-delivery of cancer therapeutics in vitro. Int. J. Nanomed. 2018, 13, 8269–8279. [Google Scholar] [CrossRef] [Green Version]
  188. Piehler, S.; Dähring, H.; Grandke, J.; Göring, J.; Couleaud, P.; Aires, A.; Cortajarena, A.L.; Courty, J.; Latorre, A.; Somoza, Á.; et al. Iron Oxide Nanoparticles as Carriers for DOX and Magnetic Hyperthermia after Intratumoral Application into Breast Cancer in Mice: Impact and Future Perspectives. Nanomaterials 2020, 10, 1016. [Google Scholar] [CrossRef]
  189. Dorer, D.E.; Nettelbeck, D.M. Targeting cancer by transcriptional control in cancer gene therapy and viral oncolysis. Adv. Drug Deliv. Rev. 2009, 61, 554–571. [Google Scholar] [CrossRef]
  190. Jiang, S.; Eltoukhy, A.A.; Love, K.T.; Langer, R.; Anderson, D.G. Lipidoid-Coated Iron Oxide Nanoparticles for Efficient DNA and siRNA delivery. Nano Lett. 2013, 13, 1059–1064. [Google Scholar] [CrossRef] [Green Version]
  191. Oral, O.; Cıkım, T.; Zuvin, M.; Unal, O.; Yagci-Acar, H.; Gozuacik, D.; Koşar, A. Effect of Varying Magnetic Fields on Targeted Gene Delivery of Nucleic Acid-Based Molecules. Ann. Biomed. Eng. 2015, 43, 2816–2826. [Google Scholar] [CrossRef] [Green Version]
  192. Zuvin, M.; Kuruoglu, E.; Kaya, V.O.; Unal, O.; Kutlu, O.; Yagci Acar, H.; Gozuacik, D.; Koşar, A. Magnetofection of Green Fluorescent Protein Encoding DNA-Bearing Polyethyleneimine-Coated Superparamagnetic Iron Oxide Nanoparticles to Human Breast Cancer Cells. ACS Omega 2019, 4, 12366–12374. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  193. Li, A.; Zhang, T.; Huang, T.; Lin, R.; Mu, J.; Su, Y.; Sun, H.; Jiang, X.; Wu, H.; Xu, D.; et al. Iron Oxide Nanoparticles Promote Cx43-Overexpression of Mesenchymal Stem Cells for Efficient Suicide Gene Therapy during Glioma Treatment. Theranostics 2021, 11, 8254–8269. [Google Scholar] [CrossRef] [PubMed]
  194. Yang, Z.; Duan, J.; Wang, J.; Liu, Q.; Shang, R.; Yang, X.; Lu, P.; Xia, C.; Wang, L.; Dou, K. Superparamagnetic iron oxide nanoparticles modified with polyethylenimine and galactose for siRNA targeted delivery in hepatocellular carcinoma therapy. IJN 2018, 13, 1851–1865. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  195. Dobson, J. Remote control of cellular behaviour with magnetic nanoparticles. Nat. Nanotechnol. 2008, 3, 139–143. [Google Scholar] [CrossRef] [PubMed]
  196. Golovin, Y.I.; Gribanovsky, S.L.; Golovin, D.Y.; Klyachko, N.L.; Majouga, A.G.; Master, A.M.; Sokolsky, M.; Kabanov, A.V. Towards nanomedicines of the future: Remote magneto-mechanical actuation of nanomedicines by alternating magnetic fields. J. Control. Release 2015, 219, 43–60. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  197. Colombo, M.; Carregal-Romero, S.; Casula, M.F.; Gutiérrez, L.; Morales, M.P.; Böhm, I.B.; Heverhagen, J.T.; Prosperi, D.; Parak, W.J. Biological applications of magnetic nanoparticles. Chem. Soc. Rev. 2012, 41, 4306–4334. [Google Scholar] [CrossRef] [PubMed]
  198. Kim, D.-H.; Rozhkova, E.A.; Ulasov, I.V.; Bader, S.D.; Rajh, T.; Lesniak, M.S.; Novosad, V. Biofunctionalized magnetic-vortex microdiscs for targeted cancer-cell destruction. Nat. Mater. 2010, 9, 165–171. [Google Scholar] [CrossRef]
  199. Master, A.M.; Williams, P.N.; Pothayee, N.; Pothayee, N.; Zhang, R.; Vishwasrao, H.M.; Golovin, Y.I.; Riffle, J.S.; Sokolsky, M.; Kabanov, A.V. Remote Actuation of Magnetic Nanoparticles For Cancer Cell Selective Treatment Through Cytoskeletal Disruption. Sci. Rep. 2016, 6, 33560. [Google Scholar] [CrossRef]
  200. Leulmi, S.; Chauchet, X.; Morcrette, M.; Ortiz, G.; Joisten, H.; Sabon, P.; Livache, T.; Hou, Y.; Carrière, M.; Lequien, S.; et al. Triggering the apoptosis of targeted human renal cancer cells by the vibration of anisotropic magnetic particles attached to the cell membrane. Nanoscale 2015, 7, 15904–15914. [Google Scholar] [CrossRef] [PubMed]
  201. Lunov, O.; Uzhytchak, M.; Smolková, B.; Lunova, M.; Jirsa, M.; Dempsey, N.M.; Dias, A.L.; Bonfim, M.; Hof, M.; Jurkiewicz, P.; et al. Remote Actuation of Apoptosis in Liver Cancer Cells via Magneto-Mechanical Modulation of Iron Oxide Nanoparticles. Cancers 2019, 11, 1873. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  202. Yang, Y.; Wang, H. Perspectives of nanotechnology in minimally invasive therapy of breast cancer. J. Healthc. Eng. 2013, 4, 67–86. [Google Scholar] [CrossRef] [Green Version]
  203. Koleoso, M.; Feng, X.; Xue, Y.; Li, Q.; Munshi, T.; Chen, X. Micro/nanoscale magnetic robots for biomedical applications. Mater. Today Bio. 2020, 8, 100085. [Google Scholar] [CrossRef] [PubMed]
  204. Felfoul, O.; Mohammadi, M.; Taherkhani, S.; de Lanauze, D.; Zhong Xu, Y.; Loghin, D.; Essa, S.; Jancik, S.; Houle, D.; Lafleur, M.; et al. Magneto-aerotactic bacteria deliver drug-containing nanoliposomes to tumour hypoxic regions. Nat. Nanotechnol. 2016, 11, 941–947. [Google Scholar] [CrossRef]
  205. Yan, X.; Zhou, Q.; Vincent, M.; Deng, Y.; Yu, J.; Xu, J.; Xu, T.; Tang, T.; Bian, L.; Wang, Y.-X.J.; et al. Multifunctional biohybrid magnetite microrobots for imaging-guided therapy. Sci. Robot. 2017, 2, eaaq1155. [Google Scholar] [CrossRef] [Green Version]
  206. Alapan, Y.; Yasa, O.; Schauer, O.; Giltinan, J.; Tabak, A.F.; Sourjik, V.; Sitti, M. Soft erythrocyte-based bacterial microswimmers for cargo delivery. Sci. Robot. 2018, 3, eaar4423. [Google Scholar] [CrossRef] [Green Version]
  207. Cho, M.; Cervadoro, A.; Ramirez, M.; Stigliano, C.; Brazdeikis, A.; Colvin, V.; Civera, P.; Key, J.; Decuzzi, P. Assembly of Iron Oxide Nanocubes for Enhanced Cancer Hyperthermia and Magnetic Resonance Imaging. Nanomaterials 2017, 7, 72. [Google Scholar] [CrossRef] [Green Version]
  208. Zhu, X.; Li, J.; Peng, P.; Hosseini Nassab, N.; Smith, B.R. Quantitative Drug Release Monitoring in Tumors of Living Subjects by Magnetic Particle Imaging Nanocomposite. Nano Lett. 2019, 19, 6725–6733. [Google Scholar] [CrossRef]
  209. Lu, L.; Wang, Y.; Zhang, F.; Chen, M.; Lin, B.; Duan, X.; Cao, M.; Zheng, C.; Mao, J.; Shuai, X.; et al. MRI-Visible siRNA Nanomedicine Directing Neuronal Differentiation of Neural Stem Cells in Stroke. Adv. Funct. Mater. 2018, 28, 1706769. [Google Scholar] [CrossRef]
  210. Vallabani, N.V.S.; Singh, S. Recent advances and future prospects of iron oxide nanoparticles in biomedicine and diagnostics. 3 Biotech 2018, 8, 279. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  211. Lu, M.; Cohen, M.H.; Rieves, D.; Pazdur, R. FDA report: Ferumoxytol for intravenous iron therapy in adult patients with chronic kidney disease. Am. J. Hematol. 2010, 85, 315–319. [Google Scholar] [CrossRef]
  212. Vasanawala, S.S.; Nguyen, K.-L.; Hope, M.D.; Bridges, M.D.; Hope, T.A.; Reeder, S.B.; Bashir, M.R. Safety and technique of ferumoxytol administration for MRI. Magn. Reson. Med. 2016, 75, 2107–2111. [Google Scholar] [CrossRef] [Green Version]
  213. Magforce. Available online: (accessed on 16 September 2021).
  214. Zhao, S.; Yu, X.; Qian, Y.; Chen, W.; Shen, J. Multifunctional magnetic iron oxide nanoparticles: An advanced platform for cancer theranostics. Theranostics 2020, 10, 6278–6309. [Google Scholar] [CrossRef]
  215. Malhotra, N.; Lee, J.-S.; Liman, R.A.D.; Ruallo, J.M.S.; Villaflores, O.B.; Ger, T.-R.; Hsiao, C.-D. Potential Toxicity of Iron Oxide Magnetic Nanoparticles: A Review. Molecules 2020, 25, 3159. [Google Scholar] [CrossRef]
  216. Singh, N.; Jenkins, G.J.S.; Asadi, R.; Doak, S.H. Potential toxicity of superparamagnetic iron oxide nanoparticles (SPION). Nano Rev. 2010, 1, 5358. [Google Scholar] [CrossRef] [Green Version]

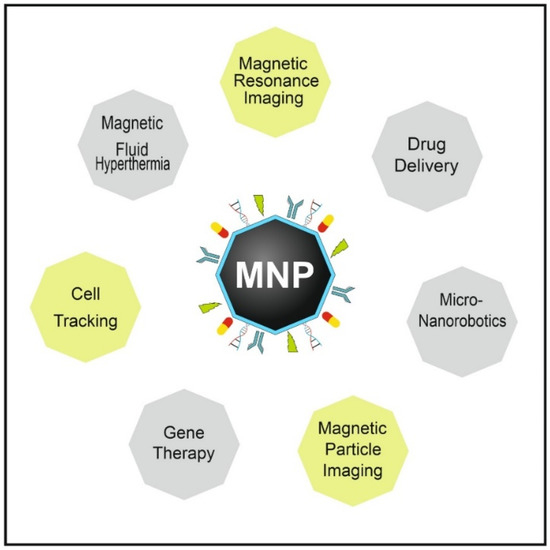

Figure 1. Biomedical application fields of MNPs. Due to the unique magnetic properties, the small particle diameter and the opportunity for additional functionalization with active substances connected to the surface, MNPs become ideally suited for diagnostic imaging (yellow: Magnetic Resonance Imaging, Magnetic Particle Imaging, cell tracking) and therapy (grey: gene transfection, drug-delivery, magnetic fluid hyperthermia, intervention by micro/nanorobots).
Figure 1. Biomedical application fields of MNPs. Due to the unique magnetic properties, the small particle diameter and the opportunity for additional functionalization with active substances connected to the surface, MNPs become ideally suited for diagnostic imaging (yellow: Magnetic Resonance Imaging, Magnetic Particle Imaging, cell tracking) and therapy (grey: gene transfection, drug-delivery, magnetic fluid hyperthermia, intervention by micro/nanorobots).
Bioengineering 08 00134 g001
Table 1. Comparison of conventional, microfluidic systems and biosynthesis of MNPs.
Table 1. Comparison of conventional, microfluidic systems and biosynthesis of MNPs.
ParameterConventional Batch MethodsMicrofluidic SystemsMagnetosome Biosynthesis
surface to volume ratioabout 100 m2/m3 [51,102]10,000–50,000 m2/m3 [51,102]-
mixing efficacymechanical stirring
takes minutes to reach homogeneity [63]
homogenous, tunable, efficient, <60 ms [70,103,104,105,106]-
heat transferheating plate, heterogeneous, often require high temperature [25]microchannels enable homogenous and rapid heat and cool transfer, small heat amount [67,70,86,103,105]-
energy resourceconventionalconventionalATP-based [52]
residence timeseveral hours to dayscontrollable and tuneable from seconds to minutes [25]cultivation within 36 and 60 h [96]
separation between nucleation and growth stagespoor due to inhomogeneous mixing and heat transfer [25,51]nucleation in the microreactor and growth in dwell zone [25,67,107,108,109]nucleation in vesicle and the iron ions are transferred from the surrounding environment, protein-associated [53,54,110]
reaction timeminutes—hours [43]seconds [25,86,105,111]Several days to weeks [25,93,112]
control of reactions parameterspoor, except for thermal decomposition [50]high due to efficient heat and mass transfer [67,103,105]suitable environment required for bacteria growth [52,98]
reagent volumemillilitre to litre [44]micro to nanolitre [44]litre
purificationmandatory if solvents are used for phase-transfer and biocompatible coating [25]on-line integration possible, e.g., Tangential Flow Filtration (TFF) [113]magnetic separation, ultrasonication and removal of proteins, nucleic acids and lipopolysaccharides are mandatory to reduce immunotoxicity [98,114]. Coating (for example by poly-l-lysine) to obtain stable nonpyrogenic MNP suspension [115]
product homogeneityquality reduction by concentration gradients and hot spots in the reaction flask [25,51]enhanced quality due to homogeneous morphology, narrow size distribution [25,67,116]high within one bacteria strain but strain variation possible [52,53,54,95]
reproducibility, production rate and scale-up capabilitysignificant batch to batch variations in size, morphology, and magnetic properties [25,111,117,118,119], poor scaling up capability. A reported study from Lin et al. showed a production rate of 4.73 g/h for microfluidic synthesis comparing to 1.4 g/h for conventional synthesis with the same conditions [89]continuous production, no batch-to-batch variation,
high scale-up capability
high at the defined environmental conditions [92], mg/(L · day) production rate [52], high scale-up capability, though challenging due to long term bacteriostatic growth conditions [38,40,46,78]
cloggingnot applicablemicrochannel-wall blocking during nucleation or by agglomeration [77,104,120,121,122]not applicable
automationpoorfeasible/integratable [66,123,124]-
capability of on-line characterizationnot applicable for batch, though magnetic characterization of whole batches by magnetic particle spectroscopy is feasibleparameter control and synthesis adjustment feasible during synthesis, control of magnetic parameters by magnetic particle spectroscopy [25,125] and NMR [126]-
costlow, common lab equipmentexpensive microreactor fabricationexpensive specialized equipment [112]
raw material and energy consumptionhigh, some reactions require organic solvents for phase-transfer to aqueous phase Some reactions are performed at temperatures above 320 °C [50,70,86,127]aqueous synthesis at moderate temperatures feasible, raw materials and energy consumption can be saved [70,86,127]sterile raw materials and cell cultivation materials required, temperature control during the bioproduction for days [52,53,54]
usability for medical applicationspossible, long fabrication times, post-treatment and phase-transfer from organic solvents may be required [25]possible, capable for sterile production, no FDA approved process yet [25]possible due to biosynthesis, purification required to remove lipopolysaccharides [52,128]
Table 2. Comparison of MNP properties for magnetic imaging (MRI, MPI) produced via microfluidic synthesis, conventional batch synthesis and biosynthesis. System information, coating and measurements field strength are given in the three columns to the left, followed by magnetic properties. Note, the specific non-linear dynamic susceptibility A3* was determined by MPS at fe = 25 kHz and an amplitude of Be = 25 mT. All relaxivities are stated for a field strength of 1.5 T, except for the last three systems, wild type, mutant-3 magnetosomes and Resovist as standard-measurement to magnetosomes, which were measured at 0.94 T.
Table 2. Comparison of MNP properties for magnetic imaging (MRI, MPI) produced via microfluidic synthesis, conventional batch synthesis and biosynthesis. System information, coating and measurements field strength are given in the three columns to the left, followed by magnetic properties. Note, the specific non-linear dynamic susceptibility A3* was determined by MPS at fe = 25 kHz and an amplitude of Be = 25 mT. All relaxivities are stated for a field strength of 1.5 T, except for the last three systems, wild type, mutant-3 magnetosomes and Resovist as standard-measurement to magnetosomes, which were measured at 0.94 T.
Sample SystemSynthesis ApproachCoatingDc
A3*Am2/kg (Fe)r1
ES-MIONsconventional co-precipitationpolyacrylic acid (PAA)3.6-8.822.72.6[152]
USIO NPmicrofluidic multistage flow reactordextran5.4 10.736.93.4[153]
Single core MNPsconventional thermal decompositionPolyethylene glycol26–2826---[35]
Single core BSA-coatedcontinuously synthesized via micromixerbovine serumalbumin27.7266.2 (4)600 (10)97[132]
Resovist, multi-core, bimodal size distribution
mean cluster size 24 nm
T1.8 kDa
Wild typeMTBLipid bilayer36.525–6310.345744.4[158]
Mutant-3MTBLipid bilayer3212.559447.5[158]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Baki, A.; Wiekhorst, F.; Bleul, R. Advances in Magnetic Nanoparticles Engineering for Biomedical Applications—A Review. Bioengineering 2021, 8, 134.

AMA Style

Baki A, Wiekhorst F, Bleul R. Advances in Magnetic Nanoparticles Engineering for Biomedical Applications—A Review. Bioengineering. 2021; 8(10):134.

Chicago/Turabian Style

Baki, Abdulkader, Frank Wiekhorst, and Regina Bleul. 2021. "Advances in Magnetic Nanoparticles Engineering for Biomedical Applications—A Review" Bioengineering 8, no. 10: 134.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
