# Computational Modeling of the Liver Arterial Blood Flow for Microsphere Therapy: Effect of Boundary Conditions

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

^{90}Y) that are injected into the hepatic arterial tree through a catheter. For personalized treatment, the microsphere distribution in the liver should be optimized through the injection volume and location. Computational fluid dynamics (CFD) simulations of the blood flow in the hepatic artery can help estimate this distribution if carefully parameterized. An important aspect is the choice of the boundary conditions imposed at the inlet and outlets of the computational domain. In this study, the effect of boundary conditions on the hepatic arterial tree hemodynamics was investigated. The outlet boundary conditions were modeled with three-element Windkessel circuits, representative of the downstream vasculature resistance. Results demonstrated that the downstream vasculature resistance affected the hepatic artery hemodynamics such as the velocity field, the pressure field and the blood flow streamline trajectories. Moreover, the number of microspheres received by the tumor significantly changed (more than 10% of the total injected microspheres) with downstream resistance variations. These findings suggest that patient-specific boundary conditions should be used in order to achieve a more accurate drug distribution estimation with CFD in transarterial embolization treatment planning.

## 1. Introduction

^{90}Y) with a catheter through the hepatic artery to target tumors in the liver. Recent studies have shown the potential of computational fluid dynamics (CFD) in tracking the embolization microspheres [2,3,4]. Simulation of the blood flow behavior inside the hepatic arterial tree can help predict the microsphere trajectories and thus their distribution between different liver segments. Using these predictions, the injection location and volume can be optimized before the treatment to maximize the tumor targeting. The CFD simulation results are however affected by different factors that need to be carefully studied. Among these parameters, the boundary conditions imposed on the computational domain play an important role [5]. Although the effect of boundary conditions on the lower-dimensional models (e.g., 0D and 1D model) of the hepatic artery has been discussed in the literature [6,7], it has not been quantitatively investigated for 3D CFD simulation of the hepatic arterial tree hemodynamics. Three-dimensional CFD simulation provides fine details of the flow internally within the 3D domain. Thus, it can show how boundary condition variations change the local field parameters such as velocity field and flow streamlines inside the hepatic arterial tree.

^{90}Y microsphere distribution. In transarterial embolization, the balloon occlusion of the hepatic artery affects the hepatic arterial tree hemodynamics [8]. The presence of the catheter also changes the flow field characteristics such as downstream blood pressure and velocity [9]. In addition, as tumors grow in the liver, the hepatic vascular structure around the lesion changes, which in turn leads to modified hepatic artery hemodynamics compared to a normal liver. This vascular structure modification can affect the blood flow rate into different liver segments [10] which may result in a different delivery rate of the therapeutic microspheres to the tumor and surrounding healthy parenchyma. The hepatic arterial buffer response is another feature of the liver dual blood supply system that enables the hepatic artery to compensate for the flow changes in the portal vein system. Hence, hepatic arterial tree blood flow and pressure can change due to this feature [11]. Other conditions such as increased intra-abdominal pressure and acute cholangitis may also lead to hepatic artery blood flow and pressure variations [12,13]. All these conditions alter the hepatic arterial tree hemodynamics and may thus change the drug distribution in the liver.

^{90}Y activity to inject and the injection location. The current methods used to determine the injection activity and location are based on simplified assumptions such as the homogeneous distribution of the microspheres in the liver [14]. Any improvements in these methods would result in better treatment planning. This in turn would enhance the overall treatment success in terms of maximizing the number of microspheres delivered to the tumor while minimizing the delivery to the surrounding healthy liver. We have developed a new dosimetry called CFDose that utilizes CFD to predict the nonhomogeneous distribution of

^{90}Y microspheres [15]. Since this method is based on CFD simulations of the hepatic blood flow, the CFD boundary conditions can affect its accuracy and must be chosen carefully. To address this concern, the first step is to characterize the sensitivity of the microsphere distribution to the outlet conditions in a CFD simulation. In this paper, the effect of outlet pressure variations on the estimation of the microsphere distribution in the liver with CFDose was studied by changing the resistance of the downstream vasculature. Future studies should compare the results of this study against the real distribution of the microspheres after the treatment (e.g., using PET scans). This helps determine the most appropriate boundary conditions in our CFD studies and understand how the tumor presence changes the arterial tree downstream conditions.

## 2. Materials and Methods

#### 2.1. Computational Domain Extracted from CBCT

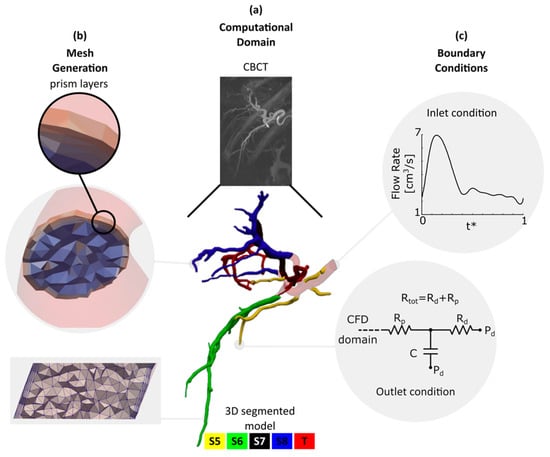

^{2}using Siemens DynaCT software. Further preprocessing and inspections, detailed in [16], were done in MATLAB (R2018b, The MathWorks, Inc., Natick, MA, USA). The right liver segments were annotated from S5 to S8 according to the Couinaud system [17] by an interventional radiologist. The tumor was mainly located in segment 7 (S7). The arteries supplying blood to each liver segment and the tumor are color-coded in Figure 1a.

_{ins}) of the arteries were calculated from the Voronoi diagram. A moving average filter was then used to smooth them. It is legitimate to assume that the arteries in the hepatic arterial tree have a circular cross-section [18,19]. Thus, a circular surface centered at the centerline with a radius of smoothed r

_{ins}was created at each point along the centerline trajectory to build the CFD model (Figure 1a). The final hepatic artery model had an inlet diameter of 4.6 mm at the right hepatic artery (RHA). Our segmentation method was able to detect arteries with a diameter (d) as small as 0.45 mm. Open source vascular modeling toolkit vmtk (www.vmtk.org), ParaView (www.paraview.org) and OpenFlipper (www.openflipper.org) were used to create, smooth, and inspect the 3D model. The 3D model was finally saved in stereolithography format as a surface mesh.

#### 2.2. Meshing

#### 2.3. Governing Equations

^{3}and 0.04 gr/cm·s, respectively. To examine the assumption of laminar flow, the Reynolds number was calculated and was found to be well below the laminar–turbulent transition in all cases (described in Section 2.4).

#### 2.4. Boundary Conditions

^{3}/s. Here, t* is the time vector nondimensionalized by the cardiac cycle duration.

_{p}), compliance (C), and distal resistance (R

_{d}) that was connected to a distal pressure (P

_{d}) [27]. The distal pressure was assumed to be constant and determined from a separate closed LPN model of the total body [28], which was tuned using the patient’s heart rate, systolic and diastolic pressure (72 bpm, 80 mmHg and 110 mmHg, respectively). In all the simulations, P

_{d}was 15 mmHg. The 3-element Windkessel LPNs were coupled with the 3D domain to iteratively pass the flow and pressure information between the 0D and 3D domains as described in [29]. R

_{tot}and C

_{tot}are the total resistance and compliance imposed at the outlets feeding each liver segment, respectively. For the healthy segments S5, S6 and S8, the R

_{tot}and C

_{tot}values were adjusted such that the blood pressure dropped by 4.5–9 mmHg from the RHA to the outlets during a cardiac cycle based on [30]. A C

_{tot}of 8.93 × 10

^{−7}cm

^{5}/dyne was used for each liver segment. This compliance was split between the outlets ending up to each liver segment using [31]:

_{i}and A

_{i}are the compliance and cross-sectional area of the i

^{th}outlet of a specific liver segment. R

_{tot}values for S5, S6 and S8 were fixed to 9.1 × 10

^{4}, 14.6 × 10

^{4}and 4.4 × 10

^{4}dyne·s/cm

^{5}, respectively, for all simulations. To study the effect of outlet resistance on the hepatic artery hemodynamics and flow distribution, the R

_{tot}of S7, which included the tumor feeding branches, was varied from ~4 to 8 × 10

^{4}dyne·s/cm

^{5}. Each segment’s total resistance was then split between the outlets feeding that segment as follows:

_{i}is the total resistance (R

_{d}+ R

_{p}) at the i

^{th}outlet of that segment. Due to a lack of information about the R

_{d}/R

_{p}ratio in the hepatic arterioles, we performed the simulations by varying R

_{d}/R

_{p}from 1 to 10 (at fixed R

_{tot}values). This let us also investigate the effect of distal and proximal resistance variations on the hepatic flow distribution and outlet pressure. The choice of 1 < R

_{d}/R

_{p}< 10 was based on the fact that the distal resistance (i.e., microvasculature) is typically much larger than the proximal resistance (arteries). In addition, the role of R

_{d}in improving the high-frequency response of the model could be studied by varying R

_{d}/R

_{p}. A complete list of R

_{tot}and R

_{d}/R

_{p}used is provided in Table 1. All simulation cases used a rigid wall assumption with a no-penetration condition and no-slip condition along them.

#### 2.5. Solver

#### 2.6. Postprocessing of CFD Results

_{0}and Q

_{0}are the pressure and flow rate at t = 0. The average pressure (P

_{avg}) and flow rate (Q

_{avg}) at each outlet were also calculated. The time lag in the outlet pressure due to R

_{d}/R

_{p}variations was also calculated at each outlet. The dimensionless time lag between the R

_{d}/R

_{p}= 1 and R

_{d}/R

_{p}= 3, 5 and 7 was called t

_{13}, t

_{15}and t

_{17}, respectively.

^{90}Y microsphere delivery to different liver segments. The Stokes number (St) was calculated using the blood and

^{90}Y glass microsphere properties (ρ

_{m}= 3600 kg/m

^{3}, d

_{m}= 20–30 µm [5]). Since St << 1, we assumed that the microspheres follow the blood flow streamlines. Therefore, the number of microspheres reached to each liver segment was correlated to the cumulative blood flow to that segment (i.e., summation of blood flow to the arterial outlets feeding each liver segment).

## 3. Results

#### 3.1. Hepatic Arterial Tree Hemodynamics

_{tot}= 4 and 8 × 10

^{4}dyne·s/cm

^{5}(A–D and A’–D’, respectively) with R

_{d}/R

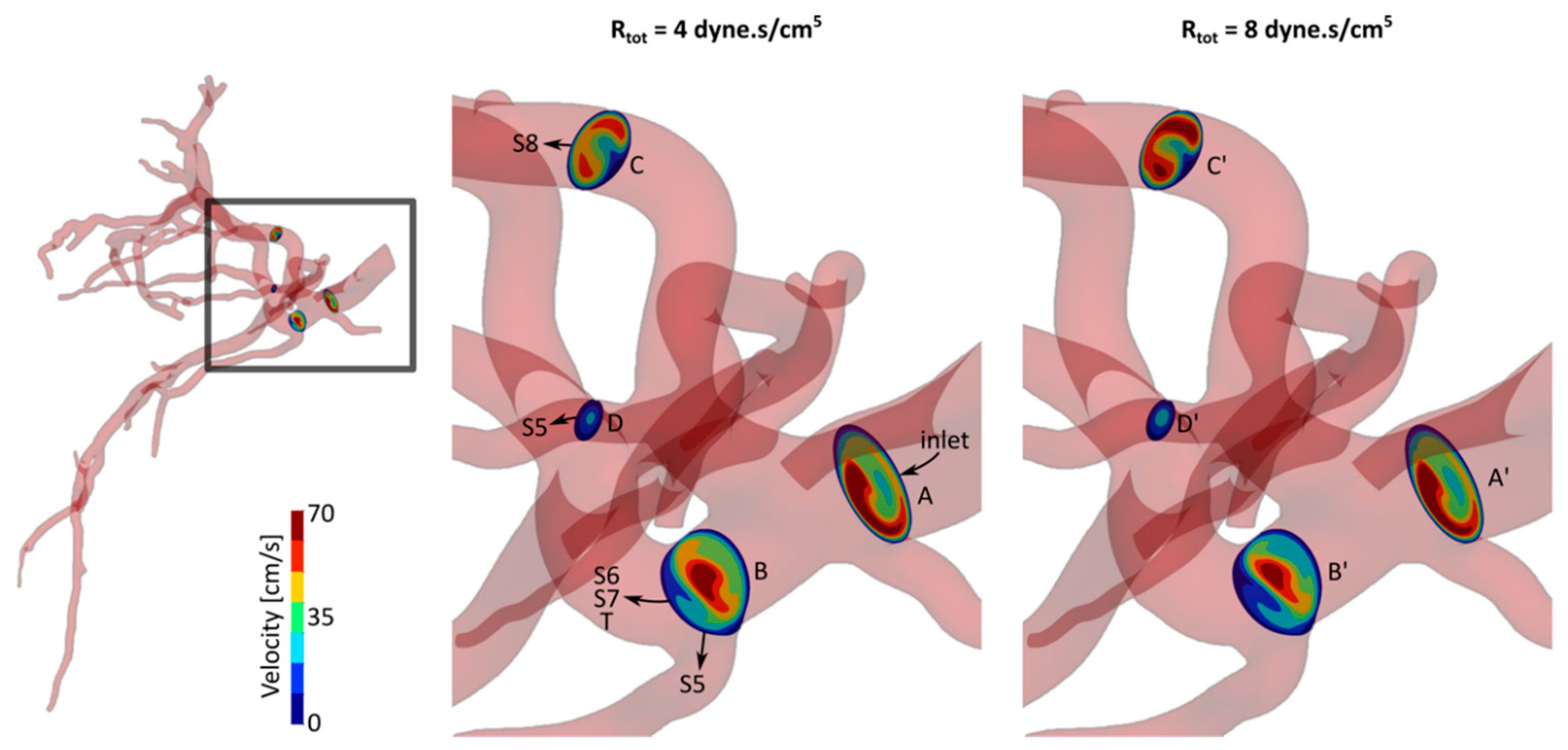

_{p}= 1 at four selected cross-sections. These profiles are shown at the maximum inlet flow rate instant (t* = 0.15). The cross-sections were selected on the upstream side of the computational domain such that they include blood flow delivered to different liver segments. Sections A and A’ were selected near the arterial tree inlet. Sections B and B’ were right before a bifurcation where one of the daughter branches delivered blood to part of S5 and the second one fed S6, S7 and T. Sections C and C’ were on the main branch supplying S8. Finally, sections D and D’ were on another branch feeding S5. See supplementary material for a video that shows the velocity variations during a cardiac cycle.

_{tot}= 4 × 10

^{4}dyne·s/cm

^{5}) compared to the other case. On the other hand, it can be seen that the velocity magnitude was larger at sections C’ and D’ compared to sections C and D, respectively. These sections were on the way of S8 and parts of S5 which had fixed resistance between the two simulation cases shown in Figure 2. Therefore, by increasing the resistance at S7 outlets, the blood outflow increased at other segment outlets. The velocity profiles changed similarly for other R

_{tot}values from 4 to 8 × 10

^{4}dyne·s/cm

^{5}. Velocity profiles with smaller changes were observed for other R

_{d}/R

_{p}ratios.

#### 3.2. Particle Release Maps

_{tot}= 4, 6 and 8 × 10

^{4}dyne·s/cm

^{5}and R

_{d}/R

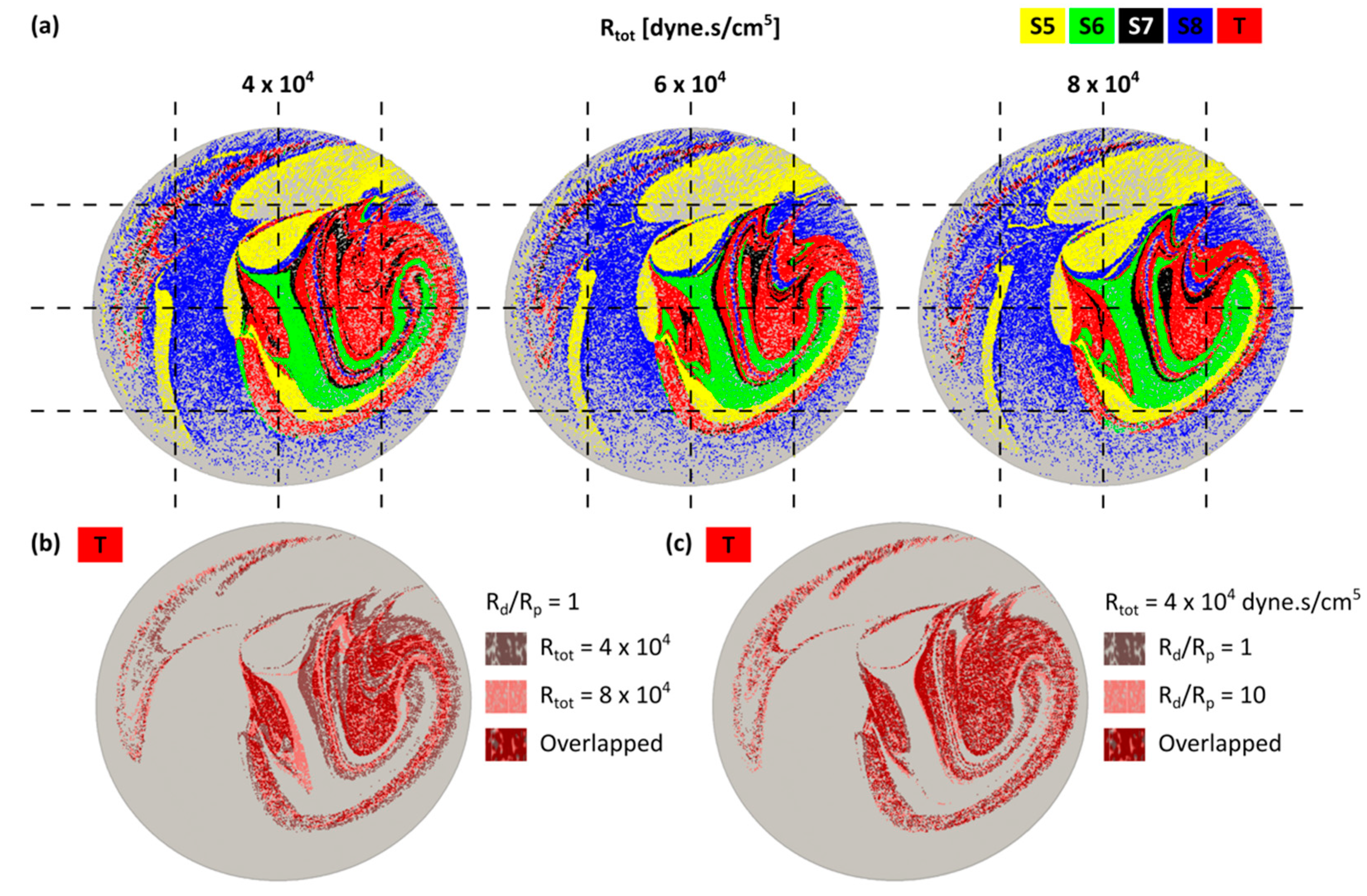

_{p}= 1 at t* = 0.15 are shown in Figure 3a. Streamlines are color-coded according to the liver segment they supplied. Changes in the downstream resistance (R

_{tot}) affected the streamline trajectories, as illustrated by the differences in PRMs for different R

_{tot}or R

_{d}/R

_{p}ratios.

_{tot}. Figure 3c shows the tumor PRMs for two different R

_{d}/R

_{p}. In each figure, overlapping areas of the two PRMs are shown in dark red. The larger overlap area in Figure 3b than Figure 3c indicates that PRMs changed more with R

_{tot}than with R

_{d}/R

_{p}. This can be due to local field changes shown in the previous section or alterations of the streamline trajectories.

#### 3.3. Effect of R_{tot} and R_{d}/R_{p} Ratio on Outlet Pressure and Flow Rate

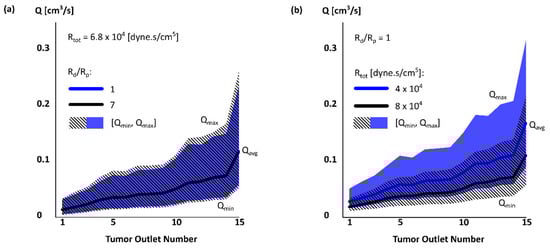

_{tot}and varying R

_{d}/R

_{p}and (b) fixed R

_{d}/R

_{p}and varying R

_{tot}. Varying R

_{d}/R

_{p}did not significantly change Q

_{avg}(~1.2%), but slightly affected the range of flow rate (~13% when R

_{d}/R

_{p}increased from 1 to 7). The flow rate extrema had a similar trend to Q

_{avg}. The range of flow rate changed similarly at other tumor outlets with R

_{d}/R

_{p}. In contrast, Q

_{avg}was significantly affected by R

_{tot}. In tumor outlets, Q

_{avg}decreased by ~36% with increasing R

_{tot}(Figure 4b) while increased in the other liver segment outlets by ~22% (not shown). In addition, the flow rate range reduced by 34% when R

_{tot}increased.

_{tot}had a larger effect on the absolute values of the flow rate Q, R

_{d}/R

_{p}had a larger effect on the flow rate range relative to Q

_{avg}. The range changed from [0.51, 2.01] Q

_{avg}to [0.46, 2.17] Q

_{avg}with R

_{d}/R

_{p}. Varying R

_{tot}only changed the range from [0.52, 1.95] Q

_{avg}to [0.5, 1.99] Q

_{avg}. The outlet pressure was similarly more affected by R

_{tot}than R

_{d}/R

_{p}(13% vs only 0.1%). The P

_{min}/P

_{avg}and P

_{max}/P

_{avg}were slightly changed by R

_{tot}(~3%). P

_{avg}also increased by R

_{tot}at other liver segments, but with a smaller increase rate than S7 (including T).

_{d}/R

_{p}ratios (R

_{tot}= 6.8 × 10

^{4}dyne·s/cm

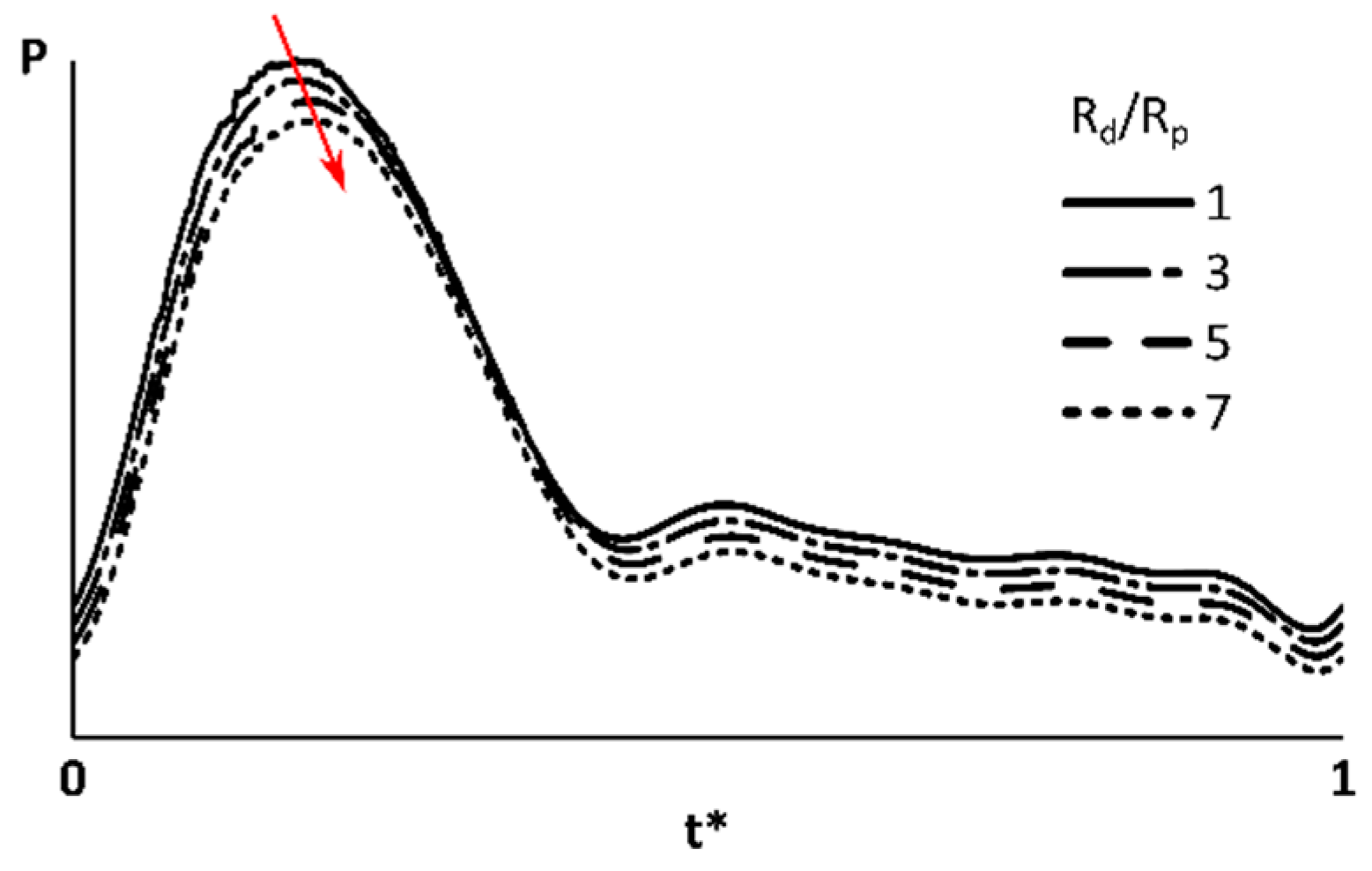

^{5}) at tumor outlet #1 (d = 0.59 mm). Results showed that increasing R

_{d}/R

_{p}created a time lag in the pressure waveform in this outlet. A similar time lag was observed in the other liver segments (Table 2). At S5, S6 and S8 outlets, the flow waveforms with an R

_{d}/R

_{p}greater than 1 had a time lag. In contrast, S7 outlets showed a time lead for the cases with larger R

_{d}/R

_{p}. The pressure variations are partly due to the flow rate changes (Equation (5)). In addition, the time constant in Equation (5), R

_{d}C determines how fast the outlet pressure responds to the flow rate variations and therefore could cause the time lag if changed with R

_{d}/R

_{p}.

#### 3.4. Blood Flow Distribution and ^{90}Y Delivery in Liver

_{tot}varied between 4–8 × 10

^{4}dyne·s/cm

^{5}. The relationship between the blood flow (Q/Q

_{in}) and R

_{tot}variations in each segment could be better described with a second-order polynomial (R

^{2}> 0.999) rather than a linear (R

^{2}~0.98) or exponential (R

^{2}~0.97) fit. While Q/Q

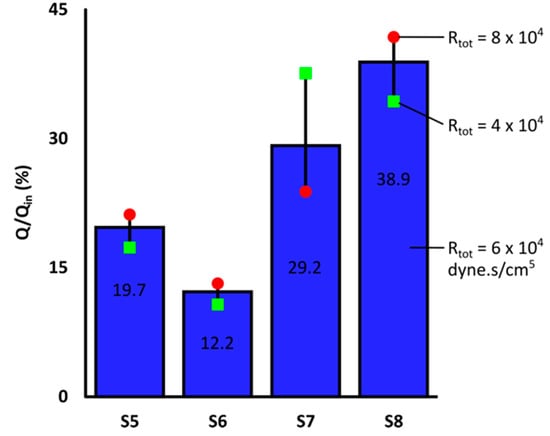

_{in}to S7 decreased from 38% to 24% by increasing S7 R

_{tot}from 4 to 8 × 10

^{4}dyne·s/cm

^{5}, it increased by 4%, 2% and 8% in S5, S6 and S8, respectively (reversed trends indicated by green and red markers). These results indicated that a resistance decrease in S7 could result in blood flow reversal in other branches. In addition, the local changes in the blood velocity and pressure fields as well as streamline trajectories affected the blood flow distribution between different liver segments. Consequently, the number of

^{90}Y microspheres received by the liver segments changed, since they are assumed to closely follow the blood flow streamlines (Section 2.6). Results for other R

_{d}/R

_{p}ratios were similar.

## 4. Discussion

_{tot}and the ratio between distal and proximal resistances R

_{d}/R

_{p}(Figure 1). The RCR values were selected such that blood flow and pressure conditions between the inlet and outlets were representatives of realistic physiological conditions. We assumed that the tumor presence would only affect the downstream resistance of the tumor-feeding branches, which should be validated in future studies. Therefore, the impedance of the other branches remained unchanged. Varying the resistance of one liver segment at a time also changed the resistance ratio between different liver segments. This in turn let us draw a conclusion with a fewer number of CFD simulations.

_{tot}or R

_{d}/R

_{p}, which resulted in different PRMs. Among the two parameters analyzed in this study, R

_{tot}had a higher impact on the hemodynamics. It significantly changed the outlet flow rate and pressure as well as the streamline trajectories and PRMs. R

_{d}/R

_{p}ratio had a negligible effect on the outlet flow rates and limited effect on the local fields and PRMs. Changes in the microsphere distribution in turn changed the

^{90}Y activity distribution and ultimately affected the absorbed dose in the tumor and healthy liver. Thus, R

_{tot}and in general the outlet boundary condition is one of the key drivers of blood flow in the computational domain. This means that R

_{tot}should be chosen (or measured) carefully in the CFD simulation of the hepatic arterial tree applied to drug delivery, chemoembolization and radioembolization. For instance, R

_{tot}can significantly change the dosimetry estimation in CFDose [15] which is calculated based on the CFD analysis of the hepatic blood flow. This finding is consistent with a previous qualitative review study [5] that suggested boundary conditions affect the outcome of blood flow simulation in the hepatic arterial tree.

## 5. Conclusions

^{90}Y microsphere dosimetry such as implemented in CFDose, results showed that the total resistance of the liver segments changed the outlet pressure and flow rate, which would consequently affect the blood flow rate and the number of microspheres delivered to each liver segment. Thus, to achieve more accurate radioembolization dosimetry using CFDose, it is essential to carefully select the CFD boundary conditions for each patient.

## Supplementary Materials

_{d}/R

_{p}= 1 and different total resistance at S7 outlets, R

_{tot}= 4 and 8 × 10

^{4}dyne·s/cm

^{5}during a cardiac cycle.

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Appendix A

^{3}/s) for one of the simulations (R

_{tot}= 6.8 × 10

^{4}dyne·s/cm

^{5}and R

_{d}/R

_{p}= 1) are shown in Figure A1b. The results were analyzed similarly for the rest of the simulations (not shown here). The solid lines show P

_{avg}and Q

_{avg}while shadows represent the range of P and Q at each outlet. Within each liver segment, the outlet flow rate was proportional to the outlet cross-sectional area. This was expected since each liver segment resistance was split between the arterial outlets using Equation (4). The flow rate at two outlets with a similar cross-sectional area, but in different liver segments was not however similar (e.g., S8 and T outlets #4).

**Figure A1.**(

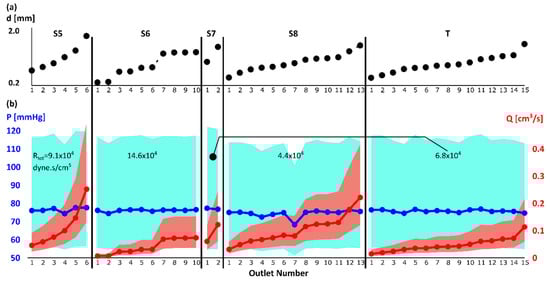

**a**) Outlet diameter: The outlets to each liver segment were numbered with increasing diameter; (

**b**) outlet average pressure P

_{avg}(blue solid line) and flow rate Q

_{avg}(red solid line). The blue and red shadows show the range [P

_{min}, P

_{max}] and [Q

_{min}, Q

_{max}], respectively. For the results shown in this figure, the R

_{tot}was 6.8 × 10

^{4}dyne·s/cm

^{5}and R

_{d}/R

_{p}was 1 for S7 (which included T).

_{avg}± SD) did not change with the diameter and was 77.7 ± 1.5 mmHg. For other cases not shown here, P and Q showed similar trends with a fixed R

_{d}/R

_{p}ratio and varying R

_{tot}.

## References

- Llovet, J.M.; Zucman-Rossi, J.; Pikarsky, E.; Sangro, B.; Schwartz, M.; Sherman, M.; Gores, G. Hepatocellular carcinoma. Nat. Rev. Dis. Primers
**2016**, 2, 16018. [Google Scholar] [CrossRef] [PubMed] - Kennedy, A.S.; Kleinstreuer, C.; Basciano, C.A.; Dezarn, W.A. Computer Modeling of Yttrium-90-Microsphere Transport in the Hepatic Arterial Tree to Improve Clinical Outcomes. Int. J. Radiat. Oncol. Biol. Phys.
**2010**, 76, 631–637. [Google Scholar] [CrossRef] [PubMed] - Basciano, C.A.; Kleinstreuer, C.; Kennedy, A.S. Computational Fluid Dynamics Modeling of 90Y Microspheres in Human Hepatic Tumors. J. Nucl. Med. Radiat. Ther.
**2011**, 2. [Google Scholar] [CrossRef] - Aramburu, J.; Antón, R.; Rivas, A.; Ramos, J.C.; Larraona, G.S.; Sangro, B.; Bilbao, J.I. Numerical zero-dimensional hepatic artery hemodynamics model for balloon-occluded transarterial chemoembolization. Int. J. Numer Methods Biomed. Eng.
**2018**, 34, 1–15. [Google Scholar] [CrossRef] [PubMed] - Aramburu, J.; Anton, R.; Rivas, A.; Ramos, J.C.; Sangro, B.; Bilbao, J.I. Liver Radioembolization: An Analysis of Parameters that Influence the Catheter-Based Particle-Delivery via CFD. Curr. Med. Chem.
**2018**, 25, 1–15. [Google Scholar] [CrossRef] [PubMed] - Ma, R.; Hunter, P.; Cousins, W.; Ho, H.; Bartlett, A.; Safaei, S. Modelling the Hepatic Arterial Flow in Living Liver Donor after Left Hepatectomy and Postoperative Boundary Condition Exploration. Int. J. Numer Methods Biomed. Eng.
**2019**, 36. [Google Scholar] [CrossRef] - Audebert, C. Mathematical Liver Modeling: Hemodynamics and Function in Hepatectomy; Université Pierre et Marie Curie-Paris VI: Paris, France, 2017. [Google Scholar]
- Sugihara, F.; Murata, S.; Ueda, T.; Yasui, D.; Yamaguchi, H.; Miki, I.; Kawamoto, C.; Uchida, E.; Kumita, S. Haemodynamic changes in hepatocellular carcinoma and liver parenchyma under balloon occlusion of the hepatic artery. Eur. Radiol.
**2017**, 27, 2474–2481. [Google Scholar] [CrossRef] [PubMed] - Rose, S.C.; Kikolski, S.G.; Chomas, J.E. Downstream hepatic arterial blood pressure changes caused by deployment of the surefire antireflux expandable tip. Cardiovasc. Interv. Radiol.
**2013**, 36, 1262–1269. [Google Scholar] [CrossRef] - Leen, E.; Goldberg, J.A.; Robertson, J.; Sutherland, G.R.; Hemingway, D.M.; Cooke, T.G.; McARDLE, C.S. Detection of hepatic metastases using duplex/color Doppler sonography. Ann. Surg.
**1991**, 214, 599. [Google Scholar] [CrossRef] [PubMed] - Vollmar, B.; Menger, M.D. The Hepatic Microcirculation: Mechanistic Contributions and Therapeutic Targets in Liver Injury and Repair. Physiol. Rev.
**2009**, 89, 1269–1339. [Google Scholar] [CrossRef] - Diebel, L.N.; Wilson, R.F.; Dulchavsky, S.A.; Saxe, J. Effect of increased intra-abdominal pressure on hepatic arterial, portal venous, and hepatic microcirculatory blood flow. J. Trauma
**1992**, 33, 279–282. [Google Scholar] [CrossRef] - Tse, J.R.; Liang, T.; Jeffrey, R.B.; Kamaya, A. Does measurement of the hepatic artery velocity improve the sonographic diagnosis of cholangitis? Abdom. Radiol.
**2019**, 44, 4004–4010. [Google Scholar] [CrossRef] [PubMed] - Kim, S.P.; Cohalan, C.; Kopek, N.; Enger, S.A. A guide to 90Y radioembolization and its dosimetry. Phys. Med.
**2019**, 68, 132–145. [Google Scholar] [CrossRef] [PubMed] - Roncali, E.; Taebi, A.; Foster, C.; Vu, C.T. Personalized Dosimetry for Liver Cancer Y-90 Radioembolization Using Computational Fluid Dynamics and Monte Carlo Simulation. Ann. Biomed. Eng.
**2020**. [Google Scholar] [CrossRef] [PubMed] - Taebi, A.; Roudsari, B.; Vu, C.; Cherry, S.; Roncali, E. Hepatic arterial tree segmentation: Towards patient-specific dosimetry for liver cancer radioembolization. J. Nucl. Med.
**2019**, 60, 122. [Google Scholar] - Couinaud, C. Le foie. Études Anatomiques et Chirurgicales; Masson: Paris, France, 1957. [Google Scholar]
- Kline, T.L.; Zamir, M.; Ritman, E.L. Accuracy of Microvascular Measurements Obtained From Micro-CT Images. Ann. Biomed. Eng.
**2010**, 38, 2851–2864. [Google Scholar] [CrossRef] [Green Version] - Kline, T.L.; Zamir, M.; Ritman, E.L. Relating Function to Branching Geometry: A Micro-CT Study of the Hepatic Artery, Portal Vein, and Biliary Tree. Cells Tissues Organs
**2011**, 194, 431–442. [Google Scholar] [CrossRef] [Green Version] - Si, H. TetGen, a delaunay-based quality tetrahedral mesh generator. ACM Trans. Math. Softw.
**2015**. [Google Scholar] [CrossRef] - Celik, I.B.; Ghia, U.; Roache, P.J.; Freitas, C.J.; Coleman, H.; Raad, P.E. Procedure for Estimation and Reporting of Uncertainty Due to Discretization in CFD Applications. J. Fluids Eng.
**2008**, 130, 078001. [Google Scholar] [CrossRef] [Green Version] - Taebi, A.; Vu, C.; Roncali, E. Multi-scale computational fluid dynamics modeling for personalized liver cancer radioembolization dosimetry. J. Biomech. Eng.
**2020**. [Google Scholar] [CrossRef] - Ku, D.N. Blood flow in arteries. Annu. Rev. Fluid Mech.
**1997**, 29, 399–434. [Google Scholar] [CrossRef] - Aramburu, J.; Antón, R.; Rivas, A.; Ramos, J.C.; Sangro, B.; Bilbao, J.I. Liver cancer arterial perfusion modelling and CFD boundary conditions methodology: A case study of the haemodynamics of a patient-specific hepatic artery in literature-based healthy and tumour-bearing liver scenarios. Int. J. Numer Methods Biomed. Eng.
**2016**, 32, e02764. [Google Scholar] [CrossRef] - Basciano, C.A.; Kleinstreuer, C.; Kennedy, A.S.; Dezarn, W.A.; Childress, E. Computer modeling of controlled microsphere release and targeting in a representative hepatic artery system. Ann. Biomed. Eng.
**2010**, 38, 1862–1879. [Google Scholar] [CrossRef] - Grinberg, L.; Karniadakis, G.E. Outflow Boundary Conditions for Arterial Networks with Multiple Outlets. Ann. Biomed. Eng.
**2008**, 36, 1496–1514. [Google Scholar] [CrossRef] - Vignon-Clementel, I.E.; Figueroa, C.A.; Jansen, K.E.; Taylor, C.A. Outflow boundary conditions for 3D simulations of non-periodic blood flow and pressure fields in deformable arteries. Comput. Methods Biomech. Biomed. Eng.
**2010**, 13, 625–640. [Google Scholar] [CrossRef] [Green Version] - Wang, T.; Liang, F.; Zhou, Z.; Qi, X. Global sensitivity analysis of hepatic venous pressure gradient (HVPG) measurement with a stochastic computational model of the hepatic circulation. Comput. Biol. Med.
**2018**, 97, 124–136. [Google Scholar] [CrossRef] [PubMed] - Esmaily Moghadam, M.; Vignon-Clementel, I.E.; Figliola, R.; Marsden, A.L. A modular numerical method for implicit 0D/3D coupling in cardiovascular finite element simulations. J. Comput. Phys.
**2013**, 244, 63–79. [Google Scholar] [CrossRef] - Martini, F.; Nath, J.L.; Bartholomew, E.F. Fundamentals of Anatomy & Physiology; Pearson: Madrid, Spain, 2015. [Google Scholar]
- Olufsen, M.S. Structured tree outflow condition for blood flow in larger systemic arteries. Am. J. Physiol. Heart Circ. Physiol.
**1999**, 276, H257–H268. [Google Scholar] [CrossRef] [PubMed] - Lan, H.; Updegrove, A.; Wilson, N.M.; Maher, G.D.; Shadden, S.C.; Marsden, A.L. A Re-Engineered Software Interface and Workflow for the Open-Source SimVascular Cardiovascular Modeling Package. J. Biomech. Eng.
**2018**, 140, 024501. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Arzani, A.; Dyverfeldt, P.; Ebbers, T.; Shadden, S.C. In Vivo Validation of Numerical Prediction for Turbulence Intensity in an Aortic Coarctation. Ann. Biomed. Eng.
**2012**, 40, 860–870. [Google Scholar] [CrossRef] [Green Version] - Kung, E.O.; Les, A.S.; Figueroa, C.A.; Medina, F.; Arcaute, K.; Wicker, R.B.; McConnell, M.V.; Taylor, C.A. In Vitro Validation of Finite Element Analysis of Blood Flow in Deformable Models. Ann. Biomed. Eng.
**2011**, 39, 1947–1960. [Google Scholar] [CrossRef] [PubMed] - Kung, E.O.; Les, A.S.; Medina, F.; Wicker, R.B.; McConnell, M.V.; Taylor, C.A. In Vitro Validation of Finite-Element Model of AAA Hemodynamics Incorporating Realistic Outlet Boundary Conditions. J. Biomech. Eng.
**2011**, 133, 041003. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Brooks, A.N.; Hughes, T.J.R. Streamline upwind/Petrov-Galerkin formulations for convection dominated flows with particular emphasis on the incompressible Navier-Stokes equations. Comput. Methods Appl. Mech. Eng.
**1982**, 32, 199–259. [Google Scholar] [CrossRef] - Jansen, K.E.; Whiting, C.H.; Hulbert, G.M. A generalized-α method for integrating the filtered Navier–Stokes equations with a stabilized finite element method. Comput. Methods Appl. Mech. Eng.
**2000**, 190, 305–319. [Google Scholar] [CrossRef] - Yilmaz, F.; Gundogdu, M.Y. A critical review on blood flow in large arteries; relevance to blood rheology, viscosity models, and physiologic conditions. Korea-Aust. Rheol. J.
**2008**, 20, 197–211. [Google Scholar] - Simoncini, C.; Jurczuk, K.; Reska, D.; Esneault, S.; Nunes, J.C.; Bellanger, J.J.; Saint-Jalmes, H.; Rolland, Y.; Eliat, P.A.; Bézy-Wendling, J.; et al. Towards a patient-specific hepatic arterial modeling for microspheres distribution optimization in SIRT protocol. Med. Biol. Eng. Comput.
**2018**, 56, 515–529. [Google Scholar] [CrossRef] [Green Version] - Crookston, N.R.; Fung, G.S.K.; Frey, E.C. Development of a Customizable Hepatic Arterial Tree and Particle Transport Model for Use in Treatment Planning. IEEE Trans. Radiat. Plasma Med. Sci.
**2018**, 3, 31–37. [Google Scholar] [CrossRef] - Chen, J.; Lu, X.-Y.; Wang, W. Non-Newtonian effects of blood flow on hemodynamics in distal vascular graft anastomoses. J. Biomech.
**2006**, 39, 1983–1995. [Google Scholar] [CrossRef]

**Figure 1.**Computational domain, mesh generation and boundary conditions. (

**a**) Computational domain: Cone-beam CT scan and the 3D segmented hepatic arterial tree color-coded according to Couinaud system. S5, S6, S7, S8 and T stand for liver segments 5, 6, 7, 8 and tumor, respectively; (

**b**) mesh generation: mesh details and prism layers employed to resolve the governing equations in the boundary layers; (

**c**) boundary conditions: inlet flow rate and the 3-element Windkessel circuit imposed at each outlet. A total of 23 simulations with different R

_{tot}and R

_{d}/R

_{p}were carried out.

**Figure 2.**Axial velocity profiles for two cases with R

_{d}/R

_{p}= 1 and different total resistance at S7 outlets, R

_{tot}= 4 and 8 × 10

^{4}dyne·s/cm

^{5}.

**Figure 3.**(

**a**) Particle release maps (PRMs) at the inlet of the hepatic arterial tree for R

_{tot}= 4, 6, 8 × 10

^{4}dyne·s/cm

^{5}with R

_{d}/R

_{p}= 1. Streamlines delivered to the same liver segment are color-coded; (

**b**) comparison between the tumor PRMs for R

_{tot}= 4 and 8 × 10

^{4}dyne·s/cm

^{5}with R

_{d}/R

_{p}= 1; (

**c**) comparison between the tumor PRMs for R

_{d}/R

_{p}= 1 and 10 (R

_{tot}= 4 × 10

^{4}dyne·s/cm

^{5}). In both (

**b**) and (

**c**), overlap between the PRMs are shown in dark red.

**Figure 4.**Flow rate Q

_{avg}[Q

_{min}, Q

_{max}] in tumor outlets for two simulation cases with (

**a**) fixed R

_{tot}and varying R

_{d}/R

_{p}and (

**b**) fixed R

_{d}/R

_{p}and varying R

_{tot}.

**Figure 5.**Pressure at an outlet feeding the tumor. The S7 (which includes tumor) total resistance was 6.8 × 10

^{4}dyne·s/cm

^{5}. Red arrow shows how the peak pressure time shifted by increasing R

_{d}/R

_{p}. The pressure waveforms moved in vertical direction for a better illustration.

R_{d}/R_{p} | ||||||
---|---|---|---|---|---|---|

R_{tot}[×10^{4} dyne·s/cm^{5}] | 4.0 | 1 | 3 | ̶ | ̶ | 10 |

4.7 | 1 | 3 | ̶ | ̶ | 10 | |

5.3 | 1 | 3 | ̶ | ̶ | 10 | |

6.0 | 1 | 3 | ̶ | ̶ | 10 | |

6.8 | 1 | 3 | 5 | 7 | 10 | |

7.3 | 1 | 3 | ̶ | ̶ | 10 | |

8.0 | 1 | 3 | ̶ | ̶ | 10 |

**Table 2.**The pressure waveform time lag (mean ± SD) between the cases with R

_{d}/R

_{p}= 1 and 3 (t

_{13}), 1 and 5 (t

_{15}), and 1 and 7 (t

_{17}).

t_{13} [×10^{−3}] | t_{15} [×10^{−3}] | t_{17} [×10^{−3}] | |
---|---|---|---|

S5 | 1.5 ± 1.64 | 7.5 ± 1.64 | 12.5 ± 2.26 |

S6 | 0.3 ± 1.70 | 8.7 ± 0.95 | 12.3 ± 2.21 |

S7 | 1.4 ± 1.54 | 9.7 ± 1.69 | 14.5 ± 1.59 |

S8 | 0.9 ± 1.44 | 8.8 ± 0.83 | 13.1 ± 1.95 |

© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Taebi, A.; Pillai, R.M.; S. Roudsari, B.; Vu, C.T.; Roncali, E.
Computational Modeling of the Liver Arterial Blood Flow for Microsphere Therapy: Effect of Boundary Conditions. *Bioengineering* **2020**, *7*, 64.
https://doi.org/10.3390/bioengineering7030064

**AMA Style**

Taebi A, Pillai RM, S. Roudsari B, Vu CT, Roncali E.
Computational Modeling of the Liver Arterial Blood Flow for Microsphere Therapy: Effect of Boundary Conditions. *Bioengineering*. 2020; 7(3):64.
https://doi.org/10.3390/bioengineering7030064

**Chicago/Turabian Style**

Taebi, Amirtahà, Rex M. Pillai, Bahman S. Roudsari, Catherine T. Vu, and Emilie Roncali.
2020. "Computational Modeling of the Liver Arterial Blood Flow for Microsphere Therapy: Effect of Boundary Conditions" *Bioengineering* 7, no. 3: 64.
https://doi.org/10.3390/bioengineering7030064
