Developing a Classification of Spinal Medical Devices: Has the Time Come? Review of the Literature and a Proposal for Spine Registries

by
Veronica Mari
1,*,†,
Simona Pascucci
1,2,†,
Andrea Piazzolla
3,
Pedro Berjano
4,
Michela Franzò
1,2,
Letizia Sampaolo
1,
Eugenio Carrani
1 and
Marina Torre
1,*
1
Italian National Institute of Health, 00161 Rome, Italy
2
Department of Mechanical and Aerospace Engineering, Sapienza University of Rome, 00184 Rome, Italy
3
Azienda Ospedaliero Universitaria Consorziale “Policlinico”, 70124 Bari, Italy
4
IRCCS Ospedale Galeazzi Sant’Ambrogio, 20157 Milan, Italy
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Bioengineering 2025, 12(8), 853; https://doi.org/10.3390/bioengineering12080853
Submission received: 11 June 2025 / Revised: 29 July 2025 / Accepted: 3 August 2025 / Published: 8 August 2025
(This article belongs to the Special Issue Medical Devices and Implants, 2nd Edition)
Browse Figures
Review Reports Versions Notes

Abstract

Registries require standardized component libraries based on predefined taxonomies to ensure detailed and structured descriptions of implanted devices, enabling effective monitoring of implant safety. Considering the growing use of spinal implantable devices, we aimed to propose a comprehensive classification framework for spinal devices, to be integrated into the Italian Spine registry framework. The taxonomy was created using a detailed process that included reviewing existing literature, analyzing technical documents, selecting important device characteristics, obtaining feedback from manufacturers, and converting the information into a format suitable for IT systems. Our findings showed the lack of a globally accepted classification system. We identified four primary categories, further refined into subcategories, complemented by attributes for device identification, traceability, and characterization, then structured them using XSD schemas. Our proposal represents the first known attempt to implement a taxonomy for spinal implants, with the potential to serve as an international reference. A structured classification system would enhance registry interoperability, facilitate cross-registry comparability, and improve the early detection of adverse events, thereby strengthening patient safety and clinical outcomes. Furthermore, the adoption of a unified classification framework would improve surgeons’ clinical practice and support policymakers in developing early prevention strategies, ultimately improving patient care.

1. Introduction

The Medical Device Regulation (EU) 2017/745 (MDR) [1] establishes mandatory procedures for certifying and registering medical devices in Europe. It requires manufacturers to classify medical devices according to risk level and characteristics and meet restrictive marketing obligations. Therefore, it entails a more rigorous evaluation of clinical effectiveness and safety than in the past [2]. Furthermore, the regulation suggests encouraging the establishment of registers and databanks for specific devices, setting common principles for collecting comparable information to evaluate their safety and performance and ensuring their traceability (article 108 [1]).
Implant registries can collate extensive and structured data on implants’ performance, the surgical procedures in which they are used, and implanted patients’ quality of life. This data is used to assess devices’ effectiveness by measuring their survival in vivo and identifying patients who may require a surgery recall in case of implant failure [3,4].
Registries must be based on a comprehensive understanding of each technology’s characteristics to assess the performance of medical devices adequately. Furthermore, they must refer to an organized database with standardized technical information. Nickerson defined taxonomies as “tools for grouping objects into domains based on common characteristics” [5]; based on this definition, taxonomies represent useful tools for structuring medical device databases for use in registries as they allow for clear and unambiguous classification of a given category of devices, as well as the provision of detailed technical descriptions [6,7,8,9].
In recent decades, a considerable increase in the number of spinal surgery procedures was observed in Italy [10]. Furthermore, spinal devices are characterized by a high level of complexity and invasiveness and are classified by MDR, in numerous instances, in the highest-risk class [11]. Consequently, a notable increase in spine registries over time was observed [12]. The need for spinal registries to define common standards to collect clinical and implant data was emphasized on 23 March 2023, at the 1st International Meeting of Spinal Registries held at the Royal National Orthopaedic Hospital of Stanmore (UK) [13]. This meeting marked the launch of an international working group aimed at defining policies and standards for spinal registries.
In 2020, a new project started in Italy to establish the methodological basis for the future national Spine Registry, which includes defining the minimum data set of variables to be collected and designing a structured classification system (taxonomy) for spinal devices.
This work aims to summarize the knowledge available in the literature on spinal device taxonomies and to present a proposal for such a taxonomy tailored to the Italian context as a basis for a further extension to the international level.

2. Materials and Methods

2.1. Existing Medical Device Nomenclatures

The following medical device nomenclature systems are currently in use worldwide:
-
EMDN—European Medical Device Nomenclature: Adopted by the European Union for regulatory purposes, in particular to classify devices within the European database (Eudamed). It is freely accessible and has a hierarchical structure based on the Italian national medical device classification (CND), developed in Italy in 2007 by the Ministry of Health (MoH) [14,15].
-
GMDN—Global Medical Device Nomenclature: Provides a single, standardized nomenclature for the global classification of medical devices. It is used internationally, particularly in the Food and Drug Administration (FDA) and Medical and Healthcare Products Regulatory Agency (MHRA) regulatory environment. It was generated by exploiting existing classifications. Access is chargeable. Its structure is based on numeric codes linked to standardized terms and definitions describing the generic types of medical devices [16,17].
-
SNOMED CT—Systematized Nomenclature of Medicine Clinical Terms: Enables interoperability through the use of common clinical terminology. It is used internationally, mainly in the clinical health sector to represent clinical information. SNOMED CT includes device-related concepts and is partially mapped to GMDN. Access is by licence and the structure is of an ontological nature [18,19].

2.2. Italian Framework

The Italian MoH has invested heavily into the monitoring of the safety of medical devices over the last decades. To this end, besides CND, in 2007 the MoH created a national database of medical devices [20] structured according to CND. Since then, manufacturers have been required to register their products in this database in order to market them in Italy.
To monitor the safety of implantable devices, on 3 March 2017 the National Registry of Implantable Prostheses (RIPI) was established by a Prime Ministry’s Decree [21] at the National Institute of Health (ISS). RIPI is organized as a modular registry system, where each registry considers a specific device category with a substantial impact on public health [22]. The National Spine Registry (RIDIS) is designed as a module of RIPI [23].

2.3. Taxonomy Design

The following four steps were performed to select medical device (MD) categories and sub-categories, as well as the related technical characteristics (attributes) to be included in the spinal device taxonomy:
  • Review of the literature
    A comprehensive online search was conducted by LS to identify the taxonomies used by spinal registries. MEDline/PubMed, Biological Science Collection (ProQuest), Scopus, Web of Science (Science and Social Science databases, Science and Social Sciences Conferences), and grey literature databases were searched; no publication language limitation was set (the search strategies are available as Supplementary Materials). Records were deduplicated by VM and MT, who then screened and selected the articles or reports based on their titles and abstracts. The remaining articles or reports were then assessed for eligibility by full-text reading.
    Articles and reports were excluded if they: (1) did not relate to spinal devices, except for those that considered taxonomies in named active national registries; (2) classified pathologies instead of devices; and (3) were not retrievable in English as full text.
  • Technical document analysis and selection of MD attributes
    The EMDN was analyzed, with the codes of categories related to spinal devices being selected as a result. The Italian national MoH MD database was queried using the selected EMDN codes to identify the registered spinal devices. Based on the information retrieved for these devices, the web was extensively browsed to collect technical datasheets, manuals, and catalogues related to them and to any other available spinal device. All these documents were thoroughly examined by SP, MF, and MT to identify the attributes associated with each category (e.g., shape, geometry, dimension, material, spinal part involved), following a maximum inclusion criterion. The clinical experts (AP and PB) discussed the identified attributes to select the ones essential for registry analyses (i.e., health outcome assessment, traceability, and MD safety and performance measurement), that were then organized into a taxonomy.
  • Assessment by manufacturers
    MD specialists from the industry (NuVasive—San Diego, CA, USA, recently acquired by Globus Medical; Stryker Corporation—Kalamazoo, MI, USA; Zimmer Biomet—Warsaw, IN, USA; DePuy Synthes (Johnson & Johnson MedTech)—New Brunswick, NJ, USA; Globus Medical—Audubon, PA, USA; and Exactech—Gainesville, FL, USA) were invited to assess the taxonomy already defined with the clinicians, to integrate it with further information, and to validate it. Their task was to classify all the attributes as either “available”, “not available”, or “searchable”. This process was undertaken to identify which attributes could be uploaded to the future library with minimal effort. After discussion, only the attributes classified either as “available” or “searchable” were included and the definitive version of the taxonomy was released.
  • IT implementation
    The taxonomy was structured, modelled and encoded by VM and EC into XSD (“eXtensible markup language Schema Definition”) schemas to properly facilitate the exchange of information in an XML language for future implementation in IT platforms.

3. Results

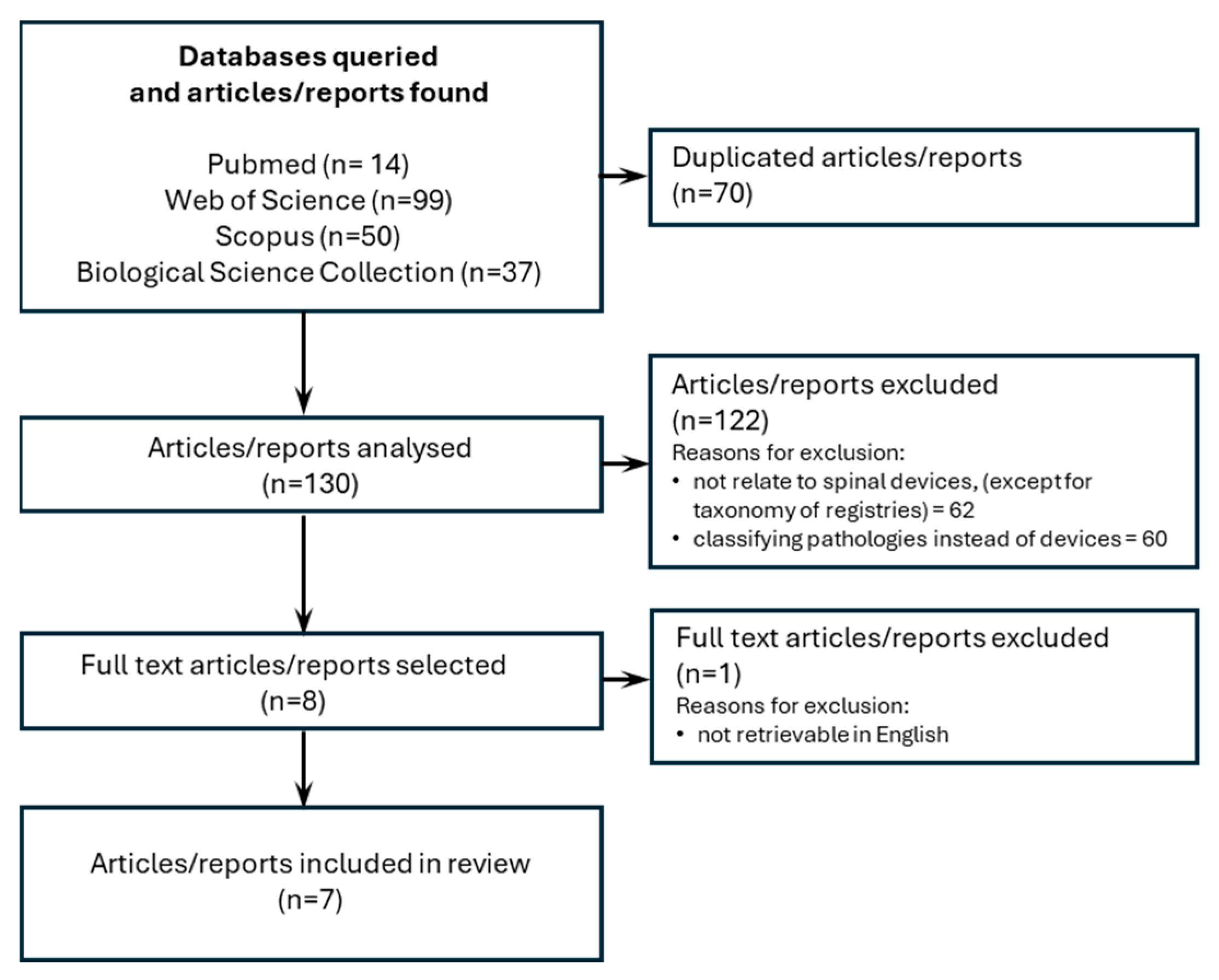

The literature review was conducted following the strategies described in the Supplementary Material. Initially implemented in 2020 and then updated in 2024 to check for new findings, it yielded 200 articles/reports. After removing duplicates (n = 70), 130 articles/reports remained for title and abstract screening. Eight articles/reports were considered eligible for full-text review after screening, but one was not available in English and, therefore, was excluded. Finally, seven documents were included in the analysis. The review process is presented as a flowchart in Figure 1.
The seven selected documents (six peer-reviewed papers [6,24,25,26,27,28] and one report of the Department of Health and Human Services on the US Federal Register [29]) described and discussed the following: the process to the setting up of a taxonomy for an arthroplasty registry and the identification of the core set of attributes considered [6]; the importance of accurate device classification as a crucial tool for surveillance and the assessment of comparative effectiveness [24]; the need to reclassify these types of devices in the US context [29]; and the characterization of specific types of spinal devices such as the Growth Friendly Spine Implants [25], implants for the reconstruction of the anterior and middle spinal columns [26], or posterior dynamic stabilization devices [27,28]. However, a comprehensive taxonomy of the different types of spinal devices was not described in any of the documents identified.
Exploration of the EMDN showed that spinal surgery devices were referenced to the following codes: P0907 “Spine Stabilization Prostheses and Systems” and K0103 “Spinal Endotherapy Devices”. Thorough web searches resulted in a large number of datasheets, manuals, and catalogues that supported the definition of a hierarchical classification. The following four categories of devices were identified: (1) Fixation systems. (2) Cages. (3) Discal prostheses. (4) Augmentation systems and fillers (Table 1).
Figure 2 shows the multi-level structure of the designed taxonomy with descriptions of each identified category and its associated sub-categories. Each sub-category refers to a type of medical device that can be described by a core set of technical/functional and identification/traceability attributes. The selected technical and functional attributes (blue lines) are specific to the sub-category because they depend on its characteristics. In contrast, the identification and traceability attributes (green lines) are common to all sub-categories because they are derived from regulatory requirements.
Among the invited manufacturers, NuVasive responded and actively participated in the discussion. The following tables (Table 2: Fixation systems; Table 3: Cages; Table 4: Discal prostheses; Table 5: Augmentation systems and fillers) summarize the selected technical and functional attributes to be included in the final taxonomy for each category which are beneficial for the registry purposes and feasible to be provided by manufacturers.
Bioengineering 12 00853 g002

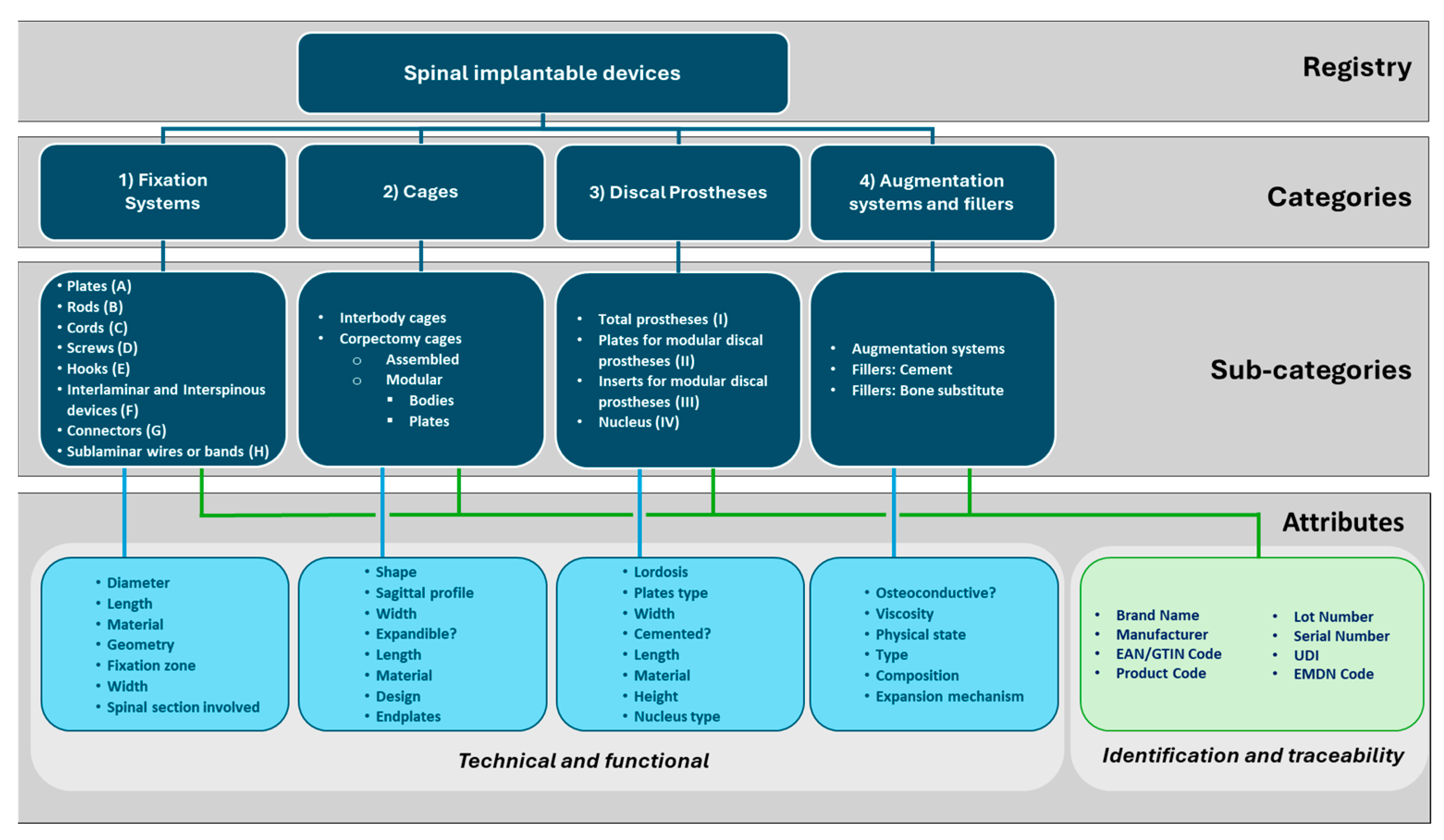

Figure 2. Hierarchical classification of spinal implantable devices and related attributes (in light blue: core sets of technical and functional attributes; in green: core sets of the identification and traceability attributes). Note: categories are numbered according to what is reported in Table 1; sub-categories are numbered according to what is reported in Table 2 for the Fixation Systems and in Table 4 for the Discal Prostheses.
Figure 2. Hierarchical classification of spinal implantable devices and related attributes (in light blue: core sets of technical and functional attributes; in green: core sets of the identification and traceability attributes). Note: categories are numbered according to what is reported in Table 1; sub-categories are numbered according to what is reported in Table 2 for the Fixation Systems and in Table 4 for the Discal Prostheses.
Bioengineering 12 00853 g002

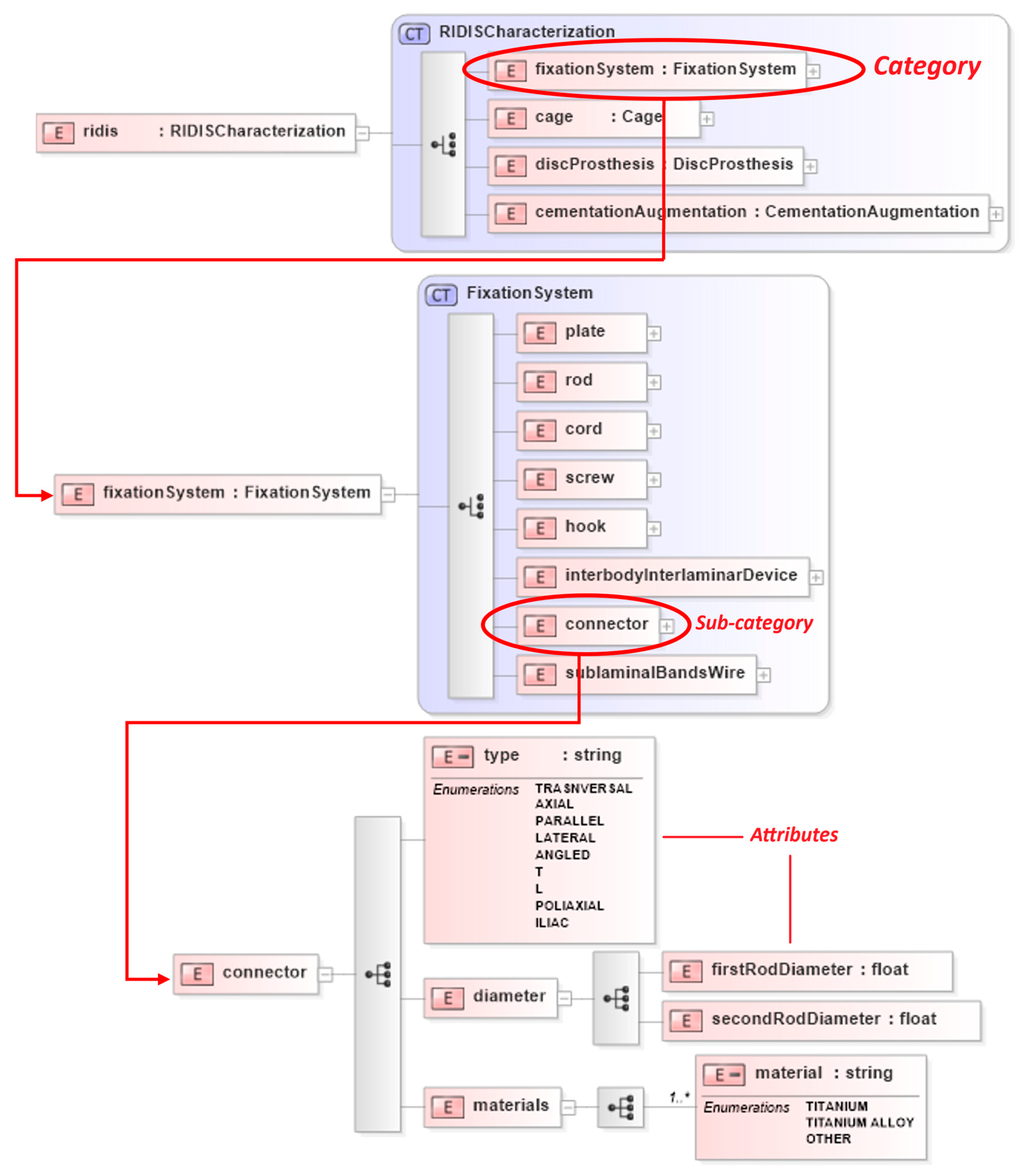

Figure 3 shows the taxonomy represented on an XSD schema as an example applied to RIDIS for the category “Fixation Systems”. In particular, this category is exploded into its eight sub-categories and then the sub-category “Connectors” is detailed with all the identified technical and functional attributes.

4. Discussion

The World Health Organisation (WHO) states that “a standardized classification and nomenclature of medical devices will serve as a common language for recording and reporting medical devices across the whole health system at all levels of health care for a whole range of uses” [30].
In addition, over the last six years the WHO has assessed the existing MD classifications by comparing their peculiarities and constraints. It emerged that SNOMED CT is not primarily focused on medical devices but includes device-related concepts and is partially mapped to GMDN. In conclusion, the WHO decided not to develop a new classification and to use the EMDN and GMDN systems. Moreover, they encouraged the universal adoption of these systems to facilitate standardization and convergence in the field, and their integration into global healthcare systems [19,31].
However, these classification systems lack sufficient detailed information to fulfil the objectives of a registry, as they do not contain attributes which a taxonomy does.
This work aimed to summarize the knowledge available in the literature on the definition of taxonomies characterizing spinal devices and to present a first proposal for a structured classification of spinal devices to be implemented within the Italian Spine Registry and to be shared internationally.
Implantable prosthesis registries have proliferated worldwide in recent decades [32,33], as they have proven to be an effective method of the early detection of implant failure [4]. The importance of registries is even more recognized when considering high-risk implantable MDs, given their high impact on healthcare costs and their invasiveness for patients [34,35]. MDR was designed to improve patient safety and prevent severe incidents such as those related to Poly Implant Prothèse (PIP) breast implants and Metal-on-Metal (MoM) hip prostheses [36,37] that occurred in 2010 and affected thousands of patients worldwide. Indeed, article 108 of the MDR requires Member States to take appropriate measures to encourage the establishment of registries or databanks [1] to monitor implantable medical devices. Spinal implants belong to the highest risk classes, not only according to MDR classification rules but also according to the Australian government provisions [38] and the FDA [29].
MD registries are recognized to be a useful tool for monitoring the safety and performance of medical devices. They can provide scientific evidence for clinicians to improve their clinical practice, for manufacturers to conduct effective post-marketing surveillance, and for notified bodies to allow them to meet regulatory requirements [39]. Registries could help to overcome the unintended consequences of the MDR’s implementation. Shortages of medical devices may occur as several manufacturers intend to remove their products from the market due to the high costs of conducting clinical investigations to collect sufficient evidence to assess or confirm MDR conformity, as required by the regulation [40,41]. Recently, it was highlighted that some catheters, which are widely used worldwide for fetoscopic endoluminal tracheal occlusion, were not CE-recertified following the MDR’s entry into force. As an alternative device is unlikely to be available before 2026, fetuses and their parents are currently prevented from accessing this recognized life-saving procedure [42]. Concerns have also been raised about the markets for orthopedic implants [43] and endoscopes [41]. Hopefully, the new EU measures that oblige manufacturers to notify the relevant authorities, health institutions, healthcare professionals, and economic operators of any interruption to the supply of critical medical devices will help to avoid serious consequences for patient health [44].
In UK, the Independent Medicines and Medical Devices Safety Review recommended that “A central patient-identifiable database should be created by collecting key details of the implantation of all devices at the time of the operation. This can then be linked to specifically created registers to research and audit the outcomes both in terms of the device safety and patient reported outcomes measures.” [45]. National registries are essential tools to protect patients’ health and safety, and support recalls in the event of an accident. To assess the effectiveness and safety of implantable devices, they need to identify and characterize implanted medical devices accurately. This requires access to structured and comprehensive MD libraries. Such libraries integrated into the registry infrastructure can support healthcare professionals in data collection by reducing registration burden and identification errors, especially when the device is selected by scanning its barcode. They can also support reporting comparative analyses on device performance related to the attributes described by the associated taxonomy.
Taxonomies are recognized as valuable tools in different contexts. For example, Henschke et al. created a taxonomy of reimbursement requirements for HTA assessment [46]. Vannelli and Visintin highlighted the use of taxonomies by manufacturers to identify competitive or complementary solutions and reported a taxonomy model that links devices to diagnostic and treatment processes [47]. According to the results of our literature review, no comprehensive taxonomy for spinal implants has been defined to date, and few peer-reviewed papers dealing with this topic were published before 2020. Therefore, this study aimed to bridge this gap by developing a taxonomy proposal, considering technical and functional attributes useful for the further comparative evaluation of spinal implants. Good examples of this approach in the field of joint replacement are the implementation of the International Prostheses Library (IPL) promoted by the International Society of Arthroplasty Registries (ISAR) [48], the National Joint Registry (NJR) Component Library [49], and the Endoprothesenregister Deutschland (EPRD) Product Library [7]. Both the NJR and EPRD libraries have been recently harmonized to make the two registries interoperable.
With no previous experience to draw on, the multidisciplinary team’s work proved essential in organizing the vast number of documents found on the web. It allowed clinical and technical perspectives to be considered in defining a draft version of the taxonomy. Discussion with industry was essential to detail the technical information needed to characterize each device and to verify the feasibility of populating the framework that was being defined. Indeed, to ensure the high quality of information on registered medical devices, manufacturers should be responsible for feeding the MD libraries. This considerable effort will be rewarded by the benefits derived from the registry analyses to meet the post-market surveillance requirements set by the MDR. The industry must be actively involved in taxonomy design to test the feasibility of fully populating the database under development. Therefore, the definition of the taxonomy should be a compromise between the desire to have a very detailed description of the device and the actual availability of this information. In this phase, a maximum inclusion approach was used to select the attributes, with all attributes described as “available” or “searchable” being included in the taxonomy. However, as only one industry was involved in this study, it may be useful to discuss this proposal at a larger table on an international level.
The Orthopaedic Data Evaluation Panel (ODEP) is an independent panel of experts that provides objective ratings of the strength of evidence available on the performance of medical implants and is recognized as a reliable source of information on joint replacement implants. They have recently published the Methodology for Spine Implants [50] and launched the International Spine Registry working group (ISR) to build consensus among spine registries all around the world and other key stakeholders (regulators, clinicians, notified bodies, and MD manufacturers) on the use of common standards for valuable data collection for the further assessment of spinal devices and outcome comparison on an international level. The ISR focuses on the following three main topics: (1) the definition of the Minimum Data Set (MDS) that would be recommended for collection in spine registries internationally, (2) which Patient-Reported Outcome Measures (PROMs) should be recommended for collection following the suggestions made by the international collaboration led by International Consortium for Health Outcomes Measurement (ICHOM) and, finally, (3) the definition of an implant classification architecture that specifies the attributes to be collected for implantable devices. The basic idea is to agree on a common language between registries so that data from different sources can be aggregated and analyzed with greater statistical power and worse-than-expected outcomes can be detected earlier. An ISR-led survey of spinal registries highlighted a lack of uniformity in the implant data collected [51,52] and the need to move towards a single taxonomy shared by all registries and agreed with industry. In the future, this taxonomy could be used to implement a single implant database fed directly by manufacturers, following the example of IPL and NJR-EPRD for joint arthroplasty. This solution could lead to an optimization of the costs and resources required to maintain such a detailed and comprehensive database. Moreover, it will enable registries to compare their data internationally, increasing the number of observed events and improving the ability to earlier detect potential problems. This will prevent further patients from being harmed by these implants. In Italy, the ODEP rating has been used as a reference in some regional procurement tenders for joint prostheses, where it is used to assess the quality of the supplied devices [53].
Therefore, if registries adopt more precise product and outcome descriptions, they will be able to help manufacturers obtain the ODEP rating, enabling them to achieve better scores when participating in procurement tenders. This process has economic implications for manufacturers, who have a better chance of winning the tender, and for the public health system, which can choose higher-quality devices. This approach is increasingly being used for joint replacements and is likely to become standard in the near future for spinal surgery devices too.
Particular attention has been paid to designing this taxonomy as a modular structure that can easily integrate future updates to the selected categories, subcategories, and attributes, if required. An IT structure is crucial for a registry to fulfil its purpose and to process massive data volumes. To this end, adopting common standards based on recognized software engineering principles is essential. In order to allow the immediate implementation of this proposal, the taxonomy translation into a computer language is presented, adopting the XML language. Using the XML language, based on XSD schemas, is a consolidated approach in data exchange frameworks. The most valuable characteristics of XML are (i) the open and non-proprietary standard, (ii) the ease of reading data by automated systems, and (iii) the power of data transfer. The use of this language in MD registries is innovative. Therefore, its translation into XML format has been presented to facilitate the IT implementation of the defined taxonomy in the context of future international collaborations to support interoperability among different health information systems (e.g., Electronic Health Records) and different spine registries. Following this approach, manufacturers will be required to structure their data using the XML format, per the XSD schemas, to feed the library.
Finally, the increasing use of electronic systems for health data collection highlights the need for standardized and unambiguous systems for naming and coding medical devices [18]. The adoption of a common description of attributes and recognized standards for data collection is a necessary condition for further international cooperation.

4.1. Limitations

There are some limitations to this study. Although a thorough search was carried out to identify all spinal devices, some might not have been included.
A first limitation may be the use of EMDN as a starting point for subsequent research. Other classifications/nomenclatures may have revealed the existence of other types of devices not covered by EMDN. Possible gaps in EMDN could have resulted in some spinal devices not being appropriately classified in the Italian national database and therefore excluded from our query (misclassification). Another limitation could be that the Italian national database only includes devices marketed in Italy. Therefore, devices used in other countries may not have been included. In addition, some devices may have been excluded from the final list due to the lack of expertise of the technical panel responsible for the selection (selection bias). Another important limitation is the possible exclusion in the presented taxonomy of some MD attributes related to confidential information (i.e., protected by patents) and, therefore, not shareable by manufacturers. Finally, although all the manufacturers active on the Italian market were invited to participate, only one responded, thus limiting the inclusion of attributes otherwise considered by the other manufacturers.

4.2. Future Developments

The taxonomy presented in this paper is a first proposal that will be further improved through a broad international discussion to increase its usefulness and acceptance by the global medical community, to ensure its global relevance, and to reduce regional biases. This could be performed within the ISR, which considers this work as a useful reference to define a common infrastructure for the registries to ensure the traceability and characterization of the implanted devices. In particular, in this context we expect that the proposed taxonomy could be analyzed by a larger number of manufacturers marketing spinal devices worldwide, an approach that would ensure comprehensive coverage of device attributes. In addition, broader manufacturer engagement would mitigate potential biases from limited input and ensure a more robust and universally applicable taxonomy. Finally, it will also be possible to validate the selected attributes by also applying inter-rater reliability measures.
In Italy, the Competent Authority has invested in recent years in the establishment of MD registries and in the publication of national provisions requiring manufacturers to provide the registries with the necessary information to ensure MD traceability. We believe that, following these requirements and the increasing application of the MDR, industry would be more interested in further discussions with the registries.
Once the Italian Spine Registry is established and starts collecting data, a permanent multidisciplinary technical panel will monitor the functioning of the registry. Thus, it will periodically review and update the taxonomy according to the standards defined at the international level and through continuous discussion with industry to incorporate the latest innovations, support ongoing regulatory compliance and improve clinical practice.
Finally, the RIDIS data collection system was designed to use Hospital Discharge Records (HDRs), supplemented by an additional Minimum Data Set (MDS). In addition to information relating to the patient and the procedure, the MDS also includes data essential for MD traceability and technical MD characterization, according to the taxonomy proposed in this study. Since HDRs also collect DRG codes, once the RIDIS flow is implemented it will be possible to correlate different types of implanted device with the DRG associated with hospital admission. This will provide decision-makers with additional insight to help them assess the appropriateness of the DRG and related reimbursement, as well as its association with outcomes.

5. Conclusions

This study has proposed a structured and comprehensive classification of spinal devices. To our knowledge, this is the first attempt to implement a taxonomy for such devices. The Italian Spine Registry will adopt this taxonomy to implement its own MD library, which is crucial for their traceability and assessment.
Reliable and internationally standardized data from national spine registries will be essential in the coming years. The goal of the International Spine Registry is to create a common global MD database, and the results of this study will hopefully serve as a reference.
Registries are recognized as a valuable tool for the early identification of devices at high risk of failure [54]. Using a common language between registries would allow comparability and dramatically increase the number of events observed, maximizing the ability to detect adverse events in advance. It would be a new process through which surgeons could improve their clinical practice, and policymakers could implement early prevention strategies with clear benefits for the quality of care provided to patients.
We hope that, thanks to the collaboration with ISR, the taxonomy we have described will be consolidated and aligned with international policies and standards to facilitate its global adoption. Ensuring regulatory compliance, supporting international interoperability, and enhancing the credibility of the taxonomy would be key benefits of this alignment.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/bioengineering12080853/s1, Document S1: Literature search strategy.

Author Contributions

Conceptualization and coordination of the project: M.T.; literature analysis: V.M., L.S., and M.T.; clinical expertise: A.P. and P.B.; technical documentation analysis and taxonomy drafting: S.P., M.F., A.P., P.B., and M.T.; IT design: E.C. and V.M.; writing—original draft preparation: V.M., S.P., L.S., and M.T.; writing—review and editing: V.M., L.S., and M.T. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the following two projects: (1) “Italian Implantable Prostheses Registry (RIPI): realization of a platform integrating data flows for orthopaedic prostheses, spinal devices, pacemakers and defibrillators, heart valves”, coordinated by the Italian National Institute of Health and supported by the General Directorate of Medical Devices and Pharmaceutical Service of the Italian Ministry of Health; (2) “Project ECS 00000024 Rome Technopole—CUP I83C22001000005, NRP Mission 4 Component 2 Investment 1.5, Funded by the European Union—NextGenerationEU”, Partner Italian National Institute of Health, Spoke 2 (Technology transfer, new entrepreneurship, business incubation and acceleration) and Flagship project FP4 (Development, innovation and certification of medical and non-medical devices for health). The APC was funded by the “Project ECS 00000024 Rome Technopole—CUP I83C22001000005, NRP Mission 4 Component 2 Investment 1.5, Funded by the European Union—NextGenerationEU”, Partner Italian National Institute of Health, Spoke 2 (Technology transfer, new entrepreneurship, business incubation and acceleration).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding authors.

Acknowledgments

We acknowledge Francesca Capone for her role as Spoke 2 coordinator for the Italian National Institute of Health within the Rome Technopole project; Tiziana Falcone for her useful suggestions for the manuscript revision; Mascia Masciocchi, Attanasio Cornacchia, Alessia Biondi, Enrico Ciminello, Paola Ciccarelli, Paola Laricchiuta, and Stefania Ceccarelli for their technical and administrative support to the RIPI and RIDIS projects; and Francesca Orsatti (NuVasive) for her contribution as industry representative in the selection of the characteristics included in the taxonomy. Finally, we acknowledge Keith Tucker, Chair of ODEP, for his role in launching the International Spine Registry working group and for his continued support of the importance of this study.

Conflicts of Interest

The authors declare no competing interests. The APC funder had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Abbreviations

The following abbreviations are used in this manuscript:
CNDClassificazione Nazionale Dispositivi medici (medical device national classification)
DPCMDecreto del Presidente del Consiglio dei Ministri (Prime Ministry’s Decree)
DRGDiagnosis Related Group
EANEuropean Article Number
EMDNEuropean Medical Device Nomenclature
EPRDEndoprothesenregister Deutschland
FDAFood and Drug Administration
GMDNGlobal Medical Device Nomenclature
GTINGlobal Trade Item Number
HDRHospital Discharge Record
HTAHealth Technology Assessment
ICHOMInternational Consortium for Health Outcomes Measurement
IPLInternational Prostheses Library
ISRInternational Spine Registry working group
ISARInternational Society of Arthroplasty Registries
ISOInternational Organization for Standardization
ISSIstituto Superiore di Sanità (Italian National Institute of Health)
ITInformation Technology
MDMedical Device
MDRMedical Device Regulation (EU) 2017/745
MDSMinimum Data Set
MHRAMedical and Healthcare Products Regulatory Agency
MoHMinistry of Health
MoMMetal-on-Metal
NJRNational Joint Registry
ODEPOrthopaedic Data Evaluation Panel
PIPPoly Implant Prothèse
PROMsPatient-Reported Outcome Measures
RIDISRegistro Italiano Dispositivi Impiantabili per chirurgia Spinale (Italian Spine Registry)
RIPIRegistro nazionale delle protesi impiantabili (Italian Implantable Prostheses Registry)
SNOMED CTSystematized Nomenclature of Medicine Clinical Terms
UDIUnique Device Identification
WHOWorld Health Organisation
XMLeXtensible Markup Language
XSDeXtensible markup language Schema Definition

References

  1. Regulation (EU) 2017/745 of the European Parliament and of the council of 5 April 2017 on medical devices, amending Directive 2001/83/EC, Regulation (EC) No 178/2002 and Regulation (EC) No 1223/2009 and repealing Council Directives 90/385/EEC and 93/42/EEC. Off. J. Eur. Union 2017, L117, 5. Available online: https://eur-lex.europa.eu/eli/reg/2017/745/oj/eng (accessed on 28 July 2025).
  2. Melvin, T.; Torre, M. New medical device regulations: The regulator’s view. EFORT Open Rev. 2019, 4, 351–356. [Google Scholar] [CrossRef]
  3. Graves, S.E. The value of arthroplasty registry data. Acta Orthop. 2010, 81, 8–9. [Google Scholar] [CrossRef] [PubMed]
  4. Malchau, H.; Graves, S.E.; Porter, M.; Harris, W.H.; Troelsen, A. The next critical role of orthopedic registries. Acta Orthop. 2015, 86, 3–4. [Google Scholar] [CrossRef] [PubMed]
  5. Nickerson, R.C.; Varshney, U.; Muntermann, J. A method for taxonomy development and its application in information systems. Eur. J. Inf. Syst. 2013, 22, 336–359. [Google Scholar] [CrossRef]
  6. Denissen, G.A.W.; van Steenbergen, L.N.; Lollinga, W.T.; Verdonschot, N.J.J.; Schreurs, B.W.; Nelissen, R.G.H.H. Generic implant classification enables comparison across implant designs: The Dutch Arthroplasty Register implant library. EFORT Open Rev. 2019, 4, 344–350. [Google Scholar] [CrossRef]
  7. Endoprothesenregister Deutschland (EPRD). The German Arthroplasty Registry (EPRD). 2023. Available online: https://www.eprd.de/fileadmin/user_upload/Dateien/Publikationen/Artikel_und_Aufsaetze/EPRD_Profile_v3.0_2023-12-06_E.pdf (accessed on 28 July 2025).
  8. Jansson, V.; Grimberg, A.; Melsheimer, O.; Perka, C.; Steinbrück, A. Orthopaedic registries: The German experience. EFORT Open Rev. 2019, 4, 401–408. [Google Scholar] [CrossRef]
  9. Etkin, C.D.; Springer, B.D. The American Joint Replacement Registry the first 5 years. Arthroplast. Today 2017, 3, 67–69. [Google Scholar] [CrossRef]
  10. Torre, M.; Piazzolla, A.; Ciminello, E.; Falcone, T.; Carrani, E.; Pascucci, S.; Franzò, M.; Barbagallo, G.; Vitiello, V.; Zanoli, G.; et al. Time trends in spine surgery in Italy: A nationwide, population-based study of 1,560,969 records of administrative health data from 2001 to 2019 with a specific ICD9-CM mapping for procedures and diagnoses. Acta Orthop. 2025, 96, 256–264. [Google Scholar] [CrossRef] [PubMed]
  11. Medical Device Coordination Group. MDCG 2021-24—Guidance on Classification of Medical Devices 2021. Available online: https://health.ec.europa.eu/system/files/2021-10/mdcg_2021-24_en_0.pdf (accessed on 28 July 2025).
  12. Pascucci, S.; Langella, F.; Franzò, M.; Tesse, M.G.; Ciminello, E.; Biondi, A.; Carrani, E.; Sampaolo, L.; Zanoli, G.; Berjano, P.; et al. National spine surgery registries’ characteristics and aims: Globally accepted standards have yet to be met. Results of a scoping review and a complementary survey. J. Orthop. Traumatol. 2023, 24, 49. [Google Scholar] [CrossRef]
  13. 1st International Meeting of Spinal Registries. Royal National Orthopaedic Hospital Stanmore, Middlesex, UK, 23rd March 2023. Available online: https://ripi.iss.it/ripi/wp-content/uploads/2023/03/Spinal-Meeting-Digital-Programme.pdf (accessed on 28 July 2025).
  14. Iadanza, E.; Cerofolini, S.; Lombardo, C.; Satta, F.; Gherardelli, M. Medical devices nomenclature systems: A scoping review. Health Technol. 2021, 11, 681–692. [Google Scholar] [CrossRef]
  15. Franzò, M.; D’Agostino, F.; Chierchia, C.; Cucchiara, K.; Carrani, E.; Sampaolo, L.; Stella, E.; Torre, M.; Asaro, M. Does a medical device nomenclature suitable for all purposes exist? Twenty years of Italian experience with the CND and its adoption in EUDAMED at European level. In Proceedings of the VII National Congress of Bioengineering, Trieste, Italy, 10–12 June 2020; Accardo, A., Brun, F., Marceglia, S., Pedrizzetti, G., Eds.; Pàtron Editore: Granarolo dell’Emilia, Italy, 2020. Abstract Number 151. pp. 1–4. [Google Scholar]
  16. Anand, K.; Saini, S.; Singh, B.; Veermaram, C. Global medical device nomenclature: The concept for reducing device-related medical errors. J. Young Pharm. 2010, 2, 403–409. [Google Scholar] [CrossRef] [PubMed]
  17. Kundkar, S.S.; Chavan, J.D.; Shivde, N.S.; Marathe, D. Comparative Study of GMDN (Global Medical Device Nomenclature) & EMDN (European Medical Device Nomenclature). JCHR 2024, 14, 507–513. [Google Scholar]
  18. White, J.; Carolan-Rees, G. Current state of medical device nomenclature and taxonomy systems in the UK: Spotlight on GMDN and SNOMED CT. JRSM Short Rep. 2013, 4, 1–7. [Google Scholar] [CrossRef]
  19. World Health Organization. WHO Comparative Analysis of Nomenclature Systems: CND, GMDN, UMDNS, UNSPSC and SNOMED CT. v. 1 April 2021. Available online: https://cdn.who.int/media/docs/default-source/medical-devices/nomenclature/analysis-nomenclatures-used-by-multiple-countries.-who-principles.-v010421_avb_drr.pdf?sfvrsn=a5b7e0e8_5 (accessed on 28 July 2025).
  20. Ministero della Salute. Decreto 20 Febbraio 2007. Nuove Modalità per gli Adempimenti Previsti Dall’articolo 13 del Decreto Legislativo 24 Febbraio 1997, n. 46 e Successive Modificazioni e per la Registrazione dei Dispositivi Impiantabili Attivi Nonché per L’iscrizione nel Repertorio dei Dispositivi Medici. GU Serie Generale n. 63 del 16 Marzo 2007—Suppl. Ordinario n. 72. Available online: https://www.gazzettaufficiale.it/eli/id/2007/03/16/07A92230/sg (accessed on 28 July 2025).
  21. Decreto del Presidente del Consiglio dei Ministri (DPCM), 3 Marzo 2017. Identificazione dei Sistemi di Sorveglianza e dei Registri di Mortalità, di Tumori e di Altre Patologie. GU Serie Generale n. 109 del 12 Maggio 2017. Available online: https://www.gazzettaufficiale.it/eli/id/2017/05/12/17A03142/sg (accessed on 28 July 2025).
  22. Torre, M.; Carrani, E.; Franzò, M.; Ciminello, E.; Urakcheeva, I.; Bacocco, D.L.; Valentini, R.; Pascucci, S.; Madi, S.; Ferrara, C.; et al. The Italian Implantable Prostheses Registry: A new framework for patient safety. Boll. Epidemiol. Naz. 2021, 2, 16–23. [Google Scholar] [CrossRef]
  23. Italian National Institute of Health. Italian Implantable Prostheses Registry (RIPI). Available online: https://ripi.iss.it/ripi/en/ (accessed on 28 July 2025).
  24. Robertsson, O.; Mendenhall, S.; Paxton, E.W.; Inacio, M.C.; Graves, S. Challenges in prosthesis classification. J. Bone Jt. Surg.-Am. Vol. 2011, 93 (Suppl. S3), 72–75. [Google Scholar] [CrossRef] [PubMed]
  25. Skaggs, D.L.; Akbarnia, B.A.; Flynn, J.M.; Myung, K.S.; Sponseller, P.D.; Vitale, M.G.; Chest Wall and Spine Deformity Study Group; Growing Spine Study Group; Pediatric Orthopaedic Society of North America; Scoliosis Research Society Growing Spine Study Committee. A classification of growth friendly spine implants. J. Pediatr. Orthop. 2014, 34, 260–274. [Google Scholar] [CrossRef] [PubMed]
  26. Nekhlopochin, S.N.; Nekhlopochin, A.S.; Shvets, A.I. A classification of implants for reconstruction of the anterior and middle supporting columns of the spine. Zhurnal Vopr. Neirokhirurgii Im. NN Burdenko 2018, 82, 97–102. [Google Scholar] [CrossRef]
  27. Khoueir, P.; Kim, K.A.; Wang, M.Y. Classification of posterior dynamic stabilization devices. Neurosurg. Focus 2007, 15, E3. [Google Scholar] [CrossRef]
  28. Foster, M.R. A functional classification of spinal instrumentation. Spine J. 2005, 5, 682–694. [Google Scholar] [CrossRef]
  29. Food and Drug Administration, HHS. Orthopedic devices; reclassification of the intervertebral body fusion device. Final rule. Fed. Regist. 2007, 72, 32170–32172. [Google Scholar]
  30. World Health Organization. Standardization of Medical Devices Nomenclature: International Classification, Coding and Nomenclature of Medical Devices. Executive Board 145th Session 30 April 2019. Available online: https://apps.who.int/gb/ebwha/pdf_files/EB145/B145_3-en.pdf (accessed on 28 July 2025).
  31. World Health Organization. Standardization of Medical Devices Nomenclature: International Classification, Coding and Nomenclature of Medical Devices. Executive Board 156th Session 6 January 2025. Available online: https://apps.who.int/gb/ebwha/pdf_files/EB156/B156_13-en.pdf (accessed on 28 July 2025).
  32. Romanini, E.; Schettini, I.; Torre, M.; Venosa, M.; Tarantino, A.; Calvisi, V.; Zanoli, G. The rise of registry-based research: A bibliometric analysis. Acta Orthop. 2021, 92, 628–632. [Google Scholar] [CrossRef]
  33. Mauch, H.; Kaur, J.; Irwin, C.; Wyss, J. Design, implementation, and management of an international medical device registry. Trials 2021, 22, 845. [Google Scholar] [CrossRef]
  34. Paxton, E.W.; Inacio, M.C.S.; Kiley, M.L. The Kaiser Permanente Implant Registries: Effect on Patient Safety, Quality Improvement, Cost Effectiveness, and Research Opportunities. Perm. J. 2012, 16, 36–44. [Google Scholar] [CrossRef]
  35. Martindale, V.; Menache, A. The PIP scandal: An analysis of the process of quality control that failed to safeguard women from the health risks. J. R. Soc. Med. 2013, 106, 173–177. [Google Scholar] [CrossRef]
  36. European Commission. Medical Devices: European Commission Calls for Immediate Actions—Tighten Controls, Increase Surveillance, Restore Confidence. Press Release 9 February 2012. Available online: https://ec.europa.eu/commission/presscorner/detail/en/IP_12_119 (accessed on 28 July 2025).
  37. MedTech Europe. The European Medical Technology Industry in Figures. 2021. Available online: https://www.medtecheurope.org/wp-content/uploads/2021/06/medtech-europe-facts-and-figures-2021.pdf (accessed on 28 July 2025).
  38. Australian Government. Reclassification of Spinal Implantable Medical Devices—Guidance on the Transitional Arrangements and Obligations of Sponsors and Manufacturers, Last Updated 10 January 2024. Available online: https://www.tga.gov.au/resources/guidance/reclassifying-spinal-implantable-medical-devices (accessed on 28 July 2025).
  39. Hoogervorst, L.A.; Geurkink, T.H.; Lübbeke, A.; Buccheri, S.; Schoones, J.W.; Torre, M.; Laricchiuta, P.; Piscoi, P.; Pedersen, A.B.; Gale, C.P.; et al. Quality and utility of European cardiovascular and orthopaedic registries for the regulatory evaluation of medical device safety and performance across the implant lifecycle: A systematic review. Int. J. Health Policy Manag. 2023, 12, 7648. [Google Scholar] [CrossRef] [PubMed]
  40. Kearney, B.; McDermott, O. The Challenges for Manufacturers of the Increased Clinical Evaluation in the European Medical Device Regulations: A Quantitative Study. Ther. Innov. Regul Sci. 2023, 57, 783–796. [Google Scholar] [CrossRef]
  41. Carl, A.K.; Hochmann, D. Impact of the new European medical device regulation: A two-year comparison. Biomed. Tech. 2023, 69, 317–326. [Google Scholar] [CrossRef]
  42. Russo, F.; Benachi, A.; Meijer, F.; Cauvet, F.; Berrué-Gaillard, H.; Power, B.; Deprest, J. The Fall Out of the 2017 European Medical Device Regulation for Tracheal Occlusion. Prenat. Diagn. 2025, 45, 539–543. [Google Scholar] [CrossRef] [PubMed]
  43. Staats, K.; Kayani, B.; Haddad, F.S. The impact of the European Union’s Medical Device Regulation on orthopaedic implants, technology, and future innovation. Bone Jt. J. 2024, 106, 303–306. [Google Scholar] [CrossRef] [PubMed]
  44. Council of the EU. Press Release—Medical Devices: Council Endorses New Measures to Help Prevent Shortages. Press Release 21 February 2024. Available online: https://www.consilium.europa.eu/en/press/press-releases/2024/02/21/medical-devices-council-endorses-new-measures-to-help-prevent-shortages/ (accessed on 28 July 2025).
  45. Cumberlege, J. First Do No Harm: The Report of the Independent Medicines and Medical Devices Safety Review. Independent Medicines and Medical Devices Safety Review. 2020. Available online: https://www.immdsreview.org.uk/downloads/IMMDSReview_Web.pdf (accessed on 28 July 2025).
  46. Henschke, C.; Panteli, D.; Perleth, M.; Busse, R. Taxonomy of medical devices in the logic of health technology assessment. Int. J. Technol. Assess. Health Care 2015, 31, 324–330. [Google Scholar] [CrossRef] [PubMed]
  47. Vannelli, S.; Visintin, F. A Process-Based Taxonomy of Medical Devices for Clinical Pathways Design and Innovation. In Towards a Smart, Resilient and Sustainable Industry. ISIEA 2023. Lecture Notes in Networks and Systems; Borgianni, Y., Matt, D.T., Molinaro, M., Orzes, G., Eds.; Springer: Cham, Switzerland, 2023; Volume 745. [Google Scholar] [CrossRef]
  48. Rolfson, O. Editorial Comment: 7th International Congress of Arthroplasty Registries. Clin. Orthop. Rel. Res. 2019, 477, 1299–1300. [Google Scholar] [CrossRef] [PubMed]
  49. Boulton, C.; Harrison, C.; Wilton, T.; Armstrong, R.; Young, E.; Pegg, D.; Wilkinson, J.M. Implementing large-scale data quality validation in a national arthroplasty registry to improve compliance: The National Joint Registry data quality audit programme. Bone Jt. Open 2022, 3, 716–725. [Google Scholar] [CrossRef]
  50. Orthopaedic Data Evaluation Panel (ODEP). Methodology for Spine Cervical Disc. Criteria—Spine. 2022. Available online: https://www.odep.org.uk/methodology/methodology-for-spine/ (accessed on 28 July 2025).
  51. Ahuja, S.; Aghayev, E.; Halme, J.; Torre, M.; Fritzell, P.; Swaby, O.; Tucker, K. Collection of proms and implant related data: A survey of spine registries and update from the international spine registry working group. Brain Spine 2024, 4, 103040. [Google Scholar] [CrossRef]
  52. Ahuja, S.; Aghayev, E.; Halme, J.; Torre, M.; Fritzell, P.; Swaby, O.; Tucker, K. Working to a Consensus to Harmonise a Core Dataset to Be Collected by National Spine Registries—An Update from the International Spine Registry Working Group. Column Cord 2025, 5, 133. [Google Scholar]
  53. Regione Lazio. Gara Comunitaria Centralizzata a Procedura Aperta, Sopra Soglia Comunitaria, Finalizzata Alla Stipula di Accordi Quadro per la Fornitura Triennale di Protesi Ortopediche di Anca, Ginocchio e Spalla per le Aziende Sanitarie ed Ospedaliere della Regione Lazio Indetta con Determinazione n. G17450 del 27/12/2023 Numero Gara Anac 9506340. Rettifica atti di Gara e Proroga Termini Procedurali. 2024. Available online: https://www.regione.lazio.it/sites/default/files/amministrazione-trasparente/atti-procedure-affidamento/G02686-10032024.pdf (accessed on 28 July 2025).
  54. Fraser, A.G. Postmarket surveillance of high-risk medical devices needs transparent, comprehensive and independent registries. BMJ Surg. Interv. Health Technol. 2020, 2, e000065. [Google Scholar] [CrossRef] [PubMed]
Bioengineering 12 00853 g001
Figure 1. Literature review: studies inclusion flow chart.
Figure 1. Literature review: studies inclusion flow chart.
Bioengineering 12 00853 g001
Bioengineering 12 00853 g003
Figure 3. XSD schema of taxonomy applied to the Fixation Systems category.
Figure 3. XSD schema of taxonomy applied to the Fixation Systems category.
Bioengineering 12 00853 g003
Table 1. Selected EMDN category and type codes and descriptions for spinal implants and categories identified for registry taxonomy.
Table 1. Selected EMDN category and type codes and descriptions for spinal implants and categories identified for registry taxonomy.
EMDN Category CodeEMDN Category DescriptionEMDN Type CodeEMDN Type DescriptionCategory of Registry Taxonomy
P0907Spine Stabilisation Prostheses and SystemsP09070301Cervical fixation systems(1) Fixation Systems
P09070302Thoracolumbosacral fixation systems
P09070304Spine fixation system connectors
P09070399Implantable spinal stabilisation or fixation systems—other
P090799Spinal prostheses and stabilisation systems others
P09070101Cages(2) Cages
P09070199Spinal Fusion system—other
P09070201Disc Prostheses(3) Discal Prostheses
P090780Spinal stabilisation prostheses and systems—accessories
K0103Spinal Endotherapy DevicesK010301Spinal percutaneous plastic devices with balloon(4) Augmentation systems and Fillers
K010399Spinal endotherapy devices—other
Table 2. Fixation Systems (1): technical and functional attributes by sub-category.
Table 2. Fixation Systems (1): technical and functional attributes by sub-category.
AttributeSub-Category (*)
ABCDEFGH
Spinal level✓✓-✓✓✓--
Vertebra/bone fixation area✓--✓-✓-✓
Material✓✓✓✓✓✓✓✓
Coating material-----✓--
Mechanical characteristics-✓---✓--
Type✓✓-✓✓-✓✓
Length (mm)✓✓-✓---✓
Thickness (mm)✓------✓
Width (mm)-------✓
Diameter(s) (mm)-✓-✓--✓✓
Shape✓✓--✓--✓
N. of spinal levels✓-------
Hole number✓-------
N. of wires/bands-------✓
Screw head type---✓----
Screw stem type---✓----
Screw mobility angle (°)---✓----
Hook offset----✓---
Hook blade----✓---
Hook groove----✓---
Size----✓✓--
Tightening system✓--✓-✓--
Compatibility with devices of other companies-------✓
Note: ✓ = attribute available for the sub-category. (*) Legend: (A) plates, (B) rods, (C) cords, (D) screws, (E) hooks, (F) interlaminar and interspinous devices, (G) connectors, and (H) sublaminar wires or bands (including related connectors).
Table 3. Cages (2): technical and functional attributes by sub-category.
Table 3. Cages (2): technical and functional attributes by sub-category.
AttributeSub-Category
Interbody CagesCorpectomy Cages
AssembledModular
BodiesPlates
Spinal level✓✓✓✓
Material✓✓✓✓
Osteointegration material✓✓✓✓
Surface coating✓✓✓✓
Dimensions (L × W, Φ)✓✓✓✓
Height anterior/posterior (min/max)✓✓✓✓
Expandible (height/lordosis)✓✓✓-
Shape✓✓✓✓
Sagittal profile✓✓-✓
Surface characteristics✓✓-✓
Endplates curvatures✓✓-✓
Lordosis/kyphosis angle (°)✓✓-✓
Fixation system✓✓✓✓
Note: ✓ = attribute available for the sub-category.
Table 4. Discal prostheses (3): technical and functional attributes by sub-category.
Table 4. Discal prostheses (3): technical and functional attributes by sub-category.
AttributeSub-Category (*)
IIIIIIIV
Spinal level✓✓✓✓
Material✓✓✓✓
Coating material✓✓-✓
Type-✓-✓
Width (mm)✓✓✓✓
Length (mm)-✓✓✓
Height (mm)✓✓✓✓
Lordosis angle (°)✓✓-✓
Flexion/Extension (mm)✓✓--
Lateral bending (mm)✓✓--
Axial rotation (°)✓✓--
To be cemented✓✓--
Possibility to use screws✓✓--
Note: ✓ = attribute available for the sub-category. (*) Legend: (I) total prostheses, (II) plates for modular discal prostheses, (III) insert for modular discal prostheses, and (IV) nucleus.
Table 5. Augmentation systems and fillers (4): technical and functional attributes by sub-category.
Table 5. Augmentation systems and fillers (4): technical and functional attributes by sub-category.
AttributeSub-Category
Augmentation SystemsFillers:
Cement		Fillers:
Bone Substitute
Material✓--
Type✓--
Length release (mm)✓--
Length close stent (mm)✓--
Maximum expansion length (mm)✓--
Maximum volume (mL)✓--
Maximum pressure (bar/atm)✓--
Expansion mechanism✓--
Physical state-✓✓
% Polymethylmethacrylate-✓-
% Zirconium-✓-
% other components-✓✓
Antibiotics-✓✓
Internal structure (scaffold, trabecular, other)--✓
Osteoinductive/osteoconductive-✓✓
Viscosity-✓-
Polymerization time (s)-✓-
Polymerization mode-✓-
Note: ✓ = attribute available for the sub-category.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Mari, V.; Pascucci, S.; Piazzolla, A.; Berjano, P.; Franzò, M.; Sampaolo, L.; Carrani, E.; Torre, M. Developing a Classification of Spinal Medical Devices: Has the Time Come? Review of the Literature and a Proposal for Spine Registries. Bioengineering 2025, 12, 853. https://doi.org/10.3390/bioengineering12080853

AMA Style

Mari V, Pascucci S, Piazzolla A, Berjano P, Franzò M, Sampaolo L, Carrani E, Torre M. Developing a Classification of Spinal Medical Devices: Has the Time Come? Review of the Literature and a Proposal for Spine Registries. Bioengineering. 2025; 12(8):853. https://doi.org/10.3390/bioengineering12080853

Chicago/Turabian Style

Mari, Veronica, Simona Pascucci, Andrea Piazzolla, Pedro Berjano, Michela Franzò, Letizia Sampaolo, Eugenio Carrani, and Marina Torre. 2025. "Developing a Classification of Spinal Medical Devices: Has the Time Come? Review of the Literature and a Proposal for Spine Registries" Bioengineering 12, no. 8: 853. https://doi.org/10.3390/bioengineering12080853

APA Style

Mari, V., Pascucci, S., Piazzolla, A., Berjano, P., Franzò, M., Sampaolo, L., Carrani, E., & Torre, M. (2025). Developing a Classification of Spinal Medical Devices: Has the Time Come? Review of the Literature and a Proposal for Spine Registries. Bioengineering, 12(8), 853. https://doi.org/10.3390/bioengineering12080853

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
