Radiation Exposure to the Brains of Interventional Radiology Staff: A Phantom Study

by
Saya Ohno
1,
Ryota Shindo
1,
Satoe Konta
1,
Keisuke Yamamoto
1,
Yohei Inaba
1,2 and
Koichi Chida
1,2,*
1
Course of Radiological Technology, Health Sciences, Tohoku University Graduate School of Medicine, 2-1 Seiryo, Aoba-ku, Sendai 980-8575, Japan
2
Department of Radiological Disasters and Medical Science, International Research Institute of Disaster Science (IRIDeS), Tohoku University, 468-1 Aramaki Aza-Aoba, Aoba-ku, Sendai 980-0845, Japan
*
Author to whom correspondence should be addressed.
Bioengineering 2024, 11(11), 1083; https://doi.org/10.3390/bioengineering11111083
Submission received: 30 September 2024 / Revised: 25 October 2024 / Accepted: 27 October 2024 / Published: 29 October 2024
Browse Figures
Versions Notes

Abstract

:
Numerous papers report the occurrence of head and neck tumors in interventional radiology (IR) physicians. Recently, appropriate dosimetry and protection have become much more important. To accomplish these, first, we should accurately understand how the brain is exposed. We assessed the dose distribution of the head and clarified the relationship between head exposure and brain dose. We used eight radiophotoluminescence dosimeters (RPLDs), two at the surface of the eyes and six inside the phantom head. We conducted measurements with three kinds of irradiation fields: one irradiated the whole head, the second irradiated the brain region, and the third irradiated the soft tissue of the face. The cranial bone reduced the brain dose to less than half the skin dose: about 48% at the front and less than 9% at the back of the brain. Due to the brain exposure, the soft tissues were slightly exposed to the scatter radiation from the cranial bone. We revealed the dose distribution of the head and the influence of the scatter radiation from the cranial bone and the soft tissues of the face. There are two kinds of scatter radiation: from the cranial bone to the soft tissue of the face, and from the soft tissue to the brain. Although the influence of these sources of scatter radiation is not significant, the relationship between brain exposure and the occurrence of head and neck tumors is still unclear. Therefore, some IR physicians should keep this in mind if they receive high levels of exposure in their daily practice.

1. Introduction

The practice of radiology has been part of medicine for a long time [1,2,3,4]. While many patients have benefited from the many advances in the field, the medical exposure of patients and the occupational exposure of medical staff to radiation has increased [5,6,7,8,9,10]. In particular, the number of interventional radiology (IR) procedures has increased. During IR procedures, not only patients but also IR physicians sometimes receive high levels of radiation exposure [11,12,13,14,15,16]. Thus, some of them have suffered from various radiation injuries, such as skin erythema and cataracts [17,18,19,20,21,22].
Numerous epidemiological studies have assessed the association between the occupational radiation exposure of medical staff and brain tumor risk. However, there is little convincing evidence of increased head tumor risk caused by occupational radiation exposure [23,24,25,26,27,28]. Rajaraman found an approximately two-fold increased risk of brain cancer for radiological technologists who perform fluoroscopy-guided interventional procedures; however, Rajaraman mentioned the possibility of other confounding factors [29]. Some researchers have reported head and neck tumors occurring in IR physicians [30,31]. Roguin et al. [30] reported, in their paper about the head and neck tumors of IR physicians, cardiologists, and radiologists, that 55% of tumors were glioblastomas, and 85% of those occurred in the left brain.
As described above, it is still unclear and controversial whether there is a relationship between the occurrence of head tumors and radiation exposure at low levels. Considering that the International Commission on Radiological Protection (ICRP) regards the threshold dose as 0.5 Gy, above which there is likely an increased risk of cardiovascular and cerebrovascular disease [32], it is quite important to protect physicians’ heads adequately. Furthermore, it is thought that backscatter radiation generated from the head contributes to the eye lens dose [33]. Hence, head protection would help with eye lens protection.
IR staff must protect not only their trunk but also their head and neck, so diverse radioprotective equipment, such as a ceiling-suspended lead screen, a lead apron, and protective eyewear, has been employed. Numerous studies, both phantom studies and clinical research, have evaluated the efficacy of this radioprotective equipment [34,35,36,37,38,39,40,41,42,43]. Additionally, a novel radiation shield for the face and neck was developed recently [44]. This novel radiation shield, TRIPLE GUARD (Maeda & Co., Ltd., Tokyo, Japan), has both a neck guard and a face shield. Since its face shield is specifically designed to protect the left side of the face, IR physicians can reduce the dose to their face efficiently. Sometimes, IR physicians also use the lead-free cap to protect their heads. The effectiveness of the radioprotective cap is controversial as several studies argue that the radioprotective cap is effective for head protection [45,46], but other studies found that the radioprotective cap is less effective [47,48,49].
To best assess and develop appropriate IR physician head protection, we should accurately understand how the brain is exposed. Therefore, in this study, we evaluated the radioprotective effect of the brain and scatter radiation generated from the head using an anthropomorphic phantom.

2. Materials and Methods

This study used radiophotoluminescence dosimeters (RPLDs) made of silver-activated phosphate glass (GD-302M, Chiyoda Technol Corporation, Tokyo, Japan). We used the measurement/readout system, Dose Ace FDG-1000 (Chiyoda Technol Corporation, Japan). Before we started the measurements, RPLDs were annealed (400 °C, 20 min) to reset the accumulated dose. After the measurements were completed, we preheated the RPLDs to stabilize the luminescence.
The RPLDs have energy dependencies, resulting in their increased sensitivities being in the lower-energy ranges. To compensate for this, we performed the following steps: first, we determined the effective energy from the half-value layer of aluminum [50], and then we used a formula [51] to calculate the calibration factor from the effective energy, and finally, we divided each measurement by this calibration factor.
We used an anthropomorphic phantom (THRA1, Kyoto Kagaku, Kyoto, Japan) where each slice can be separated. As shown in Figure 1, we used eight RPLDs in one measurement: six inside the phantom and one for each eye.
The X-ray system used was DHF-155H II (HITACHI, Tokyo, Japan). The measurements were performed with the following settings: a tube voltage of 100 kV, a current intensity of 1 mA, and a fluoroscopy time of 60 s. We set irradiation fields (Figure 2): 26 × 19 cm (hereinafter Field 1) such that it covered the whole head and neck of the phantom, 13 × 19 cm (hereinafter Field 2) such that it covered the brain of the phantom, and 13 × 19 cm (hereinafter Field 3) such that it covered the cerebellum and the soft tissues of the phantom’s face. To guarantee repeatability during the measurements, we used a lead plate to cover half of the exposure window for the measurements in Fields 2 and 3 (Figure 3).
The geometry of the measurements is shown in Figure 4. The distance between the X-ray source and the surface of the phantom’s eye was set at 2 m.
We measured each irradiation field six times and calculated the mean ± standard deviation (SD).

3. Results

Absorbed doses measured in Field 1 are shown in Figure 5. In the measurements of Field 1, we irradiated the whole head and neck of the phantom.
Doses at the front region of the brain were about 48% of those at the skin surface. Doses in the back region of the brain were about 9%. Both the soft tissue of the face and cerebellum received slightly lower doses than each corresponding region of the brain.
Figure 6 and Figure 7 show absorbed doses measured in Fields 2 and 3. In the Field 2 measurements, we irradiated the upper bounds of the phantom’s face, mainly its brain. In the Field 3 measurements, we irradiated the lower bounds of the phantom’s face, mainly its soft tissues, which do not cover the cranial bone.
As seen in Figure 6, the soft tissues of the phantom’s face were slightly exposed by the exposure of the brain. In contrast, as seen in Figure 7, the brain was very slightly exposed by exposure of the soft tissues of the face, however, the doses were lower than the soft tissue dose in Figure 6.

4. Discussion

Since the number of IR procedures has increased, it is crucial to reduce medical and occupational radiation exposure [52,53,54,55,56,57,58,59]. Numerous papers have described the radiation injuries of both patients and IR staff [60,61,62,63,64,65,66], and some researchers have reported the possibility of IR physicians being at high risk of head and neck tumors [30,31,67,68]. In addition, the ICRP regards 0.5 Gy as an acute dose threshold for cardiovascular disease (including cerebrovascular disease). IR physicians need to understand their brain exposure and protect themselves appropriately.
This study demonstrated how much the cranial bone protects the brain. The cranial bone reduced the brain dose to less than half the skin dose: about 48% at the front and less than 9% at the back of the brain. Marsh [69] contends that the cranial bone absorbs the scatter radiation at about 40%, and our study supports this.
Referring to the previous studies, we compared the protective efficiency between the cranial bone and the protective equipment. The protective eyewear, made of 0.07 mm Pb-equivalent, has a protective efficiency of 61.4% [39], while the radioprotective surgical cap, made of 0.06 mm Pb-equivalent, has an efficiency of 71% [48]. Considering that the protective efficiency of the cranial bone to the front region of the brain was about 48% in our measurement, the cranial bone has enough radioprotective capability, though to a lesser extent than the radioprotective equipment. Although Endo [39] reported a protective efficiency of 61.4% for the eye lens dose, it is important to note that the eye lens does not contain bone. The protection in that study is provided by a lead–acrylic transparent material in front of the eye lens [39]. On the other hand, Kirkwood [48] examined the protective efficiency of the RADPAD No Brainer surgical cap, which is made of non-transparent material. It demonstrates an attenuation of 71% ± 2.0% at the temporal position, likely due to lead or lead-equivalent material in the cap [48]. However, the study also shows that the eye lens dose remains unchanged (−1.5% ± 1.4%) because the protective cap was not applied to the same locations as in reference [39].
Additionally, studies on X-rays have shown that the shielding factor provided by standard protective eyewear is generally very small [70]. The presence of lead-equivalent materials could potentially alter this, but the protective efficiency between cranial bone and X-rays requires further investigation.
Since Lemesrse et al. [71] reported that the skin of the physicians’ heads is exposed to approximately 2 mSv/year, considering our results, the physicians’ brains might be exposed to less than 1 mSv/year. Considering it is still controversial whether there is a relationship between the occurrence of head tumors and radiation exposure, we recommend IR physicians wear radioprotective equipment for the head to guarantee their safety.
When we irradiated only the upper bounds of the phantom, mainly the brain, the soft tissues were slightly exposed because of the scatter radiation generated from the cranial bone. In this study, because we included the eye in the irradiation field, it is unclear whether there is a reliable relationship between the eye dose and the brain exposure. However, it is possible that the scatter radiation from the cranial bone would increase the eye dose. On the other hand, when we irradiated only the lower bounds of the phantom, mainly the soft tissues of the face not covered by the cranial bone, the brain was very slightly exposed. Considering that doses of the front part of the brain were slightly higher than the eye dose, the scatter radiation generated from the soft tissues of the face could slightly increase the brain dose, however, this contribution would be almost negligible.
The influence of both scatter radiations, from the cranial bone to the eye and from the soft tissues of the face to the brain, is not significant; however, IR physicians should be concerned about the cumulative effect in those who perform numerous procedures and receive high levels of occupational exposure.
Quality control (QC) and quality assurance (QA) programs are crucial for dose measurements. For instance, Canadian regulations, which are aligned with international standards, require an annual independent dose measurement test [72,73,74]. In this test, an external lab exposes dosimeters to an unknown dose and sends them to the dosimetry lab for estimation. The estimated results are then compared to the actual delivered dose to ensure the precision and reliability of the dose measurements [72,73,74]. Therefore, further consideration may be needed regarding an independent method (QC and QA programs) for estimating the uncertainty of the dose measurement process in our study.

Limitation

In this study, we only used X-rays from the front of the phantom. However, in practice, IR physicians typically work with the left side of their heads close to the primary X-ray source and the patient, and the source of scatter radiation is below the IR physician’s front. Thus, IR physicians are typically exposed from the lower left. Because of this, the actual dose distribution of the head would differ from our results.

5. Conclusions

We revealed the dose distribution of the head and the influence of the scatter radiation from the cranial bone and the soft tissues of the face. The cranial bone reduced the brain dose to less than half. The scatter radiation generated from the cranial bone might slightly increase the exposure of the eye as well as the soft tissues of the face. On the other hand, the amount of scatter radiation generated from the soft tissues of the face is lower than the scatter radiation from the cranial bone. Although the influence of these sources of scatter radiation is not significant, the relationship between brain exposure and the occurrence of head and neck tumors is still unclear, so IR physicians who receive high levels of exposure in their daily practice should keep these sources of scatter radiation in mind.

Author Contributions

Conceptualization, S.O. and K.C.; methodology, S.O., R.S. and K.C.; software, S.O., R.S., S.K., K.Y. and Y.I.; validation, S.O., Y.I., R.S. and K.C.; formal analysis, S.O., R.S., S.K., K.Y. and K.C.; investigation, S.O., R.S., S.K., K.Y. and K.C.; resources, Y.I. and K.C.; data curation, S.O., R.S., S.K., K.Y. and Y.I.; writing—original draft preparation, S.O. and K.C.; writing—review and editing, S.O., Y.I. and K.C.; visualization, S.O., R.S., Y.I. and K.C.; supervision, K.C.; project administration, K.C.; funding acquisition, K.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported in part by a Grant-in-Aid for Scientific Research from the Japan Society for the Promotion of Science (23H03537); and the Industrial Disease Clinical Research Grants (240401-02), Japan.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Acknowledgments

The author is grateful to Mamoru Kato (Akita Cerebrospinal and Cardiovascular Center), Yoichi Eguchi (Tohoku University), and Yoshihiro Haga (Sendai-kousei Hospital) for their invaluable assistance.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

ICRPInternational Commission on Radiological Protection
IRinterventional radiology
QAquality assurance
QCquality control
RPLDradiophotoluminescence dosimeter
SDstandard deviation

References

  1. Bratschitsch, G.; Leitner, L.; Stücklschweiger, G.; Guss, H.; Sadoghi, P.; Puchwein, P.; Leithner, A.; Radl, R. Radiation exposure of patient and operating room personnel by fluoroscopy and navigation during spinal surgery. Sci. Rep. 2019, 9, 17652. [Google Scholar] [CrossRef] [PubMed]
  2. Kato, M.; Chida, K.; Ishida, T.; Sasaki, F.; Toyoshima, H.; Oosaka, H.; Terata, K.; Abe, Y.; Kinoshita, T. Occupational radiation exposure dose of the eye in department of cardiac arrhythmia physician. Radiat. Prot. Dosim. 2019, 187, 361–368. [Google Scholar] [CrossRef] [PubMed]
  3. Daneault, B.; Balter, S.; Kodali, S.K.; Williams, M.R.; Généreux, P.; Reiss, G.R.; Paradis, J.M.; Green, P.; Kirtane, A.J.; Smith, C.; et al. Patient radiation exposure during transcatheter aortic valve replacement procedures. EuroIntervention 2012, 8, 679–684. [Google Scholar] [CrossRef] [PubMed]
  4. Tsushima, Y.; Taketomi-Takahashi, A.; Takei, H.; Otake, H.; Endo, K. Radiation exposure from CT examinations in Japan. BMC Med. Imag. 2010, 10, 24. [Google Scholar] [CrossRef] [PubMed]
  5. Inaba, Y.; Jingu, K.; Fujisawa, M.; Otomo, K.; Ishii, H.; Kato, T.; Murabayashi, Y.; Suzuki, M.; Zuguchi, M.; Chida, K. Evaluation of radiation doses received by physicians during permanent 198Au grain implant brachytherapy for oral cancer. Appl. Sci. 2024, 14, 6010. [Google Scholar] [CrossRef]
  6. Perisinakis, K.; Damilakis, J.; Theocharopoulos, N.; Manios, E.; Vardas, P.; Gourtsoyiannis, N. Accurate assessment of patient effective radiation dose and associated detriment risk from radiofrequency catheter ablation procedures. Circulation 2001, 104, 58–62. [Google Scholar] [CrossRef]
  7. Matsunaga, Y.; Kawaguchi, A.; Kobayashi, K.; Kobayashi, M.; Asada, Y.; Minami, K.; Suzuki, S.; Chida, K. Effective radiation doses of CT examinations in Japan: A nationwide questionnaire-based study. Br. J. Radiol. 2016, 89, 1058. [Google Scholar] [CrossRef]
  8. Ishii, H.; Chida, K.; Inaba, Y.; Abe, K.; Onodera, S.; Zuguchi, M. Fundamental study on diagnostic reference level quantities for endoscopic retrograde cholangiopancreatography using a C-arm fluoroscopy system. J. Radiol. Prot. 2023, 43, 041510. [Google Scholar] [CrossRef]
  9. Matsunaga, Y.; Chida, K.; Kondo, Y.; Kobayashi, K.; Kobayashi, M.; Minami, K.; Suzuki, S.; Asada, Y. Diagnostic reference levels and achievable doses for common computed tomography examinations: Results from the Japanese nationwide dose survey. Br. J. Radiol. 2019, 92, 20180290. [Google Scholar] [CrossRef]
  10. Chida, K.; Inaba, Y.; Masuyama, H.; Yanagawa, I.; Mori, I.; Saito, H.; Maruoka, S.; Zuguchi, M. Evaluating the performance of a MOSFET dosimeter at diagnostic x-ray energies for interventional radiology. Radiol. Phys. Technol. 2009, 2, 58–61. [Google Scholar] [CrossRef]
  11. Chida, K.; Inaba, Y.; Saito, H.; Ishibashi, T.; Takahashi, S.; Kohzuki, M.; Zuguchi, M. Radiation dose of interventional radiology system using a flat-panel detector. Am. J. Roentgenol. 2009, 193, 1680–1685. [Google Scholar] [CrossRef] [PubMed]
  12. Chida, K. What are useful methods to reduce occupational radiation exposure among radiological medical workers, especially for interventional radiology personnel? Radiol. Phys. Technol. 2022, 15, 101–115. [Google Scholar] [CrossRef] [PubMed]
  13. Ishii, H.; Chida, K.; Satsurai, K.; Haga, Y.; Kaga, Y.; Abe, M.; Inaba, Y.; Zuguchi, M. Occupational eye dose correlation with neck dose and patient-related quantities in interventional cardiology procedures. Radiol. Phys. Technol. 2022, 15, 54–62. [Google Scholar] [CrossRef] [PubMed]
  14. Haga, Y.; Chida, K.; Kaga, Y.; Sota, M.; Meguro, T.; Zuguchi, M. Occupational eye dose in interventional cardiology procedures. Sci. Rep. 2017, 7, 569. [Google Scholar] [CrossRef] [PubMed]
  15. Chida, K.; Kaga, Y.; Haga, Y.; Kataoka, N.; Kumasaka, E.; Meguro, T.; Zuguchi, M. Occupational dose in interventional radiology procedures. Am. J. Roentgenol. 2013, 200, 138–141. [Google Scholar] [CrossRef]
  16. Chida, K.; Takahashi, T.; Ito, D.; Shimura, H.; Takeda, K.; Zuguchi, M. Clarifying and visualizing sources of staff-received scattered radiation in interventional procedures. Am. J. Roentgenol. 2011, 197, W900–W903. [Google Scholar] [CrossRef]
  17. Koenig, T.R.; Wolff, D.; Mettler, F.A.; Wagner, L.K. Skin injuries from fluoroscopically guided procedures: Part 1, characteristics of radiation injury. Am. J. Roentgenol. 2001, 177, 3–11. [Google Scholar] [CrossRef]
  18. Koenig, T.R.; Mettler, F.A.; Wagner, L.K. Skin injuries from fluoroscopically guided procedures: Part 2, review of 73 cases and recommendations for minimizing dose delivered to patient. Am. J. Roentgenol. 2001, 177, 13–20. [Google Scholar] [CrossRef]
  19. Kato, M.; Chida, K.; Sato, T.; Oosaka, H.; Tosa, T.; Munehisa, M.; Kadowaki, K. The necessity of follow-up for radiation skin injuries in patients after percutaneous coronary interventions: Radiation skin injuries will often be overlooked clinically. Acta Radiol. 2012, 53, 1040–1044. [Google Scholar] [CrossRef]
  20. Blettner, M.; Schlehofer, B.; Samkange-Zeeb, F.; Berg, G.; Schlaefer, K.; Schüz, J. Medical exposure to ionising radiation and the risk of brain tumours: Interphone study group, Germany. Eur. J. Cancer 2007, 43, 1990–1998. [Google Scholar] [CrossRef]
  21. Phillips, L.E.; Frankenfeld, C.L.; Drangsholt, M.; Koepsell, T.D.; van Belle, G.; Longstreth, W.T. Intracranial meningioma and ionizing radiation in medical and occupational settings. Neurology 2005, 64, 350–352. [Google Scholar] [CrossRef] [PubMed]
  22. Chida, K.; Morishima, Y.; Inaba, Y.; Taura, M.; Ebata, A.; Takeda, K.; Shimura, H.; Zuguchi, M. Physician-received scatter radiation with angiography systems used for interventional radiology: Comparison among many X-ray systems. Radiat. Prot. Dosim. 2011, 149, 410–416. [Google Scholar] [CrossRef] [PubMed]
  23. Lee, W.J.; Ko, S.; Bang, Y.J.; Choe, S.; Choi, Y.; Preston, D.L. Occupational radiation exposure and cancer incidence in a cohort of diagnostic medical radiation workers in South Korea. Occup. Environ. Med. 2021, 78, 876–883. [Google Scholar] [CrossRef] [PubMed]
  24. Boice, J.D.; Cohen, S.S.; Mumma, M.T.; Howard, S.C.; Yoder, R.C.; Dauer, L.T. Mortality among medical radiation workers in the United States, 1965–2016. Int. J. Radiat. Biol. 2023, 99, 183–207. [Google Scholar] [CrossRef]
  25. Ko, S.; Kang, S.; Ha, M.; Kim, J.; Jun, J.K.; Kong, K.A.; Lee, W.J. Health Effects from Occupational Radiation Exposure among Fluoroscopy-Guided Interventional Medical Workers: A Systematic Review. J. Vasc. Interv. Radiol. 2018, 29, 353–366. [Google Scholar] [CrossRef]
  26. Karatasakis, A.; Brilakis, H.S.; Danek, B.A.; Karacsonyi, J.; Martinez-Parachini, J.R.; Nguyen-Trong, P.J.; Alame, A.J.; Roesle, M.K.; Rangan, B.V.; Rosenfield, K.; et al. Radiation-associated lens changes in the cardiac catheterization laboratory: Results from the IC-CATARACT (CATaracts Attributed to RAdiation in the CaTh lab) study. Catheter Cardiovasc. Interv. 2018, 91, 647–654. [Google Scholar] [CrossRef]
  27. Velazquez-Kronen, R.; Borrego, D.; Gilbert, E.S.; Miller, D.L.; Moysich, K.B.; Freudenheim, J.L.; Wactawski-Wende, J.; Cahoon, E.K.; Little, M.P.; Millen, A.E.; et al. Cataract risk in US radiologic technologists assisting with fluoroscopically guided interventional procedures: A retrospective cohort study. Occup. Environ. Med. 2019, 76, 317–325. [Google Scholar] [CrossRef]
  28. Kitahara, C.M.; Linet, M.S.; Balter, S.; Miller, D.L.; Rajaraman, P.; Cahoon, E.K.; Velazquez-Kronen, R.; Simon, S.L.; Little, M.P.; Doody, M.M.; et al. Occupational Radiation Exposure and Deaths From Malignant Intracranial Neoplasms of the Brain and CNS in U.S. Radiologic Technologists, 1983–2012. AJR Am. J. Roentgenol. 2017, 208, 1278–1284. [Google Scholar] [CrossRef]
  29. Rajaraman, P.; Doody, M.M.; Yu, C.L.; Preston, D.L.; Miller, J.S.; Sigurdson, A.J.; Freedman, D.M.; Alexander, B.H.; Little, M.P.; Miller, D.L.; et al. Cancer risks in U.S. radiologic technologists working with fluoroscopically guided interventional procedures, 1994-2008. Am. J. Roentgenol. 2016, 206, 1101–1109. [Google Scholar] [CrossRef]
  30. Roguin, A.; Goldstein, J.; Bar, O.; Goldstein, J.A. Brain and neck tumors among physicians performing interventional procedures. Am. J. Cardiol. 2013, 111, 1368–1372. [Google Scholar] [CrossRef]
  31. Roguin, A.; Goldstein, J.; Bar, O. Brain tumours among interventional cardiologists: A cause for alarm? Report of four new cases from two cities and a review of the literature. EuroIntervention 2012, 7, 1081–1086. [Google Scholar] [CrossRef] [PubMed]
  32. Stewart, F.A.; Akleyev, A.V.; Hauer-Jensen, M.; Hendry, J.H.; Kleiman, N.J.; Macvittie, T.J.; Aleman, B.M.; Edgar, A.B.; Mabuchi, K.; Muirhead, C.R.; et al. ICRP Publication 118: ICRP Statement on Tissue Reactions/Early and Late Effects of Radiation in Normal Tissues and Organs—Threshold Doses for Tissue Reactions in a Radiation Protection Context. Ann. ICRP 2012, 41, 1–322. [Google Scholar] [CrossRef] [PubMed]
  33. Hirata, Y.; Fujibuchi, T.; Fujita, K.; Igarashi, T.; Nishimaru, E.; Horita, S.; Sakurai, R.; Ono, K. Angular dependence of shielding effect of radiation protective eyewear for radiation protection of crystalline lens. Radiol. Phys. Technol. 2019, 12, 401–408. [Google Scholar] [CrossRef]
  34. Gangl, A.; Deutschmann, H.A.; Portugaller, R.H.; Stücklschweiger, G. Influence of safety glasses, body height and magnification on the occupational eye lens dose during pelvic vascular interventions: A phantom study. Eur. Radiol. 2022, 32, 1688–1696. [Google Scholar] [CrossRef]
  35. Jia, Q.; Chen, Z.; Jiang, X.; Zhao, Z.; Huang, M.; Li, J.; Zhuang, J.; Liu, X.; Hu, T.; Liang, W. Operator radiation and the efficacy of ceiling-suspended lead screen shielding during coronary angiography: An anthropomorphic phantom study using real-time dosimeters. Sci. Rep. 2017, 7, 42077. [Google Scholar] [CrossRef] [PubMed]
  36. Domienik, J.; Brodecki, M. The effectiveness of lead glasses in reducing the doses to eye lenses during cardiac implantation procedures performed using x-ray tubes above the patient table. J. Radiol. Prot. 2016, 36, N19. [Google Scholar] [CrossRef]
  37. Magee, J.S.; Martin, C.J.; Sandblom, V.; Carter, M.J.; Almén, A.; Cederblad, Å.; Jonasson, P.; Lundh, C. Derivation and application of dose reduction factors for protective eyewear worn in interventional radiology and cardiology. J. Radiol. Prot. 2014, 34, 811–823. [Google Scholar] [CrossRef] [PubMed]
  38. Moriarty, H.K.; Clements, W.; Phan, T.; Wang, S.; Goh, G.S. Occupational radiation exposure to the lens of the eye in interventional radiology. J. Med. Imag. Radiat. Oncol. 2022, 66, 34–40. [Google Scholar] [CrossRef] [PubMed]
  39. Endo, M.; Haga, Y.; Sota, M.; Tanaka, A.; Otomo, K.; Murabayashi, Y.; Abe, M.; Kaga, Y.; Inaba, Y.; Suzuki, M.; et al. Evaluation of novel x-ray protective eyewear in reducing the eye dose to interventional radiology physicians. J. Radiat. Res. 2021, 62, 414–419. [Google Scholar] [CrossRef]
  40. van Rooijen, B.D.; de Haan, M.W.; Das, M.; Arnoldussen, C.W.K.P.; de Graaf, R.; van Zwam, W.H.; Backes, W.H.; Jeukens, C.R.L.P.N. Efficacy of radiation safety glasses in interventional radiology Cardiovasc. Intervent. Radiol. 2014, 37, 1149–1155. [Google Scholar] [CrossRef]
  41. Morishima, Y.; Chida, K.; Ito, O. New radioprotective device that can be used for fluoroscopic exam: Possibility to contribute to staff exposure protection during VFSS. Dysphagia 2022, 37, 1519–1524. [Google Scholar] [CrossRef] [PubMed]
  42. Kato, M.; Chida, K.; Munehisa, M.; Sato, T.; Inaba, Y.; Suzuki, M.; Zuguchi, M. Non-lead protective aprons for the protection of interventional radiology physicians from radiation exposure in clinical settings: An initial study. Diagnostics 2021, 11, 1613. [Google Scholar] [CrossRef] [PubMed]
  43. Zuguchi, M.; Chida, K.; Taura, M.; Inaba, Y.; Ebata, A.; Yamada, S. Usefulness of non-lead aprons in radiation protection for physicians performing interventional procedures. Radiat. Prot. Dosim. 2008, 131, 531–534. [Google Scholar] [CrossRef] [PubMed]
  44. Sato, T.; Eguchi, Y.; Yamazaki, C.; Hino, T.; Saida, T.; Chida, K. Development of a New Radiation Shield for the Face and Neck of IVR Physicians. Bioengineering 2022, 9, 354. [Google Scholar] [CrossRef] [PubMed]
  45. Alazzoni, A.; Gordon, C.L.; Syed, J.; Natarajan, M.K.; Rokoss, M.; Schwalm, J.D.; Mehta, S.R.; Sheth, T.; Valettas, N.; Velianou, J.; et al. Randomized controlled trial of radiation protection with a patient lead shield and a novel, nonlead surgical cap for operators performing coronary angiography or intervention. Circ.-Cardiovasc. Interv. 2015, 8, e002384. [Google Scholar] [CrossRef]
  46. Reeves, R.R.; Ang, L.; Bahadorani, J.; Naghi, J.; Dominguez, A.; Palakodeti, V.; Tsimikas, S.; Patel, M.; Mahmud, E. Invasive cardiologists are exposed to greater left sided cranial radiation. JACC-Cardiovasc. Interv. 2015, 8, 1197–1206. [Google Scholar] [CrossRef]
  47. Grabowicz, W.; Masiarek, K.; Górnik, T.; Grycewicz, T.; Brodecki, M.; Dabin, J.; Huet, C.; Vanhavere, F.; Domienik-Andrzejewska, J. The effect of lead free cap on the doses of ionizing radiation to the head of interventional cardiologists working in haemodynamic room. Int. J. Occup. Med. Environ. Health 2022, 35, 549–560. [Google Scholar] [CrossRef]
  48. Kirkwood, M.L.; Arbique, G.M.; Guild, J.B.; Zeng, K.; Xi, Y.; Rectenwald, J.; Anderson, J.A.; Timaran, C. Radiation brain dose to vascular surgeons during fluoroscopically guided interventions is not effectively reduced by wearing lead equivalent surgical caps. J. Vasc. Surg. 2018, 68, 567–571. [Google Scholar] [CrossRef]
  49. Fetterly, K.; Schueler, B.; Grams, M.; Sturchio, G.; Bell, M.; Gulati, R. Head and neck radiation dose and radiation safety for interventional physicians. JACC-Cardiovasc. Interv. 2017, 10, 520–528. [Google Scholar] [CrossRef]
  50. Nihon Hoshasen Gijutsu Gakkai. Textbook of Medical Dosimetry: Patient Exposures and Dosimetry for X-Ray Procedures, 2nd ed.; Nihon Hoshasen Gijutsu Gakkai: Kyoto, Japan, 2012; p. 22. [Google Scholar]
  51. Harui, S.; Matsumoto, M.; Ogata, Y. Energy characteristics and examination of the dose correction of each element type in small size radiophotoluminescence glass dosimetry element system. Nihon Hoshasen Gijutsu Gakkai Zasshi 2010, 66, 509–514. [Google Scholar] [CrossRef]
  52. Yamada, A.; Haga, Y.; Sota, M.; Abe, M.; Kaga, Y.; Inaba, Y.; Suzuki, M.; Tada, N.; Zuguchi, M.; Chida, K. Eye lens radiation dose to nurses during cardiac interventional radiology: An initial study. Diagnostics 2023, 13, 3003. [Google Scholar] [CrossRef] [PubMed]
  53. Otomo, K.; Inaba, Y.; Abe, K.; Onodera, M.; Suzuki, T.; Sota, M.; Haga, Y.; Suzuki, M.; Zuguchi, M.; Chida, K. Spatial scattering radiation to the radiological technologist during medical mobile radiography. Bioengineering 2023, 10, 259. [Google Scholar] [CrossRef]
  54. Kato, M.; Chida, K.; Ishida, T.; Toyoshima, H.; Yoshida, Y.; Yoshioka, S.; Moroi, J.; Kinoshita, T. Occupational radiation exposure of the eye in neurovascular interventional physician. Radiat. Prot. Dosim. 2019, 185, 151–156. [Google Scholar] [CrossRef]
  55. Chida, K.; Ohno, T.; Kakizaki, S.; Takegawa, M.; Yuuki, H.; Nakada, M.; Takahashi, S.; Zuguchi, M. Radiation dose to the pediatric cardiac catheterization and intervention patient. Am. J. Roentgenol. 2010, 195, 1175–1179. [Google Scholar] [CrossRef] [PubMed]
  56. Chida, K.; Saito, H.; Otani, H.; Kohzuki, M.; Takahashi, S.; Yamada, S.; Shirato, K.; Zuguchi, M. Relationship between fluoroscopic time, dose-area product, body weight, and maximum radiation skin dose in cardiac interventional procedures. Am. J. Roentgenol. 2006, 186, 774–778. [Google Scholar] [CrossRef] [PubMed]
  57. Chida, K.; Saito, H.; Zuguchi, M.; Shirotori, K.; Kumagai, S.; Nakayama, H.; Matsubara, K.; Kohzuki, M. Does digital acquisition reduce patients’ skin dose in cardiac interventional procedures? An experimental study. Am. J. Roentgenol. 2004, 183, 1111–1114. [Google Scholar] [CrossRef]
  58. Shindo, R.; Ohno, S.; Yamamoto, K.; Konta, S.; Inaba, Y.; Suzuki, M.; Zuguchi, M.; Chida, K. Comparison of shielding effects of over-glasses-type and regular eyewear in terms of occupational eye dose reduction. J. Radiol. Prot. 2024, 44, 023501. [Google Scholar] [CrossRef]
  59. Ohno, S.; Konta, S.; Shindo, R.; Yamamoto, K.; Isobe, R.; Inaba, Y.; Suzuki, M.; Zuguchi, M.; Chida, K. Effect of backscatter radiation on the occupational eye-lens dose. J. Radiat. Res. 2024, 65, 450–458. [Google Scholar] [CrossRef]
  60. Curtin, B.M.; Armstrong, L.C.; Bucker, B.T.; Odum, S.M.; Jiranek, W.A. Patient radiation exposure during fluoro-assisted direct anterior approach total hip arthroplasty. J. Arthroplast. 2016, 31, 1218–1221. [Google Scholar] [CrossRef]
  61. Kinnin, J.; Hanna, T.N.; Jutras, M.; Hasan, B.; Bhatia, R.; Khosa, F. Top 100 cited articles on radiation exposure in medical imaging: A bibliometric analysis. Curr. Probl. Diagn. Radiol. 2019, 48, 368–378. [Google Scholar] [CrossRef]
  62. Sharkey, A.R.; Gambhir, P.; Saraskani, S.; Walker, R.; Hajilou, A.; Bassett, P.; Sandhu, N.; Croasdale, P.; Honey, I.; Diamantopoulos, A.; et al. Occupational radiation exposure in doctors: An analysis of exposure rates over 25 years. Br. J. Radiol. 2021, 94, 20210602. [Google Scholar] [CrossRef]
  63. Inaba, Y.; Hitachi, S.; Watanuki, M.; Chida, K. Occupational Radiation Dose to Eye Lenses in CT-Guided Interventions Using MDCT-Fluoroscopy. Diagnostics 2021, 11, 646. [Google Scholar] [CrossRef]
  64. Hattori, K.; Inaba, Y.; Kato, T.; Fujisawa, M.; Yasuno, H.; Yamada, A.; Haga, Y.; Suzuki, M.; Zuguchi, M.; Chida, K. Evaluation of a New Real-Time Dosimeter Sensor for Interventional Radiology Staff. Sensors 2023, 23, 512. [Google Scholar] [CrossRef]
  65. Fujisawa, M.; Haga, Y.; Sota, M.; Abe, M.; Kaga, Y.; Inaba, Y.; Suzuki, M.; Meguro, T.; Hosoi, Y.; Chida, K. Evaluation of Lens Doses among Medical Staff Involved in Nuclear Medicine: Current Eye Radiation Exposure among Nuclear-Medicine Staff. Appl. Sci. 2023, 13, 9182. [Google Scholar] [CrossRef]
  66. Sagehashi, K.; Haga, Y.; Takahira, S.; Tanabe, M.; Nakamura, M.; Sota, M.; Kaga, Y.; Abe, M.; Tada, N.; Chida, K. Evaluation of radiation dose to the lens in interventional cardiology physicians before and after dose limit regulation changes. J. Radiol. Prot. 2024, 44, 031512. [Google Scholar] [CrossRef]
  67. Finkelstein, M.M. Is brain cancer an occupational disease of cardiologists? Can. J. Cardiol. 1998, 14, 1385–1388. [Google Scholar] [PubMed]
  68. ICRP. Occupational radiological protection in interventional procedures. ICRP Publication 139. Ann. ICRP 2018, 47, 1–118. [Google Scholar] [CrossRef] [PubMed]
  69. Marsh, R.M. Fluoroscopy operator’s brains and radiation. JACC-Cardiovasc. Interv. 2016, 9, 301. [Google Scholar] [CrossRef]
  70. Mainegra, E.; Shen, H.; McEwen, M. Shielding Factors of Protective Eyewear, Ionizing Radiation Standards, Report PIRS-2350, CNSC Report Designation RSP-651.1. 2017. Available online: https://api.cnsc-ccsn.gc.ca/dms/digital-medias/RSP-651-1-final-report.pdf/object (accessed on 21 October 2024).
  71. Lemesre, C.; Graf, D.; Bisch, L.; Carroz, P.; Cherbuin, N.; Cherbuin, N.; Desorgher, L.; Siklody, C.H.; Le Bloa, M.; Pascale, P.; et al. Efficiency of the RADPAD surgical cap in reducing brain exposure during pacemaker and defibrillator implantation. JACC-Clin. Electrophysiol. 2021, 7, 161–170. [Google Scholar] [CrossRef]
  72. Golovko, V.V.; Kamaev, O.; Sun, J.; Jillings, C.J.; Gorel, P.; Vázquez-Jáuregui, E. Ambient Dose and Dose Rate Measurement in SNOLAB Underground Laboratory at Sudbury, Ontario, Canada. Sensors 2023, 23, 1945. [Google Scholar] [CrossRef]
  73. Canadian Nuclear Safety Commission. REGDOC-2.7.2, Dosimetry, Volume II: Technical and Management System Requirements for Dosimetry Services; Canadian Nuclear Safety Commission: Ottawa, ON, Canada, 2018; Available online: http://nuclearsafety.gc.ca/eng/acts-and-regulations/regulatory-documents/published/html/regdoc2-7-2-v2/index.cfm (accessed on 21 October 2024).
  74. Regulatory Standard S-106 Revision 1; Technical and Quality Assurance Requirements for Dosimetry Services. Canadian Nuclear Safety Commission: Ottawa, ON, Canada, 2006. Available online: https://api.cnsc-ccsn.gc.ca/dms/digital-medias/S106R1_e.pdf/object (accessed on 21 October 2024).
Bioengineering 11 01083 g001

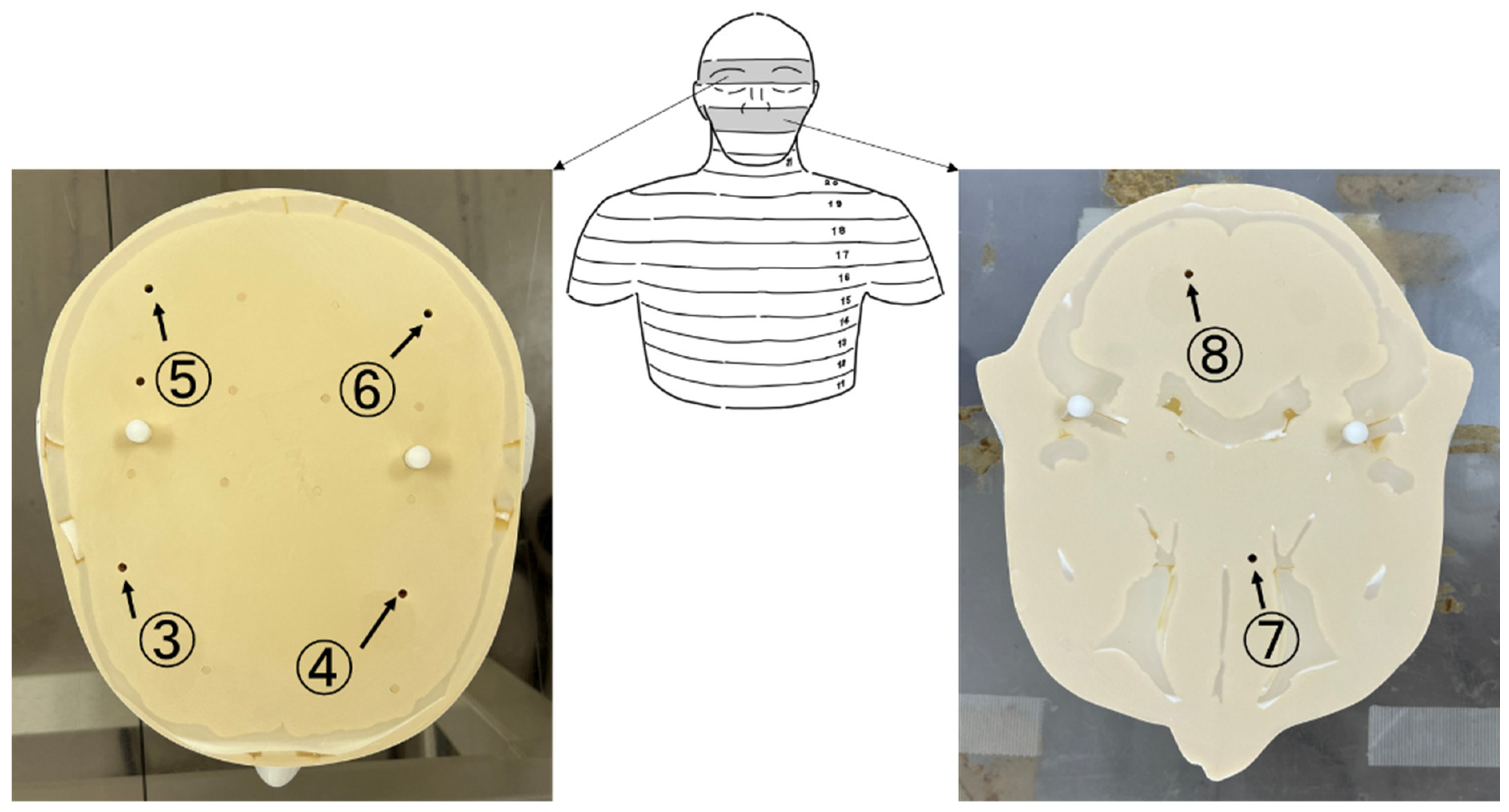

Figure 1. Photographs showing where the radiophotoluminescence dosimeters (RPLDs) were placed in each slice. Slice No. 25 had four RPLDs in four holes (③, ④, ⑤, ⑥). Slice No. 23 had two RPLDs in two holes (⑦, ⑧).
Figure 1. Photographs showing where the radiophotoluminescence dosimeters (RPLDs) were placed in each slice. Slice No. 25 had four RPLDs in four holes (③, ④, ⑤, ⑥). Slice No. 23 had two RPLDs in two holes (⑦, ⑧).
Bioengineering 11 01083 g001
Bioengineering 11 01083 g002

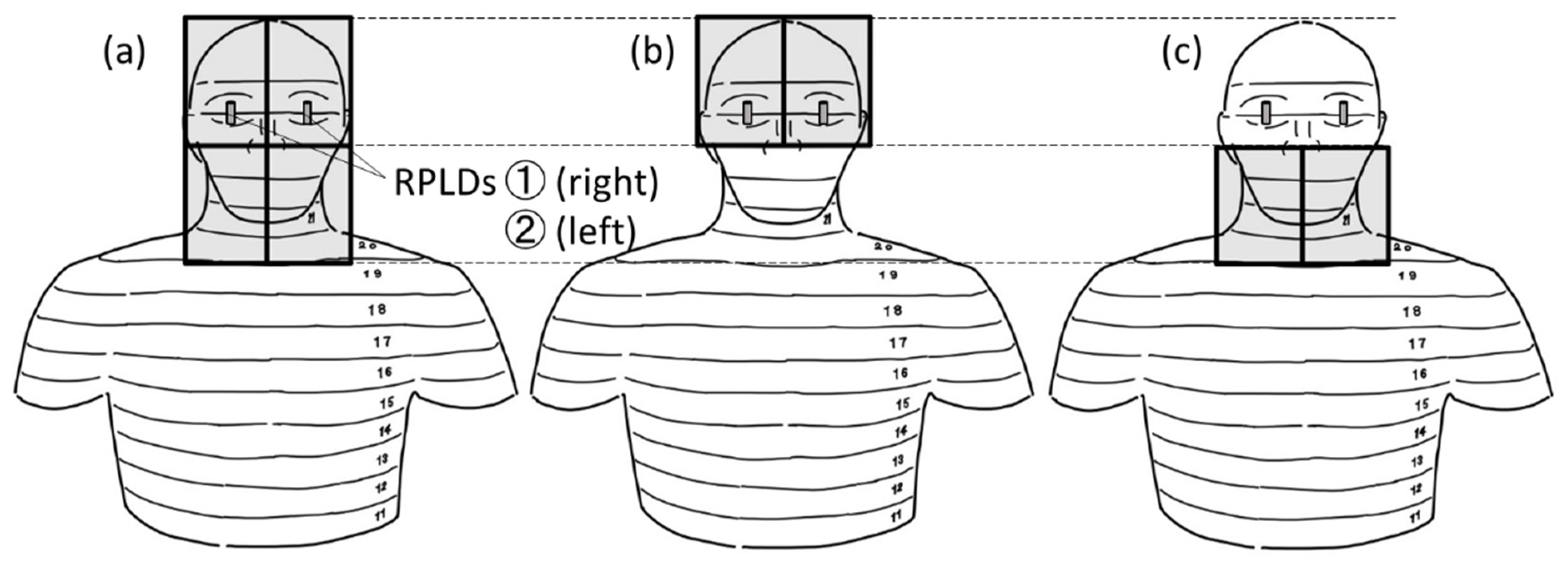

Figure 2. Illustrations of the three kinds of radiation fields. (a) Field 1 covers the whole head and neck of the phantom. (b) Field 2 covers the brain of the phantom. The lower edge of this field is the upper edge of slice No. 23. (c) Field 3 covers the cerebellum and the soft tissues of the phantom’s face. The upper edge of this field is the upper edge of slice No. 23.
Figure 2. Illustrations of the three kinds of radiation fields. (a) Field 1 covers the whole head and neck of the phantom. (b) Field 2 covers the brain of the phantom. The lower edge of this field is the upper edge of slice No. 23. (c) Field 3 covers the cerebellum and the soft tissues of the phantom’s face. The upper edge of this field is the upper edge of slice No. 23.
Bioengineering 11 01083 g002
Bioengineering 11 01083 g003

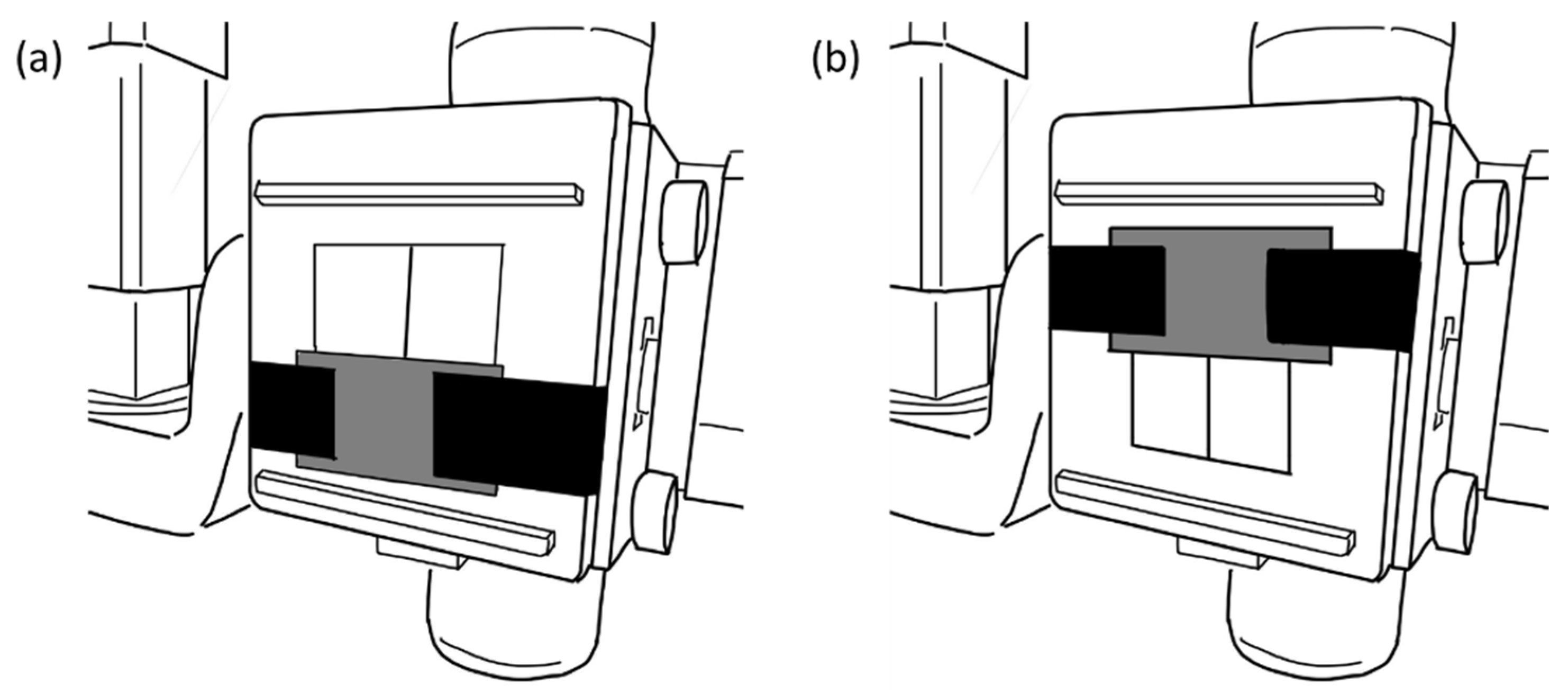

Figure 3. Illustrations that depict how Fields 2 and 3 were set using a lead plate. (a) For the measurements in Field 2, a lead plate was placed in the lower half of the exposure window. (b) For the measurements in Field 3, a lead plate was placed in the upper half of the exposure window.
Figure 3. Illustrations that depict how Fields 2 and 3 were set using a lead plate. (a) For the measurements in Field 2, a lead plate was placed in the lower half of the exposure window. (b) For the measurements in Field 3, a lead plate was placed in the upper half of the exposure window.
Bioengineering 11 01083 g003
Bioengineering 11 01083 g004

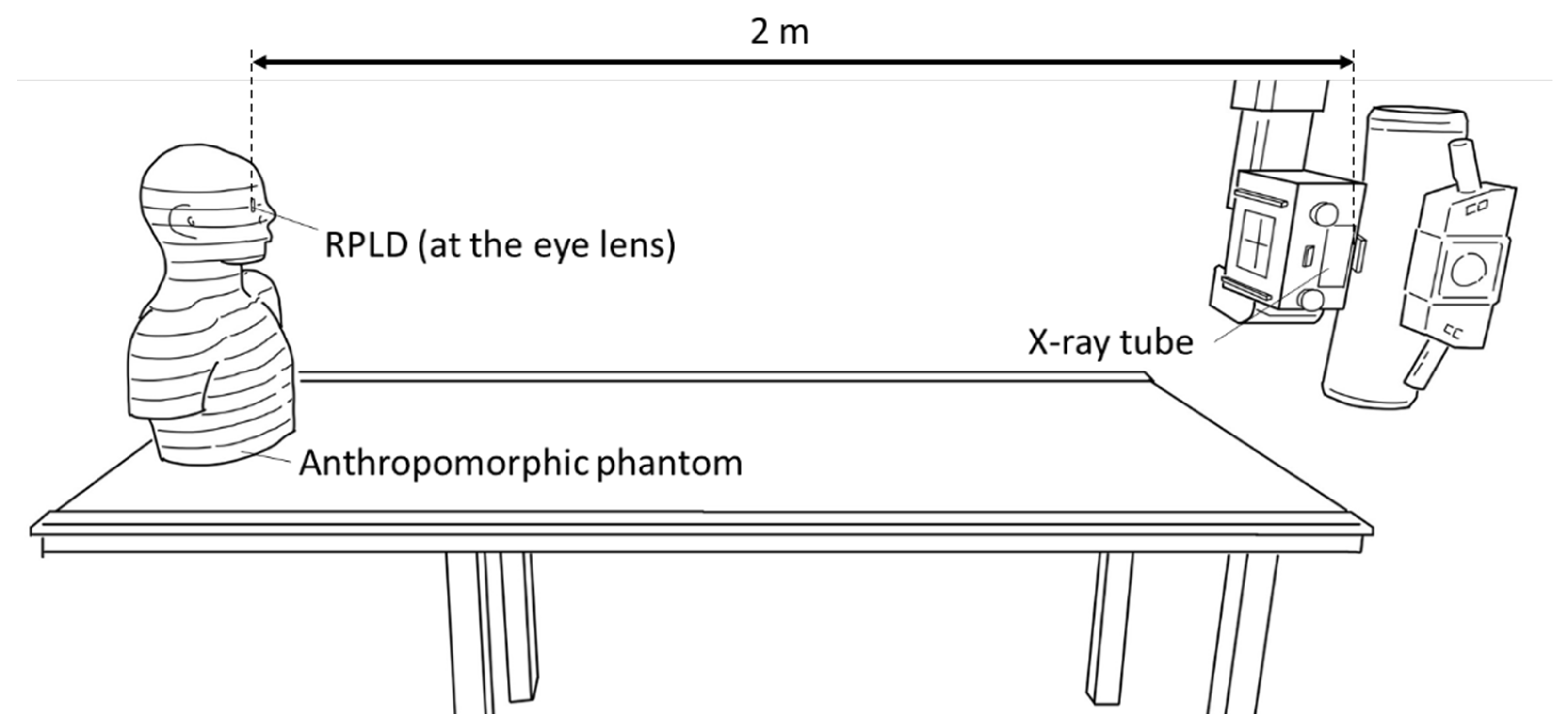

Figure 4. Geometry of the measurements. The distance between the source and the surface of the phantom’s eye was set to 2 m.
Figure 4. Geometry of the measurements. The distance between the source and the surface of the phantom’s eye was set to 2 m.
Bioengineering 11 01083 g004
Bioengineering 11 01083 g005

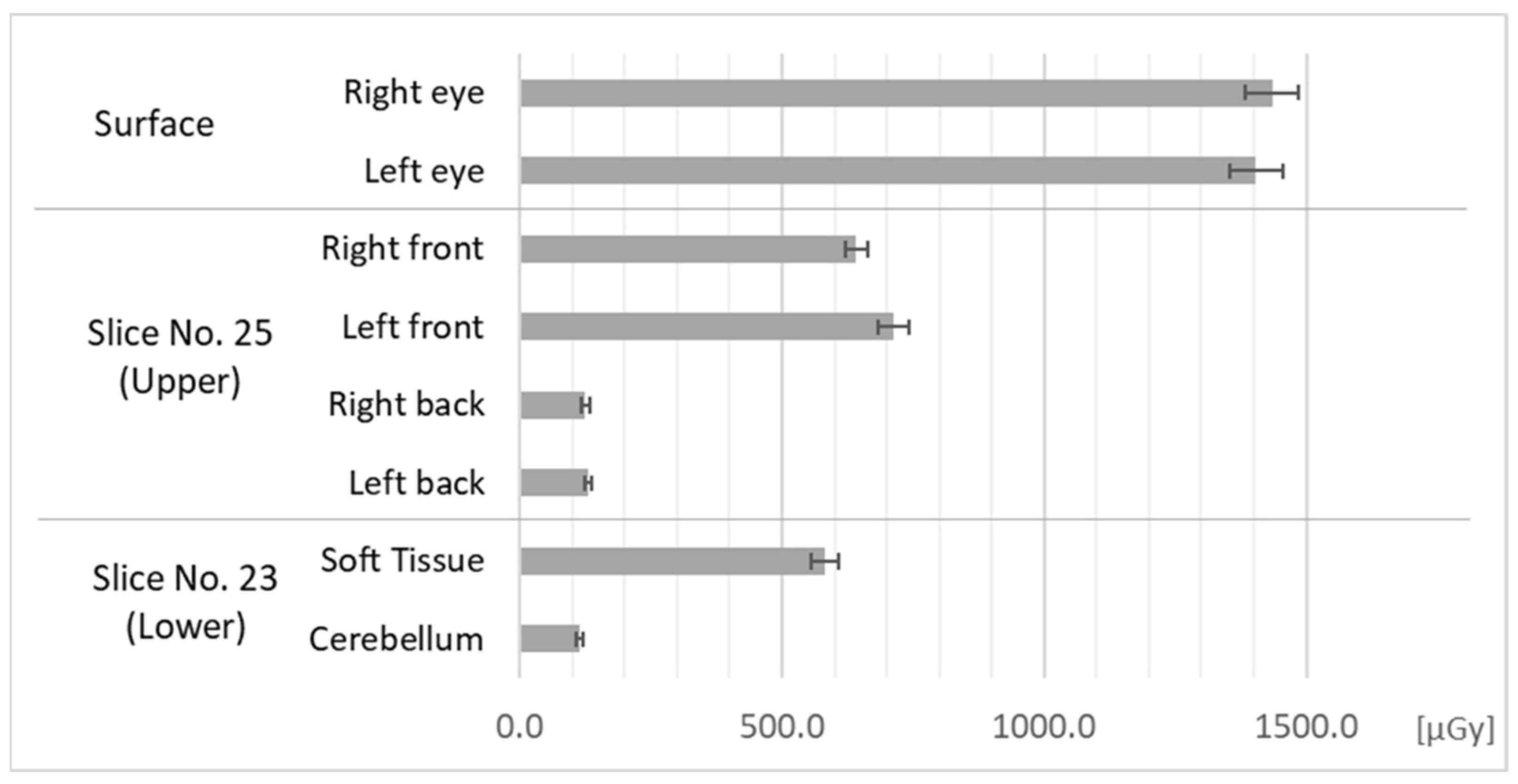

Figure 5. Doses at each measurement point in the phantom in Field 1.
Figure 5. Doses at each measurement point in the phantom in Field 1.
Bioengineering 11 01083 g005
Bioengineering 11 01083 g006

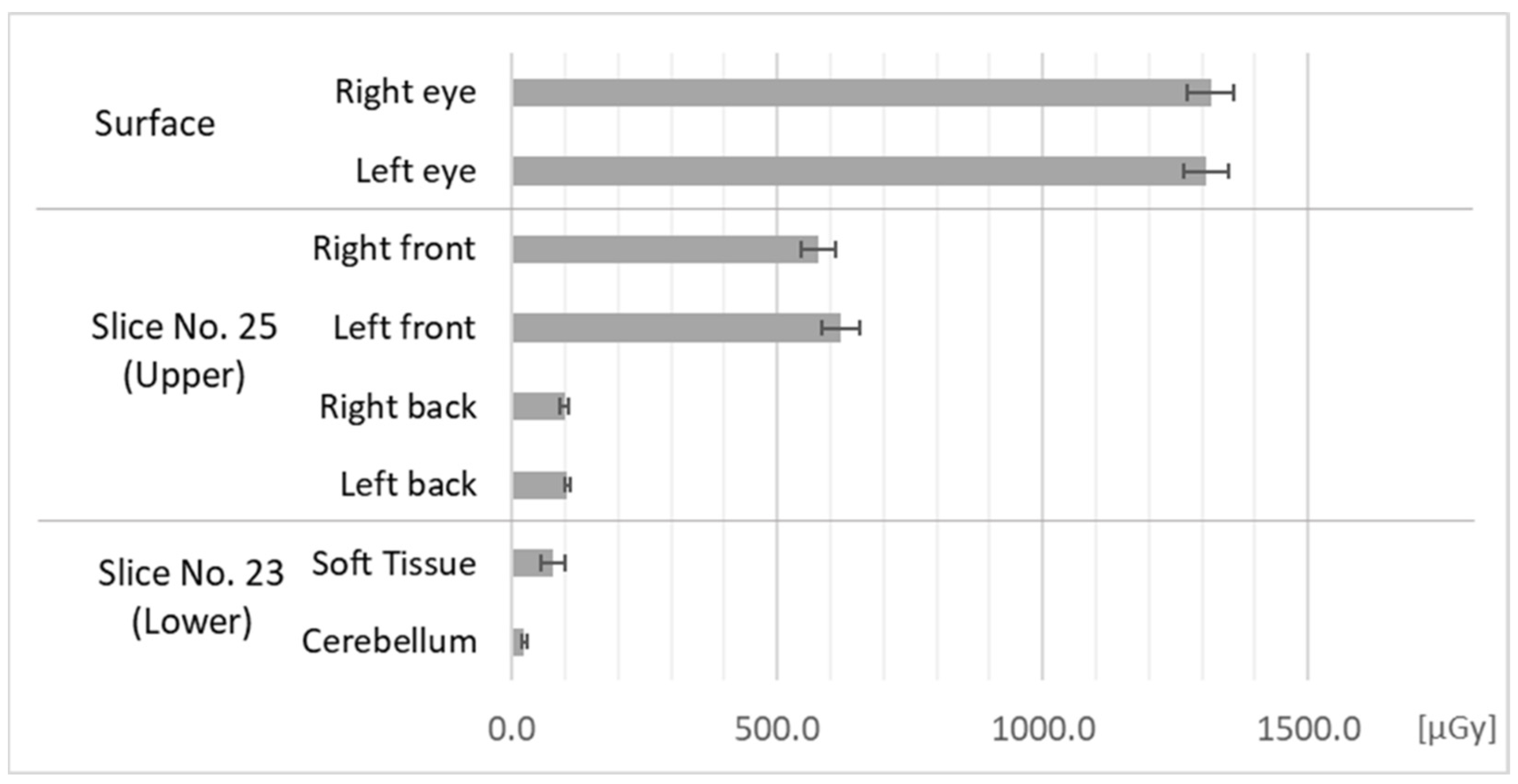

Figure 6. Doses at each measurement point in the phantom in Field 2.
Figure 6. Doses at each measurement point in the phantom in Field 2.
Bioengineering 11 01083 g006
Bioengineering 11 01083 g007

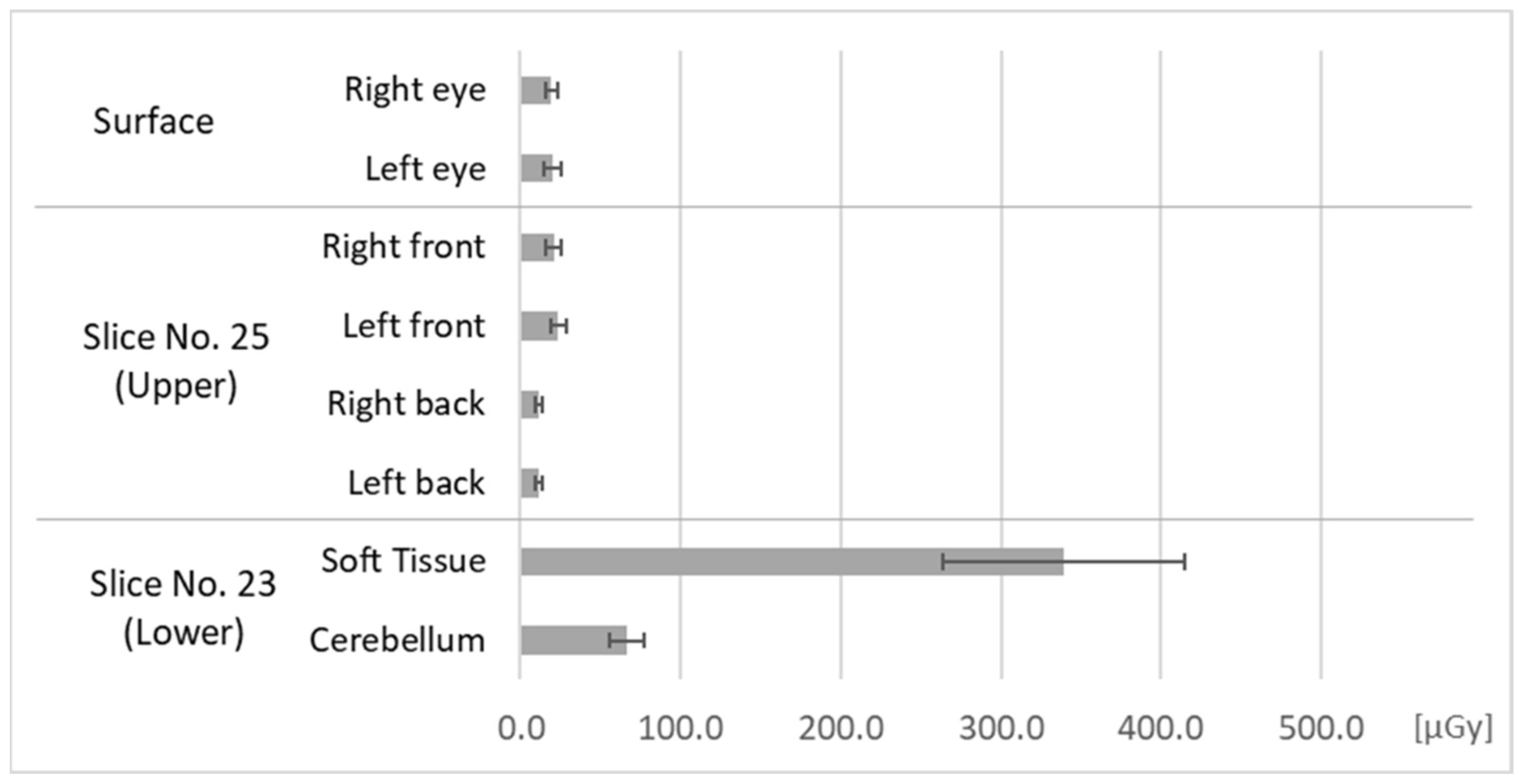

Figure 7. Doses at each measurement point in the phantom in Field 3.
