# Unsupervised Learning-Based Non-Invasive Fetal ECG Muti-Level Signal Quality Assessment

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Related Work

## 3. Preliminaries

#### 3.1. Non-Invasive Fetal ECG

#### 3.2. Short-Time Fourier Transform

#### 3.3. Autoencoder

#### 3.4. Self-Organizing Map

- Initialize all the weight vectors randomly.
- Select an input sample from the training set $\mathbf{x}={({x}_{1},{x}_{2},{x}_{3},...,{x}_{n})}^{T}$.
- By computing the Euclidean distance for each neuron k, compare $\mathbf{x}$ with the weights ${\mathbf{W}}_{k}$. The neuron with the shortest distance is declared as the winning neuron.
- After updating the weights of neurons, the winning neuron should resemble the input vector $\mathbf{x}$.
- The weight vectors of neighboring neurons are changed to more closely resemble the input vector. A weight vector changes more as the neuron gets closer to the winning neuron.

## 4. Proposed Method

#### 4.1. Data Acquisition

#### 4.2. Signal Pre-Processing

#### 4.3. Feature Extraction

#### 4.3.1. AE-Based Feature

#### 4.3.2. Entropy-Based Features

- Approximate entropy (AppEn): AppEn is a common-use feature for quantifying irregularity in time series data with no knowledge about the system. Larger values of AppEn correspond to more complexity and irregularity in the data [14].
- Sample entropy (SampEn): To overcome the shortcomings of AppEn, including heavy dependency on the length of the recording and lack of relative consistency, SampEn was introduced. Compared with AppEn, SampEn avoids self-matches, so it can be independent of the length of recordings and extract relative consistency [15].
- Spectral entropy (SpecEn): Spectral entropy, based on Shannon entropy, can quantify the regularity or uncertainty of the power spectrum during a specific period. In actuality, the regularity of the power spectrum distribution is mirrored in spectral entropy. The higher SpecEn indicates a more uniform power spectrum distribution [16].
- Permutation entropy (PEn): A continuous time series can be transformed into a symbolic sequence using the permutation approach, and PEn is the output of the statistics of the symbolic sequences. PEn of time series data, which can be calculated simply and quickly, contains temporal information [17].

#### 4.3.3. Statistical Features

- Detrended fluctuation analysis (DFA): The main purpose of DFA is to extract long-range correlation in non-stationary time series. Many researchers have used DFA for analyzing cardiac interbeat intervals [18].
- Fractal dimension (FD): FD is a quantitative metric used in biomedical signal processing to gauge the complexity of discrete temporal physiological data. FD can aid in the understanding of physiological processes [19].
- Higuchi fractal dimension (HFD): Higuchi’s approach to FD calculation is proved to reach accurate and reliable estimation results, which is called HFD. This technique can be used to compute moving window estimates of FD for non-stationary signals by segmenting signals into brief quasi-stationary frames. It is also suited for estimating FD of segments with a short time duration of time series [19].

#### 4.3.4. ECG SQIs

- kSQI: The kurtosis of the ECG signal.
- sSQI: The skewness of the ECG signal.
- pSQI: The relative power in the QRS complex. pSQI is given by Equation (2):$$pSQI=\frac{{\int}_{5}^{15}P\left(f\right)\mathrm{d}f}{{\int}_{5}^{40}P\left(f\right)\mathrm{d}f},$$
- basSQI: The relative power in the baseline. basSQI is given by Equation (3):$$basSQI=1-\frac{{\int}_{0}^{1}P\left(f\right)\mathrm{d}f}{{\int}_{0}^{40}P\left(f\right)\mathrm{d}f},$$

#### 4.4. Multi-Level Signal Quality Classification

- Size of output layer: 8 × 8.
- Initial value of learning rate: 0.5.
- The number of iterations: 100,000.
- Neighborhood function: bubble.

#### 4.5. Performance Evaluation

#### 4.5.1. For Classification Performance

- Precision: the proportion of the FECG segments correctly predicted as one class in all the FECG segments predicted as the class.
- Recall: the proportion of the FECG segments correctly predicted as one class in all the FECG segments labeled as the class.
- F1-score: the harmonic mean of precision and recall.

#### 4.5.2. For Improvement of FHR Estimation

- Root mean square error (RMSE) between the estimated fetal RR interval (FRRI) value $\widehat{FRRI}$ and the reference value $FRRI$, which is given as follows:$$RMSE=\sqrt{\frac{1}{\mathsf{\Gamma}}\sum _{i=1}^{\mathsf{\Gamma}}\left|\right|{\widehat{FRRI}}_{i}-FRR{I}_{i}{\left|\right|}_{2}^{2}},\phantom{\rule{2.em}{0ex}}$$
- Averaged absolute error (AAE) between the estimated value $\widehat{FHR}$ and the reference value $FHR$$$\begin{array}{cc}\hfill AAE& =\frac{1}{\mathsf{\Gamma}}\sum _{i=1}^{\mathsf{\Gamma}}\left|\right|{\widehat{FHR}}_{i}-FH{R}_{i}\left|\right|\hfill \\ & =\frac{1}{\mathsf{\Gamma}}\sum _{i=1}^{\mathsf{\Gamma}}\left|\right|\frac{60\xb7{F}_{s}}{{\widehat{FRRI}}_{i}}-\frac{60\xb7{F}_{s}}{FRR{I}_{i}}\left|\right|,\hfill \end{array}\phantom{\rule{2.em}{0ex}}$$
- The removal rate, which is the proportion of the removed FHRs through the method over all the estimated FHRs.

## 5. Results and Discussion

#### 5.1. Feature Evaluation

#### 5.2. Classification Evaluation

#### 5.3. Improvement of FHR Estimation

#### 5.4. Limitation and Future Works

#### 5.4.1. About the Number of Quality Levels

#### 5.4.2. About the Unbalanced Dataset

#### 5.4.3. About the Coverage

#### 5.4.4. About Practical Application

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Zarzoso, V.; Nandi, A.K. Noninvasive fetal electrocardiogram extraction: Blind separation versus adaptive noise cancellation. IEEE Trans. Biomed. Eng.
**2001**, 48, 12–18. [Google Scholar] [CrossRef] [PubMed] - Kumari, N.; Acharjya, D.P. Data classification using rough set and bioinspired computing in healthcare applications—An extensive review. Multimed Tools Appl.
**2022**, 1–27. [Google Scholar] [CrossRef] - Reiss, A.; Indlekofer, I.; Schmidt, P.; Van Laerhoven, K. Deep PPG: Large-scale heart rate estimation with convolutional neural networks. Sensors
**2019**, 19, 3079. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Oh, S.L.; Hagiwara, Y.; Raghavendra, U.; Yuvaraj, R.; Arunkumar, N.; Murugappan, M.; Acharya, U.R. A deep learning approach for Parkinson’s disease diagnosis from EEG signals. Neural Comput. Appl.
**2020**, 32, 10927–10933. [Google Scholar] [CrossRef] - Eom, H.; Lee, D.; Han, S.; Hariyani, Y.S.; Lim, Y.; Sohn, I.; Park, K.; Park, C. End-to-End Deep Learning Architecture for Continuous Blood Pressure Estimation Using Attention Mechanism. Sensors
**2020**, 20, 2338. [Google Scholar] [CrossRef] [Green Version] - Bhavanasi, G.; Werthen-Brabants, L.; Dhaene, T.; Couckuyt, I. Patient activity recognition using radar sensors and machine learning. Neural Comput. Appl.
**2022**, 34, 16033–16048. [Google Scholar] [CrossRef] - Clifford, G.D.; Behar, J.; Li, Q.; Rezek, I. Signal Quality Indices and data fusion for determining clinical acceptability of electrocardiograms. Physiol. Meas.
**2012**, 33, 1419–1433. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Li, Q.; Rajagopalan, C.; Clifford, G.D. A machine learning approach to multi-level ECG signal quality classification. Comput. Methods Programs Biomed.
**2014**, 117, 435–447. [Google Scholar] [CrossRef] - Huerta, A.; Martinez-Rodrigo, A.; Gonzalez, V.B.; Quesada, A.; Rieta, J.J.; Alcaraz, R. Quality Assessment of very long-term ECG recordings using a convolutional neural network. In Proceedings of the 2019 E-Health and Bioengineering Conference (EHB), Iasi, Romania, 21–23 November 2019; pp. 1–4. [Google Scholar]
- Seeuws, N.; De Vos, M.; Bertrand, A. Electrocardiogram quality assessment using unsupervised deep learning. IEEE Trans. Biomed. Eng.
**2021**, 69, 882–893. [Google Scholar] [CrossRef] - Rahmati, A.K.; Setarehdan, S.K.; Araabi, B.N. A PCA/ICA based Fetal ECG Extraction from Mother Abdominal Recordings by Means of a Novel Data-driven Approach to Fetal ECG Quality Assessment. J. Biomed. Phys. Eng.
**2017**, 7, 37–50. [Google Scholar] - Andreotti, F.; Grasser, F.; Malberg, H.; Zaunseder, S. Non-invasive fetal ECG signal quality assessment for Multichannel Heart Rate Estimation. IEEE Trans. Biomed. Eng.
**2017**, 64, 2793–2802. [Google Scholar] [CrossRef] [PubMed] - Fotiadou, E.; van Sloun, R.J.; van Laar, J.O.; Vullings, R. A dilated inception CNN-LSTM network for fetal heart rate estimation. Physiol. Meas.
**2021**, 42, 045007. [Google Scholar] [CrossRef] [PubMed] - Pincus, S.M. Approximate entropy as a measure of system complexity. In Proceedings of the 1991 IEEE Seventeenth Annual Northeast Bioengineering Conference, Hartford, CT, USA, 4–5 April 1991; Volume 88, pp. 2297–2301. [Google Scholar]
- Richman, J.S.; Moorman, J.R. Physiological time-series analysis using approximate entropy and sample entropy. Am. J. Physiol.-Heart Circ. Physiol.
**2000**, 278, H2039–H2049. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Lind, N. Entropy optimization principles with applications. Struct. Saf.
**1993**, 12, 243–244. [Google Scholar] [CrossRef] - Bandt, C.; Pompe, B. Permutation entropy: A natural complexity measure for time series. Phys. Rev. Lett.
**2002**, 88, 174102. [Google Scholar] [CrossRef] [PubMed] - Jospin, M.; Caminal, P.; Jensen, E.W.; Litvan, H.; Vallverdu, M.; Struys, M.M.R.F.; Vereecke, H.E.M.; Kaplan, D.T. Detrended fluctuation analysis of EEG as a measure of depth of anesthesia. IEEE Trans. Biomed. Eng.
**2007**, 54, 840–846. [Google Scholar] [CrossRef] - Esteller, R.; Vachtsevanos, G.; Echauz, J.; Litt, B. A comparison of waveform fractal dimension algorithms. IEEE Trans. Circuits Syst. I Fundam. Theory Appl.
**2001**, 48, 177–183. [Google Scholar] [CrossRef] [Green Version] - Cai, D.; Zhang, C.; He, X. Unsupervised Feature Selection for Multi-Cluster Data. In Proceedings of the 16th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, Boston, MA, USA, 20–23 August 2000; pp. 333–342. [Google Scholar]
- Shi, X.; Yamamoto, K.; Ohtsuki, T.; Matsui, Y.; Owada, K. Non-invasive Fetal ECG Signal Quality Assessment based on Unsupervised Learning Approach. In Proceedings of the 2022 44th Annual International Conference of the IEEE Engineering in Medicine & Biology Society (EMBC), Glasgow, UK, 11–15 July 2022; pp. 1296–1299. [Google Scholar]
- Lee, M.Y.; Won, H.S. Technique of fetal echocardiography. Obstet. Gynecol. Sci.
**2013**, 56, 217–226. [Google Scholar] [CrossRef] [Green Version] - Grivell, R.M.; Alfirevic, Z.; Gyte, G.M.L.; Devane, D. Antenatal cardiotocography for fetal assessment. Cochrane Database Syst. Rev.
**2015**, 2015, CD007863. [Google Scholar] [CrossRef] - Hasan, M.A.; Reaz, M.B.I.; Ibrahimy, M.I.; Hussain, M.S.; Uddin, J. Detection and processing techniques of FECG signal for fetal monitoring. Biol. Proced. Online
**2009**, 11, 263–295. [Google Scholar] [CrossRef] [Green Version] - Norén, H.; Blad, S.; Carlsson, A.; Flisberg, A.; Gustavsson, A.; Lilja, H.; Wennergren, M.; Hagberg, H. Stan in clinical practice—The outcome of 2 years of regular use in the city of Gothenburg. Am. J. Obstet. Gynecol.
**2006**, 195, 7–15. [Google Scholar] [CrossRef] [PubMed] - Aggarwal, G.; Wei, Y. Non-invasive fetal electrocardiogram monitoring techniques: Potential and future research opportunities in smart textiles. Signals
**2021**, 2, 392–412. [Google Scholar] [CrossRef] - Behar, J.A.; Bonnemains, L.; Shulgin, V.; Oster, J.; Ostras, O.; Lakhno, I. Noninvasive fetal electrocardiography for the detection of fetal arrhythmias. Prenat. Diagn.
**2019**, 39, 178–187. [Google Scholar] [CrossRef] [PubMed] - Rui, T.; Zhang, S.; Ren, T.; Tang, J.; Zou, J. Data Reconstruction based on supervised deep auto-encoder. In Pacific Rim Conference on Multimedia; Springer: Cham, Switzerland, 2018; pp. 869–879. [Google Scholar]
- Roy, M.S.; Gupta, R.; Sharma, K.D. Photoplethysmogram signal quality evaluation by unsupervised learning approach. In Proceedings of the 2020 IEEE Applied Signal Processing Conference (ASPCON), Kolkata, India, 7–9 October 2020; pp. 6–10. [Google Scholar]
- Ghosal, P.; Sarkar, D.; Kundu, S.; Roy, S.; Sinha, A.; Ganguli, S. ECG beat Quality Assessment Using Self Organizing Map. In Proceedings of the 2017 4th International Conference on Opto-Electronics and Applied Optics (Optronix), Kolkata, India, 2–3 November 2017; pp. 1–5. [Google Scholar]
- Kohonen, T. The self-organizing map. Proc. IEEE
**1990**, 78, 1464–1480. [Google Scholar] [CrossRef] - Oshio, S.; Kimura, Y.; Nishigori, H.; Sato, N.; Minato, T.; Khandoker, A.H.; Owada, K.; Sudo, K.; Odagiri, N.; Yaegashi, N. A comparison study on safety and efficacy of maternal abdominal-lead fetal ecg under regulatory science. Adv. Clin. Transl. Res
**2018**, 2, 1–12. [Google Scholar] - Kimura, Y.; Ito, T.; Matuyama, F.; Chida, S.; Katayama, N.; Nakao, M.; Okamura, K. Measurement method for the fetal electrocardiogram. Minim Invasive Ther. Allied. Technol.
**2006**, 15, 214–217. [Google Scholar] [CrossRef] - Niida, N.; Wang, L.; Ohtsuki, T.; Owada, K.; Honma, N.; Hayashi, H. Fetal Heart Rate Detection Using First Derivative of ECG Waveform and Multiple Weighting Functions. In Proceedings of the 2021 43rd Annual International Conference of the IEEE Engineering in Medicine & Biology Society (EMBC), Virtual, 1–5 November 2021; pp. 434–438. [Google Scholar]
- Valderrama, C.E.; Stroux, L.; Katebi, N.; Paljug, E.; Hall-Clifford, R.; Rohloff, P.; Marzbanrad, F.; Clifford, G.D. An Open Source Autocorrelation-based Method for Fetal Heart Rate Estimation from One-Dimensional Doppler Ultrasound. Physiol. Meas.
**2019**, 40, 025005. [Google Scholar] [CrossRef] - Yamamoto, K.; Toyoda, K.; Ohtsuki, T. Spectrogram-based non-contact RRI estimation by accurate peak detection algorithm. IEEE Access
**2018**, 6, 60369–60379. [Google Scholar] [CrossRef] - Borowska, M. Entropy-based algorithms in the analysis of biomedical signals. Stud. Logic Gramm. Rhetor.
**2015**, 43, 21–32. [Google Scholar] [CrossRef] [Green Version] - Kohonen, T. Self-organized formation of topologically correct feature maps. Biol. Cybern.
**1982**, 43, 59–69. [Google Scholar] [CrossRef] - Kohonen, T.; Nieminen, I.T.; Honkela, T. On the quantization error in SOM vs. VQ: A critical and systematic study. In Advances in Self-Organizing Maps; Springer: Berlin/Heidelberg, Germany, 2009; pp. 133–144. [Google Scholar]
- Varanini, M.; Tartarisco, G.; Billeci, L.; Macerata, A.; Pioggia, G.; Balocchi, R. A multi-step approach for non-invasive fetal ECG analysis. Comput. Cardiol.
**2013**, 2013, 281–284. [Google Scholar]

**Figure 1.**Invasive and non-invasive FECG measurement. (

**a**) The invasive FECG signals are extracted by placing the electrode on the scalp of a fetus. (

**b**) The non-invasive FECG signals are recorded from the electrodes placed on the maternal abdomen using portable, wearable devices.

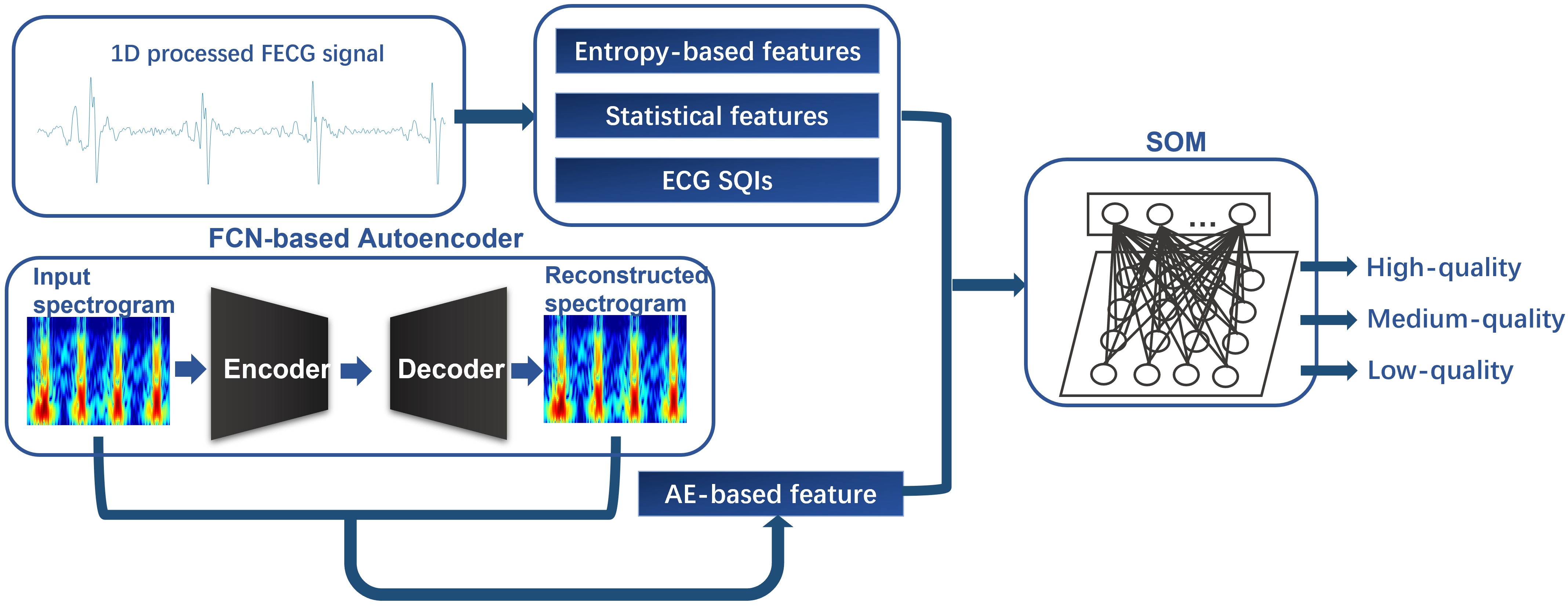

**Figure 2.**The overall structure of our proposal. The 1D processed FECG signal segments are used to extract entropy-based features, statistical features, and ECG SQIs. Moreover, the 2D spectrograms generated from FECG signals are used to extract an AE-based feature associated with an FCN-based autoencoder. These extracted features are fed into SOM and three quality levels can be identified.

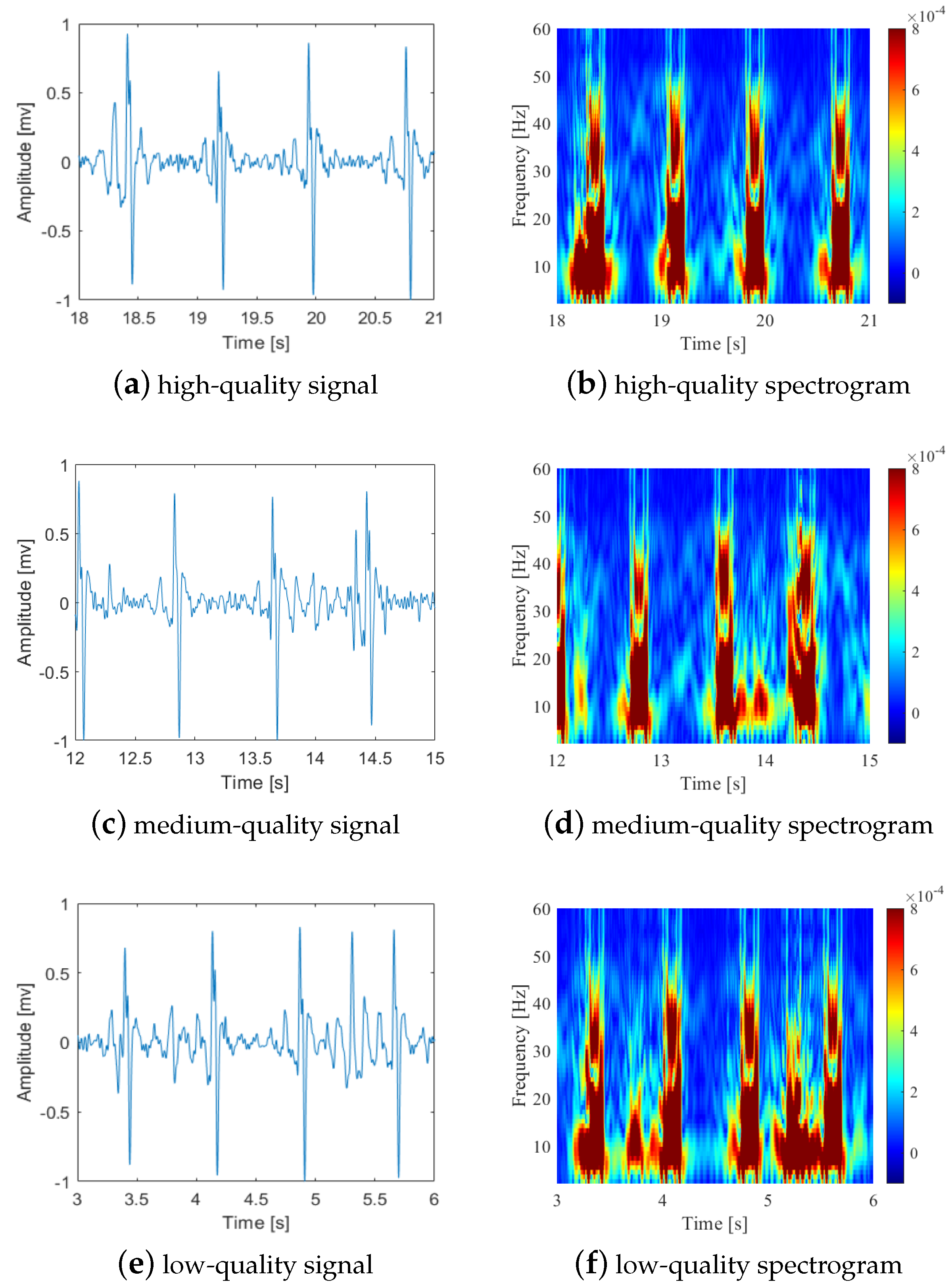

**Figure 3.**Examples of high, medium, and low-quality FECG signal segments and their corresponding spectrograms. Compared with the high-quality signal segment and spectrogram, the medium-quality one contains some tiny noise, and the low-quality one contains much more noise interference. (

**a**,

**b**) high-quality FECG signal segments and corresponding spectrogram; (

**c**,

**d**) medium-quality FECG signal segments and corresponding spectrogram; (

**e**,

**f**) low-quality FECG signal segments and corresponding spectrogram.

**Figure 4.**The structure of AE. There are two parts: encoder and decoder. A 2D convolutional (or deconvolution) layer, a batch normalization layer, and an activation layer are composed of an FCN layer. Both in the encoder and the decoder, there are 6 FCN layers.

**Figure 5.**Channel usability evaluation. The smaller value of the channel usability indicator means the higher usability.

**Figure 6.**MCFS score for each feature. A feature with a larger score means that this feature plays a more significant role in the classification task. Relatively, five features, including SampEn, HFD, kSQI, sSQI, and AE_MSE, have higher MCFS score than the other features.

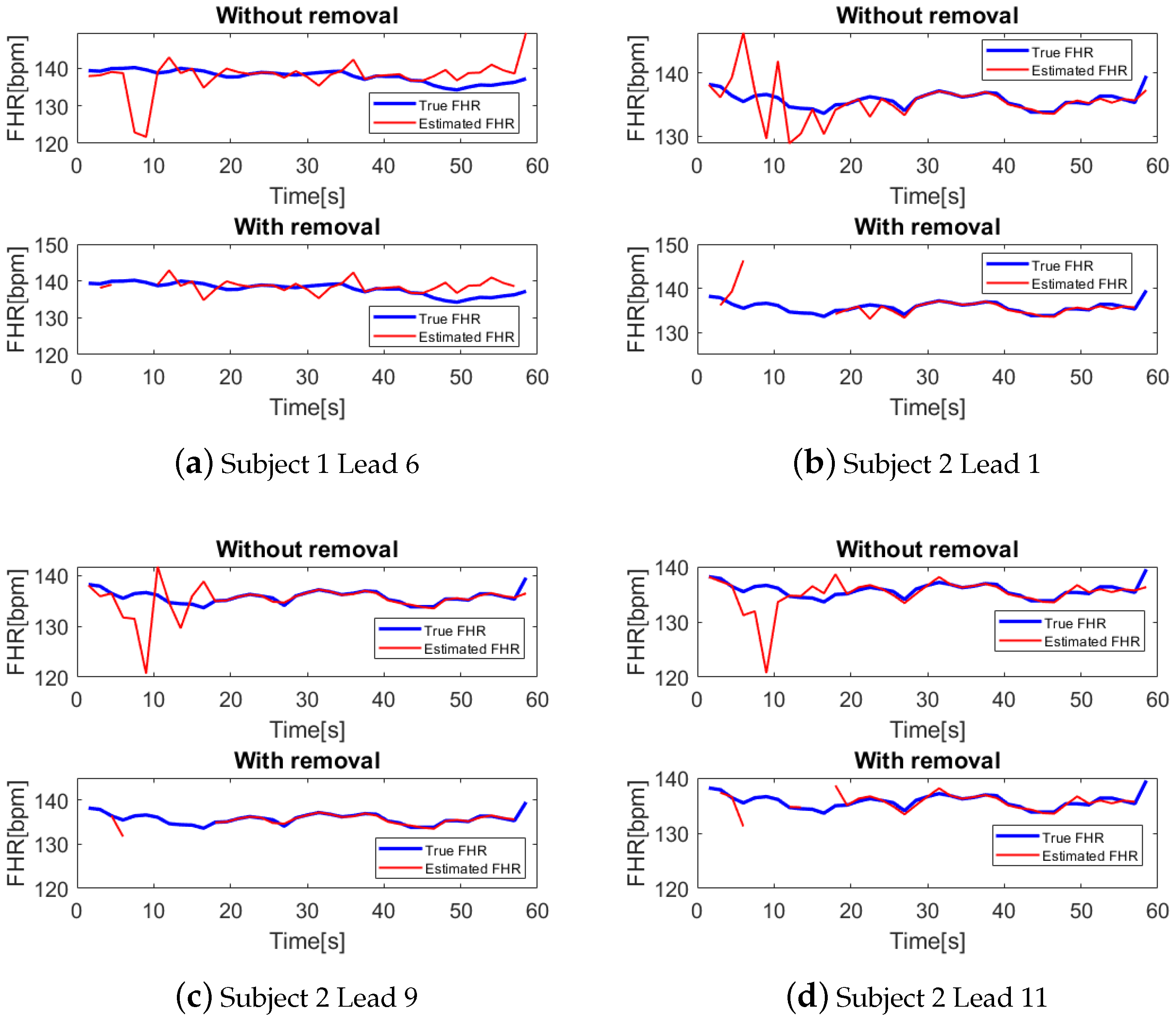

**Figure 8.**Examples of FHR estimation results with and without removal. It is obvious that the estimated FHRs with large errors are correctly removed by our proposed method.

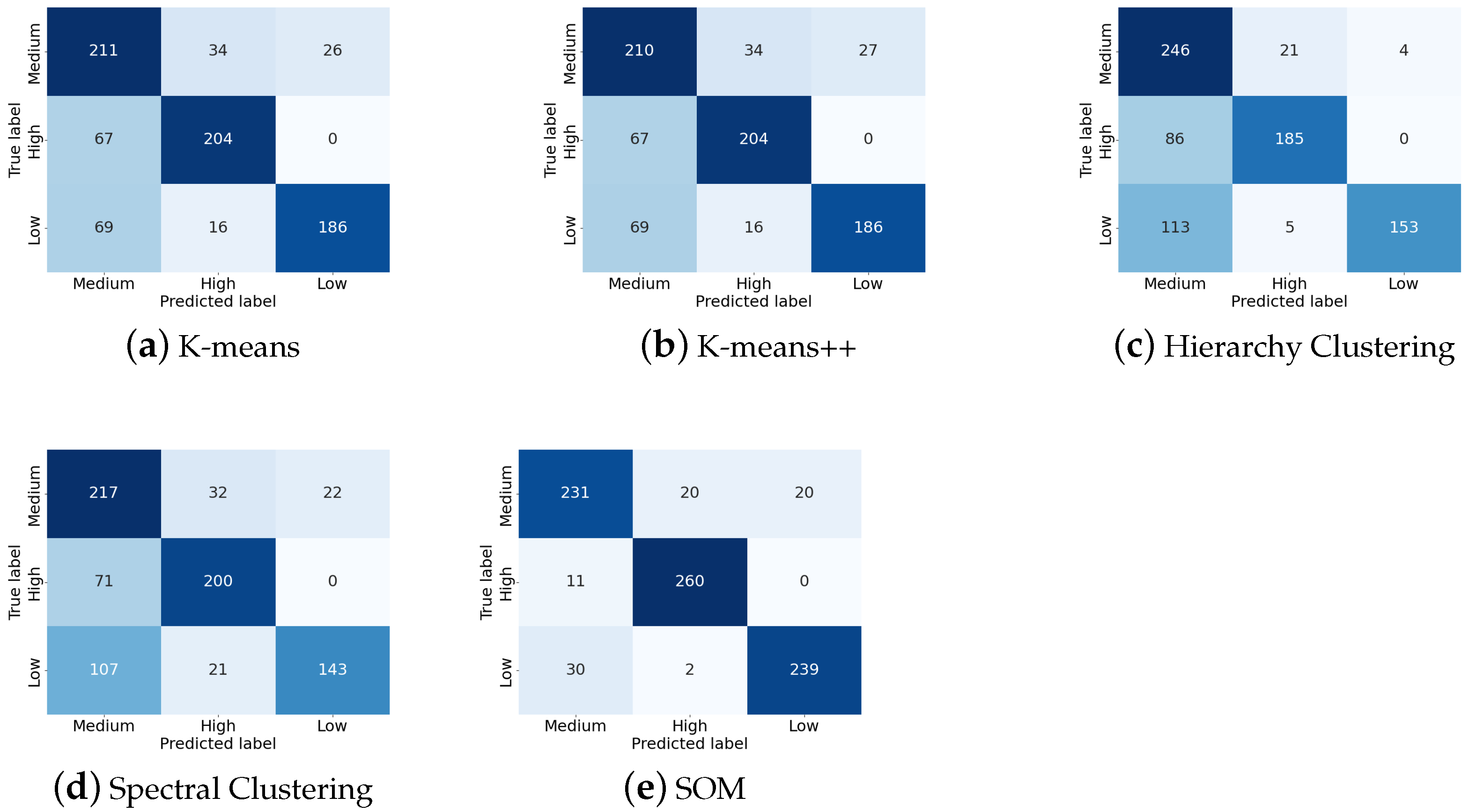

**Table 1.**Summary of the results obtained using different clustering methods. The F1-score of high-, medium-, and low-quality data using SOM are the highest among all five methods. The bold numbers represent the highest value of each performance indicator.

Precision | Recall | F1-Score | ||
---|---|---|---|---|

K-means | Medium | 0.61 | 0.78 | 0.68 |

High | 0.80 | 0.75 | 0.78 | |

Low | 0.88 | 0.69 | 0.77 | |

Average | 0.76 | 0.74 | 0.74 | |

K-means++ | Medium | 0.61 | 0.77 | 0.68 |

High | 0.80 | 0.75 | 0.78 | |

Low | 0.87 | 0.69 | 0.77 | |

Average | 0.76 | 0.74 | 0.74 | |

Hierarchy Clustering | Medium | 0.55 | 0.91 | 0.69 |

High | 0.88 | 0.68 | 0.77 | |

Low | 0.97 | 0.56 | 0.71 | |

Average | 0.80 | 0.72 | 0.72 | |

Spectral Clustering | Medium | 0.55 | 0.80 | 0.65 |

High | 0.79 | 0.74 | 0.76 | |

Low | 0.87 | 0.53 | 0.66 | |

Average | 0.74 | 0.69 | 0.69 | |

SOM | Medium | 0.85 | 0.85 | 0.85 |

High | 0.92 | 0.96 | 0.94 | |

Low | 0.92 | 0.88 | 0.90 | |

Average | 0.90 | 0.90 | 0.90 |

**Table 2.**Comparison of RMSE [ms] of FRRI, AAE [bpm] of FHR, and Removal Rate. The RMSE and AAE are all reduced by removing the detected low-quality segments, in the meantime, the removal rate is controlled within 15%.

No Removal | With Removal | ||||
---|---|---|---|---|---|

Subject | RMSE [ms] | AAE [bpm] | RMSE [ms] | AAE [bpm] | Removal Rate |

1 | 0.0047 | 0.4835 | 0.0033 | 0.3045 | 21.61% |

2 | 0.0075 | 1.0433 | 0.0038 | 0.4722 | 27.47% |

3 | 0.0018 | 0.3687 | 0.0016 | 0.3472 | 8.42% |

4 | 0.0021 | 0.3447 | 0.0020 | 0.3334 | 9.52% |

5 | 0.0033 | 0.3478 | 0.0029 | 0.3212 | 7.69% |

6 | 0.0010 | 0.2133 | 0.0010 | 0.2043 | 10.26% |

7 | 0.0019 | 0.2915 | 0.0011 | 0.2264 | 13.19% |

8 | 0.0191 | 1.2037 | 0.0193 | 1.0410 | 9.52% |

9 | 0.0078 | 1.0200 | 0.0075 | 0.9871 | 12.09% |

10 | 0.0036 | 0.3664 | 0.0011 | 0.2130 | 12.09% |

Average | 0.0053 | 0.5683 | 0.0044 | 0.4450 | 13.18% |
