Oxidation of Allura Red AC Using the NaHCO₃-activated H₂O₂ System Catalyzed with Cobalt Supported on Al-PILC

Abstract

The oxidation of aqueous solutions containing Allura Red AC (AR–AC) using bicarbonate-activated peroxide (BAP) and cobalt-impregnated pillared clay (Co/Al–PILC) as the catalyst was investigated. Using the CCD-RMS approach (central composite design–response surface methodology), the effects of dye, H₂O₂, and NaHCO₃ concentrations on AR–AC degradation were studied. The decolorization, total nitrogen (TN), and total carbon (TC) removals were the analyzed responses, and the experimental data were fitted to empirical quadratic equations for these responses, obtaining coefficients of determination R² and adjusted-R² higher than 0.9528. The multi-objective optimization conditions were [dye] = 21.25 mg/L, [H₂O₂] = 2.59 mM, [NaHCO₃] = 1.25 mM, and a catalyst loading of 2 g/L. Under these conditions, a decolorization greater than 99.43% was obtained, as well as TN and TC removals of 72.82 and 18.74%, respectively, with the added advantage of showing cobalt leaching below 0.01 mg/L. Chromatographic analyses (GC–MS and HPLC) were used to identify some reaction intermediates and by-products. This research showed that wastewater containing azo dyes may be treated using the cobalt-catalyzed BAP system in heterogeneous media.

1. Introduction

Azo dyes have applications in diverse industries, with the textile sector being the largest consumer, as well as the cosmetics, paper, food, and pharmaceutical industries [1]. They represent 70% of the world’s commercial dyes. The structure of these compounds consists of one or more azo groups (–N=N–) as chromophores, which link to aromatic rings (benzene or naphthalene). These rings can also be substituted with –OH and –HSO₃ groups [2,3,4].

The presence of azo bonds and salts or esters of sulfonic acids has been related to the non-biodegradability of azo dyes [5], which are considered xenobiotic characteristics [6,7]. Synthetic dyes affect aquatic life by decreasing light penetration and altering photosynthetic activity in the ecosystem [8].

Dye wastewater treatments are based not only on color removal (decolorization) but also on the degradation and mineralization of the pollutant. Advanced oxidation processes (AOPs) can be defined as a set of chemical treatments designed to degrade complex refractory pollutants in water and wastewater by oxidizing species, mainly hydroxyl radicals (•OH) [9]. Different AOPs have been developed for the degradation of pollutants present in water, particularly photocatalytic oxidation [10], electrochemical degradation [11], activated persulfate [12], and Fenton processes [13].

Although Fenton/Fenton-like processes have proven effective in treating recalcitrant compounds, their use is restricted to the pH range of 2–3 and the separation of metal ions once oxidation is completed [14].

Bicarbonate (NaHCO₃)-activated peroxide (H₂O₂) oxidation, also known as BAP, is gaining much interest from scientists because it works well to treat water with neutral or mildly alkaline pH conditions [15,16]. In addition, the BAP system produces more reactive oxygen species ($\mathrm{H}\mathrm{C}{\mathrm{O}}_4^{-}$, $\mathrm{C}{\mathrm{O}}_3^{-}$) than traditional AOPs [17]. Several studies have described how adding metal ions, for example Co(II), to the BAP system increases the degradation rate of pollutants [18,19]. The Co(II) ion exhibits greater reactivity compared to other metal salts containing Fe(II), Cu(II), or Mn(II) [17,19,20].

Bicarbonate ions ($\mathrm{H}\mathrm{C}{\mathrm{O}}_3^{-}$) are highly water-soluble chemical species of low or no toxicity, widely distributed in nature, and efficient activators of H₂O₂ to generate reactive oxygen species [14,21,22]. Under neutral or slightly basic pH conditions, the cobalt(II) ion-catalyzed bicarbonate-activated peroxide system has achieved the degradation of dye methylene blue [19], brilliant red X–3B [23] and orange II acid [18]. Cobalt has been supported on diatomite [24], layered double hydroxide (Co–LDH) [17], clay with aluminum pillars (Co/Al–PILC) [15], and granular activated carbon (GAC) [25] to avoid cobalt ion contamination in the BAP system.

The heterogeneous BAP system was initially studied by Zhou et al. [24], who supported the active phase cobalt on a diatomite to degrade methylene blue and phenol. The efficiency of the heterogeneous process was better than that of control experiments, including reactions in a homogeneous medium with cobalt ions under the same conditions. Since the reaction medium is weakly basic due to the addition of sodium bicarbonate, cobalt leaching was very low. Furthermore, the catalyst’s functionality was prolonged to 180 h in a fixed-bed experiment, with no notable decline in activity [24]. Cobalt impregnated on aluminum pillared clay (Co(1.0%)/Al–PILC) was used for the sunset yellow degradation with the BAP system (batch test), obtaining total decolorization and total nitrogen (TN) and total carbon (TC) removals of 27.9 ± 2.4% and 18.5 ± 3.2%, respectively. In addition, it was observed that the alkaline conditions during the BAP process were not conducive to the leaching of Co supported on Al–PILC, with concentrations remaining below 0.01 mg/L [15].

This study optimized the Allura Red AC degradation in a heterogeneous phase (cobalt supported on an Al–PILC), eliminating the post-oxidation adsorption of cobalt ions, which was used in a BAP system catalyzed by Co²⁺ ions (homogeneous phase) [26]. For this, cobalt was impregnated in an aluminum pillared clay at a ratio of 1.0 wt.% cobalt and used as the catalyst in the dye oxidation, with NaHCO₃-activated H₂O₂ as the oxidizing species. The effects of dye, H₂O₂, and NaHCO₃ concentrations were analyzed by a central composite design (CCD) approach based on response surface methodology (RSM). Optimal concentrations of reagents that allowed maximum decolorization and mineralization of the dye (removals of TN and TC) were also obtained. In addition, chromatographic analyses (GC–MS and HPLC) facilitated the identification of some reaction intermediates and oxidation by-products.

2. Materials and Methods

2.1. Reagents

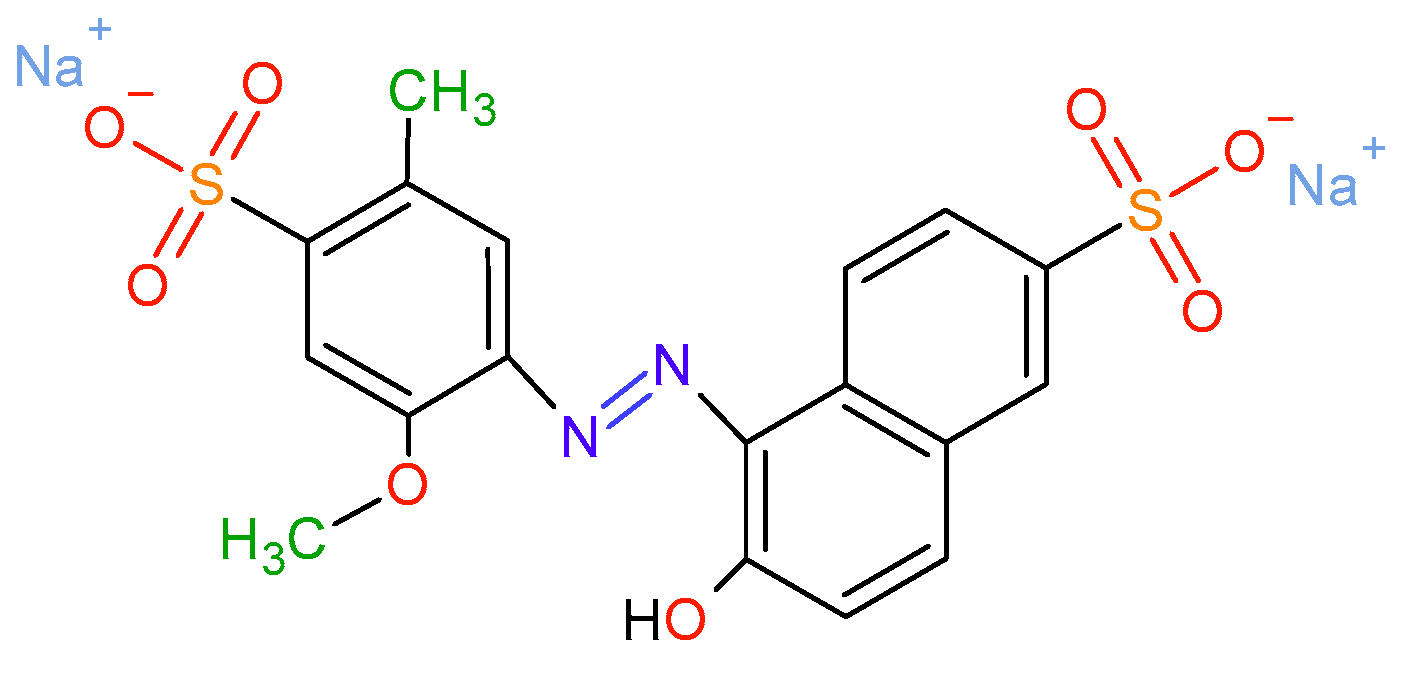

The reagents utilized for the catalyst synthesis (AlCl₃·6H₂O, NaOH, and Co(NO₃)₂·6H₂O) and oxidation reaction (NaHCO₃, H₂O₂) were of high purity, obtained from Merck KGaA (Darmstadt, Germany). Allura Red AC (C₁₈H₁₄N₂Na₂O₈S₂, 496.4 g/mol, CAS number: 25956-17-6) was a reagent of food quality (86%) acquired from Retema SAS (Medellín, Colombia). Figure 1 illustrates the chemical structure of the dye under study. All reagents and solvents (acetonitrile, phosphate buffer pH 2.2) used for the chromatography analysis (ammonium acetate, sulfuric acid, oxalic and maleic acids) were supplied by Merck KGaA (Darmstadt, Germany).

2.2. Synthesis and Characterization

From a mine near Armero-Guayabal, Colombia, bentonite was extracted. This bentonite’s mineralogical and chemical analysis were previously reported [27]. Following a standard procedure [28,29], the catalytic support corresponding to aluminum pillared clay (also known as Al–PILC) was synthesized using a hydrolysis ratio OH^–/Al³⁺ of 2.2. It was subsequently impregnated with Co(NO₃)₂·6H₂O (1.0 wt.% cobalt), following the methodology used in a previous study [15].

The starting clay (Na–Bent), the support (Al–PILC), and the cobalt-impregnated catalyst (Co(1.0%)/Al–PILC) underwent characterization using X-ray fluorescence (Magix Pro-PW2440 XRF spectrometer), X-ray diffraction (Rigaku Mini-Flex II Diffractometer), and nitrogen adsorption isotherms (ASAP 2020 analyzer). The specific surface area of the samples (SSA) was estimated using the BET model [30]. The t-plot method and the Harkins–Jura thickness equation were used to find the microporous specific surface area (S_micro) and micropore volume (V_micro) [31]. The Horvath–Kawazoe model, using slit-shaped pore geometry, determined the micropore size distribution [32].

The solid addition method was utilized to determine the zero-point charge (pH_zpc) of the Co(1.0%)/Al–PILC sample [33,34].

2.3. Catalytic Tests

The Co/Al–PILC material was tested for AR–AC adsorption (25 mg/L) in an aqueous solution of NaHCO₃ (0.9 and 1.6 mM) before catalytic experiments. Dye adsorption in the presence of NaHCO₃ was monitored for 5 h, keeping the stirring speed at 250 rpm. The oxidation tests were performed in a doubled jacketed glass reactor controlled at 298 K. Then, 200 mL of an aqueous solution containing AR–AC at a predetermined concentration was added to the reactor. After, a predetermined amount of NaHCO₃ and 400 mg of the catalyst (equivalent to a dose of 2 g/L) were added into the reactor, and the suspension was continuously stirred at 250 rpm for 1 h. Then, H₂O₂ was added and the reaction started.

The reaction time for each test was 5 h (excluding the dye’s adsorption–desorption equilibrium period). The AR–AC concentration was quantified from aliquots (0.75 mL of sample filtered (0.45 μm Millipore membrane)), using a previous calibration curve obtained by UV-Vis spectrophotometry (Genesys 150, Thermo Scientific, Madison, WI, USA) at a wavelength (λ) of 499 nm. Decolorization was calculated from Equation (1):

$$\mathrm{D}\mathrm{e}\mathrm{c}\mathrm{o}\mathrm{l}\mathrm{o}\mathrm{r}\mathrm{i}\mathrm{z}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}\left(\%\right)=\frac{{\mathrm{C}}_{\mathrm{o}}-{\mathrm{C}}_{\mathrm{t}}}{{\mathrm{C}}_{\mathrm{o}}}\times 100$$

(1)

where ${\mathrm{C}}_{\mathrm{o}}$ and ${\mathrm{C}}_{\mathrm{t}}$ are dye concentrations at t = 0 and at time t, respectively.

A TOC/TN analyzer (Multi N/C 3100, Analytik Jena GmbH+Co., Jena, Germany) was used to measure the carbon and nitrogen content in the samples. Total carbon (TC) and total nitrogen (TN) content measurements were carried out both at the start and at the end of the reaction (t = 5 h). TN and TC removals were determined by Equations (2) and (3), respectively:

$$\mathrm{T}\mathrm{N} \mathrm{r}\mathrm{e}\mathrm{m}\mathrm{o}\mathrm{v}\mathrm{a}\mathrm{l}(\%)=\frac{{\mathrm{T}\mathrm{N}}_{\mathrm{o}}-{\mathrm{T}\mathrm{N}}_{\mathrm{t}}}{{\mathrm{T}\mathrm{N}}_{\mathrm{o}}}\times 100$$

(2)

$$\mathrm{T}\mathrm{C} \mathrm{r}\mathrm{e}\mathrm{m}\mathrm{o}\mathrm{v}\mathrm{a}\mathrm{l}\left(\%\right)=\frac{{\mathrm{T}\mathrm{C}}_{\mathrm{o}}-{\mathrm{T}\mathrm{C}}_{\mathrm{t}}}{{\mathrm{T}\mathrm{C}}_{\mathrm{o}}}\times 100$$

(3)

where ${\mathrm{T}\mathrm{N}}_{\mathrm{o}}$, ${\mathrm{T}\mathrm{N}}_{\mathrm{t}}$, ${\mathrm{T}\mathrm{C}}_{\mathrm{o}}$, and ${\mathrm{T}\mathrm{C}}_{\mathrm{t}}$ are the TN and TC concentrations at the start and end of the reaction.

2.4. Experimental Design—Statistical Analysis of the Models

A central composite rotatable design (CCD) that consisted of five-level (–α, –1, 0, +1, +α, with α ± 1.414) for three independent variables (AR–AC, H₂O₂, and NaHCO₃ concentrations) was selected to study the dye oxidation by the Co/Al–PILC–BAP system. Ranges of concentrations of reagents (H₂O₂ and NaHCO₃) and the contaminant (AR–AC) to be studied were established from preliminary tests.

Table 1. Independent variables for dye degradation and corresponding levels.

Independent Variable	Range and Level
	–1.414	–1	0	+1	+1.414
A: Dye, mg/L	6.89	10.0	17.50	25.00	28.11
B: H2O2, mM	0.52	1.20	2.85	4.50	5.18
C: NaHCO3, mM	0.90	1.00	1.25	1.50	1.60

Note: 1 mM = 1 mol/m³.

lists the range of variables and their respective levels. Response functions were decolorization, total nitrogen (TN), and total carbon (TC) removals. The Design Expert software (version 8.0, StatEase, Inc., Minneapolis, MN, USA) was used to design and analyze the oxidation experiments. The experimental design included 24 runs, wherein 4 replicates were conducted at the center points, and duplicates were carried out at the axial points.

2.5. Chromatographic Analysis of Reaction By-Products

The quantification of AR–AC and identification of carboxylic acids was performed by HPLC using an UltiMate 3000 HPLC (Thermo Fischer Scientific Inc., Sunnyvale, CA, USA), while data were analyzed with the Chromeleon 7.2 software. The procedure established for identifying and quantifying this dye in beverages was followed in measuring the AR-AC concentration [35], using a C18 RP column (Eurospher II 100, 4.6 mm i.d. × 150 mm, 0.5 μm; Knauer, Berlin, Germany) as the stationary phase. The mobile phase was 0.02 M ammonium acetate in acetonitrile (85:15). The flow rate was 1.0 mL/min, with the detector operating at 498 nm. The injection volume was 20 μL with an oven temperature set at 303 K.

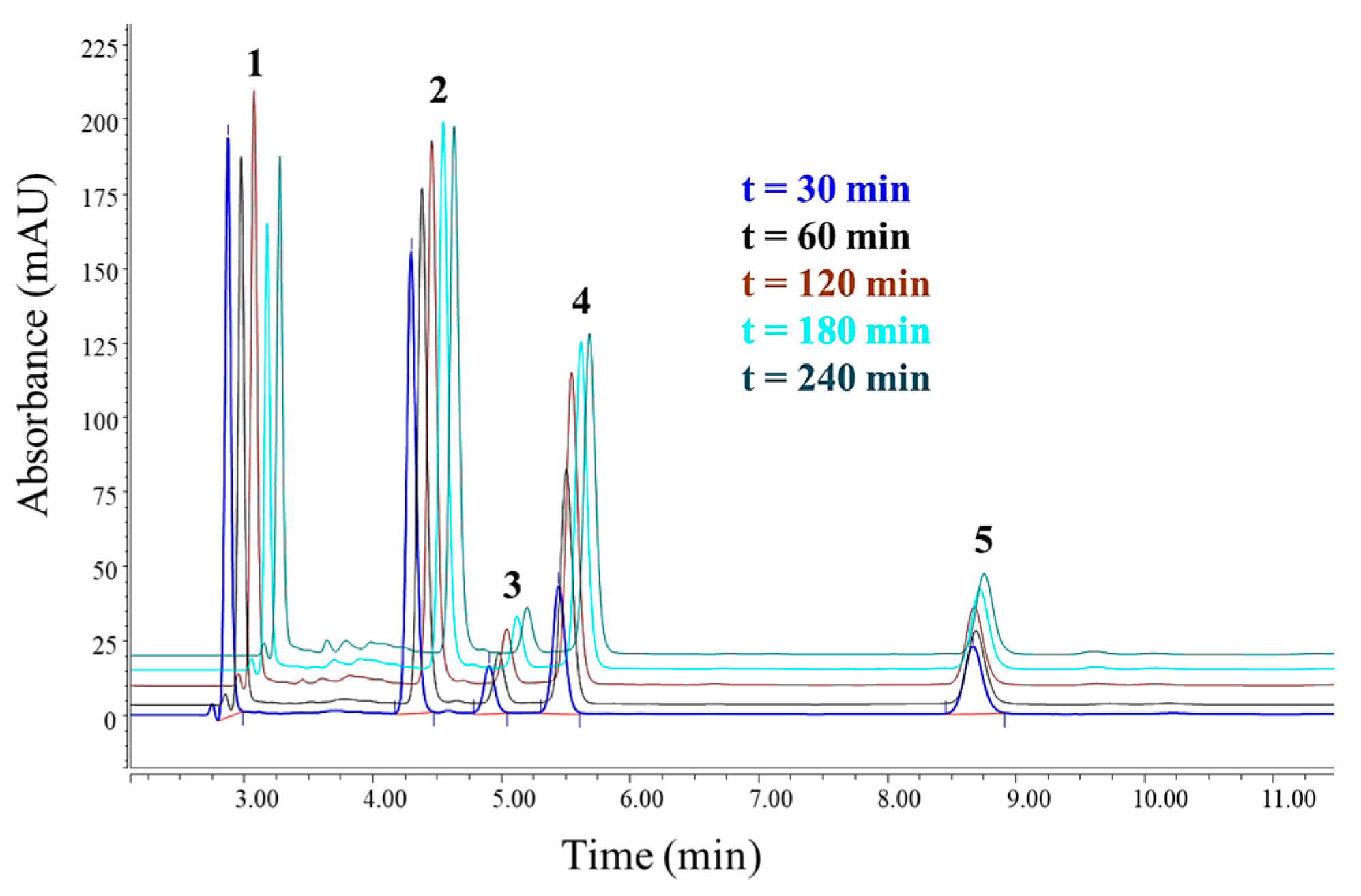

For the identification of carboxylic acids generated as by-products of oxidation, the stationary phase consisted of a Supelcosil LC-18-DB column (4.6 mm i.d. × 250 mm, 0.5 μm; Supelco Inc., Bellefonte, PA, USA). Phosphate buffer at pH 2.2 and 4.0 mM sulfuric acid (90:10) were used as the mobile phase. The flow rate was 1.0 mL/min with the detector operating at 210 nm. The injection volume was 20 μL with an oven temperature set at 303 K. The retention times of carboxylic acid standards were compared to identify chromatogram peaks.

Aromatic by-products generated in the oxidation reaction were analyzed by GC–MS QP2010 Ultra (Shimadzu, Kyoto, Japan), using a Supelcosil DB-5 column (4.6 mm i.d. × 250 mm, 0.5 μm; Supelco Inc., Bellefonte, PA, USA) as the stationary phase. The initial furnace temperature was 308 K, augmented to 568 K with a heating ramp of 10 K/min. The gas carrier utilized was helium (99.996%) at a 1.5 mL/min flow rate. Both the interface and the ion source temperatures were 563 K.

Organic compounds were extracted using the solid phase microextraction technique (SPME), with a carbon wide range (WR)/polydimethylsiloxane (PDMS) fiber (11 mm o.d., 120 μm; Restek Corporation, Bellefonte, PA, USA).

This process was carried out by taking 5.0 mL of liquid sample from the oxidation process, which was then set in contact with the carbon fiber for 20 min at 303 K and magnetic stirring at 300 rpm. After extraction, the fiber was retracted and the extracted components were desorbed in a GC–MS.

3. Results and Discussion

3.1. Sample Characterization

The chemical analysis of starting clay (Na–Bent), pillared bentonite, and cobalt-impregnated catalyst are shown in

Table 2. Chemical analysis of the samples.

Sample	Concentration (wt.%)							SiO2/Al2O3
	SiO2	Al2O3	Fe2O3	CaO	MgO	Na2O	Co
Na–Bent	61.53	17.23	7.93	2.80	2.44	1.35	ND	3.58
Al–PILC	59.09	24.61	6.71	0.93	2.30	0.23	ND	2.40
Co/Al–PILC	57.61	23.93	6.41	0.96	2.23	0.21	1.05	2.41

ND: Not detected.

. Based on the diagram for identifying the clay mineral [36], the classification of clay minerals is established by SiO₂ and (Al₂O₃ + Fe₂O₃) composition. According to this diagram, Na–Bent was classified inside the montmorillonite zone [15]. The aluminum oxide content of Al–PILC was higher than that of Na–Bent because of the exchange of Na⁺ in bentonite by aluminum polyhydroxycations (Keggin Al₁₃ ions), which were transformed into pillars by a calcination process. The SiO₂/Al₂O₃ ratio decreased with the pillaring process and remained practically constant after cobalt impregnation. The theoretical concentration of cobalt used in the impregnation was slightly lower than the experimental content in the catalyst. The accuracy of the analytical procedure may be related to the discrepancy between theoretical and experimental concentrations [37].

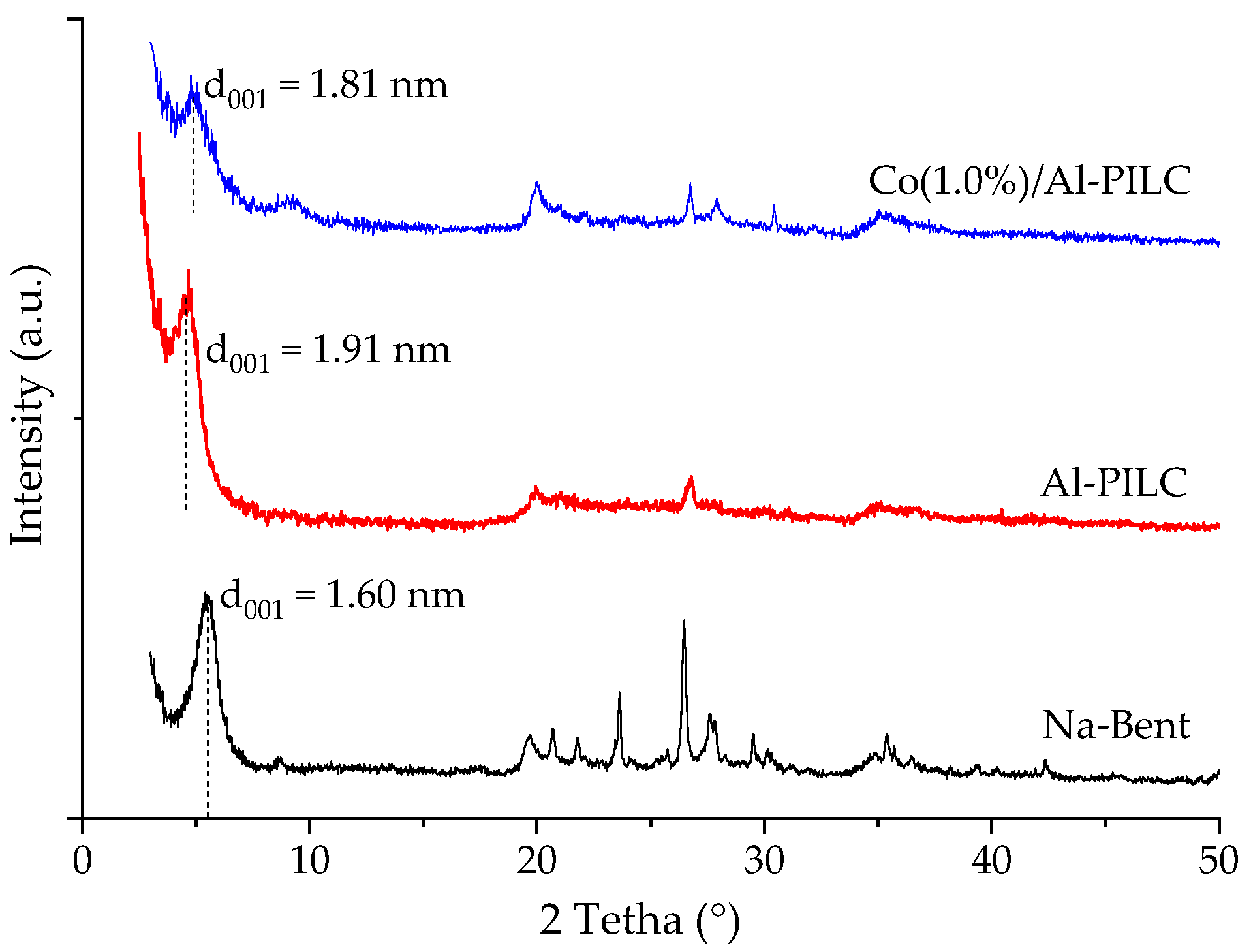

The X-ray diffraction patterns of the bentonite, the pillared clay, and the cobalt-impregnated catalyst are illustrated in Figure 2. The change of the reflection d₀₀₁ from 1.60 nm (2θ = 5.52°) in Na–Bent to 1.91 nm (2θ = 4.63°) in Al–PILC provides evidence for the structural transformation of the bentonite through the process of pillaring. The Al₁₃ Keggin ions form pillars whose dimension has been estimated to be 0.97 nm × 089 nm × 1.09 nm. After heating with air, the Keggin ions lost their water ligands, forming shorter Al₁₃ blocks with a height between 0.96 and 0.84 nm, depending on the treatment temperature [38]. The basal spacing of 19.1 Å for Al-PILC corresponded to the thickness of a montmorillonite-type clay sheet (≈1.0 nm) plus the aluminum pillar (0.91 nm).

The catalyst prepared by the incipient wetness impregnation (IWI) technique did not exhibit the typical peaks associated with the cobalt oxides (Co₃O₄, Co₂O₃, and CoO) in the zone of 2θ from 32 to 39° [39]. The above suggests that the Co_xO_y was dispersed in Al-PILC or was non-crystalline [15,39]. Other characterization techniques have confirmed the presence of cobalt oxides in impregnated pillared clays and the oxidation state of Co [39,40]. Marković et al. (2019) [39] and Milovanović et al. (2022) [40] confirmed by XPS analysis only the presence of Co²⁺ in aluminum-pillared clays impregnated with low cobalt loadings (in the range of 1.0–3.0 wt.%). Therefore, for the Co(1.0%)/Al-PILC material, the oxidation state of cobalt would be expected to be 2+.

The layered structure of the support is preserved in the cobalt-impregnated catalyst, with a slightly lower reflection d₀₀₁ (1.81 nm, 2θ = 4.87°) due to the additional calcination of this material after impregnation.

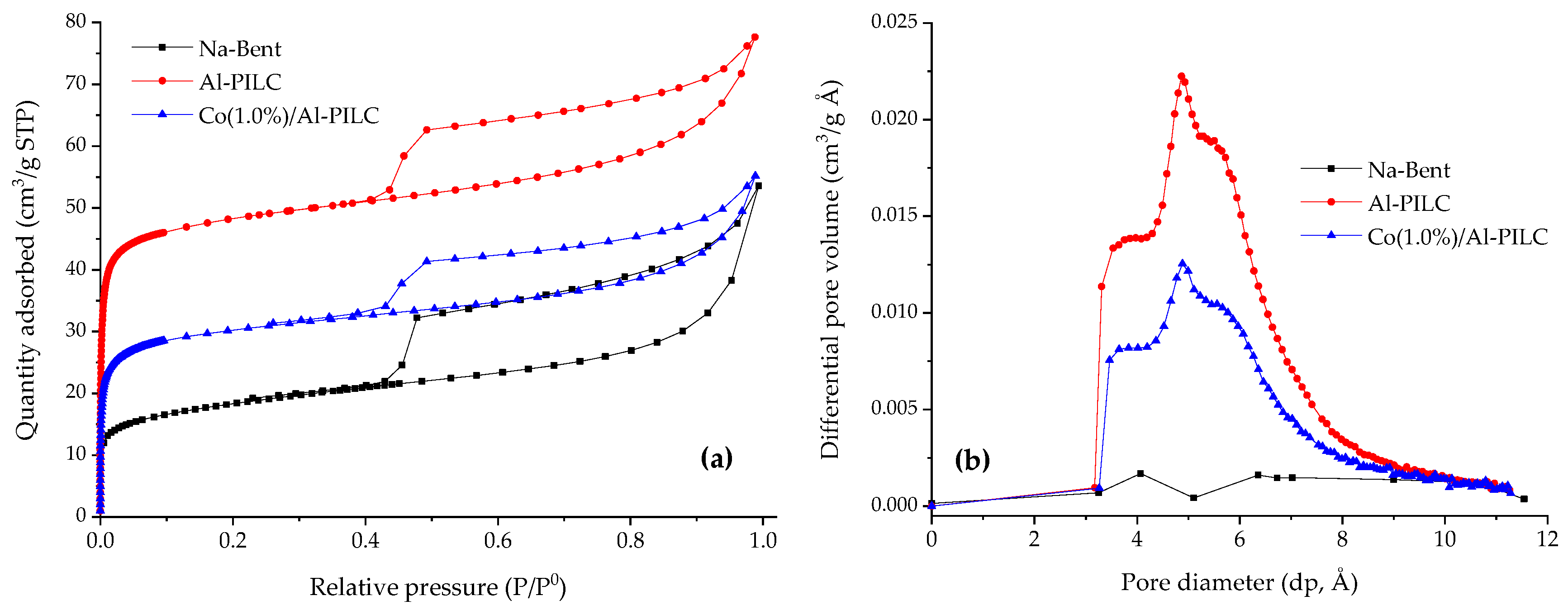

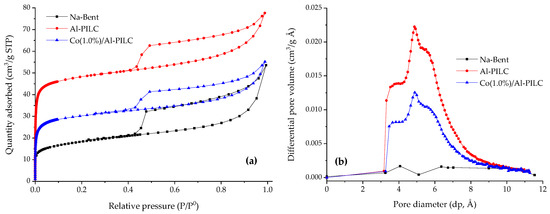

N₂ adsorption–desorption isotherms at 77 K and pore size distribution curves for starting clay, support, and cobalt-impregnated catalyst are shown in Figure 3a,b, respectively. All isotherms can be classified as type IVa, with hysteresis loop type H3 (Na–Bent) and H4 (Al–PILC and Co(1.0%)/Al–PILC), associated with particle agglomerates presenting slit-like pores where capillary condensation occurs [41].

Table 3. Textural parameters for starting bentonite, pillared clay, and cobalt-impregnated catalyst.

Sample	SSA (m2/g)	Smicro (m2/g)	Sext (m2/g)	Vmicro (cm3/g)	Median Pore Diameter (Å)
Na–Bent	49	15	34	0.0006	42.3
Al–PILC	189	157	32	0.0601	5.2
Co/Al–PILC	116	89	27	0.0345	5.3

presents a summary of the textual characterization of the materials.

The bentonite pillaring process increased the specific surface area and the microporous area, as well as the volume of micropores in the modified clay. The S_BET increased from 49 m²/g in starting clay to 189 m²/g in pillared clay, verifying the change in the textural properties of the clay. However, after the impregnation of Al–PILC with the cobalt salt and the subsequent calcination, a decrease of 38.6% of the specific surface area and 43.3% of the microporous area was observed. The above is due to the obstruction of Co_xO_y in the pores of the pillared clay. Similar results have been obtained for pillared clay impregnated with cobalt [15,42], molybdenum [43], and platinum [44].

The pore size distribution provides information on the structural heterogeneity of the bentonite after pillaring and impregnation with cobalt [45]. Figure 3b shows the differential pore volume distribution calculated using the Horvath and Kawazoe model for an alumina-pillarized montmorillonite [46]. The distribution for Al–PILC and Co(1.0%)/Al–PILC exhibited a trimodal function with maxima around 3.9, 4.9, and 5.5 Å, with 4.9 Å having the highest intensity. Sodium bentonite showed a negligible pore size distribution in the microporous zone. In contrast, the aluminum pillared clay (support) and the impregnated material (Co(1.0%)/Al–PILC) showed comparatively high volumes. The median pore diameters (d_p) for Al-PILC and Co(1.0%)/Al-PILC were 5.2 and 5.3 Å, respectively, values similar to those obtained in pillared clay synthesized with different Al/clay molar ratios, which were between 5.5 and 5.9 Å [46].

3.2. Catalytic Tests—Experimental Design

Before oxidation experiments, adsorption tests of the dye in NaHCO₃ (0.9 and 1.6 mM) on Co/Al–PILC were performed. The dye adsorption on the catalyst was evaluated for 5 h. For the two NaHCO₃ concentrations utilized, the pH of the medium varied between 8.4 and 8.6, and at basic pH conditions the adsorption of AR–AC on the catalyst was very low. Between 15 and 30 min of contact time, the maximum adsorption (1.2 ± 0.2%) was reached, and after 30 min, this remained constant. Therefore, an adsorption–desorption equilibrium time of 1 h was established. The adsorption of sunset yellow at a concentration on Co/Al–PILC has shown similar results [15]. The zero-point charge (pH_zpc) of Co/Al–PILC was 6.4. As pH_adsorption > pH_zpc, the catalyst’s surface was negatively charged [33,47], and electrostatic adsorption of anionic dyes such as AR–AC is not promoted.

The details of the design run (coded and experimental values) and the response functions obtained are shown in

Table 4. Experimental design matrix and results of the runs obtained in the dye oxidation.

Run	Codified Values			Experimental Values			Removal (%)
							Color		TN	TC
	A	B	C	A	B	C	Y1 (1 h)	Y1 (5 h)	Y2 (5 h)	Y3 (5 h)
1	+α	0	0	28.11	2.85	1.25	88.85	97.99	70.52	18.47
2	1	−1	1	25.00	1.20	1.50	95.38	99.24	55.20	13.97
3	−1	1	−1	10.00	4.50	1.00	79.23	98.51	50.75	11.10
4	0	0	0	17.50	2.85	1.25	97.67	97.94	72.02	16.42
5	−1	−1	1	10.00	1.20	1.50	95.12	97.58	39.46	6.028
6	0	0	+α	17.50	2.85	1.60	96.02	99.18	71.48	10.47
7	0	0	−α	17.50	2.85	0.90	92.51	98.08	69.07	14.10
8	0	0	0	17.50	2.85	1.25	96.85	97.50	74.16	16.18
9	0	0	0	17.50	2.85	1.25	97.38	97.92	72.69	16.73
10	−1	−1	−1	10.00	1.20	1.00	92.69	97.93	33.64	13.28
11	0	+α	0	17.50	5.18	1.25	80.70	98.08	63.17	11.97
12	1	−1	−1	25.00	1.20	1.00	91.48	97.80	68.51	15.34
13	1	1	1	25.00	4.50	1.50	84.54	98.55	73.78	14.23
14	−1	1	1	10.00	4.50	1.50	83.58	97.77	66.26	8.93
15	0	−α	0	17.50	0.52	1.25	95.61	98.18	38.61	11.79
16	+α	0	0	6.89	2.85	1.25	92.51	97.22	39.53	12.28
17	0	−α	0	17.50	0.52	1.25	95.75	97.86	48.25	11.94
18	+α	0	0	28.11	2.85	1.25	87.46	97.72	73.49	18.60
19	1	1	−1	25.00	4.50	1.00	80.15	98.41	70.46	13.08
20	−α	0	0	6.89	2.85	1.25	90.19	96.93	43.64	11.98
21	0	0	+α	17.50	2.85	1.60	96.57	98.08	70.07	9.96
22	0	+α	0	17.50	5.18	1.25	80.21	98.18	62.10	12.96
23	0	0	−α	17.50	2.85	0.90	91.24	97.87	70.78	14.84
24	0	0	0	17.50	2.85	1.25	97.18	97.43	73.64	16.94

, where A, B, and C represent the concentrations of AR–AC (mg/L), H₂O₂ (mM), and NaHCO₃ (mM), respectively. Response functions (Y₁ = decolorization, Y₂ = TN removal, and Y₃ = TC removal) were fitted to a quadratic equation, and a multiple regression analysis determined the response models’ coefficients and significance. The response surface plots for the models were generated by Design-Expert software. The coefficients of determination (R², adjusted R², and predicted R²), the adequate precision, and the coefficient of variation (CV) were used to evaluate the model’s fits [48].

Analysis of variance (ANOVA) was used to estimate the significance of the model. The results for the three response functions are shown in

Table 5. ANOVA results for decolorization (%)—model and coefficients validation.

Source	Sum of Squares	df	Mean Square	F-Value	p-Value
Model	880.20	9	97.80	100.82	<0.0001 a
A—Dye	4.11	1	4.11	4.23	0.0587 b
B—H2O2	508.87	1	508.87	524.56	<0.0001 a
C—NaHCO3	47.51	1	47.51	48.98	<0.0001 a
AB	1.00	1	1.00	1.03	0.3269 b
AC	0.29	1	0.29	0.29	0.5963 b
BC	0.73	1	0.73	0.75	0.4016 b
A2	156.17	1	156.17	160.98	<0.0001 a
B2	237.63	1	237.63	244.96	<0.0001 a
C2	24.93	1	24.93	25.69	0.0002 a
Residual	13.58	14	0.97
Lack of fit	8.48	5	1.70	2.99	0.0730 b
Pure error	5.10	9	0.57
Cor total	893.78	23

Note: df: degrees of freedom, 95% confidence interval: ^a significant, ^b non-significant.

,

Table 6. ANOVA results for TN removal (%)—model and coefficients validation.

Source	Sum of Squares	df	Mean Square	F-Value	p-Value
Model	4184.74	9	464.97	52.55	<0.0001 a
A—Dye	1678.56	1	1678.56	189.72	<0.0001 a
B—H2O2	881.50	1	881.50	99.63	<0.0001 a
C—NaHCO3	11.81	1	11.81	1.33	0.2674 b
AB	68.33	1	68.33	7.72	0.0148 a
AC	122.62	1	122.62	13.86	0.0023 a
BC	86.59	1	86.59	9.79	0.0074 a
A2	574.98	1	574.98	64.99	<0.0001 a
B2	929.98	1	929.98	105.11	<0.0001 a
C2	0.25	1	0.25	0.028	0.8687 b
Residual	123.86	14	8.85
Lack of fit	58.77	5	11.75	1.62	0.2480 b
Pure error	65.10	9	7.23
Cor total	4308.60	23

Note: df: degrees of freedom, 95% confidence interval: ^a significant, ^b non-significant.

and

Table 7. ANOVA results for TC removal (%)—model and coefficients validation.

Source	Sum of Squares	df	Mean Square	F-Value	p-Value
Model	207.53	9	23.06	94.57	<0.0001 a
A—Dye	78.31	1	78.31	321.20	<0.0001 a
B—H2O2	0.011	1	0.011	0.045	0.8350 b
C—NaHCO3	29.37	1	29.37	120.45	<0.0001 a
AB	0.93	1	0.93	3.80	0.0716 b
AC	10.58	1	10.58	43.41	<0.0001 a
BC	7.22	1	7.22	29.63	<0.0001 a
A2	2.98	1	2.98	12.21	0.0036 a
B2	52.00	1	52.00	213.29	<0.0001 a
C2	47.66	1	47.66	195.49	<0.0001 a
Residual	3.41	14	0.24
Lack of fit	2.12	5	0.42	2.94	0.0760 b
Pure error	1.30	9	0.14
Cor total	210.94	23

Note: df: degrees of freedom, 95% confidence interval: ^a significant, ^b non-significant.

. When a model’s p-value is less than 0.05, it is significant. In this study, all three models had p-values < 0.0001, indicating that the models can be used to predict the responses.

The analysis for color removal was performed for t = 1 h because at 5 h of reaction, decolorizations in all tests were higher than 96.93%, and the response did not fit well with the second-order polynomial. Results similar to decolorization in the present study were observed when carbamazepine (CBZ) was oxidized using the UV/Persulfate/Zero-valent iron system. The degradation efficiency of CBZ in all runs of the Box–Behnken experimental design ranged from 86% to 100%. Unfortunately, developing a model for predicting this particular molecule’s oxidation was not possible [49].

The statistical parameters for the three-model fit are shown in

Table 8. Summary of the fit statistics parameters.

Parameter	Decolorization	TN Removal	TC Removal
R2	0.9848	0.9713	0.9838
Adjusted R2	0.9750	0.9528	0.9734
Predicted R2	0.9388	0.9019	0.9265
Adequate precision	27.533	20.243	39.970
Coefficient of variation (CV, %)	1.08	4.85	3.69

. The high values of R² and adjusted R² [50,51], which were greater than 0.9713 and 0.9524, respectively, supported the validity of the suggested models. When the difference between the adjusted R² and predicted R² is <0.2, the values reasonably agree [50,52]. For this study, the differences were 0.0362, 0.0509, and 0.0464 for decolorization and TC and TN removals, respectively. Adequate precision is a statistical parameter that measures the signal-to-noise ratio and S/N ˃ 4 are desirable for models. In this study, the values of adequate precision were between 20.243 and 39.970. A model whose coefficient of variance (CV) is less than 10% is considered very good [49,50]. The CV values of the three response variables were between 1.08 and 4.85%, indicating low dispersion between the fitted and actual data.

Response functions determined for color (Y₁), TN (Y₂), and TC (Y₃) removals are presented in Equations (4)–(6), respectively:

$${\mathrm{Y}}_1\left(\%\right)=36.707+1.970\mathbf{A}+4.486\mathbf{B}+60.700\mathbf{C}+0.029\mathbf{A}\mathbf{B}+0.101\mathbf{A}\mathbf{C}+0.730\mathbf{B}\mathbf{C}-0.064{\mathbf{A}}^2-1.635{\mathbf{B}}^2-23.060{\mathbf{C}}^2$$

(4)

$${\mathrm{Y}}_2\left(\%\right)=-65.738+8.956\mathbf{A}+17.092\mathbf{B}+23.029\mathbf{C}-0.236\mathbf{A}\mathbf{B}-2.088\mathbf{A}\mathbf{C}+7.976\mathbf{B}\mathbf{C}-0.12306{\mathbf{A}}^2-3.234{\mathbf{B}}^2-2.313{\mathbf{C}}^2$$

(5)

$${\mathrm{Y}}_3\left(\%\right)=-20.478-0.084\mathbf{A}+1.976\mathbf{B}+57.000\mathbf{C}-0.028\mathbf{A}\mathbf{B}+0.614\mathbf{A}\mathbf{C}+2.304\mathbf{B}\mathbf{C}-{8.853\times 10}^{-3}{\mathbf{A}}^2-0.765{\mathbf{B}}^2-31.888{\mathbf{C}}^2$$

(6)

where A, B, and C represent the concentrations of AR–AC (mg/L), H₂O₂ (mM), and NaHCO₃ (mM), respectively.

Based on the coefficients of Equations (4)–(6), it is concluded that the removals of color, TN, and TC were improved with increasing concentrations of H₂O₂ and NaHCO₃ (coefficients with positive sign). Compared to H₂O₂, NaHCO₃ showed a greater effect. In the three response function equations, the NaHCO₃ concentration coefficients exhibited the highest magnitude. The increase in AR–AC concentration favored decolorization and TN removal, while TC removal showed the opposite effect (coefficient of negative sign). Since the HCO₃^– is a hydrogen peroxide activator in oxidation reactions [16], the BC interaction (H₂O₂ × NaHCO₃) exhibited a positive effect on all three response variables.

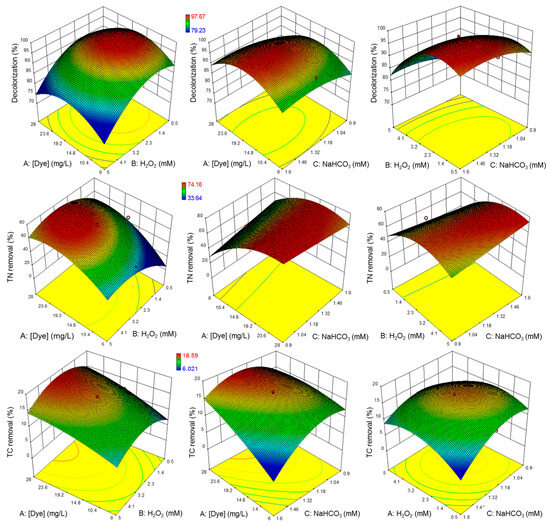

In Figure 4, 3D surface plots of the RSM models are presented. The response surface plots were constructed by maintaining one variable at a fixed value (central point) of the design (see Table 4) and changing the values of the other two variables.

According to the decolorization surface plot, it is more pronounced at [H₂O₂] = 0.8–2.9 mM, [NaHCO₃] = 1.1–1.6 mM, and [dye] = 12.0–21.0 mg/L. At an average dye concentration (17.5 mg/L) and H₂O₂/NaHCO₃ molar ratio of 1.28, the highest color removal (>97.67%) is achieved. Maximum TN removal was obtained for [dye] = 16.5–29.0 mg/L, with high H₂O₂ concentrations (2.2–4.6 mM) and [NaHCO₃] in the study range, since the ANOVA showed that the latter variable was non-significant. TC removals were low in all tests, and the zone of maximum mineralization was obtained at [dye] = 23–28 mg/L, [H₂O₂] = 1.7–3.6 mM and [NaHCO₃] = 1.2–1.5 mM. The highest TC removal (18.6%) was obtained with a H₂O₂/NaHCO₃ molar ratio of 2.14.

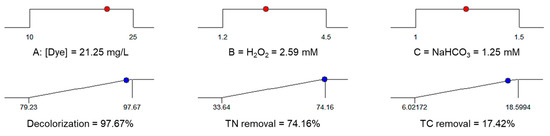

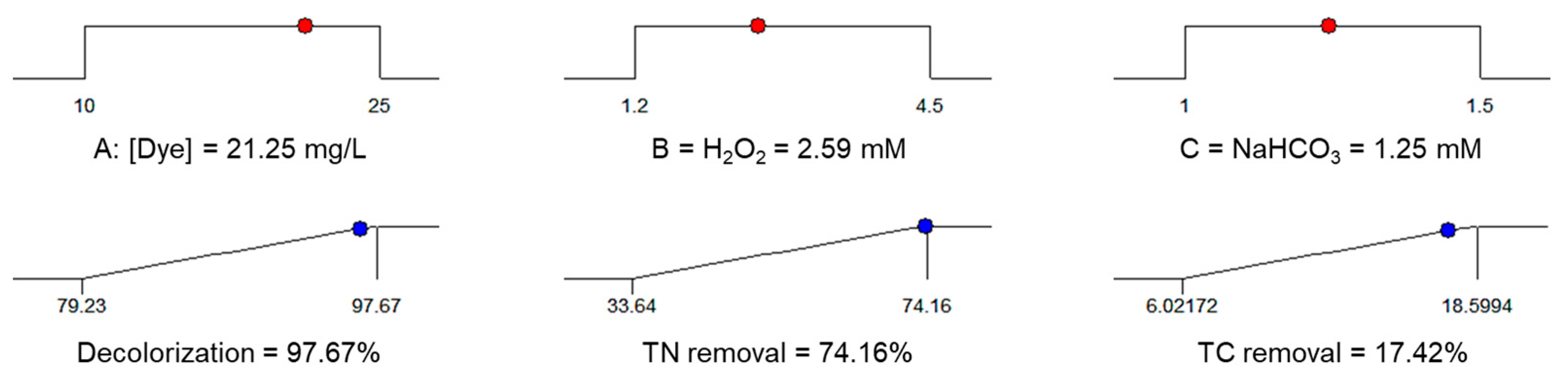

For the multi-objective optimization of the process, the criteria considered were the “maximization” of decolorization and TC and NT removals, keeping the concentrations of reagents (dye, H₂O₂, and NaHCO₃) “in the range studied”. Figure 5 shows the graphical result of the optimization with a desirability of 0.95, as well as values of independent variables and response variables to the conditions described.

The amount of H₂O₂ used in the mineralization of the dye can be expressed as a function of the stoichiometric dose (SD) required to completely oxidize one mole of Allura Red AC to CO₂, H₂O, and sulfate and nitrate as pre-eminent ions according to Equation (7) [26,53]:

$${\left[{\mathrm{C}}_{18}{\mathrm{H}}_{14}{\mathrm{N}}_2{\mathrm{O}}_8{\mathrm{S}}_2\right]}^{2-}+47{\mathrm{H}}_2{\mathrm{O}}_2+{4\mathrm{O}\mathrm{H}}^{-}\to {56\mathrm{H}}_2\mathrm{O}+{18\mathrm{C}\mathrm{O}}_2+{2\mathrm{N}\mathrm{O}}_3^{-}+{2\mathrm{S}\mathrm{O}}_4^{2-}$$

(7)

For the multi-objective optimization conditions, 28.7% excess of the amount of H₂O₂ required according to Equation (7) for complete dye oxidation was used, and only 17.42% TC removal was obtained, suggesting a complex oxidation mechanism and the presence of reaction intermediates. Furthermore, the high TN removal suggests that most nitrogenous compounds were either converted to volatile N-products, like N₂ and N_xO_y [53,54,55], or liberated as NH₄⁺, given the basic pH of the BAP reaction.

To verify the results obtained with the mathematical models presented in Equations (4)–(6), additional oxidation tests were carried out under the same conditions in which the models were obtained. As can be observed from

Table 9. Comparison of predicted and experimental results. Points of validation of the experimental design.

Variables	Value	Decolorization (%)		TN Removal (%)		TC Removal (%)
		Predic.	Exper.	Predic.	Exper.	Predic.	Exper.
AR–AC, mg/L	21.25	97.67	>99.43	74.16	72.82	17.42	18.74
H2O2, mM	2.59
NaHCO3, mM	1.25
AR–AC, mg/L	8.0	91.63	95.49	26.96	28.62	22.25	23.72
H2O2, mM	3.0
NaHCO3, mM	1.3
AR–AC, mg/L	22.0	95.26	92.52	52.04	55.17	13.83	12.58
H2O2, mM	0.7
NaHCO3, mM	1.3

Conditions: catalyst dose = 2 g/L, T = 298 ± 0.2 K, stirring speed = 250 rpm; 1 mM = 1 mol/m³.

results, the absolute errors for the response variables’ experimental and predicted values were less than 8.0% for each of the evaluated points. Therefore, the obtained models can predict the system’s response with minimum variations.

The use of heterogeneous catalysts in the BAP system is an alternative to reduce the leaching of metal ions in water treatment [16]. Similar results have been obtained for other heterogeneous catalysts, and

Table 10. Summary of the conditions and results in water treatment with the heterogeneous BAP system.

Pollutant	Catalyst	Conditions	[H2O2]	[NaHCO3]	Results	Ref.
Methylene blue, 50 mg/L	Co/Diatomite	298 K 300 min	60 mM	25 mM	Color removal: 98% COD removal: 70.4%	[24]
Methylene blue, 60 mg/L	Co–Mg/AL ternary LDH	303 K 300 h	48 mM	25 mM	Color removal: 100% COD removal ≈50%	[17]
Acid Orange 7, 50 µM	CoxOy–N/GAC	298 K 20 min	10 mM	5 mM	Color removal: 94.4% TOC removal: 13%	[25]
Acid Orange II, 50 mg/L	S-modified CoFe2O4	298 K 30 min	3 mM	0.1 g/L	Color removal: 99.0% TOC removal: 39.2%	[14]
Sunset Yellow, 20 mg/L	Co/Al–PILC	298 K 5 h	14.9 mM	59.4 mM	Color removal: 99.5% TC removal: 27.9%	[15]
Allura Red AC, 21.25 mg/L	Co/Al–PILC	298 K 5 h	2.59 mM	1.25 mM	Color removal: >99.43% TC removal: 18.7% TN removal: 72.8%	This study

shows a summary of various dye degradation conditions with the BAP system and catalysts with active cobalt phase.

Although the decolorization achieved with the heterogeneous BAP system is high, the mineralization levels have been low [14,15,25]. An alternative to obtain an efficient system (total decolorization and high mineralization) is the combination of different treatment systems. Usually, AOPs are used to improve biodegradability, while a subsequent biological treatment increases the final degradation [23]; therefore, the coupling of both processes considerably enhances the degradation of the pollutants.

Cobalt leaching from the catalyst to the final reaction was quantified by atomic absorption spectrometry (Thermo Scientific iCE 3000). A cobalt concentration of less than 0.01 mg/L was obtained in all tests, indicating a high stability of the active phase in the reaction medium. Under conditions of multi-objective optimization, a high removal of total nitrogen (about 73%) associated with volatile nitrogenated products (N₂ and N_xO_y) was obtained, which has been detected in oxidation with other azo dyes [56,57].

3.3. Chromatographic Analysis of Reaction By-Products

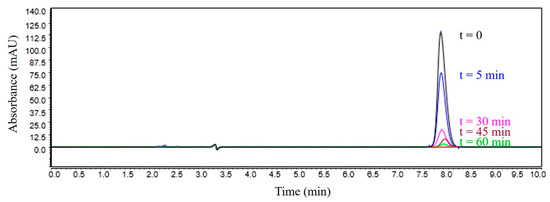

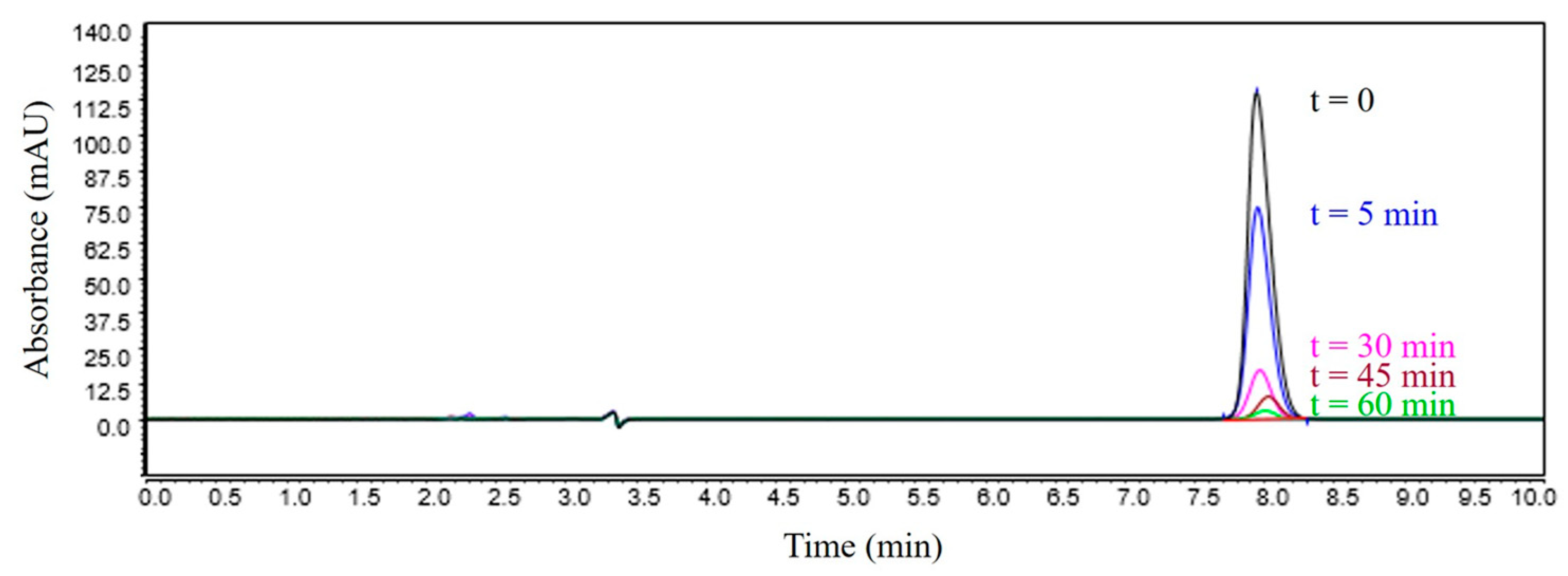

The monitoring of the AR–AC concentration during the oxidation reaction is presented in Figure 6. Chromatograms show a well-defined peak at a retention time of 7.96 min, corresponding to the dye. The reduction in the intensity of this peak arises from the degradation of the AR–AC. At 30 and 60 min of reaction, the degradation of the dye was greater than 80 and 95%, respectively. At 120 min of reaction, the AR–AC was not detected, demonstrating the effectiveness of the dye degradation with the Co(1.0%)/Al–PILC catalyzed-BAP system.

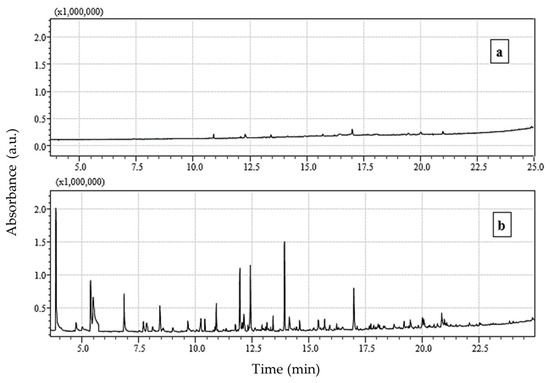

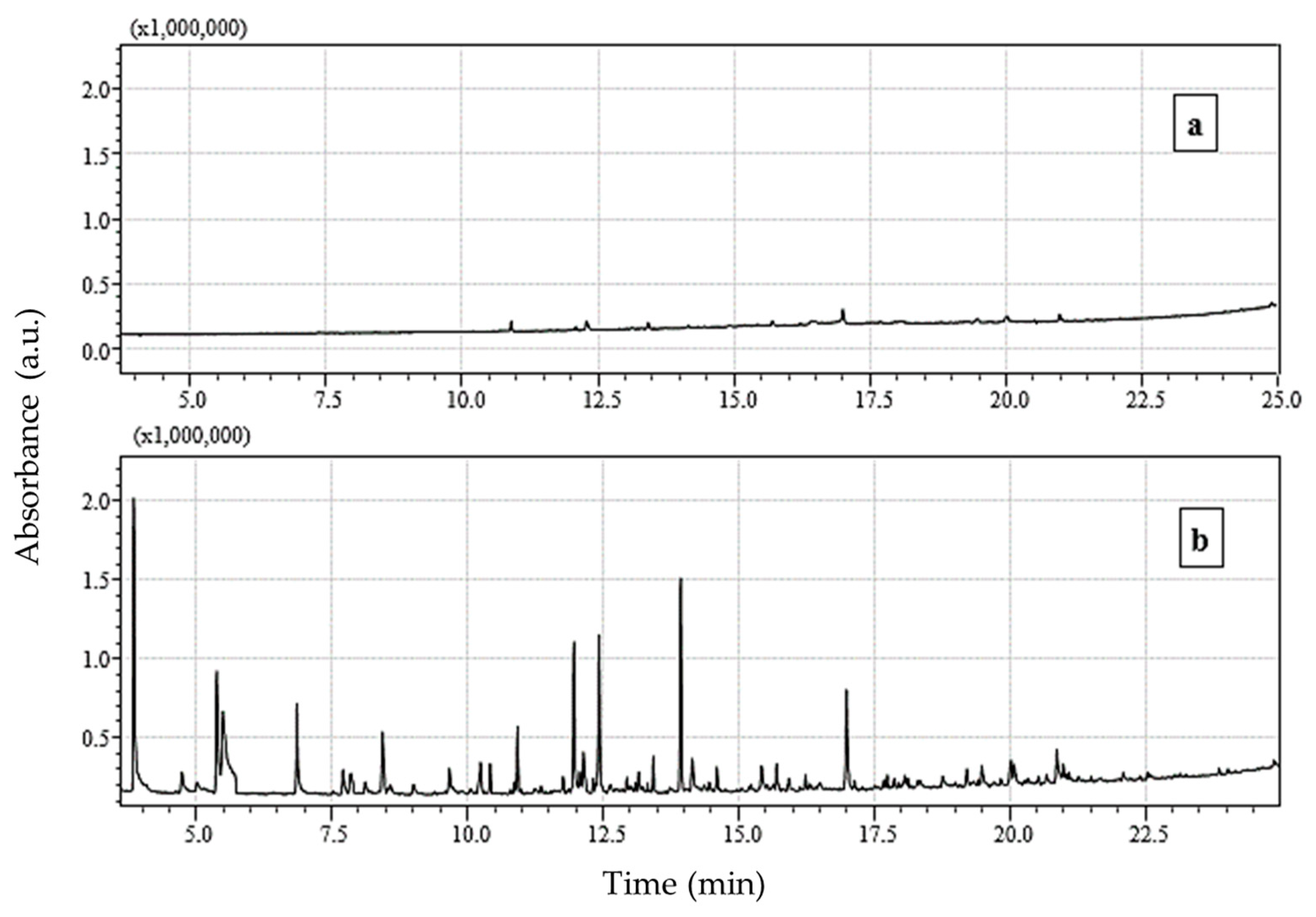

GC–MS was used to identify the aromatic intermediates of the oxidation of AR–AC under the optimal reaction conditions. Figure 7 shows the chromatograms obtained from the SPME extraction process at the beginning (t = 0, Figure 7a) and after 60 min of reaction (Figure 7b). The peaks that appear after 60 min of reaction correspond to the aromatic by-products generated during the oxidation of AR–AC. These compounds were preliminarily identified from their mass fragments (m/z) by comparison with the NIST 2010 library (

Table 11. Aromatic by-products formed during the degradation of AR–AC.

Tr (min)	Molecular Formula	m/z	Chemical Structure	Chemical Name
1.572	${\mathrm{C}}_6{\mathrm{H}}_4{\mathrm{O}}_5$	156		Aconitic anhydride
6.885	${\mathrm{C}}_8{\mathrm{H}}_9\mathrm{N}{\mathrm{O}}_2$	151		Oxime methoxy-phenyl
12.445	${\mathrm{C}}_{10}{\mathrm{H}}_{14}\mathrm{O}$	150		Carvone
13.180	${\mathrm{C}}_{10}{\mathrm{H}}_{14}\mathrm{O}$	150		Thymol
14.161	${\mathrm{C}}_{10}{\mathrm{H}}_{14}\mathrm{O}$	148		2-allyl-4-methylphenol
16.260	${\mathrm{C}}_{15}{\mathrm{H}}_{22}$	202		4-isopropyl-1,6-dimethyl-1,2,3,4-tetrahydronaphthalene
17.005	${\mathrm{C}}_{10}{\mathrm{H}}_{10}{\mathrm{O}}_4$	194		Phthalic acid monoethyl ester

). Aromatic by-products can be produced by cleavage of the –N=N– or C–N bonds in the dye molecule due to attack by reactive oxygen species. C–N cleavage between the azo group and the benzene group can generate hydroxylations at various positions of the aromatic ring, generating intermediate compounds with m/z = 148 and m/z = 150. Likewise, transformations to –COOH and –COR groups (m/z = 194, m/z = 150) can be perceived. Cleavage of the –N=N– bond can also occur, which can generate nitrogenous derivatives (m/z = 151) along with oxidation reactions and heterocycle formation (m/z = 156) [56]. The large variety of aromatic compounds suggests the complexity of the degradation process of AR–AC. A total of seven aromatic by-products were identified.

The identification of the carboxylic acids formed during the degradation of AR–AC under optimal oxidation conditions was carried out by HPLC (Figure 8). In the first 30 min of the reaction, short-chain acids such as maleic and oxalic acids were identified, and a similar result was reported by Zhou et al. [58].

4. Conclusions

The results of the characterization of materials confirmed the modification of bentonite via pillaring. Cobalt impregnation in Al–PILC decreased the catalyst’s specific surface area by 38.6%. The absence in the XRD pattern of typical cobalt oxide signals indicated that the cobalt species were amorphous or dispersed throughout the support.

The effects of reagent concentrations on the dye degradation, using Co(1.0%)/Al–PILC as the catalyst, were evaluated using CCD-RSM. ANOVA evaluated the effect of each independent variable on the response functions, and the results showed that H₂O₂ concentration was the most significant in decolorization and dye concentration was the most significant in TN and TC removals. Since HCO₃^– is an activator of H₂O₂ in oxidation reactions, the H₂O₂-NaHCO₃ interaction positively affected the equations representing the three response variables.

Under multi-objective optimization conditions (21.25 mg/L dye, 2.59 mM H₂O₂, and 1.25 mM NaHCO₃), it was possible to achieve a decolorization greater than 99.43% and TN and TC removals of 72.82 and 18.74%, respectively, with the advantage of showing cobalt leaching lower than 0.01 mg/L.

Chromatographic analysis (GC–MS and HPLC) supported the oxidation of the Allura Red AC, as well as the formation of aromatic by-products and low molecular weight carboxylic acids. The oxidation of AR–AC using cobalt impregnated in an aluminum-pillared bentonite as the catalyst (Co/Al–PILC) of the BAP system proved to be an effective technology for the degradation and partial mineralization of aqueous solutions containing this dye.
