Methyl Orange Adsorption on Biochar Obtained from Prosopis juliflora Waste: Thermodynamic and Kinetic Study

Abstract

In the information contained herein, we fabricated biochar by means of a pyrolysis process; it used Prosopis juliflora waste (PJW) as a biomass source. The physical and chemical material characterization was carried out through FTIR, thermogravimetric, BET-N₂ isotherm, and SEM-EDX assays. We studied the methylene orange (MO) adsorption onto PWJ biochar. The PJW biochar displayed a maximum percentage of MO removal of 64%. The results of the adsorption study indicated that Temkin isotherm was suitable to describe the MO adsorption process on PJW biochar; it suggests that the MO adsorption on PJW biochar could be a multi-layer adsorption process. Results showed that the pseudo-second-order model was accurate in demonstrating the MO adsorption on PJW (k₂ = 0.295 g mg⁻¹min⁻¹; q_e = 8.31 mg g⁻¹). Furthermore, the results made known that the MO removal by PJW biochar was endothermic (ΔH = 12.7 kJ/mol) and a spontaneous process (ΔG = −0.954 kJ/mol). The reusability test disclosed that after four consecutive adsorption/desorption cycles, the PWJ biochar reduced its MO removal by only 4.3%.

1. Introduction

Industrial development is responsible for the great deterioration of the aquatic environment by producing high concentrations of recalcitrant compounds (e.g., dyes, chemical solvents, hormones, and pesticides) [1,2]. The textile industry generates more than 7 × 10¹¹ tons of dyes annually, putting flora and human beings in danger [3,4]. These dyes have complex chemical structures (e.g., aromatic rings and various functional groups having π-electrons), which make them more difficult to remove from effluents than natural dyes. In addition, these compounds can bio-accumulate into the environment, and they are toxic to human beings [5,6]. The accumulation of these synthetic dyes in aquatic systems reduces sunlight; they affect plants’ growth by increasing the chemical oxygen and biochemical demand [7,8]. According to the chemical structure, the synthetic dyes include several kinds of chemical compounds (e.g., azo, Anthraquinone, benzodifuranone, polycyclic aromatic carbonyl, Indigoid, Xanthere, Phtalein, Polymethine, styryl, phthalocyanines, Quinophthalones, Sulfur, Nitro, and Nitroso dyes) [9]. Among these mentioned compounds, azo dyes are frequently used around the world (e.g., 60% of the world demand); Methyl Orange (MO) belongs to this dye category [10]. Figure 1 shows the chemical structure of MO (it is a sulfonated azo dye). This dye is used in the textile industry and as a pH indicator in the biomedical industry. The sulphonic group is responsible for the high MO solubility in water; in addition, the main drawback of MO is the harm to the environment and human beings [11]. Many strategies have been reported to remove MO from the aquatic environment (e.g., biological treatments [12], oxidation [13], membranes [14], adsorption [15], photocatalytic degradation [16], and coagulation–flocculation [17]). However, despite different options, the traditional methods have some disadvantages that include energy requirements, costs, incomplete removal, and harmful by-products [18,19].

Among these options, the adsorption method is an attractive removal option due to different advantages (e.g., great efficiency, easy implementation, recyclability, versatility, and smaller cost than other technologies) [20]. Different adsorbents have been reported to remove dyes from various matrices [21]: (i) Activated carbon is a traditional option for MO removal; however, the costs of synthesis and recycling are high [22]. (ii) Bio-sorbents are materials with biological origin (e.g., plant leaves, fish scales, tree bark, and egg shells) that can be transformed to remove different kinds of pollutants from water; they are inexpensive, and they are available. Furthermore, living and dead biomass can be used to remove a number of pollutants [23]. (iii) Nanoparticles of transition metal oxides (e.g., FeO, ZnO, TiO₂, Cr₂O₃, and graphene) are chemically and physically stable and have a great active area for adsorption of different pollutants [24]. (iv) Clays from various sources (e.g., zeolite, kaolinite, goethite, and bentonite) reported great adsorption capacities for dyes, and they are highly valued as adsorbents [25]. (v) Polymers and resins (e.g., polyamide resin, polyamine resin, chitosan, and hydrogels) can be utilized as sorbents in both natural and synthetic forms. The great ease of processing methodology and great versatility of physical forms (e.g., beads and members) are some of the main advantages of polymers as sorbents [26]. (vi) Biochar is a special type of material that has attracted attention in the purification water field. Biochar is considered a potential source of solid energy; in addition, it is suitable for the disposal of agricultural biomass waste [27]. The thermochemical conversion of biomass derived from carbonaceous materials in an oxygen-reduced atmosphere is called biochar [28]. The final properties of biochar depend on the experimental conditions and the method employed to fabricate it. Thermochemical methods can be divided into (i) pyrolysis, (ii) gasification, (iii) liquefication, and (iv) direct combustion. Among these, pyrolysis stands out as the most cost-effective method because of the versatility of its by-products (e.g., bio-oil, biochar, and syngas) [29]. Traditionally, biochar is utilized to remove toxic metal ions (e.g., Pb²⁺ and Cd²⁺) from the water [30,31,32]. However, In recent decades, biochar has been utilized to remove dyes from the water.

Table 1. Adsorbent materials utilized in various dye removal from water.

Material Adsorbent/Reference	Dye	Adsorption Capacity (mg g−1)
Chitosan [33]	Indigo carmine	118
Goethite [34]	Methylene orange	55
Zeolite [35]	Crystal violet	1217
Carbonized pine needles [36]	Malachite green	97
Coir pith [37]	Crystal violet	66
MgO–TiO2 zeolite [38]	Methylene orange	95
Coir pith [37]	Crystal violet	66
Fe-Mn oxide nanoparticles [39]	Methylene blue	72
leaves of populous tree [40]	Methylene orange	90
Orange peel biochar [41]	Congo red	155

lists some different adsorbent materials utilized in dye removal from an aqueous solution.

The feedstock of biochar can be waste biomasses from plant and/or animal origin. This is a potential opportunity to include sustainability into the agro-industrial process for transforming materials from waste to value-added products. This is a special challenge from the perspective of a circular economy, where recycling and reusing materials is an important requirement [42]. Currently, studies on the synthesis and practical development removal applications of biochar are a prominent topic of research around the world [43]. Conventionally, natural waste by-products are rejected; nevertheless, they have the potential to transform into biochar [44]. Shalini et al. obtained biochar through agricultural waste as a sustainable alternative to carbon sources to reduce CO₂ emissions [45]. He et al. discussed the advantages of biochar being used in the treatment of municipal wastewater [46]. There are numerous reviews about using biochar from different biomass wastes to develop sustainable applications that verify the importance of biochar production for environmental stability and applications for circular bio-economy [47,48,49]. A special application of biochar is the removal of dyes from aqueous samples. Sew et al. reported Congo red and crystal violet removal by using biochar obtained from four different sources. They reported that Korean cabbage showed higher adsorption capacity (1304 mg g⁻¹) for crystal violet dye [50]. Nithyalakshmi et al. reported the study of dye removal of three different dyes when using biochar obtained from two different sources; in the best case, they reported an efficiency of 87% in the removal of basic fuchsin red from water [51]. Elhamid et al. reported a removal efficiency of 44.6 mg g⁻¹ for crystal violet dye onto biochar obtained from rice straw waste [52]. Every agricultural country around the world has the potential to become a waste source to produce biochar. Actually, in the Colombian Caribbean region, Prosopis juliflora waste (PJW) is widely available, affordable in cost, and can grow in arid climates. Prosopis juliflora plants are located in the tropical dry forest region of the department of Atlántico in Colombia. This plant is grown in the backyards of the local houses to reduce internal temperatures. During the first quarter of the year, these plants begin the production of their seeds, which become wastes that are subsequently burned, and this causes problems of environmental pollution, or the wastes are eliminated as solid waste in the garbage [53]. The PJW bioaccumulates and becomes a risk to the region because PJW can contribute to the transmission capacity of parasitic diseases [54]. The PJW is rich in cellulose and lignin. These compounds can be used to prepare activated carbons by pyrolysis [55]. The PJW has demonstrated its potential as biochar. In a previous report, we studied the removal efficiency of methylene blue from an aqueous solution using biochar produced from PJW. In that report, PJW was able to remove 69% of methylene dye from water [56].

In this work, we used PJW as a source of biochar to remove MO from an aqueous solution.

2. Materials and Methods

2.1. Synthesis and Characterization of Biochar

First, PJW was collected at Piojó (Atlántico–Colombia). Next, the sample was washed and dried at 105 °C. Then, the clean biomass was milled and put in a pyrolysis reactor. After that, the pyrolysis was performed using a heat rate of 5 °C/min until it reached 500 °C. Finally, the sample was espoused at 500 °C for 2 h [57]. The physical–chemical properties of the sorbent were determined through scanning electron microscopy (an Quanta FEG 650 microscope, Brand FEI, Oregon, USA was used), Fourier Transform Infrared spectroscopy (ECO-ATR α—FTIR spectrometer, Brand Bruker, MA, USA), and Differential Scanning Calorimetry analysis (a TGA 5500-Discovery analyzer, Brand TA Instruments, New Castle, USA was used).

2.2. Kinetic and Thermodynamic Study

We used two different concentrations of MO (20 ppm and 150 ppm) to study MO removal on PJW biochar (Volume = 25 mL, pH = 6.0, and temperature of 298 K). For each test, we utilized 0.100 g of PJW biochar. The MO concertation was determined by spectrophotometry at 464 nm (MO calibration curve, R = 0.997). We studied the effect of pH and ion strength on the MO removal efficiency. The pH value was changed between 6.0 and 11.0, and the ion strength was changed by a salt addition method by adding KCl in the adsorption system [58].

In the kinetic study, we obtained the MO adsorption capacity on PJW biochar according to the following:

$$q_t=\frac{(\left(C_0-C_t\right)·V)}{m}$$

(1)

where C_t (mg/L) is the MO concentration in the solution as a function of time. To model kinetic results, we utilized the pseudo-first-order (2) [59]:

$$\ln \left(q_t-q_e\right)=\ln \left(q_e\right)-k_{1}t$$

(2)

where q_t is the MO amount of anchored per unit mass of the adsorbent (mg g⁻¹) every time. q_e is the maximum sorption capacity (mg g⁻¹) and k₁ (min⁻¹) is the rate constant. We also applied pseudo-second-order (3):

$$\frac{\mathrm{t}}{{\mathrm{q}}_{\mathrm{t}}}=\frac{1}{k_2{{\mathrm{q}}_{\mathrm{e}}}^2}+\frac{\mathrm{t}}{{\mathrm{q}}_{\mathrm{e}}}$$

(3)

where k₂ (g mg⁻¹min⁻¹) is the rate constant. Finally, we utilized the intraparticle diffusion model (4):

$${\mathrm{q}}_{\mathrm{t}}={\mathrm{k}}_{\mathrm{i}\mathrm{d}}{\mathrm{t}}^{1/2}+\mathrm{C}$$

(4)

where the k_id (mg/g⁻¹min^1/2) is the intraparticle diffusion rate constant.

In the isothermal study, we determined the adsorption capacity of MO on the PJW biochar according to the following:

$$q_e=\frac{V(C_0-C_e)}{m}$$

(5)

where q_e is the amount (mg) of MO adsorbed per gram of biochar (mg/g) at equilibrium; C₀ is the initial MO concentration (mg/L); C_e is the MO concentration at equilibrium; V (L) is the volume of the system; and m (g) is the amount of biochar. Adsorption data were fit to the Freundlich, Langmuir, and Temkin isotherm models. The Langmuir isotherm model according to the following [60]:

$$\frac{C_e}{q_e}=\frac{1}{K_L{q}_m}+\frac{C_e}{q_m}$$

(6)

where q_e (mg/g) is the MO amount (mg) adsorbed on biomass (g) at equilibrium condition; q_m is the Langmuir maximum uptake of MO per gram of biomass (mg/g); K_L (L/mg) is the Langmuir constant. We applied the Freundlich isotherm model [61]:

$$Ln{q}_e={LnK}_F+\frac{1}{n}Ln{C}_e$$

(7)

K_F ((mg/g)(L/mg)^1/n) and n are Freundlich constants, and C_e (mg/L) is the equilibrium concentration of MO. Finally, we applied the Temkin isothermal model [62]:

$$q_e=\frac{RT}{b_T}Ln{A}_T+\frac{RT}{b_T}Ln{C}_e$$

(8)

where $b_T$ is the Temkin constant, which is related to the heat of sorption (J/mol), A_T is the equilibrium binding constant (L/mg), T is the absolute temperature, and R is the gas constant. The fitting correlation coefficient (R²) and an average relative error (ARE) were used to determine the best-fitting isotherm:

$$ARE=\frac{100}{n}\sum _{i=1}^n\frac{\left|q_e-q_f\right|}{q_e}$$

(9)

where q_e is the experimental value, q_f is the fitted value, and n is the number of data points. Finally, we calculated the thermodynamic parameters of the adsorption process, Gibbs free energy (ΔG^o), enthalpy (ΔH^o), and entropy (ΔS^o) according to the following:

$$K=\frac{q_e}{C_e}$$

(10)

$$∆G^o=-RTlnK$$

(11)

$$lnK=\frac{∆S^o}{R}-\frac{∆H^o}{RT}$$

(12)

Here, T is the absolute temperature (K); R is the universal gas constant (8.314 J mol⁻¹K⁻¹); and K is the thermodynamic equilibrium constant.

3. Results and Discussion

3.1. PJW-Biochar Characterization

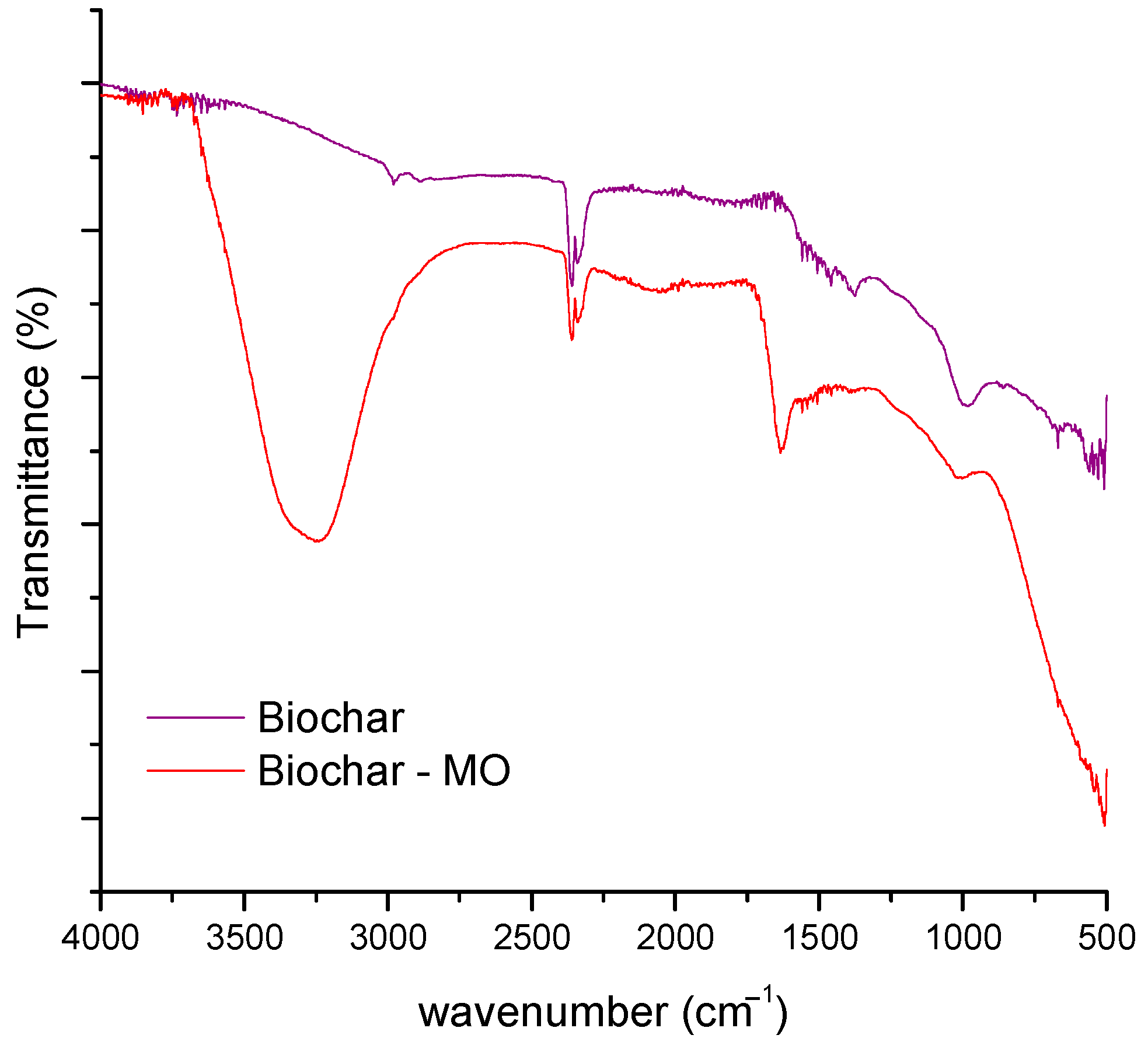

The FTIR spectrum of PJW biochar is shown in Figure 2. The broad band located between 2850 and 2750 cm⁻¹ corresponds to C-H stretching (sp²) and C-H stretching (sp³), respectively. The broad band located between 2428 and 2314 cm^–1 is related to deformation vibrations in the C≡C plane [63]. This is an important chemical group because the MO molecule can interact through electrostatic π-π interaction to anchor to the biochar surface. This band appears in the FTIR spectrum of the biochar derived from maize straw [64]. The bands located near 1650 and 1460 cm⁻¹ are assigned to C=C stretch and C-C inside of the aromatic ring. At the region of 1002 cm⁻¹, the strong band is assigned to the C-O stretching vibration in cellulose and hemicellulose [65,66]. Furthermore, it is related to materials with a high content of cellulose and lignin, which confirms the major constituent PJW biochar [67]. After MO adsorption on the biochar surface, the main signals are conserved. Although a broad band appears located between 3500 and 3000 cm⁻¹, this band corresponds to the -OH bond [68]. The signal located at 1002 cm⁻¹ reduces its intensity due to the MO adsorption and the surface covering. The broad band located between 1670 and 1511 cm⁻¹ is shifted in comparison with the biochar spectrum; this shifting and broadening are attributed to the MO anchoring, and this band can overlap the corresponding peaks to the C-H bending of aromatic rings (peaks located at 1676 cm⁻¹ and 1646 cm⁻¹). In addition, -N=N- stretching vibrations (peaks located at 1600 cm⁻¹ and 1516 cm⁻¹) corresponds to the MO molecule [69].

Figure 3 shows the BET isotherms of N_2(g) onto PJW biochar. Results demonstrate a typical behavior that relates to isotherm type II. This behavior is associated with porous solids with a crack-like shape. The BET surface area was 1.28 m²g⁻¹, and the pore size was 26 nm, with a pore volume of 1.14 × 10⁻⁴ cm³/g. These results are comparable with other previous reports about other biochars. Pawar et al. reported a surface area of 0.987 m²g⁻¹ for a biochar obtained from P. juliflora [70], and Selvarajoo et al. reported a surface area of 0.272 m²g⁻¹ for a biochar obtained from palm fiber [71]. Stylianou et al. reported a surface area of 1.53 m²g⁻¹ for a biochar obtained from spent coffee grounds [72]. Antonangelo et al. reported a surface area of 1.0 m²g⁻¹ for a biochar derived from switchgrass [73]. However, the BET area was smaller than other biochar reports: 8 m²g⁻¹ for biochar obtained from straw [74] and 372 m²g⁻¹ for biochar obtained from Miscantus [75]. In spite of the small BET area of PJW, this chemical modification is a sustainable option to utilize agricultural waste. It is an opportunity to generate value added to the agriculture waste.

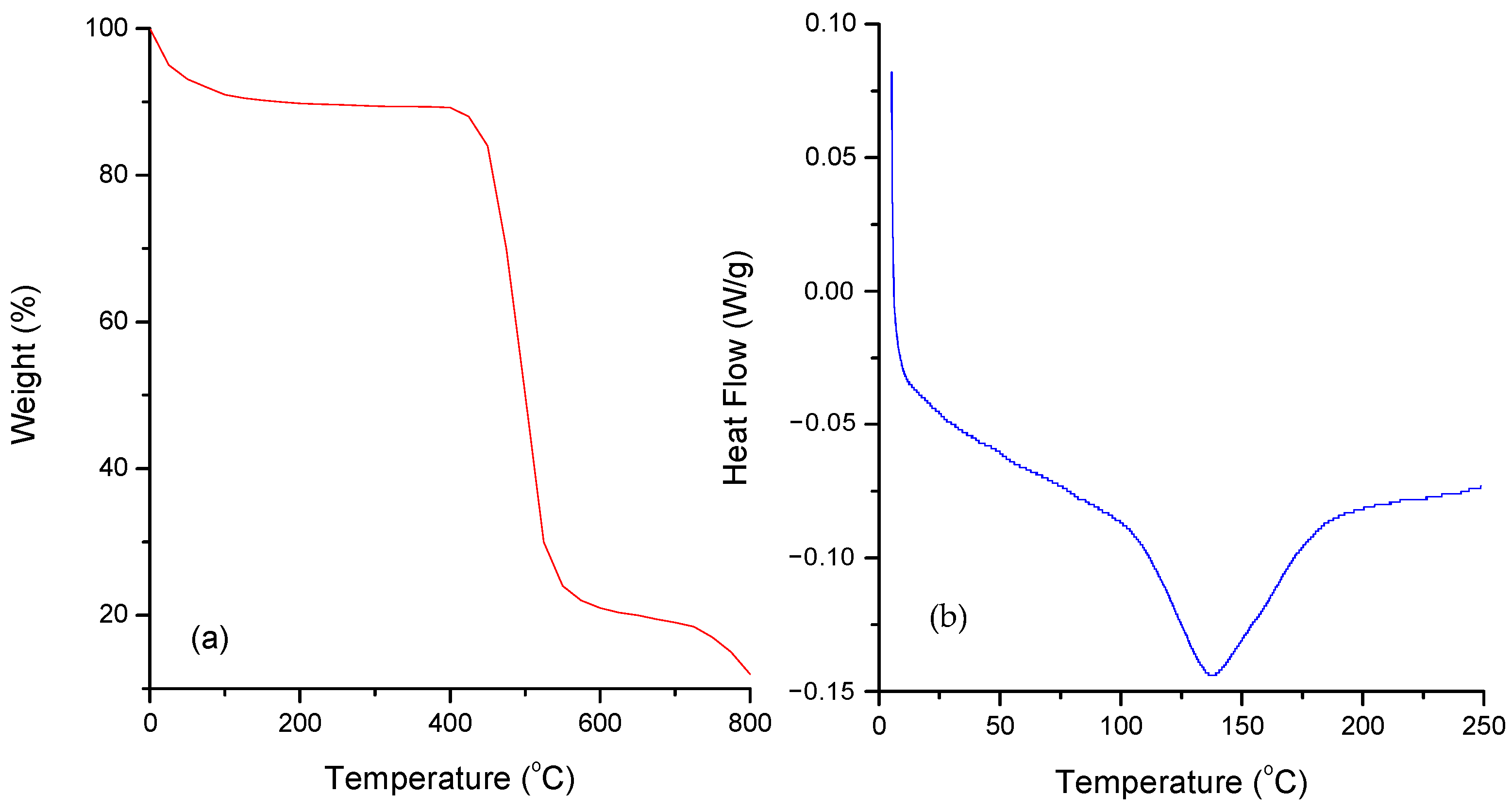

The results for the thermal characterization of PJW are shown in Figure 4. Results exhibit the thermogravimetric thermograph, and

Table 2. Thermogravimetric results.

Temperature (°C)	Loss (%) 1	Assignation
20–50	5	H2O volatile organic solvent
420–570	68	Cellulose degradation and lignin oxidation
570–800	10	Carbonization

¹ Data obtained from Figure 3a.

lists the data and the assignation for each loss of weight. During pyrolysis, the basic components of biomass (e.g., lignin and cellulose) degraded between 250 and 600 °C; according to Figure 4, this process occurs between 420 and 570 °C with a loss of weight of 68%. This result is according to a material with a high content of cellulose and lignin [70,71]. The final composition of biochar is affected by (i) the type of feedstock material utilized as a biochar source, (ii) the pyrolysis condition (temperature and temperature ramp), and (iii) modification approaches. The DSC curve for PJW biochar is shown in Figure 4b. Results show an endothermic peak; this signal is associated with the typical endothermic melting of biochar at 139 °C.

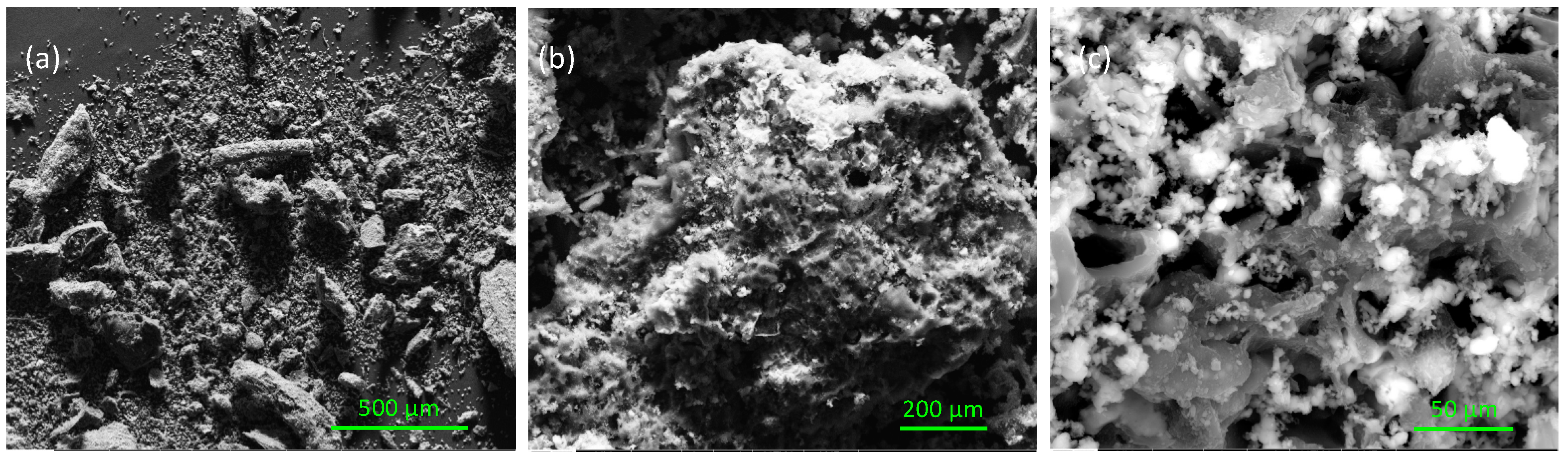

Figure 5 shows the SEM images for PJW biochar. Results show that the PJW surface morphology was heterogeneous and structurally complex. Results show a mesoporous and rough texture. These cavities are large enough to allow the diffusion of MO (the MO molecular diameter is estimated to be about 6–8 nm) [76]. The porosity is associated with the freeing of small molecules (e.g., water, methane, and carbon dioxide) throughout the synthesis process and the losses of lignin and cellulosic derivatives during pyrolysis [72]. Additionally, Figure 6 shows the EDX spectrum of PJW biochar. This figure shows PJW biochar was composed mainly of carbon, oxygen, and other remaining elements (e.g., Mg, K, Ca, and P). The EDX assay was carried out in three areas on the surface, and

Table 3. Content of elements of the PJW biochar.

Element Line	Area 1 (wt.%) 1	Area 2 (wt.%) 1	Area 3 (wt.%) 1	Average (wt.%) 1
C K	74.65	64.81	69.22	69.56
O K	14.75	14.19	13.50	14.14
Mg K	1.15	1.32	0.42	0.96
P K	1.03	1.72	--	--
K K	5.25	11.91	9.52	8.89
Ca K	1.39	1.72	--	--
ClK	1.77	5.12	5.94	4.27
MoL	--	--	1.25	--

¹ Data obtained from EDX assay.

lists the average composition results. The adsorption properties are affected by the composition of feedstock due to the presence of minerals that can contribute to the formation of the additional active site on biochar to improve its potential removal capacity.

EDX results (Table 3) show that PWJ biochar was composed mainly of carbon (69.56%) and oxygen (14.14%). After the pyrolysis process, the resulting biochar was rich in carbon elements; this is an important aspect because this material can be suitable for removing organic and inorganic pollutants from water [77]. Among the remaining elements, potassium was in the highest ratio. The presence of those ions needs to be monitored carefully. A high potassium ion concentration element is associated with agglomeration problems; in our case, K content was (7%). Other authors reported that those inorganic components can affect the gasification reactivity [71].

3.2. Kinetic Study of MO Adsorption on PJW Biochar

Two different concentrations of MO (20 ppm and 150 ppm) were used to study the MO concentration impact on the removal efficiency. Figure 7 shows the impact of concentrations of MO on the removal percentage. Figure 7 shows the MO removal efficiency was increased as contact time was increasing. Results show the saturation time of the surface was reached after 15 min. Moreover, when the initial MO concentration was increased, the MO removal was reduced; this behavior can be associated with the overload of the available sites for dye anchoring on the PJW surface. Similar behaviors have been reported to Cd adsorption on biochar [59,78]. Figure 8a shows the effect of pH solution on MO removal using PJW. Since the pH value of the solution can affect the charge of the biochar surface, the solution pH value is one of the most important parameters that affect the removal capacity of the biochar. The best removal percentage was obtained at pH = 6.0. Figure 8a shows that at pH values higher than 6.0, the removal efficiency decreases significantly near 0.38% at pH = 11.0. At pH higher than 4.4, the stable chemical structure of MO corresponds to the structure shown in Figure 1. The MO is a typical anionic azo dye; thus, the MO sorption will be favored if the charge of the biochar surface is positive. However, results indicate that as the pH value increases, the MO removal efficiency decreases, indicating that the pH of the surface becomes more negative as pH increases. Van-Phuc reported a pH solution of 5.5 as the optimal in the removal of Pb²⁺ and Cd²⁺ onto biochar obtained from pomelo fruit peels. They reported the same tendency in the removal efficiency as a function of the pH [79].

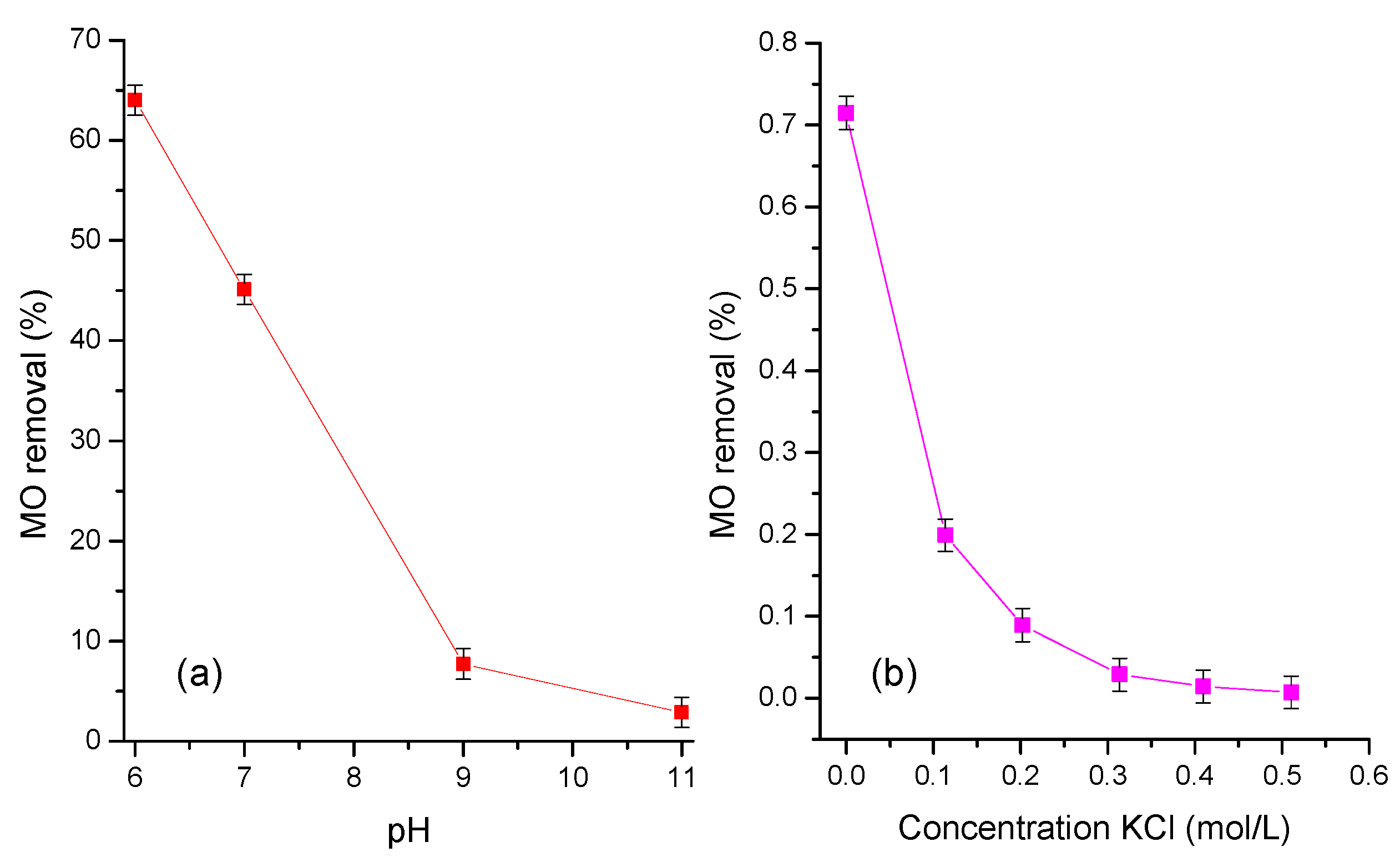

The ionic strength is another parameter of the MO removal efficiency of the biochar since it affects the electrostatic interaction between the biochar surface and the adsorption ions. Figure 8b shows the effect of ionic strength on the MO removal of PJW biochar. The plot indicates removal efficiency decreases as the KCl concertation increases. It is known that electrostatic interactions may also be reduced by increasing the ionic strength of the solution; this behavior is a consequence of the electrostatic screening. As the KCl concertation increases, the electrostatic screening increases, and the charge makes it more difficult for charged particles to be adhered to the surface [80].

We used three kinetic models to study the kinetic mechanism of MO adsorption onto the biochar surface (Equations (2)–(4)). Figure 9 shows the kinetic fitting results, and

Table 4. Results of kinetic modeling of MO adsorption on PJW biochar.

Fitting Model	Kinetic Values 1
Pseudo-first order	qe (mg g−1)	k1 (min−1)	R2	ARE (%)
	5.41	0.163	0.914	21.3
Pseudo-second order	qe (mg g−1)	k2 (g mg−1min−1)
	8.31	0.295	0.994	4.4
Intraparticle diffusion	C (mg g−1)	kid (g mg−1min−1)
	1.86	1.22	0.841	10.8

¹ Data obtained from fitting of kinetic models.

lists the parameters for each model. The mechanism of MO adsorption on biochar can include physical and chemical processes [21].

The intraparticle diffusion fitting showed the worst fitting results; Figure S1 shows the linear fitting for experimental data. The total data reveal an R² = 0.841; however, two different regions are distinguished; they suggest the MO adsorption on PJW is not only under intra-particle diffusion but under the control of different mechanisms (e.g., external diffusion and adsorption onto active sites) [81]. Taking into account the PJW pore size (26 nm, Section 3.1) and the estimated value of the molecular diameter of MO (about 6–8 nm [76]), the intra-particle diffusion process could be present during the adsorption process. Nonetheless, the multilinearity of results in Figure S1 indicates that several stages can be available because they determine the kinetics of the adsorption process. Both regions of the plot (Figure S1) must be analyzed independently. The interpretation of these regions is confusing due to different authors responding differently to this phenomenon [82]. Gulliapi et al. attributed the initial part of the curve to the diffusion in the micropores during the adsorption of selenium through rice husk ash. They reported the diffusion in the meso- and microporesis represented by the bi-linear in the intraparticle fitting (Figure S1) [83]. In the study of biosorption of methylene blue using Paspalum notatum, Kumar et al. explained this region as part of the diffusion in the limit layer [84]. Wang et al. hypothesized that the intraparticle diffusion model occurs in the first part of the model (see black line Figure S1), and the equilibrium of intraparticle diffusion in pores is achieved when both lines are matched. According to Wang et al., if the fitting line (black line Figure S1) passes through the origin point (0, 0), the adsorption is dominated by the intra-particle diffusion; if not, it is a multiple adsorption process [85]. In our case, the fitting line of the first section of the model did not pass exactly through the origin point (0, 0). Thus, intraparticle diffusion is not the only speed-limiting step of the process.

Among kinetic models, the pseudo-second-order (PSO) model showed the best-fitting results. Kinetic results and the ionic strength study suggest that electrostatic interaction between MO and biochar surface could be an important interaction during the adsorption process. Qiu et al. suggested that pyrolysis temperature >400 °C can lead to an increase in the electrostatic interaction of the biochar [86]. The PSO model has been reported as best-fitting for the removal of various pollutants on biochar previously [87]. Ghani et al. reported that during the pyrolysis process with temperatures lower than 500 °C, the lignin is not converted into a hydrophobic hydrocarbon, and biochar becomes more hydrophilic [88]. Due to the presence of a dye sulphonic group, the MO dye will anchor easily on a hydrophilic surface. The adsorption of methylene blue on PWJ biochar reported q_e = 2.94 mg/g and k₂ = 0.0867 [56]; in our case, both of them (q_e and k₂) were greater evidence that PWJ biochar is better in the removal of anionic (MO) dye than cationic dye methylene blue.

3.3. Isothermal Study of MO Adsorption on PJW Biochar

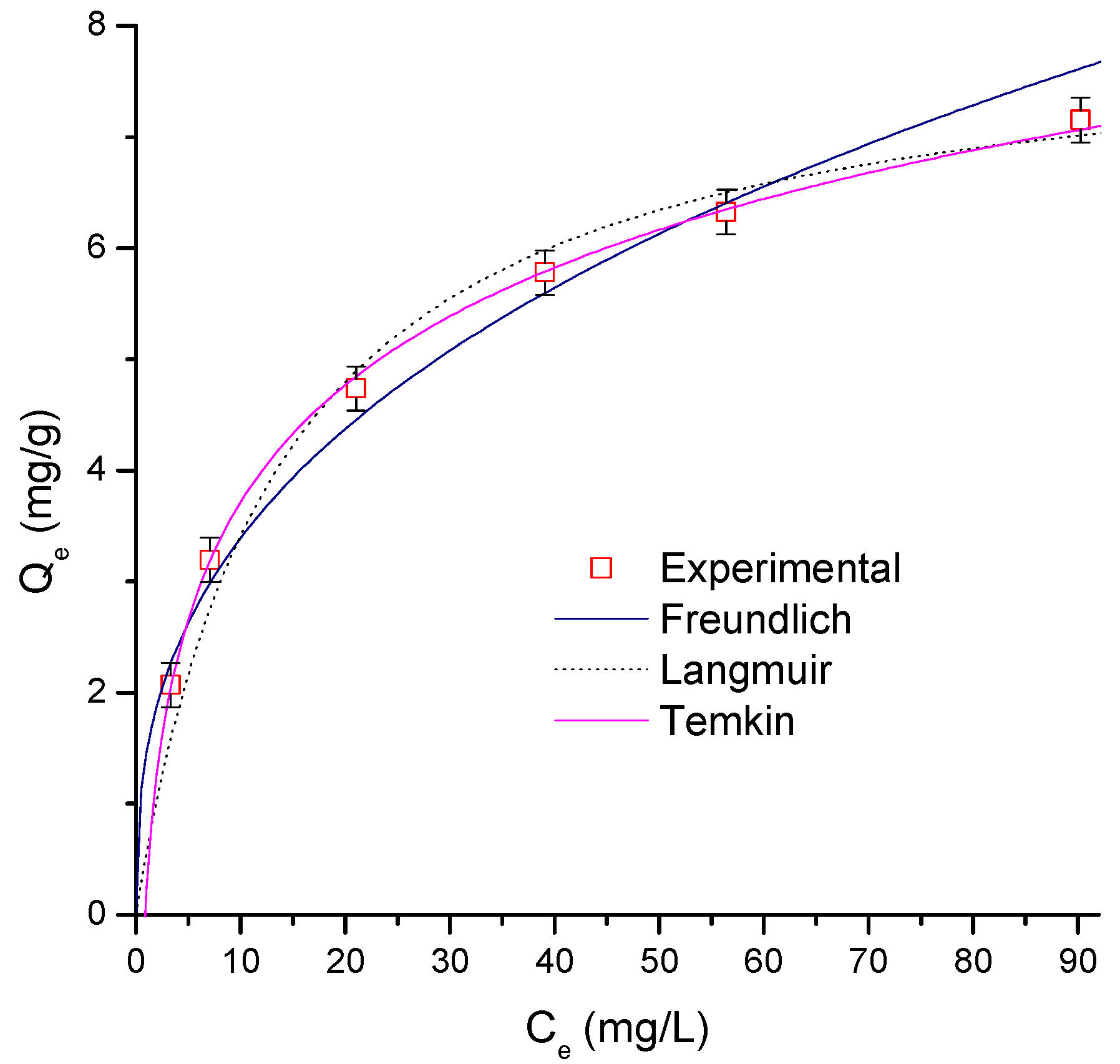

Figure 10 shows the results of the isothermal study of MO adsorption on PJW biochar.

Table 5. Results of isothermal modeling of MO adsorption on PJW biochar.

Isothermal Model	Parameters 1
Langmuir	qmax (mg g−1)	kL (L·min−1)	R2	ARE (%)
	8.08	0.0731	0.995	5.4
Langmuir	KF (mg g−1)(L g−1)1/n	!/n
	1.45	0.368	0.981	8.3
Temkin	BT	AT (L min−1)
	1.52	1.14	0.999	1.1

¹ Data obtained from fitting of isothermal models.

lists the physical–chemical parameters. Adsorption data show an L shape, which indicates there is no competition between molecules of water and MO to fill the available sites on the PJW biochar surface [89]. The Temkin and Langmuir models showed the best-fitting results. The Temkin model assumes the adsorption enthalpy is reduced as the adsorption coverage rises and the anchoring energy is dispersed over the anchoring site; this is according to multi-layer adsorption on the heterogeneous biochar [76,90]. Among isothermal models, the Temkin model has the best-fitting values since it suggests MO adsorption on PJW biochar is a multi-layer process that is suitable for the characterization results (Section 3.1). However, if it is compared with other reports (see Table 6), most of them reported that the Langmuir isotherm is the best-fitting model. The Langmuir isotherm assumes a dynamic equilibrium between the rates of sorption/desorption of dye on the biochar surface [91]. In our case, PJW biochar shows a heterogeneous surface according to a multi-layer process. In this case, it is possible that more than one model fits the experimental data because they state that several adsorption processes occur during dye anchoring. The mechanism of MO adsorption on biochar can be explained by various processes (e.g., ion exchange, electrostatic interaction, and pore filling and precipitation). The sulphonic group can interact easily with oxygen that contains groups located on the surface of biochar, and the rest of the MO molecule can interact through an electrostatic π-π interaction to anchor to the surface [92]. During the MO adsorption process onto PJW biochar, multiple steps could be present: (i) external mass transfer, (ii) intraparticle diffusion, and (iii) π-π interaction and electrostatics interactions [93]. Figure S3 shows a diagram of the process.

Wu et al. studied MO adsorption onto halloysite nanotubes and chrysotile nanotubes, and they reported that the Temkin model was suitable to describe the adsorption process [76]. Comparing the q_max = 8.08 mg/g obtained for PWJ biochar with typical reports for active carbon, clays, and nanoparticles of composites, the value reported herein is small. However, the biochar adsorbents obtained from waste contribute to reducing the bio-accumulate process in the environment [44] and offer an alternative for carbon storage [94].

3.4. Thermodynamic Study

We determined the temperature effect on the MO adsorption process in four temperatures (30, 40, 50, and 60 °C). The thermodynamic parameters were determined from the linear fitting of the Arrhenius equation (Equation (12)). Figure S2 shows the linear fitting plot, and Table 6 lists fitting results for PJW biochar and other adsorbent materials. Table 6 shows the MO adsorption process is thermodynamic spontaneous (ΔG = −0.954 kJ/mol) on PJW. Also, the reduction in ΔG at higher temperatures verifies that the adsorption process is thermodynamically allowed at higher temperatures. On top of that, MO adsorption was an endothermic type process (ΔH = 12.7 kJ/mol). Comparing the results of PJW with other thermodynamic reports for MO removal from water, they are comparable (see Table 6). The value of ΔG was negative for all reports listed, and most of the sorbents reported in Table 6 show positive enthalpy adsorption values related to the endothermic process.

Table 6. Thermodynamic properties for MO removal on various adsorbent materials.

Adsorbent Materials	Isotherm Model	Temperature (K)	Thermodynamic Parameters 1
			ΔG (kJ/mol)	ΔH (kJ/mol)	ΔS (J/molK)
PJW	Temkin	303	−0.954	12.7	45.2
		313	−1.406
		323	−1.859
		333	−2.311
Active carbon—Vittis vinifera L. [95]	Freundlich	288	−0.17	39.1	133
		303	−1.91
		318	−3.13
CuO [96]	Langmuir	303	−0.256	15.8	58
		318	−1.07
		333	−1.89
Modified silkworm exuviae [97]	Langmuir	303	−3.37	2.54	20
		313	−3.54
		323	−3.78
PVP-ZnO composite [98]	---	298	−51.2	49.9	171
		308	−52.9
		318	−54.6
		298	−51.2
Orange peels [99]	Langmuir	303	−9.19	49.3	256
		313	−11.3
		323	−13.5
		303	−9.19
Orange peels [100]	Langmuir	298	−25.8	−23.1	9.1
		313	−25.9
		333	−26.2
Sugar scum powder [101]	Langmuir	293	−14.6	−14.14	2.03
		303	−14.9
		318	−14.7
Chicken manure biochar [102]	Langmuir	303	−2.24	7.56	32.9
		313	−2.63
		323	−2.90

¹ Data obtained from Arrhenius equation fitting.

Table 6. Thermodynamic properties for MO removal on various adsorbent materials.

Adsorbent Materials	Isotherm Model	Temperature (K)	Thermodynamic Parameters 1
			ΔG (kJ/mol)	ΔH (kJ/mol)	ΔS (J/molK)
PJW	Temkin	303	−0.954	12.7	45.2
		313	−1.406
		323	−1.859
		333	−2.311
Active carbon—Vittis vinifera L. [95]	Freundlich	288	−0.17	39.1	133
		303	−1.91
		318	−3.13
CuO [96]	Langmuir	303	−0.256	15.8	58
		318	−1.07
		333	−1.89
Modified silkworm exuviae [97]	Langmuir	303	−3.37	2.54	20
		313	−3.54
		323	−3.78
PVP-ZnO composite [98]	---	298	−51.2	49.9	171
		308	−52.9
		318	−54.6
		298	−51.2
Orange peels [99]	Langmuir	303	−9.19	49.3	256
		313	−11.3
		323	−13.5
		303	−9.19
Orange peels [100]	Langmuir	298	−25.8	−23.1	9.1
		313	−25.9
		333	−26.2
Sugar scum powder [101]	Langmuir	293	−14.6	−14.14	2.03
		303	−14.9
		318	−14.7
Chicken manure biochar [102]	Langmuir	303	−2.24	7.56	32.9
		313	−2.63
		323	−2.90

¹ Data obtained from Arrhenius equation fitting.

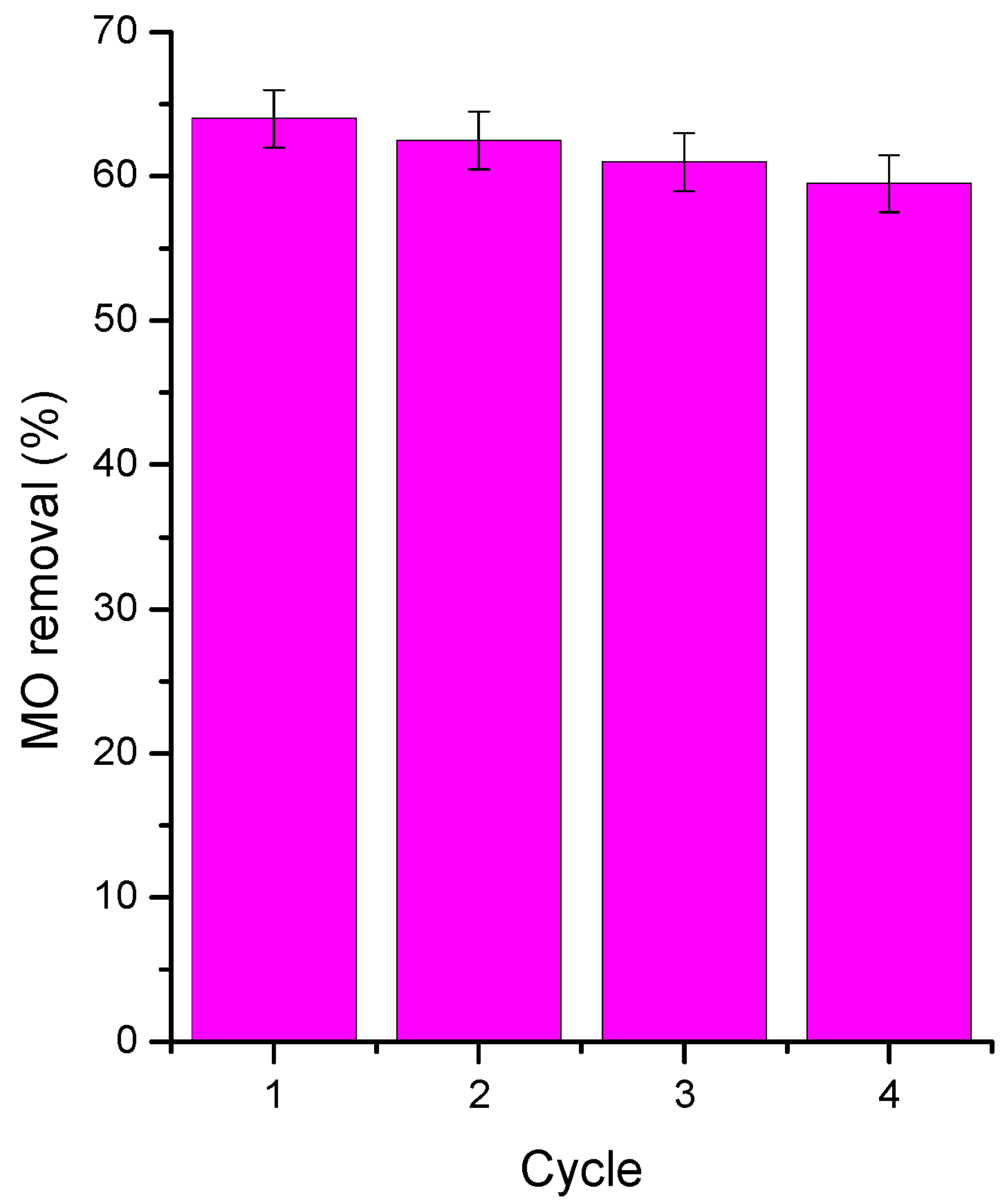

The reusability of biochar is a critical property for industrial applications. The adsorbent stability can be tested under different experimental conditions to determine its impact on the removal capacity of biochar (pressure, temperature, acid and alkali medium, and recyclability) [103]. Figure 11 shows the recyclability capability of PJW biochar after four sorption/desorption cycles. Results showed that after four consecutive cycles, the removal capacity of PJW biochar was reduced by only 4.3%. This suggests that PJW biochar is suitable for removing MO from the water after repetitive cycles. This is an important aspect to include sustainability in the physical transformation process; the biomass waste problem is solved after the biochar production, and the biochar can be used in various cycles to remove a dye from water.

Finally, the PJW is an attractive option to be used as an inexpensive and sustainable biochar source to remove MO from the water.

4. Conclusions

We obtained biochar using PJW as a source of carbonaceous material. The material was heterogeneous and structurally complex. PJW shows a rough texture with a pore size of 26 nm. The FTIR results were suitable with a biochar obtained from a biomass with a high lignin and cellulose content. The PJW biochar displayed a maximum percentage of MO removal of 64%. The pH study showed the removal efficiency was reduced as pH was increased, and besides the ionic strength, results indicated that the electrostatic screening could be presented. The PSO model was suitable to describe the MO adsorption process (k₂ = 0.295 g mg⁻¹min⁻¹; q_e = 8.31 mg g⁻¹). The thermodynamic results showed the MO removal by PJW biochar was a spontaneous process (ΔG = −0.954 kJ/mol) and endothermic type process (ΔH = 12.7 kJ/mol). The reusability test indicated that PWJ biochar was stable after four consecutive adsorption/desorption cycles. Finally, all the results indicated the PJW is an attractive option to be used as an inexpensive and sustainable biochar source to remove MO from the water.
