Supramolecular Solvent-Based Liquid Phase Microextraction Combined with Ion-Pairing Reversed-Phase HPLC for the Determination of Quats in Vegetable Samples

by
Sophon Hem
,
Netsirin Gissawong
,
Supalax Srijaranai
and
Suthasinee Boonchiangma
*
Materials Chemistry Research Center, Department of Chemistry and Center of Excellence for Innovation in Chemistry, Faculty of Science, Khon Kaen University, Khon Kaen 40002, Thailand
*
Author to whom correspondence should be addressed.
Toxics 2019, 7(4), 60; https://doi.org/10.3390/toxics7040060
Submission received: 13 September 2019 / Revised: 19 November 2019 / Accepted: 24 November 2019 / Published: 26 November 2019
(This article belongs to the Special Issue Advanced Methods for the Analysis of Pesticides and Their Transformation Products or Metabolites)
Browse Figures
Versions Notes

Abstract

:
In this study, we used anion supramolecular solvent (SUPRAS) prepared from a mixture of an anionic surfactant, sodium dodecyl sulfate (SDS), and a cationic surfactant, tetrabutylammonium bromide (TBABr), as the extraction solvent in liquid phase microextraction (LPME) of paraquat (PQ) and diquat (DQ). The enriched PQ and DQ in the SUPRAS phase were simultaneously analyzed by ion-pairing reversed-phase high performance liquid chromatography. PQ and DQ were successfully extracted by LPME via electrostatic interaction between the positive charge of the quats and the negative charge of SUPRAS. PQ, DQ, and ethyl viologen (the internal standard) were separated within 15 min on a C18 column, with the mobile phase containing 1-dodecanesulfonic acid and triethylamine, via UV detection. The optimized conditions for the extraction of 10 mL aqueous solution are 50 μL of SUPRAS prepared from a mixture of SDS and TBABr at a mole ratio of 1:0.5, vortexed for 10 s at 1800 rpm, and centrifugation for 1 min at 3500 rpm. The obtained enrichment factors were 22 and 26 with limits of detection of 1.5 and 2.8 µg L−1 for DQ and PQ, respectively. The precision was good with relative standard deviations less than 3.86%. The proposed method was successfully applied for the determination of PQ and DQ in vegetable samples and recoveries were found in the range of 75.0% to 106.7%.

Graphical Abstract

1. Introduction

A group of quaternary ammonium compounds, also known as quats, has been used as herbicides and anticholinergic drugs. Among quats, paraquat (PQ) or 1,1′-dimethyl-4,4′-bipyridinium dichloride, commercial name Gramoxone and diquat (DQ) or 1,1′-ethylene-2,2′-bipyridyldiylium dibromide, have been commonly used as non-selective herbicides [1,2]. They are fast-acting contact herbicides that inhibit photosynthesis, so they have been used as pre-harvest desiccants and defoliants and for industrial and aquatic weed control [3]. Quats are highly water soluble, can easily contaminate water, and adsorb in clay and soil, to be taken up by plants and subsequently enter the food chain [4,5]. The maximum residue limits of paraquat established by the European Commission (Regulation 396/2005) in vegetables is 0.02 mg/kg. The ingestion of the most toxic quats, PQs, into the human body can have long-term health effects, such as Parkinson’s disease, liver failure, heart failure, lung damage, and skin cancer [6]. Therefore, it has been banned in some countries [7,8].
Chromatographic techniques, such as gas chromatography (GC) and high performance liquid chromatography (HPLC), have been used as powerful techniques for simultaneous analysis of quats [9,10,11,12,13]. For GC analysis, derivatization is required to increase the volatility of quats [14]. Ion exchange chromatography (IEC) and its analog technique, capillary electrophoresis (CE), are suitable for analysis of ionic compounds like quats [15,16]. However, IEC columns are quite expensive and CE has some limitations due to low sensitivity. Ion-pairing reversed-phase HPLC (IP-RPHPLC) uses an inexpensive reversed-phase column with an aqueous mobile phase containing ion pairing agents and is used as an alternative technique for the determination of ionic compounds. Many reports have been published on the determination of quats using IP-RPHPLC with a mass spectrometer (MS), and alternatively UV detection can be used [12,13,17,18,19].
Sample preparation is an essential step in the analytical field. Nowadays, trends for sample preparation are focused on microextraction techniques. Solid phase extraction (SPE), especially ion exchange sorbents, has been extensively used for extraction of quats [3,19,20,21]. Many strategies, such as dispersive solid phase extraction (DSPE) [22,23] and headspace solid phase microextraction (HS-SPME) [24], have been used. Ion-pair SPE has been used as sample preparation for the determination of quaternary ammonium herbicides [12,13,25]. However, SPE has some drawbacks due to the many steps involved, i.e., conditioning, loading, and eluting. In addition, the sorbents of SPE are usually costly and their preparation procedures consume large amounts of solvents. Another mode of microextraction based on solvent extraction, liquid phase microextraction (LPME), has received considerable attention. The important features of LPME are the use of a small volume of extraction solvent, rapid process, and high enrichment factor [26,27,28,29]. Recently, LPME has been focused on green solvents, such as ionic liquid [30], to eliminate the use of toxic solvents.
Supramolecular solvents (SUPRASs), water immiscible nanostructured liquids, produce colloid amphiphilic solutions through sequential self-assembly and coacervation [31,32]. They have the potential to be used as the extraction solvents for various compounds due to the tunability of solvent properties [33]. In addition to ease of preparation and low cost, SUPRASs are considered green solvents as they are non-volatile and non-flammable [34,35,36]. SUPRASs have been used as the extraction solvent in LPME for determination of various analytes in different samples, including benzimidazolic fungicides in environmental water [37], mecoprop and dichlorprop in soil [38], endocrine disruptors in sediment [39], Sudan dyes in foodstuffs [40], and tetracyclines in food samples [41].
In this study, we investigated LPME combined with HPLC equipped with a UV detector as a sensitive method for simultaneous analysis of quats. PQ and DQ (the structures shown in Table S1) were enriched by LPME using SUPRAS as the extraction solvent prior to their analysis by IP-RPHPLC. SUPRAS was prepared easily from a mixture of sodium dodecyl sulfate (SDS) and tetrabutylammonium bromide (TBABr). The proposed method was applied for the determination of the studied quats in vegetables. In addition, a LPME mechanism is proposed. To the best of our knowledge, this is the first time trace quats have been determined using SUPRAS-based LPME for enrichment of quats prior to their analysis by IP-RPHPLC with common UV detection.

2. Materials and Methods

2.1. Chemicals and Reagents

All chemicals and reagents were of at least analytical reagent grade. Quats standards, paraquat dichloride, and diquat dibromide hydrate were purchased from Dr. Ehrenstorfer GmbH (Augsburg, Germany). Ethyl viologen dibromide was obtained from Sigma-Aldrich (St. Louis, MO, USA). SDS and TBABr were purchased from Ajax Finechem (NSW, Australia). Acetonitrile (HPLC grade) was purchased from Merck (Darmstadt, Germany). 1-dodecanesulfonic acid sodium salt and triethylamine (TEA) were obtained from Fluka (Tokyo, Japan). Ortho-phosphoric acid (H3PO4) and hydrochloric acid were obtained from QRëC (Auckland, New Zealand). Aluminum chloride (AlCl3) was purchased from Sigma-Aldrich (St. Louis, MO, USA). Potassium bromide (KBr) was obtained from Ajax Finechem (NSW, Australia) and sodium hydroxide was purchased from Carlo Erba (Marseille, France).
All standard stock solutions were prepared in de-ionized water with a specific resistivity of 18.2 MΩ cm from RiOs™ Type I Simplicity 185 (Millipore, Burlington, MA, USA).

2.2. Instrumentation

The chromatographic separations were conducted on an Agilent 1220 LC VL system consisting of Agilent 1260 Infinity II photodiode array detector (DAD), a binary pump, and a 20 μL Rheodyne injection loop. OpenLAB CDS Chemstation software was used for data acquisition. The separation was performed on a Purospher® STAR RP-18 end-capped (150 × 4.6 mm I.D., 5μm) from Merck (Darmstadt, Germany).
A vortex mixer (50 Hz) from Scientific Industries, Inc. (Bohemia, NY, USA), and a centrifuge (H-11n, Kokusan, Tokyo, Japan) were used for extraction and centrifugation in the extraction step, respectively. An ultrasonic water bath (35 kHz and 320 W) with temperature control from Bandelin Sonorex (Berlin, Germany) was also used. A transmission electron microscope (TEM; TECNAI G2 20, FEI, Hillsboro, OR, USA) and zeta potential analyzer (Zetasizer Nano ZS, Malvern, U.K.) were used for the morphology of SUPRAS and charge on the surface of SUPRAS, respectively.

2.3. SUPRAS Preparation

An aliquot (1.00 mL) of 50 mmol L−1 SDS and 0.50 mL of 50 mmol L−1 TBABr were placed in a centrifuge tube and 1.5 g of AlCl3 was added. Then, the mixture solution was adjusted to 10 mL with de-ionized water. The solution was mixed using vortex for 20 s at the fixed speed of 1800 rpm, and a cloudy solution was observed. After, the solution was centrifuged at 3500 rpm for 5 min for phase separation. Finally, the SUPRAS phase (upper phase) was collected using a syringe and maintained in a glass vial at room temperature before use.

2.4. LPME Procedure

Standard or sample solution (10.00 mL) was placed in a 10 mL centrifuge tube and 50 µL of SUPRAS (from Section 2.3) was added. The solution was vortexed for 10 s at 1800 rpm, and a colloidal solution was observed. After centrifugation at 3500 rpm for 1 min, the supernatant was withdrawn. Finally, the residue was dissolved in 20 µL acetonitrile before injection to HPLC for quats analysis (Section 2.5).

2.5. Chromatographic Separation of Quats

In preliminary studies, reversed-phase HPLC mode was investigated using various organic modifier and buffered mobile phases, which resulted in the incomplete separation of quats. Thus, ion pairing reversed phase-HPLC (IP-RPHPLC) was used. As the studied quats possess positive charges, the mobile phase containing negatively charged ion pairing (1-dodecanesulfonic acid) was investigated. The optimum mobile phase was a mixture of acetonitrile and aqueous solution of 10 mM TEA containing 5 mM 1-dodecanesulfonic acid sodium salt and 0.1 M KBr adjusted to pH 3 with o-phosphoric acid under isocratic elution with the ratio of 30/70 (v/v). The flow rate was 0.8 mL min−1. Using the optimum mobile phase, the three studied quats (PQ, DQ, and ethyl viologen as the internal standard) were separated within 15 min. The maximum absorption wavelengths were selected for monitoring PQ and DQ at 254 and 310 nm, respectively.

2.6. Sample Preparation

Vegetable samples, including Chinese cabbage, radish, onion, and cabbage, were purchased from local markets in Khon Kaen, Thailand. The vegetable samples preparation were prepared following the procedure described previously [11] with some modifications. The samples were chopped and blended. Then, the homogenized sample (2.5 g) was mixed with 10 mL water and sonicated for 15 min and centrifuged for 5 min at 3500 rpm. After, the supernatant was filtered through Whatman filter paper no. 1 to remove the solid residues. Finally, the filtrate (1.00 mL) was transferred to a centrifuge tube containing 9.00 mL water and was extracted following the LPME procedure described in Section 2.4.

2.7. Validation Study

Calibration curves were obtained using the internal standard method. The peak area ratios of the analytes (paraquat and diquat) and internal standard (ethyl viologen) were plotted against the concentration of the analytes. Five concentrations of each analyte were studied. The limit of detection (LOD) was evaluated using a signal to noise (S/N) ratio of 3:1 and limit of quantitation (LOQ) was S/N of 10:1. In this study, the matrix-matched calibration curve was used for quantitative determination to compensate for matrix effects. Five different concentrations of the PQ and DQ standards ranging from 20 to 500 µg L−1 and 400 µg L−1 ethyl viologen were added to the sample filtrate (10 mL) and prepared according to Section 2.4. The precision was expressed as the relative standard deviation (%RSD).

3. Results and Discussion

3.1. Optimization of SUPRAS-Based Liquid Phase Microextraction

In this study, LPME was used as the preconcentration method for quats before their analysis by IP-RPHPLC. The SUPRAS prepared from a mixture of SDS and TBABr was used as the extraction solvent. To obtain the optimum conditions for extraction, a 10 mL aqueous solution containing 0.1 mg L−1 of each quat was used throughout. Parameters affecting the extraction efficiency were studied and optimized including surfactant composition, SUPRAS volume, salt addition, pH, vortex time, and centrifugation time. The extraction efficiency is expressed in term of percentage extraction recovery (% ER) as follows [42]:
%   ER   =   C ex C o   ×   100
where Cex and Co are the concentrations of analytes in the extraction phase and the initial concentration of analyte in the aqueous solution, respectively.

3.1.1. Effect of Surfactant Composition (SDS:TBABr)

Good extraction solvents should have a capability to effectively extract the target analytes and be compatible with the instruments being used [26]. The first parameter to be investigated for LPME was the type of extraction solvent. In this study, the SUPRAS was ex situ prepared from an anionic surfactant (SDS) and cationic surfactant (TBABr); therefore, the first parameter studied was the composition of these surfactants. We found that without the addition of salt, the phase separation between SUPRAS and the bulk aqueous was not obtained. The mole ratios of SDS and TBABr were investigated at 1:0.5, 1:1, and 1:2 of SDS:TBABr in the presence of 15% w/v AlCl3. The results in Figure 1A reveal that the highest quats extraction efficiency was obtained at the mole ratio 1:0.5 of SDS:TBABr. This may due to the highest negative charge on the surface of SUPRAS produced at this ratio, thus facilitating the interaction with the positive charge of the studied quats. Therefore, SUPRAS prepared in a 1:0.5 molar ratio of SDS:TBABr was used for further experiments.

3.1.2. Effect of SUPRAS Volume

The volume of SUPRAS at a 1:0.5 ratio of SDS to TBABr was studied in the range of 25 to 75 µL. The results are shown in Figure 1B. The extraction efficiency increased with increasing SUPRAS volume from 25 to 50 µL, which dramatically decreased at 75 µL, potentially due to the dilution effect. Hence, 50 µL was chosen as the optimum SUPRAS volume for further studies.

3.1.3. Effect of Salt

Salts have been used as coacervating agents to induce phase separation between bulk the aqueous solution and micelle. The role of salt is to neutralize the charge of the micelle, as the formation of micelle from ionic amphiphiles is composed of two opposite forces, i.e., the hydrophobic attraction of non-polar tails and the repulsion of the ionic head group [31,42]. Salts affect the extraction efficiency via the salting out phenomenon, especially for ionic compounds [43].
In this study, 15% w/v AlCl3 was used as the coacervating agent in the SUPRAS preparation step. For the optimization of LPME on the type and volume of the extraction solvent (Section 3.1.1 and Section 3.1.2) 1% w/v AlCl3 was added. However, to further study the effect of salt on the extraction efficiency by LPME, we found that without the addition of salt, the extraction efficiency increased (Figure 1C). This may due to the salt competing or obstructing the migration of quats into the SUPRAS, thus decreasing the extraction efficiency [44]. Therefore, subsequent studies were performed without salt addition.

3.1.4. Effect of pH

The effect of pH was studied with acidic (pH 4) and basic (pH 9) media by the adjustment with HCl and NaOH. Neutral pH (obtained without pH adjustment, pH 6.5) was also studied. The results in Figure 1D show that the highest extraction efficiency was obtained with neutral media and the extraction efficiency significantly decreased in an alkaline solution. This may be due to the instability of quats in an alkaline solution [26]. Therefore, pH 6.5 was selected as a suitable pH and used in subsequent experiments.

3.1.5. Effect of Vortex Time

In this study, the duration of vortex is defined as the extraction time. Vortex facilitates the mass transfer of the analytes to the extraction phase, thus increasing the extraction [45]. The vortex rotational speed was fixed at 1800 rpm and vortex time was investigated from 5 to 20 s. The results (Figure S1) reveal that the extraction efficiency was constant after 10 s. Thus, vortex time was fixed at 10 s.

3.1.6. Effect of Centrifugation Time

Centrifugation is a process to accelerate the separation of the extraction phase from the aqueous solution. The centrifugation time was studied from 1 to 5 min at 3500 rpm. The results (Figure S2) showed that centrifugation time has a minimal effect on the extraction efficiency. Thus, a centrifugation time of 1 min was chosen.

3.2. Proposed Extraction Mechanism

The proposed extraction mechanism is the electrostatic interaction between the positive charge of quats and the negative charge of SUPRAS. The results (Figure 2) show a zeta potential of SUPRAS solvent with negative potential (−9.10 mV) related to the ratio of anionic surfactant (SDS) to cationic surfactant (TBABr) of 1:0.5. After extraction, the extracted solution (SUPRAS phase containing quats) had a zeta potential of −1.29 mV. The charge potential of the extracted solution increased after the extraction of quats, confirming the electrostatic interaction mechanism.
The morphology and particle size of SUPRAS was investigated using TEM. TEM images revealed a spherical shape of SUPRAS (Figure 3A) with an average size of 50 nm (Figure 3B).

3.3. Analytical Performance and Method Validation

Figure 4A shows the chromatogram of quats (0.5 mg L−1 each with direct IP-RPHPLC analysis and 0.1 mg L−1 each from LPME-IP-RPHPLC method) at 254 nm for the determination of paraquat and ethyl viologen. Figure 4B shows the detection at 310 nm for the determination of diquat.
The analytical performance and validation of the proposed method (LPME-IP-RPHPLC) were determined using the optimum conditions. The results (Table 1) were compared with the direct analysis by IP-RPHPLC. The SUPRAS-based LPME method is effective for determining the enrichment of quats. Good linearity in the range of 7 to 250 µg L−1 with correlation coefficient higher than 0.998 were obtained. Limits of detection (LODs) and limits of quantitation (LOQs) were evaluated based on signal to noise ratios (S/N) of 3 and 10, providing LODs of 1.5 and 2.8 µg L−1, and LOQs of 5.6 and 8.0 µg L−1 for diquat and paraquat, respectively. The repeatability (intra-day) precision (n = 3) and reproducibility (inter-day) precision (n = 3 × 3) of the proposed method are expressed as the relative standard deviation (RSDs), with values less than 2.26% and 3.86%, respectively. The enrichment factor (EF) was evaluated using the ratio of the slopes of the linear equations both with and without SUPRAS-based LPME. The EFs of PQ and DQ were 22 and 26, respectively.

3.4. Comparison with Other Methods

The proposed method (LPME combined with IP-RPHPLC) was compared with the other methods (Table 2). The proposed method provides comparable sensitivity (LOD) to other methods using UV detection. With SUPRAS used as the extraction solvent, the proposed method is easy to prepare, cheap, and environmentally friendly. The proposed LPME is also rapid (only 1 min for the extraction).

3.5. Analysis of Samples

The proposed method was applied to various vegetable samples including Chinese cabbage, radish, onion, and cabbage. In this study, the matrix-matched calibration curve was used for quantitative determination to compensate for matrix effects.
The studied quats were not found in any of the studied vegetable samples. Figure 5 shows the typical chromatograms of onion sample, showing no interference peaks. Figures S3–S5 show the chromatograms of the other samples. The accuracy of the proposed method was studied by spiking the standard paraquat and diquat at three concentration levels into the vegetable samples before analysis by LPME-IP-RPHPLC. The results are reported as the percentage recovery as summarized in Table 3. The recoveries obtained in the samples were in the range of 75.0% to 106.7%, which are acceptable [46].

4. Conclusions

This paper outlined a novel LPME method combined with IP-RPHPLC for the sensitive determination of quats (PQ and DQ). The schematic diagram of the proposed method is illustrated in Figure S6. SUPRAS was easily prepared from a mixture of anionic surfactant (SDS) and cationic surfactant (TBABr) at room temperature under phase separation induced by AlCl3. After LPME, the enriched quats in the extracted phase (SUPRAS) were determined by IP-RPHPLC equipped with a common UV detector. The proposed LPME showed an enrichment factor of 22 and 26 for paraquat and diquat, respectively. The proposed LPME only requires a short extraction time and could be used as an alternative extraction method for quat determination.

Supplementary Materials

The following are available online at https://www.mdpi.com/2305-6304/7/4/60/s1, Table S1: The structures and some chemical properties of paraquat and diquat, Figure S1: Effect of vortex time on the extraction efficiency, Figure S2: Effect of centrifugation time on the extraction efficiency, Figure S3: Chromatogram of cabbage, Figure S4: Chromatogram of Chinese cabbage, Figure S5: Chromatogram of radish, Figure S6: Schematic diagram of the proposed method.

Author Contributions

Conceptualization, S.S. and S.B.; methodology, S.H. and S.B.; validation, S.H. and N.G.; formal analysis, S.H., N.G., S.S., and S.B.; investigation, S.H.; resources, S.S. and S.B.; data curation, S.H.,; writing—original draft preparation, S.H. and S.B.; writing—review and editing, S.S. and S.B.; visualization, S.H., N.G., S.S., and S.B.; supervision, S.S. and S.B.; project administration, S.B.; funding acquisition, S.H.

Funding

This research was funded by Royal Scholarship under Her Royal Highness Princess Maha Chakri Sirindhorn Education Project to the Kingdom of Cambodia.

Acknowledgments

S. Hem is sincerely thankful for the financial support from the Royal Scholarship under Her Royal Highness Princess Maha Chakri Sirindhorn Education Project to the Kingdom of Cambodia. Materials Chemistry Research Center, Department of Chemistry, and Center of Excellence for Innovation in Chemistry, Faculty of Science, Khon Kaen University are also gratefully acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ariffin, M.M.; Anderson, R.A. LC/MS/MS analysis of quaternary ammonium drugs and herbicides in whole blood. J. Chromatogr. B 2006, 842, 91–97. [Google Scholar] [CrossRef] [PubMed]
  2. Brunetto, M.R.; Morales, A.R.; Gallignani, M.; Burguera, J.L.; Burguera, M. Determination of paraquat in human blood plasma using reversed-phase ion-pair high-performance liquid chromatography with direct sample injection. Talanta 2003, 59, 913–921. [Google Scholar] [CrossRef]
  3. Grey, L.; Nguyen, B.; Yang, P. Liquid chromatography-electrospray ionization isotope dilution mass spectrometry analysis of paraquat and diquat using conventional and multilayer solid-phase extraction cartridges. J. Chromatogr. A 2002, 958, 25–33. [Google Scholar] [CrossRef]
  4. Castro, R.; Moyano, E.; Galceran, M.T. Ion-pair liquid chromatography–atmospheric pressure ionization mass spectrometry for the determination of quaternary ammonium herbicides. J. Chromatogr. A 1999, 830, 145–154. [Google Scholar] [CrossRef]
  5. Carneiro, M.C.; Puignou, L.; Galceran, M.T. Comparison of silica and porous graphitic carbon as solid-phase extraction materials for the analysis of cationic herbicides in water by liquid chromatography and capillary electrophoresis. Anal. Chim. Acta 2000, 408, 263–269. [Google Scholar] [CrossRef]
  6. Lu, H.; Yu, J.; Wu, L.; Xing, J.; Wang, J.; Huang, P.; Zhang, J.; Xiao, H.; Gao, R. Optimized ultra-performance liquid chromatography tandem high resolution mass spectrometry method for the quantification of paraquat in plasma and urine. J. Chromatogr. B 2016, 1027, 96–102. [Google Scholar] [CrossRef]
  7. Pizzutti, I.R.; Vela, G.M.E.; Kok, A.D.; Scholten, J.M.; Dias, J.V.; Cardoso, C.D.; Concenço, G.; Vivian, R. Determination of paraquat and diquat: LC-MS method optimization and validation. Food Chem. 2016, 209, 248–255. [Google Scholar] [CrossRef]
  8. Garcia-Febrero, R.; Salvador, J.P.; Sanchez-Baeza, F.; Marco, M.P. Rapid method based on immunoassay for determination of paraquat residues in wheat, barley and potato. Food Control 2014, 41, 193–201. [Google Scholar] [CrossRef]
  9. Martínez Vidal, J.L.; Belmonte Vega, A.; Sánchez López, F.J.; Garrido Frenich, A. Application of internal quality control to the analysis of quaternary ammonium compounds in surface and groundwater from Andalusia (Spain) by liquid chromatography with mass spectrometry. J. Chromatogr. A 2004, 1050, 179–184. [Google Scholar] [CrossRef]
  10. Posecion, N.C.; Ostrea, E.M.; Bielawski, D.M. Quantitative determination of paraquat in meconium by sodium borohydride-nickel chloride chemical reduction and gas chromatography/mass spectrometry (GC/MS). J. Chromatogr. B 2008, 862, 93–99. [Google Scholar] [CrossRef]
  11. Zou, T.; He, P.; Cao, J.; Li, Z. Determination of paraquat in vegetables using HPLC-MS-MS. J. Chromatogr. Sci. 2015, 53, 204–209. [Google Scholar] [CrossRef] [PubMed]
  12. Raina-Fulton, R. A review of methods for the analysis of orphan and difficult pesticides: Glyphosate, glufosinate, quaternary ammonium and phenoxy acid herbicides, and dithiocarbamate and phthalimide fungicides. J. AOAC Int. 2014, 97, 965–977. [Google Scholar] [CrossRef] [PubMed]
  13. Castro, R.; Moyano, E.; Galceran, M.T. On-line ion-pair solid-phase extraction-liquid chromatography-mass spectrometry for the analysis of quaternary ammonium herbicides. J. Chromatogr. A 2000, 11, 441–449. [Google Scholar] [CrossRef]
  14. Almeida, R.M.; Yonamine, M. Gas chromatographic-mass spectrometric method for the determination of the herbicides paraquat and diquat in plasma and urine samples. J. Chromatogr. B 2007, 853, 260–264. [Google Scholar] [CrossRef]
  15. Núñez, O.; Moyano, E.; Galceran, M.T. Capillary electrophoresis-mass spectrometry for the analysis of quaternary ammonium herbicides. J. Chromatogr. A 2002, 974, 243–255. [Google Scholar] [CrossRef]
  16. Mallat, E.; Barzen, C.; Abuknesha, R.; Gauglitz, G.; Barceló, D. Fast determination of paraquat residues in water by an optical immunosensor and validation using capillary electrophoresis-ultraviolet detection. Anal. Chim. Acta 2001, 427, 165–171. [Google Scholar] [CrossRef]
  17. Gill, R.; Qua, S.C.; Moffat, A.C. High-performance liquid chromatography of paraquat and diquat in urine with rapid sample preparation involving ion-pair extraction on disposable cartridges of octadecyl—silica. J. Chromatogr. A 1983, 255, 483–490. [Google Scholar] [CrossRef]
  18. Ito, S.; Nagata, T.; Kudo, K.; Kimura, K.; Imamura, T. Simultaneous determination of paraquat and diquat in human tissues by high-performance liquid chromatography. J. Chromatogr. B Biomed. Sci. Appl. 1993, 617, 119–123. [Google Scholar] [CrossRef]
  19. Whitehead, R.D., Jr.; Montesano, M.A.; Jayatilaka, N.K.; Buckley, B.; Winnik, B.; Needham, L.L.; Barr, D.B. Method for measurement of the quaternary amine compounds paraquat and diquat in human urine using high-performance liquid chromatography-tandem mass spectrometry. J. Chromatogr. B 2010, 878, 2548–2553. [Google Scholar] [CrossRef]
  20. Wang, K.C.; Chen, S.M.; Hsu, J.F.; Cheng, S.G.; Lee, C.K. Simultaneous detection and quantitation of highly water-soluble herbicides in serum using ion-pair liquid chromatography-tandem mass spectrometry. J. Chromatogr. B 2008, 876, 211–218. [Google Scholar] [CrossRef]
  21. Bassarab, P.; Williams, D.; Dean, J.R.; Ludkin, E.; Perry, J.J. Determination of quaternary ammonium compounds in seawater samples by solid-phase extraction and liquid chromatography-mass spectrometry. J. Chromatogr. B 2011, 1218, 673–677. [Google Scholar] [CrossRef] [PubMed]
  22. Ruan, X.L.; Qiu, J.J.; Wu, C.; Huang, T.; Meng, R.B.; Lai, Y.Q. Magnetic single-walled carbon nanotubes-dispersive solid-phase extraction method combined with liquid chromatography-tandem mass spectrometry for the determination of paraquat in urine. J. Chromatogr. B 2014, 965, 85–90. [Google Scholar] [CrossRef] [PubMed]
  23. Siangproh, W.; Somboonsuk, T.; Chailapakul, O.; Songsrirote, K. Novel colorimetric assay for paraquat detection on-silica bead using negatively charged silver nanoparticles. Talanta 2017, 174, 448–453. [Google Scholar] [CrossRef] [PubMed]
  24. Gao, L.; Liu, J.; Wang, C.; Liu, G.; Niu, X.; Shu, C.; Zhu, J. Fast determination of paraquat in plasma and urine samples by solid-phase microextraction and gas chromatography–mass spectrometry. J Chromatogr. B Anal. Technol. Biomed. Life Sci. 2014, 944, 136–140. [Google Scholar] [CrossRef]
  25. Pico, Y.; Font, G.; Molto, J.C.; Manes, J. Solid-phase extraction of quaternary ammonium herbicides. J. Chromatogr. A 2000, 885, 251–271. [Google Scholar] [CrossRef]
  26. Asensio-Ramos, M.; Ravelo-Pérez, L.M.; González-Curbelo, M.A.; Hernández-Borges, J. Liquid phase microextraction applications in food analysis. J. Chromatogr. A 2011, 1218, 7415–7437. [Google Scholar] [CrossRef]
  27. Spietelun, A.; Marcinkowski, L.; Guardia, M.; Namieśnik, J. Green aspects, developments and perspectives of liquid phase microextraction techniques. Talanta 2014, 119, 34–45. [Google Scholar] [CrossRef]
  28. Hashemi, B.; Zohrabi, P.; Kim, K.H.; Shamsipur, M.; Deep, A.; Hong, J. Recent advances in liquid-phase microextraction techniques for the analysis of environmental pollutants. Trends Anal. Chem. 2017, 97, 83–95. [Google Scholar] [CrossRef]
  29. Rashidipour, M.; Heydari, R.; Maleki, A.; Mohammadi, E.; Davari, B. Salt-assisted liquid-liquid extraction coupled with reversed-phase dispersive liquid-liquid microextraction for sensitive HPLC determination of paraquat in environmental and food samples. J. Food Meas. Charact. 2019, 13, 269–276. [Google Scholar] [CrossRef]
  30. Hamamoto, T.; Katsuta, S. An ionic liquid-based microextraction method for ultra-high preconcentration of paraquat traces in water samples prior to HPLC determination. Anal. Sci. 2018, 34, 1439–1444. [Google Scholar] [CrossRef]
  31. Ballesteros-Gómez, A.; Sicilia, M.D.; Rubio, S. Supramolecular solvents in the extraction of organic compounds. A review. Anal. Chim. Acta 2010, 677, 108–130. [Google Scholar] [CrossRef] [PubMed]
  32. Accioni, F.; García-Gómez, D.; Girela, E.; Rubio, S. SUPRAS extraction approach for matrix-independent determination of amphetamine-type stimulants by LC-MS/MS. Talanta 2018, 182, 574–582. [Google Scholar] [CrossRef] [PubMed]
  33. Ballesteros-Gomez, A.; Lunar, L.; Sicilia, M.D.; Rubio, S. Hyphenating supramolecular solvents and liquid chromatography: Tips for efficient extraction and reliable determination of organics. Chromatographia 2019, 82, 111–124. [Google Scholar] [CrossRef]
  34. Salatti-Dorado, A.J.; García-Gómez, D.; Rodriguez-Ruiz, V.; Gueguen, V.; Pavon-Djavid, G.; Rubio, S. Multifunctional green supramolecular solvents for cost-effective production of highly stable astaxanthin-rich formulations from Haematococcus pluvialis. Food Chem. 2019, 279, 294–302. [Google Scholar] [CrossRef]
  35. Scheel, G.L.; Tarley, C.R.T. Feasibility of supramolecular solvent-based microextraction for simultaneous preconcentration of herbicides from natural waters with posterior determination by HPLC-DAD. Microchem. J. 2017, 133, 650–657. [Google Scholar] [CrossRef]
  36. Feizi, N.; Yamini, Y.; Moradi, M.; Karimi, M.; Salamat, Q.; Amanzadeh, H. A new generation of nano-structured supramolecular solvents based on propanol/gemini surfactant for liquid phase microextraction. Anal. Chim. Acta 2017, 953, 1–9. [Google Scholar] [CrossRef]
  37. Moral, A.; Sicilia, M.D.; Rubio, S. Supramolecular solvent-based extraction of benzimidazolic fungicides from natural waters prior to their liquid chromatographic/fluorimetric determination. J. Chromatogr. A 2009, 1216, 3740–3745. [Google Scholar] [CrossRef]
  38. Caballo, C.; Sicilia, M.D.; Rubio, S. Fast, simple and efficient supramolecular solvent-based microextraction of mecoprop and dichlorprop in soils prior to their enantioselective determination by liquid chromatography–tandem mass spectrometry. Talanta 2014, 119, 46–52. [Google Scholar] [CrossRef]
  39. López-Jiménez, F.J.; Rosales-Marcano, M.; Rubio, S. Restricted access property supramolecular solvents for combined microextraction of endocrine disruptors in sediment and sample cleanup prior to their quantification by liquid chromatography–tandem mass spectrometry. J. Chromatogr. A 2013, 1303, 1–8. [Google Scholar] [CrossRef]
  40. López-Jiménez, F.J.; Rubio, S.; Pérez-Bendito, D. Supramolecular solvent-based microextraction of Sudan dyes in chilli-containing foodstuffs prior to their liquid chromatography-photodiode array determination. Food Chem. 2010, 121, 763–769. [Google Scholar] [CrossRef]
  41. Gissawong, N.; Boonchiangma, S.; Mukdasai, S.; Srijaranai, S. Vesicular supramolecular solvent-based microextraction followed by high performance liquid chromatographic analysis of tetracyclines. Talanta 2019, 200, 203–211. [Google Scholar] [CrossRef] [PubMed]
  42. Kukusamude, C.; Quirino, J.P.; Srijaranai, S. A coacervative extraction based on single-chain and double-chain cationic surfactants. J. Chromatogr. A 2016, 1472, 10–15. [Google Scholar] [CrossRef] [PubMed]
  43. Soisungnoen, S.; Burakham, R.; Srijaranai, S. Determination of organophosphorus pesticides using dispersive liquid–liquid microextraction combined with reversed electrode polarity stacking mode—micellar electrokinetic chromatography. Talanta 2012, 98, 62–68. [Google Scholar] [CrossRef] [PubMed]
  44. Kukusamude, C.; Burakham, R.; Chailapakul, O.; Srijaranai, S. High performance liquid chromatography for the simultaneous analysis of penicillin residues in beef and milk using ion-paired extraction and binary water–acetonitrile mixture. Talanta 2012, 92, 38–44. [Google Scholar] [CrossRef] [PubMed]
  45. Somsubsin, S.; Seebunrueng, K.; Boonchiangma, S.; Srijaranai, S. A simple solvent based microextraction for high performance liquid chromatographic analysis of aflatoxins in rice samples. Talanta 2018, 176, 172–177. [Google Scholar] [CrossRef] [PubMed]
  46. Baeck, S.K.; Shin, Y.S.; Chung, H.S.; Pyo, M.Y. Comparison study of the extraction methods of paraquat in post-mortem human blood samples. Arch. Pharm. Res. 2007, 30, 235–239. [Google Scholar] [CrossRef]
  47. AOAC Official Methods of Analysis. Guidelines for Standard Method Performance Requirement; AOAC International: Rockville, MD, USA, 2016. [Google Scholar]
Toxics 07 00060 g001 550

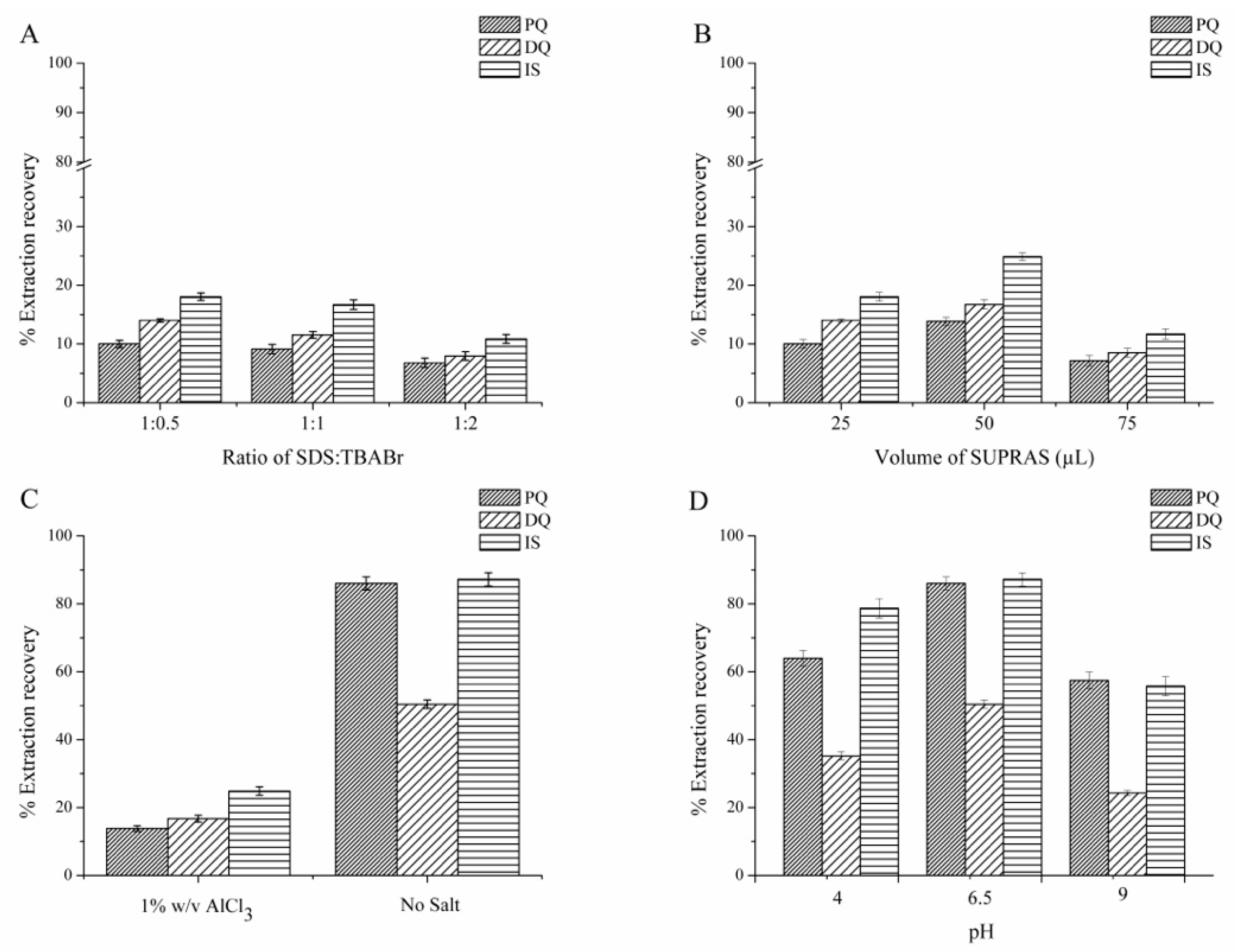

Figure 1. Effect of (A) anionic surfactant (SDS) to cationic surfactant (TBABr) mole ratio (SDS:TBABr), (B) supramolecular solvent (SUPRAS) volume, (C) salt addition, and (D) pH on the extraction efficiency. Extraction conditions: 10 mL standard solution (0.1 mg L−1 of each quat, pH 6.5), SDS:TBABr at mole ratio of 1:0.5, 50 µL of SUPRAS, no salt addition, vortex for 10 s at 1800 rpm, centrifugation for 1 min at 3500 rpm. HPLC conditions: Acetonitrile and 10 mM TEA containing 5 mM 1-dodecanesulfonic acid sodium salt and 0.1 M KBr adjusted to pH 3 with o-phosphoric acid under isocratic elution with the ratio of 30/70 (v/v), at a flow rate of 0.8 mL min−1.
Figure 1. Effect of (A) anionic surfactant (SDS) to cationic surfactant (TBABr) mole ratio (SDS:TBABr), (B) supramolecular solvent (SUPRAS) volume, (C) salt addition, and (D) pH on the extraction efficiency. Extraction conditions: 10 mL standard solution (0.1 mg L−1 of each quat, pH 6.5), SDS:TBABr at mole ratio of 1:0.5, 50 µL of SUPRAS, no salt addition, vortex for 10 s at 1800 rpm, centrifugation for 1 min at 3500 rpm. HPLC conditions: Acetonitrile and 10 mM TEA containing 5 mM 1-dodecanesulfonic acid sodium salt and 0.1 M KBr adjusted to pH 3 with o-phosphoric acid under isocratic elution with the ratio of 30/70 (v/v), at a flow rate of 0.8 mL min−1.
Toxics 07 00060 g001
Toxics 07 00060 g002 550

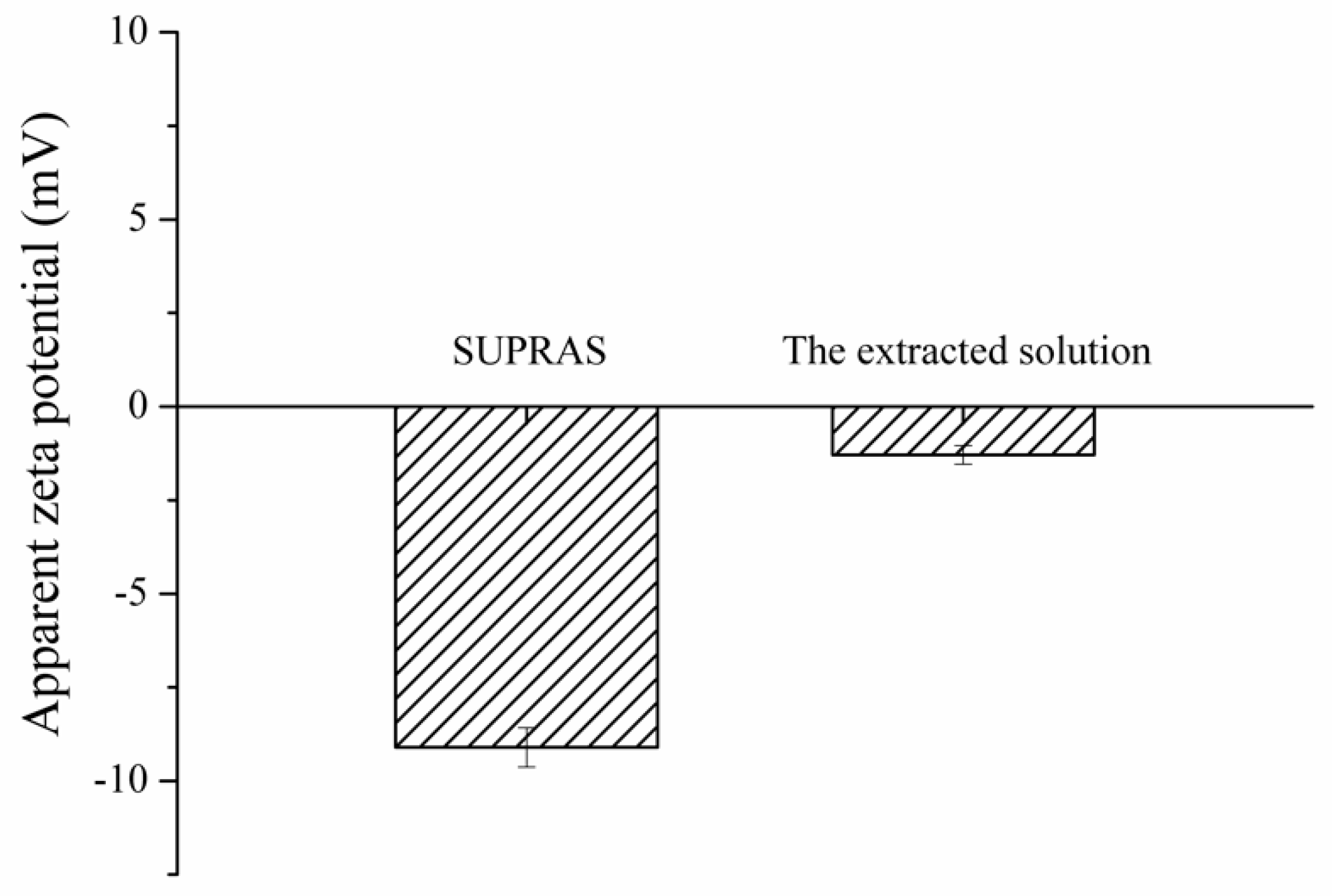

Figure 2. Zeta potential of SUPRAS and the extracted solution.
Figure 2. Zeta potential of SUPRAS and the extracted solution.
Toxics 07 00060 g002
Toxics 07 00060 g003 550

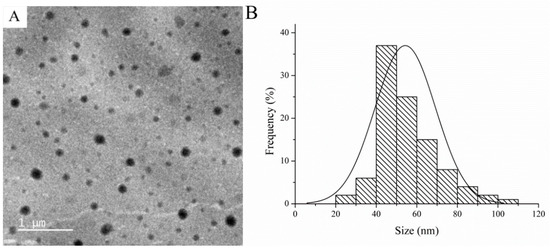

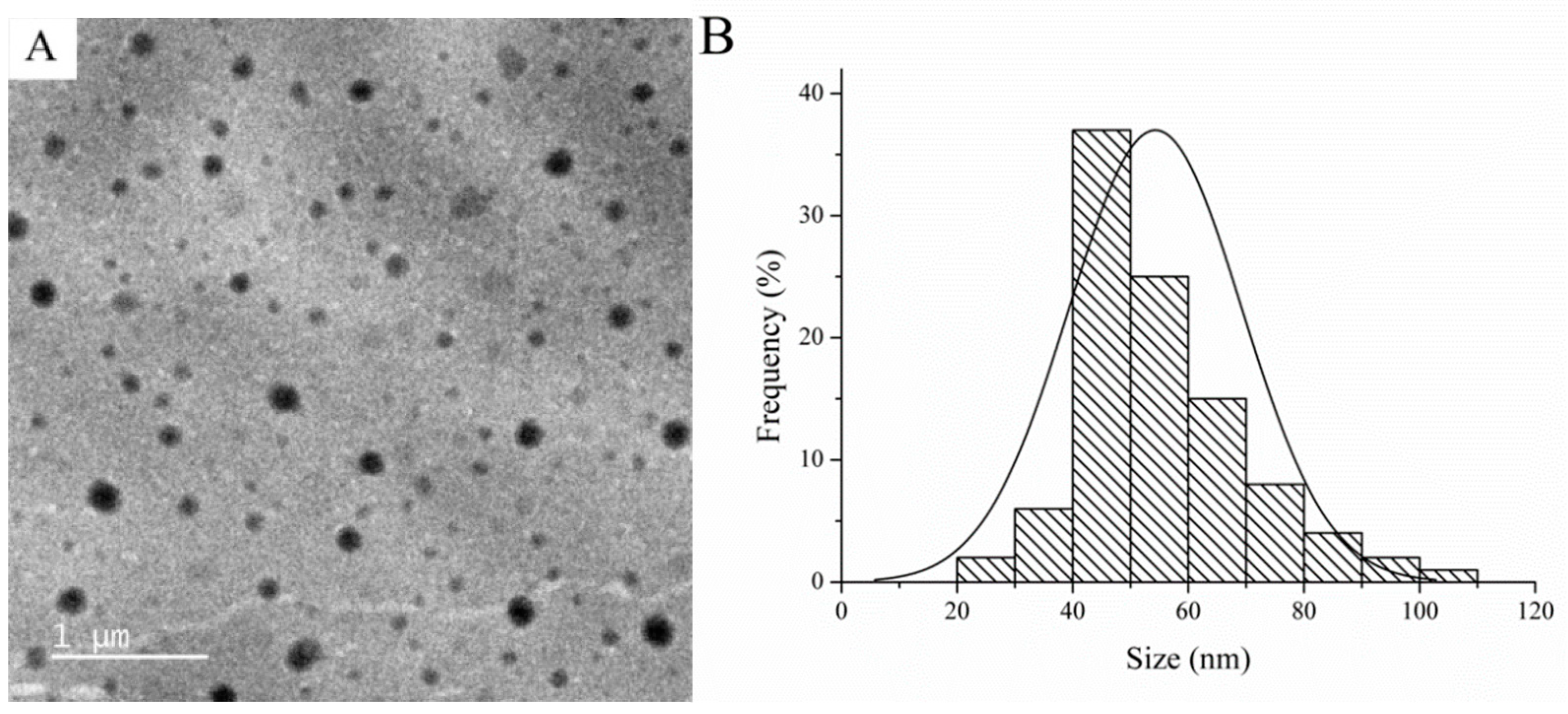

Figure 3. (A) Transmission electron microscopy (TEM) images and (B) particle sizes of SUPRAS.
Figure 3. (A) Transmission electron microscopy (TEM) images and (B) particle sizes of SUPRAS.
Toxics 07 00060 g003
Toxics 07 00060 g004 550

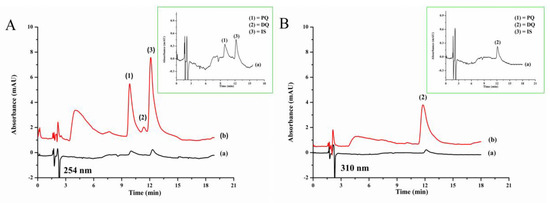

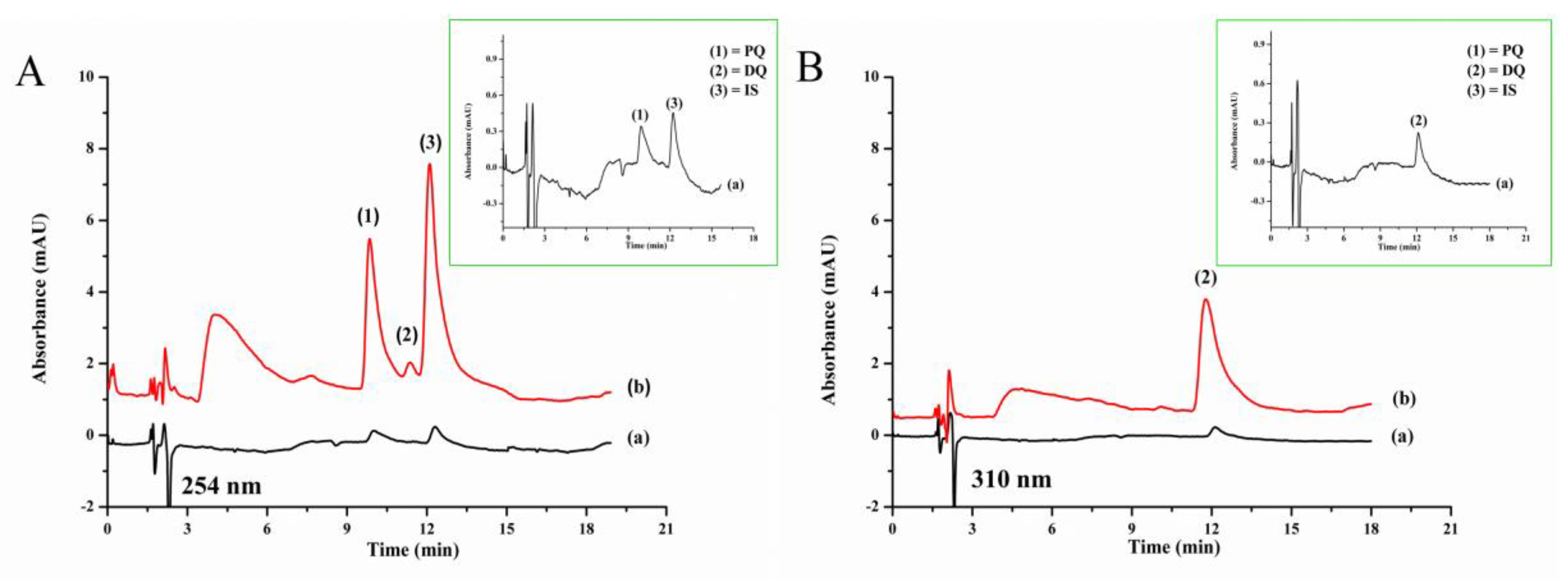

Figure 4. Chromatograms of standard quats (A) detected at 254 nm, (B) detected at 310 nm, and (a) without LPME (0.50 mg L−1 each) and (b) with LPME (0.10 mg L−1 each): 1, paraquat; 2, diquat; 3, ethyl viologen (IS).
Figure 4. Chromatograms of standard quats (A) detected at 254 nm, (B) detected at 310 nm, and (a) without LPME (0.50 mg L−1 each) and (b) with LPME (0.10 mg L−1 each): 1, paraquat; 2, diquat; 3, ethyl viologen (IS).
Toxics 07 00060 g004
Toxics 07 00060 g005 550

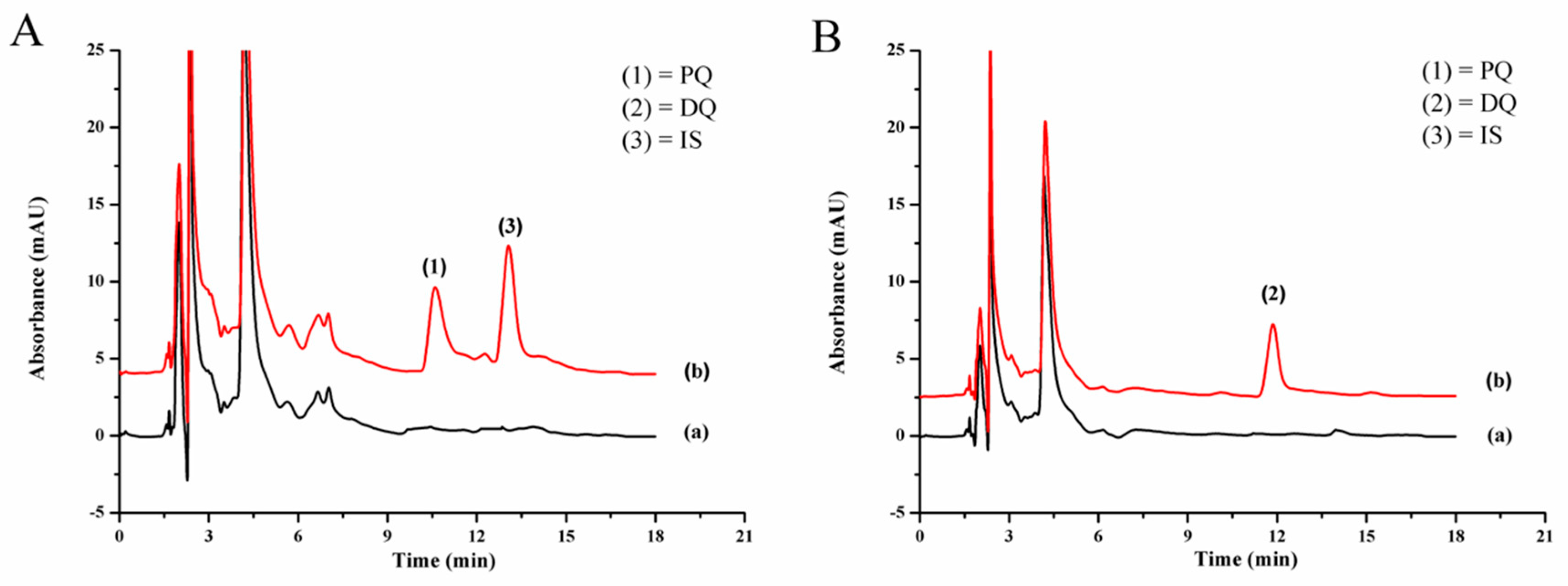

Figure 5. Chromatograms of onion sample (a) blank and (b) quats-spiked onion (0.4 mg kg−1 each) detected at (A) 254 nm and (B) 310 nm.
Figure 5. Chromatograms of onion sample (a) blank and (b) quats-spiked onion (0.4 mg kg−1 each) detected at (A) 254 nm and (B) 310 nm.
Toxics 07 00060 g005
Table
Table 1. Analytical performance of the proposed method for the determination of the studied quats.
Table 1. Analytical performance of the proposed method for the determination of the studied quats.
AnalyteLinear Range (µg L−1)Linear Equation R2LOD
(µg L−1)		LOQ
(µg L−1)		EF
Diquat 7–250
(100–5000) a		y = 0.0998x + 0.0633
(y = 0.0039x − 0.0986) a		0.9996
(0.9990) a		1.5
(25) a		5.6
(80) a		26
Paraquat10–250
(100–5000) a		y = 0.1031x − 0.7353
(y = 0.0047x − 0.5519) a		0.9986
(0.9976) a		2.8
(40) a		8.0
(100) a		22
a Value of standard without SUPRAS-based liquid phase microextraction.
Table
Table 2. The comparison of the proposed method with the other methods for the determination of quats.
Table 2. The comparison of the proposed method with the other methods for the determination of quats.
AnalyteSampleSample PreparationExtraction Solvent Volume (μL)Extraction Time (min)LOD
(μg L−1)		Analytical TechniqueRef.
ParaquatBloodLLE (Chloroform-
ethanol (7:3))		500310HPLC–DAD
(258 nm)		[47]
Paraquat, diquatWaterISFME (ILs)9.4100.15–0.16HILIC–DAD
(256, 310 nm)		[29]
ParaquatVegetableSPE (weak cation exchanger)1000NR0.94
µg kg−1		HILIC–MS/MS[11]
ParaquatWater, VegetableDSPE
(silica gel)		-3050Spectro
photometry		[25]
ParaquatWater, Soil, and VegetableSALLE-RP-
DLLME		25502.520HPLC–UV
(257 nm)		[28]
Paraquat, diquatWater, VegetableSPE (alkyl-silica and resin SPE cartridge)5000NR0.1–0.2LC–MS[23]
Paraquat,
diquat		Vegetable LPME
(SUPRAS)		5011.5–2.8HPLC–DAD
(254, 310 nm)		This work
Note: NR, not reported; ISFME, in situ solvent formation microextraction; IL, ionic liquid; HILIC, hydrophilic interaction liquid chromatography; DSPE, dispersive solid phase extraction; SALLE-RP-DLLME, salt-assisted liquid–liquid extraction coupled with reversed phase dispersive liquid–liquid microextraction.
Table
Table 3. Recovery obtained from the determination of quats in the studied vegetable samples.
Table 3. Recovery obtained from the determination of quats in the studied vegetable samples.
AnalyteSpiked (mg kg−1)Chinese Cabbage (n = 3)Radish (n = 3)Onion (n = 3)Cabbage (n = 3)
Found (mg kg−1)Recovery (%)RSD (%)Found (mg kg−1)Recovery (%)RSD (%)Found (mg kg−1)Recovery (%)RSD (%)Found (mg kg−1)Recovery (%)RSD (%)
Diquat0ND--ND--ND--ND--
0.120.1191.72.00.1191.74.80.1299.34.80.1191.72.5
0.200.1680.05.50.1890.03.00.1782.71.70.1995.03.8
0.400.3690.02.20.3997.53.80.41103.95.20.3895.01.6
Paraquat0ND--ND--ND--ND--
0.120.1083.31.50.1083.37.90.13106.74.00.12100.03.5
0.200.1785.02.50.1785.05.80.1785.92.50.21105.02.9
0.400.3075.03.80.3690.04.10.3586.51.10.3997.51.6
Note: ND, not detected

Share and Cite

MDPI and ACS Style

Hem, S.; Gissawong, N.; Srijaranai, S.; Boonchiangma, S. Supramolecular Solvent-Based Liquid Phase Microextraction Combined with Ion-Pairing Reversed-Phase HPLC for the Determination of Quats in Vegetable Samples. Toxics 2019, 7, 60. https://doi.org/10.3390/toxics7040060

AMA Style

Hem S, Gissawong N, Srijaranai S, Boonchiangma S. Supramolecular Solvent-Based Liquid Phase Microextraction Combined with Ion-Pairing Reversed-Phase HPLC for the Determination of Quats in Vegetable Samples. Toxics. 2019; 7(4):60. https://doi.org/10.3390/toxics7040060

Chicago/Turabian Style

Hem, Sophon, Netsirin Gissawong, Supalax Srijaranai, and Suthasinee Boonchiangma. 2019. "Supramolecular Solvent-Based Liquid Phase Microextraction Combined with Ion-Pairing Reversed-Phase HPLC for the Determination of Quats in Vegetable Samples" Toxics 7, no. 4: 60. https://doi.org/10.3390/toxics7040060

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
