Article

Cation-Exchange Resin Applied to Paralytic Shellfish Toxins Depuration from Bivalves Exposed to Gymnodinium catenatum

1
Centre of Marine Sciences (CCMAR) and Department of Chemistry and Pharmacy, Faculty of Science and Technology, University of Algarve, Campus de Gambelas, 8005-139 Faro, Portugal
2
GreenCoLab—Associação Oceano Verde, Universidade do Algarve, Campus de Gambelas, 8005-139 Faro, Portugal
*
Author to whom correspondence should be addressed.
Foods 2023, 12(4), 768; https://doi.org/10.3390/foods12040768
Submission received: 18 January 2023 / Revised: 6 February 2023 / Accepted: 7 February 2023 / Published: 10 February 2023
(This article belongs to the Special Issue Analysis and Mitigation Strategies of Biotoxins in Foods)

Abstract

:
The accumulation of marine biotoxins in shellfish and their consumption causes serious food safety problems, threatening human health and compromising the availability of protein-based food. It is thus urgent to develop methodologies for the detoxification of live bivalves, avoiding their economic and nutritional devaluation. In this context, we tested an adsorption mechanism of paralytic shellfish toxins (PST) based on a cation-exchange resin. The first studies using cultures of Gymnodinium catenatum (natural producers of PST) showed a decrease of about 80% in overall toxicity after 48 h. Interestingly, we found that the toxins are adsorbed differently, with toxins’ structural features playing a part in the adsorption capacity via steric hindrance, electronic effects, or the extent of positive charge density (e.g., dcSTX). The positive effect of the resin in accelerating PST clearance from live mussels (Mytilus edulis) is not evident when compared to resin-free clearance; nevertheless, relevant information could be gathered that will facilitate further in vivo studies. Several factors appear to be at play, namely the competition of natural substances (e.g., salts, organic matter) for the same binding sites, the blocking of pores due to interactions between molecules, and/or difficulties in resin absorption by mussels. Additionally, the present work revealed the ability of mussels to neutralize pH and proposes bioconversion reactions among the PST molecules.

Graphical Abstract

1. Introduction

Paralytic shellfish poisoning toxins (PST) are a large group of highly potent neurotoxins and gonyautoxins produced by the harmful phytoplankton Alexandrium, Gymonodinium, and Pyrodinium [1]. The accumulation of PST in marine species such as mussels, clams, and fishes along the food chain causes a disease that could be lethal to marine mammals and humans [2,3]. The prevalence of paralytic shellfish poisoning (PSP) is reported annually along most of the world’s coastlines [4,5,6]. These toxins may potentially cause food poisoning and are associated to severe economic losses worldwide [5,7]. PST are a group of saxitoxin (STX) derivatives composed by about 50 analogues that have been reported in many organisms (Figure 1) [5,8]. Naturally occurring PST may be structurally modified by various biological factors.
In order to protect human consumption, depuration is a legal requirement for the marketing of fresh shellfish in several nations. Various strategies have been investigated for PST depuration in shellfish, involving chemical, biological, and physical procedures [9]. Among these, the application of adsorbents to eliminate PST appears to be promising, with different adsorbents already reported, such as chitin shell powder [10], clays [11,12], carrageenan [13], activated charcoal [14,15], and chitosan derivatives, either in the free form (chitosan) [16,17] or using carboxymethyl chitosan (CMC) [18].
Ion-exchange resins are polymeric granules or beads with several functional groups capable of binding ions with opposite charges [19]. They are either cation-exchange (CER) or anion-exchange resins, with CER found to adsorb positive charged compounds, including tricyclic antidepressants [20] and monosaccharides [21]. Despite the versatility and adaptability of cation-exchange resins, their interaction with PST has not been investigated.
PST are highly polar and hydrophilic molecules, due to the presence of a 3,4-propinoperhydropurine tricyclic system and two guanidine groups in their structure [22], and are mostly in the charged form at typical seawater pH [15]. Given the molecular structure of PST and their charged nature, together with their susceptibility of being adsorbed by different polymers and clays, we decided to explore the effect of a CER, specifically a styrene-divinylbenzene (ST-DVB) co-polymer bearing sulfonic acid functional groups, on the elimination of PST from cultures of G. catenatum and live bivalves contaminated over a 48-h period. PST were analysed using high-performance liquid chromatography with fluorescence detection (HPLC-FLD) and their profile was compared between matrices as well as throughout the adsorption process.

2. Materials and Methods

2.1. Growth of Toxic Microalgae

Gymnodinium catenatum IO13-26-02 was obtained from the ALISU culture collection (Lisbon University) and previously characterized regarding its toxin profile [23]. It was a PST-producing dinoflagellate that was grown under the following culture conditions: 19.0 ± 1.0 °C, under 14 h: 10 h light: dark cycle and 80 µmol m−2 s−1 light intensity. Cultures were grown with L1-medium [24], prepared with artificial seawater using sea salts (Classic Sea Salt, Tropic Marin) to a final concentration of 33 ppt, which was later sterilized at 121 °C and 15 psi for 20 min. To estimate cell concentration, samples were taken from concentrated cultures and fixed in Lugol’s acidified solution. The cell count was performed in quadruplicate using an inverted microscope (Zeiss Primovert, Carl Zeiss Microscopy GmbH, Jena, Germany) with 40× magnification on a Sedgewick–Rafter counting chamber [25].
In an early phase of the experiments, cultures of G. catenatum were used for the first studies of PST removal tests. For that, G. catenatum cultures were harvested at the end of the exponential phase with a concentration of 1.38 × 105 cells. L−1. The culture was filtered using GF/C fiberglass filters 0.7 μm (WhatmanTM, Cytiva, Global Life Sciences Solutions, USA LLC, Marlborough, MA, USA). The biomass was frozen at −80 °C, until its use. In subsequent experiments, G. catenatum cultures were prepared to feed live mussels. To this end, the cultures were grown in 6 L flat bottom balloon flasks [26], until concentrations in the order of 106 cells. L−1 were reached.

2.2. Resins Preparation and Their Characterization

To evaluate the ability to remove toxins in G. catenatum cultures and in contaminated bivalves, a strong acidic resin was used: Amberchrom®50WX8 hydrogen form (100–200 mesh, Thermo Fisher Scientific, Waltham, MA, USA, CAS 69011-20-7). It is a cation-exchange resin of styrene-divinylbenzene (ST-DVB) with sulfonic acid functional groups as aryl substituents (Figure 2). For studies of toxin removal in culture and in bivalves, the resin concentration was 1 g/L.
Before its use, the resin was cleared and activated as follows [27]. Deionized water—10 times by volume (mL) of the resin mass value (g)—was added to the resin, in a beaker. The mixture was stirred with a glass rod and allowed to settle for 20 min. Then, the fine particles were decanted. To activate the resin, the same volume of 1 M H2SO4 (95%, Fisher Chemical, Fisher Scientific UK, Loughborough, UK) was added, and the mixture was left for 15–20 min, after which the fine particles were again decanted. This activation process was repeated three times. Then, the resin was rinsed with deionized water until pH > 5, using a Büchner funnel and PVDF membrane filter paper 43–48 µm (Filter-Lab, Filtros Anoia S.A., Barcelona, Spain). Additionally, a sodium-form (Na+-form) of the resin was prepared from the acidic form (H-form) as follows: deionized water—10 times by volume (mL) of the resin mass value (g)—was added to the resin in a beaker. The mixture was stirred with a glass rod and was allowed to settle for 20 min. Then, the fine particles were decanted. To convert the resin to the sodium form, the same volume of 4% NaOH (p.a., Chem-Lab NV, Zedelgem, Belgium) was added, and the mixture was left for 15–20 min, after which the fine particles were again decanted. Then, a solution of 4% NaCl (p.a., ≥99.8 %, Chem-Lab) was added, the mixture was left for 15–20 min and later decanted. This final step was repeated twice. The resin was then rinsed with deionized water until pH = 7, using a Büchner funnel and PVDF membrane filter paper 43–48 µm (Filter-Lab). Both forms of the resin (H and Na+) were dried in an oven at 50 °C for further characterization by Fourier Transform Infrared Spectroscopy (FTIR), X-ray diffraction (XRD), and optical microscopy (OM).
Powder X-ray diffractograms were recorded on a PANalytical X′Pert Pro diffractometer using Cu Kα radiation (λ = 0.15418 nm) filtered by Ni and an X’Celerator detector, operating at 50 kV and 30 mA. The patterns of the resins were recorded in the range 3–70° (2q), with a step size of 0.334225° and 400 s per step. Plots were generated with manual R scripts in RStudio (Version 2022.07.2), using ggplot2 libraries for the graphic figures.
FTIR tests were performed to analyse the functional groups present in the resins. The samples were previously grounded with KBr in a mortar and compressed into discs. FTIR spectra were recorded on an FTIR spectrophotometer (Bruker, model Tensor 27, Massachusetts, USA). For each spectrum, a 25-scan interferogram was collected in transmittance mode in the 4000–600 cm−1 region, with a 4 cm−1 resolution. The results were obtained using the OPUS software (V6.5, Bruker Optik GmbH 2009, Ettlingen, Germany). Plots were generated with Microsoft Excel (Microsoft 365 Apps).
To evaluate particle shape and size, an optical microscope (Microscope Zeiss ESTATIVO AXIOSCOPE 5-TL/FL6XH DIC, coupled with Zeiss Axiocam 305 (Carl Zeiss Microscopy GmbH, Jena, Germany) with particle diameter measurement on the Zen Blue Image processing software was used.

2.3. Toxin Removal Studies Using Culture of G. catenatum

PST removal tests were first performed on G. catenatum cultures to understand the effect of the resin on each analogue. For this, PST were extracted from the culture as follows: 3 mL of 1% acetic acid (prepared from glacial acetic acid, HPLC grade ≥ 99.8%, from Carlo Erba reagents S.A.S, Val de Reuil Cedex, France) was added to a falcon tube containing the fibreglass filter with biomass. The filter was crushed with a metal lancet [23] to enhance the extraction yield, and the mixture was stirred using a vortex (±10 s). The tubes containing the samples were placed in the ultrasounds bath (Transsonic 660/H Elma Schmidbauer GmbH, Singen, Germany), with ice, for 10 min. Thereafter, the tubes were placed in a water bath at 100 °C for 5 min, vortexed again (±10 s) and placed in a beaker with ice for 5 min. The samples were centrifuged at a low temperature (10 °C) for 10 min at 3600 g, using a high-speed centrifuge (Eppendorf 5430 R, Eppendorf SE, Hamburg, Germany). The supernatant was filtered into a flask, using PVDF filters 0.22 µm, 13 mm (Teknokroma, Barcelona, Spain). The addition of 1% acetic acid (3 mL), vortexing, centrifugation, and filtration of the supernatant into the same flask were repeated twice. The blank was subjected to the same experimental procedures as the samples.
Afterward, the solution of PST (extracted from the culture) was added to beakers containing the previously weighed resin, together with small magnetic bars. The beakers were distributed on a multi-position magnetic stir plate (2mag, Germany), in which the mixtures were stirred simultaneously at 120 rpm for five different times: 1, 3, 19, 26, and 48 h. Additionally, controls (toxins without resin) were performed at 0 and 48 h. At the end of each time, all samples were immediately filtered into a glass vial, using syringes and PVDF filters 0.45 µm, 13 mm (Teknokroma). Four replicates of these experiments were carried out.

2.4. Toxin Removal Studies in Live Bivalves

In this work, three sets of experiments were carried out using live mussels (Mytilus edulis): (1) with the H-form resin and healthy mussels; (2) with the H-form resin and mussels contaminated with G. catenatum; (3) with the Na+-form resin and mussels contaminated with G. catenatum. All tanks had continuous aeration and a small aquarium pump (3 W) was used to increase water flow. All mussels used in these experiments were harvested in Ria Formosa, Algarve (southern Portugal), depurated (≥48 h) and transported in thermal containers from the depuration centre to the laboratory (approximately 20 min). In addition to the mussels used in the feeding and depuration protocols, uncontaminated mussels were collected in each set of studies to subsequently evaluate the matrix effect in the quantification method.
Four small tanks were filled with 10 L of seawater (salinity: 37.86 ± 0.02), prior to the feeding experiments with toxic microalgae and the addition of resin, to assess the purification process’s acceleration. At this stage, ten previously purified mussels were randomly distributed in each tank, with aeration, and allowed to condition for approximately 19 h. Following this period H-form resin was added to two tanks, while the other two remained resin-free. The objectives of this first set of experiments were to investigate possible signs of acute toxicity of the resin for the mussels studied and to assess the mussels’ ability to ingest the resin. Observations were carried out at 24 and 48 h. After each time, the mussels, exposed or not to the resin, were removed from the tanks, washed outside with fresh water, then opened to analyse their digestive tract. The mussels used in this study had an average size of 6.2 (±0.6) × 3.9 (±0.3) cm.
Since the preliminary test revealed no signs of acute toxicity (no mortality), a second set of experiments was performed in triplicate, using six rectangular tanks with 18 L of saltwater each. The experimental design is illustrated in Figure 3. Twenty live mussels were randomly placed in each tank. The average size of mussels in each tank is shown in the Supporting Information, SI (Table S1). The mussels were acclimatized to the new medium overnight (about 18 h) and there was no mortality throughout this period.
The third set of experiments (Figure 4) was carried out under similar conditions as the second. Briefly, 18 mussels were placed in each tank containing 18 L of saltwater. Acclimation occurred overnight, followed by feeding of G. catenatum as described below. Table S2 shows the average size of the mussels used in this experiment. These experiments were performed in duplicate and no mortality was observed during the entire experiment.
Several physicochemical parameters (percentage of dissolved oxygen, % DO; temperature, T °C; salinity; pH) were regularly monitored throughout the experiments with live mussels, using a multiparameter (HI98194, HANNA Instruments, Cluj Napoca, Romania) and the corresponding probes. DO remained over 70% throughout the experiments. Laboratory biosafety guidelines were considered for all experiments involving toxic microalgae and live bivalves to avoid human and/or environmental contamination.

2.4.1. Feeding with Toxic Microalgae

After the acclimation period, the algae culture was added directly to tanks containing live bivalves, for the second and third sets of studies, simulating a red tide bloom. The feeding with approximately 90,000 cells/bivalve/day occurred for five consecutive days [28]. The toxic food was given with the following frequency: 3 times on day 1, twice on days 2 and 3, and once on days 4 and 5. During the experiment, suspended material was removed and the water was partially renewed daily, before feeding. The averages (±standard deviation, SD) of temperature, salinity, and pH throughout the second set of experiments were 19.6 ± 1.8 °C, 36.1 ± 0.9 and 8.0 ± 0.2, respectively. Similar average values were obtained in the third set of experiments: 17.2 ± 0.8 °C, 36.6 ± 0.4 and 7.9 ± 0.1, for temperature, salinity, and pH, respectively. In the second set of experiments, nine of the hundred and twenty mussels died over the five days (one mussel in tanks 1, 4, and 6; three mussels in tanks 2 and 3). They were removed from the tanks as soon as detected, to avoid contaminations. In the third set of experiments no mortality was observed throughout. This situation might be partially explained by the fresher mussels and lower water temperature in the third set of experiments, compared to the second set.
Water samples were obtained from each tank 24 h after the last toxic food administration and fixed in Lugol’s acidified solution to determine the cell concentration of G. catenatum. Moreover, at the same time (day 6), 4–5 mussels were harvested in each tank for later determination of PST concentration. These determinations will correspond to time 0 (T0), when maximum mussel contamination is assumed. Furthermore, samples of water from each tank were obtained immediately at the onset of the depuration phase, to verify any remaining microalgae that was not consumed by the bivalves. 50 mL of sample from each tank were sedimented on a Utermöhl sedimentation chamber and observed on an inverted microscope (Zeiss Primovert, Carl Zeiss Microscopy GmbH, Jena, Germany) with 40× magnification.

2.4.2. PST Depuration

At the start of the depuration phase, around 50% of the saltwater was renewed in each tank. Then, the mussels were submitted to a 70 h (second set) or 48 h (third set) clearance period. In tanks without resin, purification occurred naturally, without feeding. To the remaining tanks, the cation-exchange resin (H-form or Na+-form, 1 g/L) was added to assess its ability to accelerate PST clearance from bivalves. As expected, the resin remained suspended in water due to its properties. 3–5 mussels from each tank were collected after 24 h (time 1, T1) and 48 h (time 2, T2), in both sets of experiments, with additional sampling for the second set after 70 h (time 3, T3). These periods were selected since they are like those used in bivalve purification facilities [29]. Some mortality occurred during depuration in the second set, with a loss of two mussels from tank 2: one before T1 and the other at T3. No mortality was detected in the other tanks. Physicochemical parameters (% DO, T °C, and pH) were measured regularly during these experiments.
After collecting the mussels, their treatment started for up to 2 h. As described in the AOAC Official Method 2005.06 and its standard operating procedure [30,31], the mussels were washed with cold water and left to dry. Afterward the shell was opened, all tissue was removed and placed in a sieve to drain. The tissue was then homogenized with an ultra-turrax (Janke & Kunkel GmbH & Co.KG IKA®-Werke, Staufen, Germany), and 5.0 ± 0.1 g of each sample tissue was weighed into 50 mL polypropylene centrifuge tubes. The remaining extraction steps were the same as described in the AOAC Official Method 2005.06.

2.5. Clean-Up, Fractioning, and Pre-Oxidation of Samples

For clean-up and fractionation of the samples solid-phase extraction (SPE) was applied, using C18 (500 mg/3 mL, Finisterre, Teknokroma, Barcelona, Spain) and COOH (500 mg/3 mL, SpeedTM Applied Separations, Allentown, PA, USA) cartridges, respectively. For mussels, the adopted procedures of SPE-C18 and SPE-COOH were the same described in the AOAC Official Method 2005.06. After SPE-C18, all samples from mussels were passed by PVDF filters 0.45 µm.
For samples from G. catenatum cultures, the SPE-C18 procedure applied was adapted from the official method, with the adaptations highlighted as follows. After conditioning, 2.5 mL of each sample or blank were added to each cartridge. An amount of 2.0 mL of ultrapure water was added to wash the cartridge, and the final volume was adjusted to 5.0 mL (after pH adjustment to 6.5) [23]. The SPE-COOH procedure was the same as in the official method. In all these procedures, ultrapure water (Simplicity® Water Purification System, Merck KGaA, Darmstadt, Germany, 18.2 MΩ.cm) and analytical or HPLC grade solvents were used. After SPE, the samples were stored at −18 °C until oxidation for subsequent analysis.
Before analysing the PST from the different matrices, an additional pre-oxidation step was necessary to allow their determination by HPLC-FLD. The samples from SPE-C18 were subjected to oxidation with peroxide (specific to detect non-N-hydroxylated toxins) and periodate (able to detect N-hydroxylated and non-N- hydroxylated toxins). The samples from SPE-COOH were only submitted to periodate oxidation.
The peroxide and the periodate oxidation procedures for bivalve samples were those described in the official method [30,31]. Matrix modifier was prepared from oysters Crassostrea gigas harvested in Ria Formosa, Algarve (southern Portugal), which were previously depurated and submitted to the same procedures of preparation, extraction and SPE-C18 clean-up described above for mussels. Oysters’ extracts were stored in a freezer (−18 °C). In turn, the periodate oxidation procedure for samples from culture had minor modifications. Instead of the matrix modifier, ultrapure water was used, as suggested by other authors [32]. More details about this procedure and the conditions of preparation of the oxidizing agents may be found in our previous publication [23]. In both procedures, the periodate oxidant was freshly prepared on each day of analysis.

2.6. HPLC-FLD Analysis

An HPLC-FLD from Shimadzu (Prominence-i LC-2030C Plus) was used to conduct the PST analyses. This equipment comprises a quaternary pump, a refrigerator autosampler, a column oven and a spectrofluorometric detector (RF-20A XS). The temperatures used were 10 °C, 25 °C and 30 °C, in the autosampler, column oven and cell detector, respectively. A reversed-phase C18 column (Mediterranea Sea18, Teknokroma), 25 cm × 0.46 cm (5 µm), and an ultraguardTM column (Sea18 10 × 3.2 mm, Teknokroma) were used. Ammonium formate 0.1 M (adjusted to pH 6 with acetic acid 0.1 M) and acetonitrile (HPLC grade, Honeywell) were applied as mobile phase A and B, correspondingly. All eluents and solvents for HPLC were filtered, using PVDF membrane filters (0.22 μm, 47 mm, Teknokroma). The gradient elution conditions were as follows. First 6 min: 1–5% phase B; between 6 and 13 min: 5–28% phase B; between 13 and 16 min: 28–1% phase B; between 16 and 19 min: 1% phase B. The flow rate was 1.5 mL/min. The injected volume was 30 µL or 100 µL, for standards and samples oxidised with peroxide or periodate, respectively. Three injections of each sample were performed. Fluorescence detection was achieved at 340 nm (excitation) and 395 nm (emission).
To quantify PST, calibration solutions ranging 0.03 and 2.00 µM were prepared from certified reference materials (CRM): dcGTX2&3, C1&2, GTX2&3, GTX5 (or B1), GTX6 (or B2), GTX1&4, C3&4, NEO, dcNEO, STX (from CIFGA laboratory S.A., Lugo, Spain) and dcSTX (from National Research Council of Canada, Halifax, Canada). To prepare the solutions, the following mixtures were considered: (I) dcGTX2&3, C1&2 and dcSTX (for peroxide oxidation); (II) GTX2&3, GTX5 and STX (for peroxide oxidation); (III) GTX1,4 and NEO (for periodate oxidation); (IV) C3&4 and GTX6 (for periodate oxidation); (V) dcNEO (for periodate oxidation); (VI) dcGTX2&3 and dcSTX (for periodate oxidation). The quantification of each toxin in the samples was performed by interpolation of data in the corresponding calibration curve. The contribution of the chromatographic peaks corresponding to the matrix modifier were subtracted (before interpolation) from the chromatograms of the samples and standards pre-oxidized with periodate in the presence of the matrix modifier. The limits of detection and quantification (LOD and LOQ) were determined as (3σ)/m and (10σ)/m, where σ is the residual standard deviation of the regression line and m is the slope of the calibration curve [33,34]. For the several calibration curves, all determination coefficients (R2) were above 0.9981. LOD and LOQ ranged from 0.003 µM (1 µg STX.2HCl eqv/Kg) to 0.03 µM (169 µg STX.2HCl eqv/Kg) and from 0.01 µM (3 µg STX.2HCl eqv/Kg) to 0.11 µM (615 µg STX.2HCl eqv/Kg), respectively (Table S3). The least concentrated standard solution of each calibration curve was always equal to or greater than the corresponding LOQ. To avoid misinterpretation, the following solutions were also analysed under the same conditions as the standards and samples: a chemical blank of the entire procedure—extraction, cleaning, fractionation, and oxidation (1% acetic acid), samples without the oxidizing agent (using the same volume of ultrapure water instead of the peroxide or periodate oxidant), the matrix modifier oxidised with periodate (the same volume of ultrapure water instead the sample/standard) (some examples in SI, Figures S1–S3).

2.7. Statistical Analysis

Data were calculated as the mean of at least three independent replicates ± standard deviation (SD). When suspected values were obtained, Dixon’s test was applied to test whether it was an outlier. To check whether the variances are different or not, the F-test was applied. Then, Student’s t-test was used to assess for differences between the averages of two sets of results. For both statistical parameters, the significance level considered was 0.05. The results are considered statistically different when the calculated values exceed the critical values [34]. The statistical treatment was performed with Microsoft® Excel®.

3. Results and Discussion

3.1. Characterization of the Resins

3.1.1. X-ray Diffraction (XRD)

Figure 5A depicts the XRD patterns of the various resins, the H-form (activated and inactivated) and the Na+-form. All patterns exhibit a substantial amorphous area at angles above 40°. Inactivated and activated H-form resins show two large and broad crystalline zones at angles of 16.8° and 26.5°, although with differences in the relative intensities for the angles. The inactivated form has a greater intensity at 16.8°, whereas the activated H-form has a greater intensity at 26.5°. This observation suggests that saturation/activation with H+ somewhat modifies the crystalline structure of activated versus non-activated resin. At an angle of 5.4°, a new sharper peak is visible for the Na+-resin. Notably, the broad peak previously seen at an angle of 16.8° in resins of the H-type (activated or inactivated) is slightly shifted to an angle of 17.3°. The peak at 26.5° is still detectable, although residual. The obtained results with the Na+-form resin indicate that the crystalline structure of ion-exchange resins is highly dependent on the cation with which they interact. To the best of our knowledge, the characterization of these resins by XRD has not yet been described in the literature.

3.1.2. Fourier Transform Infrared Spectroscopy (FTIR)

The FTIR spectra of activated/inactivated H-form and Na+-form resins were measured in the of 4000–600 cm−1 wavenumber range (Figure 5B). The characteristic peaks for styrene-divinylbenzene linkages in the resin structure were observed in all resins. Peaks at 3022 cm−1 and 2920 cm−1 correspond to the C-H bonds in the benzene ring and -CH2 in the cross-linked polystyrene matrix. The sharp peaks at 1638 cm−1 and 1616 cm−1 are representative of the C=C– bond vibrations of the styrene system [35]. Bands at 3471 cm−1 and 3415 cm−1 were characteristic of stretching vibrations of O-H bonds and were broader in the H-form resins. Peaks at 1497, 1442, 1406, and 1380 cm−1 correspond to the stretching and bending of aromatic –CH– bonds of the ST-DVB, respectively [36]. The broad peak between 1166 and 1250 cm−1 corresponds to the distinctive absorption peaks of the functional sulfonic acid groups (–SO3H) [37]. Furthermore, the peak band between 827 cm−1 and 1114 cm−1 may correspond to the benzene ring stretching vibrations induced by the resin’s ST-DVB link matrix [35]. Signals in the H-form resins (both activated and inactivated) appeared to be less resolved, probably due to the higher water retention capacity, comparing to the Na+-form.

3.1.3. Optical Microscopy

In the Na+-form, the resin showed spherical forms on a microscopic view (100× magnification), with average particle diameters of 140 ± 12 µm (n = 100, Figure 6). The spheres show almost no fissures, with a 1% ratio of fissures on the sampled resin particles. For the H-form, the average diameter of the particles was 155 ± 19 µm, showing no damage in the particles observed. This implies that the H-form has a bigger variation in size and shows better stability regarding the form; on the contrary, the Na+-form particles show better stability concerning the particle size but show imperfections in the formation of the particle. When comparing both resins, the variation in size, however minor, may facilitate the adsorption of the toxin or even its passing through the bivalve’s digestive system, indicating that the Na+-form properties could be more promising to promote the depuration. The particles of both types of resin are translucent, showing a yellow colour to the naked eye that is not visible under a microscope.

3.2. PST Removal from G. catenatum Cultures

Along the experiment, that lasted for 48h, the toxins GTX2&3 and STX were not detected, while the toxins dcGTX2&3, C3&4, GTX1&4, NEO, and dcNEO were detected at levels below the corresponding LOQ (for all replicates). On the other hand, the toxins C1&2, dcSTX, GTX5 and GTX6 were quantified. The results of the PST removal experiments over 48 h with the H-form resin are shown in Table 1. For toxins C1&2 and GTX6, no changes in concentration were observed throughout the experiment. However, after 48 h of contact with the H-form resin we obtained an average removal of 55% and 100% of the concentration of GTX5 and dcSTX, respectively. The removal percentage was determined following Equation (1), where Ci is the concentration for each toxin. These are very promising results, especially due to the complete removal of dcSTX, which has a high toxic potential.
Considering the toxic potential of each toxin (proposed by EFSA) and calculating the total toxicity equivalent to saxitoxin (Equation (2)), a decrease in the total toxicity close to 80% is obtained after 48 h of contact with the resin (relative to the same period without resin—48 h control). No differences were observed between the zero-time experiment (before addition of resin) and the 48-h control (with toxins but without resin), this meaning that there was no degradation of the toxins along the experiment. As such, we can safely conclude that the observed decrease in the concentrations of GTX5 and dcSTX along the 48 h was due to chemical adsorption to the H-form resin.
%   R e m o v a l 48 h = ( 1 C i ,   48   h / C i ,   0   h ) × 100
C t o t a l μ M = T E F i × C i
To better understand the selectivity/specificity of a given type of reaction over another, here expressed by the differences in affinity to the resin evidenced by the various quantified toxins, Figure 7 shows a representation of their molecular structures. Unlike the C1&2, GTX5 and GTX6 toxins, the decarbamoyl toxin dcSTX bears a hydroxyl group (-OH) at R4, which renders it less sterically hindered than the other toxins (all of which contain an N-sulfocarbamoyl group, -OCONHSO3, at R4). This steric effect, combined with the overall positive charge, will probably facilitate the interaction of the toxin with the resin structure, promoting an easier adsorption through exchange of H+. In addition to the N-sulfocarbamoyl group on R4, toxins C1&2 and GTX6 differ from dcSTX and GTX5 in other functional groups: C1&2 bear an O-sulphate group on R2/R3, while GTX6 bears an -OH group in R1. The presence of the O-sulphate group contributes to an even greater steric impediment and affects the charge balance (neutralizes), disfavouring the exchange of cations with the resin. In turn, the -OH group in GTX6 introduces the additional effect of electronegativity, disfavouring interactions with the resin through electronic effects. In fact, a similar behaviour was observed by other authors [38]. These authors tested the adsorption of eleven PST to magnetic nanoparticles. From the experiments, they reported a very low removal for the toxins C1 and GTXs (GTX1-6 and dcGTX2-3), in contrast with STX, dcSTX, NEO, and dcNEO, attributing the low adsorption/removal of those toxins to the presence of the sulphate side groups in their structure.

3.3. PST Removal from Bivalves

Boosted by the previous encouraging results, the toxin removal experiments were replicated (with appropriate adjustments) on live mussels. On day 6, immediately before adding the resin, the collected water samples did not show any cells of G. catenatum or cysts of the algae, implying that the bivalves on the tanks consumed all available algae. Similarly, the HPLC-FLD analysis of toxins from water samples collected from different reservoirs revealed no quantifiable toxins. For those reasons, the toxin concentration at time 0 (day 6) is assumed as the starting point for assessing mussel PST clearance. In both experiments involving contaminated mussels by G. catenatum, the toxins GTX2&3 and STX were undetectable throughout all experiments. The toxins C3&4, GTX1&4 and NEO were not quantifiable over the course of the experiments. dcNEO was also unquantifiable at time zero and undetectable at the remaining times. In the second set of experiments, dcGTX2&3 was only quantified in tank 1 at zero time (34 µg STX.2HCl eqv/Kg) and after 24 h, without resin (24 µg STX.2HCl eqv/Kg). In the remaining tanks and times, it was unquantifiable. The results of the PST clearance from mussels, with or without resin, are shown in Figure 8, Figures S4 and S5 (individually) and Table 2.

3.3.1. Time 0 and Natural Depuration

The toxin profile of G. catenatum determined in this work (Section 3.2) was considered for comparison with the toxin profile in bivalves. For a better comparison, an estimate of the culture concentrations (in µg STX.2HCl eqv/Kg) is presented in Table S4. It is considered that the toxins quantified in mussels are the same as in culture, in agreement with previously reported results using similar conditions [28]. However, there are differences in the proportion of toxins between the different matrices (culture vs. bivalves). The general increase in the amount of toxins may be partially justified by the higher concentration of cells offered as food to the mussels, compared to the concentration used in the removal experiments in cultures. However, we observed that the ratio between the toxins quantified in mussels and in culture varies for each of them (C1&2 = 1.4, dcSTX = 3.4, GTX5 = 2.7, GTX6 = 2.0), suggesting that biotransformations occur in live mussels. In fact, several bioconversions among toxins in live bivalves have been reported [28,39,40,41,42,43,44,45,46,47,48]. Note that, for example, C1&2 and GTX5 have the same TEF [49] and dilution factor, so they would be similarly affected if there were no other factors involved. However, a higher production of GTX5 than C1,2 is observed, which is interesting since C1,2 toxins may generate GTX5 through reductive cleavage of the O-sulphate group at C11 [41]. At the same time, the possibility of GTX5 oxidation at N1, originating GTX6, is not ruled out, since this type of reaction has already been reported in mussels Mytilus spp. [39,45]. Based on previously compiled information [8], dcSTX could be formed from STX, GTX5 or GC3 (in all cases by hydrolysis). In the present work, STX was not quantifiable and GTX5 seems more likely to be involved in other reactions. On the other hand, the higher abundance of GC toxins (hydroxybenzoyl derivatives) produced by G. catenatum has been reported [28,50]. In the present work GC toxins were not quantified, since LC-MS is a more appropriate method for this. Nevertheless, some authors have reported a higher abundance of dcSTX in bivalves, to the detriment of a decrease in GC3, contrary to what was observed in G. catenatum (higher relative proportion of analogous GC) [28,51]. This suggests conversion of GC3 to dcSTX through hydrolysis involving the R4 group. This reaction has been attributed to the enzymatic activity of a carbamoylase, targeting this subgroup. Nonetheless, the possibility of converting GC3 into dcSTX under the acidic conditions of the extraction process (acid hydrolysis) should not be disregarded [51].
In our experiments, after 5 days of feeding with G. catenatum all mussels analysed revealed cumulative levels of toxicity higher than those legally established—800 µg STX.2HCl eqv/Kg [49]. Similar values for the total toxicity were obtained in both sets of experiments, with mean values of 973 and 981 µg STX.2HCl eqv/Kg. The results from natural depuration experiments suggest faster clearance in the second set of experiments than in the third, corresponding to 33 ± 11% and 16 ± 3%, respectively, after 48 h. Another observation was a greater variation of the results in the second set, compared to the third set. Several conditions may contribute to this, and it is practically impossible to control all of them, mainly because the experiments involved live bivalves. In addition to the conditions inherent to the mussels used in each set of experiments (e.g., physiology and well-being), there are other parameters that may affect the efficiency of purification, namely temperature, salinity, oxygen levels and the particles suspended in water [29]. M. edulis are classified as rapid detoxifiers, the faster clearance observed in an initial phase being commonly attributed to the elimination of toxins not yet assimilated and incorporated by the tissues [48,52].

3.3.2. Depuration with H-Form and Na+-Form Resins

As the identified toxins are mostly positively charged, a cation-exchange resin was used to try to accelerate the purification process. When using the H-form resin, an acceleration of the average clearance rate seems to occur after 24 h, mostly attributed to the decrease in dcSTX concentration (Figure S4). However, due to the large variation observed, this increase in acceleration is not statistically significant (p = 0.056). At 48 and 70 h no significant changes are observed, which could be related to the typical deceleration of clearance after unassimilated toxins have been released [52]. Several factors may contribute for the low effectiveness of the resin tested, namely absorption of the resin by the mussel and the presence of other water constituents (e.g., cations in saltwater, organic matter). Seawater contains various cations with different selectivity for this resin [53], which may compete with toxins for the same binding sites. Moreover, organic matter (OM) may affect the adsorption, the effect being variable with pH [15]. Three arguments have been used to explain the reduced adsorption of PST in the presence of OM, namely, pore-blocking, preferential interaction/competition by the active sites available, and the electrostatic interactions with PST [54]. Regarding the absorptive capacity of mussels, we did not observe large amounts of resin inside their digestive tract in preliminary experiments carried out (first set of experiments). Interestingly, the highest number of particles was observed in the digestive tract of the mussel after 24 h, while after 48 h few particles were observed. This could mean that the resin particles are not truly absorbed by the mussel, which renders the action of the resin more difficult. Contrary to what happened during the experiments in water, with toxins coming directly from the culture, in the resin experiments with bivalves there is no direct interaction between the resin and the PST absorbed by mussels.
During the experiments with H-form resin, an interesting behaviour was observed: a sudden pH oscillation was registered after the addition of the H-form resin, stabilizing until the end of the experiment. To better understand what happened, a parallel in vivo experiment was carried out. To three small containers with 2 L of saltwater was added, separately: (1) H-resin (Control 1); (2) H-resin with two mussels (H+ + M); and (3) two mussels, as a negative control group (M) (Figure S6). All containers had continuous aeration and a small aquarium pump was used to increase water movement. The pH was measured regularly along a period of 40 h and the results are depicted in Figure 9. The negative control group (container 3) displayed pH values in the ranges 7.75–7.93. Immediately after adding the H-resin to the containers 1 and 2 the pH decreased to 3.00. The pH in the H-resin container (container 1) remained constant over time, but the pH in the container with H-resin and mussels (container 2) gradually increased. The pH rise occurred as a steady acid–base titration, with a strong increase after 8 h and reaching a plateau at 24 h, with a pH close to 7. After 40 h, the pH reached a maximum of 7.26. This result suggests the shellfish’s role in adaptability during depuration in acidic conditions. The mussel shell is composed of calcium carbonate, CaCO3, and it would have been the reaction between CO32- and H+ in the acidic aqueous medium that would have promoted the pH increase [55] in the container with mussels, unlike for the container without mussels. Although the mussels bear the ability to adjust the pH of the medium, this excessive acidification is likely to affect not only their shell, but also their well-being [56]. Moreover, due to acidification, complete closure of mussel shells was observed in tanks where resin was added. This defensive response by the organisms will likely have inhibited their clearance rate during the first hours. Therefore, we think that the H-form resin, under the conditions in which it was prepared, may not be the most suitable matrix for in vivo studies involving bivalves.
Aiming to overcome the acidification observed previously, the resin was modified by converting the H-form into the corresponding Na+-form. First, in a parallel experiment to the one described above, two additional conditions were tested: (4) Na+-resin (Control (2) and (5) Na+-resin with two mussels (Na+ + M) (Figure S6). When using the Na+-form resin, after introducing the resin to the tank with shellfish the pH remained steady, ranging between 7.83 and 7.98. Moreover, the pH of the container including solely Na+-resin ranged from 7.85 to 8.03 (Figure 9), meaning that the Na+-form resin did not affect the pH of the saltwater during the in vivo testing. These observations indicate that the sodium form of the resin is less hazardous to shellfish and probably less prone to interact with the ecological environment. Accordingly, we proceeded with the depuration experiments using the Na+-form resin. Although we observed a significant difference in the first 24 h (again due to decreasing dcSTX concentration), the acceleration observed in the presence of resin is very small compared to that verified without resin. In fact, after 48 h no significant differences were observed, indicating that, despite cancelling the effect of pH using the Na+-form resin, the clearance rate did not seem to improve. As previously explained, the adsorption mechanisms in natural waters are strongly affected by the conditions and constituents of the medium, which decreases the effectiveness of the method. These factors, allied to the mussels’ apparent inability to filter the resin, assume a dominating role that prevails over the cation exchange theory that is successfully applied in the treatment of purest water.

4. Conclusions

The development of detoxification methods for live bivalve molluscs has been attempted for a long time by several research groups. As far as we know, a truly effective and feasible methodology in a short period of time (e.g., 48 h) has not yet been found. Many of the studies carried out so far are restricted to aqueous solutions, without in vivo implementation, often leading to a false expectation of success. Based on the molecular properties of this group of toxins and considering the mode of adsorption through exchange of ions between chemical entities, we decided to explore the use of a cation-exchange resin (H-form and Na+-form) with the purpose of accelerating the detoxification process of shellfish. First, in vitro experiments were carried out using a culture of G. catenatum (one of the main dinoflagellate producers of paralyzing toxins). Then, the methodology was tested in vivo using mussels (M. edulis), which are known as sentinel organisms and are often used in this type of studies. In vitro studies using cultures of G. catenatum revealed around 80% decrease in overall toxicity upon exposure to the resin, after 48 h. Interestingly, the effect of molecular structure on the preferential adsorption of some toxins over others was evident. In this work, four main toxins (C1&2, dcSTX, GTX5, GTX6) were quantified, with dcSTX being responsible for the main decrease in toxicity, followed by GTX5. Differences were mainly attributed to steric hindrance, electronic effects, and magnitude of the overall positive charge. Although we have not identified here other analogues with high toxic potential (e.g., STX and NEO), considering the physicochemical properties of the molecules and the results obtained in this work and by other authors [38], it is expected that the adsorption of these toxins may occur successfully in solution using these cation-exchange resins. The in vivo experiments did not show evidence of a significant acceleration of the clearance process, compared to resin-free clearance. This could be due to competition from other natural substances (e.g., salts, organic matter) for the same binding sites, interactions between molecules, increasing steric hindrance and/or blocking pores, or difficulties in resin absorption by the mussel. This methodology could be promising in detoxification, but it is not yet ready to be applied. Therefore, further adjustments to the proposed methodology, such as changing the functional groups to tailor the system’s physicochemical properties, are needed in follow-up work. Nevertheless, we believe that our unprecedented approach and the findings here disclosed are relevant, in that they draw attention to the importance of testing methodologies in vivo and they reveal some conditions that may strongly affect the experimental results, namely the pH-effect and its potential consequence on the metabolism and well-being of mussels. Additionally, in vivo experiments have demonstrated the occurrence of bioconversions between toxin molecules. Based on the information obtained, the production of dcSTX from GC3 (by hydrolysis) is proposed, as well as the conversion of C1&2 into GTX5.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/foods12040768/s1, Figure S1: Chromatograms of a chemical blank oxidized by peroxide and periodate; Figure S2: Chromatograms of mussels’ samples (Mytilus edulis), containing or not PST, not oxidized (procedure as in periodate oxidation, with matrix modifier); Figure S3: Chromatograms of matrix modifier (prepared from oysters Crassostrea gigas), oxidised with periodate (PST-free sample); Figure S4: Results of the PST clearance tests in live mussels (without resin and with H-form resin); Figure S5: Results of the PST clearance tests in live mussels (without resin and with Na+-form resin); Figure S6: Experimental design for the study of the pH-effect in in vivo experiments. Table S1: Average size (length x width, in cm) of mussels Mytilus edulis used in the second set of experiments; Table S2: Average size (length x width, in cm) of mussels Mytilus edulis used in the third set of experiments; Table S3: Method parameters: determination coefficient (R2), detection limit (LOD), quantification limit (LOQ); Table S4: PST concentration, estimation in µg STX.2HCl eqv/Kg (average ± SD), in G. catenatum cultures, during removal studies using the H-form resin.

Author Contributions

Conceptualization, J.F.L., G.B., P.S.M.A., H.P. and M.L.S.C.; methodology, J.F.L., G.B. and P.S.M.A.; validation, J.F.L., G.B., P.S.M.A., H.P. and M.L.S.C.; investigation and formal analysis, J.F.L., G.B. and P.S.M.A.; resources, H.P. and M.L.S.C.; data curation, J.F.L., G.B. and P.S.M.A.; writing—original draft preparation, J.F.L., G.B. and P.S.M.A.; writing—review and editing, H.P. and M.L.S.C.; visualization, J.F.L., G.B. and P.S.M.A.; supervision, H.P. and M.L.S.C.; project administration and funding acquisition, J.F.L. and M.L.S.C. All authors have read and agreed to the published version of the manuscript.

Funding

This study received funds from the project MAR-01.03.01-FEAMP-0049 co-financed by the Operational Program Mar 2020, Portugal 2020 and the European Union (EU), through the European Maritime Affairs and Fisheries Fund (EMFF). Moreover, this study received Portuguese national funds from FCT—Foundation for Science and Technology through projects UIDB/04326/2020, UIDP/04326/2020 and LA/P/0101/2020. The APC was funded by the project MAR-01.03.01-FEAMP-0049 (DEPURATOX).

Data Availability Statement

Data is contained within the article and Supplementary Materials.

Acknowledgments

The authors thank Ana Amorim (MARE-FCUL, University of Lisbon) for providing the algae culture and João Lourenço (University of Algarve) for his help with the XRD technique. MLSC thanks Red CYTED AQUA-CIBUS (https://www.cyted.org/pt-pt/node/9882, accessed on 5 January 2023) for the helpful discussions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. WHO. Cyanobacterial Toxins: Saxitoxins; WHO: Geneva, Switzerland, 2020. [Google Scholar]
  2. Hall, S.; Strichartz, G.; Moczydlowski, E.; Ravindran, A.; Reichardt, P.B. The Saxitoxins—Sources, Chemistry, and Pharmacology. In Marine Toxins—Origin, Structure, and Molecular Pharmacology; Hall, S., Strichartz, G., Eds.; American Chemical Society: New York, NY, USA, 1990; Volume 418, pp. 29–65. ISBN 0097-6156. [Google Scholar]
  3. Faber, S.C. Saxitoxin and the Induction of Paralytic Shellfish Poisoning. J. Young Investig. 2012, 23, 1–7. [Google Scholar]
  4. Lewis, A.M.; Coates, L.N.; Turner, A.D.; Percy, L.; Lewis, J. A Review of the Global Distribution of Alexandrium Minutum (Dinophyceae) and Comments on Ecology and Associated Paralytic Shellfish Toxin Profiles, with a Focus on Northern Europe. J. Phycol. 2018, 54, 581–598. [Google Scholar] [CrossRef] [PubMed]
  5. Costa, P.R. Impact and Effects of Paralytic Shellfish Poisoning Toxins Derived from Harmful Algal Blooms to Marine Fish. Fish Fish. 2016, 17, 226–248. [Google Scholar] [CrossRef]
  6. Fernandes-Salvador, J.A.; Davidson, K.; Sourisseau, M.; Revilla, M.; Schmidt, W.; Clarke, D.; Miller, P.I.; Arce, P.; Fernández, R.; Maman, L.; et al. Current Status of Forecasting Toxic Harmful Algae for the North-East Atlantic Shellfish Aquaculture Industry. Front. Mar. Sci. 2021, 8, 656. [Google Scholar] [CrossRef]
  7. Mardones, J.I.; Holland, D.S.; Anderson, L.; le Bihan, V.; Gianella, F.; Clément, A.; Davidson, K.; Sakamoto, S.; Yoshida, T.; Trainer, V.L. Estimating and Mitigating the Economic Costs of Harmful Algal Blooms on Commercial and Recreational Shellfish Harvesters. PICES Sci. Rep. 2020, 59, 66–83. [Google Scholar]
  8. Leal, J.F.; Cristiano, M.L.S. Marine Paralytic Shellfish Toxins: Chemical Properties, Mode of Action, Newer Analogues, and Structure–Toxicity Relationship. Nat. Prod. Rep. 2022, 39, 33–57. [Google Scholar] [CrossRef]
  9. Martinez-Albores, A.; Lopez-Santamarina, A.; Rodriguez, J.A.; Ibarra, I.S.; del Carmen Mondragón, A.; Miranda, J.M.; Lamas, A.; Cepeda, A. Complementary Methods to Improve the Depuration of Bivalves: A Review. Foods 2020, 9, 129. [Google Scholar] [CrossRef]
  10. Melegari, S.P.; Matias, W.G. Preliminary Assessment of the Performance of Oyster Shells and Chitin Materials as Adsorbents in the Removal of Saxitoxin in Aqueous Solutions. Chem. Cent. J. 2012, 6, 86. [Google Scholar] [CrossRef]
  11. Li, J.; Song, X.; Zhang, Y.; Xu, X.; Yu, Z. Effect of Modified Clay on the Transition of Paralytic Shellfish Toxins within the Bay Scallop Argopecten Irradians and Sediments in Laboratory Trials. Aquaculture 2019, 505, 112–117. [Google Scholar] [CrossRef]
  12. Lu, G.; Song, X.; Yu, Z.; Cao, X.; Yuan, Y. Environmental Effects of Modified Clay Flocculation on Alexandrium Tamarense and Paralytic Shellfish Poisoning Toxins (PSTs). Chemosphere 2015, 127, 188–194. [Google Scholar] [CrossRef]
  13. Olano, D.E.B.; Salvador-Reyes, L.A.; Montaño, M.N.E.; Azanza, R.v. Sorption of Paralytic Shellfish Toxins (PSTs) in Algal Polysaccharide Gels. Algal Res. 2020, 45, 101655. [Google Scholar] [CrossRef]
  14. Qiu, J.B.; Fan, H.; Liu, T.; Liang, X.; Meng, F.P.; Quilliam, M.A.; Li, A.F. Application of Activated Carbon to Accelerate Detoxification of Paralytic Shellfish Toxins from Mussels Mytilus Galloprovincialis and Scallops Chlamys Farreri. Ecotoxicol. Environ. Saf. 2018, 148, 402–409. [Google Scholar] [CrossRef]
  15. Shi, H.; Ding, J.; Timmons, T.; Adams, C. PH Effects on the Adsorption of Saxitoxin by Powdered Activated Carbon. Harmful Algae 2012, 19, 61–67. [Google Scholar] [CrossRef]
  16. Xie, W.; Liu, X.; Yang, X.; Zhang, C.; Bian, Z. Accumulation and Depuration of Paralytic Shellfish Poisoning Toxins in the Oyster Ostrea Rivularis Gould—Chitosan Facilitates the Toxin Depuration. Food Control 2013, 30, 446–452. [Google Scholar] [CrossRef]
  17. Tobke, J.; Giarratano, E.; Ortiz, A.; Garrido, C.; Serra, M.; Gil, M.N.; Navarro, J.M. Chitosan Performance during Paralytic Shellfish Toxins (PST) Depuration of Mytilus Chilensis Exposed to Alexandrium Catenella. Toxicon 2021, 195, 48–57. [Google Scholar] [CrossRef]
  18. Yang, X.; Hu, X.; Dong, Z.; Li, M.; Zheng, Z.; Xie, W. Effect of Carboxymethyl Chitosan on the Detoxification and Biotransformation of Paralytic Shellfish Toxins in Oyster Ostrea Rivularis. Toxicon 2021, 196, 1–7. [Google Scholar] [CrossRef]
  19. Hassan, M.M.; Carr, C.M. A Critical Review on Recent Advancements of the Removal of Reactive Dyes from Dyehouse Effluent by Ion-Exchange Adsorbents. Chemosphere 2018, 209, 201–219. [Google Scholar] [CrossRef]
  20. Choi, J.W.; Bediako, J.K.; Zhao, Y.; Lin, S.; Sarkar, A.K.; Han, M.; Song, M.H.; Cho, C.W.; Yun, Y.S. Adsorptive Removal of Cationic Tricyclic Antidepressants Using Cation-Exchange Resin. Environ. Sci. Pollut. Res. 2020, 27, 24760–24771. [Google Scholar] [CrossRef]
  21. Lei, H.; Bao, Z.; Xing, H.; Yang, Y.; Ren, Q.; Zhao, M.; Huang, H. Adsorption Behavior of Glucose, Xylose, and Arabinose on Five Different Cation Exchange Resins. J. Chem. Eng. Data 2010, 55, 735–738. [Google Scholar] [CrossRef]
  22. Shimizu, Y. Chemistry and Mechanism of Action. In Seafood and Freshwater Toxins: Pharmacology, Physiology, and Detection; Botana, L.M., Ed.; Marcel Dekker, Inc.: New York, NY, USA, 2000; pp. 151–172. ISBN 0-8247-8956-3. [Google Scholar]
  23. Leal, J.F.; Bombo, G.; Pereira, H.; Vicente, B.; Amorim, A.; Cristiano, M.L.S. Toxin Profile of Two Gymnodinium Catenatum Strains from Iberian Coastal Waters. Toxins 2022, 14, 762. [Google Scholar] [CrossRef]
  24. Guillard, R.R.L.; Hargraves, P.E. Stichochrysis Immobilis Is a Diatom, Not a Chrysophyte. Phycologia 1993, 32, 234–236. [Google Scholar] [CrossRef]
  25. UNESCO. Microscopic and Molecular Methods for Quantitative Phytoplankton Analysis; Karlson, B., Cusack, C., Bresnan, E., Eds.; Intergovernmental Oceanographic Commission of ©UNESCO: Paris, France, 2010. [Google Scholar]
  26. Guillard, R.R.L. Culture of Phytoplankton for Feeding Marine Invertebrates. In Culture of Marine Invertebrate Animals: Proceedings—1st Conference on Culture of Marine Invertebrate Animals Greenport; Springer US: New York, NY, USA, 1975; pp. 29–60. [Google Scholar] [CrossRef]
  27. Merck Amberchrom 50WX8 Hydrogen Form, 100-200mesh 69011-20-7. Available online: https://www.sigmaaldrich.com/PT/en/product/sial/217506 (accessed on 10 October 2022).
  28. Costa, P.R.; Braga, A.C.; Turner, A.D. Accumulation and Elimination Dynamics of the Hydroxybenzoate Saxitoxin Analogues in Mussels Mytilus Galloprovincialis Exposed to the Toxic Marine Dinoflagellate Gymnodinium Catenatum. Toxins 2018, 10, 428. [Google Scholar] [CrossRef] [PubMed]
  29. Silva, H.A.; Batista, I. Produção, Salubridade e Comercialização de Moluscos Bivalves Em Portugal (Production, Health and Marketing of Bivalve Molluscs in Portugal); IPIMAR: Lisboa, Portugal, 2008; Volume 20. [Google Scholar]
  30. AOAC. Paralytic Shellfish Poisoning Toxins in Shellfish. Prechromatographic and Liquid Chromatography with Fluorescence Detection. First Action, Official Method 2005.06. In AOAC Official Methods of Analysis; Horwitz, W., Latimer, G.W., Eds.; AOAC INTERNATIONAL: Gaithersburg, MD, USA, 2005; p. 83. [Google Scholar]
  31. Leão, J.M.; Gago-Martínez, A. EURLMB SOP for the Analysis of Paralytic Shellfish Toxins (PST) by Precolumn HPLC-FLD According to OMA AOAC 2005.06. 2020. Available online: https://www.aesan.gob.es/en/CRLMB/web/public_documents/seccion/crlmb_standard_operating_procedures.htm (accessed on 17 January 2023).
  32. Rodríguez, P.; Alfonso, A.; Botana, A.M.; Vieytes, M.R.; Botana, L.M. Comparative Analysis of Pre- and Post-Column Oxidation Methods for Detection of Paralytic Shellfish Toxins. Toxicon 2010, 56, 448–457. [Google Scholar] [CrossRef] [PubMed]
  33. ICH. Validation of Analytical Procedures: Text and Methodology Q2(R1); IFPMA: Geneva, Switzerland, 2005. [Google Scholar]
  34. Miller, J.N.; Miller, J.C. Statistics and Chemometrics for Analytical Chemistry, 5th ed.; Pearson Education Limited: Essex, UK, 2005. [Google Scholar]
  35. Nguyen, T.T.; Tran, V.A.K.; Tran, L.B.; Phan, P.T.; Nguyen, M.T.; Bach, L.G.; Padungthon, S.; Ta, C.K.; Nguyen, N.H. Synthesis of Cation Exchange Resin-Supported Iron and Magnesium Oxides/Hydroxides Composite for Nitrate Removal in Water. Chin. J. Chem. Eng. 2021, 32, 378–384. [Google Scholar] [CrossRef]
  36. Fathy, M.; Abdel Moghny, T.; Awad Allah, A.E.; Alblehy, A.E. Cation Exchange Resin Nanocomposites Based on Multi-Walled Carbon Nanotubes. Appl. Nanosci. 2014, 4, 103–112. [Google Scholar] [CrossRef]
  37. Wang, X.Z.; Zheng, Y.H.; Xue, Y.; de Yan, Y.; Ma, F.Q.; Zhang, M.L.; Bai, H.Y.; Kou, Z.Q.; Liu, J.P. Study on the Destruction Process of Cationic Exchange Resins Treated by Li2CO3-Na2CO3-K2CO3 Molten Salt. J. Environ. Chem. Eng. 2021, 9, 105948. [Google Scholar] [CrossRef]
  38. González-Jartín, J.M.; de Castro Alves, L.; Alfonso, A.; Piñeiro, Y.; Vilar, S.Y.; Rodríguez, I.; Gomez, M.G.; Osorio, Z.V.; Sainz, M.J.; Vieytes, M.R.; et al. Magnetic Nanostructures for Marine and Freshwater Toxins Removal. Chemosphere 2020, 256, 127019. [Google Scholar] [CrossRef]
  39. Quilliam, M.A.; Li, A.; Lewis, N.; McCarron, P.; Thomas, K.; Walter, J.A. Biotransformation and Chemical Degradation of Paralytic Shellfish Toxins in Mussels. In Marine and Fresh-Water Harmful Algae. Proceedings of the 17th International Conference on Harmful Algae, Florianópolis, Brazil, 9–14 October 2016; International Society for the Study of Harmful Algae in Cooperation with Intergovernmental Oceanographic Commission of UNESCO: Copenhagen, Denmark, 2017; pp. 118–121. [Google Scholar]
  40. Asakawa, M.; Miyazawa, K.; Takayama, H.; Noguchi, T. Dinoflagellate Alexandrium Tamarense as the Source of Paralytic Shellfish Poison (PSP) Contained in Bivalves from Hiroshima Bay, Hiroshima Prefecture, Japan. Toxicon 1995, 33, 691–697. [Google Scholar] [CrossRef]
  41. Choi, M.C.; Hsieh, D.P.H.; Lam, P.K.S.; Wang, W.X. Field Depuration and Biotransformation of Paralytic Shellfish Toxins in Scallop Chlamys Nobilis and Green-Lipped Mussel Perna Viridis. Mar. Biol. 2003, 143, 927–934. [Google Scholar] [CrossRef]
  42. Artigas, M.L.; Vale, P.J.V.; Gomes, S.S.; Botelho, M.J.; Rodrigues, S.M.; Amorim, A. Profiles of Paralytic Shellfish Poisoning Toxins in Shellfish from Portugal Explained by Carbamoylase Activity. J. Chromatogr. A 2007, 1160, 99–105. [Google Scholar] [CrossRef]
  43. Vale, P. Metabolites of Saxitoxin Analogues in Bivalves Contaminated by Gymnodinium Catenatum. Toxicon 2010, 55, 162–165. [Google Scholar] [CrossRef]
  44. Qiu, J.; Meng, F.; Ding, L.; Che, Y.; McCarron, P.; Beach, D.G.; Li, A. Dynamics of Paralytic Shellfish Toxins and Their Metabolites during Timecourse Exposure of Scallops Chlamys Farreri and Mussels Mytilus Galloprovincialis to Alexandrium Pacificum. Aquat. Toxicol. 2018, 200, 233–240. [Google Scholar] [CrossRef]
  45. Ding, L.; Qiu, J.; Li, A. Proposed Biotransformation Pathways for New Metabolites of Paralytic Shellfish Toxins Based on Field and Experimental Mussel Samples. J. Agric. Food Chem. 2017, 65, 5494–5502. [Google Scholar] [CrossRef]
  46. Botelho, M.J.; Marques, F.; Freitas, R.; Pires, A.; Pereira, E.; Vale, C. Paralytic Shellfish Toxin Profiles in Mussel, Cockle and Razor Shell under Post-Bloom Natural Conditions: Evidence of Higher Biotransformation in Razor Shells and Cockles. Mar. Environ. Res. 2020, 154, 104839. [Google Scholar] [CrossRef]
  47. Botelho, M.J.; Vale, C.; Ferreira, J.G. Profiles of Paralytic Shellfish Toxins in Bivalves of Low and Elevated Toxicities Following Exposure to Gymnodinium Catenatum Blooms in Portuguese Estuarine and Coastal Waters. Chemosphere 2015, 138, 1028–1036. [Google Scholar] [CrossRef]
  48. Bricelj, V.M.; Shumway, S.E. Paralytic Shellfish Toxins in Bivalve Molluscs: Occurrence, Transfer Kinetics, and Biotransformation. Rev. Fish. Sci. 1998, 6, 315–383. [Google Scholar] [CrossRef]
  49. EFSA Marine Biotoxins in Shellfish—Saxitoxin Group. EFSA J. 2009, 1019, 1–76.
  50. Costa, P.R.; Robertson, A.; Quilliam, M.A. Toxin Profile of Gymnodinium Catenatum (Dinophyceae) from the Portuguese Coast, as Determined by Liquid Chromatography Tandem Mass Spectrometry. Mar. Drugs 2015, 13, 2046–2062. [Google Scholar] [CrossRef]
  51. Vale, P. Fate of Benzoate Paralytic Shellfish Poisoning Toxins from Gymnodinium Catenatum in Shellfish and Fish Detected by Pre-Column Oxidation and Liquid Chromatography with Fluorescence Detection. J. Chromatogr. A 2008, 1190, 191–197. [Google Scholar] [CrossRef]
  52. Tan, K.S.; Ransangan, J. Factors Influencing the Toxicity, Detoxification and Biotransformation of Paralytic Shellfish Toxins. In Reviews of Environmental Contamination and Toxicology Volume 235; Whitacre, D.M., Ed.; Springer International Publishing: Cham, Switzerland, 2015; pp. 1–25. ISBN 978-3-319-10861-2. [Google Scholar]
  53. BIO-RAD AG 50W and AG MP-50 Cation Exchange Resins. Available online: https://www.bio-rad.com/sites/default/files/webroot/web/pdf/lsr/literature/LIT203.pdf (accessed on 12 November 2022).
  54. daSilva, M.B.; Vianna, M.T.G.; Marques, M. Adsorption Processes Applied for the Removal of Saxitoxins in Water: A Literature Review (2010–2022). Water Air Soil Pollut. 2022, 233, 529. [Google Scholar] [CrossRef]
  55. Narita, D.; Rehdanz, K.; Tol, R.S.J. Economic Costs of Ocean Acidification: A Look into the Impacts on Global Shellfish Production. Clim. Change 2012, 113, 1049–1063. [Google Scholar] [CrossRef]
  56. Gazeau, F.; Parker, L.M.; Comeau, S.; Gattuso, J.-P.; O’Connor, W.A.; Martin, S.; Pörtner, H.-O.; Ross, P.M. Impacts of Ocean Acidification on Marine Shelled Molluscs. Mar. Biol. 2013, 160, 2207–2245. [Google Scholar] [CrossRef] [Green Version]

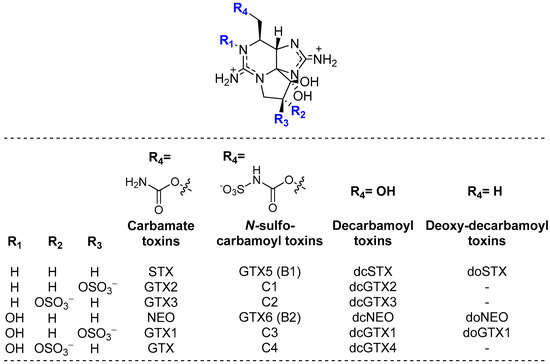

Figure 1. Structure representations of the major STX derivatives (PST group), with the positive charge fully delocalized over the pyrimidine and imidazole groups.
Figure 1. Structure representations of the major STX derivatives (PST group), with the positive charge fully delocalized over the pyrimidine and imidazole groups.
Foods 12 00768 g001

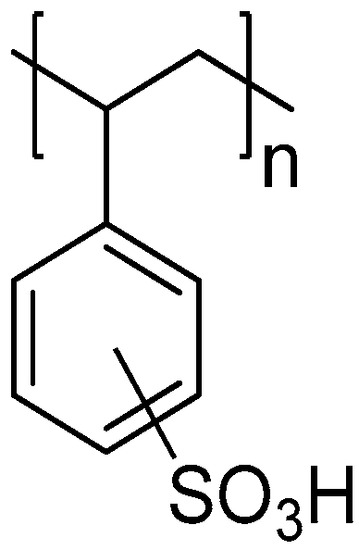

Figure 2. Structure representation of the acidic cation-exchange resin derived from the ST-DVB co-polymer.
Figure 2. Structure representation of the acidic cation-exchange resin derived from the ST-DVB co-polymer.
Foods 12 00768 g002

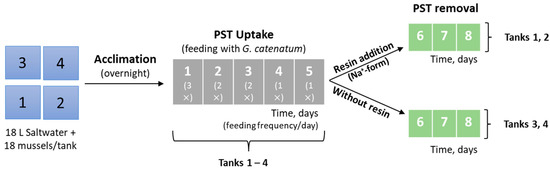

Figure 3. Experimental design for the feeding and clearance of live bivalves (second set of experiments). The numbers in the boxes on the left correspond to the tanks while the others (in the middle and on the right) correspond to the number of days.
Figure 3. Experimental design for the feeding and clearance of live bivalves (second set of experiments). The numbers in the boxes on the left correspond to the tanks while the others (in the middle and on the right) correspond to the number of days.
Foods 12 00768 g003
Figure 4. Experimental design for the feeding and clearance of live bivalves (third set of experiments). The numbers in the boxes on the left correspond to the tanks while the others (in the middle and on the right) correspond to the number of days.
Figure 4. Experimental design for the feeding and clearance of live bivalves (third set of experiments). The numbers in the boxes on the left correspond to the tanks while the others (in the middle and on the right) correspond to the number of days.
Foods 12 00768 g004

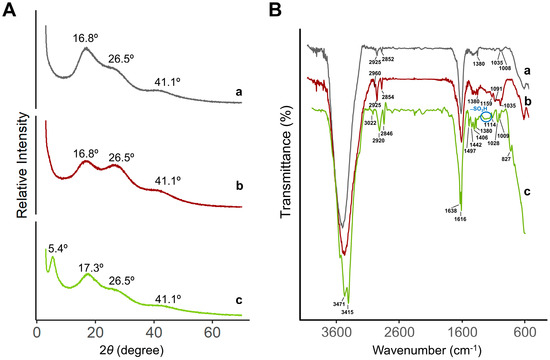

Figure 5. (A) XRD patterns and (B) FT-IR spectra of resins: (a) inactivated H-form, (b) activated H+-form, and (c) Na+-form.
Figure 5. (A) XRD patterns and (B) FT-IR spectra of resins: (a) inactivated H-form, (b) activated H+-form, and (c) Na+-form.
Foods 12 00768 g005
Figure 6. Microscopic image with DIC filter from particles of the Na+-form, showing the only deformation observed and two samples of the measurement taken from the particles.
Figure 6. Microscopic image with DIC filter from particles of the Na+-form, showing the only deformation observed and two samples of the measurement taken from the particles.
Foods 12 00768 g006

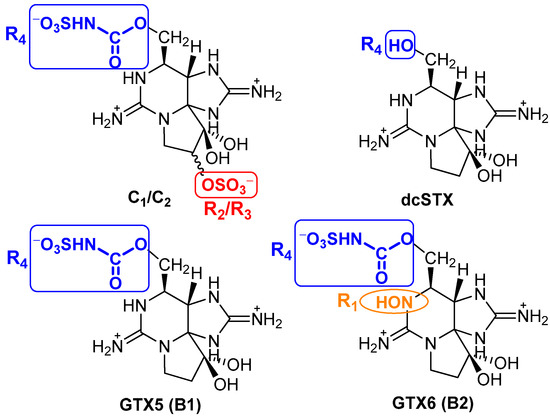

Figure 7. Molecular structures of some PST, under acidic conditions [2].
Figure 7. Molecular structures of some PST, under acidic conditions [2].
Foods 12 00768 g007

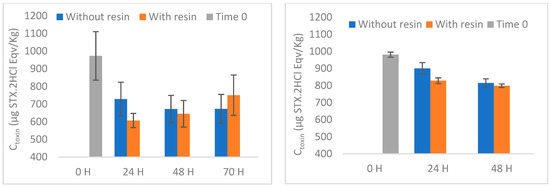

Figure 8. PST clearance results (global values) from live bivalves using H-form resin (left) and Na+-form resin (right). Natural clearance (without resin) is also presented for each set of experiments.
Figure 8. PST clearance results (global values) from live bivalves using H-form resin (left) and Na+-form resin (right). Natural clearance (without resin) is also presented for each set of experiments.
Foods 12 00768 g008

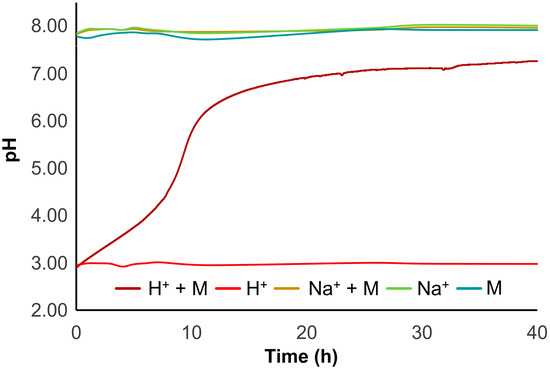

Figure 9. pH effect upon addition of the different resins, and respective controls.
Figure 9. pH effect upon addition of the different resins, and respective controls.
Foods 12 00768 g009
Table 1. PST concentrations, in µM (average ± standard deviation, SD), in G. catenatum cultures during the removal studies using the H-form resin. At time 0 and 48 h control, no resin was present.
Table 1. PST concentrations, in µM (average ± standard deviation, SD), in G. catenatum cultures during the removal studies using the H-form resin. At time 0 and 48 h control, no resin was present.
ToxinT0
(0 h)
T1
(1 h)
T2
(3 h)
T3
(19 h)
T4
(26 h)
T5
(48 h)
C
(48 h)
Removal (48 h, %)
C1,20.24 ± 0.010.25 ± 0.010.24 ± 0.000.25 ± 0.010.26 ± 0.010.25 ± 0.000.25 ± 0.01---
DcSTX *0.33 ± 0.000.14 ± 0.150.12 ± 0.130.06 ± 0.11NDND0.33 ± 0.01100 ± 0
GTX50.09 ± 0.000.06 ± 0.000.06 ± 0.010.09 ± 0.000.06 ± 0.020.05 ± 0.020.09 ± 0.0055 ± 5
GTX60.57 ± 0.020.58 ± 0.010.56 ± 0.010.58 ± 0.020.57 ± 0.010.56 ± 0.020.57 ± 0.03---
* For the calculation of the average and standard deviation, the value of zero was assigned when the toxins were not detected.
Table 2. PST concentrations, in µg STX.2HCl eqv/Kg (average ± SD), in mussels Mytilus edulis obtained from in vivo studies, in the absence of resin or in the presence of the H-form (2nd set) and Na+-form (3rd set) resins. At time 0 (day 6 of each experiment), no resin was present.
Table 2. PST concentrations, in µg STX.2HCl eqv/Kg (average ± SD), in mussels Mytilus edulis obtained from in vivo studies, in the absence of resin or in the presence of the H-form (2nd set) and Na+-form (3rd set) resins. At time 0 (day 6 of each experiment), no resin was present.
2nd Set of Experiments 3rd Set of Experiments
Without ResinWith H-Form Resin Without ResinWith Na+-Form Resin
0 h24 h48 h70 h24 h48 h70 h0 h24 h48 h24 h48 h
C1&223 ± 1017 ± 713 ± 314 ± 410 ± 214 ± 521 ± 428 ± 124 ± 218 ± 121 ± 219 ± 0
dcSTX841 ± 113598 ± 73567 ± 71563 ± 73505 ± 36540 ± 67627 ± 106853 ± 10782 ± 32703 ± 23711 ± 19686 ± 9
GTX518 ± 415 ± 413 ± 214 ± 411 ± 113 ± 319 ± 318 ± 116 ± 114 ± 115 ± 116 ± 0
GTX687 ± 183 ± 179 ± 182 ± 281 ± 178 ± 184 ± 282 ± 578 ± 080 ± 082 ± 579 ± 0
TOTAL973 ± 138728 ± 96672 ± 78673 ± 82607 ± 40645 ± 75750 ± 114981 ± 15900 ± 34815 ± 24828 ± 17799 ± 11
Reduct. (%)---28 ± 933 ± 1133 ± 1134 ± 731 ± 619 ± 10---8 ± 416 ± 316 ± 419 ± 3
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Leal, J.F.; Bombo, G.; Amado, P.S.M.; Pereira, H.; Cristiano, M.L.S. Cation-Exchange Resin Applied to Paralytic Shellfish Toxins Depuration from Bivalves Exposed to Gymnodinium catenatum. Foods 2023, 12, 768. https://doi.org/10.3390/foods12040768

AMA Style

Leal JF, Bombo G, Amado PSM, Pereira H, Cristiano MLS. Cation-Exchange Resin Applied to Paralytic Shellfish Toxins Depuration from Bivalves Exposed to Gymnodinium catenatum. Foods. 2023; 12(4):768. https://doi.org/10.3390/foods12040768

Chicago/Turabian Style

Leal, Joana F., Gabriel Bombo, Patrícia S. M. Amado, Hugo Pereira, and Maria L. S. Cristiano. 2023. "Cation-Exchange Resin Applied to Paralytic Shellfish Toxins Depuration from Bivalves Exposed to Gymnodinium catenatum" Foods 12, no. 4: 768. https://doi.org/10.3390/foods12040768

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
