Dimensional Stability of a Preliminary Vinyl Polysiloxane Impression Material

Centro de Investigação Interdisciplinar Egas Moniz, Instituto Universitário Egas Moniz, Quinta da Granja, Monte de Caparica, 2829-511 Caparica, Portugal
Facultad de Odontología, Universidad de Sevilla, C/ Avicena s/n 41009 Sevilla, Spain
Author to whom correspondence should be addressed.
Dent. J. 2019, 7(3), 81;
Submission received: 3 June 2019 / Revised: 25 June 2019 / Accepted: 27 June 2019 / Published: 1 August 2019
(This article belongs to the Section Dental Materials)


Oral rehabilitation success depends upon the accuracy and dimensional stability of the impressions. The purpose of this study is to evaluate the dimensional changes of a first impression type VPS (Vinyl Polysiloxane) (Imprint™ 4 Preliminary Penta™ Super Quick, 3M ESPE™, St Paul, MN, USA). 10 samples were obtained from this silicone with an automatic mixing machine (Pentamix 2, 3M ESPE™, Seefeld, Germany) according to International Organization for Standardization (ISO) 4823:2000 and stored in the IPQ (Portuguese Institute for Quality) for one week. The measurements were performed by laser interferometry, according to the Michelson technique. The dimensional stability was calculated according to the formula specified in ISO (International Organization for Standardization) 4823:2000. A statistical analysis via a one-way repeated measures ANOVA was performed. The material shrinkage was 0.29 ± 0.15% after setting, 0.32 ± 0.21% at 24 h and 0.30 ± 0.23% after 1 week. No significant shrinkage of the silicone under investigation was found over time. This material can be stored for a week without the risk of clinically significant dimensional changes.

1. Introduction

1.1. Rationale

Taking impressions is an important step in oral rehabilitation procedures such as crowns, fixed partial dentures or removable prostheses and their performance may dictate part of the success of treatments [1,2,3,4]. Impressions are the negative of the structures of the oral cavity, both of the teeth to be rehabilitated as well as the adjacent structures [3,5]. It is crucial that they accurately copy the topography, and for that purpose the impression material must be precise and stable [6,7].
The dimensional stability of the impression materials is the key to an accurate reproduction of the oral cavity [7].
The future of dentistry is digital [8]. Nonetheless, going digital is still very expensive, and clinicians continue to use impression materials, such as alginate [9]. Alginate is an irreversible hydrocolloid and is one of the most commonly used materials in dental medicine due to its easy handling, low cost and good tolerance by patients [10,11,12]. One of its disadvantages is the low dimensional stability due to syneresis and imbibition [12]. Care must be taken when handling and pouring, that is, the amounts of powder and liquid used must be respected and the alginate impression must be casted as soon as possible, preferably immediately after it is made [10,12]. There are a few alginates in the market that can be poured 48 h later with a minimal dimensional change, and sometimes 100 h later [13].
Within the elastomer materials, the two types that have a higher dimensional stability are the polyethers and vinyl polysiloxane and thus are the most used [1,14,15].
Vinyl polysiloxanes (VPS), also called addition curing silicone, are composed of two pastes and have a setting reaction that releases hydrogen in the form of a gas, due to the interaction between the moisture and the residual hydrides in the base polymer and does not result in formation of by-products [16,17,18]. This fact grants these materials superior dimensional stability [18].

1.2. Objectives

The silicone (Imprint™ 4 Preliminary Penta™ Super Quick, 3M ESPE™, St Paul, MN, USA) is a vinyl polysiloxane (VPS) with indication for preliminary impressions, competing with the traditional alginates, used for the same purpose. Our goal was to study the dimensional changes of this new preliminary VPS up to one-week storage time after setting and validate this change, since there are no studies involving this material.

2. Materials and Methods

The samples (n = 10) of the silicone (Imprint™ 4 Preliminary Penta™ Super Quick, 3M ESPE™, St Paul, MN, USA, Lot 545318) (Figure 1) were obtained according to International Organization for Standardization (ISO) 4823:2000, that specifies the use of a test block (Figure 2) [19]. The blocks were previously washed with deionized water in an ultrasound machine for two cycles and then placed in an oven at 37 °C for 15 min. After that, the material was obtained using an automatic mixer (Pentamix 2, 3M ESPE™, Seefeld, Germany) in accordance with the manufacturer’s instructions. The mixture was dispensed into the block assembly and covered with a rigid metal plate, protected with a polyethylene sheet. A two-kilogram weight was placed above the metal plate to ensure firm sealing of the material inside the block test. The entire assembly was immersed in a water bath at 35 °C to mimic the temperature of the oral cavity. After the manufacture recommended setting time of one minute and thirty seconds, the samples were removed from the bath, separated from the test block, washed, dried with blown air and labelled.
The 20-micron line was observed under a 4 × magnifying glass (Leica StereoZoom S4, Heerbrugg, Switzerland) by a single operator to approve the sample for testing.
All samples were measured three times over the course of the experiment: after setting (A); at 24 h (B) and after one week (C). Each line of the sample was measured three times. Each test block was measured prior to sampling. All measurements were made with laser interferometry, using a Michelson interferometer with an accuracy of 10 nm. Dimensional change for each specimen was calculated according to ISO 4823:2000 formula:
Δ L = ( L 1 L 2 L 1 )   ×   100
where L1 represents the distance measured on the test block and L2 represents the distance measured on the impression material specimens.
The samples were stored in the metrology department of the Portuguese Institute of Quality at 20 ± 2 °C, with a 70% relative humidity. Statistical analysis via one-way repeated measures ANOVA was performed with IBM SPSS Statistics Software—Version 20.0. The presence of statistical significance is accepted at a p < 0.05 level.

3. Results

A one-way repeated measures ANOVA was conducted to determine whether there was a statistically significant difference in the material dimensional stability over a one-week period storage time. There were no outliers and the data was normally distributed at each time point, as assessed by boxplot and Shapiro–Wilk test (p > 0.05), respectively. The assumption of sphericity was met, as assessed by Mauchly’s test of sphericity (p = 0.106). The storage time did not elicit statistically significant changes in the studied silicone’s dimensional stability (p = 0.622) (Table 1).
The tested silicone presents a high dimensional stability during one-week storage time. After setting it has a mean dimensional change of 0.29 ± 0.15% that rises at 24 h to 0.32 ± 0.21% and stabilizes over time until 0.30 ± 0.23% one week later. The highest average dimensional change was observed after 24 h (Figure 3).

4. Discussion

After 24 h (Group A) the material presents the highest dimensional change (0.32 ± 0.21%). Several studies were made to test the VPS dimensional stability during storage time [1,14,20,21,22,23]. However, in relation to this particular VPS preliminary material, the literature does not report specific results. In fact, when compared to other products, the test silicone appears to be very stable. It has a 0.38% dimensional change limit similar to polyether (Impregum™ Penta™, 3M ESPE™, St Paul, MN, USA) which has 0.4% dimensional change. Walker et al. [23] reported that Aquasil Ultra Monophase silicone (Dentsply Caulk, Milford, Germany) presented dimensional changes of 0.32% after 24 h and 0.40% after 1 week. In the same study, Impregum™ Penta™ Soft polyether (3M ESPE, St Paul, MN, USA) presented 0.27% of dimensional change after 24 h and 0.34% after 1 week. Jagger et al. [24], presented a 0.30% dimensional change of silicone (Aquasil Ultra Monophase (Dentsply Caulk, Milford, Germany). In 2014, Sinobad et al. [4] showed that Elite® HD+ Regular body silicone (Zhermack, Badia Polesine, Italy) had a 0.16% dimensional change immediately after setting, which increased to 0.40% after 24 h and to 0.52% seven days later, that in fact tells us that the tested silicone showed better results though being marketed as a preliminary impression material.
The changes that Imprint™ 4 Preliminary Penta™ Super Quick silicone exhibits after one-week storage time are inferior to the limit of 1.5% imposed by ISO 4823:2000.

5. Conclusions

Storage of the silicone examined in this study for a week does not affect its dimensional stability thus is not clinically relevant. Dentists should be made aware that this silicone can be stored for a week without the risk of clinically significant dimensional changes and is a reliable and affordable replacement for alginate. Digital dentistry is improving but there is still a long road to bring down the cost. Impression materials will still be the gold standard of impression making for the next decade.

Author Contributions

Conceptualization, P.M.; Funding acquisition, I.B.N.; Investigation, F.M.; Methodology, J.R. and P.M.; Resources, I.B.N and P.M.; Supervision, I.B.N.; Writing—original draft, F.M.; Writing—review & editing, J.R.


This research received no external funding.


The authors would like to thank 3M Portugal for the materials and the Portuguese Institute of Quality for the use of facilities.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Chandran, D.T.; Jagger, D.C.; Jagger, R.G.; Barbour, M.E. Two- and three-dimensional accuracy of dental impression materials: Effects of storage time and moisture contamination. Biomed. Mater. Eng. 2010, 20, 243–249. [Google Scholar] [PubMed]
  2. Balkenhol, M.; Haunschild, S.; Erbe, C.; Wöstmann, B. Influence of prolonged setting time on permanent deformation of elastomeric impression materials. J. Prosthet. Dent. 2010, 103, 288–294. [Google Scholar] [CrossRef]
  3. Markovi, D.; Puškar, T.; Hadžistevi, M.; Potran, M.; Blaži, L.; Hodoli, J. The dimensional stability of elastomeric dental impression materials. Contemp. Mater. 2012, 1, 105–110. [Google Scholar] [CrossRef]
  4. Sinobad, T.; Obradovic-Djuricic, K.; Nikolic, Z.; Dodic, S.; Lazic, V.; Sinobad, V.; Jesenko-Rokvić, A. The effect of disinfectants on dimensional stability of addition and condensation silicone impressions. Vojnosanit. Pregl. 2014, 71, 251–258. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Pereira, J.R.; Murata, K.Y.; Valle, A.L.; Ghizoni, J.S.; Shiratori, F.K. Linear dimensional changes in plaster die models using different elastomeric materials. Braz. Oral. Res. 2010, 24, 336–341. [Google Scholar] [CrossRef] [Green Version]
  6. Kotsiomiti, E.; Tzialla, A.; Hatjivasiliou, K. Accuracy and stability of impression materials subjected to chemical disinfection—A literature review. J. Oral Rehabil. 2008, 35, 291–299. [Google Scholar] [CrossRef]
  7. Lemos, S.; Oliveira, R.; Pereira, B.; Ferreira, F. Evaluation of the dimensional alteration of casts obtained from impressions with a traditional irreversible hydrocolloid and an antimicrobial. Rev. Odontol. UNESP 2010, 39, 41–47. [Google Scholar]
  8. Cervino, G.; Fiorillo, L.; Arzukanyan, A.V.; Spagnuolo, G.; Cicciu, M. Dental Restorative Digital Workflow: Digital Smile Design from Aesthetic to Function. Dent. J. 2019, 7, 30. [Google Scholar] [CrossRef]
  9. Cervino, G.; Fiorillo, L.; Herford, A.S.; Laino, L.; Troiano, G.; Amoroso, G.; Crimi, S.; Matarese, M.; D’Amico, C.; Nastro Siniscalchi, E.; et al. Alginate Materials and Dental Impression Technique: A Current State of the Art and Application to Dental Practice. Mar. Drugs 2018, 17, 18. [Google Scholar] [CrossRef]
  10. Meira, D.M.; Collares, T.; Vand der Sand, S.T.; Collares, F.M.; Leitune, V.C.B.; Samuel, S.M.W. Influence of the time for the disinfection of alginate infected with Staphylococcus aureus in glutaraldehyde and peracetic acid. Rev. Fac. Odontol. Porto Alegre 2011, 1, 11–14. [Google Scholar]
  11. Zuim, P.R.J.; Garcia, A.R.; Carpanez, S.M.; Máximo, G.M. Accuracy of irreversible hydrocolloid rebasing technique. Rev. Odontol. Araçatuba 2003, 24, 56–61. [Google Scholar]
  12. Amorim, T.N.; Rodrigues, C.R.T.; Bruno, M.V.; Barbosa, O.L.C.; Barbosa, C.; Pereira, V.F.G.C. Dimensional stability of two hydrocolloids trademarks. Braz. J. Surg. Clin. Res. 2015, 9, 5–10. [Google Scholar]
  13. Walker, M.P.; Burckhard, J.; Mitts, D.A.; Williams, K.B. Dimensional change over time of extended-storage alginate impression materials. Angle Orthod. 2010, 80, 1110–1115. [Google Scholar] [CrossRef] [PubMed]
  14. Chen, S.Y.; Liang, W.M.; Chen, F.N. Factors affecting the accuracy of elastometric impression materials. J. Dent. 2004, 32, 603–609. [Google Scholar] [CrossRef] [PubMed]
  15. Franco, E.B.; Cunha, L.F.; Benetti, A.R. Effect of storage period on the accuracy of elastomeric impressions. J. Appl. Oral. Sci. 2007, 15, 195–198. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Powers, J.M.; Sakagushi, R.L. “Elastomeric Impression Materials” in Craig’s Restortive Dental Materials, 12th ed.; Mosby, Ed.; Elsevier: Amsterdam, The Netherlands, 2006; pp. 283–289. [Google Scholar]
  17. Leão, M.P.; Pinto, C.P.; Sponchiado, A.P.; Ornaghi, B.P. Dimensional stability of a novel polyvinyl siloxane impression technique. Braz. J. Oral Sci. 2014, 13, 118–123. [Google Scholar] [CrossRef]
  18. Sinhoreti, M.A.C.; Vitti, R.P.; Leonardo, R.; Consani, X. Study of Dimensional Accuracy of Stone Models Made with Different Techniques and Elastomeric Impression Materials; RFO: Passo Fundo, Brazil, 2010; Volume 15, pp. 139–144. [Google Scholar]
  19. International Organization for Standardization. Dentistry: Elastomeric Impression Materials; ISO: Geneve, Switzerland, 2000; ISO 4823:2000. [Google Scholar]
  20. Williams, P.T.; Jackson, D.G.; Bergman, W. An evaluation of the time-dependent dimensional stability of eleven elastomeric impression materials. J. Prosthet. Dent. 1984, 52, 120–125. [Google Scholar] [CrossRef]
  21. Thomas, W.; Kumar, P.; Mathew, S.; Sarathchandran, S.; Jayanthi, P. Effect of storage time and temperature change on the dimensional stability of polyvinyl siloxane and polyether impression materials: An in vitro study. J. Dr. NTR Univ. Health Sci. 2016, 5, 204. [Google Scholar]
  22. Nassar, U.; Chow, A.K. Surface Detail Reproduction and Effect of Disinfectant and Long-Term Storage on the Dimensional Stability of a Novel Vinyl Polyether Silicone Impression Material. J. Prosthodont. 2014, 10, 1–5. [Google Scholar] [CrossRef]
  23. Walker, M.P.; Rondeau, M.; Petrie, C.; Tasca, A.; Williams, K. Surface quality and long-term dimensional stability of current elastomeric impression materials after disinfection: Basic science research. J. Prosthodont. 2007, 16, 343–351. [Google Scholar] [CrossRef]
  24. Jagger, D.C.; Vowles, R.W.; McNally, L.; Davis, F.; O’Sullivan, D.J. The effect of a range of disinfectants on the dimensional accuracy and stability of some impression materials. Eur. J. Prosthodont. Restor. Dent. 2007, 15, 23–28. [Google Scholar] [PubMed]

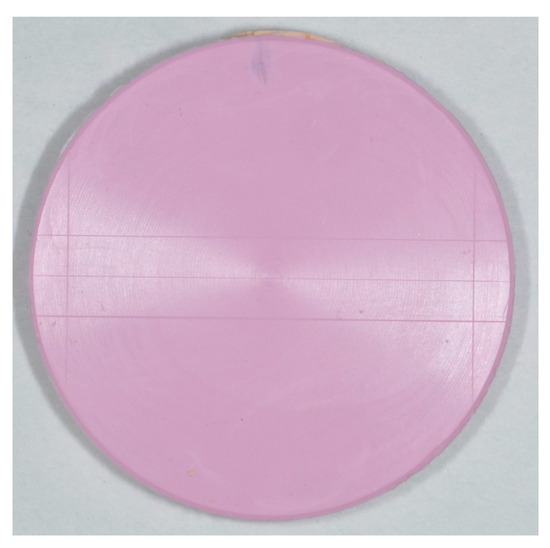

Figure 1. Vinyl polysiloxane (VPS) sample.
Figure 1. Vinyl polysiloxane (VPS) sample.
Dentistry 07 00081 g001

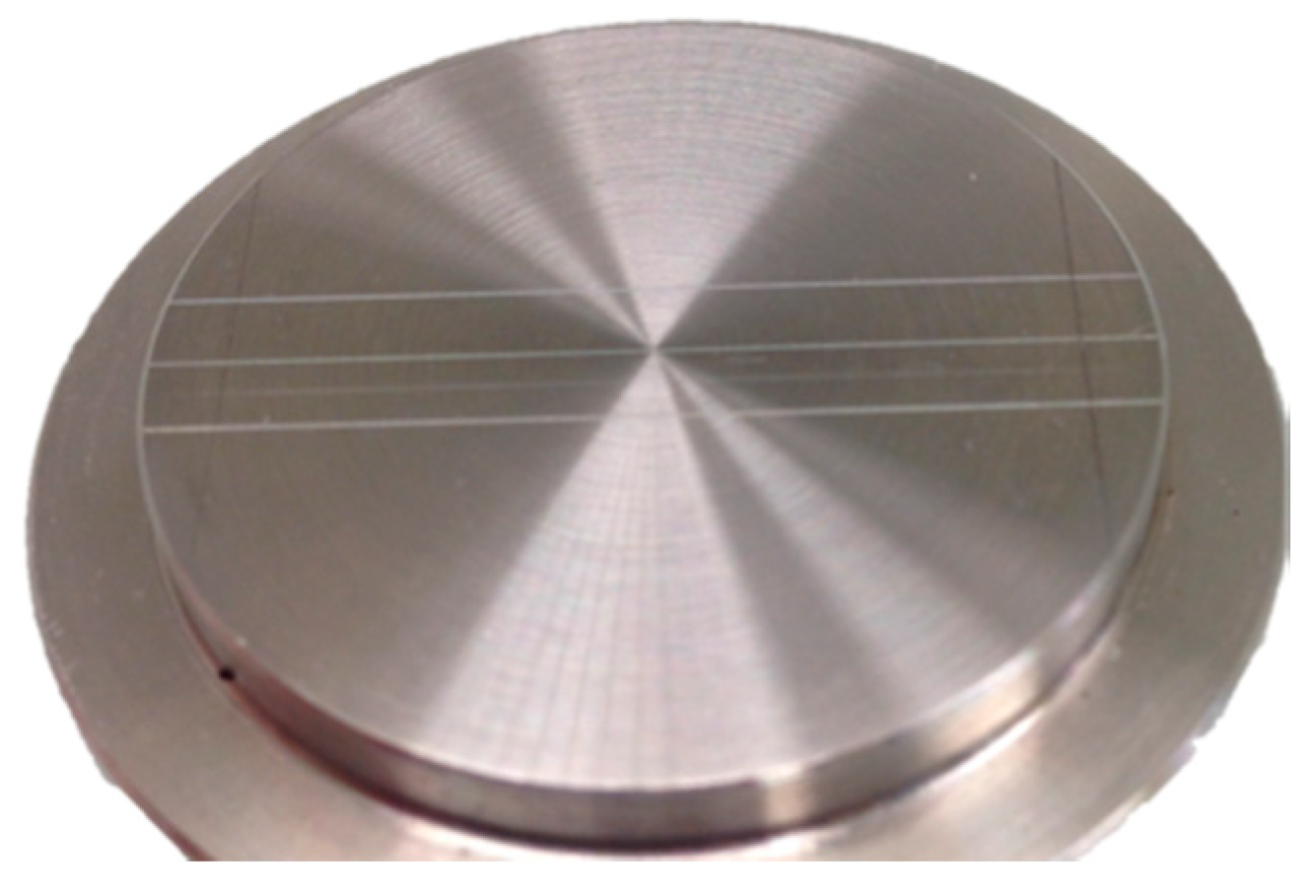

Figure 2. Matrix (International Organization for Standardization (ISO) 4823:2000).
Figure 2. Matrix (International Organization for Standardization (ISO) 4823:2000).
Dentistry 07 00081 g002

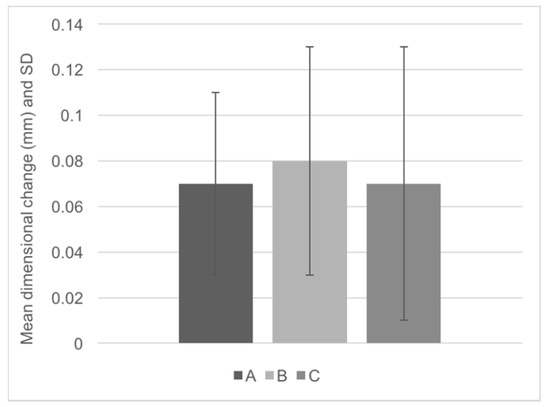

Figure 3. Mean (standard deviation) dimensional change (mm).
Figure 3. Mean (standard deviation) dimensional change (mm).
Dentistry 07 00081 g003
Table 1. Descriptive and statistical analysis.
Table 1. Descriptive and statistical analysis.
TimeHorizontal Line Dimension (mm) Mean (SD)Dimensional Change (%) Mean (SD)p (*)
A0.07 (0.04)0.29 (0.15)p = 0.622
B0.08 (0.05)0.32 (0.21)
C0.07 (0.06)0.30 (0.23)
* one-way repeated measures ANOVA.
