Abstract

:
This study evaluated the accuracy of the Root ZX (J. Morita, Tokyo, Japan) electronic apex locator in determining the working length when palatal maxillary molar roots are in a relationship with the sinus. Seventeen human maxillary molars with vital pulp were scheduled for an extraction and implant placement as part of a periodontal treatment plan. The access cavity was prepared, and a #10 K file (Dentsply Maillefer, Ballaigues, Switzerland) was inserted into the palatal root using the Root ZX apex locator in order to determine the electronic working length (EWL); then, the teeth were extracted. To determine the real working length (RWL), a #10 K file was introduced into the root canal until its tip touched a glass plate. EWL and RWL were compared. Images reconstructed with CBCT (cone beam computerized tomography) revealed that eight palatal roots were related to the maxillary sinus, whereas nine were not. The results showed a significant difference between the EWL and the RWL of the palatal roots related to the sinus (p < 0.001). No significant difference was observed in measurements of roots not in contact with the sinus (p > 0.05). Within the study limitations, the reliability of Root ZX was influenced by the relationship of the roots with the maxillary sinus.
Keywords:
maxillary molar; maxillary sinus; working length; Root ZX; apex locator

1. Introduction

The elimination of microorganisms and pulp tissue from the root canal system is a crucial step for endodontic success [1,2], and such treatment should be confined within the roots [3,4]. This can only be achieved when the root canal length is determined with accuracy. Any endodontic act beyond or below this limit may increase the risk of failure due to overfilling or underfilling [5]. It is sometimes tricky to precisely determine the root canal preparation length using periapical radiographs, since they are subject to distortion, are sensitive in interpretation, and they only give a two-dimensional image of the three-dimensional roots [6].
The introduction of electronic apex locators (EAL) has allowed better reliability in working length (WL) determination [7,8] while minimizing the exposure of patients to radiation [9]. The latest generation of these devices determines the WL by measuring the variation of impedance by using different frequencies in the instrument tip within the canal [10]. Root ZX (J. Morita, Tokyo, Japan) is an accurate, third-generation EAL that expresses the quotient between the impedances of two frequencies (0.4 and 8 kHz) and indicates the position of the instrument inside the root canal. It ensures high levels of efficiency and accuracy, making it the gold standard EAL [11,12,13]. However, some conditions might affect its performance. The influence of various factors on the accuracy of Root ZX has been studied, such as the degree of root canal curvature [14], tooth group [15], apical foramen diameter and file size [16], pulp vitality [17], presence of irrigants [18], and endodontic perforation [19]. Piasecki et al. [20] found that EAL performance may be affected by apical anatomic complexities. However, the effect of root apices being in contact with the maxillary sinus on the reliability of EAL has not been studied.
The maxillary sinus is an anatomic organ that is localized near the nasal cavity in close proximity to the upper molars [21]. Crucial care should be taken during surgeries [22,23] and endodontic therapy on molars with roots in close proximity to the maxillary sinus [24]. Related to this, Matsumoto et al. [25] showed that odontogenic infection was the cause of 70% of 190 studied unilateral sinusitis cases. The occurrence of iatrogenic errors may induce sinusitis and infections resulting from thickening of the maxillary sinus mucosa [26] or the extrusion of endodontic files, irrigation solutions, or sealers into the sinus cavity while performing cleaning and obturation of the root canal system [27,28].
Cone beam computerized tomography (CBCT) imaging is an advanced, indicative imaging technique that has been adopted in root canal treatment for the three-dimension study of the root canal anatomy [29,30,31,32], as well as the evaluation of root resorption, the diagnosis of root fracture [33], and the determination of presurgical strategies [34,35]. It enables the topographic relationship between the sinus floor (MSF) and the maxillary molar roots to be established [36,37,38]. According to Aksoy and Orhan [39], in 84% of the second molars and in 77% of the first molars, at least one of the roots protrudes into the sinus or is in contact with it. Gu et al. [21] reported that maxillary molars are closer to the MSF than premolars and that age has a significant influence on the relationship between upper molars and the MSF. CBCT represents an important modality with great potential for clinical practice and precision compared to conventional radiography [40,41]. CBCT imaging offers several advantages over medical computed tomographic imaging, including its ease of use for dental applications, reduction of radiation doses, and lower cost [42,43,44,45].
To date, no studies have investigated the effect of apical root canal sinus projection on EAL accuracy. Considering the importance of the correct determination of WL when treating the upper molars, the relationship between the maxillary sinus and the roots of the maxillary posterior teeth, and to avoid endodontic complications of the sinus tissues, the aim of this ex vivo study was to evaluate the reliability of Root ZX when root canals are in contact with the maxillary sinus. The null hypothesis tested was that there are no significant differences in the reliability of the Root ZX between the roots whether they are in contact or not in contact with the maxillary sinus.

2. Materials and Methods

This study was approved by the Ethics Committee of Saint Joseph University Beirut (USJ-2018-10) on 20 February 2018.

2.1. Selection of Teeth

Patients in good general health aged 50 to 60 years old were recruited from the Dental Health Care Center of Saint Joseph University of Beirut. They were scheduled for the extraction of an upper molar and placement of an implant as part of their periodontal treatment plan. After clinical and radiographic examinations, only maxillary molars with vital pulp and no symptoms of pulpitis were included in the study. Molars with open apices, fractures, root resorptions, calcifications, or previous endodontic treatments were excluded. Seventeen palatal roots were finally included in this study and written informed consent was obtained from the participants.

2.2. Imaging Procedures and Evaluation of the CBCT Images

Preoperatively, all patients received limited CBCT imaging as part of preimplant planning. The imaging system used was the NewTom VGI (QR, Verona, Italy) cone beam computed tomography (CBCT) with the following parameters: 3.3 mA, 110 kVp, 7.5 × 12 cm scan field of view, and 0.150 mm voxel size. The CBCT images were established by employing OnDemand3D software (Cybermed, Seoul, Korea) concordant to the operating parameters. Images were examined by an experienced oral radiologist in order to confirm whether or not the palatal root was in contact with the sinus, as shown in Figure 1 and Figure 2.

2.3. Determination of the Electronic Working Length Using Root ZX

The determination of the working length of the palatal root was completed by one endodontist who was blinded to the results of the CBCT. After applying local anesthesia and placing the rubber dam, an access cavity was done on each tooth using a handpiece at high speed. The reference point was standardized by flattening the palatal cusp tip. The Root ZX apex locator then determined the EWL in accordance with the manufacturer’s instructions. A #10 K file (Dentsply Maillefer, Ballaigues, Switzerland) was connected to the file clip of the EAL and inserted apically into the canal until the “Apex mark” appeared. The silicone stop was then cemented to the file with light-cured glass ionomer cement (GC Fuji® Automix LC, GC Corp., Tokyo, Japan), and the distance between the stop and the file tip was measured with a digital caliper at 5× magnification (Carl Zeiss GmbH, Oberkochen, Germany). The working length obtained for each canal was then recorded and noted as the EWL. The canal was irrigated with 2.5% sodium hypochlorite (NaOCl), the rubber dam was removed, and an oral surgeon extracted the tooth and checked it to ensure that the root tips were not broken. A solution of 2.5% NaOCl was used to disinfect the root surface, and then the teeth were saved for 20 minutes in a saline solution in order to measure their real working lengths.

2.4. Determination of the Real Working Length Using a Glass Plate

The real working length (RWL) of the palatal root was measured using a glass plate tangential to the plane of the anatomic foramen, and a #10 K-file (Dentsply Maillefer, Ballaigues, Switzerland) was introduced into the root canal until its tip touched the glass plate. The file was then cemented to the silicone stop using light-cured glass ionomer cement (GC Fuji® Automix LC, GC Corp., Tokyo, Japan) in order to prevent movement. The file was then extracted, and the measurement was taken between the stop and the file tip. The endodontist applied the same technique as in EWL in order to measure distances. The WL obtained for each canal was then recorded and noted as the RWL.

2.5. Statistical Analyses

Statistical analyses were performed using the Statistical Package Software for Social Science (SPSS for Windows, Version 17.0, Chicago, IL, USA). The level of significance was set at p < 0.05. For each tooth, EWL and RWL were recorded three times, and the average measurement was calculated and used for the statistical analysis. The WL error was calculated by subtracting the EWL from the RWL (Error = EWL − RWL). Negative and positive values indicated measurements that were short and long of the real length, respectively, whereas 0.0 indicated coinciding measurements. The accuracy of the WL measurements was assessed using Student t-tests to compare the mean error between roots in contact and roots with no contact with the sinus. Paired Student t-tests were also executed to compare the mean EWL and RWL values for palatal roots in contact or not in contact with the sinus. One-sample t-tests were used to compare the mean error value with the theoretical value, 0, which assumes the absence of error.

3. Results

Seventeen palatal roots were finally included in this study. The CBCT images showed that eight were in contact with the sinus and nine were not. A comparison of the EWL versus the RWL of palatal roots related to or not related to the sinus are detailed in Figure 3 and Figure 4. The mean measurements and standard deviations obtained in groups are shown in Table 1. There were no significant differences in the EWL and RWL when the roots were not in a relationship with the sinus (p = 0.744). However, the mean EWL was significantly higher than RWL for roots related to the sinus (p = 0.001). Moreover, palatal roots in relation with the maxillary sinus had a mean error that was significantly different from 0 (+0.974, p = 0.001). However, the mean error was not statistically significant for palatal roots with no sinus contact (−0.041, p = 0.639).

4. Discussion

The aim of this study was to evaluate the reliability of the Root ZX locator when root canals are in contact with the maxillary sinus. To our knowledge, the effect of the relationship between the root apex of upper molars and the maxillary sinus on EAL accuracy has not been studied previously.
Recently, different studies have reported the exactitude of several EALs [14,46,47,48]. In this current ex vivo study, one of the critical steps in this process was the standardization of samples. We used the palatal roots of the first and second maxillary molars, and all teeth were flattened to allow standardization and the creation of a flat reference point for accurate measurements [49]. Each tooth was isolated with a rubber dam to obtain a stable electronic reading [50]. All specimens were measured by the same Root ZX locator, as well as by the glass plate method. In addition, patients were of similar age, which provided comparable root growth and prevented morphological divergences.
Although Tsesis et al. [51] showed that EALs are not influenced by the pulp status, this study only consisted of teeth with vital pulp tissue in order to remove any potential bias. The Root ZX locator was used in accordance with the manufacturer’s instructions with a size #10 K file [52]. Although Nguyen et al. [53] claimed that the accuracy of EALs is not affected by the file size, the same file size was used in all canals to provide similar conditions for EWL and RWL. In this report, in contrast to the study conducted by Azabal et al. [54], the teeth were not decoronated; this kept the investigation variables nearest to an in vivo condition. Furthermore, the determination of the RWL was made when the #10 K file reached firm contact with the glass plate, instead of only using visual magnification; this gave a reduced margin of error.
In the present study, all CBCT images were taken before the study, and no additional X-rays were done to reduce radiation. According to the classification of vertical relationships between the root apex of the second molars and the MSF, the frequency of a root projection in the sinus varies between 14% and 23% [51,55]. Wallace [56] reported that in 40% of cases, the first and the second maxillary molars communicate with the sinus. In this study, the CBCT taken as preimplant treatment planning was also used to assess whether the palatal maxillary molar roots were in contact with the sinus. The CBCT axial and sagittal images clearly showed that eight roots were associated with the sinus and nine were not.
This research showed a significant difference between the EWL and the RWL of the palatal roots in relation with the sinus, but did not demonstrate a significant difference in measurements with roots that were not in contact with the sinus. The EWL was revealed to be significantly longer than the RWL when the palatal roots were in contact with the sinus. Previous investigations showed overestimated measurements in 2.56% [12], 7.9% [57], and 3.1% [58] of cases, respectively, when using the Root ZX. However, in one study that analyzed WL determination, the use of Root ZX was found to significantly reduce the incidence of working length overestimation compared to periapical radiographs [59]. One explanation for the results of the current study may be that roots in contact with the maxillary sinus have different levels of impedance than roots not in contact with the sinus. This finding is crucial, since it demonstrates the risk of over instrumentation, especially for those endodontists who only use the EAL to accomplish their root canal treatment. This is clinically important as inaccurate determination of the WL when treating teeth with close proximity to the maxillary sinus may induce the extension of bacteria, endodontic tools, intracanal solutions, and root canal fillings into the sinus [36]. The introduction of necrotic debris and microorganisms into the sinus could cause chronic sinusitis [60]. Kang et al. [37], who found a close distance between the root apexes of upper molars and the MSF and procured approximate measurements from the root apexes to the buccal cortical plate, stressed the importance of giving appropriate attention when treating upper molars. In addition, overestimated WL can be accompanied by microbial contamination, injury to the periapical tissues, and pain, reducing the success rate of root canal therapy [3,61]. Correct bacterial disinfection, pertinent shaping, and three-dimensional obturation of the root canal system rely on the precise determination of the root length [62,63].
The Root ZX locator is considered a reference to which other EALs are compared [64], and several investigations have evaluated its reliability [65,66]. In the current study, for teeth not in contact with the sinus, there was no significant difference between the EWL and RWL. This is in accordance with results from other authors, who measured an accuracy level of Root ZX from 75% to 97.37% [67,68,69]. This device provides the WL by measuring the impedance with two frequencies between the file and the canal fluid without adjustment or calibration. This is the reason that Root ZX is considered to be highly precise in locating the apical foramen [58,70]. However, some previously conducted studies showed that there are several factors that can adversely influence the results [71,72] or even prohibit accurate WL determination, such as blood [73], the protocol adopted [10], the preoperative pulp status [74], the irrigant used [75], or the presence of open apices [62]. This study showed that the reliability of Root ZX is also influenced by the relationship of the root with the maxillary sinus.
There may be some limitations in this investigation. Primarily, the number of specimens was rather low, since strict inclusion criteria were applied. Even though the result of the power test was high, clinical studies over a bigger number of roots with a different degree of clinical situations are necessary to further confirm these findings.
Thus, the present study data rejected the null hypothesis that there would be no difference between the roots in contact with the sinus or below it in terms of the reliability of the Root ZX apex locator.

5. Conclusions

Despite the limitations of this study, a significant difference in the accuracy of the Root ZX apex locator between roots in contact or not in contact with the maxillary sinus was found. Realizing the anatomical relationship between the maxillary posterior teeth and the sinus, the clinician must be particularly cautious to prevent possible complications from root canal treatment involving maxillary posterior teeth. Therefore, it is recommended that periapical radiographs are combined with apex locators to determine an acute and reliable working length to allow the long-term success of the root canal treatment.

Author Contributions

Conceptualization, R.E.H. and A.N.; Formal analysis, N.E.O.; Investigation, R.E.H., E.W., N.M., and R.A.; Methodology, R.E.H. and A.N.; Project administration, R.E.H.; Resources, R.E.H., E.W., and N.M.; Software, R.A.; Supervision, A.N.; Validation, N.E.O. and A.N.; Visualization, R.E.H. and C.Z.; Writing—original draft, R.E.H.; Writing—review and editing, R.E.H., N.E.O., and N.M.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Siqueira, J.F., Jr.; Rocas, I.N. Distinctive features of the microbiota associated with different forms of apical periodontitis. J. Oral Microbiol. 2009, 1. [Google Scholar] [CrossRef]
  2. ElAyouti, A.; Hülber, J.M.; Judenhofer, M.S.; Connert, T.; Mannheim, J.G.; Löst, C.; Pichler, B.J.; von Ohle, C. Apical constriction: Location and dimensions in molars—A micro–computed tomography study. J. Endod. 2014, 40, 1095–1099. [Google Scholar] [CrossRef] [PubMed]
  3. Schaeffer, M.A.; White, R.R.; Walton, R.E. Determining the optimal obturation length: A meta-analysis of literature. J. Endod. 2005, 31, 271–274. [Google Scholar] [CrossRef] [PubMed]
  4. Ricucci, D. Apical limit of root canal instrumentation and obturation, part 1. Literature review. Int. Endod. J. 1998, 31, 384–393. [Google Scholar] [CrossRef] [PubMed]
  5. Sjogren, U.; Hagglund, B.; Sundqvist, G.; Wing, K. Factors affecting the long-term results of endodontic treatment. J. Endod. 1990, 16, 498–504. [Google Scholar] [CrossRef]
  6. Fouad, A.F.; Reid, L.C. Effect of using electronic apex locators on selected endodontic treatment parameters. J. Endod. 2000, 26, 364–367. [Google Scholar] [CrossRef] [PubMed]
  7. De Morais, A.L.; de Alencar, A.H.; Estrela, C.R.; Decurcio, D.A.; Estrela, C. Working Length Determination Using Cone-Beam Computed Tomography, Periapical Radiography and Electronic Apex Locator in Teeth with Apical Periodontitis: A Clinical Study. Iran. Endod. J. 2016, 1, 164–168. [Google Scholar]
  8. Akisue, E.; Gratieri, S.D.; Barletta, F.B.; Caldeira, C.L.; Grazziotin-Soares, R.; Gavini, G. Not all electronic foramen locators are accurate in teeth with enlarged apical foramina: An in vitro comparison of 5 brands. J. Endod. 2014, 40, 109–112. [Google Scholar] [CrossRef]
  9. Martins, J.N.; Marques, D.; Mata, A.; Carames, J. Clinical efficacy of electronic apex locators: Systematic review. J. Endod. 2014. [Google Scholar] [CrossRef]
  10. Nekoofar, M.H.; Ghandhi, M.; Hayes, S.J.; Dummer, P.M.H. The fundamental operating principles of electronic root canal length measurement devices. Int. Endod. J. 2006, 39, 595–609. [Google Scholar] [CrossRef]
  11. Venturi, M.; Breschi, L. A comparison between two electronic apex locators: An in vivo investigation. Int. Endod. J. 2005, 38, 36–45. [Google Scholar] [CrossRef] [PubMed]
  12. D’Assunção, F.L.; de Albuquerque, D.S.; Salazar-Silva, J.R.; de Queiroz Ferreira, L.C.; Bezerra, P.M. The accuracy of root canal measurements using the Mini Apex Locator and Root ZX-II: An evaluation in vitro. Oral Surg. Oral Med. Oral Pathol. Oral Radiol. Endodontol. 2007, 104, E50–E53. [Google Scholar] [CrossRef] [PubMed]
  13. Wrbas, K.T.; Ziegler, A.A.; Altenburger, M.J.; Schirrmeister, J.F. In vivo comparison of working length determination with two electronic apex locators. Int. Endod. J. 2007, 40, 133–138. [Google Scholar] [CrossRef] [PubMed]
  14. Saatchi, M.; Iravani, S.; Iravani Khaleghi, M.; Mortaheb, A. Influence of Root Canal Curvature on the Accuracy of of Root ZX Electronic Foramen Locator: An in Vitro Study. Iran. Endod. J. 2017, 12, 173–178. [Google Scholar] [CrossRef] [PubMed]
  15. Mancini, M.; Felici, R.; Conte, G.; Costantini, M.; Cianconi, L. Accuracy of three electronic apex locators in anterior and posterior teeth: An ex vivo study. J. Endod. 2011, 37, 684–687. [Google Scholar] [CrossRef] [PubMed]
  16. Herrera, M.; Abalos, C.; Lucena, C.; Jiménez-Planas, A.; Llamas, R. Critical diameter of apical foramen and of file size using the Root ZX apex locator: An in vitro study. J. Endod. 2011, 37, 1306–1309. [Google Scholar] [CrossRef] [PubMed]
  17. Akisue, E.; Gavini, G.; de Figueiredo, J.A. Influence of pulp vitality on length determination by using the Elements Diagnostic Unit and Apex Locator. Oral Surg. Oral Med. Oral Pathol. Oral Radiol. Endodontol. 2007, 104, 129–132. [Google Scholar] [CrossRef]
  18. Prasad, A.B.; Harshit, S.; Aastha, S.A.; Deepak, R. An In vitro Evaluation of the Accuracy of Two Electronic Apex Locators to Determine Working Length in the Presence of Various Irrigants. Ethiop. J. Health Sci. 2016, 26, 457–462. [Google Scholar] [CrossRef]
  19. Nazari Moghaddam, K.; Nazari, S.; Shakeri, L.; Honardar, K.; Mirmotalebi, F. In vitro detection of simulated apical root perforation with two electronic apex locators. Iran. Endod. J. 2010, 5, 23–26. [Google Scholar]
  20. Piasecki, L.; Carneiro, E.U.; Neto Westphalen, V.; Brandao, C.; Gambarini, G.; Azim, A. The use of micro computed tomography to determine the accuracy of 2 electronic apex locators and anatomic variations affecting their precision. J. Endod. 2016, 42, 1263–1267. [Google Scholar] [CrossRef]
  21. Gu, Y.; Sun, C.; Wu, D.; Zhu, Q.; Leng, D.; Zhou, Y. Evaluation of the relationship between maxillary posterior teeth and the maxillary sinus floor using cone-beam computed tomography. BMC Oral Health 2018, 18, 164. [Google Scholar] [CrossRef] [PubMed]
  22. Maridati, P.; Stoffella, E.; Speroni, S.; Cicciu, M.; Maiorana, C. Alveolar Antral Artery Isolation during Sinus Lift Procedure with the Double Window Technique. Open Dent. J. 2014, 8, 95–103. [Google Scholar] [CrossRef] [PubMed]
  23. Beretta, M.; Cicciu, M.; Bramanti, E.; Maiorana, C. Schneider membrane elevation in presence of sinus septa: Anatomic features and surgical management. Int. J. Dent. 2012, 261905. [Google Scholar] [CrossRef] [PubMed]
  24. Hauman, C.H.; Chandler, N.P.; Tong, D.C. Endodontic implications of the maxillary sinus: A review. Int. Endod. J. 2002, 35, 127–141. [Google Scholar] [CrossRef] [PubMed]
  25. Matsumoto, Y.; Ikeda, T.; Yokoi, H.; Kohno, N. Association between odontogenic infections and unilateral sinus opacification. Auris Nasus Larynx 2015, 42, 288–293. [Google Scholar] [CrossRef] [PubMed]
  26. Roque-Torres, G.D.; Ramirez-Sotelo, L.R.; Vaz, S.L.D.A.; Bóscolo, S.M.D.A.D.; Bóscolo, F.N. Association between maxillary sinus pathologies and healthy teeth. Braz. J. Otorhinolaryngol. 2016, 82, 33–38. [Google Scholar] [CrossRef] [PubMed][Green Version]
  27. Khongkhunthian, P.; Reichart, P.A. Aspergillosis of the maxillary sinus as a complication of overfilling root canal material into the sinus: Report of two cases. J. Endod. 2001, 27, 476–478. [Google Scholar] [CrossRef] [PubMed]
  28. Kim, J.W.; Cho, K.M.; Park, S.H.; Park, S.R.; Lee, S.S.; Lee, S.K. Chronic maxillary sinusitis caused by root canal overfilling of Calcipex II. Restor. Dent. Endod. 2014, 39, 63–67. [Google Scholar] [CrossRef]
  29. Patel, S.; Dawood, A.; Ford, T.P.; Whaites, E. The potential applications of cone beam computed tomography in the management of endodontic problems. Int. Endod. J. 2007, 40, 818–830. [Google Scholar] [CrossRef]
  30. Nair, M.K.; Nair, U.P. Digital and advanced imaging in endodontics: A review. J. Endod. 2007, 33, 1–6. [Google Scholar] [CrossRef]
  31. Demirbuga, S.; Sekerci, A.E.; Dincer, A.N.; Cayabatmaz, M.; Zorba, Y.O. Use of cone-beam computed tomography to evaluate root and canal morphology of mandibular first and second molars in Turkish individuals. Med. Oral Patol. Oral Cir. Bucal 2013, 18, 737–744. [Google Scholar] [CrossRef]
  32. Rancitelli, D.; Borgonovo, A.E.; Cicciù, M.; Re, D.; Rizza, F.; Frigo, A.C.; Maiorana, C. Maxilary sinus Septa and Anatomic Correlation with the Schneideerian Membrane. J. Craniofac. Surg. 2015, 26, 1394–1398. [Google Scholar] [CrossRef] [PubMed]
  33. Ozer, S.Y. Detection of vertical root fractures of different thicknesses in endodontically enlarged teeth by cone beam computed tomography versus digital radiography. J. Endod. 2010, 36, 1245–1249. [Google Scholar] [CrossRef] [PubMed]
  34. Cotton, T.P.; Geisler, T.M.; Holden, D.T.; Schwartz, S.A.; Schindler, W.G. Endodontic applications of cone-beam volumetric tomography. J. Endod. 2007, 33, 1121–1132. [Google Scholar] [CrossRef] [PubMed]
  35. Laino, L.; Troiano, G.; Giannatempo, G.; Graziani, U.; Ciavarella, D.; Dioguardi, M.; Lo Muzio, L.; Lauritano, F.; Cicciù, M. Sinus Lift Augmentation by Using Calcium Sulphate. A Retrospective 12 Months Radiographic Evaluation Over 25 Treated Italian Patients. Open Dent. J. 2015, 22, 414–419. [Google Scholar] [CrossRef] [PubMed]
  36. Kilic, C.; Kamburoglu, K.; Yuksel, S.P.; Yuksel, T. An Assessment of the Relationship between the Maxillary Sinus Floor and the Maxillary Posterior Teeth Root Tips Using Dental Cone-beam Computerized Tomography. Eur. J. Dent. 2010, 4, 462–467. [Google Scholar] [PubMed]
  37. Kang, S.H.; Kim, B.S.; Kim, Y. Proximity of posterior teeth to the maxillary sinus and buccal bone thickness: A biometrical assessment using cone-beam tomography. J. Endod. 2015, 41, 1839–1846. [Google Scholar] [CrossRef]
  38. Tian, X.M.; Qian, L.; Xin, X.Z.; Wei, B.; Gong, Y. An analysis of the proximity of maxillary posterior teeth to the maxillary sinus using cone-beam computed tomography. J. Endod. 2016, 42, 371–377. [Google Scholar] [CrossRef]
  39. Aksoy, U.; Orhan, K. Association between odontogenic conditions and maxillary sinus mucosal thickening: A retrospective CBCT study. Clin. Oral Investig. 2018, 1–9. [Google Scholar] [CrossRef]
  40. Üstün, Y.; Aslan, T.; Şekerci, A.E.; Sağsen, B. Evaluation of the reliability of cone-beam Computed Tomography scanning and Electronic Apex Locator Measurements in Working Length Determination with Large Periapical Lesions. J. Endod. 2016, 42, 1334–1337. [Google Scholar] [CrossRef]
  41. Kasikcioglu, A.; Gulsahi, A. Relationship between maxillarynsinus pathologies and maxillary posterior tooth periapical pathologies. Oral Radiol. 2016, 32, 180–186. [Google Scholar] [CrossRef]
  42. Pauwels, R.; Jacobs, R.; Bosmans, H.; Schulze, R. Future prospects for dental cone beam CT imaging. Imaging Med. 2012, 4, 551–563. [Google Scholar] [CrossRef]
  43. Scarfe, W.C.; Li, Z.; Aboelmaaty, W.; Scott, S.A.; Farman, A.G. Maxillofacial cone beam computed tomography: Essence, elements and steps to interpretation. Aust. Dent. J. 2012, 57 (Suppl. 1), 46–60. [Google Scholar] [CrossRef]
  44. Angelopoulos, C.; Scarfe, W.C.; Farman, A.G. A comparison of maxillofacial CBCT and medical CT. Atlas Oral Maxillofac. Surg. Clin. North. Am. 2012, 20, 1–7. [Google Scholar] [CrossRef] [PubMed]
  45. Yılmaz, F.; Kamburoğlu, K.; Şenel, B. Endodontic working length measurement using cone-beam computed tomographic images obtained at different voxel sizes and field of views, periapical radiography, and apex locator: A comparative ex vivo study. J. Endod. 2017, 43, 152–156. [Google Scholar] [CrossRef] [PubMed]
  46. Haupt, F.; Hülsmann, M. Consistency of electronic measurements of endodontic working length when using multiple devices from the same manufacturer-an in vitro study. Clin. Oral Investig. 2018. [CrossRef] [PubMed]
  47. Baruah, Q.; Sinha, N.; Singh, B.; Reddy, P.N.; Baruah, K.; Augustine, V. Comparative Evaluation of Accuracy of Two Electronic Apex Locators in the Presence of Contemporary Irrigants: An In vitro Study. J. Int. Soc. Prev. Community Dent. 2018, 8, 349–353. [Google Scholar] [CrossRef]
  48. Oliveira, T.N.; Vivacqua-Gomes, N.; Bernardes, R.A.; Vivan, R.R.; Duarte, M.A.H.; Vasconcelos, B.C. Determination of the Accuracy of 5 Electronic Apex Locators in the Function of Different Employment Protocols. J. Endod. 2017, 10, 1663–1667. [Google Scholar] [CrossRef]
  49. Camargo, E.J.; Zapata, R.O.; Mederos, P.L.; Bramante, C.M.; Bernardineli, N.; Garcia, R.B.; de Moraes, I.G.; Duarte, M.A. Influence of preflaring on the Accuracy of Length Determination with Four Electronic apex locators. J. Endod. 2009, 35, 1300–1302. [Google Scholar] [CrossRef]
  50. ElAyouti, A.; Dima, E.; Ohmer, J.; Sperl, K.; von Ohle, C.; Löst, C. Consistency of apex locator function: A clinical study. J. Endod. 2009, 35, 179–181. [Google Scholar] [CrossRef]
  51. Tsesis, I.; Blazer, T.; Taschieri, G.; Fabbro, M.; Corbella, S.; Rosen, E. The precision in electronic apex locators in electronic working length determination: A systematic review and meta-analysis of the literature. J. Endod. 2015, 4, 1818–1823. [Google Scholar] [CrossRef] [PubMed]
  52. Kobayashi, C.; Suda, H. New electronic canal measuring device based on the ratio method. J. Endod. 1994, 20, 111–114. [Google Scholar] [CrossRef]
  53. Nguyen, H.Q.; Kaufman, A.Y.; Komorowski, R.C.; Friedman, S. Electronic length measurement using small and large files in enlarged canals. Int. Endod. J. 1996, 29, 359–364. [Google Scholar] [CrossRef] [PubMed]
  54. Azabal, M.D.; Garcia-Otero, D.; De la Macorra, J.C. Accuracy of the Justy II Apex locator in determining working length in simulated horizontal and vertical fractures. Int. Endod. J. 2004, 37, 174–177. [Google Scholar] [CrossRef] [PubMed][Green Version]
  55. Khandewal, D.; Ballal, N.; Saraswathi, M. Comparative evaluation of accuracy of 2 electronic apex locators with conventional radiography: An ex vivo study. J. Endod. 2015, 41, 201–204. [Google Scholar] [CrossRef] [PubMed]
  56. Wallace, J.A. Transantral endodontic surgery. Oral Surg. Oral Med. Oral Pathol. Oral Radiol. Endodontol. 1996, 82, 80–83. [Google Scholar]
  57. De Vasconcelos, B.C.; Do Vale, T.M.; De Menezes, A.S.; Pinheiro-Junior, E.C.; Vivacqua-Gomes, N.; Bernardes, R.A.; Hungaro Duarte, M.A. An ex vivo comparison of root canal length determination by three electronic apex locators at positions short of the apical foramen. Oral Surg. Oral Med. Oral Pathol. Oral Radiol. Endod. 2010, 11, 57–61. [Google Scholar] [CrossRef]
  58. Aguiar, B.A.; Reinaldo, R.S.; Frota, L.M.A.; do Vale, M.S.; Vasconcelos, B.C.D. Root ZX Electronic Foramen Locator: An Ex Vivo Study of Its Three Models’ Precision and Reproducibility. Int. J. Dent. 2017, 5893790. [Google Scholar] [CrossRef] [PubMed]
  59. ElAyouti, A.; Weiger, R.; Löst, C. The ability of root ZX apex locator to reduce the frequency of overestimated radiographic working length. J. Endod. 2002, 28, 116–119. [Google Scholar] [CrossRef] [PubMed]
  60. Ericson, S.; Finne, K.; Persson, G. Results of apicoectomy of maxillary canines, premolars and molars with special reference to oroantral communication as a prognostic factor. Int. J. Oral Surg. 1974, 3, 386–393. [Google Scholar] [CrossRef]
  61. Nagendrababu, V.; Gutmann, J.L. Factors associated with postobturation pain following single-visit nonsurgical root canal treatment:
A systematic review. Quintessence Int. 2017, 48, 193–208. [Google Scholar] [CrossRef] [PubMed]
  62. Gordon, M.P.; Chandler, N.P. Electronic apex locators: A review. Int. Endod. J. 2004, 37, 425–437. [Google Scholar] [CrossRef] [PubMed]
  63. Neelakantan, P. Endodontic Microbiology—A Special Issue of Dentistry Journal. Dent. J. (Basel) 2018, 6, 14. [Google Scholar] [CrossRef] [PubMed]
  64. Jung, I.Y.; Yoon, B.H.; Lee, S.J.; Lee, S.J. Comparison of the reliability of “0.5” and “APEX” mark measurements in two frequency-based electronic apex locators. J. Endod. 2011, 37, 49–52. [Google Scholar] [CrossRef] [PubMed]
  65. Segato, A.V.K.; Piasecki, L.; Felipe Iparraguirre Nuñovero, M.; da Silva Neto, UX.; Westphalen, V.P.D.; Gambarini, G.; Carneiro, E. The Accuracy of a New Cone-beam Computed Tomographic Software in the Preoperative Working Length Determination Ex Vivo. J. Endod. 2018, 44, 1024–1029. [Google Scholar] [CrossRef] [PubMed]
  66. Zand, V.; Rahimi, S.; Davoudi, P.; Afshang, A. Accuracy of Working Length Determination using NovApex and Root-ZX Apex Locators: An in vitro Study. J. Contemp. Dent. Pract. 2017, 18, 383–385. [Google Scholar] [CrossRef] [PubMed]
  67. Shabahang, S.; Goon, W.W.; Gluskin, A.H. An in vivo evaluation of Root ZX electronic apex locator. J. Endod. 1996, 22, 616–618. [Google Scholar] [CrossRef]
  68. Tselnik, M.; Baumgartner, J.C.; Marshall, J.G. An evaluation of root ZX and elements diagnostic apex locators. J. Endod. 2005, 31, 507–509. [Google Scholar] [CrossRef]
  69. Plotino, G.; Grande, N.M.; Brigante, L.; Lesti, B.; Somma, F. Ex vivo accuracy of three electronic apex locators: Root ZX, Elements Diagnostic Unit and Apex Locator and ProPex. Int. Endod. J. 2006, 39, 408–414. [Google Scholar] [CrossRef]
  70. Jenkins, J.A.; Walker, W.A.; Schindler, W.G.; Flores, C.M. An in vitro evaluation of the accuracy of the root ZX in the presence of various irrigants. J. Endod. 2001, 27, 209–211. [Google Scholar] [CrossRef]
  71. Alothmani, O.S. The accuracy of Root ZX electronic apex locator. Saudi Endod. J. 2012, 2, 11530. [Google Scholar] [CrossRef]
  72. Ding, J.; Gutmann, J.L.; Fan, B.; Lu, Y.; Chen, H. Investigation of apex locators and related morphological factors. J. Endod. 2010, 36, 1399–1403. [Google Scholar] [CrossRef] [PubMed]
  73. Ebrahim, A.K.; Yoshioka, T.; Kobayashi, C.; Suda, H. The effects of file size, sodium hypochlorite and blood on the accuracy of Root ZX apex locator in enlarged root canals: An in vitro study. Aust. Dent. J. 2006, 51, 153–157. [Google Scholar] [CrossRef] [PubMed]
  74. Haffner, C.; Folwaczny, M.; Galler, K.; Hickel, R. Accuracy of electronic apex locators in comparison to actual length—An in vivo study. J. Dent. 2005, 33, 619–625. [Google Scholar] [CrossRef] [PubMed]
  75. Duran-Sindreu, F.; Gomes, S.; Stober, E.; Mercade, M.; Jane, L.; Roig, M. In vivo evaluation of the iPex and Root ZX electronic apex locators using various irrigants. Int. Endod. J. 2013, 46, 769–774. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Representative cone beam computed tomography (CBCT) images showing the palatal root apex not in contact with the sinus floor (MSF). (a,c) A maxillary axial CBCT view; (b) a maxillary sagittal CBCT view.1; 5 and 10 are the slices numbers.
Figure 1. Representative cone beam computed tomography (CBCT) images showing the palatal root apex not in contact with the sinus floor (MSF). (a,c) A maxillary axial CBCT view; (b) a maxillary sagittal CBCT view.1; 5 and 10 are the slices numbers.
Dentistry 07 00003 g001

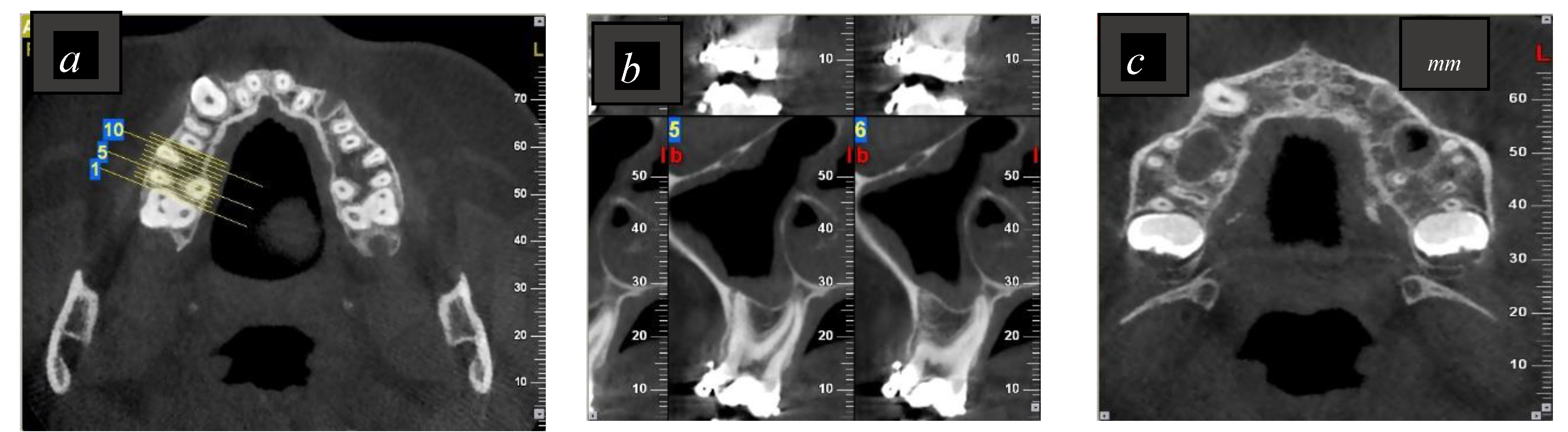

Figure 2. Representative CBCT images showing the palatal root apex in contact with the MSF. (a,c) A maxillary axial CBCT view; (b) a maxillary sagittal CBCT view. 1; 5 and 10 are the slices numbers.
Figure 2. Representative CBCT images showing the palatal root apex in contact with the MSF. (a,c) A maxillary axial CBCT view; (b) a maxillary sagittal CBCT view. 1; 5 and 10 are the slices numbers.
Dentistry 07 00003 g002

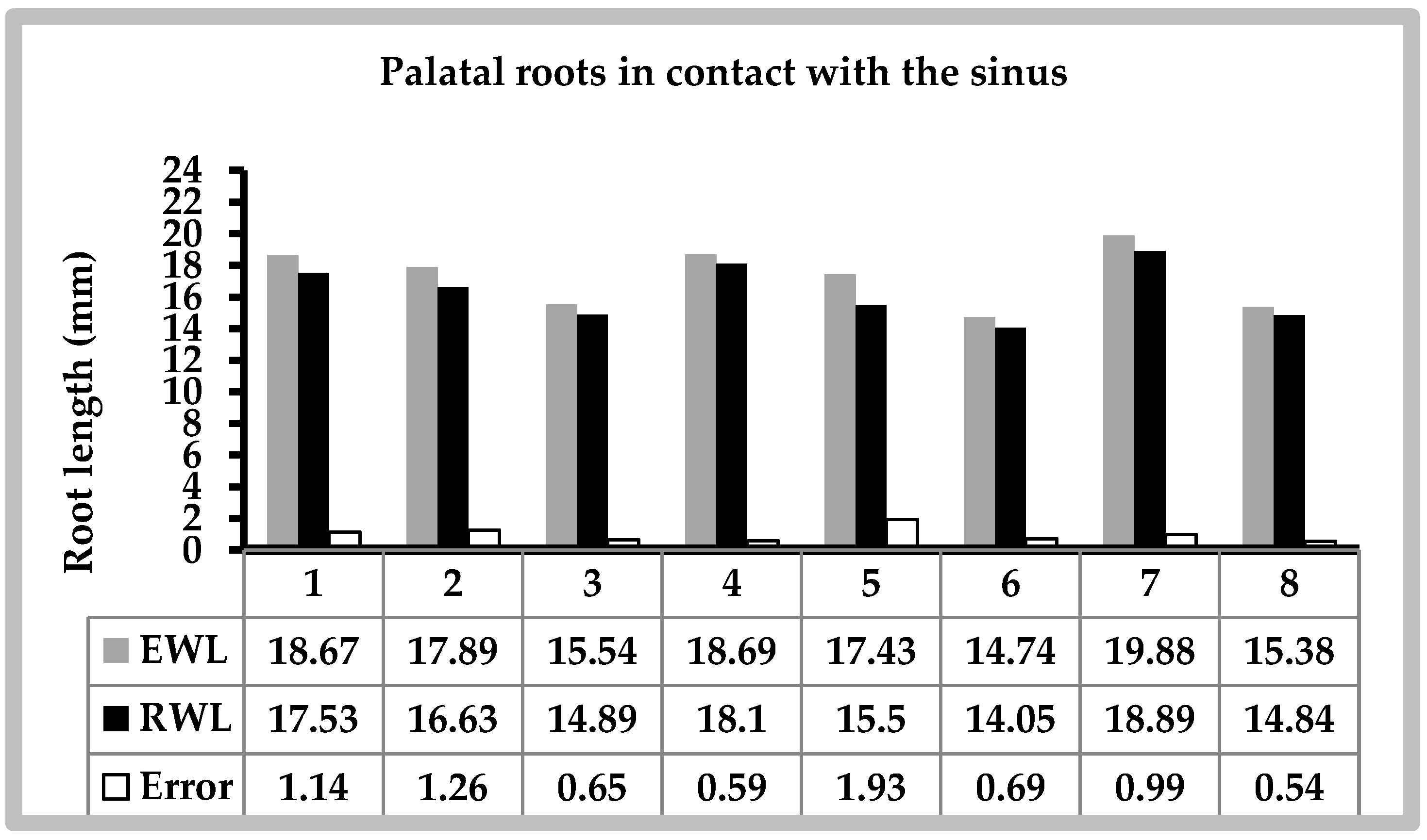

Figure 3. Electronic working length (EWL) versus real working length (RWL) of palatal roots in contact with the sinus.
Figure 3. Electronic working length (EWL) versus real working length (RWL) of palatal roots in contact with the sinus.
Dentistry 07 00003 g003

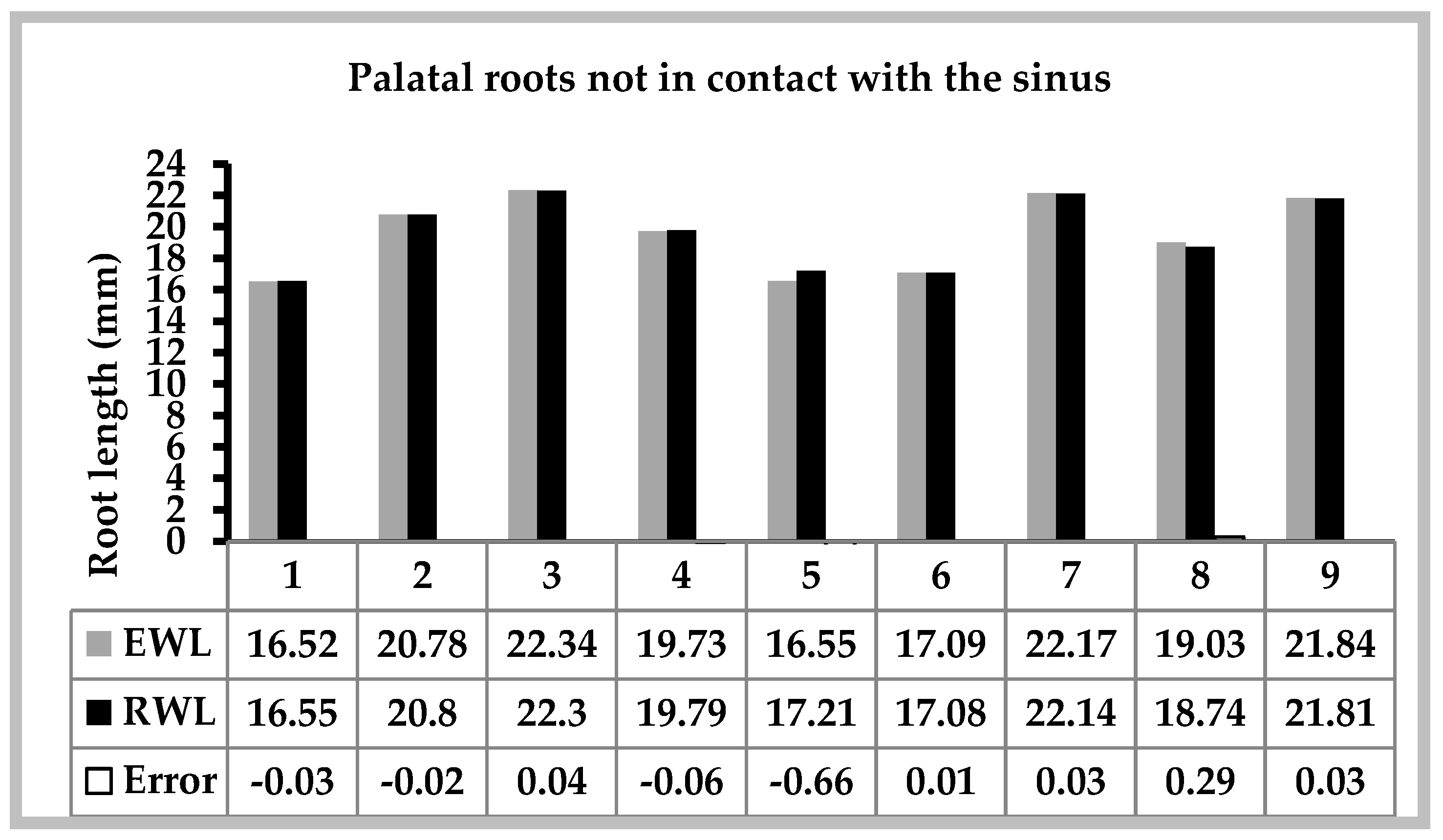

Figure 4. EWL versus RWL of palatal roots not in contact with the sinus.
