Next Article in Journal
Oral Health-Related Quality of Life, Behaviours and Oral Manifestations in a Paediatric Population with Type I Diabetes Mellitus: A Comparative Cross-Sectional Study
Previous Article in Journal
Dental Staff Members’ Perception Regarding Objective Structured Clinical Examination (OSCE): An Experience from Saudi Arabia


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Dentistry Journal
Volume 13
Issue 9
10.3390/dj13090424
dentistry-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Review

Emerging Metal Additive Manufacturing for Individualized Dental Therapies: A Narrative Review

by
Peng Chen
1,*,
Taishi Yokoi
2,
Ying-Sui Sun
3,
Huiyong Yang
4 and
Hiroyasu Kanetaka
5,6,*
1
Liaison Center for Innovative Dentistry, Graduate School of Dentistry, Tohoku University, 4-1 Seiryo-machi, Aoba-ku, Sendai 980-8575, Japan
2
Laboratory for Biomaterials and Bioengineering, Institute of Integrated Research, Institute of Science Tokyo, 2-3-10 Kanda-Surugadai, Chiyoda-ku, Tokyo 101-0062, Japan
3
School of Dental Technology, College of Oral Medicine, Taipei Medical University, Taipei 111031, Taiwan
4
School of Medicine, Huaqiao University, 269 Chenghua North Road, Quanzhou 362021, China
5
Division of Orthodontics and Dentofacial Orthopedics, Graduate School of Dentistry, Tohoku University, 4-1 Seiryo-machi, Aoba-ku, Sendai 980-8575, Japan
6
Division of Advanced Dental Science and Technology, Graduate School of Biomedical Engineering, Tohoku University, 6-6-12, Aramaki-aza-Aoba, Aoba-ku, Sendai 980-8579, Japan
*
Authors to whom correspondence should be addressed.
Dent. J. 2025, 13(9), 424; https://doi.org/10.3390/dj13090424
Submission received: 19 June 2025 / Revised: 24 August 2025 / Accepted: 12 September 2025 / Published: 15 September 2025
(This article belongs to the Section Dental Materials)
Browse Figures
Versions Notes

Abstract

Metal additive manufacturing (AM) techniques, particularly laser powder bed fusion, are being increasingly recognized not as brand-new technologies, but as emerging technologies with their recent advancements—such as the development of optimized alloys, seamless digital workflow integration, and applications in patient-specific prostheses. With the rise in patient-specific approaches in dentistry, clinicians are seeking customized devices that precisely match individual anatomical and functional needs. AM offers various advantages, such as the fabrication of complex geometries directly from digital designs, enhanced clinical precision, reduced material waste, and simplified manufacturing workflow, and hence can uniquely address these demands. Recent advancements in AM techniques have led to the development of titanium and cobalt–chromium alloys with improved mechanical properties, corrosion resistance, and biological compatibility. These alloys show great potential for clinical applications. Additionally, AM enables precise control over the microstructures and surface topographies of these alloys during fabrication, facilitating their optimized integration with biological tissues. This mini review summarizes recent advancements in metal AM technologies relevant to personalized dentistry, highlights key material developments, discusses current clinical applications, and identifies key challenges such as high cost, materials limitations, and regulatory hurdles, and highlights future opportunities including multi-materials AM, smart implants, and AI-driven optimization for fully integrated, digitally driven personalized dental care.

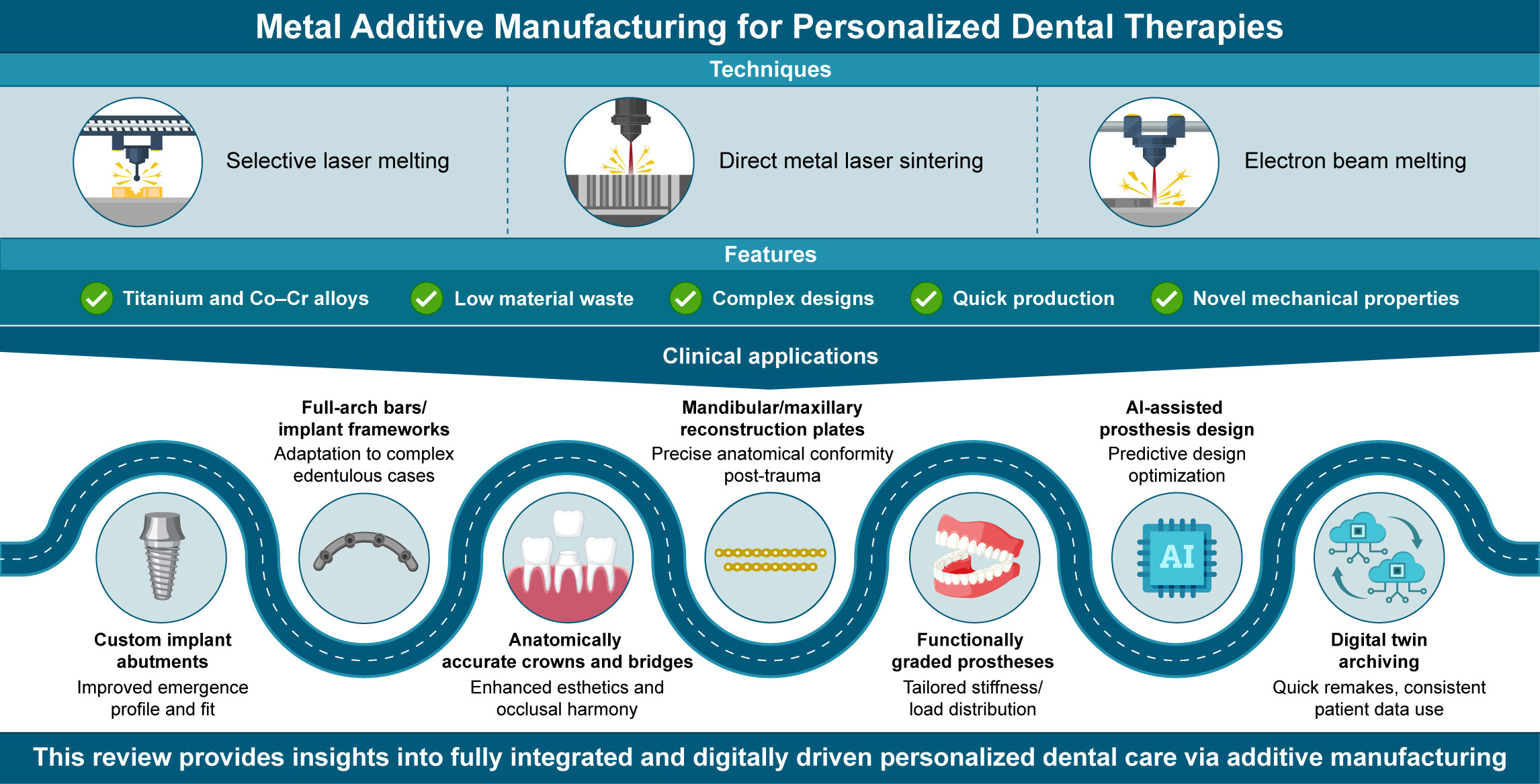

Graphical Abstract

1. Introduction

Driven by the growing demand for patient-specific solutions tailored to individual anatomical and functional requirements, personalized dental treatments have emerged as a transformative paradigm in modern dentistry. Unlike traditional methods, which primarily rely on standardized components and techniques, personalized dentistry emphasizes precision, adaptability, and biological integration tailored to the requirements of each patient [1,2,3]. Such approaches are particularly relevant in complex clinical cases involving congenital anomalies, extensive edentulism, or post-traumatic deformities, in which off-the-shelf components often fail to provide satisfactory esthetic and functional outcomes. Personalized treatments offer a way to overcome these limitations by delivering devices that closely align with patient-specific conditions, both morphologically and biomechanically. This approach necessitates dental components that not only conform to the anatomical and functional requirements of each patient but also exhibit predictable mechanical properties, biological compatibility, and efficient integration with digital workflows [4,5]. Moreover, the demand for such customization is accelerating along with the growth of digital dentistry, which has revolutionized diagnostic imaging, design planning, and data-driven manufacturing. In this context, metal additive manufacturing (AM) is rapidly becoming a key enabler of personalized treatment strategies by offering seamless integration into these digital systems. Although polymers and ceramics are increasingly used in dentistry, metallic materials remain indispensable in clinical applications requiring superior mechanical strength, durability, and long-span stability—such as implant frameworks and large prostheses—which cannot be fully replaced by alternative materials.
Owing to their ability to fabricate complex geometries directly from digital models, metal AM techniques, particularly laser powder bed fusion (L-PBF) technologies, such as selective laser melting (SLM) and direct metal laser sintering (DMLS), have emerged as key enablers of personalized dentistry [6,7]. The inherent flexibility of metal AM enables the efficient fabrication of patient-specific dental devices, ranging from customized implant frameworks and orthodontic appliances to surgical guides, offering improved accuracy, reduced production time, and minimal material waste [3,4,6,8]. Unlike conventional subtractive methods that require extensive manual input and intermediate tooling, AM enables clinicians and dental technicians to directly translate virtual treatment plans into functional restorations with high-dimensional fidelity. This capability significantly reduces the back-and-forth iterations that often occur in traditional workflows, thereby enhancing efficiency and reproducibility.
Recent advancements in AM-compatible metal alloys, particularly titanium and cobalt–chromium alloys (Co–Cr alloys) systems [9], have significantly enhanced the clinical feasibility of AM in dentistry [2,10,11]. These alloys provide not only robust mechanical properties and excellent corrosion resistance but also favorable biological responses and hence are suitable for safe and effective long-term integration with oral tissues [12,13,14]. Although several prior reviews, such as those by Revilla-León et al. [6], have broadly summarized metal AM technologies in implant dentistry, the present review focuses specifically on the integration of AM into personalized treatment workflows. In contrast to general overviews, this work emphasizes patient-specific customization, material-process optimization, and synergy between AM techniques and digital design tools, highlighting their role in achieving clinically relevant, individualized outcomes. Additionally, such materials can be processed under carefully controlled AM parameters to achieve tailored surface morphologies and porosities, which are known to influence early-stage tissue responses, such as fibroblast adhesion, osseointegration, and soft tissue sealing. These effects are particularly critical in the peri-implant region, where microleakage and bacterial colonization can lead to long-term complications. Moreover, AM processes enable precise control over the microstructural characteristics and surface topographies of these alloys, enabling clinicians to optimize the interface between the dental components and the surrounding biological environment [15,16,17]. This level of control opens new possibilities for the fabrication of hybrid dental devices that combine rigid internal structures with biofunctionalized outer layers, thereby maximizing the mechanical reliability while supporting favorable cellular interactions.
According to recent market research [18], the global dental three-dimensional (3D) printing market was valued at approximately USD 3.1 billion in 2023 and is projected to grow at a compound annual growth rate (CAGR) of 26.4% from 2024 to 2030, reaching nearly USD 15.9 billion by the end of the decade. This rapid growth highlights the significant commercial potential and accelerating clinical adoption of metal AM in personalized dentistry, underscoring the importance of staying abreast of technological developments and their clinical implications. It also reflects a broader shift in the dental industry toward value-based, patient-centered care models that prioritize long-term outcomes, efficiency, and personalization over volume-based service delivery.
This mini review summarizes the recent progress in metal AM technologies relevant to personalized dental treatments. It highlights key advances in material development for dental treatments, discusses current clinical applications and outcomes, and identifies ongoing challenges and future opportunities for fully integrated, digitally driven personalized dental care.

2. Recent Advances in Metal AM for Dental Applications

Over the past decade, metal AM has experienced rapid advancements [19] in processing technologies, powder materials, and digital integration, with several key developments reported in recent years (2022–2025) also included in this review. Compared with conventional casting and milling, AM-fabricated prostheses generally achieve higher dimensional fidelity, with deviations typically within tens of microns, which is clinically acceptable for long-term function. SLM and DMLS, which enable the layer-by-layer fabrication of complex geometries with high precision (Table 1), are the most widely used techniques in dentistry. These technologies allow for the direct conversion of three-dimensional CAD data into physical structures with a micrometer-level resolution, which is particularly valuable for fabricating anatomically accurate dental components. The absence of intermediate molds or subtractive steps further shortens the production time and reduces contamination risk.
A schematic overview of the digital workflow of metal AM in dentistry is provided in Figure 1, illustrating the process from intraoral scanning, CAD design, and AM fabrication to clinical application.
A critical advancement that has led to the widespread adoption of AM in dentistry is the development of AM-optimized alloys. Titanium alloys, notably Ti-6Al-4V and emerging β-type titanium alloys, have gained significant attention for dental applications owing to their high strength-to-weight ratio, excellent corrosion resistance, and favorable biocompatibility [1,20,21,22]. Recent studies on Ti alloys prepared using graphene oxide (GO)-modified powders have demonstrated that carbon-supersaturated β-Ti alloys fabricated by L-PBF exhibit ultrafine grain structures and achieving tensile strength exceeding 1100 MPa while retaining excellent cytocompatibility [23]. This grain refinement effect can be attributed to the rapid solidification conditions intrinsic to L-PBF processes, which suppress grain growth and favor heterogeneous nucleation. Additionally, the incorporation of GO during powder preparation may contribute to carbon solute strengthening and thermal stability, providing a dual benefit in terms of mechanical enhancement and microstructure control. These results highlight the potential of using nanoscale additives (during powder preparation) as a promising strategy for the development of high-performance AM materials. Furthermore, titanium-based materials exhibit favorable elastic moduli that can be tuned via design parameters or internal structure modifications, allowing for better mechanical compatibility with the alveolar bone. This tunability is especially advantageous in reducing stress shielding and promoting peri-implant bone remodeling. Similarly, Co–Cr alloys fabricated via AM remain vital in dental AM applications, particularly for prosthetic frameworks, owing to their robust mechanical properties and corrosion resistance. Advancements in alloy refinement processes, such as reducing impurities and optimizing powder characteristics, have significantly improved the quality and reliability of AM-fabricated Co–Cr dental components. Compared to titanium, Co-Cr alloys offer higher stiffness and wear resistance, making them suitable for large-span prostheses or removable frameworks. Moreover, modern AM systems enable better control over porosity and microsegregation during the solidification of Co-Cr alloys, reducing the risk of internal defects and improving overall durability.
Corrosion resistance, a crucial factor in the long-term success of dental restorations, has also benefited from recent advances in AM. A recent study revealed that L-PBF-fabricated 316 L stainless steel exhibits significantly improved pitting and crevice corrosion resistance compared to its conventional counterparts [24]. This improvement is independent of the crystallographic texture and grain boundary density of the alloy and can be attributed to its rapid solidification and refined microstructures and the suppression of inclusion formation during the AM process. Such enhanced corrosion behavior plays a pivotal role in minimizing metal ion release in the oral environment, thereby reducing the risk of local inflammation, allergic reactions, and long-term systemic effects. As a result, AM-fabricated components provide a more stable and biocompatible solution for intraoral applications, particularly in complex or long-term restorations. These findings highlight the intrinsic advantages of metal AM not only for shaping complex geometries but also for ensuring enhanced chemical stability and biological safety in clinical applications.
Another notable advancement in AM is the precise control of the surface and internal microstructures of the resulting alloys, which is achieved by optimizing the AM process parameters [25,26]. Process parameters, such as the laser power, scanning strategies, hatch spacing, and layer thickness, are adjusted to achieve customized material properties, including porosity and elastic modulus, to better match the mechanical behavior of natural dental tissues. This high degree of control allows for the fabrication of gradient structures within a single build, where internal regions can be made denser for strength, and external layers more porous to promote tissue integration. Additionally, micro- and nanoscale surface roughness achieved by tuning the scanning strategies can positively influence early cell adhesion and osseointegration.
Tailored surface textures of AM-fabricated alloys at the micro- and nanoscale levels offer enhanced biological integration, reduced healing times, and improved clinical outcomes in implant dentistry.
Furthermore, post-processing strategies [27,28,29,30,31], such as hot isostatic pressing (HIP) [32], heat treatments, and advanced surface finishing techniques (e.g., electropolishing and chemical etching), have undergone significant advancements. These techniques improve the microstructural characteristics, fatigue resistance, and surface biocompatibility of AM-produced metal components, thus addressing their traditional limitations and facilitating their clinical adoption. Electropolishing, for instance, not only reduces surface roughness but also helps remove process-induced contaminants, thereby enhancing cleanliness and minimizing bacterial adhesion. Similarly, HIP can eliminate internal voids and residual stress, further increasing mechanical stability under cyclic loading.
Metal AM is uniquely suited for seamless integration into the digital dentistry workflow. Digital intraoral scanning, combined with sophisticated CAD/CAM software, facilitates rapid and accurate transfer of patient-specific data directly to AM production units. Integration of artificial intelligence (AI) in design optimization is driving new advancements in automating and refining patient-specific solutions. For example, AI algorithms can suggest optimal implant positioning based on anatomical landmarks, automatically generate support structures, or propose build orientations that minimize distortions. These functions not only accelerate the design process, but also enhance precision and repeatability. This approach streamlines treatment planning, enhances clinical accuracy, and reduces the diagnosis-to-delivery time, significantly enhancing patient-centered care.
Collectively, these advancements in materials, processing strategies, and digital integration underscore the transformative potential of metal AM in personalized dentistry. However, continued research and development are essential to overcome current limitations and drive future innovations.

3. Clinical Applications of Metal AM in Personalized Dental Treatments

The increasing need for patient-specific solutions across therapeutic areas, such as implantology, prosthodontics, orthodontics, and maxillofacial surgery, has led to a rapid growth in the clinical adoption of metal AM in personalized dentistry. Metal AM technologies, particularly L-PBF, facilitate unprecedented customization and precision, significantly enhancing patient outcomes and clinical workflows [3]. This level of customization enables practitioners to tailor treatment plans according to individual anatomical constraints, occlusal relationships, and aesthetic considerations. As a result, AM is helping shift dentistry from a technician-driven process to a data-driven, clinician-directed discipline.
A wide range of clinical applications has benefited from the unique capabilities of metal AM (Table 2). In dental implantology, for instance, AM enables the direct fabrication of customized implant-supported frameworks and patient-specific abutments. These customized abutments can be tailored to match patient-specific gingival contours and emergence profiles, helping to reduce peri-implant complications and promote soft tissue health [33]. Compared to prefabricated abutments, custom AM designs can better distribute stress around the implant site and reduce microgaps at the implant–abutment interface, which are critical for maintaining long-term peri-implant tissue stability. Similarly, AM-fabricated implant frameworks can precisely accommodate individual anatomical and occlusal requirements, minimizing chairside adjustments and enhancing long-term prosthetic stability. This is particularly advantageous in full-arch restorations or complex edentulous cases where a precise passive fit is essential to avoid biomechanical complications. In practice, AM-fabricated implant frameworks typically demonstrate dimensional deviations within tens of microns, which is considered clinically acceptable, and recent retrospective studies report survival rates of AM implants exceeding 95% at one year, supporting their feasibility in routine dentistry.
Metal AM is also transforming prosthodontics by enabling the direct digital fabrication of complex prosthetic structures, including crowns, bridges, partial dentures, and full-arch frameworks [34,35,36,37,38]. By using intraoral scans and CAD designs, AM reduces the manufacturing time, minimizes manual fabrication errors, and ensures high-dimensional accuracy and consistency [39]. Furthermore, this digital fabrication process enhances reproducibility, allowing dental laboratories to replicate identical frameworks in future revisions or replacements with minimal effort. Moreover, the flexibility of metal AM enables the functional grading of the properties of prosthesis materials, thereby optimizing their mechanical performance and patient-specific biological responses. This approach is especially beneficial when adapting the stiffness or porosity across different regions of a prosthesis to match the functional demands of the underlying tissues.
In orthodontics, metal AM has facilitated the production of customized appliances [40,41], such as patient-specific brackets, arch wires, and skeletal anchorage devices. These components are precisely tailored to patient anatomy and treatment objectives, enabling accurate replication of digitally planned tooth movements. Traditional orthodontic appliances often require manual adaptation and adjustment, whereas AM-fabricated devices provide a more precise starting point and can significantly reduce chair time. These advantages of metal AM render orthodontic treatments more predictable, efficient, and comfortable than conventional treatments [42].
Maxillofacial surgery is another clinical area that significantly benefits from metal AM [43,44]. Customized surgical guides produced via AM enhance surgical planning and precision while reducing operative complexity and procedure duration. They offer intraoperative accuracy by defining cutting planes or implant placement trajectories directly from the preoperative imaging data. Additionally, AM-fabricated titanium fixation plates and patient-specific reconstructive scaffolds offer enhanced anatomical fit, mechanical stability, and biological integration, contributing to faster healing and better postoperative outcomes [45]. In cases of mandibular or maxillary reconstruction, the use of patient-specific titanium plates helps to restore facial symmetry and occlusal function while minimizing the need for intraoperative bending or plate modification.
Moreover, the integration of AM with digital tools, including intraoral scanning, cone-beam computed tomography, CAD/CAM software, and AI-driven optimization, has significantly streamlined clinical workflows. This digital integration allows efficient collaboration among clinicians, laboratories, and patients, facilitating rapid prototyping, real-time design adjustments, and the delivery of highly personalized care [46,47]. For example, interdisciplinary teams can remotely review and revise implant frameworks or surgical plans using cloud-based platforms, reducing turnaround time and improving communication. Furthermore, AM enables traceability and documentation of each prosthesis or device, which enhances quality control and supports regulatory documentation.
Despite these advances, the adoption of metal AM in personalized dentistry still faces several challenges, such as regulatory compliance, the lack of standardized clinical protocols, and the need for long-term outcome validation. To fully realize the transformative potential of metal AM in personalized dentistry, continued research, rigorous clinical evaluation, and establishment of comprehensive regulatory frameworks are essential. Outcome-based metrics and multicenter studies are necessary to establish evidence-based guidelines and build clinical confidence in AM-based devices.
Collectively, these diverse clinical applications highlight the significant potential of metal AM technologies in delivering precise and individualized dental care. Ongoing innovations and research are expected to further integrate AM into routine clinical practice, establishing it as a cornerstone of future personalized dentistry. In addition to specific clinical examples, the global adoption of AM in dentistry has been steadily increasing. Dental laboratories and clinics are progressively incorporating AM technologies, particularly for implant frameworks and removable prostheses, reflecting a growing demand for efficiency, precision, and patient-specific customization that conventional methods often cannot achieve.
To aid readers in navigating the relevant literature discussed in this review, Table 3 provides a summary of representative studies on metal AM technologies and their clinical- or material-specific contributions in dentistry.
As summarized in Table 3, representative studies highlight both material-level innovations (e.g., β-Ti alloy with nanoscale additives, improved corrosion resistance in stainless steel) and clinical applications (e.g., customized abutments, reconstructive plates). Together, these examples demonstrate the dual progress in fundamental materials development and practical clinical integration.

4. Challenges and Future Perspectives

Although metal AM has significantly advanced personalized dental treatments, several key challenges, such as ensuring consistency in material performance, establishing regulatory standards, improving cost efficiency, and validating long-term clinical outcomes, must still be addressed to fully realize its clinical potential [48,49,50]. Addressing these issues is essential to realize the widespread clinical adoption of AM and to ensure predictable and reliable outcomes in clinical practice. The interdisciplinary nature of AM-based dentistry—spanning materials science, clinical dentistry, and digital engineering—also necessitates a more integrated approach to problem-solving and implementation.
One of the primary challenges associated with AM-fabricated dental devices is ensuring consistent material quality and mechanical performance. Variations in the processing parameters, such as the laser energy, scanning strategy, and powder characteristics, can significantly affect the microstructure and mechanical properties of AM-fabricated components [51]. These inconsistencies may lead to local defects, such as porosity, incomplete fusion, or residual stress, which can compromise fatigue resistance or cause long-term deformation under masticatory loads. Thus, future research should prioritize the development of standardized processing guidelines and robust quality assurance protocols to minimize variability, enhance reproducibility, and ensure reliable clinical performance. Machine learning-based monitoring systems, for instance, could be employed to identify suboptimal build conditions in real time, enabling defect mitigation before final production.
Inadequate regulatory standardization remains a significant barrier to the clinical adoption of AM-fabricated devices. Owing to the complexity and personalized nature of these devices, traditional regulatory frameworks may fall short in addressing the unique patient-specific design and fabrication aspects of these devices. Current regulations are largely adapted from conventional manufacturing paradigms and may not account for the variability and customization inherent in AM workflows. Thus, establishing comprehensive and standardized regulatory guidelines tailored specifically for AM is essential to promote broader clinical adoption and streamline approval processes [52,53,54,55,56]. The international harmonization of these standards will also be crucial for global market acceptance, particularly given the cross-border nature of digital design and fabrication services.
Cost-effectiveness is also a significant challenge in the widespread implementation of metal AM in dentistry. The high initial investment required for equipment, specialized powders, and post-processing tools may limit the accessibility of metal AM, especially for smaller clinics or laboratories [57,58]. In addition, the labor cost and time associated with training personnel in AM-specific design and software tools add to the operational burden. To address this, efforts should focus on developing cost-effective AM systems, improving powder reuse strategies, optimizing resource utilization, and minimizing post-processing costs while maintaining product quality and clinical efficacy [59,60]. Collaborative AM networks or centralized fabrication hubs may help distribute costs while maintaining high-quality production standards. For example, AM workflows can reduce material waste compared with subtractive milling (often >50% waste in conventional processes), but the initial equipment cost and need for specialized training remain significant barriers.
Moreover, long-term clinical validation of AM-produced dental devices remains relatively limited. While short- to medium-term clinical outcomes are promising, extensive longitudinal studies are needed to assess durability, biological integration, and sustained clinical performance [61]. Factors such as micromotion at the implant–abutment interface, corrosion in complex oral environments, and biofilm formation over time must be systematically studied to confirm the long-term viability of AM-fabricated components. Comprehensive clinical trials and systematic follow-up studies are essential for establishing the long-term safety, effectiveness, and reliability of the metal AM.
Several promising opportunities exist to further enhance the role of metal AM in personalized dentistry. One particularly promising area is the integration of AI and machine learning into digital design workflows. AI-driven systems can analyze large clinical databases to optimize patient-specific device geometries and predict the biological responses of AM-fabricated devices while improving their mechanical properties. Such intelligent systems could also assist in presurgical simulations, failure risk predictions, and automated generation of treatment alternatives, all contributing to greater clinical precision. This integration can significantly enhance the accuracy, efficiency, and predictability of personalized dental treatments.
Another promising direction is the development of next-generation alloy systems specifically engineered for AM. These advanced alloys offer improved biological compatibility, enhanced mechanical properties, and tailored degradation behaviors, thus demonstrating their huge potential for clinical applications. In addition to binary and ternary titanium systems, high-entropy alloys and bioresorbable metallic systems are gaining interest as future candidates for functionally adaptive dental components. Incorporating functional gradients (such as variations in material composition, porosity, or mechanical properties) within a single AM-fabricated component could enable unprecedented levels of customization and performance optimization. Such gradients could allow a prosthesis to be simultaneously rigid in load-bearing regions and porous in soft-tissue contact areas, achieving both strength and bioactivity within one design.
Additionally, the concept of digital twins, which involves virtual replicas of patient-specific dental treatments stored and continuously updated in digital archives, holds transformative potential for clinical practice. These digital archives enable precise long-term monitoring, facilitate efficient repair or replacement of devices, and generate valuable longitudinal data for research and continuous treatment optimization. With increasing access to cloud-based patient records and wearable sensors, digital twins may evolve into real-time diagnostic platforms that continuously inform personalized dental care.
Another important limitation lies in the training and digital literacy of dental professionals. Effective use of AM-based workflows requires clinicians and technicians to be proficient in digital scanning, CAD modeling, and AM-specific design principles. Without adequate training, the potential benefits of AM may not be fully realized in clinical practice.
In conclusion, while significant challenges persist, ongoing research and technological advancements have positioned metal AM as a foundational pillar in the future of personalized dentistry. Bridging the gap between material innovation, clinical validation, and economic scalability is the key to unlocking its full potential. By addressing current limitations and leveraging the emerging opportunities in digital integration, materials science, and intelligent design, metal AM is poised to continue evolving, offering improved clinical outcomes and patient care in personalized dental treatments.

5. Conclusions

Metal AM is redefining personalized dental treatments by enabling the direct fabrication of customized, anatomically precise, and functionally optimized devices. Its seamless integration with digital workflows, ability to produce complex geometries, and adaptability to patient-specific requirements have demonstrated significant advantages across diverse range of clinical applications, including implantology, prosthodontics, orthodontics, and maxillofacial surgery. Compared with conventional casting or milling, AM-fabricated devices generally require fewer manual adjustments, reduce overall treatment time, and provide improved anatomical accuracy, thereby enhancing clinical efficiency.
Recent advancements in AM-compatible alloys, microstructural control, and post-processing techniques have significantly improved the mechanical and biological performance of metal AM components. Moreover, the integration of artificial intelligence and digital design tools is accelerating the transition toward fully individualized, data-driven dental care.
Despite these promising developments, several challenges—including high equipment cost, lack of standardized protocols, and limited long-term clinical validation—must be addressed. At the same time, emerging opportunities such as multi-material AM, functionally graded implants, digital twins, and AI-driven optimization highlight the transformative potential of metal AM in dentistry. Ultimately, metal AM is poised to become a cornerstone technology in precision dental care, enabling highly customized and clinically effective treatment solutions.
Ultimately, metal AM is poised to become a cornerstone technology in the future of precision dental care, enabling a new era of patient-centered, efficient, and highly customized treatment solutions.

Author Contributions

Conceptualization, P.C. and H.K.; literature search and original draft preparation, P.C., H.Y. and Y.-S.S.; review and editing, P.C. and T.Y.; manuscript proofreading, P.C. and H.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the 4th Frontier Research Grant from The Japan Institute of Metals and Materials, part of which is based on the Cooperative Research Project of the Research Center for Biomedical Engineering (Grant 4081 & 4056) and a Research Subsidy from The Light Metal Educational Foundation, Inc.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Li, Z.C.; Affolter, C. High-cycle fatigue performance of laser powder bed fusion Ti-6Al-4V alloy with inherent internal defects: Critical literature review. Metals 2024, 14, 972. [Google Scholar] [CrossRef]
  2. Jamshidi, P.; Aristizabal, M.; Kong, W.H.; Villapun, V.; Cox, S.C.; Grover, L.M.; Attallah, M.M. Selective laser melting of Ti-6Al-4V: The impact of post-processing on the tensile, fatigue, and biological properties for medical implant applications. Materials 2020, 13, 2813. [Google Scholar] [CrossRef]
  3. Huang, S.; Wei, H.; Li, D. Additive manufacturing technologies in the oral implant clinic: A review of current applications and progress. Front. Bioeng. Biotechnol. 2023, 11, 1100155. [Google Scholar] [CrossRef]
  4. Khorsandi, D.; Fahimipour, A.; Abasian, P.; Saber, S.S.; Seyedi, M.; Ghanavati, S.; Ahmad, A.; De Stephanis, A.A.; Taghavinezhaddilami, F.; Leonova, A.; et al. 3D and 4D printing in dentistry and maxillofacial surgery: Printing techniques, materials, and applications. Acta Biomater. 2021, 122, 26–49. [Google Scholar] [CrossRef] [PubMed]
  5. Gracis, S.; Appiani, A.; Noè, G. Digital workflow in implant prosthodontics: The critical aspects for reliable accuracy. J. Esthet. Restor. Dent. 2023, 35, 250–261. [Google Scholar] [CrossRef]
  6. Revilla-León, M.; Sadeghpour, M.; Özcan, M. A review of the applications of additive manufacturing technologies used to fabricate metals in implant dentistry. J. Prosthodont. 2020, 29, 579–593. [Google Scholar] [CrossRef]
  7. Celik, H.K.; Koc, S.; Kustarci, A.; Caglayan, N.; Rennie, A.E.W. The state of additive manufacturing in dental research—A systematic scoping review of 2012–2022. Heliyon 2023, 9, e17462. [Google Scholar] [CrossRef]
  8. Li, J.; Fan, H.; Li, H.; Hua, L.; Du, J.; He, Y.; Jin, Y. Recent advancements in the surface modification of additively manufactured metallic bone implants. Addit. Manuf. Front. 2025, 4, 200195. [Google Scholar] [CrossRef]
  9. Brogini, S.; Sartori, M.; Giavaresi, G.; Cremascoli, P.; Alemani, F.; Bellini, D.; Martini, L.; Maglio, M.; Pagani, S.; Fini, M. Osseointegration of additive manufacturing Ti-6Al-4V and Co-Cr-Mo alloys, with and without surface functionalization with hydroxyapatite and type I collagen. J. Mech. Behav. Biomed. Mater. 2021, 115, 104262. [Google Scholar] [CrossRef]
  10. Nguyen, H.D.; Pramanik, A.; Basak, A.K.; Dong, Y.; Prakash, C.; Debnath, S.; Shankar, S.; Jawahir, I.S.; Dixit, S.; Buddhi, D. A critical review on additive manufacturing of Ti-6Al-4V alloy: Microstructure and mechanical properties. J. Mater. Res. Technol. 2022, 18, 4641–4661. [Google Scholar] [CrossRef]
  11. Mafra, I.J.; Bordin, D.; Siroma, R.S.; Moraschini, V.; Faverani, L.P.; Souza, J.G.; Mourão, C.F.; Shibli, J.A. Additive manufacturing titanium dental implants placed in sinuses grafted with 70HA:30-TCP: A one-year retrospective study for evaluation of survival rate. Dent. J. 2024, 12, 181. [Google Scholar] [CrossRef]
  12. Begines, B.; Arevalo, C.; Romero, C.; Hadzhieva, Z.; Boccaccini, A.R.; Torres, Y. Fabrication and characterization of bioactive gelatin-alginate-bioactive glass composite coatings on porous titanium substrates. ACS Appl. Mater. Interfaces 2022, 14, 15008–15020. [Google Scholar] [CrossRef]
  13. Aufa, A.N.; Hassan, M.Z.; Ismail, Z.; Ren, J.M. Sol–gel surface modification of selective laser melting Ti6Al4V for biomedical applications. Prog. Addit. Manuf. 2025, 10, 2247–2264. [Google Scholar] [CrossRef]
  14. Aufa, A.N.; Hassan, M.Z.; Ismail, Z.; Harun, N.; Ren, J.; Sadali, M.F. Surface enhancement of Ti-6Al-4V fabricated by selective laser melting on bone-like apatite formation. J. Mater. Res. Technol. 2022, 19, 4018–4030. [Google Scholar] [CrossRef]
  15. Duan, Y.S.; Liu, X.D.; Zhang, S.J.; Wang, L.; Ding, F.; Song, S.; Chen, X.T.; Deng, B.L.; Song, Y.L. Selective laser melted titanium implants play a positive role in early osseointegration in type 2 diabetes mellitus rats. Dent. Mater. J. 2020, 39, 214–221. [Google Scholar] [CrossRef] [PubMed]
  16. Danza, M.; Zollino, I.; Candotto, V.; Cura, F.; Carinci, F. Fibroblast behavior after titanium surfaces exposure. Dent. Res. J. 2012, 9 (Suppl. 2), S211–S215. [Google Scholar]
  17. Moloi, T.; Dzogbewu, T.C.; Maringa, M.; Muiruri, A. A Review of the fatigue behaviour of laser powder bed fusion Ti6Al4V. Metall. Mater. Eng. 2025, 31, 288–310. [Google Scholar]
  18. Grand View Research. Dental 3D Printing Market Size, Share & Trends Analysis Report, 2024–2030; Grand View Research: San Francisco, CA, USA, 2023; Available online: https://www.grandviewresearch.com/industry-analysis/dental-3d-printing-market (accessed on 12 May 2025).
  19. Gibson, I.; Rosen, D.; Stucker, B.; Khorasani, M. (Eds.) Additive Manufacturing Technologies, 2nd ed.; Springer: Cham, Switzerland, 2021. [Google Scholar]
  20. Vanmunster, L.; D’Haeyer, C.; Coucke, P.; Braem, A.; Van Hooreweder, B. Mechanical behavior of Ti6Al4V produced by laser powder bed fusion with engineered open porosity for dental applications. J. Mech. Behav. Biomed. Mater. 2022, 126, 104974. [Google Scholar] [CrossRef]
  21. Repnin, A.; Borisov, E.; Emelianov, A.; Popovich, A. Fracture toughness of Ti6Al4V/Cp-Ti multi-material produced via selective laser melting. Metals 2023, 13, 1738. [Google Scholar] [CrossRef]
  22. Gunashekar, G.; Reddy, N.D.D.; Penumakala, P.K.; Narala, S.K.R. Compressive response of additively manufactured Ti-6Al-4V Triply Periodic Minimal Surface structures with different unit cell designs for biomedical implant applications. Mater. Today Commun. 2025, 44, 112013. [Google Scholar] [CrossRef]
  23. Dong, M.Q.; Zhang, Y.; Zhou, W.W.; Chen, P.; Zhou, Z.X.; Kanetaka, H.; Ishimoto, T.; Koizumi, Y.; Nakano, T.; Nomura, N. Laser additive manufacturing of a carbon-supersaturated β-Ti alloy for biomaterial application. Addit. Manuf. Lett. 2024, 11, 100233. [Google Scholar] [CrossRef]
  24. Tsutsumi, Y.; Ishimoto, T.; Oishi, T.; Manaka, T.; Chen, P.; Ashida, M.; Doi, K.; Katayama, H.; Hanawa, T.; Nakano, T. Crystallographic texture- and grain boundary density-independent improvement of corrosion resistance in austenitic 316L stainless steel fabricated via laser powder bed fusion. Addit. Manuf. 2021, 45, 102066. [Google Scholar] [CrossRef]
  25. Polozov, I.N.; Nefyodova, V.; Zolotarev, A.; Sokolova, V.; Gracheva, A.; Popovich, A. Optimizing selective laser melting of Ti-13Nb-13Zr-5Cu alloy: Processing parameters, microstructure evolution, and enhanced mechanical properties for biomedical applications. J. Alloys Compd. 2025, 1035, 181587. [Google Scholar] [CrossRef]
  26. Moon, S.; Ji, S.; Ko, Y.; Lee, M.S.; Jun, T.S.; Kim, D.I.; Yeo, J.S. Effects of spatial uniformity of continuous and pulse laser irradiation on the microstructure and mechanical properties of Ti-6Al-4V in powder bed fusion. Mater. Today Commun. 2025, 46, 112880. [Google Scholar] [CrossRef]
  27. Zhang, H.Z.; Tang, X.F.; Guo, W.J.; Gao, J.S.; Yu, J.X.; Yin, X.M.; Wang, Y.; Dong, Y.H.; Jiang, Z.W.; Zheng, Z.P. A short review of the post-processing of titanium alloys processed by selective laser melting. Int. J. Adv. Manuf. Technol. 2025, 138, 4121–4136. [Google Scholar] [CrossRef]
  28. Tyagi, S.; Manjaiah, M.; Das, R. Effect of electropolishing post-treatment on additively manufactured Ti6Al4V lattice structures. Int. J. Mech. Sci. 2025, 297–298, 110370. [Google Scholar] [CrossRef]
  29. Loiodice, L.; Stopka, K.S.; Sangid, M.D. Pore defects’ influence on the local, near threshold fatigue crack growth behavior of additively manufactured Ti-6Al-4V. J. Mech. Phys. Solids 2025, 202, 106173. [Google Scholar] [CrossRef]
  30. Li, T.R.; Xu, M.Y.; Yao, J.Z.; Deng, L.P.; Wang, B.S. Preparation and post-processing of three-dimensional printed porous titanium alloys. Materials 2025, 18, 1864. [Google Scholar] [CrossRef]
  31. Abdesselam, K.A.; Gaudez, S.; Van Petegem, S.; Honkimäki, V.; Hallais, S.; Cornet, L.; Vallet, M.; Upadhyay, M.V. Altering microstructure and enhancing mechanical properties during direct energy deposition of Ti-6Al-4V via in-process laser heat treatments. Mater. Des. 2025, 254, 113997. [Google Scholar] [CrossRef]
  32. Squillaci, L.; Neikter, M.; Hansson, T.; Pederson, R.; Moverare, J. Microstructure and mechanical properties of Ti-6Al-4V alloy fabricated using powder bed fusion-laser beam additive manufacturing process: Effect of hot isostatic pressing. Mater. Sci. Eng. A 2025, 931, 148226. [Google Scholar] [CrossRef]
  33. Chen, J.; Zhang, Z.; Chen, X.; Zhang, C.; Zhang, G.; Xu, Z. Design and manufacture of customized dental implants by using reverse engineering and selective laser melting technology. J. Prosthet. Dent. 2014, 112, 1088–1095.e1. [Google Scholar] [CrossRef]
  34. Vasylyev, M.O.; Mordyuk, B.M.; Voloshko, S.M.; Gurin, P.O. Physiological corrosion and ion release in dental Co-Cr-Mo alloys fabricated using additive manufacturing. Prog. Phys. Met. 2025, 26, 120–145. [Google Scholar] [CrossRef]
  35. Noorbakhsh Nezhad, A.H.; Mohammadi Zahrani, E.; Mousavinasab, S.F.; Alfantazi, A.M. A comprehensive review of additively manufactured biomedical titanium alloys for bone tissue engineering: Biocorrosion, biomechanical, and biological properties. J. Mater. Res. Technol. 2025, 36, 9113–9157. [Google Scholar] [CrossRef]
  36. Pradíes, G.; Morón-Conejo, B.; Martínez-Rus, F.; Salido, M.P.; Berrendero, S. Current applications of 3D printing in dental implantology: A scoping review mapping the evidence. Clin. Oral Implant. Res. 2024, 35, 1011–1032. [Google Scholar] [CrossRef]
  37. Alageel, O. Three-dimensional printing technologies for dental prosthesis: A review. Rapid Prototyp. J. 2022, 28, 1764–1778. [Google Scholar] [CrossRef]
  38. Revilla-León, M.; Meyer, M.J.; Özcan, M. Metal additive manufacturing technologies: Literature review of current status and prosthodontic applications. Int. J. Comput. Dent. 2019, 22, 55–67. [Google Scholar]
  39. Tarba, C.I.; Cristache, M.A.; Baciu, I.M.; Cristache, C.M.; Burlacu Vatamanu, O.E.B.; Oancea, L. Advancements in digital workflows for 3d-printed maxillofacial soft prostheses: Exploring design and materials in direct additive manufacturing: A scoping review. Appl. Sci. 2025, 15, 1701. [Google Scholar] [CrossRef]
  40. Dragos, B.; Bratu, D.C.; Popa, G.; Luca, M.M.; Bratu, R.C.; Sinescu, C. Mechanical properties of 3d printed and milled space maintainers used in preventive orthodontics. Rom. J. Oral Rehabil. 2024, 16, 666–673. [Google Scholar] [CrossRef]
  41. Qasim, S.S.B.; Zafar, M.S.; Niazi, F.H.; Alshahwan, M.; Omar, H.; Daood, U. Functionally graded biomimetic biomaterials in dentistry: An evidence-based update. J. Biomater. Sci. Polym. Ed. 2020, 31, 1144–1162. [Google Scholar] [CrossRef] [PubMed]
  42. Tsolakis, I.A.; Gizani, S.; Tsolakis, A.I.; Panayi, N. Three-dimensional-printed customized orthodontic and pedodontic appliances: A critical review of a new era for treatment. Children 2022, 9, 1107. [Google Scholar] [CrossRef]
  43. De Riu, G.; Biglio, A.; Baj, A.; Maniaci, A.; Lechien, J.R.; Vaira, L.A. Primary reconstruction of total maxillectomy defect with additively manufactured subperiosteal implant and fibula free flap: A case report. Oral Maxillofac. Surg. 2025, 29, 86. [Google Scholar] [CrossRef]
  44. Grecchi, F.; Zecca, P.A.; Macchi, A.; Mangano, A.; Riva, F.; Grecchi, E.; Mangano, C. Full-digital workflow for fabricating a custom-made direct metal laser sintering (DMLS) mandibular implant: A case report. Int. J. Environ. Res. Public Health 2020, 17, 2693. [Google Scholar] [CrossRef]
  45. Onică, C.A.; Lupu, C.I.; Baciu, E.R.; Gelețu, G.L.; Murariu, A.; Budală, D.G.; Luchian, I.; Onică, N. Customized titanium plates for preventing mandibular fractures in lower third molar extractions. J. Funct. Biomater. 2025, 16, 64. [Google Scholar] [CrossRef]
  46. Lobo, S.; Argolinha, I.; Machado, V.; Botelho, J.; Rua, J.; Li, J.; Mendes, J.J. Advances in Digital Technologies in Dental Medicine: Enhancing Precision in Virtual Articulators. J. Clin. Med. 2025, 14, 1495. [Google Scholar] [CrossRef] [PubMed]
  47. Patel, N. Integrating three-dimensional digital technologies for comprehensive implant dentistry. J. Am. Dent. Assoc. 2010, 141 (Suppl. 2), 20s–24s. [Google Scholar] [CrossRef]
  48. Laubach, M.; Hartmann, H.; Holzapfel, B.M.; Mayer-Wagner, S.; Schenke-Layland, K.; Hutmacher, D.W. 3D printing in surgery: Relevance of technology maturity assessment in bioprinting research studies. Chirurgie 2025, 96, 306–315. [Google Scholar] [CrossRef]
  49. Dixit, A.; Kumar, A.; Pathak, D.K. (Eds.) Additive Manufacturing for Biomedical Applications: Recent Trends and Challenges; Springer: Singapore, 2024; p. 489. [Google Scholar]
  50. Stanco, D.; Urbán, P.; Tirendi, S.; Ciardelli, G.; Barrero, J. 3D bioprinting for orthopaedic applications: Current advances, challenges and regulatory considerations. Bioprinting 2020, 20, e00103. [Google Scholar] [CrossRef]
  51. Baskin, N.; Yuce, C. Effect of process parameters on the mechanical behavior of Ti6Al4V alloys fabricated by laser powder bed fusion method. J. Mater. Res. Technol. 2024, 30, 7006–7019. [Google Scholar] [CrossRef]
  52. Sinha, P.; Lahare, P.; Sahu, M.; Cimler, R.; Schnitzer, M.; Hlubenova, J.; Hudak, R.; Singh, N.; Gupta, B.; Kuca, K. Concept and Evolution in 3d printing for excellence in healthcare. Curr. Med. Chem. 2025, 32, 831–879. [Google Scholar] [CrossRef] [PubMed]
  53. Bhise, M.G.; Patel, L.; Patel, K. 3D Printed Medical Devices: Regulatory standards and technological advancements in the USA, Canada and Singapore-A cross-national study. Int. J. Pharm. Investig. 2024, 14, 888–902. [Google Scholar] [CrossRef]
  54. Mamo, H.B.; Adamiak, M.; Kunwar, A. 3D printed biomedical devices and their applications: A review on state-of-the-art technologies, existing challenges, and future perspectives. J. Mech. Behav. Biomed. Mater. 2023, 143, 105930. [Google Scholar] [CrossRef] [PubMed]
  55. Lakkala, P.; Munnangi, S.R.; Bandari, S.; Repka, M. Additive manufacturing technologies with emphasis on stereolithography 3d printing in pharmaceutical and medical applications: A review. Int. J. Pharm. X 2023, 5, 100159. [Google Scholar] [CrossRef] [PubMed]
  56. Bandyopadhyay, A.; Bose, S.; Narayan, R. Translation of 3D printed materials for medical applications. MRS Bull. 2022, 47, 39–48. [Google Scholar] [CrossRef] [PubMed]
  57. Maretto, L.; Faccio, M.; Battini, D. The adoption of digital technologies in the manufacturing world and their evaluation: A systematic review of real-life case studies and future research agenda. J. Manuf. Syst. 2023, 68, 576–600. [Google Scholar] [CrossRef]
  58. Baumers, M.; Beltrametti, L.; Gasparre, A.; Hague, R. Informing additive manufacturing technology adoption: Total cost and the impact of capacity utilisation. Int. J. Prod. Res. 2017, 55, 6957–6970. [Google Scholar] [CrossRef]
  59. Juneja, M.; Bajaj, D.; Thakur, N.; Jindal, P. Reproduction of human dental models using different 3D printing techniques. Proc. Inst. Mech. Eng. Part E J. Process Mech. Eng. 2024. [Google Scholar] [CrossRef]
  60. Zhang, Q.R.; Guan, Y.C. Application of metal additive manufacturing in oral dentistry. Curr. Opin. Biomed. Eng. 2023, 25, 100441. [Google Scholar] [CrossRef]
  61. Onică, N.; Budală, D.G.; Baciu, E.R.; Onică, C.A.; Gelețu, G.L.; Murariu, A.; Balan, M.; Pertea, M.; Stelea, C. Long-term clinical outcomes of 3d-printed subperiosteal titanium implants: A 6-year follow-up. J. Pers. Med. 2024, 14, 541. [Google Scholar] [CrossRef]

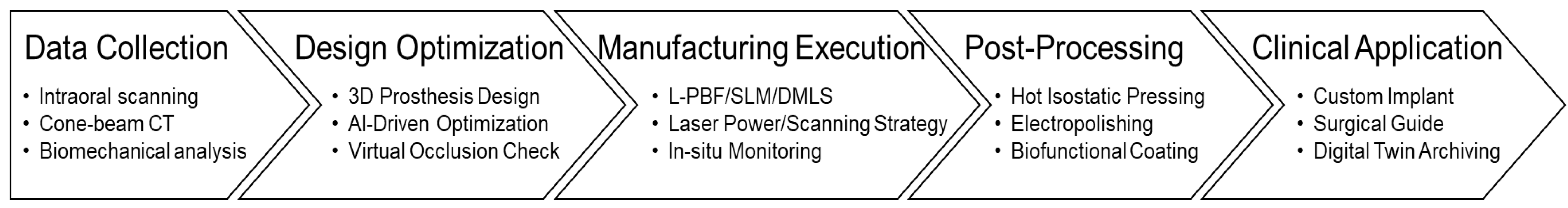

Dentistry 13 00424 g001
Figure 1. Digital workflow of metal additive manufacturing in personalized dentistry.
Figure 1. Digital workflow of metal additive manufacturing in personalized dentistry.
Dentistry 13 00424 g001
Table 1. Comparison of Conventional Methods and AM for Fabricating Metal Dental Prostheses.
Table 1. Comparison of Conventional Methods and AM for Fabricating Metal Dental Prostheses.
AspectConventional MethodsAM
Manufacturing methodCasting/MillingSLM/DMLS/EBM
Material wasteHigh (due to subtractive process)Low (layer-by-layer building)
Design complexityLimited by tooling and moldsHigh (lattice, graded porosity, etc.)
Customization levelStock-basedFully patient-specific from digital data
Production timeLong (multi-step workflows)Short (digital-to-print in one flow)
Mechanical propertiesReliable but limited shape controlTailored via printing parameters
Biocompatibility
enhancement		Relies on coating or polishingPost-processable with advanced surfaces
Common materialsTitanium alloys, Co-Cr alloysTitanium alloys, Co-Cr, new alloys
Note: The comparison emphasizes conventional workflows that are more manually intensive; modern precision casting and milling techniques may achieve higher efficiency in some contexts, but AM uniquely offers seamless digital integration and full patient-specific customization.
Table 2. Clinical Applications of AM for Personalized Dentistry.
Table 2. Clinical Applications of AM for Personalized Dentistry.
ApplicationClinical BenefitAM-Specific Feature
Custom implant abutmentsImproved emergence profile and fitDigital workflow,
high-resolution fabrication
Full-arch bars/
implant frameworks		Adaptation to complex edentulous casesSingle-piece fabrication with
anatomical precision
Anatomically accurate crowns and bridgesEnhanced esthetics and occlusal harmonyData-driven design with
occlusion matching
Mandibular/maxillary
reconstruction plates		Precise anatomical conformity post-trauma3D anatomical scanning +
direct metal printing
Functionally graded
prostheses		Tailored stiffness/load distributionVariable porosity and
geometry in one build
AI-assisted prosthesis designPredictive design optimizationIntegration of clinical datasets
and AI models
Digital twin archivingQuick remakes, consistent patient data useReusable CAD models for future use
Table 3. Summary of Representative Studies on Metal Additive Manufacturing in Dentistry.
Table 3. Summary of Representative Studies on Metal Additive Manufacturing in Dentistry.
MaterialAM MethodApplicationKey FindingsFirst Author
(Year)		Reference Number
β-Ti alloy (GO-modified)L-PBFImplantologyUltrafine grains, >1100 MPa strength, cytocompatibilityDong
(2024)		[23]
316 L Stainless SteelL-PBFCorrosion analysisEnhanced pitting and crevice corrosion resistanceTsutsumi
(2021)		[24]
TitaniumSLMCustom implantsPrecise fit to gingival contour and emergence profileChen
(2014)		[33]
Co-Cr-Mo alloyAMProsthodonticsStable ion release, physiological corrosion behaviorVasylyev
(2025)		[34]
Stainless Steel3D PrintingOrthodonticsMechanical evaluation of printed appliancesDragos
(2024)		[40]
TitaniumAMMaxillofacial surgerySubperiosteal implant for maxillary reconstructionDe Riu
(2025)		[43]
Titanium (AM implants)AMImplantology1-year retrospective clinical evaluationMafra
(2024)		[11]
TitaniumAMMandibular supportCustom fixation plates reduce fracture riskOnică
(2025)		[45]
VariousDigital IntegrationVirtual articulatorsImproved digital precision and design workflowLobo
(2025)		[46]
Metal (General)AMImplant dentistryReview of AM technologies and clinical statusRevilla-León
(2020)		[6]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Chen, P.; Yokoi, T.; Sun, Y.-S.; Yang, H.; Kanetaka, H. Emerging Metal Additive Manufacturing for Individualized Dental Therapies: A Narrative Review. Dent. J. 2025, 13, 424. https://doi.org/10.3390/dj13090424

AMA Style

Chen P, Yokoi T, Sun Y-S, Yang H, Kanetaka H. Emerging Metal Additive Manufacturing for Individualized Dental Therapies: A Narrative Review. Dentistry Journal. 2025; 13(9):424. https://doi.org/10.3390/dj13090424

Chicago/Turabian Style

Chen, Peng, Taishi Yokoi, Ying-Sui Sun, Huiyong Yang, and Hiroyasu Kanetaka. 2025. "Emerging Metal Additive Manufacturing for Individualized Dental Therapies: A Narrative Review" Dentistry Journal 13, no. 9: 424. https://doi.org/10.3390/dj13090424

APA Style

Chen, P., Yokoi, T., Sun, Y.-S., Yang, H., & Kanetaka, H. (2025). Emerging Metal Additive Manufacturing for Individualized Dental Therapies: A Narrative Review. Dentistry Journal, 13(9), 424. https://doi.org/10.3390/dj13090424

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
