# Study of Anharmonicity in Zirconium Hydrides Using Inelastic Neutron Scattering and Ab-Initio Computer Modeling

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

_{2}, γ-ZrH, and γ-ZrD, has been investigated from aspects of inelastic neutron scattering (INS) and lattice dynamics calculations within the framework of density functional theory (DFT). The harmonic model failed to reproduce the spectral features observed in the experimental data, indicating the existence of anharmonicity in those materials and the necessity of further explanations. Here, we present a detailed study on the anharmonicity in zirconium hydrides/deuterides by exploring the 2D potential energy surface of hydrogen/deuterium atoms and solving the corresponding 2D single-particle Schrödinger equation to obtain the eigenfrequencies, which are then convoluted with the instrument resolution. The convoluted INS spectra qualitatively describe the anharmonic peaks in the experimental INS spectra and demonstrate that the anharmonicity originates from the deviations of hydrogen potentials from quadratic behavior in certain directions; the effects are apparent for the higher-order excited vibrational states, but small for the ground and first excited states.

## 1. Introduction

_{0.5}[6], γ-ZrH, δ-ZrH

_{1.5}, and ϵ-ZrH

_{2}have been identified. A stoichiometric γ-ZrH (face-centered orthorhombic metal sublattice) can be prepared by special temperature treatment [5]. Among those phases, this study focuses on γ-ZrH in the Cccm space group, and ϵ-ZrH

_{2}in the I4/mmm space group. Though the phase diagram has been determined, some hydrides’ structures, stabilities, or formation mechanisms are still unknown [7].

_{1.5}were first analyzed using inelastic neutron scattering (INS) by Andresen et al. in 1957 [8]. Yamanaka [9] studied the thermal and mechanical properties of zirconium hydrides. Based on first-principles calculations, considerable research efforts have been devoted to the mechanical and thermodynamical properties of zirconium hydrides. Early studies by Ackland found that bistable crystal structures exist with minimal energy difference in ϵ-ZrH

_{2}[10]. Subsequent studies demonstrated that one of the bistable structures may be unstable or metastable. Elsasser reported that at the center of the Brillouin zone (gamma point), the potential energy profiles for hydrogen atoms in ZrH

_{2}are parabolic up to about 300 meV [11]. Besides theoretical treatments, INS spectroscopy has also been employed to measure the vibrational spectrum of ϵ-ZrH

_{2}. The peak splitting of multi-phonon events was observed in 1983 by Ikeda [12], yet was not explained. Kolesnikov et al. later attributed those split peaks below multi-phonon events in γ-ZrH and γ-ZrD to bound multi-phonon states [13,14].

_{x}, we conducted a qualitative and semi-quantitative analysis that accounts for the effects observed in the INS spectra of zirconium hydrides by exploring the potential energy surface (PES) of these materials using density functional theory (DFT) and solving the corresponding eigenfrequencies using quantum theory. The isotope effects were also investigated by checking the γ-ZrD system. In this work, we successfully combined DFT, quantum theory, and INS spectra calculations, to improve our understanding of the mechanical and thermal properties of zirconium hydrides. The methodology can be applied to other metal hydride systems.

## 2. Methods

_{x}(ZrH

_{x}means one of ϵ-ZrH

_{2}, γ-ZrH, and γ-ZrD) were calculated using the finite displacement method (FDM) as implemented in the Phonopy package [27] employing the forces calculated by both VASP and RMG packages. $2\times 2\times 2$ supercells of ZrH

_{x}(containing 96 atoms for ϵ-ZrH

_{2}or 64 for γ-ZrH and γ-ZrD) were used with small atomic displacements of 0.01 Å. A gamma-centered $5\times 5\times 5$ k-mesh for ϵ-ZrH

_{2}, and an $11\times 11\times 11$ mesh for γ-ZrH and γ-ZrD were used to integrate total energy. K-mesh and energy cutoff have been tested to converge to 1 meV/atom in RMG and VASP for the total energy. The phonon properties computed by the Phonopy package were used to simulate the INS spectra [28] by the OCLIMAX software [29,30], a program aiming at simulating INS spectra based on vibrational normal modes. A $31\times 31\times 31$ uniformly sampled k-mesh in the BZ was used to represent vibrational modes for our OCLIMAX calculations.

_{2}was measured at 5 K with the VISION spectrometer [31] at the Spallation Neutron Source (SNS), Oak Ridge National Laboratory (ORNL). The ZrH

_{2}sample (99% purity) was obtained from Sigma-Aldrich, and for the INS experiment, the sample was placed in a flat aluminum container of $50\times 50\times 0.2$ mm${}^{3}$ size. The estimated transmission of thermal neutrons through the sample is ∼90%, that means the multiple neutron scattering should be small [32]. The spectrum from an empty container was measured under similar conditions and subtracted from the sample data. INS spectra for γ-ZrH and γ-ZrD were measured previously [13,14] with the TFXA spectrometer [33] at ISIS, Rutherford Appleton Laboratory, UK. INS can measure the vibrational spectrum weighted by the amplitude of motion and the neutron cross-section of the atoms. INS has no selection rules, and more importantly, the comparison of INS simulations with experimental data is rigorous and straightforward. Thus, INS becomes a perfect technique to be combined with theoretical vibrational analysis.

## 3. Results and Discussion

#### 3.1. Atomic Structures and Phonon Properties of ZrH_{x}

_{x}and their calculated phonon bands are shown in Figure 1. The lattice vectors (a, b, c) used in our simulations for ϵ-ZrH

_{2}[34] and γ-ZrH(γ-ZrD) [13] were (4.97728, 4.97728, 4.449) and (4.549, 4.618, 4.965) in Å, respectively. Since phonon dispersions (especially optical modes) are sensitive to lattice parameters, no geometry optimization was performed on the lattice vectors of these three materials to better compare simulations with experiments. As is seen in Figure 1, large phonon band gaps exist between high energy modes and low energy modes for all materials.

_{x}, and Figure 3 shows the simulated INS spectra for ϵ-ZrH

_{2}with RMG and VASP along with the VISION data. Within the frequency region below 1000 meV, multiple peaks representing phonon excitations are observed in all materials. Focusing on ϵ-ZrH

_{2}, the peaks with energies lower than 30 meV correspond to lattice modes of heavy Zr atoms in the crystals. The peaks at around 150 meV correspond to single phonon excitations of H atoms from the ground state to their first excited states (fundamental excitations). All higher energy peaks are overtones and combinations, corresponding to multi-phonon events from the ground state to the excited states of higher orders than the first.

_{2}show excellent agreement with the experimental data below 200 meV (see Figure 3). However, discrepancies can be observed between the experimental data and the simulated INS spectra in the higher energy range. In the region of overtone peaks, features at around 260, 390, and 510 meV exist in the experimental data, and cannot be observed in the calculation. This behavior suggests that the harmonic approximation, which in this case is good for the fundamental peaks, becomes inaccurate for higher energy excitations; thus, anharmonic effects need to be taken into consideration. It should be noted that for γ-ZrH and γ-ZrD, similar split peaks were also observed in the experimental data (see Figure 2).

#### 3.2. Harmonic Approximation: Frozen Phonon Method

_{2}as it usually captures the anharmonicity (if any). The potential energy profiles were sampled along the phonon polarization vectors, and the RMS displacements of phonons ($<{u}^{2}{>}^{0.5}$) were chosen to be up to 0.58 Å (corresponding to deformation potential energy at ∼1 eV). Low-frequency lattice modes (smaller than 30 meV) were not included in our frozen phonon calculations.

#### 3.3. A Direct Method: Mapping Eigenfrequencies from Schrödinger Equations with the Simulated INS Spectra

_{2}and γ-ZrD

_{2}[39]; (2) the charge densities of Zr and H in ϵ-ZrH

_{2}have near-spherical distribution with slight deformations, which indicates the Zr-H bonds and their couplings are weak [40]; (3) the mean square displacement (MSD) of Zr is much smaller than H(D)’s, as calculated by [28] at 0 K:

_{x}, but instead, we want to demonstrate the nature of anharmonicity of these systems in a qualitative and semi-quantitative way. The exact 3D many-body problem (for all H(D) atoms) is not only computationally prohibitive but also unnecessarily complicated; however, with the single-particle approximation in 2D, one can easily explore the anharmonicity by visualizing the potential energy surface, and more importantly, solve the single-particle Schrödinger equation and directly compare the result with experiments. Moreover, considering the orthogonality of basis vectors and small displacements of the H(D) atom, it is reasonable to approximate the 3D problem with 2D representations. Even though one may expect a qualitative explanation at best taking the above approximations into account, surprisingly, the results we obtained can semi-quantitatively describe the experiments, and thus validate the approximations made here, as will be further discussed below.

_{2}, we decided to sample the (112) plane (shifted so that the equilibrium position of the H atom was included in the plane) as this is one of the planes with the highest symmetry, and involves the most representative shapes of hydrogen PES in ϵ-ZrH

_{2}in 2D (it contains harmonic potentials in some directions and highly anharmonic potentials in others). The plane was sampled equidistantly with a mesh grid spacing around 0.005 Å (100 points per direction, 10,000 mesh grids totally). Based on the sampled grid, a finer grid with a dimension of $1200\times 1600$ = 1,920,000 was generated using a linear interpolation method to build the Hamiltonian matrix according to Equation (2). A similar scheme has been applied to γ-ZrH and γ-ZrD. Figure 5 presents a view of the plane and the sampled PES.

_{2}in Figure 7, the eigenfrequencies in red lines at around 264, 384, and 493 meV are below the harmonic multi-phonon bands in magenta lines, and thus correspond to the anharmonic peaks in experimental spectra in black lines. The eigenfrequency at 264 meV agrees well with the experimental value, and the eigenfrequencies at 384 and 493 meV have around 6 and 17 meV differences with the experimental values, respectively. In the cases of γ-ZrH and γ-ZrD, conclusions can be made that the agreements at low energies are pretty good (except for the ∼10 meV difference at around 280 meV in γ-ZrH). It must also be mentioned that in Figure 7c, the ZrD sample was contaminated with H, and thus introduced the extra low-frequency peaks, e.g., at around 140 meV.

_{x}are shown in Figure 8.

_{0.96875}H

_{0.03125}is mostly due to contributed low-energy modes by α-Zr [13].

_{x}materials in the current study, which describe the anharmonicity of the INS spectra at energies above 200 meV, can be very useful for criticality and neutron transport simulations of the reactors containing Zr-H materials at anticipated operational temperatures up to $1200{\phantom{\rule{4pt}{0ex}}}^{\circ}$C (at which the first overtone level in Zr-H is ∼10% populated).

## 4. Conclusions

_{2}, γ-ZrH, and γ-ZrD have been identified and thoroughly studied with DFT and INS techniques. The anharmonicity is not apparent on the fundamental vibrations, and it becomes evident at higher energies. This effect is not appreciable around room temperature. However, γ-ZrH

_{x}has been considered as a neutron moderator material for nuclear reactors; in this case, the anharmonic effects cannot be ignored since neutrons with high energies will scatter from the hydrogen atoms and will experience deviations from the scattering kernel predictions based on the harmonic approximation. While the harmonic model failed to explain the split peaks shown in the experimental INS spectra, results of eigenfrequencies of the 2D Schrödinger equation convoluted with instrument resolution functions give a good description of the anharmonicity in these materials. One can see obvious anharmonic peaks beyond the harmonic overtones in the spectra, which are in qualitative agreement with the experimental data. The method proposed here, by combining DFT and solutions of the Schrödinger equation compared to INS, is a possible way to explain anharmonicity in materials beyond the harmonic regime. This work could shed light on further vibrational studies in anharmonic systems like TiH

_{x}, PdH

_{x}, and other metal-hydrogen systems.

## Supplementary Materials

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

DFT | Density functional theory |

MD | Molecular dynamics |

INS | Inelastic neutron scattering |

PDOS | Phonon density of states |

VACF | Velocity autocorrelation function |

TDEP | Temperature-dependent effective potential |

MSD | Mean square displacement |

PES | Potential energy surface |

## References

- Bickel, P.; Berlincourt, T. Electrical properties of hydrides and deuterides of zirconium. Phys. Rev. B
**1970**, 2, 4807. [Google Scholar] [CrossRef] - Holliger, L.; Legris, A.; Besson, R. Hexagonal-based ordered phases in H-Zr. Phys. Rev. B
**2009**, 80, 094111. [Google Scholar] [CrossRef] - Zuzek, E.; Abriata, J.; San-Martin, A.; Manchester, F. The H-Zr (hydrogen-zirconium) system. Bull. Alloy. Phase Diagrams
**1990**, 11, 385–395. [Google Scholar] [CrossRef] - Setoyama, D.; Yamanaka, S. Phase diagram of Zr–O–H ternary system. J. Alloys Compd.
**2004**, 370, 144–148. [Google Scholar] [CrossRef] - Dupin, N.; Ansara, I.; Servant, C.; Toffolon, C.; Lemaignan, C.; Brachet, J. A thermodynamic database for zirconium alloys. J. Nucl. Mater.
**1999**, 275, 287–295. [Google Scholar] [CrossRef] - Zhao, Z.; Morniroli, J.P.; Legris, A.; Ambard, A.; Khin, Y.; Legras, L.; Blat-Yrieix, M. Identification and characterization of a new zirconium hydride. J. Microsc.
**2008**, 232, 410–421. [Google Scholar] [CrossRef] - Weck, P.F.; Kim, E.; Tikare, V.; Mitchell, J.A. Mechanical properties of zirconium alloys and zirconium hydrides predicted from density functional perturbation theory. Dalton Trans.
**2015**, 44, 18769–18779. [Google Scholar] [CrossRef] - Andersen, H.C. Molecular dynamics simulations at constant pressure and/or temperature. J. Chem. Phys.
**1980**, 72, 2384–2393. [Google Scholar] [CrossRef][Green Version] - Yamanaka, S.; Yoshioka, K.; Uno, M.; Katsura, M.; Anada, H.; Matsuda, T.; Kobayashi, S. Thermal and mechanical properties of zirconium hydride. J. Alloys Compd.
**1999**, 293, 23–29. [Google Scholar] [CrossRef] - Ackland, G. Embrittlement and the bistable crystal structure of zirconium hydride. Phys. Rev. Lett.
**1998**, 80, 2233. [Google Scholar] [CrossRef] - Elsässer, C.; Schweizer, S.; Fähnle, M. Hydrogen Vibration in Cubic Dihydrides MH 2 (M = Ti, Zr), and Localization in Cubic Laves Phases ZrM 2 H 1/2 (M = V, Cr, Fe, Co). MRS Online Proc. Libr. Arch.
**1996**, 453. [Google Scholar] [CrossRef] - Ikeda, S.; Watanabe, N.; Kai, K. Crystal analyser TOF spectrometer (CAT). Physica B + C
**1983**, 120, 131–135. [Google Scholar] [CrossRef] - Kolesnikov, A.; Bashkin, I.; Belushkin, A.; Ponyatovsky, E.; Prager, M. Inelastic neutron scattering study of ordered gamma-ZrH. J. Phys. Condens. Matter
**1994**, 6, 8989. [Google Scholar] [CrossRef] - Kolesnikov, A.; Balagurov, A.; Bashkin, I.; Belushkin, A.; Ponyatovsky, E.; Prager, M. Neutron scattering studies of ordered gamma-ZrD. J. Phys. Condens. Matter
**1994**, 6, 8977. [Google Scholar] [CrossRef] - Hellman, O.; Abrikosov, I.; Simak, S. Lattice dynamics of anharmonic solids from first principles. Phys. Rev. B
**2011**, 84, 180301. [Google Scholar] [CrossRef][Green Version] - Hellman, O.; Abrikosov, I.A. Temperature-dependent effective third-order interatomic force constants from first principles. Phys. Rev. B
**2013**, 88, 144301. [Google Scholar] [CrossRef][Green Version] - Kresse, G.; Hafner, J. Ab initio molecular dynamics for liquid metals. Phys. Rev. B
**1993**, 47, 558. [Google Scholar] [CrossRef] - Kresse, G.; Furthmüller, J. Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set. Comput. Mater. Sci.
**1996**, 6, 15–50. [Google Scholar] [CrossRef] - RMG Website. Available online: https://www.rmgdft.org/ (accessed on 10 March 2021).
- Briggs, E.; Sullivan, D.; Bernholc, J. Real-space multigrid-based approach to large-scale electronic structure calculations. Phys. Rev. B
**1996**, 54, 14362. [Google Scholar] [CrossRef] - Hodak, M.; Wang, S.; Lu, W.; Bernholc, J. Implementation of ultrasoft pseudopotentials in large-scale grid-based electronic structure calculations. Phys. Rev. B
**2007**, 76, 085108. [Google Scholar] [CrossRef][Green Version] - Kresse, G.; Joubert, D. From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B
**1999**, 59, 1758. [Google Scholar] [CrossRef] - Perdew, J.P.; Chevary, J.A.; Vosko, S.H.; Jackson, K.A.; Pederson, M.R.; Singh, D.J.; Fiolhais, C. Atoms, molecules, solids, and surfaces: Applications of the generalized gradient approximation for exchange and correlation. Phys. Rev. B
**1992**, 46, 6671. [Google Scholar] [CrossRef] - Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett.
**1996**, 77, 3865. [Google Scholar] [CrossRef][Green Version] - Methfessel, M.; Paxton, A. High-precision sampling for Brillouin-zone integration in metals. Phys. Rev. B
**1989**, 40, 3616. [Google Scholar] [CrossRef][Green Version] - Zhang, J.; Cheng, Y.; Lu, W.; Briggs, E.; Ramirez-Cuesta, A.J.; Bernholc, J. Large-Scale Phonon Calculations Using the Real-Space Multigrid Method. J. Chem. Theory Comput.
**2019**, 15, 6859–6864. [Google Scholar] [CrossRef] [PubMed] - Togo, A.; Tanaka, I. First principles phonon calculations in materials science. Scr. Mater.
**2015**, 108, 1–5. [Google Scholar] [CrossRef][Green Version] - Mitchell, P.C.H. Vibrational Spectroscopy with Neutrons: With Applications in Chemistry, Biology, Materials Science and Catalysis; World Scientific: Singapore, 2005; Volume 3. [Google Scholar]
- Ramirez-Cuesta, A. aCLIMAX 4.0. 1, The new version of the software for analyzing and interpreting INS spectra. Comput. Phys. Commun.
**2004**, 157, 226–238. [Google Scholar] [CrossRef] - Cheng, Y.; Daemen, L.; Kolesnikov, A.; Ramirez-Cuesta, A. Simulation of inelastic neutron scattering spectra using OCLIMAX. J. Chem. Theory Comput.
**2019**, 15, 1974–1982. [Google Scholar] [CrossRef] [PubMed] - Seeger, P.A.; Daemen, L.L.; Larese, J.Z. Resolution of VISION, a crystal-analyzer spectrometer. Nucl. Instrum. Methods Phys. Res. Sect. A
**2009**, 604, 719–728. [Google Scholar] [CrossRef] - Goyal, P.S.; Penfold, J.; Tomkinson, J. Internal Rep. Technical Report, RAL-86-070; Rutherford Appleton Lab.: Chilton, UK, 1986. [Google Scholar]
- Penfold, J.; Tomkinson, J. Internal Rep. Technical Report, RAL-86-019; Rutherford Appleton Lab.: Chilton, UK, 1986. [Google Scholar]
- Rundle, R.; Shull, C.; Wollan, E.O. The crystal structure of thorium and zirconium dihydrides by X-ray and neutron diffraction. Acta Crystallogr.
**1952**, 5, 22–26. [Google Scholar] [CrossRef][Green Version] - Momma, K.; Izumi, F. VESTA 3 for three-dimensional visualization of crystal, volumetric and morphology data. J. Appl. Crystallogr.
**2011**, 44, 1272–1276. [Google Scholar] [CrossRef] - Hinuma, Y.; Pizzi, G.; Kumagai, Y.; Oba, F.; Tanaka, I. Band structure diagram paths based on crystallography. Comput. Mater. Sci.
**2017**, 128, 140–184. [Google Scholar] [CrossRef][Green Version] - Arnold, O.; Bilheux, J.C.; Borreguero, J.; Buts, A.; Campbell, S.I.; Chapon, L.; Doucet, M.; Draper, N.; Leal, R.F.; Gigg, M.; et al. Mantid—Data analysis and visualization package for neutron scattering and μ SR experiments. Nucl. Instrum. Methods Phys. Res. Sect. A
**2014**, 764, 156–166. [Google Scholar] [CrossRef][Green Version] - Ackland, G.; Warren, M.; Clark, S. Practical methods in ab initio lattice dynamics. J. Phys. Condens. Matter
**1997**, 9, 7861. [Google Scholar] [CrossRef][Green Version] - Olsson, P.; Massih, A.; Blomqvist, J.; Holston, A.M.A.; Bjerkén, C. Ab initio thermodynamics of zirconium hydrides and deuterides. Comput. Mater. Sci.
**2014**, 86, 211–222. [Google Scholar] [CrossRef] - Zhang, P.; Wang, B.T.; He, C.H.; Zhang, P. First-principles study of ground state properties of ZrH
_{2}. Comput. Mater. Sci.**2011**, 50, 3297–3302. [Google Scholar] [CrossRef] - See Supplementary Materials for details of structural parameters of ZrHx, and wavefunctions and their comparisons for H/D in selected planes.
- Nevou, L. 2D Time Indep. Schroedinger Equ. Solver. Available online: https://github.com/LaurentNevou/Q_Schrodinger2D_demo/ (accessed on 10 March 2021).

**Figure 1.**(

**a**) Crystal unit cells for ϵ-ZrH

_{2}(space group I4/mmm), γ-ZrH, and γ-ZrD (both are of space group Cccm), where Zr atoms are in green, H(D) atoms in red exist in all structures, and H(D) atoms in black only exist in ϵ-ZrH

_{2}. It should be pointed out that lattice constants are different between ϵ-ZrH

_{2}and γ-ZrD(H). Figures were drawn using the VESTA program [35]. (

**b**–

**d**) are calculated phonon dispersions and PDOS for the primitive cells of γ-ZrD, γ-ZrH, and ϵ-ZrH

_{2}, respectively. Note that the number of low energy bands in γ-ZrH and γ-ZrD is twice that of ϵ-ZrH

_{2}because the primitive cells are Zr

_{2}H

_{2}, Zr

_{2}D

_{2}, and ZrH

_{2}for γ-ZrH, γ-ZrD, and ϵ-ZrH

_{2}, respectively. The BZ paths and notation are adopted from [36].

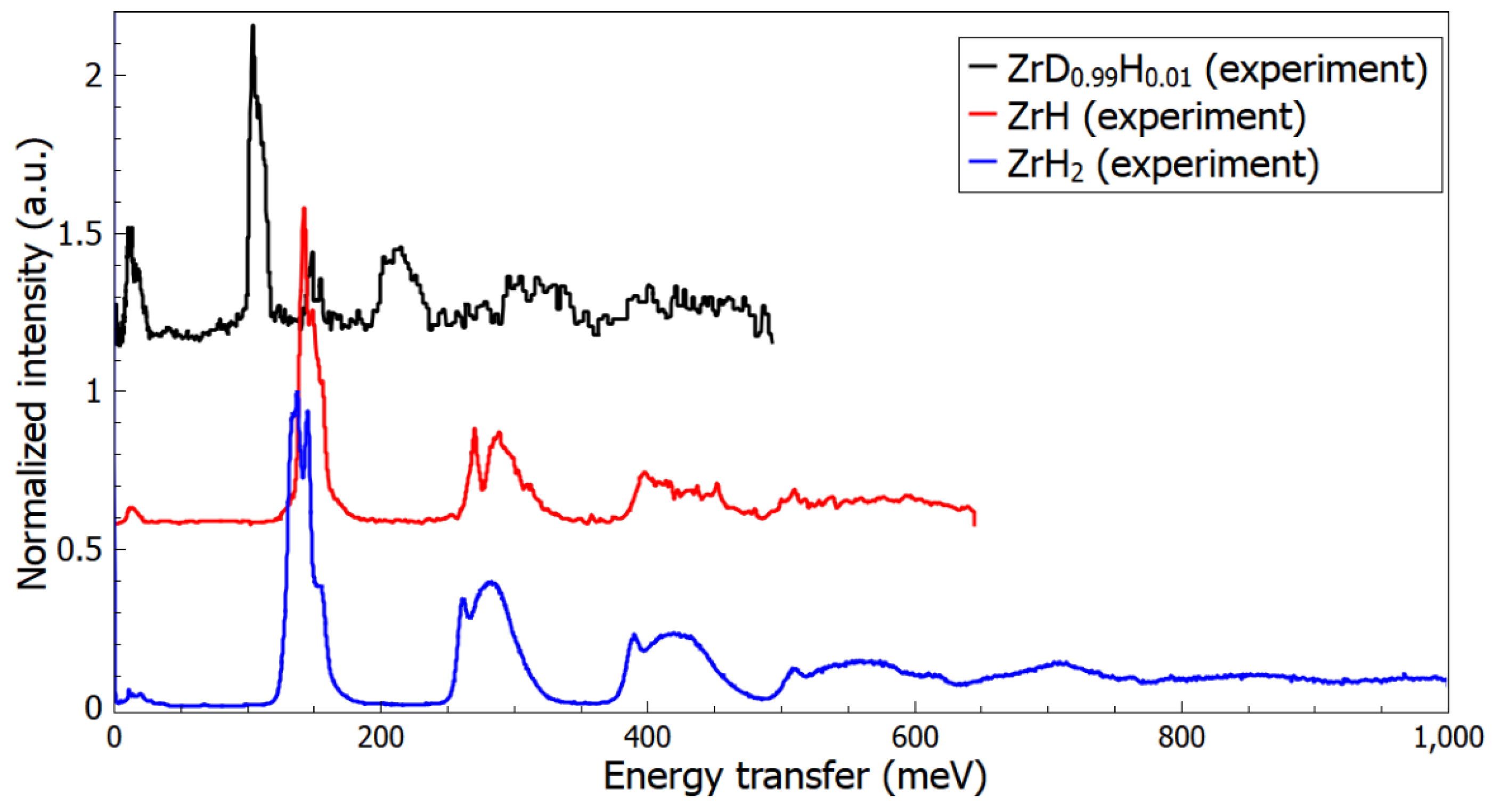

**Figure 2.**The INS spectra for ϵ-ZrH

_{2}measured with the VISION instrument at 5 K (blue), γ-ZrH (red) at 4.5 K, and γ-ZrD (black) at 30 K, both measured with the TFXA spectrometer. Spectra have been normalized to the same maximum value of the fundamental peaks. It must also be mentioned that the γ-ZrD sample has been contaminated by ∼1 at.% H, and also contained $\alpha $- and $\delta $-phases [13], with the actual ratio of Zr atoms in the different phases as 0.718(α-ZrD

_{0.001}) + 0.269(γ-ZrD

_{0.98}) + 0.013(δ-ZrD

_{1.2}), which results in extra peaks at ∼140 meV and higher intensity of the lattice modes (<30 meV) compared to the expected spectrum for pure γ-ZrD. Figures were drawn using the Mantid program [37].

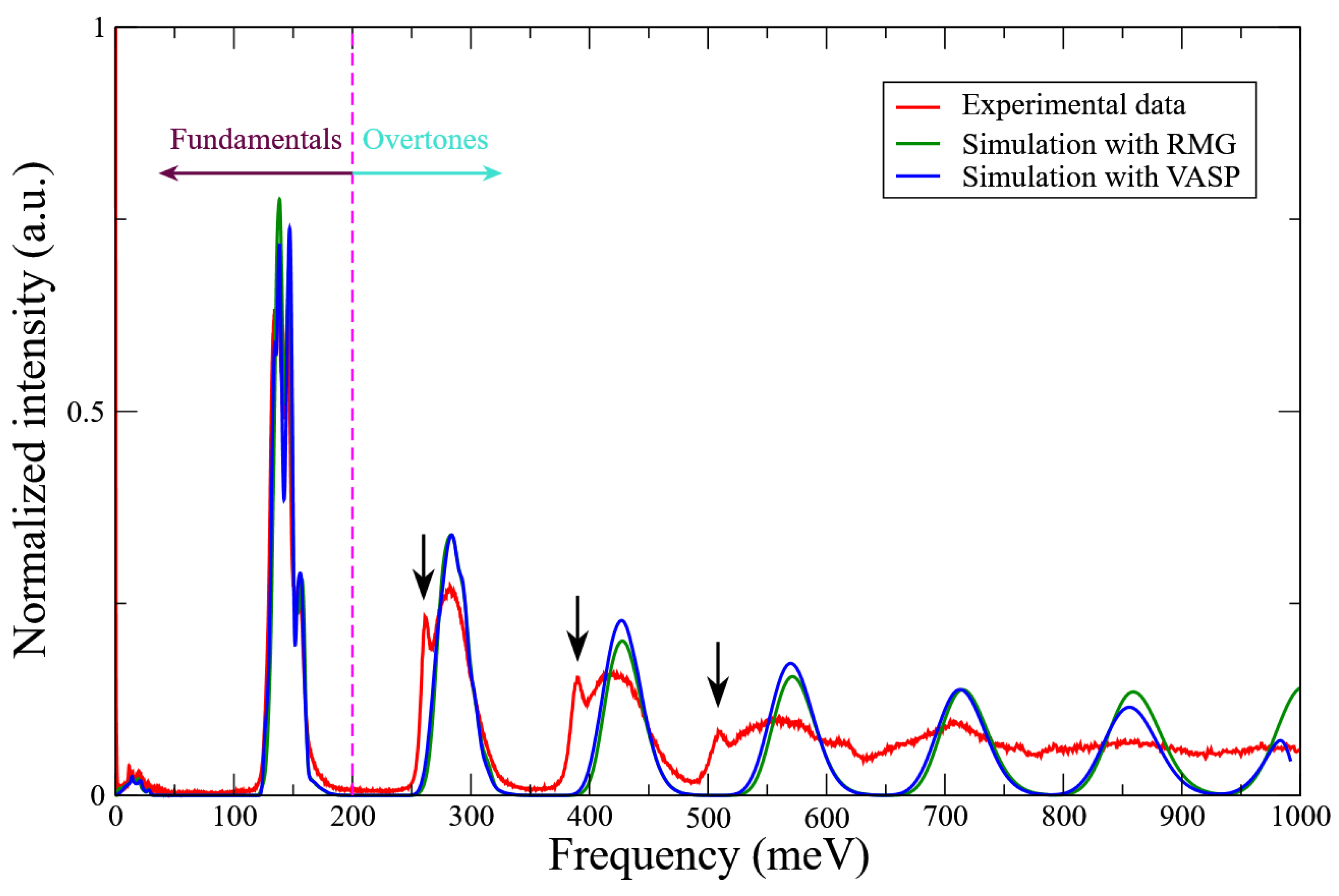

**Figure 3.**The VISION INS spectrum (red) at 5 K and the simulated spectra with RMG (green) and VASP (blue) at 0 K for ϵ-ZrH

_{2}. Spectra are normalized with respect to their area under the fundamental curve. Black arrows are marking peaks resulting from anharmonic effects (split peaks), which do not exist in the simulated spectra in the harmonic approximation.

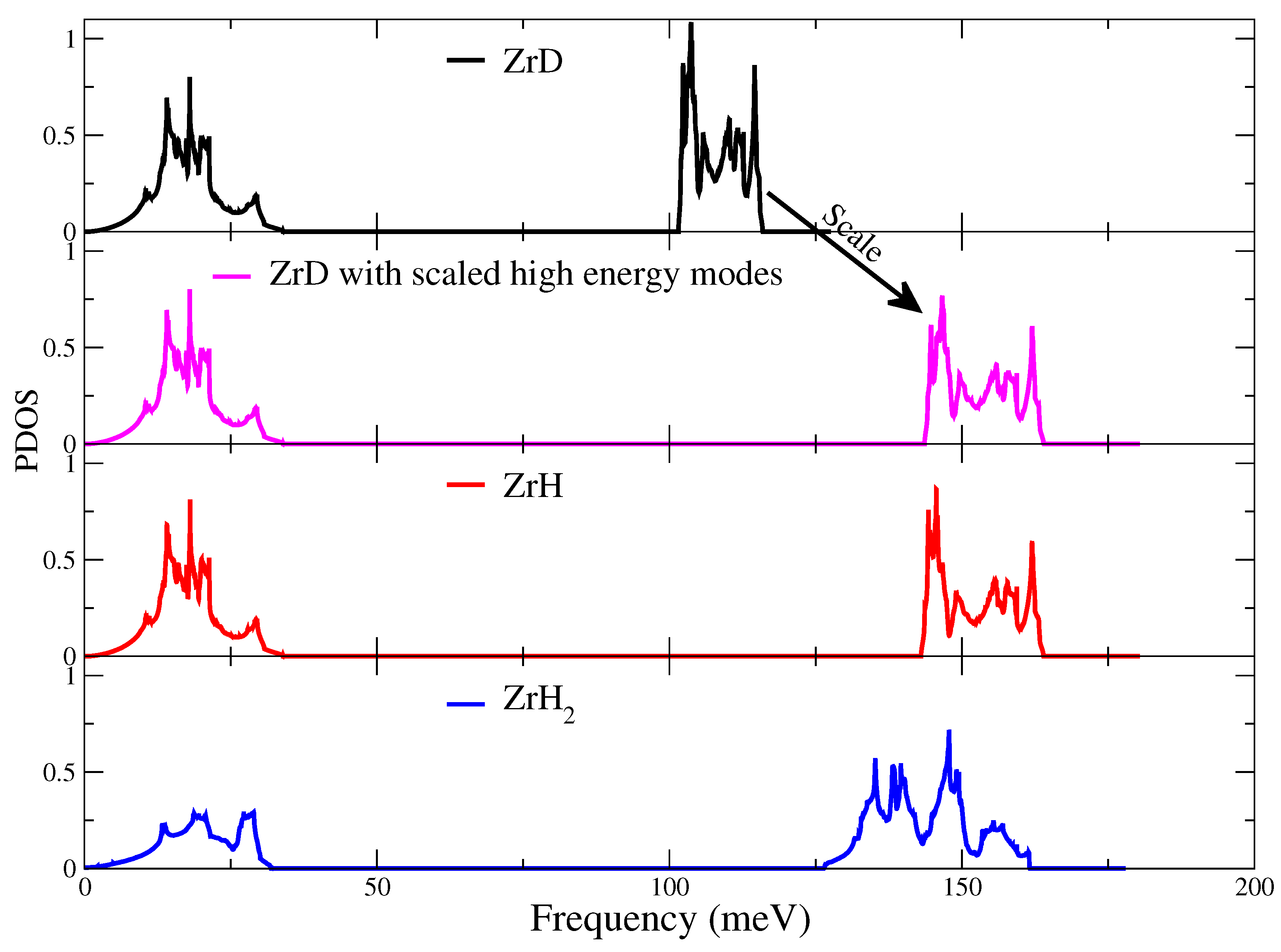

**Figure 4.**PDOS comparisons between γ-ZrD (black), γ-ZrD with scaled high energy modes (magenta), γ-ZrH (red), and ϵ-ZrH

_{2}(blue). The high-energy modes of γ-ZrD are scaled by a factor of $\sqrt{2}$ in energy, and to keep total DOS unchanged, they are also scaled by $1/\sqrt{2}$ in intensity. The scaling procedure is represented by the black arrow. Low-energy modes are almost identical between γ-ZrH and γ-ZrD, and high-energy modes are nearly identical after scaling.

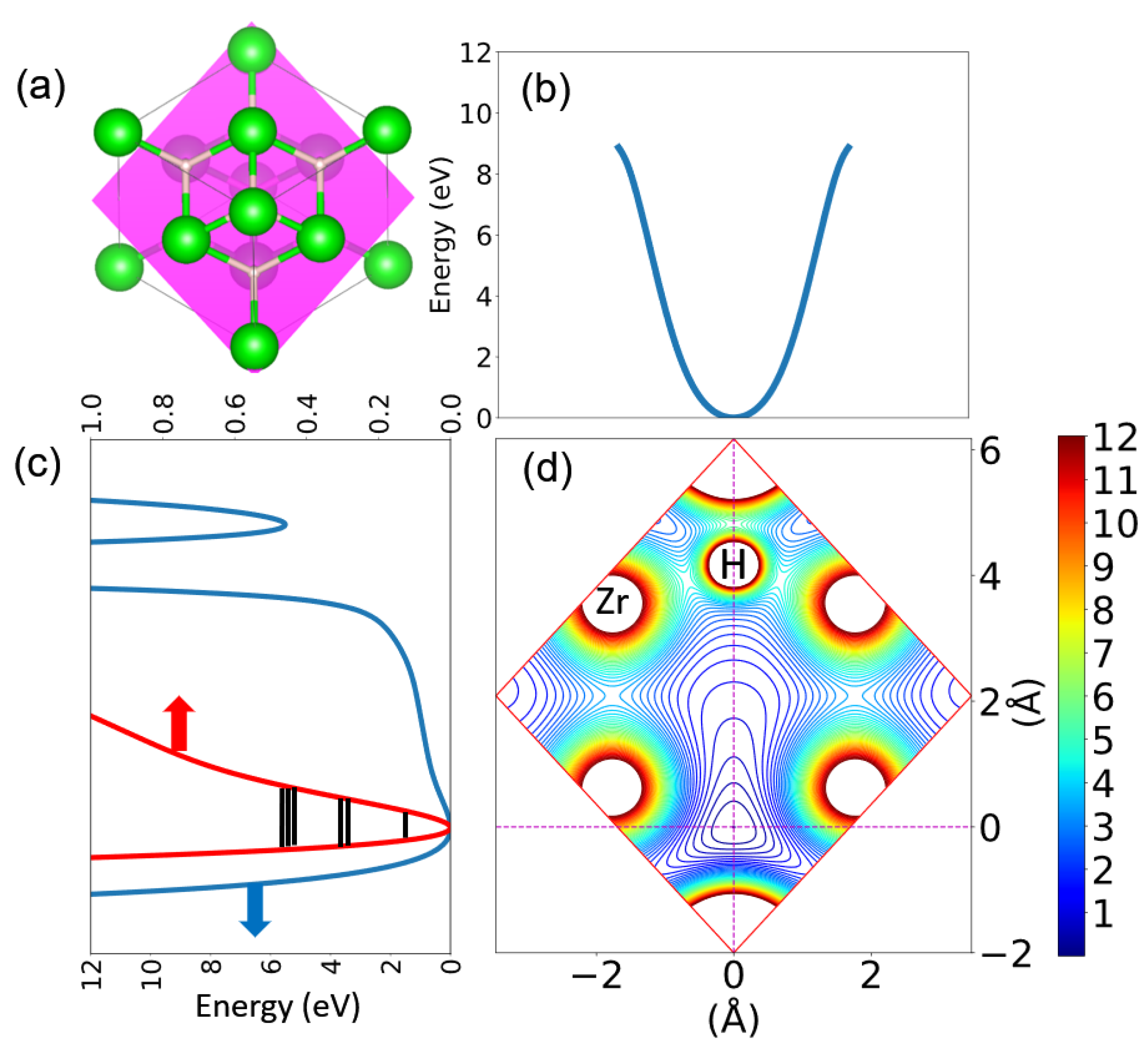

**Figure 5.**Crystal unit cells with sampling plane (

**a**,

**e**), contour plots (

**d**,

**h**) and sectional views of PES (

**b**,

**c**,

**f**,

**g**) for ZrH${}_{x}$. (

**a**–

**d**): plane (112) of $\u03f5$-ZrH${}_{2}$; (

**e**–

**h**): plane (−112) of $\gamma $-ZrH and $\gamma $-ZrD. Color scheme: Zr, green; H, white; sampling plane, pink. 50 equidistant energy levels within (0, 12) eV are used in contour plots, with minimum energies of 0 all located at (0, 0). Red lines in (

**c**,

**g**) are enlarged plots in vertical directions within the energy range of (0, 1) eV, and black lines indicate the lowest six eigenfrequencies (see Figure 6 for corresponding wavefunctions) from the Schrödinger equations of $\u03f5$-ZrH${}_{2}$ and $\gamma $-ZrD.

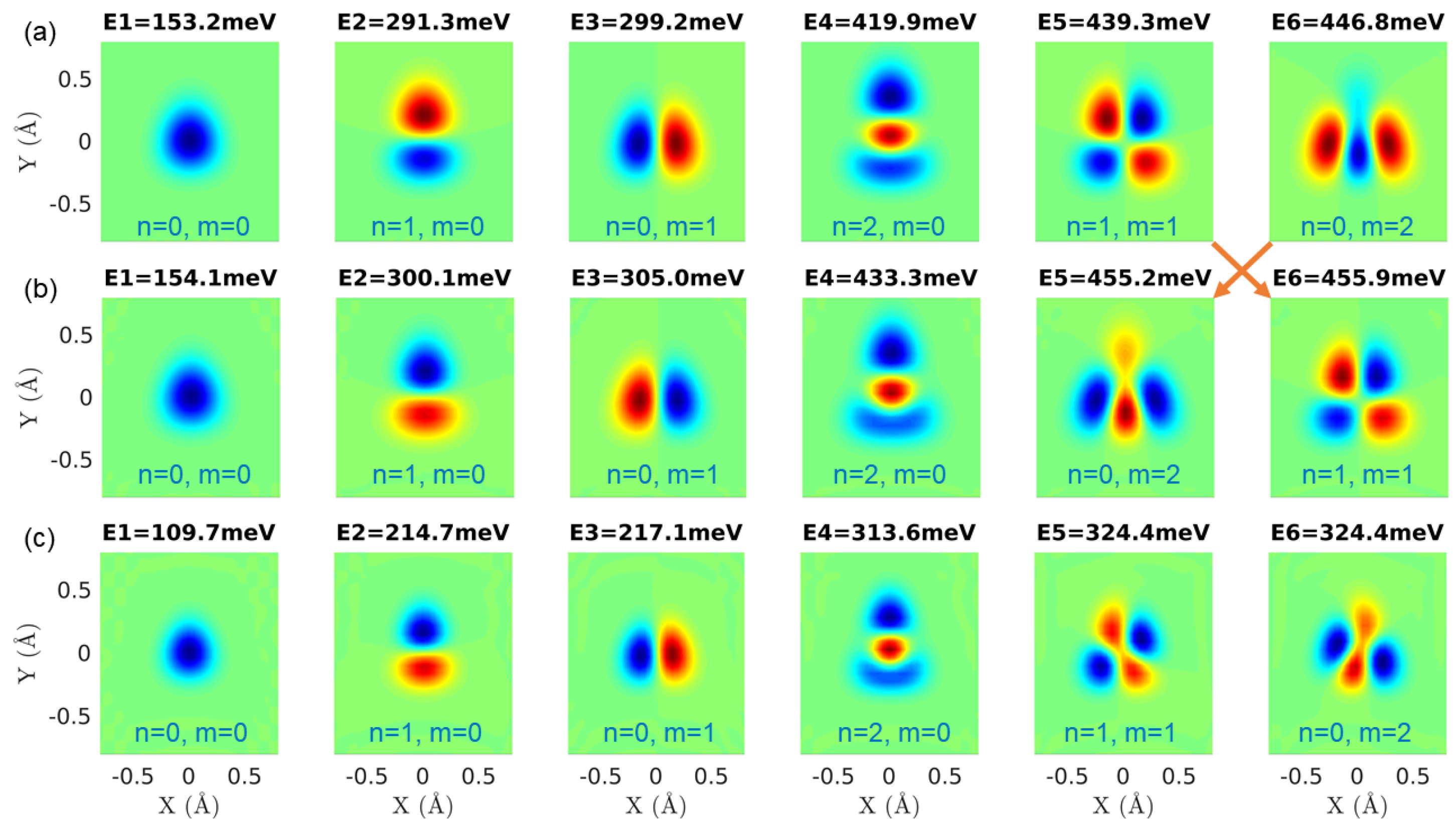

**Figure 6.**Lowest six eigenfrequencies and wavefunctions plotted in the range [−0.8, 0.8] Å × [−0.8, 0.8] Å by solving the Schrödinger equation for (

**a**) (112) plane of $\u03f5$-ZrH${}_{2}$, (

**b**) (−112) plane of $\gamma $-ZrH, and (

**c**) (−112) plane of $\gamma $-ZrD. Corresponding quantum numbers are denoted in $[n,m]$, where n is in the Y direction and m is in the X direction. Another interesting finding is that a crossover (marked by orange arrows) happens between the quantum numbers of $\u03f5$-ZrH${}_{2}$ and $\gamma $-ZrH, which are marked by orange arrows. The last two energy levels in $\gamma $-ZrD are degenerate. The Schrödinger equations were solved using [42].

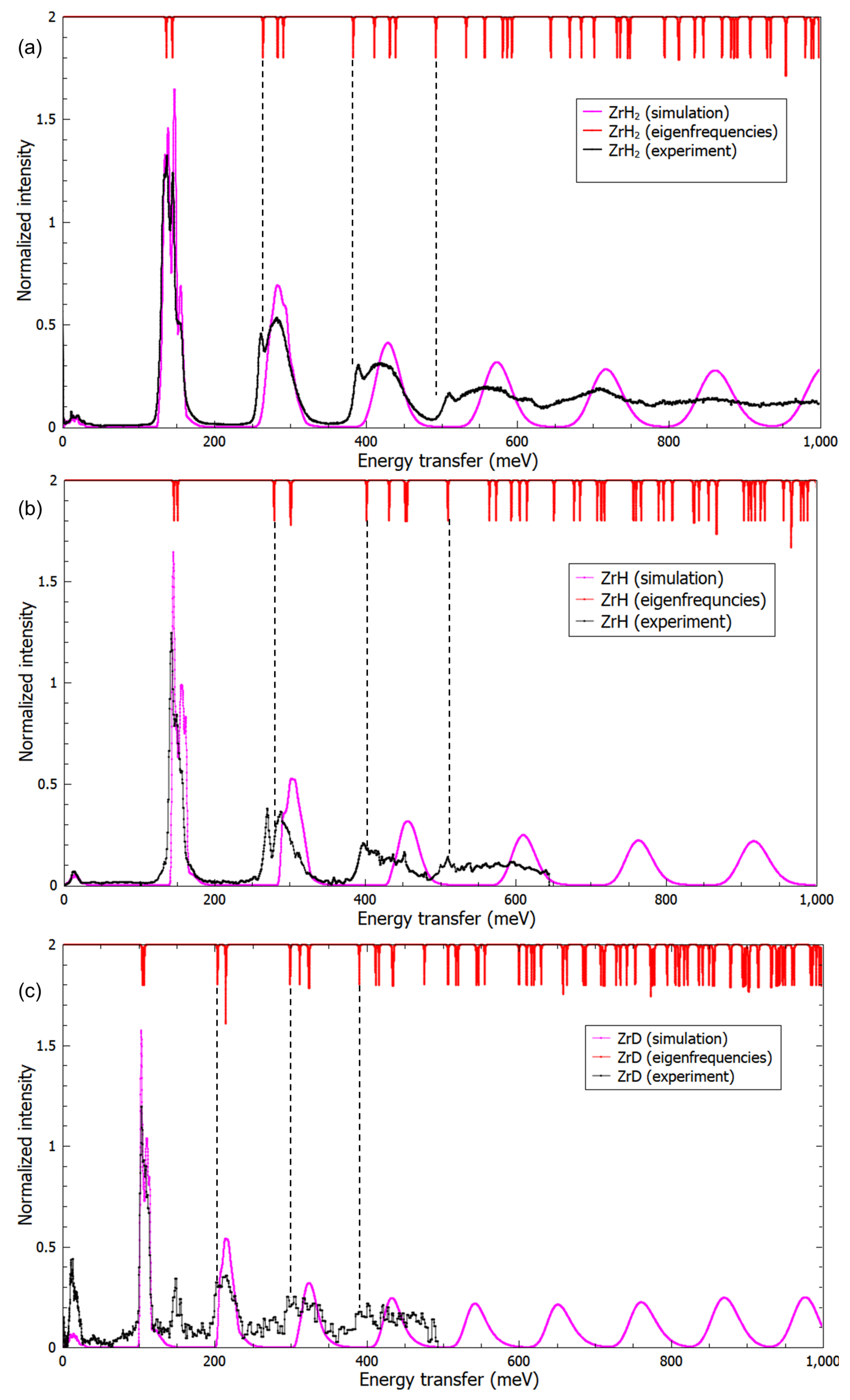

**Figure 7.**Comparisons between eigenfrequencies and experimental INS spectra for (

**a**) $\u03f5$-ZrH${}_{2}$, (

**b**) $\gamma $-ZrH, and (

**c**) $\gamma $-ZrD. Eigenfrequencies from the Schrödinger equation are in red lines, experimental INS spectra are in solid black lines, INS spectra simulated in harmonic approximation are in magenta lines, and the dashed black lines are for eye guidance of comparisons between eigenfrequencies and anharmonic peaks for the first three overtones.

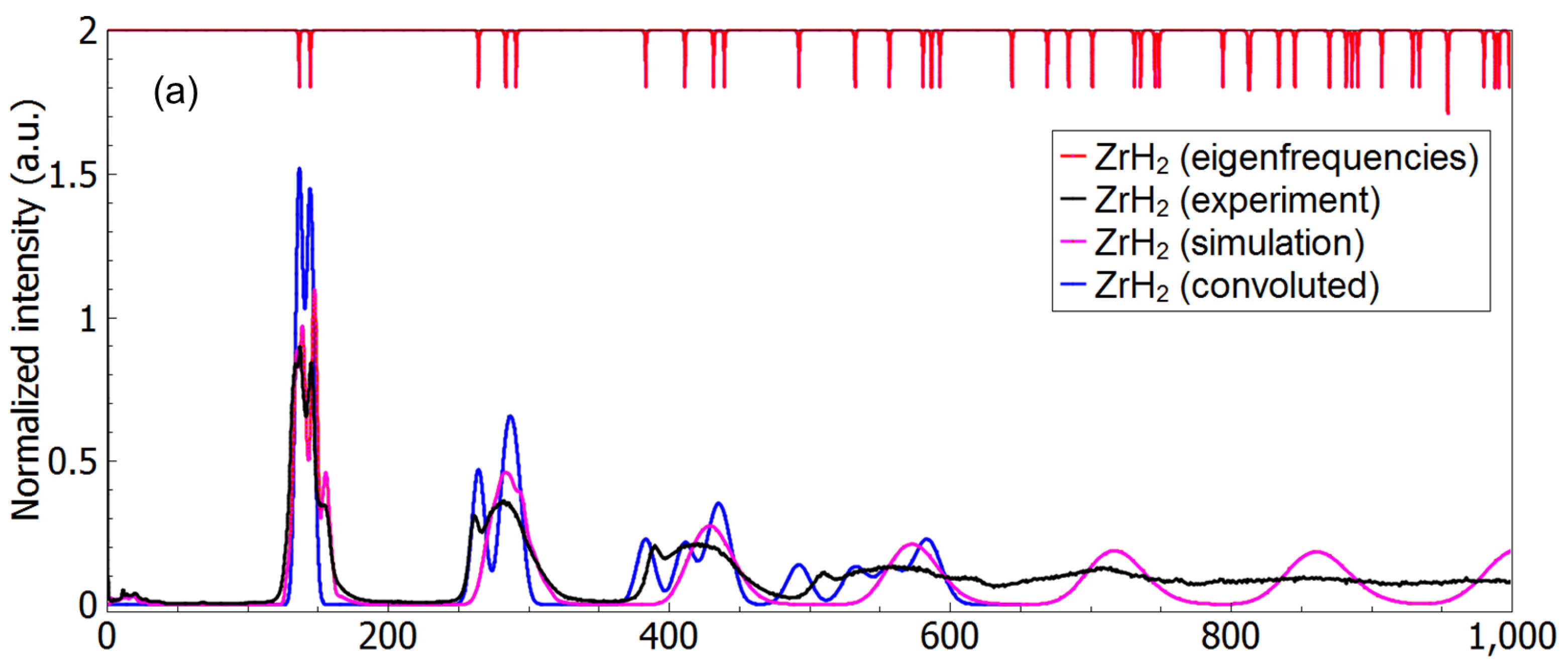

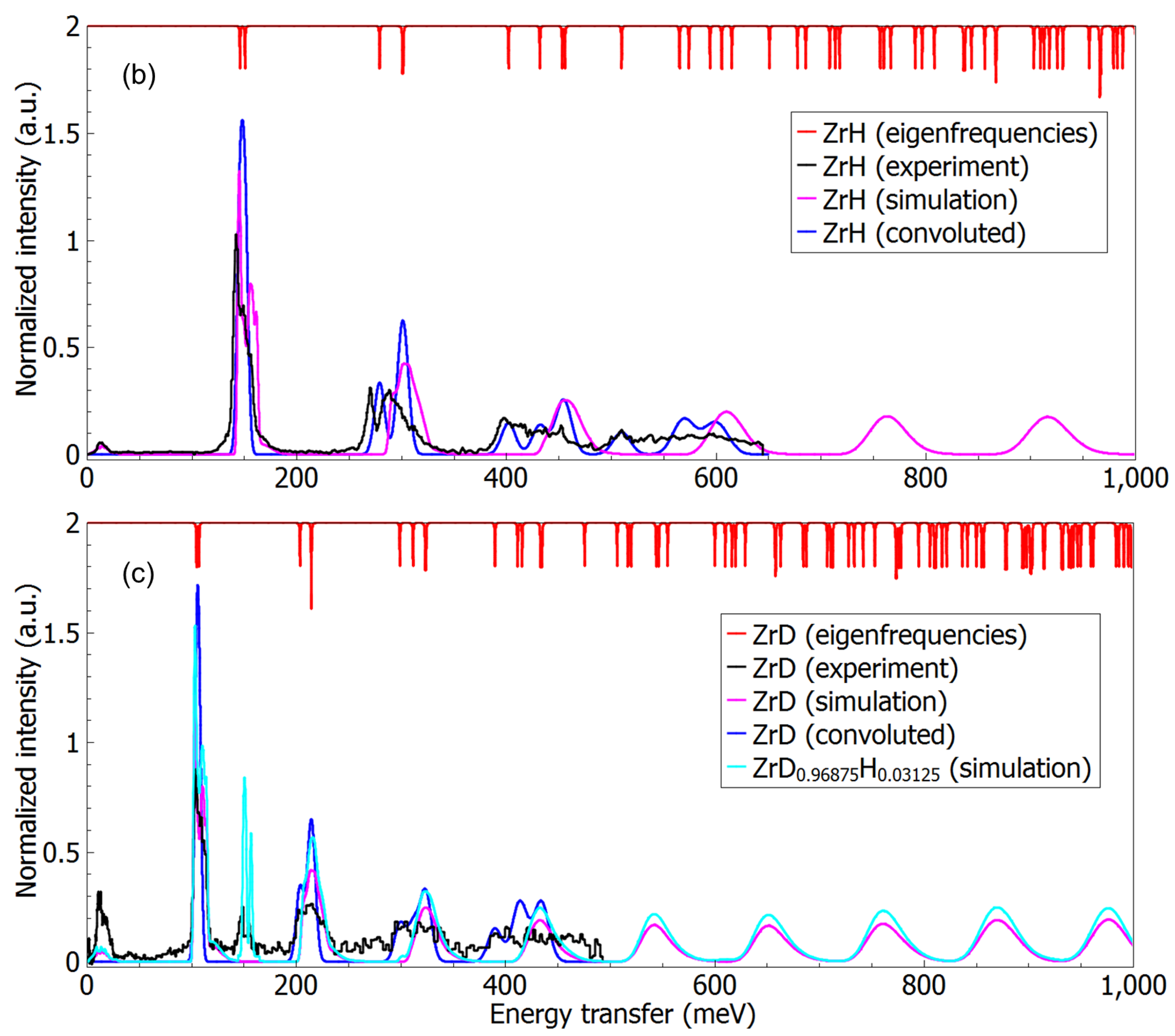

**Figure 8.**The INS spectra for (

**a**) $\u03f5$-ZrH${}_{2}$, (

**b**) $\gamma $-ZrH, and (

**c**) $\gamma $-ZrD. Eigenfrequencies from the Schrödinger equation are in red lines, the experimental INS spectra are in black lines, the INS spectra simulated in the harmonic approximation are in magenta lines, blue lines represent the spectra of eigenfrequencies convoluted with spectrometer resolution functions, and cyan lines in (

**c**) are the simulated spectrum of contaminated $\gamma $-ZrD. Spectra were normalized with respect to their area under the fundamental spectra curve. A convolution procedure was applied up to the third overtones. The ratio of the neutron scattering cross-section of H and D is 82.02/7.64 = 10.74, and $m\left(D\right)/m\left(H\right)=2$, therefore the fundamental mode intensity ratio of 1% H to 99% D should be ∼10.74 × 2 × 0.01/0.99 = 0.22 (without corrections for the Debye–Waller factor).

**Table 1.**The calculated MSD and $\sqrt{MSD}$ (in brackets) of Zr at (0, 0, 0) and H(D) at $(3/4,1/4,3/4)$ for ZrH${}_{x}$ in different energy ranges. Units are in Å${}^{2}$ for MSD and Å for $\sqrt{MSD}$. In $\gamma $-ZrH($\gamma $-ZrD), MSD(Zr) varies slightly (within 3%) between different Zr positions.

Property | <60 meV | >60 meV |
---|---|---|

$\u03f5$-ZrH${}_{2}$ | ||

MSD(H) | 0.00063 (0.025) | 0.0144 (0.12) |

MSD(Zr) | 0.0014 (0.037) | 0.00000132 (0.00115) |

$\frac{MSD\left(H\right)}{MSD\left(Zr\right)}$ | 0.45 (0.67) | 10,909.09 (104.45) |

$\gamma $-ZrH | ||

MSD(H) | 0.0008 (0.0283) | 0.0136 (0.1166) |

MSD(Zr) | 0.0015 (0.0387) | 0.00000079 (0.00089) |

$\frac{MSD\left(H\right)}{MSD\left(Zr\right)}$ | 0.53 (0.73) | 17,215.19 (131.21) |

$\gamma $-ZrD | ||

MSD(D) | 0.0008 (0.0283) | 0.0095 (0.0976) |

MSD(Zr) | 0.0015 (0.0387) | 0.000002245 (0.001498) |

$\frac{MSD\left(D\right)}{MSD\left(Zr\right)}$ | 0.53 (0.73) | 4231.63 (65.05) |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
