Article

Accessing Low-Valent Titanium CCC-NHC Complexes: Toward Nitrogen Fixation

Department of Chemistry, Mississippi State University, Mississippi State, MS 39762-9573, USA
*
Author to whom correspondence should be addressed.
Inorganics 2021, 9(2), 15; https://doi.org/10.3390/inorganics9020015
Submission received: 11 December 2020 / Revised: 15 January 2021 / Accepted: 29 January 2021 / Published: 8 February 2021
(This article belongs to the Special Issue First-Row Transition Metal Complexes)

Abstract

:
The dramatic expansion of the earth’s population can be directly correlated with the Haber–Bosch process for nitrogen fixation becoming widely available after World War II. The ready availability of artificial fertilizer derived thereof dramatically improved food supplies world-wide. Recently, artificial nitrogen fixation surpassed the natural process. The Haber–Bosch process is extremely energy and green-house gas intensive due to its high-temperature and H2 demands. Many low valent Ti(II) complexes of N2 are known. We report herein a preliminary investigation of the low-valent chemistry of Ti with the CCC-NHC ligand architecture. These CCC-NHC pincer Ti(IV) complexes are readily reduced with KC8 or Mg powder. Preliminary results indicate very different reactivity patterns with alkynes and phosphines for this ligand architecture versus prior ligands. Successful reduction to an intact low-valent (CCC-NHC)Ti complex was confirmed by re-oxidation with PhICl2.

1. Introduction

Nitrogen is one of the most important elements present in essential molecules (amino acids, proteins, enzymes and nucleic acids and medicines) for life [1]. The bond strength of dinitrogen limits its chemical reactivity which is fortunate given its abundance in the atmosphere (78%) [2]. The biological transformation of dinitrogen into ammonia for conversion into more complicated biomolecules, is called natural nitrogen fixation (NNF). On the other hand, conversion of dinitrogen into useful molecules unaided by nature is called artificial nitrogen fixation (ANF). Recently, ANF surpassed NNF in terms of the total amount [1]. The challenges of ANF are enshrined in the Haber–Bosch (H–B) process (1913), which has been called the most important invention of the 20th century [1,2,3]. The H–B process converts nitrogen purified from the atmosphere and externally supplied hydrogen into gaseous ammonia at a very high temperature (650–750 K) and extreme pressure (50–200 bar) in the presence of a heterogeneous catalyst [4,5,6,7,8]. The growth of the human population has been mapped directly to the growth of ammonia production via the H–B process to supply artificial fertilizers post World War II [8,9]. A whopping 40% of the total human population depends on ANF for an adequate food supply [10,11]. The ever-expanding need for food grown with artificial fertilizers generates 450 million metric tons of carbon dioxide (~1.9 metric tons of CO2 per metric ton of ammonia produced [12]), consumes 2% of the world’s total natural gas output, results in 1% of all human emissions and 2% of the world’s total energy consumption on an annual basis [13,14,15,16]. Ammonia produced through ANF is utilized in multiple large-scale industries apart from fertilizers; examples include: pharmaceuticals, explosives, plastic manufacturing, mining and metallurgy, production of nitric acid, et cetera [8]. Recently there is an increasing interest in using ammonia as the energy carrier of the future [17,18]. Further increase in conventional ANF will be ecologically undesirable in terms of carbon footprint, therefore new environmentally-friendly methods for ANF are required [19].
Improving the efficiency of ANF will lead to huge benefits on a world-wide scale. Multiple approaches (Figure 1) have been undertaken to achieve this including: improvement of the H–B process conditions by exploring biological-mimics, homogeneous or heterogeneous catalysts designed to operate at milder conditions, semiconductor-based photocatalysis for nitrogen fixation, greener microwave plasma methods to synthesize ammonia and NOx, and hybrid systems between NNF and ANF such as development of synthetic rhizospheres (SRS), which helps intensify the NNF in plants via the development of a synthetic media [1,17,18,20,21,22,23].
Binding of dinitrogen to a metal center depends on the formation of a stable reduced metal center, which can in turn reduce a dinitrogen molecule. Organometallic chemists all over the world have attempted this feat with different levels of success [24]. Schrock and Yandulov synthesized the first successful nitrogenase model system that evolved ammonia from a dinitrogen species using (LutH)BArF4 and CrCp*2 as protonating and reducing agents, respectively [25]. The Peters group followed with an organometallic complex with first row transition metal (Fe) with a maximum of 93 equivalents of ammonia evolution per iron center [3,26,27]. Additional interest in first row transition metal PNP pincer complexes as ANF agents began in 2015 when the Lu group published results involving a cobalt dinitrogen complex [26]. In 2016, the Nishibayashi group also developed Fe complexes based on a PNP pincer ligand with a pyrrolidine unit at the center and a terminal di-tert-butylphosphine to effectively catalyze ANF [27]. Reduction of (FeCl(PNP)) with KC8 yielded the iron(I)-N2 complex [27]. The Nishibayashi group developed another first-row pincer complex (Co-PNP type) with a central pyrrolide moiety, where the Co-dinitrogen complexes were synthesized via reduction of paramagnetic precursors (CoCl(tBuPNP)) and (CoCl(cyPNP)) with KC8 under dinitrogen and were examined in detail with regard to the conversion to ammonia under ambient reaction conditions. Recently, the Nishibayashi group also developed a low-cost and environment-friendly Mo-based PNP pincer ligand to synthesize ammonia (up to 4350 equivalents, turnover frequency of around 117/min) under ambient conditions at a rate double that previously reported [28,29].
Titanium is an earth-abundant first row metal [30]. “Ti(II)”-dinitrogen complexes are well known (Figure 2) [28,29,30,31,32]. Many other valuable reaction pathways for low-valent Ti(II), such as reductive coupling of alkynes and catalytic Pauson–Khand reactions are known (Figure 2) [33].
Pincer ligands containing N-heterocyclic carbenes (NHC) have emerged as an important contribution for homogeneous catalysis [34,35,36,37]. Strong electron donating ability makes them an alternative to the tertiary phosphine containing ligands well known to bind dinitrogen [38,39,40,41,42]. Recent reports of CCC-NHC pincer complexes of first row transition metal complexes have been reported to bind dinitrogen effectively [43]. Evidence of such reactivity in an electron rich environment suggested the opportunity to pursue strong electron donating ligands first reported by Hollis et al. [44,45]. In light of the background, previously reported, robust and easy to synthesize first row transition metal complexes of the CCC-NHC pincer ligand were chosen as a stable starting material to access low valent (CCC-NHC)Ti pincer complexes to study their ability to bind dinitrogen [46]. In this contribution, initial investigations aimed at reducing (CCC-NHC)Ti(IV) pincer complexes directed toward binding and reducing N2 and studies on redox behavior of similar compounds are reported for the first time. Reductions were conducted with Mg or KC8 and the reactivity of the reduced species were investigated. The reactivity of the reduced species with alkynes, phosphines, CO and PhICl2 are reported.

2. Results and Discussion

To study dinitrogen binding to low valent (CCC-NHC)Ti pincer complexes, well known, previously reported (CCC-NHC)dichloro mono-amido Ti pincer complex 1 was chosen as a starting material for initial studies (Scheme 1a, Figure 3A–D). All reactions were monitored by no-D NMR techniques in THF with a few drops of C6D6 [47]. Illustrated in Figure 3A (CD2Cl2) and 3B (no-D THF) are the characteristic signals for identifying amido complex 1 by its diastereotopic N-CH2-Pr (Ha and Ha’) signals at δ~4.3 and a methyl triplet (Hb) at δ~0.9. Very slight shifts due to solvent effects were observed. Complex 1 had limited solubility in THF. Complex 1 in THF was sonicated with excess Mg-powder in THF under nitrogen atmosphere at room-temperature to attempt dinitrogen binding via low valent (CCC-NHC)Ti in situ (Scheme 1a, Figure 3C). Upon sonication of the reaction mixture, a thick light-yellow precipitate under a faint yellow supernatant was observed (Scheme 1). Upon addition of the reductant, the diamagnetic NMR spectrum (Figure 3B) became paramagnetically broadened and the spectrum was featureless (Scheme 1a, Figure 3C). The broadened spectrum for the Mg reduction reaction is illustrated in Figure 3C. No peaks are discernable.
This observation was consistent with reduction of complex 1 to intermediate species 3 (Scheme 1a, Figure 3C, Figures S2–S4). This faint yellow supernatant was then subjected to a multitude of crystallization conditions to identify the structure of the intermediate 3 or the target nitrogen adduct via the determination of the crystal structure. Despite our best efforts, intermediate 3 remained intractable spectroscopically and no crystalline material has been isolated thus far. With no crystalline material in hand, reoxidation reaction on reduced intermediate was sought to provide insight into the structure of the intermediate. Iodobenzene dichloride is well known to oxidatively halogenate group 4 organometallic compounds [49,50]. Freshly prepared iodobenzene dichloride was combined with the mixture containing reduced intermediate 3 in THF [51] (Scheme 1c, Figure 3D). Oxidative halogenation of intermediate 3 dissolved the resulting faint yellow precipitate and resulted in a homogeneous yellow colored solution, which upon analysis with no-D 1H NMR spectrum was surprisingly consistent with previously reported trichloride 2 (triplets Hc and Hd at δ 4.33 and at δ 0.84) and not the amido complex 1 (diastereotopic protons Ha, Ha’ δ~4.3 and triplet Hb δ~0.9) (Scheme 1c, Figure 3A,D,G, Figures S2–S4) [46]. Additionally, a singlet was observed at δ 2.64 (THF) as illustrated in Figure 3D, e, which was consistent with the signal for Mg-dimethyl amido species as previously reported in literature (C6D6) [48]. In a separate experiment, the faint yellow supernatant was decanted to separate the light-yellow precipitate and understand its nature. The precipitate was then dried under reduced pressure and dissolved in CD2Cl2 for spectroscopic data collection purposes (Figure 3E and Figure S1). The resulting solution was subjected to a multitude of crystallization conditions to crystallize and therefore characterize the intermediate 3 or a target nitrogen adduct. Despite our best efforts, the intermediate 3 remained intractable spectroscopically and no crystalline material has been isolated thus far. The broad singlet at δ 2.64 was consistent with the signal for Mg-dimethyl amido species as previously reported in literature (δ 2.64, C6D6) (Figure 3E) [48]. The broadening of the 1H NMR peak of the Mg-dimethyl amido species was consistent with its interaction with the metal core of the reduced intermediate. With no crystal of the desired nitrogen adduct or an intermediate, reoxidation reaction on reduced intermediate was sought to provide insight into the structure of the intermediate. A faint yellow homogeneous solution of the resulting precipitate in dichloromethane was allowed to react with iodobenzene dichloride. The resulting yellow solution was observed to contain a mixture of multiple compounds via 1H NMR spectroscopy. This solution was then allowed to react with TMSCl to convert any (CCC-NHC)dimethylamido Ti species into a (CCC-NHC) TiCl3 as previously reported [46]. The resulting yellow solution was evaporated to dryness yielding a yellow solid. It was then precipitated with hexane from a homogeneous solution of dichloromethane. The supernatant was decanted, and the residual yellow precipitate was then dried under reduced pressure. The 1H NMR analysis of the homogeneous, yellow solution of the resulting precipitate in dichloromethane was also contrary to expectation, consistent with previously reported trichloride 2 and not the amido complex 1 (Figure 3A,F,G and Figure S1) [46]. Additionally, a broad singlet was observed at δ 2.89 (THF) as illustrated in Figure 3F, f which was attributed to the signal for (Me2N(SiMe3)2)+ as cited in literature in a similar chemical environment [52]. The broader than usual peaks in the resulting 1H NMR spectra (Figure 3F) were attributed to the dynamic exchange with excess chloride anions present in the solution (Figure 3F and Figure S1). The aromatic peaks around δ 9.5 in the resulting 1H NMR spectra were attributed to partially decomposed (CCC-NHC)Ti pincer complex present in the solution as previously reported in literature [44] (Figure S1). The minimal shift in the position of 1H NMR peaks observed in the resulting 1H NMR spectra was attributed to the difference in the chemical environment in the resulting solution (Figure S1). The fact that the singlet from the resulting Mg-NMe2 species’ NMR was also broadened in reducing conditions (Figure 3C) is consistent with an interaction with the reduced Ti-species, which likely inhibits the coordination of weak ligands such as N2. However, results clearly demonstrated that the CCC-NHC ligand and Ti are still bonded in the low valent state.
Since the Mg-amido species (vide supra) were likely impeding the formation of N2-adducts, KC8 was chosen as an alternative reducing agent. A light red colored homogeneous solution of CCC-NHC)Ti(IV)Cl2NMe2 1 was sonicated with two equivalents of freshly prepared KC8 in THF at room-temperature to attempt nitrogen binding in situ in an NMR tube (Scheme 1). Paramagnetic broadening of all (overlapping diastereotopic peaks (Ha, Ha’) δ~4.3 and triplet peaks (Hb) δ~0.9) major peaks in a no-D 1H NMR experiment of the homogeneous reaction mixture over the residual graphite was consistent with reduction to species 3 (Figures S5 and S6). The resulting homogeneous solution was deep yellow-green in color after the removal of heterogeneous reducing agent via filtration through a celite plug. The resulting solution was subjected to a multitude of crystallization conditions to crystallize and therefore characterize the intermediate or a target nitrogen adduct. Despite our best efforts, the intermediate remained intractable spectroscopically and no crystalline material has been isolated thus far. With no crystal available; reoxidation was pursued to provide insight into the structure of the intermediate. Freshly prepared iodobenzene dichloride was combined with the homogeneous deep yellow-green colored reaction mixture containing reduced intermediate 3 at room-temperature in THF [51] (Scheme 1). Oxidative halogenation on 3 also resulted in a homogeneous yellow colored solution which upon analysis with 1H NMR was consistent with previously reported CCC-NHC)Ti(IV)Cl3 2 (triplets Hc and Hd at δ 4.33 and at δ 0.84) and not the amido complex 1 (overlapping diastereotopic peaks (Ha, Ha’) δ~4.3 and triplet peaks (Hb) δ~0.9) (Scheme 1, SI, Figure 3A,G) [46]. Reoxidation of intractable intermediate 3 to complex 2 repeatedly, led to the decision to choose trichloride 2 for further evaluation (Scheme 1b, Figure 4A–C). Illustrated in Figure 4A (no-D THF) are the characteristic signals for identifying trichloro complex 2 by its triplets Hc and Hd at δ 4.33 and at δ 0.84. To attempt nitrogen fixation by low oxidation states of Ti exclusively, stoichiometric reduction reactions of complex 2 were executed with one- and two-fold molar excesses of freshly prepared KC8 as follows [53]. A homogeneous solution of compound 2 in an NMR tube, was sonicated with equimolar ratio of KC8 in THF at ambient temperature under inert conditions (Figure 4B). The resulting homogeneous solution looked orange-yellow upon removal of the heterogeneous reducing agent via filtration through a celite plug. Paramagnetic broadening of all (triplets Hc and Hd at δ 4.33 and at δ 0.84) major peaks in a no-D 1H NMR analysis of the solution was consistent with reduction in both the cases (Figure 4B, Figures S7 and S9).
The homogeneous solution of intermediate 3′ was subjected to a multitude of crystallization conditions to isolate and crystallize the intermediate. Despite our best efforts, no crystalline material has been isolated so far. Unable to isolate the target dinitrogen adduct or the intermediate, freshly prepared iodobenzene dichloride was allowed to react with a homogeneous solution containing reduced intermediate 3′ in situ in THF, at room-temperature under inert conditions. Upon sonication in an NMR tube, the reaction mixture restored its initial yellow color (Scheme 1c, Figure 4C). The re-appearance of the characteristic triplets (Hc and Hd) at δ 4.33 and at δ 0.84 in the no-D 1H NMR experiment in THF was consistent with formation of compound 2 via oxidative halogenation (Scheme 1c, Figure 4C, Figures S7 and S8). A homogeneous solution of compound 2 in an NMR tube was also sonicated with two equivalents of freshly prepared KC8 in THF in order to attempt nitrogen fixation at ambient temperature under inert conditions. The resulting solution was light yellow in color after the removal of resulting heterogeneous reducing agent via filtration through a celite plug. Upon addition of the reducing agent, diamagnetic NMR spectrum becomes paramagnetically broadened and the resulting spectrum becomes featureless. The resulting NMR spectrum was consistent with the formation of reduced species 3′. The homogeneous solution of intermediate 3′ was subjected to a multitude of crystallization conditions to isolate and crystallize the intermediate, despite our best efforts, no crystalline material has been isolated so far. Unable to isolate the target dinitrogen adduct or the intermediate, freshly prepared iodobenzene dichloride was allowed to react with a homogeneous solution containing reduced intermediate 3′ in situ in THF, at room-temperature under inert conditions. Upon sonication in an NMR tube, the reaction mixture restored its initial yellow color (Scheme 1c, Figure 4C). The re-appearance of the characteristic triplets (Hc and Hd) at δ 4.33 and at δ 0.84 in the no-D 1H NMR experiment in THF was consistent with formation of compound 2 via oxidative halogenation (Scheme 1c, Figure 4C and SI). Since quantitative reoxidation reactions on the reduced species with one and two equivalents of reducing agent resulted in the same final compound, compound 2 was sonicated with excess of KC8 to ensure quantitative reduction. The resulting homogeneous solution looked wine-red upon removal of the resulting heterogeneous reducing agent via filtration through a celite plug. Paramagnetic broadening of all major peaks (triplets Hc and Hd at δ 4.33 and at δ 0.84) in the no-D 1H NMR experiment was consistent with reduction. The resulting homogeneous solution containing intermediate 3′ in THF was also subjected to a multitude of crystallization conditions to isolate and crystallize the intermediate, despite our best efforts, no crystalline material has been isolated thus far. Unable to isolate the target dinitrogen adduct or the intermediate, freshly prepared iodobenzene dichloride was allowed to react with a homogeneous solution of reduced intermediate 3′ at room-temperature in THF in situ under inert conditions. The resulting homogeneous reaction mixture restored its initial yellow color. The re-appearance of the characteristic peaks (triplets Hc and Hd at δ 4.33 and at δ 0.84) in the no-D 1H NMR experiment in THF was consistent with formation of compound 2 via oxidative halogenation (Scheme 1, Figure 4). A homogeneous solution of compound 2 was subsequently sonicated with excess Mg-powder at ambient temperature and under inert reaction conditions. A fluffy yellow precipitate was observed (Scheme 1b, Figure S8). Paramagnetic broadening of all peaks (triplets Hc and Hd at δ 4.33 and at δ 0.84 of 2) in the no-D 1H NMR spectrum of the supernatant was consistent with reduction to species 3′(Figure S8). A homogeneous solution of the resulting precipitate was collected and subjected to a multitude of crystallization conditions to crystallize and therefore characterize the intermediate or a target nitrogen adduct. Despite our best efforts, the intermediate remained intractable spectroscopically and no crystalline material has been isolated so far. With no crystal of desired nitrogen adduct or an intermediate available, in situ reoxidation reaction on intermediate was pursued to provide insight into the structure of the intermediate (Scheme 1c). Freshly prepared iodobenzene dichloride was allowed to react with a homogeneous solution of reduced intermediate 3′ in THF at room-temperature under inert atmosphere. Upon sonication, the resulting homogeneous reaction mixture restored its initial yellow color. The re-appearance of the characteristic triplets (Hc and Hd) at δ 4.33 and at δ 0.84 in the no-D 1H NMR experiment in THF was consistent with formation of compound 2 (Scheme 1) via oxidative halogenation (Figure S8).
Hence, it was interesting to observe that both intermediates 3 and 3′ gave rise to the same symmetric characteristic signals of compound 2 after the redox cycling was complete (Scheme 1, Figure 3, Figure 4 and supplementary). This phenomenon was consistent with a robust, redox stable metal binding to the CCC-NHC core and a common reduced intermediate. Since the reactions with stoichiometric as well as excess reducing agents resulted in complex 2 upon reoxidation, only excess reductants were used from here onwards to ensure complete reduction. Evidence of (MgClNMe2) and (Me2N(SiMe3)2)+ complexes after reoxidation of reduced complex 1 with Mg was consistent with the facile elimination of electron donating dimethylamine leading to a stable reduced intermediate (Figure 3 and SI). Resurgence of complex 2 after the oxidation of both reduced intermediates 3 and 3′ hints at their similarity in structure and robustness of the metal-backbone binding (Scheme 1, Figure 3, Figure 4 and SI). Reduction followed by re-oxidation with iodobenzene dichloride followed similar trends in KC8 and Mg powder (Scheme 1, Figure 3, Figure 4 and SI). Unable to isolate any dinitrogen bound coordination compound or the reduced intermediates, recourse to reactivity of the intermediates were sought.
Attempted reactions to trap reduced intermediate 3 or 3′: Low-valent Ti intermediates have well-known reactivity patterns as illustrated before. Any resulting low-valent Ti adducts could be utilized to determine the nature of the reactive intermediate.
A homogeneous solution of reduced species 3 or 3′ in THF were subjected to various phosphines (PPh3, P(o-tol)3) and alkyne (diphenyl acetylene) at temperatures ambient to 100 °C and under inert atmosphere, to synthesize any (CCC-NHC)Ti-phosphine adduct as previously cited (Scheme 2) [54]. Highly reactive PEt3 was reacted with quantitatively reduced (CCC-NHC)Ti complex 2 with 1, 2 and 4 equivalents of freshly prepared KC8 to accommodate any difference in reactivity between quantitative reductants used (Scheme 2). For all the reaction conditions illustrated below, the color of the solution remained unchanged after the addition of the phosphines. The 31P NMR spectra showed no complex bound phosphines. The observations listed above were consistent with no reaction between the reduced intermediates 3 or 3′ and phosphine. Therefore, the results were suggestive of an alternative reactivity pattern in the present (CCC-NHC)Ti complex system compared to the well-established Ti-chemistry reported in literature [54].
Carbon monoxide is isoelectronic to dinitrogen molecule. Stable metal carbonyl complexes are abundant in literature [55]. Identification of any discreet CO-bound (CCC-NHC) could be utilized to determine the nature of the reactive intermediate. Reduced homogeneous wine-red colored solution of 3′ in THF was bubbled with carbon monoxide (Scheme 3). Upon reaction, the wine-red color of the solution changed to pale yellow. The resulting no-D 1H NMR spectrum in THF changed to a diamagnetic spectrum with a new multiplet at δ 0.77 instead of the characteristic triplet peaks (triplets Hc and Hd at δ 4.33 and at δ 0.84 of 2) of complex 2 at δ 4.33 and δ 0.84 (Figure S13). The diamagnetic nature of the resulting spectrum along with the observed color change of the solution were consistent with the formation of a new species 4 (Scheme 3 and Figure S13). Further attempts at characterizing the newly formed pincer-CO adduct was intractable, seemingly due to loss of CO when CO-atmosphere was removed.
Since the original target was the nitrogen adducts of the low valent Ti-pincer complex, extensive effort was expended to obtain the crystalline material. No crystals with or without N2-binding were obtained. It was reasoned that the (CCC-NHC)Ti system has an interestingly alternative reactivity pattern compared to literature precedence and the observed Mg-amido complex may have been complicating the equilibria preventing the N2-adduct and crystal formation.

3. Materials and Methods

3.1. General

Standard inert-atmosphere techniques were used unless stated otherwise. Solvents were dried using a standalone solvent purification system. (1,3-bis(3-butylimidazol-1-yl-2-idene)-2-phenylene)(dimethylamido)dichlorotitanium 1, (1,3-bis(3-butylimidazol-1-yl-2-idene)-2-phenylene)trichlorotitanium 2 were synthesized according to the literature procedure [46]. Benzene-d6 was purchased and passed through a column of activated basic alumina. KC8 was freshly prepared following the procedure reported in literature [53]. Iodobenzene dichloride was freshly prepared using literature procedure [51]. 1H NMR spectra were collected on a 300 MHz, or a 500 MHz NMR spectrometer at ambient temperature. No-D 1H NMR experiments in THF were conducted with two drops of C6D6 [47].

3.2. Reaction of Complex 1 with Mg Powder

((1,3-Bis(3-butylimidazol-1-yl-2-idene)-2-phenylene)(dimethylamido)dichlorotitanium(IV)) 1 (11 mg, 0.02 mmol) was dissolved in 2.5 mL of dry protic-THF (2 drops of C6D6 was added to lock) in an NMR tube. To this solution, Mg-powder (10 mg, 0.42 mmol) was added. The resulting heterogeneous mixture was sonicated for 3 h. The mixture was left in the glovebox for 48 h for the completion of the reaction; a thick light-yellow precipitate of 3 was observed. Spectroscopic data for the supernatant was collected.
1H NMR (300 MHz, THF no-D, locking solvent: C6D6): para-magnetic broadening caused relevant peaks to disappear.

3.3. Oxidation of Intermediate 3 with PhICl2 Followed by Addition of TMSCl

((1,3-Bis(3-butylimidazol-1-yl-2-idene)-2-phenylene)(dimethylamido)dichlorotitanium(IV)) 1 (13.7 mg, 0.03 mmol) was dissolved in 2.5 mL of dry protic-THF in an NMR tube. To this solution, Mg-metal powder (11 mg, 0.45 mmol) was added. The resulting heterogeneous mixture was sonicated for 3 h with occasional manual shaking. The mixture was left in the glovebox for 48 h for the completion of the reaction; a thick faint yellow precipitate of intermediate 3 was observed. The supernatant was decanted followed by collecting the resulting solid. The solid was dried under reduced pressure. The residue was dissolved in CH2Cl2 and freshly prepared PhICl2 (18.0 mg, 0.07 mmol) followed by TMSCl (25.0 mg, 0.23 mmol) were added to the mixture and the reaction mixture was left in the inert atmosphere overnight. The reaction mixture was evaporated to dryness. The residue was dissolved in CH2Cl2. To the solution dry hexane was added to precipitate the resulting complex. Supernatant was decanted and the resulting precipitate was dried under reduced pressure. Spectroscopic data was collected.
1H NMR (500 MHz, CD2Cl2): δ 7.99 (br, 4H), 7.77 (br, 1H), 7.52 (br, 2H), 4.38 (br, 4H), 2.88 (s, 1H), 2.02 (br, 4H), 1.49 (br, 4H), 1.03 (br, 6H).

3.4. Reduction with Mg Followed by Reoxidation of 1 with PhICl2

((1,3-Bis(3-butylimidazol-1-yl-2-idene)-2-phenylene)(dimethylamido)dichlorotitanium(IV)) 1 (11 mg, 0.02 mmol) was dissolved in 2.5 mL of dry protic-THF in an NMR tube. To this solution, Mg-metal powder (10 mg, 0.42 mmol) was added. The resulting heterogeneous mixture was sonicated for 3 h with occasional manual shaking. The mixture was left in the glovebox for 48 h for the completion of the reaction; a thick yellow precipitate was observed. Iodobenzene dichloride (18 mg, 0.07 mmol) was added in situ. Upon mixing, the yellow precipitate dissolved; forming a clear yellow solution. 1H NMR (300 MHz, THF no-D, locking solvent: C6D6): δ 4.33 (t), 0.84 (t).

3.5. Reaction of Complex 1 with KC8

((1,3-Bis(3-butylimidazol-1-yl-2-idene)-2-phenylene)(dimethylamido)dichlorotitanium(IV)) 1 (5 mg, 0.01 mmol) was dissolved in 2.5 mL of dry protic-THF in an NMR tube. To this solution KC8 (4.5 mg, 0.03 mmol) was added. The resulting heterogeneous mixture was sonicated for 3 min with occasional manual shaking. The reaction mixture turned deep yellow-green. The resulting solution was passed through a celite plug to remove the heterogeneous reducing agent. The solvent was removed from the solid under reduced pressure. 1H NMR (300 MHz, THF no-D, locking solvent: C6D6): para-magnetic broadening caused relevant peaks to disappear.

3.6. Reduction with KC8 Followed by Reoxidation of 1 with PhICl2

((1,3-Bis(3-butylimidazol-1-yl-2-idene)-2-phenylene)(dimethylamido)dichlorotitanium(IV)) 1 (5 mg, 0.01 mmol) was dissolved in 2.5 mL of dry protic-THF in an NMR tube. To this solution, KC8 (4.5 mg, 0.03 mmol) was added. The resulting heterogeneous mixture was sonicated for 3 min with occasional manual shaking. Iodobenzene dichloride (10 mg, 0.04 mmol) was added in situ. Upon mixing, the yellow precipitate dissolved forming a clear yellow solution. 1H NMR (300 MHz, THF no-D, locking solvent: C6D6): δ 4.33 (t), 0.84 (t).

3.7. Reduction of Complex 2 with KC8

((1,3-Bis(3-butylimidazol-1-yl-2-idene)-2-phenylene)trichlorotitanium(IV)) 2 (5.1 mg, 0.01 mmol) was dissolved in 2.42 mL of dry protic-THF (2 drops of C6D6 was added to lock) in an NMR tube. To this solution, KC8 (5.2 mg, 0.04 mmol) was added. The resulting heterogeneous mixture was sonicated for 0.11 h with occasional manual shaking. A yellow-green solution was observed. The resulting solution was passed through a celite plug to remove the heterogeneous reducing agent. The solvent was removed from the solid under reduced pressure. 1H NMR (300 MHz, THF no-D, locking solvent: C6D6): para-magnetic broadening caused relevant peaks to disappear.

3.8. Reduction of Complex 2 with KC8 Followed by Reoxidation with PhICl2

((1,3-Bis(3-butylimidazol-1-yl-2-idene)-2-phenylene)trichlorotitanium(IV)) 2 (5.1 mg, 0.01 mmol) was dissolved in 2.42 mL of 30% C6D6 in dry protic-THF in an NMR tube. To this solution, KC8 (5.2 mg, 0.04 mmol) was added. The resulting heterogeneous mixture was sonicated for 0.11 h with occasional manual shaking. A yellow-green solution was observed. To the decanted supernatant, iodobenzene dichloride (16 mg, 0.06 mmol) was added in situ. Upon mixing, a clear yellow solution was observed. 1H NMR (300 MHz, THF no-D, locking solvent: C6D6): δ 4.33 (t), 0.84 (t).

3.9. Reduction of Complex 2 with Mg

((1,3-Bis(3-butylimidazol-1-yl-2-idene)-2-phenylene)trichlorotitanium(IV)) 2 (10 mg, 0.02 mmol) was dissolved in 2.5 mL of dry protic-THF (2 drops of C6D6 was added to lock) in an NMR tube. To this solution, Mg-powder (12 mg, 0.49 mmol) was added. The resulting heterogeneous mixture was sonicated for 2h with occasional manual shaking. A yellow precipitate was observed. Spectroscopic data was collected for the supernatant. The supernatant was then decanted and the resulting solid was dried under reduced pressure. 1H NMR (300 MHz, THF no-D, locking solvent: C6D6): para-magnetic broadening caused relevant peaks to disappear.

3.10. Reduction of Complex 2 with Mg Followed by Reoxidation with PhICl2

((1,3-Bis(3-butylimidazol-1-yl-2-idene)-2-phenylene)trichlorotitanium(IV)) 2 (10 mg, 0.02 mmol) was dissolved in 2.5 mL of dry protic-THF in an NMR tube. To this solution, Mg-metal powder (12 mg, 0.49 mmol) was added. The resulting heterogeneous mixture was sonicated for 2 h with occasional manual shaking. A yellow precipitate was observed. Iodobenzene dichloride (17 mg, 0.06 mmol) was added in situ. Upon mixing, the yellow precipitate dissolved; forming a clear yellow solution. 1H NMR (300 MHz, THF no-D, locking solvent: C6D6): δ 4.33 (t), 0.84 (t).

3.11. Reduction of Complex 2 with KC8 Followed by Reaction with PPh3

((1,3-Bis(3-butylimidazol-1-yl-2-idene)-2-phenylene)trichlorotitanium(IV)) 2 (25 mg, 0.05 mmol) was dissolved in 2.5 mL of dry protic-THF in an NMR tube. To this solution, excess KC8 (28.3 mg, 0.21 mmol) was added. The resulting heterogeneous mixture was sonicated for 0.08 h with occasional manual shaking. Due to para-magnetic broadening; all the characteristic 1H NMR peaks disappeared; broad solvent peaks persisted. The wine-red colored heterogeneous solution was filtered through celite plug to get rid of the resulting graphite. To this clear, wine-red colored solution, PPh3 (22.86 mg, 0.09 mmol) was added. The mixture was sonicated for 2 h with occasional manual shaking. No change in color was observed. 1H NMR (300 MHz, THF no-D, locking solvent: C6D6): para-magnetic broadening caused relevant peaks to disappear. The characteristic region in 31P NMR remained unchanged.

3.12. Reduction of Complex 2 with KC8 Followed by Reaction with P(o-tol)3

((1,3-Bis(3-butylimidazol-1-yl-2-idene)-2-phenylene)trichlorotitanium(IV)) 2 (25 mg, 0.05 mmol) was dissolved in 2.4 mL of dry protic-THF (2 drops of C6D6 was added to lock) in an NMR tube. To this solution, excess KC8 (28.3 mg, 0.21 mmol) was added. The resulting heterogeneous mixture was sonicated for 0.08 h with occasional manual shaking. Due to para-magnetic broadening; all the characteristic 1H NMR peaks disappeared; broad solvent peaks persisted. The wine-red colored heterogeneous solution was filtered through a celite plug to get rid of the resulting graphite. To this clear, wine-red colored solution, P(o-tol)3 (26.51 mg, 0.09 mmol) was added. The mixture was sonicated for 2 h with occasional manual shaking. No change in color was observed. 1H NMR (300 MHz, THF no-D, locking solvent: C6D6): para-magnetic broadening caused relevant peaks to disappear. The characteristic region in 1H NMR and 31P NMR remained unchanged.

3.13. Reduction of Complex 2 with One Equivalent of KC8 Followed by Reaction with PEt3

((1,3-Bis(3-butylimidazol-1-yl-2-idene)-2-phenylene)trichlorotitanium(IV)) 2 (10 mg, 0.02 mmol) was dissolved in 2.5 mL of dry protic-THF (2 drops of C6D6 was added to lock) in an NMR tube. To this solution, KC8 (2.8 mg, 0.21 mmol) was added. The resulting heterogeneous mixture was sonicated for 2 h with occasional manual shaking. Due to para-magnetic broadening; all the characteristic 1H NMR peaks disappeared; broad solvent peaks persist. The orange-red colored heterogeneous solution was filtered through a celite plug to get rid of the resulting graphite. To this clear, orange-red colored solution, PEt3 (8.85 µL, 0.06 mmol) was added. The mixture was sonicated for 2 h with occasional manual shaking. No change in color was observed. 1H NMR (300 MHz, THF no-D, locking solvent: C6D6): para-magnetic broadening caused relevant peaks to disappear. The characteristic region in 1H NMR and 31P NMR remained unchanged.

3.14. Reduction of Complex 2 with Two Equivalents of KC8 Followed by Reaction with PEt3

((1,3-Bis(3-butylimidazol-1-yl-2-idene)-2-phenylene)trichlorotitanium(IV)) 2 (10 mg, 0.02 mmol) was dissolved in 2.5 mL of dry protic-THF (2 drops of C6D6 was added to lock) in an NMR tube. To this solution, KC8 (5.4 mg, 0.04 mmol) was added. The resulting heterogeneous mixture was sonicated for 2 h with occasional manual shaking. Due to para-magnetic broadening; all the characteristic 1H NMR peaks disappeared; broad solvent peaks persisted. The wine-red colored heterogeneous solution was filtered through a celite plug to get rid of the resulting graphite. To this clear, wine-red colored solution, PEt3 (8.85 µL, 0.06 mmol) was added. The mixture was sonicated for 2 h with occasional manual shaking. No change in color was observed. The characteristic region in 1H NMR and 31P NMR remained unchanged. 1H NMR (300 MHz, THF no-D, locking solvent: C6D6): para-magnetic broadening caused relevant peaks to disappear. The characteristic region in 1H NMR and 31P NMR remained unchanged.

3.15. Reduction of Complex 2 with KC8 Followed by Reaction with Diphenyl Acetylene

((1,3-Bis(3-butylimidazol-1-yl-2-idene)-2-phenylene)trichlorotitanium(IV)) 2 (10 mg, 0.02 mmol) was dissolved in 1.5 mL of dry protic-THF (2 drops of C6D6 was added to lock) in an NMR tube. To this solution, excess KC8 (14.1 mg, 0.01 mmol) was added. The resulting heterogeneous mixture was sonicated for 0.08 h with occasional manual shaking. Due to para-magnetic broadening; all the characteristic 1H NMR peaks disappeared; broad solvent peaks persisted. The wine-red colored heterogeneous solution was filtered to get rid of the resulting graphite. To this clear, wine-red colored solution, diphenyl acetylene (7.81 mg, 0.04 mmol) was added. The mixture was sonicated for 2 h with occasional manual shaking. The color of the resulting solution and the characteristic region in 31P NMR remained unchanged. 1H NMR (300 MHz, THF no-D, locking solvent: C6D6): para-magnetic broadening caused relevant peaks to disappear.

3.16. Reduction of Complex 2 with KC8 Followed by Reaction with CO

((1,3-Bis(3-butylimidazol-1-yl-2-idene)-2-phenylene)trichlorotitanium(IV)) 2 (10 mg, 0.02 mmol) was dissolved in 2.5 mL of dry protic-THF (2 drops of C6D6 was added to lock) in an NMR tube. To this solution, KC8 (5.4 mg, 0.04 mmol) was added. The resulting heterogeneous mixture was sonicated for 2 h with occasional manual shaking. Due to para-magnetic broadening; all the characteristic 1H NMR peaks disappeared; broad solvent peaks persisted. The wine-red colored heterogeneous solution was filtered through a celite plug to get rid of the resulting graphite. To this clear, wine-red colored solution, CO was bubbled for 0.03 h with occasional manual shaking. The resulting mixture was sonicated for 2 h with occasional manual shaking. The color of the resulting solution changed from wine-red to dirty-yellow. 1H NMR (300 MHz, THF no-D, locking solvent: C6D6): δ 0.77 (t).

4. Conclusions

To access low valent (CCC-NHC)Ti pincer complexes for dinitrogen binding, first row transition metal pincer complexes of CCC-NHC pincer ligand were chosen as a stable starting material. Reduction of the metal center was performed with potassium graphite or Mg powder yielding a reduced species based on the paramagnetic broadening of all peaks into the baseline of the 1H NMR spectra. Lacking a single X-ray crystal solution of the reduced species and without 1H NMR data to provide sufficient structural insight; recourse to reactivity was sought. The reduced species 3 or 3′ obtained from amido complex 1 or trichloride 2 produced the same product upon reoxidation with PhICl2, namely, (CCC-NHC)Ti trichloride 2 (Figure 3 and Figure 4). This observation confirmed that the ligand and metal remained intact upon reduction. Therefore, the reduced species 3/3′ were investigated for a typical Ti(II) reactivity pattern. Attempts to trap the low valent species with alkynes and phosphines resulted in no reaction and no isolable species. Direct observation of the structures of low valent intermediates 3 and 3′ proved unattainable, but based on the reactivity pattern, we infer that they are very closely related, if not identical structures. Finally trapping with an isoelectronic analog of N2, CO produced a new diamagnetic species based on the diamagnetic 1H NMR observed. Again, numerous attempts to crystallize the adduct did not yield single crystals adequate for X-ray analysis and the material proved intractable.

Supplementary Materials

The following are available online at https://www.mdpi.com/2304-6740/9/2/15/s1, Illustrations of the complete NMR spectrum corresponding to the experiments in the article and description of the example reaction mixtures are included in the supplementary information.

Author Contributions

Study design, data analysis, investigation, supervision and reviewing by T.K.H.; execution of experiments, data analysis and preparation of manuscript were carried out by S.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by NSF, grant number NSF OIA-1539035.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors of this manuscript are grateful to Xue “Snow” Xu for her help and support with 1H NMR data collection at the NMR facility, Mississippi State University.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cherkasov, N.; Ibhadon, A.O.; Fitzpatrick, P. A review of the existing and alternative methods for greener nitrogen fixation. Chem. Eng. Process 2015, 90, 24–33. [Google Scholar] [CrossRef]
  2. Galloway, J.N.; Cowling, E.B. Reactive Nitrogen and The World: 200 Years of Change. BIOONE: Washington, DC, USA, 2002; Volume 31, pp. 64–71. [Google Scholar]
  3. Buscagan, T.M.; Oyala, P.H.; Peters, J.C. N2-to-NH3 Conversion by a triphos–Iron Catalyst and Enhanced Turnover under Photolysis. Angew. Chem. Int. Ed. 2017, 56, 6921–6926. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Haber, F.; Van Oordt, G. Formation of ammonia from the elements. Z. Anorg. Allg. Chem. 1905, 44, 341–378. [Google Scholar] [CrossRef] [Green Version]
  5. Finklea, H.O. A Review of: The Chemical Physics of Solid Surfaces and Heterogeneous Catalysis. Synth. React. Inorg. Met. Org. Chem. 1982, 12, 201–202. [Google Scholar] [CrossRef]
  6. Smil, V. Detonator of the population explosion. Nature 1999, 400, 415. [Google Scholar] [CrossRef]
  7. Vojvodic, A.; Medford, A.J.; Studt, F.; Abild-Pedersen, F.; Khan, T.S.; Bligaard, T.; Nørskov, J.K. Exploring the limits: A low-pressure, low-temperature Haber–Bosch process. Chem. Phys. Lett. 2014, 598, 108–112. [Google Scholar] [CrossRef]
  8. Patil, B.S.; Hessel, V.; Seefeldt, L.C.; Dean, D.R.; Hoffman, B.M.; Cook, B.J.; Murray, L.J. Nitrogen Fixation. In Ullmanns Encyclopedia of Industrial Chemistry; Wiley-VCH Verlag: Weinheim, Germany, 2017. [Google Scholar] [CrossRef]
  9. Erisman, J.W.; Sutton, M.A.; Galloway, J.; Klimont, Z.; Winiwarter, W. How a century of ammonia synthesis changed the world. Nat. Geosci. 2008, 1, 636–639. [Google Scholar] [CrossRef]
  10. Galloway, J.N.; Townsend, A.R.; Erisman, J.W.; Bekunda, M.; Cai, Z.; Freney, J.R.; Martinelli, L.A.; Seitzinger, S.P.; Sutton, M.A. Transformation of the Nitrogen Cycle: Recent Trends, Questions, and Potential Solutions. Science 2008, 320, 889. [Google Scholar] [CrossRef] [Green Version]
  11. Galloway, J.N. The global nitrogen cycle: Changes and consequences. Environ. Pollut. 1998, 102, 15–24. [Google Scholar] [CrossRef]
  12. Chen, J.G.; Crooks, R.M.; Seefeldt, L.C.; Bren, K.L.; Bullock, R.M.; Darensbourg, M.Y.; Holland, P.L.; Hoffman, B.; Janik, M.J.; Jones, A.K.; et al. Beyond fossil fuel–driven nitrogen transformations. Science 2018, 360, eaar6611. [Google Scholar] [CrossRef] [Green Version]
  13. Tanabe, Y.; Nishibayashi, Y. Developing more sustainable processes for ammonia synthesis. Coord. Chem. Rev. 2013, 257, 2551–2564. [Google Scholar] [CrossRef]
  14. Schrock, R.R. Reduction of dinitrogen. Proc. Natl. Acad. Sci. USA 2006, 103, 17087. [Google Scholar] [CrossRef] [Green Version]
  15. Boudart, M. Kinetics and Mechanism of Ammonia Synthesis. Catal. Rev. Sci. Eng. 1981, 23, 1–15. [Google Scholar] [CrossRef]
  16. Service, R.F. New Reactor Could Halve Carbon Dioxide Emissions from Ammonia Production. Available online: https://www.sciencemag.org/news/2019/11/new-reactor-could-halve-carbon-dioxide-emissions-ammonia-production (accessed on 22 July 2020).
  17. Rouwenhorst, K.H.R.; Engelmann, Y.; van Veer, K.; Postma, R.S.; Bogaerts, A.; Lefferts, L. Plasma-driven catalysis: Green ammonia synthesis with intermittent electricity. Green Chem. 2020, 22, 6258–6287. [Google Scholar] [CrossRef]
  18. Akay, G. Plasma Generating—Chemical Looping Catalyst Synthesis by Microwave Plasma Shock for Nitrogen Fixation from Air and Hydrogen Production from Water for Agriculture and Energy Technologies in Global Warming Prevention. Catalysts 2020, 10, 152. [Google Scholar] [CrossRef] [Green Version]
  19. Akay, G. Sustainable Ammonia and Advanced Symbiotic Fertilizer Production Using Catalytic Multi-Reaction-Zone Reactors with Nonthermal Plasma and Simultaneous Reactive Separation. ACS Sustain. Chem. Eng. 2017, 5, 11588–11606. [Google Scholar] [CrossRef]
  20. Akay, G.; Burke, D.R. Agro-Process Intensification through Synthetic Rhizosphere Media for Nitrogen Fixation and Yield Enhancement in Plants. AJABS 2012, 7. [Google Scholar] [CrossRef] [Green Version]
  21. Huang, Y.; Zhang, N.; Wu, Z.; Xie, X. Artificial nitrogen fixation over bismuth-based photocatalysts: Fundamentals and future perspectives. J. Mater. Chem. A 2020, 8, 4978–4995. [Google Scholar] [CrossRef]
  22. Xue, X.; Chen, R.; Yan, C.; Zhao, P.; Hu, Y.; Zhang, W.; Yang, S.; Jin, Z. Review on photocatalytic and electrocatalytic artificial nitrogen fixation for ammonia synthesis at mild conditions: Advances, challenges and perspectives. Nano Res. 2018, 12. [Google Scholar] [CrossRef]
  23. Li, S.; Jimenez, J.; Hessel, V.; Gallucci, F. Recent Progress of Plasma-Assisted Nitrogen Fixation Research: A Review. Processes 2018, 6, 248. [Google Scholar] [CrossRef] [Green Version]
  24. Stucke, N.; Flöser, B.M.; Weyrich, T.; Tuczek, F. Nitrogen Fixation Catalyzed by Transition Metal Complexes: Recent Developments. Eur. J. Inorg. Chem. 2018, 2018, 1337–1355. [Google Scholar] [CrossRef]
  25. Yandulov, D.V.; Schrock, R.R. Catalytic Reduction of Dinitrogen to Ammonia at a Single Molybdenum Center. Science 2003, 301, 76. [Google Scholar] [CrossRef] [Green Version]
  26. Siedschlag, R.B.; Bernales, V.; Vogiatzis, K.D.; Planas, N.; Clouston, L.J.; Bill, E.; Gagliardi, L.; Lu, C.C. Catalytic Silylation of Dinitrogen with a Dicobalt Complex. J. Am. Chem. Soc. 2015, 137, 4638–4641. [Google Scholar] [CrossRef]
  27. Kuriyama, S.; Arashiba, K.; Nakajima, K.; Matsuo, Y.; Tanaka, H.; Ishii, K.; Yoshizawa, K.; Nishibayashi, Y. Catalytic transformation of dinitrogen into ammonia and hydrazine by iron–dinitrogen complexes bearing pincer ligand. Nat. Commun. 2016, 7, 12181. [Google Scholar] [CrossRef]
  28. Gonzalez-Moreiras, M.; Mena, M.; Perez-Redondo, A.; Yelamos, C. Cleavage of Dinitrogen from Forming Gas by a Titanium Molecular System under Ambient Conditions. J. Chem. 2017, 23, 3558–3561. [Google Scholar] [CrossRef] [PubMed]
  29. Ashida, Y.; Arashiba, K.; Nakajima, K.; Nishibayashi, Y. Molybdenum-catalysed ammonia production with samarium diiodide and alcohols or water. Nature 2019, 568, 536–540. [Google Scholar] [CrossRef] [PubMed]
  30. Ryken, S.A.; Schafer, L.L. N,O-Chelating Four-Membered Metallacyclic Titanium(IV) Complexes for Atom-Economic Catalytic Reactions. Acc. Chem. Res. 2015, 48, 2576–2586. [Google Scholar] [CrossRef] [PubMed]
  31. Mullins, S.M.; Duncan, A.P.; Bergman, R.G.; Arnold, J. Reactivity of a Titanium Dinitrogen Complex Supported by Guanidinate Ligands:  Investigation of Solution Behavior and a Novel Rearrangement of Guanidinate Ligands. Inorg. Chem. 2001, 40, 6952–6963. [Google Scholar] [CrossRef] [PubMed]
  32. Sekiguchi, Y.; Meng, F.; Tanaka, H.; Eizawa, A.; Arashiba, K.; Nakajima, K.; Yoshizawa, K.; Nishibayashi, Y. Synthesis and reactivity of titanium- and zirconium-dinitrogen complexes bearing anionic pyrrole-based PNP-type pincer ligands. Dalton Trans. 2018, 47, 11322–11326. [Google Scholar] [CrossRef]
  33. Hicks, F.A.; Kablaoui, N.M.; Buchwald, S.L. Scope of the Intramolecular Titanocene-Catalyzed Pauson−Khand Type Reaction1. J. Am. Chem. Soc. 1999, 121, 5881–5898. [Google Scholar] [CrossRef]
  34. Bourissou, D.; Guerret, O.; Gabbaï, F.P.; Bertrand, G. Stable Carbenes. Chem. Rev. 2000, 100, 39–92. [Google Scholar] [CrossRef]
  35. Herrmann, W.A. N-heterocyclic carbenes: A new concept in organometallic catalysis. Angew. Chem. Int. Ed. 2002, 41, 1290–1309. [Google Scholar] [CrossRef]
  36. Peris, E.; Crabtree, R.H. Recent homogeneous catalytic applications of chelate and pincer N-heterocyclic carbenes. Coord. Chem. Rev. 2004, 248, 2239–2246. [Google Scholar] [CrossRef]
  37. Glorius, F. N-Heterocyclic Carbenes in Transition Metal Catalysis. Top. Organomet. Chem. 2007, 21. [Google Scholar] [CrossRef]
  38. Díez-González, S.; Nolan, S.P. Stereoelectronic parameters associated with N-heterocyclic carbene (NHC) ligands: A quest for understanding. Coord. Chem. Rev. 2007, 251, 874–883. [Google Scholar] [CrossRef]
  39. Cavallo, L.; Correa, A.; Costabile, C.; Jacobsen, H. Steric and electronic effects in the bonding of N-heterocyclic ligands to transition metals. J. Organomet. Chem 2005, 690, 5407–5413. [Google Scholar] [CrossRef]
  40. Crabtree, R.H. NHC ligands versus cyclopentadienyls and phosphines as spectator ligands in organometallic catalysis. J. Organomet. Chem 2005, 690, 5451–5457. [Google Scholar] [CrossRef]
  41. Nishibayashi, Y. Recent Progress in Transition-Metal-Catalyzed Reduction of Molecular Dinitrogen under Ambient Reaction Conditions. Inorg. Chem. 2015, 54, 9234–9247. [Google Scholar] [CrossRef] [PubMed]
  42. Eizawa, A.; Arashiba, K.; Tanaka, H.; Kuriyama, S.; Matsuo, Y.; Nakajima, K.; Yoshizawa, K.; Nishibayashi, Y. Remarkable catalytic activity of dinitrogen-bridged dimolybdenum complexes bearing NHC-based PCP-pincer ligands toward nitrogen fixation. Nat. Commun. 2017, 8, 14874. [Google Scholar] [CrossRef] [Green Version]
  43. Ibrahim, A.D.; Tokmic, K.; Brennan, M.R.; Kim, D.; Matson, E.M.; Nilges, M.J.; Bertke, J.A.; Fout, A.R. Monoanionic bis(carbene) pincer complexes featuring cobalt(I–III) oxidation states. Dalton Trans. 2016, 45, 9805–9811. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Andavan, G.T.S.; Bauer, E.B.; Letko, C.S.; Hollis, T.K.; Tham, F.S. Synthesis and characterization of a free phenylene bis(N-heterocyclic carbene) and its di-Rh complex: Catalytic activity of the di-Rh and CCC–NHC Rh pincer complexes in intermolecular hydrosilylation of alkynes. J. Organomet. Chem. 2005, 690, 5938–5947. [Google Scholar] [CrossRef]
  45. Rubio, R.J.; Andavan, G.T.S.; Bauer, E.B.; Hollis, T.K.; Cho, J.; Tham, F.S.; Donnadieu, B. Toward a general method for CCC N-heterocyclic carbene pincer synthesis: Metallation and transmetallation strategies for concurrent activation of three C–H bonds. J. Organomet. Chem. 2005, 690, 5353–5364. [Google Scholar] [CrossRef]
  46. Helgert, T.R.; Hollis, T.K.; Valente, E.J. Synthesis of Titanium CCC-NHC Pincer Complexes and Catalytic Hydroamination of Unactivated Alkenes. Organometallics 2012, 31, 3002–3009. [Google Scholar] [CrossRef]
  47. Hoye, T.R.; Eklov, B.M.; Ryba, T.D.; Voloshin, M.; Yao, L.J. No-D NMR (No-Deuterium Proton NMR) Spectroscopy:  A Simple Yet Powerful Method for Analyzing Reaction and Reagent Solutions. Org. Lett. 2004, 6, 953–956. [Google Scholar] [CrossRef]
  48. Yang, K.-C.; Chang, C.-C.; Huang, J.-Y.; Lin, C.-C.; Lee, G.-H.; Wang, Y.; Chiang, M.Y. Synthesis, characterization and crystal structures of alkyl-, alkynyl-, alkoxo- and halo-magnesium amides. J. Organomet. Chem. 2002, 648, 176–187. [Google Scholar] [CrossRef]
  49. Blackmore, K.J.; Sly, M.B.; Haneline, M.R.; Ziller, J.W.; Heyduk, A.F. Group IV Imino-Semiquinone Complexes Obtained by Oxidative Addition of Halogens. Inorg. Chem. 2008, 47, 10522–10532. [Google Scholar] [CrossRef]
  50. Johnstone, T.C.; Alexander, S.M.; Wilson, J.J.; Lippard, S.J. Oxidative halogenation of cisplatin and carboplatin: Synthesis, spectroscopy, and crystal and molecular structures of Pt(IV) prodrugs. Dalton Trans. 2015, 44, 119–129. [Google Scholar] [CrossRef] [Green Version]
  51. Zhao, X.-F.; Zhang, C. Iodobenzene Dichloride as a Stoichiometric Oxidant for the Conversion of Alcohols into Carbonyl Compounds; Two Facile Methods for Its Preparation. Synthesis 2007, 2007, 551–557. [Google Scholar] [CrossRef]
  52. Lorber, C.; Vendier, L. Tight Encapsulation of a “Naked” Chloride in an Imidotitanium Hexanuclear Host. Inorg. Chem. 2013, 52, 4756–4758. [Google Scholar] [CrossRef]
  53. Bepete, G.; Hof, F.; Huang, K.; Kampioti, K.; Anglaret, E.; Drummond, C.; Pénicaud, A. “Eau de graphene” from a KC8 graphite intercalation compound prepared by a simple mixing of graphite and molten potassium. PSS (RRL) 2016, 10, 895–899. [Google Scholar] [CrossRef]
  54. Kool, L.B.; Rausch, M.D.; Alt, H.G.; Herberhold, M.; Hill, A.F.; Thewalt, U.; Wolf, B. A diazoalkane complex of titanium. ChemComm 1986, 5, 408–409. [Google Scholar] [CrossRef]
  55. Aubke, F.; Wang, C. Carbon monoxide as a σ-donor ligand in coordination chemistry. Coord. Chem. Rev. 1994, 137, 483–524. [Google Scholar] [CrossRef]
Figure 1. Nitrogen fixation, its problems and possible future developments. (A) Natural nitrogen fixation (NNF). (B) Current state of industrial nitrogen fixation. (C) Visions of sustainable ammonia production. Nitrogenase MoFe protein from Azobacter vinelandii (figure courtesy: Einsle, O., Tezcan, F.A., Andrade, S.L.A., Schmid, B., Yoshida, M., Howard, J.B., Rees, D.C. Database: RCSB. PDB).
Figure 1. Nitrogen fixation, its problems and possible future developments. (A) Natural nitrogen fixation (NNF). (B) Current state of industrial nitrogen fixation. (C) Visions of sustainable ammonia production. Nitrogenase MoFe protein from Azobacter vinelandii (figure courtesy: Einsle, O., Tezcan, F.A., Andrade, S.L.A., Schmid, B., Yoshida, M., Howard, J.B., Rees, D.C. Database: RCSB. PDB).
Inorganics 09 00015 g001
Figure 2. (A) An example of a Ti(II) dinitrogen adduct by Bergman and Arnold [31] (B) by Nishibayashi [32] and (C) examples of Ti(II) chemistry [32].
Figure 2. (A) An example of a Ti(II) dinitrogen adduct by Bergman and Arnold [31] (B) by Nishibayashi [32] and (C) examples of Ti(II) chemistry [32].
Inorganics 09 00015 g002

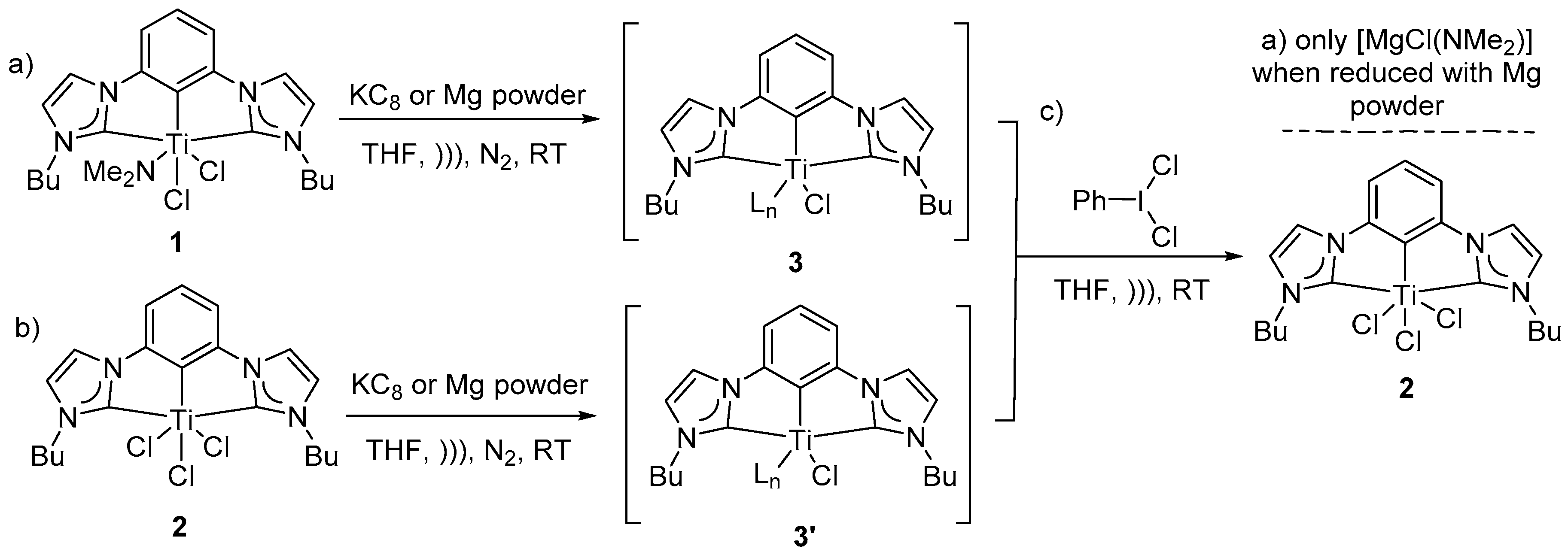

Scheme 1. (a) Reduction of complex 1 with Mg-powder or KC8 to reduced intermediate 3. (b) Reduction of complex 2 with Mg-powder or KC8 to reduced intermediate 3′. (c) Oxidative halogenation of intermediates 3 and 3′ resulted in complex 2. Reaction (a) was identified to contain a side product (MgCl(NMe2)) identified by 1H NMR spectroscopy [48].
Scheme 1. (a) Reduction of complex 1 with Mg-powder or KC8 to reduced intermediate 3. (b) Reduction of complex 2 with Mg-powder or KC8 to reduced intermediate 3′. (c) Oxidative halogenation of intermediates 3 and 3′ resulted in complex 2. Reaction (a) was identified to contain a side product (MgCl(NMe2)) identified by 1H NMR spectroscopy [48].
Inorganics 09 00015 sch001

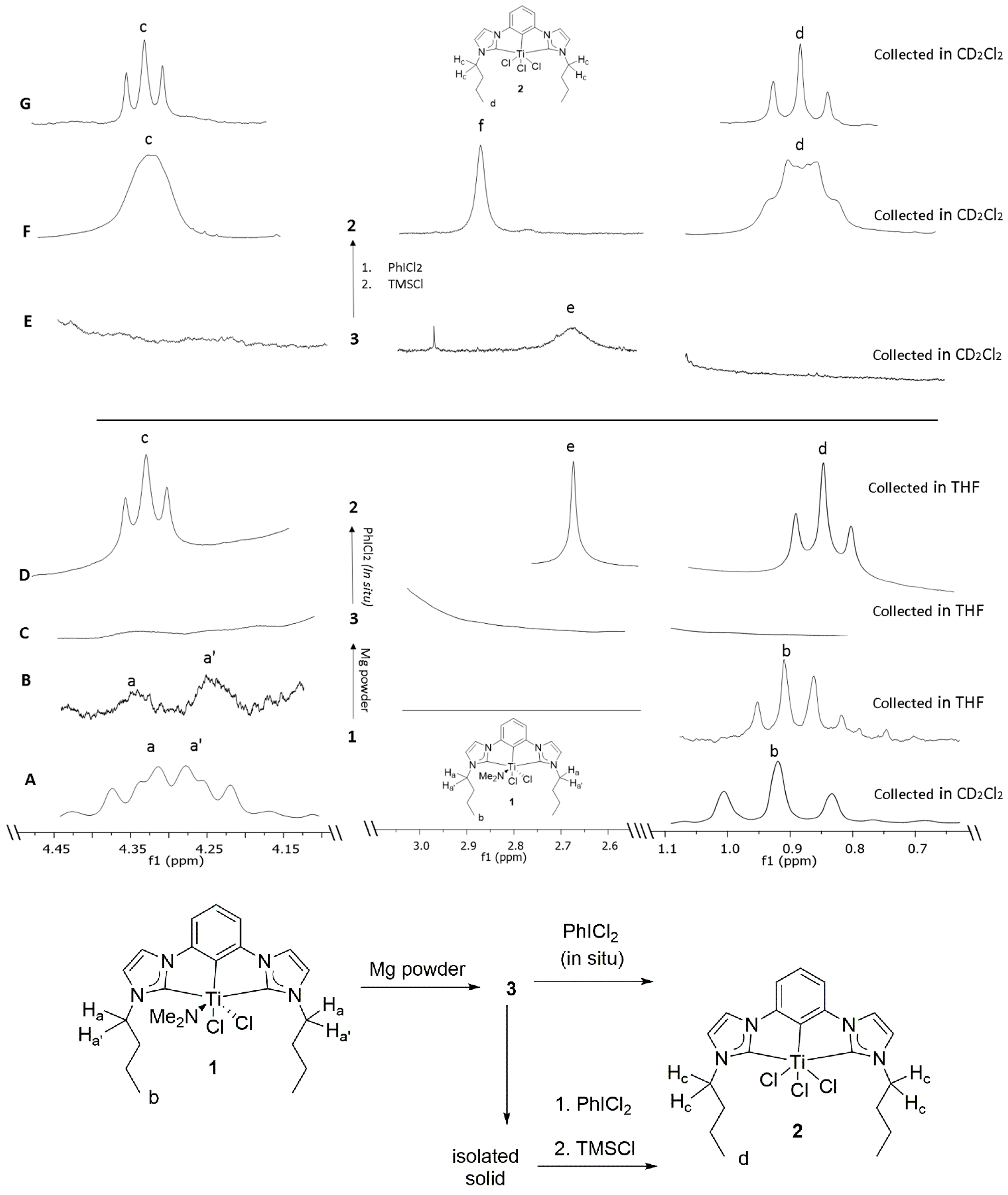

Figure 3. Stacked plot of characteristic peaks from the 1H NMR spectra for the reduction with Mg powder followed by reoxidation. (A) Characteristic overlapping diastereotopic peaks (Ha, Ha’) and the triplet (Hb) of ((CCC-NHC)Ti(IV)Cl2(NMe2)) 1 in CD2Cl2 for reference. (B) Characteristic overlapping diastereotopic peaks (Ha, Ha’) and the triplet (Hb) of (CCC-NHC)Ti(IV)Cl2NMe2) 1 in no-D THF. (C) Characteristic regions in the 1H NMR spectrum of intermediate 3 in no-D THF. (D) Characteristic triplet peaks (Hc and Hd) identified as 2 in the 1H NMR spectrum resulting from in situ oxidation of 3 with PhICl2 in no-D THF [46]. (E) Characteristic regions of reduced species 3 in CD2Cl2. (F) Characteristic regions (Hc and Hd) of 1H NMR spectrum in CD2Cl2 after reoxidation. (G) Characteristic triplets (Hc and Hd) of ((CCC-NHC)Ti(IV)Cl3) 2 in CD2Cl2 for reference.
Figure 3. Stacked plot of characteristic peaks from the 1H NMR spectra for the reduction with Mg powder followed by reoxidation. (A) Characteristic overlapping diastereotopic peaks (Ha, Ha’) and the triplet (Hb) of ((CCC-NHC)Ti(IV)Cl2(NMe2)) 1 in CD2Cl2 for reference. (B) Characteristic overlapping diastereotopic peaks (Ha, Ha’) and the triplet (Hb) of (CCC-NHC)Ti(IV)Cl2NMe2) 1 in no-D THF. (C) Characteristic regions in the 1H NMR spectrum of intermediate 3 in no-D THF. (D) Characteristic triplet peaks (Hc and Hd) identified as 2 in the 1H NMR spectrum resulting from in situ oxidation of 3 with PhICl2 in no-D THF [46]. (E) Characteristic regions of reduced species 3 in CD2Cl2. (F) Characteristic regions (Hc and Hd) of 1H NMR spectrum in CD2Cl2 after reoxidation. (G) Characteristic triplets (Hc and Hd) of ((CCC-NHC)Ti(IV)Cl3) 2 in CD2Cl2 for reference.
Inorganics 09 00015 g003
Figure 4. A stacked plot of characteristic peaks from the 1H NMR spectra for reduction of 2 followed by reoxidation in no-D THF. (A) Characteristic triplet peaks (Hc and Hd) of ((CCC-NHC)Ti(IV)Cl3), 2. (B) Relevant regions in the 1H NMR spectrum of intermediate 3′. (C) Characteristic triplet peaks of 2 (Hc and Hd) in the 1H NMR spectrum after the reoxidation reaction.
Figure 4. A stacked plot of characteristic peaks from the 1H NMR spectra for reduction of 2 followed by reoxidation in no-D THF. (A) Characteristic triplet peaks (Hc and Hd) of ((CCC-NHC)Ti(IV)Cl3), 2. (B) Relevant regions in the 1H NMR spectrum of intermediate 3′. (C) Characteristic triplet peaks of 2 (Hc and Hd) in the 1H NMR spectrum after the reoxidation reaction.
Inorganics 09 00015 g004

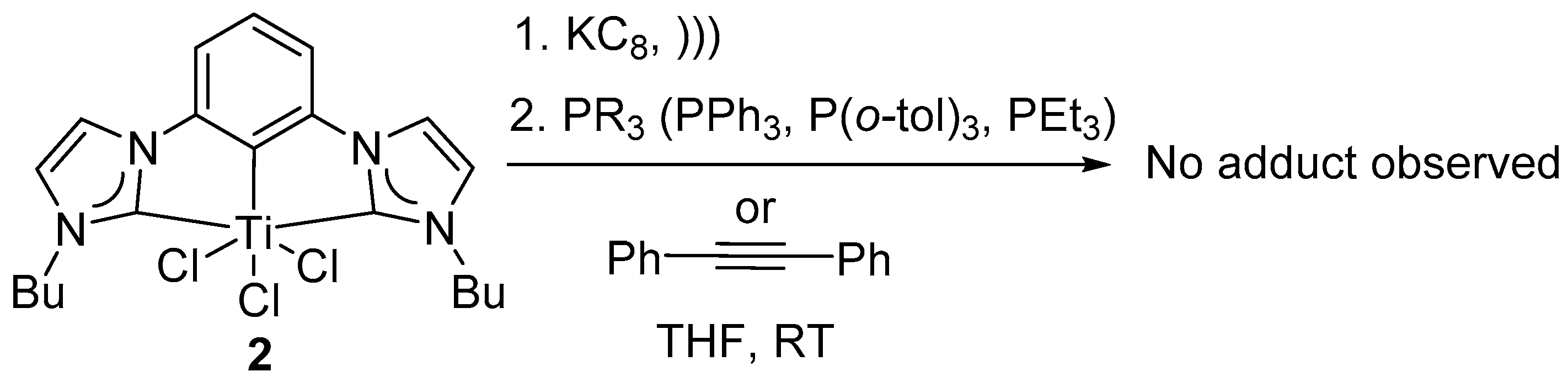

Scheme 2. Reduction of complex 2 followed by attempted trapping of the reduced intermediate with alkynes and phosphines.
Scheme 2. Reduction of complex 2 followed by attempted trapping of the reduced intermediate with alkynes and phosphines.
Inorganics 09 00015 sch002

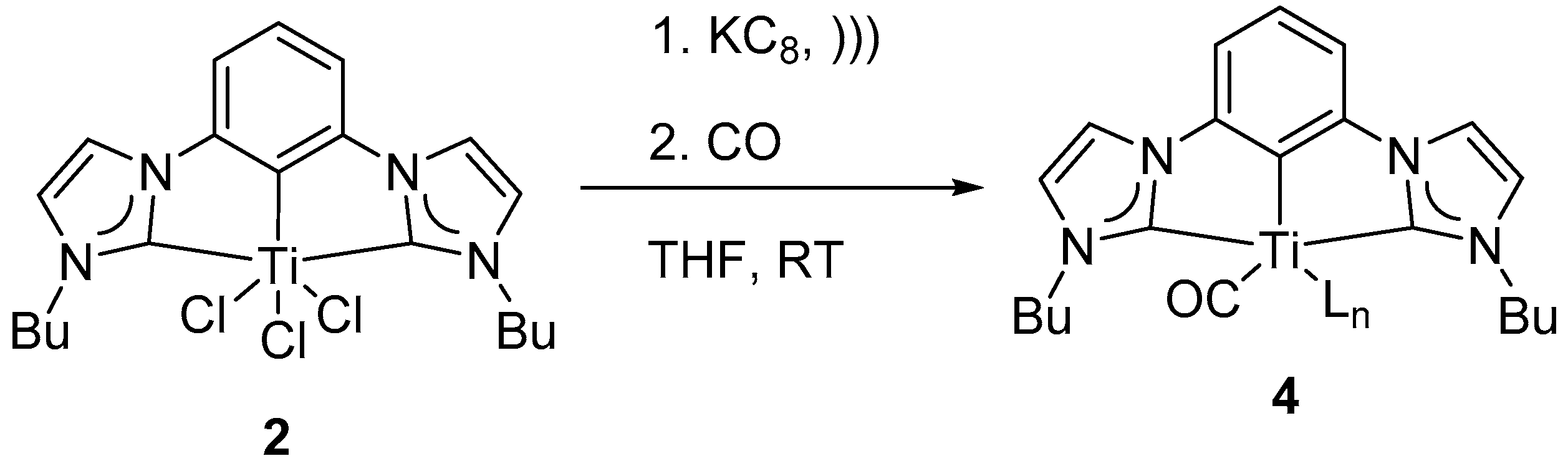

Scheme 3. Reduction of complex 2 followed by attempted trapping of the reduced intermediate with CO.
