Connecting Main-Group Metals (Al, Ga, In) and Tungsten(0) Carbonyls via the N₂S₂ Metallo-Ligand Strategy

Abstract

Tetradentate N₂S₂ ligands (such as bismercaptoethanediazacycloheptane in this study) have seen extensive use in combination with transition metals. Well-oriented N₂S₂ binding sites are ideal for d⁸ transition metals with square planar preferences, especially Ni^II, but also as a square pyramidal base for those metals with pentacoordinate preferences, such as [V≡O]²⁺, [Fe(NO)]²⁺, and [Co(NO)]²⁺. Further reactivity at the thiolate sulfurs generates diverse bi, tri, and tetra/heterometallic compounds. Few N₂S₂ ligands have been explored to investigate the possibility of binding to main group metals, especially group III (M^III) metals, and their utility as synthons for main group/transition metal bimetallic complexes. To open up this area of chemistry, we synthesized three new five-coordinate main group XMN₂S₂ complexes with methyl as the fifth binding ligand for M = Al, and chloride for M = Ga and In. The seven-membered diazacycle, dach, was engaged as a rigid stabilized connector between the terminal thiolate sulfurs. The pentacoordinate XMN₂S₂ complexes were characterized by ¹H-NMR, ¹³C-NMR, ⁺ESI-Mass spectra, and X-ray diffraction. Their stabilities and reactivities were probed by adding Ni^II sources and W(CO)₅(THF). The former replaces the main group metals in all cases in the N₂S₂ coordination environment, demonstrating the weak coordinate bonds of M^III–N/S. The reaction of XMN₂S₂ (XM = ClGa^III or ClIn^III) with the labile ligand W(0) complex W(CO)₅(THF) resulted in Ga/In–W bimetallic complexes with a thiolate S-bridge. The synthesis of XMN₂S₂ complexes provide examples of M^III–S coordination, especially Al–S, which is relatively rare. The bimetallic Ga/In–S–W complex formation indicates that the nucleophilic ability of sulfur is retained in M^III–S–R, resulting in the ability of main group M^III–N₂S₂ complexes to serve as metalloligands.

1. Introduction

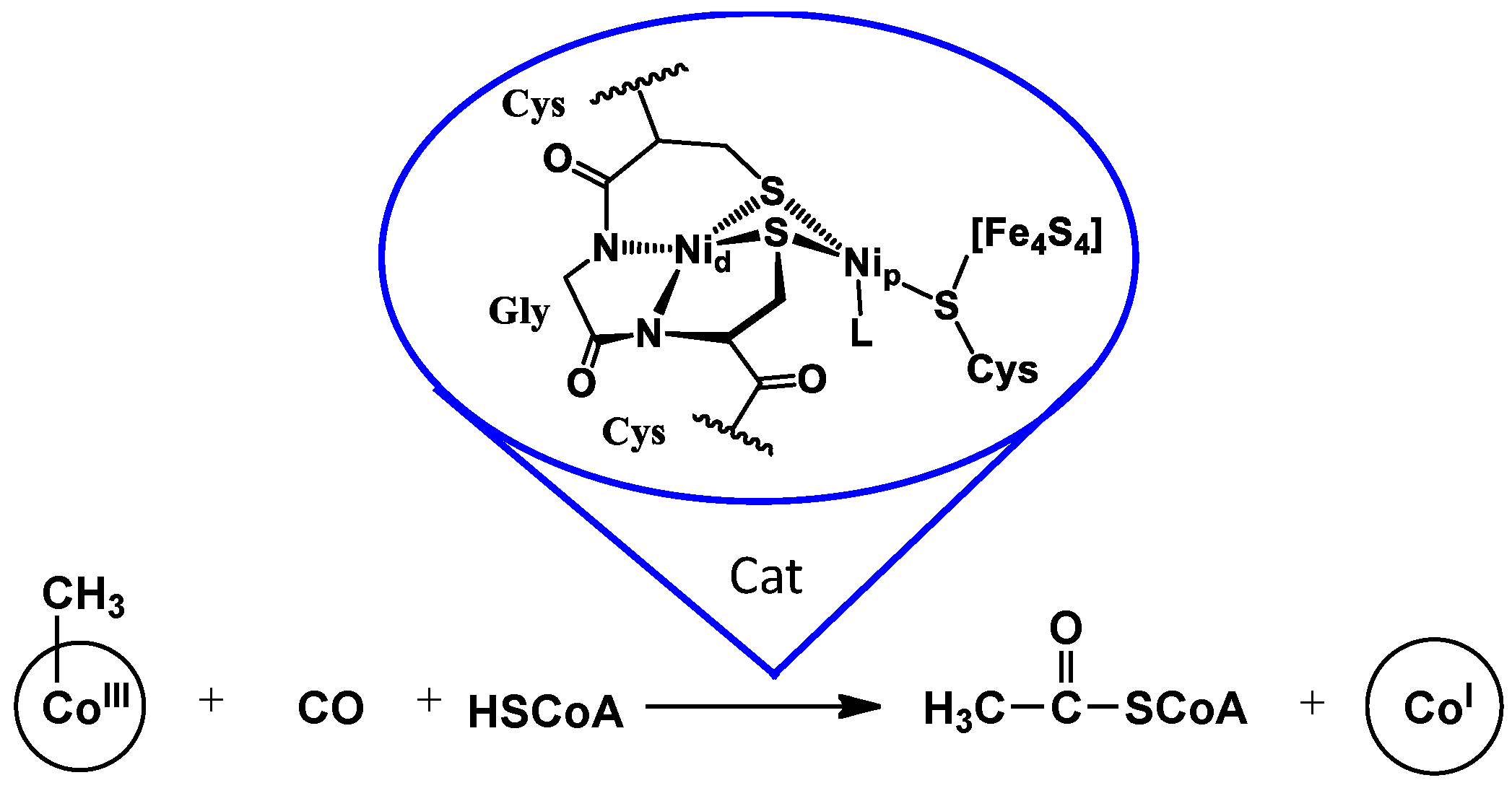

In the early 1960s, Busch and co-workers reported the complexing ability of mercaptamines (NS ligands) for Ni^II [1]. Since then, various NS ligands have been reported, including those with a contiguous S–N–N–S, N₂S₂, tetradentate donor set, an arrangement that mimics the N₂S₂ coordination environment rendered by a cysteine-glycine/serine-cysteine tripeptide motif found at three enzyme active sites [2]. Further development has been robust. Of special note is the bimetallic Ni–Ni site in acetyl co-A synthase, ACS, in which N₂S₂ is viewed as a tight Ni-binding site, while the second nickel is labile and catalytically active in the C–C coupling reactions required of ACS, as shown in Figure 1 [3].

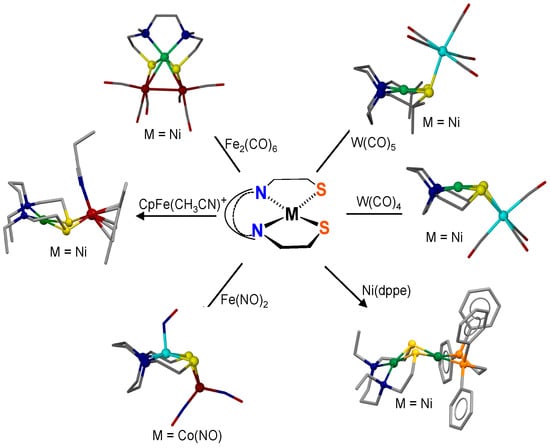

We developed NiN₂S₂ complexes as metallodithiolate ligands, especially engaging diazamesocycles N₂C₆H₈ (daco), N₂C₅H₁₀ (dach), and N₂C₄H₈ (dach*) as stabilizing units in N to N connections [4,5,6]. Those containing the more flexible “open-chain” ethylene or propylene N to N linkers bring more flexibility to the N₂S₂ binding unit, resulting in subtle differences in reactivity and stability properties. The ability to tune the MN₂S₂ ligands by variations of M has resulted in a range of complexes, such as V⁴⁺ in [V≡O]²⁺, Fe²⁺ in {Fe(NO)}⁷, Ni²⁺, Pd²⁺, Cu²⁺,and Zn²⁺ [7]. The ability of the MN₂S₂ metalloligands to serve as monodentate as well as bidentate ligands to a single metal or as bridging bidentate ligands to two metals has led to multiple new compositions and various diverse structural forms [7]. A few of these are illustrated in Figure 2 [7]. However, the chemistry of N₂S₂ derivatives of main group metals remains relatively unexplored, and their ability to serve as aggregation sites for exogeneous metals has until now, to our knowledge, been unreported.

While the expectation that the soft S will have a poor binding affinity for hard Al(III) is reasonable, a Cambridge database search located 36 results of N₂S₂ derivatives of aluminum. Most of them are derived from an aluminum (I) precursor [8,9]. The use of abundant aluminum in catalysis is well known, including as catalysts for CO₂/epoxide cycloaddition [10,11], which comprises a tetradentate N₂O₂ ligand with an axial X ligand (X = alkyl, halogen completing the coordination sphere). In contrast, many more sulfur₋coordinated gallium(III) and indium(III) complexes have been reported, owing to the softer core of Ga(III)/In(III) [12,13,14,15,16,17]. Explorations in those cases have been prompted by the wide use of ¹¹¹In and ⁶⁷Ga as radionuclides in PET (Positron Emission Tomography) and SPECT (Single Photon Emission Computed Tomography) [18].

In order to extend the coordination chemistry of main group III metals with this versatile ligand motif, we explored the synthesis and characterization of Group III elements, such as Ga/In–Cl or Al–R, bound within the N₂S₂ binding cavity. We probed the availability of the residual S lone pairs to serve as nucleophiles for the binding to exogeneous metals. In particular, heterobimetallics were formed with W(CO)_4/5, a receiver unit with the CO reporter unit, which provides a reference point for establishing donor ability of such metalloligands [7].

2. Results

2.1. Synthesis and Characterizations of XMN₂S₂ Complexes

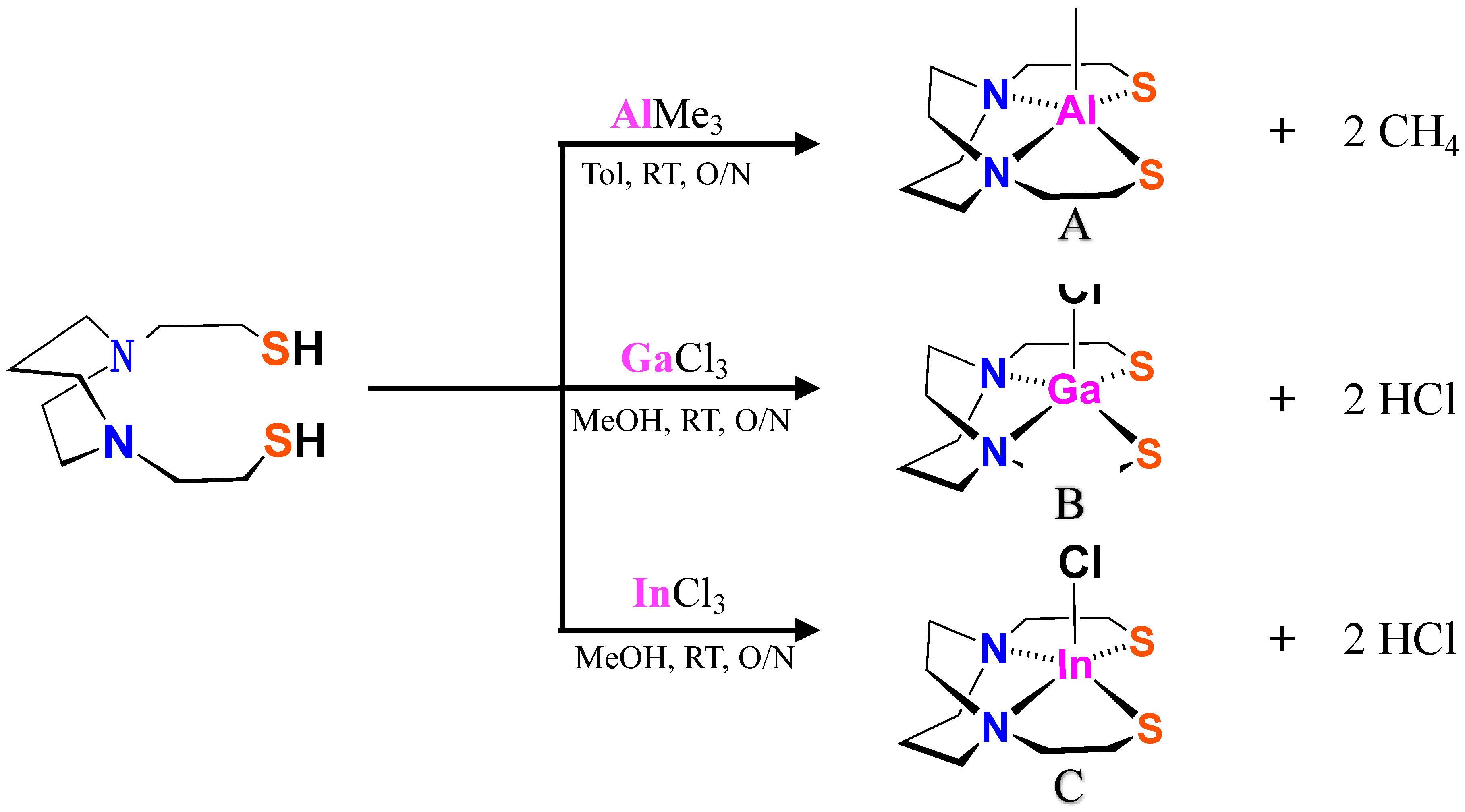

The H₂bme-dach (N,N′-Bis(Mercaptoethyl)-1,4-Diazacycloheptane) was synthesized according to a reported procedure [4]. Under an N₂ atmosphere, a solution of AlMe₃, GaCl₃, or InCl₃ was transferred by a double-ended needle into a solution of H₂bme-dach ligand in a Schlenk flask. White powdery products formed immediately, resulting in a white suspension. After stirring overnight, the solvent was removed under vacuum giving white solids, determined to be the compounds shown in Figure 3. They were further washed with Et₂O and pentane, giving a yield of 75–80%.

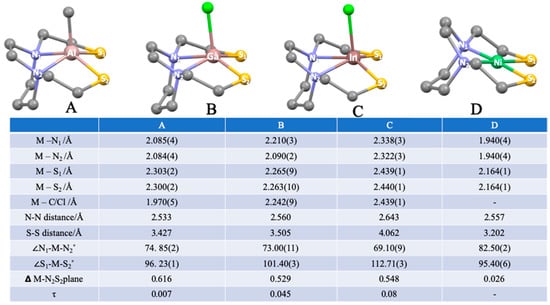

The XMN₂S₂ complexes were characterized by XRD, ESI-mass spectra, ¹H-NMR and ¹³C-NMR. Details are shown in the Supporting Information. The X-ray quality crystals of A were developed in pyridine solution at −28 °C. Crystals of B and C were obtained by slow evaporation of Et₂O vapor into a pyridine solution. All crystals were colorless needles. Metric parameters for the molecular structures are given in Figure 4.

The geometries of XMN₂S₂ (M = Al, Ga, and In) were similar, as the ideality of the square pyramidal structures is indicated by small τ values (near 0) [19]. The displacements of M from the best N₂S₂ planes showed aluminum to be the most out of plane, ∆ = 0.616 Å, while Ga and In showed displacements in the range of 0.53–0.55 Å. These displacements are likewise seen in some pentacoordinate transition metal complexes, such as MN₂S₂, where M = [Co(NO)]²⁺ (0.31 Å), [Fe(NO)]²⁺ (0.55 Å), and [V≡O]²⁺ (0.652 Å) [20,21]. In all cases of A, B, and C, the two-carbon linker within the diazacycloheptane ring is on the same side as the M^III–X bond vector. This means that the MN₂C₃ cyclohexane-type ring in the chair configuration is oriented “underneath” the N₂S₂ base of the square pyramidal X–MN₂S₂ structure. We saw no evidence of fluxionality in the solution.

Different from Ga and In, which are largely located on the midpoint line in the center of the N₂S₂ unit, Al showed a slight dissymmetry in its location, shifted towards the nitrogen atoms (Al–N is around 2.1 Å) and away from the sulfur atoms (Al–S is around 2.3 Å). This suggests a stronger electrostatic interaction to N from the Al^III. Table S5 lists the comparative ratios of the M–N/M–S distances that emphasize the similarity of Ga and In and their greater affinity for sulfur. From Al, Ga, to In, the angles of ∠N–M–N decreased with a concomitant increase in ∠S–M–S.

2.2. Reactions of XMN₂S₂ with Ni(II) Sources

The optimal sized N₂S₂ cavity of the bme-dach and analogous ligands, as well as the electronic structure preference of d⁸ Ni^II, leads to a well-known library of square planar NiN₂S₂ complexes [7]. Thus, we probed the possibility of Ni^II replacement of the Group III metal ions in the XMN₂S₂ complexes. Such metal exchange studies were not easily performed in the transition metal complexes, as aggregation at the sulfur elements was prominent.

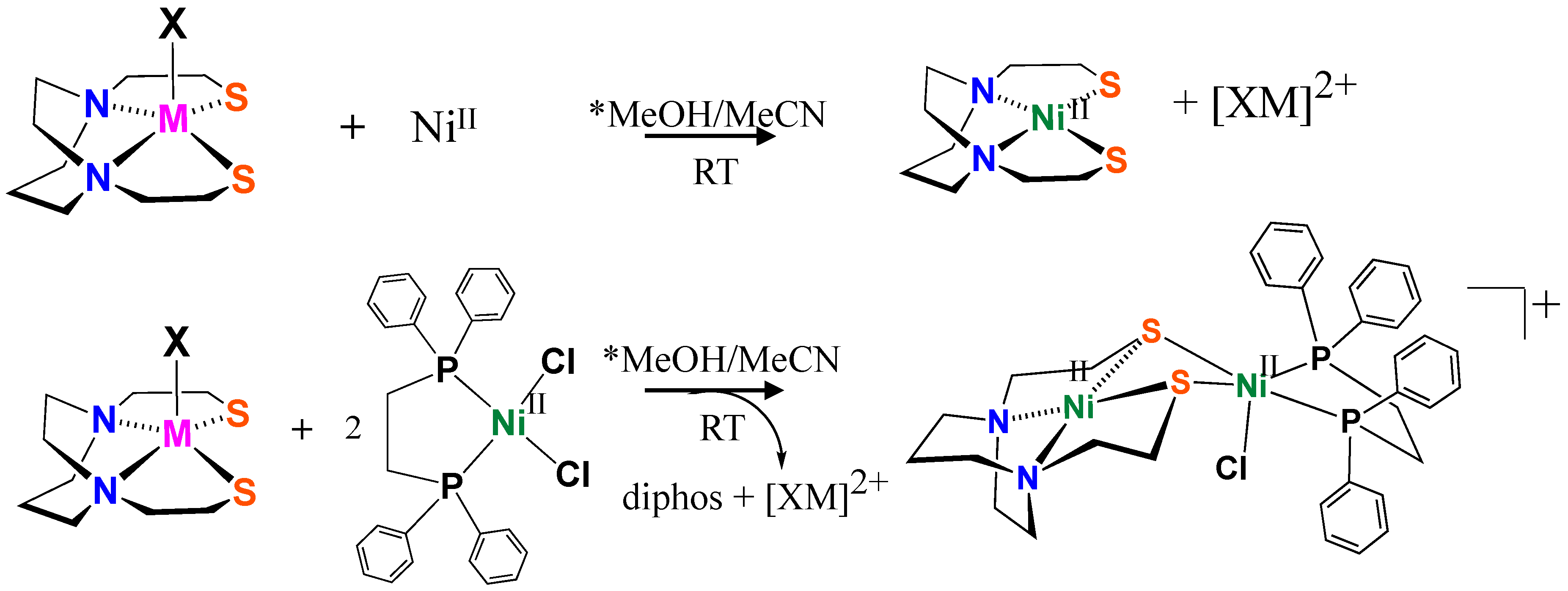

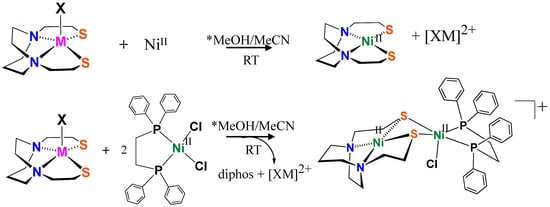

The addition of NiCl₂ or Ni(BF₄)₂ to XM^IIIN₂S₂ complexes resulted in the formation of NiN₂S₂ with M^III replaced by Ni^II, concomitant with a color change from colorless to dark maroon, illustrated in Figure 5. The resulting maroon product gave a yield of 75–80% and was confirmed as the known NiN₂S₂ complex by mass spectroscopy (Figure S12) and X-ray structure analyses. To determine whether the XM^III unit might remain in the N₂S₂ cavity with the attachment of Ni(diphos) to the nucleophilic sulfurs of XM^IIIN₂S₂, we added the (diphos)NiCl₂ complex to a solution of XM^IIIN₂S₂. The product of that reaction was determined to be the well-known dinickel complex derived from two (diphos)NiCl₂ complexes with Ni^II moving into the tight binding site, replacing XM^III, and the second nickel holding on to the diphos ligand, Figure 5. The stability of the NiN₂S₂ complex relative to XM^IIIN₂S₂ was confirmed.

2.3. Nucleophilicity of S Lone Pairs on XMN₂S₂ Towards the Soft Receiver W(CO)₅

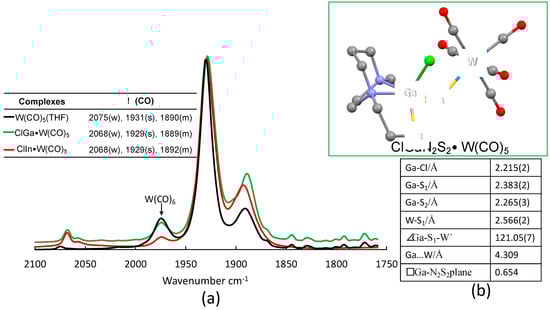

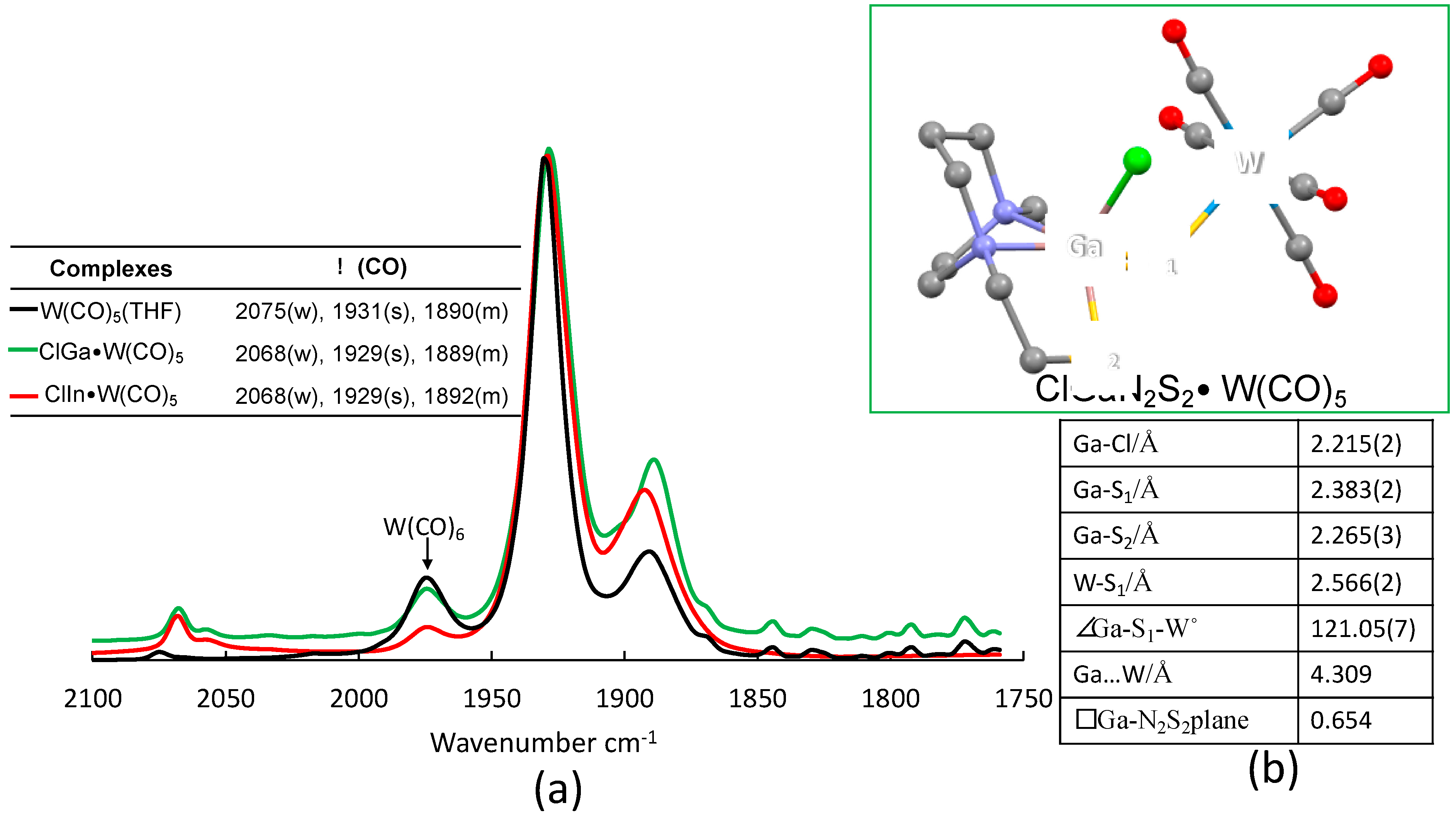

The stability and electronic reporting capability of tungsten carbonyls have proven useful to rank the donor ability of various MN₂S₂ metalloligands. The labile ligand synthons W(CO)₅(solv) and W(CO)₄(solv)₂ were generated by appropriate methods [22,23]. Carbon monoxide was lost in solutions of W(CO)₆ in THF under UV light, after which the golden yellow solution showed the ν(CO) C_4v pattern typical of W(CO)₅(THF) and was transferred via cannula to a solution of XMN₂S₂ (XM = ClGa/ClIn). Over the course of several hours at room temperature, with no further photolysis, the color changed to brown-orange. As shown in the overlaid spectra in Figure 6, the shift in ν(CO) was not large, indicating the donor ability of THF and monodentate XMN₂S₂ toward W(CO)₅ is similar and weak. In contrast, NiN₂S₂ reacted with W(CO)₅(THF), producing a much greater change in ν(CO) of 2062 (w), 1922 (s), and 1884 (m) [23]. The MeAlN₂S₂ metalloligand itself is not stable under UV light and gave products of degradation in the presence of W(CO)₅(THF).

Orange sheet crystals of ClGaN₂S₂·W(CO)₅ were obtained from THF solution by hexane layering. The X-ray diffraction study showed that the geometry and metric parameters were largely the same in the free and S-bound monodentate complexes. The Ga–S₁ bridge bond was elongated compared with the ClGaN₂S₂ structure. The N₂S₂ “plane” was quite distorted, giving the ClGaN₂S₂ a geometry between square pyramidal and trigonal bipyramidal with the τ value 0.50, as shown in Figure S18 [19]. Gallium(III) was significantly more displaced from the N₂S₂ “plane”, giving a deviation of over 0.1 Å (0.529 Å in ClGaN₂S₂ to 0.654 Å in ClGaN₂S₂·W(CO)₅). The distance between Ga and W was 4.309 Å.

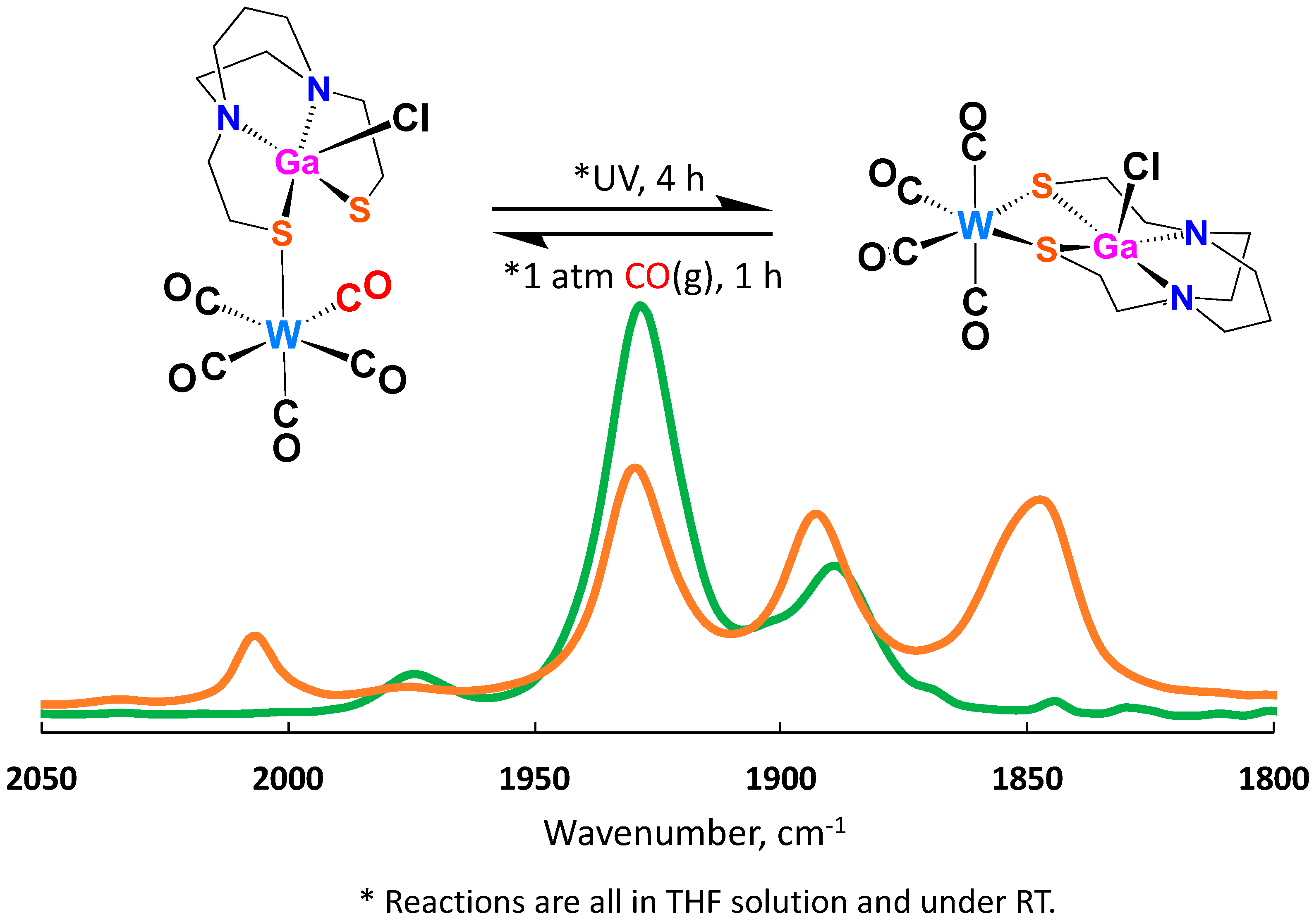

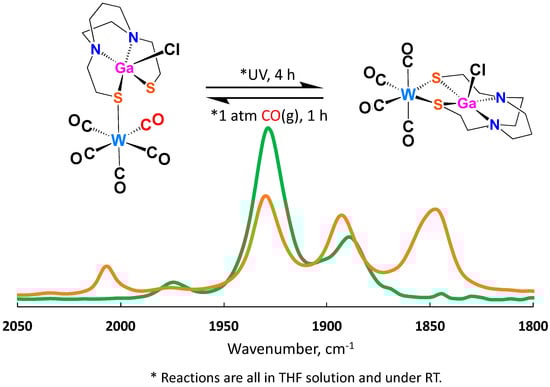

On further exposing ClGaN₂S₂·W(CO)₅ to UV light, a second CO was lost, yielding ClGaN₂S₂·W(CO)₄. The ν(CO) IR spectrum displays a four-band pattern typical of C_2v metal carbonyl derivatives; the values are 2004 (w), 1929 (m), 1890 (m), and 1846 (m) cm⁻¹ with the color changing to light orange, Figure 7. Similar to the ClGaN₂S₂·W(CO)₅ complex, the ClInN₂S₂·W(CO)₅ converted to ClInN₂S₂·W(CO)₄ under light, giving ν (CO) values of 2007 (w), 1929 (m), 1894 (m), and 1850 (m) cm⁻¹, as shown in Figure S17. The final product was confirmed by ⁻ESI-Mass, and details are given in the Supplementary Materials. The experimental results indicate that the thiolate sulfurs in the XMN₂S₂ complexes are still sufficiently active to bind another metal. However, the binding ability is weak. The latter statement was confirmed by the reversibility of the CO loss. On bubbling CO through the solution of ClGaN₂S₂·W(CO)₄, the pentacarbonyl was readily reclaimed.

3. Materials and Methods

All reagents and solvents were obtained from commercial sources. All solvents were purified and dried by an MBRAUN Manual Solvent Purification System (MBRAUN, NH, USA) packed with Alcoa F200 activated alumina desiccant. All reactions and operations were carried out on a double manifold Schlenk vacuum line or in a glovebox under a N₂ or Ar atmosphere.

Solution infrared spectra were recorded on a Bruker Tensor 37 Fourier transform IR (FTIR) spectrometer (Billerica, MA, USA) using a CaF₂ cell with a 0.2 mm path length. Both High Resolution and Low Resolution Mass spectrometry (Thermo Fisher Q Exactive Mass Spectrometer, ESI-MS, (IET, IL, USA) were performed in the Laboratory for Biological Mass Spectrometry at Texas A&M University. Data collections for X-ray structure-determination were carried out using Bruker APEX2 (Billerica, MA, USA) or Venture with a graphite monochromated radiation source (λ = 0.71073 Å). All crystals were coated in paraffin oil and mounted on a nylon loop and placed under streaming N₂ (110/150K). The structures were solved by direct methods (SHELXS-97) and refined by standard Fourier techniques against F square with a full-matrix least-squares algorithm using SHELXL-97 and the WinGX (1.80.05) software package (University Of Glasgow, Scotland, UK). Hydrogen atoms were placed in calculated positions and refined with a riding model. Graphical representations were prepared with ORTEP-III. Crystallographic data (including structure factors) have been deposited with the Cambridge Crystallographic Data Centre as supplementary publication nos. 1943010–1943013.

3.1. Synthesis of XMN₂S₂

MeAlN₂S₂: The H₂bme-dach ligand (0.22 g, 1.0 mmol) was added to a 125 mL Schlenk flask by pipet in an inert atmosphere glove box and dissolved in ca. 10 mL toluene. A pentane solution of AlMe₃ (1 M in pentane, 1 mL, 1 mmol) was added dropwise to the ligand solution. After reacting overnight at room temperature, the resulting powdery white solution was filtered, and solvent was removed under vacuum. The white solid was washed with Et₂O and pentane, giving a ~75% yield. Proton NMR spectral values (300 MHz, 293 K, pyridine-d₅) were as follows: δ (ppm) = 4.98 (s, 8H, N₂S₂) 2.63(q, 2H, N₂S₂), 2.61(q, 8H, N₂S₂), 1.70(q, 2H, N₂S₂), 0.10(s, 1H, Me). ¹³C NMR (300 MHz, 293 K, pyridine-d₅): δ (ppm) = 61.40, 55.80, 54.39, 28.81, 23.69, −4.01. High Resolution ⁺ESI-Mass: [M + H]⁺ (C₁₀H₂₂AlN₂S₂) Calculated 261.1040 (Most Abundant Isotopic Mass); Found: 261.1033. The detailed isotope abundance is shown in Figure S4.

ClGaN₂S₂: Similar to MeAlN₂S₂, ClGaN₂S₂ was derived from a MeOH solution of GaCl₃ (0.176 g, 1.0 mmol) and H₂bme-dach (0.22 g, 1.0 mmol) at room temperature. After overnight reaction, the solvent was removed from the resulting powdery white suspension under vacuum, and the white solid was washed with Et₂O and pentane, giving an ~80% yield. ¹H NMR (300 MHz, 293 K, pyridine-d₅): δ (ppm) = 5.75(s, 8H, N₂S₂), 3.62(s, 4H, N₂S₂), 2.84(s, 2H, N₂S₂), 2.17(q, 2H, N₂S₂), 1.27(q, 2H, N₂S₂). ¹³C NMR (300 MHz, 293 K, pyridine-d₅): δ (ppm) = 55.96, 51.54, 48.71, 24.62, 22.18. High Resolution ⁺ESI-Mass: [M − Cl]⁺ (C₉H₁₈GaN₂S₂) Calculated 287.0162; Found: 287.0157 (Most Abundant Isotopic Mass). The detailed isotope abundance is shown in Figure S5.

ClInN₂S₂: ClInN₂S₂ was synthesized in a similar method to ClGaN₂S₂. A MeOH solution of InCl₃ (0.221 g, 1.0 mmol) was added dropwise to a MeOH solution of H₂bme-dach. The powdery suspension was dried, and the white solid was washed with Et₂O and pentane. The yield was 85%. ¹H NMR (300 MHz, 293 K, pyridine-d₅): δ (ppm) = 5.75(s, 8H, N₂S₂), 3.62(s, 4H, N₂S₂), 2.84(s, 2H, N₂S₂), 2.17(q, 2H, N₂S₂), 1.27(q, 2H, N₂S₂). ¹³C NMR (300 MHz, 293 K, pyridine-d₅): δ (ppm) = 58.28, 53.01, 48.11, 24.23, 22.83. High Resolution ⁺ESI-Mass: [M − Cl]⁺ (C₉H₁₈InN₂S₂) Calculated 332.9945; Found: 332.9939 (Most Abundant Isotopic Mass). The detailed isotope abundance is shown in Figure S6.

3.2. Reactions of XMN₂S₂ with Ni(II)

The white solid of XMN₂S₂ (0.1 mmol) was placed in a 50 mL flask, and 10 mL of a MeOH/MeCN (1:1) mixture was added. The green solution of NiCl₂·6H₂O (0.1 mmol, 24 mg) in MeOH was then transferred to the 50 mL flask. The color immediately changed to maroon, which is typical of NiN₂S₂, and this product was confirmed by its X-ray structure. The same product, NiN₂S₂, was also formed by adding Ni(BF₄)₂ using the same method.

Similar to the reaction with the chloride salt of Ni^II, the white solid of XMN₂S₂ (0.1 mmol) was stirred with 10 mL MeCN in the 50 mL round flask. The NiP₂Cl₂ (P₂ = diphos or 1,1′-diphenylphosphinoethane, 0.105 g, 0.2 mmol) was dissolved in 10 mL MeCN and transferred to the flask. The resulting dark brown solution was dried in vacuo, giving a dark brown solid. Dark brown needle crystals were formed under Et₂O diffusion into a concentrated CH₃CN solution, proven to be the dinickel complex by X-ray structure and ⁺ESI-MS analyses.

3.3. Synthesis of ClMW(CO)₅

The W(CO)₅(solv) was generated in situ by W(CO)₆ in THF under UV light, after which the golden yellow solution was directly transferred to a white suspension of XMN₂S₂ (M = GaCl/InCl) in THF. Then, the mixture was stirred at room temperature and monitored by FTIR. After several hours, the color changed to a clear brown-orange and without further ν(CO) change. IR (cm⁻¹): ClGaN₂S₂W(CO)₅, ν(CO) 2068(w), 1929(s), 1889(m); ClInN₂S₂W(CO)₅, ν(CO) 2068(w), 1929(s), 1892(m). ⁻ESI-Mass: [ClInN₂S₂W(CO)₅ + Cl]⁺ (C₁₄H₁₈ClGaN₂O₅S₂W) Calculated 680.88; Found: 680.92; [ClInN₂S₂W(CO)₅ + Cl]⁺ (C₁₄H₁₈ClInN₂O₅S₂W) Calculated 726.86; Found: 726.94.

4. Conclusions

Through this study, we have demonstrated that the main group metals Al, Ga, and In can bind within the tetradentate chelating pocket of an N₂S₂ ligand, yielding square pyramidal complexes. The M^III sits above the N₂S₂ plane and each is capped with an additional ligand, CH₃⁻ in the case of Al^III and Cl⁻ for Ga^III and In^III. Known to be tunable via the N to N and N to S linkers of the MN₂S₂ metallodithiolates, our account extends the range of metals that define the nucleophilicity of the sulfurs in metallodithiolates as aggregating sites for exogeneous metals. The system demonstrates that the XMN₂S₂ complexes bind to W(CO)₅ and W(CO)₄, forming isolable complexes, one of which was subjected to XRD analysis. Solution ν(CO) IR spectral values permit comparisons of donor ability with transition metals such as NiN₂S₂ where the Ni_dπ–S_pπ antibonding interaction leads to greater donor ability. In addition, compared with NiN₂S₂, the XM^IIIN₂S₂ complexes are less stable and can readily convert to NiN₂S₂ on exposure to Ni^II when made available as a salt or when bound by diphos, bis-diphenylphosphino ethane. Such fundamental studies are useful for extending main group coordination chemistry.
