Green Synthesis of a Functionalized Zirconium-Based Metal–Organic Framework for Water and Ethanol Adsorption
1
Department of Chemistry and International Institute of Nanotechnology, Northwestern University, 2145 Sheridan Road, Evanston, IL 60208, USA
2
School of Chemistry and Chemical Engineering, South China University of Technology, Guangzhou 510640, China
*
Correspondence: [email protected] (T.I.); [email protected] (O.K.F.)
These authors contributed equally to this work.
Received: 8 April 2019 / Accepted: 21 April 2019 / Published: 26 April 2019

Abstract

:
Aqueous synthesis of metal–organic frameworks (MOFs) at room temperature offers many advantages such as reduction in the generation of toxic byproducts and operation costs, as well as increased safety in the material’s production. Functional group-bearing MOFs have received growing attention compared to nonfunctionalized analogues due to enhanced adsorption properties of the former in many cases. Here, we report an aqueous solution-based synthesis of a robust zirconium MOF, UiO-66-NO2, at room temperature. We evaluated the phase purity, porosity, thermal stability, particle morphology and size of the resulting material. High uptake, as well as near complete recyclability of water and ethanol vapor isotherms at room temperature supports the potential of UiO-66-NO2 as a solid adsorbent in adsorption-based cooling applications or water harvesting systems.
Keywords:
zirconium-based MOFs; water adsorption; ethanol adsorption; porous materials; adsorption heat pump

1. Introduction

Metal–organic frameworks (MOFs) [1,2,3,4,5] are a promising class of crystalline porous materials with a wide range of applications including but not limited to heterogeneous catalysis [6,7,8,9,10], enzyme and nanoparticle encapsulation [11,12,13,14], water capture [15,16,17,18,19], gas storage, and separation [20,21,22,23,24,25]. Importantly, physical and chemical properties of MOFs can be fine-tuned with the help of reticular chemistry, where pre-selected molecular building blocks are combined to yield pre-designed frameworks for targeted applications [26,27,28,29,30].
While gas adsorption is the most widely studied application of MOFs, vapor adsorption in MOFs has recently garnered some attention especially with the increasing number of water-stable MOFs reported [15,16,17,18,19,31,32,33]. MOFs with a high capacity for water uptake at room temperature have also gained increasing attention. By tuning features such as the topology, pore size, pore volume, and chemical functionality of MOFs, the relative pressure where the water uptake reaches maximum can be controlled. This is essential for many applications such as natural gas dehydration [34], water capture from air [16,35], adsorption-based cooling systems [15,19,36], and indoor humidity cooling systems [18]. Ethanol can be also used as refrigerant for adsorption-driven cooling application due to its lower freezing point compared to water [37]. Nevertheless, all of these adsorption-based applications such as adsorption beds [21,38], mixed-matrix membranes [39,40], or devices for capturing water from air [35,41], require large amounts of adsorbents for operation. Consequently, developing green and scalable methods for synthesis of MOFs is of interest for the aforementioned applications.
We have recently reported a promising strategy for the scalable synthesis of UiO-66 (UiO = University of Oslo) analogues (i.e., UiO-66-(COOH)2 and UiO-66-F4) for toxic chemical removal [42]. Herein, we extended this method to the synthesis of a highly stable Zr MOF, UiO-66-NO2 [43,44,45]. Various characterization techniques were implemented to confirm phase purity, morphology, thermal stability, and porosity of the resulting MOF. Moreover, we studied water and ethanol vapor adsorption of UiO-66-NO2, which showed high uptake as well as good recyclability.

2. Results and Discussion

UiO-66 is constructed from 12-connected hexanuclear zirconium oxo-clusters and terephthalate linkers with face-centered cubic (fcu) topology [46]. Due to the exceptional chemical and thermal stability, UiO-66 has become one of the most studied MOFs since its invention in 2008 [43,46,47,48,49]. UiO-66 can be easily functionalized with different functional groups on account of its isoreticular chemistry [5], however, a vast majority of these studies involve N,N-dimethylformamide (DMF), a toxic organic solvent, and elevated temperatures [5]. We recently reported an inexpensive, scalable, and environmentally benign procedure to synthesize UiO-66 derivatives (UiO-66-(COOH)2 and UiO-66-F4) in water at room temperature [42]. Building on the previous successful examples, we extended our strategy to synthesize another UiO-66 derivative, UiO-66-NO2 (Figure 1A). Among those functionalized UiO-66 analogues, UiO-66-NO2 is believed to be one of the most chemically stable Zr MOFs which makes it a potential candidate for broader applications [50,51].
As illustrated in Figure 1B, our aqueous synthetic method at room temperature resulted in phase-pure UiO-66-NO2 confirmed by the powder X-ray diffraction (PXRD) pattern. The crystal size of UiO-66-NO2 was about 100 nm as shown in the scanning electron microscopy (SEM) image (Figure S1).
N2 adsorption–desorption isotherms at 77 K revealed the experimental total pore volume at P/P0 = 0.8 was about 0.43 cm3·g−1, and the apparent Brunauer–Emmett–Teller (BET) area of UiO-66-NO2 was calculated to be 840 m2·g−1 based on the relative pressure range from P/P0 = 0.004 to P/P0 = 0.0294 (Figure 2A), in line with the surface areas obtained from solvothermal synthesis [52]. The pore-size distribution based on non-local density functional theory (NLDFT) model with the cylindrical kernel showed two major pores. The main peak centered at about 1.3 nm was assigned to octahedral cages of ideal UiO-66 structure, and the smaller shoulder near 1.8 nm was assigned to the presence of non-ordered missing cluster defects (Figure 2B) [53]. The sharp increase in the N2 isotherm near saturation pressure was due to the condensation of the N2 gas at interparticle voids, which is common in MOFs with nanosized crystallites [54].
The thermogravimetric analyses (TGA) plot of UiO-66-NO2 under continuous air flow indicated that the framework was stable up to about 300 °C (Figure S2). The number of the linkers per Zr6 node inside UiO-66-NO2 was estimated to be about 4.3 according to the TGA plot, assuming the full combustion of MOFs under the air flow. This indicated the defective nature of this UiO-66-NO2 synthesized in water at room temperature, which was consistent with the pore size distribution, further indicating the presence of defects. Diffuse reflectance infrared Fourier transform spectroscopy (DRIFTS) spectra was collected on this material where a sharp band at 3667 cm−1 was assigned to μ3 -OH stretches on the hexanuclear zirconium oxo-clusters (Figure S3) which was red-shifted compared to its parent UiO-66 [55] and consistent with solvothermally synthesized UiO-66-NO2 [52]
Encouraged by the moderate surface area and high stability of the UiO-66-NO2, we further studied the ethanol and water vapor sorption, which is important for practical applications such as adsorption-based heat pump and vapor capture from air, respectively. Ethanol adsorption of UiO-66-NO2 at 298 K showed an uptake of about 112 cm3·g−1 at P/P0 = 0.3 and about 186 cm3·g−1 at P/P0 = 0.9, respectively (Figure 3). Moreover, it retained its ethanol sorption performance for the second cycle after the simple activation under dynamic vacuum.
Water adsorption isotherm at room temperature is important to gauge MOFs for their potential for water vapor sorption related applications or to assess their moisture stability [19,35]. Thus, we performed the water vapor sorption at 298 K for UiO-66-NO2, which exhibited an S-shape adsorption isotherm (Figure 4). The uptake of water vapor at P/P0 = 0.9 was about 459 cm3·g−1 (or 0.37 g·g−1), and this value was slightly smaller than the reported value [17] of parent UiO-66 (533 cm3·g−1 or 0.43 g·g−1), due to the reduction of pore volume after the introduction of nitro-groups. On the other hand, the water uptake of UiO-66-NO2 at P/P0 = 0.3 was about 177 cm3·g−1 (or 0.14 g·g−1) which was higher than that of UiO-66 (108 cm3·g−1 or 0.09 g·g−1), indicating the more hydrophilic nature of this material in comparison with the parent UiO-66. The second run of the same batch material also verified the good cycling ability and therefore the stability of UiO-66-NO2. Note, the UiO-66-NO2 synthesized in aqueous solution at room temperature showed similar water uptake to that previously reported (459 cm3·g−1 (or 20.5 mmol·g−1) in this work, in comparison to 533 cm3·g−1 (or 22 mmol·g−1) at P/P0 = 0.9 by Walton and coworkers [44]), further confirming the practicality of this synthesis method of UiO-66-NO2 compared to that of solvothermal based methods.

3. Materials and Methods

All reagents were obtained from commercial sources and used without further purification, unless otherwise noted. Zirconium (IV) oxynitrate hydrate (99%) was purchased from Sigma-Aldrich (St. Louis, MO, USA).

3.1. X-ray Diffraction Analyses

Powder X-ray diffraction (PXRD) of MOFs were measured at room temperature on a STOE-STADIMP powder diffractometer (STOE & Cie GmbH, Darmstadt, Germany) equipped with an asymmetric curved Germanium monochromator (Cu Kα1 radiation, λ = 1.54056 Å) and one-dimensional silicon strip detector (MYTHEN2 1K from DECTRIS, Baden, Switzerland). The line focused Cu X-ray tube was operated at 40 kV and 40 mA. The activated powder was sandwiched between two Kapton foils and measured in transmission geometry in a rotating holder. Intensity data from 1 to 30 degrees two theta were collected over a period of 6 min. The instrument was calibrated against a NIST Silicon standard (640d) prior to the measurement.

3.2. N2 Sorption Measurements

N2 adsorption and desorption isotherms on activated materials were measured on a Tristar (Micromeritics, Norcross, GA, USA) instrument at 77 K. In general, about 30–50 mg of sample was used in each measurement after activated at 120 °C for 24 h.

3.3. Thermogravimetric Analyses (TGA)

TGA was performed on a TGA/DCS 1 system (Mettler-Toledo AG, Schwerzenbach, Switzerland), which runs on a PC with STARe software. Samples were heated from 30 to 600 °C at a rate of 10 °C/min under air with flow rate 20 mL/min.

3.4. Diffuse Reflectance for Infrared Fourier Transform Spectroscopy (DRIFTS)

DRIFTS spectra were recorded on a Nicolet 6700 FTIR spectrometer (Thermo Nicolet Corp., Madison, WI, USA) equipped with an MCT detector. The detector was cooled with liquid N2 and the spectra were collected under Ar atmosphere. KBr was utilized as a background spectrum.

3.5. Scanning Electron Micrographs (SEM)

Scanning electron micrographs (SEM) images were taken using a Hitachi SU8030 (Hitachi High Technologies Corporation, Tokyo, Japan) at the EPIC facility (NUANCE Center-Northwestern University). Samples were activated and coated with OsO4 to ~9 nm thickness in a Denton Desk III TSC Sputter Coater before imaging.

3.6. Water and Ethanol Vapor Sorption Measurements

Water and ethanol isotherms were measured on a 3Flex (Micromeritics), and the water uptake in g·g−1 unit is calculated as [(adsorbed amount of water)/(amount of adsorbent)]. Prior to the adsorption measurements, water or ethanol (analyte) was flash frozen under liquid nitrogen and then evacuated under dynamic vacuum at least 3 times to remove any gases in the water reservoir until the P0 of the analyte gas matches the suggested P0 at room temperature. The measurement temperature was controlled with an ISO Controller (Micromeritics).

3.7. Synthesis of UiO-66-NO2

1.5 mL of water was added to 20 mg (~0.094 mmol) of 2-nitroterephthalic acid. The mixture was then placed in the oven at 100 °C for 5 min. The color of the solution became pale yellow. Separately, 48 mg (~0.208 mmol) of zirconyl nitrate hydrate (ZrO(NO3)2·xH2O) was dissolved by adding 1.0 mL of water followed by sonication. The two solutions were combined, followed by an addition of 300 µL (~5.24 mmol) of acetic acid. The mixture was stirred for 72 h at room temperature. The crystalline powders were collected by centrifugation (7000 rpm for 30 min). As-synthesized sample was washed 3 times with DI water and then sequentially washed 2 times with ethanol, and finally immersed in acetone for 2 days, during which time the acetone was replaced 2 times per day. The product was obtained after initial drying via leaving exposed to ambient atmosphere overnight and activated at 120 °C for 24 h; yield: 25 mg.

4. Conclusions

In conclusion, we extended the room temperature, aqueous methodology of Zr MOFs to access a nitro-functionalized UiO-66 derivative, UiO-66-NO2. Importantly, the UiO-66-NO2 obtained here, using more environmentally benign methods, showed comparable BET area to MOFs obtained from solvothermal synthesis. Moreover, water and ethanol vapor sorption isotherms at room temperature indicated high uptake of both vapors, which suggests potential of UiO-66-NO2 for adsorption-based cooling applications or water harvesting systems.

Supplementary Materials

The following are available online at https://www.mdpi.com/2304-6740/7/5/56/s1, Figures S1–S3: SEM image, TGA curve and DRIFTS spectra of UiO-66-NO2.

Author Contributions

Conceptualization, Z.C., T.I. and O.K.F.; methodology, Z.C.; software, Z.C.; validation, T.I. and O.K.F.; formal analysis, X.W., Z.C.; investigation, Z.C. and X.W.; resources, O.K.F.; data curation, Z.C. and X.W.; writing—original draft preparation, Z.C.; writing—review and editing, X.W., T.I. and O.K.F.; visualization, Z.C. and X.W.; supervision, T.I. and O.K.F.; project administration, Z.C., T.I. and O.K.F.; funding acquisition, O.K.F.

Funding

This research was funded by STIR from ARO, grant number W911NF-18-1-0050.

Acknowledgments

The authors thank Zoha Syed for helpful discussions. This work made use of the EPIC facility of Northwestern University’s NUANCE Center, which has received support from the Soft and Hybrid Nanotechnology Experimental (SHyNE) Resource (NSF NNCI-1542205); the MRSEC program (NSF DMR-1720139) at the Materials Research Center; the International Institute for Nanotechnology (IIN); the Keck Foundation; and the State of Illinois, through the IIN. This work made use of the IMSERC at Northwestern University, which has received support from the NSF (CHE-1048773 and DMR0521267); Soft and Hybrid Nanotechnology Experimental (SHyNE) Resource (NSF NNCI-1542205); the State of Illinois and International Institute for Nanotechnology (IIN). X.W. acknowledges support from China Scholarship Council (CSC) during his visit to Northwestern University.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Furukawa, H.; Cordova, K.E.; O’Keeffe, M.; Yaghi, O.M. The Chemistry and Applications of Metal–Organic Frameworks. Science 2013, 341, 1230444. [Google Scholar]
  2. Férey, G. Building Units Design and Scale Chemistry. J. Solid State Chem. 2000, 152, 37–48. [Google Scholar] [CrossRef]
  3. Yuan, S.; Feng, L.; Wang, K.; Pang, J.; Bosch, M.; Lollar, C.; Sun, Y.; Qin, J.; Yang, X.; Zhang, P.; et al. Stable Metal–Organic Frameworks: Design, Synthesis, and Applications. Adv. Mater. 2018, 30, 1704303. [Google Scholar]
  4. Horike, S.; Shimomura, S.; Kitagawa, S. Soft porous crystals. Nat. Chem. 2009, 1, 695–704. [Google Scholar] [CrossRef] [PubMed]
  5. Chen, Z.; Hanna, S.L.; Redfern, L.R.; Alezi, D.; Islamoglu, T.; Farha, O.K. Reticular chemistry in the rational synthesis of functional zirconium cluster-based MOFs. Coord. Chem. Rev. 2019, 386, 32–49. [Google Scholar] [CrossRef]
  6. Zhang, X.; Huang, Z.; Ferrandon, M.; Yang, D.; Robison, L.; Li, P.; Wang, T.C.; Delferro, M.; Farha, O.K. Catalytic chemoselective functionalization of methane in a metal–organic framework. Nat. Catal. 2018, 1, 356–362. [Google Scholar]
  7. Zhang, X.; Vermeulen, N.A.; Huang, Z.; Cui, Y.; Liu, J.; Krzyaniak, M.D.; Li, Z.; Noh, H.; Wasielewski, M.R.; Delferro, M.; et al. Effect of Redox “Non-Innocent” Linker on the Catalytic Activity of Copper-Catecholate-Decorated Metal–Organic Frameworks. ACS Appl. Mater. Interfaces 2018, 10, 635–641. [Google Scholar] [CrossRef] [PubMed]
  8. Liu, J.; Ye, J.; Li, Z.; Otake, K.-i.; Liao, Y.; Peters, A.W.; Noh, H.; Truhlar, D.G.; Gagliardi, L.; Cramer, C.J.; et al. Beyond the Active Site: Tuning the Activity and Selectivity of a Metal–Organic Framework-Supported Ni Catalyst for Ethylene Dimerization. J. Am. Chem. Soc. 2018, 140, 11174–11178. [Google Scholar] [CrossRef] [PubMed]
  9. Chen, X.; Jiang, H.; Hou, B.; Gong, W.; Liu, Y.; Cui, Y. Boosting Chemical Stability, Catalytic Activity, and Enantioselectivity of Metal–Organic Frameworks for Batch and Flow Reactions. J. Am. Chem. Soc. 2017, 139, 13476–13482. [Google Scholar] [CrossRef] [PubMed]
  10. Chen, Z.; Islamoglu, T.; Farha, O.K. Toward Base Heterogenization: A Zirconium Metal–Organic Framework/Dendrimer or Polymer Mixture for Rapid Hydrolysis of a Nerve-Agent Simulant. ACS Appl. Nano Mater. 2019, 2, 1005–1008. [Google Scholar] [CrossRef]
  11. Wang, S.; Chen, Y.; Wang, S.; Li, P.; Mirkin, C.A.; Farha, O.K. DNA-Functionalized Metal–Organic Framework Nanoparticles for Intracellular Delivery of Proteins. J. Am. Chem. Soc. 2019, 141, 2215–2219. [Google Scholar] [CrossRef]
  12. Lian, X.; Fang, Y.; Joseph, E.; Wang, Q.; Li, J.; Banerjee, S.; Lollar, C.; Wang, X.; Zhou, H.-C. Enzyme–MOF (metal–organic framework) composites. Chem. Soc. Rev. 2017, 46, 3386–3401. [Google Scholar] [CrossRef]
  13. Li, G.; Zhao, S.; Zhang, Y.; Tang, Z. Metal–Organic Frameworks Encapsulating Active Nanoparticles as Emerging Composites for Catalysis: Recent Progress and Perspectives. Adv. Mater. 2018, 30, 1800702. [Google Scholar]
  14. Osterrieth, J.W.M.; Wright, D.; Noh, H.; Kung, C.-W.; Vulpe, D.; Li, A.; Park, J.E.; Van Duyne, R.P.; Moghadam, P.Z.; Baumberg, J.J.; et al. Core–Shell Gold [email protected] Metal–Organic Framework Composites as in Situ Size-Selective Raman Probes. J. Am. Chem. Soc. 2019, 141, 3893–3900. [Google Scholar] [CrossRef]
  15. Rieth, A.J.; Yang, S.; Wang, E.N.; Dincă, M. Record Atmospheric Fresh Water Capture and Heat Transfer with a Material Operating at the Water Uptake Reversibility Limit. ACS Cent. Sci. 2017, 3, 668–672. [Google Scholar] [CrossRef]
  16. Kim, H.; Yang, S.; Rao, S.R.; Narayanan, S.; Kapustin, E.A.; Furukawa, H.; Umans, A.S.; Yaghi, O.M.; Wang, E.N. Water harvesting from air with metal–organic frameworks powered by natural sunlight. Science 2017, 356, 430–434. [Google Scholar] [CrossRef] [PubMed]
  17. Furukawa, H.; Gándara, F.; Zhang, Y.-B.; Jiang, J.; Queen, W.L.; Hudson, M.R.; Yaghi, O.M. Water Adsorption in Porous Metal–Organic Frameworks and Related Materials. J. Am. Chem. Soc. 2014, 136, 4369–4381. [Google Scholar] [CrossRef]
  18. Towsif Abtab, S.M.; Alezi, D.; Bhatt, P.M.; Shkurenko, A.; Belmabkhout, Y.; Aggarwal, H.; Weseliński, Ł.J.; Alsadun, N.; Samin, U.; Hedhili, M.N.; et al. Reticular Chemistry in Action: A Hydrolytically Stable MOF Capturing Twice Its Weight in Adsorbed Water. Chem 2018, 4, 94–105. [Google Scholar] [CrossRef]
  19. Chen, Z.; Li, P.; Zhang, X.; Li, P.; Wasson, M.C.; Islamoglu, T.; Stoddart, J.F.; Farha, O.K. Reticular Access to Highly Porous acs-MOFs with Rigid Trigonal Prismatic Linkers for Water Sorption. J. Am. Chem. Soc. 2019, 141, 2900–2905. [Google Scholar] [CrossRef]
  20. Cadiau, A.; Adil, K.; Bhatt, P.M.; Belmabkhout, Y.; Eddaoudi, M. A metal–organic framework-based splitter for separating propylene from propane. Science 2016, 353, 137–140. [Google Scholar] [CrossRef]
  21. Lin, R.-B.; Li, L.; Zhou, H.-L.; Wu, H.; He, C.; Li, S.; Krishna, R.; Li, J.; Zhou, W.; Chen, B. Molecular sieving of ethylene from ethane using a rigid metal–organic framework. Nat. Mater. 2018, 17, 1128–1133. [Google Scholar] [CrossRef] [PubMed]
  22. Cui, X.; Chen, K.; Xing, H.; Yang, Q.; Krishna, R.; Bao, Z.; Wu, H.; Zhou, W.; Dong, X.; Han, Y.; et al. Pore chemistry and size control in hybrid porous materials for acetylene capture from ethylene. Science 2016, 353, 141–144. [Google Scholar] [CrossRef] [PubMed]
  23. Chen, Z.; Adil, K.; Weselinski, L.J.; Belmabkhout, Y.; Eddaoudi, M. A supermolecular building layer approach for gas separation and storage applications: The eea and rtl MOF platforms for CO2 capture and hydrocarbon separation. J. Mater. Chem. A 2015, 3, 6276–6281. [Google Scholar] [CrossRef]
  24. Chen, Z.; Feng, L.; Liu, L.; Bhatt, P.M.; Adil, K.; Emwas, A.-H.; Assen, A.H.; Belmabkhout, Y.; Han, Y.; Eddaoudi, M. Enhanced Separation of Butane Isomers via Defect Control in a Fumarate/Zirconium-Based Metal Organic Framework. Langmuir 2018, 34, 14546–14551. [Google Scholar] [CrossRef] [PubMed]
  25. Belmabkhout, Y.; Pillai, R.S.; Alezi, D.; Shekhah, O.; Bhatt, P.M.; Chen, Z.; Adil, K.; Vaesen, S.; De Weireld, G.; Pang, M.; et al. Metal–organic frameworks to satisfy gas upgrading demands: Fine-tuning the soc-MOF platform for the operative removal of H2S. J. Mater. Chem. A 2017, 5, 3293–3303. [Google Scholar] [CrossRef]
  26. Yaghi, O.M.; O’Keeffe, M.; Ockwig, N.W.; Chae, H.K.; Eddaoudi, M.; Kim, J. Reticular synthesis and the design of new materials. Nature 2003, 423, 705–714. [Google Scholar] [CrossRef]
  27. Rungtaweevoranit, B.; Diercks, C.S.; Kalmutzki, M.J.; Yaghi, O.M. Spiers Memorial Lecture: Progress and prospects of reticular chemistry. Faraday Discuss. 2017, 201, 9–45. [Google Scholar]
  28. Chen, Z.; Weseliński, Ł.J.; Adil, K.; Belmabkhout, Y.; Shkurenko, A.; Jiang, H.; Bhatt, P.M.; Guillerm, V.; Dauzon, E.; Xue, D.-X.; O’Keeffe, M.; et al. Applying the Power of Reticular Chemistry to Finding the Missing alb-MOF Platform Based on the (6,12)-Coordinated Edge-Transitive Net. J. Am. Chem. Soc. 2017, 139, 3265–3274. [Google Scholar] [CrossRef]
  29. Chen, Z.; Jiang, H.; O’Keeffe, M.; Eddaoudi, M. Minimal edge-transitive nets for the design and construction of metal–organic frameworks. Faraday Discuss. 2017, 201, 127–143. [Google Scholar] [CrossRef][Green Version]
  30. Jiang, H.; Jia, J.; Shkurenko, A.; Chen, Z.; Adil, K.; Belmabkhout, Y.; Weselinski, L.J.; Assen, A.H.; Xue, D.-X.; O’Keeffe, M.; et al. Enriching the Reticular Chemistry Repertoire: Merged Nets Approach for the Rational Design of Intricate Mixed-Linker Metal–Organic Framework Platforms. J. Am. Chem. Soc. 2018, 140, 8858–8867. [Google Scholar] [CrossRef]
  31. Jeremias, F.; Fröhlich, D.; Janiak, C.; Henninger, S.K. Water and methanol adsorption on MOFs for cycling heat transformation processes. New J. Chem. 2014, 38, 1846–1852. [Google Scholar] [CrossRef][Green Version]
  32. Wang, S.; Lee, J.S.; Wahiduzzaman, M.; Park, J.; Muschi, M.; Martineau-Corcos, C.; Tissot, A.; Cho, K.H.; Marrot, J.; Shepard, W.; et al. A robust large-pore zirconium carboxylate metal–organic framework for energy-efficient water-sorption-driven refrigeration. Nat. Energy 2018, 3, 985–993. [Google Scholar] [CrossRef]
  33. Akiyama, G.; Matsuda, R.; Sato, H.; Hori, A.; Takata, M.; Kitagawa, S. Effect of functional groups in MIL-101 on water sorption behavior. Microporous Mesoporous Mater. 2012, 157, 89–93. [Google Scholar] [CrossRef]
  34. Cadiau, A.; Belmabkhout, Y.; Adil, K.; Bhatt, P.M.; Pillai, R.S.; Shkurenko, A.; Martineau-Corcos, C.; Maurin, G.; Eddaoudi, M. Hydrolytically stable fluorinated metal–organic frameworks for energy-efficient dehydration. Science 2017, 356, 731–735. [Google Scholar] [CrossRef]
  35. Fathieh, F.; Kalmutzki, M.J.; Kapustin, E.A.; Waller, P.J.; Yang, J.; Yaghi, O.M. Practical water production from desert air. Sci. Adv. 2018, 4, eaat3198. [Google Scholar] [CrossRef]
  36. Chaemchuen, S.; Xiao, X.; Klomkliang, N.; Yusubov, M.S.; Verpoort, F. Tunable Metal–Organic Frameworks for Heat Transformation Applications. Nanomaterials 2018, 8, 661. [Google Scholar] [CrossRef]
  37. De Lange, M.F.; van Velzen, B.L.; Ottevanger, C.P.; Verouden, K.J.F.M.; Lin, L.-C.; Vlugt, T.J.H.; Gascon, J.; Kapteijn, F. Metal–Organic Frameworks in Adsorption-Driven Heat Pumps: The Potential of Alcohols as Working Fluids. Langmuir 2015, 31, 12783–12796. [Google Scholar] [CrossRef]
  38. Liao, P.-Q.; Huang, N.-Y.; Zhang, W.-X.; Zhang, J.-P.; Chen, X.-M. Controlling guest conformation for efficient purification of butadiene. Science 2017, 356, 1193. [Google Scholar] [CrossRef]
  39. Lin, R.; Villacorta Hernandez, B.; Ge, L.; Zhu, Z. Metal organic framework based mixed matrix membranes: An overview on filler/polymer interfaces. J. Mater. Chem. A 2018, 6, 293–312. [Google Scholar] [CrossRef]
  40. Liu, Y.; Chen, Z.; Liu, G.; Belmabkhout, Y.; Adil, K.; Eddaoudi, M.; Koros, W. Conformation-Controlled Molecular Sieving Effects for Membrane-Based Propylene/Propane Separation. Adv. Mater. 2019, 0, 1807513. [Google Scholar] [CrossRef]
  41. Kalmutzki, M.J.; Diercks, C.S.; Yaghi, O.M. Metal–Organic Frameworks for Water Harvesting from Air. Adv. Mater. 2018, 30, e1704304. [Google Scholar] [CrossRef] [PubMed]
  42. Chen, Z.; Wang, X.; Noh, H.; Ayoub, G.; Peterson, G.W.; Buru, C.T.; Islamoglu, T.; Farha, O.K. Scalable, room temperature, and water-based synthesis of functionalized zirconium-based metal–organic frameworks for toxic chemical removal. CrystEngComm 2019, 21, 2409–2415. [Google Scholar] [CrossRef]
  43. Garibay, S.J.; Cohen, S.M. Isoreticular synthesis and modification of frameworks with the UiO-66 topology. Chem. Commun. 2010, 46, 7700–7702. [Google Scholar] [CrossRef] [PubMed]
  44. Cmarik, G.E.; Kim, M.; Cohen, S.M.; Walton, K.S. Tuning the Adsorption Properties of UiO-66 via Ligand Functionalization. Langmuir 2012, 28, 15606–15613. [Google Scholar] [CrossRef]
  45. Rada, Z.H.; Abid, H.R.; Shang, J.; Sun, H.; He, Y.; Webley, P.; Liu, S.; Wang, S. Functionalized UiO-66 by Single and Binary (OH)2 and NO2 Groups for Uptake of CO2 and CH4. Ind. Eng. Chem. Res. 2016, 55, 7924–7932. [Google Scholar] [CrossRef]
  46. Cavka, J.H.; Jakobsen, S.; Olsbye, U.; Guillou, N.; Lamberti, C.; Bordiga, S.; Lillerud, K.P. A New Zirconium Inorganic Building Brick Forming Metal Organic Frameworks with Exceptional Stability. J. Am. Chem. Soc. 2008, 130, 13850–13851. [Google Scholar] [CrossRef]
  47. DeStefano, M.R.; Islamoglu, T.; Garibay, S.J.; Hupp, J.T.; Farha, O.K. Room-Temperature Synthesis of UiO-66 and Thermal Modulation of Densities of Defect Sites. Chem. Mater. 2017, 29, 1357–1361. [Google Scholar] [CrossRef]
  48. Katz, M.J.; Mondloch, J.E.; Totten, R.K.; Park, J.K.; Nguyen, S.T.; Farha, O.K.; Hupp, J.T. Simple and Compelling Biomimetic Metal–Organic Framework Catalyst for the Degradation of Nerve Agent Simulants. Angew. Chem. Int. Ed. 2014, 53, 497–501. [Google Scholar] [CrossRef]
  49. Taddei, M.; Wakeham, R.J.; Koutsianos, A.; Andreoli, E.; Barron, A.R. Post-Synthetic Ligand Exchange in Zirconium-Based Metal–Organic Frameworks: Beware of The Defects! Angew. Chem. Int. Ed. 2018, 57, 11706–11710. [Google Scholar] [CrossRef]
  50. Kandiah, M.; Nilsen, M.H.; Usseglio, S.; Jakobsen, S.; Olsbye, U.; Tilset, M.; Larabi, C.; Quadrelli, E.A.; Bonino, F.; Lillerud, K.P. Synthesis and Stability of Tagged UiO-66 Zr-MOFs. Chem. Mater. 2010, 22, 6632–6640. [Google Scholar] [CrossRef]
  51. Howarth, A.J.; Liu, Y.; Li, P.; Li, Z.; Wang, T.C.; Hupp, J.T.; Farha, O.K. Chemical, thermal and mechanical stabilities of metal–organic frameworks. Nat. Rev. Mater. 2016, 1, 15018. [Google Scholar] [CrossRef]
  52. Wei, R.; Gaggioli, C.A.; Li, G.; Islamoglu, T.; Zhang, Z.; Yu, P.; Farha, O.K.; Cramer, C.J.; Gagliardi, L.; Yang, D.; et al. Tuning the Properties of Zr6O8 Nodes in the Metal Organic Framework UiO-66 by Selection of Node-Bound Ligands and Linkers. Chem. Mater. 2019, 31, 1655–1663. [Google Scholar] [CrossRef]
  53. Shearer, G.C.; Vitillo, J.G.; Bordiga, S.; Svelle, S.; Olsbye, U.; Lillerud, K.P. Functionalizing the Defects: Postsynthetic Ligand Exchange in the Metal Organic Framework UiO-66. Chem. Mater. 2016, 28, 7190–7193. [Google Scholar] [CrossRef]
  54. Majewski, M.B.; Noh, H.; Islamoglu, T.; Farha, O.K. NanoMOFs: Little crystallites for substantial applications. J. Mater. Chem. A 2018, 6, 7338–7350. [Google Scholar] [CrossRef]
  55. Islamoglu, T.; Ray, D.; Li, P.; Majewski, M.B.; Akpinar, I.; Zhang, X.; Cramer, C.J.; Gagliardi, L.; Farha, O.K. From Transition Metals to Lanthanides to Actinides: Metal-Mediated Tuning of Electronic Properties of Isostructural Metal–Organic Frameworks. Inorg. Chem. 2018, 57, 13246–13251. [Google Scholar] [CrossRef]
Figure 1. (A) Structural representation of UiO-66-NO2 constructed from 12-c Zr nodes and linear 2-nitroterephthalic acid (H2BDC-NO2) ligand. (B) Powder X-ray diffraction (PXRD) pattern of the as-synthesized sample matched well with the simulated UiO-66-NO2.
Figure 1. (A) Structural representation of UiO-66-NO2 constructed from 12-c Zr nodes and linear 2-nitroterephthalic acid (H2BDC-NO2) ligand. (B) Powder X-ray diffraction (PXRD) pattern of the as-synthesized sample matched well with the simulated UiO-66-NO2.
Inorganics 07 00056 g001

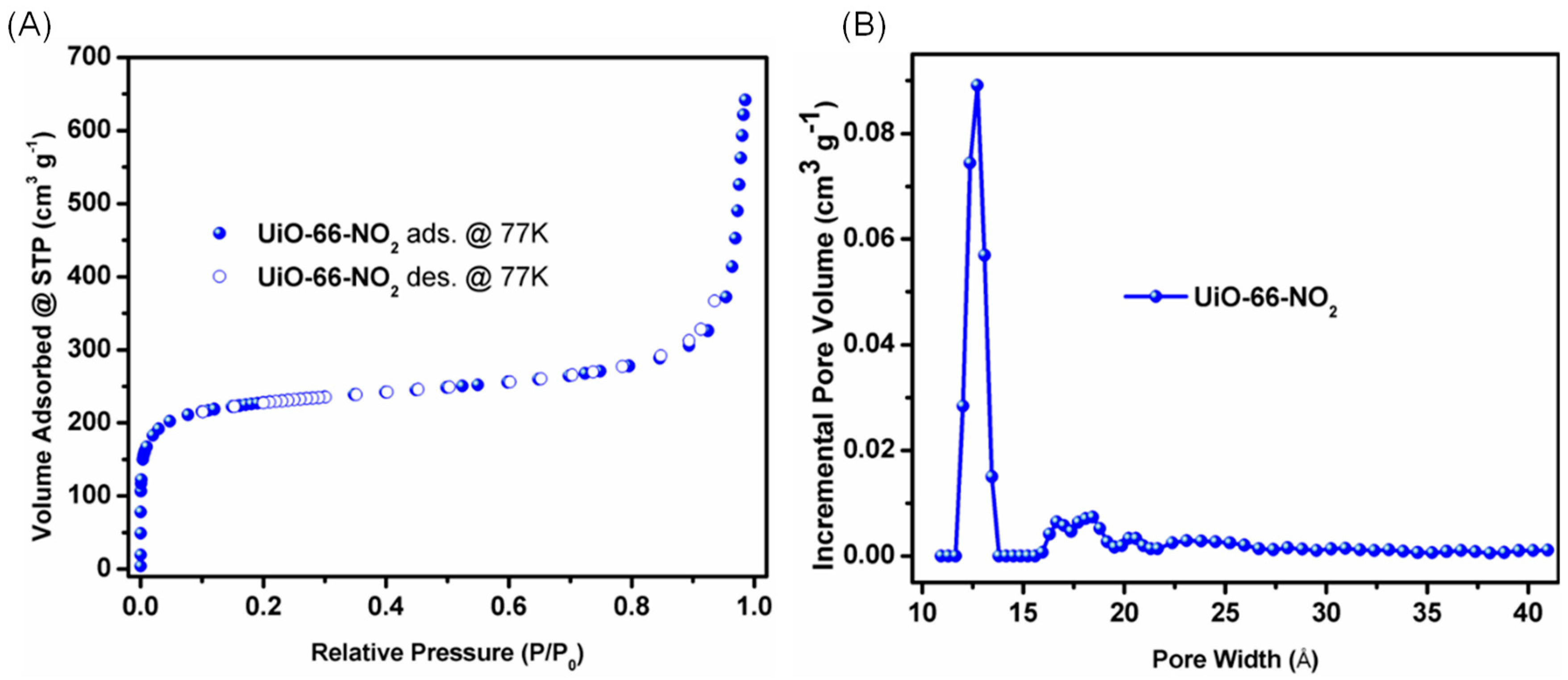

Figure 2. (A) N2 sorption isotherms of UiO-66-NO2 at 77 K and (B) pore-size distribution based on a non-local density functional theory (NLDFT) model.
Figure 2. (A) N2 sorption isotherms of UiO-66-NO2 at 77 K and (B) pore-size distribution based on a non-local density functional theory (NLDFT) model.
Inorganics 07 00056 g002

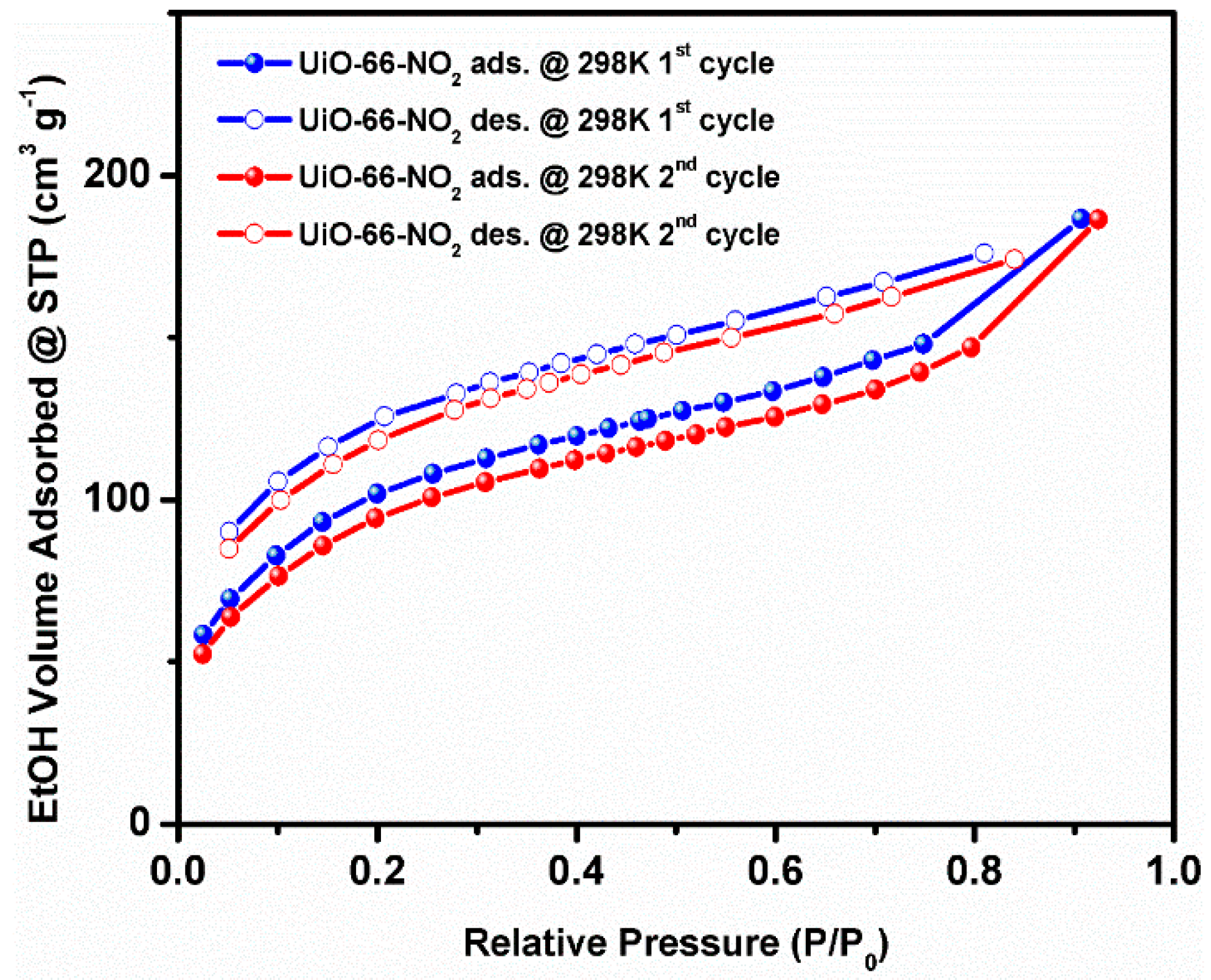

Figure 3. Ethanol sorption isotherms of UiO-66-NO2 at 298 K (two cycles).
Figure 3. Ethanol sorption isotherms of UiO-66-NO2 at 298 K (two cycles).
Inorganics 07 00056 g003
Figure 4. Water sorption isotherms of UiO-66-NO2 at 298 K (two cycles).
Figure 4. Water sorption isotherms of UiO-66-NO2 at 298 K (two cycles).
Inorganics 07 00056 g004
