Review

Water Oxidation Catalysts: The Quest for New Oxide-Based Materials

University of Zurich, Department of Chemistry, Winterthurerstrasse 190, CH-8057 Zurich, Switzerland
*
Author to whom correspondence should be addressed.
Inorganics 2019, 7(3), 29; https://doi.org/10.3390/inorganics7030029
Received: 22 January 2019 / Revised: 14 February 2019 / Accepted: 17 February 2019 / Published: 26 February 2019
(This article belongs to the Special Issue Recent Advances in Water Oxidation Catalysis)

Abstract

:
The expected shortage of fossil fuels as well as the accompanying climate change are among the major challenges of the 21st century. A global shift to a sustainable energy landscape is, therefore, of utmost importance. Over the past few years, solar technologies have entered the energy market and have paved the way to replace fossil-based energy sources, in the long term. In particular, electrochemical solar-to-hydrogen technologies have attracted a lot of interest—not only in academia, but also in industry. Solar water splitting (artificial photosynthesis) is one of the most active areas in contemporary materials and catalysis research. The development of low-cost, efficient, and stable water oxidation catalysts (WOCs) remains crucial for artificial photosynthesis applications, because WOCs still represent a major economical and efficient bottleneck. In the following, we summarize recent advances in water oxidation catalysts development, with selected examples from 2016 onwards. This condensed survey demonstrates that the ongoing quest for new materials and informed catalyst design is a dynamic and rapidly developing research area.

1. Introduction

Solar water splitting, namely the solar-driven splitting of water into molecular hydrogen and oxygen is one of the most promising routes to sustainably solve the issue of energy storage and transport, in the long term [1]. The overall water splitting process is schematically given as follows:
2H2O + energy → 2H2 + O2
Typical device setups for water splitting are based on electrolysis or electrochemical water splitting cells. The involved half-cell reactions in the latter are referred to as the oxygen evolution reaction (OER) at the anode of the cell and the hydrogen evolution reaction (HER) at the cathode, which, for alkaline media, are defined as:
HER: 4H2O + 4e → 2H2 + 4OH
OER: 4OH → O2 + 2H2O + 4e
The minimum operational requirement for a water splitting system is the equilibrium voltage of 1.23 V at room temperature [2,3]. Nevertheless, in real systems a higher voltage, compared to the thermodynamic value, must be applied to expedite the electrochemical OER. This extra-potential is called overpotential (η), and its minimization is a prerequisite for the development of highly active and cost-effective electrocatalysts.
In principle, there are two main technological pathways for energy capture to drive the water splitting reaction. The first is the coupling of photovoltaics (PV) or any other grid-scale renewable energy source with electrochemical water splitting devices, i.e., electrolyzers [4]. An alternative route of solar to energy conversion are photoelectrochemical (PEC) devices [5,6,7]. Typically, the latter technology integrates semiconductor materials into the electrode design to directly harvest solar energy. Recently, research and development comparisons for both pathways have been subject to intense scientific debates. The first category of devices is definitely closer to large-scale technical implementations, whereas the PEC devices are at an early stage technological maturity, but provide plenty of room for flexible and off-grid setups [8,9].
Given the demanding four electron transfer process involved in the water oxidation reaction, the development of efficient WOCs remains a major step towards artificial photosynthesis [10]. The past decade has witnessed great interest in the design of single and multi-metal materials and of their underlying substrates as an efficient strategy to improve the overall catalytic activity and stability of such OER catalysts [11]. Along these lines, the synergistic effects involving layered hydroxides, spinels, amorphous oxides, and other tunable oxide-based materials have resulted in an exceptional enhancement of the catalytic performance [11]. Currently, some noble metals and their oxides, such as Ru, Ir, RuO2, and IrO2 still remain the best catalysts for the OER, in both aqueous and acidic media. However, their high cost and low abundance are major roadblocks for their industrial application [12,13].
This review does not intend to be exhaustive, but rather aims for an update on the recent advancements in metal oxide-based OER catalysts. Hence, selected articles from 2016 to 2018 are summarized in the following sections and are rounded-off with a brief outline of the unresolved bottlenecks in this research area. The final section of the review further summarizes new research directions towards innovative composite materials.
High performance metallic WOCs are sometimes scarce, costly, and sensitive towards chemical changes, whilst many metal oxides are earth-abundant and exhibit superior durability. Metal oxides are involved in a wide range of technical processes and represent the major part of industrially applied catalyst families. Their rapid ascent traces back to the mid-1950s when they were found to catalyze a variety of oxidation and acid-base reactions. The manifold properties of oxide materials, such as electrical conductivity, lattice oxygen ion mobility, atomic or ionic diffusion among interfaces, catalytic activity, and various optical and electronic properties, are frequently associated with the presence of defects, in contrast to an ideal ionic crystal. Oxides contain different types of defects, including electron-hole pairs, excitons, vacant lattice sites, interstitial atoms, impurity atoms at interstitial or substitution locations, dislocations, and stacking faults [14]. Consequently, catalytic reactions on metal oxides are favored, due to their surface flexibility under catalytic conditions. In the following, we outline the quest for understanding and constructing new complex oxide materials and related catalyst and composite types, which still remain to be fully explored in their infinite structural variety.

2. Recent Developments of Metal Oxide-Based WOCs

2.1. Ru-, Ir-, and Cu-based Metal Oxides

In this section, the selected articles on Ru-, Ir-, and Cu-based metal oxides received immediate recognition in the field and covered research conducted over the last three years [15,16,17,18,19,20,21,22]. Emphasis has been placed on mechanistic insights and operando techniques, as well as on the proposed Cu-based catalysts, as a possible alternative to the more costly Ru- and Ir-based WOCs. The selected studies applied the stability and onset potential required during the OER as benchmarking parameters. Generally, this focused review article places selective emphasis on progress in oxide WOC performance, as a result of new synthetic strategies (for examples of reviews containing information on operando methods [10,23,24]).
All catalysts in this section are discussed and summarized below in Table 1. In the following survey tables, “durability” refers to maintenance of the catalytic performance, at constant current conditions, and “stability” refers to the resistivity of a given catalyst towards dissolution/leaching of the active metal sites. Whenever possible, the descriptions of the catalysts’ stability, in the following tables, represent the exact wording as given by the authors. Exceptions are stability assessments marked with an asterisk sign (*); these were added by us after going through the data provided in the corresponding publications. In this review, the various metal oxide families reported in the next sections are summarized in tables according to the information on the durability and stability of catalyst performance. Unless stated otherwise, the symbol “-“ indicates that no such parameters were reported in the cited study. The Tafel values in this review are generally cited as efficiency indicators of the electrocatalytic performance. This criterion is particularly important in water electrolyzers, for instance, where high current densities, at the lowest possible operational voltages, are vital for the economic viability. Furthermore, Conway et al. clarified in a representative study, three decades ago, that Tafel slope values can provide both quantitative and mechanistic insights into electrocatalytic processes [25]. On a very fundamental level, the Tafel slope is characterized by the rate of increase of the electrode potential or polarization with the log of the current density. From a more practical point of view, along with the current density obtained at a certain overpotential, the rate of change of this current density with the overpotential is also important. Hence, low Tafel slope values are generally recognized as a key parameter indicating efficient electrocatalytic materials.
Weber et al. proposed that an exfoliation route in tetrabutylammonium hydroxide (TBAOH) solution to convert bulk IrOOH to IrOOH nanosheets could open the doors to fundamental studies and mechanistic insight. This approach might as well be of great interest for industrial applications in heterogeneous catalysis [15]. This material outperformed the state-of-the-art rutile-IrO2, under the same conditions. The IrOOH nanosheets were deposited on Ti electrodes and displayed an overpotential of 344 mV and Tafel slope of 58 mV dec−1, in 0.1 M HClO4. Chronoamperometric and XPS measurements revealed the long-lasting properties of this material. In particular, XPS showed that the trivalent species of IrOOH remained, after the OER process. Techniques for heterostructured and high quality growth of epitaxial complex oxide thin films have received increasing attention with regard to their application as water oxidation catalysts.

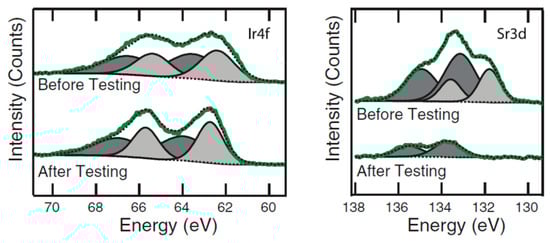

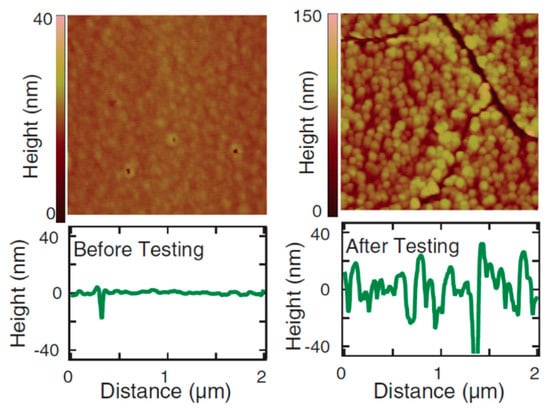

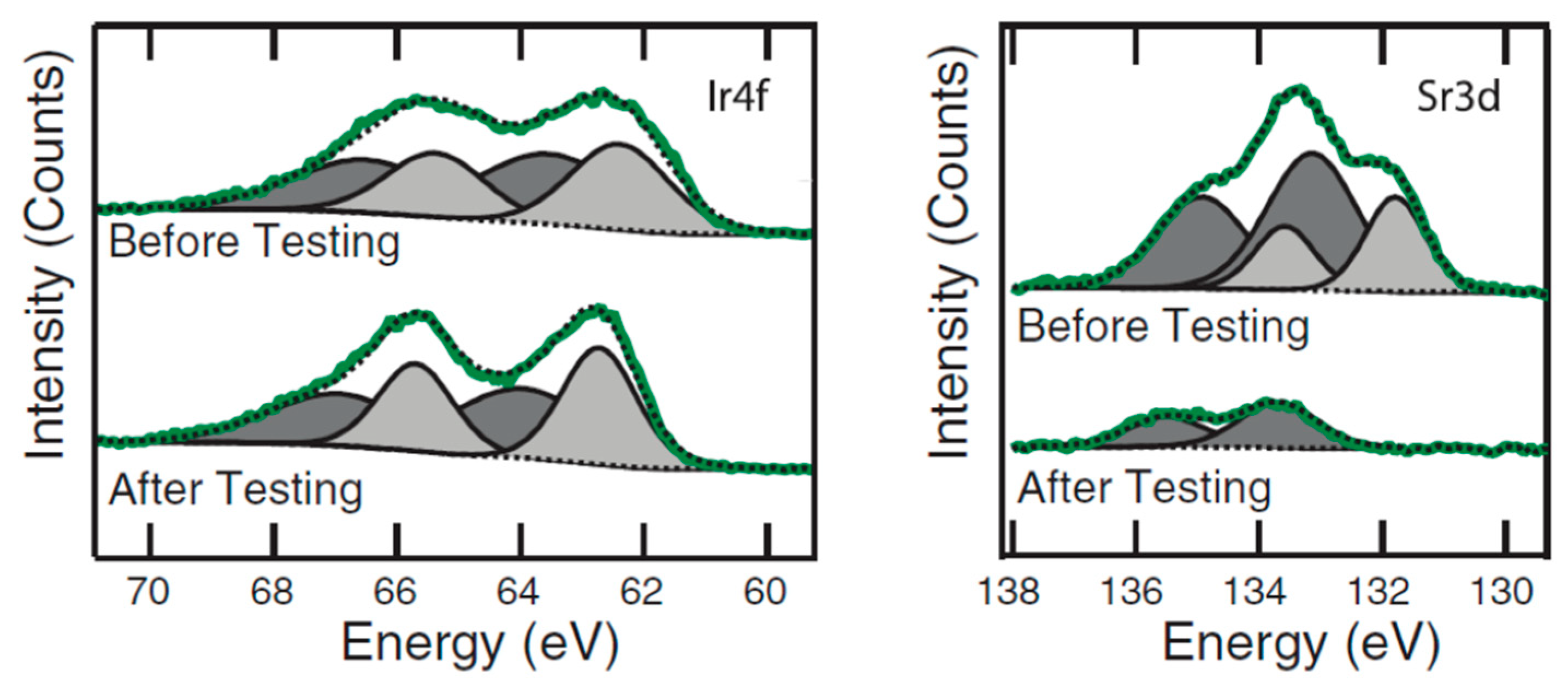

Seitz et al. reported on the significance of leaching in the enhancement of stability and catalytic activity [16]. In particular, they demonstrated that Sr leaching from SrTiO3 thin films caused surface rearrangement of IrOx films, which led to in situ formation of an IrOx/SrIrO3 catalyst with only 0.27 VRHE overpotential and high stability for a long operational time of 30 h. Figure 1 displays atomic force microscopy (AFM) maps of a smooth as-prepared surface, before electrocatalytic activity, and uniform small features after electrocatalytic tests, thus illustrating the surface rearrangement. Further evidence is provided by the XPS data in Figure 2. The signal of the Sr 3d peak was attenuated, after 30 min of electrocatalytic activity. The high stability and low overpotential values of 60 and 100 nm IrOx/SrIrO3 electrocatalysts, respectively, after 0 and 10 min, as well as 2 and 30 h of catalytic tests are displayed in Figure 3.
Cu and Cu-oxide surfaces are widely known as catalysts of CO2 reduction. However, Deng et al. identified that Cu materials can be very promising, earth-abundant, efficient, and low-cost catalysts for the OER, when subjected to careful designing of their morphology [17]. Their work provided new progress on both Cu surfaces, with various oxidation states, as well as on operando monitoring techniques. In situ Raman spectroscopy of Cu, Cu2O, Cu(OH)2, and CuO on metallic copper disks was employed to study the OER in alkaline media. Different morphologies were observed, from small-pyramid-like structures to needle-shaped structures, as well as nanoparticles <20 nm, as shown in SEM images (Figure 4).
The corresponding Tafel slope values were in the range of 60–66 mV dec−1 and are comparable to those of other metal oxides in the literature. Along with the morphology of the Cu samples, the role of Cu(III) species was considered to play an important role in OER.

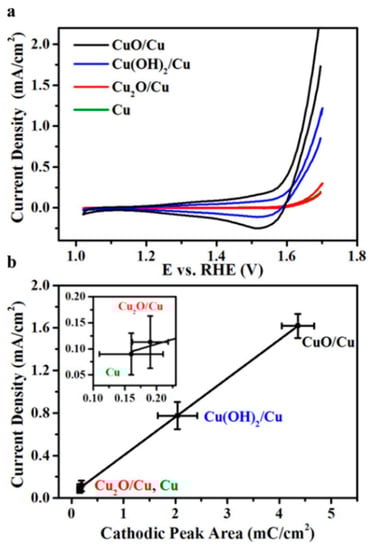

Cyclic voltammograms and Raman experiments were performed, showing a cathodic peak at around 1.55 VRHE (cf. Figure 5), which was attributed to Cu (III) species. A Raman peak at 603 cm−1 appeared under the oxygen evolution potential and Cu(III) oxide formation was further demonstrated by in situ XANES of the Cu K-edge. Given the aforementioned information, the authors drew the conclusion that Cu(III) oxide species were responsible for the electrochemical water oxidation.
Alternatively, a Cu(OH)2@CoCO3(OH)2⋅nH2O core-shell structure nanowire array was proposed by Xie et al., as a catalyst for the oxygen evolution reaction [18]. The catalyst showed strong stability and could be a promising candidate for other applications as well, such as methanol electro-oxidation.
A study of Amiri et al. significantly improved the onset potential for water oxidation at a value below 0.8 VRHE, by using a Cu2O thin film on indium tin oxide (ITO) electrodes [20]. Another aspect of their work is the facile electrodeposition method using copper perchlorate, various diamines, and 1,4-bis(2-carboxyaldehyde phenoxy)butane precursors. The stability of the catalyst was high. The electrode could be used for multiple OER experiments, without loss of its activity in various electrolytes from potassium borate to potassium acetate and potassium phosphate, as observed by the authors.
The work of Roy et al. showed the importance of different facets of a catalyst, not only for the OER activity, but also for corrosion [21]. The authors investigated how oxygen evolution and corrosion levels arising from different sites influence future catalyst engineering. Evidence was provided that there is no direct correlation between OER activity and stability of the various facets of the catalyst and commercial nanoparticles. Well-defined, oriented, thin films of rutile RuO2 (i.e., 001, 101, and 111) were studied in acidic solution and were found to be more active towards OER, compared to (110) single crystalline and commercial RuO2 particles. More precisely, potentiostatic experiments over 2 h on RuO2 thin film (001) orientations showed steady state currents, at around 150 μA cm−2, at the applied potential of 1.6 VRHE, whilst the (101) and (111) orientations provided currents around 90 and 40 μA cm−2, respectively. Moreover, the RuO2 (110) surface gave a higher steady state current density at around 50 μA cm−2, compared to the commercial RuO2 particles, which showed the lowest steady state current density, at approximately 20 μA cm−2. Spectrometric measurements revealed that higher amounts of Ru on all of the aforementioned oriented thin films dissolved in the acidic electrolyte, compared to the (110) single crystal and particle references, where the amounts of dissolved Ru were found to be much smaller after 2 h of electrocatalytic tests. More precisely, 225 ng Ru cm−2 of the RuO2 (001) oriented thin films was dissolved after 2 h of electrocatalytic experiments, compared to 190, 150, 13, and 10 ng Ru cm−2 of the RuO2 (101), (111), (110), and commercial particles, respectively.
In related lines, Suk Oh et al. studied the role of various electrode supports towards the OER activity and electrochemical stability of pure IrOx nanoparticles, IrOx-supported on carbon (IrOx/C), and IrOx-modified commercial and non-commercial antimony-doped tin oxide (IrOx/comm. ATO and IrOx/ATO, respectively) [22]. The motivation of their study was based on the ability of catalyst-supports to reduce the overall metal-loading, without lowering the durability of the electrode. Outcomes of their study showed a much higher stability and corrosion-resistance of the IrOx nanoparticles on the metal/metal oxide supports, compared to carbon, as well as high charge-transfer kinetics. The faradaic efficiency of the IrOx/ATO catalysts was found to be 100%, for OER, which showed their high selectivity towards water oxidation. Furthermore, the oxidation state of the IrOx/ATO was reduced to 3.2+, compared to the unsupported IrOx nanoparticles (4+), after long-term electrochemical experiments revealing the metal/metal oxide support effects. Furthermore, voltammetric characterizations were performed and it was found that the electroactive species of IrOx-supported ATO nanoparticles were decreased by only 30% after electrocatalytic activity of 15 h, whereas IrOx loading on C decreased by 99.7%, under the same conditions.

2.2. Noble Metal-Free Oxide-Related WOCs

2.2.1. Layered Hydroxides and Related Ni–Fe-Based Materials

Layer double hydroxides (LDHs) are a class of layered materials, which are also known as anionic clays. Their characteristic structural feature is the generic layer sequence [AcB Z AcB]n, where c represents layers of metal cations, A and B are layers of hydroxide (HO) anions, and Z are layers of other anions and neutral molecules [27]. Nowadays, LDHs find widespread application in dye-sensitized solar cells, photocatalytic water oxidation, chemical sensors, and supercapacitors, thanks to their open structures and chemical versatility [28]. Recently, several layer double hydroxide catalysts have been developed for OER catalysis [29,30,31,32,33].
Presently, NiFe-LDH catalysts are among the leading LDH-based WOC materials. Even though water oxidation on nickel hydroxide has been studied since the 1960s, the clear-cut assignment of Ni as the active site remains under debate for mixed metal LDHs. Some recent studies proposed that the incorporation of Fe into Ni-LDH structures provides more active sites as a potential for the enhanced OER activity [34,35]. This behavior has been further supported by Nocera et al., who argued that the enhanced OER activity is promoted by the Lewis acidity of Fe(III) [36]. The group of Duan et al. demonstrated that a charge imbalance in the M(OH)6 layers is caused by the redox-active Fe(III) ions, which is then compensated by interlayer anions [37]. All of the representative layered hydroxide OER catalysts discussed below and summarized in Table 2 covered research of the last three years. The maximum performing NiFe-LDH-based catalyst to date is a NiFe-LDH array, which is also specified in Table 2 [37]. The following selected studies contributed to new catalyst architectures and designs with improved stability. Furthermore, considerable efforts were made over the past few years to replace Fe with other transition metals.

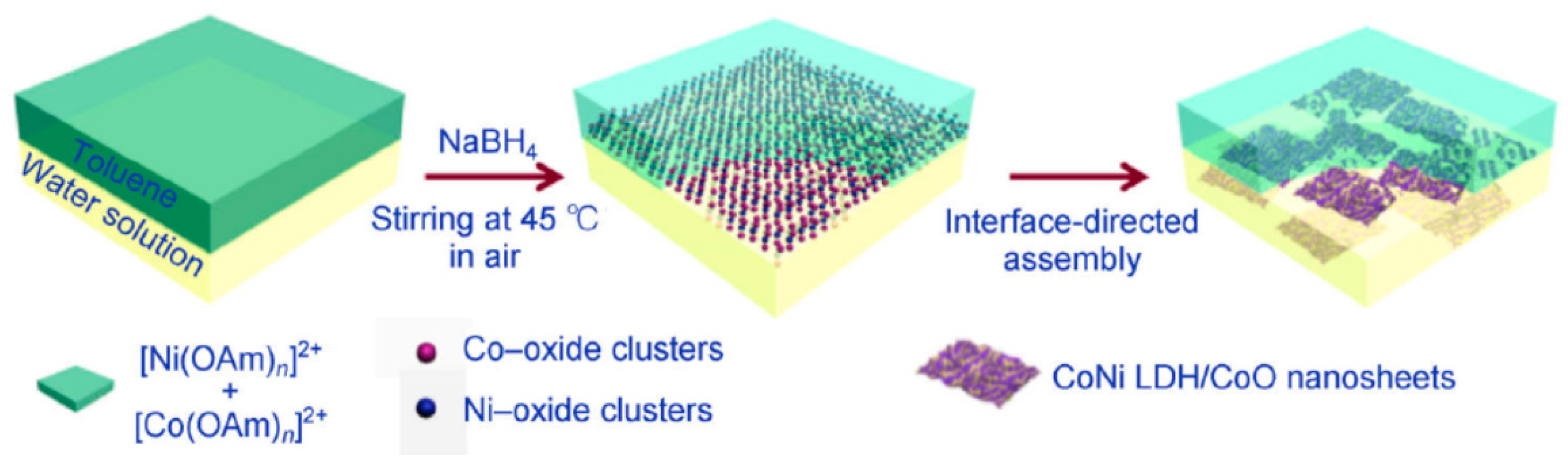

Wu et al. reported on ultrathin CoNi double hydroxide/CoO nanosheets, via an in situ reduction and interface-directed assembly method in air, as shown in the schematic illustration of Figure 6 [29]. Interfacial tension resulted in the strong extrusion of hydrated metal-oxide clusters, which led to the formation of the CoNi LDH/CoO nanosheets. The current density for OER was determined as 150 mA cm−2 at 0.3 VRHE, i.e., 1.5 times greater than that for RuO2. The durability of the catalyst was also tested and the current density remained stable for 10 h. The obtained CoNi LDH/CoO nanosheets exhibited high turnover frequencies (TOFs) of 1.4 s−1 at the overpotential of 0.4 VRHE. The authors argued that the performance of their catalysts was mainly related to the higher +3 valence of the Co and Ni centers, as well as to the low crystallinity, which gave rise to a number of exposed defects and active sites. Furthermore, the functionalization of the surface with OH groups and the OH/O2 adsorption and transport in the porous structure contributed to the high OER activity.

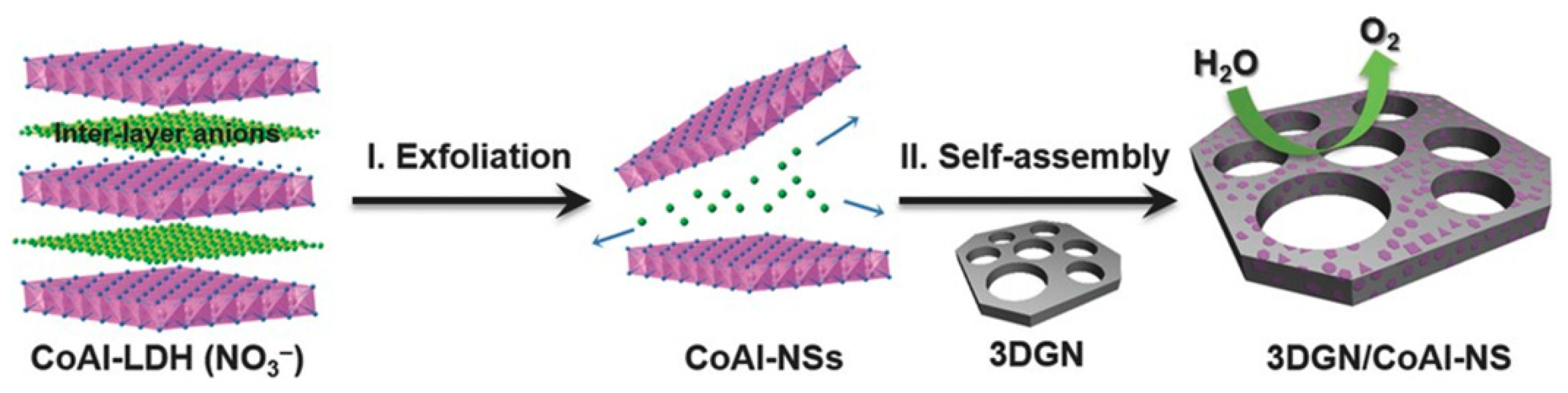

Ping et al. introduced a CoAl-LDH nanosheets catalyst on a 3D graphene network [33]. In their study, a porous catalyst was prepared by self-assembly of the exfoliated single-layer CoAl nanosheets onto 3D graphene, via electrostatic interaction as illustrated in Figure 7. Prior to the exfoliation, the CoAl-LDH (CO32−) was fabricated through a hydrothermal process, based on urea hydrolysis, and subjected to anion exchange. The resulting catalyst outperformed an IrO2 reference, by exhibiting a very low overpotential of 0.28 VRHE and a Tafel slope value of 36 mV/dec. The TOF values of the 3DGN/CoAl-NS were found to be ~0.6 s−1 and ~1.2 s−1 at overpotentials of 0.3 and 0.35 VRHE, respectively. Furthermore, about 22.5 μmol of O2 was produced at a constant current of 1 mA cm−2. Chronoamperometry and chronopotentiometry experiments were carried out and indicated excellent electrochemical stability for 30 h (Figure 8). The electrocatalytic efficiency of the catalyst was ascribed to the fast electron/charge transfer, during the OER, and acceleration of the reaction kinetics thanks to the uniform coating of the single layer CoAl nanosheets onto 3D graphene.
Yang et al. demonstrated the effect of Fe and Al contents in Co–Fe LDH catalysts on the OER activity [30]. A co-precipitation method with Al3+ or Fe3+ ions in the range of 15 to 45 at % was applied. The optimal Fe content was reported at 35 at %, which resulted in a synergistic effect on the Co–Fe LDH catalyst. The role of both ions as trivalent species was essential for the stabilization of the LDH structure. The OER activity was enhanced when the optimal Fe content was incorporated, whereas the oxygen evolution was suppressed in the presence of Al3+ species. The onset potential and overpotential of the optimized Co0.65Fe0.35(OH)2 catalyst were observed at 1.58 VRHE and 0.36 VRHE, respectively. The catalyst showed a very good stability in aqueous alkaline electrolyte, for 48 h, with a small Tafel slope of 49 mV dec−1.
An alternative LDH catalyst was introduced by You et al. [31]. An electrodeposition method was employed to fabricate a CoFe-LDH nanosheet array coated with an ultrathin CoFe-borate layer supported on Ti mesh. The electrocatalytic performance of the 3D catalyst electrode was evaluated in near neutral pH in 0.1 M K2B4O7 solution. The CoFe-Bi@CoFe-LDH NA/TM displayed a high catalytic OER activity, with a small overpotential of 0.42 VRHE. HRTEM images depicted the formation of an ultrathin amorphous layer (CoFe-Bi), with a thickness between 5 and 8 nm and a nanoarray feature of the catalyst was, furthermore, observed during morphological characterizations (Figure 9) and retained after electrocatalytic activity for 50 h. The TOF was calculated at 0.482 mol O2 s−1 at the overpotential of 0.6 VRHE.
Xie et al. reduced MoO42− intercalated nickel-iron LDHs and obtained a NiFe-MoOx nanosheets catalyst [38]. In terms of water oxidation, the authors obtained comparable results to RuO2. These results were ascribed to the high surface area, porosity, and surface electronic structure of the new LDH material. Their strategy led to an increase of active sites and an electronic modification of the NiFe alloy surface. The TOF for this catalyst was estimated at 0.19 s−1 at the overpotential of 0.3 VRHE and a faradaic efficiency around 95% for OER was determined.
Furthermore, a Ni–V monolayer double hydroxide was introduced by Fan and co-workers [32], applying a hydrothermal method to synthesize the bulk LDHs. The performance of this material is comparable to the best-performing NiFe-LDHs to date in the literature. In particular, the Ni0.75–V0.25 LDH gave a current density of 57 mA cm−2, at an overpotential of 0.35 VRHE, for the OER. Experimental O2 evolution was evaluated by gas chromatography, where the Ni0.75–V0.25 LDH exhibited a TOF of 0.05 s−1 at 0.35 VRHE overpotential. The abundance of the active sites in the LDH structure was identified as the main reason for the high performance of Ni0.75–V0.25-LDH. Typical TEM images of α-Ni(OH)2 and Ni0.75–V0.25 LDH show the 2D nanosheet nature of the former (Figure 10a,b), whereas a three-dimensional morphology assembly of ultrathin nanosheets was observed upon incorporation of vanadium (Figure 10c,d).
Li et al. reported a new view of the significance of iron doping in a Ni hydroxide catalyst, which promoted the formation of Ni4+ and, therefore, played an important role in the water oxidation [36]. The strong Lewis acidity of Fe3+ was identified as a crucial factor to increase the Ni valence and, thereby, to promote the oxyl character of the intermediates during the O–O bond formation.
Görlin et al. discussed the importance of high-surface area conductive supports and of the electrolyte pH [39]. A microwave-assisted autoclave synthesis under solvothermal conditions was applied for the synthesis of a NiFeO(OH) catalyst. Catalyst support and pH > 13 resulted in enhanced catalytic activity, and higher particle dispersion allowed more metal centers to be accessible and to be electrochemically active. The highest TOFs were determined at 0.1 and 0.2 s−1, respectively, in 0.1 M KOH. The O2 levels were found to be close to 100% of the faradaic efficiency after online gas chromatography-mass spectrometry (GC-MS) measurements. The role of Fe centers in the metal redox activity was, furthermore, discussed in new detail, based on the UV-vis monitoring data.
A NiFe2O4–NiOOH catalyst was prepared through a simple anodization method by Zhang et al. [40]. The catalyst afforded currents up to 30 mA cm−2 at an overpotential of 0.24 VRHE and only required 0.41 VRHE to achieve a very high current density of 3000 mA cm−2. The faradaic efficiency of O2 evolution was close to 100%. In this study, it was stated that the excellent OER performance arose from the integration of amorphous NiFe2O4 and NiOOH. Finally, an ultrafast synthetic approach of only 5 s was reported by Zou and co-workers for the fabrication of a Ni–[email protected]3S2/NF electrode material [41]. A schematic illustration of this ultrafast method is displayed in Figure 11. The catalyst gave currents up to 1000 mA cm−2 at 0.469 VRHE and displayed excellent catalytic stability for 50 h at the applied potential of 1.6 VRHE, at the current density of 1000 mA cm−2 in alkaline media. Furthermore, the faradaic yield of O2 was found to be up to 95%.
Wu et al. highlighted the importance of designing well-controlled and aligned structures to enhance the catalytic capabilities of electrocatalysts for high-performance electrodes. Starting from this main incentive, for the first time, they fabricated unique hierarchical hollow Ni/NiFe (oxy)hydroxide heterostructured nanotubes radially aligned on a Ni foam, as seen in Figure 12 [42].
The material was used in a home-made electrochemical cell driven by a single battery of 1.5 V and showed excellent stability and overpotential at around 0.2 VRHE, outperforming the state-of-the-art noble metals Ru and Pt. Hunter et al. employed a pulsed laser ablation technique in liquid media and prepared NiFe-LDH nanosheets with different interlayer anions (i.e., CO32−, SO42−, OH, F, Cl and I) to probe their role in water oxidation catalysis [43]. The anion binding was evaluated by XPS and DFT calculations. Outcomes of their study revealed a relationship of water oxidation activity with the pKa value of the interlayer anions and suggested that Bronsted or Lewis basicity of the anions was a key parameter for the water oxidation mechanism.
Furthermore, the authors found that nitrite species bound to edge-site Fe centers were correlated with high water oxidation activity, thus, pointing out the active role of the latter in the water oxidation process. The NiFe-LDH nanosheets showed remarkable stability for 3.5 h in 1 M KOH. The overpotential values varied between 0.27 VRHE and 0.45 VRHE, depending on the various interlayer anions. Jia et al. synthesized a highly active heterostructured NiFe-LDH nanosheet on defective graphene, via a co-precipitation method [44]. DFT calculations suggested that the high electrocatalytic activity of the NiFe [email protected] catalyst towards water oxidation arose from the interaction of exposed 3d-transition metal atoms with carbon defects. This synergism was also found to cause the robust stability of the catalyst for 10 h, in 1 M KOH. The catalyst showed current densities above 50 mA cm−2 at the applied potential of 1.5 VRHE. The overpotential at the current density of 10 mA cm−2 was found to be 0.21 VRHE. A small Tafel slope value of 52 mV dec−1 was also found between the range of 0.1 and 0.15 VRHE of applied potential. The onset potential of the NiFe [email protected] catalyst was observed at 1.41 VRHE and the faradaic efficiency of O2 levels was 97.5%, after 5 h of chronoamperometric tests, at the current density of 100 mA cm−2.

2.2.2. Spinels

Complex spinel-type oxides have attracted a lot of research interest as water oxidation catalysts, over the last years, due to their favorable structural properties, giving rise to tunability, high conductivity, and robust operational stability. Spinel oxides adopt the general formula AB2X4, where A and B are cations occupying the octahedral and tetrahedral sites in the anionic sublattice (with X representing anions, typically oxygen or less often chalcogens/halogenides). Co3O4 is a well-known example of a binary, spinel-type WOC. Ternary spinel-type cobaltites exhibit similar structural and electronic properties to Co3O4 with the general composition MCo2O4 (M = Zn, Ni, Cu, Mn, etc.).
The gold standard of Co-oxide WOCs, over the past years, has been the amorphous CoPi catalyst introduced by Nocera et al. [5,45]. The selection of articles below was taken from the most cited and hot papers in the field, reflecting the progress in WOC understanding and performance, over the last three years. A comparison of the electrocatalytic performance of the selected WOC materials is given in Table 3.

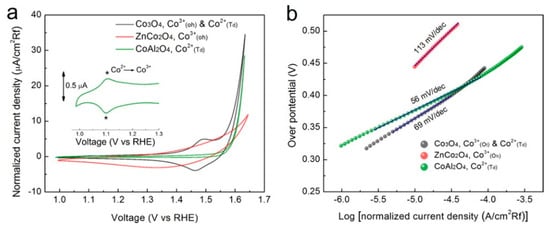

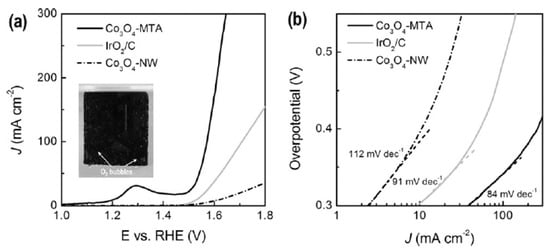

Recently, various synthetic strategies were employed to access Co3O4 spinels [46,47,48,49]. Wang and co-workers used a sol–gel method to synthesize regular cobalt spinels, comprised of Co2+ on the tetrahedral site and two Co3+ ions on the octahedral site [47]. Their work was focused on the investigation of site-dependent OER activity, by substituting Co2+ and Co3+ with inactive Zn2+ (ZnCo2O4, Co3+ octahedral) and Al3+ (CoAl2O4, Co2+ tetrahedral), respectively. The electrochemical performance was tested by cyclic voltammetry, and interestingly the redox reaction was found to occur only at the Co2+ tetrahedral sites, as shown in the voltammogram in Figure 13. The Tafel slope value was found to be smaller in the case of Co3O4, which suggested a different rate-determining step. This study also pointed out the importance of operando investigations in such systems. From operando extended X-ray absorption fine structure (EXAFS) and electrochemical impedance spectroscopy (EIS) studies, the conclusion was drawn that cobalt oxyhydroxide (CoOOH) was formed and acted as a reactive center for the oxygen evolution reaction. In contrast, the ZnCo2O4 catalyst was negatively affected by the strongly bonded –OH groups on the surface, and so, its electrocatalytic activity was limited compared to its counterparts. The larger Tafel slope supported the latter observation, where the OER process is rate limited due to these strong –OH bonds.

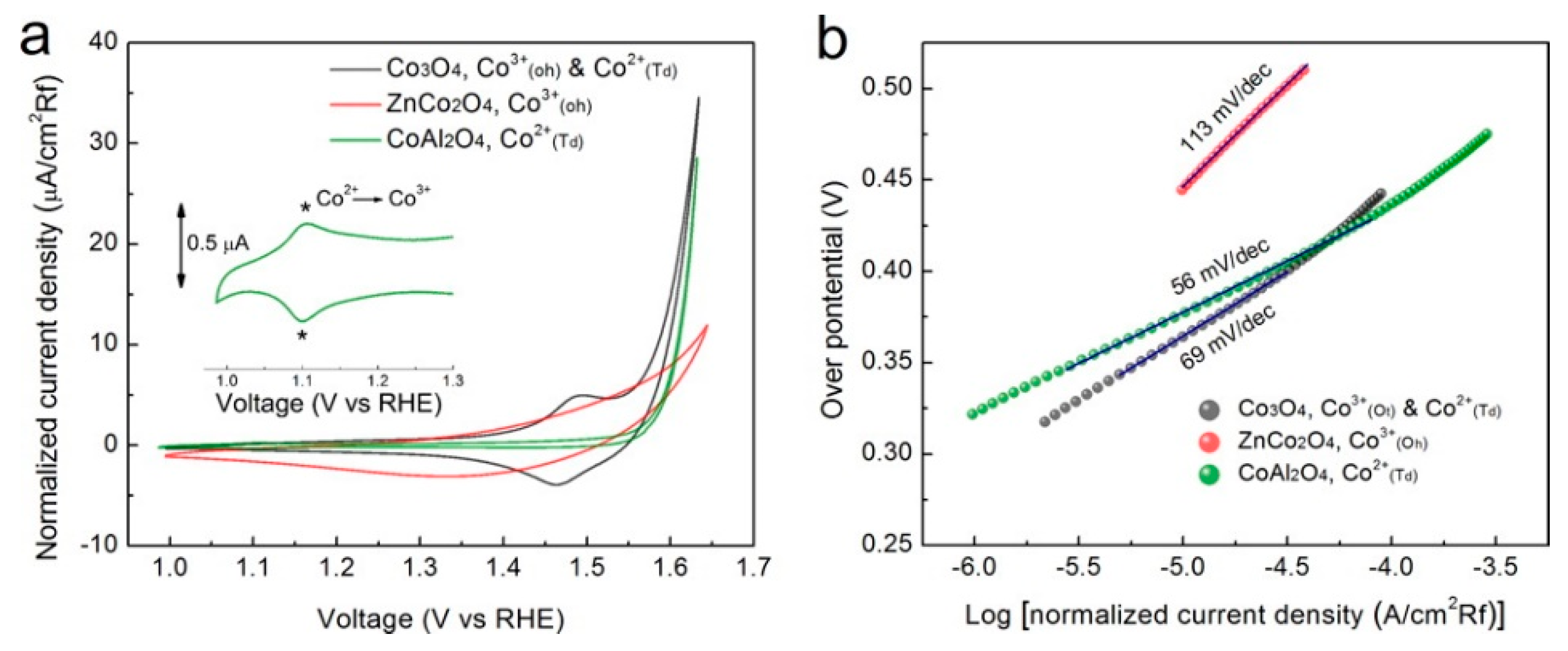

Table 3. Comparison of the electrocatalytic activity of spinel catalysts (cf. Table 1 for definitions of “durability” and “stability”).
Table 3. Comparison of the electrocatalytic activity of spinel catalysts (cf. Table 1 for definitions of “durability” and “stability”).
CatalystPreparation MethodOnset Potential (V)η (at 10 mV/cm2) (V)Tafel Slope (mV dec−1)Durability (h)StabilityElectrolyteRef.
Co3O4/N-grapheneHydrothermal1.490.96121.84Good *0.1 M KOH[50]
Co3O4 assembled hollow spheresSolvothermal & calcination1.430.298610Prominent1 M KOH[46]
Co3O4, ZnCo2O4 & CoAl2O4Sol-gel--69, 113 & 56--0.1 M KOH[47]
[email protected]3O4/N-CNTPyrolysis in H2 atm. & oxidative calcination1.620.3954.345Good *0.1 M KOH[51]
Hollow Co3O4 microtube arraysHydrothermal & electrochemical treatment1.520.1518412High1 M KOH[33]
ZnCo2O4 QDs/N-CNTHydrothermal1.560.4370.610High0.1 M KOH[52]
NiFe/Ni Co2O4Hydrothermal & electrodeposition1.470.3438.810Excellent1 M KOH[53]
NiCo2O4 NPsTwo-step solution method 1.490.1577520Excellent1 M KOH[54]
CoFeOx, CoFeNiOx & FeNiOxElectrodeposition1.430.2437--1 M KOH[55]
CoFe2O4@Co-Fe-BiHydrothermal-0.4612720Good0.1 M K2B4O8[56]
Co3O4Hydrothermal1430.3569--1 M KOH[57]
An electrochemical sacrificial strategy was applied by Zhu et al. for the fabrication of hollow Co3O4 microtube arrays [48], which is schematically represented in Figure 14. More precisely, the CoHPO4 microrods were immersed in 1 M NaOH and a constant potential was applied. Upon the anodic bias application, the microrods’ surface became rough and nanoplates were formed. The protonated CoHPO4 was dissolved in the NaOH solution and Co2+ species acted as source of cobalt oxides to be generated. The nanoporous nature of the cobalt oxide shells provided transport pathways for the OH and Co2+ diffusion. The fully converted CoHPO4 resulted in Co3O4 spinel. These micro/nanostructures were found to be competitive with IrO2 and Pt references as OER catalysts. The authors proposed that such design and engineering of micro/nanostructures (Figure 15) can be an efficient pathway for the enhancement of catalytic activity through the facilitation of mass transport by exposing more electroactive sites. During the water oxidation reaction, the catalyst showed impressive performance with current densities at around 300 mA cm−2, almost two times greater, compared to IrO2. The Tafel slope value was found to be 84 mV dec−1, and the catalyst showed high stability during an operational time of 12 h. The corresponding voltammograms and Tafel slopes are displayed in Figure 16. The catalyst, furthermore, exhibited a high faradaic efficiency of 96.3% for OER.
Hollow spheres assembled by α-Co(OH)2 nanosheets were developed by Xie and co-workers via a solvothermal method followed by further calcinations, which led to mesoporous Co3O4 nanostructures [46]. By tuning the amount of polyvinylpyrrolidone (PVP) different samples were synthesized as shown in Figure 17. The obtained monodisperse hierarchical structure exhibited a low onset potential at around 1.44 VRHE, with low overpotential (0.29 VRHE) and relatively small Tafel slopes, in the range of 86 and 97 mV dec−1. The samples indicated an excellent stability in alkaline media which renders them promising for further energy conversion as well as storage applications.
A subcategory of spinels are the above-mentioned cobaltites, which have been used as OER catalysts due to their increased conductivity and versatile electrochemically active sites compared to monometallic oxide catalysts. A two-step solution method was reported by Guan et al. as a way of utilizing metal–organic frameworks (MOFs), for the development of hollow NiCo2O4 nanowall arrays on carbon cloth, as shown in Figure 18 [54]. A uniform coverage of the Co-MOF on carbon cloth and the Co-based nanowalls was first obtained, and after annealing in air in the final step, the nanoarray structure of NiCo2O4 was maintained. The catalyst displayed high stability for 20 h and low overpotential of around 0.16 VRHE in alkaline media, which was ascribed to its hollow nature. The material was proposed for other applications besides water oxidation, such as in supercapacitors.
Xiao et al. proposed a 3D hierarchical porous catalyst architecture consisting of NiFe/NiCo2O4/Ni foam [53]. The synthesis procedure of this material is displayed in Figure 19. The catalyst reached very high current densities in the range of 1200 mA cm−2 at an overpotential of 0.34 VRHE and onset potential at 1.47 VRHE in 1 M KOH at pH 14. The stability and durability of this material was evaluated through cyclic voltammetry and the current density remained stable, over an operational time of 10 h.
Morales-Guio et al. classified a variety of oxidatively electrodeposited thin films, according to their electrocatalytic activity into the following three categories [55]. Single-metal oxides falling into the first category, such as NiOx, MnOx, and FeOx, showed the lowest performance. The second category included CoOx and CoNiOx, which showed a medium activity. Finally, the third category consisted of the most active catalysts, namely FeNiOx, CoFeOx, and CoFeNiOx, which revealed high electrocatalytic performance, due to their synergistic effects. Their efficiency towards water oxidation reached currents up to 100 mA cm−2, at overpotentials of around 0.24 VRHE in 1 M KOH, at pH 14. The TOF values as a function of catalyst loading were also evaluated at the overpotential of 0.35 VRHE. In particular, at the relatively low loading of 5 μg cm−2, the TOF values of the more active FeNiOx, CoFeOx, and CoFeNiOx catalysts were found to be around 0.5, 5, and 4 s−1, respectively. The calculated faradaic efficiency of O2 was also close to 100%.
Ji et al., on the other hand, used a complex core-shell CoFe2O4@Co-Fe-Bi nanoarray architecture in a potassium borate (pH 9.2) electrolyte and the catalyst showed a superior long-term stability, for at least 20 h, along with a high faradaic efficiency of 96% of O2 evolution [56].
Regarding the operational behavior of cobalt oxides, Zhang et al. monitored the chemical transformation of multiwall carbon nanotubes supported with hydrothermally prepared Co3O4 nanoparticles (Co3O4-MWCNTs) to CoO(OH), via ambient pressure X-ray photoelectron spectroscopy (APXPS) [57]. The aforementioned transformation was only observed upon a potential application, during operando conditions. When the potential was removed, the catalyst was converted to its as-synthesized form, namely Co3O4. It was suggested that this rapid operando conversion was caused by proton concentration gradients in the presence of water vapor in the local environment, close to the solid/liquid interface. The electrocatalyst afforded current densities up to 100 mA cm−2, at an applied potential of 1.65 VRHE. The overpotential at the current density of 10 mA cm−2 was observed at 0.35 VRHE in 1 M KOH. The onset potential was observed at 1.43 VRHE and the Tafel slope value was calculated at 69 mV dec−1.
Recently, in one of our studies, we have synthesized cobalt oxide spinel (Co3O4) nanocrystals via a hydrothermal method. Our work provided deeper insight into the control parameters of hydrothermal WOC formation processes, through a combination of mechanistic in situ and ex situ analytical methods. This comprehensive study provided guidelines about how the WOC performance of binary oxides can be improved through an empirical understanding of their growth mechanisms [58].

2.2.3. Perovskite-Based WOCs

Perovskite oxides display the general formula ABO3, where the A-site ion on the corners of the elemental cell is usually an alkaline earth or rare-earth element, with a coordination number of 12. On the other hand, the octahedrally coordinated B-site ions in the center of the elemental cell are mainly 3d, 4d, and 5d transition metals. Ever since pioneering works of the 1970s [59], numerous studies on the structure and properties of perovskites have been reported in the literature. More recently, perovskite oxides were proposed as efficient electrocatalysts for the oxygen evolution reaction [59,60,61,62,63,64,65]. The following studies contributed to the development of new perovskite representatives, which significantly improved their activity and stability as water oxidation catalysts. A comparison of the electrocatalytic performance of the materials of this category is summarized in Table 4 and covers research of the last three years.
An electrospinning method was employed by Zhao et al. for the development of PrBa0.5Sr0.5Co1.5Fe0.5O5+δ nanofibers [61]. The intrinsic activity and mass activity of this material were increased 4.7 and 20 times, respectively, compared to IrO2, while the diameter of the particles was reduced to 20 nm. The aforementioned characteristics led to a high stability for 12 h, at a lower overpotential of 0.37 VRHE, compared to IrO2. The importance of the morphology and electronic properties of the structure resulted in an enhanced water oxidation, showing the optimization potential of these parameters. Furthermore, Zhu et al. used an electrospinning method to fabricate SrNb0.1Co0.7Fe0.2O3−δ perovskite nanorods, which displayed an excellent stability and activity in alkaline media [64]. A representative scheme of the synthesis protocol is shown in Figure 20. The results were compared with the-state-of the-art IrO2 and showed seven times higher current densities at 0.4 VRHE, combined with a lower Tafel slope. The material displayed an excellent stability for 30 h. The structural properties led to an increase of both charge transfer as well as of the electrochemically active surface, which boosted the water oxidation performance.
A ball-milling-assisted solid-state reaction was used by Xu and co-workers for the development of BaCo0.7Sn0.3O3−δ and BaCo0.7Fe0.1Sn0.2O3−δ perovskite oxides, respectively [63]. They demonstrated that the electrocatalytic activity of the catalysts can be easily tuned by modifying the dopant concentration. This example highlights the importance of doping strategies to enhance the conductivity in a wide range of materials, which in turn, increases their electrocatalytic activity towards OER. In parallel, the work of Zhu et al. focused on a sol–gel preparation method and by tuning the cation deficiency enhanced OER activity was accomplished [60]. In particular, a La0.95FeO3−δ perovskite was developed; Figure 21 shows how the significant change in OER activity is related to the formation of oxygen vacancies and Fe4+, in the A-site of the perovskite.
Mefford et al. proposed a reverse-phase hydrolysis method for the synthesis of La1−xSrxCoO3−δ [65]. Their mechanistic study provided further evidence of how oxygen vacancies become a crucial parameter for improving the electrocatalytic activity of metal oxides. Briefly, it was stated that the controlled substitution of Sr2+ for La3+, across the full-phase width, while maintaining the perovskite structure, allowed the effects of covalence, vacancy defects, and oxygen exchange to be probed. Lee et al. reported for the first time a hexagonal perovskite, BaNiO3, as water oxidation catalyst in alkaline media and demonstrated that this new family of perovskites outperformed IrO2, by at least 19 mA cm−2 during the first cycle of OER [66]. The study of Black et al., first investigated quaternary hafnium oxynitrides with a reduced band gap and showed the potential of these compounds for photoelectrochemical water splitting devices [67]. The new RHfO2N perovskites, with R = La, Nd, and Sm, display structures resembling the GdFeO3-type. The LaHfO2N and NdHfO2N compounds, in particular, showed increased resistance towards photocorrosion, compared to the SmHfO2N photocatalyst.

2.2.4. Mixed Oxides

Mixed oxides frequently excel through their increased stability and synergistic effects, in a wide range of properties and applications [55,56,68,69,70,71,72,73]. Table 5 summarizes progress in the performance of mixed oxide water oxidation catalysts, over the last three years.
Gholamrezaei and co-workers proposed a new SrMnO3 nanostructure for chemical water oxidation [74]. Various preparation methods were chosen and compared by the authors, and sonochemical synthesis was found to afford the best results, with respect to morphology and nanoparticle size. Electrocatalytic water oxidation was carried out in a (NH4)2Ce(NO3)6 solution, where the effect of the Ce(IV) concentration was studied. O2 evolution was increased with higher amounts of cerium. The results suggested that changes in the synthesis method and reaction conditions altered the morphology of the catalyst, as well as the size and the uniformity of the particles. The overall efficiency of the catalyst was enhanced along with the high uniformity of the particles.
Table 5. Comparison of the electrocatalytic activity of mixed oxide catalysts (cf. Table 1 for definitions of “durability” and “stability”).
Table 5. Comparison of the electrocatalytic activity of mixed oxide catalysts (cf. Table 1 for definitions of “durability” and “stability”).
CatalystPreparation MethodOnset Potential (V)η (at 10 mV/cm2) (V)Tafel Slope (mV dec−1)Durability (h)StabilityElectrolyteRef.
NiCeOxElectrodeposition-0.27->24Excellent1 M KOH[68]
Sn-Fe2O3 NWsHydrothermal0.1--10Excellent1 M KOH[69]
Ni-FeOx & Ni-Fe-CoOx NPsImpregnation in the presence of aniline-0.2-1Good *0.1 M KOH[70]
CoNiOx/rGOPrecipitation-0.284520Advanced0.1 M & 1 M KOH [71]
FexCoyO Precipitation-0.3536.82.5Good0.1 M KOH[72]
Fe3O4-Co9S8 NPs/rGOTwo solvothermal steps1.480.3482.86High0.1 M KOH[75]
Na1−xNiyFe1−yO2Hydrothermal1.350.264412Excellent1 M KOH[76]
CoNiO, MnNiO & FeNiOPrecipitation reaction with ureaCoNiO: 1.60, MnNiO: 1.61 & FeNiO: 1.54-CoNiO: 39, MnNiO: 43 & FeNiO: 18--0.1 M KOH[77]
Fe2−xCrxO3Coprecipitation<1.30.45-1.5Good *100 mM PBS[78]
MnVOx@N-rGOHydrothermal1.320.392714Excellent0.1 M KOH[79]
MnOx/N-CNTHydrothermalca. 1.40.36752Catalyst detachment1 M KOH[80]
MnxSb1−xOxPhysical Vapor Deposition (PVD)1.50.37525High *1 M H2SO4[81]
Ho2O3/MnOxHydrothermalVaried according to calcination--0.5High0.25 M LiClO4[82]
The study of Desmond-Ng et al. was focused on a theoretical model and experimental considerations aiming for the engineering of catalytic systems that are competitive with the best water oxidation electrocatalysts to date [68]. To this end, the authors synthesized a NiCeOx-Au catalyst, with an outstanding OER activity in alkaline media. A highlight of this approach was the new combination of electronic, geometric, and catalyst support effects. The TOF of NiCeOx-Au catalyst at 0.28 VRHE overpotential was determined as 0.08 s−1.

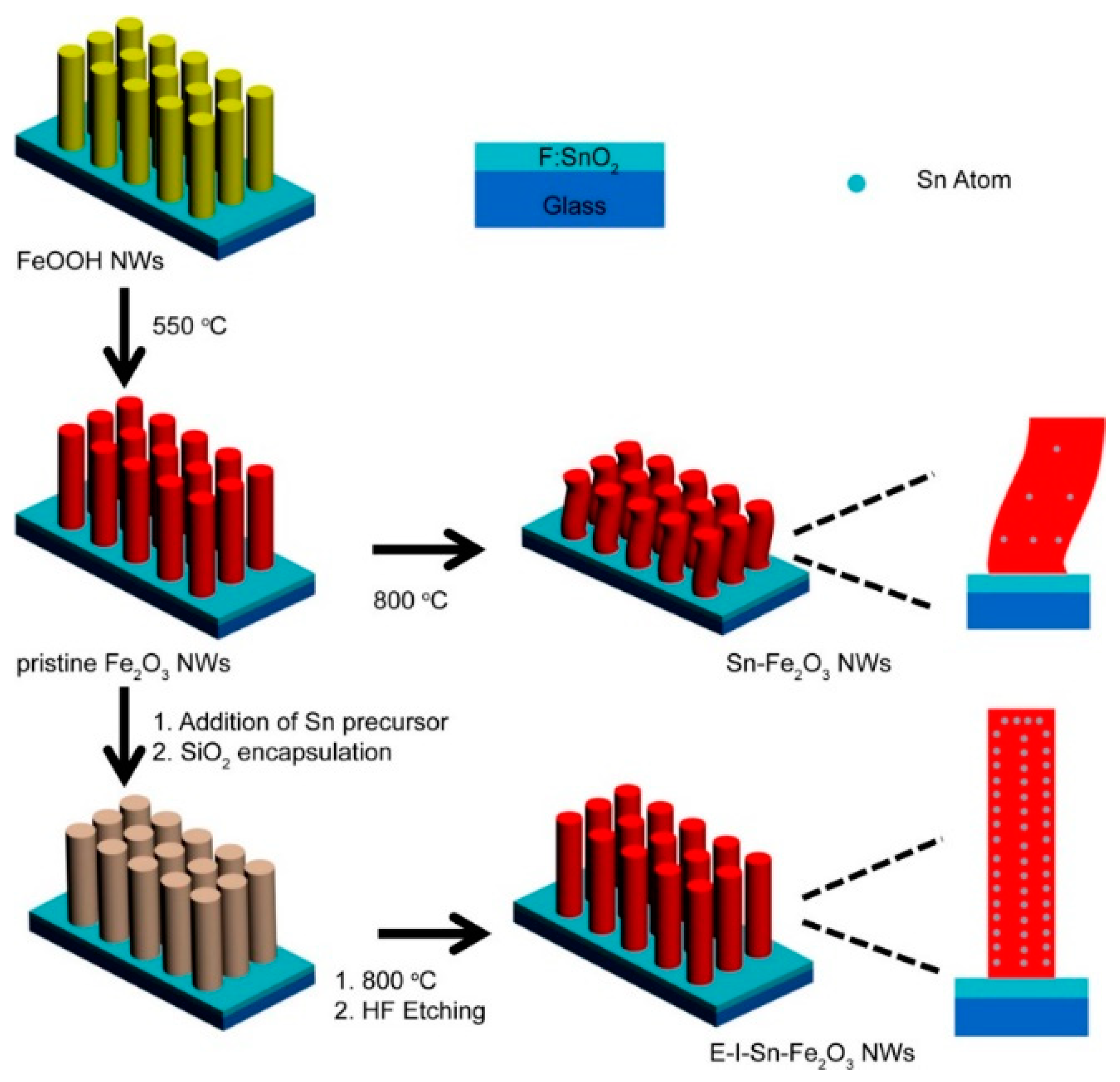

Li et al. proposed Sn as a dopant in hematite nanowire photoanodes [69]. The morphology was considered the key factor leading to the high performance of the Sn-doped hematite, which was furthermore coated with a cobalt oxide catalyst for enhanced photocurrent densities. A schematic illustration of the catalyst preparation is shown in Figure 22. In this paper, the importance of retaining the concentration and uniformity of dopants along the nanowire growth was highlighted as another crucial parameter that is essential for high catalyst activity. The authors applied a silica encapsulation method, which retained the morphology of the hematite nanowire and further provided tuned nanowire lengths for maximum light absorption.
Bates et al. proposed a different way of increasing the electrocatalytic efficiency of a Ni–Fe–Co mixed metal oxide (MMO) catalyst. The morphology was optimized by addition of aniline as a capping agent, in order to generate a high surface area [70]. Charge-transfer effects contributed to a higher conductivity among the Ni–Co sites and, therefore, increased their catalytic activity in water oxidation.
A promising strategy towards the development of OER electrocatalysts was proposed by Li et al., where a CoNiOx nanocomposite was deposited onto a reduced graphene oxide [71]. The exceptional performance of this nanocomposite in water oxidation was ascribed to the hierarchical sheet-on-sheet structure, affording a high surface area and high porosity. The catalyst showed a low overpotential at 0.28 VRHE and a Tafel slope of 45 mV dec−1. Proposing that all metal sites are active during the electrochemical reaction, the TOF value was estimated at 0.03 s−1, at the overpotential of 0.35 VRHE.
Zhuang et al. fabricated a high surface area catalyst consisting of FexCoy-O nanosheets (261.1 m2 g−1), with an ultrathin thickness of 1.2 nm [72]. These features led to a superior activity, compared to commercial RuO2, with an overpotential at 0.35 VRHE and a Tafel slope at 36.8 mV dec−1. The TOF value at the overpotential of 0.35 VRHE was calculated at 0.02 s−1. This outstanding performance of the catalyst was ascribed to the large number of oxygen vacancies in the sheets, which further acted as active centers. The proposed OER mechanism of a Co3+ active site, near an oxygen vacancy, is illustrated in Figure 23.
Applying a two-step solvothermal method, Yang et al. fabricated Fe3O4-decorated Co9S8 nanoparticles on reduced graphene oxide [75]. The composite catalyst gave an excellent stability and catalytic activity. This was ascribed to electron transfer from the Fe species to Co9S8, which promoted the cleavage of the Co–O bond in the stable configuration of the Co–O–O superoxo group.
A layered Na1−xNiyFe1−yO2 double oxide was reported by Weng and co-workers with excellent stability and electrocatalytic activity, compared to the state-of-the-art RuO2 and IrO2 [76]. As a result of Na extraction, the valence states of Ni and Fe were raised and the catalyst exhibited excellent OER activity. This catalyst was also integrated in a perovskite solar cell, which delivered a solar-to-hydrogen efficiency of around 11.2%.
A new catalytic material comprising Fe2−xCrxO3 particles is under investigation by Kanazawa et al. and is proposed for both photoelectrochemical and electrochemical water oxidation [78]. Findings of their study revealed that Cr-substitution resulted in a five-fold enhancement of the electrochemical water oxidation performance, compared to α-Fe2O3, as well as lowered charge transfer resistance, giving rise to an improved OER activity, with nearly a 100% faradaic efficiency.
Mn oxides are cost-effective, environment-friendly, and redox active. The {CaMn4O5} oxygen evolving center of photosystem II is a constant source for bio-inspired approaches, in many fields of catalysis. Due to their versatility, Mn oxides have even been referred to as “Swiss army knife” [83]. In the following, selected recent studies on mixed oxide catalysts, based on manganese are summarized.
Xing et al. proposed a new class of composite catalysts comprising MnVOx on N-doped reduced graphene oxide [79]. A hydrothermal method was applied, starting from a [Mn4V4O17(OAc)3]3− polyoxometalate precursor. The authors showed that the precursor was successfully deposited on carbon and then converted to WOCs, with recorded OER current densities of 80 mA cm−2, at the applied potential of 1.67 VRHE. The overpotential of the MnVOx/N-rGO electrocatalyst was determined as 0.39 VRHE, at 10 mA cm−2 current density, with a Tafel slope of 271 mV dec−1. The synthesis method provided nanoparticulate Mn–V oxides with excellent stability, which can be further used for a variety of technological applications.
Antoni and co-workers employed high surface area N-functionalized CNTs for the oxidative deposition of MnOx under reflux and mild hydrothermal conditions [80]. The synthesis was carried out in the presence of CsMnO4 and KMnO4 as manganese sources, which gave mainly rise to the formation of crystalline birnessite manganese oxides. The MnOx-modified N-CNTs catalysts afforded higher current densities, at around 20 mA cm−2, compared to the unmodified N-CNTs in alkaline electrolyte. The overpotential of the catalyst was recorded as 0.36 VRHE at 10 mA cm−2 current density and the reported Tafel slope was 75 mV dec−1. The faradaic efficiency was also increased from 75% to 90% towards the OER, after 10 min of electrocatalytic tests, and this was attributed to the oxidation of manganese.
A physical vapor deposition approach via reactive radio frequency magnetron co-sputtering of Mn and Sb was employed by Zhou et al., for the synthesis of rutile-type solid solutions, MnxSb1−xOx, with OER activity in strong acidic conditions [81]. The mixed oxides showed current densities above 50 mA cm−2, at the applied potential of 1.79 VRHE. The overpotential at the current density of 10 mA cm−2 was found to be 0.58 VRHE, with a Tafel slope value of 75 mV dec−1. Notably, the fraction of Mn3+ increased with the overall amount of Mn in the mixed oxides. This was corroborated by XAS, AP-XPS, and computational investigations and linked to the overall increase in OER activity. Likewise, Morgan Chan et al. showed via spectroscopic and computational studies that the enhancement of MnO2 oxygen evolution catalyst is related to the introduction of Mn3+ species, and the suppression of Mn3+ oxidation to Mn4+, due to structural restrictions, was considered crucial for higher activity [84].
Najafpour and co-workers proposed and hydrothermally fabricated a new manganese oxide supported on holmium oxide for OER [82]. Their catalyst was very stable, recoverable, and it could be used for long operational OER. The observed self-healing properties were explained with the presence of Ce(IV) species. O2 was produced from water in the presence of Mn oxides and Ce(IV) and water, and MnO4 was further formed from the oxidation of intermediate Mn(II) ions by Ce(IV). These MnO4 ions were eventually converted back to Mn oxide, resulting in self repair of the catalyst.

2.2.5. Other Hydroxides and (Oxy)hydroxides

Commercial water electrolyzers require efficient electrocatalysts with high current densities, usually above 500 mA cm−2, with long-term stability, at overpotentials below 0.3 VRHE. To this end, metal hydroxides and (oxy)hydroxides have attracted a lot of research attention as target structures, to fabricate catalysts with the aforementioned characteristics [18,36,39,40,41,85,86,87,88,89,90,91,92]. Table 6 summarizes progress in the electrocatalytic activity of hydroxide and (oxy)hydroxide catalysts, over the last three years. In addition to noble metal oxides, such as RuO2 and IrO2, which have been established as the best OER catalysts to date, Fe-doped NiOOH ranks among the best, noble metal-free catalysts.
Recently, Shin et al. investigated new dopants using a density functional theory approach, in order to determine the atomistic mechanism for the OER of Ni1−xFexOOH [93]. In their study, 17 transition metals were considered to replace Fe. They found out that the most promising materials were Co, Rh, and Ir, and the resulting overpotentials were estimated to be 0.27, 0.15, and 0.02 VRHE, respectively. The authors concluded that Fe4+ and Ni4+ species played an essential role in the OER. The promotion of a radical environment on the metal-oxo bond was also found to be a key prerequisite for high OER activity.
Table 6. Comparison of the electrocatalytic activity of hydroxide and (oxy)hydroxide catalysts (cf. Table 1 for definitions of “durability” and “stability”).
Table 6. Comparison of the electrocatalytic activity of hydroxide and (oxy)hydroxide catalysts (cf. Table 1 for definitions of “durability” and “stability”).
CatalystPreparation MethodOnset Potential (V)η (at 10 mV/cm2) (V)Tafel Slope (mV dec−1)Durability (h)StabilityElectrolyteRef.
NiFeOH/NiFePHydrothermal & PH3 plasma treatment & electrodeposition-0.2583924High *1 M KOH[85]
NiFe-OHStepwise electrodeposition-0.2438.95Good *1 M KOH[86]
W0.5Co0.4Fe0.1 oxyhydroxide coralloidsHydrothermal1.530.2532>500Superior1 M KOH[87]
CoFe-H hydroxide & CoFe-H/BiVO4Electrodeposition0.230.282845High *1 M KOH[88]
CeO2/FeOOHElectrodeposition0.210.253250High1 M NaOH[89]
FeOOH/Co/FeOOHElectrodeposition0.220.253250High1 M NaOH[90]
FeCoW oxyhydroxidesModified sol-gel-0.19137550High 1 M KOH[91]
NiFe(OH)/NiFe:PiElectrodeposition & phosphorylation1.430.293810Excellent1 M KOH[92]
Ag-decorated Co(OH)2Selective reduction-oxidation-0.2767–109 (depending on the amount of Ag)10Good1 M KOH[94]
NiFeOOH/TiO2 core-shellHydrothermal 0.27386.924High *0.01 M Na2SO4[95]
α-NiCo(OH)2Electrodeposition1.430.2625-306High *1 M KOH[96]
NiPS3@NiOOHChemical vapor transport & liquid exfoliation1.480.3580>160Excellent0.1 M KOH[97]

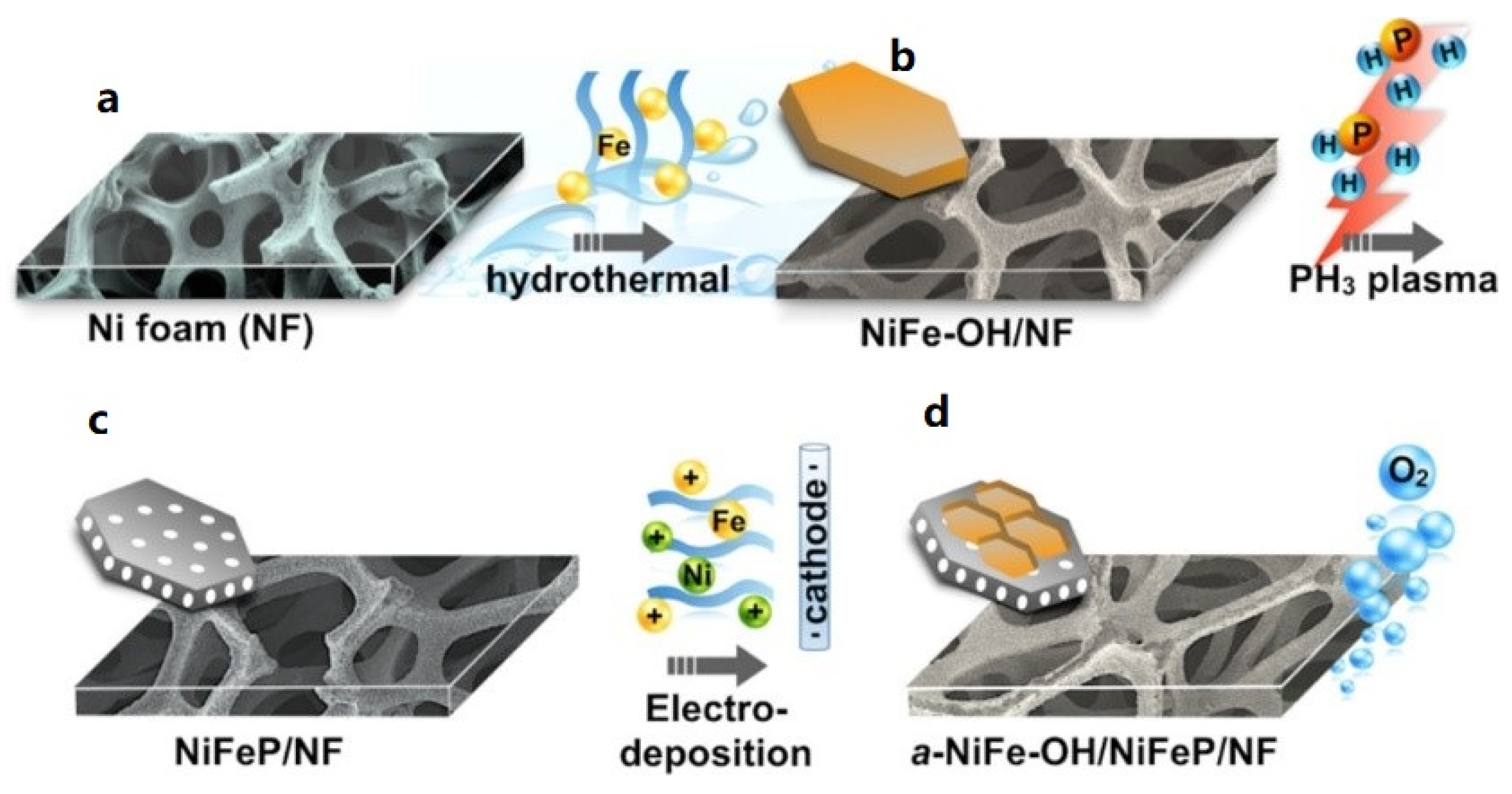

Liang et al. used a PH3 plasma-assisted method developed by their group, to fully convert a NiFe hydroxide into porous NiFeP, as shown in Figure 24 [85]. This method facilitated the rapid synthesis of phosphides, at around 15 min, at low temperatures of approximately 200 °C. The catalyst showed high geometric current densities of 300 mA cm−2 at the corresponding overpotential of 0.2 VRHE, a low overpotential of 0.258 VRHE at 10 mA cm−2, and a small Tafel slope of 39 mV dec−1. The low overpotential of 0.25 VRHE corresponded to 0.036 s−1 TOF, as calculated by the authors. The high activity was ascribed to the morphological architecture and the electronic interaction between the α-NiFe-OH and NiFeP, respectively.
Electrodeposition was employed by many groups, in order to synthesize catalysts using FeOH or FeOOH-coupled with other co-catalyst metals or metal oxides, such as Ni, CeO2, and BiVO4 [86,87,89,90,92]. Of note is the work by Li et al., which dealt with the surface wettability [92]; the authors employed electrodeposition and phosphorylation methods to deposit an α-NiFe-OH nanosheet layer onto a NiFe:Pi 3D hierarchical nanostructure. From the results, the authors concluded that surface wettability is a key parameter for controlling the morphology, while it is also capable of modifying the chemical properties of a catalyst. The catalyst showed a low overpotential of 0.29 VRHE at 10 mA cm−2 and an excellent stability in the aqueous media. The faradaic efficiency was found to be 98.2%, which suggested that the main product evolved on the catalyst was O2. Furthermore, the phosphorylation assisted the enhancement of the surface area, which provided more catalytic active sites for water adsorption and oxidation.

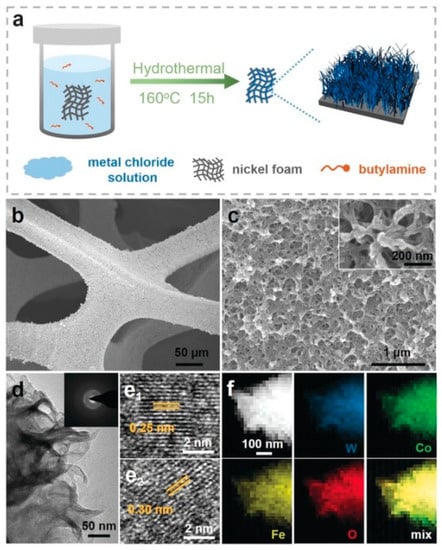

A trimetallic W0.5Co0.4Fe0.1 oxyhydroxide corraloid was introduced by Pi et al.; this exhibited a superior stability and durability in alkaline media, for 21 days [87]. Their catalyst outperformed most of the reported Co-based nanomaterials and showed continuous electrolysis currents with imperceptible decay after more than 500 h. The authors followed a wet-chemical method to synthesize corraloid-like trimetallic oxyhydroxides on nickel foam and carbon nanotubes. The preparative route and the electron microscopy characterization of the catalyst are displayed in Figure 25. The images showed disintegrated and twisted nanosheets and the selected area electron diffraction data revealed the high crystallinity of the oxyhydroxides. The special structure of this catalyst went hand-in-hand with a low overpotential of 0.25 VRHE, at the current density of 10 mA cm−2 and a small Tafel slope of 32 mV dec−1. XPS data showed that an optimized amount of Fe went hand in hand with the optimization of the binding energy of oxygen intermediates, which led to a high OER activity.
A similar trimetallic catalyst consisting of FeCoW oxyhydroxides was synthesized via a modified sol–gel method by Zhang and co-workers [91]. These gelled FeCoW oxyhydroxides exhibited superior durability for 550 h, i.e., approximately 23 days, with a very low overpotential of 0.191 VRHE at 10 mA cm−2, in alkaline media. The intrinsic activity of gelled-FeCoW oxyhydroxides was quantified by determining the TOF value, which was found to be 0.46 s−1, at an overpotential of 0.3 VRHE. The faradaic efficiency of O2 evolution recorded on the catalyst was calculated to be close to 100%. The synergistic effects between the three metals produced a favorable local coordination environment, which, along with their electronic interaction, significantly enhanced the OER activity.
Electrodeposited amorphous α-phase Ni–Co(OH)2 nanodendrite forests were synthesized on a stainless steel foil by Balram and co-workers [96]. The key parameter for the formation of nanodendritic structures was the addition of small amounts of water to the deposition bath. A limited water electrolysis and hydrogen bubble production occurred near the electrode interface with the electrolyte, which caused highly localized pH gradients, resulting in the aforementioned three-dimensional structure. The electrocatalyst afforded current densities higher than 50 mA cm−2, at the applied potential of 1.6 VRHE. The overpotential at the current density of 10 mA cm−2 was found at 0.25 VRHE and the Ni–Co(OH)2 material showed an excellent stability during the operational time of 6 h.
Konkena and co-workers employed a chemical vapor transport and liquid exfoliation method, in order to fabricate an NiPS3@NiOOH core-shell structure [97]. Ni(III)-based (NiOOH) species of the shell structure enhanced the overall OER, as shown by a combination of spectroscopic and computational analyses. Additionally, the high OER activity was attributed to the highly active metal-edge sites. The catalyst excelled through a low-onset potential at 1.48 VRHE, as well as an overpotential value of 0.35 VRHE at the current density of 10 mA cm−2. The Tafel slope was recorded as 80 mV dec−1 and the catalyst showed a high stability after 6 h of electrocatalytic tests.

3. Brief Discussion of the Unresolved Bottlenecks

The development of a highly efficient and low-cost water oxidation catalysts remains of utmost importance for commercial artificial photosynthesis applications. Notwithstanding the recent advances in this field, fundamental improvement strategies and issues need to be further addressed. Focusing efforts on mechanistic studies is essential for a deeper understanding of how a more efficient and long-lasting water oxidation catalyst can be engineered. Furthermore, these advanced engineering efforts for a promising oxidation catalyst need to be coupled with convenient and applicable benchmarking protocols. These protocols will allow us to easily compare our systems on all levels and to unambiguously identify candidates for a technological scale-up. Given that such generally accepted standard test procedures are still pending, here, we refrained from further performance comparisons between the different material types. The wide variation of preparative and experimental parameters between the selected studies still renders such comparisons far from unambiguous. Another unresolved bottleneck in the field is the need for widely available in situ/operando monitoring techniques, under real catalytic conditions. Monitoring structural changes during catalysis, under various concentrations, pH, and temperature parameters, provides indispensable first-hand information for selecting the most efficient optimization parameters.

4. Directions to New Composite Materials

In this section, an outlook is given on new composite materials for OER catalysis. Kuang et al. introduced a superior carbon material as a booster additive for water oxidation catalysts, namely graphdiyne (GDY), which comprises assembled layers of sp and sp2 hybridized carbon atoms [98]. Graphdiyne has been proposed as a new and the most stable carbon allotrope, with a high π-connectivity, uniformly distributed triangular pores, and tunable electronic properties [99]. The geometrical structure of this material is illustrated in Figure 26. More specifically, Kuang and co-workers fabricated a GDY/NiFe-LDH electrocatalysts, via a hydrothermal method. Morphological characterizations of the material, as well as elemental mapping data are displayed in Figure 27. The electrocatalyst exhibited outstanding catalytic activity towards water oxidation, at a low overpotential of 260 mV in an alkaline electrolyte. Density functional theory calculations were also performed and demonstrated strong interactions between –C≡C–C≡C– and the transition metal atoms, which further contributed to the fast electron transfer and long operational stability.

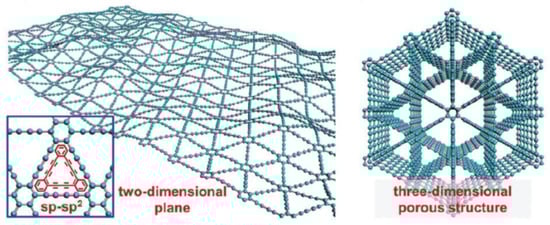

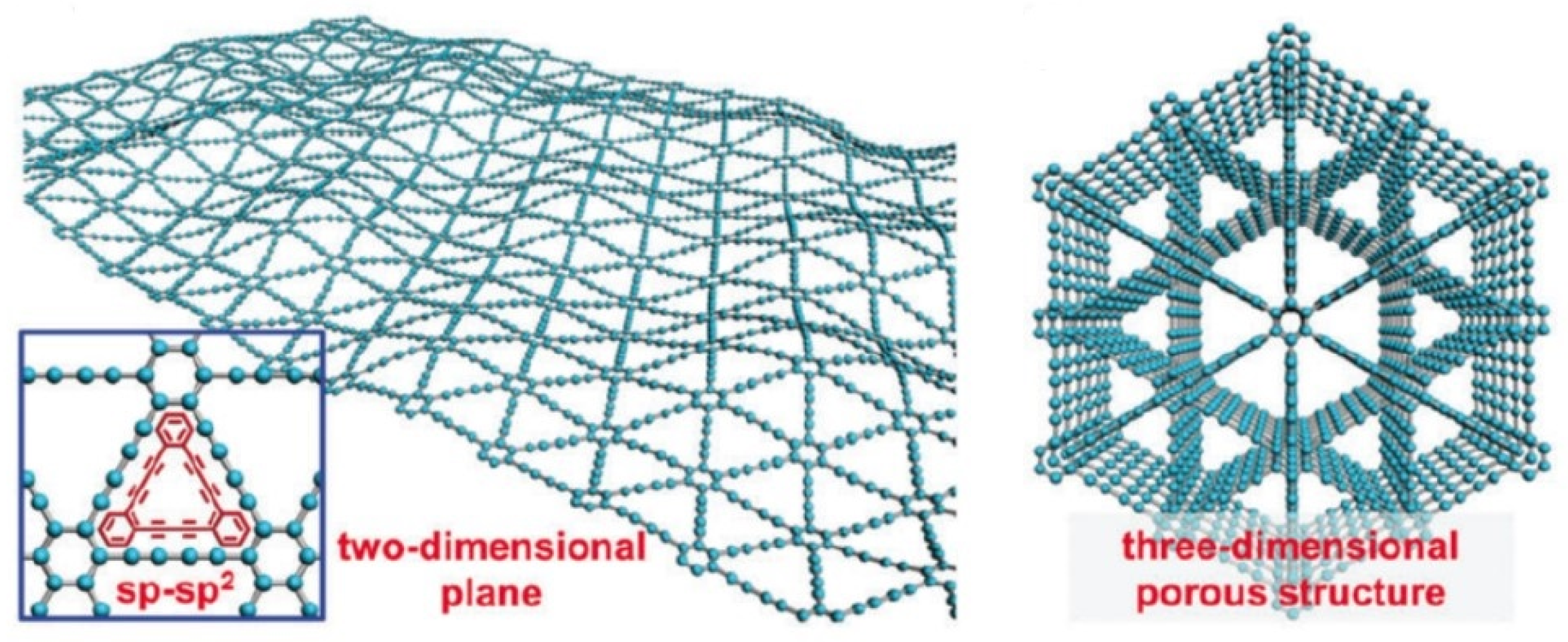

Chen and co-workers synthesized an emerging type of carbon, the giant carbon tubes (GCTs), with outstanding water oxidation properties, and a unique physicochemical structure [100]. Regarding the formation protocol, quartz wool was employed as a template for the CVD growth of the giant carbon tubes. The material was placed in a quartz tube and heated to different temperatures—between 950 and 1050 °C—in a mixed H2 and CH4 gas stream.
The nitridation of the GNTs (N-GNTs) was also carried out by further heating of the sample in a furnace, under an NH3 flow. SEM and TEM images of the material are shown in Figure 28. The GNTs and N-GNTs showed an overpotential of 0.44 VRHE, at the current density of 10 mA cm−2 and Tafel slope values of 46 and 48 mV dec−1, respectively, which were significantly lower than those of other carbon-based WOCs. The authors also ran chronoamperometric studies of the catalyst for almost 30 min, and the current densities showed a time-dependent upward trend.
Heterojunction structures are of current interest for solar water splitting, as proposed recently by Wei et al. [101]. In particular, the authors employed a hydrothermal method to synthesize SrTiO3/TiO2 heterogeneous hollow multi-shelled structures (HoMSs), via a hydrothermal crystallization of SrTiO3 on the surface of the TiO2. The preparation route towards the SrTiO3/TiO2 heterojunctions is illustrated in Figure 29. Morphological characterizations (cf. Figure 30) showed the full coverage of the TiO2 surface with SrTiO3. The heterogeneous hollow multi-shelled structures increased the ability of the SrTiO3/TiO2 photocatalyst to absorb light and subsequently augmented their charge carrier separation efficiency. The SrTiO3/TiO2 photocatalyst retained its catalytic activity, without any evident decrease, after 20 h of overall water splitting reaction.

5. Conclusions and Perspectives

Water splitting as means of a clean and sustainable hydrogen energy production is of utmost importance, in order to meet our worldwide present and future energy needs. Electrochemical processes involving the oxygen evolution reaction are an essential part of this technology. As a result, the development of efficient electrocatalysts has become critical and, as a consequence, this research field has attracted increasing attention over the past years. To this end, an electrocatalyst for commercial electrolyzers should generally reach current densities of at least 500 mA cm−2, with long-term stability, as well as overpotentials below 0.3 VRHE.
It is important to point out that different lines of research emerge from electrolyzer optimization for photovoltaic-driven electrolysis devices (PV-PEC) and from photoelectrochemical systems (PEC). Concerning PV-PEC, increased production levels in the electrolyzer industry require comparable cost levels to the PV sector, to couple these technologies both economically and operationally. Therefore, the optimization of porous transport layers in electrolyzers is an essential task, with regard to costs, stability, and efficiency. Furthermore, improvements of the performance and stability of catalyst layers and membranes are indispensable. On the mass production scale, the use of earth-abundant electrocatalysts with similar characteristics to that of noble-metal electrocatalysts, will become inevitable. In addition, membrane-free systems are highly desirable, due to their low upfront capital costs. Another low-cost strategy will be the reduction of the ionic resistance of the membrane to significantly enhance the electrocatalyst activity and to minimize the mass transport limitations. In addition to the need for earth-abundant and low cost materials, the interfacial interactions between the absorbers, electrocatalysts, and electrolytes need to be further and more deeply understood.
While the technology readiness for the PV-PEC devices is at an advanced level, the technological maturity of PEC devices is at a rather early stage, with an estimated time horizon for applications of approximately 10 years. Consequently, progress in PEC technology is of high scientific significance to (and complements) PV-driven electrolysis devices with flexible setups.
Keeping the present situation in mind, this review presents an overview on the recent advances in water oxidation catalysts, focusing on highly visible studies in the field, between 2016 and 2018, to set research directions for the future. The selected works identify a wide range of influential parameters, such as morphology control, choice of operational media, catalyst stability and mechanisms, as well as synthesis methods, including doping strategies, which are just beginning to be fully explored for performance optimization. The complexity of these parameter interactions, furthermore, increases the need for fundamental mechanistic understanding, going hand in hand with the development of new in situ/operando monitoring techniques. In addition, computational studies provide valuable guidelines for the informed use of such new analytical and synthetic techniques. The quest for true catalysts is more important than ever, given the increasing number of yet unexplored new oxide materials, let alone the manifold emerging oxide clusters. The need for new and more efficient materials is pressing to both enhance the performance and commercialization of electrolyzers and to leverage the full potential of complementary and direct, off-grid photoelectrochemical devices.

Funding

This work was funded by the University of Zurich Research Priority Program (URPP) for Solar Light to Chemical Energy Conversion (LightChEC) and by the Swiss National Science Foundation (Sinergia Grant No. CRSII2_160801/1).

Acknowledgments

We thank the University of Zurich Research Priority Program (URPP) for Solar Light to Chemical Energy Conversion (LightChEC) as well as the Swiss National Science Foundation for their support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Takanabe, K. Photocatalytic Water Splitting: Quantitative Approaches toward Photocatalyst by Design. ACS Catal. 2017, 7, 8006–8022. [Google Scholar] [CrossRef]
  2. Roger, I.; Shipman, M.A.; Symes, M.D. Earth-abundant catalysts for electrochemical and photoelectrochemical water splitting. Nat. Rev. Chem. 2017, 1, 3. [Google Scholar] [CrossRef][Green Version]
  3. Doyle, R.L.; Lyons, M.E.G. The Oxygen Evolution Reaction: Mechanistic Concepts and Catalyst Design. In Photoelectrochemical Solar Fuel Production; Giménez, S., Bisquert, J., Eds.; Springer International Publishing: Cham, Switzerland, 2016; pp. 41–104. [Google Scholar]
  4. Turner, J. Sustainable hydrogen production. Science 2004, 305, 973–974. [Google Scholar] [CrossRef] [PubMed]
  5. Nocera, D.G. The artificial leaf. Acc. Chem. Res. 2012, 45, 767–776. [Google Scholar] [CrossRef] [PubMed]
  6. Joya, K.S.; Joya, Y.F.; Ocakoglu, K.; van de Krol, R. Water-splitting catalysis and solar fuel devices: Artificial leaves on the move. Angew. Chem. 2013, 52, 10426–10437. [Google Scholar] [CrossRef] [PubMed]
  7. Si, W.; Pergolesi, D.; Haydous, F.; Fluri, A.; Wokaun, A.; Lippert, T. Investigating the behavior of various cocatalysts on LaTaON2 photoanode for visible light water splitting. Phys. Chem. Chem. Phys. 2016, 19, 656–662. [Google Scholar] [CrossRef] [PubMed]
  8. Ardo, S.; Fernandez Rivas, D.; Modestino, M.A.; Schulze Greiving, V.; Abdi, F.F.; Alarcon Llado, E.; Artero, V.; Ayers, K.; Battaglia, C.; Becker, J.-P.; et al. Pathways to electrochemical solar-hydrogen technologies. Energy Environ. Sci. 2018, 103, 15729. [Google Scholar] [CrossRef]
  9. Turan, B.; Becker, J.-P.; Urbain, F.; Finger, F.; Rau, U.; Haas, S. Upscaling of integrated photoelectrochemical water-splitting devices to large areas. Nat. Commun. 2016, 7, 12681. [Google Scholar] [CrossRef] [PubMed][Green Version]
  10. Li, J.; Güttinger, R.; Moré, R.; Song, F.; Wan, W.; Patzke, G.R. Frontiers of water oxidation: The quest for true catalysts. Chem. Soc. Rev. 2017, 46, 6124–6147. [Google Scholar] [CrossRef] [PubMed]
  11. Wang, Z.; Wang, L. Photoelectrodes for water splitting: Materials, fabrication and characterization. Sci. China Mater. 2018, 61, 806–821. [Google Scholar] [CrossRef]
  12. Lee, Y.; Suntivich, J.; May, K.J.; Perry, E.E.; Shao-Horn, Y. Synthesis and Activities of Rutile IrO2 and RuO2 Nanoparticles for Oxygen Evolution in Acid and Alkaline Solutions. J. Phys. Chem. Lett. 2012, 3, 399–404. [Google Scholar] [CrossRef] [PubMed]
  13. Walter, M.G.; Warren, E.L.; McKone, J.R.; Boettcher, S.W.; Mi, Q.; Santori, E.A.; Lewis, N.S. Solar water splitting cells. Chem. Rev. 2010, 110, 6446–6473. [Google Scholar] [CrossRef] [PubMed]
  14. Védrine, J. Heterogeneous Catalysis on Metal Oxides. Catalysts 2017, 7, 341. [Google Scholar] [CrossRef]
  15. Weber, D.; Schoop, L.M.; Wurmbrand, D.; Laha, S.; Duppel, V.; Podjaski, F.; Mueller, K.; Starke, U.; Lotsch, B.V. IrOOH nanosheets as acid stable electrocatalysts for the oxygen evolution reaction. J. Mater. Chem. A 2018. [Google Scholar] [CrossRef]
  16. Seitz, L.C.; Dickens, C.F.; Nishio, K.; Hikita, Y.; Montoya, J.; Doyle, A.; Kirk, C.; Vojvodic, A.; Hwang, H.Y.; Norskov, J.K.; et al. A highly active and stable IrOx/SrIrO3 catalyst for the oxygen evolution reaction. Science 2016, 353, 1011–1014. [Google Scholar] [CrossRef] [PubMed]
  17. Deng, Y.; Handoko, A.D.; Du, Y.; Xi, S.; Yeo, B.S. In Situ Raman Spectroscopy of Copper and Copper Oxide Surfaces during Electrochemical Oxygen Evolution Reaction: Identification of Cu(III) Oxides as Catalytically Active Species. ACS Catal. 2016, 6, 2473–2481. [Google Scholar] [CrossRef]
  18. Xie, L.; Tang, C.; Wang, K.; Du, G.; Asiri, A.M.; Sun, X. Cu(OH)2@CoCO3(OH)2·nH2O Core–Shell Heterostructure Nanowire Array: An Efficient 3D Anodic Catalyst for Oxygen Evolution and Methanol Electrooxidation. Small 2017, 13. [Google Scholar] [CrossRef] [PubMed]
  19. Cherevko, S.; Geiger, S.; Kasian, O.; Kulyk, N.; Grote, J.-P.; Savan, A.; Shrestha, B.R.; Merzlikin, S.; Breitbach, B.; Ludwig, A.; et al. Oxygen and hydrogen evolution reactions on Ru, RuO2, Ir, and IrO2 thin film electrodes in acidic and alkaline electrolytes: A comparative study on activity and stability. Catal. Today 2016, 262, 170–180. [Google Scholar] [CrossRef]
  20. Amiri, M.; Fallahi, M.; Bezaatpour, A.; Jijie, R.; Nozari-asbmarz, M.; Rouhi, M.; Boukherroub, R.; Szunerits, S. Solution Processable Cu(II) macrocycle for the Formation of Cu2O Thin Film on Indium Tin Oxide and Its Application for Water Oxidation. J. Phys. Chem. C 2018, 122, 16510–16518. [Google Scholar] [CrossRef]
  21. Roy, C.; Rao, R.R.; Stoerzinger, K.A.; Hwang, J.; Rossmeisl, J.; Chorkendorff, I.; Shao-Horn, Y.; Stephens, I.E.L. Trends in Activity and Dissolution on RuO2 under Oxygen Evolution Conditions: Particles versus Well-Defined Extended Surfaces. ACS Energy Lett. 2018, 3, 2045–2051. [Google Scholar] [CrossRef]
  22. Oh, H.-S.; Nong, H.N.; Reier, T.; Bergmann, A.; Gliech, M.; Ferreira de Araújo, J.; Willinger, E.; Schlögl, R.; Teschner, D.; Strasser, P. Electrochemical Catalyst-Support Effects and Their Stabilizing Role for IrOx Nanoparticle Catalysts during the Oxygen Evolution Reaction. J. Am. Chem. Soc. 2016, 138, 12552–12563. [Google Scholar] [CrossRef] [PubMed]
  23. Wu, Y.T.; Liu, N. Visualising Battery Reactions and Processes by Using In Situ and In Operando Microscopies. Chem 2018, 4, 438–465. [Google Scholar] [CrossRef]
  24. Zhang, M.; Frei, H. Water Oxidation Mechanisms of Metal Oxide Catalysts by Vibrational Spectroscopy of Transient Intermediates. Annu. Rev. Phys. Chem. 2017, 68, 209–231. [Google Scholar] [CrossRef] [PubMed]
  25. Conway, B.E.; Bai, L.; Sattar, M.A. Role of the transfer coefficient in electrocatalysis: Applications to the H2 and O2 evolution reactions and the characterization of participating adsorbed intermediates. Int. J. Hydrogen Energy 1987, 12, 607–621. [Google Scholar] [CrossRef]
  26. Atabaev, T.S.; Lee, D.H.; Hong, N.H. Fabrication of TiO2/CuO photoelectrode with enhanced solar water splitting activity. Funct. Mater. Lett. 2017, 10, 1750084. [Google Scholar] [CrossRef]
  27. Mishra, G.; Dash, B.; Pandey, S. Layered double hydroxides: A brief review from fundamentals to application as evolving biomaterials. Appl. Clay Sci. 2018, 153, 172–186. [Google Scholar] [CrossRef]
  28. Han, L.; Dong, S.; Wang, E. Transition-Metal (Co, Ni, and Fe)-Based Electrocatalysts for the Water Oxidation Reaction. Adv. Mater. 2016, 28, 9266–9291. [Google Scholar] [CrossRef] [PubMed]
  29. Wu, J.; Ren, Z.; Du, S.; Kong, L.; Liu, B.; Xi, W.; Zhu, J.; Fu, H. A highly active oxygen evolution electrocatalyst: Ultrathin CoNi double hydroxide/CoO nanosheets synthesized via interface-directed assembly. Nano Res. 2016, 9, 713–725. [Google Scholar] [CrossRef]
  30. Yang, F.; Sliozberg, K.; Sinev, I.; Antoni, H.; Bähr, A.; Ollegott, K.; Xia, W.; Masa, J.; Grünert, W.; Cuenya, B.R.; et al. Synergistic Effect of Cobalt and Iron in Layered Double Hydroxide Catalysts for the Oxygen Evolution Reaction. ChemSusChem 2017, 10, 156–165. [Google Scholar] [CrossRef] [PubMed]
  31. You, C.; Ji, Y.; Liu, Z.; Xiong, X.; Sun, X. Ultrathin CoFe-Borate Layer Coated CoFe-Layered Double Hydroxide Nanosheets Array: A Non-Noble-Metal 3D Catalyst Electrode for Efficient and Durable Water Oxidation in Potassium Borate. ACS Sustain. Chem. Eng. 2018, 6, 1527–1531. [Google Scholar] [CrossRef]
  32. Fan, K.; Chen, H.; Ji, Y.; Huang, H.; Claesson, P.M.; Daniel, Q.; Philippe, B.; Rensmo, H.; Li, F.; Luo, Y.; et al. Nickel-vanadium monolayer double hydroxide for efficient electrochemical water oxidation. Nat. Commun. 2016, 7, 11981. [Google Scholar] [CrossRef] [PubMed]
  33. Ping, J.; Wang, Y.; Lu, Q.; Chen, B.; Chen, J.; Huang, Y.; Ma, Q.; Tan, C.; Yang, J.; Cao, X.; et al. Self-Assembly of Single-Layer CoAl-Layered Double Hydroxide Nanosheets on 3D Graphene Network Used as Highly Efficient Electrocatalyst for Oxygen Evolution Reaction. Adv. Mater. 2016, 28, 7640–7645. [Google Scholar] [CrossRef] [PubMed]
  34. Hunter, B.M.; Winkler, J.R.; Gray, H.B. Iron Is the Active Site in Nickel/Iron Water Oxidation Electrocatalysts. Molecules 2018, 23, 903. [Google Scholar] [CrossRef] [PubMed]
  35. Wang, C.; Moghaddam, R.B.; Brett, M.J.; Bergens, S.H. Simple Aqueous Preparation of High Activity and Stability NiFe Hydrous Oxide Catalysts for Water Oxidation. ACS Sustain. Chem. Eng. 2017, 5, 1106–1112. [Google Scholar] [CrossRef]
  36. Li, N.; Bediako, D.K.; Hadt, R.G.; Hayes, D.; Kempa, T.J.; von Cube, F.; Bell, D.C.; Chen, L.X.; Nocera, D.G. Influence of iron doping on tetravalent nickel content in catalytic oxygen evolving films. Proc. Natl. Acad. Sci. USA 2017, 114, 1486–1491. [Google Scholar] [CrossRef] [PubMed][Green Version]
  37. Li, Z.; Shao, M.; An, H.; Wang, Z.; Xu, S.; Wei, M.; Evans, D.G.; Duan, X. Fast electrosynthesis of Fe-containing layered double hydroxide arrays toward highly efficient electrocatalytic oxidation reactions. Chem. Sci. 2015, 6, 6624–6631. [Google Scholar] [CrossRef] [PubMed][Green Version]
  38. Xie, C.; Wang, Y.; Hu, K.; Tao, L.; Huang, X.; Huo, J.; Wang, S. In situ confined synthesis of molybdenum oxide decorated nickel–iron alloy nanosheets from MoO42− intercalated layered double hydroxides for the oxygen evolution reaction. J. Mater. Chem. A 2017, 5, 87–91. [Google Scholar] [CrossRef]
  39. Görlin, M.; Ferreira de Araújo, J.; Schmies, H.; Bernsmeier, D.; Dresp, S.; Gliech, M.; Jusys, Z.; Chernev, P.; Kraehnert, R.; Dau, H.; et al. Tracking Catalyst Redox States and Reaction Dynamics in Ni–Fe Oxyhydroxide Oxygen Evolution Reaction Electrocatalysts: The Role of Catalyst Support and Electrolyte pH. J. Am. Chem. Soc. 2017, 139, 2070–2082. [Google Scholar] [CrossRef] [PubMed]
  40. Zhang, F.; Shi, Y.; Xue, T.; Zhang, J.; Liang, Y.; Zhang, B. In situ electrochemically converting Fe2O3-Ni(OH)2 to NiFe2O4–NiOOH: A highly efficient electrocatalyst towards water oxidation. Sci. China Mater. 2017, 60, 324–334. [Google Scholar] [CrossRef]
  41. Zou, X.; Liu, Y.; Li, G.-D.; Wu, Y.; Liu, D.-P.; Li, W.; Li, H.-W.; Wang, D.; Zhang, Y.; Zou, X. Ultrafast Formation of Amorphous Bimetallic Hydroxide Films on 3D Conductive Sulfide Nanoarrays for Large-Current-Density Oxygen Evolution Electrocatalysis. Adv. Mater. 2017, 29. [Google Scholar] [CrossRef] [PubMed]
  42. Wu, Z.; Wang, Z.; Geng, F. Radially Aligned Hierarchical Nickel/Nickel-Iron (Oxy)hydroxide Nanotubes for Efficient Electrocatalytic Water Splitting. ACS Appl. Mater. Interfaces 2018, 10, 8585–8593. [Google Scholar] [CrossRef] [PubMed]
  43. Hunter, B.M.; Hieringer, W.; Winkler, J.R.; Gray, H.B.; Müller, A.M. Effect of interlayer anions on [NiFe]-LDH nanosheet water oxidation activity. Energy Environ. Sci. 2016, 9, 1734–1743. [Google Scholar] [CrossRef][Green Version]
  44. Jia, Y.; Zhang, L.; Gao, G.; Chen, H.; Wang, B.; Zhou, J.; Soo, M.T.; Hong, M.; Yan, X.; Qian, G.; et al. A Heterostructure Coupling of Exfoliated Ni–Fe Hydroxide Nanosheet and Defective Graphene as a Bifunctional Electrocatalyst for Overall Water Splitting. Adv. Mater. 2017, 29. [Google Scholar] [CrossRef] [PubMed]
  45. Lutterman, D.A.; Surendranath, Y.; Nocera, D.G. A self-healing oxygen-evolving catalyst. J. Am. Chem. Soc. 2009, 131, 3838–3839. [Google Scholar] [CrossRef] [PubMed]
  46. Xie, T.; Min, J.; Liu, J.; Chen, J.; Fu, D.; Zhang, R.; Zhu, K.; Lei, M. Synthesis of mesoporous Co3O4 nanosheet-assembled hollow spheres towards efficient electrocatalytic oxygen evolution. J. Alloy. Compd. 2018, 754, 72–77. [Google Scholar] [CrossRef]
  47. Wang, H.-Y.; Hung, S.-F.; Chen, H.-Y.; Chan, T.-S.; Chen, H.M.; Liu, B. In Operando Identification of Geometrical-Site-Dependent Water Oxidation Activity of Spinel Co3O4. J. Am. Chem. Soc. 2016, 138, 36–39. [Google Scholar] [CrossRef] [PubMed]
  48. Zhu, Y.P.; Ma, T.Y.; Jaroniec, M.; Qiao, S.Z. Self-Templating Synthesis of Hollow Co3O4 Microtube Arrays for Highly Efficient Water Electrolysis. Angew. Chem. 2017, 56, 1324–1328. [Google Scholar] [CrossRef] [PubMed]
  49. Koroidov, S.; Anderlund, M.F.; Styring, S.; Thapper, A.; Messinger, J. First turnover analysis of water-oxidation catalyzed by Co-oxide nanoparticles. Energy Environ. Sci. 2015, 8, 2492–2503. [Google Scholar] [CrossRef][Green Version]
  50. Wang, Q.; Hu, W.; Huang, Y. Nitrogen doped graphene anchored cobalt oxides efficiently bi-functionally catalyze both oxygen reduction reaction and oxygen revolution reaction. Int. J. Hydrogen Energy 2017, 42, 5899–5907. [Google Scholar] [CrossRef]
  51. Aijaz, A.; Masa, J.; Rösler, C.; Xia, W.; Weide, P.; Botz, A.J.R.; Fischer, R.A.; Schuhmann, W.; Muhler, M. [email protected]3O4 Encapsulated in Carbon Nanotube-Grafted Nitrogen-Doped Carbon Polyhedra as an Advanced Bifunctional Oxygen Electrode. Angew. Chem. 2016, 55, 4087–4091. [Google Scholar] [CrossRef] [PubMed]
  52. Liu, Z.-Q.; Cheng, H.; Li, N.; Ma, T.Y.; Su, Y.-Z. ZnCo2O4 Quantum Dots Anchored on Nitrogen-Doped Carbon Nanotubes as Reversible Oxygen Reduction/Evolution Electrocatalysts. Adv. Mater. 2016, 28, 3777–3784. [Google Scholar] [CrossRef] [PubMed]
  53. Xiao, C.; Li, Y.; Lu, X.; Zhao, C. Bifunctional Porous NiFe/NiCo2O4/Ni Foam Electrodes with Triple Hierarchy and Double Synergies for Efficient Whole Cell Water Splitting. Adv. Funct. Mater. 2016, 26, 3515–3523. [Google Scholar] [CrossRef]
  54. Guan, C.; Liu, X.; Ren, W.; Li, X.; Cheng, C.; Wang, J. Rational Design of Metal–Organic Framework Derived Hollow NiCo2O4 Arrays for Flexible Supercapacitor and Electrocatalysis. Adv. Energy Mater. 2017, 7, 1602391. [Google Scholar] [CrossRef]
  55. Morales-Guio, C.G.; Liardet, L.; Hu, X. Oxidatively Electrodeposited Thin-Film Transition Metal (Oxy)hydroxides as Oxygen Evolution Catalysts. J. Am. Chem. Soc. 2016, 138, 8946–8957. [Google Scholar] [CrossRef] [PubMed]
  56. Ji, X.; Hao, S.; Qu, F.; Liu, J.; Du, G.; Asiri, A.M.; Chen, L.; Sun, X. Core–shell CoFe2O4@Co-Fe-Bi nanoarray: A surface-amorphization water oxidation catalyst operating at near-neutral pH. Nanoscale 2017, 9, 7714–7718. [Google Scholar] [CrossRef] [PubMed]
  57. Zhang, X.; Chen, Y.-S.; Kamat, P.V.; Ptasinska, S. Probing Interfacial Electrochemistry on a Co3O4 Water Oxidation Catalyst Using Lab-Based Ambient Pressure X-ray Photoelectron Spectroscopy. J. Phys. Chem. C 2018, 122, 13894–13901. [Google Scholar] [CrossRef]
  58. Reith, L.; Lienau, K.; Cook, D.S.; Moré, R.; Walton, R.I.; Patzke, G.R. Monitoring the Hydrothermal Growth of Cobalt Spinel Water Oxidation Catalysts: From Preparative History to Catalytic Activity. Chemistry 2018. [Google Scholar] [CrossRef]
  59. Matsumoto, Y.; Yamada, S.; Nishida, T.; Sato, E. Oxygen evolution on La1−xSrxFe1−yCoyO3 series oxides. J. Electrochem. Sci. 1980, 127, 2360–2364. [Google Scholar] [CrossRef]
  60. Zhu, Y.; Zhou, W.; Yu, J.; Chen, Y.; Liu, M.; Shao, Z. Enhancing Electrocatalytic Activity of Perovskite Oxides by Tuning Cation Deficiency for Oxygen Reduction and Evolution Reactions. Chem. Mater. 2016, 28, 1691–1697. [Google Scholar] [CrossRef]
  61. Zhao, B.; Zhang, L.; Zhen, D.; Yoo, S.; Ding, Y.; Chen, D.; Chen, Y.; Zhang, Q.; Doyle, B.; Xiong, X.; et al. A tailored double perovskite nanofiber catalyst enables ultrafast oxygen evolution. Nat. Commun. 2017, 8, 14586. [Google Scholar] [CrossRef] [PubMed][Green Version]
  62. Su, C.; Duan, X.; Miao, J.; Zhong, Y.; Zhou, W.; Wang, S.; Shao, Z. Mixed Conducting Perovskite Materials as Superior Catalysts for Fast Aqueous-Phase Advanced Oxidation: A Mechanistic Study. ACS Catal. 2017, 7, 388–397. [Google Scholar] [CrossRef]
  63. Xu, X.; Su, C.; Zhou, W.; Zhu, Y.; Chen, Y.; Shao, Z. Co-doping Strategy for Developing Perovskite Oxides as Highly Efficient Electrocatalysts for Oxygen Evolution Reaction. Adv. Sci. 2016, 3, 1500187. [Google Scholar] [CrossRef] [PubMed]
  64. Zhu, Y.; Zhou, W.; Zhong, Y.; Bu, Y.; Chen, X.; Zhong, Q.; Liu, M.; Shao, Z. A Perovskite Nanorod as Bifunctional Electrocatalyst for Overall Water Splitting. Adv. Energy Mater. 2017, 7, 1602122. [Google Scholar] [CrossRef]
  65. Mefford, J.T.; Rong, X.; Abakumov, A.M.; Hardin, W.G.; Dai, S.; Kolpak, A.M.; Johnston, K.P.; Stevenson, K.J. Water electrolysis on La1−xSrxCoO3−δ perovskite electrocatalysts. Nat. Commun. 2016, 7, 11053. [Google Scholar] [CrossRef] [PubMed]
  66. Lee, J.G.; Hwang, J.; Hwang, H.J.; Jeon, O.S.; Jang, J.; Kwon, O.; Lee, Y.; Han, B.; Shul, Y.-G. A New Family of Perovskite Catalysts for Oxygen-Evolution Reaction in Alkaline Media: BaNiO3 and BaNi0.83O2.5. J. Am. Chem. Soc. 2016, 138, 3541–3547. [Google Scholar] [CrossRef] [PubMed]
  67. Black, A.P.; Suzuki, H.; Higashi, M.; Frontera, C.; Ritter, C.; De, C.; Sundaresan, A.; Abe, R.; Fuertes, A. New rare earth hafnium oxynitride perovskites with photocatalytic activity in water oxidation and reduction. Chem. Commun. 2018, 54, 1525–1528. [Google Scholar] [CrossRef] [PubMed]
  68. Ng, J.W.D.; García-Melchor, M.; Bajdich, M.; Chakthranont, P.; Kirk, C.; Vojvodic, A.; Jaramillo, T.F. Gold-supported cerium-doped NiOx catalysts for water oxidation. Nat. Energy 2016, 1, 16053. [Google Scholar] [CrossRef]
  69. Li, M.; Yang, Y.; Ling, Y.; Qiu, W.; Wang, F.; Liu, T.; Song, Y.; Liu, X.; Fang, P.; Tong, Y.; et al. Morphology and Doping Engineering of Sn-Doped Hematite Nanowire Photoanodes. Nano Lett. 2017, 17, 2490–2495. [Google Scholar] [CrossRef] [PubMed]
  70. Bates, M.K.; Jia, Q.; Doan, H.; Liang, W.; Mukerjee, S. Charge-Transfer Effects in Ni–Fe and Ni–Fe–Co Mixed-Metal Oxides for the Alkaline Oxygen Evolution Reaction. ACS Catal. 2016, 6, 155–161. [Google Scholar] [CrossRef]
  71. Li, P.; Zeng, H.C. Sandwich-Like Nanocomposite of CoNiOx/Reduced Graphene Oxide for Enhanced Electrocatalytic Water Oxidation. Adv. Funct. Mater. 2017, 27, 1606325. [Google Scholar] [CrossRef]
  72. Zhuang, L.; Ge, L.; Yang, Y.; Li, M.; Jia, Y.; Yao, X.; Zhu, Z. Ultrathin Iron–Cobalt Oxide Nanosheets with Abundant Oxygen Vacancies for the Oxygen Evolution Reaction. Adv. Mater. 2017, 29. [Google Scholar] [CrossRef] [PubMed]
  73. Li, W.; Sheehan, S.W.; He, D.; He, Y.; Yao, X.; Grimm, R.L.; Brudvig, G.W.; Wang, D. Hematite-Based Solar Water Splitting in Acidic Solutions: Functionalization by Mono- and Multilayers of Iridium Oxygen-Evolution Catalysts. Angew. Chem. 2015, 54, 11428–11432. [Google Scholar] [CrossRef] [PubMed]
  74. Gholamrezaei, S.; Salavati-Niasari, M. Sonochemical synthesis of SrMnO3 nanoparticles as an efficient and new catalyst for O2 evolution from water splitting reaction. Ultrason. Sonochem. 2018, 40, 651–663. [Google Scholar] [CrossRef] [PubMed]
  75. Yang, J.; Zhu, G.; Liu, Y.; Xia, J.; Ji, Z.; Shen, X.; Wu, S. Fe3O4-Decorated Co9S8 Nanoparticles In Situ Grown on Reduced Graphene Oxide: A New and Efficient Electrocatalyst for Oxygen Evolution Reaction. Adv. Funct. Mater. 2016, 26, 4712–4721. [Google Scholar] [CrossRef]
  76. Weng, B.; Xu, F.; Wang, C.; Meng, W.; Grice, C.R.; Yan, Y. A layered Na1−xNiyFe1−yO2 double oxide oxygen evolution reaction electrocatalyst for highly efficient water-splitting. Energy Environ. Sci. 2017, 10, 121–128. [Google Scholar] [CrossRef]
  77. Abbott, D.F.; Meier, M.; Meseck, G.R.; Fabbri, E.; Seeger, S.; Schmidt, T.J. Silicone Nanofilament-Supported Mixed Nickel-Metal Oxides for Alkaline Water Electrolysis. J. Electrochem. Soc. 2017, 164, F203–F208. [Google Scholar] [CrossRef][Green Version]
  78. Kanazawa, T.; Maeda, K. Chromium-substituted hematite powder as a catalytic material for photochemical and electrochemical water oxidation. Catal. Sci. Technol. 2017, 7, 2940–2946. [Google Scholar] [CrossRef]
  79. Xing, X.; Liu, R.; Cao, K.; Kaiser, U.; Zhang, G.; Streb, C. Manganese vanadium oxide-N-doped reduced graphene oxide composites as oxygen reduction and oxygen evolution electrocatalysts. ACS Appl. Mater. Interfaces 2018. [Google Scholar] [CrossRef] [PubMed]
  80. Antoni, H.; Morales, D.M.; Fu, Q.; Chen, Y.-T.; Masa, J.; Schuhmann, W.; Muhler, M. Oxidative Deposition of Manganese Oxide Nanosheets on Nitrogen-Functionalized Carbon Nanotubes Applied in the Alkaline Oxygen Evolution Reaction. ACS Omega 2018, 3, 11216–11226. [Google Scholar] [CrossRef]
  81. Zhou, L.; Shinde, A.; Montoya, H.J.; Singh, A.; Gul, S.; Tano, J.; Ye, Y.; Crumlin, J.E.; Richter, M.H.; Cooper, J.K.; et al. Rutile alloys in the Mn–Sb–O system stabilize Mn3+ for OER in strong acid. ACS Catal. 2018, 8, 10938–10948. [Google Scholar] [CrossRef]
  82. Najafpour, M.M.; Salimi, S.; Safdari, R. Nanosized manganese oxide supported on carbon black: A new, cheap and green composite for water oxidation. Int. J. Hydrogen Energy 2017, 42, 255–264. [Google Scholar] [CrossRef]
  83. Najafpour, M.M.; Hołyńska, M.; Salimi, S. Applications of the “nano to bulk” Mn oxides: Mn oxide as a Swiss army knife. Coord. Chem. Rev. 2015, 285, 65–75. [Google Scholar] [CrossRef]
  84. Morgan Chan, Z.; Kitchaev, D.A.; Nelson Weker, J.; Schnedermann, C.; Lim, K.; Ceder, G.; Tumas, W.; Toney, M.F.; Nocera, D.G. Electrochemical trapping of metastable Mn3+ ions for activation of MnO2 oxygen evolution catalysts. Proc. Natl. Acad. Sci. USA 2018, 115, E5261–E5268. [Google Scholar] [CrossRef] [PubMed]
  85. Liang, H.; Gandi, A.N.; Xia, C.; Hedhili, M.N.; Anjum, D.H.; Schwingenschlögl, U.; Alshareef, H.N. Amorphous NiFe-OH/NiFeP Electrocatalyst Fabricated at Low Temperature for Water Oxidation Applications. ACS Energy Lett. 2017, 2, 1035–1042. [Google Scholar] [CrossRef]
  86. Zhang, W.; Wu, Y.; Qi, J.; Chen, M.; Cao, R. A Thin NiFe Hydroxide Film Formed by Stepwise Electrodeposition Strategy with Significantly Improved Catalytic Water Oxidation Efficiency. Adv. Energy Mater. 2017, 7, 1602547. [Google Scholar] [CrossRef]
  87. Pi, Y.; Shao, Q.; Wang, P.; Lv, F.; Guo, S.; Guo, J.; Huang, X. Trimetallic Oxyhydroxide Coralloids for Efficient Oxygen Evolution Electrocatalysis. Angew. Chem. 2017, 56, 4502–4506. [Google Scholar] [CrossRef] [PubMed]
  88. Liu, W.; Liu, H.; Dang, L.; Zhang, H.; Wu, X.; Yang, B.; Li, Z.; Zhang, X.; Lei, L.; Jin, S. Amorphous Cobalt-Iron Hydroxide Nanosheet Electrocatalyst for Efficient Electrochemical and Photo-Electrochemical Oxygen Evolution. Adv. Funct. Mater. 2017, 27, 1603904. [Google Scholar] [CrossRef]
  89. Feng, J.-X.; Ye, S.-H.; Xu, H.; Tong, Y.-X.; Li, G.-R. Design and Synthesis of FeOOH/CeO2 Heterolayered Nanotube Electrocatalysts for the Oxygen Evolution Reaction. Adv. Mater. 2016, 28, 4698–4703. [Google Scholar] [CrossRef] [PubMed]
  90. Feng, J.-X.; Xu, H.; Dong, Y.-T.; Ye, S.-H.; Tong, Y.-X.; Li, G.-R. FeOOH/Co/FeOOH Hybrid Nanotube Arrays as High-Performance Electrocatalysts for the Oxygen Evolution Reaction. Angew. Chem. 2016, 55, 3694–3698. [Google Scholar] [CrossRef] [PubMed]
  91. Zhang, B.; Zheng, X.; Voznyy, O.; Comin, R.; Bajdich, M.; García-Melchor, M.; Han, L.; Xu, J.; Liu, M.; Zheng, L.; et al. Homogeneously dispersed multimetal oxygen-evolving catalysts. Science 2016, 352, 333–337. [Google Scholar] [CrossRef] [PubMed]
  92. Li, Y.; Zhao, C. Enhancing Water Oxidation Catalysis on a Synergistic Phosphorylated NiFe Hydroxide by Adjusting Catalyst Wettability. ACS Catal. 2017, 7, 2535–2541. [Google Scholar] [CrossRef]
  93. Shin, H.; Xiao, H.; Goddard, W.A. In Silico Discovery of New Dopants for Fe-Doped Ni Oxyhydroxide (Ni1−xFexOOH) Catalysts for Oxygen Evolution Reaction. J. Am. Chem. Soc. 2018, 140, 6745–6748. [Google Scholar] [CrossRef] [PubMed]
  94. Dong, R.; Du, H.; Sun, Y.; Huang, K.; Li, W.; Geng, B. Selective Reduction–Oxidation Strategy to the Conductivity-Enhancing Ag-Decorated Co-Based 2D Hydroxides as Efficient Electrocatalyst in Oxygen Evolution Reaction. ACS Sustain. Chem. Eng. 2018, 6, 13420–13426. [Google Scholar] [CrossRef]
  95. Suryawanshi, M.P.; Shin, S.W.; Ghorpade, U.V.; Kim, J.; Jeong, H.W.; Kang, S.H.; Kim, J.H. A facile, one-step electroless deposition of NiFeOOH nanosheets onto photoanodes for highly durable and efficient solar water oxidation. J. Mater. Chem. A 2018, 6, 20678–20685. [Google Scholar] [CrossRef]
  96. Balram, A.; Zhang, H.; Santhanagopalan, S. Enhanced Oxygen Evolution Reaction Electrocatalysis via Electrodeposited Amorphous α-Phase Nickel-Cobalt Hydroxide Nanodendrite Forests. ACS Appl. Mater. Interfaces 2017, 9, 28355–28365. [Google Scholar] [CrossRef] [PubMed]
  97. Konkena, B.; Masa, J.; Botz, A.J.R.; Sinev, I.; Xia, W.; Koßmann, J.; Drautz, R.; Muhler, M.; Schuhmann, W. Metallic NiPS3@NiOOH Core–Shell Heterostructures as Highly Efficient and Stable Electrocatalyst for the Oxygen Evolution Reaction. ACS Catal. 2017, 7, 229–237. [Google Scholar] [CrossRef]
  98. Kuang, P.; Zhu, B.; Li, Y.; Liu, H.; Yu, J.; Fan, K. Graphdiyne: A superior carbon additive to boost the activity of water oxidation catalysts. Nanoscale Horiz. 2018, 3, 317–326. [Google Scholar] [CrossRef]
  99. Lu, C.; Yang, Y.; Wang, J.; Fu, R.; Zhao, X.; Zhao, L.; Ming, Y.; Hu, Y.; Lin, H.; Tao, X.; et al. High-performance graphdiyne-based electrochemical actuators. Nat. Commun. 2018, 9, 752. [Google Scholar] [CrossRef] [PubMed]
  100. Chen, J.; Shen, X.; Pan, Y.; Liu, C.; Hwang, S.Y.; Xu, Q.; Peng, Z. Synthesis of freestanding amorphous giant carbon tubes with outstanding oil sorption and water oxidation properties. J. Mater. Chem. A 2018, 6, 3996–4002. [Google Scholar] [CrossRef]
  101. Wei, Y.; Wang, J.; Yu, R.; Wan, J.; Wang, D. Constructing SrTiO3–TiO2 Heterogeneous Hollow Multi-shelled Structures for Enhanced Solar Water Splitting. Angew. Chem. 2019, 58, 1422–1426. [Google Scholar] [CrossRef] [PubMed]
Figure 1. AFM images of 100 nm SrIrO3 film before and after 30 h of oxygen evolution reaction (OER) performance, showing the surface rearrangement. Reproduced from [16], with permission from the American Association for the Advancement of Science, copyright 2016.
Figure 1. AFM images of 100 nm SrIrO3 film before and after 30 h of oxygen evolution reaction (OER) performance, showing the surface rearrangement. Reproduced from [16], with permission from the American Association for the Advancement of Science, copyright 2016.
Inorganics 07 00029 g001
Figure 2. XPS spectra of 100 nm SrIrO3 film (before and after 30 min of OER), showing the attenuation of the Sr 3d peak, due to leaching. Reproduced from [16], with permission from the American Association for the Advancement of Science, copyright 2016.
Figure 2. XPS spectra of 100 nm SrIrO3 film (before and after 30 min of OER), showing the attenuation of the Sr 3d peak, due to leaching. Reproduced from [16], with permission from the American Association for the Advancement of Science, copyright 2016.
Inorganics 07 00029 g002

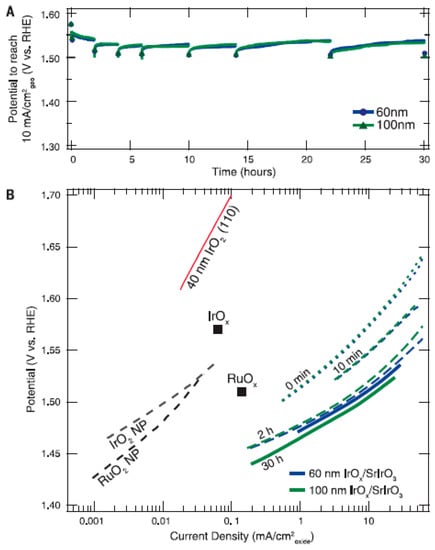

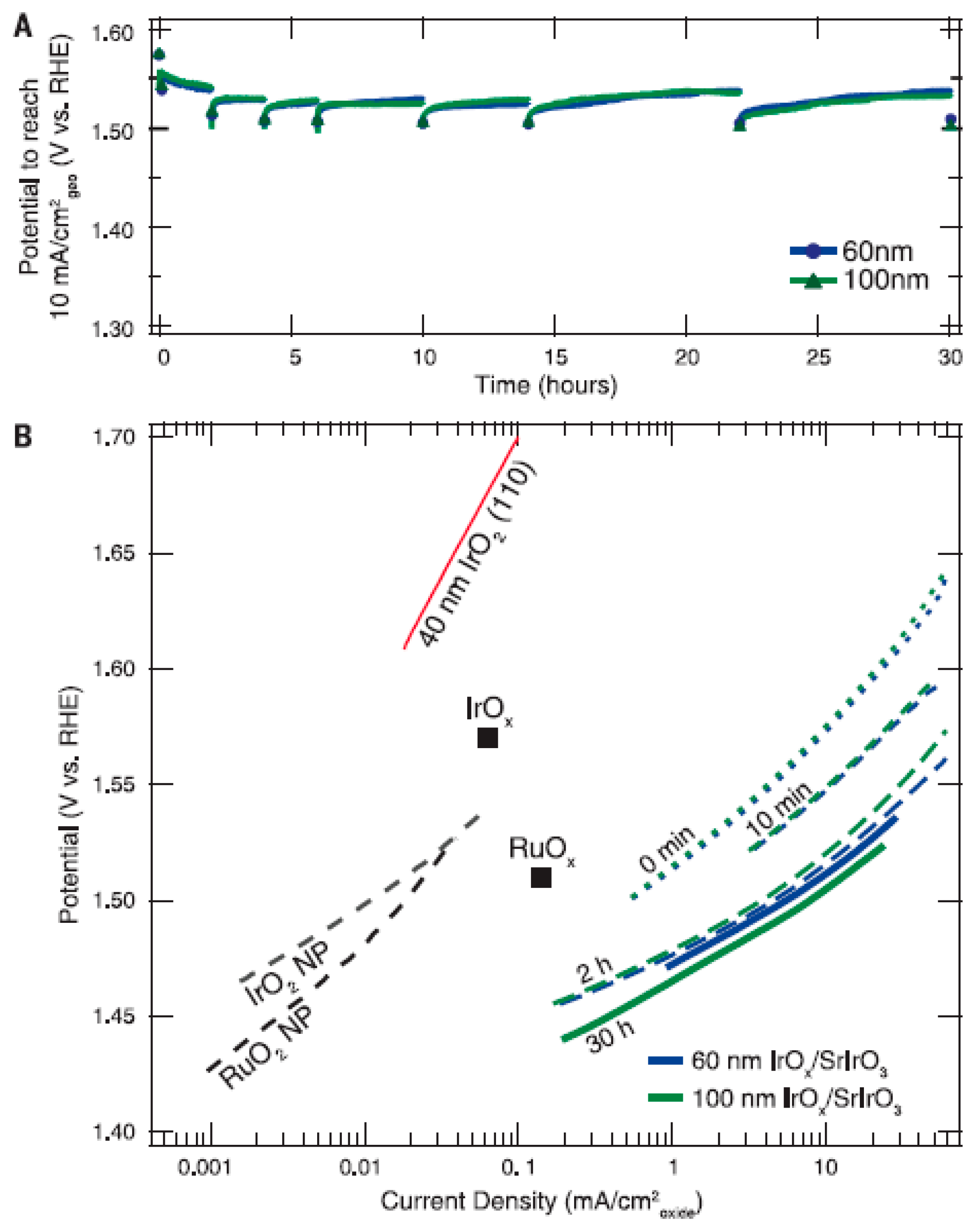

Figure 3. Performance of the IrOx/SrIrO3 catalyst: (A) Chronopotentiometry measurements of 60 and 100 nm electrocatalysts, respectively, at a potential required to reach 10 mA/cm2 per geometric area, for 30 h, in 0.5 M H2SO4 electrolyte. (B) Tafel plots of 60 and 100 nm electrocatalysts, after 0 and 10 min, as well as 2 and 30 h of catalytic tests, compared to references in 0.5 M H2SO4 electrolyte. Reproduced from [16], with permission from the American Association for the Advancement of Science, copyright 2016.
Figure 3. Performance of the IrOx/SrIrO3 catalyst: (A) Chronopotentiometry measurements of 60 and 100 nm electrocatalysts, respectively, at a potential required to reach 10 mA/cm2 per geometric area, for 30 h, in 0.5 M H2SO4 electrolyte. (B) Tafel plots of 60 and 100 nm electrocatalysts, after 0 and 10 min, as well as 2 and 30 h of catalytic tests, compared to references in 0.5 M H2SO4 electrolyte. Reproduced from [16], with permission from the American Association for the Advancement of Science, copyright 2016.
Inorganics 07 00029 g003

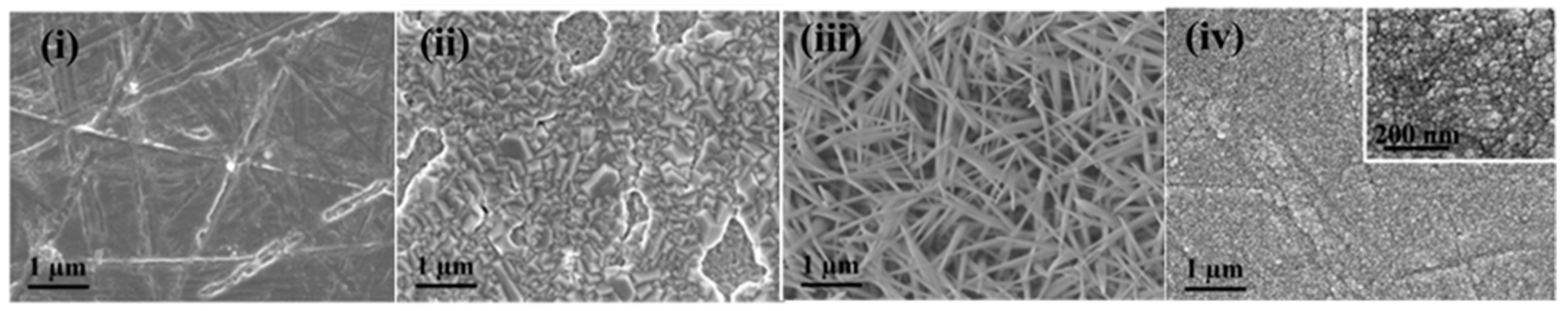

Figure 4. SEM images displaying morphology differences between as-synthesized (i) Cu, (ii) Cu2O/Cu, (iii) Cu(OH)2/Cu, and (iv) CuO/Cu samples, respectively. Reproduced from [17], with permission from the American Chemical Society, copyright 2016.
Figure 4. SEM images displaying morphology differences between as-synthesized (i) Cu, (ii) Cu2O/Cu, (iii) Cu(OH)2/Cu, and (iv) CuO/Cu samples, respectively. Reproduced from [17], with permission from the American Chemical Society, copyright 2016.
Inorganics 07 00029 g004
Figure 5. Performance evaluation of Cu-based OER-catalysts: (a) Cyclic voltammograms of Cu, CuO/Cu, Cu(OH)2/Cu, and Cu2O/Cu, after chronoamperometry at 0.7 VRHE (scan rate 0.01 V/s in 0.1 M KOH); CVs were scanned cathodically, at first. (b) Plot of the current densities as a function of charge of the reduction peaks at 1.55 VRHE (inset: enlarged view of Cu2O/Cu and Cu results). Reproduced from [17], with permission from the American Chemical Society, copyright 2016.
Figure 5. Performance evaluation of Cu-based OER-catalysts: (a) Cyclic voltammograms of Cu, CuO/Cu, Cu(OH)2/Cu, and Cu2O/Cu, after chronoamperometry at 0.7 VRHE (scan rate 0.01 V/s in 0.1 M KOH); CVs were scanned cathodically, at first. (b) Plot of the current densities as a function of charge of the reduction peaks at 1.55 VRHE (inset: enlarged view of Cu2O/Cu and Cu results). Reproduced from [17], with permission from the American Chemical Society, copyright 2016.
Inorganics 07 00029 g005
Figure 6. Formation scheme for CoNi-LDH/CoO nanosheets via an in situ reduction approach, followed by assembly at the toluene/water interface. Reproduced from [29], with permission from Springer Nature, copyright 2016.
Figure 6. Formation scheme for CoNi-LDH/CoO nanosheets via an in situ reduction approach, followed by assembly at the toluene/water interface. Reproduced from [29], with permission from Springer Nature, copyright 2016.
Inorganics 07 00029 g006
Figure 7. 3D graphene assisted formation of the porous electrocatalyst 3DGN/CoAl-NS. Reproduced from [33], with permission from John Wiley and Sons, copyright 2016.
Figure 7. 3D graphene assisted formation of the porous electrocatalyst 3DGN/CoAl-NS. Reproduced from [33], with permission from John Wiley and Sons, copyright 2016.
Inorganics 07 00029 g007

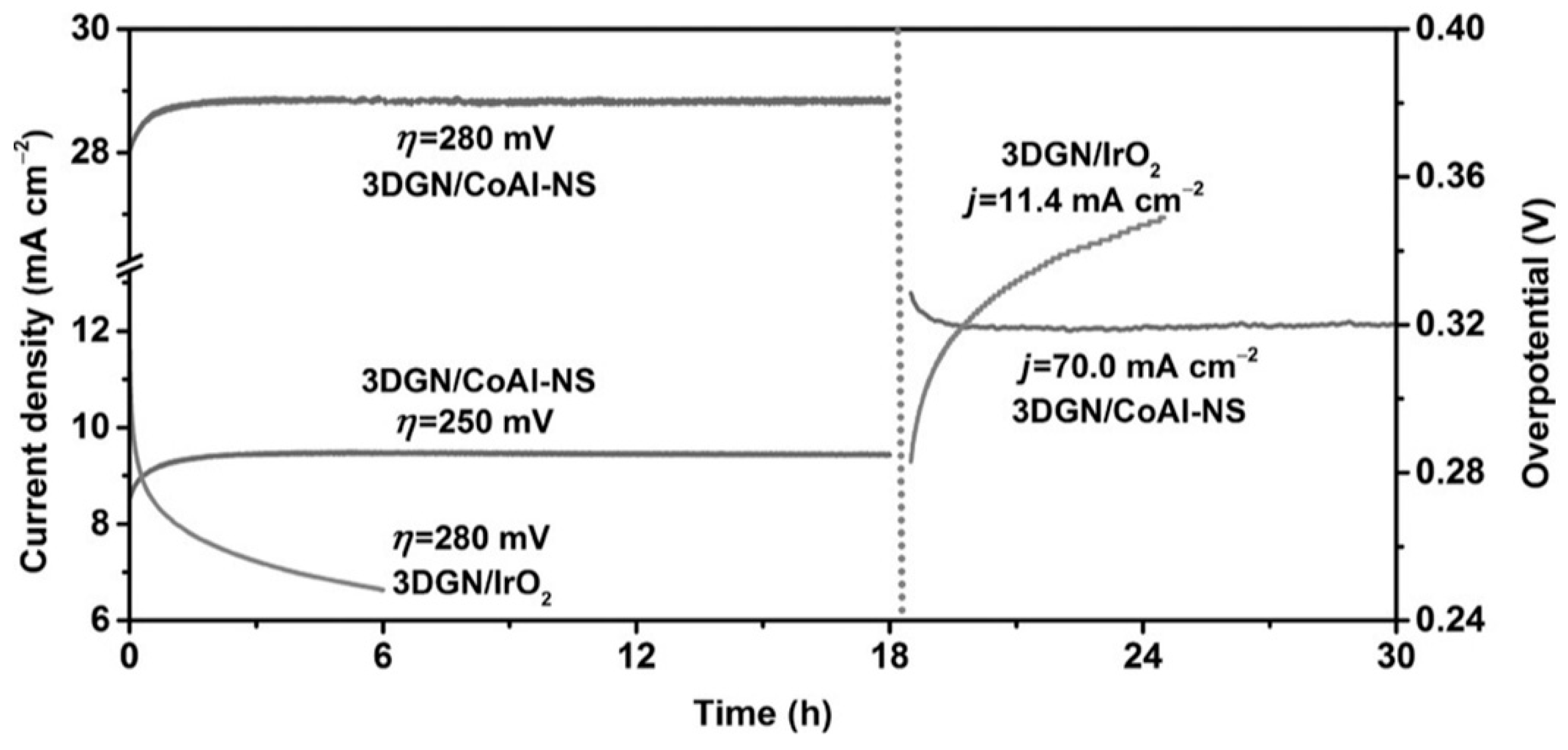

Figure 8. Chronoamperometric measurements of 3DGN/CoAl-NS and 3DGN/IrO2 in 1M KOH. Left plot: 3DGN/CoAl-NS at η = 0.25 and 0.28 VRHE, and 3DGN/IrO2 at η = 0.28 VRHE. Right plot: 3DGN/CoAl-NS at j = 70 mA cm−2, and 3DGN/IrO2 at j = 11.4 mA cm−2. Reproduced from [33], with permission from John Wiley and Sons, copyright 2016.
Figure 8. Chronoamperometric measurements of 3DGN/CoAl-NS and 3DGN/IrO2 in 1M KOH. Left plot: 3DGN/CoAl-NS at η = 0.25 and 0.28 VRHE, and 3DGN/IrO2 at η = 0.28 VRHE. Right plot: 3DGN/CoAl-NS at j = 70 mA cm−2, and 3DGN/IrO2 at j = 11.4 mA cm−2. Reproduced from [33], with permission from John Wiley and Sons, copyright 2016.
Inorganics 07 00029 g008

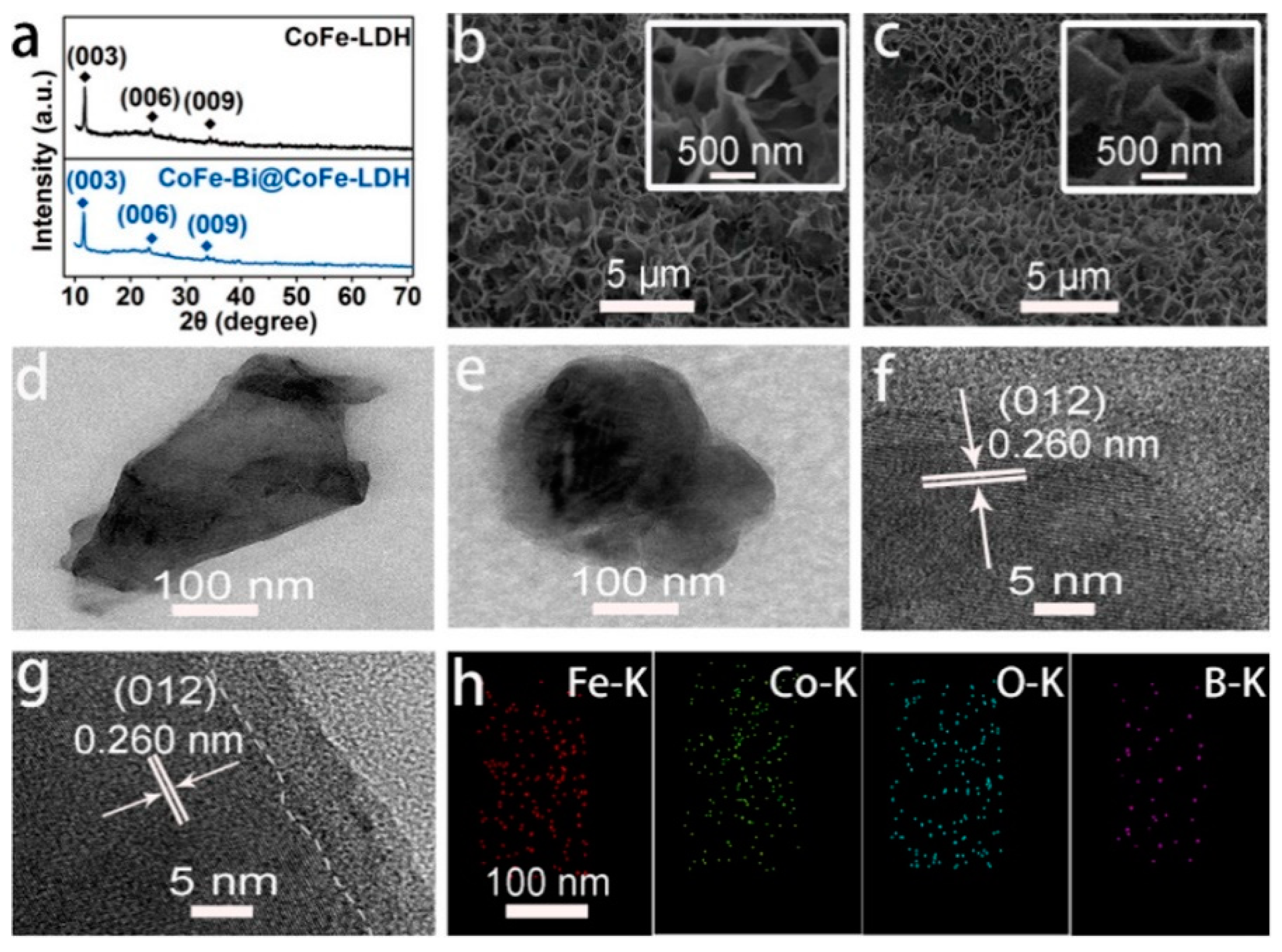

Figure 9. Structural and morphological characterization of CoFe-LDH and CoFe-Bi@CoFe-LDH: (a) XRD patterns, SEM images of (b) CoFe-LDH NA/TM and (c) CoFe-Bi@CoFe-LDH NA/TM. TEM images of (d) CoFe-LDH, and (e) CoFe-Bi@CoFe-LDH. HRTEM images of (f) CoFe-LDH and (g) CoFe-Bi@CoFe-LDH. (h) Elemental mapping images of CoFe-Bi@CoFe-LDH. Reproduced from [31], with permission from the American Chemical Society, copyright 2018.
Figure 9. Structural and morphological characterization of CoFe-LDH and CoFe-Bi@CoFe-LDH: (a) XRD patterns, SEM images of (b) CoFe-LDH NA/TM and (c) CoFe-Bi@CoFe-LDH NA/TM. TEM images of (d) CoFe-LDH, and (e) CoFe-Bi@CoFe-LDH. HRTEM images of (f) CoFe-LDH and (g) CoFe-Bi@CoFe-LDH. (h) Elemental mapping images of CoFe-Bi@CoFe-LDH. Reproduced from [31], with permission from the American Chemical Society, copyright 2018.
Inorganics 07 00029 g009

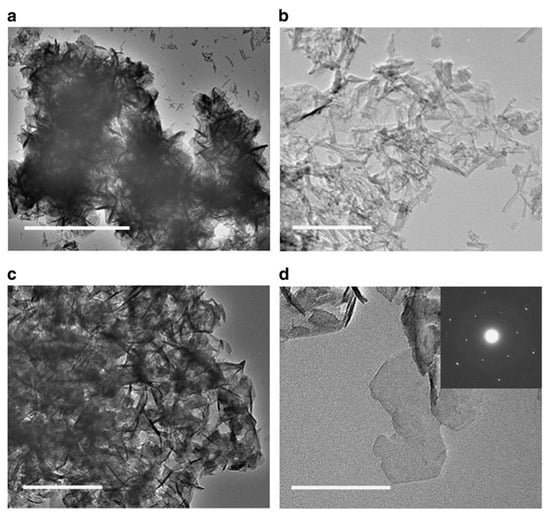

Figure 10. Morphological characterization of TEM images of α-Ni(OH)2, compared to Ni0.75–V0.25 LDH: (a,b) α-Ni(OH)2 (scale bar = 1 μm for (a) and 200 nm for (b)), (c,d) Ni0.75–V0.25 LDH (inset of (d): SAED pattern (scale bar = 200 nm for (c) and 100 nm for (d)). Reproduced from [32], with permission from Nature Communications, copyright 2016.
Figure 10. Morphological characterization of TEM images of α-Ni(OH)2, compared to Ni0.75–V0.25 LDH: (a,b) α-Ni(OH)2 (scale bar = 1 μm for (a) and 200 nm for (b)), (c,d) Ni0.75–V0.25 LDH (inset of (d): SAED pattern (scale bar = 200 nm for (c) and 100 nm for (d)). Reproduced from [32], with permission from Nature Communications, copyright 2016.
Inorganics 07 00029 g010

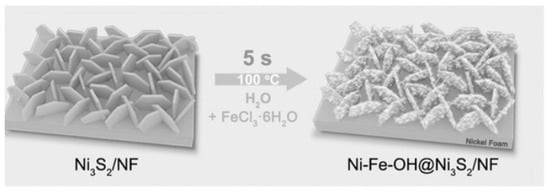

Figure 11. Ultrafast Ni–[email protected]3S2/NF preparation at 100 °C by a 5 sec immersion of Ni3S2/NF in a preheated aqueous solution with Fe3+. Reproduced from [41], with permission from John Wiley and Sons, copyright 2017.
Figure 11. Ultrafast Ni–[email protected]3S2/NF preparation at 100 °C by a 5 sec immersion of Ni3S2/NF in a preheated aqueous solution with Fe3+. Reproduced from [41], with permission from John Wiley and Sons, copyright 2017.
Inorganics 07 00029 g011

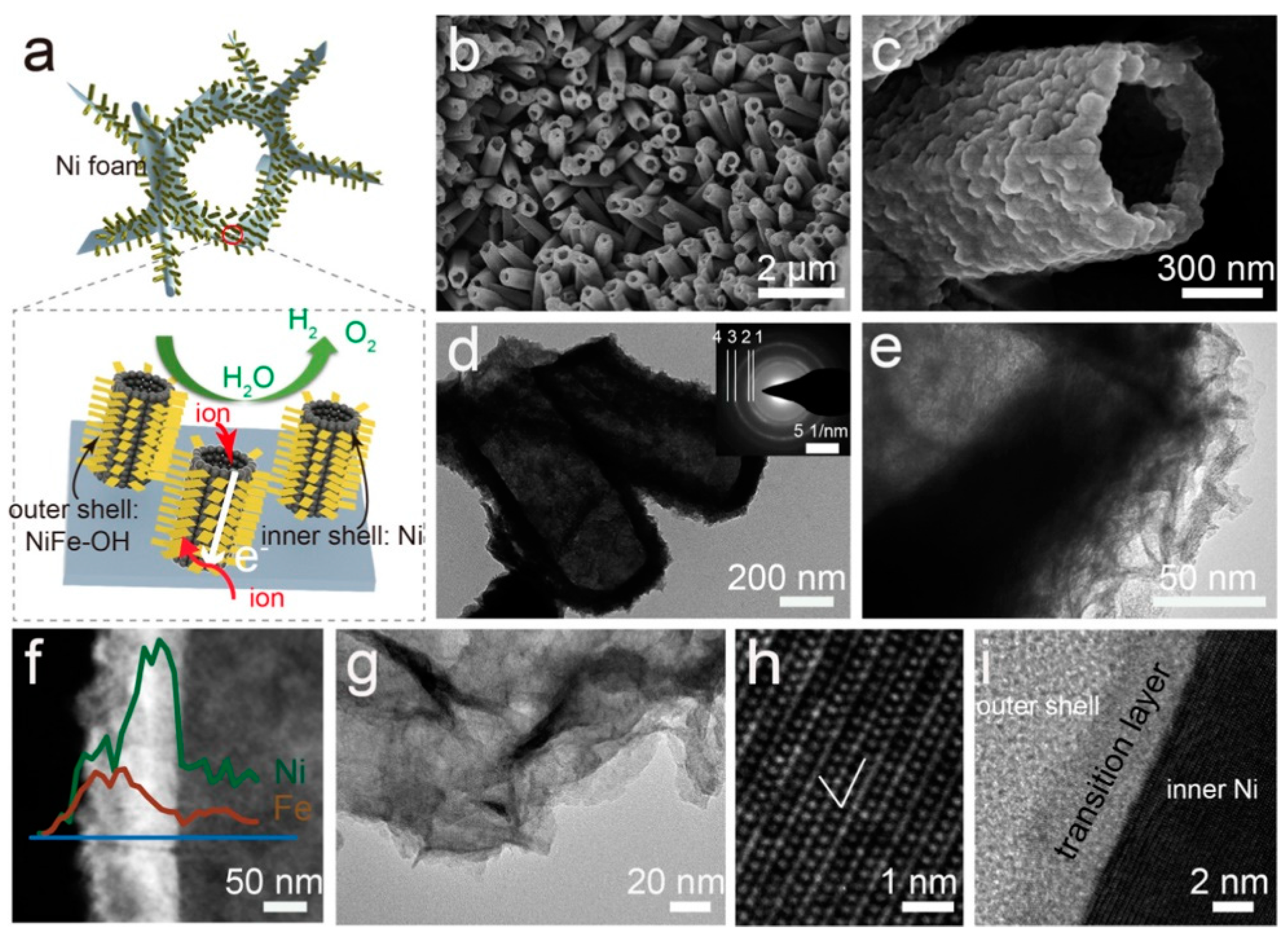

Figure 12. EM images of hierarchical hollow Ni/NiFe (oxy)hydroxide. (a) Scheme of radially aligned heterostructured nanotubes on the Ni foam. (b,c) SEM and (d,e) TEM images of the nanotubes. Inset in (d): corresponding SAED pattern. (f) HAADF scanning TEM image and elemental line scanning at the wall-edge region, and (gi) close-up TEM of NiFe (oxy)hydroxide, crystalline Ni, and the interface area. Reproduced from [42], with permission from the American Chemical Society, copyright 2018.
Figure 12. EM images of hierarchical hollow Ni/NiFe (oxy)hydroxide. (a) Scheme of radially aligned heterostructured nanotubes on the Ni foam. (b,c) SEM and (d,e) TEM images of the nanotubes. Inset in (d): corresponding SAED pattern. (f) HAADF scanning TEM image and elemental line scanning at the wall-edge region, and (gi) close-up TEM of NiFe (oxy)hydroxide, crystalline Ni, and the interface area. Reproduced from [42], with permission from the American Chemical Society, copyright 2018.
Inorganics 07 00029 g012
Figure 13. Electrochemical characterization of Co3O4, ZnCo2O4, and ZnAl2O4: (a) Normalized cyclic voltammograms and (b) corresponding Tafel slopes. Reproduced from [47], with permission from the American Chemical Society, copyright 2016.
Figure 13. Electrochemical characterization of Co3O4, ZnCo2O4, and ZnAl2O4: (a) Normalized cyclic voltammograms and (b) corresponding Tafel slopes. Reproduced from [47], with permission from the American Chemical Society, copyright 2016.
Inorganics 07 00029 g013

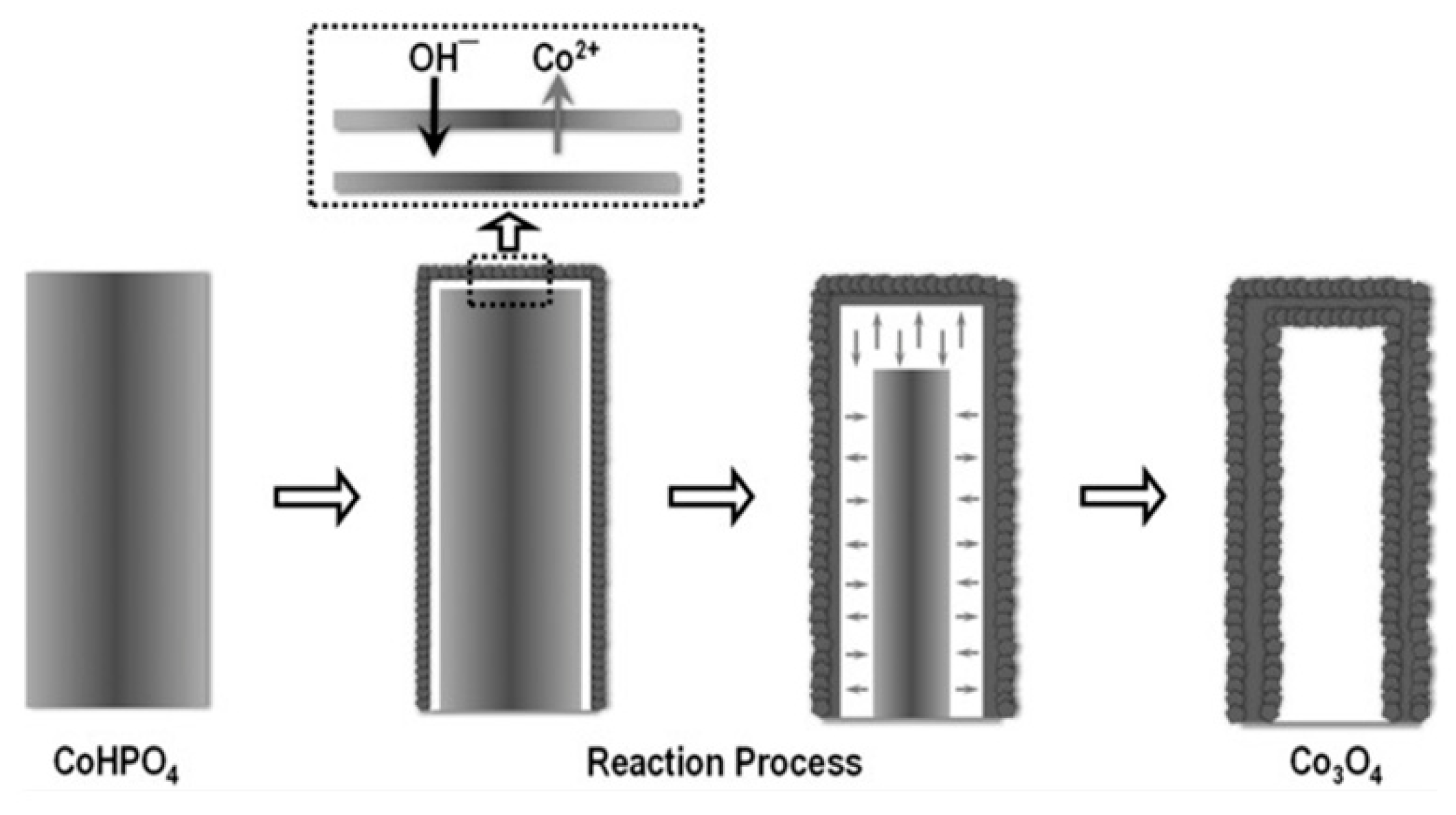

Figure 14. Co3O4-MTA formation scheme from the CoHPO4 precursor. Reproduced from [48], with permission from John Wiley and Sons, copyright 2017.
Figure 14. Co3O4-MTA formation scheme from the CoHPO4 precursor. Reproduced from [48], with permission from John Wiley and Sons, copyright 2017.
Inorganics 07 00029 g014

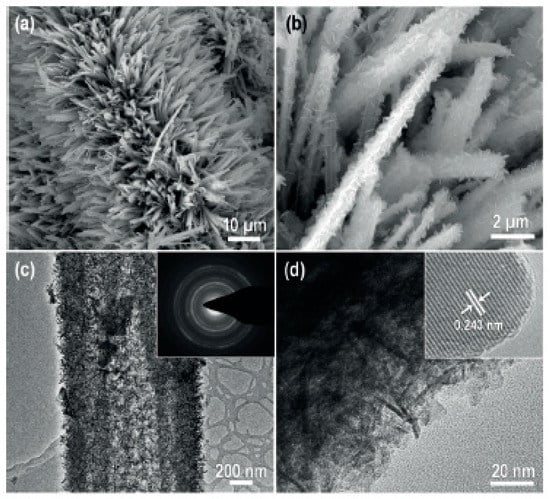

Figure 15. Morphological features of Co3O4-MTA: (a,b) SEM and (c,d) TEM images. Reproduced from [48], with permission from John Wiley and Sons, copyright 2017.
Figure 15. Morphological features of Co3O4-MTA: (a,b) SEM and (c,d) TEM images. Reproduced from [48], with permission from John Wiley and Sons, copyright 2017.
Inorganics 07 00029 g015
Figure 16. Electrochemical characterization of Co3O4-MTA: (a) Linear sweep voltammograms and (b) Tafel slopes, compared to IrO2/C and Co3O4-NW, respectively. Reproduced from [48], with permission from John Wiley and Sons, copyright 2017.
Figure 16. Electrochemical characterization of Co3O4-MTA: (a) Linear sweep voltammograms and (b) Tafel slopes, compared to IrO2/C and Co3O4-NW, respectively. Reproduced from [48], with permission from John Wiley and Sons, copyright 2017.
Inorganics 07 00029 g016

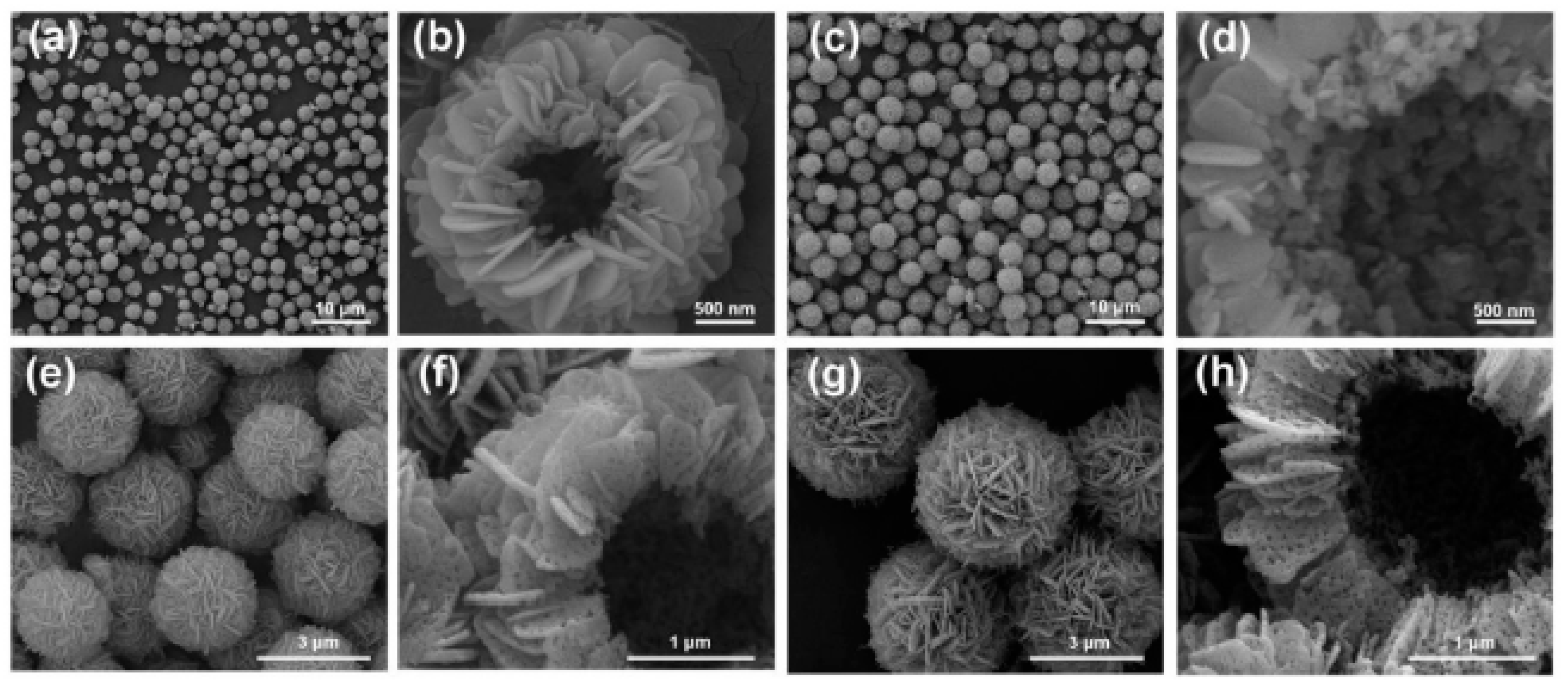

Figure 17. SEM images illustrating the strategy to hollow sphere assemblies of α-Co(OH)2 nanosheets: (a,b) Precursor α-Co(OH)2-PVP-Low, (c,d) precursor α-Co(OH)2-PVP-High, (e,f) Co3O4-PVP-Low, and (g,h) Co3O4-PVP-High. Reproduced from [46], with permission from Elsevier, copyright 2018.
Figure 17. SEM images illustrating the strategy to hollow sphere assemblies of α-Co(OH)2 nanosheets: (a,b) Precursor α-Co(OH)2-PVP-Low, (c,d) precursor α-Co(OH)2-PVP-High, (e,f) Co3O4-PVP-Low, and (g,h) Co3O4-PVP-High. Reproduced from [46], with permission from Elsevier, copyright 2018.
Inorganics 07 00029 g017

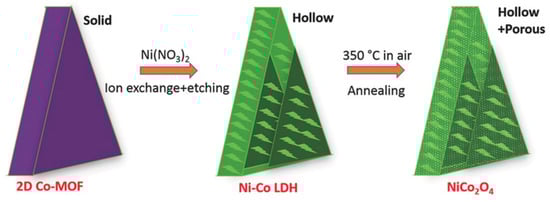

Figure 18. Route to uniform hollow NiCo2O4 nanostructure from 2D Co-MOF solid nanowall precursors. Reproduced from [54], with permission from John Wiley and Sons, copyright 2017.
Figure 18. Route to uniform hollow NiCo2O4 nanostructure from 2D Co-MOF solid nanowall precursors. Reproduced from [54], with permission from John Wiley and Sons, copyright 2017.
Inorganics 07 00029 g018

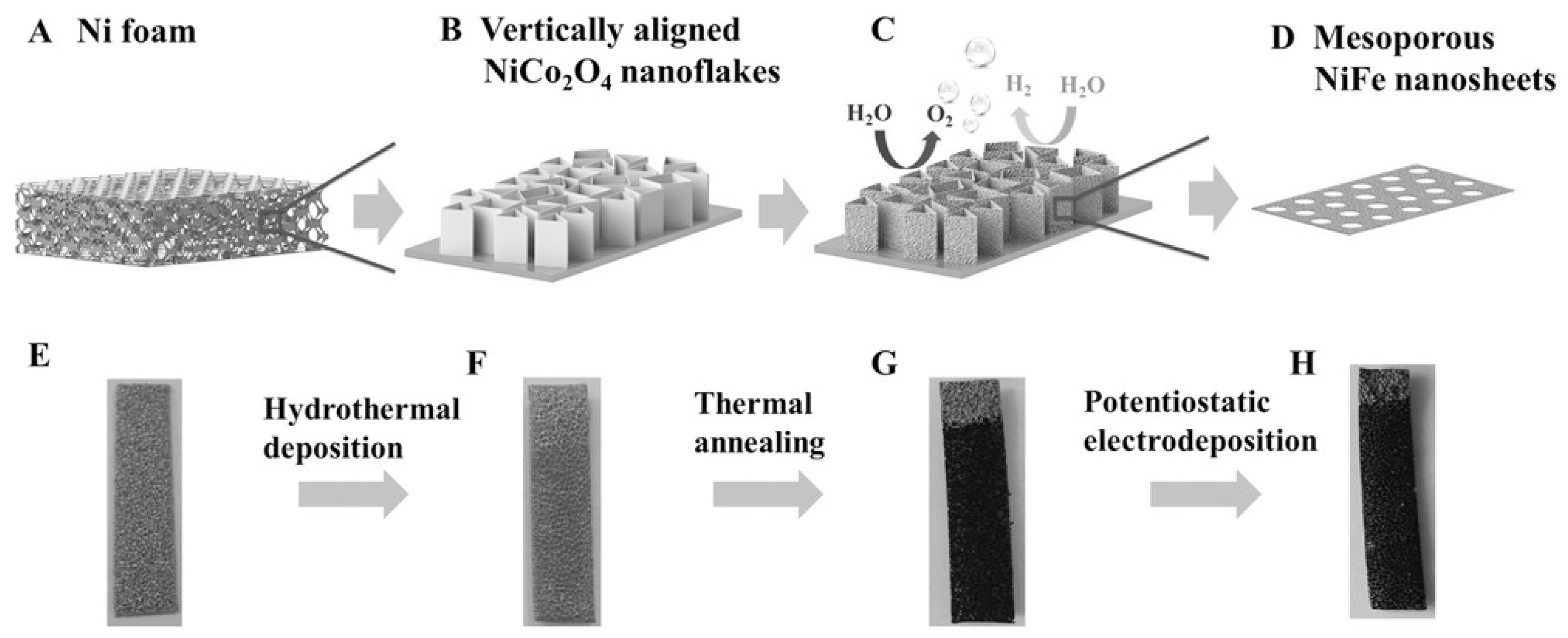

Figure 19. Formation process of porous NiFe/NiCo2O4/NF composite electrodes: Scheme (AD) and corresponding photos (EH). Reproduced from [53], with permission from John Wiley and Sons, copyright 2016.
Figure 19. Formation process of porous NiFe/NiCo2O4/NF composite electrodes: Scheme (AD) and corresponding photos (EH). Reproduced from [53], with permission from John Wiley and Sons, copyright 2016.
Inorganics 07 00029 g019

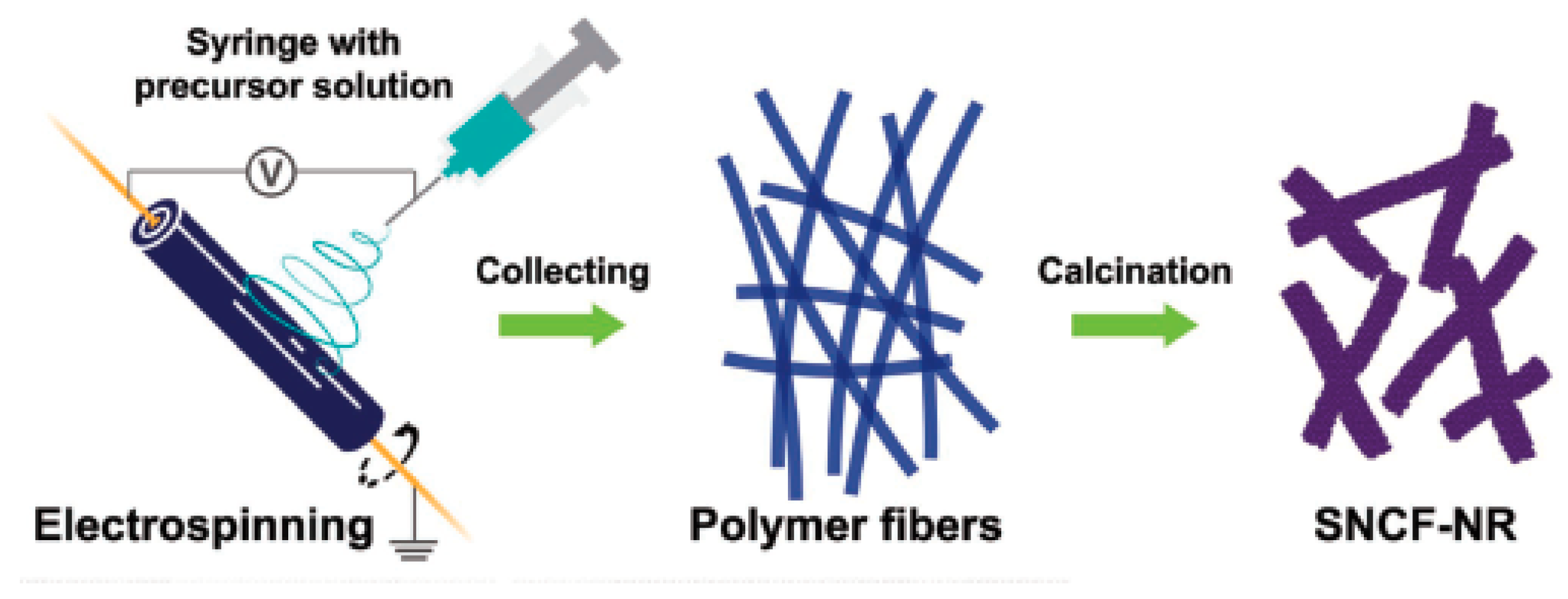

Figure 20. Preparative route to SrNb0.1Co0.7Fe0.2O3−δ perovskite nanorods by electrospinning. Reproduced from [64], with permission from John Wiley and Sons, copyright 2017.
Figure 20. Preparative route to SrNb0.1Co0.7Fe0.2O3−δ perovskite nanorods by electrospinning. Reproduced from [64], with permission from John Wiley and Sons, copyright 2017.
Inorganics 07 00029 g020

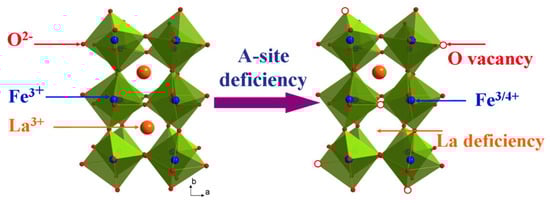

Figure 21. Formation of oxygen vacancies and Fe4+ in enhancing the OER activity in A-site-deficient La0.95FeO3−δ perovskites. Reproduced from [60], with permission from the American Chemical Society, copyright 2016.
Figure 21. Formation of oxygen vacancies and Fe4+ in enhancing the OER activity in A-site-deficient La0.95FeO3−δ perovskites. Reproduced from [60], with permission from the American Chemical Society, copyright 2016.
Inorganics 07 00029 g021
Figure 22. Synthetic protocol for Sn-Fe2O3 NWs and E-I-Sn-Fe2O3 NWs for further decoration with cobalt oxides (not shown). Reproduced from [69], with permission from the American Chemical Society, copyright 2017.
Figure 22. Synthetic protocol for Sn-Fe2O3 NWs and E-I-Sn-Fe2O3 NWs for further decoration with cobalt oxides (not shown). Reproduced from [69], with permission from the American Chemical Society, copyright 2017.
Inorganics 07 00029 g022

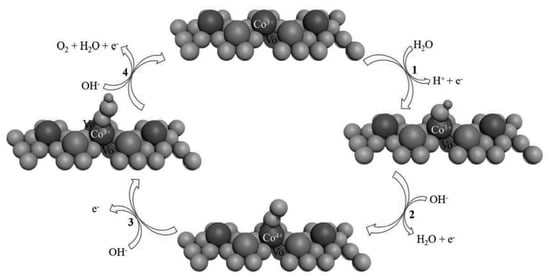

Figure 23. Proposed OER mechanism of a Co3+ active site, near an oxygen vacancy in FexCoy-O nanosheets. Reproduced from [72], with permission from John Wiley and Sons, copyright 2017.
Figure 23. Proposed OER mechanism of a Co3+ active site, near an oxygen vacancy in FexCoy-O nanosheets. Reproduced from [72], with permission from John Wiley and Sons, copyright 2017.
Inorganics 07 00029 g023
Figure 24. Plasma-assisted strategy to hierarchical α-NiFe-OH/NiFeP/NF electrocatalysts for water oxidation: (a) Ni foam substrate, (b) NiFe-DH nanoplates hydrothermally grown on Ni foam, (c) conversion of NiFe-DH to porous NiFeP nanoplates, using PH3 plasma, and (d) electrodeposition of amorphous NiFe-OH nanosheet layer onto NiFeP. Reproduced from [85], with permission from John Wiley and Sons, copyright 2017.
Figure 24. Plasma-assisted strategy to hierarchical α-NiFe-OH/NiFeP/NF electrocatalysts for water oxidation: (a) Ni foam substrate, (b) NiFe-DH nanoplates hydrothermally grown on Ni foam, (c) conversion of NiFe-DH to porous NiFeP nanoplates, using PH3 plasma, and (d) electrodeposition of amorphous NiFe-OH nanosheet layer onto NiFeP. Reproduced from [85], with permission from John Wiley and Sons, copyright 2017.
Inorganics 07 00029 g024
Figure 25. Preparative route (a) and morphological characterization of oxyhydroxides on nickel foam (NF): (b,c) SEM, (d) TEM and (e1,e2) HRTEM images of oxyhydroxide W0.5Co0.4Fe0.1/NF (inset: corresponding SAED pattern). (f) HAADF-STEM image and STEM-EDS mapping of W0.5Co0.4Fe0.1/NF (Co = green, Fe = yellow, O = red). Reproduced from [87], with permission from John Wiley and Sons, copyright 2017.
Figure 25. Preparative route (a) and morphological characterization of oxyhydroxides on nickel foam (NF): (b,c) SEM, (d) TEM and (e1,e2) HRTEM images of oxyhydroxide W0.5Co0.4Fe0.1/NF (inset: corresponding SAED pattern). (f) HAADF-STEM image and STEM-EDS mapping of W0.5Co0.4Fe0.1/NF (Co = green, Fe = yellow, O = red). Reproduced from [87], with permission from John Wiley and Sons, copyright 2017.
Inorganics 07 00029 g025
Figure 26. Structural features of graphdiyne (GDY). Reproduced from [98], with permission from the Royal Society of Chemistry, copyright 2018.
Figure 26. Structural features of graphdiyne (GDY). Reproduced from [98], with permission from the Royal Society of Chemistry, copyright 2018.
Inorganics 07 00029 g026

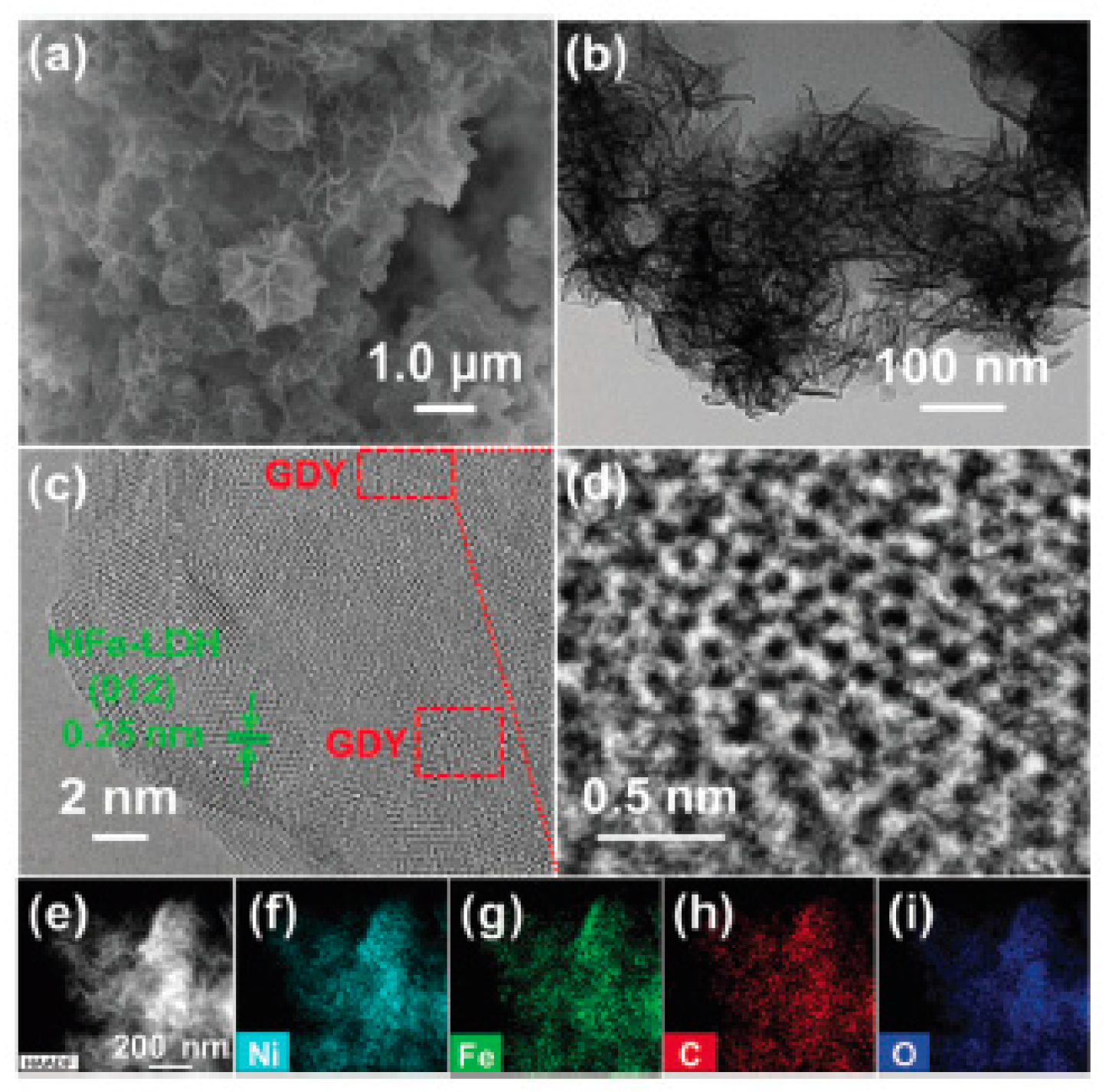

Figure 27. Morphological features and composition of GDY/NiFe-LDH composite: (a) SEM image, (b) ACTEM image, (c,d) HRTEM images, and (ei) HAADF and EDS mapping. Reproduced from [98], with permission from the Royal Society of Chemistry, copyright 2018.
Figure 27. Morphological features and composition of GDY/NiFe-LDH composite: (a) SEM image, (b) ACTEM image, (c,d) HRTEM images, and (ei) HAADF and EDS mapping. Reproduced from [98], with permission from the Royal Society of Chemistry, copyright 2018.
Inorganics 07 00029 g027

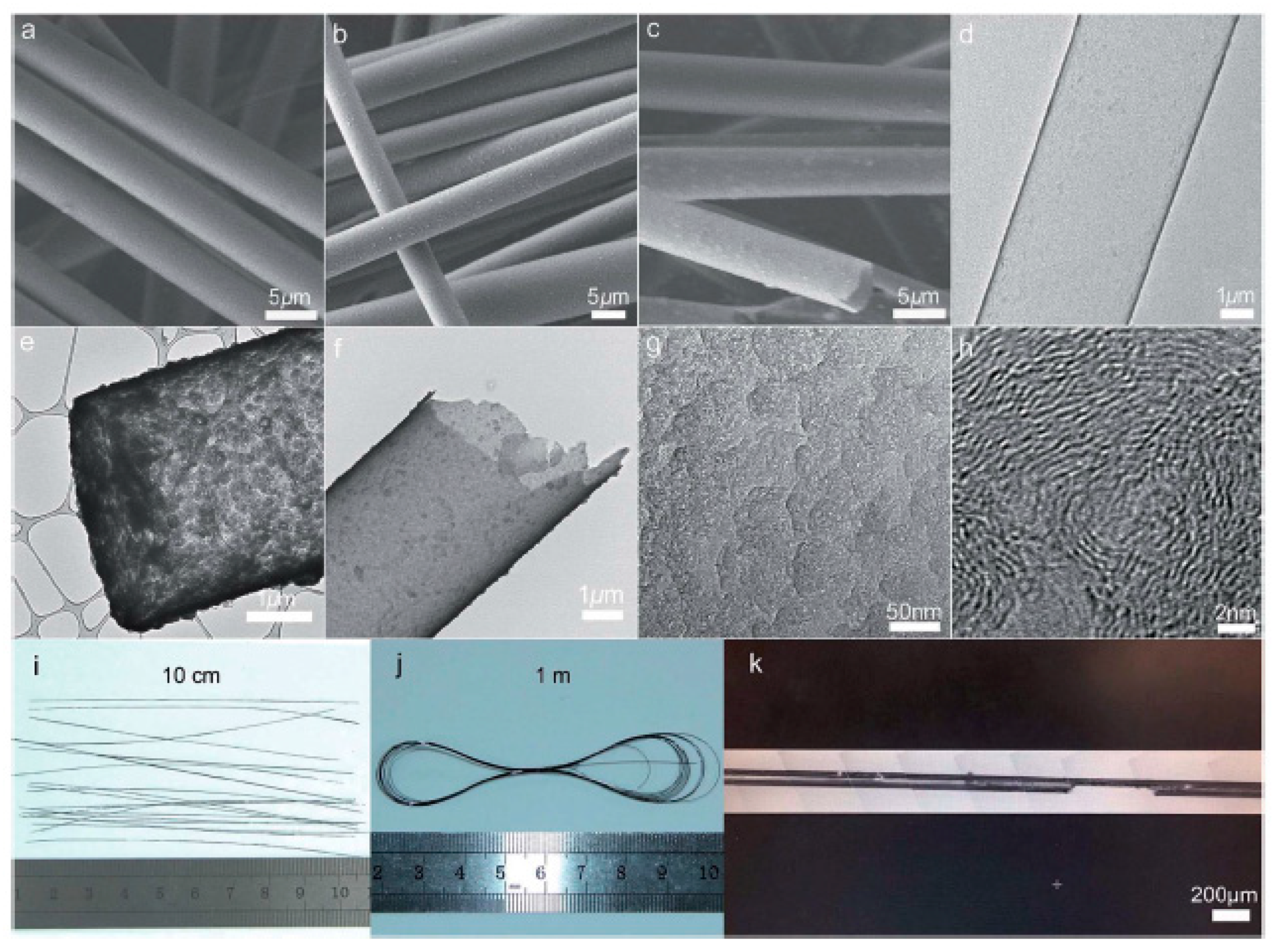

Figure 28. FESEM images of (a) quartz wires (b) quartz [email protected], (c) giant carbon tubes (GCTs), and (dh) TEM and HRTEM characterizations of GCTs. Optical images of carbon tubes growing on quartz wire (125 μm in wire diameter) of (i) 10 cm and (j) ultralong 1 m species. (k) An Infinite Focus Microscopy (IFM) image of a GCT, with an inner diameter up to 125 μm. Reproduced from [100], with permission from the Royal Society of Chemistry, copyright 2018.
Figure 28. FESEM images of (a) quartz wires (b) quartz [email protected], (c) giant carbon tubes (GCTs), and (dh) TEM and HRTEM characterizations of GCTs. Optical images of carbon tubes growing on quartz wire (125 μm in wire diameter) of (i) 10 cm and (j) ultralong 1 m species. (k) An Infinite Focus Microscopy (IFM) image of a GCT, with an inner diameter up to 125 μm. Reproduced from [100], with permission from the Royal Society of Chemistry, copyright 2018.
Inorganics 07 00029 g028

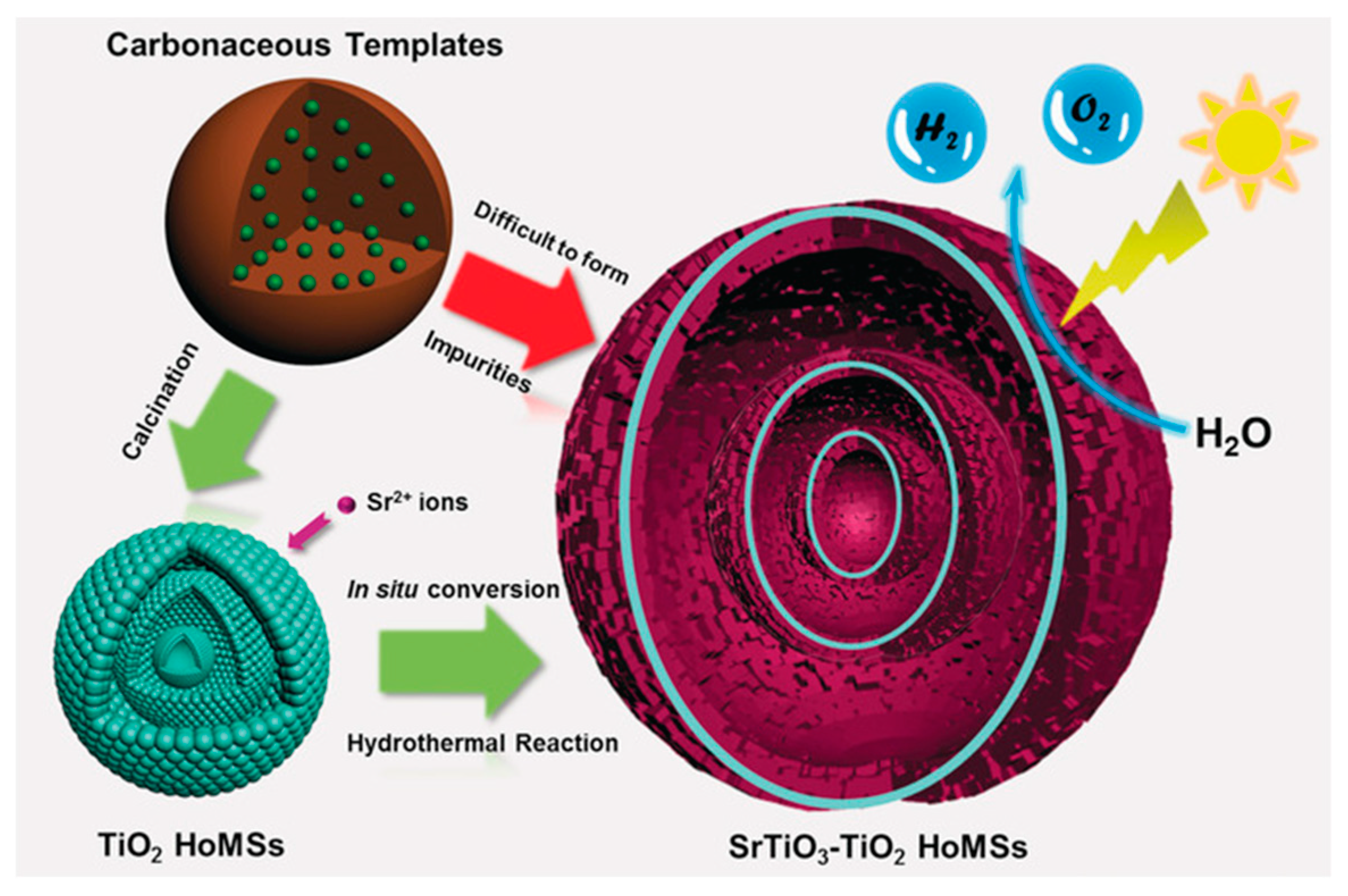

Figure 29. Preparative route of the SrTiO3-TiO2 hollow multi-shelled structures (HoMSs), via a hydrothermal method. Reproduced from [101], with permission from John Wiley and Sons, copyright 2019.
Figure 29. Preparative route of the SrTiO3-TiO2 hollow multi-shelled structures (HoMSs), via a hydrothermal method. Reproduced from [101], with permission from John Wiley and Sons, copyright 2019.
Inorganics 07 00029 g029

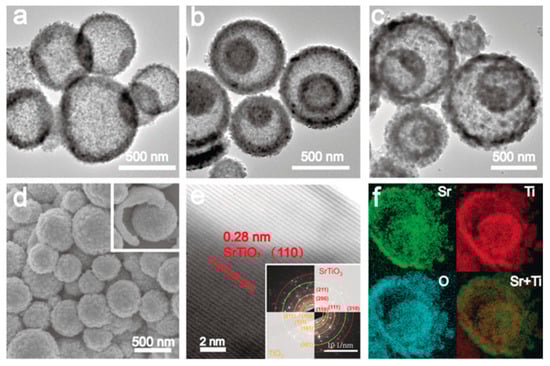

Figure 30. Morphological characterization of hollow multi-shelled structures (HoMSs): TEM images of (a) single (1S-), (b) double (2S-), and (c) triple (3S-) shelled structures. (d) SEM image of 3S-HoMSs (inset: broken sphere). (e) HRTEM image of SAED of S-HoMSs (S-HoMSs). (f) Elemental mapping of a slice of S-HoMSs, after 12 h of hydrothermal reaction. Reproduced from [101], with permission from John Wiley and Sons, copyright 2019.
Figure 30. Morphological characterization of hollow multi-shelled structures (HoMSs): TEM images of (a) single (1S-), (b) double (2S-), and (c) triple (3S-) shelled structures. (d) SEM image of 3S-HoMSs (inset: broken sphere). (e) HRTEM image of SAED of S-HoMSs (S-HoMSs). (f) Elemental mapping of a slice of S-HoMSs, after 12 h of hydrothermal reaction. Reproduced from [101], with permission from John Wiley and Sons, copyright 2019.
Inorganics 07 00029 g030
Table 1. Comparison of the electrocatalytic activity of recently reported Ru-, Ir-, and Cu-based catalysts (“durability” refers to maintenance of the catalytic performance at constant current conditions, while “stability” indicates the resistivity of a given catalyst towards dissolution/leaching of the active metal sites).
Table 1. Comparison of the electrocatalytic activity of recently reported Ru-, Ir-, and Cu-based catalysts (“durability” refers to maintenance of the catalytic performance at constant current conditions, while “stability” indicates the resistivity of a given catalyst towards dissolution/leaching of the active metal sites).
CatalystPreparation MethodOnset Potential (V)η (at 10 mV/cm2) (V)Tafel Slope (mV dec−1)Durability (h)StabilityElectrolyteRef.
Ru and IrSputtering & evaporationRu: 1.20 (both media), Ir: 1.27 & 1.43 (acidic & alkaline media, respectively) -30–400.25Low0.1 M H2SO4 & 0.05 M NaOH[19]
RuO2 and IrO2Sputtering & evaporationRuO2: 1.35 & 1.47 (acidic & alkaline media, respectively), IrO2: 1.47 (both media)-30–400.25Good *0.1 M H2SO4 & 0.05 M NaOH[19]
IrOx/SrIrO3Pulsed laser deposition (PLD)1.440.27-30Reasonable0.5 M H2SO4[16]
Cu, Cu2O, Cu(OH)2 and CuOElectrodeposition-0.41760–6622Cu & Cu2O: very good *, CuO & Cu(OH)2: poor *0.1 M KOH[17]
IrOOH nanosheetsExfoliation in TBAOH-0.3445814Extraordinary0.1 M HClO[15]
Cu2O/ITOElectrodeposition<0.80.4725HighK2B4O8, C2H3KO2 & KH2PO4[20]
Cu(OH)2@CoCO3(OH)2· nH2OHydrothermal-0.277820Superior1 M KOH[18]
RuO2 (001)Commercially available---2-0.05 M H2SO4[21]
IrxO/ATOElectrodeposition-0.2861.715High *0.05 M H2SO4[22]
TiO2/CuOSpin-coating & pulsed laser deposition---0.166Excellent0.1 M NaOH[26]
Table 2. Comparison of the electrocatalytic activity of noble metal-free LDH and related Ni–Fe catalysts (cf. Table 1 for definitions of “durability” and “stability”).
Table 2. Comparison of the electrocatalytic activity of noble metal-free LDH and related Ni–Fe catalysts (cf. Table 1 for definitions of “durability” and “stability”).
CatalystPreparation MethodOnset Potential (V)η (at 10 mV/cm2) (V)Tafel Slope (mV dec−1)Durability (h)StabilityElectrolyteRef.
CoNi-LDH/CoO nanosheetsIn situ reduction & interface-directed assembly in air1.480.312310Good1 M KOH[29]
CoAl & CoFe LDHCo-precipitation1.580.36 & 0.3739 & 4950Excellent0.1 M KOH[30]
Co-Fe LDH nanosheetsElectrodeposition-0.4213150Superior0.1 M K2B4O8[31]
Ni0.75–V0.25 LDH narrow nanosheetsHydrothermal-0.355025Considerable1 M KOH[32]
CoAl-LDH on 3D graphene networkHydrothermal-0.283630Excellent1 M KOH[33]
NiFe LDHs-MoOxHydrothermal-0.2765512Good1 M KOH[38]
NiFe-LDH arrayElectrodeposition1.430.22452.550Superior1 M KOH[37]
Fe-doped Ni(OH)2 filmsPrecipitation-0.25 to 0.35-2Good *1 M KOH[36]
Ni–FeO(OH)Microwave-assisted autoclave synthesis under solvothermal conditions-0.2940>20Good0.1 M KOH[39]
Fe2O3–Ni(OH)2 to NiFe2O4–NiOOHHydrothermal & anodization-0.24551High1 M KOH[40]
Ni–[email protected]3S2Two-step synthesis-0.47912450Excellent1 M KOH[41]
Ni/NiFe-OHMulti-step electrodeposition-0.2055312Excellent1 M KOH[42]
NiFe-LDH nanosheetsPulsed laser ablation in liquids-0.27-0.45 3.5Remarkable1 M KOH[43]
NiFe [email protected]Co-precipitation1.410.215210Robust1 M KOH[44]
Table 4. Comparison of the electrocatalytic activity of perovskite oxide catalysts (cf. Table 1 for definitions of “durability” and “stability”).
Table 4. Comparison of the electrocatalytic activity of perovskite oxide catalysts (cf. Table 1 for definitions of “durability” and “stability”).
CatalystPreparation MethodOnset Potential (V)η (at 10 mV/cm2) (V)Tafel Slope (mV dec−1)Durability (h)StabilityElectrolyteRef.
PrBa0.5Sr0.5Co1.5Fe0.5O5+δElectrospinning-0.375212High0.1 M KOH[61]
SrNb0.1Co0.7Fe0.2O3−δ nanorodsElectrospinning1.520.376130Remarkable1 M KOH[60]
BaCo0.7Sn0.3O3−δ & BaCo0.7Fe0.1Sn0.2O3−δBall milling-assisted solid-state reaction1.530.45682Good0.1 M KOH[63]
La0.95FeO3−δSol–gel1.550.4182--0.1 M KOH[64]
La1−xSrxCoO3−δReverse-phase hydrolysis-0.43124High0.1 M KOH[65]
BaNiO3 & BaNi0.83O2.5Flux mediated crystal growth---20Very good *0.1 M KOH[66]

Share and Cite

MDPI and ACS Style

Mavrokefalos, C.K.; Patzke, G.R. Water Oxidation Catalysts: The Quest for New Oxide-Based Materials. Inorganics 2019, 7, 29. https://doi.org/10.3390/inorganics7030029

AMA Style

Mavrokefalos CK, Patzke GR. Water Oxidation Catalysts: The Quest for New Oxide-Based Materials. Inorganics. 2019; 7(3):29. https://doi.org/10.3390/inorganics7030029

Chicago/Turabian Style

Mavrokefalos, Christos K., and Greta R. Patzke. 2019. "Water Oxidation Catalysts: The Quest for New Oxide-Based Materials" Inorganics 7, no. 3: 29. https://doi.org/10.3390/inorganics7030029

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
