Cytotoxic Gold(I) Complexes with Amidophosphine Ligands Containing Thiophene Moieties

Departamento de Química Inorgánica, Instituto de Síntesis Química y Catálisis Homogénea (ISQCH), CSIC-Universidad de Zaragoza, 50009 Zaragoza, Spain
Author to whom correspondence should be addressed.
Inorganics 2019, 7(2), 13;
Received: 14 December 2018 / Revised: 22 January 2019 / Accepted: 24 January 2019 / Published: 29 January 2019


A new phosphine ligand bearing a thiophene moiety, C4H3SNHCOCH2CH2PPh2 (L), has been prepared by reaction of the aminophosphine Ph2PCH2CH2NH2 with thiophenecarbonylchloride in the presence of triethylamine. The coordination behavior towards gold(I), gold(III) and silver(I) species has been studied and several metal compounds of different stoichiometry have been achieved, such as [AuL2]OTf, [AuXL] (X = Cl, C6F5), [Au(C6F5)3L], [AgL2]OTf or [Ag(OTf)L]. Additionally, the reactivity of the chloride gold(I) species with biologically relevant thiolates was explored, thus obtaining the neutral thiolate compounds [AuL(SR)] (SR = 2-thiocitosine, 2-thiolpyridine, 2-thiouracil, 2-thionicotinic acid, 2,3,4,6-tetra-6-acetyl-1-thiol-β-d-glucopyranosato or thiopurine). The antitumor activity of the compounds was measured by the MTT method in several cancer cells and the complexes exhibit excellent cytotoxic activity.

Graphical Abstract

1. Introduction

Metal complexes have received increasing interest in the development of new chemotherapeutical drugs after the great success of cisplatin and the second or third generation drugs Carboplatin, Paraplatin and Oxaliplatin [1,2,3]. Platinum drugs are extensively used in cancer treatment, but the side effects and the development of platinum drug resistance on several cancer cell lines have led to research with other metallic complexes, as for example ruthenium compounds, which have been entered into clinical trials with great success [4]. Gold derivatives have been known as antiarthritic drugs for a long time, such as the well-known Auranofin. The discovery of the strong antiproliferative activity of this compound prompted to deepen in further studies about its wide biological activity, and nowadays is on clinical trials for ovarian cancer [5]. Many gold compounds, including gold(I) or gold(III) derivatives [6,7,8,9], have revealed as promising cytotoxic agents, in many cases overcoming cisplatin resistance to specific types of cancer. Additionally, they have exhibited a mechanism of action very different from that of platinum drugs. Several targets have been identified for gold complexes being the inhibition of Thioredoxin reductase one of the most important [10,11,12].
Five-membered aromatic rings are very important building blocks as may confer an improvement in the pharmacokinetic and pharmacodynamic drug properties. In particular, thiophene, a five-membered aromatic sulfur-containing heterocycle, is encountered in many therapeutically active agent [13], which show a number of pharmacological properties, such as antipsychotic, antidepressive, antithrombolytic, antifungal, antiviral, antiallergic, prostaglandin, dopamine receptor antagonist, and 5-lipoxygenase inhibitor [14,15,16]. Examples of some drugs containing a thiophene ring are tiagabine (Gabitril), raloxifene (Evista), olanzapine (Zyprexa) or clopidogrel (Plavix) (Figure 1). These compounds are widely used in the treatment of several diseases, the first is an anticonvulsant, the second is an oral selective estrogen receptor modulator with estrogenic actions on bone (prevention of osteoporosis) [17], the third is an antipsychotic [18] and the latter is one of the most successful platelet aggregation inhibitors [19].
Within our research line in gold and silver compounds as antitumoral agents [20,21,22,23,24], here we report on the synthesis of a thiophene-substituted phosphine ligand and the studies of coordination to gold or silver complexes. The cytotoxicity of these derivatives in several cancer cell lines has been carried out, showing excellent activities in all of them.

2. Results and Discussion

2.1. Synthesis and Characterization

The synthesis of the new ligand containing the thiophene moiety was achieved by reaction of thiophenecarbonylchloride with the aminophosphine Ph2PCH2CH2NH2 in a 1:1 ratio in the presence of triethylamine, which results in the formation of the ligand C4H3SNHCOCH2CH2PPh2 (L) in good yield (see Scheme 1). In the 1H NMR spectrum of L the signals of the protons H3 and H5 of the thiophene group are overlapped with the resonances due to the phenyl protons. The resonance for the H4 of the thiophene appears at 7.02 ppm as a triplet, and the NH proton of the amide group is observed at 6.25 as a broad doublet. The protons of the methylene groups appear at 3.61 and 2.42 ppm. The 13C{1H} APT presents the expected resonances for all functional groups, the carbon of the CO group appears at 161.76 ppm, the carbon atoms of the thiophene at 138.99, 129.98, 128.01 and 127.64 ppm and the methylene carbons at 37.56 and 28.63 ppm. The 31P{1H} spectrum presents only one resonance for the free phosphorus atom at −20.6 ppm.
The coordination behavior of L with several gold and silver complexes has been studied. In first place the reaction of the complex [Au(tht)2]OTf (tht = tetrahydrothiophene; OTf = trifluoromethanesulphonate) with L in a 1:2 ratio in dichloromethane results in the formation of complex [AuL2]OTf (1) with good yields (see Scheme 2). The 31P{1H} NMR spectrum showed a signal at 37.0 ppm, which confirms a low field shift of 57 ppm relative to the free ligand, due to the coordination of the metal fragment to the phosphorus atom of the ligand. All resonances of the ligand were observed in the proton NMR spectrum and, as expected, the methylene groups near the phosphine move slightly to a low field due to the coordination of the metal. The proton of the amide group –NH– undergoes a low field shift of 1.54 ppm, probably due to the formation of intermolecular hydrogen bonds with the carbonyl group of another molecule.
The reaction of L with the gold(I) species [AuCl(tht)] or [Au(C6F5)(tht)] or the gold(III) derivative [Au(C6F5)3(tht)] in dichloromethane in a 1:1 molar ratio afforded the mononuclear linear gold(I) complexes [AuX(L)] (X = Cl (2), C6F5 (3)) or the square planar gold(III) compound [Au(C6F5)3(L)] in good yields (see Scheme 2). The complexes have been characterized by IR, NMR spectroscopy and mass spectrometry. In the IR spectra the absorptions for the ν(Au–Cl) in complex 2 and the vibrations due to the pentafluorophenyl rings bonded to gold(I) or gold(III) for compounds 3 or 4 were observed. In the 31P{1H} NMR spectra a downfield displacement for the phosphorus atoms is observed as a consequence of the coordination to the gold center, with resonances at 24 ppm for the gold(I) species and at 11 ppm for the gold(III) derivative. The 19F spectra for compounds 3 and 4 are also characteristic of the coordination of the ligand to the AuC6F5 or the Au(C6F5)3 fragments, with three or six resonances for the ortho, meta and para fluorine of the pentafluorophenyl groups, respectively.
The reaction of the chloro-gold derivative 2 with different thiols derived from DNA-bases or related species, such as 2-thiocitosine, 2-thiolpyridine, 2-thiouracil, 2-thionicotinic acid, 2,3,4,6-tetra-6-acetyl-1-thiol-μ-d-glucopyranosato or thiopurine were carried out in dichloromethane in the presence of potassium carbonate to afford the phosphine-thiolate gold derivatives 712 (see Scheme 3).
The NMR data for these complexes are in accordance with the substitution of the chlorine ligand for the corresponding thiolate. The resonances in the 1H and 13C NMR spectra corroborate the presence of both the amide-phosphine and the thiolate ligand. In the 31P{1H} NMR the resonances for the phosphorus atom are displaced downfield.

2.2. X-ray Diffraction Studies

Molecular structures of complexes 3, 6 and 7 were confirmed by an X-ray crystallographic study. Complexes 3 and 6 crystallized in the monoclinic space group P21/n with two or one molecules by an asymmetric unit, respectively. Compound 7 crystallized in the triclinic space group P−1 with two molecules by asymmetric unit. Figure 2 collects the molecular structures for the pentafluorophenyl and thiolate gold(I) derivatives.
The gold(I) atoms in complexes 3 and 7 lie in an almost linear geometry, as expected for gold(I) derivatives, defined by the P atom and the C of the pentafluorophenyl (3) or the S atom of the thiolate ligand (7). The P–Au–C bond angles in 3 are 175.9(3)° and 170.6(3)°, and the P–Au–S bond angles are 176.02(7)° and 173.55(8)° in 7. The Au–P, Au–C, and Au–S bond distances are unexceptional for both complexes and compared well with most of the distances found in related complexes with the same C6F5–Au–P or S–Au–P core [25,26]. The longer Au–P bond distances in the pentafluorophenyl derivative 3 (2.276(3) Å, 2.273(3) Å) compared with those in complex 7 (2.256(2) Å, 2.256(2) Å) and are in agreement with the higher trans influence of the pentafluorophenyl ligand compared with the thiolate ligand.
In the crystal of 3 the molecules are associated into chains parallel to the crystallographic b-axis via short hydrogen bonds between the amide NH proton and the oxygen atom of the CO group of neighbouring molecules as a proton acceptor (Figure 3). The distances and angles of the D···A moieties are N2–H2···O1_$1 ($1 x − 1/2, y + 1/2, z − 1/2) 2.897(11) Å and 167(9)° and N1–H1···O2_$2 ($2 −x + 1, −y + 1, −z + 1) 2.918(11) Å and 148.1°.
In the crystal of 7 the molecules are organized into dimers though classical H-bonds (N–H···N) between the thiocytosine groups of neighbouring molecules, with D···A distances of 3.103(9) Å for N3–H3b···N5 with an angle of 147.5° and a distance of 3.059(9) Å for N3–H3a···N2_$1 ($1 −x + 1, −y + 2, −z + 1) with an angle of 169.1 C. Moreover, dimers are organized in a 3D array through additional H-bond (N–H··N), N7–H7a···N6_$2 ($2 −x + 2, −y + 1, −z − 1) distance of 3.124(10) Å with an angle of 170.3° (Figure 4).
Complex 6 can be seen as chains of silver atoms in which the thiophene-phosphine group is acting as a bidentate bridging ligand through the P atom and the O of the carboxamide group atom (Figure 5). In addition, each triflate anion is bonded to two silver atoms of different chains that lead to a 3D array. The silver atom is in a highly distorted tetrahedral geometry. The angles around the silver center range from 77.4(2)° to 155.0(1)°. The bond lenghts are normal in tetra-coordinated silver compounds, with Ag–P distance of 2.380(2) Å and Ag–O carboxamide distance of 2.265(4) Å, whereas the Ag–O triflate bonds (2.444(4) Å and 2.574(4) Å) are longer than the carboxamide oxygen. However, these Ag–O distances are shorter than the usually found in silver-triflate complexes with weak bonds [27,28].

2.3. Biological Studies

The cytotoxic activity of ligand L and the gold and silver complexes 112 were tested against four different tumor cell lines: A-549 (human lung carcinoma), Hep-G2 (human liver cancer), NIH-3T3 (mouse embryonic fibroblast) or PC12 (pheochromocytoma of the rat adrenal medulla) and comparison with that of cisplatin has been performed [29,30,31].
Compounds L and 110 are not water-soluble, but they are soluble in DMSO and in the DMSO/water mixtures used in to perform the tests, containing a small amount of DMSO, concentrations up to 100 μM. No precipitation of the compounds, or metallic gold or silver was observed while performing the tests. Their DMSO-d6 solutions are stable at room temperature, according to the 1H NMR spectra in which the same resonances were present for more than two weeks. Cells were exposed to various concentrations of each compound for a total of 48 h. The IC50 values were calculated using the colorimetric MTT viability assay, (MTT = 3-(4,5-dimethyl-thiazol-2-yl)-2,5-diphenyltetrazolium bromide). The final concentration of DMSO was <0.1%. IC50 values are necessary concentrations of a drug to inhibit tumor cell proliferation by 50%, compared to the control cells treated with DMSO alone. The IC50 values for L and complexes 112 are collected in Table 1.
The IC50 values listed in Table 1 showed that the tested thiophene amidophosphine ligand (L) did not show significant antiproliferative activity and neither the gold(III) complex bearing pentafluorophenyl groups (4). However, the rest of the compounds were quite effective as cytotoxic agents against in vitro growth of the tested cancer cell lines. They showed certain selectivity in their cytotoxic action, being the A549 and the Hep-G2 cell lines the more resistant and the PC-12 the most sensitive in all the tested compounds.
The bis(amidophosphine) gold (1) or silver (5) complexes exhibited excellent activities with low IC50 values in all the cell lines, especially the silver species 5 showed IC50 values ranging from 1.1 to 20.8 cells. The chloro-gold derivative 2 did not show significant activity in A549 cancer cells, whereas presented excellent results in the other cell lines. Surprisingly, the gold(I) species with a pentafluorophenyl moiety 3 showed very good activity in A549 cancer cells, in contrast to the lower activity observed in our group for other gold complexes with pentafluorophenyl ligands. The best results in the thiolate gold derivatives were achieved with the 2,3,4,6-tetra-6-acetyl-1-thiol-β-d-glucopyranosato ligand, complex 11, for which excellent activities were obtained in all the cancer cell lines.
With these results is possible to get some interesting structure activity relationships. The tested thiophene amidophosphine derivatives showed excellent activities in PC-12 and NIH-3T3 cell lines. Interestingly, the gold complexes exhibited slightly better activity than the silver compounds with the exception of the A549 cell line for which the silver species are more active. The best results were obtained for the thiolate-gold derivatives, specifically with the 2,3,4,6-tetra-6-acetyl-1-thiol-β-d-glucopyranosato ligand, although in general the other thiolate gold complexes presented dissimilar IC50 values depending on the cell line. Excellent values were also achieved with the bis(phosphine) gold and silver complexes, probably because of their cationic character. Practically in most of the cases the antiproliferative activity was superior to that presented by cisplatin.

3. Experimental Section

3.1. Instrumentation

Mass spectra were recorded on a BRUKER ESQUIRE 3000 PLUS (Bruker, Bremen, Germany), with the electrospray (ESI) technique and on a BRUKER MICROFLEX (MALDI-TOF) (Bruker, Bremen, Germany), using Dithranol or a T-2-(3-(4-tbutyl-phenyl)-2-methyl-2-propenylidene)malononitrile as a matrix. NMR spectra were recorded with a Bruker ARX 400 spectrometer (Bruker, Bremen, Germany) (1H, 400 MHz and 19F, 376.5 MHz). Chemical shifts are reported in ppm relative to the residual solvent peak [1H (CD3)2CO: 2.05] and CFCl3, respectively.

3.2. Starting Materials

[AuCl(tht)], [Au(C6F5)(tht)] [32], [Au(tht)2]OTf [33,34] and [Au(C6F5)3(tht)] [32], were prepared according to literature procedures. Other starting materials and solvents are commercially available.

3.3. General Procedure for the Synthesis of Ligand L and Complexes 16

Synthesis of 2-(diphenylphosphino)ethylamine-2-carbonylthiophene (L): To a solution of 2-(diphenylphosphino)ethylamine (46 µL, 0.2 mmol) in CH2Cl2 (20 mL) was added triethylamine (60 µL, 0.43 mmol). After stirring the solution for 10 min at room temperature, it was poured onto an ice bath and a solution of 2-chlorocarbonylthiophene in CH2Cl2 (20 mL) was added dropwise and stirred overnight. An aqueous solution of NaHCO3 (30 mL) was added and the two phases were separated. The organic phase was dried with anhydrous Na2SO4. The solvent was evaporated to ca. 5 mL and hexane (20 mL) was added to obtain a white solid. 80% yield. 1H NMR (CDCl3) δ (ppm): 7.45 (m, 6H, Ph, H3, H5), 7.34 (m, 6H, Ph), 7.02 (dd, J = 4.8 Hz, 3.6 Hz, 1H, H4), 6.25 (m, br, 1H, NH), 3.61 (m, 2H, –CH2N–), 2.42 (t, J = 7.2 Hz, 2H, –CH2P–). 13C{1H} NMR (CDCl3) δ (ppm): 161.76 (C=O), 138.99 (C2), 137.70 (d, 1JPC = 11.7 Hz, ipso-C6H5), 132.87 (d, 2JPC = 18.8 Hz, o-C6H5), 129.98 (C3), 129.04 (p-C6H5), 128.79 (d, 3JPC = 6.9 Hz, m-C6H5), 128.01 (C5), 127.64 (C4), 37.56 (d, 2JC–P = 19.9 Hz, –CH2N–), 28.63 (d, 1JC–P = 13.3 Hz, –CH2P–). 31P{1H} NMR (CDCl3) δ (ppm): −20.64.
Synthesis [AuL2]OTf (1): To a solution of L (0.1018 g, 0.30 mmol) in CH2Cl2 (20 mL), [Au(tht)2]OTf (0.0783 g, 0.15 mmol) was added and the solution was stirred for 1 h. Evaporation of the solvent to ca. 5 mL and addition of hexane (15 mL) gave a white solid of 1. 73% yield. 1H NMR (CDCl3) δ (ppm): 7.79 (m, 2H, NH), 7.53 (m, 10H, Ph, H3), 7.39 (m, 14H, Ph, H5), 6.92 (dd, J = 4.9, 3.9 Hz, 2H, H4), 3.70 (m, 4H, –CH2N–), 2.82 (t, J = 6.4 Hz, 4H, –CH2P–). 13C{1H} NMR (CDCl3) δ (ppm): 162.96 (C=O), 138.84 (C2), 133.08 (o-C5H4), 131.28 (p-C5H4), 130.37 (C3), 129.47 (m-C5H4), 128.66 (C5), 127.96 (C4), 36.83 (–CH2N–), 27.70 (–CH2P–). 31P{1H} NMR (CDCl3) δ (ppm): 36.99. 19F NMR (CDCl3) δ (ppm): −78.4. MS (ESI+) m/z: [M]+ 875.3 (100%). C39H36AuF3N2O5P2S3 (1024.8) calcd. C 45.70, H 3.54, N 2.73, S 9.37; found C 45.48, H 3.35, N 2.73, S 8.97.
Synthesis of [AuClL] (2): To a solution of L (0.15 mmol) in CH2Cl2 (20 mL), [AuCl(tht)] (0.15 mmol) was added and the mixture was stirred for 1 h. Then, the solution was evaporated to ca. 5 mL and addition of hexane (15 mL) afforded a white solid of 2. 94% yield. 1H NMR (CDCl3) δ (ppm): 7.69 (m, 4H, Ph), 7.45 (m, 8H, Ph, H3, H5), 7.03 (dd, J = 4.7, 4.0 Hz, 1H, H4), 6.69 (m, 1H, NH), 3.74 (m, 2H, –CH2N–), 2.91 (dt, J = 10.9 Hz, 7.1 Hz, 2H, –CH2P–). 13C{1H} NMR (CDCl3) δ (ppm): 162.44 (C=O), 138.22 (C2), 133.30 (d, 2JPC = 13.3 Hz, o-C6H5), 132.28 (p-C6H5), 130.62 (C3), 129.55 (d, 3JPC = 11.8 Hz, m-C6H5), 128.84 (d, 1JPC = 42.2 Hz, ipso-C6H5), 128.44 (C5), 127.90 (C4), 36.98 (d, 2JC–P = 5.6 Hz, –CH2N–), 28.35 (d, 1JC–P = 39.1 Hz, –CH2P–). 31P{1H} NMR (CDCl3) δ (ppm): 24.55. C19H18AuClNOPS (571.8) calcd. C 39.91, H 3.17, N 2.45, S 5.61; found C 39.61, H 3.08, N 2.60, S 5.39.
Synthesis of [Au(C6F5)L] (3): To a solution of L (0.15 mmol) in CH2Cl2 (20 mL), [Au(C6F5)(tht)] (0.15 mmol) was added and the solution was stirred for 1 h. Evaporation of the solvent to ca. 5 mL and addition of hexane (15 mL) gave a white solid of 3. 75% yield. 1H NMR (CDCl3) δ (ppm): 7.66 (m, 4H, Ph), 7.51 (d, J = 3.3 Hz, 1H, H3), 7.40 (m, 7H, Ph, H5), 7.07 (t, J = 5.5 Hz, 1H, NH), 7.0 (m, 1H, H4), 3.70 (m, 1H, –CH2N–), 2.89 (m, 1H, –CH2P–). 13C{1H} NMR (CDCl3) δ (ppm): 162.36 (C=O), 137.15 (C2), 133.48 (d, 2JPC = 13.4 Hz, o-C6H5), 132.01 (d, 4JPC = 2.1 Hz, p-C6H5), 130.55 (C3), 130.06 (d, 1JPC = 53.8 Hz, ipso-C6H5), 129.61 (d, 3JPC = 11.2 Hz, m-C6H5), 128.36 (C5), 127.67 (C4), 36.88 (d, 2JC–P = 6.2 Hz, –CH2N–), 28.57 (d, 1JC–P = 33.3 Hz, –CH2P–). 31P{1H}-NMR (CDCl3) δ (ppm): 24.24. 19F NMR (CDCl3) δ (ppm): −116.13 (m, 2F, o-C6F5), −157.81 (t, JF–F = 19.96 Hz, 1F, p-C6F5), −161.97 (m, 2F, m-C6F5). C25H18AuF5NOPS (703.4) calcd. C 42.68, H 2.58, N 1.99, S 4.56; found C 42.65, H 2.84, N 2.01, S 4.73.
Synthesis of [Au(C6F5)3L] (4): To a solution of L (0.15 mmol) in CH2Cl2 (20 mL), [Au(C6F5)3(tht)] (0.15 mmol) was added and the mixture stirred for 1 h. Then the solution was evaporated to ca. 5 mL and added hexane (15 mL) to obtain a white solid of 4. 72% yield. 1H NMR (CDCl3) δ (ppm): 7.53 (m, 11H, Ph, H3), 7.41 (dd, J = 3.7, 1.0 Hz, 1H, H5), 7.08 (dd, J = 4.9, 3.8 Hz, 1H, H4), 6.14 (t, J = 5.9 Hz, 1H, NH), 3.50 (m, 2H, –CH2N–), 2.90 (m, 2H, –CH2P–). 13C{1H} NMR (CDCl3) δ (ppm): 162.35 (C=O), 137.62 (C2), 133.11 (d, 4JPC = 2.7 Hz, p-C6H5), 132.76 (d, 2JPC = 10.4 Hz, o-C6H5), 130.94 (C3), 129.53 (d, 3JPC = 11.6 Hz, m-C6H5), 128.77 (C5), 128.01 (C4), 123.18 (d, 1JPC = 57.7 Hz, ipso-C6H5), 35.93 (–CH2N–), 25.59 (d, 1JC–P = 29.6 Hz, –CH2P–). 31P{1H} NMR (CDCl3) δ (ppm): 11.26 (q, JP–F = 11.10 Hz). 19F NMR (CDCl3) δ (ppm): −120.34 (m, 4F, o-C6F5), −121.51 (m, 2F, o-C6F5), −155.95 (t, JF–F = 19.92 Hz, 2F, p-C6F5), −156.80 (t, JF–F = 19.85 Hz, 1F, p-C6F5), −159.94 (m, 4F, m-C6F5), −160.79 (m, 2F, m-C6F5). MS (ESI+) m/z: [M−C6F5]+ 870.1 (25.8%). C37H18AuF15NOPS (1037.5) calcd. C 42.83, H 1.75, N 1.35, S 3.09; found C 43.01, H 1.79, N 1.38, S 3.16.
Synthesis of [Ag(L)2]OTf (5): To a solution of L (0.30 mmol) in CH2Cl2 (20 mL), Ag(OTf) (0.15 mmol) was added and the mixture stirred for 1 h. The solution was evaporated to ca. 5 mL and addition of hexane (15 mL) afforded a white solid of 5. 77% yield. 1H NMR (CDCl3) δ (ppm): 8.35 (t, J = 5.5 Hz, 2H, NH), 7.67 (m, 8H, Ph), 7.48 (m, 14H, Ph, H3), 7.36 (d, J = 4.9 Hz, 2H, H5), 6.96 (dd, J = 4.8, 3.9 Hz, 2H, H4), 3.82 (m, 4H, –CH2N–), 3.12 (m, br, 4H, –CH2P–). 13C{1H} NMR (CDCl3) δ (ppm): 163.05 (C=O), 139.04 (C2), 133.37 (d, 2JPC = 6.9 Hz, o-C6H5), 132.39 (p-C6H5), 130.37 (C3), 129.87 (d, 3JPC = 5.4 Hz, m-C6H5), 128.89 (C5), 128.19 (d, 1JPC = 28.8 Hz, ipso-C6H5), 128.14 (C4), 36.20 (–CH2N–), 27.82 (2d, JC–P= 16.9 Hz, –CH2P–). 31P{1H} NMR (CD2Cl2, −85 °C) δ (ppm): 6.44 (d, JP–Ag = 527.1 Hz). 19F NMR (CDCl3) δ (ppm): −77.75. MS (MALDI+) m/z: [M]+ 787.2 (100%). C39H36AgF5N2O5P2S3 (935.7) calcd. C 50.06, H 3.88, N 2.99, S 10.28; found C 49.98, H 4.01, N 2.92, S 9.90.
Synthesis of [Ag(OTf)L] (6): To a solution of L (0.15 mmol) in CH2Cl2 (20 mL), Ag(OTf) (0.15 mmol) was added and the solution was stirred for 1 h. Then the solution was evaporated to ca. 5 mL and addition of hexane (15 mL) led to a white solid. 62% yield. 1H NMR (CDCl3) δ (ppm): 7.82 (m, br, 1H, NH), 7.55 (m, br, 4H, Ph), 7.46 (m, br, 1H, H3), 7.35 (m, br, 7H, H5), 6.90 (m, 1H, H4), 3.76 (m, br, 2H, –CH2N–), 2.80 (m, br, 2H, –CH2P–). 31P{1H} NMR (Acetone-d6, −85 °C) δ (ppm): 3.27 (d, JP–Ag = 708.8 Hz). 19F NMR (CDCl3) δ (ppm): −77.49. C20H18AgF5NO4PS2 (596.31) calcd. C 40.28, H 3.04, N 2.35, S 10.75; found C 40.15, H 3.16, N 2.42, S 11.04.

3.4. General Procedure for the Synthesis of Phosphinegold(I) Thionucleobase Analogues 712

A suspension of thionucleobase (0.2 mmol) and K2CO3 (1 mmol) in CH2Cl2 (15 mL) was stirred for 30 minutes. Then, the chlorophosphinegold(I) complex (0.2 mmol) was added and the suspension was stirred overnight. The solution was filtrated and the solvent was evaporated until ca. 5 mL and added hexane (15 mL) to obtain a solid of the corresponding complex.
[Au(2-thiocytosine)L] (7): White solid, 60% yield. 1H NMR (Acetone-d6) δ (ppm): 8.70 (m, br, 1H, NH), 7.92 (m, 4H, Ph), 7.76 (d, J = 5.77 Hz, 1H, H6), 7.60 (m, 2H, H3’,H5’), 7.53 (m, 6H, Ph), 7.02 (dd, J = 5.0, 3.8 Hz, 1H, H4’), 6.13 (d, J = 5.79 Hz, 1H, H5), 5.93 (m, br, 2H, NH2), 3.79 (m, 2H, –CH2N–), 3.08 (m, 2H, –CH2P–). 13C{1H} NMR (Acetone-d6) δ (ppm): 163.89 (C4), 162.58 (C=O), 155.36 (C6), 140.64 (C2’), 134.29 (d, 2JPC = 13.6 Hz, o-C6H5), 132.47 (d, 4JPC = 2.3 Hz, p-C6H5), 131.85 (d, 1JPC = 55.1 Hz, ipso-C6H5), 131.05 (C3’), 130.12 (d, 3JPC = 11.3 Hz, m-C6H5), 128.86 (C5’), 128.35 (C4’), 100.70 (C5), 37.37 (d, J = 7.8 Hz, –CH2N–), 28.85 (d, J = 35.2 Hz, –CH2P–). 31P{1H} NMR (Acetone-d6) δ (ppm): 31.03. MS (ESI+) m/z: [M]+ 663 (100%). C23H22AuN4OPS2 (662.5) calcd. C 41.69, H 3.35, N 8.46, S 9.68; found C 41.55, H 3.13, N 8.42, S 10.15.
[Au(2-thiopyridine)L] (8): Yellow solid, 55% yield. 1H NMR (Acetone-d6) δ (ppm): 8.59 (m, br, 1H, NH), 8.18 (d, br, J = 5.0 Hz, 1H, H6), 7.93 (m, 4H, Ph), 7.60 (dd, J = 5.0, 1.1 Hz, 1H, H4), 7.57 (dd, J = 3.8, 1.1 Hz, 1H, H3), 7.53 (m, 6H, Ph), 7.38 (m, 2H, H5’, H3’), 7.00 (dd, J = 5.0, 3.8 Hz, 1H, H5), 6.88 (td, J = 4.9, 3.6 Hz, 1H, H4’), 3.79 (m, 2H, –CH2N–), 3.11 (m, 2H, –CH2P–). 13C{1H} NMR (Acetone-d6) δ (ppm): 169.33 (C2), 162.50 (C=O), 148.97 (C6), 140.65 (C2’), 136.46 (C4), 134.28 (d, 2JPC = 13.6 Hz, o-C6H5), 132.52 (d, 4JPC = 2.3 Hz, p-C6H5), 131.69 (d, 1JPC = 55.4 Hz, ipso-C6H5), 131.03 (C3’), 130.13 (d, 3JPC = 11.3 Hz, m-C6H5), 128.79 (C5’), 128.30 (C4’), 127.06 (C5), 118.79 (C3), 37.32 (d, J = 7.4 Hz, –CH2N–), 28.72 (d, J = 35.3 Hz, –CH2P–). 31P{1H} NMR (Acetone-d6) δ (ppm): 35.31. C24H22AuN2OPS2 (646.5) calcd. C 44.59, H 3.43, N 4.33, S 9.90; found C 44.65, H 3.28, N 4.34, S 9.93.
[Au(2-thiouracil)L] (9): White solid, 62% yield. 1H NMR (CDCl3) δ (ppm): 8.70 (m, br, 1H, NH), 7.63 (m, 4H, Ph), 7.50 (m, 2H, H6, H3’), 7.37 (m, 7H, Ph, H5’), 6.92 (dd, J = 5.0, 3.8 Hz, 1H, H4’), 6.05 (d, J = 5.6 Hz, 1H, H5), 3.69 (m, 2H, –CH2N–), 2.88 (m, 2H, –CH2P–). 13C{1H} NMR (CDCl3) δ (ppm): 162.84 (C=O), 138.84 (C2’), 133.24 (d, 2JPC = 13.4 Hz, o-C6H5), 131.85 (p-C6H5), 130.26 (C3’), 129.64 (d, 1JPC = 57.4 Hz, ipso-C6H5), 129.35 (d, 3JPC = 11.5 Hz, m-C6H5), 128.70 (C5’), 127.72 (C4’), 109.89 (C5), 36.95 (d, J = 3.5 Hz, –CH2N–), 28.72 (d, J = 36.8 Hz, –CH2P–). 31P{1H} NMR (CDCl3) δ (ppm): 30.59. MS (ESI+) m/z: [M]+ 663.8 (38.34%). C23H21AuN3O2PS2 (663.5) calcd. C 41.63, H 3.19, N 6.33, S 9.67; found C 41.55, H 3.18, N 6.50, S 10.11.
[Au(2-thionicotinic acid)L] (10): Yellow solid, 57% yield. 1H NMR (CDCl3) δ (ppm): 9.36 (m, br, 1H, OH), 7.70–7.00 (m, 14H, Ph, H6, H4, H5, H3’, H5’), 6.72 (m, br, 1H, H4’), 6.31 (m, br, 1H, NH), 3.50–3.45 (m, 2H, –CH2N–), 2.56 (m, br, 2H, –CH2P–). 31P{1H} NMR (CDCl3) δ (ppm): 28.91. MS (ESI+) m/z: [M]+ 691 (100%). C25H22AuN2O3PS2 (690.1) calcd. C 43.48, H 3.21, N 4.06, S 9.27; found C 43.52, H 3.03, N 3.93, S 8.55.
[Au(thioglucose)L] (11): White solid, 65% yield. 1H NMR (Acetone-d6) δ (ppm): 7.94 (m, 5H, Ph, NH), 7.64 (dd, J = 5.0, 1.0 Hz, 1H, H3’), 7.55 (m, 7H, Ph, H5’), 7.07 (dd, J = 5.0, 3.8 Hz, 1H, H4’), 5.18 (t, J = 9.4 Hz, 1H, H5), 5.07 (t, J = 9.7 Hz, 1H, H4), 5.00 (m, 2H, H6, H1), 4.24 (dd, J = 12.3, 4.8 Hz, 1H, –CH2–), 4.09 (dd, J = 12.3, 2.2 Hz, 1H, –CH2–), 3.92 (m, br, 1H, H3), 3.77 (m, 2H, –CH2N–), 3.17 (m, 1H, –CH2P–), 3.00 (m, 1H, –CH2P–), 1.98 (s, 6H, –COCH3), 1.91 (s, 6H, –COCH3). 13C{1H} NMR (CDCl3) δ (ppm): 170.29, 169.69 (O–C=O), 162.50 (N–C=O), 138.80 (C3’), 133.49 (d, 2JPC = 13.6 Hz, o-C6H5), 133.11 (d, 2JPC = 13.4 Hz, o-C6H5), 131.73 (d, 4JPC = 2.5 Hz, p-C6H5), 131.65 (d, 4JPC = 2.5 Hz, p-C6H5), 130.37 (d, 1JPC = 55.4 Hz, ipso-C6H5), 130.21 (C3’), 130.04 (d, 1JPC = 55.6 Hz, ipso-C6H5), 129.43 (d, 3JPC = 5.9 Hz, o-C6H5), 129.28 (d, 3JPC = 5.9 Hz, m-C6H5), 128.24 (C5’), 127.43 (C4’), 76.16 (C3), 74.29 (C5, C6, C1), 68.84 (C4), 62.60 (–CH2–), 37.66 (d, J = 4.6 Hz, –CH2N–), 28.10 (d, J = 34.9 Hz, –CH2P–), 21.42, 20.77 (CH3–COOCH2). 31P{1H} NMR (Acetone-d6) δ (ppm): 31.49. MS (ESI+) m/z: [M]+ 900.3 (45.70%). C33H37AuNO10PS2 (899.7) calcd. C 44.04, H 4.15, N 1.56, S 7.13; found C 43.96, H 4.14, N 1.47, S 6.99.
[Au(6-thiopurine)L] (12): White solid, 57% yield. 1H NMR (Acetone-d6) δ (ppm): 9.77 (m, br, 1H, NH), 8.34 (s, 1H, H9), 8.03 (s, 1H, H5), 7.96 (m, 4H, Ph), 7.50 (m, 8H, Ph, H5’, NH, H3’), 6.79 (dd, J = 4.9, 3.8 Hz, 1H, H4’), 3.84 (m, 2H, –CH2N–), 3.08 (m, 2H, –CH2P–). 13C{1H} NMR (Acetone-d6) δ (ppm): 162.55 (C=O), 134.31 (d, 2JPC = 11.5 Hz, o-C6H5), 132.36 (s, p-C6H5), 130.23 (C3’), 130.06 (d, 3JPC = 9.4 Hz, m-C6H5), 129.91 (C5’), 128.51 (C4’). 31P{1H} NMR (Acetone-d6) δ (ppm): 26.82. MS (ESI+) m/z: [M]+ 691 (100%). C24H21AuN5OPS2 (687.1) calcd. C 41.93, H 3.08, N 10.17, S 9.33; found C 42.24, H 3.12, N 9.71, S 8.55.

3.5. Cristallography

Crystals were mounted in inert oil on glass fibers and transferred to the cold gas stream of Xcalibur Oxford Diffraction (3, 6) or a SMART Apex CCD (7) diffractometer equipped with a low-temperature attachment. Data were collected using monochromated Mo Kα radiation (λ = 0.71073 Å). Scan type ω. Absorption correction based on multiple scans was applied using spherical harmonics implemented in SCALE3 ABSPACK [35] scaling algorithm or SADABS. The structures were solved by direct methods and refined on F2 using the program SHELX [36]. All non-hydrogen atoms were refined anisotropically, with the exception of some solvent atoms. Refinements were carried out by full-matrix least-squares on F2 for all data. CCDC 1881668 (6), 1881669 (7) and 1881670 (3) contains the Supplementary crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via

3.6. Cell Culture

HEP-G2 cells (human hepatocellular carcinoma cells), NIH-3T3 cells (mouse fibroblasts), A-549 cells (human lung carcinoma cells), and PC12 (pheochromocytoma of the rat adrenal medulla). All cell lines were cultivated in Dulbecco’s Modified Eagle’s medium (DMEM, D7777 Sigma-Aldrich, Madrid, Spain) supplemented with with 10% fetal bovine serum (FBS) and 1% antibiotics (penicillin/ 100U/mL and streptomycin/ 100μg/mL) in a humidified environment at 37 °C/5% CO2. After three to four days the cells were then detached with trypsin and cultured in another cell culture flask. Wells of a 96 well plate were seeded with the cells and incubated for three days. At day 4 the medium of each well was removed and 200 μL of the gold and silver complexes in different concentrations in the cell culture medium were added to the wells (1–100 μM). The cells were cultivated for two additional days and then, the viability of the cells was determined by the MTT-assay.

3.7. Cytotoxicity MTT Assay

The MTT assay was used to calculate cell viability. Exponentially growing cells were seeded at a density of ~4 × 105 cells/mL, in a 96-well microplate, and 48 h later they were incubated with the complexes. The compounds were dissolved in DMSO and tested in concentrations ranging from 1 to 100 μM.
Cytotoxicity of tested compounds was evaluated by the MTT method [37]. The optical density was measured at 570 nm using a 96-well multiscanner autoreader. The IC50 values were calculated by non-linear regression analysis using Origin software (Origin Software, Electronic Arts, Redwood City, CA, USA)

4. Conclusions

A new amidophosphine ligand bearing a thiophene moiety has been synthesized and the coordination behaviour towards gold and silver complexes has been studied. The coordination of the gold(I/III) or silver(I) fragments takes place through the phosphorus atom. In contrast for the silver species coordination to the phosphorus atom together with the oxygen atoms of the carbonyl and triflate groups is observed. The crystal structures of some of these derivatives present supramolecular structures through hydrogen bonding. Cytotoxicity studies in several cancer lines, such as A-549, Hep-G2 or NIH-3T3 and PC-12 have been performed for the ligand and all the synthesized complexes, showing that whereas the thiophene amidophosphine lacks activity, the gold and silver complexes exhibit moderate to excellent activities in all the cell lines. From the structure activity relationship perspective is possible to conclude that the best activities are achieved with the cationic bis(amidophosphine) species and with the thiolate derived from the 2,3,4,6-tetra-6-acetyl-1-thiol-β-d-glucopyranosato ligand. In general, gold complexes are more cytotoxic than the silver ones, with the exception of the A-549 cell line. The cytotoxicity values are much better than those exhibited by cisplatin.

Supplementary Materials

The following are available online at, CIF and checkCIF files.

Author Contributions

Conceptualization, M.C.G. and A.L.; methodology, H.G.; software, H.G. and M.D.V.; formal analysis, H.G.; investigation, H.G.; writing—original draft preparation, M.C.G. and M.D.V.; writing—review and editing, M.C.G., M.D.V. and A.L.; project administration, M.C.G.; funding acquisition, M.C.G.


This research was funded by Ministerio de Ciencia, Innovación y Universidades, grant number CTQ2016-75816-C2-1-P and and Gobierno de Aragón-Fondo Social Europeo, grant number E07_17R.


The authors thank the Ministerio de Ciencia, Innovación y Universidades (CTQ2016-75816-C2-1-P) and Gobierno de Aragón-Fondo Social Europeo (E07_17R) for financial support.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Rosenberg, B.; VanCamp, L.; Trosko, J.E.; Monsour, V.H. Platinum Compounds: A New Class of Potent Antitumour Agents. Nature 1969, 222, 385–386. [Google Scholar] [CrossRef]
  2. Lippert, B. Cisplatin: Chemistry and Biochemistry of a Leading Anticancer Drug; Wiley-VCH: Weinheim, Germany, 1999. [Google Scholar]
  3. Johnstone, T.C.; Suntharalingam, K.; Lippard, S.J. The Next Generation of Platinum Drugs: Targeted Pt(II) Agents, Nanoparticle Delivery, and Pt(IV) Prodrugs. Chem. Rev. 2016, 116, 3436–3486. [Google Scholar] [CrossRef][Green Version]
  4. Bergamo, A.; Sava, G. Ruthenium anticancer compounds: Myths and realities of the emerging metal-based drugs. Dalton Trans. 2011, 40, 7817–7823. [Google Scholar] [CrossRef]
  5. Phase I and II Study of Auranofin in Chronic Lymphocytic Leukemia (CLL). Available online: (accessed on 2 September 2018).
  6. Ott, I. On the medicinal chemistry of gold complexes as anticancer drugs. Coord. Chem. Rev. 2009, 253, 1670–1681. [Google Scholar] [CrossRef]
  7. Nobili, S.; Mini, E.; Landini, I.; Gabbiani, C.; Casini, A.; Messori, L. Gold compounds as anticancer agents: Chemistry, cellular pharmacology, and preclinical studies. Med. Res. Rev. 2010, 30, 550–580. [Google Scholar] [CrossRef]
  8. Bertrand, B.B.; Casini, A. A golden future in medicinal inorganic chemistry: The promise of anticancer gold organometallic compounds. Dalton Trans. 2014, 43, 4209–4219. [Google Scholar] [CrossRef]
  9. Zou, T.; Lum, C.T.; Lok, C.-N.; Zhang, J.-J.; Che, C.M. Chemical biology of anticancer gold(III) and gold(I) complexes. Chem. Soc. Rev. 2015, 44, 8786–8801. [Google Scholar] [CrossRef]
  10. Barnard, P.T.; Berners-Price, S.J. Targeting the mitochondrial cell death pathway with gold compounds. Coord. Chem. Rev. 2007, 251, 1889–1902. [Google Scholar] [CrossRef]
  11. Bindoli, A.; Rigobello, M.P.; Scutari, G.; Gabbiani, C.; Casini, A.; Messori, L. Thioredoxin reductase: A target for gold compounds acting as potential anticancer drugs. Coord. Chem. Rev. 2009, 253, 1692–1707. [Google Scholar] [CrossRef]
  12. Dalla Via, L.; Nardon, C.; Fregona, D. Targeting the ubiquitin-proteasome pathway with inorganic compounds to fight cancer: A challenge for the future. Future Med. Chem. 2012, 4, 525–543. [Google Scholar] [CrossRef]
  13. Baumann, M.; Baxendale, I.R.; Ley, S.V.; Nikbin, N. An overview of the key routes to the best selling 5-membered ring heterocyclic pharmaceuticals. Beilstein J. Org. Chem. 2011, 7, 442–495. [Google Scholar] [CrossRef][Green Version]
  14. Hartman, H.B.; Roehr, J.E.; Rogers, K.L.; Rush, D.K.; Szczepanik, A.M.; Szewczak, M.R.; Wilmot, C.A.; Conway, P.G. 3[4-[1-(6-Fluorobenzo[b]thiophen-3-yl)-4-piperazinyl]butyl]-2,5,5-trimethyl-4-thiazolidinone: A new atypical antipsychotic agent for the treatment of schizophrenia. J. Med. Chem. 1992, 35, 2712–2715. [Google Scholar]
  15. Bohlman, F.; Zdero, C. Thiophene and Its Derivatives; Gronowitz, S., Ed.; John Wiley & Sons, Ltd.: Chichester, UK, 1986; Part 3, pp. 261–323. [Google Scholar]
  16. Hafez, H.N.; El-Gazzar, A.B.A. Design and synthesis of 3-pyrazolyl-thiophene, thieno[2,3-d]pyrimidines as new bioactive and pharmacological activities. Bioorg. Med. Chem. Lett. 2008, 18, 5222–5227. [Google Scholar] [CrossRef]
  17. Vogel, V.G.; Costantino, J.P.; Wickerham, D.L.; Cronin, W.M.; Cecchini, R.S.; Atkins, J.N.; Bevers, T.B.; Fehrenbacher, L.; Pajon, E.R., Jr.; Wade, J.L., III; et al. Effects of tamoxifen vs raloxifene on the risk of developing invasive breast cancer and other disease outcomes: The NSABP Study of Tamoxifen and Raloxifene (STAR) P-2 trial. J. Am. Med. Assoc. 2006, 295, 2727–2741. [Google Scholar] [CrossRef]
  18. Chakrabarti, J.K.; Hotten, T.M.; Tupper, D.E. 2-Methylthienobenzodiazepine. U.S. Patent 5,627,178, 6 May 1997. [Google Scholar]
  19. Wang, L.; Shen, J.; Tang, Y.; Chen, Y.; Wang, W.; Cai, Z.; Du, Z. Synthetic Improvements in the Preparation of Clopidogrel. Org. Process Res. Dev. 2007, 11, 487–489. [Google Scholar] [CrossRef]
  20. Gimeno, M.C.; Goitia, H.; Laguna, A.; Luque, M.E.; Villacampa, M.D.; Sepúlveda, C.; Meireles, M. Conjugates of ferrocene with biological compounds. Coordination to gold complexes and antitumoral properties. J. Inorg. Biochem. 2011, 105, 1373–1382. [Google Scholar] [CrossRef][Green Version]
  21. Goitia, H.; Nieto, Y.; Villacampa, M.D.; Kasper, C.; Laguna, A.; Gimeno, M.C. Antitumoral Gold and Silver Complexes with Ferrocenyl-Amide Phosphines. Organometallics 2013, 32, 6069–6078. [Google Scholar] [CrossRef][Green Version]
  22. Gutiérrez, A.; Gracia-Fleta, L.; Marzo, I.; Cativiela, C.; Laguna, A.; Gimeno, M.C. Gold(I) thiolates containing amino acid moieties. Cytotoxicity and structure–activity relationship studies. Dalton Trans. 2014, 43, 17054–17066. [Google Scholar] [CrossRef]
  23. Gutiérrez, A.; Marzo, I.; Cativiela, C.; Laguna, A.; Gimeno, M.C. Highly Cytotoxic Bioconjugated Gold(I) Complexes with Cysteine-Containing Dipeptides. Chem. Eur. J. 2015, 21, 11088–11095. [Google Scholar] [CrossRef][Green Version]
  24. Ortego, L.; Meireles, M.; Kasper, C.; Laguna, A.; Villacampa, M.D.; Gimeno, M.C. Group 11 complexes with amino acid derivatives: Synthesis and antitumoral studies. J. Inorg. Biochem. 2016, 156, 133–144. [Google Scholar] [CrossRef][Green Version]
  25. Bardají, M.; Jones, P.G.; Laguna, A.; Villacampa, M.D.; Villaverde, N. Synthesis and Structural Characterization of Luminescent Gold(I) Derivatives with an Unsymmetric Diphosphine. Dalton Trans. 2003, 23, 4529–4536. [Google Scholar] [CrossRef]
  26. Fillat, M.F.; Gimeno, M.C.; Laguna, A.; Latorre, E.; Ortego, L.; Villacampa, M.D. Synthesis, structure and bactericide activity of (aminophosphane)gold(I) thiolate complexes. Eur. J. Inorg. Chem. 2011, 9, 1487–1495. [Google Scholar] [CrossRef]
  27. Artigas, M.M.; Crespo, O.; Gimeno, M.C.; Jones, P.G.; Laguna, A.; Villacampa, M.D. Synthesis and characterization of [Ag43-SC2B10H11)2(µ-O3SCF3)2(PPh3)4]: A silver complex with a µ3-thiolate ligand. Inorg. Chem. 1997, 36, 6454–6456. [Google Scholar] [CrossRef]
  28. Bardají, M.; Crespo, O.; Laguna, A.; Fischer, A.K. Structural characterization of silver(I) complexes [Ag(O3SCF3)(L)] (L = PPh3, PPh2Me, SC4H8) and [AgLn](CF3SO3) (n = 2–4), (L = PPh3, PPh2Me). Inorg. Chim. Acta 2000, 304, 7–16. [Google Scholar] [CrossRef]
  29. Zhang, P.; Gao, W.Y.; Turner, S.; Ducatman, B.S. Gleevec (STI-571) inhibits lung cancer cell growth (A549) and potentiates the cisplatin effect in vitro. Mol. Cancer 2003, 2, 1. [Google Scholar] [CrossRef][Green Version]
  30. Shao, J.; Ma, Z.-Y.; Li, A.; Liu, Y.-H.; Xie, C.-Z.; Qiang, Z.-Y.; Xu, J.-Y. Thiosemicarbazone Cu(II) and Zn(II) complexes as potential anticancer agents: Syntheses, crystal structure, DNA cleavage, cytotoxicity and apoptosis induction activity. J. Inorg. Biochem. 2014, 136, 13–23. [Google Scholar] [CrossRef]
  31. Suntharalingam, K.; Mendoza, O.; Duarte, A.A.; Mann, D.J.; Vilar, R. A platinum complex that binds non-covalently to DNA and induces cell death via a different mechanism than cisplatin. Metallomics 2013, 5, 514–523. [Google Scholar] [CrossRef]
  32. Usón, R.; Laguna, A. Polyaryl Derivatives of Gold(I), Silver(I) and Gold(III). In Organometallic Syntheses; King, R.B., Eisch, J.J., Eds.; Elsevier: Amsterdam, The Netherlands, 1986; Volume 3, pp. 322–342. [Google Scholar]
  33. Usón, R.; Laguna, A.; Navarro, A.; Parish, R.V.; Moore, L.S. Synthesis and reactivity of perchlorate bis(tetrahydrothiophen)gold(I). 197Au Mössbauer spectra of three-coordinate gold(I) complexes. Inorg. Chim. Acta 1986, 112, 205–208. [Google Scholar] [CrossRef]
  34. Usón, R.; Laguna, A.; Laguna, M.; Jiménez, J.; Gómez, M.P.; Sainz, A.; Jones, P.G. Gold complexes with heterocyclic thiones as ligands. X-Ray structure determination of [Au(C5H5NS)2]ClO4. J. Chem. Soc. Dalton Trans. 1990, 3457–3463. [Google Scholar] [CrossRef]
  35. CrysAlisPro, Version; Agilent Technologies: Yarnton, UK, 2011.
  36. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Cryst. 2015, C71, 3–8. [Google Scholar]
  37. Mosmann, T.J. Rapid colorimetric assay for cellular growth and survival: Application to proliferation and cytotoxicity assays. Immunol. Methods 1983, 65, 55–63. [Google Scholar] [CrossRef]

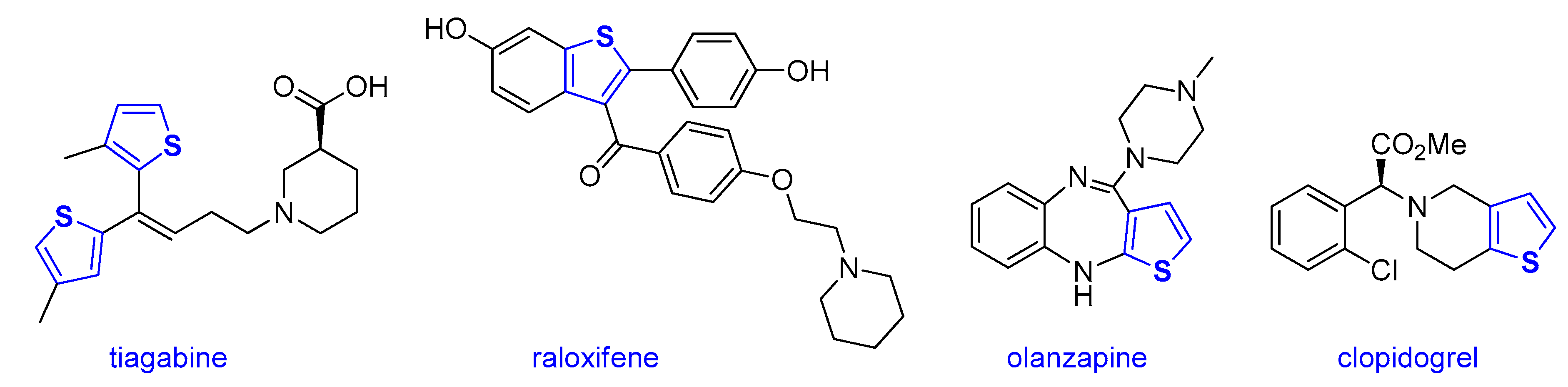

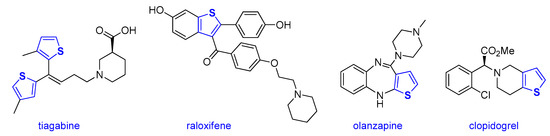

Figure 1. Drugs containing the thiophene ring.
Figure 1. Drugs containing the thiophene ring.
Inorganics 07 00013 g001

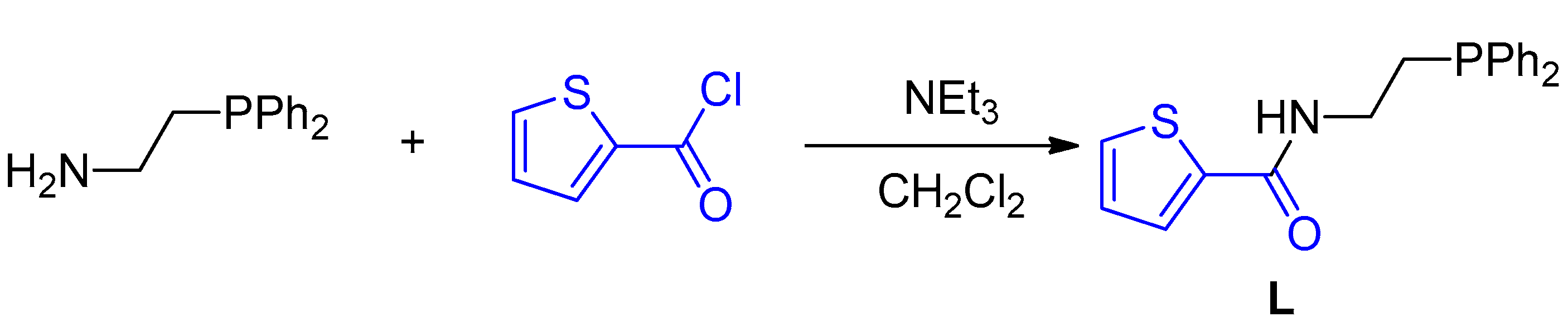

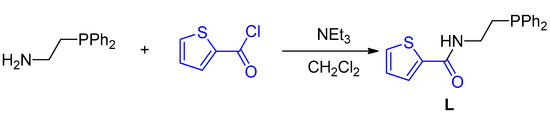

Scheme 1. Synthesis of the ligand L.
Scheme 1. Synthesis of the ligand L.
Inorganics 07 00013 sch001

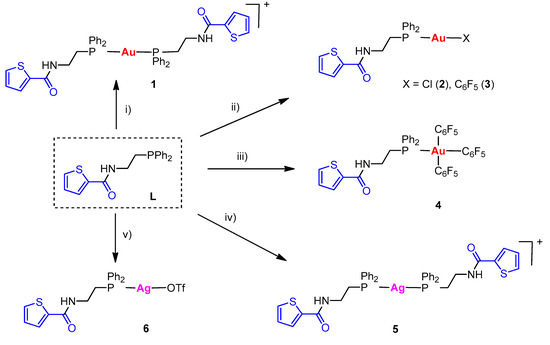

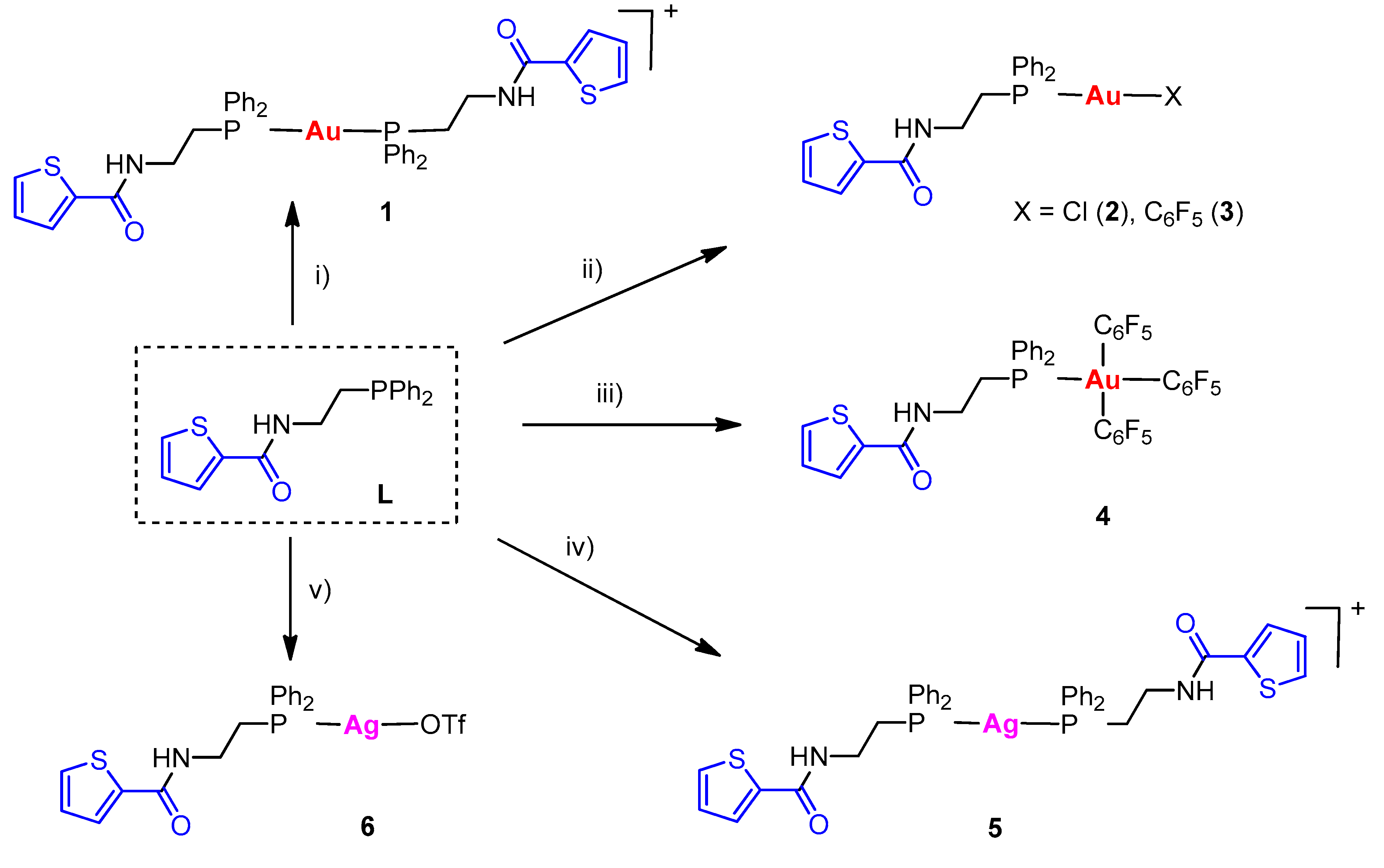

Scheme 2. Coordination studies of ligand L. Reaction conditions: CH2Cl2, r.t., (i) [Au(tht)2]OTf: (ii) [AuCl(tht)] or [Au(C6F5)(tht)]; (iii) [Au(C6F5)3(tht)]; (iv) 1/2 Ag(OTf); (v) Ag(OTf).
Scheme 2. Coordination studies of ligand L. Reaction conditions: CH2Cl2, r.t., (i) [Au(tht)2]OTf: (ii) [AuCl(tht)] or [Au(C6F5)(tht)]; (iii) [Au(C6F5)3(tht)]; (iv) 1/2 Ag(OTf); (v) Ag(OTf).
Inorganics 07 00013 sch002

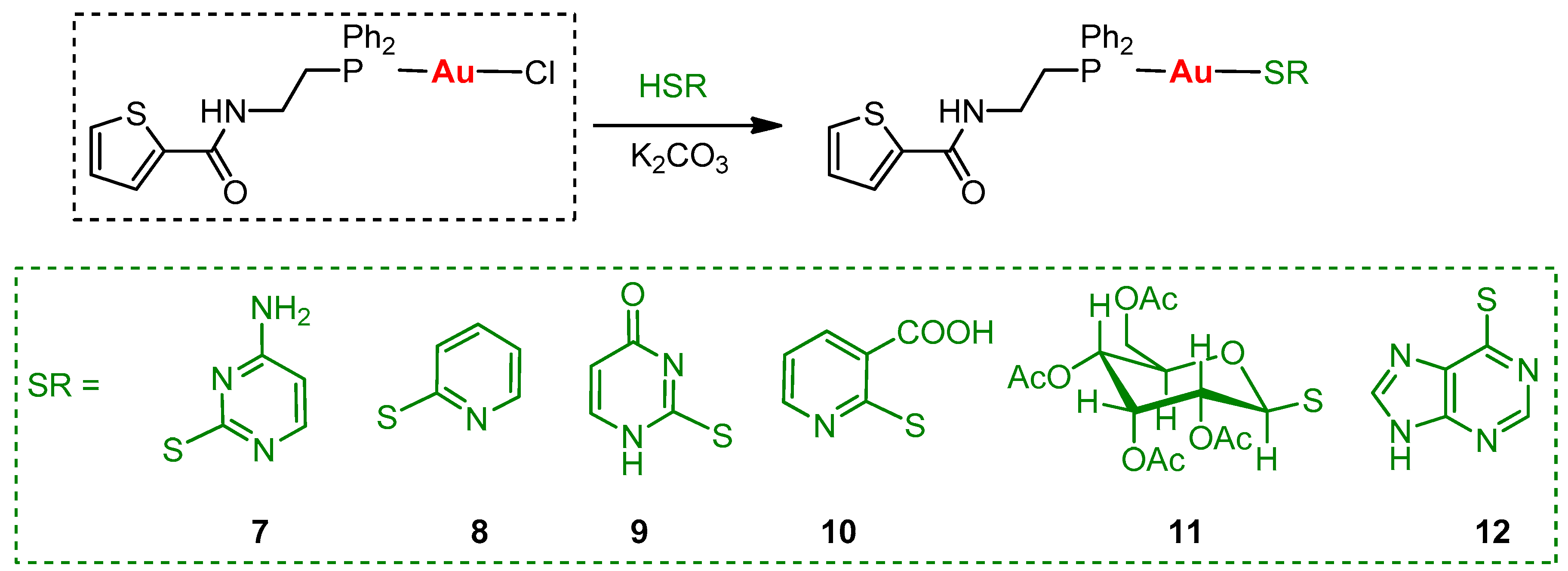

Scheme 3. Synthesis of the thiolate–gold(I) derivatives.
Scheme 3. Synthesis of the thiolate–gold(I) derivatives.
Inorganics 07 00013 sch003

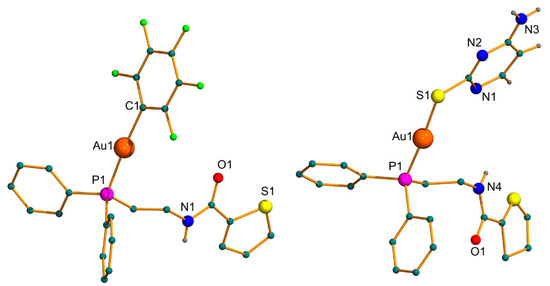

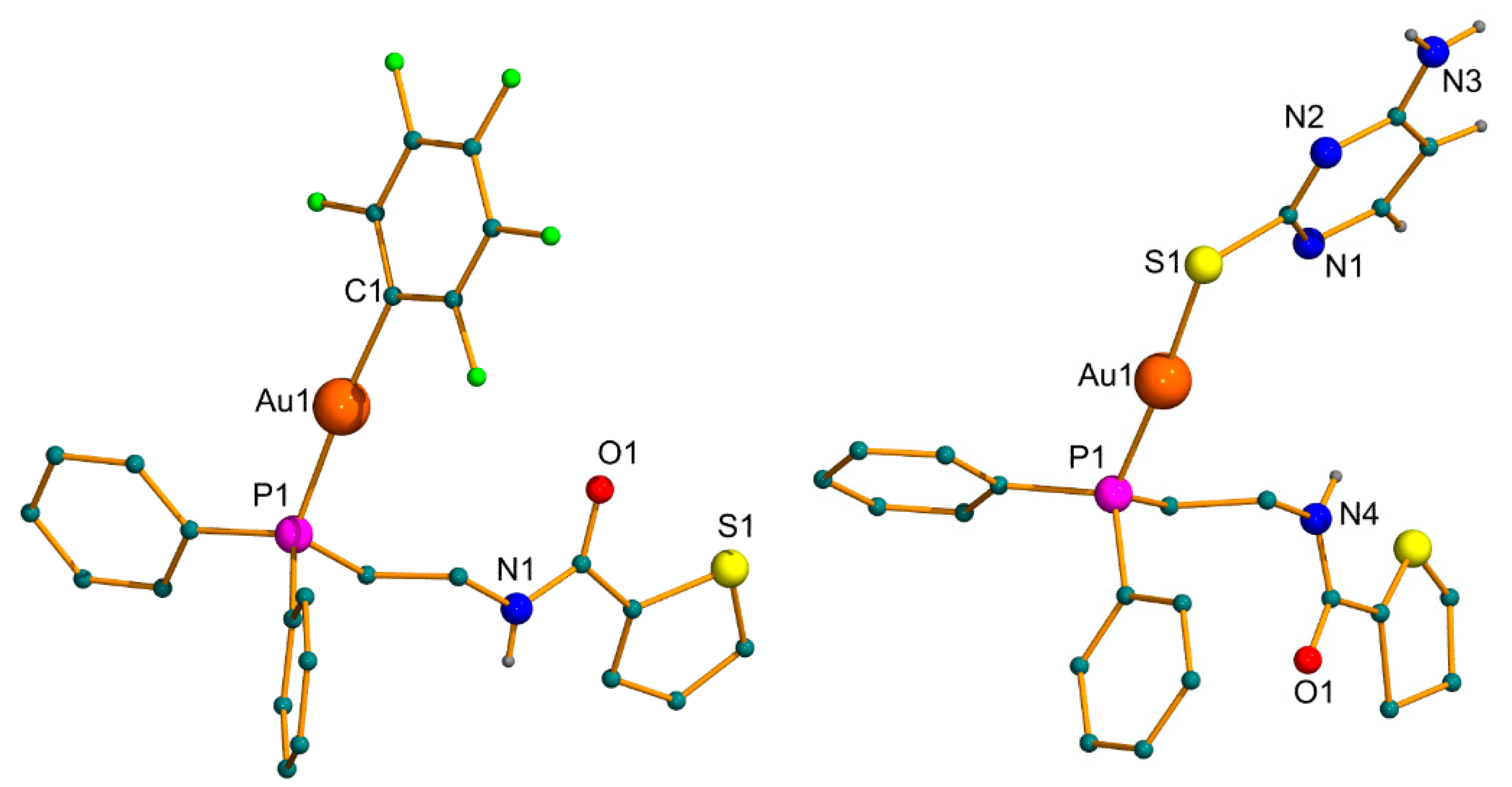

Figure 2. Molecular structure of the gold compounds 3 and 7, with the atom labelling scheme (some of the hydrogen atoms are omitted for clarity).
Figure 2. Molecular structure of the gold compounds 3 and 7, with the atom labelling scheme (some of the hydrogen atoms are omitted for clarity).
Inorganics 07 00013 g002

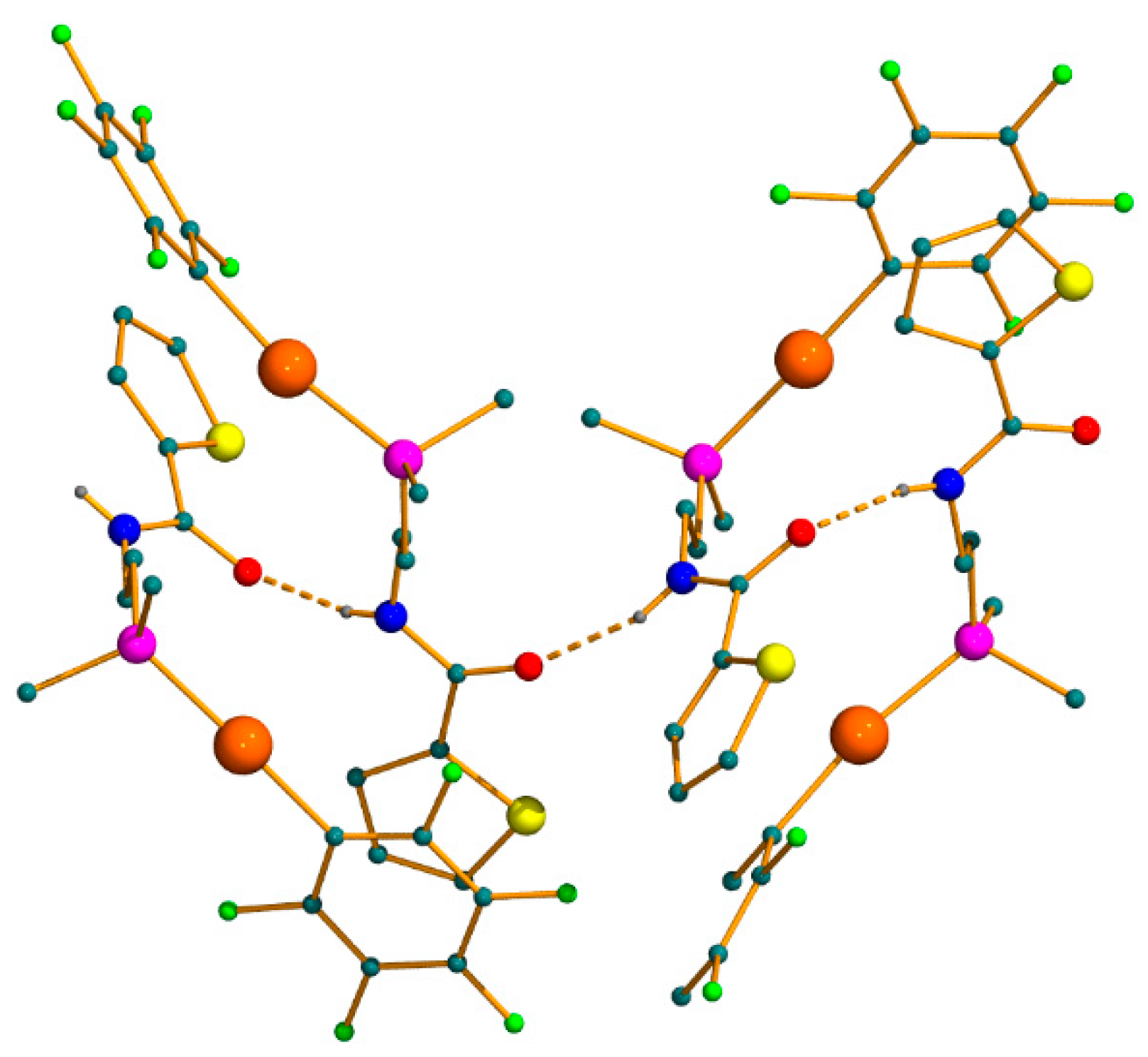

Figure 3. Association of molecules in 3 via hydrogen bonding.
Figure 3. Association of molecules in 3 via hydrogen bonding.
Inorganics 07 00013 g003

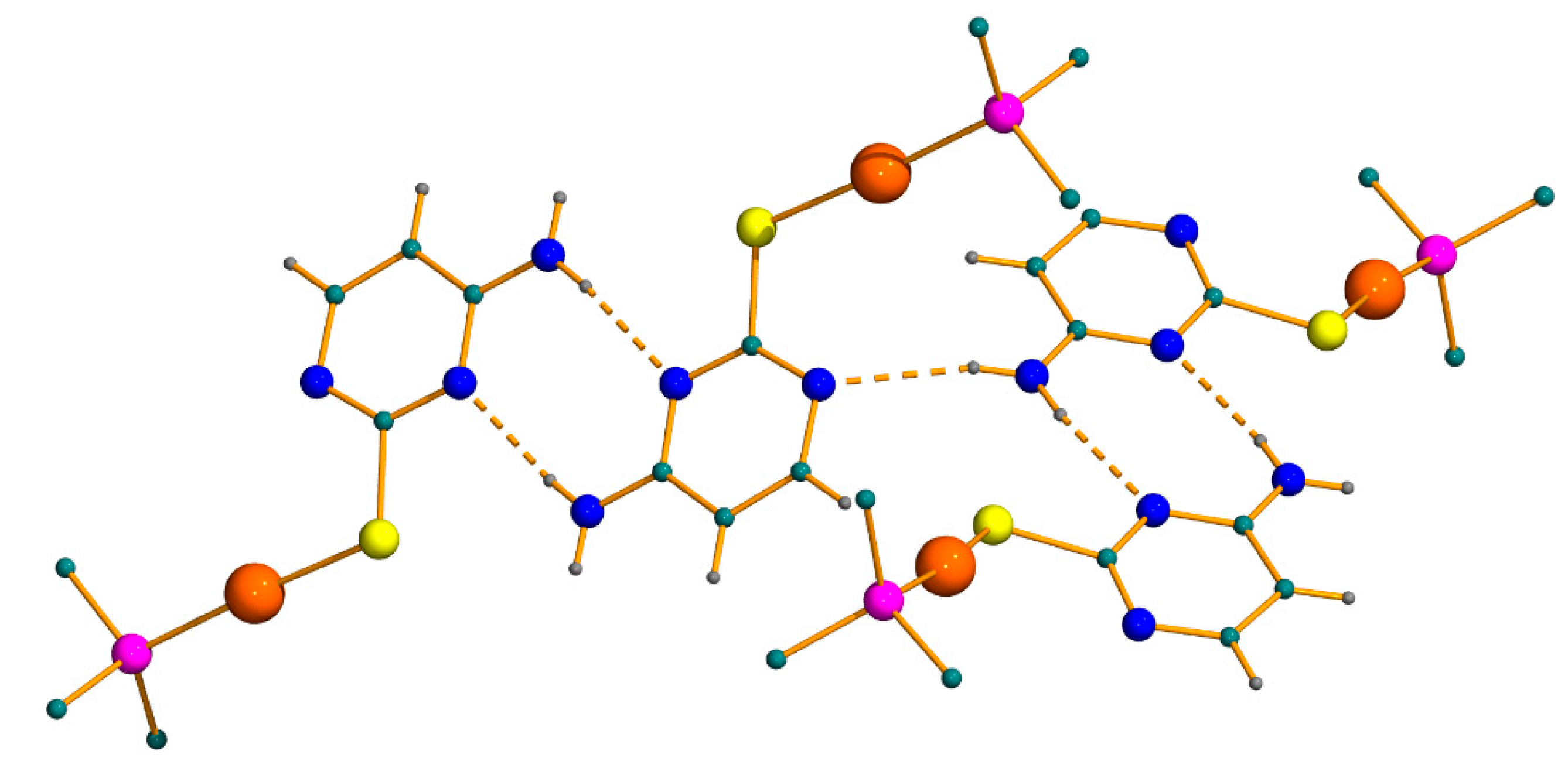

Figure 4. Association of molecules in complex 7 via hydrogen bonding. Phenyl rings are omitted for clarity, only ipso carbon is maintained.
Figure 4. Association of molecules in complex 7 via hydrogen bonding. Phenyl rings are omitted for clarity, only ipso carbon is maintained.
Inorganics 07 00013 g004

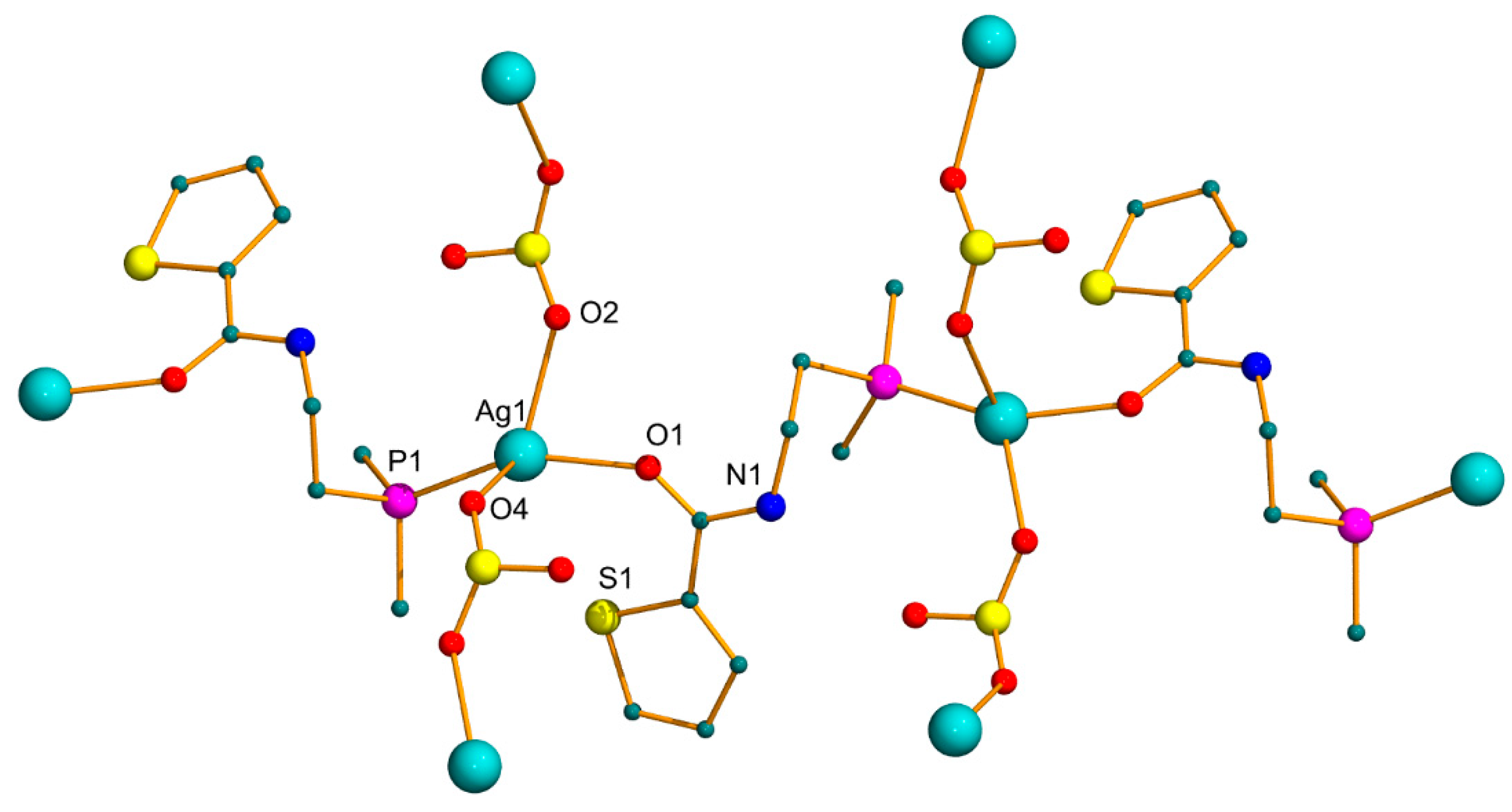

Figure 5. Structure of compound 6, with the atom labelling scheme, showing the tridimensional network (hydrogen atoms, phenyl rings and the CF3 units from the triflate are omitted for clarity).
Figure 5. Structure of compound 6, with the atom labelling scheme, showing the tridimensional network (hydrogen atoms, phenyl rings and the CF3 units from the triflate are omitted for clarity).
Inorganics 07 00013 g005
Table 1. IC50 of L and complexes 112 at 48 h (μM).
Table 1. IC50 of L and complexes 112 at 48 h (μM).
IC50 (μM)
ComplexA-549Hep-G2NIH-3T3 PC-12
148.9 ± 2.117.1 ± 1.11.4 ± 0.090.5 ± 0.1
2>10016.9 ± 1.22.8 ± 0.91.6 ± 0.8
310.6 ± 1.456 ± 3.539.37 ± 2.21.6 ± 0.7
520.8 ± 2.110.0 ± 1.14.0 ± 0.81.1 ± 0.6
612.5 ± 1.278.9 ± 2.420.8 ± 1.86.9 ± 1.0
745.1 ± 2.75.9 ± 1.73.0 ± 1.21.0 ± 0.5
824.5 ± 1.86.7 ± 2.32.1 ± 0.40.5 ± 0.2
9>10014.1 ± 2.56.1 ± 1.91.3 ± 0.4
10>10015.8 ± 2.46.3 ± 1.72.7 ± 1.0
119.9 ± 1.45.9 ± 1.12.9 ± 0.9-
1265.7 ± 3.4>10013.7 ± 2.4-
Cisplatin6425 ± 3.1145 ± 13-
