Communication

Synthesis of a Half-Sandwich Hydroxidoiridium(III) Complex Bearing a Nonprotic N-Sulfonyldiamine Ligand and Its Transformations Triggered by the Brønsted Basicity

Department of Chemical Science and Engineering, School of Materials and Chemical Technology, Tokyo Institute of Technology, 2-12-1-E4-1 O-okayama, Meguro-ku Tokyo 152-8552, Japan
*
Author to whom correspondence should be addressed.
Inorganics 2019, 7(10), 125; https://doi.org/10.3390/inorganics7100125
Received: 30 September 2019 / Revised: 11 October 2019 / Accepted: 15 October 2019 / Published: 17 October 2019
(This article belongs to the Special Issue Iridium Complexes)

Abstract

Synthesis and reactivities of a new mononuclear hydroxidoiridium(III) complex with a pentamethylcyclopentadienyl (Cp*) ligand are reported. The hydroxido ligand was introduced into an iridium complex having a nonprotic amine chelate derived from N-mesyl-N’,N’-dimethylethylenediamine by substitution of the chloride ligand using KOH. The resulting hydroxidoiridium complex was characterized by NMR spectroscopy, elemental analysis, and X-ray crystallography. The hydroxido complex was able to deprotonate benzamide and acetonitrile, and showed an ability to accept a hydride from 2-propanol to generate the corresponding hydrido complex quantitatively. In the reaction with mandelonitrile, a cyanide anion was transferred to the iridium center in preference to the hydride transfer. The cyanidoiridium complex was also identified in the reaction with acetone cyanohydrin, and could serve as catalyst species in the transfer hydrocyanation of benzaldehyde.
Keywords: iridium; hydroxido complex; deprotonation; hydride transfer; cyanido complex; transfer hydrocyanation; amidato complex; cyanomethyl complex iridium; hydroxido complex; deprotonation; hydride transfer; cyanido complex; transfer hydrocyanation; amidato complex; cyanomethyl complex

1. Introduction

Transition metal hydroxide complexes have received considerable attention as activators for small molecules and key intermediates in various catalytic transformations [1,2,3]. Despite the unmatched combination of hydroxide with a hard-base character and soft late transition metals, the utility of hydroxido complexes have been shown by careful synthetic approaches such as oxidative addition of water [4,5]. During the course of our studies on bifunctional catalysis based on the interconversion of amido/amine ligands [6], the O–H bond of water proved to be cleaved heterolytically by chiral amido–Ru complexes to generate amine-hydroxido complexes, and the process can contribute to the hydration of dinitriles in an enantioselective manner (Scheme 1a) [7]. Separately, we also reported the C–F bond breaking through nucleophilic aromatic substitution with a coordinated OH group generated from water and bifunctional amido–Ru and –Ir complexes (Scheme 1b) [8]. In these systems, the hydroxido complexes could not be isolated, possibly because the basicity of the hydroxido ligand promoted the reverse deprotonation of the protic amine ligands to give the parent amido complexes. We conceived that structural change of the amido/amine moiety with a nonprotic amine ligand would allow to stabilize the hydroxido complexes. Under the inspiration of achievements of Cp*Ir systems [9,10,11,12,13], we disclose herein, the synthesis and characterization of a new mononuclear hydroxidoiridium(III) complex having N-sulfonyldiamine without the NH moiety. As part from its reactivities toward Brønsted acids, we also deal with the cyanide transfer from cyanohydrins in relation to the hydrogen transfer from secondary alcohols.

2. Results and Discussion

According to the established synthesis of 1,2-diphenylethylenediamine (DPEN)-derived complexes [14], coordination of N-mesyl-N’,N’-dimethylethylenediamine (MsNHCH2CH2N(CH3)2) with [Cp*IrCl2]2 (diamine:Ir = 1:1) was performed in CH2Cl2 under basic conditions at room temperature. To avoid coordination of amine base competitively with the tertiary amine chelate, KOtBu was better suited for the base additive. After recrystallization, the expected chlorido complex (1) was obtained as orange crystals in 49% yield (Scheme 2). The product was fully characterized by 1H and 13C{1H} NMR spectra, elemental analysis, and X-ray crystallography (see the Supplementary Materials and Figure 1 (left)). A set of nonequivalent dimethylamino signals at around 3.0 ppm in the 1H NMR spectrum indicates the chelating structure of the amine ligand.
When ligand substitution was performed by treatment of 1 with KOH pellets in tetrahydrofuran (THF) containing water with a v/v ratio of 1500/1, the desired hydroxido-amine complex (2) was formed and successfully isolated in 42% yield after recrystallization from THF. The 1H NMR spectrum in CD2Cl2 at −70 °C displayed the hydroxido resonance at −0.79 ppm as a broad signal, which disappeared with increasing the temperature. Two separate aminomethyl signals observed at 2.83 and 2.88 ppm were also broadened and coalesced at room temperature. These results are indicative of facile dissociation of the tertiary amine and/or hydroxido ligands, allowing for dynamic behavior. A single-crystal X-ray diffraction analysis revealed that the structure of 2 resembles that of a monomeric three-legged piano-stool shape of 1, as shown in Figure 1. Although the OH hydrogen was located from the Fourier difference map, no significant hydrogen bonding interactions were observed.
The isolated mononuclear complex 2 can deprotonate benzamide to form the corresponding benzamidato (3) complex at room temperature (Scheme 3a). The 1H and 13C{1H} NMR spectra and elemental analysis agree with the substitution. The κ1(N)-benzamidato coordination making a reasonable hydrogen bond to the sulfonyl oxygen in 3 was verified by X-ray diffraction analysis, as shown in Figure 2 (left). Moreover, the hydroxido complex proved to have sufficient basicity to abstract a proton from acetonitrile (pKa in DMSO = 31.3) [15]. When an acetonitrile solution (4.0 × 10−2 M) of 2 was stirred at room temperature for 3.5 h, a cyanomethyl complex (4) was isolated in 70% yield (Scheme 3b) [16]. The 1H NMR spectrum in CD2Cl2 displayed a characteristic AB pattern for the diastereotopic CH2 protons of the cyanomethyl ligand at 2.14 ppm. The presence of the cyanomethyl moiety was confirmed by 13C{1H} NMR signals observed at −18.8 and 129.7 ppm and a CN stretching band at 2187 cm−1 in the IR spectrum.
Treatment of 2 in 2-propanol at ambient temperature resulted in the smooth formation of a hydrido complex (5) in an almost quantitative yield (Scheme 4). The 1H NMR spectrum in CD2Cl2 displayed a hydrido resonance at −11.6 ppm. Presumably, 2 deprotonated the alcohol group to generate a coordinatively saturated alkoxido complex and hemilabile nature of the tertiary amine ligand allowed spontaneous β-hydrogen elimination to afford 5. The β-H elimination of alkoxidoiridium species generated from a hydroxido ligand was discussed with relevant to hydrogen evolution from aliphatic alcohols catalyzed by cyclometalated iridium complexes [17]. Notably, the isolable hydroxido complex 2 was found to undergo cyanide transfer from cyanohydrins in an analogous fashion to the hydride transfer (Scheme 5). Monitoring the reaction of 2 with 1 equivalent of mandelonitrile in CD2Cl2 at room temperature by 1H NMR revealed that the hydroxido moiety was fully consumed within 30 min and a new cyanidoiridium complex 6 was formed in preference to the hydride transfer product 5 with the ratio of 96:4. The same complex 6 could be synthesized quantitatively by treatment of 2 with an equimolar amount of acetone cyanohydrin in CH2Cl2 for 30 min at room temperature. The product was unambiguously characterized by spectroscopic methods and elemental analysis. The cyanido ligand was identified by a 13C NMR signal at 121.3 ppm and a CN stretching absorption at 2103 cm−1 in the IR spectrum. Single crystal X-ray analysis also confirmed a typical half-sandwich structure of 6 as shown in Figure 2 (right). The Ir–C and C–N distances of 2.005(10) and 1.171(14) Å were nearly identical to those of 1.990(8) and 1.146(9) Å in a related cyanidoiridium complex having a TsDPEN ligand [18].
Considering the homologous hydride and cyanide transfer processes from alcoholic compounds, we envisioned that the cyanidoiridium complex will be able to promote hydrocyanation of aldehydes. In the trial reaction of benzaldehyde (0.5 mmol) with 10 equiv of acetone cyanohydrin using 10 mol % of 6 in 1,4-dioxane at 30 °C, the expected product, mandelonitrile, was reasonably formed in 69% yield after 12 h (Scheme 6). Hydrocyanation using acetone cyanohydrin is an attractive transformation without using hazardous HCN and could be operated without special setups [19,20]. Aside from successful applications in which base and Lewis acid catalysts and biocatalysts have been utilized for transfer hydrocyanation from cyanohydrin to aldehydes [21,22,23,24,25,26,27,28,29,30,31,32,33,34], transition metal-based cyanido complexes can be regarded as potential catalyst candidates to advance the HCN-free process.

3. Materials and Methods

3.1. General Information

All manipulations of oxygen and moisture-sensitive materials were performed under a purified argon atmosphere using standard Schlenk techniques. Solvents were purchased from Kanto Chemical Co., Inc. (Tokyo, Japan) and dried by refluxing over sodium benzophenone ketyl (THF, 1,4-dioxane, and diethyl ether), P2O5 (CH3CN and CH2Cl2), or CaH2 (2-propanol), and distilled under argon before use. Chloroform-d1 was used as delivered. Other deuterated solvents were degassed by three freeze-pump-thaw cycles and purified by trap-to-trap distillation after being dried with CaH2 (THF-d8) or P2O5 (CD2Cl2). Benzaldehyde and acetone cyanohydrin were purchased from Tokyo Chemical Industry Co., Ltd. (Tokyo, Japan), degassed, and stored under argon atmosphere. The other reagents were purchased from Sigma-Aldrich Co. LLC. (St. Louis, MO, USA), Nacalai Tesque Inc. (Kyoto, Japan), and FUJIFILM Wako Pure Chemical Corporation (Osaka, Japan), and used as delivered. 1H and 13C{1H} NMR spectra were recorded on a JEOL JNM-LA300 and JNM-ECX400 spectrometers (JEOL Ltd., Tokyo, Japan) at around 25 °C unless otherwise noted. The NMR chemical shifts were referenced to an external tetramethylsilane signal (0.0 ppm) by using the signals of residual proton impurities in the deuterated solvents for 1H and 13C{1H} NMR. IR spectra were recorded on a JASCO FT/IR-610 spectrometer (JASCO Corporation, Tokyo, Japan). Elemental analyses were carried out using a PE2400 Series II CHN analyser (PerkinElmer, Waltham, MA, USA).

3.2. X-Ray Crystal Structure Determination

All measurements were made on a Rigaku Saturn 70 (Rigaku Corporation, Tokyo, Japan) using graphite-monochromated Mo-Kα radiation (λ = 0.71070 Å) under nitrogen stream at 193 or 93 K. Single crystals suitable for X-ray analyses were mounted on glass fibers. Intensity data were collected for Lorentz-polarization effects and for absorption. Details of crystal and data collection parameters for the complexes 1, 2, 3, and 6 are summarized in Tables S1 and S2. Structure solution and refinements were performed with the CrystalStructure program package [35]. The heavy atom positions were determined by a direct program method (SIR92) [36], and the remaining non-hydrogen atoms were found by subsequent Fourier syntheses and refined by full-matrix least-squares techniques against F2 using the SHELXL-2014/7 program [37]. The OH hydrogen atom in 2 was found in the difference Fourier map, while the rest hydrogen atoms were placed at calculated positions; these hydrogen atoms were included in the refinements with a riding model.

4. Conclusions

In summary, the hydroxido-ligated Cp*Ir complex was successfully synthesized by employment of the nonprotic N-sulfonyldiamine chelate. The isolated mononuclear complex reacted with a range of protic compounds. In a striking contrast with the hydride transfer from 2-propanol, the specific cyanide transfer from cyanohydrins was demonstrated. The resulting cyanidoiridium complex can serve as the catalyst, which can deliver HCN from cyanohydrin to benzaldehyde. Further studies aimed at improving the catalytic performance, as well as exploration of the chemical properties of the related hydroxido complexes are underway.

Supplementary Materials

The following are available online at https://www.mdpi.com/2304-6740/7/10/125/s1. The CIFs and CheckCIFs; Experimental procedures and characterization of products; Tables of X-ray crystallographic data for 1, 2, 3, and 6, and NMR spectra.

Author Contributions

S.K. (Shoko Kamezaki) performed experiments and measurements. Y.K. designed the experiments, carried out the X-ray crystallography, and wrote the paper. S.K. (Shigeki Kuwata) supervised and reviewed the final manuscript. T.I. supervised the project.

Funding

This research received no external funding.

Acknowledgments

We are grateful for the support from the Japan Society of Promotion of Science (JSPS) and the Sumitomo Foundation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gilje, J.W.; Roesky, H.W. Structurally characterized organometallic hydroxo complexes of the f- and d-block metals. Chem. Rev. 1994, 94, 895–910. [Google Scholar] [CrossRef]
  2. Roesky, H.W.; Singh, S.; Yusuff, K.K.M.; Maguire, J.A.; Hosmane, N.S. Organometallic hydroxides of the transition elements. Chem. Rev. 2006, 106, 3813–3843. [Google Scholar] [CrossRef] [PubMed]
  3. Nelson, D.J.; Nolan, S.P. Hydroxide complexes of the late transition metal: Organometallic chemistry and catalysis. Coord. Chem. Rev. 2017, 353, 278–294. [Google Scholar] [CrossRef]
  4. Dorta, R.; Rozenberg, H.; Shimon, L.J.W.; Milstein, D. Oxidative addition of water to novel Ir(I) complexes stabilized by dimethyl sulfoxide ligands. J. Am. Chem. Soc. 2002, 124, 188–189. [Google Scholar] [CrossRef] [PubMed]
  5. Ozerov, O.V. Oxidative addition of water to transition metal complexes. Chem Soc. Rev. 2009, 38, 83–88. [Google Scholar] [CrossRef] [PubMed]
  6. Ikariya, T. Chemistry of concerto molecular catalysis based on the metal/NH bifunctionality. Bull. Chem. Soc. Jpn. 2011, 84, 1–16. [Google Scholar] [CrossRef]
  7. Kamezaki, S.; Akiyama, S.; Kayaki, Y.; Kuwata, S.; Ikariya, T. Asymmetric nitrile-hydration with bifunctional ruthenium catalysts bearing chiral N-sulfonyldiamine ligands. Tetrahedron Asymmetry 2010, 21, 1169–1172. [Google Scholar] [CrossRef]
  8. Dub, P.A.; Wang, H.; Matsunami, A.; Gridnev, I.D.; Kuwata, S.; Ikariya, T.C.-F. Bond breaking through aromatic nucleophilic substitution with a hydroxy ligand mediated via water bifunctional activation. Bull. Chem. Soc. Jpn. 2013, 86, 557–568. [Google Scholar] [CrossRef]
  9. Ritter, J.C.M.; Bergman, R.G. The mechanism of addition of an Ir–OH bond to ethylene. Catalytic tandem activation by two [η5-Cp*(Ph)IrPMe3]+ complex fragments. J. Am. Chem. Soc. 1997, 119, 2580–2581. [Google Scholar] [CrossRef]
  10. Hetterscheid, D.G.H.; Reek, J.N.H. Me2–NHC based robust Ir catalyst for efficient water oxidation. Chem. Commun. 2011, 47, 2712–2714. [Google Scholar] [CrossRef]
  11. Hintermair, U.; Hashmi, S.M.; Elimelech, M.; Crabtree, R.H. Particle formation during oxidation catalysis with Cp* iridium complexes. J. Am. Chem. Soc. 2012, 134, 9785–9795. [Google Scholar] [CrossRef] [PubMed]
  12. Hintermair, U.; Sheehan, S.W.; Parent, A.R.; Ess, D.H.; Richens, D.T.; Vaccaro, P.H.; Brudvig, G.W.; Crabtree, R.H. Precursor transformation during molecular oxidation catalysis with organometallic iridium complexes. J. Am. Chem. Soc. 2013, 135, 10837–10851. [Google Scholar] [CrossRef] [PubMed]
  13. Diaz-Morales, O.; Hersbach, T.J.P.; Hetterscheid, D.G.H.; Reek, J.N.H.; Koper, M.T.M. Electrochemical ans dpectroelectrochemical characterization of an iridium-based molecular catalyst for water splitting: Turnover frequencies, stability, and electrolyte effects. J. Am. Chem. Soc. 2014, 136, 10432–10439. [Google Scholar] [CrossRef] [PubMed]
  14. Shirai, S.-Y.; Nara, H.; Kayaki, Y.; Ikariya, T. Remarkable positive effect of silver salts on asymmetric hydrogenation of acyclic imines with Cp*Ir complexes bearing chiral N-sulfonylated diamine ligands. Organometallics 2009, 28, 802–809. [Google Scholar] [CrossRef]
  15. Bordwell, F.G. Equilibrium acidities in dimethyl sulfoxide solution. Acc. Chem. Res. 1988, 21, 456–463. [Google Scholar] [CrossRef]
  16. Chang, H.-C.; Chang, Y.-F.; Lin, S.-H.; Lin, T.-H.; Lee, W.-Z. Ambient stable cyanomethylcopper(III) complex: A strong Cu–Csp3 bond supported by a PS3-tripodal chelator. Inorg. Chem. 2019, 58, 22–26. [Google Scholar] [CrossRef]
  17. Maenaka, Y.; Suenobu, T.; Fukuzumi, S. Hydrogen evolution from aliphatic alcohols and 1,4-selective hydrogenation of NAD+ Catalyzed by a [C,N] and a [C,C] cyclometalated organoiridium complex at room temperature in water. J. Am. Chem. Soc. 2012, 134, 9417–9427. [Google Scholar] [CrossRef]
  18. Letko, C.S.; Heiden, Z.M.; Rauchfuss, T.B.; Wilson, S.R. Coordination chemistry of the soft chiral lewis acid [Cp*Ir(TsDPEN)]+. Inorg. Chem. 2011, 50, 5558–5566. [Google Scholar] [CrossRef]
  19. Merino, P. CN addition to C=O and C=N bonds. In Comprehensive Organic Synthesis, 2nd ed.; Knochel, P., Molander, G.A., Eds.; Elsevier: Amsterdam, The Netherlands, 2014; Volume 1, pp. 697–750. [Google Scholar]
  20. Ye, F.; Chen, J.; Ritter, T. Rh-catalyzed anti-markovnikov hydrocyanation of terminal alkynes. J. Am. Chem. Soc. 2017, 139, 7184–7187. [Google Scholar] [CrossRef]
  21. Kobayashi, Y.; Hayashi, H.; Miyaji, K.; Inoue, S. Asymmetric transcyanohydrination. Chem. Lett. 1986, 15, 931–934. [Google Scholar] [CrossRef]
  22. Mori, A.; Inoue, S. A novel rate enhancement in titanium and zirconium alkoxides mediated cyano group transfers by the addition of a salycylal type schiff base, dl-3-(2-Hydroxy-1-naphthylidene)-imino-ε-caprolactam. A neighboring Amide Effect. Chem. Lett. 1991, 20, 145–148. [Google Scholar] [CrossRef]
  23. Ohno, H.; Mori, A.; Inoue, S. Lanthanoid(III) alkoxides as novel catalysts for a rapid transhydrocyanation from acetone cyanohydrin to aldehydes and ketones. Chem. Lett. 1993, 22, 375–378. [Google Scholar] [CrossRef]
  24. Kawasaki, Y.; Fujii, A.; Nakano, Y.; Sakaguchi, S.; Ishii, Y. Acetylcyanation of aldehydes with acetone cyanohydrin and isopropenyl acetate by Cp*2Sm(thf)2. J. Org. Chem. 1999, 64, 4214–4216. [Google Scholar] [CrossRef]
  25. Ooi, T.; Takaya, K.; Miura, T.; Maruoka, K. Zr(OBut)4 as a new promoter for the meerwein-ponndorf-verley alkynylation and cyanation of aldehydes. Synlett 2000, 2000, 69–70. [Google Scholar]
  26. Yanagisawa, A.; Matsumoto, T.; Kushihara, N.; Yoshida, K. Dibutyltin dimethoxide-catalyzed cyano transfer to aldehydes and imines. Adv. Synth. Catal. 2010, 352, 2918–2922. [Google Scholar] [CrossRef]
  27. Klempier, N.; Griengl, H.; Hayn, M. Aliphatic (S)-cyanohydrins by enzyme catalyzed synthesis. Tetrahedron Lett. 1993, 34, 4769–4772. [Google Scholar] [CrossRef]
  28. Nanda, S.; Kato, Y.; Asano, Y. A new (R)-hydroxynitrile lyase from Prunus mume: Asymmetric synthesis of cyanohydrins. Tetrahedron 2005, 61, 10908–10916. [Google Scholar] [CrossRef]
  29. Paravidino, M.; Sorgedrager, M.J.; Orru, R.V.A.; Hanefeld, U. Activity and enantioselectivity of the hydroxynitrile lyase MeHNL in dry organic solvents. Chem. Eur. J. 2010, 16, 7596–7604. [Google Scholar] [CrossRef]
  30. Ooi, T.; Takaya, K.; Miura, T.; Ichikawa, H.; Maruoka, K. Chiral zirconium alkoxides-mediated asymmetric meerwein-ponndorf-verley cyanation of aldehydes. Synlett 2000, 2000, 1133–1134. [Google Scholar] [CrossRef]
  31. Ooi, T.; Miura, T.; Takaya, K.; Ichikawa, H.; Maruoka, K. Zr(OBut)4 as an effective promoter for the meerwein-ponndorf-verley alkynylation and cyanation of aldehydes: Development of new asymmetric cyanohydrin synthesis. Tetrahedron 2001, 57, 867–873. [Google Scholar] [CrossRef]
  32. Watanabe, A.; Matsumoto, K.; Shimada, Y.; Katsuki, T. Oxovanadium(V)-catalyzed enantioselective meerwein-ponndorf-verley cyanation of aldehydes using acetone cyanohydrin. Tetrahedron Lett. 2004, 45, 6229–6233. [Google Scholar] [CrossRef]
  33. Takaki, J.; Egami, H.; Matsumoto, K.; Saito, B.; Katsuki, T. Vanadium-catalyzed asymmetric transcyanation of aliphatic aldehydes with acetone cyanohydrin. Chem. Lett. 2008, 37, 502–503. [Google Scholar] [CrossRef]
  34. Sakai, Y.; Mitote, J.; Matsumoto, K.; Katsuki, T. Room-Temperature synthesis of enantioenriched non-protected cyanohydrins using vanadium(salalen) catalyst. Chem. Commun. 2010, 46, 5787–5789. [Google Scholar] [CrossRef] [PubMed]
  35. CrystalStructure 4.1: Crystal Structure Analysis Package; Rigaku Coorporation: Tokyo, Japan, 2015.
  36. Altomare, A.; Cascarano, G.; Giacovazzo, C.; Guagliardi, A.; Burla, M.; Polidori, G.; Camalli, M. SIR92—A program for automatic solution of crystal structures by direct methods. J. Appl. Cryst. 1994, 27, 435. [Google Scholar] [CrossRef]
  37. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]

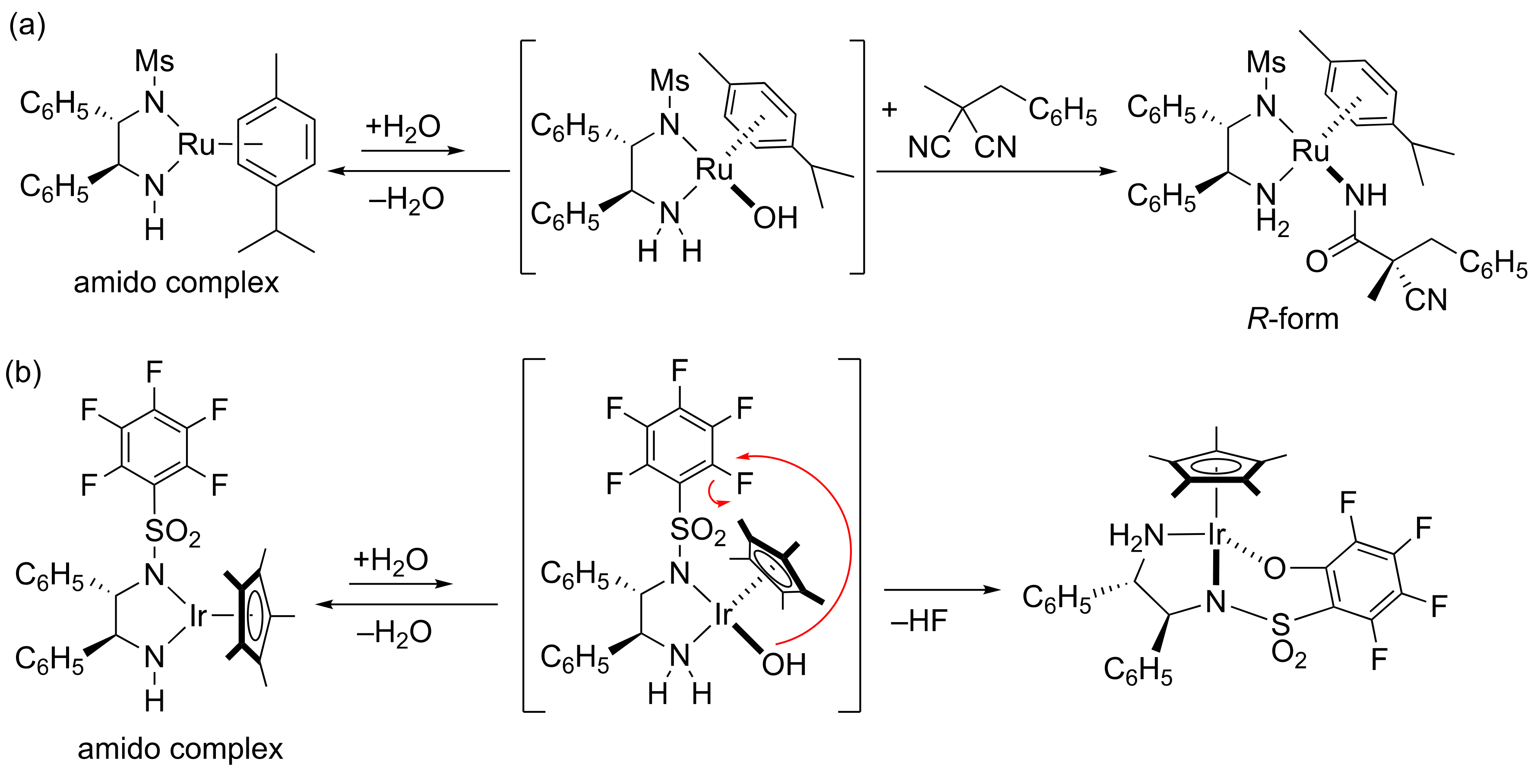

Scheme 1. Transformations via hydroxido complexes generated from amido–Ru (a) and –Ir (b) complexes in the presence of H2O.
Scheme 1. Transformations via hydroxido complexes generated from amido–Ru (a) and –Ir (b) complexes in the presence of H2O.
Inorganics 07 00125 sch001

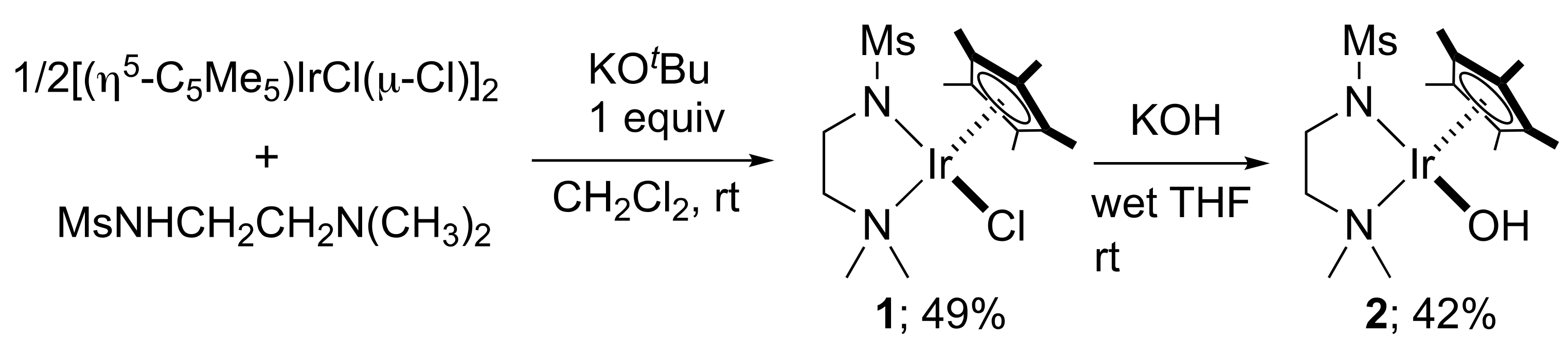

Scheme 2. Synthesis of hydroxidoiridium 2 derived from MsNHCH2CH2NMe2.
Scheme 2. Synthesis of hydroxidoiridium 2 derived from MsNHCH2CH2NMe2.
Inorganics 07 00125 sch002

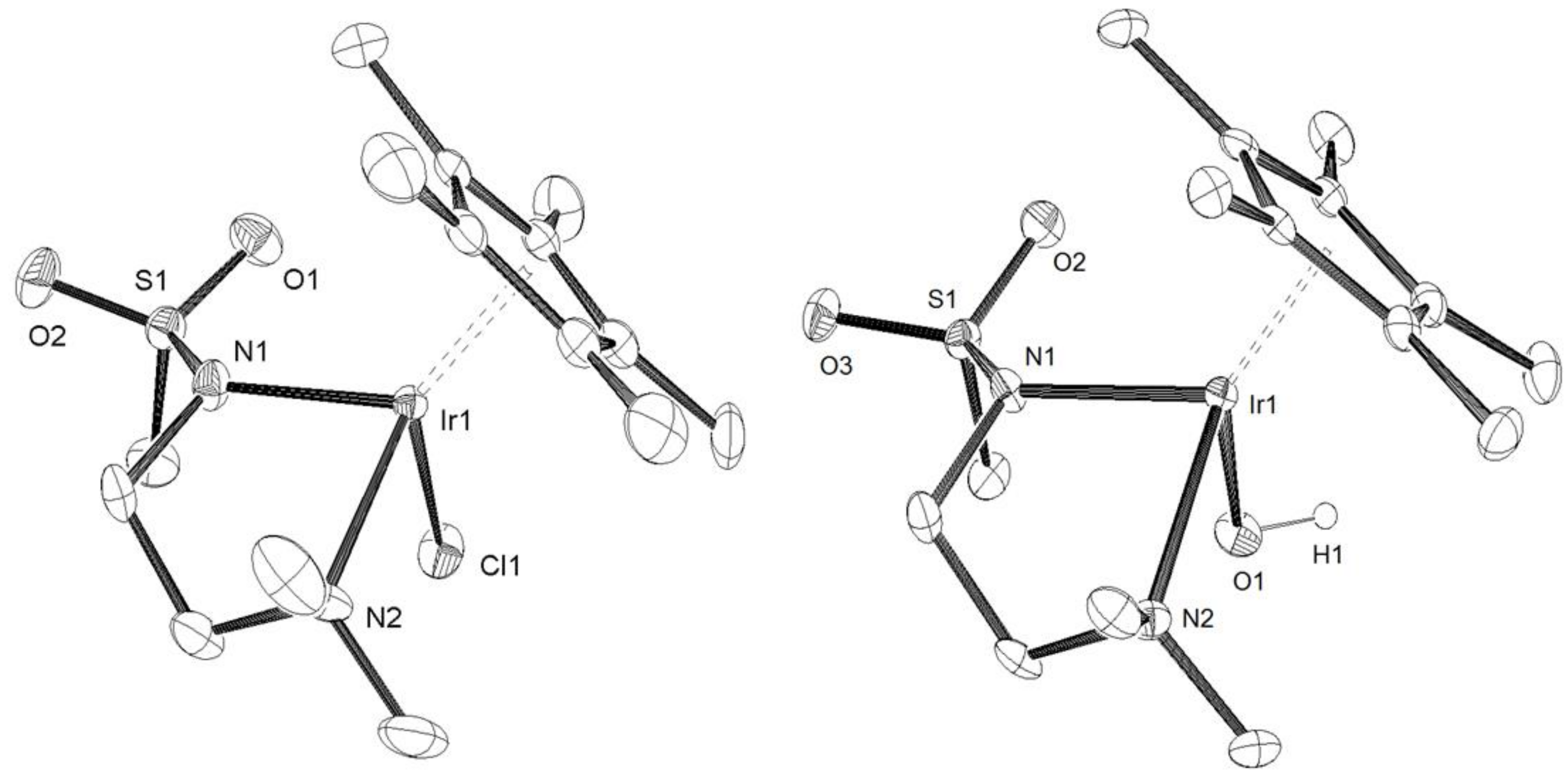

Figure 1. ORTEP drawings of 1 (left) and 2 (right). Hydrogen atoms other than the OH ligand in 2 are omitted for clarity, and the ellipsoids represent 30% probability.
Figure 1. ORTEP drawings of 1 (left) and 2 (right). Hydrogen atoms other than the OH ligand in 2 are omitted for clarity, and the ellipsoids represent 30% probability.
Inorganics 07 00125 g001

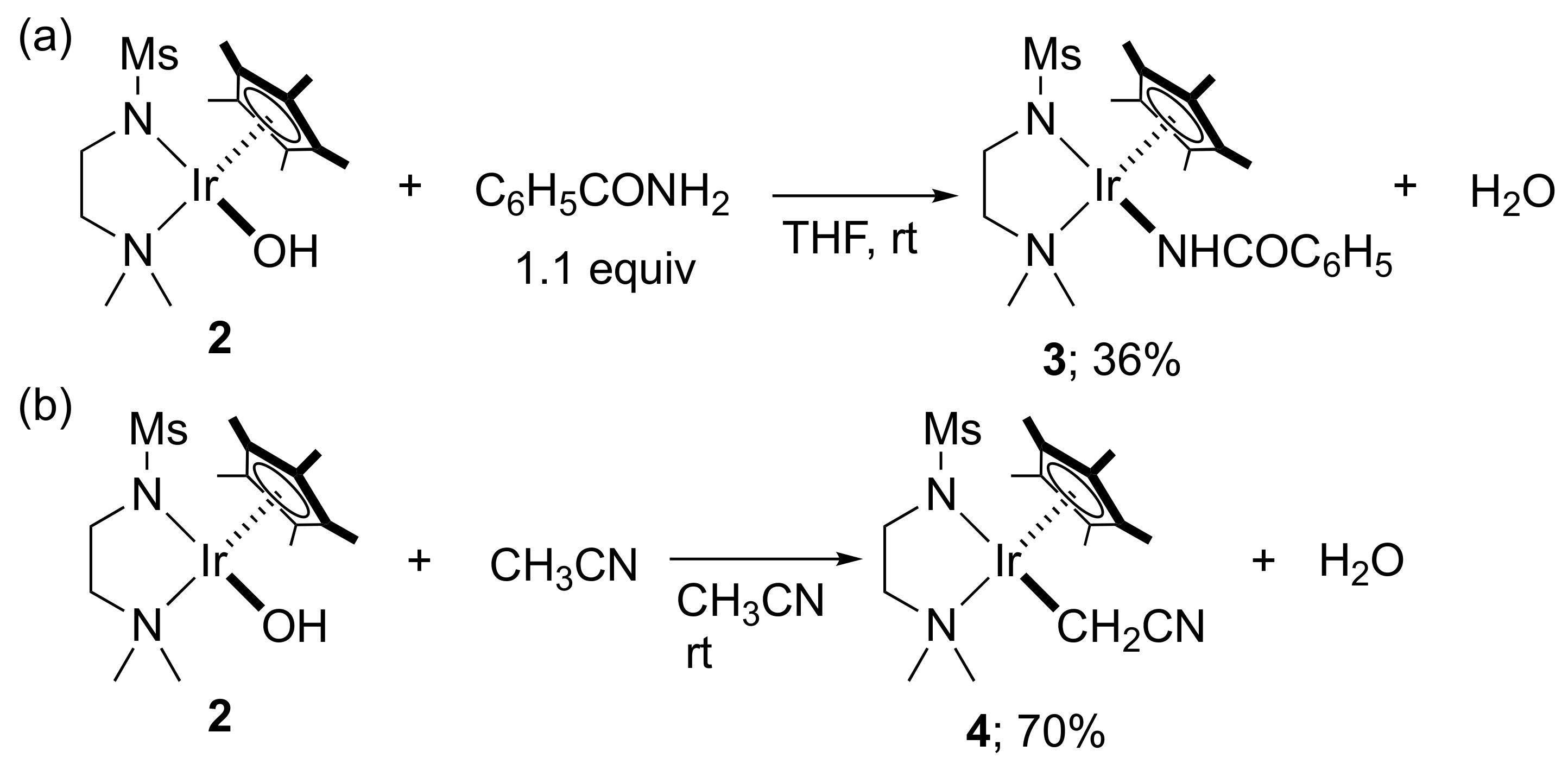

Scheme 3. Deprotonation of benzamide (a) and acetonitrile (b) with 2.
Scheme 3. Deprotonation of benzamide (a) and acetonitrile (b) with 2.
Inorganics 07 00125 sch003

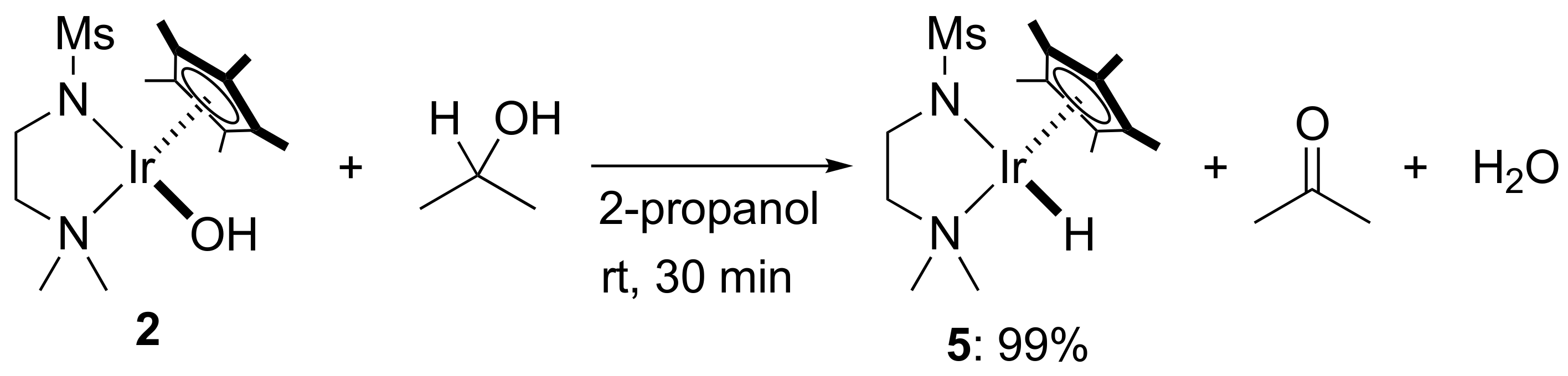

Scheme 4. Hydrogen transfer reaction of 2 in 2-propanol.
Scheme 4. Hydrogen transfer reaction of 2 in 2-propanol.
Inorganics 07 00125 sch004

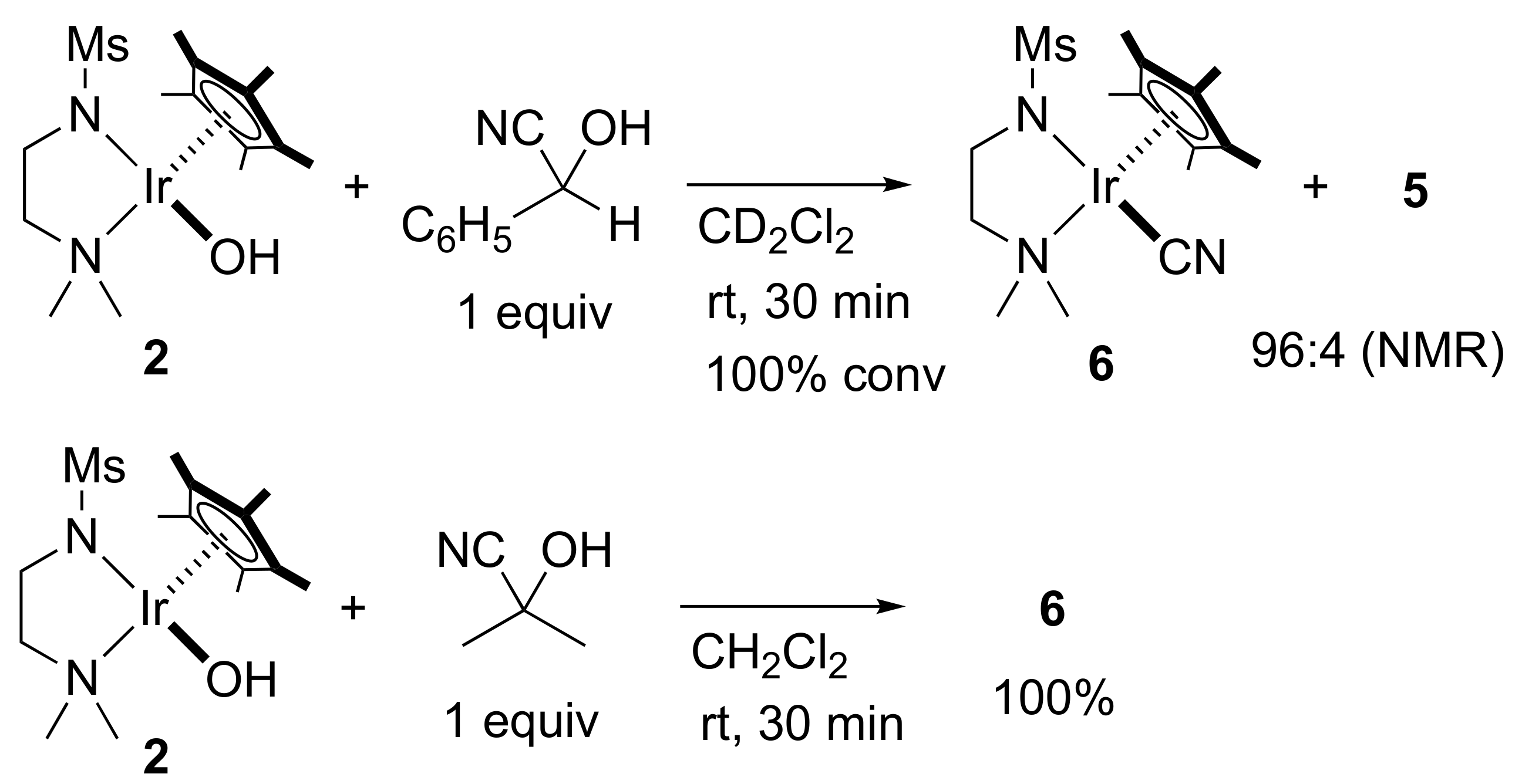

Scheme 5. Cyanide transfer from cyanohydrins using 2.
Scheme 5. Cyanide transfer from cyanohydrins using 2.
Inorganics 07 00125 sch005

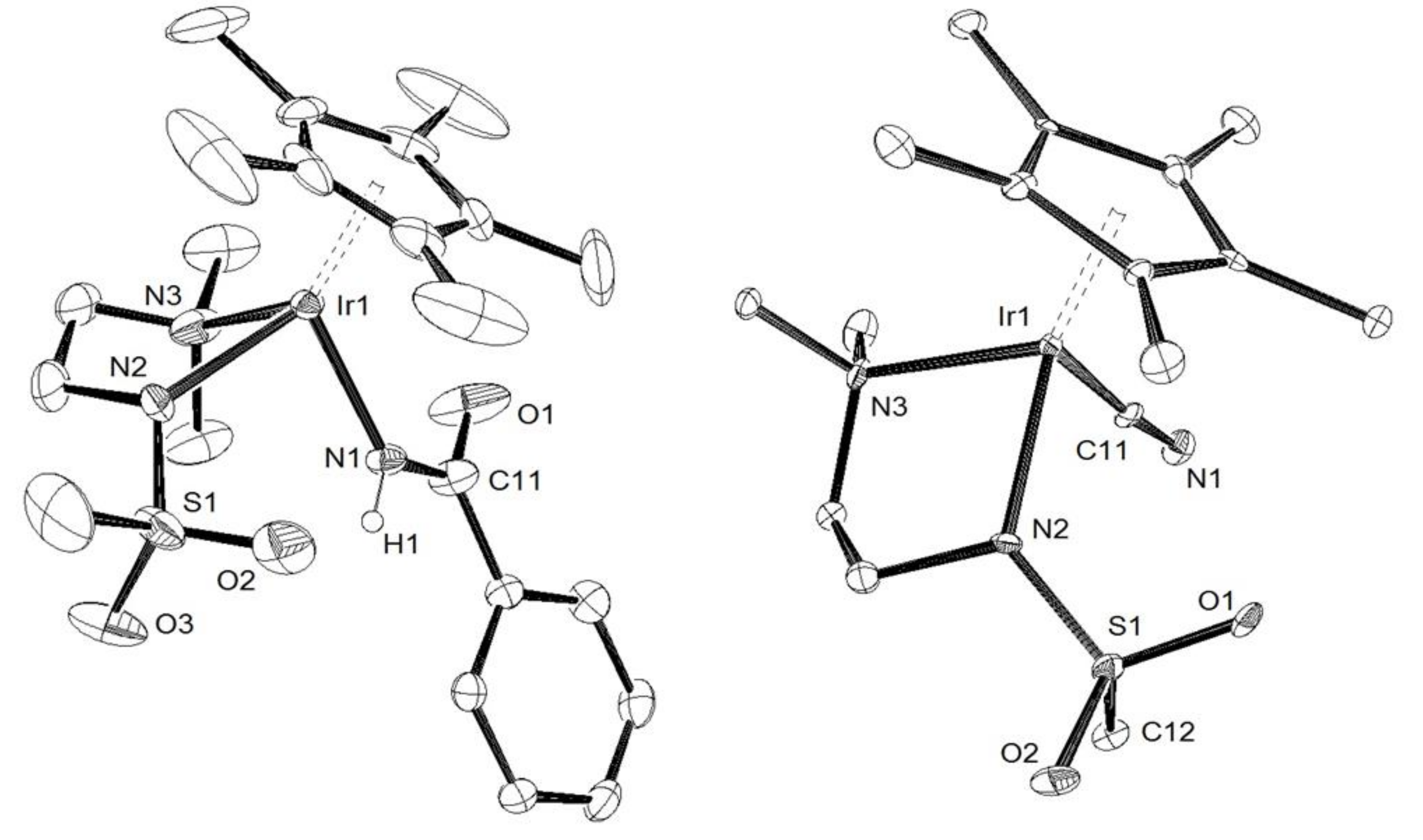

Figure 2. ORTEP drawings of 3 (left) and 6 (right). Hydrogen atoms are omitted for clarity, and the ellipsoids represent 30% probability.
Figure 2. ORTEP drawings of 3 (left) and 6 (right). Hydrogen atoms are omitted for clarity, and the ellipsoids represent 30% probability.
Inorganics 07 00125 g002

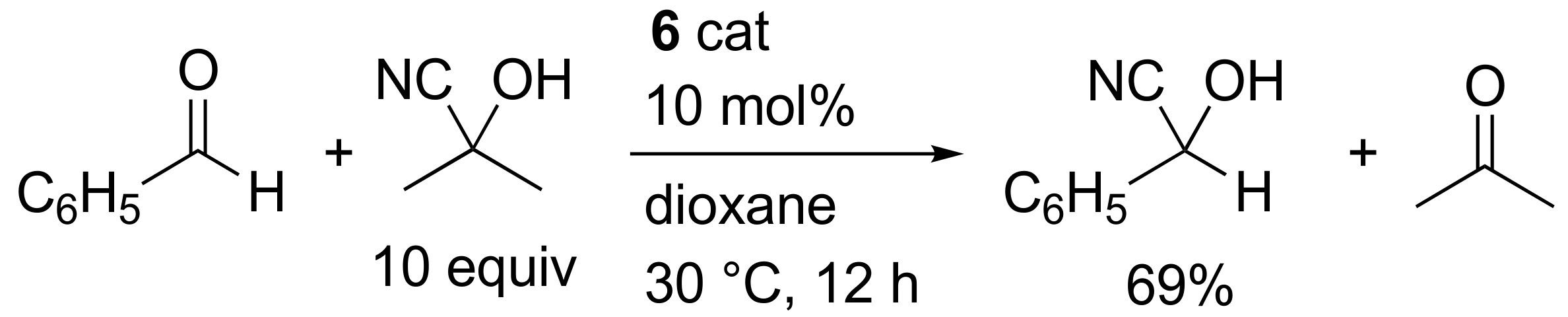

Scheme 6. Transfer hydrocyanation of benzaldehyde with acetone cyanohydrin catalyzed by 6.
Scheme 6. Transfer hydrocyanation of benzaldehyde with acetone cyanohydrin catalyzed by 6.
Inorganics 07 00125 sch006
