[2 × 2] Molecular Grids of Ni(II) and Zn(II) with Redox-Active 1,4-Pyrazine-Bis(thiosemicarbazone) Ligands

Department für Chemie, Institut für Anorganische Chemie, Universität zu Köln, Greinstraße 6, D-50939 Köln, Germany
Department für Chemie, Institut für Biochemie, Universität zu Köln, Otto-Fischer-Str. 12-14, D-50674 Köln, Germany
Department für Chemie, Zentrum für Massenspektrometrie, Institut für Organische Chemie, Universität zu Köln Greinstraße 4, D-50939 Köln, Germany
Department für Chemie, Institut für Physikalische Chemie, Universität zu Köln, Luxemburger Str. 116, 50939 Köln, Germany
Author to whom correspondence should be addressed.
Inorganics 2018, 6(2), 51;
Submission received: 19 April 2018 / Revised: 15 May 2018 / Accepted: 17 May 2018 / Published: 21 May 2018
(This article belongs to the Special Issue First-Row Transition Metal Complexes)


Tetranuclear complexes [M4(LR)4] with M = Ni(II) or Zn(II), with a [2 × 2] grid-type structure, were assembled in good yields and purity from the easily accessible but unprecedented pyrazine-bridged bis(thiosemicarbazone) protoligands (ligand precursors) H2LR (1,4-pyrazine-2,5-bis(R-carbaldehyde-thiosemicarbazone); R = Me, Et, iPr, or Ph). The complexes were characterised in solution by NMR, MS, IR, and UV-Vis absorption spectroscopy and (spectro)electrochemical methods. HR-MS spectra unequivocally reveal that the tetranuclear species are very stable in solution and any measurements represent these species. Only at higher temperatures (fragmentation in solution: MS and in the solid: TG-DTA) or upon the addition of protons (acidic UV-Vis titrations) can the tetrameric entities be decomposed. Single crystal XRD measurement remained preliminary. Rapid loss of co-crystallised solvent molecules within the [2 × 2] grid-type structures resulted in crystals of very poor quality, but the results were qualitatively in line with spectroscopy, electrochemistry, and quantum chemical (DFT) calculations. IR and NMR spectroscopy point clearly to a thiolate coordination of dianionic (deprotonated) ligands. The electrochemistry reveals four electronically coupled and reversible one-electron reductions centred largely at the pyrazine bridges. EPR and UV-Vis spectroelectrochemical measurements in combination with DFT calculation support the assignment.

Graphical Abstract

1. Introduction

Thiosemicarbazons and their metal complexes are studied intensely since the 1950s, mainly for their interesting biological properties. Antitumor, antibacterial, antiviral, and antifungal effects have been reported [1,2,3,4,5,6,7,8,9,10,11]. A general formula for a thiosemicarbazone (Scheme 1A) reveals a chelate N^S binding pocket for the coordination to metals. However, many of the so far reported thiosemicarbazones carry a heteroaryl substituent R. The frequently used 2-pyridyl group thus opens the possibility of a tridentate NPy–N–S coordination with two five-ring chelates on the metal (Scheme 1B) [7,8,9,10].
Bi- or oligonuclear transition metal complexes of thiosemicarbazone ligands have been obtained frequently through S-bridging of the thiosemicarbazone ligands [3,4,8,12,13,14,15,16,17,18,19,20]. Systematic formation of bi- or oligonuclear complexes through ligand design has successfully used functionalised mono-thiosemicarbazone ligands, such as the 2-(di(pyridyl-2-yl)thiosemicarbazone [13,21] or bis(thiosemicarbazone) ligands [4,5,9,20,21,22,23,24,25,26,27]. For example, pyridine-2,6-bis(thiosemicarbazones) (Scheme 1C) have been synthesised to provide a potential S^N^N^N^S coordination for the metal [4,10,22,28,29] and were found to form binuclear complexes through S-bridging [22,29], but they largely fail to bridge two metal centres due to their preference for multi-dentate binding [4,10,22,28].
Remarkably, among the arene bis(thiosemicarbazones) ligands, there are only a few in which bifunctional heterocyclic arene units directly connect two (M‒arene‒M) or more metals. The only examples are some 1,2,4-triazole-bridged cyclometalated Pd or Pt complexes [25,26,27] and three binuclear pyrazole-bridged Co(II), Ni(II), and Zn(II) complexes, which have not been structurally characterised (XRD) [30]. Interestingly, the above-mentioned 1,2,4-triazole-brigded bis(thiosemicarbazone) ligands frequently tend to form binuclear Pt(II) or Pd(II) complexes showing the S-bridging mode [31] rather than an M‒N1(triazole)N2‒M or M‒N1(triazole)N4‒M bridge [26,31].
This brought us to the idea to synthesise the potentially bridging 1,4-pyrazine-bis(thiosemicarbazone) ligands shown in Scheme 2 and we were amazed that this ligand motive has not been reported before. In contrast to this, 1,4-pyrazine-mono-thiosemicarbazone ligands and complexes have been frequently reported [32,33,34,35,36,37,38] including the application as topoisomerase IIa inhibitor [36].
1,4-Pyrazine has previously shown to be a very suitable ligand to bridge two metal centres and provide effective electronic coupling between the two atoms [39,40,41,42]. The Creutz-Taube ion [(NH3)5Ru(µ-1,4-pyrazine)Ru(NH3)5]5+ is probably the most prominent example for this [40,42]. Our idea was to combine the interesting electronic properties of 1,4-pyrazine with the stable binding of the tridentate arene-thiosemicarbazone framework (Scheme 2).
Having thus synthesised four new 1,4-pyrazine-bridged bis(thiosemicarbazones) H2LR (R = Me, Et, iPr, Ph) (Scheme 2), we reacted them with Ni(II) or Zn(II) salts to explore their coordination chemistry. We obtained tetranuclear complexes [M4(LR)4] (M = Ni or Zn) with a [2 × 2] grid-type structure in high yields (Scheme 2). Similarly, so-called [2 × 2] metallogrid like complexes have been synthesised using suitable multitopic ligands [43,44]. Many of them contain the heteroaromatic central metal–metal bridging units pyrimidine [43,44,45,46,47,48], or pyrazolate [43,44,49,50,51,52]. The use of s-triazine [43] and pyridazine [43,44] as a central moiety has been frequently reported, while examples with imidazole [52,53,54], tetrazine [55,56], and 1,4-pyrazine [45,46,57,58,59,60] are scarce. These tetranuclear complexes have found interest from their magnetic and redox properties [41,43,44,51,59,60].
In this contribution, we report the synthesis of four new 1,4-pyrazine-bridged bis(thiosemicarbazones) H2LR and their tetranuclear complexes [M4(LR)4] (M = Ni or Zn). Detailed spectroscopic and electrochemical characterisation reveals that a number of specific topics render these new metallosquares remarkable.

2. Results and Discussion

2.1. Synthesis and Characterisation

Synthesis of the protoligands (protonated ligand precursors) H2LR. For the synthesis of the pyrazine-2,5-carbaldehydes (R = Me, Et, iPr, or Ph), we modified a literature procedure [61] converting aldehydes to the corresponding radicals by a Fenton type reaction (Scheme 3 left), and 1,4-pyrazine was then added (details in the Supplementary Materials). After formation the pyrazine-2,5-carbaldehydes precipitate from the reaction, yields were only moderate (~35%). The yellow pyrazine-2,5-carbaldehydes were reacted with thiosemicarbazide (Scheme 3, right) to produce the bis(thiosemicarbazone) protoligands H2LR in good yield (63–90%).
Synthesis and analysis of the complexes. The protoligands H2LR were dissolved in DMA (N,N-dimethylacetamide) and KOH dissolved in EtOH was added. This mixture was layered carefully using a 0.01 M solution of [Zn(acac)2] (acac = acetylacetonate) dissolved in MeCN. From many solvents, we tried DMA was best to prevent any precipitation during this procedure. Careful crystallisation over one or two weeks yielded red microcrystalline materials (details in the experimental section). Corresponding reactions using Ni(BF4)2 yielded dark blue materials. Yields for the eight new compounds were good (45–75%), and the solubility of the products in organic solvents was generally low; they were air- and moisture-stable. Elemental analysis gave M:L ratios of 1:1 in the products, and the anionic thiolate form of the ligand was confirmed by IR spectroscopy. For example, the azoN–H function disappeared, and strong vibrations in the range 1200 to 1400 cm−1 represent the increasing double bond character in the –N=C(S)(NH2) unit of the deprotonated ligand [9]. Consequently, the C=S stretching mode shifts from about 840 cm−1 to values ranging from 730 to 780 cm−1, indicative of the coordinated thiolate form in the complexes. NMR spectroscopy was carried out on the protoligands H2LR but failed on most of the Zn(II) complexes due to low solubility. For the Ni(II) derivatives, the paramagnetic behaviour precluded meaningful NMR experiments (figures in the Supplementary Materials).
Mass spectrometry unequivocally revealed the presence of tetranuclear complexes in solutions of [M4(LR)4] (Figure 1 and Figure 2). Positive ionisation mass spectra ESI(+)-MS of all samples in acetone show peaks corresponding to [[M4(LR)4]+H]+, [[M3(LR)3]+H]+, [[M2(LR)2]+H]+, and in some spectra even dicationic tetranuclear species [[M4(LR)4]+2H]2+ (Figure 2). Similar observations have been reported from related Ni4 [55,56,62,63,64,65,66] or Zn4 [58,59,66] [2 × 2] grids showing surprisingly high stability.

2.2. Properties of the Solids

TG-DTA measurements on the bulk solid materials are in line with the tetrameric character and reveal up to two molecules DMA and in all cases four molecules H2O adherent to the tetrameric units from recrystallisation (figures in the Supplementary Materials) in line with the elemental analyses (see Experimental Section). Up to about 250 °C, the volatile H2O and DMA molecules evaporate, followed by an exothermic decomposition cleaving the NH2C(S)N fragments, which can be concluded from a mass-loss of about 30–35%. Crystal and molecular structures could not be obtained yet. From the complexes, [M4(LR)4] single crystals were obtained and submitted to X-ray diffraction experiments. Unfortunately, most of the structure solutions were of low quality. High Rint values point to low crystal quality, which is probably due to solvent molecules in the lattice. The best obtained structure solution could be carried out for [Ni4(LiPr)4], details on the structure solution can be found in the Supplementary Materials.
The tetrameric molecular structure revealed by Figure 3 is fully in line with HR-MS, further spectroscopies, electrochemistry, and quantum chemical calculations (see later), which makes us confident that, although the structure solution is very poor, the structure is essentially correct.

2.3. UV-Vis Absorption Spectroscopy

The coordination of the protoligands H2LR to Ni(II) and Zn(II) under deprotonation can be also traced in the UV-Vis absorption spectra. While the protoligands H2LR having a –C(R)=N–NH–C(=S)NH2 configuration exhibit intense long-wavelength absorption maxima up to about 400 nm (Table S4 in the ESI), the Zn(II) complexes show markedly red-shifted intra-ligand absorptions up to 550 nm (Figure 4) in line with a (LR)2− –C(R)=N–N=C(–S)NH2 motive (compare Scheme 2).
These quite intense long-wavelength bands (ε > 20,000 M−1·cm−1) are also in line with the red colour of the Zn(II) containing materials. The maxima of the even more intense (ε > 40,000 M−1·cm−1) long-wavelength bands of the Ni(II) complexes exceed 600 nm (Figure 4) in line with the blue colour of the materials. Due to their similar appearance, the long-wavelength bands in both Zn(II) and Ni(II) complexes were assigned to intra-ligand absorptions. For the Ni(II) complexes additional absorptions can be observed as very long-wavelength shoulders around 700 nm, they might be assigned to nickel(d) to pyrazine(π*) metal-to-ligand charge transfer (MLCT) transitions.
To probe the stability of the compounds against acids UV-Vis titrations were carried out for [Zn4(LiPr)4] and [Ni4(LiPr)4]. To THF solutions of the complexes (4 × 10−5 mol in 2 mL: 22 mmol/L) aliquots of conc. acetic acid (HOAc) were added and spectral changes were recorded. Upon the addition of up to 12 aliquots (210 mmol), the long-wavelength bands at >500 nm largely bleach, while the intense bands at around 380 nm reveal a slight blue-shift and a slight gain in intensity (Figure S32 in the Supplementary Materials). Importantly, there are clearly isosbestic points and the spectra changes are completely reversed upon the addition of small amounts of solid KOH. Upon the addition of further amounts of HOAc both absorption bands vanish and the underlying transformation cannot be completely reversed. We assume that the stability of the tetranuclear species in solution decreases within the series [M4(LR)3(HLR)]+ >> [M4(LR)2(HLR)2]2+ > [M4(LR)(HLR)3]3+ > [M4(HLR)4]4+, but still the [M4(LR)4] complex can be reconstituted. The larger extent of protonation, e.g., to yield [M4(HLR)3(H2LR)]5+ probably leads to an irreversible disintegration. Unfortunately, the same tests in water, allowing for a quantitative description using the pKA value of HOAc and measuring the basicity of [M4(LR)4], were prevented by the poor solubility of the compounds in water.

2.4. Electrochemistry

The electrochemical behaviour of the protoligands and the complexes was studied by cyclic voltammetry (CV) and square-wave voltammetry (SQW). Figure 5 shows examples, Table 1 summarises the redox potentials. The tetranuclear complexes exhibit four consecutive one-electron reduction steps in the range of −1.4 to −2 V, which are completely reversible on the timescale of the experiment. In the same range, the protoligands H2LR show one reversible reduction. Thus, the pyrazine moiety seems largely to be the target for these reduction processes [33,39,40,42], although some variation of the potentials stems from the R substituents. In the tetranuclear complexes, we thus assign the first four waves to successive one-electron reduction of the four pyrazine moieties. We assume that the second reduction occurs to the pyrazine moiety opposite to the firstly reduced pyrazine group, similar to what has been described for the four Fe(II)/Fe(III) oxidation processes in the [2 × 2] grid [Fe4(L)4] (HL = 4-methyl-3,5-bis{6-(2,2′-bipyridyl)} pyrazole [51]. The differences between first and second reduction potentials (∆E) as well as between the third and fourth reduction potentials are around 110 mV, while the second and third reduction potentials differ about 300 mV. Remarkably, this is regardless of the incorporated metal. Unfortunately, the irreversibility of the second reductions for the protoligands H2LR precludes the exact calculation of the differences ∆E, but the values surely exceed 200 mV (Table 1).
We can conclude that, in the [2 × 2] grid arrangement of the tetranuclear complexes [M4(LR)4], the four pyrazine moieties are electronically connected, allowing one to determine four separate waves and thus the observation of three mixed-valent states. The stability constants KC = 10E/59mV) [40,42] are about 102 for the first product of reduction [M4(LR)3(LR•)]•− and about 105 for [M4(LR)2(LR•)2]2−. A metal-mediated electronic coupling through empty d orbitals can be ruled out since the values for Ni(II) having an empty dx2−y2 orbital and for Zn(II) having no empty d orbital are much the same. Instead, the four crystallographically and spectroscopically identical pyrazine moieties are electronically connected through spacial proximity, as has been reported for a number of rectangular [{Re(CO)3}4(µ-X)2(µ-L)2] (X = thiolate, alkoxide [67]; X/2 = 2,2′-bisbenzimidazolate [68] or octahydro-2,2′-bipyrimidine) [69] complexes with heteroaromatic bridging ligands such as 1,4-pyrazine or 4,4′-bipyridine. Depending on the plane-to-plane distance, the potential splitting ΔE for the pyrazine systems lie between 200 (larger than 5.5 Å) [68,69] and 450 mV (around 4 Å) [67]. Interestingly, even for the weakly coupled system (X/2 = 2,2′-bisbenzimidazolate) [68] with a 250 mV separation a weak intervalence charge transfer (IVCT) absorption was observed at 5350 cm−1 (1870 nm; ε = 150 M−1·cm−1) for the first reduced mixed-valent state, for stronger coupled systems having shorter ligand-to-ligand distances, these bands can be quite pronounced [67,68,70].
In the mononuclear Ga(III) complexes [Ga(L)2]+ containing two neighbouring pyrazine thiosemicarbazonate ligands, two ligand-centred one-electron reductions were observed at about −1.3 V and −1.5 V, respectively, with separations ΔE ~270 mV [33]. For the Fe(III) derivatives [Fe(L)2]+, the reductions lie at around −1.9 V and −2.3 V, respectively, revealing larger separation ΔE ~420 mV. Importantly, a first reduction of the [Fe(L)2]+ complexes can be assigned to a Fe(II)/Fe(III) couple, thus these ligand-centred reductions occur to neutral Fe(II) complexes [Fe(L)2] [33]. For these Ga and Fe complexes, third reduction waves have been observed at potentials of about −2.2 V (Ga) and −2.8 V (Fe), respectively, and a fourth reduction has been observed at around −2.5 V for the Ga derivatives. The third waves lie over 600 mV lower than the second, indicative of the second reduction of a pyrazine moiety [39,40]. For these complexes, the first two reductions occur thus successively to the two metal-connected pyrazine-thiosemicarbazone ligands, the third and fourth reduction waves represent the second reduction of these units [33]. The larger ΔE observed for the Fe(II) d6 low spin systems [33] points to an efficient electronic coupling of the two pyrazine moieties through empty metal d orbitals. However, for Ga(III) d10, such a mechanism can be ruled out. ΔE is smaller but still appreciable. Thus, also here, in line with our findings, a through-space electronic interaction can be postulated for the two pyrazine units.
The second reduction of the four pyrazine moieties in our complexes [M4(LR)4]4−[M4(LR)4]5−/6−/7−/8− are expected to occur at potentials approximately 600–700 mV lower (more negative) and were not detected unequivocally in our experiments due to the overlap with solvent and water (co-crystallised) discharge waves.
There are a number of irreversible oxidation waves at around +0.5 V both in the protoligands H2LR and the Zn complexes, which were assigned to oxidations at the thiol(ate) group of the thiosemicarbazone moiety. For the Ni(II) complexes, additional Ni(II)/Ni(III) couples were observed at even lower potentials. Due to the irreversible nature of all of these processes, the assignment remains preliminary.

2.5. Spectroelectrochemical UV-Vis Absorption and EPR Spectroscopy

UV-Vis absorption spectra were recorded during cathodic electrolysis of the two complexes [M4(LiPr)4] (M = Ni or Zn). For M = Ni, Figure 6 shows a continuous change of the spectra during the first two reduction steps (left part) with no evidence for a defined mixed-valent species [Ni4(LiPr)4]•−, especially no intervalence charge transfer (IVCT) band [39,40,42,67,68,70], in line with the far higher stability constant KC of 105 for [M4(LiPr)2(LiPr•)2]2− compared with 102 for [M4(LiPr)3(LiPr•)]•−. At −1.9 V, the observed process (first and second reduction), which goes along with a blue-shift of the two dominating bands at 605 (to 565 nm) and 392 (to 371 nm) and the appearance of a weaker double maximum at 694 and 635 nm is completed (Figure 6a).
Further reduction (third and fourth reduction) also results in continuous changes, such as the disappearance of the two long-wavelength weak absorptions and the red-shift of the two intense bands in the visible range (Figure 6b). Again, we found no evidence for a mixed-valent species [Ni4(LiPr)4]•3−, probably again due to the far higher stability of the [Ni4(LiPr)4]4− state. For the Zn derivative, the behaviour is very similar (spectra in the Supplementary Materials).
For the weakly coupled rectangular [{Re(CO)3}4(µ-X)2(µ-L)2]] (X/2 = 2,2’-bis-benzimidazolate [68] system with a 250 mV separation ∆E, a weak intervalence absorption band was observed at 5350 cm−1 (1870 nm; ε = 150 M−1·cm−1) for the first reduced mixed-valent state. At the same time, there are ligand mixed-valent systems containing similar ligand face-to-face moieties and pronounced separations ∆E, where no intervalence bands were detected [71,72].
A detailed look on our spectra reveals that isosbestic points are far from being perfect. This might be due to the fact that more than two species were observed, thus a weak hint for the mixed-valent species. At the same time, the spectra of the highly reduced species show some long-wavelength tailing, indicative of a precipitation of these highly charged complexes. In line with this, the full reversibility of the first four reduction processes through re-oxidation is only obtained upon long standing at 0 V.
X-band EPR spectra recorded during cathodic electrolysis of [Ni4(LiPr)4] at potentials between −1.5 and −1.9 V (first and second reduction) gave an isotropic signal at g = 2.016 with only 45 G total spectral width (Figure S40). This is in line with a pyrazine-centred radical complex, and no indication for a second reduced species was found.

2.6. Quantumchemical Calculations

DFT calculations were initiated to obtain insight on the energy and location of the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) of the complexes. First, we calculated the molecular structures of the complexes in the gas phase on (RI-)BP86/def-SV(P) level and refined some of the resulting structures on (RI-)BP86/def2-TZVP level. Frequency calculations were carried out in order to check for the absence of imaginary frequencies, which confirms an energetic minimum for the geometry. The calculated minimum geometries agree quite well with the experimental structures from HR-MS in solution and with the preliminary single crystal XRD results (Tables S5 and S6).
The calculated LUMOs (Figure 7a and Figure 8a) are largely centred on the pyrazine units in line with the EPR results but also the CNNCN chain of the thiosemicarbazonate contributes markedly, in line with the dependency of the reduction potentials on the R substituents. Importantly, there was no indication of an electronic coupling of the four pyrazine units, in line with the assumed electrostatic nature of the observed splitting of the four reduction waves.
The largest contributions to the calculated HOMOs come from the thiolate S atoms. However, while both S atoms contribute in the same way for the Zn(II) complex (Figure 7b), for the Ni(II) system d orbital contributions were visible in the electron density plots (Figure 8b) seemingly replacing one of the S atom contributions. This is in line with a d orbital control of the coordination in the case of d8 Ni(II) in contrast to the rather spherical coordination of d10 Zn(II) [73]. The nature of the calculated HOMOs is also in agreement with the assignment of the observed oxidation waves.

3. Experimental Section

3.1. Methods and Instrumentation

Elemental analysis was obtained using a HEKAtech CHNS EuroEA 3000 Analyzer (HEKAtech GmbH, Wegberg, Germany). The NMR spectra were recorded on a Bruker Avance II 300 MHz (Bruker, Rheinfelden, Germany) (1H: 300.13 MHz, 13C: 75.47 MHz)—double resonance (BBFO) 5 mm observe probehead with a z-gradient coil or on a Bruker Avance II 600 MHz spectrometer (Bruker, Rheinfelden, Germany) (1H: 600.13 MHz, 13C: 150.93 MHz, 15N: 60.83 MHz)—triple resonance (TBI) 5 mm inverse probehead with a z-gradient coil. The unambiguous assignment of the 1H, 13C, and 15N resonances was obtained from 1H COSY, 1H NOESY, gradient selected 1H, 13C HSQC, and HMBC, and gradient selected 1H and 15N HMBC experiments. All 2D NMR experiments were performed using standard pulse sequences from the Bruker pulse program library. Chemical shifts were relative to TMS for 1H and 13C and to CH3NO2 for 15N. The spectra analyses were performed by the Bruker TopSpin 3.2 software. UV-Vis absorption spectra were measured on Varian Cary50 Scan or Shimadzu UV-3600 photo spectrometers (Shimadzu Deutschland, Duisburg, Germany). Electrochemical experiments were carried out in 0.1 M THF solutions using a three-electrode configuration (glassy carbon working electrode, Pt counter electrode, and Ag/AgCl pseudo reference) and an Autolab PGSTAT30 potentiostat (Metrohm, Filderstadt, Germany) and function generator. The ferrocene/ferrocenium couple (FeCp2/FeCp2+) served as an internal reference. UV-Vis spectroelectrochemical measurements were performed with an optically transparent thin-layer electrochemical (OTTLE) cell [42]. EI-MS spectra were measured with a Finnigan MAT 900 S (MasCom, Bremen, Germany). ESI-MS spectra were recorded on a Bruker Daltonics Esquire 3000 plus (Bruker, Rheinfelden, Germany) and HRMS-ESI spectra were obtained on a Thermo Scientific LTQ Orbitrap XL and LTQ Orbitrap hybrid instrument (Thermo Fisher Scientific Waltham, MA, USA). Simulations were performed using ISOPRO 3.0 programme (M. Senko, download from https// FT-IR (Fourier transform infrared) analyses have been carried out using a Perkin Elmer-Spectrum 400 (PerkinElmer, Waltham, MA, USA) coupled with a Universal ATR Sampling Accessory in the 400–4000 cm−1 range. TG-DTA measurements were carried out using a TGA/DSC 1 STAR system by Mettler Toledo (Greifensee, Zürich, Schweiz). Single crystal structure XRD measurements were performed at 293(2) or 170(2) K using graphite-monochromatised Mo-Kα radiation (λ = 0.71073 Å) on IPDS II (STOE and Cie). The structures were solved by direct methods using SIR 2011 [74] or SIR 92 [75], and refinement was carried out with SHELXL 2013 [76] or SHELXL 97 [77] employing full-matrix least-squares methods on F2 with F02 ≥ 2σ(F02). The numerical absorption corrections using X-RED V1.22 (Stoe & Cie, 2001) [78,79] were performed after optimising the crystal shapes using X-SHAPE V1.06 (Stoe & Cie, 1999) [78,79]. Non-hydrogen atoms were refined with anisotropic displacement parameters. H atoms were included using appropriate riding models. The refined tetranuclear structures contained additional disordered solvate molecules. Because no reasonable split model was found, the data were corrected for disordered solvent using the SQUEEZE option in PLATON [80,81]. The Rint and the refined R1 and wR2 values were generally poor and A level alerts were found in Platon checkcif. Since this includes even data obtained at 170(2) K, we can ascribe this to the generally very low quality of the crystals. We assume that they rapidly decompose upon evaporation of the solvent molecules in the voids (see elemental analyses and thermogravimetric analyses). CCDC 1484512 ([Ni4(LMe)4]·H2O) 1484515 ([Ni4(LMe)4]), 1484516 ([Ni4(LEt)4]·H2O), 1484517 ([Ni4(LiPr)4]), 1435303 ([Zn4(LiPr)4]), and 1435304 ([Zn4(LPh)4]) contain the full crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via Selected single crystal structure determinations were carried out at the Swiss Light Source (SLS), Paul Scherrer Institute (PSI), Villigen, Switzerland, on beamline X06DA (PXIII, MAR225 CCD). Crystals were mounted in nylon loops and flash-cooled in liquid nitrogen. Data were collected at 100 K. The wavelength was tuned to 0.7205 Å and a Pilatus 2M detector was employed. Data were collected in two wedges of 120 degrees each with Chi angles on the PRIGo goniostat (PSI) [82] set to 0 and 30 degrees, respectively. Data were processed with XDS and XSCALE [83]. Computational details: Ground state electronic structure calculations on complexes were performed on the basis of density-functional theory (DFT) methods with resolution of identity coulomb approximation [84] using the TURBOMOLE 6.6 and 7.0 [85] program packages and the TMoleX 4.1 [86] user interface. For all atoms, the double-ξ-valence def-SVP [87] and the triple-ξ-valence def2-TZVP [88] basis sets were used with Becke’s gradient-corrected exchange-energy functional BP86 [89].

3.2. Syntheses

3.2.1. General

General information on materials and details on the synthesis of the pyrazine-2,5-carbaldehydes and the bis(thiosemicarbazones) H2LR (R = Me, Et, iPr, Ph) are provided in the Supplementary Materials.

3.2.2. Synthesis of the tetranuclear complexes [M4(LR)4]

General description: To the protoligands H2LR dissolved in DMA 0.01 M (1 equiv), we added a 0.044 M solution of KOH (0.2 equiv) in EtOH. This solution was layered carefully using 1 equiv of a 0.01 M solution of the corresponding metal salt (Ni(BF4)2 or [Zn(acac)2] in MeCN. The reaction mixtures were left to crystallise taking one to two weeks. The materials were filtered off and washed with water and dried at 70 °C or under vacuum. Despite this drying procedure, we found varying amounts of DMA and/or water in the elemental analyses, thermogravimetric analyses, and NMR spectra.
[Ni4(LMe)4]: Dark blue crystals. Yield: 82.6 mg (0.06 mmol, 45%). Anal. Calc. for [Ni4(LMe)4]·4DMA C56H84N36Ni4O4S8: C, 37.02; H, 4.66; N, 27.75; S, 14.12; Found: C, 37.25; H, 4.53; N, 27.71; S, 13.82%. MS (ESI, m/z): 1469 [M + H]+, FT-IR: 3435 w(br), 3279 m(br), 3107 m(br), 2923 w, 2869 w, 1595 s, 1541 s, 1493 m, 1385 s, 1352 s, 1288 s, 1223 m, 1196 w, 1150 s, 1126 s(br), 1029 w(br), 898 w(br), 786 m, 700 w, 592 w cm−1. UV-Vis (THF, λmax): 578, 385, 295 nm.
[Ni4(LEt)4]: Dark blue crystals. Yield: 148.2 mg (0.09 mmol, 75%). Anal. Calc. for [Ni4(LEt)4]·4DMA·4H2O C64H108N36Ni4O8S8: C, 38.41; H, 5.44; N, 25.20; S, 12.82; Found: C, 38.27; H, 5.44; N, 25.14; S, 12.57%. MS (ESI, m/z): 1581 [M + H]+, FT-IR: 3435 w(br), 3279 m(br), 3155 m(br), 2971 w, 2934 w, 2874 w, 1595 s, 1536 m, 1504 w, 1369 s, 1310 m, 1288 s, 1228 m, 1207 w, 1153 m, 1110 s(br), 1064 w, 1036 w, 1013 w, 942 m, 829 m, 754 w, 705 m, 592 m cm−1. UV-Vis (THF, λmax): 605, 444sh, 391, 294sh nm.
[Ni4(LiPr)4]: Dark blue crystals. Yield: 152.4 mg (0.09 mmol, 75%). Anal. Calc. for C56H80N32S8Ni4: C, 39.74; H, 4.76; N, 26.48; S, 15.15; Found: C, 39.68; H, 4.74; N, 26.24; S, 15.33%. MS (ESI, m/z): 1693 [M + H]+, FT-IR: 3462 w(br), 3274 m(br), 3149 m(br), 2966 w, 2928 w, 2874 w, 1585 s, 1520 w, 1498 w, 1461 w, 1358 s, 1272 s, 1223 m, 1171 w, 1110 s(br), 1035 w, 980 m, 759 m, 700 m, 587 w cm−1. UV-Vis (THF, λmax): 604, 575sh, 444sh, 413sh, 391, 240, 214 nm.
[Ni4(LPh)4]: Dark blue crystals. Yield: 122.8 mg (0.06 mmol, 50%). Anal. Calc. for C80H64N32Ni4S8: C, 48.90; H, 3.28; N, 22.81; S, 13.06; Found: C, 48.53; H, 3.48; N, 22.72; S, 12.79%. MS (ESI, m/z): 1965 [M + H]+, FT-IR: 3446 w(br), 3274 m(br), 3155 m(br), 1585 s, 1528 w, 1488 m, 1443 w, 1347 s(br), 1282 s, 1239 s, 1185 m, 1115 s(br), 958 m, 905 w, 845 w, 797 m, 737 m, 694 s, 645 w, 581 w, 548 w cm−1. UV-Vis (THF, λmax): 623, 585sh, 450sh, 421sh, 395, 277 nm.
[Zn4(LEt)4]: Dark red crystals. Yield: 112.5 mg (0.07 mmol, 56%). Anal. Calc. for [Zn4(LEt)4]·4DMA·4H2O C64H108N36O8S8Zn4: C, 37.91; H, 5.37; N, 24.87; S, 12.65; Found: C, 37.86; H, 5.35; N, 24.67; S, 12.37%. MS (ESI, m/z): 1607 [M + H]+, FT-IR: 3427 w(br), 3270 m(br), 3153 m(br), 2980 w, 2933 w, 2874 w, 1626 m, 1597 s, 1537 w, 1504 w, 1445 w, 1361 s, 1285 s, 1226 m, 1201 w, 1154 m, 1124 s(br), 1036 w, 935 m, 821 m, 741 s, 694 s, 589 m, 471 w cm−1. UV-Vis (THF, λmax): 551, 368, 277 nm.
[Zn4(LiPr)4]: Dark red crystals. Yield: 113.9 mg (0.07 mmol, 53%). Anal. Calc. for [Zn4(LiPr)4]·4DMA·4H2O C72H124N36O8S8Zn4: C, 40.41; H, 5.84; N, 23.56; S, 11.99; Found: C, 40.40; H, 5.75; N, 23.42; S, 11.59%. MS (ESI, m/z): 1719, 1721 [M + H]+, FT-IR: 3414 w, 3283 m(br), 3153 m(br), 2962 w, 2933 w, 2857 w, 1589 m, 1525 w, 1491 w, 1457 w, 1361 s, 1272 s, 1221 m, 1116 s(br), 1032 w, 973 w, 875 w, 838 w, 753 m, 694 m, 593 w, 517 w cm−1. UV-Vis (THF, λmax): 528, 360, 262 nm.
[Zn4(LPh)4]: Dark red crystals. Yield: 112.0 mg (0.06 mmol, 45%). Anal. Calc. for C80H64N32S8Zn4: C, 48.25; H, 3.24; N, 22.50; S, 12.88; Found: C, 48.27; H, 3.66; N, 22.48; S 12.65%. 1H-NMR (600 MHz, DMSO-d6) δ [ppm]: 7.74 (s, 8H, Hpyz), 7.64–7.55 (m, 40H, Hph), 6.78 (s, 16H, HNH2); MS (ESI, m/z): 1991, 1993 [M + H]+, FT-IR: 3443 w(br), 3275 w(br), 3148 w(br), 1592 m, 1496 w, 1373 s, 1293 s, 1234 s, 1183 w, 1112 s(br), 1028 w, 956 m, 846 w, 783 w, 736 w, 690 m, 610 w, 539 w cm−1. UV-Vis (THF, λmax): 532, 392, 253 nm.

4. Conclusions

Tetranuclear complexes [M4(LR)4] with M = Ni(II) or Zn(II), with a so-called [2 × 2] grid-type structure were assembled from the new and versatile pyrazine-bridged bis(thiosemicarbazone) protoligands H2LR (1,4-pyrazine-2,5-bis(R-carbaldehyde-thiosemicarbazone; R = Me, Et, iPr, or Ph) in good yields and purity.
HR-MS spectra unequivocally reveal that the tetranuclear species are very stable and any measurements in solution represent these species. Only at higher temperatures (fragmentation in MS) or upon addition of protons (acidic UV-Vis titrations), the tetrameric entities are decomposed. In the solid, they are stable up to 250 °C as revealed by TG-DTA measurements. TG-DTA also revealed rapid loss of co-crystallised solvent molecules within the [2 × 2] grid-type structures, which also resulted in a single crystal of very poor quality. Thus, single crystal XRD measurement remained preliminary. However, the results were qualitatively in line with spectroscopy, electrochemistry, and quantum chemical (DFT) calculations. IR spectroscopy points clearly to a thiolate coordination of dianionic (deprotonated) ligands. The electrochemistry reveals four electronically coupled and reversible one-electron reductions centred at the four pyrazine moieties. The data give no indication for a metal-mediated electronic coupling, thus ligand–ligand interaction through space (= supramolecular) was concluded for the pronounced splitting of the reduction waves (up to 300 mV). EPR and UV-Vis spectroelectrochemical measurements fail to detect specific spectra of the mixed-valent species [M4(LR)4]•− and [M4(LR)4]•3− indicative of relatively weak (largely electrostatic) coupling. DFT calculations support these assignments.
In future work, we will study the properties of these new materials in more detail. Especially, we will try to obtain better crystal and molecular structures from single-crystal XRD and explore potential applications, e.g., in multi-electron catalysis. Furthermore, we will expand the coordination chemistry of these new and easy-to-make 1,4-pyrazine-2,5-bis(thiosemicarbazone) ligands. Especially, the electronic connection of various low-valent metals through the 1,4-pyrazine unit might yield materials with interesting optoelectronic properties such as intense absorptions in the visible and NIR for light harvesting. Additionally, the cooperative effects of two connected metals in catalytic applications will be studied.

Supplementary Materials

The following are available online at (A) Experimental section details, (B) Figures S1–S40: NMR, MS, IR spectra, crystal and molecular structures, UV-Vis absorption spectra and voltammograms of complexes, Table S1: Selected crystallographic and structure refinement data for [M4(LR)4] (M = Ni or Zn) Tables S2 and S3: Selected bond lengths /Å and bond angles /° of Ni and Zn complexes, Table S4: Absorption maxima of the H2LR protoligands and the Zn and Ni complexes, Tables S5 and S6: Selected DFT-calculated and experimental bond lengths /Å and bond angles /° of Zn and Ni complexes. Tables S7–S13: Atom coordinates of calculated molecule structures of complexes [M4(LR)4] (M = Ni or Zn). (C) Cif and Checkcif file of the complexes.

Author Contributions

N.A. carried out synthesis and analysis of the compound. N.A., A.Kr., and U.B. collected data and solved and refined XRD datasets. A.S. performed the quantum chemical calculations. M.S. and M.K. carried out HR-MS spectroscopy. A.Kl. designed the project and wrote the manuscript. All authors have given approval to the final version of the manuscript.


We thank Ingo Pantenburg (University of Cologne) for crystal data collection and Daniela Naumann for her support with NMR measurement. Rainer Winter, University of Konstanz, is acknowledged for fruitful discussions. U.B. thanks the European Community’s Seventh Framework Programme (FP7/2007-2013) under BioStruct-X (grant agreement N°283570). The staff of the beamline X06SA at the Paul Scherrer Institute, SLS, Villigen, Switzerland is acknowledged for assistance during data collection. APC was sponsored by MDPI.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Jansson, P.J.; Kalinowski, D.S.; Lane, D.J.R.; Kovacevic, Z.; Seebacher, N.A.; Fouani, L.; Sahne, S.; Merlot, A.M.; Richardson, D.R. The renaissance of polypharmacology in the development of anti-cancer therapeutics: Inhibition of the “Triad of Death” in cancer by Di-2-pyridylketone thiosemicarbazones. Pharmacol. Res. 2015, 100, 255–260. [Google Scholar] [CrossRef] [PubMed]
  2. Lane, D.J.R.; Mills, T.M.; Shafie, N.H.; Merlot, A.M.; Moussa, R.S.; Kalinowski, D.S.; Kovacevic, Z.; Richardson, D.R. Expanding horizons in iron chelation and the treatment of cancer: Role of iron in the regulation of ER stress and the epithelial–mesenchymal transition. Biochim. Biophys. Acta 2014, 1845, 166–181. [Google Scholar] [CrossRef] [PubMed]
  3. Dilworth, J.R.; Hueting, R. Metal complexes of thiosemicarbazones for imaging and therapy. Inorg. Chim. Acta 2012, 389, 3–15. [Google Scholar] [CrossRef]
  4. Paterson, B.M.; Donnelly, P.S. Copper complexes of bis(thiosemicarbazones): From chemotherapeutics to diagnostic and therapeutic radiopharmaceuticals. Chem. Soc. Rev. 2011, 40, 3005–3018. [Google Scholar] [CrossRef] [PubMed]
  5. Ettari, R.; Bova, F.; Zappala, M.; Grasso, S.; Micale, N. Falcipain-2 Inhibitors. Med. Res. Rev. 2010, 30, 136–167. [Google Scholar] [CrossRef] [PubMed]
  6. Pelosi, G.; Bisceglie, F.; Bignami, F.; Ronzi, P.; Schiavone, P.; Re, M.C.; Casoli, C.; Pilotti, E. Antiretroviral Activity of Thiosemicarbazone Metal Complexes. J. Med. Chem. 2010, 53, 8765–8769. [Google Scholar] [CrossRef] [PubMed]
  7. Pelosi, G. Thiosemicarbazone Metal Complexes: From Structure to Activity. Open Cryst. J. 2010, 3, 16–28. [Google Scholar] [CrossRef]
  8. Lobana, T.S.; Sharma, R.; Bawa, G.; Khanna, S. Bonding and structure trends of thiosemicarbazone derivatives of metals‒An overview. Coord. Chem. Rev. 2009, 253, 977–1055. [Google Scholar] [CrossRef]
  9. Christlieb, M.; Dilworth, J.R. Ligands for Molecular Imaging: The Synthesis of Bis(thiosemicarbazone) Ligands. Chem.-Eur. J. 2006, 12, 6194–6206. [Google Scholar] [CrossRef] [PubMed]
  10. Quiroga, A.G.; Ranninger, C.N. Contribution to the SAR field of metallated and coordination complexes. Studies of the palladium and platinum derivatives with selected thiosemicarbazones as antitumoral drugs. Coord. Chem. Rev. 2004, 248, 118–133. [Google Scholar] [CrossRef]
  11. Baartzes, N.; Stringer, T.; Okombo, J.; Seldon, R.; Warner, D.F.; de Kock, C.; Smith, P.J.; Smith, G.S. Mono- and polynuclear ferrocenylthiosemicarbazones: Synthesis, characterisation and antimicrobial evaluation. J. Organomet. Chem. 2016, 819, 166–172. [Google Scholar] [CrossRef]
  12. Indoria, S.; Lobana, T.S.; Singh, D.; Kumari, S.; Kumari, P.; Bala, T.; Kamal, A.; Jassal, A.K.; García Santos, I.; Castineiras, A.; et al. Stabilization of CuII–I Bonds Using 2-Benzoylpyridine Thiosemicarbazones—Synthesis, Structure, Spectroscopy, Fluorescence, and Cyclic Voltammetry. Eur. J. Inorg. Chem. 2015, 2015, 5106–5117. [Google Scholar] [CrossRef]
  13. Qi, J.; Liang, S.; Gou, Y.; Zhang, Z.; Zhou, Z.; Yang, F.; Liang, H. Synthesis of four binuclear copper(II) complexes: Structure, anticancer properties and anticancer mechanism. Eur. J. Med. Chem. 2015, 96, 360–368. [Google Scholar] [CrossRef] [PubMed]
  14. Shao, J.; Bao, W.-G.; Tian, H.; Li, B.; Zhao, X.-F.; Qiao, X.; Xu, J.-Y. Nuclease activity and protein-binding properties of a novel tetranuclear thiosemicarbazide Pt(II) complex. Dalton Trans. 2014, 43, 1663–1671. [Google Scholar] [CrossRef] [PubMed]
  15. Pereira, M.T.; Antelo, J.M.; Adrio, L.A.; Martinez, J.; Ortigueira, J.M.; Lopez-Torres, M.; Vila, J.M. Novel Bidentate [N,S] Palladacycle Metalloligands. 1H−15N HMBC as a Decisive NMR Technique for the Structural Characterization of Palladium−Rhodium and Palladium−Palladium Bimetallic Complexes. Organometallics 2014, 33, 3265–3274. [Google Scholar] [CrossRef]
  16. Adams, M.; de Kock, C.; Smith, P.J.; Chibale, K.; Smith, G.S. Synthesis, characterization and antiplasmodial evaluation of cyclopalladated thiosemicarbazone complexes. J. Organomet. Chem. 2013, 736, 19–26. [Google Scholar] [CrossRef]
  17. Demoro, B.; de Almeida, R.F.M.; Marques, F.; Matos, C.P.; Otero, L.; Pessoa, J.C.; Santos, I.; Rodríguez, A.; Moreno, V.; Lorenzo, J.; et al. Screening organometallic binuclear thiosemicarbazone ruthenium complexes as potential anti-tumour agents: Cytotoxic activity and human serum albumin binding mechanism. Dalton Trans. 2013, 42, 7131–7146. [Google Scholar] [CrossRef] [PubMed]
  18. Ali, A.A.; Nimir, H.; Aktas, C.; Huch, V.; Rauch, U.; Schäfer, K.-H.; Veith, M. Organoplatinum(II) Complexes with 2-Acetylthiophene Thiosemicarbazone: Synthesis, Characterization, Crystal Structures, and in Vitro Antitumor Activity. Organometallics 2012, 31, 2256–2262. [Google Scholar] [CrossRef]
  19. Chellan, P.; Land, K.M.; Shokar, A.; Au, A.; An, S.H.; Clavel, C.M.; Dyson, P.J.; de Kock, C.; Smith, P.J.; Chibale, K.; et al. Exploring the Versatility of Cycloplatinated Thiosemicarbazones as Antitumor and Antiparasitic Agents. Organometallics 2012, 31, 5791–5799. [Google Scholar] [CrossRef]
  20. Latheef, L.; Seena, E.B.; Kurup, M.R.P. Synthesis, spectral and structural studies of novel binuclear Ni(II) complex of salicylaldehyde 3-azacyclothiosemicarbazone. Inorg. Chim. Acta 2009, 362, 2515–2518. [Google Scholar] [CrossRef]
  21. Philip, V.; Suni, V.; Kurup, M.R.P.; Nethaji, M. Copper(II) complexes derived from di-2-pyridyl ketone N(4),N(4)-(butane-1,4-diyl)thiosemicarbazone: Crystal structure and spectral studies. Polyhedron 2006, 25, 1931–1938. [Google Scholar] [CrossRef]
  22. Panja, A.; Campana, C.; Leavitt, C.; Van Stipdonk, M.J.; Eichhorn, D.M. Iron and cobalt complexes of 2,6-diacetylpyridine-bis(R-thiosemicarbazone) (R = H, phenyl) showing unprecedented ligand deviation from planarity. Inorg. Chim. Acta 2009, 362, 1348–1354. [Google Scholar] [CrossRef] [PubMed]
  23. Pedrido, R.; Gonzalez-Noya, A.M.; Romero, M.J.; Martinez-Calvo, M.; Vazquez Lopez, M.; Gomez-Forneas, E.; Zaragoza, G.; Bermejo, M.R. Pentadentate thiosemicarbazones as versatile chelating systems. A comparative structural study of their metallic complexes. Dalton Trans. 2008, 47, 6776–6787. [Google Scholar] [CrossRef] [PubMed]
  24. Matsinha, L.C.; Mao, J.; Mapolie, S.F.; Smith, G.S. Water-Soluble Palladium(II) Sulfonated Thiosemicarbazone Complexes: Facile Synthesis and Preliminary Catalytic Studies in the Suzuki–Miyaura Cross-Coupling Reaction in Water. Eur. J. Inorg. Chem. 2015, 2015, 4088–4094. [Google Scholar] [CrossRef]
  25. Matesanz, A.I.; Tapia, S.; Souza, P. First 3,5-diacetyl-1,2,4-triazol derived mono(thiosemicarbazone) and its palladium and platinum complexes: Synthesis, structure and biological properties. Inorg. Chim. Acta 2016, 445, 62–69. [Google Scholar] [CrossRef]
  26. Matesanz, A.I.; Perles, J.; Souza, P. New palladium and platinum complexes with bioactive 3,5-diacetyl-1,2,4-triazol bis(4-cyclohexyl thiosemicarbazone) ligand: Chemistry, antiproliferative activity and preliminary toxicity studies. Dalton Trans. 2012, 41, 12538–12547. [Google Scholar] [CrossRef] [PubMed]
  27. Matesanz, A.I.; Pastor, C.; Souza, P. Synthesis and structural characterization of a disulphide-bridged tetranuclear palladium(II) complex derived from 3,5-diacetyl 1,2,4-triazole bis(4-ethylthiosemicarbazone). Inorg. Chem. Commun. 2007, 10, 97–100. [Google Scholar] [CrossRef]
  28. Kasuga, N.C.; Sekino, K.; Koumo, C.; Shimada, N.; Ishikawa, M.; Nomiya, K. Synthesis, structural characterization and antimicrobial activities of 4- and 6-coordinate nickel(II) complexes with three thiosemicarbazones and semicarbazone ligands. J. Inorg. Biochem. 2001, 84, 55–65. [Google Scholar] [CrossRef]
  29. De Sousa, G.F.; West, D.X.; Brown, C.A.; Swearingen, J.K.; Valdes-Martinez, J.; Toscano, R.A.; Hernandez-Ortega, S.; Hörner, M.; Bortoluzzi, A.J. Structural and spectral studies of a heterocyclic N(4)-substituted bis(thiosemicarbazone), H22,6Achexim·H2O, its heptacoordinated tin(IV) complex [Bu2Sn(2,6Achexim)], and its binuclear zinc(II) complex [Zn(2,6Achexim)]2. Polyhedron 2000, 19, 841–847. [Google Scholar] [CrossRef]
  30. Kulkarni, N.V.; Revankar, V.K. Synthesis, antimicrobial screening, and DNA-binding/cleavage of new pyrazole-based binuclear CoII, NiII, CuII, and ZnII complexes. J. Coord. Chem. 2011, 64, 725–741. [Google Scholar] [CrossRef]
  31. Matesanz, A.I.; Hernandez, C.; Rodriguez, A.; Souza, P. Novel bis(thiosemicarbazones) of the 3,5-diacetyl-1,2,4-triazol series and their platinum(II) complexes: Chemistry, antiproliferative activity and preliminary nephrotoxicity studies. Dalton Trans. 2011, 40, 5738–5745. [Google Scholar] [CrossRef] [PubMed]
  32. Drover, M.W.; Tandon, S.S.; Anwar, M.U.; Shuvaev, K.V.; Dawe, L.N.; Collins, J.L.; Thompson, L.K. Polynuclear complexes of a series of hydrazone and hydrazone–oxime ligands—M2 (Fe), M4 (Mn, Ni, Cu), and Mn (Cu) examples. Polyhedron 2014, 68, 94–102. [Google Scholar] [CrossRef]
  33. Kowol, C.R.; Reisner, E.; Chiorescu, I.; Arion, V.B.; Galanski, M.; Deubel, D.V.; Keppler, B.K. An Electrochemical Study of Antineoplastic Gallium, Iron and Ruthenium Complexes with Redox Noninnocent α-N-Heterocyclic Chalcogensemicarbazones. Inorg. Chem. 2008, 47, 11032–11047. [Google Scholar] [CrossRef] [PubMed]
  34. Kowol, C.R.; Berger, R.; Eichinger, R.; Roller, A.; Jakupec, M.A.; Schmidt, P.P.; Arion, V.B.; Keppler, B.K. Gallium(III) and Iron(III) Complexes of α-N-Heterocyclic Thiosemicarbazones: Synthesis, Characterization, Cytotoxicity, and Interaction with Ribonucleotide Reductase. J. Med. Chem. 2007, 50, 1254–1265. [Google Scholar] [CrossRef] [PubMed]
  35. Li, M.-X.; Zhang, L.-Z.; Yang, M.; Niu, J.-Y.; Zhou, J. Synthesis, crystal structures, in vitro biological evaluation of zinc(II) and bismuth(III) complexes of 2-acetylpyrazine N(4)-phenylthiosemicarbazone. Bioorg. Med. Chem. Lett. 2012, 22, 2418–2423. [Google Scholar] [CrossRef] [PubMed]
  36. Zeglis, B.M.; Divilov, V.; Lewis, J.S. Role of Metalation in the Topoisomerase IIα Inhibition and Antiproliferation Activity of a Series of α-Heterocyclic-N4-Substituted Thiosemicarbazones and Their Cu(II) Complexes. J. Med. Chem. 2011, 54, 2391–2398. [Google Scholar] [CrossRef] [PubMed]
  37. Li, M.; Sun, Q.; Bai, Y.; Duan, C.; Zhang, B.; Meng, Q. Chiral aggregation and spontaneous resolution of thiosemicarbazone metal complexes. Dalton Trans. 2006, 2572–2578. [Google Scholar] [CrossRef] [PubMed]
  38. West, D.X.; Bain, G.A.; Butcher, R.J.; Jasinski, J.P.; Pozdniakiv, R.Y.; Valdes-Martinez, J.; Toscano, R.A.; Hernandez-Ortega, S. Structural Studies of three Isomeric Forms of Heterocyclic N(4)-Substituted Thiosemicarbazones and two Nickel(II) Complexes. Polyhedron 1996, 15, 665–674. [Google Scholar] [CrossRef]
  39. Kaim, W.; Sarkar, B.; Lahiri, G.K. Mixed Valence Intermediates as Ideal Targets für Spectroelectrochemistry in Spectroelectrochemistry; Kaim, W., Klein, A., Eds.; RSC Publishing: Cambridge, UK, 2008; Chapter 3; pp. 68–90. ISBN 978-0-85404-550-1. [Google Scholar] [CrossRef]
  40. Kaim, W.; Klein, A.; Glöckle, M. Exploration of Mixed-Valence Chemistry: Inventing New Analogues of the Creutz-Taube Ion. Acc. Chem. Res. 2000, 33, 755–763. [Google Scholar] [CrossRef] [PubMed]
  41. Ferrando-Soria, J.; Vallejo, J.; Castellano, M.; Martínez-Lillo, J.; Pardo, E.; Cano, J.; Castro, I.; Lloret, F.; Ruiz-García, R.; Julve, M. Molecular magnetism, quo vadis? A historical perspective from a coordination chemist viewpoint. Coord. Chem. Rev. 2017, 339, 17–103. [Google Scholar] [CrossRef]
  42. Kaim, W.; Fiedler, J. Spectroelectrochemistry: The best of two worlds. Chem. Soc. Rev. 2009, 38, 3373–3382. [Google Scholar] [CrossRef] [PubMed]
  43. Hardy, J.G. Metallosupramolecular grid complexes: Towards nanostructured materials with high-tech applications. Chem. Soc. Rev. 2013, 42, 7881–7899. [Google Scholar] [CrossRef] [PubMed]
  44. Dawe, L.N.; Shuvaev, K.V.; Thompson, L.K. Polytopic ligand directed self-assembly—Polymetallic [n × n] grids versus non-grid oligomers. Chem. Soc. Rev. 2009, 38, 2334–2359. [Google Scholar] [CrossRef] [PubMed]
  45. Stefankiewicz, A.R.; Lehn, J.-M. Highly Sensitive Magnetic Effects Induced by Hydrogen-Bonding Interactions in a High-Spin Metallosupramolecular Fe4II [2 × 2] Grid-Type Complex. Chem. Eur. J. 2009, 15, 2500–2503. [Google Scholar] [CrossRef] [PubMed]
  46. Shen, F.; Huang, W.; Wu, D.; Zheng, Z.; Huang, X.-C.; Sato, O. Redox Modulation of Spin Crossover within a Cobalt Metallogrid. Inorg. Chem. 2016, 55, 902–908. [Google Scholar] [CrossRef] [PubMed]
  47. Wu, S.-Q.; Wang, Y.-T.; Cui, A.-I.; Kou, H.-Z. Toward Higher Nuclearity: Tetranuclear Cobalt(II) Metallogrid Exhibiting Spin Crossover. Inorg. Chem. 2014, 53, 2613–2618. [Google Scholar] [CrossRef] [PubMed]
  48. Wang, Y.-T.; Li, S.-T.; Wu, S.-Q.; Cui, A.-L.; Shen, D.-Z.; Kou, H.-Z. Spin Transitions in Fe(II) Metallogrids Modulated by Substituents, Counteranions, and Solvents. J. Am. Chem. Soc. 2013, 135, 5942–5945. [Google Scholar] [CrossRef] [PubMed]
  49. Steinert, M.; Schneider, B.; Dechert, S.; Demeshko, S.; Meyer, F. Spin-State Versatility in a Series of Fe4 [2 × 2] Grid Complexes: Effects of Counteranions, Lattice Solvent, and Intramolecular Cooperativity. Inorg. Chem. 2016, 55, 2363–2373. [Google Scholar] [CrossRef] [PubMed]
  50. Tong, J.; Demeshko, S.; John, M.; Dechert, S.; Meyer, F. Redox-Induced Single-Molecule Magnetism in Mixed-Valent [2 × 2] Co4 Grid Complexes. Inorg. Chem. 2016, 55, 4362–4372. [Google Scholar] [CrossRef] [PubMed]
  51. Schneider, B.; Demeshko, S.; Neudeck, S.; Dechert, S.; Meyer, F. Mixed-Spin [2 × 2] Fe4 Grid Complex Optimized for Quantum Cellular Automata. Inorg. Chem. 2013, 52, 13230–13237. [Google Scholar] [CrossRef] [PubMed]
  52. Yang, H.; Cao, F.; Li, D.; Zeng, S.; Song, Y.; Dou, J. Solvent dependent reactivities of di-, tetra- and hexanuclear manganese complexes: Syntheses, structures and magnetic properties. Dalton Trans. 2015, 44, 6620–6629. [Google Scholar] [CrossRef] [PubMed]
  53. Matsumoto, T.; Newton, G.N.; Shiga, T.; Hayami, S.; Matsui, Y.; Okamoto, H.; Kumai, R.; Murakami, Y.; Oshio, H. Programmable spin-state switching in a mixed-valence spin-crossover iron grid. Nat. Commun. 2014, 5, 3865. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Li, X.; Wu, B.; Wang, R.; Zhang, H.; Niu, C.; Niu, Y.; Hou, H. Hierarchical Assembly of Extended Coordination Networks Constructed by Novel Metallacalix[4]arenes Building Blocks. Inorg. Chem. 2010, 49, 2600–2613. [Google Scholar] [CrossRef] [PubMed]
  55. Campos-Fernandez, C.S.; Schottel, B.L.; Chifotides, H.T.; Bera, J.K.; Bacsa, J.; Koomen, J.M.; Russell, D.H.; Dunbar, K.R. Anion Template Effect on the Self-Assembly and Interconversion of Metallacyclophanes. J. Am. Chem. Soc. 2005, 127, 12909–12923. [Google Scholar] [CrossRef] [PubMed]
  56. Campos-Fernandez, C.S.; Clerac, R.; Dunbar, K.R. A One-Pot, High-Yield Synthesis of a Paramagnetic Nickel Square from Divergent Precursors by Anion Template Assembly. Angew. Chem. Int. Ed. 1999, 38, 3477–3479. [Google Scholar] [CrossRef]
  57. Li, X.-L.; Kang, J.-L.; Zhang, X.-L.; Xiao, H.-P.; Wang, A.-L.; Zhou, L.; Fang, S.-M.; Liu, C.-M. Anion-controlled self-assembly of two NLO-active dinuclear and molecular square Cu(II) enantiomeric pairs: From antiferromagnetic to ferromagnetic coupling. Dalton Trans. 2014, 43, 17226–17229. [Google Scholar] [CrossRef] [PubMed]
  58. Bark, T.; Düggeli, M.; Stoeckli-Evans, H.; von Zelewsky, A. Designed Molecules for Self-Assembly: The Controlled Formation of Two Chiral Self-Assembled Polynuclear Species with Predetermined Configuration. Angew. Chem. Int. Ed. 2001, 40, 2848–2851. [Google Scholar] [CrossRef]
  59. Pace, G.; Stefankiewicz, A.; Harrowfield, J.; Lehn, J.-M.; Samor, P. Self-Assembly of Alkoxy-Substituted Bis(hydrazone)-Based Organic Ligands and of a Metallosupramolecular Grid on Graphite. Chem. Phys. Chem. 2009, 10, 699–705. [Google Scholar] [CrossRef] [PubMed]
  60. Ruben, M.; Lehn, J.-M.; Müller, P. Addressing metal centres in supramolecular assemblies. Chem. Soc. Rev. 2006, 35, 1056–1067. [Google Scholar] [CrossRef] [PubMed]
  61. Caronna, T.; Fronza, G.; Minisci, F.; Porta, O. Homolytic Acylation of Protonated Pyridine and Pyrazine Derivatives. J. Chem. Soc. Perkin Trans. 2 1972, 2035–3038. [Google Scholar] [CrossRef]
  62. Moroz, Y.S.; Demeshko, S.; Haukka, M.; Mokhir, A.; Mitra, U.; Stocker, M.; Müller, P.; Meyer, F.; Fritsky, I.O. Regular High-Nuclearity Species from Square Building Blocks: A Triangular 3 × [2 × 2] Ni12 Complex Generated by the Self-assembly of Three [2 × 2] Ni4 Molecular Grids. Inorg. Chem. 2012, 51, 7445–7447. [Google Scholar] [CrossRef] [PubMed]
  63. Sachse, A.; Demeshko, S.; Dechert, S.; Daebel, V.; Lange, A.; Meyer, F. Highly preorganized pyrazolate-bridged palladium(II) and nickel(II) complexes in bimetallic norbornene polymerization. Dalton Trans. 2010, 39, 3903–3914. [Google Scholar] [CrossRef] [PubMed]
  64. Moroz, Y.S.; Kulon, K.; Haukka, M.; Gumienna-Kontecka, E.; Kozłowski, H.; Meyer, F.; Fritsky, I.O. Synthesis and Structure of [2 × 2] Molecular Grid Copper(II) and Nickel(II) Complexes with a New Polydentate Oxime-Containing Schiff Base Ligand. Inorg. Chem. 2008, 47, 5656–5665. [Google Scholar] [CrossRef] [PubMed]
  65. Klingele, J.; Prikhod’ko, A.I.; Leibeling, G.; Demeshko, S.; Dechert, S.; Meyer, F. Pyrazolate-based copper(II) and nickel(II) [2 × 2] grid complexes: Protonation-dependent self-assembly, structures and properties. Dalton Trans. 2007, 2003–2013. [Google Scholar] [CrossRef] [PubMed]
  66. Cao, X.-Y.; Harrowfield, J.; Nitschke, J.; Ramírez, J.; Stadler, A.-M.; Kyritsakas-Gruber, N.; Madalan, A.; Rissanen, K.; Russo, L.; Vaughan, G.; et al. Generation of [2 × 2] Grid Metallosupramolecular Architectures from Preformed Ditopic Bis(acylhydrazone) Ligands and through Component Self-Assembly. Eur. J. Inorg. Chem. 2007, 2007, 2944–2965. [Google Scholar] [CrossRef]
  67. Dinolfo, P.H.; Hupp, J.T. Tetra-Rhenium Molecular Rectangles as Organizational Motifs for the Investigation of Ligand-Centered Mixed Valency: Three Examples of Full Delocalization. J. Am. Chem. Soc. 2004, 126, 16814–16819. [Google Scholar] [CrossRef] [PubMed]
  68. Dinolfo, P.H.; Williams, M.E.; Stern, C.L.; Hupp, J.T. Rhenium-Based Molecular Rectangles as Frameworks for Ligand-Centered Mixed Valency and Optical Electron Transfer. J. Am. Chem. Soc. 2004, 126, 12989–13001. [Google Scholar] [CrossRef] [PubMed]
  69. Wu, J.-Y.; Thanasekaran, P.; Cheng, Y.-W.; Lee, C.-C.; Manimaran, B.; Rajendran, T.; Liao, R.-T.; Lee, G.-H.; Peng, S.-M.; Lu, K.-L. Unprecedented Reduction of 2,2′-Bipyrimidine in a One-Pot Synthesis of Neutral Rhenium(I)-Based Molecular Rectangles. Organometallics 2008, 27, 2141–2144. [Google Scholar] [CrossRef]
  70. Dinolfo, P.H.; Lee, S.J.; Coropceanu, V.; Bredas, J.-L.; Hupp, J.T. Borderline Class II/III Ligand-Centered Mixed Valency in a Porphyrinic Molecular Rectangle. Inorg. Chem. 2005, 44, 5789–5797. [Google Scholar] [CrossRef] [PubMed]
  71. Low, P.J.; Brown, N.J. Electronic Interactions Between and Through Covalently-Bonded Polymetallic Complexes. J. Clust. Sci. 2010, 21, 235–278. [Google Scholar] [CrossRef]
  72. Mücke, P.; Winter, R.F.; Novak, I.; Kowalski, K. Synthesis, spectroelectrochemistry and electronic structure calculations of 4-(2-ferrocenylvinyl)-[2.2]-paracyclophane and 4,12-di-(2-ferrocenylvinyl)-[2.2]-paracyclophane. J. Organomet. Chem. 2012, 717, 14–22. [Google Scholar] [CrossRef]
  73. Safin, D.A.; Babashkina, M.G.; Bolte, M.; Mitoraj, M.P.; Klein, A. Metal ion influences distortion of the ligand in the structure of [M{2-MeO(O)CC6H4NHC(S)NP(S)(OiPr)2}2] (M = ZnII, CdII) complexes: A driving force for the intermolecular aggregation. Dalton Trans. 2015, 44, 14101–14109. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Burla, M.C.; Caliandro, R.; Camalli, M.; Carrozzini, B.; Cascarano, G.L.; Giacovazzo, C.; Mazzone, A.; Polidori, G.; Spagna, R. Sir-2011, A Program for Automatic Solution and Refinement of Crystal Structures; CNR Institute of Crystallography: Bari, Italy, 2012. [Google Scholar]
  75. Altomare, A.; Cascarano, G.; Giacovazzo, C.; Guagliardi, A.; Burla, M.C.; Polidori, G.; Camalli, M. Sir-92, A Program for Automatic Solution and Refinement of Crystal Structures; CNR Institute of Crystallography: Bari, Italy, 1994. [Google Scholar]
  76. Sheldrick, G.M. SHELXL-2013. Program for the Refinement of Crystal Structures; University of Göttingen: Göttingen, Germany, 2008. [Google Scholar]
  77. Sheldrick, G.M. SHELXL-97. Program for the Refinement of Crystal Structures; University of Göttingen: Göttingen, Germany, 2008. [Google Scholar]
  78. X-Red 1.07; Stoe &Cie GmbH: Darmstadt, Germany, 1996.
  79. X-Shape 1.0.1; Stoe &Cie GmbH: Darmstadt, Germany, 1996.
  80. Spek, A.L. PLATON SQUEEZE: A tool for the calculation of the disordered solvent contribution to the calculated structure factors. Acta Cryst. 2015, C71, 9–18. [Google Scholar] [CrossRef]
  81. Spek, A.L. PLATON, A Multipurpose Crystallographic Tool; Utrecht University: Utrecht, The Netherlands, 1998. [Google Scholar]
  82. Waltersperger, S.; Olieric, V.; Pradervand, C.; Glettig, W.; Salathe, M.; Fuchs, M.R.; Curtin, A.; Wang, X.; Ebner, S.; Panepucci, E.; et al. PRIGo: A new multi-axis goniometer for macromolecular crystallography. J. Synchrotron Radiat. 2015, 22, 895–900. [Google Scholar] [CrossRef] [PubMed]
  83. Kabsch, W. Integration, scaling, space-group assignment and post-refinement. Acta Crystallogr. Sect. D Biol. Crystallogr. 2010, 66, 133–144. [Google Scholar] [CrossRef] [PubMed]
  84. Weigend, F. Accurate Coulomb-fitting basis sets for H to Rn. Phys. Chem. Chem. Phys. 2006, 8, 1057–1065. [Google Scholar] [CrossRef] [PubMed]
  85. TURBOMOLE V7.0 2015, a Development of University of Karlsruhe and Forschungszentrum Karlsruhe GmbH, 1989–2007, TURBOMOLE GmbH. 2007. Available online: (accessed on 15 June 2015).
  86. Steffen, C.; Thomas, K.; Huniar, U.; Hellweg, A.; Rubner, O.; Schroer, A. TmoleX—A Graphical User Interface for TURBOMOLE. J. Comput. Chem. 2010, 31, 2967–2970. [Google Scholar] [CrossRef] [PubMed]
  87. Schäfer, A.; Horn, H.; Ahlrichs, R. Fully optimized contracted Gaussian basis sets for atoms Li to Kr. J. Chem. Phys. 1992, 97, 2571–2577. [Google Scholar] [CrossRef]
  88. Schäfer, A.; Huber, C.; Ahlrichs, R. Fully optimized contracted Gaussian basis sets of triple zeta valence quality for atoms Li to Kr. J. Chem. Phys. 1994, 100, 5829–5835. [Google Scholar] [CrossRef]
  89. Becke, A.D. Density-functional exchange-energy approximation with correct asymptotic behavior. Phys. Rev. A 1988, 38, 3098–3100. [Google Scholar] [CrossRef]

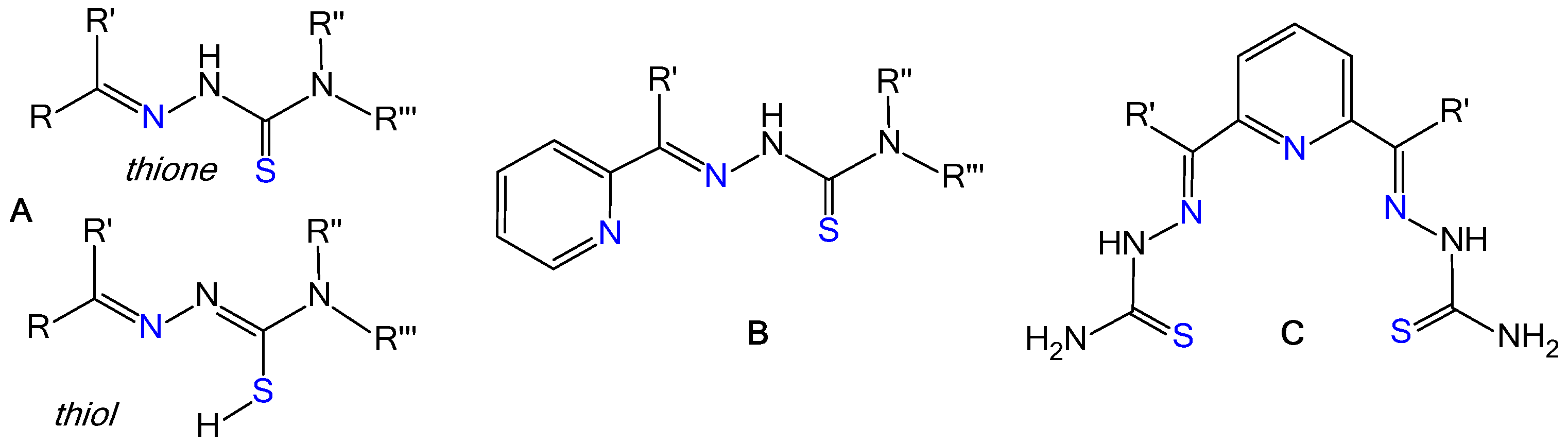

Scheme 1. Schematic representation of thiosemicarbazones (A), 2-acetylpyridine-thiosemicarbazones (B), and 2,6-diacetylpyridine-bis(thiosemicarbazone) (C) with various substituents.
Scheme 1. Schematic representation of thiosemicarbazones (A), 2-acetylpyridine-thiosemicarbazones (B), and 2,6-diacetylpyridine-bis(thiosemicarbazone) (C) with various substituents.
Inorganics 06 00051 sch001

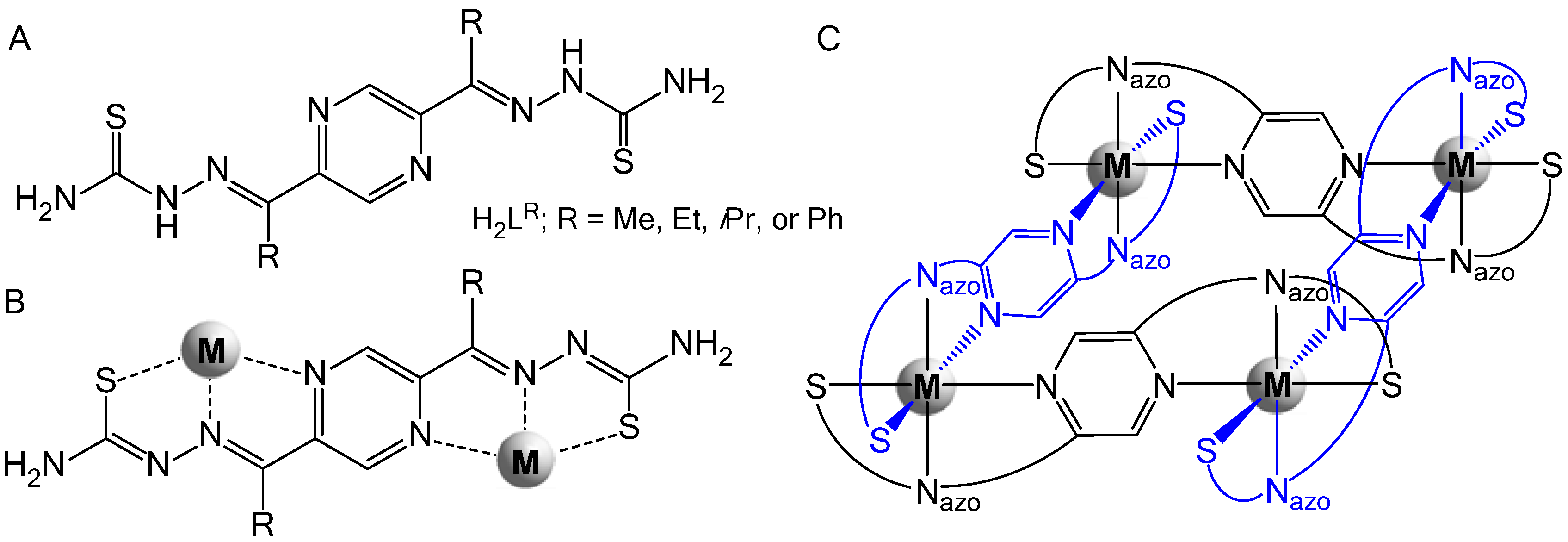

Scheme 2. The 1,4-pyrazine-bridged bis(thiosemicarbazone) protoligands (ligand precursor) H2LR with R = Me (LMe), Et (LEt), iPr (LiPr), or Ph (LPh) used in this study (A); the dianionic ligands (LR)2 bridging two metals (B); the assumed tetrameric products obtained in this study (C).
Scheme 2. The 1,4-pyrazine-bridged bis(thiosemicarbazone) protoligands (ligand precursor) H2LR with R = Me (LMe), Et (LEt), iPr (LiPr), or Ph (LPh) used in this study (A); the dianionic ligands (LR)2 bridging two metals (B); the assumed tetrameric products obtained in this study (C).
Inorganics 06 00051 sch002
Scheme 3. Synthesis of the 1,4-pyrazine-bridged bis(thiosemicarbazone) protoligands (ligand precursor) H2LR with R = Me (LMe), Et (LEt), iPr (LiPr), or Ph (LPh).
Scheme 3. Synthesis of the 1,4-pyrazine-bridged bis(thiosemicarbazone) protoligands (ligand precursor) H2LR with R = Me (LMe), Et (LEt), iPr (LiPr), or Ph (LPh).
Inorganics 06 00051 sch003

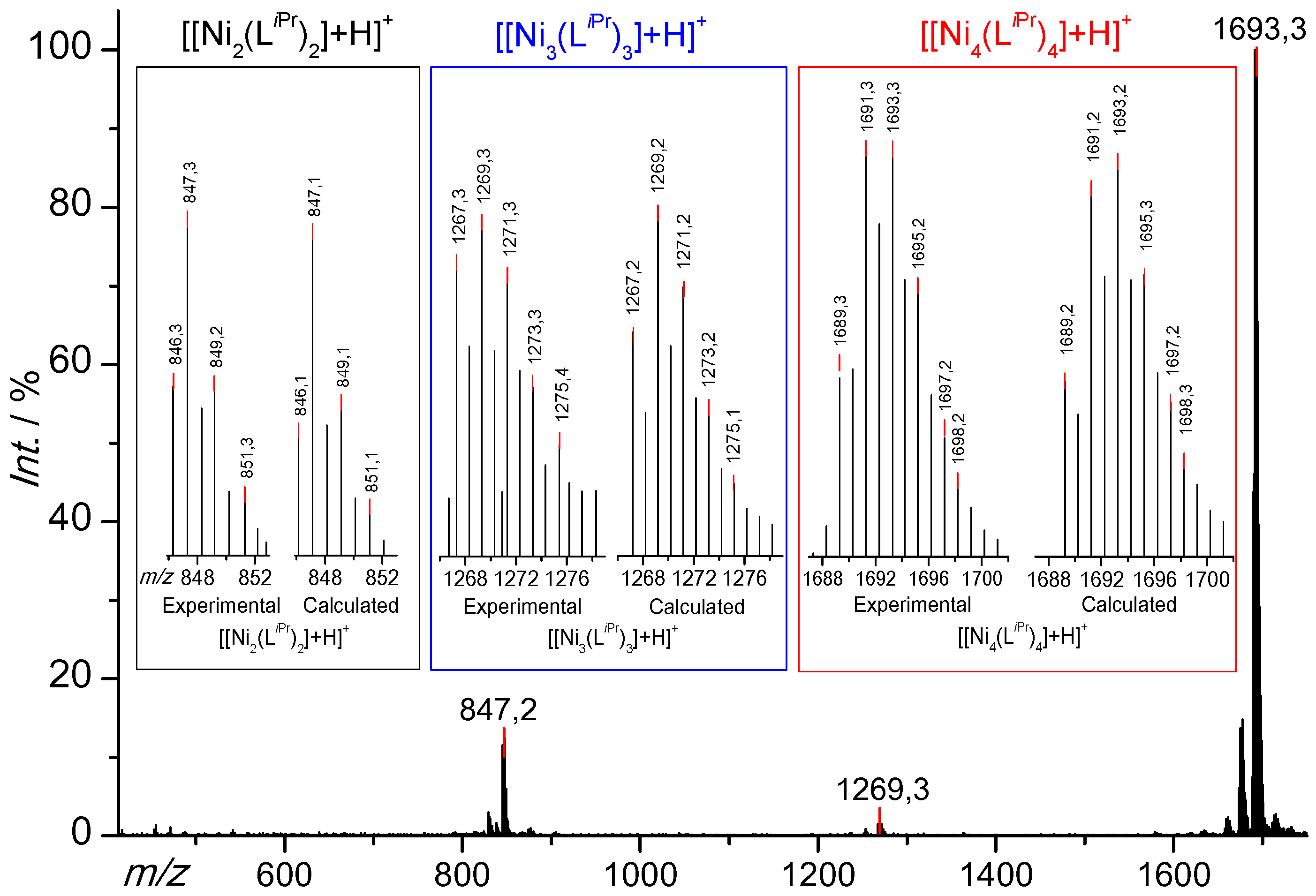

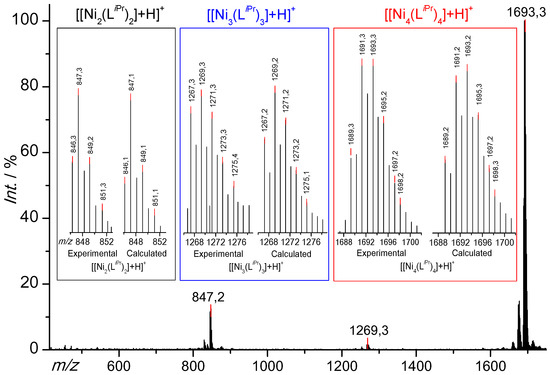

Figure 1. ESI-MS (pos.) of [Ni4(LiPr)4] obtained from an acetone solution. The inserts show the fragments corresponding to the binuclear, trinuclear, and tetranuclear species (from left to right) with simulations.
Figure 1. ESI-MS (pos.) of [Ni4(LiPr)4] obtained from an acetone solution. The inserts show the fragments corresponding to the binuclear, trinuclear, and tetranuclear species (from left to right) with simulations.
Inorganics 06 00051 g001

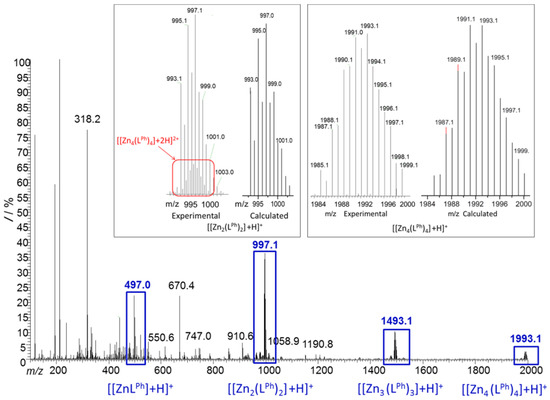

Figure 2. ESI-MS (pos.) of [Zn4(LPh)4] obtained from an acetone solution. The inserts show the fragments corresponding to the dimer (left), and tetramer (right) with simulations. Marked in red (top left) is the isotopic pattern of the dicationic tetrameric fragment [Zn4(LPh)4]+2H]2+.
Figure 2. ESI-MS (pos.) of [Zn4(LPh)4] obtained from an acetone solution. The inserts show the fragments corresponding to the dimer (left), and tetramer (right) with simulations. Marked in red (top left) is the isotopic pattern of the dicationic tetrameric fragment [Zn4(LPh)4]+2H]2+.
Inorganics 06 00051 g002
Figure 3. Crystal structure of [Ni4(LiPr)4] at 293(2) K, solved in the tetragonal space group I422 (Rint = 0.0937, R1 solved (all data) = 0.1087 (0.1611); wR2 = 0.3048 (0.3617) viewed along the crystallographic c axis (a) and an ORTEP plot of the binuclear coordination unit (b) shown at 50% probability level; protons were omitted for clarity.
Figure 3. Crystal structure of [Ni4(LiPr)4] at 293(2) K, solved in the tetragonal space group I422 (Rint = 0.0937, R1 solved (all data) = 0.1087 (0.1611); wR2 = 0.3048 (0.3617) viewed along the crystallographic c axis (a) and an ORTEP plot of the binuclear coordination unit (b) shown at 50% probability level; protons were omitted for clarity.
Inorganics 06 00051 g003
Figure 4. UV-Vis absorption spectra of H2LiPr (dotted line), [Zn4(LiPr)4] (dashed line), and [Ni4(LiPr)4] (solid line) in THF.
Figure 4. UV-Vis absorption spectra of H2LiPr (dotted line), [Zn4(LiPr)4] (dashed line), and [Ni4(LiPr)4] (solid line) in THF.
Inorganics 06 00051 g004

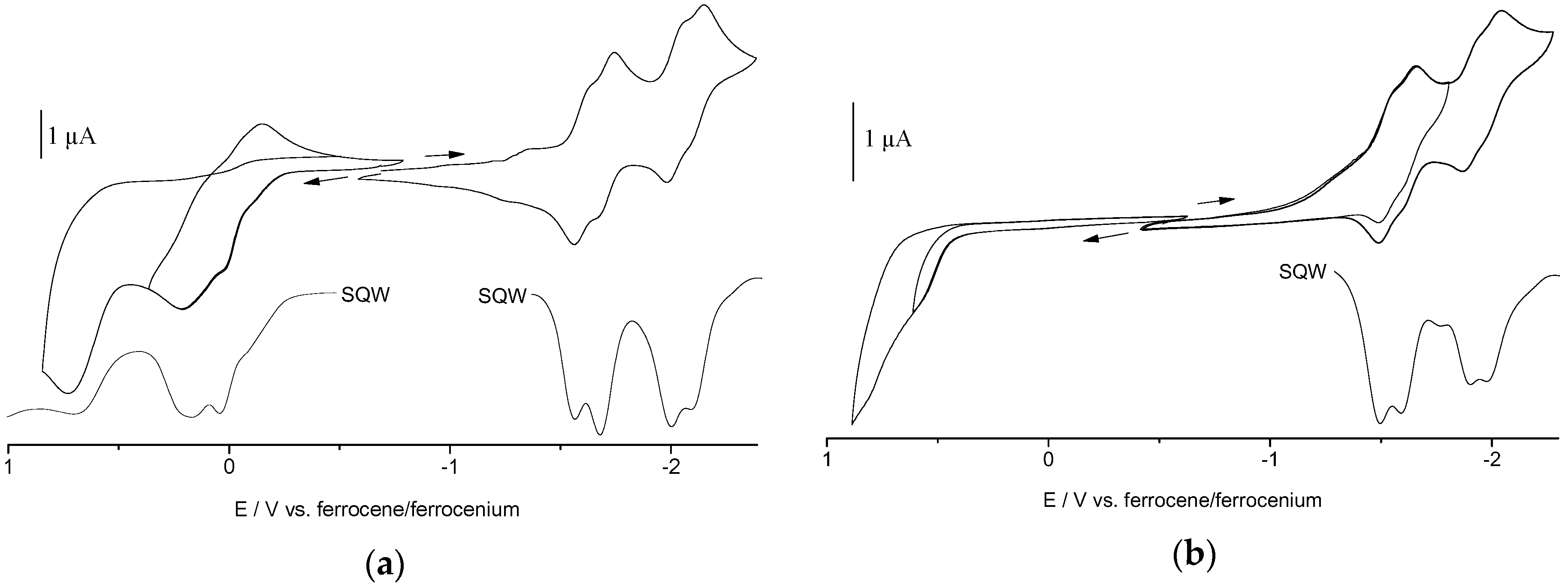

Figure 5. Cyclic voltammograms and square-wave voltammograms (SQWs) of the complexes [Ni4(LiPr)4] (a) and [Zn4(LiPr)4] (b) in nBu4NPF6/THF solution at 298 K and 20 mV/s scan rate; potentials/V vs. ferrocene/ferrocenium.
Figure 5. Cyclic voltammograms and square-wave voltammograms (SQWs) of the complexes [Ni4(LiPr)4] (a) and [Zn4(LiPr)4] (b) in nBu4NPF6/THF solution at 298 K and 20 mV/s scan rate; potentials/V vs. ferrocene/ferrocenium.
Inorganics 06 00051 g005
Figure 6. UV-Vis absorption spectra recorded during cathodic reduction of [Ni4(LiPr)4] in THF/nBu4NPF6 solutions. (a) Spectra recorded at E = 0 and from −1.5 to −1.9 V; (b) spectra recorded from E = −2.0 to −2.6 V.
Figure 6. UV-Vis absorption spectra recorded during cathodic reduction of [Ni4(LiPr)4] in THF/nBu4NPF6 solutions. (a) Spectra recorded at E = 0 and from −1.5 to −1.9 V; (b) spectra recorded from E = −2.0 to −2.6 V.
Inorganics 06 00051 g006

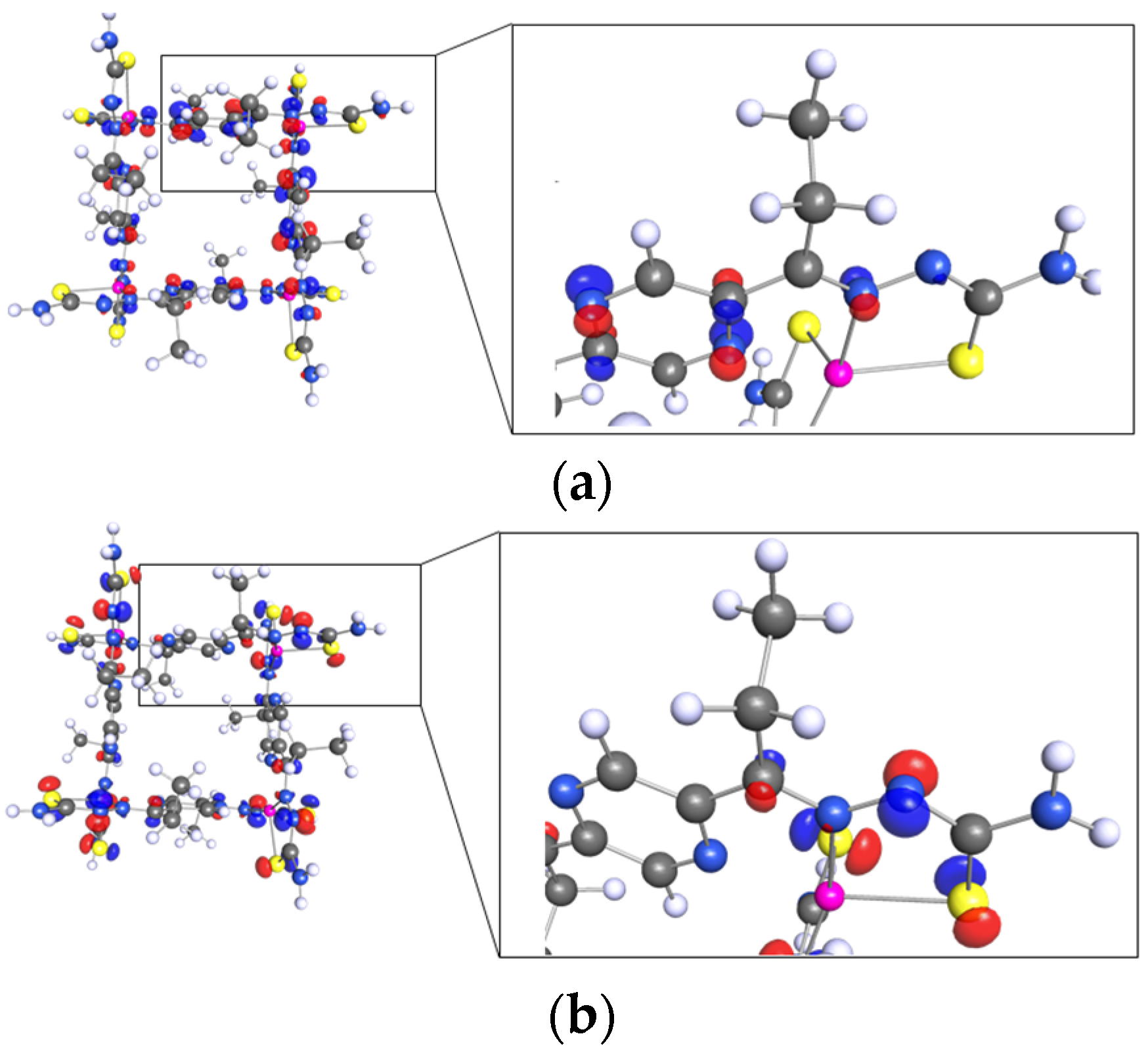

Figure 7. DFT (RI-)BP86/def2-TZVP calculated LUMO (a) and HOMO (b) of [Zn4(LEt)4].
Figure 7. DFT (RI-)BP86/def2-TZVP calculated LUMO (a) and HOMO (b) of [Zn4(LEt)4].
Inorganics 06 00051 g007

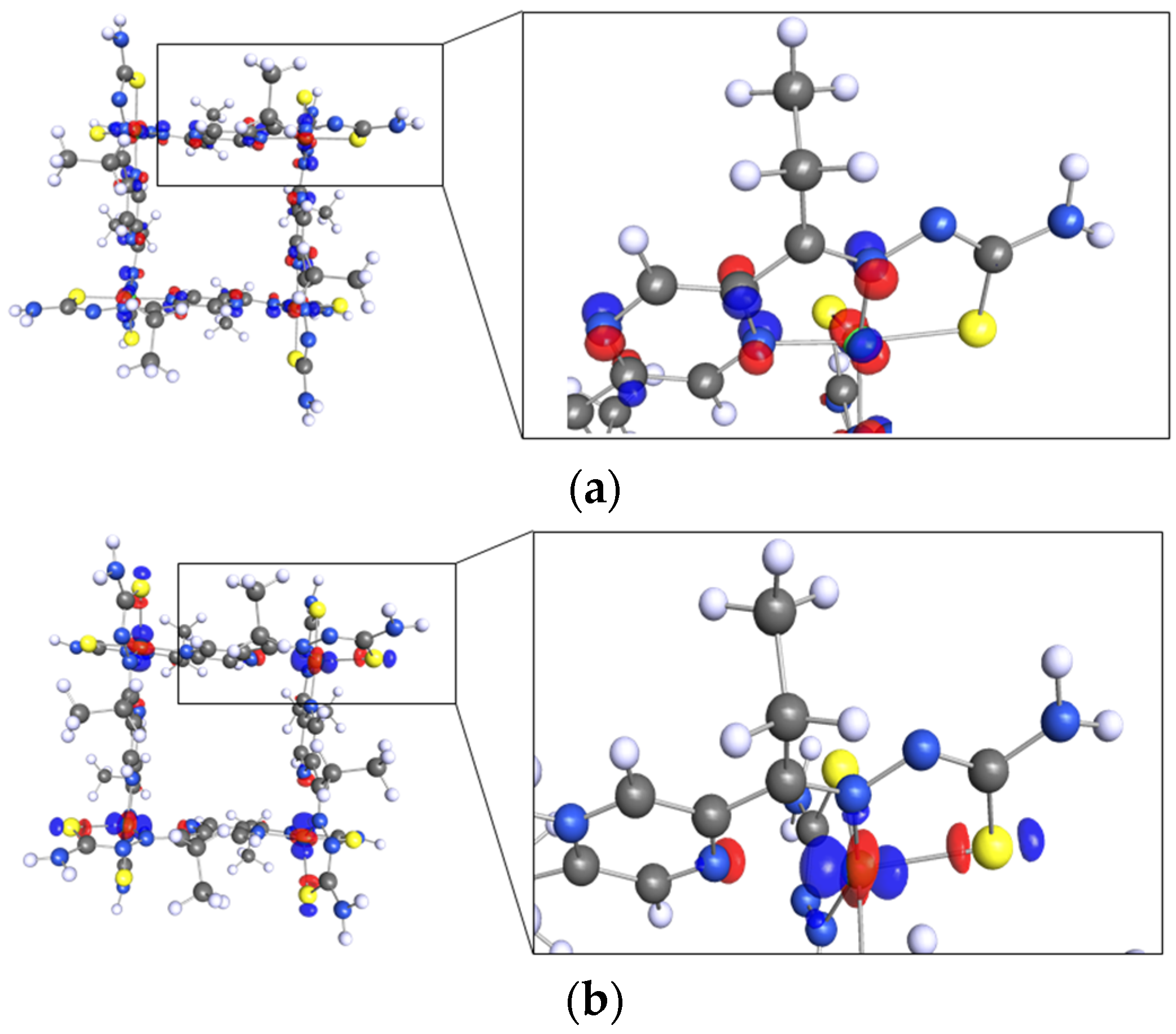

Figure 8. DFT (RI-)BP86/def2-TZVP calculated LUMO (a) and HOMO (b) of [Ni4(LEt)4].
Figure 8. DFT (RI-)BP86/def2-TZVP calculated LUMO (a) and HOMO (b) of [Ni4(LEt)4].
Inorganics 06 00051 g008
Table 1. Selected electrochemical data for H2LR and tetrameric complexes [M4(LR)4] 1.
Table 1. Selected electrochemical data for H2LR and tetrameric complexes [M4(LR)4] 1.
Epa ox1E1/2 red1Epc red2Epc red3Epc red4
Epa ox3Epa ox2Epa ox1E1/2 red1E1/2 red2E1/2 red3E1/2 red4
1 From cyclic voltammetry in 0.1 M nBu4NPF6/THF solutions at 100 mV/s or 20 mV/s scan rate. Potentials in V vs. ferrocene/ferrocenium. Half-wave potentials E1/2 for reversible or partially reversible processes; anodic (Epa) or cathodic (Epc) peak potentials for irreversible processes.

Share and Cite

MDPI and ACS Style

Arefyeva, N.; Sandleben, A.; Krest, A.; Baumann, U.; Schäfer, M.; Kempf, M.; Klein, A. [2 × 2] Molecular Grids of Ni(II) and Zn(II) with Redox-Active 1,4-Pyrazine-Bis(thiosemicarbazone) Ligands. Inorganics 2018, 6, 51.

AMA Style

Arefyeva N, Sandleben A, Krest A, Baumann U, Schäfer M, Kempf M, Klein A. [2 × 2] Molecular Grids of Ni(II) and Zn(II) with Redox-Active 1,4-Pyrazine-Bis(thiosemicarbazone) Ligands. Inorganics. 2018; 6(2):51.

Chicago/Turabian Style

Arefyeva, Natalia, Aaron Sandleben, Alexander Krest, Ulrich Baumann, Mathias Schäfer, Maxim Kempf, and Axel Klein. 2018. "[2 × 2] Molecular Grids of Ni(II) and Zn(II) with Redox-Active 1,4-Pyrazine-Bis(thiosemicarbazone) Ligands" Inorganics 6, no. 2: 51.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
