Review

Metal–Organic Frameworks and Their Derivatives for Photocatalytic Water Splitting

Department of Chemistry and Biochemistry, Utah State University, Logan, UT 84322, USA
*
Author to whom correspondence should be addressed.
Inorganics 2017, 5(3), 40; https://doi.org/10.3390/inorganics5030040
Submission received: 19 April 2017 / Revised: 19 June 2017 / Accepted: 24 June 2017 / Published: 28 June 2017
(This article belongs to the Special Issue Photochemical Water Splitting)

Abstract

:
Amongst many strategies for renewable energy conversion, light-driven water splitting to produce clean H2 represents a promising approach and has attracted increasing attention in recent years. Owing to the multi-electron/multi-proton transfer nature of water splitting, low-cost and competent catalysts are needed. Along the rapid development of metal–organic frameworks (MOFs) during the last two decades or so, MOFs have been recognized as an interesting group of catalysts or catalyst supports for photocatalytic water splitting. The modular synthesis, intrinsically high surface area, tunable porosity, and diverse metal nodes and organic struts of MOFs render them excellent catalyst candidates for photocatalytic water splitting. To date, the application of MOFs and their derivatives as photocatalysts for water splitting has become a burgeoning field. Herein, we showcase several representative MOF-based photocatalytic systems for both H2 and O2 evolution reactions (HER, OER). The design principle of each catalytic system is specifically discussed. The current challenges and opportunities of utilizing MOFs for photocatalytic water splitting are discussed in the end.

1. Introduction

The ever-increasing global energy demand, depletion of fossil fuel reserves, together with the climate change resulting from fossil fuel consumption all motivate the exploration of alternative energy solutions, which are preferably based on renewable and environmentally friendly energy sources [1,2,3,4,5,6]. The transformation from fossil fuel-based economy to renewable energy-driven economy calls for the development of low-cost and competent catalysts for the capture and storage of intermittent renewable energy sources, like solar and wind. Among various green energy carrier candidates, dihydrogen (H2) is particularly attractive, not only because of its high gravimetric energy density (120 kJ·g−1, by comparison the gravimetric energy density of petroleum is 44 kJ·g−1) [7,8,9], but also because of its clean nature (the sole product of H2 combustion is water). The current industrial approaches for H2 production, such as steam methane reforming and coal gasification, are very energy intensive and rely highly on fossil fuels [10,11,12,13,14,15,16,17,18,19]. Therefore, it remains a great necessity to develop alternative low-cost methods to produce H2, ideally driven by renewable energy sources. Within this context, photocatalytic water splitting emerged as a very appealing method in producing H2 from solar energy and water [20,21]. Since the pioneering work of Fujishima and Honda in 1972 that TiO2 was able to catalyze water splitting to produce H2 and O2 under ultraviolet light irradiation, the last four-and-a-half decades have witnessed a tremendous growth in developing various competent photocatalytic systems for light-driven water splitting [22,23,24,25,26,27,28]. A large number of light-absorbing materials (semiconductors) and complexes (photosensitizers), as well as photocatalysts have been developed, albeit the quantum yield of H2 production and solar energy conversion efficiency both require further improvement for large-scale applications.
During the last two decades, a new type of inorganic–organic hybrid and crystalline materials of high porosity, named metal–organic frameworks (MOFs), have attracted intense academic interest because of the following reasons [29,30,31,32,33,34,35,36,37]. MOFs are constructed by connecting metal and metal cluster nodes with organic bridging ligands in three-dimensional space. Therefore, a rich library of metal cations and organic ligands are available for the formation of diverse MOFs, enabling facile modulation of each component in MOFs. In addition, the intrinsically high surface area and regular pores and channels allow efficient interaction between substrates and reaction sites, beneficial to the overall catalytic performance. Table 1 summarizes the physical properties of representative MOFs discussed herein. Finally, MOFs are solid materials which might be able to be separated from reaction mixture for recycling utilization. Besides directly acting as photocatalysts for water splitting, carbonization of appropriate MOFs will result in metal/metal oxide nanoparticles embedded in highly porous carbon matrices resulting from the original organic ligands. In this case, the original MOFs not only provide the metal and carbon sources but also act as the sacrificial templates. The final hybrid composites can also be utilized for various photocatalytic applications including water splitting [38,39,40]. Owing to the aforementioned advantages, MOFs and their derivatives have been widely employed as photocatalysts for H2 production through water splitting [41]. In this short review, we do not intend to present a comprehensive overview of MOF-based photocatalytic systems for water splitting. Instead, we will introduce several representative MOF or MOF-derived photocatalysts and highlight their designing principle in order to achieve enhanced performance relative to their homogeneous/heterogeneous counterparts. It is our hope that this mini review will provide the audience with a flavor of the burgeoning field of photocatalytic water splitting utilizing MOFs and their derivatives.

2. Photocatalytic H2 Evolution Utilizing MOF-based Photocatalysts

Photocatalytic water splitting consists of two half-reactions: photocatalytic H2 and O2 evolution reactions (HER and OER). Each half-reaction involves the transfer of multiple protons and multiple electrons with slow kinetics under ambient conditions. Consequently, competent photocatalysts are desired for both HER and OER. In this section, we will first introduce the application of MOF-based photocatalytic systems for H2 production.
The first example of a MOF-based catalyst for photocatalytic H2 evolution was reported by Mori et al. in 2009 [42]. A Ru-MOF constructed with paddlewheel diruthenium cores ([Ru2(p-BDC)2]n, p-BDC = 1,4-benzenedicarboxylate) could act as active sites for water reduction to H2 in the presence of [Ru(bpy)3]2+ (bpy = 2,2′-dipyridyl), MV2+ (methyl viologen, N,N′-dimethyl-4,4′-bipyridinium dichloride), and EDTA-2Na (ethylenediaminetetraacetic acid disodium salt), each of which played the role of photosensitizer, electron relay, and sacrificial electron donor, respectively (Figure 1). Control experiments without photosensitizer or electron relay did not produce any H2 under visible light irradiation, which indicated that [Ru2(p-BDC)2]n itself did not exhibit effective light absorption for photocatalysis. Compared with the molecular counterpart Ru2(CH3COO)4BF4, [Ru2(p-BDC)2]n was far more superior in photocatalyzing H2 production, resulting in a nearly 10 times higher turnover number (TON) during the first hour of visible light irradiation (λ = 420 nm). It is believed that almost all of the catalytic reaction occurred on [Ru2(p-BDC)2]n surface and in the inner pore space near to the surface, because the pore size of [Ru2(p-BDC)2]n is small and does not allow MV2+ to enter the pores freely. However, the overall turnover number based on Ru-MOF (TON = 8.16, Table 2) was mediocre and the quantum yield (4.82%) required further improvement. In addition, expensive photosensitizer [Ru(bpy)3]2+ was required for the production of H2. Following this work, Mori’s group also reported a series of similar Ru-MOFs [43] and Rh-MOFs [44] as photocatalysts for H2 evolution from water under visible light irradiation.
Besides acting as the direct catalyst for photocatalytic H2 generation, MOFs can also be utilized as photosensitizers. For instance, Garcia and co-workers reported two highly water-stable Zr-based MOFs in 2010, UiO-66 (Zr6O4(OH)4(BDC)12, where BDC = 1,4-benzenedicarboxylate) and UiO-66(NH2) (Zr6O4(OH)4(ATA)12, where ATA = 2-aminoterephthalate), which were able to show appreciable light absorption depending on organic ligand modification [45]. The two MOFs are isoreticular and they both contain hexameric Zr6O32 units as the metal clusters linked by 12 bridging ligands (BDC or ATA). The remarkable water stability of these two Zr-based MOFs enabled their application for photocatalysis applications, including water splitting. Even more exciting is that by tuning the bridging ligand, amending an amino group on the benzene ring of BDC, a significant bathochromic shift in the absorbance spectrum was obtained for UiO-66(NH2) as shown in Figure 2a. An intense absorption band between 300 and 400 nm with an absorption maximum at 360 nm was achieved for UiO-66(NH2). Such a ligand modification did not compromise the crystallinity and water stability of UiO-66(NH2) compared to the parent UiO-66. Even though these Zr-based MOFs did not exhibit appreciable H2 production by themselves under visible light irradiation, decent amounts of H2 were generated when Pt nanoparticles were introduced as cocatalysts, which could accelerate charge separation and reduce the reaction barriers towards H2 formation. Figure 2b compares the H2 evolution performance of four samples. It is apparent that the presence of Pt substantially increased the activity towards photocatalytic H2 production and UiO-66(NH2) was more active than UiO-66. Thanks to the modular synthesis of MOFs, this work vividly demonstrates how to take advantage of ligand modification to achieve enhanced photocatalytic activities of MOF-based catalysts.
The aforementioned photocatalytic systems proceeded through the ligand-to-cluster charge transfer mechanism for H2 production. It was reasoned that an alternative titanium–oxo cluster would possess a more positive-lying conduction band than that of the zirconium counterpart. Therefore, more efficient charge transfer from the excited organic linkers to the metal clusters would be realized together with a higher yield of photocatalytic H2 production. Following this rationale, Matsuoka et al. prepared an amino-functionalized Ti (IV) MOF (Ti-MOF-NH2) which utilized the same organic linker 2-amino-1,4-benzenedicarboxylic acid [46]. In contrast to its counterpart Ti-MOF with the conventional 1,4-benzenedicarboxylic acid linker (MIL-125), Ti-MOF-NH2 indeed exhibited intense absorption in the visible region with its absorption tail beyond 500 nm (Figure 3a). When Pt nanoparticles were photodeposited into the MOF pores and triethanolamine (TEOA) was utilized as the sacrificial electron donor, light-to-cluster charge transfer took place for Ti-MOF-NH2 under visible light irradiation. As schematically displayed in Figure 3b, photogenerated electrons were transferred from the excited BDC-NH2 group to the conduction band of the titanium–oxo cluster, followed by migration to Pt cocatalysts for eventual proton reduction to H2. Similar strategy has been adopted by the Yamashita group to synthesize an amine-functionalized MIL-101(Cr) photocatalyst for photocatalytic H2 production [47]. These works demonstrated that modifying the metal clusters while keeping the same organic ligands would also lead to various photocatalytic activities for water splitting, highlighting the beauty of the modular synthesis of MOFs for catalysis applications.
Another interesting and also widely studied organic species for visible light absorption is porphyrin and its derivatives. Following the same strategy described above, Rosseinsky and coworkers explored the photocatalytic H2 production performance of porphyrin-incorporated MOFs: H2TCPP[AlOH]2(DMF3(H2O)2 (Al-MOF, where H2TCPP = meso-tetra(4-carboxy-phenyl)porphyrin) and the zinc metalated ZnTCPP[AlOH]2 (Al/Zn-MOF) [48]. Owing to the presence of porphyrin as the organic linker, the absorption spectrum of Al-MOF showed a strong Soret band at 415 nm and four Q bands between 500 and 600 nm (Figure 4a). When a zinc cation was metalated into the porphyrin core of Al-MOF, the resulting Al/Zn-MOF presented a slightly red-shifted Soret band at 425 nm and only two Q bands between 550 and 650 nm due to the higher symmetry of the metalated compound. Both Al-MOF and Al/Zn-MOF were employed as photosensitizers to produce H2 under visible light irradiation in the presence of colloidal platinum and sacrificial EDTA. The authors also attempted to employ MV2+ cations as electron acceptors/mediators to facilitate the reaction rate. Unfortunately, a rather low quantum yield (less than 0.01%) of H2 production was obtained after 15 h photoirradiation. It was postulated that such a poor activity was mainly due to the limited diffusion of MV2+ within the MOF pores. Nevertheless, a second approach with no MV2+ but higher concentration of platinum was adopted to conduct the photocatalysis of H2 production catalyzed by both Al-MOF and Al/Zn-MOF (Figure 4b). Both MOFs showed decent photocatalytic performance in producing H2, reaching a rate of 100 and 200 μmol·g−1·h−1 for Al/Zn-MOF and Al-MOF, respectively. Control experiments of removing all the solid components for photocatalysis were also carried out to prove that indeed H2 was produced from the heterogeneous MOF-based photocatalytic systems rather than some unknown homogeneous species.
In addition to simply mixing MOFs and Pt nanoparticles for photocatalysis, the tunable cavities of MOFs can be purposely designed to encapsulate platinum nanoparticles for intimate interaction between light-absorbing sites and H2-evolving sites. In 2012, Lin and co-workers reported the synthesis of UiO-type MOFs (1 and 2) with diethyl (2,2′-bipyridine)-5,5′-dicarboxylate (1) and dimethyl (2,2′-bipyridine)-5,5′-dibenzoate (2) bridging ligands which were able to coordinate Ir(ppy)2 (ppy = 2-phenylpyridine) units as phosphors for light absorption [49]. In situ photoreduction of K2PtCl4 resulted in the incorporation of Pt nanoparticles into the cavities of MOF 1 and 2. Figure 5a presents the schematic diagram for light-induced H2 evolution: excited iridium chromophores are reductively quenched by the sacrificial electron donor triethylamine (TEA) and subsequently promotes electron transfer to the encapsulated Pt nanoparticles where proton reduction to H2 takes place. Under visible light irradiation (> 420 nm), it was found that Pt@2 showed the highest H2 evolution activity, achieving a TON of 7000 based on Ir content after a 48 h photolysis (shown in Table 2). Such a high activity was nearly five times that of its homogeneous control sample (Figure 5b). This work demonstrates that in addition to organic ligands as light-absorbing units, highly photoactive inorganic complexes can be incorporated into the linkers of MOFs for photocatalytic H2 production, further highlighting the design flexibility of MOFs for photocatalytic applications. Following this work, UiO-66/CdS/1% reduced graphene oxide (RGO) [50] and RhB-sensitized Pt@UiO-66 [51] were also prepared and these MOF-based photocatalytic systems both showed enhanced catalytic performance for H2 generation compared to their homogeneous counterparts.
Besides Pt nanoparticles, Pt coordination complexes can also be utilized as H2 evolution catalysts. Recently, Xu and co-workers developed a new MOF material (MOF-253-Pt) by immobilizing Pt2+ into MOF-253 with 2,2-bipyridine-based linkers following a post-synthesis modification strategy (Figure 6a) [52]. The resultant MOF-253-Pt served both as a photosensitizer and a photocatalyst for H2 evolution under visible light irradiation. After the introduction of Pt, an obvious red-shift in its absorption was observed (Figure 6b). The low-energy absorption in Pt-MOF-253 was due to the metal-to-ligand (PtII/bipyridine) charge transfer transition. The photocatalytic H2 generation rate was highly dependent on pH values. The optimum pH was found to be 8.5. At lower pH values, the protonated TEOA was a weak electron donor, while at higher pH values, TEOA was not able to form the hydride-diplatinum (II, III) species (a postulated reaction intermediate) and hence the driving force for H2 formation was diminished. Compared to the bare MOF-253 and the molecular Pt(bpydc)Cl2 (bpydc = 2,2′-bipyridine-5,5′-dicar-boxylic acid) complex, the hybrid Pt-MOF-253 photocatalytic system exhibited significantly improved photocatalytic activity for H2 evolution under visible light irradiation. The enhanced activity of Pt-MOF-253 was due to the short spacing between Pt···Pt, which was beneficial to the formation of the critical intermediate hydride–diplatinum (II, III), more efficient electron transfer within the MOF structure, and the slowed decomposition of the anchored Pt(bpy)Cl2 units in Pt-MOF-253. The overall photocatalytic cycle was schematically pictured in Figure 6c.
In order to develop cost-effective catalysts for future water splitting on an industrial scale, it is imperative to explore noble metal-free catalysts for H2 production from water. Such a trend has been well manifested in the electrocatalysis field which has witnessed the emergence of 1st-row transition metal-based complexes [53] and solid-state materials [54,55,56,57,58,59] as competent electrocatalysts for water splitting. One of those well-established molecular electrocatalysts for H2 evolution is cobaloxime complex. Recently, Gascon and co-workers introduced cobaloxime into the pores of NH2-MIL-125(Ti) following a “ship-in-the-bottle” strategy [60]. As shown in Figure 7a, the size selection of the pores in NH2-MIL-125(Ti) was crucial to the successful formation of the cobaloxime complex inside the MOF cavities. For instance, the intact cobaloxime complex was too large to diffuse into and out from the NH2-MIL-125(Ti) pore windows. However, the free ligand (DOH)2pn (N2,N2′-propanediylbis(2,3-butanedione 2-imine 3-oxime)) was able to migrate into the internal channels of NH2-MIL-125(Ti). Upon the addition of CoBr2 as the cobalt source under aerobic conditions, cobaloxime was assembled inside the MOF pores. Such a strategy would minimize the exclusion of the H2 catalyst from the MOF cavities. Varying the initial amounts of the free ligand and CoBr2 could facilely tune the catalyst loading within the MOF structure. The pristine NH2-MIL-125(Ti) possessed a pore volume of 0.58 cm3·g−1. After the loading of cobaloxime, the resulting Co@MOF exhibited an expected smaller pore volume of 0.46 cm3·g−1. Figure 7b presented the evolved H2 amount over 25 h photolysis under visible light irradiation (λ > 408 nm). The cobaloxime-encapsulated Co@MOF clearly displayed a markedly improved photocatalytic performance for H2 evolution with nearly 20-fold higher H2 production rate compared to the pristine MOF. More importantly, Co@MOF possessed a high stability with a turnover frequency of 0.8 h−1 even after operating for 65 h. Furthermore, the system could be recycled several times without any loss of activity (Figure 7c). Even though remarkable photocatalytic H2 evolution performance was achieved by this hybrid Co@MOF systems solely consisting of earth-abundant elements, the exact structure of the cobalt catalyst within the MOF pores remained unknown. However, it still strongly demonstrates that the modular design and synthesis of multicomponent MOF systems opens a new window to develop low-cost photocatalytic composites for H2 production from water.

3. O2 Evolution Catalyzed by MOF-based Hybrid Systems

In contrast to the large number of MOF-based photocatalytic systems for H2 evolution, much fewer studies have been reported for the other half-reaction of water splitting, the O2 evolution reaction, utilizing MOF-based catalysts. This might be attributed to the harsh oxidizing condition of O2 evolution where most MOFs could not survive [61,62,63]. Nevertheless, a few MOF systems have still been reported with promising O2 evolution performance. The first work of MOF-based catalysts for water oxidation was reported by Lin et al. in 2011 [64]. Highly robust and porous Zr6O4(OH)4(bpdc)6 (UiO-67, bpdc = para-biphenyldicarboxylic acid) framework was employed as a heterogeneous support to incorporate a variety of iridium and other complexes for various applications, including water oxidation. Following a mix-and-match synthetic strategies, three iridium complexes, [Cp*IrIII(dcppy)Cl] (MOF-1; Cp* = pentamethylcyclopentadienyl, dcppy = 2-phenylpyridine-5,4′-dicarboxylic acid), [Cp*IrIII(dcbpy)Cl]Cl (MOF-2; dcbpy = 2,2′-bipyridine-5,5′-dicarboxylic acid), and [IrIII(dcppy)2(H2O)2]OTf (MOF-3), were bound into UiO-67. The synthetic route and the corresponding molecular structures of the three iridium units are included in Figure 8. The water oxidation performance of MOF 13 was examined with Ce4+ as the chemical oxidant (Figure 9a). All the Ir-incorporated MOFs were effective water oxidation catalysts with TON values as high as 4.8 (Table 2) (MOF 1). Repeated catalytic cycles demonstrated robust stability of these MOFs for elongated water oxidation (Figure 9b). Control experiments confirmed that the observed water oxidation activities were originated from the heterogeneous MOFs. However, compared to their homogeneous counterparts, MOF 13 exhibited lower turnover frequencies (only 6.4–12.9% of the homogeneous catalyst activities). Such a decreased performance was rationalized by the fact that only those iridium complexes exposed on the MOF surfaces were involved in water oxidation, since the cerium nitrate anions were too bulky to enter the MOF channels. Therefore, in order to increase catalytic activity, Lin and co-workers further prepared two other Zr-based MOFs with larger channels using two elongated dicarboxylate ligands [65]. These new MOFs showed enhanced water oxidation activity when using cerium nitrate as the oxidant. Although their instability and partial decomposition of the iridium complexes were observed under the water oxidation condition, these works presented the possibility of incorporating molecular active sites in MOFs structures for water oxidation, complementary to those homogeneous O2 evolution studies.

4. Photocatalytic Water Splitting Utilizing MOF-derived Photocatalysts

Metal–organic frameworks not only represent attractive scaffolds for the incorporation of diverse components (phosphors, active sites, etc.) for photocatalytic water splitting, but also can act as sacrificial templates to produce a variety of highly porous carbon materials. Under certain conditions, multiple beneficial components for photocatalysis, including nonmetals, metals, and metal oxides, are embedded in those MOF-derived carbon composites. In fact, MOF-derived hybrid materials have been successfully employed in many fields, ranging from catalysis [66,67,68,69,70,71], supercapacitors [72], to batteries [73,74,75]. For photocatalytic water splitting, several representative MOF-derived systems are introduced herein. Following the MIL-101 structure, Lin and co-workers utilized microwave treatment to synthesize a MOF material with the formula of Fe3OCl(H2O)(BDC)3 (BDC = benzene dicarboxylate) [76]. Subsequently, the Fe-based MIL-101 particles were coated with an amorphous layer of TiO2 by acid-catalyzed hydrolysis and TALH (titanium (IV) bis(ammonium lactate)dihydroxide) condensation in water. The obtained core–shell particles were then calcined at 550 °C in air to form iron oxide covered with a shell of TiO2 (Fe2O3@TiO2). Pt particles were deposited on the surface of Fe2O3@TiO2 for photocatalytic H2 evolution. The overall synthetic scheme is outlined in Figure 10a. Compared to Fe2O3, TiO2, or their mixtures, the MOF-derived Fe2O3@TiO2 showed superior photocatalytic performance for H2 generation under visible light irradiation (λ > 420 nm) with triethylamine (TEA) as the sacrificial electron donor (Figure 10b). The amount of H2 produced increased linearly during the 48 h photolysis (Figure 10b inset). The MOF-derived photocatalyst also possessed high stability with nearly no decrease in activity for three photolysis cycles. Analogous strategies were adopted to prepare other MOF-derived hollow Fe2O3-TiO2-PtOx systems employing MIL-88B as a sacrificial MOF template [77]. Promising photocatalytic H2 evolution rate was obtained from the Fe2O3-TiO2-PtOx system as well.
Photocatalytic H2 evolution could also be realized by MOF-derived hybrid composites without noble-metal cocatalysts. For instance, Qiu et al. reported a magnetic photocatalyst derived from an iron MOF [78]. The magnetic nature of this photocatalyst enabled its easy separation from the reaction media for repeated use. In 2015, a cobalt-based MOF was utilized as a sacrificial template to prepare Co3O4/TiO2 for photocatalytic H2 production from water [79]. After calcination, Co3O4 and TiO2 were well dispersed throughout the composite. It was found that the close heterojunction between Co3O4 and TiO2 and the co-catalytic role of CO3O4 both resulted in fast interfacial charge transfer and efficient electron-hole separation, contributing to the overall photocatalytic performance. Very recently, a new mesoporous p–n heterojunction semiconductor nanocomposite, Cu2O@C3N, was prepared by pyrolysis of a copper-based MOF, Cu3(BTC)2 (BTC = 1,3,5-benzenetricarboylate) together with urea [80]. The obtained Cu2O@C3N nanocomposite exhibited a lower band gap energy in comparison with bulk carbon nitride and Cu2O, as well as dramatically enhanced photocatalytic activity for H2 production from water.

5. Conclusions

The last decade has witnessed the rapid advance in photocatalytic water splitting utilizing MOF-based and/or derived catalytic systems. This brief review has presented quite a few number of representative examples in this field. It is apparent that by taking advantage of the modular synthesis and rich diversity in the selection of inorganic and organic components, MOFs and their derivatives will certainly attract even more attention in the foreseeable future for catalytic applications, including water splitting. Even though a great progress has been achieved in producing H2 under visible light irradiation catalyzed by MOF-based composites, several challenges remain to be addressed. First of all, very few systems have been reported for photocatalytic O2 evolution from water. Since H2 production is only one of the two half-reactions of water splitting, it is equally if not more important to develop competent water oxidation catalysts, in order to realize water splitting for practical applications. More efforts need to be devoted to exploring the rich chemistry of MOFs and their derivatives in preparing highly robust and active photocatalytic systems for water oxidation under visible light irradiation. Secondly, most of those reported MOF-based photocatalysts require noble metal co-catalysts for the efficient production of H2, which is not economically attractive for industrial application. Economically competitive systems solely consisting of earth-abundant elements are highly desirable. In addition, complex and expensive organic linkers for some MOFs also seem to be problematic. A mixed-linker strategy with low-cost organic linkers might be a promising alternative to reduce the cost of desirable MOFs, which should deserve more attention in the future. More efforts should be shifted towards exploring mixed-organic linkers and 1st-row transition metal-based catalysts derived from MOFs for photocatalytic water splitting. Finally, the intrinsic activity and density of active sites of the photocatalysts should be further improved to meet the requirements of practical application. TONs ought to be >1000 for small-scale and high-value products, but it is better to be >50,000 for industrial applications. Currently, the reported activities (TON < 7000) of most MOF-based photocatalytic systems are still below the expectation for industrial application. Therefore, the unique features of MOFs, including large surface area, tunable pore volume and size, rich coordination chemistry, high crystallinity, and diverse three-dimensional structure, should be wisely utilized to maximize the overall catalytic performance. Molecular approaches of catalyst design coupled with materials science strategies in the development of MOF-based catalysts will undoubtedly lead to a very bright future for photocatalytic water splitting.

Acknowledgments

The authors would like to acknowledge the financial support of Utah State University. Yujie Sun also thanks National Science Foundation (CHE-1653978) and the Ralph E. Powe Junior Faculty Enhancement Award from Oak Ridge Associated Universities (ORAU).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dresselhaus, M.S.; Thomas, I.L. Alternative energy technologies. Nature 2001, 414, 332–337. [Google Scholar] [CrossRef] [PubMed]
  2. Turner, J.A. Sustainable hydrogen production. Science 2004, 305, 972–974. [Google Scholar] [CrossRef] [PubMed]
  3. Lewis, N.S.; Nocera, D.G. Powering the planet: Chemical challenges in solar energy utilization. Proc. Natl. Acad. Sci. USA 2006, 103, 15729–15735. [Google Scholar] [CrossRef] [PubMed]
  4. Cook, T.R.; Dogutan, D.K.; Reece, S.Y.; Surendranath, Y.; Teets, T.S.; Nocera, D.G. Solar Energy supply and storage for the legacy and nonlegacy worlds. Chem. Rev. 2010, 110, 6474–6502. [Google Scholar] [CrossRef] [PubMed]
  5. Chu, S.; Majumdar, A. Opportunities and challenges for a sustainable energy future. Nature 2012, 488, 294–303. [Google Scholar] [CrossRef] [PubMed]
  6. Sun, Y.J.; Bigi, J.P.; Piro, N.A.; Tang, M.L.; Long, J.R.; Chang, C.J. Molecular cobalt pentapyridine catalysts for generating hydrogen from water. J. Am. Chem. Soc. 2011, 133, 9212–9215. [Google Scholar] [CrossRef] [PubMed]
  7. Grasemann, M.; Laurenczy, G. Formic acid as a hydrogen source-recent developments and future trends. Energy Environ. Sci. 2010, 5, 8171–8181. [Google Scholar] [CrossRef]
  8. Li, W.; Wang, X.; Xiong, D.; Liu, L. Efficient and durable electrochemical hydrogen evolution using cocoon-like MoS2 with preferentially exposed edges. Int. J. Hydrogen Energy 2016, 41, 9344–9354. [Google Scholar] [CrossRef]
  9. You, B.; Jiang, N.; Sun, Y.J. Morphology–activity correlation in hydrogen evolution catalyzed by cobalt sulfides. Inorg. Chem. Front. 2016, 3, 279–285. [Google Scholar] [CrossRef]
  10. Iwasa, N.; Takezawa, N. New supported Pd and Pt alloy catalysts for steam reforming and dehydrogenation of methanol. Top. Catal. 2003, 22, 215–224. [Google Scholar] [CrossRef]
  11. Kuo, C.H.; Tang, Y.; Chou, L.Y.; Sneed, B.T.; Brodsky, C.N.; Zhao, Z.P.; Tsung, C.K. Yolk-shell nanocrystal@ZIF-8 nanostructures for gas-phase heterogeneous catalysis with selectivity control. J. Am. Chem. Soc. 2012, 134, 14345–14348. [Google Scholar] [CrossRef] [PubMed]
  12. Nielsen, M.; Alberico, E.; Baumann, W.; Drexler, H.J.; Junge, H.; Gladiali, S.; Beller, M. Low-temperature aqueous-phase methanol dehydrogenation to hydrogen and carbon dioxide. Nature 2013, 495, 85–89. [Google Scholar] [CrossRef] [PubMed]
  13. Jiang, N.; You, B.; Sheng, M.L.; Sun, Y.J. Electrodeposited cobalt-phosphorous-derived films as competent bifunctional catalysts for overall water splitting. Angew. Chem. Int. Ed. 2015, 54, 6251–6254. [Google Scholar] [CrossRef] [PubMed]
  14. Liu, X.; You, B.; Jiang, N.; Sun, Y.J. Facile surface modification of ubiquitous stainless steel led to competent electrocatalysts for overall water splitting. ACS Sustain. Chem. Eng. 2017, 5, 4778–4784. [Google Scholar] [CrossRef]
  15. Song, F.Z.; Zhu, Q.L.; Tsumori, N.; Xu, Q. Diamine-alkalized reduced graphene oxide: Immobilization of sub-2 nm palladium nanoparticles and optimization of catalytic activity for dehydrogenation of formic acid. ACS Catal. 2015, 5, 5141–5144. [Google Scholar] [CrossRef]
  16. Song, F.Z.; Zhu, Q.L.; Xu, Q. Monodispersed PtNi nanoparticles deposited on diamine-alkalized graphene for highly efficient dehydrogenation of hydrous hydrazine at room temperature. J. Mater. Chem. A 2015, 3, 23090–23094. [Google Scholar] [CrossRef]
  17. Song, F.Z.; Zhu, Q.L.; Xu, Q. Monodispersed CuCo nanoparticles supported on diamine-functionalized graphene as a non-noble metal catalyst for hydrolytic dehydrogenation of ammonia borane. ChemNanoMat 2016, 2, 942–945. [Google Scholar] [CrossRef]
  18. You, B.; Liu, X.; Jiang, N.; Sun, Y.J. A general strategy for decoupled hydrogen production from water splitting by integrating oxidative biomass valorization. J. Am. Chem. Soc. 2016, 138, 13639–13646. [Google Scholar] [CrossRef] [PubMed]
  19. Zou, X.; Zhang, Y. Noble metal-free hydrogen evolution catalysts for water splitting. Chem. Soc. Rev. 2015, 44, 5148–5180. [Google Scholar] [CrossRef] [PubMed]
  20. Chen, X.B.; Shen, S.H.; Guo, L.J.; Mao, S.S. Semiconductor-based photocatalytic hydrogen generation. Chem. Rev. 2010, 110, 6503–6570. [Google Scholar] [CrossRef] [PubMed]
  21. Nasalevich, M.A.; van der Veen, M.; Kapteijn, F.; Gascon, J. Metal–organic frameworks as heterogeneous photocatalysts: Advantages and challenges. CrystEngComm 2014, 16, 4919–4926. [Google Scholar] [CrossRef]
  22. Fujishima, A.; Honda, K. Electrochemical photolysis of water at a semiconductor electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef] [PubMed]
  23. Khan, S.U.M.; Al-Shahry, M.; Ingler, W.B., Jr. Efficient photochemical water splitting by a chemically modified n-TiO2. Science 2002, 297, 2243–2245. [Google Scholar] [CrossRef] [PubMed]
  24. Ye, J.H.; Zou, Z.G.; Matsushita, A. A novel series of water splitting photocatalysts NiM2O6 (M = Nb, Ta) active under visible light. Int. J. Hydrogen Energy 2003, 28, 651–655. [Google Scholar] [CrossRef]
  25. Ni, M.; Leung, M.K.H.; Leung, D.Y.C.; Sumathy, K. A review and recent developments in photocatalytic water-splitting using TiO2 for hydrogen production. Renew. Sustain. Energy Rev. 2007, 11, 401–425. [Google Scholar] [CrossRef]
  26. Kudo, A.; Miseki, Y. Heterogeneous photocatalyst materials for water splitting. Chem. Soc. Rev. 2009, 38, 253–278. [Google Scholar] [CrossRef] [PubMed]
  27. Maeda, K.; Domen, K. Photocatalytic water splitting: Recent progress and future challenges. J. Phys. Chem. Lett. 2010, 1, 2655–2661. [Google Scholar] [CrossRef]
  28. Zhang, Y.; Tang, Y.; Liu, X.; Dong, Z.; Hng, H.H.; Chen, Z.; Sum, T.C.; Chen, X. Three-dimensional CdS-titanate composite nanomaterials for enhanced visible-light-driven hydrogen evolution. Small 2013, 9, 996–1002. [Google Scholar] [CrossRef] [PubMed]
  29. Hoskins, B.F.; Robson, R. Infinite polymeric frameworks consisting of three dimensionally linked rod-like segments. J. Am. Chem. Soc. 1989, 111, 5962–5964. [Google Scholar] [CrossRef]
  30. Li, H.; Eddaoudi, M.; Keeffe, M.O.; Yaghi, O.M. Design and synthesis of an exceptionally stable and highly porous metal–organic framework. Nature 1999, 402, 276–279. [Google Scholar]
  31. Yaghi, O.M.; Keeffe, M.O.; Ockwing, N.W.; Chae, H.K.; Eddaoudi, M.; Kim, J. Reticular synthesis and the design of new materials. Nature 2003, 423, 705–714. [Google Scholar] [CrossRef] [PubMed]
  32. Zhang, Z.J.; Zhao, Y.G.; Gong, Q.H.; Li, Z.; Li, J. MOFs for CO2 capture and separation from flue gas mixtures: the effect of multifunctional sites on their adsorption capacity and selectivity. Chem. Commun. 2013, 49, 653–661. [Google Scholar] [CrossRef] [PubMed]
  33. Henninger, S.K.; Habib, H.A.; Janiak, C. MOFs as adsorbents for low temperature heating and cooling applications. J. Am. Chem. Soc. 2009, 131, 2776–2777. [Google Scholar] [CrossRef] [PubMed]
  34. Shimizu, G.K.H.; Taylor, J.M.; Kim, S. Proton conduction with metal–organic frameworks. Science 2013, 341, 354–355. [Google Scholar] [CrossRef] [PubMed]
  35. Xu, H.; Cui, Y.J.; Chen, B.L.; Qian, G.D. A luminescent nanoscale metal–organic framework for sensing of nitroaromatic explosives. Chem. Commun. 2011, 47, 3153–3155. [Google Scholar] [CrossRef] [PubMed]
  36. Xamena, F.X.L.; Corma, A.; Garcia, H. MOFs as catalysts: Activity, reusability and shape-selectivity of a Pd-containing MOF. J. Catal. 2007, 250, 294–298. [Google Scholar]
  37. Horcajada, P.; Serre, C.; Maurin, G.; Ramsahye, N.A.; Balas, F.; Vallet-Regi, M.; Sebban, M.; Taulelle, F.; Ferey, G. Flexible porous metal–organic frameworks for a controlled drug delivery. J. Am. Chem. Soc. 2008, 130, 6774–6780. [Google Scholar] [CrossRef] [PubMed]
  38. Liu, B.; Shioyama, H.; Akita, T.; Xu, Q. Metal–organic framework as a template for porous carbon synthesis. J. Am. Chem. Soc. 2008, 130, 5390–5391. [Google Scholar] [CrossRef] [PubMed]
  39. Yang, S.J.; Kim, T.; Im, J.H.; Kim, Y.S.; Lee, K.; Jung, H.; Park, C.R. MOF-derived hierarchically porous carbon with exceptional porosity and hydrogen storage capacity. Chem. Mater. 2012, 24, 464–470. [Google Scholar] [CrossRef]
  40. Sun, J.K.; Xu, Q. Functional materials derived from open framework templates/precursors: Synthesis and applications. Energy Environ. Sci. 2014, 7, 2071–2100. [Google Scholar] [CrossRef]
  41. Zeng, L.; Guo, X.Y.; He, C.; Duan, C.Y. Metal–organic frameworks: Versatile materials for heterogeneous photocatalysis. ACS Catal. 2016, 6, 7935–7947. [Google Scholar] [CrossRef]
  42. Kataoka, Y.; Sato, K.; Miyazaki, Y.; Masuda, K.; Tanaka, H.; Naito, S.; Mori, W. Photocatalytic hydrogen production from water using porous material [Ru2(p-BDC)2]n. Energy Environ. Sci. 2009, 2, 397–400. [Google Scholar] [CrossRef]
  43. Kataoka, Y.; Miyazaki, Y.; Sato, K.; Saito, T.; Nakanishi, Y.; Kiatagwa, Y.; Kawakami, T.; Okumura, M.; Yamaguchi, K.; Mori, W. Modification of MOF catalysts by manipulation of counter-ions: Experimental and theoretical studies of photochemical hydrogen production from water over microporous diruthenium (II, III) coordination polymers. Supramol. Chem. 2011, 23, 287–299. [Google Scholar] [CrossRef]
  44. Kataoka, Y.; Sato, K.; Miyazaki, Y.; Suzuki, Y.; Tanaka, H.; Kitagawa, Y.; Kawakami, T.; Okumura, M.; Mori, W. Photocatalytic hydrogen production from water using heterogeneous two-dimensional rhodium coordination polymer [Rh2( p-BDC)2]n. Chem. Lett. 2010, 39, 358–359. [Google Scholar] [CrossRef]
  45. Silva, C.G.; Luz, I.; Xamena, F.X.L.; Corma, A.; Garcia, H. Water stable Zr-benzenedicarboxylate metal–organic frameworks as photocatalysts for hydrogen generation. Chem. Eur. J. 2010, 16, 11133–11138. [Google Scholar] [CrossRef] [PubMed]
  46. Horiuchi, Y.; Toyao, T.; Saito, M.; Mochizuki, K.; Iwata, M.; Higashimura, H.; Anpo, M.; Matsuoka, M. Visible-light-promoted photocatalytic hydrogen production by using an amino-functionalized Ti(IV) metal–organic framework. J. Phys. Chem. C 2012, 116, 20848–20853. [Google Scholar] [CrossRef]
  47. Wen, M.; Mori, K.; Kamegawa, T.; Yamashita, H. Amine-functionalized MIL-101(Cr) with imbedded platinum nanoparticles as a durable photocatalyst for hydrogen production from water. Chem. Commun. 2014, 50, 11645–11648. [Google Scholar] [CrossRef] [PubMed]
  48. Fateeva, A.; Chater, P.A.; Ireland, C.P.; Tahir, A.A.; Khimyak, Y.Z.; Wiper, P.V.; Darwent, J.R.; Rosseinsky, M.J. A water-stable porphyrin-based metal–organic framework active for visible-light photocatalysis. Angew. Chem. Int. Ed. 2012, 51, 7440–7444. [Google Scholar] [CrossRef] [PubMed]
  49. Wang, C.; Krafft, K.E.; Lin, W. Pt nanoparticles@photoactive metal–organic frameworks: Efficient hydrogen evolution via synergistic photoexcitation and electron injection. J. Am. Chem. Soc. 2012, 134, 7211–7214. [Google Scholar] [CrossRef] [PubMed]
  50. Lin, R.; Shen, L.; Ren, Z.; Wu, W.; Tan, Y.; Fu, H.; Zhang, J.; Wu, L. Enhanced photocatalytic hydrogen production activity via dual modification of MOF and reduced graphene oxide on CdS. Chem. Commun. 2014, 50, 8533–8535. [Google Scholar] [CrossRef] [PubMed]
  51. He, J.; Wang, J.; Chen, Y.; Zhang, J.; Duan, D.; Wang, Y.; Yan, Z. A dye-sensitized Pt@UiO-66(Zr) metal–organic framework for visible-light photocatalytic hydrogen production. Chem. Commun. 2014, 50, 7063–7066. [Google Scholar] [CrossRef] [PubMed]
  52. Zhou, T.; Du, Y.; Borgna, A.; Hong, J.; Wang, Y.; Han, J.; Zhang, W.; Xu, R. Post-synthesis modification of a metal–organic framework to construct a bifunctional photocatalyst for hydrogen production. Energy Environ. Sci. 2013, 6, 3229–3234. [Google Scholar] [CrossRef]
  53. Thoi, V.S.; Sun, Y.; Long, J.R.; Chang, C.J. Complexes of earth-abundant metals for catalytic electrochemical hydrogen generation under aqueous conditions. Chem. Soc. Rev. 2013, 42, 2388–2400. [Google Scholar] [CrossRef] [PubMed]
  54. Hisatomi, T.; Kubota, J.; Domen, K. Recent advances in semiconductors for photocatalytic and photoelectrochemical water splitting. Chem. Soc. Rev. 2014, 43, 7520–7535. [Google Scholar] [CrossRef] [PubMed]
  55. Ran, J.; Zhang, J.; Yu, J.; Jaroniec, M.; Qiao, S.Z. Earth-abundant cocatalysts for semiconductor-based photocatalytic water splitting. Chem. Soc. Rev. 2014, 43, 7787–7812. [Google Scholar] [CrossRef] [PubMed]
  56. Shi, Y.M.; Zhang, B. Recent advances in transition metal phosphide nanomaterials: Synthesis and applications in hydrogen evolution reaction. Chem. Soc. Rev. 2016, 45, 1529–1541. [Google Scholar] [CrossRef] [PubMed]
  57. Xu, Y.; Kraft, M.; Xu, R. Metal-free carbonaceous electrocatalysts and photocatalysts for water splitting. Chem. Soc. Rev. 2016, 45, 3039–3052. [Google Scholar] [CrossRef] [PubMed]
  58. Roger, I.; Shipman, M.A.; Symes, M.D. Earth-abundant catalysts for electrochemical and photoelectrochemical water splitting. Nat. Rev. Chem. 2017, 1, 0003. [Google Scholar] [CrossRef]
  59. Anantharaj, S.; Ede, S.R.; Sakthikumar, K.; Karthick, K.; Mishra, S.; Kundu, S. Recent trends and perspectives in electrochemical water splitting with an emphasis on sulfide, selenide, and phosphide catalysts of Fe, Co, and Ni: A review. ACS Catal. 2016, 6, 8069–8097. [Google Scholar] [CrossRef]
  60. Nasalevich, M.A.; Becker, R.; Ramos-Fernandez, E.V.; Castellanos, S.; Veber, S.L.; Fedin, M.V.; Kapteijn, F.; Reek, J.N.H.; Vlugt, J.I.; Gascon, J. Co@NH2-MIL-125(Ti): Cobaloxime-derived metal–organic framework-based composite for lightdriven H2 production. Energy Environ. Sci. 2015, 8, 364–375. [Google Scholar] [CrossRef]
  61. Zhang, T.; Lin, W.B. Metal–organic frameworks for artificial photosynthesis and photocatalysis. Chem. Soc. Rev. 2014, 43, 5982–5993. [Google Scholar] [CrossRef] [PubMed]
  62. Zhang, C.; Ai, L.; Jiang, J. Solvothermal synthesis of MIL-53(Fe) hybrid magnetic composites for photoelectrochemical water oxidation and organic pollutant photodegradation under visible light. J. Mater. Chem. A 2015, 3, 3074–3081. [Google Scholar] [CrossRef]
  63. Wang, S.B.; Wang, X.C. Multifunctional metal–organic frameworks for photocatalysis. Small 2015, 11, 3097–3112. [Google Scholar] [CrossRef] [PubMed]
  64. Wang, C.; Xie, Z.G.; Krafft, K.E.; Lin, W.B. Doping metal organic frameworks for water oxidation, carbon dioxide reduction, and organic photocatalysis. J. Am. Chem. Soc. 2011, 133, 13445–13454. [Google Scholar] [CrossRef] [PubMed]
  65. Wang, C.; Wang, J.L.; Lin, W.B. Elucidating molecular iridium water oxidation catalysts using metal–organic frameworks: A comprehensive structural, catalytic, spectroscopic, and kinetic study. J. Am. Chem. Soc. 2012, 134, 19895–19908. [Google Scholar] [CrossRef] [PubMed]
  66. Chughtai, A.H.; Ahmad, N.; Younus, H.A.; Laypkov, A.; Verpoort, F. Metal–organic frameworks: Versatile heterogeneous catalysts for efficient catalytic organic transformations. Chem. Soc. Rev. 2015, 44, 6804–6849. [Google Scholar] [CrossRef] [PubMed]
  67. You, B.; Jiang, N.; Sheng, M.; Gul, S.; Yano, J.; Sun, Y. High-performance overall water splitting electrocatalysts derived from cobalt-based metal–organic frameworks. Chem. Mater. 2015, 27, 7636–7642. [Google Scholar] [CrossRef]
  68. You, B.; Jiang, N.; Sheng, M.; Drisdell, W.S.; Yano, J.; Sun, Y. Bimetal–organic framework self-adjusted synthesis of support-free nonprecious electrocatalysts for efficient oxygen reduction. ACS Catal. 2015, 5, 7068–7076. [Google Scholar] [CrossRef]
  69. Liu, X.; Dong, J.; You, B.; Sun, Y. Competent overall water-splitting electrocatalysts derived from ZIF-67 grown on carbon cloth. RSC Adv. 2016, 6, 73336–73342. [Google Scholar] [CrossRef]
  70. Wang, W.; Xu, X.; Zhou, W.; Shao, Z. Recent progress in metal–organic frameworks for applications in electrocatalytic and photocatalytic water splitting. Adv. Sci. 2017, 4, 1600371. [Google Scholar] [CrossRef] [PubMed]
  71. Wang, J.L.; Wang, C.; Lin, W.B. Metal–organic frameworks for light harvesting and photocatalysis. ACS Catal. 2012, 2, 2630–2640. [Google Scholar] [CrossRef]
  72. Xia, W.; Mahmood, A.; Zou, R.; Xu, Q. Metal–organic frameworks and their derived nanostructures for electrochemical energy storage and conversion. Energy Environ. Sci. 2015, 8, 1837–1866. [Google Scholar] [CrossRef]
  73. Chaikittisilp, W.; Ariga, K.; Yamauchi, Y. A new family of carbon materials: Synthesis of MOF-derived nanoporous carbons and their promising applications. J. Mater. Chem. A 2013, 1, 14–19. [Google Scholar] [CrossRef]
  74. Khaletskaya, K.; Pougin, A.; Medishetty, R.; Rosler, C.; Wiktor, C.; Strunk, J.; Fischer, R.A. Fabrication of Gold/Titania photocatalyst for CO2 reduction based on pyrolytic conversion of the metal–organic rramework NH2-MIL-125(Ti) loaded with Gold nanoparticles. Chem. Mater. 2015, 27, 7248–7257. [Google Scholar] [CrossRef]
  75. Xu, J.Y.; Zhai, X.P.; Gao, L.F.; Chen, P.; Zhao, M.; Yang, H.B.; Cao, D.F.; Wang, Q.; Zhang, H.L. In situ preparation of a MOF-derived magnetic carbonaceous catalyst for visible-light-driven hydrogen evolution. RSC Adv. 2016, 6, 2011–2018. [Google Scholar] [CrossRef]
  76. Krafft, K.E.; Wang, C.; Lin, W.B. Metal–organic framework templated synthesis of Fe2O3/TiO2 nanocomposite for hydrogen production. Adv. Mater. 2012, 24, 2014–2018. [Google Scholar] [CrossRef] [PubMed]
  77. Pham, M.H.; Dinh, C.T.; Vuong, G.T.; Ta, N.D.; Do, T.O. Visible light induced hydrogen generation using a hollow photocatalyst with two cocatalysts separated on two surface sides. Phys. Chem. Chem. Phys. 2014, 16, 5937–5941. [Google Scholar] [CrossRef] [PubMed]
  78. Zhang, Y.F.; Giu, L.G.; Yuan, Y.P.; Zhu, Y.J.; Jiang, X.; Xiao, J.D. Magnetic Fe3O4@C/Cu and Fe3O4@CuO core–shell composites constructed from MOF-based materials and their photocatalytic properties under visible light. Appl. Catal. B Environ. 2014, 144, 863–869. [Google Scholar] [CrossRef]
  79. Bala, S.; Mondal, I.; Goswami, A.; Pal, U.; Mondal, R. Co-MOF as a sacrificial template: manifesting a new Co3O4/TiO2 system with a p–n heterojunction for photocatalytic hydrogen evolution. J. Mater. Chem. A 2015, 3, 20288–20296. [Google Scholar] [CrossRef]
  80. Jayaramulu, K.; Toyao, T.; Ranc, V.; Rosler, C.; Petr, M.; Zboril, R.; Horiuchi, Y.; Matsuoka, M.; Fischer, R.A. An in situ porous cuprous oxide/nitrogen-rich graphitic carbon nanocomposite derived from a metal–organic framework for visible light driven hydrogen evolution. J. Mater. Chem. A 2016, 4, 18037–18042. [Google Scholar] [CrossRef]

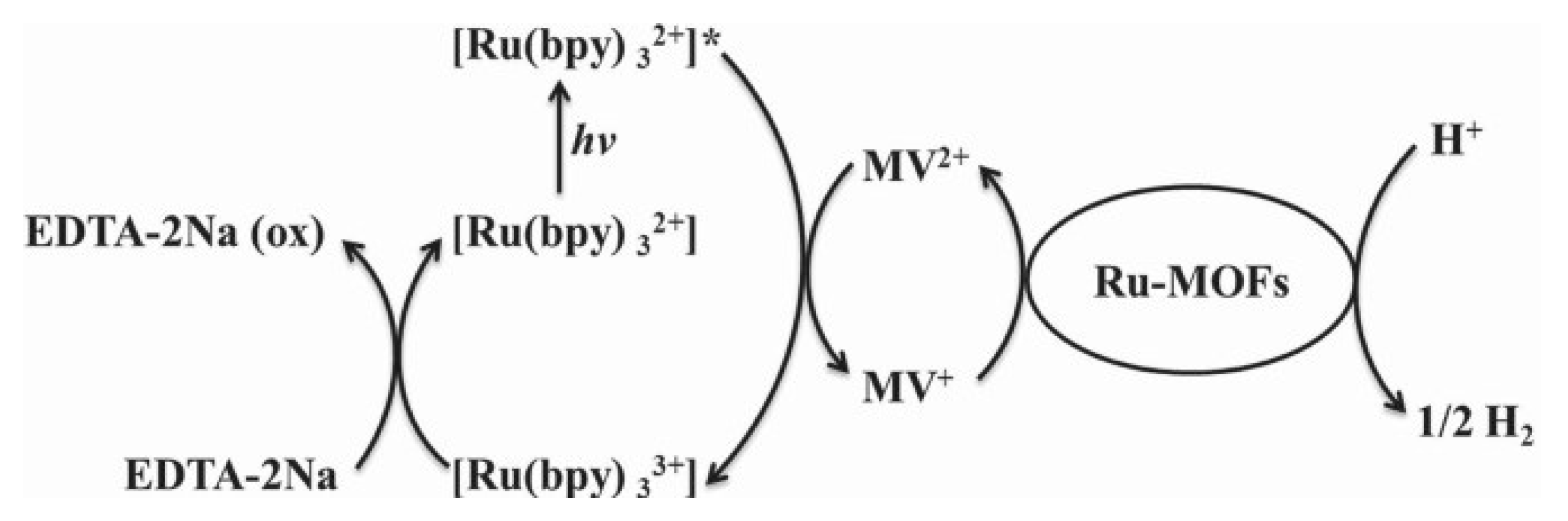

Figure 1. The reaction scheme of photochemical H2 production from water using Ru-MOFs in the presence of Ru(bpy)32+, MV2+, and EDTA-2Na. Reproduced with permission from ref. [42], Royal Society of Chemistry.
Figure 1. The reaction scheme of photochemical H2 production from water using Ru-MOFs in the presence of Ru(bpy)32+, MV2+, and EDTA-2Na. Reproduced with permission from ref. [42], Royal Society of Chemistry.
Inorganics 05 00040 g001

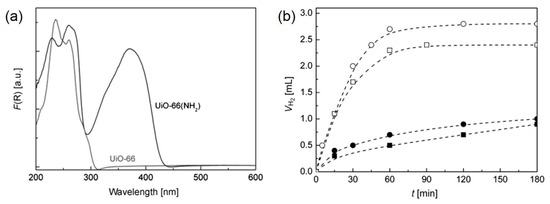

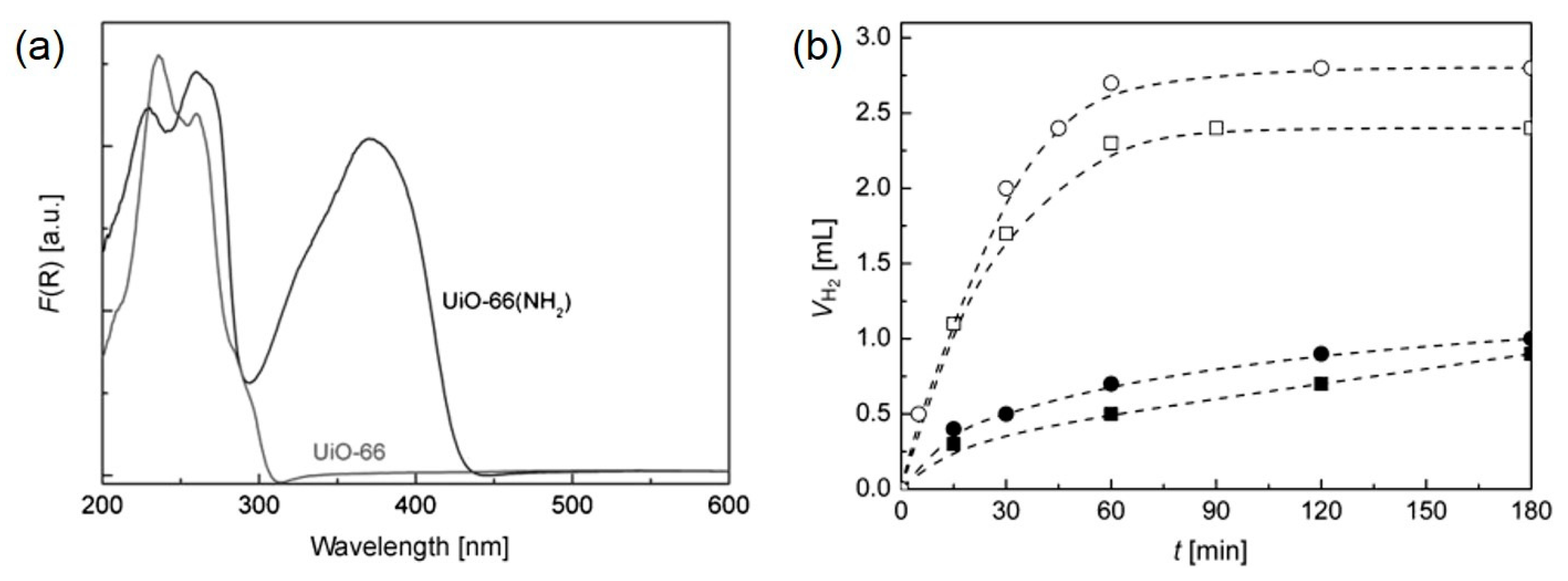

Figure 2. (a) UV-vis spectra of UiO-66 and UiO-66(NH2) MOFs; (b) Volume of H2 evolved during the photocatalytic reactions using UiO-66 (solid square), UiO-66/Pt (hollow square), UiO-66(NH2) (solid dot) and UiO-66(NH2)/Pt (hollow dot). Reproduced with permission from ref. [45], Wiley-VCH.
Figure 2. (a) UV-vis spectra of UiO-66 and UiO-66(NH2) MOFs; (b) Volume of H2 evolved during the photocatalytic reactions using UiO-66 (solid square), UiO-66/Pt (hollow square), UiO-66(NH2) (solid dot) and UiO-66(NH2)/Pt (hollow dot). Reproduced with permission from ref. [45], Wiley-VCH.
Inorganics 05 00040 g002

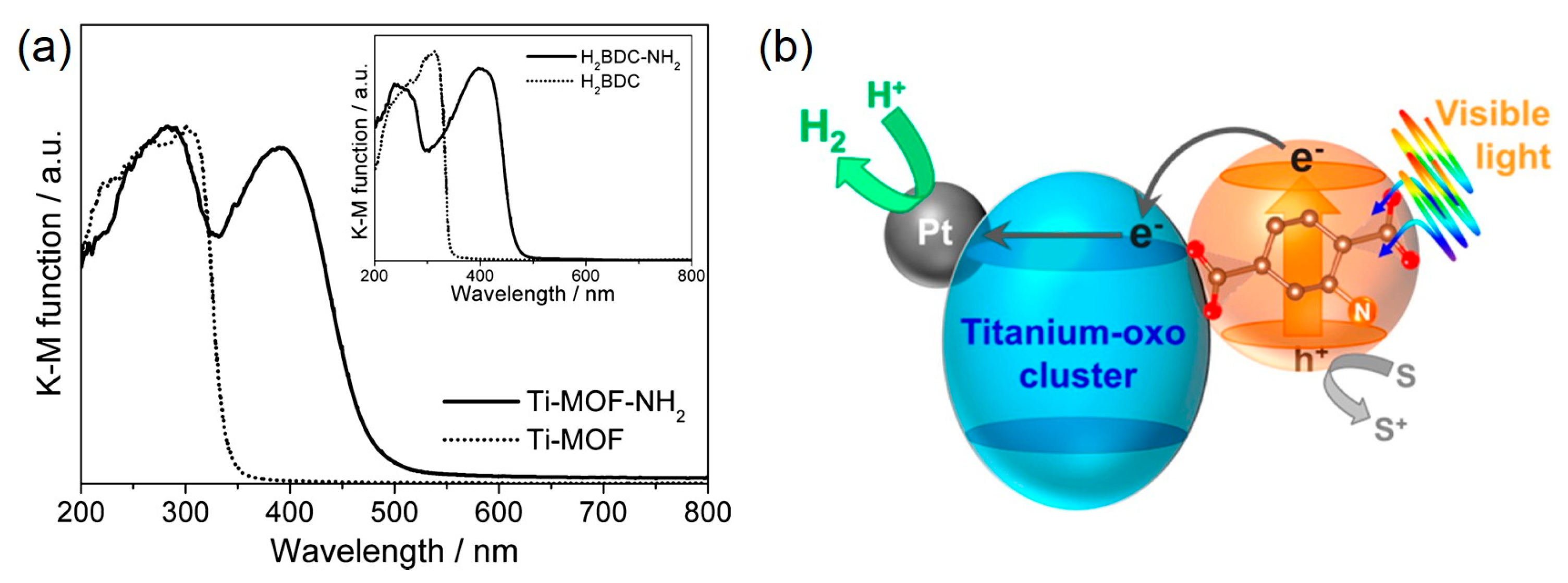

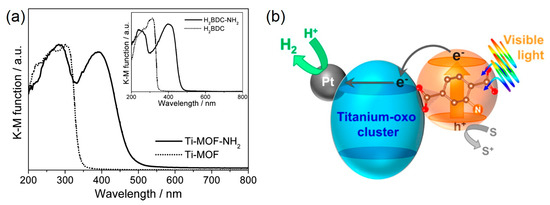

Figure 3. (a) Diffuse reflectance UV–vis (DRUV–vis) spectra of Ti-MOF (dotted line) and Ti-MOF-NH2 (solid line). Inset shows the DRUV-vis spectra of H2BDC (dotted line) and H2BDC-NH2 (solid line); (b) Schematic illustration of photocatalytic H2 production reaction over Pt-supported Ti-MOF-NH2. Reproduced with permission from ref. [46], American Chemical Society.
Figure 3. (a) Diffuse reflectance UV–vis (DRUV–vis) spectra of Ti-MOF (dotted line) and Ti-MOF-NH2 (solid line). Inset shows the DRUV-vis spectra of H2BDC (dotted line) and H2BDC-NH2 (solid line); (b) Schematic illustration of photocatalytic H2 production reaction over Pt-supported Ti-MOF-NH2. Reproduced with permission from ref. [46], American Chemical Society.
Inorganics 05 00040 g003

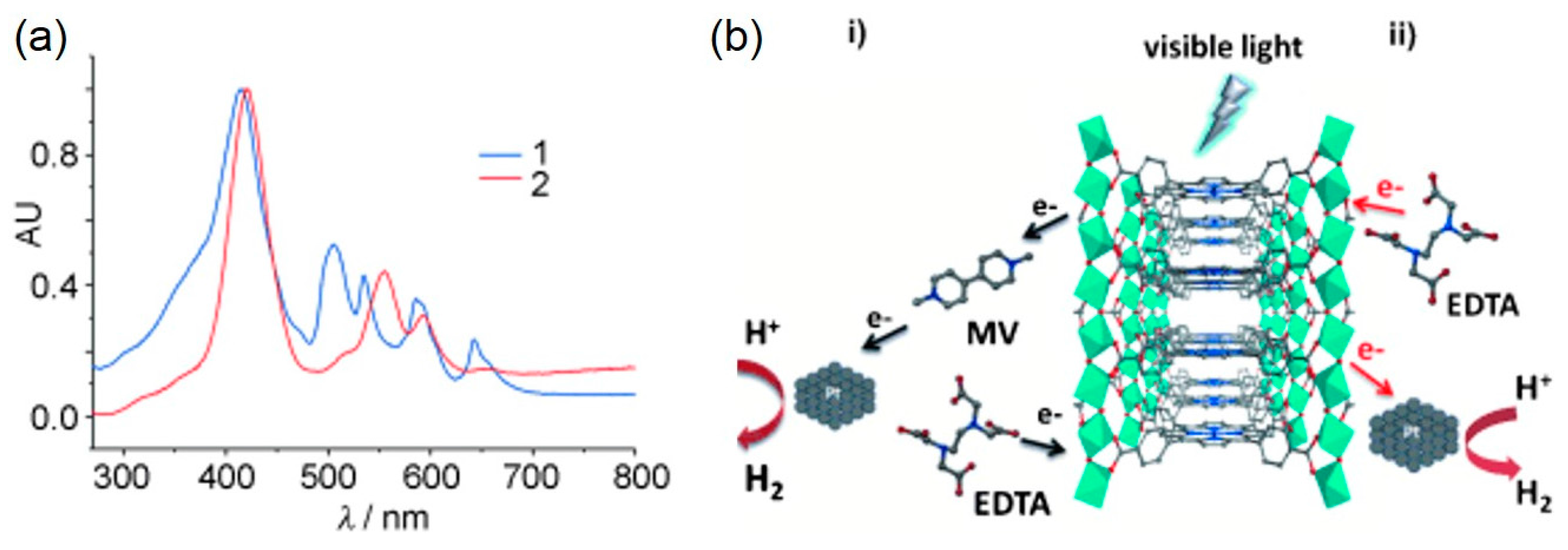

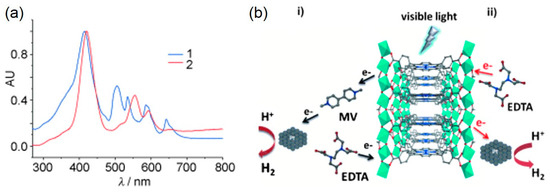

Figure 4. (a) UV/Vis solid-state absorption spectra of 1 and 2; (b) The photocatalytic reaction using Al/Zn-MOF. (i) Reaction involving Al/Zn-MOF, MV, colloidal Pt, and EDTA. (ii) Reaction involving Al/Zn-MOF, colloidal Pt, and EDTA. Reproduced with permission from ref. [48], Wiley-VCH.
Figure 4. (a) UV/Vis solid-state absorption spectra of 1 and 2; (b) The photocatalytic reaction using Al/Zn-MOF. (i) Reaction involving Al/Zn-MOF, MV, colloidal Pt, and EDTA. (ii) Reaction involving Al/Zn-MOF, colloidal Pt, and EDTA. Reproduced with permission from ref. [48], Wiley-VCH.
Inorganics 05 00040 g004

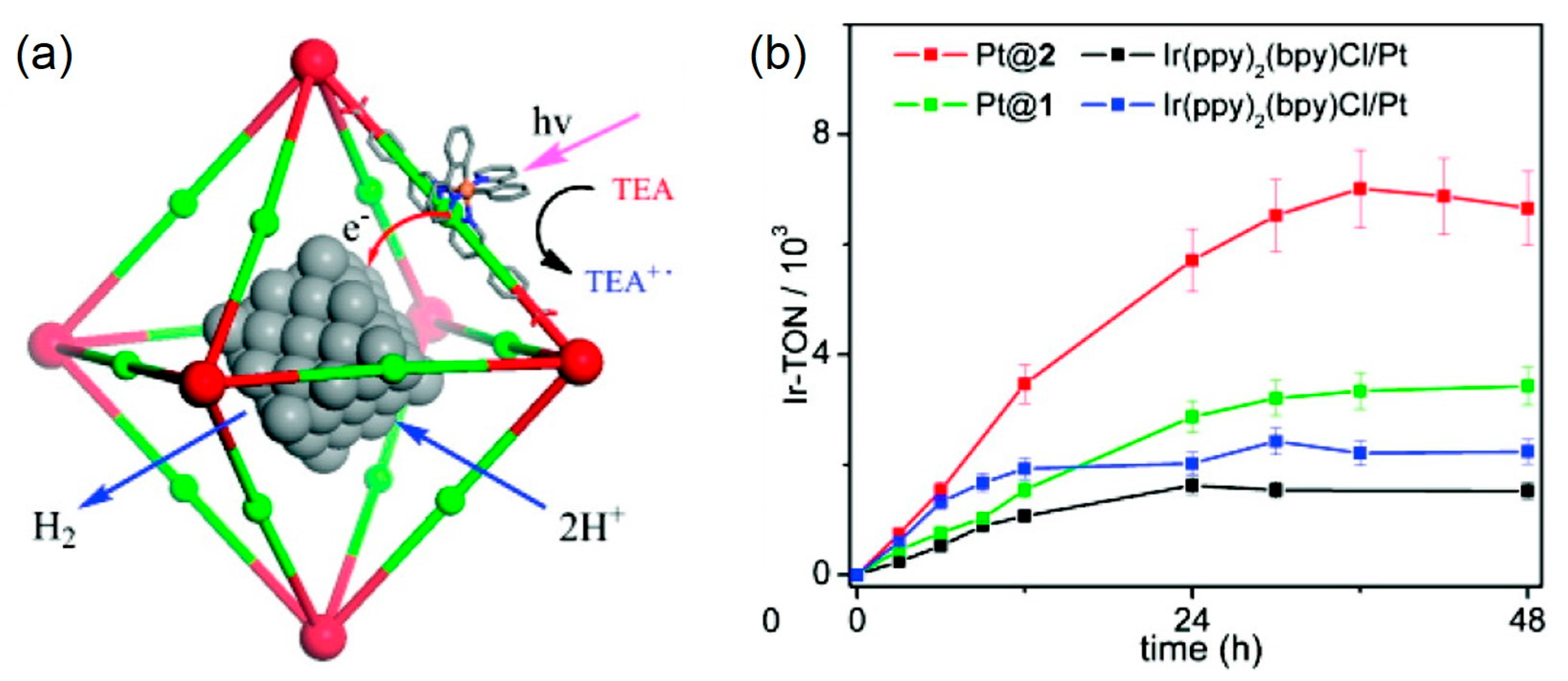

Figure 5. (a) A schematic diagram depicts the steps of photoinjection of electrons from MOF frameworks under light irradiation into Pt nanoparticles for the photocatalytic H2 evolution. Red: Zr6(O)4(OH)4(carboxylate)12 cores; green: Ir-phosphor ligand; (b) Time-dependent H2 evolution curves of Pt@1 (green), Pt@2 (red), and homogeneous control [Ir(ppy)2(bpy)]Cl/K2PtCl4 (blue: Pt/Ir: 86.0; black: Pt/Ir 24.2). Reproduced with permission from ref. [49], American Chemical Society.
Figure 5. (a) A schematic diagram depicts the steps of photoinjection of electrons from MOF frameworks under light irradiation into Pt nanoparticles for the photocatalytic H2 evolution. Red: Zr6(O)4(OH)4(carboxylate)12 cores; green: Ir-phosphor ligand; (b) Time-dependent H2 evolution curves of Pt@1 (green), Pt@2 (red), and homogeneous control [Ir(ppy)2(bpy)]Cl/K2PtCl4 (blue: Pt/Ir: 86.0; black: Pt/Ir 24.2). Reproduced with permission from ref. [49], American Chemical Society.
Inorganics 05 00040 g005

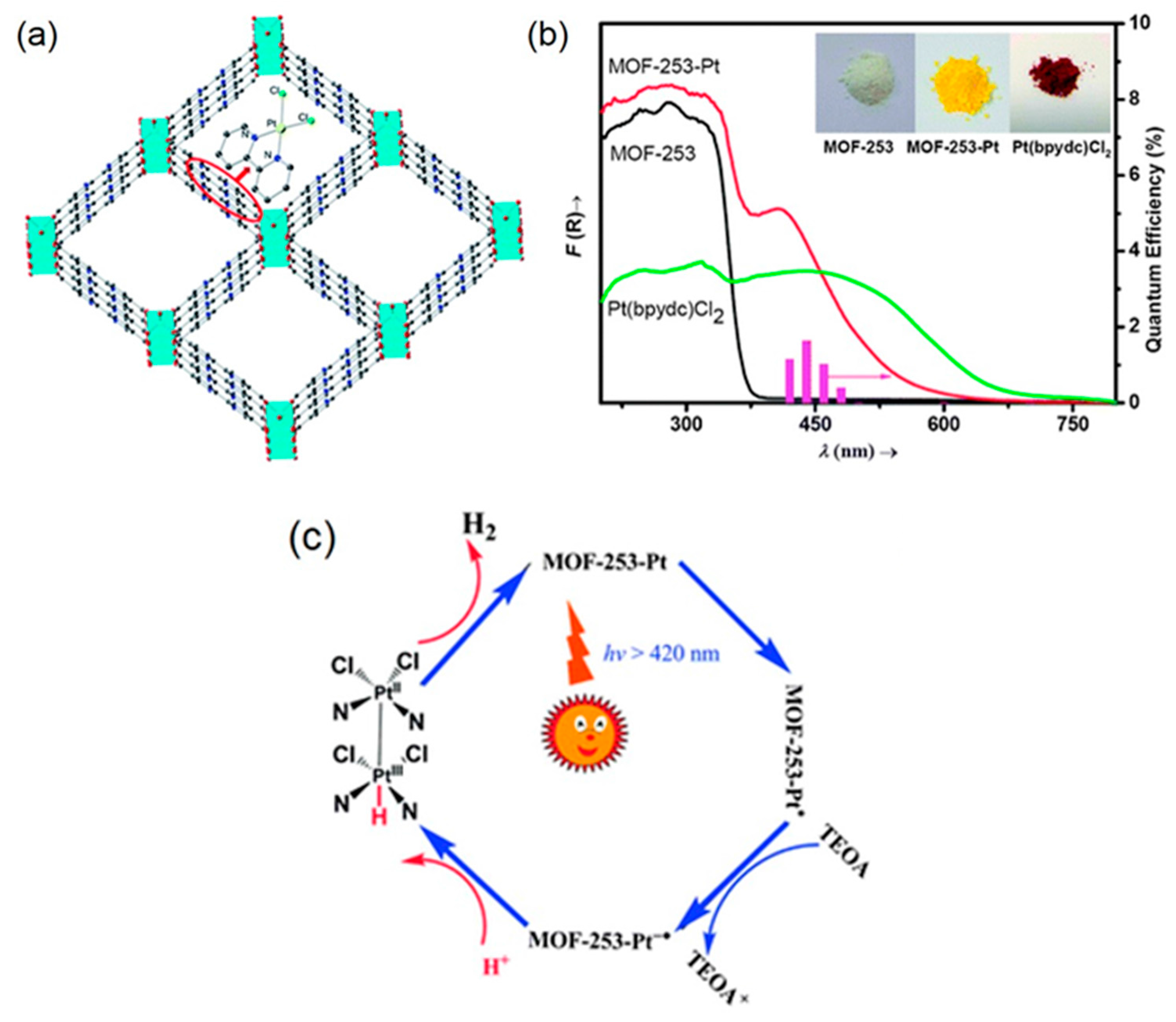

Figure 6. (a) Model structure of MOF-253-Pt, through post-synthetic modification of MOF-253 with PtCl2; (b) UV-vis absorption spectra of MOF-253, Pt-MOF-253, and Pt(bpydc)Cl2 together with H2 evolution quantum efficiencies of Pt-MOF-253 at different wavelengths. The color of three samples are shown in the inset; (c) A proposed mechanistic diagram of H2 evolution photocatalyzed by Pt-MOF-253. Reproduced with permission from ref. [52], Royal Society of Chemistry.
Figure 6. (a) Model structure of MOF-253-Pt, through post-synthetic modification of MOF-253 with PtCl2; (b) UV-vis absorption spectra of MOF-253, Pt-MOF-253, and Pt(bpydc)Cl2 together with H2 evolution quantum efficiencies of Pt-MOF-253 at different wavelengths. The color of three samples are shown in the inset; (c) A proposed mechanistic diagram of H2 evolution photocatalyzed by Pt-MOF-253. Reproduced with permission from ref. [52], Royal Society of Chemistry.
Inorganics 05 00040 g006
Figure 7. (a) “Ship-in-a-bottle” synthetic strategy for the preparation of Co@MOF; (b) Photocatalytic proton reduction using MOF and Co@MOF; (c) Recycling tests on Co@MOF bearing medium cobalt loading. Reproduced with permission from ref. [60], Royal Society of Chemistry.
Figure 7. (a) “Ship-in-a-bottle” synthetic strategy for the preparation of Co@MOF; (b) Photocatalytic proton reduction using MOF and Co@MOF; (c) Recycling tests on Co@MOF bearing medium cobalt loading. Reproduced with permission from ref. [60], Royal Society of Chemistry.
Inorganics 05 00040 g007

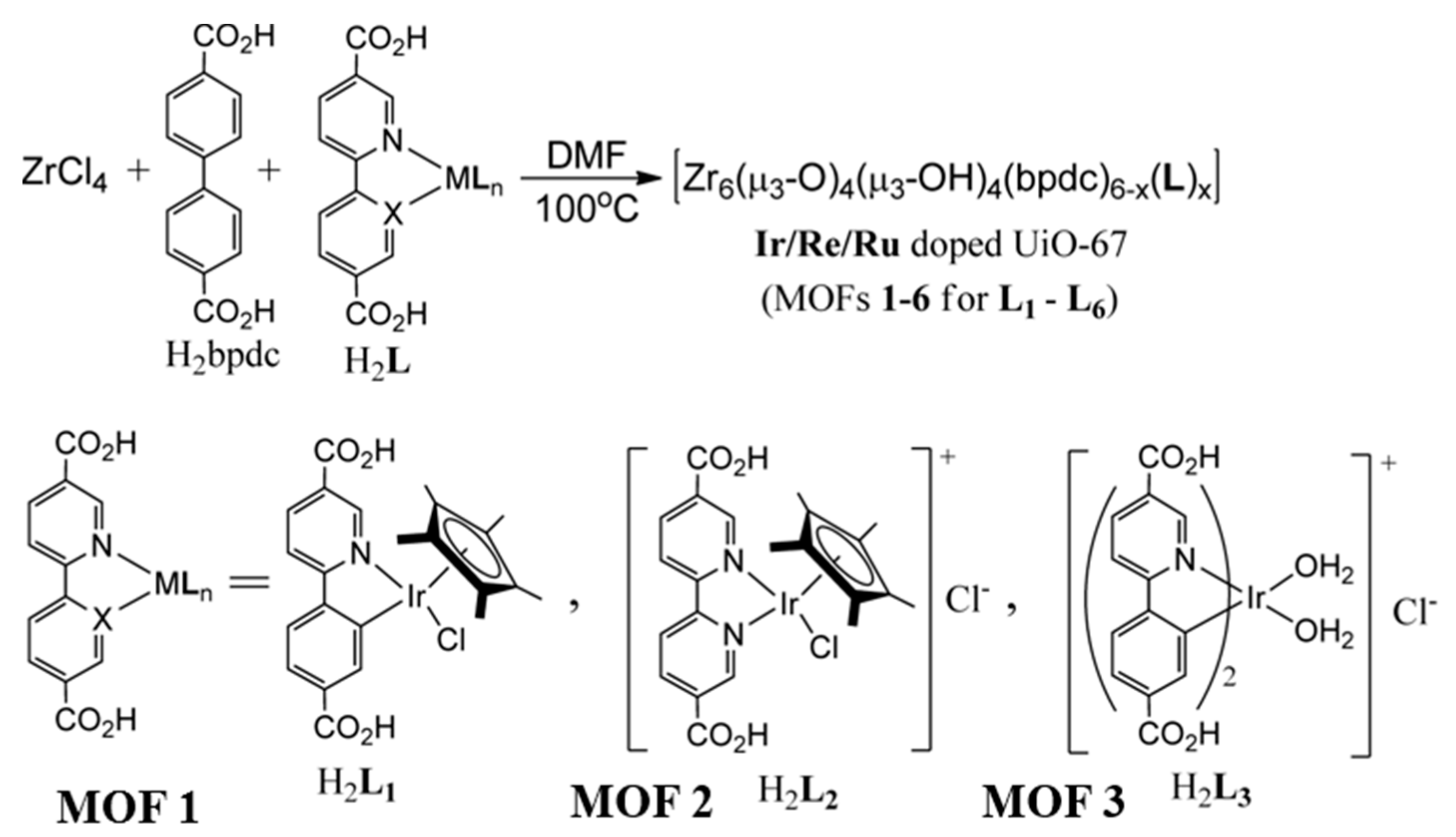

Figure 8. Synthesis of Zr/Ir MOFs incorporating varying iridium catalysts for water oxidation. Reproduced with permission from ref. [64], American Chemical Society.
Figure 8. Synthesis of Zr/Ir MOFs incorporating varying iridium catalysts for water oxidation. Reproduced with permission from ref. [64], American Chemical Society.
Inorganics 05 00040 g008

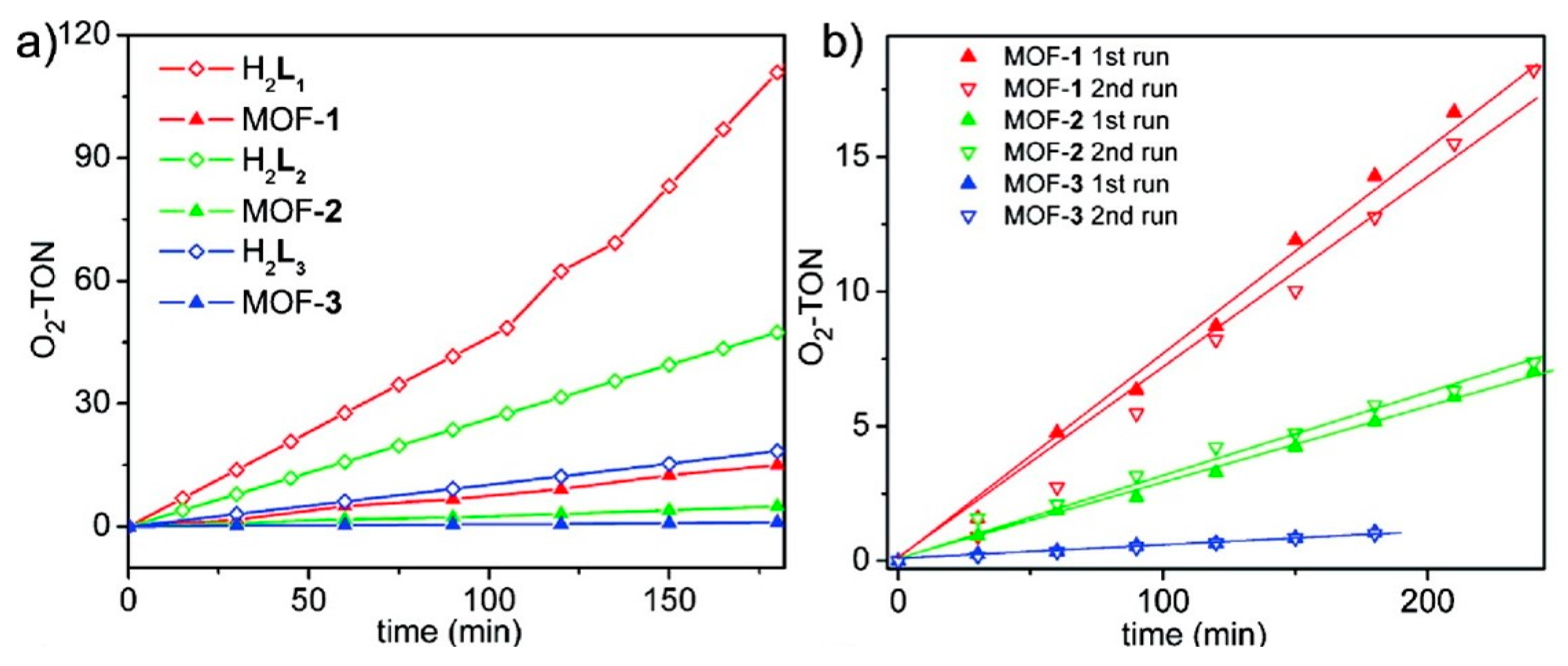

Figure 9. (a) Plots of O2 evolving turnover number (O2-TON) vs. time for MOFs 13 and the homogeneous complexes; (b) Plots of O2-TON vs. time for reuse experiments of MOFs 13. Reproduced with permission from ref. [64], American Chemical Society.
Figure 9. (a) Plots of O2 evolving turnover number (O2-TON) vs. time for MOFs 13 and the homogeneous complexes; (b) Plots of O2-TON vs. time for reuse experiments of MOFs 13. Reproduced with permission from ref. [64], American Chemical Society.
Inorganics 05 00040 g009

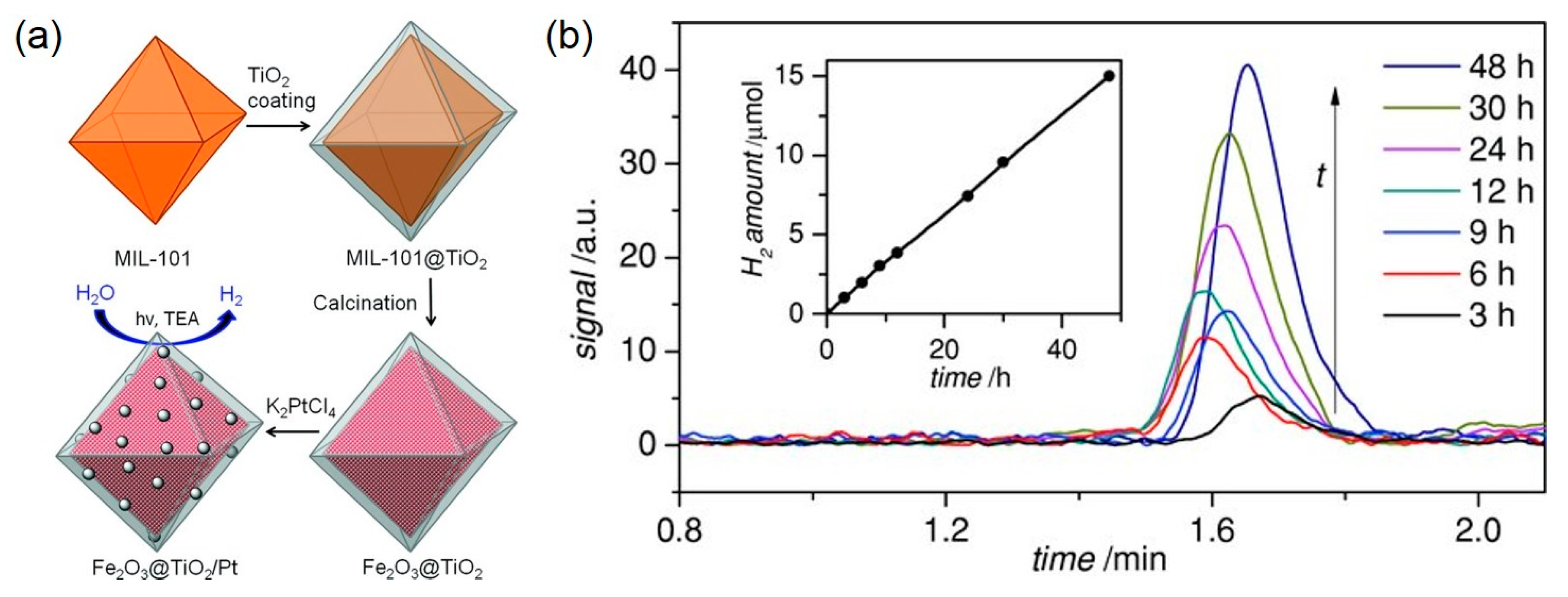

Figure 10. (a) MOF-templated synthesis of Fe2O3@TiO2 by coating MIL-101 with TiO2 followed by calcination, and its use for photocatalytic H2 production after functionalized with Pt particles; (b) H2 produced by Fe2O3@TiO2 in 20/1 v/v H2O/TEA at various time points over 48 h, with a 420 nm filter. The inset shows the amount of H2 produced over this time period. Reproduced with permission from ref. [76], Wiley-VCH.
