Bottom-Up, Wet Chemical Technique for the Continuous Synthesis of Inorganic Nanoparticles

Abstract

Continuous wet chemical approaches for the production of inorganic nanoparticles are important for large scale production of nanoparticles. Here we describe a bottom-up, wet chemical method applying a microjet reactor. This technique allows the separation between nucleation and growth in a continuous reactor environment. Zinc oxide (ZnO), magnetite (Fe₃O₄), as well as brushite (CaHPO₄·2H₂O), particles with a small particle size distribution can be obtained continuously by using the rapid mixing of two precursor solutions and the fast removal of the nuclei from the reaction environment. The final particles were characterized by FT-IR, TGA, DLS, XRD and SEM techniques. Systematic studies on the influence of the different process parameters, such as flow rate and process temperature, show that the particle size can be influenced. Zinc oxide was obtained with particle sizes between 44 nm and 102 nm. The obtained magnetite particles have particle sizes in the range of 46 nm to 132 nm. Brushite behaves differently; the obtained particles were shaped like small plates with edge lengths between 100 nm and 500 nm.

1. Introduction

Nanoparticles have been identified as major compounds for many applications in the last decades. They are used in many different fields such as medicine, optics, electronics or catalysis [1]. For this reason, there is a lot of interest in facile synthetic routes for nanoparticles with controllable size and narrow size distribution. There are many different possibilities for the production of particles but due to its simplicity, low cost, and easy application in industrial production, stirred tank batch reactor processes are still the most employed wet chemical systems [2,3]. However, this method has often limitations for the preparation of nanoparticles on an industrial scale, because of long mixing times and thus uncontrolled nucleation and growth. To obtain nanoparticles with particle sizes smaller than 100 nm very short mixing times are required. Although there are methods which can be employed on a laboratory scale to obtain rapid mixing, their scale up is quite difficult [4,5]. In addition, it would be of great benefit if the synthesis could be performed continuously, because this would eliminate differences in nanoparticle properties from batch to batch [6,7,8]. There are continuous techniques, such as mixing starting material solutions on a macroscopic scale (e.g., tee shaped connectors) or microreactors [9]. These techniques have been used already for the synthesis of anatase-TiO₂, gold, and cobalt nanoparticles as well as tricalcium phosphate ceramics [10,11,12,13]. In general, all the above-mentioned techniques require an improvement with respect to the mixing time. There are several studies, which indicate that the effect of mixing has an important influence on the particle size distribution. Experimental, as well as theoretical, precipitation experiments using a tee-mixer and barium sulfate as exemplary material show that the particles becomes smaller with increasing mixing intensity [14,15]. In further studies, it was found that confined impinging jet reactors are more efficient than tee-mixers. Using such a reactor type, it is possible to generate polymer nanoparticles which have potential application in biomedicine; for example for controlled drug delivery [16,17]. Biocompatible nanomaterial for biomedicine and pharmaceutical applications can also be produced by using a novel continuous industrial reactor, called NETmix. This reactor is a network of interconnected chambers and channels creating zones of complete mixing and segregation. This technique is used already for the synthesis of hydroxyapatite nanoparticles with extremely high purity and crystallinity [18]. Fast mixing is also fulfilled when a microjet reactor (Figure 1) is used. The excellent improvement is that the reagent solutions are forced with high pressure through a narrow cone in a reaction chamber that is constantly flushed with a gas flow. As a result, the obtained product is removed directly from the reaction chamber so that clogging is avoided.

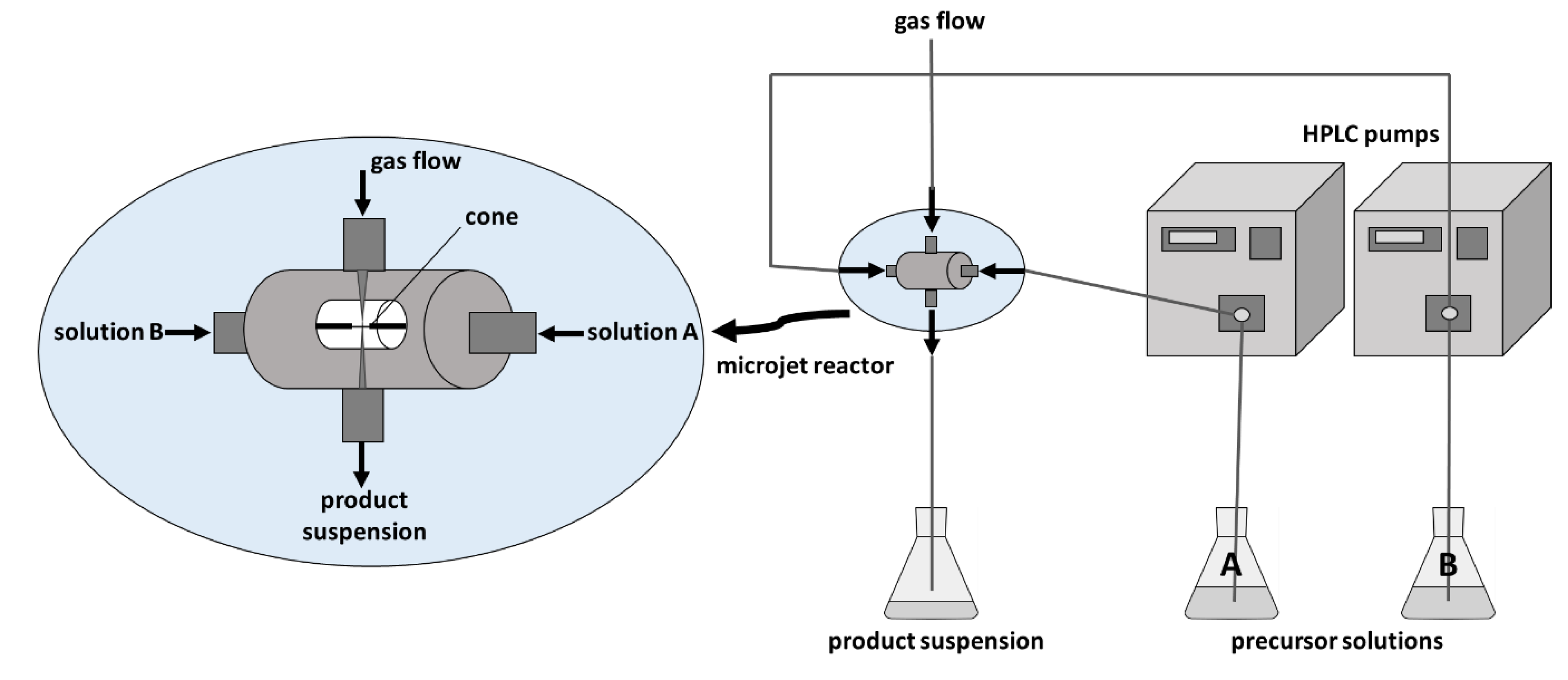

Figure 1. Schematic set-up of the microjet reactor.

Figure 1. Schematic set-up of the microjet reactor.

This technique can be used to perform different precipitation reactions continuously. Two pumps are used to transport the solutions containing the starting materials as dissolved substances to the microjet reactor. The collision takes place in a confined reaction environment, which is given by the format of the microjet reactor. Due to the fluid dynamics in the microjet reactor, there is a very short mixing time. Consequently, there is a maximum number of nuclei in an absolute homogeneous environment. In addition the nucleation rate is increased compared to the nucleus growth [19,20]. Directly after the nuclei are formed, they are transported from the reaction room to a tubing where the particle growth occurs. The length of this tubing up to the collection vessel influences the particle growth. The method has the advantage of being able to prepare nanoparticles even from a system with very low solubility products, e.g. barium sulfate [21]. However, it is also able to produce metal oxides, such as titania [22]. One great advantage is that the particles are obtained in a suspension, which could be used for a direct application, e.g. in spray coating or inkjet printing.

In this study, we investigated the microjet reactor technique for the synthesis of three types of inorganic nanoparticles, i.e., zinc oxide (ZnO), magnetite (Fe₃O₄), and brushite (CaHPO₄·2H₂O). These particles are not only interesting for academic reasons, but also have applications in optoelectronics and clinical, as well as biomedical devices [23,24,25]. The goal was to define the possibilities and limitations of this technique with regard to the different process parameters, such as flow rate and temperature, on the result of the precipitation reaction. Here, we do not focus on the importance of the time between nuclei formation and collection of the products, which also influences the size of the particles as this will be investigated in a further study.

2. Results and Discussion

The synthesis of inorganic nanoparticles was carried out using a microjet reactor system. In order to reveal the wide application field of the microjet reactor we performed the synthesis of three different species: zinc oxide (ZnO), magnetite (Fe₃O₄), as well as brushite (CaHPO₄·2H₂O). All of these three systems show a low solubility under the applied reaction conditions. Two isocratic preparative HPLC pumps were used to transport the solutions containing the starting materials as dissolved substances. In the microjet-reactor, these two solutions clash and the precipitation reaction takes place. The precipitate was directly removed from the reactor by the use of a nitrogen gas flow. This process was performed with various flow rates of the precursor solutions (150 mL/min, 200 mL/min and 250 mL/min) and at different temperatures (25 °C, 50 °C and 75 °C). The reproducibility of the method was investigated by performing all experiments several times. The obtained material was thoroughly washed with water and the resulting compound was characterized applying FT-IR-spectroscopy, XRD, TGA and DLS analysis, as well as SEM. The final products were analyzed with respect to changes in the composition, the particle size and morphology depending on the process parameters.

2.1. Zinc Oxide

The synthesis of zinc oxide was performed by using aqueous solutions of zinc chloride and sodium hydroxide as starting materials (Equation 1) for the solution A and B, respectively.

ZnCl₂ + 2NaOH → ZnO + 2NaCl + H₂O.

(1)

Under conventional precipitation conditions in an open vessel, the same starting materials deliver disc-like ZnO submicrometer structures with diameters between 300 nm and 500 nm [26].

Smaller particles could be obtained applying controlled double-jet-precipitation, which produces primary particles with diameters between 20–30 nm that tend to agglomerate in ellipsoidal particles with sizes of a few hundred nanometers [5].

The particles that were obtained by using the microjet reactor were characterized using various techniques. FT-IR-analysis of the prepared materials showed no specific signals with exception of OH and CO bands of adsorbed CO₂ and H₂O as well as a strong ZnO band around 400 cm⁻¹.

Thermogravimetric analysis (Figure 2) was performed to determine the amount of adsorbed CO₂ and H₂O. The results show that the samples contain between 5% and 6% adsorbed species. The development of the mass loss looks similar for all samples.

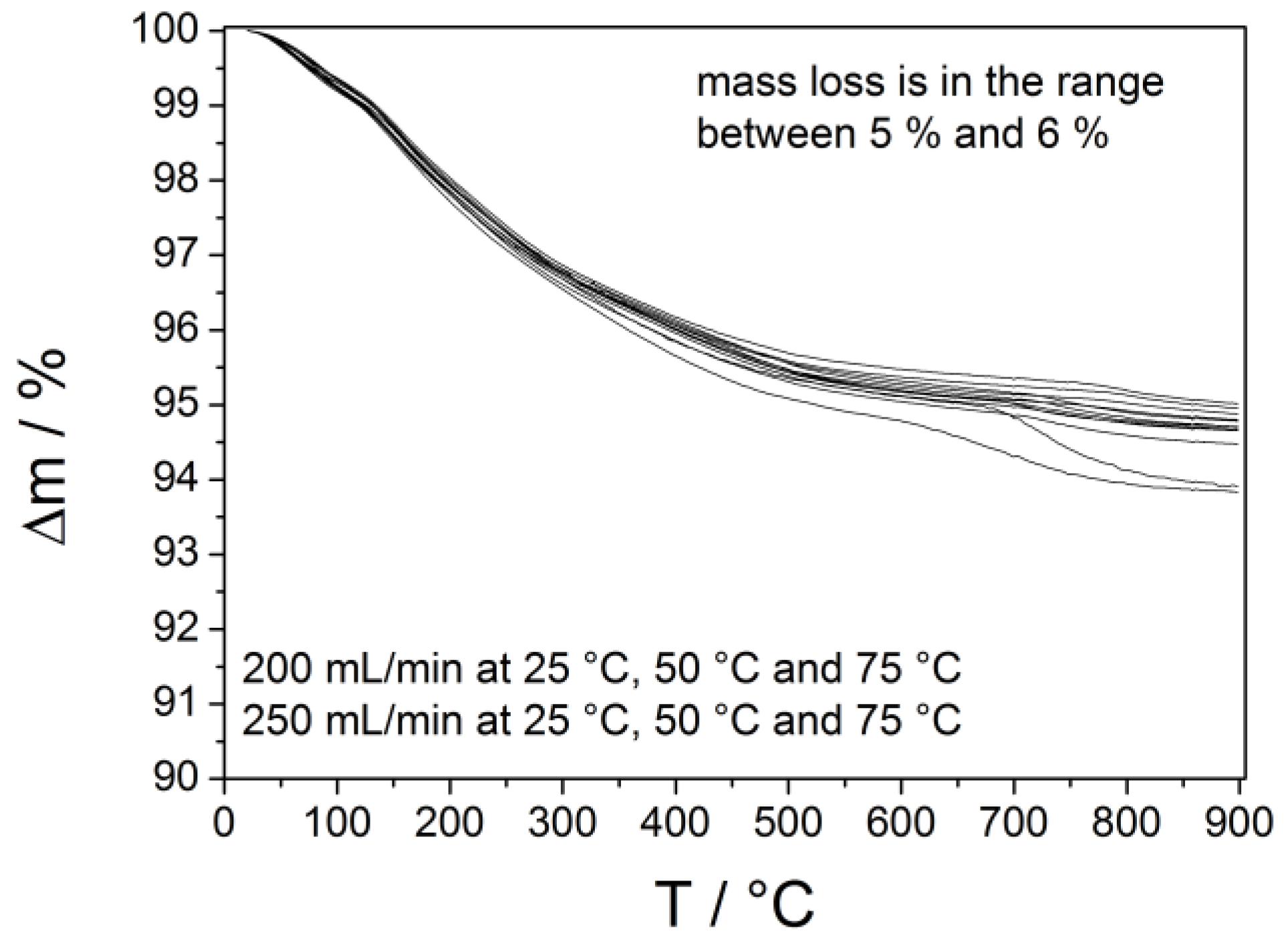

Figure 2. Thermogravimetric analysis of the final products. The samples show a mass loss of between 5 and 6%.

Figure 2. Thermogravimetric analysis of the final products. The samples show a mass loss of between 5 and 6%.

X-ray powder diffraction was applied to study the phase composition and crystallite size of the obtained material in dependence on the different synthesis parameters. The XRD pattern show that in each case pure zinc oxide is generated (Figure 3). The crystallite sizes decrease with increasing temperature and increasing flow rate (Table 1).

A further important parameter is the particle size including the size distribution, which is given by the standard deviation of the particle size. These parameters were determined using dynamic light scattering (Figure 4). The samples were dispersed in ethanol by the exposition to ultrasound for 5 min. The results show that the particles are easily dispersible and their size depends on the process parameters. The particle size decreases with increasing temperature and increasing flow rate, in addition the particle size distribution becomes smaller (Table 2).

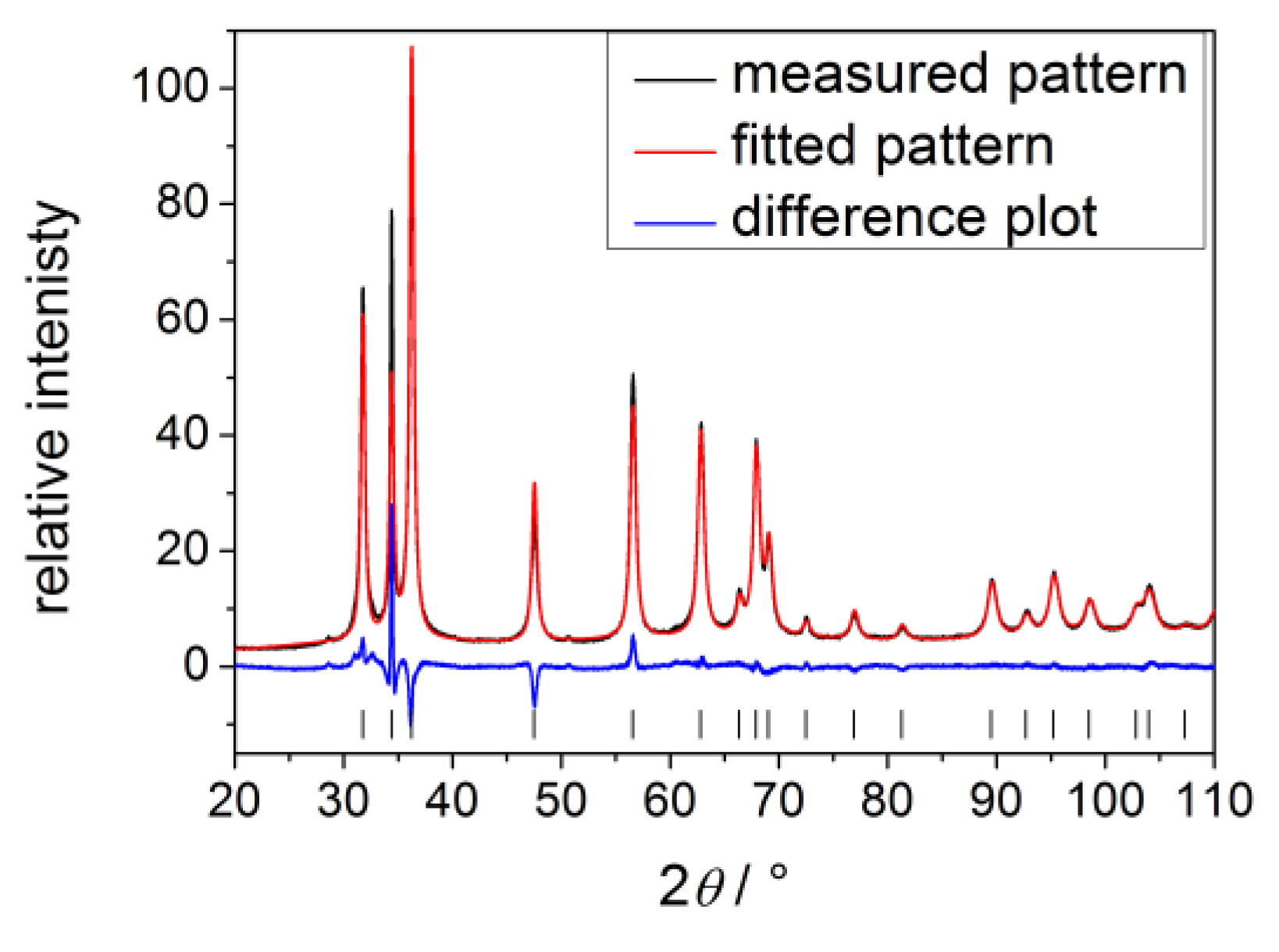

Figure 3. X-ray powder pattern of the obtained particles. The results show that pure zinc oxide was obtained.

Figure 3. X-ray powder pattern of the obtained particles. The results show that pure zinc oxide was obtained.

Table 1. Crystallite size in dependence on the process parameters.

Process parameters	Crystallite size
200 mL/min/25 °C	22.2 ± 0.5
200 mL/min/50 °C	20.4 ± 0.7
200 mL/min/75 °C	16.3 ± 0.3
250 mL/min/25 °C	22.7 ± 0.5
250 mL/min/50 °C	21.3 ± 0.4
250 mL/min/75 °C	16.9 ± 0.3

Table 1. Crystallite size in dependence on the process parameters.

Process parameters	Crystallite size
200 mL/min/25 °C	22.2 ± 0.5
200 mL/min/50 °C	20.4 ± 0.7
200 mL/min/75 °C	16.3 ± 0.3
250 mL/min/25 °C	22.7 ± 0.5
250 mL/min/50 °C	21.3 ± 0.4
250 mL/min/75 °C	16.9 ± 0.3

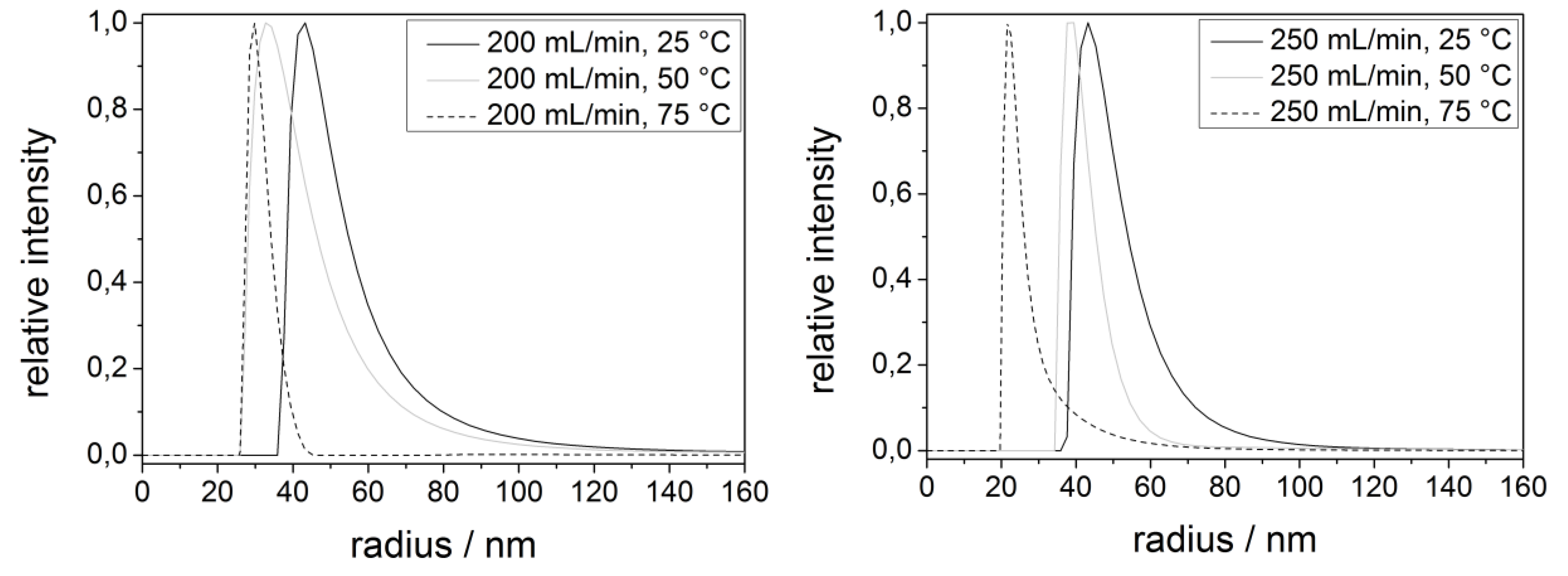

Figure 4. Particle sizes of the obtained zinc oxide particles determined by dynamic light scattering.

Figure 4. Particle sizes of the obtained zinc oxide particles determined by dynamic light scattering.

Table 2. Particle size determined using dynamic light scattering.

Process parameters	Radius/nm
200 mL/min/25 °C	51 ± 7
200 mL/min/50 °C	41 ± 8
200 mL/min/75 °C	27 ± 3
250 mL/min/25 °C	43 ± 6
250 mL/min/50 °C	36 ± 4
250 mL/min/75 °C	22 ± 2

Table 2. Particle size determined using dynamic light scattering.

Process parameters	Radius/nm
200 mL/min/25 °C	51 ± 7
200 mL/min/50 °C	41 ± 8
200 mL/min/75 °C	27 ± 3
250 mL/min/25 °C	43 ± 6
250 mL/min/50 °C	36 ± 4
250 mL/min/75 °C	22 ± 2

The particle morphology was investigated by means of scanning electron microscopy (Figure 5 and Figure 6). The images confirm that the particles are in the nanometer size range. However, SEM analysis does not show the pronounced differences in the particles sizes that were observed in the DLS measurements for the parameter variations. Generally, it can be observed in SEM that the particles are all sphere-shaped and the size distribution becomes more uniform with increasing temperature.

Figure 5. SEM images of zinc oxide synthesized with a flow rate of 200 mL/min at 25 °C (left) and at 75 °C (right).

Figure 5. SEM images of zinc oxide synthesized with a flow rate of 200 mL/min at 25 °C (left) and at 75 °C (right).

Figure 6. SEM images of zinc oxide synthesized at 50 °C with a flow rate of 200 mL/min (left) and with a flow rate of 250 mL/min (right).

Figure 6. SEM images of zinc oxide synthesized at 50 °C with a flow rate of 200 mL/min (left) and with a flow rate of 250 mL/min (right).

2.2. Magnetite

Systematic studies with respect to the synthesis of magnetite nanoparticles using a microjet reactor were performed with an aqueous solution of ferric and ferrous chloride as solution A and an ammonia solution B (Equation 2).

FeCl₂ + 2FeCl₃ + 8NH₄OH → Fe₃O₄ + 8NH₄Cl + 4H₂O.

(2)

Ferrous chloride must be applied in excess because the synthesis was performed under air. Consequently, the Fe²⁺ ions tend to oxidize and form Fe³⁺ ions [27]. Magnetite nanoparticles were already obtained applying conventional synthetic routes using the same starting materials [28].

FT-IR analysis of the particles that were obtained in the microjet reactor does not show specific bands for the products with exception of the Fe-O band around 500 cm⁻¹.

Thermo gravimetric analysis (Figure 7) was performed to determine if the samples contain any adsorbed species like water. The particles show a mass loss between 4 and 7%, which can be explained by adsorbed water or the production of water by condensation of free hydroxyl groups.

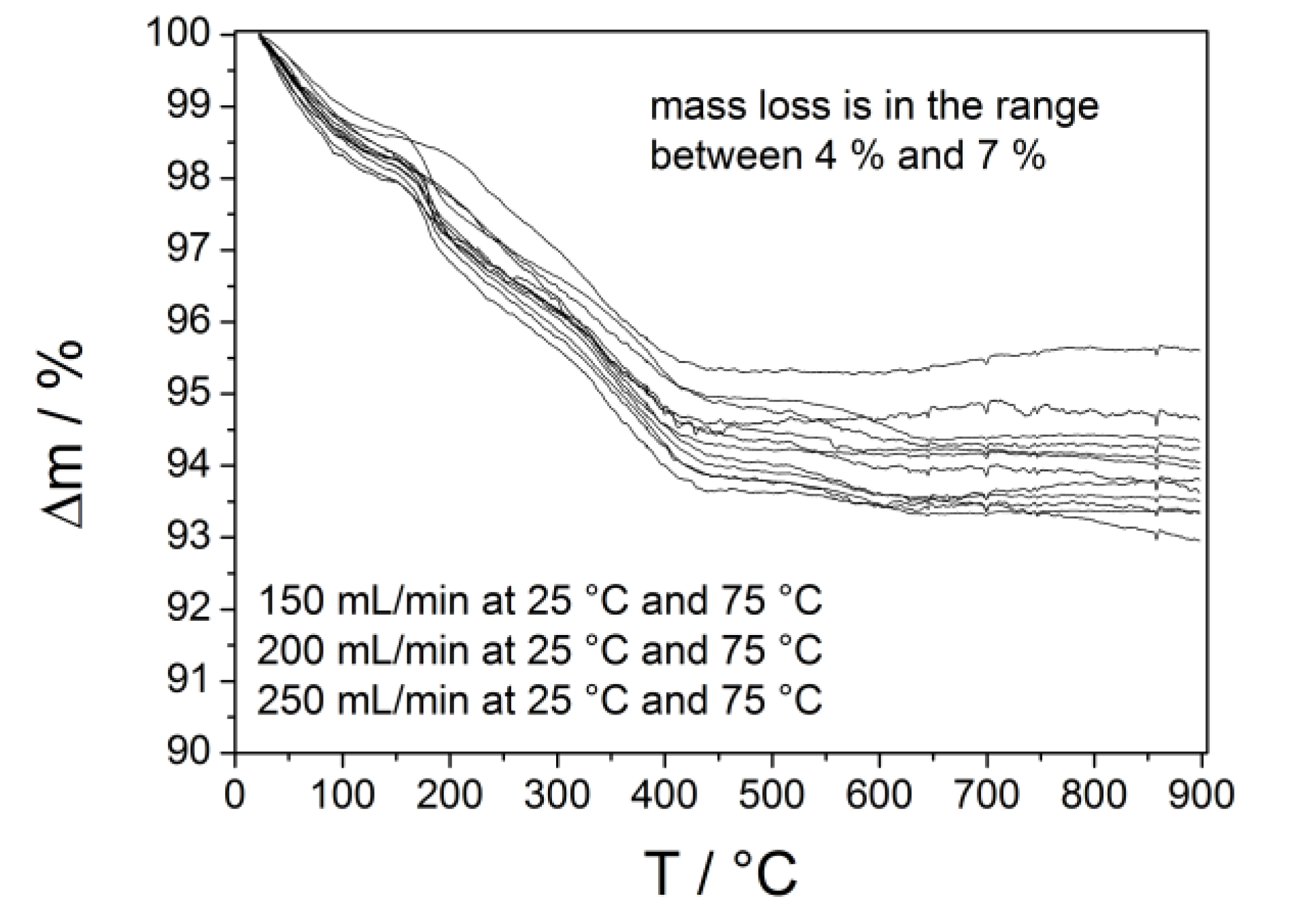

Figure 7. Thermo gravimetric analysis of the final products. The samples show a mass loss of between 4 and 7%.

Figure 7. Thermo gravimetric analysis of the final products. The samples show a mass loss of between 4 and 7%.

The phase composition and crystallite size of the obtained particles were determined by X-ray powder diffraction (Figure 8). The results show that magnetite with crystallite sizes around 10 nm were obtained in the microjet reactor. There are a few very weak reflections which cannot be correlated to magnetite. Consequently, there is a small fraction of an impurity phase. The reflection at approximately 2θ = 32 ° suggest this phase to be maghemite.

Figure 8. XRD pattern of the obtained particles. The results show that magnetite was obtained.

Figure 8. XRD pattern of the obtained particles. The results show that magnetite was obtained.

The particle size of the attained material was determined by using dynamic light scattering (Figure 9). The results reveal that particles between 46 nm and 112 nm were obtained. Just as in case of the ZnO particles the particle sizes including the size distribution decrease with increasing process temperature and flow rate (Table 3).

Previous studies applying rapid mixing techniques showed much smaller nanoparticle sizes around 7 nm [4]. The difference between the technique presented here and previous studies is the altered time for growth of the particles, which depends in our setup on the length of the tubing between microjet-reactor and collecting vessel. We are currently investigating these parameters in an additional study.

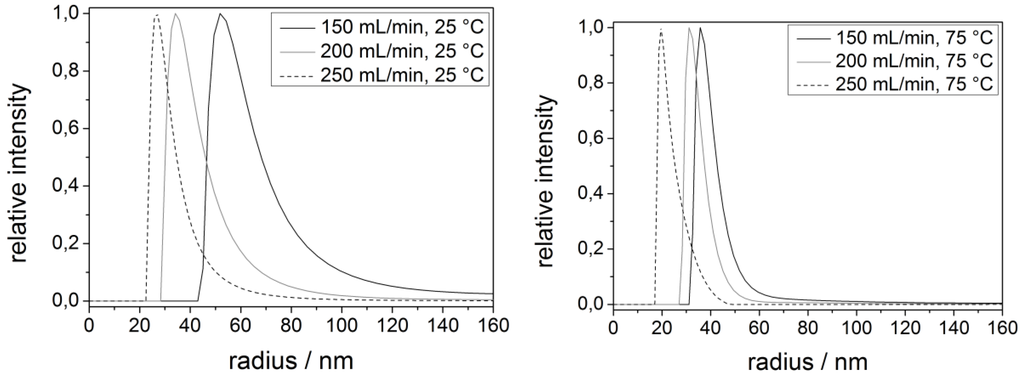

Figure 9. Particle size of the synthesized magnetite determined by dynamic light scattering.

Figure 9. Particle size of the synthesized magnetite determined by dynamic light scattering.

Table 3. Particle size determined using dynamic light scattering.

Process parameters	Radius/nm
150 mL/min/25 °C	66 ± 9
200 mL/min/25 °C	42 ± 7
250 mL/min/25 °C	32 ± 5
150 mL/min/75 °C	41 ± 4
200 mL/min/75 °C	35 ± 4
250 mL/min/75 °C	23 ± 3

Table 3. Particle size determined using dynamic light scattering.

Process parameters	Radius/nm
150 mL/min/25 °C	66 ± 9
200 mL/min/25 °C	42 ± 7
250 mL/min/25 °C	32 ± 5
150 mL/min/75 °C	41 ± 4
200 mL/min/75 °C	35 ± 4
250 mL/min/75 °C	23 ± 3

SEM was applied to determine the morphology of the obtained magnetite particles (Figure 10). The results show that the particles are sphere-shaped and become smaller with increasing flow rate and temperature.

Figure 10. SEM images of the obtained magnetite particles synthesized at 25 °C with a flow rate of 150 mL/min (left) and at 75 °C with a flow rate of 250 mL/min (right).

Figure 10. SEM images of the obtained magnetite particles synthesized at 25 °C with a flow rate of 150 mL/min (left) and at 75 °C with a flow rate of 250 mL/min (right).

2.3. Calcium Hydrogen Phosphate/Brushite

As a third system the synthesis of calcium hydrogen phosphate particles using the mircojet-reactor was investigated. An aqueous solution of calcium nitrate (solution A) and di-ammonium hydrogen phosphate (solution B) were mixed in the microjet reactor (Equation 3). The pH of both solutions was adjusted to 5 in order to obtain the calcium hydrogen phosphate in the brushite phase.

Ca(NO₃)₂ ∙ 4H₂O + HPO₄(NH₄)₂ → CaHPO₄ ∙ 2H₂O + 2NH₄NO₃ + 2H₂O.

(3)

Using the same starting materials, but applying a conventional batch reactor synthesis route, plate-like brushite particles in the micrometer range were obtained [29]. Employing the microjet reactor for this reaction it turned out that the precipitation reaction does not proceed at 25 °C. The material obtained using 75 °C as process temperature was analyzed with respect to composition and morphology. FT-IR analyses (Figure 11) of the obtained materials show that the synthesis of calcium hydrogen phosphate was successful at 75 °C. The spectra show absorption bands between 1200 cm^‑1 and 400 cm⁻¹ which is the typical P-O region and indicates P-O vibrations as well as vibrations of a HPO₄ group. In addition, absorption bands relating to water are visible. At 1650 cm⁻¹ there is the typical absorption band for the H₂O bending. Furthermore, between 3550 cm⁻¹ and 3000 cm⁻¹, the absorption bands relating to the OH stretching of water are visible. This agrees well with FT-IR data of calcium hydrogen phosphate reported in the literature [30,31].

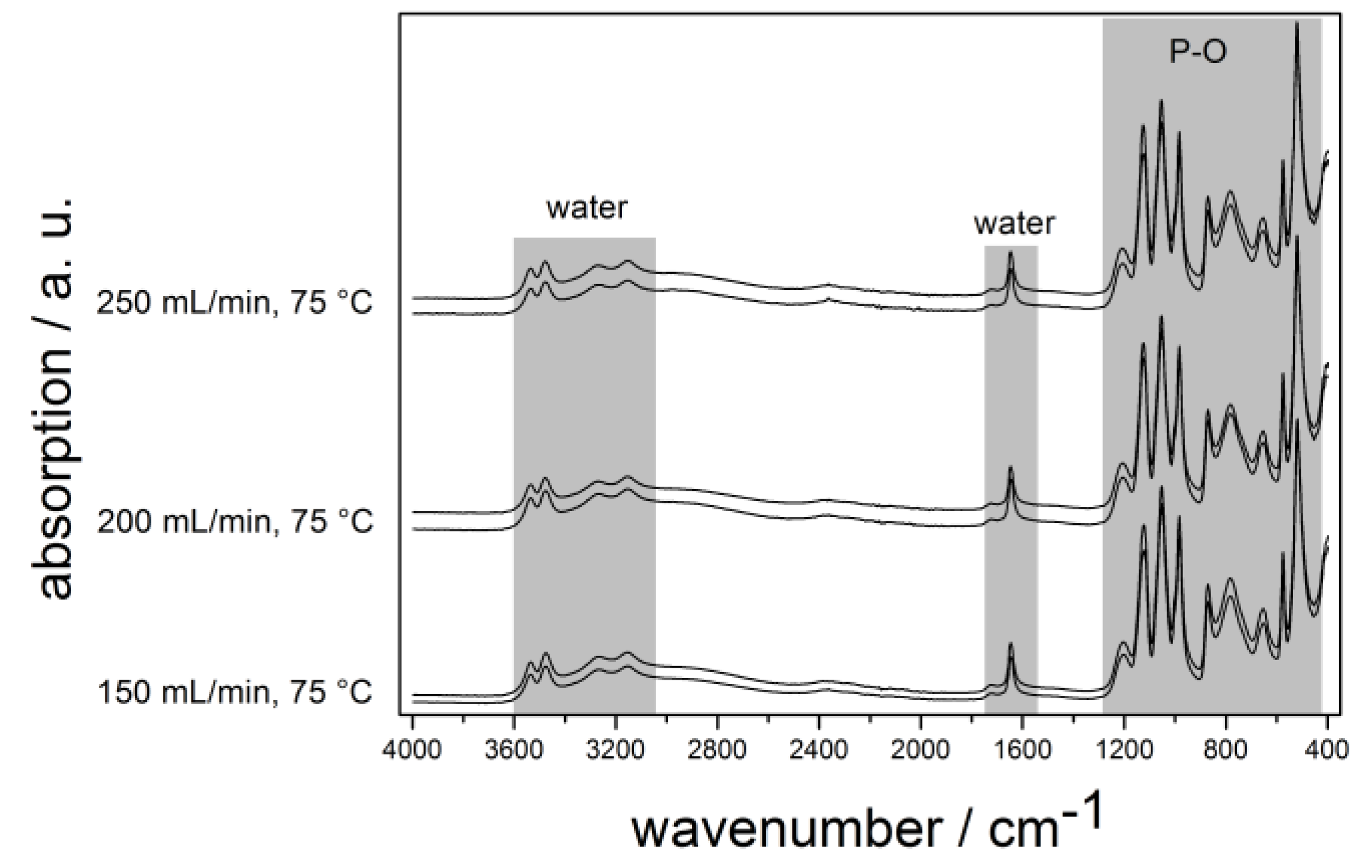

Figure 11. FT-IR spectra of the obtained materials. Absorption bands in the P-O region are observable as well as absorption bands relating to water. For each condition two spectra were shown in order to illustrate the reproducibility.

Figure 11. FT-IR spectra of the obtained materials. Absorption bands in the P-O region are observable as well as absorption bands relating to water. For each condition two spectra were shown in order to illustrate the reproducibility.

Thermo gravimetric analysis was performed to analyze the thermal decomposition of the obtained material (Figure 12). The results show that the decomposition takes place in two steps, which confirms that calcium hydrogen phosphate was obtained in the brushite phase. The first decomposition step proceeds between 100 °C and 350 °C degree and is relating to the loss of two molecules of crystal water. Consequently CaHPO₄ is formed. The second decomposition step takes place between 350 °C and 600 °C and is relating to the loss of 0.5 water molecules per Ca²⁺ ion and the formation of Ca₂P₂O₇. This is the typical pattern for decomposition of brushite.

Figure 12. Thermal decomposition of the obtained material. The decomposition takes place in two steps, which is typical for the thermal decomposition of calcium hydrogen phosphate in the brushite phase.

Figure 12. Thermal decomposition of the obtained material. The decomposition takes place in two steps, which is typical for the thermal decomposition of calcium hydrogen phosphate in the brushite phase.

The results of the X-ray powder diffraction measurements (Figure 13) confirm that pure brushite was obtained. The particles show a high anisotropy in their crystallite sizes. An average crystallite size could be determined which is in the range of 200 to 300 nm depending on the reaction conditions.

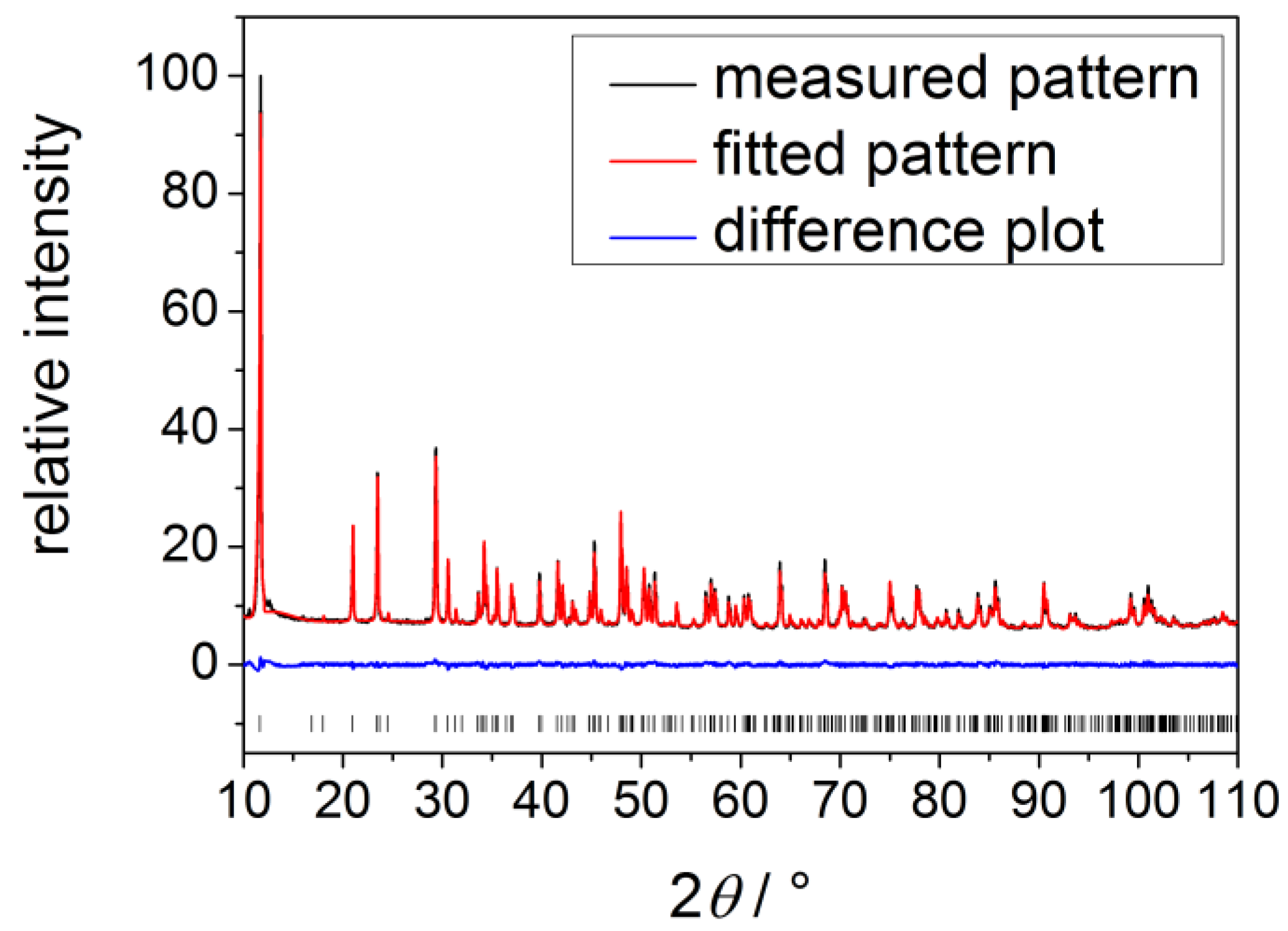

Figure 13. X-ray powder pattern. Pure calcium hydrogen phosphate in the brushite phase was obtained.

Figure 13. X-ray powder pattern. Pure calcium hydrogen phosphate in the brushite phase was obtained.

SEM was applied to analyze the morphology of the obtained material (Figure 14). The results show that the particles are shaped like small plates based on the layered structure of brushite. The layers grow faster in two directions so that plates are formed. The edge lengths of these plates were determined to be between 100 nm and 500 nm.

Figure 14. SEM image of the obtained material. Brushite synthesized at 75 °C with a flow rate of 250 mL/min.

Figure 14. SEM image of the obtained material. Brushite synthesized at 75 °C with a flow rate of 250 mL/min.

All three examples showed that the continuous production of nanoparticles, in case of ZnO and Fe₃O₄, or submicron sized plates in case of brushite is possible with the wet chemical microjet reaction technique. All samples showed that flow rates as well as temperatures have an important influence on the size and size-distribution of the particles. In the microjet environment the nuclei are formed and the particle growth most likely occurs in the tube between the reactor and the collecting vessel. We did not investigate the effect of this distance on the particle growth yet. This will be the focus of a further study.

3. Experimental Section

3.1. Materials

Zinc chloride, sodium hydroxide and ferric chloride were purchased from Grüssing GmbH (Filsum, Germany). Calcium nitrate and di-ammonium hydrogen phosphate were purchased from Fluka (Buchs, Switzerland). Ferrous chloride was purchased from Alfa Aesar (Karlsruhe, Germany). Ammonia was purchased from VWR (Fontenay-sous-Bois, France). All chemicals were used without further purification.

3.2. Instruments and Characterization

FT-IR measurements were performed under ambient air (40 scans at a resolution of 4 cm^‑1) in attenuated total reflectance (ATR) mode on a Bruker Vertex 70 spectrometer. X-ray powder diffraction was carried out on two different diffractometers a Panalytical X'Pert and a Bruker D8 Advance-system, Bragg-Brentano geometry and CuKα radiation was used in both cases. The quantitative analysis was carried out by the Rietveld-method using the program TOPAS [32] and crystallographic data for the different species (zinc oxide [33], magnetite [34] and brushite [35]). Thermogravimetric analysis (TGA) was carried out on a Netzsch Iris TG 209. The sample was placed in an alumina crucible which was then heated from room temperature to 900 °C under nitrogen atmosphere with a rate of 20 K min⁻¹.

Scanning electron microscopy (SEM) images were recorded on a JEOL SEM-7000 microscope. The SEM samples were prepared by placing some grains on a specimen stub with attached carbon adhesive foil followed by deposition of a gold layer. Dynamic light scattering (DLS) measurements were carried out on an ALV/CGS-3 compact goniometer system with an ALV/LSE-5003 multiple τ correlator at a wavelength of 632.8 nm (He-Ne Laser) and at a 90° goniometer angle. The particle radius was then determined by the analysis of the correlation-function via the g2(t) method followed by a logarithmic number-weighting (n.w.) of the distribution function.

3.3. Synthesis

The following experiments were performed in a microjet reactor construction. Two LaPrep P110 preparative HPLC pumps (VWR) are responsible for the transport of the solutions containing the starting materials as dissolved substances. The reaction takes place in a microjet reactor (Synthesechemie, Heusweiler, Germany and MJR PharmJet, Homburg, Germany) with a cone diameter of 300 micrometers. The precipitate was directly removed from the reactor by the use of a nitrogen gas flow. The length of the tube between the microjet reactor and the collecting vessel was 150 cm. Zinc oxide was synthesized using a 1 M aqueous zinc chloride and a 2 M aqueous sodium hydroxide solution as starting materials. Magnetite was obtained using a 0.4 M aqueous ammonia solution and an aqueous solution containing 0.0625 M ferric and ferrous chloride respectively. Brushite was synthesized by using 0.2 M aqueous solution of calcium nitrate and a 0.1 M aqueous solution of di-ammonium hydrogen phosphate, the pH of both solutions was adjusted to 5 using acetic acid or ammonia. The synthesis of each species was performed using different process parameters. The temperature was varied between 25 °C and 75 °C, the flow rate was varied between 150 mL/min and 250 mL/min.

4. Conclusions

The microjet-reactor technique is a promising method for the continuous synthesis of inorganic nanoparticles. Systematic studies on the effect of the process parameters, such as flow rate and process temperature, show that the particle size is controllable by means of these parameters. Our aim was the continuous synthesis of inorganic nanoparticles with controllable particle size. In our work we successfully demonstrated that it is possible to obtain pure zinc oxide nanoparticles using the microjet-reactor system. The prepared particles are uniformly shaped with a particle size of between 44 nm and 102 nm depending on the reaction conditions. The same could be shown for the synthesis of magnetite nanoparticles that were obtained with particle sizes between 46 nm and 132 nm. In both cases, the size distributions were quite small and decreased with increasing reaction temperature. Furthermore, we demonstrated the synthesis of calcium hydrogen phosphate (brushite) by using the microjet-reactor. In this case brushite as a layered structure formed small plates.
