Article

Stabilizing the (003) Facet of Micron-Sized LiNi0.6Co0.2Mn0.2O2 Cathode Material Using Tungsten Oxide as an Exemplar

by
Yang Li
1,2,†,
Liubin Ben
1,3,4,†,
Hailong Yu
1,3,4,
Wenwu Zhao
1,3,4,
Xinjiang Liu
5,* and
Xuejie Huang
1,2,3,4,*
1
Songshan Lake Materials Laboratory, Dongguan 520838, China
2
Department of Physics, Liaoning University, Shenyang 110036, China
3
Beijing National Laboratory for Condensed Matter Physics, Institute of Physics, Chinese Academy of Sciences, Beijing 100190, China
4
Center of Materials Science and Optoelectronics Engineering, University of Chinese Academy of Sciences, Beijing 100049, China
5
National Key Laboratory of Science and Technology on Power Sources, Tianjin Institute of Power Sources, Tianjin 300384, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Inorganics 2022, 10(8), 111; https://doi.org/10.3390/inorganics10080111
Submission received: 22 April 2022 / Revised: 13 July 2022 / Accepted: 28 July 2022 / Published: 3 August 2022
(This article belongs to the Special Issue A Themed Issue in Honor of Professor Michel Armand on the Occasion of His 75th Birthday)
Browse Figures
Versions Notes

Abstract

:
The structural stability of layered LiNi1-x-yCoxMnyO2 cathode materials is critical for guaranteeing their excellent electrochemical cycling performance, particularly at elevated temperatures. However, the notorious H2–H3 phase transition along with associated large changes in the c-axis or (003) facet is the fundamental origin of the anisotropic and abrupt change in the unit cell and the degradation of the cycling performance. In this study, we coat micron-sized LiNi0.6Co0.2Mn0.2O2 (NCM) with tungsten oxide via atomic layer deposition and investigate the atomic-to-microscopic structures in detail via advanced characterization techniques, such as Cs-corrected scanning transmission electron microscopy. The results reveal that coated tungsten oxide is predominately accumulated on the (003) facet of NCM, with the migration of a small amount of W6+ into this facet, resulting in a reduction of Ni3+ to Ni2+ and the formation of a rock-salt-like structure on the surface. The electrochemical cycling performance of tungsten-oxide-coated NCM is significantly improved, showing a capacity retention of 86.8% after 300 cycles at 55 °C, compared to only 69.4% for the bare NCM. Through further structural analysis, it is found that the initial tungsten-oxide-coating-induced (003) facet distortion effectively mitigates the expansion of the c-lattice during charge, as well as oxygen release from the lattice, resulting in a lowered strain in the cathode lattices and a crack in the cathode particles after prolonged cycling.

1. Introduction

Since the first commercialization of lithium-ion batteries (LIBs) in 1991, LIBs have attracted great attention for the applications in consumer electronics and electric vehicles [1,2]. With the increasing demand for high-energy-density and high-power-density batteries, it is necessary to develop new cathode materials to replace commercially expensive LiCoO2. LiNi1-x-yCoxMnyO2 cathode materials have the advantages of high energy density and relatively low cost; nickel oxide is considered one of the most promising cathode materials for LIBs [3,4]. However, the cycle performance of the LiNi1-x-yCoxMnyO2 cathode materials shows a gradual decrease with increasing the nickel content [5,6]. The mechanisms behind the degradation of performance have been extensively investigated and are attributed to the surface irreversible formation of NiO rock-salt-like phases, intergranular cracks, micro-strains, transition metal dissolution, etc. [7,8,9,10,11,12]. Among nickel-rich materials, LiNi0.6Co0.2Mn0.2O2 (NCM) has many advantages, such as preparation in air, high lithium-ion diffusion coefficient, and a relatively stable structure [13,14,15]; however, degradation of the cycling performance of NCM still occurs, particularly during cycling at elevated temperatures, which needs to be solved for successful commercialization.
To improve the cycling performance of cathode materials, one common method is to coat the surface with oxides such as Al2O3 [16], SiO2 [17], Li3PO4 [18], Mn3(PO4)2 [19], L1.3Al0.3Ti1.7(PO4)3 [20], LiAlO2 [21], and Li2Si2O5 [22]. These results showed that the structural stability of the cathode materials was high, resulting in an improved electrochemical cycling performance. In addition to coating, doping cathode materials with various oxides is also a very effective method. Schipper et al. [23] reported that Zr doping can suppress the phase change of NCM from the layered structure to the spinel structure. Liu et al. [24] showed that Mo doping for NCM can suppress the loss of lattice oxygen, enhance the cation order, broaden the Li+ migration channel, and improve the electrochemical performance under high voltages. Rao [25] reported that dual doping with Mg and Mn can suppress detrimental phase changes and mitigate the accumulation of cracks in Ni-rich material. Huang et al. [26,27] confirmed that Na and Mg doping can promote Li+ migration and improve the rate performance of NCM.
Of various coating and doping elements, tungsten has attracted much interest recently, owing to its effect on the electrochemical performance of many cathode materials. Geng et al. [28] showed that 1% tungsten added to LiNiO2 can greatly improve the charge–discharge capacity retention while also delivering a high specific capacity. Ryu et al. [29] reported that tungsten doping can overcome the inherent structural instability of LiNiO2 and considerably improve its cycling stability and thermal properties without compromising the capacity. It is expected that tungsten doping can provide similar benefits for NCM cathodes. Park et al. [30] investigated tungsten doping and found it to considerably improve the cycling stability and chemical stability of Li[Ni0.90Co0.05Mn0.05]O2. Chen et al. [31] concluded that the coupling of the mature atomic-layer deposition (ALD) technique with fluidizing techniques can help provide uniform coating or a complete surface treatment of particles for better protection. Becker et al. [32] demonstrated that, compared to uncoated electrodes, surface-modified electrodes show fewer degradation effects, such as particle cracking on the electrode surface, and an improvement in the thermal stability of Li[Ni0.80Co0.10Mn0.10]O2 in the presence of an electrolyte.
In this study, we coated the surface of micron-sized NCM with tungsten oxide via ALD, which is capable of forming uniform layers with precise thickness control [33]. The detailed atomic-to-microscopic characteristics of NCM before and after coating were probed by advanced analytical techniques, including aberration-corrected scanning transmission electron microscopy (Cs-STEM) with electron energy loss spectroscopy (EELS), and energy-dispersive X-ray spectrometry (EDS). The effect of tungsten oxide coating on various facets of the NCM cathode material and the associated improvement in cycling performance are discussed.

2. Materials and Methods

2.1. Materials Preparation

The Ni0.6Mn0.2Co0.2(OH)2 precursor for the preparation of micron-sized NCM obtained via the co-precipitation method has been reported in the literature [34]. Micron-sized NCM was produced by mixing the as-obtained precursor with LiOH·H2O (Li:M ratio = 1.08:1) and then calcined at 950 °C for 10 h in pure oxygen to obtain the final product. Tungsten oxide coating (WO3-coating) was performed with a Nano 900 ALD instrument (Ensure Scientific) and WCl6 as the tungsten source. The WO3-coated NCM powders were heated at 500 °C for 6 h under an oxygen flow before electrochemical cycling.

2.2. Structure and Morphology Characterization

A scanning electron microscope (SEM, Zeiss Gemini SEM 300) combined with energy-dispersive spectroscopy (EDS) was used to analyze the chemical composition on the surface of the NCM particles.
X-ray diffraction (XRD) was applied to study the crystal structure of the bare and WO3-coated NCM powders. The XRD patterns were collected between 10° and 100° (2θ) at a rate of 0.02° per minute. The diffractometer was a Bruker D8 ADVANCE diffractometer with a Cu Kα radiation source (λ1 = 1.54056 Å, λ2 = 1.54439 Å). Rietveld refinement for XRD patterns was performed via the TOPAS Academic software, with a fitting model similar to that reported by Dahn et al. [35] and Delmas et al. [36] Chebychev background and the modified Thompson–Cox–Hastings pseudo-Voigt peak type were used during the refinement. To understand the change in the lattice parameters of the cathode materials in the fully charged state (first cycle), cathode powders were scraped from electrodes dissembled from coin-type half-cells and mixed with internal Si standard for XRD analysis. The lattice parameters of the electrochemically cycled samples were fitted by the Pawley method.
The surface element information was investigated with X-ray photoelectron spectroscopy (XPS) conducted via a Kα X-ray photoelectron spectrometer (Thermo Fisher) with an Al Kα source (1486.6 eV). The binding energy was calibrated with the C1s peak (284.8 eV) of an external carbon in a vacuum chamber. Peak fitting and quantitative evaluation were conducted using the XPSPEAK software, and the background was corrected using the Shirley method.
A ThermoFisher ICAP 7200 inductively coupled plasma optical emission spectroscopy (ICP-OES) instrument was used for the determination of elements, particularly W in the NCM cathode materials. The experiment was performed five times to obtain an averaged value.
To precisely understand the atomic-scale structure of NCM before and after the ALD coating of tungsten, a Cs-corrected scanning transmission electron microscope (JEOL ARM200, 200 kV) was used to characterize the particles prepared with a focused ion beam. EDS and electron energy loss spectroscopy (EELS) were also employed to investigate element information and oxidation. The collection semi-angle of the HAADF detector was 12−24 and 75–250 mrads.

2.3. Electrode Preparation

The electrodes for electrochemical cycling were prepared similar to that reported in the literature [34].

2.4. Electrochemical Cycling Test

Electrochemical cycling was performed at room temperature and 55 °C in the voltage range of 2.75–4.3 V on a LAND automatic battery tester (Wuhan Land Electronics, Wuhan, China).

3. Results

The morphology and crystal structure of the NCM cathode material before and after ALD coating with tungsten oxide were initially studied. The SEM images indicate that both the bare (Figure 1a1,a2) and the tungsten-oxide-coated (WO3-coated) (Figure 1b1,b2) NCM particles were irregular, with size ranging from 1 to 4 µm. There was no obvious morphology change after tungsten oxide coating. The XRD patterns of the bare and WO3-coated NCM cathode materials are shown in Figure 1c. In general, all the cathode materials exhibited similar diffraction patterns, with the main peaks indexed to the standard layered LiNiO2 structure (space group R-3m) [37]. Typical features, such as the splitting of the (006)/(012) and (108)/(110) peaks, were evident for both the cathode materials, indicating the highly ordered layered structure [38]. To obtain more detailed lattice parameters of the bare and WO3-coated NCM cathode materials, Rietveld refinement was performed using XRD data. The refined unit-cell parameters were a = 2.8666(3) Å, c = 14.2066(1) Å, and V = 101.107(2) Å3 for the bare NCM, which are in good agreement with those reported previously [39,40]. After tungsten oxide coating, the refined unit-cell parameters were a = 2.8701(1) Å, c = 14.2133(2) Å, and V = 101.396(2) Å3. The detailed refinement parameters are shown in Table S1. The slightly increased unit cell is attributed to the migration of a small amount of W6+ into the lattice of NCM during the post-ALD heat treatment at 500 °C, as will be shown later. Note that no additional reflections related to WO3 were observed for WO3-coated NCM, possibly due to the small coating amount.
The element distribution of the bare and WO3-coated NCM cathode materials were investigated with SEM-EDS mapping, which showed a homogenous distribution of Ni, Co, Mn, and W elements (Figure 2a1,a2,b1,b2). To further understand the surface element information, particularly of tungsten, XPS was performed, and the results of the WO3-coated NCM materials are shown in Figure 2c1,c2. After tungsten oxide coating, two characteristic peaks at 35.43 and 37.66 eV associated with W6+ appeared, indicating the presence of WO3 on the NCM particle surface after ALD coating [15]. The detailed tungsten composition in the WO3-coated NCM was 0.48 ± 0.02 wt%, as verified through ICP-OES.
The above results confirm the presence of a small amount of WO3 on the surface of the NCM after ALD coating, without significantly altering the general morphology and layered structure of NCM. To understand the exact atomic-scale structure and element information before and after the ALD coating of tungsten oxide, the micron-size particles of bare and WO3-coated NCM were cut by a focused ion beam, and the regions of interest (ROIs) were precisely selected (Figure 3a) and investigated in detail by STEM. In general, two ROIs from each sample were investigated, i.e., a purple-boxed region (ROI-A) and a green-boxed region (ROI-B) for the bare NCM. The ROI-A exhibited a standard arrangement of transition metal (TM) atoms viewed along the [100] zone axis (Figure 3b1) [41,42,43,44]. There was no evidence of any structural distortion via the migration of TM ions into the Li layer, as shown by the magnified region of Figure 3b2. Similarly, STEM images of ROI-B also show a standard arrangement of TM atoms viewed along the [100] zone axis, without strong evidence of a contrast in the Li layer in the surface region (Figure 3c1,c2). The standard arrangements of the atoms in the ROI-A and B were also confirmed by line profiles (Figure 3d). In addition, based on the arrangement of TM atoms, the crystallographic [003] direction and (003) plane are indexed, as shown in Figure S4. This indicates that TM atoms are also arranged parallel to the (003) plane.
Elemental distribution in the ROI-A and ROI-B was performed with STEM-EDS. As shown in the O (Figure 3e1), Mn (Figure 3e2), Co (Figure 3e3) and Ni (Figure 3e4) maps for ROI-A and the O (Figure 3f1), Mn (Figure 3f2), Co (Figure 3f3), and Ni (Figure 3f4) maps for ROI-B, the compositions of these elements in both regions were distributed homogeneously. The oxidation state of the transition metal (TM) ions and the bonding nature between the TM ions could be detected by monitoring the fine structure changes of the core edges of these elements. The fitting of the as-obtained electron energy loss spectra (EELS) to the standard models obtained from the sample materials was performed to obtain the Ni concentration for each oxidation state. The details of the fitting procedure were reported previously [41,43]. The results show that the concentration of Ni2+ in ROI-A is 5.4% (Figure S1a), similar to that of 5.8% in ROI-B (Figure S1b). The limited presence of Ni2+ is also in agreement with the oxygen pre-peak in the K edge EELS spectra, showing a high intensity of the pre-peak (Figure S1c,d), suggesting limited oxygen deficiency in the bare NCM lattice.
Further STEM analysis was performed for WO3-coated NCM cathode material to understand the effect of tungsten oxide coating on the atomic-scale structure. Two ROIs, i.e., purple-boxed region ROI-C and green-boxed region ROI-D, as shown in Figure 4a1, were selected for detailed analysis. Unlike the bare NCM, as shown above, both the ROI-C and D regions exhibited increased atomic-scale structure distortion by the migration of TM atoms to the Li-layer to form the rock-salt-like structure (Figure 4b1,b2,c1,c2, respectively) [42,43,45]. Furthermore, the rock-salt-like structure was ~10 nm in ROI-D (Figure 4c1), while it was only a few atomic layers in ROI-C (Figure 4b2). The arrangement of atoms in ROI-C and D are shown by line profiles (Figure 4d), demonstrating that the clear rock-salt-like structure induced a sharp contrast in the Li-layer (L4) in ROI-D.
Elemental distribution mapping of ROI-C and ROI-D regions was also performed with STEM-EDS. As shown by the Mn (Figure 4e1), Co (Figure 4e2), Ni (Figure 4e3), and W (Figure 4e4) maps for ROI-C and the Mn (Figure 4f1), Co (Figure 4f2), Ni (Figure 4f3), and W (Figure 4f4) maps for ROI-D, the compositions of these Mn, Co, and Ni elements in both regions were distributed homogeneously; however, the W element predominated and was accumulated on the surface of ROI-D (Figure 4f). The fitting of the as-obtained EELS to the standard models showed that the concentration of Ni2+ in ROI-C was 8.4% (Figure S2a), while it was 25.8% in ROI-D (Figure S2b). The increased Ni2+ was also in agreement with the oxygen K-edge EELS spectra, showing a reduced intensity in the oxygen pre-peak, particularly in ROI-D (Figure S2c,d), suggesting an oxygen deficiency in the lattice in this region [46].
To further explore the effect of tungsten oxide coating on WO3-coated NCM for practical use, electrochemical tests were conducted on the bare and WO3-coated NCM half-cells. The results of the electrochemical results are shown in Figure 5. The half-cells were initially cycled at room temperature (RT) with a C-rate of 0.1 C for five cycles at a voltage range of 2.75–4.3 V. The initial discharge capacity of the bare NCM was 174.5 mAh/g at 0.1 C at RT (Figure 5a). After tungsten oxide coating, WO3-coated NCM displayed an initial discharge capacity of 165.1 mAh/g at 0.1 C (RT). The prolonged RT cycling performance of the bare and WO3-coated NCM half-cells are compared in Figure 5b. The bare NCM presented an initial 1 C discharge capacity of 165.5 mAh/g and a capacity retention of 93.7% after 100 cycles at RT. By contrast, WO3-coated NCM displayed a slightly lower 1 C discharge capacity of 158 mAh/g but a higher capacity retention of 96.8% after 100 cycles at RT.
The corresponding dQ/dV curves in the first cycle at 0.1 C for the bare and WO3-coated NCM are shown in Figure 5c, which exhibits similar redox peaks, indicating that the ALD coating of tungsten oxide does not have a significant effect on the electrochemical reaction during the charge–discharge process.
The rate capability of the bare and WO3-coated NCM cathode materials between 0.1 and 5 C at RT are shown in Figure 5d. The bare NCM showed capacities of 174.5, 173.2, 169.4, 165.1, 155.2, and 127.6 mAh/g at 0.1, 0.2, 0.5, 1, 2, and 5 C, respectively. By contrast, WO3-coated NCM exhibited lower capacities at lower C rates but higher capacities at higher C rates. For example, the capacities were 168.1 mAh/g, 166.3, 163.1, 158.2, and 153.2 mAh/g at 0.1–2 C but 134.2 mAh/g at 5 C. When the current density changed back to 0.1 C, WO3-coated NCM half cells exhibited a strong structural tolerance for rapid lithium-ion exchange, showing a nearly complete recovery of discharge capacity. The improvement of the rate performance of NCM through tungsten oxide coating is mainly attributed to an improved structural stability, as will be shown later. By contrast, the reversible capacity for the bare NCM counterpart exhibited a recovery to 159.4 mAh/g when the current density changed back to 0.1 C, owing to the poor structural stability and associated decrease in the lithium-ion diffusion.
The bare and WO3-coated NCM were further cycled at 55 °C to accelerate the degradation of cycling performance for better characterization, and the results are shown in Figure 5e,f. It is known that the reactions between cathode materials and trace amounts of HF in the electrolyte are enhanced at elevated temperatures [43,47,48], causing significant degradation of the cycling performance if the cathode structure is not stable. Both the bare and the WO3-coated NCM showed a slightly increased discharge capacity during the first cycle at 55 °C because of the increased lithium-ion kinetics at elevated temperatures (Figure 5f). For the WO3-coated NCM, the discharge capacity demonstrates an excellent retention of 86.9% after 300 cycles at 1 C (55 °C), compared to 69.4% for the bare NCM.
To understand the structural degradation of the NCM after prolonged cycling, typical electrodes were disassembled after 300 cycles at 55 °C in an argon-filled glove box for morphology analysis with SEM. As shown in Figure 6a1,a2, after 300 cycles at 55 °C (1 C), clear cracks were evident for the bare NCM cathode particles, ranging from the center to the edge of the particles. STEM-HAADF images of the 55 °C cycled bare NCM (Figure 6c1,c2) also reveal that the atomic-scale crack originating in the bulk region was parallel to the (003) plane. The oxygen K-edge EELS spectra showed that the intensity of the pre-peak was diminished, indicating significant oxygen loss from the lattice in the bulk region near the crack (Figure S3a). Compared with bare NCM, there was no evidence of cracks observed through SEM in the WO3-coated NCM cathode particles (Figure 6b1,b2). STEM-HAADF images of the 55 °C cycled WO3-coated NCM (Figure 6d1,d2) also revealed excellent atomic-scale arrangement of atoms in the bulk region. The oxygen K-edge EELS spectra showed that the intensity of the pre-peak was high, indicating no significant oxygen loss from the lattice in the bulk region (Figure S3b). These observations confirm that the ALD coating of tungsten oxide significantly improved the stability of the NCM cathode material, alleviating particle breakage during cycling and consequently improving the cycling stability.

4. Discussion

Based on the above detailed atomic-to-microscopic structure analysis and electrochemical cycling of the bare and WO3-coated NCM, the improved cycling performance of NCM after ALD coating of tungsten oxide is mainly attributed to its effective inhibition of cycling-induced cracks [49,50]. The formed cracks expose fresh surfaces to the electrolyte, causing the formation of cycling-induced rock salt and the dissolution of TM ions in the electrolyte, and consequently, the rapid degradation of the cycling performance [51,52,53]. These adverse effects are further enhanced at elevated temperatures, owing to the increased amount of HF in the electrolyte, thus causing the rapid degradation of the cathode structure, and consequently, the cycling performance [47,48]. Furthermore, the loss of oxygen from the lattice, as clearly observed in the crack region (Figure S3a), results in the oxidation of the electrolyte and further formation of HF [46,54]. This, in turn, accelerates the structural distortion and degradation of the cycling performance. Thus, the bare NCM exhibits a much poorer capacity retention than WO3-coated NCM, as observed in Figure 5f.
The formation of cracks in layered cathode materials may be attributed to many factors, with the main factor being anisotropic and abrupt lattices changes, which in turn induce stains and the formation of cracks. The anisotropic lattice changes during cycling are usually much greater along the c-axis than the a-axis. In an extreme case, pure LiNiO2 showed Δa = 2.0% and Δc = 7.9% in the fully charged state. The repeated expansion/shrinkage of the (003) facet during lithium extraction (charging)/insertion (discharging) is the fundamental origin for cracks formed perpendicular to the c-direction or parallel to the (003) facet [3,49,50]. Though the lattice changes were less significant in NCM here, which contained 20 at % Co and 20 at % Mn, the change in Δc was still 1.81% in the fully charged state (14.2066 to 14.4641 Å), Figure S5a, which led to cracks parallel to the (003) facet after repeated cycles, as may be clearly observed through the STEM-HAADF images in Figure 6. In shape contrast, after the ALD coating of tungsten oxide, a small amount of W6+ migrated to the lattice, forming a ~10 nm-surface distorted rock-salt structure parallel to the (003) facet (Figure 4). Note that the exact origin for the (003) facet preferred for W6+ migration is not clear but is likely attributed to the minimization of surface energy, as suggested by previous theoretical modeling works [55]. Though this surface structural distortion led to a sacrifice of the initial capacity at RT (~9 mAh/g lower at 0.1 C, RT, Figure 5a), the changes in the c-axis were significantly reduced, with a Δc of only 0.7% in the fully charged state (14.2133 to 14.3070 Å), as shown in Figure S5b, and resulting in a reduced formation of cracks, as observed above. Meanwhile, the surface distorted rock-salt structure also impeded the release of oxygen during cycling (see Figure S3b) and improved the structural stability [56]. The effect of tungsten oxide coating on the NCM cathode material during cycling is summarized in Figure 7.

5. Conclusions

In this work, a micron-sized LiNi0.6Co0.2Mn0.2O2 cathode material was prepared and coated with 0.48 ± 0.02 wt% WO3 via atomic layer deposition using WCl6 as the metal source. By employing advanced structural characterization techniques, WO3 was mainly accumulated on the (003) facet, with a small amount of W6+ entering the ~10 nm surface, causing structural distortion and the formation of a rock-salt-like structure. This tungsten oxide coating induced initial structural distortion; however, it effectively mitigated a c-axis change during cycling and oxygen release from the lattice. Consequently, the electrochemical cycling performance of tungsten-oxide-coated NCM was significantly improved, showing a capacity retention of 86.8% after 300 cycles at 55 °C, compared to only 69.4% for the bare NCM.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/inorganics10080111/s1, Table S1. Rietveld refinement parameters for the bare and WO3-coared NCM cathode materials before cycling. Figure S1. EELS Ni L edge and O K edge spectra for uncycled bare NCM from (a,c) ROI-A and (b,d) ROI-B. Figure S2. EELS Ni L edge and O K edge spectra for uncycled WO3-coated NCM from (a,c) ROI-C and (b,d) ROI-D. Figure S3. EELS oxygen K edge spectra from bulk region of cycled (a) bare and (b) WO3-coated NCM. Figure S4. (a) Crystal structure and (b) arrangement of TM ions of NCM layered cathode material viewed along the [010] zone axis. (c) A STEM-HAADF image showing arrangement of TM atoms with respect to the FIB-cut micron-sized particle. Based on the arrangement of TM atoms, the crystallographic [003] direction and (003) plane are indexed. Figure S5. Pawley fitting of XRD patterns for 1st cycle fully charged (a) bare and (b) WO3-coated NCM cathode powders scraped from electrodes.

Author Contributions

Conceptualization, X.H. and X.L.; methodology, L.B.; software, L.B.; validation, Y.L.; formal analysis, Y.L.; investigation, Y.L.; resources, H.Y. and W.Z.; data curation, Y.L.; writing—original draft preparation, L.B.; writing—review and editing, L.B.; visualization, Y.L.; supervision, X.H.; project administration, X.H.; funding acquisition, X.H., Y.L. and L.B. contributed equally to this work. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Key Research and Development Program of China (grant no. 2019YFA0705101) and the National Natural Science Foundation of China (grant No. 22179144).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to thank Ministry of Science and Technology and National Natural Science Foundation of China for funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Armand, M.; Tarascon, J.M. Building better batteries. Nature 2008, 451, 652–657. [Google Scholar] [CrossRef]
  2. Tarascon, J.M.; Armand, M. Issues and challenges facing rechargeable lithium batteries. Nature 2001, 414, 359–367. [Google Scholar] [CrossRef] [PubMed]
  3. Ryu, H.H.; Park, K.J.; Yoon, C.S.; Sun, Y.K. Capacity Fading of Ni-Rich LiNixCoyMn1-x-yO2 (0.6 ≤ x ≤ 0.95) Cathodes for High-Energy-Density Lithium-Ion Batteries: Bulk or Surface Degradation? Chem. Mater. 2018, 30, 1155–1163. [Google Scholar] [CrossRef]
  4. Julien, C.M.; Mauger, A. NCA, NCM811, and the Route to Ni-Richer Lithium-Ion Batteries. Energies 2020, 13, 6363. [Google Scholar] [CrossRef]
  5. Noh, H.J.; Youn, S.; Yoon, C.S.; Sun, Y.K. Comparison of the structural and electrochemical properties of layered LiNixCoyMnzO2 (x=1/3, 0.5, 0.6, 0.7, 0.8 and 0.85) cathode material for lithium-ion batteries. J. Power Sources 2013, 233, 121–130. [Google Scholar] [CrossRef]
  6. Ma, L.; Nie, M.Y.; Xia, J.; Dahn, J.R. A systematic study on the reactivity of different grades of charged LiNixMnyCozO2 with electrolyte at elevated temperatures using accelerating rate calorimetry. J. Power Sources 2016, 327, 145–150. [Google Scholar]
  7. Liu, W.; Oh, P.; Liu, X.; Lee, M.J.; Cho, W.; Chae, S.; Kim, Y.; Cho, J. Nickel-Rich Layered Lithium Transition-Metal Oxide for High-Energy Lithium-Ion Batteries. Angew. Chem.-Int. Ed. 2015, 54, 4440–4457. [Google Scholar] [CrossRef] [PubMed]
  8. Kim, N.Y.; Yim, T.; Song, J.H.; Yu, J.S.; Lee, Z. Microstructural study on degradation mechanism of layered LiNi0.6Co0.2Mn0.2O2 cathode materials by analytical transmission electron microscopy. J. Power Sources 2016, 307, 641–648. [Google Scholar] [CrossRef]
  9. Manthiram, A.; Knight, J.C.; Myung, S.T.; Oh, S.M.; Sun, Y.K. Nickel-Rich and Lithium-Rich Layered Oxide Cathodes: Progress and Perspectives. Adv. Energy Mater. 2016, 6, 1501010. [Google Scholar] [CrossRef]
  10. Min, K.; Kim, K.; Jung, C.; Seo, S.-W.; Song, Y.Y.; Lee, H.S.; Shin, J.; Cho, E. A comparative study of structural changes in lithium nickel cobalt manganese oxide as a function of Ni content during delithiation process. J. Power Sources 2016, 315, 111–119. [Google Scholar] [CrossRef]
  11. de Biasi, L.; Kondrakov, A.O.; Gesswein, H.; Brezesinski, T.; Hartmann, P.; Janek, J. Between Scylla and Charybdis: Balancing Among Structural Stability and Energy Density of Layered NCM Cathode Materials for Advanced Lithium-Ion Batteries. J. Phys. Chem. C 2017, 121, 26163–26171. [Google Scholar] [CrossRef]
  12. Li, W.D.; Liu, X.M.; Xie, Q.; You, Y.; Chi, M.F.; Manthiram, A. Long-Term Cyclability of NCM-811 at High Voltages in Lithium-Ion Batteries: An In-Depth Diagnostic Study. Chem. Mater. 2020, 32, 7796–7804. [Google Scholar] [CrossRef]
  13. Saavedra-Arias, J.J.; Rao, C.V.; Shojan, J.; Manivannan, A.; Torres, L.; Ishikawa, Y.; Katiyar, R.S. A combined first-principles computational/experimental study on LiNi0.66Co0.17Mn0.17O2 as a potential layered cathode material. J. Power Sources 2012, 211, 12–18. [Google Scholar] [CrossRef]
  14. Wei, Y.; Zheng, J.X.; Cui, S.H.; Song, X.H.; Su, Y.T.; Deng, W.J.; Wu, Z.Z.; Wang, X.W.; Wang, W.D.; Rao, M.M.; et al. Kinetics Tuning of Li-Ion Diffusion in Layered Li(NixMnyCoz)O2. J. Am. Chem. Soc. 2015, 137, 8364–8367. [Google Scholar] [CrossRef]
  15. Chu, B.; You, L.; Li, G.; Huang, T.; Yu, A. Revealing the Role of W-Doping in Enhancing the Electrochemical Performance of the LiNi0.6Co0.2Mn0.2O2 Cathode at 4.5 V. ACS Appl. Mater. Interfaces 2021, 13, 7308–7316. [Google Scholar] [CrossRef] [PubMed]
  16. Yoo, K.S.; Kang, Y.H.; Im, K.R.; Kim, C.S. Surface Modification of Li(Ni0.6Co0.2Mn0.2)O2 Cathode Materials by Nano-Al2O3 to Improve Electrochemical Performance in Lithium-Ion Batteries. Materials 2017, 10, 1273. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Cho, W.; Kim, S.-M.; Song, J.H.; Yim, T.; Woo, S.-G.; Lee, K.-W.; Kim, J.-S.; Kim, Y.-J. Improved electrochemical and thermal properties of nickel rich LiNi0.6Co0.2Mn0.2O2 cathode materials by SiO2 coating. J. Power Sources 2015, 282, 45–50. [Google Scholar] [CrossRef]
  18. Jo, C.-H.; Cho, D.-H.; Noh, H.-J.; Yashiro, H.; Sun, Y.-K.; Myung, S.T. An effective method to reduce residual lithium compounds on Ni-rich Li[Ni0.6Co0.2Mn0.2]O2 active material using a phosphoric acid derived Li3PO4 nanolayer. Nano Res. 2015, 8, 1464–1479. [Google Scholar] [CrossRef]
  19. Chen, Z.; Kim, G.-T.; Guang, Y.; Bresser, D.; Diemant, T.; Huang, Y.; Copley, M.; Behm, R.J.; Passerini, S.; Shen, Z. Manganese phosphate coated Li[Ni0.6Co0.2Mn0.2]O2 cathode material: Towards superior cycling stability at elevated temperature and high voltage. J. Power Sources 2018, 402, 263–271. [Google Scholar] [CrossRef]
  20. Choi, J.-W.; Lee, J.-W. Improved electrochemical properties of Li(Ni0.6Mn0.2Co0.2)O2 by surface coating with Li1.3Al0.3Ti1.7(PO4)3. J. Power Sources 2016, 307, 63–68. [Google Scholar] [CrossRef]
  21. Liu, W.; Li, X.; Xiong, D.; Hao, Y.; Li, J.; Kou, H.; Yan, B.; Li, D.; Lu, S.; Koo, A.; et al. Significantly improving cycling performance of cathodes in lithium ion batteries: The effect of Al2O3 and LiAlO2 coatings on LiNi0.6Co0.2Mn0.2O2. Nano Energy 2018, 44, 111–120. [Google Scholar] [CrossRef]
  22. Liu, S.; Wu, H.; Huang, L.; Xiang, M.; Liu, H.; Zhang, Y. Synthesis of Li2Si2O5-coated LiNi0.6Co0.2Mn0.2O2 cathode materials with enhanced high-voltage electrochemical properties for lithium-ion batteries. J. Alloys Compd. 2016, 674, 447–454. [Google Scholar] [CrossRef]
  23. Schipper, F.; Dixit, M.; Kovacheva, D.; Talianker, M.; Haik, O.; Grinblat, J.; Erickson, E.M.; Ghanty, C.; Major, D.T.; Markovsky, B.; et al. Stabilizing nickel-rich layered cathode materials by a high-charge cation doping strategy: Zirconium-doped LiNi0.6Co0.2Mn0.2O2. J. Mater. Chem. A 2016, 4, 16073–16084. [Google Scholar] [CrossRef]
  24. Liu, Q.; Zhao, Z.; Wu, F.; Mu, D.; Wang, L.; Wu, B. The effects of molybdenum doping on LiNi0.6Co0.2Mn0.2O2 cathode material. Solid State Ion. 2019, 337, 107–114. [Google Scholar] [CrossRef]
  25. Rao, T.; Gao, P.; Zhu, Z.; Wang, S.; Ben, L.; Zhu, Y. Structural, electrochemical, and Li-ion diffusion properties of Mg&Mn dual doped LiNiO2 cathode materials for Li-ion batteries. Solid State Ion. 2022, 376, 115860. [Google Scholar]
  26. Huang, Z.; Wang, Z.; Zheng, X.; Guo, H.; Li, X.; Jing, Q.; Yang, Z. Effect of Mg doping on the structural and electrochemical performance of LiNi0.6Co0.2Mn0.2O2 cathode materials. Electrochim. Acta 2015, 182, 795–802. [Google Scholar] [CrossRef]
  27. Huang, Z.; Wang, Z.; Jing, Q.; Guo, H.; Li, X.; Yang, Z. Investigation on the effect of Na doping on structure and Li-ion kinetics of layered LiNi0.6Co0.2Mn0.2O2 cathode material. Electrochim. Acta 2016, 192, 120–126. [Google Scholar] [CrossRef]
  28. Geng, C.; Rathore, D.; Heino, D.; Zhang, N.; Hamam, I.; Zaker, N.; Botton, G.A.; Omessi, R.; Phattharasupakun, N.; Bond, T.; et al. Mechanism of Action of the Tungsten Dopant in LiNiO2 Positive Electrode Materials. Adv. Energy Mater. 2022, 12, 2103067. [Google Scholar] [CrossRef]
  29. Ryu, H.H.; Park, G.T.; Yoon, C.S.; Sun, Y.K. Suppressing detrimental phase transitions via tungsten doping of LiNiO2 cathode for next-generation lithium-ion batteries. J. Mater. Chem. A 2019, 7, 18580–18588. [Google Scholar] [CrossRef]
  30. Park, G.T.; Ryu, H.H.; Park, N.Y.; Yoon, C.S.; Sun, Y.-K. Tungsten doping for stabilization of Li[Ni0.90Co0.05Mn0.05]O2 cathode for Li-ion battery at high voltage. J. Power Sources 2019, 442, 227242. [Google Scholar] [CrossRef]
  31. Chen, Z.; Qin, Y.; Amine, K.; Sun, Y.K. Role of surface coating on cathode materials for lithium-ion batteries. J. Mater. Chem. 2010, 20, 7606–7612. [Google Scholar] [CrossRef]
  32. Becker, D.; Borner, M.; Nolle, R.; Diehl, M.; Klein, S.; Rodehorst, U.; Schmuch, R.; Winter, M.; Placke, T. Surface Modification of Ni-Rich LiNi0.8Co0.1Mn0.1O2 Cathode Material by Tungsten Oxide Coating for Improved Electrochemical Performance in Lithium-Ion Batteries. ACS Appl. Mater. Interfaces 2019, 11, 18404–18414. [Google Scholar] [CrossRef] [PubMed]
  33. Xie, J.; Zhao, J.; Liu, Y.; Wang, H.; Liu, C.; Wu, T.; Hsu, P.-C.; Lin, D.; Jin, Y.; Cui, Y. Engineering the surface of LiCoO2 electrodes using atomic layer deposition for stable high-voltage lithium ion batteries. Nano Res. 2017, 10, 3754–3764. [Google Scholar] [CrossRef]
  34. Tian, F.; Zhang, Y.Z.; Liu, Z.Z.; Monteiro, R.D.; Ribas, R.M.; Gao, P.; Zhu, Y.M.; Yu, H.L.; Ben, L.B.; Huang, X.J. Investigation of structure and cycling performance of Nb5+ doped high-nickel ternary cathode materials. Solid State Ion. 2021, 359, 9. [Google Scholar] [CrossRef]
  35. Jiang, J.; Eberman, K.W.; Krause, L.J.; Dahn, J.R. Structure, Electrochemical Properties, and Thermal Stability Studies of Li[Ni[sub 0.2]Co[sub 0.6]Mn[sub 0.2]]O[sub 2]. J. Electrochem. Soc. 2005, 152, A1874. [Google Scholar] [CrossRef]
  36. Pouillerie, C.; Suard, E.; Delmas, C. Structural characterization of Li1-z-xNi1+zO2 by neutron diffraction. J. Solid State Chem. 2001, 158, 187–197. [Google Scholar] [CrossRef]
  37. Dahn, J.R.; Vonsacken, U.; Juzkow, M.W.; Aljanaby, H. Rechargeable LiNiO2/carbon cells. J. Electrochem. Soc. 1991, 138, 2207–2211. [Google Scholar] [CrossRef]
  38. Bianchini, M.; Roca-Ayats, M.; Hartmann, P.; Brezesinski, T.; Janek, J. There and Back Again-The Journey of LiNiO2 as a Cathode Active Material. Angew. Chem.-Int. Ed. 2019, 58, 10434–10458. [Google Scholar] [CrossRef]
  39. Luo, D.; Fang, S.; Tamiya, Y.; Yang, L.; Hirano, S.-I. Countering the Segregation of Transition-Metal Ions in LiMn1/3Co1/3Ni1/3O2 Cathode for Ultralong Life and High-Energy Li-Ion Batteries. Small 2016, 12, 4421–4430. [Google Scholar] [CrossRef] [PubMed]
  40. Hou, P.; Zhang, H.; Zi, Z.; Zhang, L.; Xu, X. Core-shell and concentration-gradient cathodes prepared via co-precipitation reaction for advanced lithium-ion batteries. J. Mater. Chem. A 2017, 5, 4254–4279. [Google Scholar] [CrossRef]
  41. Ji, H.X.; Ben, L.B.; Yu, H.L.; Qiao, R.H.; Zhao, W.W.; Huang, X.J. Electrolyzed Ni(OH)2 Precursor Sintered with LiOH/LiNiO2 Mixed Salt for Structurally and Electrochemically Stable Cobalt-Free LiNiO2 Cathode Materials. ACS Appl. Mater. Interfaces 2021, 13, 50965–50974. [Google Scholar] [CrossRef] [PubMed]
  42. Lin, Q.Y.; Guan, W.H.; Zhou, J.B.; Meng, J.; Huang, W.; Chen, T.; Gao, Q.; Wei, X.; Zeng, Y.W.; Li, J.X.; et al. Ni-Li anti-site defect induced intragranular cracking in Ni-rich layer-structured cathode. Nano Energy 2020, 76, 105021. [Google Scholar] [CrossRef]
  43. Tian, F.; Ben, L.; Yu, H.; Ji, H.; Zhao, W.; Liu, Z.; Monteiro, R.; Ribas, R.M.; Zhu, Y.; Huang, X. Understanding High-Temperature Cycling-Induced Crack Evolution and Associated Atomic-Scale Structure in a Ni-rich LiNi0.8Co0.1Mn0.1O2 Layered Cathode Material. Nano Energy 2022, 98, 107222. [Google Scholar] [CrossRef]
  44. Zhang, H.; Omenya, F.; Yan, P.; Luo, L.; Whittingham, M.S.; Wang, C.; Zhou, G. Rock-Salt Growth-Induced (003) Cracking in a Layered Positive Electrode for Li-Ion Batteries. ACS Energy Lett. 2017, 2, 2607–2615. [Google Scholar] [CrossRef]
  45. Li, X.; Gao, A.; Tang, Z.; Meng, F.; Shang, T.; Guo, S.; Ding, J.; Luo, Y.; Xiao, D.; Wang, X.; et al. Robust Surface Reconstruction Induced by Subsurface Ni/Li Antisites in Ni-Rich Cathodes. Adv. Funct. Mater. 2021, 31, 2010291. [Google Scholar] [CrossRef]
  46. Mu, L.; Lin, R.; Xu, R.; Han, L.; Xia, S.; Sokaras, D.; Steiner, J.D.; Weng, T.-C.; Nordlund, D.; Doeff, M.M.; et al. Oxygen Release Induced Chemomechanical Breakdown of Layered Cathode Materials. Nano Lett. 2018, 18, 3241–3249. [Google Scholar] [CrossRef] [PubMed]
  47. Edstrom, K.; Gustafsson, T.; Thomas, J.O. The cathode-electrolyte interface in the Li-ion battery. Electrochim. Acta 2004, 50, 397–403. [Google Scholar] [CrossRef]
  48. Park, O.K.; Cho, Y.; Lee, S.; Yoo, H.C.; Song, H.K.; Cho, J. Who will drive electric vehicles, olivine or spinel? Energy Environ. Sci. 2011, 4, 1621–1633. [Google Scholar] [CrossRef]
  49. Fan, X.M.; Hu, G.R.; Zhang, B.; Ou, X.; Zhang, J.F.; Zhao, W.G.; Jia, H.P.; Zou, L.F.; Li, P.; Yang, Y. Crack-free single-crystalline Ni-rich layered NCM cathode enable superior cycling performance of lithium-ion batteries. Nano Energy 2020, 70, 104450. [Google Scholar] [CrossRef]
  50. Yan, P.; Zheng, J.; Gu, M.; Xiao, J.; Zhang, J.-G.; Wang, C.-M. Intragranular cracking as a critical barrier for high-voltage usage of layer-structured cathode for lithium-ion batteries. Nat. Commun. 2017, 8, 14101. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Ko, D.S.; Park, J.H.; Park, S.; Ham, Y.N.; Ahn, S.J.; Park, J.H.; Han, H.N.; Lee, E.; Jeon, W.S.; Jung, C. Microstructural visualization of compositional changes induced by transition metal dissolution in Ni-rich layered cathode materials by high-resolution particle analysis. Nano Energy 2019, 56, 434–442. [Google Scholar] [CrossRef]
  52. Sari, H.M.K.; Li, X. Controllable Cathode-Electrolyte Interface of Li[Ni0.8Co0.1Mn0.1]O2 for Lithium Ion Batteries: A Review. Adv. Energy Mater. 2019, 9, 1901597. [Google Scholar] [CrossRef]
  53. Yan, P.; Zheng, J.; Liu, J.; Wang, B.; Cheng, X.; Zhang, Y.; Sun, X.; Wang, C.; Zhang, J.-G. Tailoring grain boundary structures and chemistry of Ni-rich layered cathodes for enhanced cycle stability of lithium-ion batteries. Nat. Energy 2018, 3, 600–605. [Google Scholar] [CrossRef]
  54. Min, K.; Cho, E. Intrinsic origin of intra-granular cracking in Ni-rich layered oxide cathode materials. Phys. Chem. Chem. Phys. 2018, 20, 9045–9052. [Google Scholar] [CrossRef] [PubMed]
  55. Park, K.J.; Jung, H.G.; Kuo, L.Y.; Kaghazchi, P.; Yoon, C.S.; Sun, Y.K. Improved Cycling Stability of Li[Ni0.90Co0.05Mn0.05]O2 through Microstructure Modification by Boron Doping for Li-Ion Batteries. Adv. Energy Mater. 2018, 8, 1801202. [Google Scholar] [CrossRef]
  56. Yin, S.Y.; Deng, W.T.; Chen, J.; Gao, X.; Zou, G.Q.; Hou, H.S.; Ji, X.B. Fundamental and solutions of microcrack in Ni-rich layered oxide cathode materials of lithium-ion batteries. Nano Energy 2021, 83, 105854. [Google Scholar] [CrossRef]
Inorganics 10 00111 g001 550

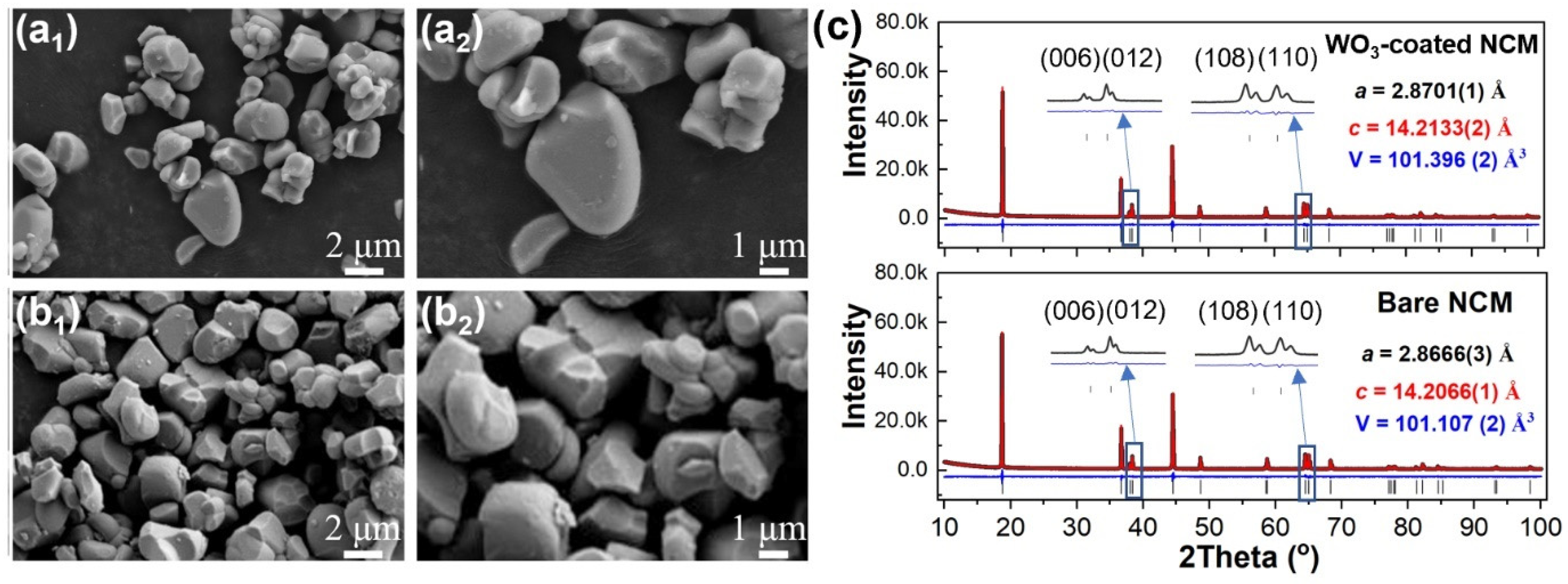

Figure 1. Morphology and XRD refinement of bare and WO3-coated NCM cathode materials. SEM images of (a1,a2) bare and (b1,b2) WO3-coated NCM cathode materials. (c) Rietveld refinement of XRD patterns for bare and WO3-coated NCM cathode materials. Rwp, Rp, gof and χ2 for bare NCM are 4.63, 3.57%, 1.48, and 2.22 and for WO3-coated NCM are 4.84%, 3.70%, 1.54 and 2.40, respectively.
Figure 1. Morphology and XRD refinement of bare and WO3-coated NCM cathode materials. SEM images of (a1,a2) bare and (b1,b2) WO3-coated NCM cathode materials. (c) Rietveld refinement of XRD patterns for bare and WO3-coated NCM cathode materials. Rwp, Rp, gof and χ2 for bare NCM are 4.63, 3.57%, 1.48, and 2.22 and for WO3-coated NCM are 4.84%, 3.70%, 1.54 and 2.40, respectively.
Inorganics 10 00111 g001
Inorganics 10 00111 g002 550

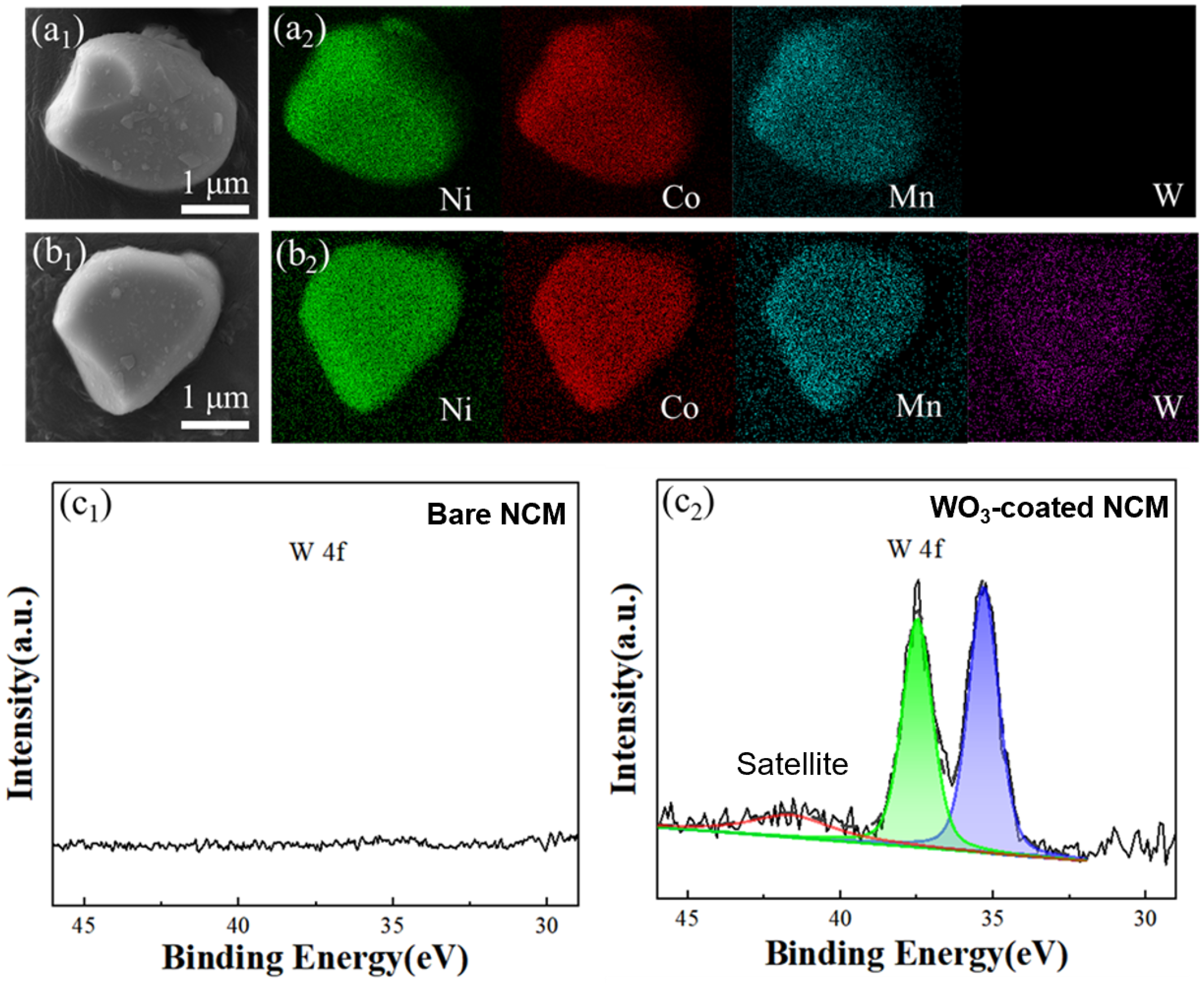

Figure 2. SEM images and element mapping of bare and WO3-coated NCM cathode materials (a1,a2,b1,b2). Surface XPS analysis of bare and WO3-coated NCM cathode powders. (c1) W 4f of the bare NCM and (c2) fitting of W 4f for the WO3-coated NCM cathode materials.
Figure 2. SEM images and element mapping of bare and WO3-coated NCM cathode materials (a1,a2,b1,b2). Surface XPS analysis of bare and WO3-coated NCM cathode powders. (c1) W 4f of the bare NCM and (c2) fitting of W 4f for the WO3-coated NCM cathode materials.
Inorganics 10 00111 g002
Inorganics 10 00111 g003 550

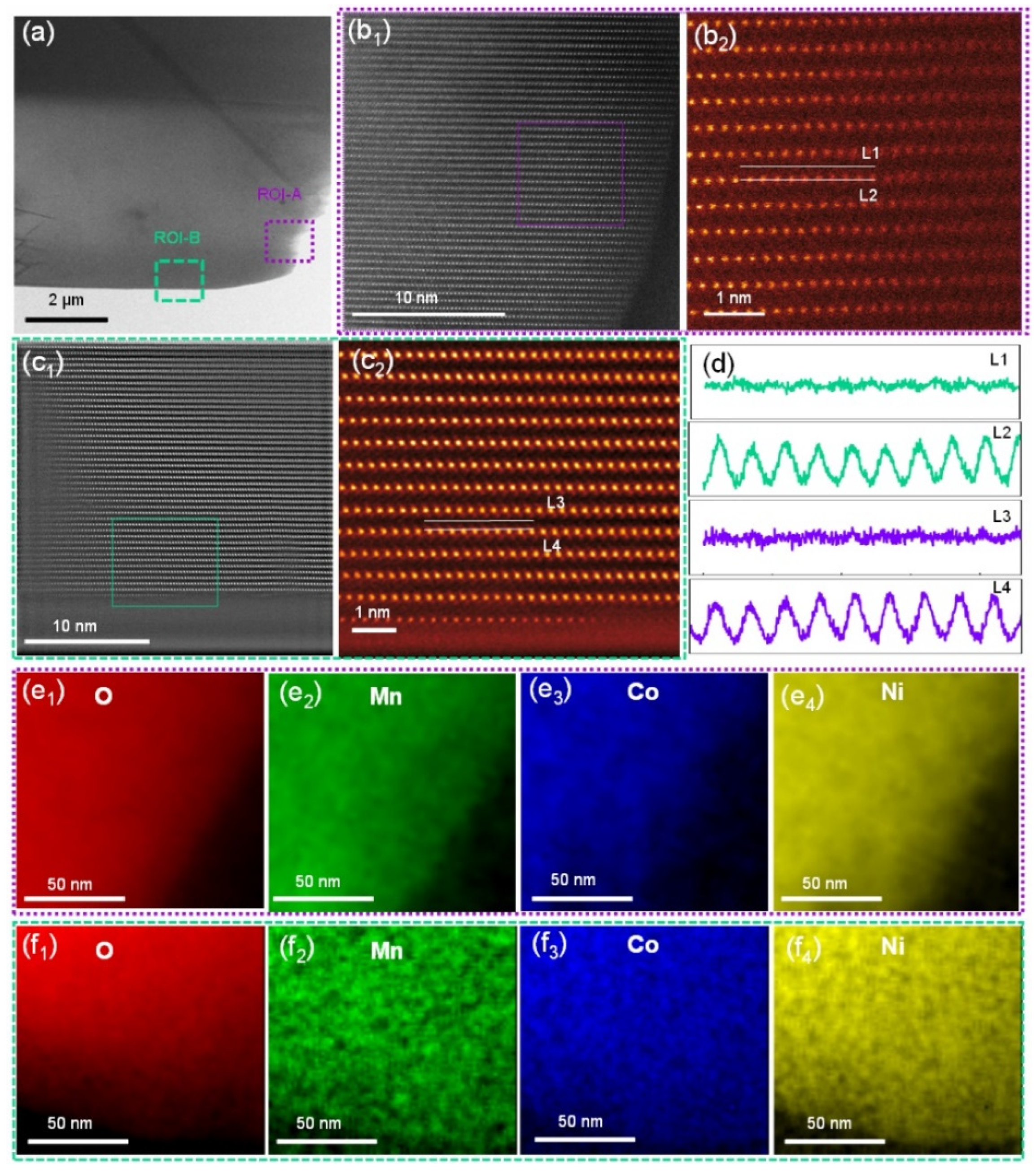

Figure 3. (a) A low-magnification STEM-HAADF image of the bare NCM particle. (b1,b2) Atomic-scale STEM-HAADF images of the surface of the bare NCM particle, as indicated by the purple box (ROI-A) in panel a; (c1,c2) atomic-scale STEM-HAADF images of the bare NCM particle, as indicated by the green box (ROI-B) in panel a. (d) Line profiles for the L1/L2 lines in panel b2 and L3/L4 lines in panel c2. (e1–e4) STEM-EDS mapping of elements O, Mn, Co, and Ni in the purple boxed region in panel a. (f1–f4) STEM-EDS mapping of elements O, Mn, Co, and Ni in the green boxed region in panel a.
Figure 3. (a) A low-magnification STEM-HAADF image of the bare NCM particle. (b1,b2) Atomic-scale STEM-HAADF images of the surface of the bare NCM particle, as indicated by the purple box (ROI-A) in panel a; (c1,c2) atomic-scale STEM-HAADF images of the bare NCM particle, as indicated by the green box (ROI-B) in panel a. (d) Line profiles for the L1/L2 lines in panel b2 and L3/L4 lines in panel c2. (e1–e4) STEM-EDS mapping of elements O, Mn, Co, and Ni in the purple boxed region in panel a. (f1–f4) STEM-EDS mapping of elements O, Mn, Co, and Ni in the green boxed region in panel a.
Inorganics 10 00111 g003
Inorganics 10 00111 g004 550

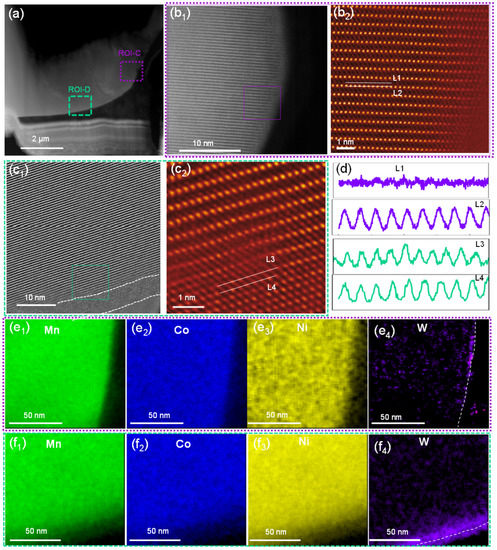

Figure 4. (a) A low-magnification STEM-HAADF image of the WO3-coated NCM cathode particle. (b1,b2) Atomic-scale STEM-HAADF images of the surface of the WO3-coated NCM cathode particle, as indicated by the purple box in panel a; (c1,c2) atomic-scale STEM-HAADF images of the WO3-coated NCM particle, as indicated by the green box in panel a. (d) Line profiles for the L1/L2 lines in panel b2 and L3/L4 lines in panel c2. (e1–e4) STEM-EDS mapping of elements Mn, Co, Ni, and W in the purple boxed region in panel a. (f1–f4) STEM-EDS mapping of elements Mn, Co, Ni, and W in the green boxed region in panel a.
Figure 4. (a) A low-magnification STEM-HAADF image of the WO3-coated NCM cathode particle. (b1,b2) Atomic-scale STEM-HAADF images of the surface of the WO3-coated NCM cathode particle, as indicated by the purple box in panel a; (c1,c2) atomic-scale STEM-HAADF images of the WO3-coated NCM particle, as indicated by the green box in panel a. (d) Line profiles for the L1/L2 lines in panel b2 and L3/L4 lines in panel c2. (e1–e4) STEM-EDS mapping of elements Mn, Co, Ni, and W in the purple boxed region in panel a. (f1–f4) STEM-EDS mapping of elements Mn, Co, Ni, and W in the green boxed region in panel a.
Inorganics 10 00111 g004
Inorganics 10 00111 g005 550

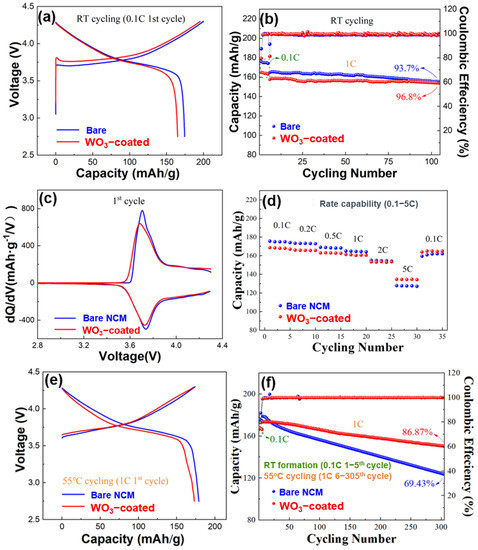

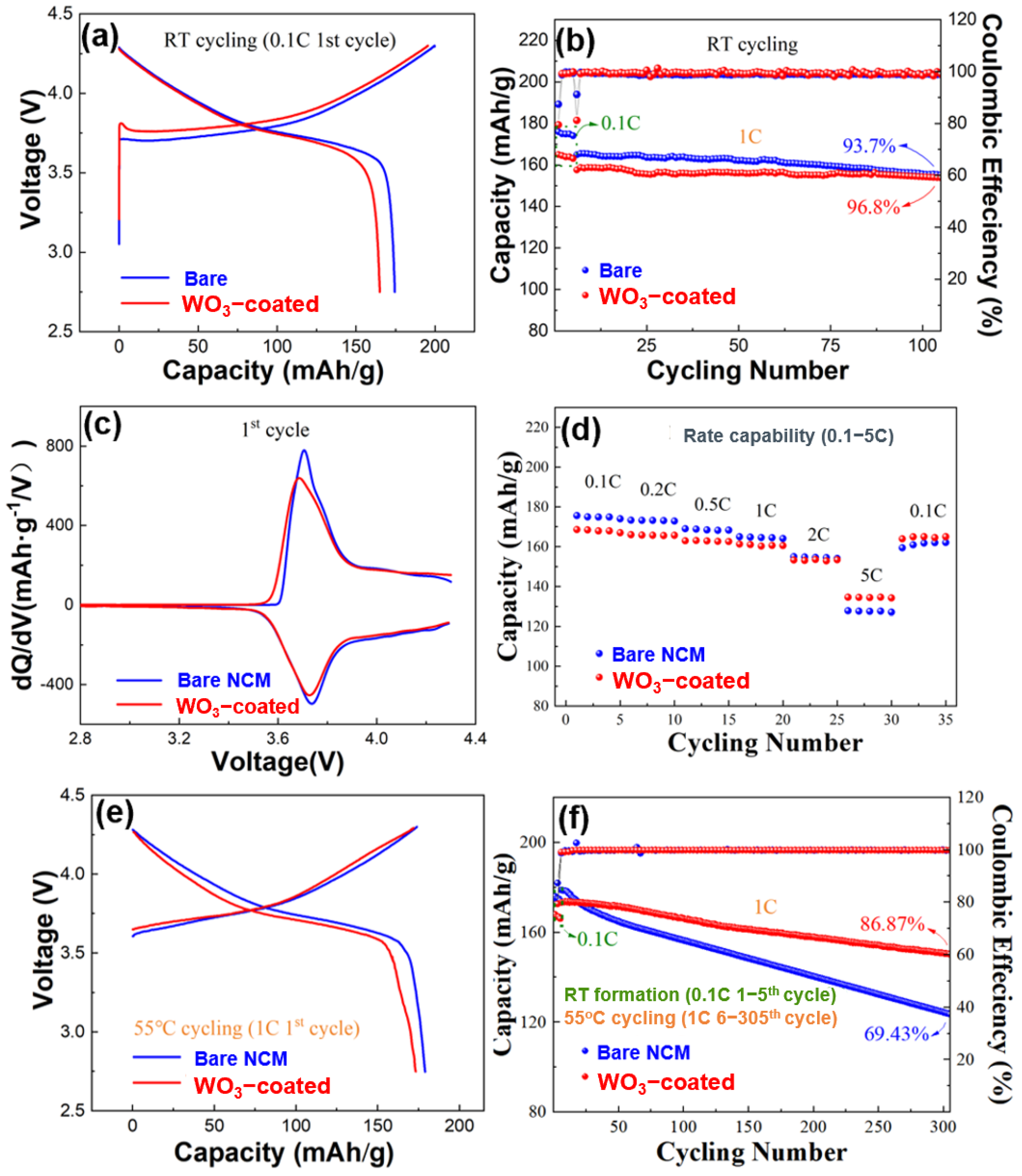

Figure 5. Electrochemical properties of the bare and WO3-coated NCM half-cells. (a) Charge–discharge curves in the first cycle at 0.1 C (RT), (b) discharge capacity retention for the 6th–105th cycles at RT (1–5th at 0.1 C), (c) dQ/dV curves for the first cycle at RT, (d) discharge capacity at 0.1–5 C for 5 cycles at each C-rate, (e) charge–discharge curves in the first cycle at 55 °C and (f) discharge capacity retention at 55 °C for the 6th–305th cycles (0.1 C for the 1st–5th cycles at RT).
Figure 5. Electrochemical properties of the bare and WO3-coated NCM half-cells. (a) Charge–discharge curves in the first cycle at 0.1 C (RT), (b) discharge capacity retention for the 6th–105th cycles at RT (1–5th at 0.1 C), (c) dQ/dV curves for the first cycle at RT, (d) discharge capacity at 0.1–5 C for 5 cycles at each C-rate, (e) charge–discharge curves in the first cycle at 55 °C and (f) discharge capacity retention at 55 °C for the 6th–305th cycles (0.1 C for the 1st–5th cycles at RT).
Inorganics 10 00111 g005
Inorganics 10 00111 g006 550

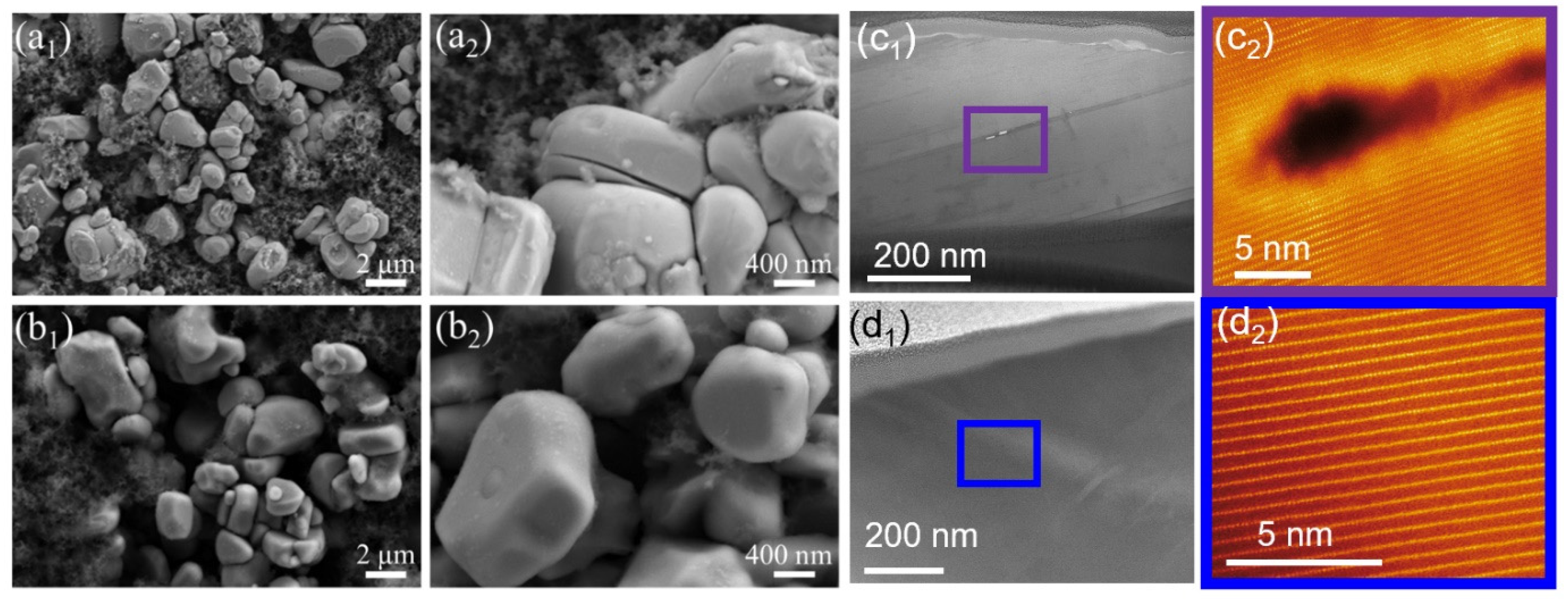

Figure 6. SEM images of (a1,a2) bare and (b1,b2) WO3-coated NCM cathode materials after 300 cycles at 55 °C (1 C). (c1,c2) Low- and high-magnification STEM-HAADF images of bare NCM after 300 cycles showing a clear atomic-scale crack parallel to the (003) plane. (d1,d2) Low- and high-magnification STEM-HAADF images of WO3-coated NCM after 300 cycles showing no evidence of cracks at the atomic scale.
Figure 6. SEM images of (a1,a2) bare and (b1,b2) WO3-coated NCM cathode materials after 300 cycles at 55 °C (1 C). (c1,c2) Low- and high-magnification STEM-HAADF images of bare NCM after 300 cycles showing a clear atomic-scale crack parallel to the (003) plane. (d1,d2) Low- and high-magnification STEM-HAADF images of WO3-coated NCM after 300 cycles showing no evidence of cracks at the atomic scale.
Inorganics 10 00111 g006
Inorganics 10 00111 g007 550

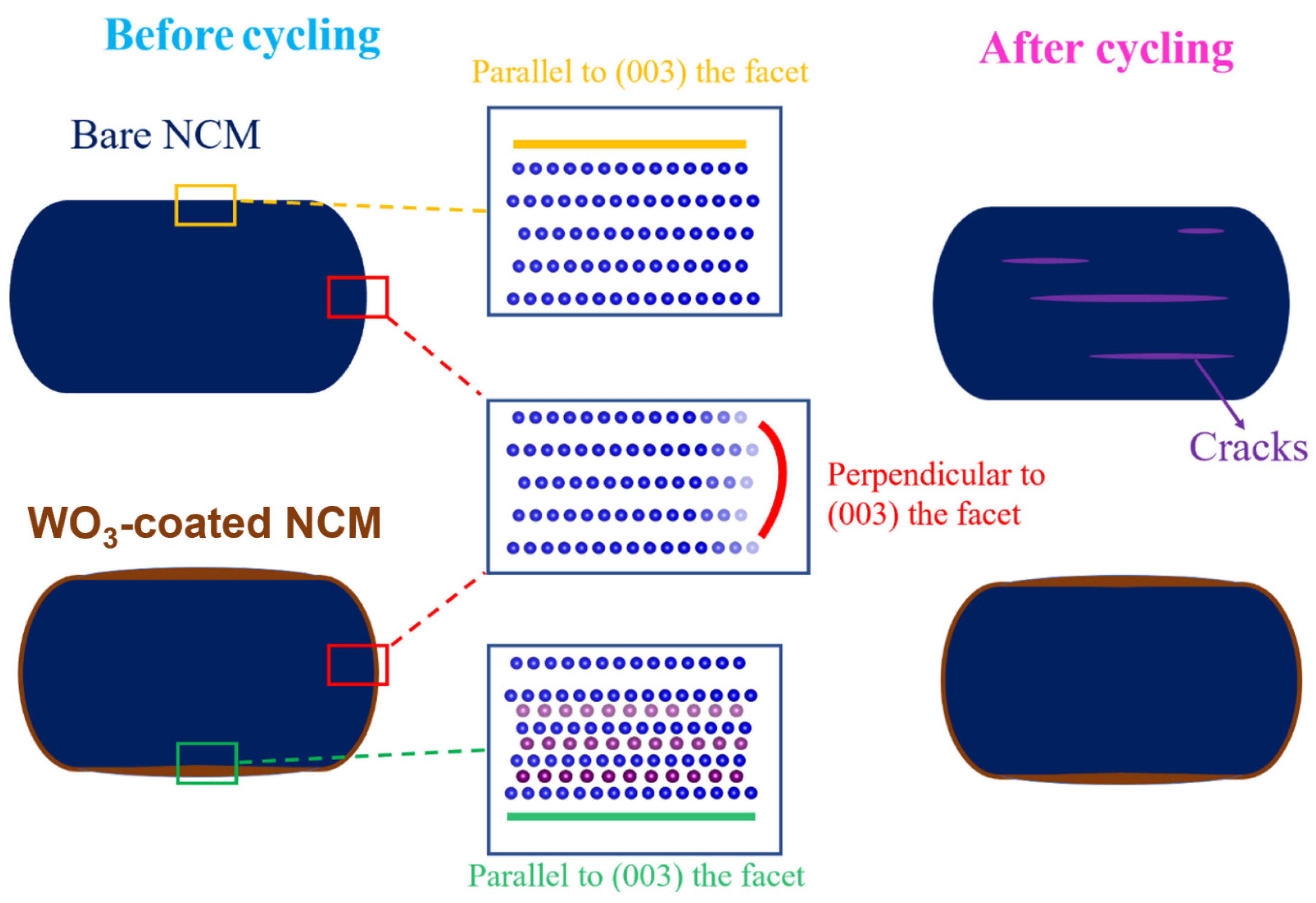

Figure 7. Schematic showing coated tungsten oxide stabilizing the (003) facet of the bare NCM and effectively mitigating lattice expansion along the lattice direction, resulting in fewer cracks after prolonged cycling.
Figure 7. Schematic showing coated tungsten oxide stabilizing the (003) facet of the bare NCM and effectively mitigating lattice expansion along the lattice direction, resulting in fewer cracks after prolonged cycling.
Inorganics 10 00111 g007
