Synthesis of Y₃Al₅O₁₂:Ce Powders for X-ray Luminescent Diamond Composites

Abstract

A concentration series of Y₃Al₅O₁₂:Ce solid solutions were prepared, and the composition demonstrating the highest X-ray luminescence intensity of cerium was identified. Based on the best composition, a series of luminescent diamond–Y₃Al₅O₁₂:Ce composite films were synthesized using microwave plasma-assisted chemical vapor deposition (CVD) in methane–hydrogen gas mixtures. Variations in the amounts of the embedded Y₃Al₅O₁₂:Ce powders allowed for the fine-tuning of the luminescence intensity of the composite films.

1. Introduction

Diamond photonics based on impurity atom-vacancy optical centers is being intensively studied for applications in biomedical applications [1,2], thermometry [3,4,5], single-photon emitters [6,7,8], and X-ray optics [9,10,11,12]. Specifically, great potential lies in the combination of the properties of pristine diamond with the rich luminescent properties of rare earth (RE) elements. There are several approaches to reaching this goal by obtaining RE-doped diamond materials using both chemical vapor deposition (CVD) and high-pressure high-temperature (HPHT) processes; however, without any major breakthroughs to obtain highly luminescent diamonds [13,14,15,16,17,18]. A new emerging path is the formation of luminescent composites based on synthetic diamonds with embedded luminescent RE-based nanoparticles [9], which already possess the targeted luminescent properties.

In the first works on such diamond-RE composites [11,12,19,20,21], the following compounds were tested as the materials for the luminescent particles: EuF₃, β-NaGdF₄:Eu, Gd₃Al₅O₁₂:Sc:Ce, and Y₃Al₅O₁₂:Ce nanoparticles. Summarizing all of these works, the highest X-ray luminescence (XRL) so far was achieved using nanopowders of [Y_2.98Ce_0.02]{Al₂}Al₃O₁₂ [21]. These composites are of interest for imaging intense high-energy X-ray fluxes, such as those in various synchrotrons and free-electron lasers. The literature presents various data on the concentrations of cerium in solid solutions based on yttrium–aluminum garnets, but often the concentration of cerium is presented in unclear values, percentages, or fractions, while the type of values is not indicated, e.g., molar, weight, atomic, or formula units [22,23,24]. Earlier, in our preliminary study, on the basis of a concentration series of powders of solid solutions (without integration into diamond films), the boundaries of the existence of single-phase solid solutions were revealed, and the compositions demonstrating the highest luminescence intensity were estimated. However, the optimal compound for maximizing the XRL intensity of the diamond composite may vary from the optimal compound of pristine RE powder. In addition, to achieve the lateral uniformity of the XRL signal from the composite film, it is necessary to carry out a synthesis with a smaller particle size. As a result, the aim of this work was to identify the composition that demonstrates the highest intensity of X-ray luminescence and to create an effective luminescent composite based on it.

2. Results

The powder synthesis of the concentration series Y_3−xCe_xAl₅O₁₂ was carried out by spraying a solution of cerium nitrate, aluminum, and yttrium chlorides in a 25% solution of ammonia, taken with a 6-fold excess, and ammonium sulfate (0.45 M). The cerium concentration was varied from x = 0.0100 f.u. to 0.0250 f.u., which corresponds to the interval from 0.33(3) to 0.83(3) at%. (

Table 1. Compositions and characteristics of the synthesized samples.

Sample	a, Å	CSR Size, nm	DTA, °C
PKS-01—Y2.9900Ce0.0100Al5O12	12.013 ± 0.002	221	968.0
PKS-02—Y2.9875Ce0.0125Al5O12	12.015 ± 0.002	178	968.0
PKS-03—Y2.9850Ce0.0150Al5O12	12.014± 0.002	193	972.8
PKS-04—Y2.9825Ce0.0175Al5O12	12.014 ± 0.002	193	971.8
PKS-05—Y2.9800Ce0.0200Al5O12	12.014 ± 0.002	180	974,4
PKS-06—Y2.9775Ce0.0225Al5O12	12.014 ± 0.002	169	974.7
PKS-07—Y2.9750Ce0.0250Al5O12	12.015 ± 0.002	>250	970.3

). The resulting slurry was washed with ammonium sulfate solution (0.045 M). The washed precipitate was dried in an oven at 60 °C for 15 h. The dried precipitate was calcined in a Nabertherm 08/18 furnace in corundum crucibles at 1460 °C for 4 h.

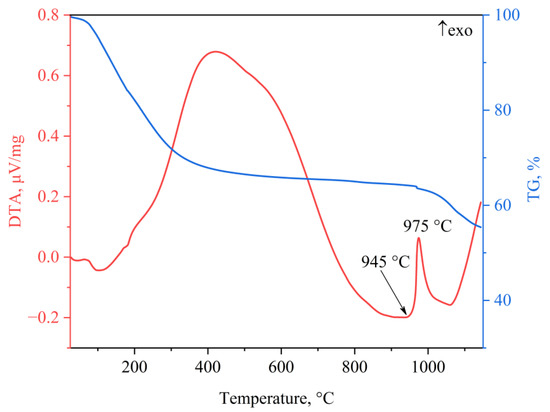

According to the differential thermal analysis (DTA), the garnet phase for the entire concentration range was formed at a temperature ≈970 °C (see Figure 1 for the DTA of the PKS-06 sample). The recorded temperature corresponds to the temperature of the phase transition of a mixture of amorphous oxides into the garnet phase [25,26].

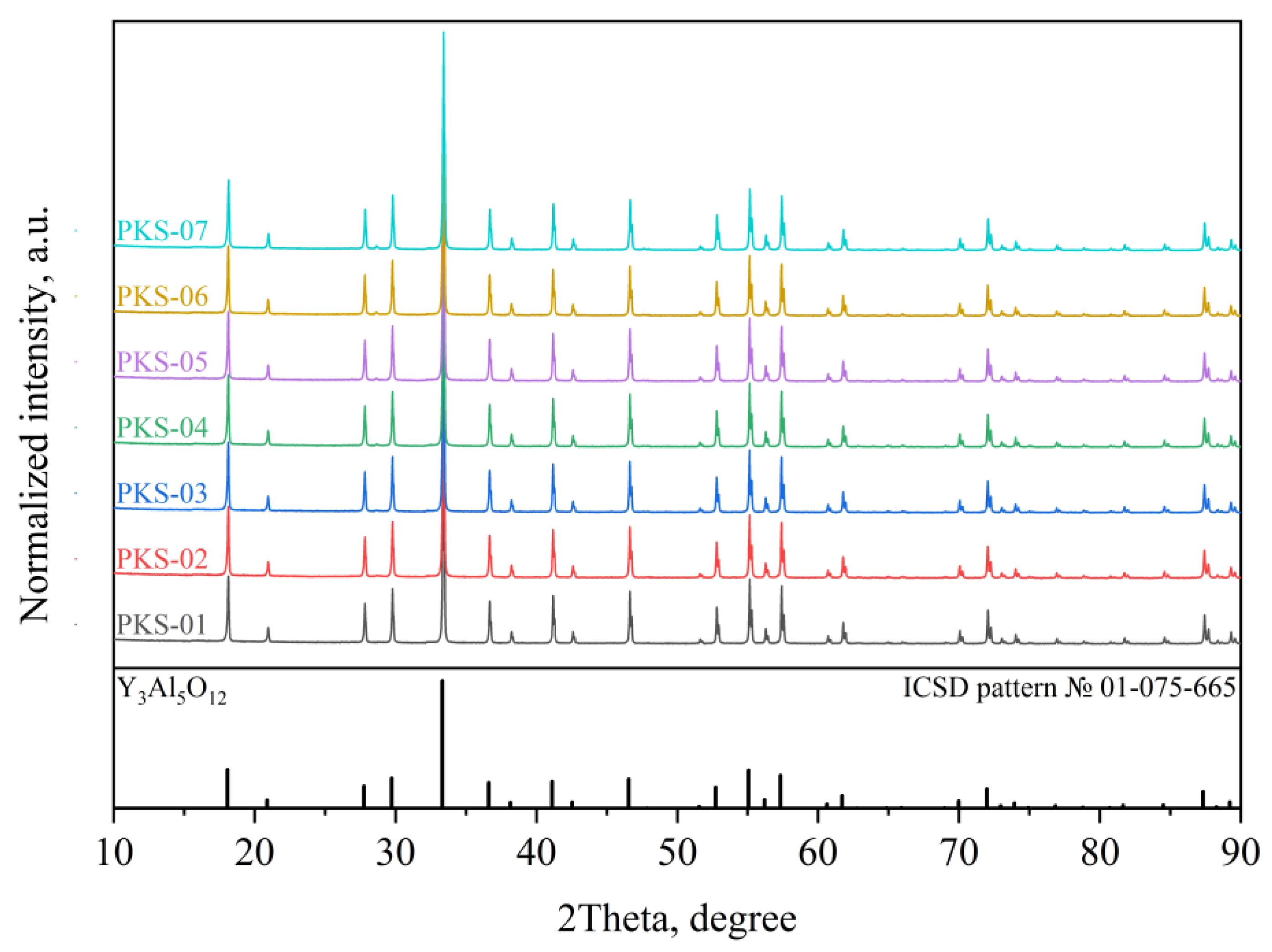

According to the X-ray phase analysis of the samples after calcination at a temperature of 1460 °C for 4 h, single-phase samples with a garnet structure were synthesized (Figure 2). Based on the X-ray data, the lattice parameters and the sizes of the coherent scattering regions (CSRs) were calculated (Table 1). Due to the low concentrations of cerium, the changes in the lattice parameters were comparable with the error of the synthesis experiment of Δa = ±0.002 Å. As follows from the data presented in Table 1, the CSR values are in the range of 169–221 nm, while any dependence on the composition of the samples is not traced.

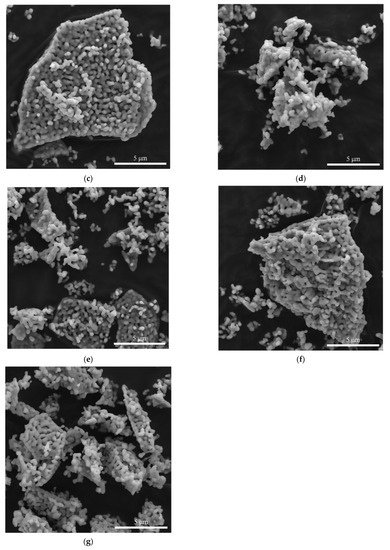

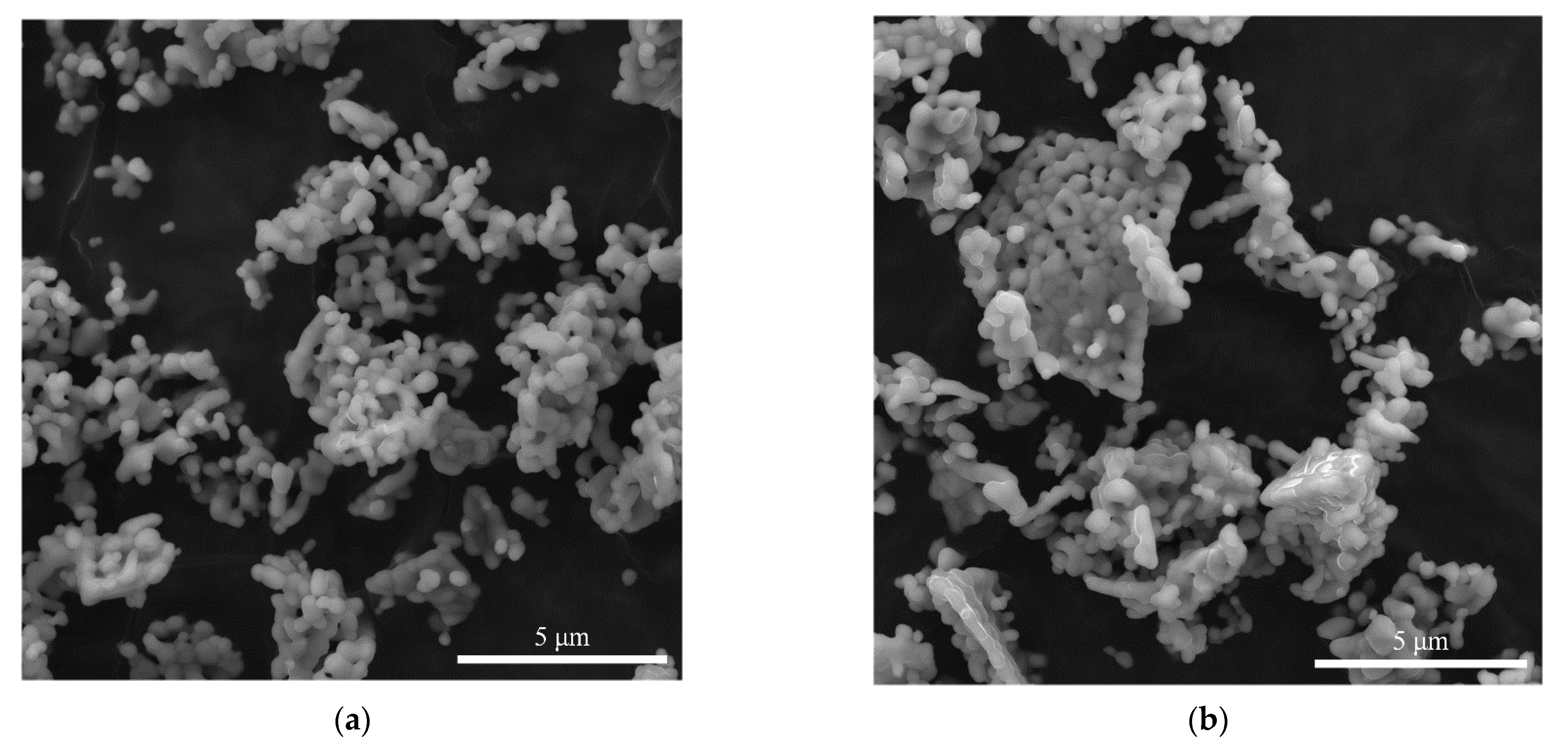

The SEM studies of the samples indicated that the as-synthesized YAG:Ce powders consisted of micrometer-sized particle agglomerates (Figure 3). The sizes of the separate particles are ≈ 200–300 nm, which correlates well with the measured size of the CSRs.

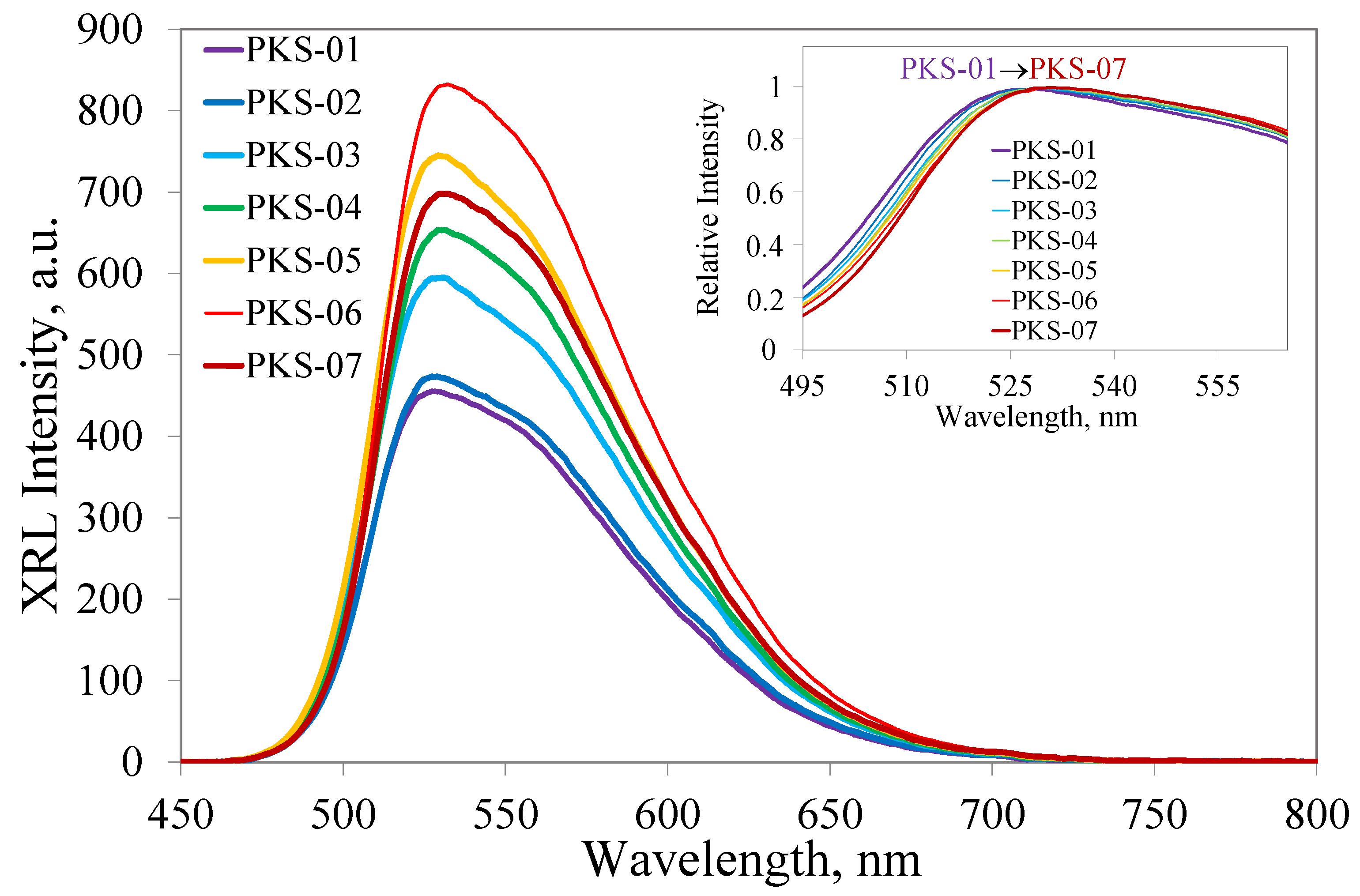

Studies of the X-ray luminescence of the Y_3−xCe_xAl₅O₁₂:Ce samples under X-ray excitation, k_α(Ag) = 22.16 keV, showed (Figure 4) that the luminescence maximum is in the region of 530 nm. At the same time, when the cerium concentration increased from 0.0100 to 0.0225 f.u., the intensity increased, and upon reaching x = 0.0250 f.u., it decreased. In addition, as shown in the inset to Figure 4, a slight shift in the spectra was recorded as the cerium concentration increased. The detected effect of the shift of the X-ray luminescence maxima is in good agreement with the data presented in [22], where the shift of the photoluminescence (PL) maxima to higher wavelengths is shown with an increase in the cerium concentration from 0.006 to 0.210 f.u. The shift of the luminescence band maximum resulted from the replacement of yttrium by the heavier cerium and a smooth change in the energy of the phonon matrix [27].

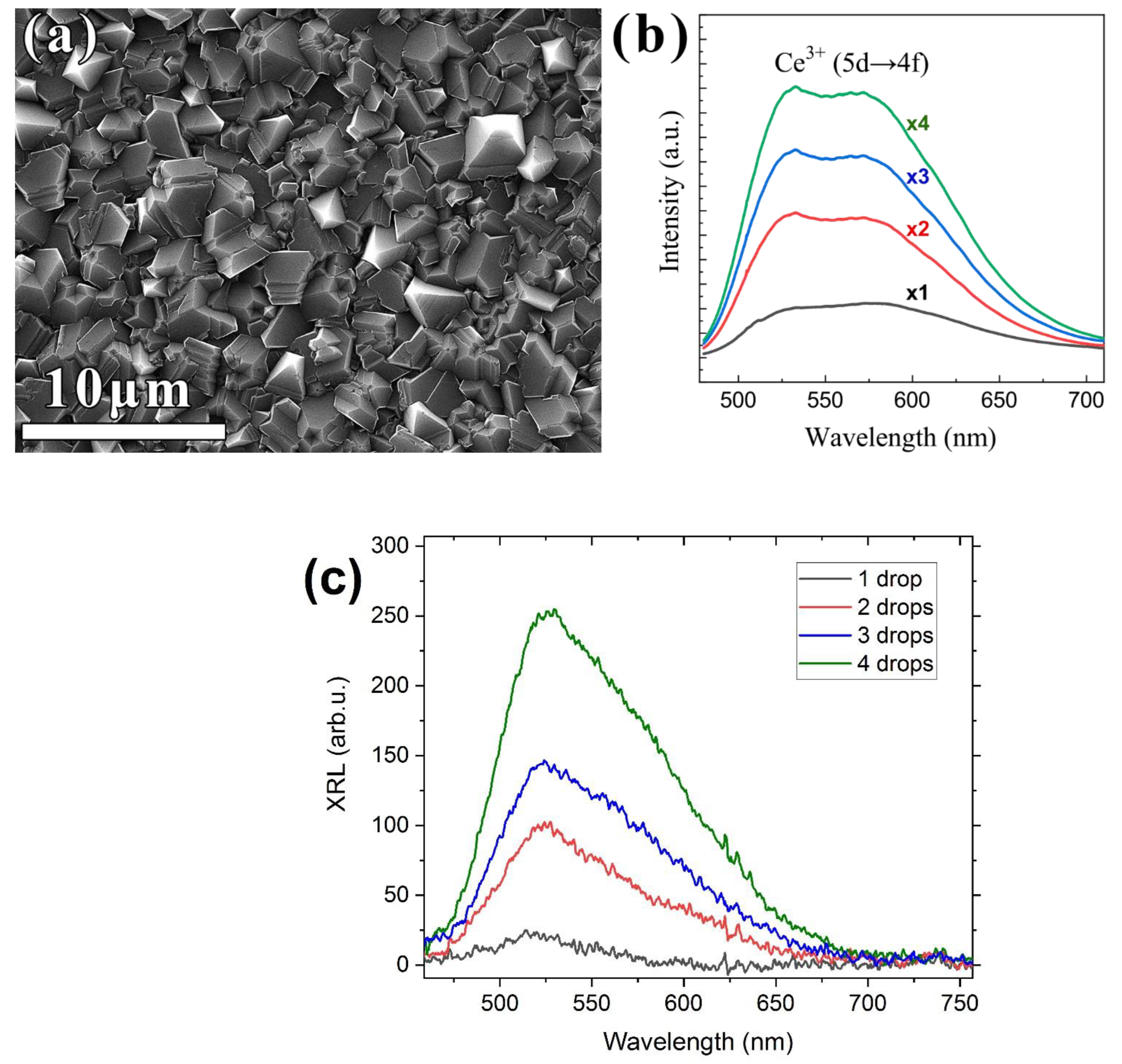

Based on the particles of the Y_2.9775Ce_0.0225Al₅O₁₂ composition, suspensions in DMSO with a concentration of 10 mg/mL were prepared, which were then sequentially deposited dropwise on a diamond substrate, according to the protocol described in [9]. The typical SEM image of the obtained film is shown in Figure 5a. The structure of the composite film was similar to the structure of the microcrystalline diamond films, with a grain size of a few micrometers. As a result, four samples were obtained with one, two, three, and four drops of powder suspension on identical samples. A registration of the PL spectra upon excitation at a wavelength of 473 nm (LabRam HR840) was carried out using the same 50-point pattern on the surface of each sample, followed by averaging the results (Figure 5b). A registration of the XRL spectra on an excitation X-ray tube with a silver anode operating was carried out (Figure 5c). As a result, an increase in the intensity of the X-ray and photoluminescence was observed with an increase in the number of deposited particles, which makes it possible to develop efficient luminescence materials based on diamond-particle composites.

3. Materials and Methods

The precursors for the powder synthesis were as follows: cerium nitrate hexahydrate (99.0%, Vecton, St. Petersburg, Russia), aluminum chloride hexahydrate (99.9%, Lanhit Ltd., Moscow, Russia), yttrium chloride hexahydrate (99.99%, Lanhit Ltd., Moscow, Russia), ammonia (99.999%, Stavreakhim Ltd., Stavropol, Russia), ammonium sulfate (99.0%, Component Reactiv Ltd., Moscow, Russia), and deionized water. All of the initial reagents were used without additional purification steps.

The thermal behavior of the powders was determined using a synchronous thermal analysis instrument (STA, 449 F1 Jupiter, Netzsch, Karlsruhe, Germany) in the temperature range between 27 and 1150 °C and with a heating rate of 25 °C/min. The powder diffraction patterns were recorded using an X-ray diffractometer (XRD, Empyrean, Panalytical, Almelo, The Netherlands) equipped with an X-ray tube with a copper anode (CuKα1, λ = 1.5406 Å) over a 2θ angle range between 10 and 90°, a step of 0.01°, and a scanning speed of 0.7°/min. Phase identification and full-profile analysis of the X-ray diffraction patterns by the Rietveld method were carried out using the Highscore Plus software with the ICDD PDF-2 database. Micrographs of the ceramic powders and composite films were taken with a scanning electron microscope (SEM, microscope LM Mira 3, Tescan, Brno, Czech Republic). Raman and photoluminescence spectra of the diamond composites were taken at room temperature with a LabRam HR840 (Horiba Jobin-Yvon, Stow, MA, USA) spectrometer in a confocal configuration. The laser beam with a wavelength of 473 nm was focused in an ≈1 μm spot on the sample surface. The XRL spectra of the powders were recorded at room temperature on an Ocean Insight Ocean HDX VIS-NIR fiber-optic spectrometer in the range of 350–1100 nm with a resolution of 0.7 nm under excitation by an X-ray tube with a silver anode operating at a voltage of 40 kV and a current of 35 mA with an X-ray photon energy of about 22 keV.

The diamond composites were formed in two steps by microwave plasma chemical vapor deposition (ARDIS-100, 2.45 GHz, Optosystems LLC, Moscow, Russia) [28] in hydrogen–methane gas mixtures. First, 3 μm-thick polycrystalline diamond films were grown on (100) silicon 10 × 10 × 1 mm³ plates. These layers were used as substrates for applying the Y₃Al₅O₁₂:Ce suspensions. A required number of drops (1–4, 0.02 mL each) of the suspensions of Y₃Al₅O₁₂:Ce in dimethyl sulfoxide (DMSO, 10 mg/mL) were applied one-by-one on the first diamond layer. Each droplet was dried separately using an SPS SPIN 150 spin coater (3000 rpm, 5 min). Additionally, the Ce-contained powders were covered with a non-coalesced layer of nanodiamond particles (the particle sizes were 3–7 nm, Zeta potential > +50mV, Cardiff University [29,30]), which became additional nucleation centers for the second CVD diamond layer and, at the same time, provided protection for the RE powders from being etched by atomic hydrogen in the CVD process. The 2 μm-thick diamond layer grown in the second CVD step encapsulated the applied nanoparticles to form a “Diamond–Y₃Al₅O₁₂:Ce” composite. The growth conditions for all of the polycrystalline diamond films were as follows: the total gas flow was 500 sccm; the methane content was 4% CH₄/H₂; the pressure was 75 torr; the microwave power was 4.5 kW; the standard deposition rate was 1 μm/hour. The substrate temperature was maintained at 840 ± 20 °C, as measured by a two-color pyrometer METIS M322 (SensorTherm GmbH, Moscow, Russia).

4. Conclusions

A concentration series of Y_3−xCe_xAl₅O₁₂ solid solutions with a cerium concentration of x = 0.0100 f.u. were synthesized to 0.0250 f.u. The crystallization of the garnet phase for the synthesized solid solutions occurs at a temperature of about 970 °C. The subsequent high-temperature treatment at a temperature of 1460 °C for 4 h led to the synthesis of particles with a size of about 200–300 nm, which were combined into agglomerates with a size of about one micron. Based on the X-ray luminescence spectra, the composition of Y_2.9775Ce_0.0225Al₅O₁₂ was revealed, which demonstrates the highest luminescence intensity. An increase in the intensity of the photoluminescence and an increase in the number of the deposited nanoparticles were revealed. As a result, the composites based on the diamond–Y_2.9775Ce_0.0225Al₅O₁₂ with a four-stage particle deposition procedure demonstrated the highest photoluminescence. The developed composites are promising for the visualization of high-power X-ray and synchrotron beams.
