FMTPen: A Miniaturized Handheld Fluorescence Molecular Tomography Probe for Image-Guided Cancer Surgery
1
Department of Biomedical Engineering, University of Florida, Gainesville, FL 32611, USA
2
Department of Surgery, Emory University, Atlanta, GA 30322, USA
*
Author to whom correspondence should be addressed.
Received: 19 February 2015 / Accepted: 10 March 2015 / Published: 12 March 2015

Abstract

:
We described a novel handheld device (termed FMTPen) for three-dimensional (3D) fluorescence molecular tomography (FMT). The FMTpen is characterized by its bendable structure and miniaturized size (10 mm in diameter) that can be potentially used as an intraoperative tool for the detection of tumor margins and for image-guided surgery. Several phantom experiments based on indocyanine green (ICG), an FDA approved near-infrared (NIR) fluorescent dye, were conducted to evaluate the imaging ability of this device. Two tumor-bearing mice were systematically injected with tumor-targeted NIR fluorescent probes (NIR-830-ATF68-IONP and NIR-830-ZHER2:343-IONP, respectively) and were then imaged to further demonstrate the ability of this FMT probe for imaging small animals.
Keywords:
fluorescence molecular tomography (FMT); intraoperative optical imaging; targeted optical nanoparticle imaging probes

1. Introduction

Surgery is one of the most effective and widely used procedures in treating different forms of human cancers, in which accurate identification of tumor margins play a critical role to the results of surgery treatment. One of the major challenges in the surgery is that often surgeon fail to remove the entire tumor, leaving behind tumor-positive margins, metastatic lymph nodes, and/or satellite tumor nodules. Ultrasound (US), magnetic resonance imaging (MRI) and computed tomography (CT) have been widely used clinically to detect these various cancers [1,2,3,4]. Although each of these traditional imaging techniques has its advantages, they usually have low specificity and sensitivity in the detection of small tumors, or poor temporal resolution to achieve really-time imaging in surgery.
Over the past several years, there has been exponential increase in the use of non-targeted or targeted exogenous fluorescence makers in clinical applications and biological research. It also has prompted the development of several fluorescence imaging approaches [5,6,7,8,9,10]. A common fluorescence imaging method is the planar fluorescence reflectance imaging (FRI), which was developed to in vivo or ex vivo image fluorescence in animal or human models of various diseases [11,12,13]. Several recent studies have shown the clinical importance of this technique for intraoperative tumor imaging and image-guided surgery [14,15,16,17]. Despite the simplicity of the operation, the applicability of this technique has been limited by the poor spatial and depth resolutions. To overcome these limitations, near-infrared fluorescence molecular tomography (FMT) has been developed and evolved as an important molecular imaging tool [18,19]. Being a convenient and cost-effective optical imaging modality, FMT can provide accurate visualization and quantification of the three-dimensional (3D) distribution of fluorescent targets deep inside turbid tissue. So far, FMT has been widely used in biomedical research and clinical studies including cancer imaging, drug delivery, stem cell trafficking, and enzyme activity monitoring [20,21,22,23].
In this study, we present a novel FMT system based on a miniaturized handheld probe called the FMTPen, for intraoperative tumor imaging and image-guided surgery. This probe is highly suitable for the detection of small tumor lesions in the surgical cavity based on the miniaturized size (10 mm in diameter) and bendable structure. Several phantom and animal experiments have been performed to validate the imaging ability of this instrument.

2. Materials and Methods

The schematic of the handheld FMT probe system is shown in Figure 1. The laser beam generated by a continuous-wave (CW) 780 nm diode laser (Openxt, HL7301MG, Japan) was used as the light source. The excitation light beam from the laser diode (LD) was focused by a lens with 10 cm focus length (Thorlabs, NJ, USA), and sequentially delivered to each optical fiber in the source fiber array through a high-speed motorized scanning mirrors system (Thorlabs, GVS212, NJ, USA). For each source position, the emission fluorescence light from the detection fiber array was then collected by a 1024 × 1024 pixels deep-cooled CCD camera (Princeton Instrument, Trenton, NJ, USA) coupled with an 830 nm band-pass filter with 32 nm bandwidth (Edmund Optics, NJ, USA).
The insert in Figure 1a shows a photograph of the FMTPen, which is miniaturized with 10 mm diameter and equipped with a metal jacket outside to protect the optical fiber bundles when bending. Figure 1b shows a photograph of the end face of FMTPen. The corresponding pattern of source and detector positions is shown in Figure 1c. As Figure 1b,c show, sixty-one optical fiber bundles are fixed with epoxy in a uniform arrangement, in which twenty-nine (red) are used as optical source and thirty-two (green) as detectors. The diameter of each optical fiber bundle is 0.8 mm. For each experiment, the exposure time of the CCD camera was different depending on the intensity of the fluorescence intensity from the target. A binning of 4 × 4 pixels was then used to improve the signal-to-noise ratio (SNR). A Labview program was used to control the entire data acquisition. The data acquisition time is about 2 min depending on the exposure time of the CCD camera.
Figure 1. (a) Schematic of the FMTPen system; (b) photograph of the end face of FMTPen; and (c) corresponding arrangement of the sources (red) and detectors (blue).
Figure 1. (a) Schematic of the FMTPen system; (b) photograph of the end face of FMTPen; and (c) corresponding arrangement of the sources (red) and detectors (blue).
Photonics 02 00279 g001
Three-dimensional (3D) fluorescence images were reconstructed using an iterative finite element based algorithm that was described in detail previously [24,25,26]. Briefly, the finite element method is used to discretize the diffusion equations describing propagation of both excitation and emission light in tissue. This method also obtains the matrix representations capable of inverse problem solution. Fluorescence images are recovered by iteratively solving the forward equations and updating the optical/fluorescent property distributions from presumably uniform initial estimates of these properties. In this study, a 3D finite element mesh with 4928 nodes and 24660 tetrahedral elements was used for all the image reconstructions. The calculation required up to 8 minutes.

3. Results and Discussion

3.1. Phantom Experiments

To validate the ability of this FMTPen, several sets of phantom experiments using indocyanine green (ICG)-containing targets with different depth and contrast were performed. A cylindrical background phantom (30 cm in diameter and 20 cm in height), consisted of TiO2 solution, India ink, and 2% Agar powder, and had an absorption coefficient of 0.01 mm−1 and a reduced scattering coefficient of 1.0 mm−1. A small ICG-containing cylinder was placed at different depth of the background phantom to simulate the target.
Figure 2 shows the reconstructed FMT images (along transverse and sagittal planes) of a small cylindrical target (2 mm in diameter and 2 mm in height) with ICG concentrations of 2 µm (a) and 5µm (b) imbedded at different depths (1 mm to 4 mm). The black dashed circle or square in each image indicates the exact target location. From Figure 2, we can see that the target was well reconstructed at a depth of up to 4 mm, while we note that the target size was overestimated slightly due to strong light scattering. The lateral resolution of FMTPen is ~2 mm. While this resolution is lower than some of the existing high resolution imaging modalities like CT and MRI, it is sufficient to enable surgeons to identify possible residual small tumor lesions in the cavity after surgery. The maximum depth resolution of this imaging probe (∼5–6 mm) is limited by the largest source-detector separation given in this probe. More discussion on spatial resolution of FMT can be found in our previous works [24,26,27].

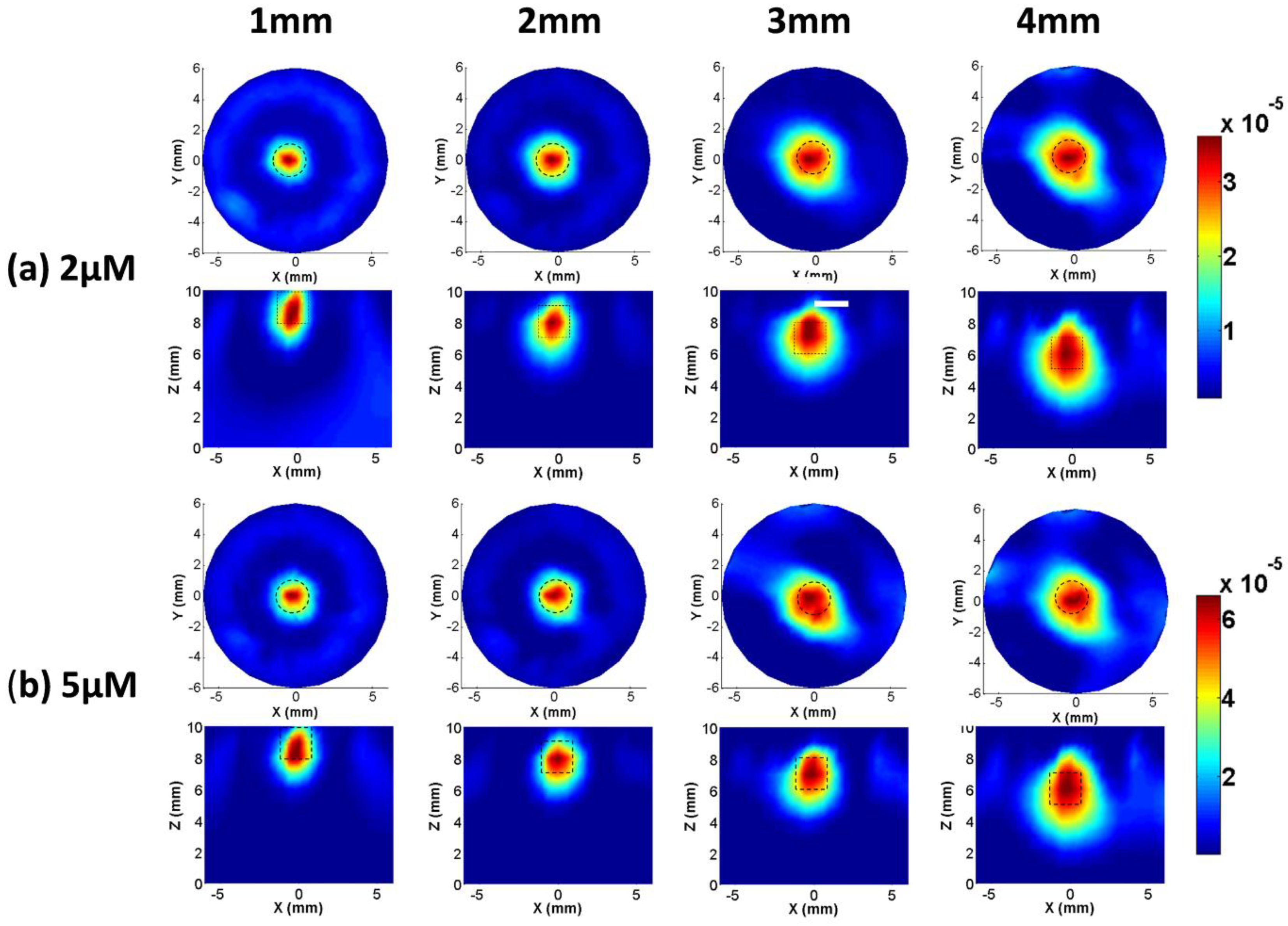

Figure 2. Fluorescence molecular tomography (FMT) images for a target having different indocyanine green (ICG) concentrations ((a) 2µM and (b) 5 µM) at different depths (1 mm to 4 mm).
Figure 2. Fluorescence molecular tomography (FMT) images for a target having different indocyanine green (ICG) concentrations ((a) 2µM and (b) 5 µM) at different depths (1 mm to 4 mm).
Photonics 02 00279 g002

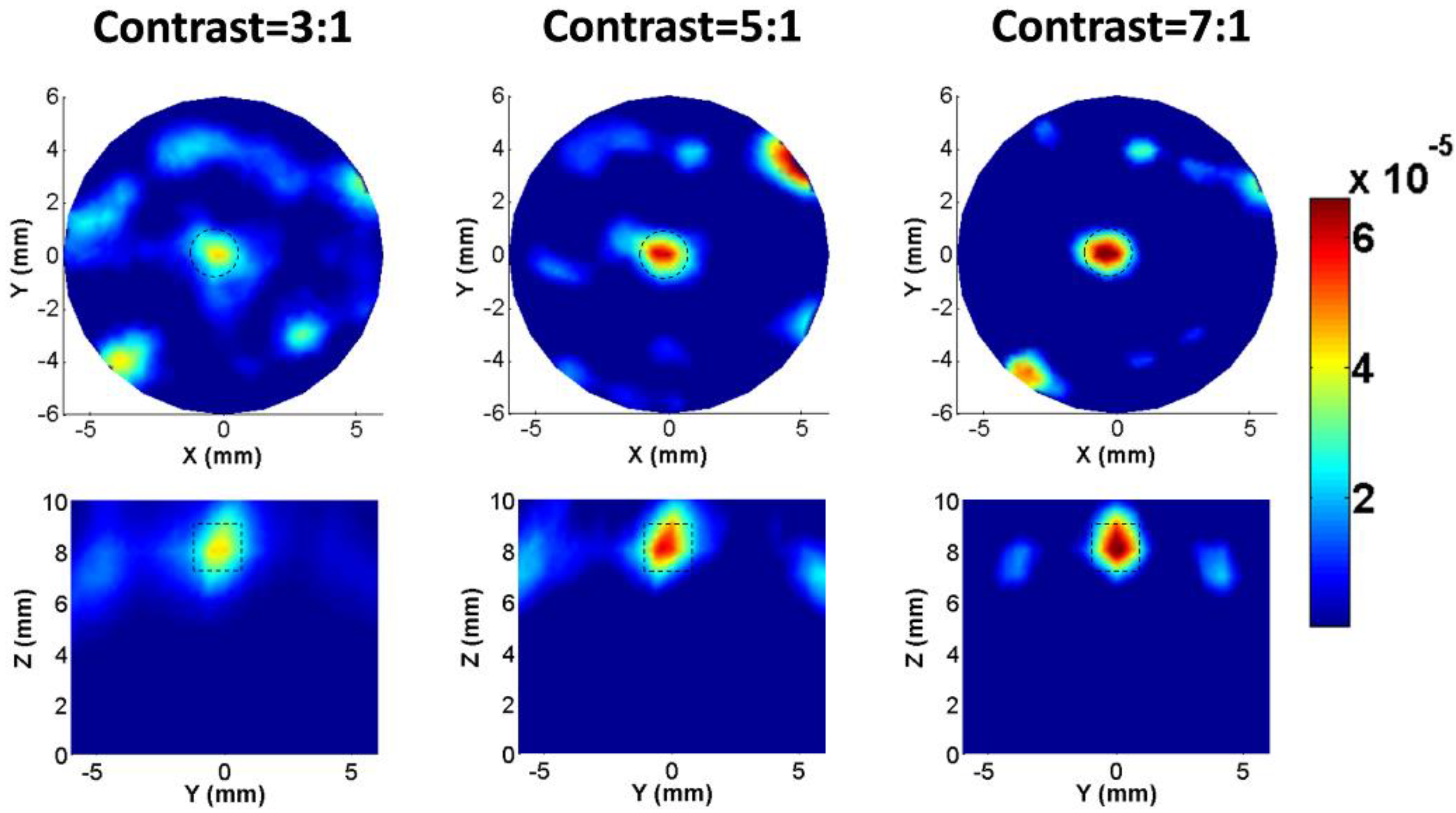

Figure 3. FMT images for a target having different ICG contrast (3:1, 5:1 and 7:1) relative to the background at a depth of 2 mm.
Figure 3. FMT images for a target having different ICG contrast (3:1, 5:1 and 7:1) relative to the background at a depth of 2 mm.
Photonics 02 00279 g003
Figure 3 shows the reconstructed FMT images of a target having 3, 5 and 7 times ICG concentration relative to the background (target depth =2 mm). Againthe black dashed circle or square indicates the exact target location. As can be seen, the target can be well reconstructed even with an ICG contrast as low as 3:1. While some artifacts are observed in these cases, the imaging quality is improved with the increased ICG contrast.

3.2. Animal Experiments

To further demonstrate the imaging ability of this miniaturized FMT probe, two tumor-bearing mice with the use of different targeted contrast agents were imaged. An ovarian tumor model was established by injecting 5 × 104 of SKOV3 luciferase gene positive human ovarian cancer cells orthotopically (right side) and subcutaneously (left side), respectively.
Figure 4 shows the reconstructed FMT images along the transverse and sagittal planes for a tumor-bearing mouse Intraperitoneal (IP) injected with 290pmole NIR-830-ATF68-IONP, a peptide conjugated molecular probe loaded with both near-infrared dye and iron oxide nanoparticles that can target tumor cell receptors [28,29]. We can see that the tumors are well reconstructed in both cases. The outcomes also show that the subcutaneous tumor has more distribution of targeted nanoparticles than orthotopic tumor.

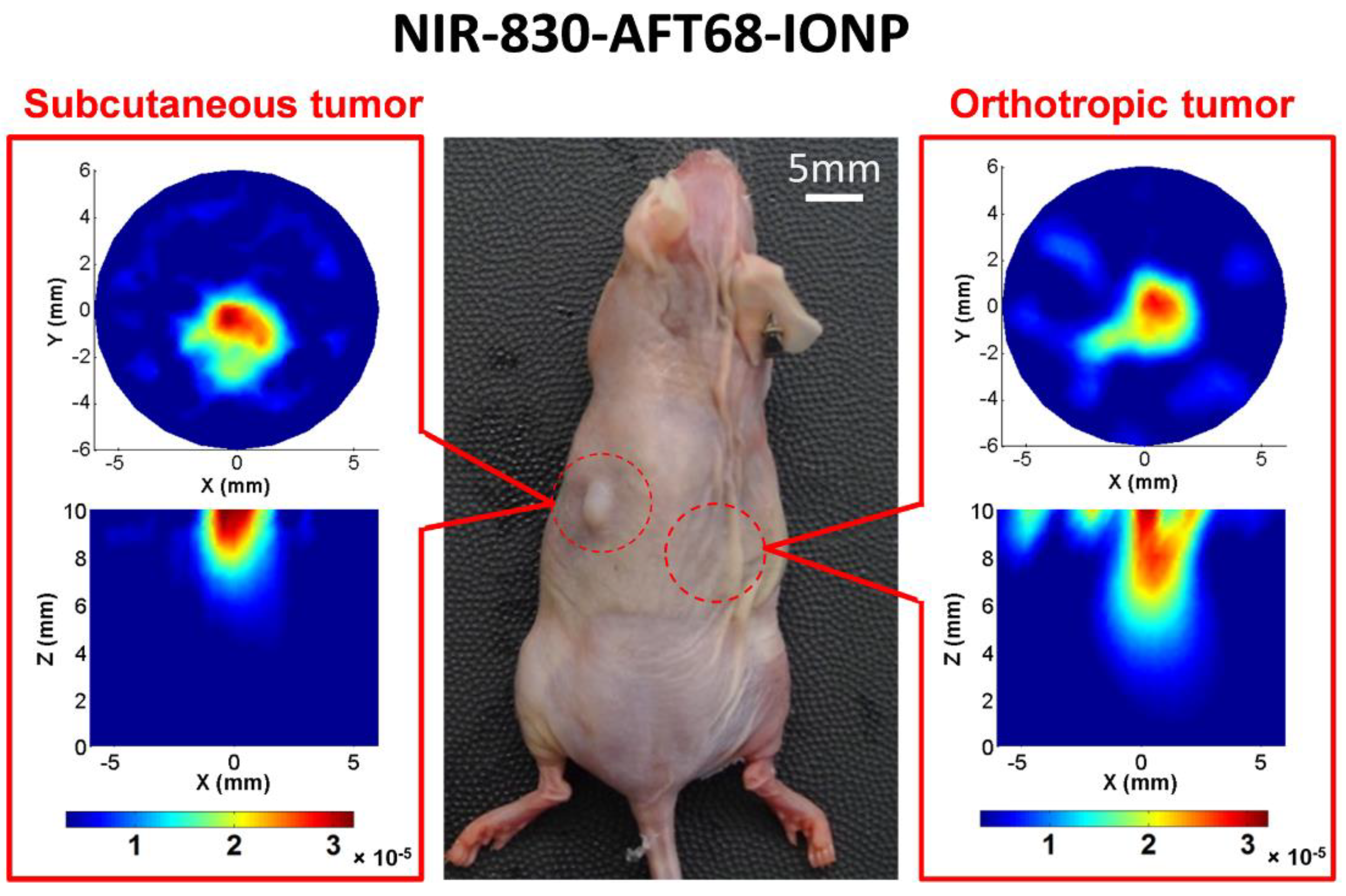

Figure 4. FMT images of a tumor-bearing mouse using NIR-830-ATF68-IONP: photograph of the mouse (middle), transverse and sagittal FMT slices of subcutaneous tumor (left), transverse and sagittal FMT slices of orthotropic tumor (right).
Figure 4. FMT images of a tumor-bearing mouse using NIR-830-ATF68-IONP: photograph of the mouse (middle), transverse and sagittal FMT slices of subcutaneous tumor (left), transverse and sagittal FMT slices of orthotropic tumor (right).
Photonics 02 00279 g004
Figure 5 presents reconstructed FMT images along transverse and sagittal planes for a tumor-bearing mouse IP-injected with 1000pmole NIR-830-ZHER2:343-IONP. Our previous work has shown that near-infrared dye labeled ZHER2:342 conjugated IONPs (NIR-830-ZHER2:342-IONP) was specifically targeted to primary and metastatic tumors in an orthotopic human ovarian cancer xenograft model. These tumors produced strong imaging signals for FMT, photoacoustic tomography (PAT) and magnetic resonance imaging (MRI) [21,30]. In this study, two tumors were also well detected using FMTPen.
Figure 5. FMT images of a tumor-bearing mouse using NIR-830-ZHER2:343-IONP: photograph of the mouse (middle), transverse and sagittal FMT slices of subcutaneous tumor (left), (right) transverse and sagittal FMT slices of orthotropic tumor (right).
Figure 5. FMT images of a tumor-bearing mouse using NIR-830-ZHER2:343-IONP: photograph of the mouse (middle), transverse and sagittal FMT slices of subcutaneous tumor (left), (right) transverse and sagittal FMT slices of orthotropic tumor (right).
Photonics 02 00279 g005
The primary advantage of FMTPen presented in this study is its miniaturized size (only 10 mm in diameter) and bendable structure, which makes this tool well suited for imaging in a small surgical cavity. Meanwhile, both the phantom and animal experiments have demonstrated that FMTPen has a good depth resolution of up to 5−6 mm and a high sensitivity of 3:1 contrast. Such depth resolution and sensitivity would enable a surgeon to find residual small tumor lesions that would be hard to be detected by the use of other imaging modalities. This is significant since the completeness of tumor removal during surgery is considered of utmost importance in achieving a cure. To the best of our knowledge, the FMTPen described here has been the smallest handheld FMT imaging probe so far. Due to these advantages, FMTPen offers a great potential to be an effective tool for intraoperative tumor imaging. By improving the rate of complete tumor removal in surgery, FMTPen would benefita large number of patients. In addition, it would significantly reduce the cost in the management of cancer patients.
While the results shown are encouraging, we realize that there are still some improvements needed in order to translate this technique into human applications. The image reconstruction time was limited by CPU-based computer system. Graphic processing units (GPU) based parallel reconstruction algorithm can be developed to accelerate the image reconstruction, which was proved to be a powerful tool in our previous work [31]. In addition, the time desired for data acquisition needs to be significantly reduced to perform real-time image-guided surgery. Data acquisition time in this study, was limited by the exposure time of the CCD camera varying with target depth and contrast agent concentration to achieve optimal signal-to-noise ratio. In future, photomultiplier tubes (PMT) array can substitute for the CCD camera to speed up the data acquisition process due to their fast response time in microseconds and high sensitivity at low light levels. Despite these limitations, a more sophisticated and real-time intraoperative imaging technique is expected in the near future.

4. Conclusions

In summary, we have presented a miniaturized FMT probe (FMTPen) and evaluated it with both phantom and animal experiments. The results obtained have shown that the FMTPen offers a great potential to develop a handheld probe for intraoperative tumor imaging due to its high sensitivity, miniaturized size (1 cm diameter) and bendable structure. Our further goals are to apply the FMTPen for intraoperative imaging in breast cancer surgery.

Acknowledgments

This work was supported in part by the J. Crayton Pruitt Family endowment.

Author Contributions

Dr. Jiang is the corresponding author and directed this work. Hao Yang and Bin He designed the experiments; Hao Yang and Xianjin Dai performed the experiments; Minati Satpathy and Lily Yang prepared and provided the animals and nanoparticles; Hao Yang analyzed the data and wrote the paper, and all authors contributed to its improvement.

Conflict of Interest

The authors declare no conflict of interest.
