# Investigation on the Mathematical Relation Model of Structural Reliability and Structural Robustness

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Mathematical Expression of Structural Reliability Index and Structural Robustness Evaluation Index

#### 2.1. Mathematical Expression of Structural Reliability Index

#### 2.2. Mathematical Expression of Structural Robustness Evaluation Index

## 3. Mathematical Relation Model Deduction of Structural Reliability and Structural Robustness

#### 3.1. Establishment of Mathematical Relation Model

#### 3.2. Effect of Structural Damage, Random Variation Factor, and Sensitivity

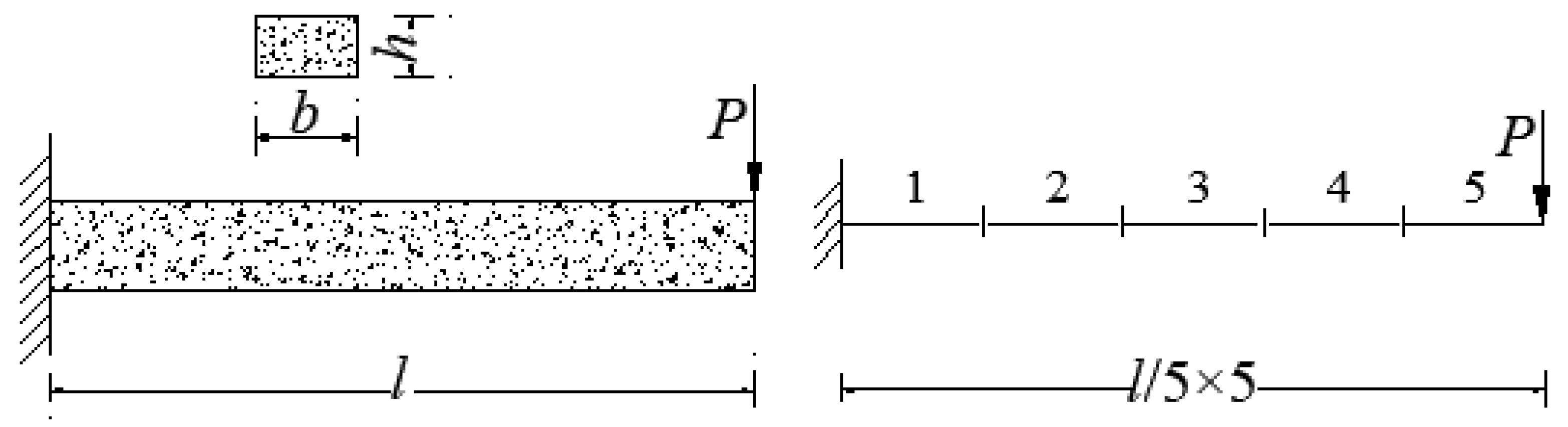

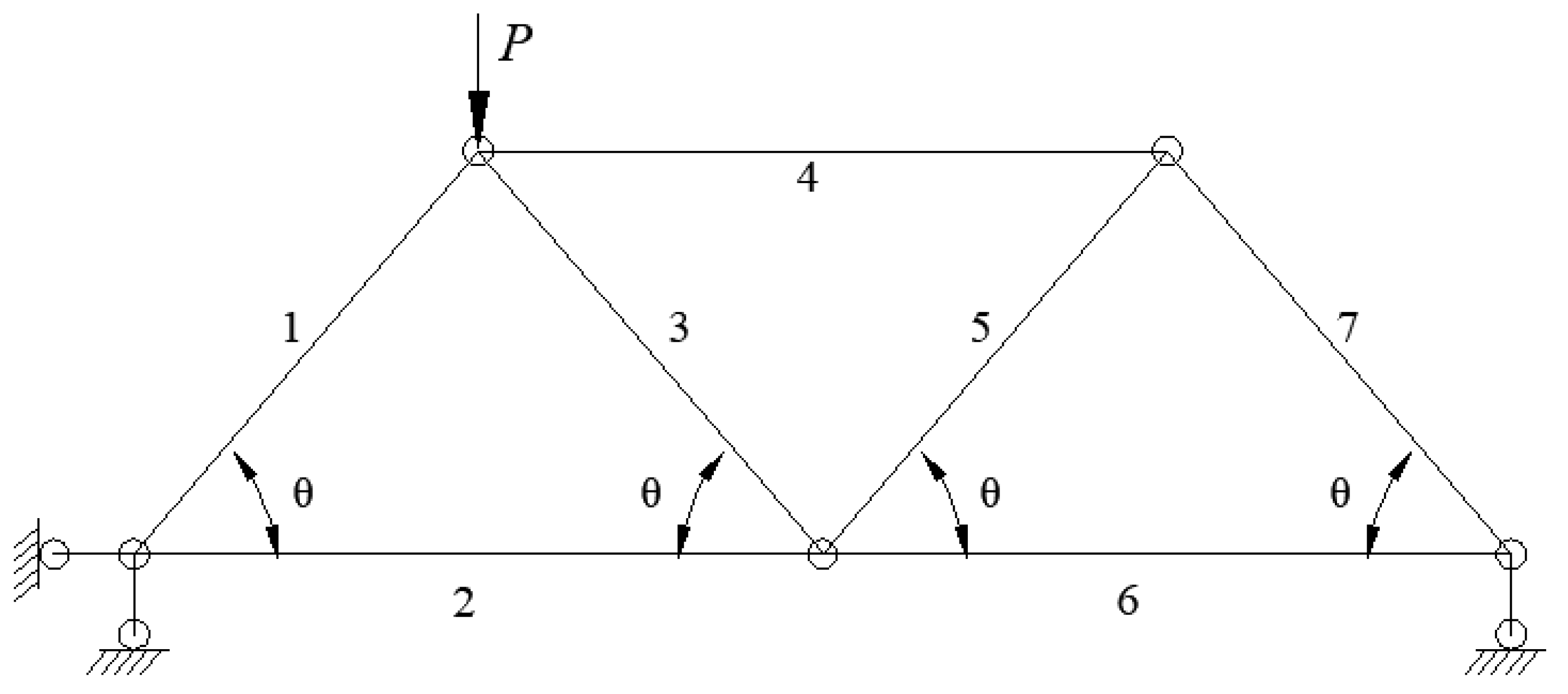

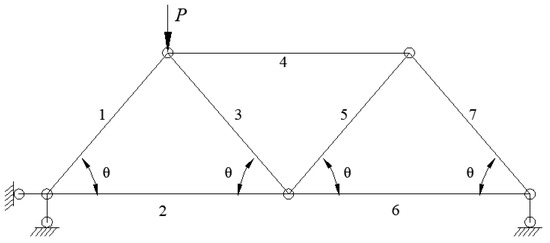

## 4. Two Case Studies

#### 4.1. Verification for Mathematical Relation Model

#### 4.2. Effect of Structural Damage and Random Variation Factor

#### 4.3. Sensitivity Analysis

## 5. Summary

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Lu, N.; Liu, Y.; Beer, M. System reliability evaluation of in-service cable-stayed bridges subjected to cable degradation. Struct. Infrastruct. Eng.
**2018**, 14, 1486–1498. [Google Scholar] [CrossRef] - Dey, A.; Miyani, G.; Sil, A. Reliability assessment of reinforced concrete (RC) bridges due to service loading. Innov. Infrastruct. Solut.
**2019**, 4, 9. [Google Scholar] [CrossRef] - Domaneschi, M.; Cimellaro, G.P.; Scutiero, G. Disproportionate collapse of a cable-stayed bridge. In Proceedings of the Institution of Civil Engineers—Bridge Engineering; Thomas Telford Ltd.: London, UK, 2019; Volume 172, pp. 13–26. [Google Scholar]
- Ren, W.X.; Jin, Q.W. Structural robustness, redundancy, and vulnerability. J. Harbin Inst. Technol.
**2018**, 5, 1–10. [Google Scholar] - Li, L.L.; Li, G.Q.; Lu, Y.; Chen, S.W. A review on the research of robustness of civil structures. Prog. Steel Build. Struct.
**2015**, 17, 5–17. [Google Scholar] - Canisius, T.D.G.; Baker, J.; Diamantidis, D. Structural Robustness Design for Practising Engineers; COST Action TU0601 Robustness of Structures: Brussels, Belgium, 2011. [Google Scholar]
- Tur, A.; Tur, V.; Derechennik, S.; Lizahub, A. An innovative safety format for structural system robustness checking. Bud. Arch.
**2020**, 19, 67–84. [Google Scholar] [CrossRef] - Neiva, D.; Moreira, V.N.; Matos, J.C.; Oliveira, D.V. Robustness-based assessment of railway masonry arch bridges. In Proceedings of the IABSE Symposium, Vancouver 2017: Engineering the Future; International Association for Bridge and Structural Engineering (IABSE): Zurich, Switzerland, 2017; pp. 2848–2855. [Google Scholar]
- Dagang, L.; Song, P.; Cui, S.; Wang, M. Structural robustness and its assessment indicators. J. Build. Struct.
**2011**, 11, 44–54. [Google Scholar] - Jin, Q.W. Application Study on Bridge Structural Health Monitoring with Consideration of Structural Robustness Analysis Energy Method and Data Mining Technology. Ph.D. Thesis, Hefei University of Technology, Hefei, China, 2019. [Google Scholar]
- Domaneschi, M.; Martinelli, L.; Po, E. Control of wind buffeting vibrations in a suspension bridge by TMD: Hybridization and robustness issues. Comput. Struct.
**2015**, 155, 3–17. [Google Scholar] [CrossRef] - Zhang, C.; Wang, H. Robustness of the Active Rotary Inertia Driver System for Structural Swing Vibration Control Subjected to Multi-Type Hazard Excitations. Appl. Sci.
**2019**, 9, 4391. [Google Scholar] [CrossRef][Green Version] - Edgell, G.J.; De Vekey, R.C. The Robustness of the Domestic House, Part 1: Compressive Loading Test on Walls; British Ceramic Research Association Ltd: Stoke-on-Trent, UK, 1983; Volume 350, pp. 2–7. [Google Scholar]
- Yu, G. Structural Vulnerability Analysis and Its Application on Bridge Health Monitoring. Ph.D. Thesis, Tongji University, Shanghai, China, 2009. [Google Scholar]
- Agarwal, J.; Blockley, D.I.; Woodman, N.J. Vulnerability of Systems. Civ. Eng. Environ. Syst.
**2001**, 18, 141–165. [Google Scholar] [CrossRef] - Andre, J. Structural robustness: A revisit. Struct. Eng. Mech.
**2020**, 76, 193–205. [Google Scholar] - Faber, M.H. Robustness of Structures: Final Report of COST Action TU0601; Czech Technical University: Prague, Czech, 2011. [Google Scholar]
- Jen, E. Stable or robust? What’s the difference? Complex
**2003**, 8, 12–18. [Google Scholar] [CrossRef][Green Version] - Baker, J.W.; Schubert, M.; Faber, M.H. On the assessment of robustness. Struct. Saf.
**2008**, 30, 253–267. [Google Scholar] [CrossRef] - Sørensen, J.D.; Rizzuto, E.; Narasimhan, H.; Faber, M.H. Robustness: Theoretical Framework. Struct. Eng. Int.
**2012**, 22, 66–72. [Google Scholar] [CrossRef][Green Version] - Domaneschi, M.; Martinelli, L. Earthquake-Resilience-Based Control Solutions for the Extended Benchmark Cable-Stayed Bridge. J. Struct. Eng.
**2016**, 142, 4015009. [Google Scholar] [CrossRef] - Okasha, N.M.; Frangopol, D.M. Lifetime-oriented multi-objective optimization of structural maintenance considering system reliability, redundancy and life-cycle cost using GA. Struct. Saf.
**2009**, 31, 460–474. [Google Scholar] [CrossRef] - Zhu, B.; Frangopol, D.M. Reliability, redundancy and risk as performance indicators of structural systems during their life-cycle. Eng. Struct.
**2012**, 41, 34–49. [Google Scholar] [CrossRef] - Fu, G.; Frangopol, D.M. Balancing weight, system reliability and redundancy in a multiobjective optimization framework. Struct. Saf.
**1990**, 7, 165–175. [Google Scholar] [CrossRef] - Pandey, P.C.; Barai, S.V. Structural Sensitivity as a Measure of Redundancy. J. Struct. Eng.
**1997**, 123, 360–364. [Google Scholar] [CrossRef] - Frangopol, D.M.; Curley, J.P. Effects of Damage and Redundancy on Structural Reliability. J. Struct. Eng.
**1987**, 113, 1533–1549. [Google Scholar] [CrossRef] - Jin, Q.; Liu, Z. In-service bridge SHM point arrangement with consideration of structural robustness. J. Civ. Struct. Health Monit.
**2019**, 9, 543–554. [Google Scholar] [CrossRef] - Liu, D.; Sun, L.M.; Yu, G. Vulnerability analysis of a PC continuous girder bridge and optimization of SHM sensor allocation. Highw. Transp. Inn. Mong.
**2017**, 3, 1–5. [Google Scholar] - Jin, Q.; Liu, Z. Measure point arrangement strategy for in-service continuous girder bridge SHM with consideration of structural robustness (Special Issue of ICAST 2019). J. Intell. Mater. Syst. Struct.
**2021**. [Google Scholar] [CrossRef] - Wu, S.W. Structural Reliability Analysis; Peoples’ Communications Publishing House: Beijing, China, 1990. [Google Scholar]

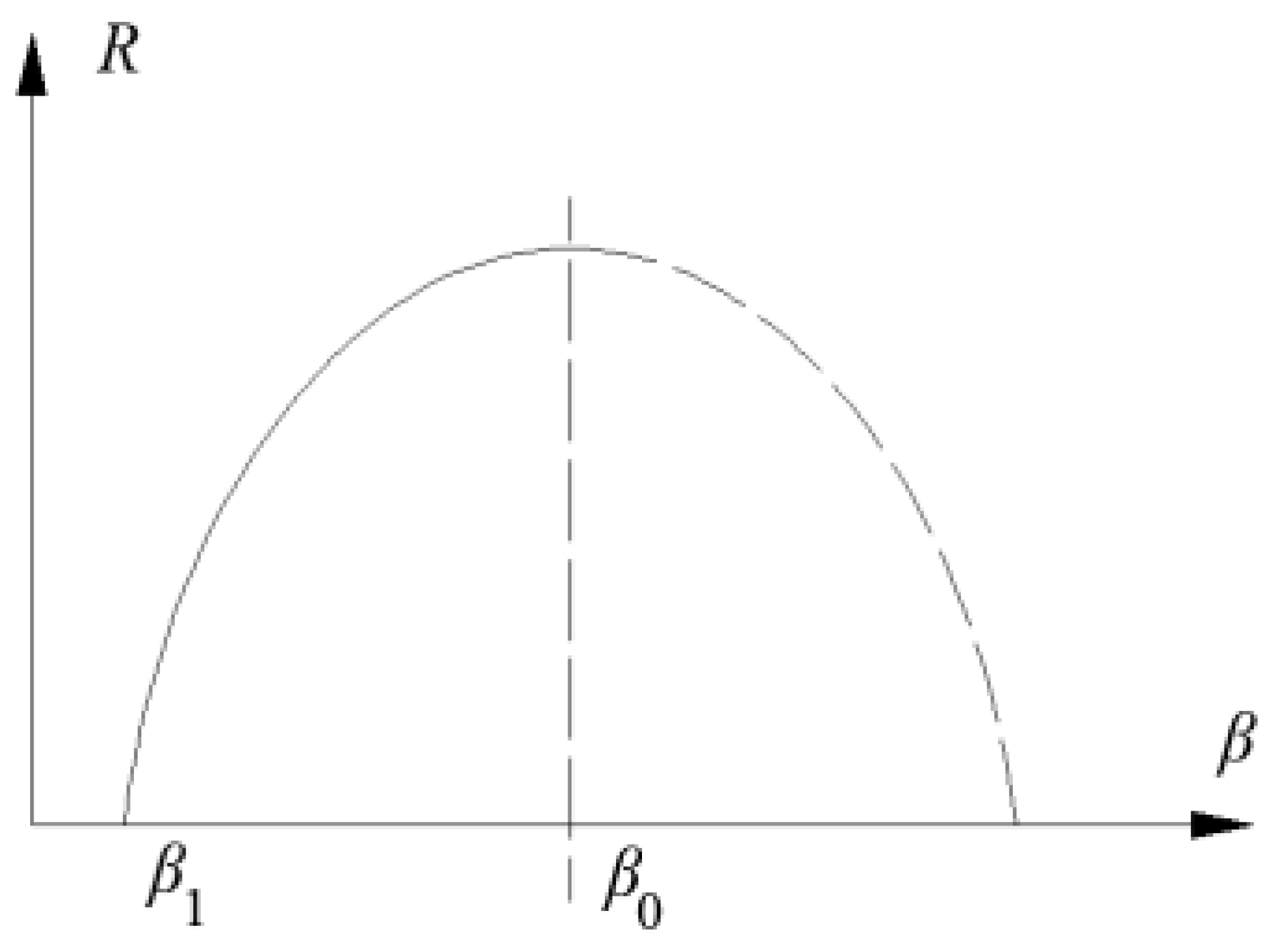

**Figure 1.**Mathematical relation model of structural robustness evaluation index ($R$) and structural reliability index ($\beta \in \left[{\beta}_{1},{\beta}_{0}\right]$).

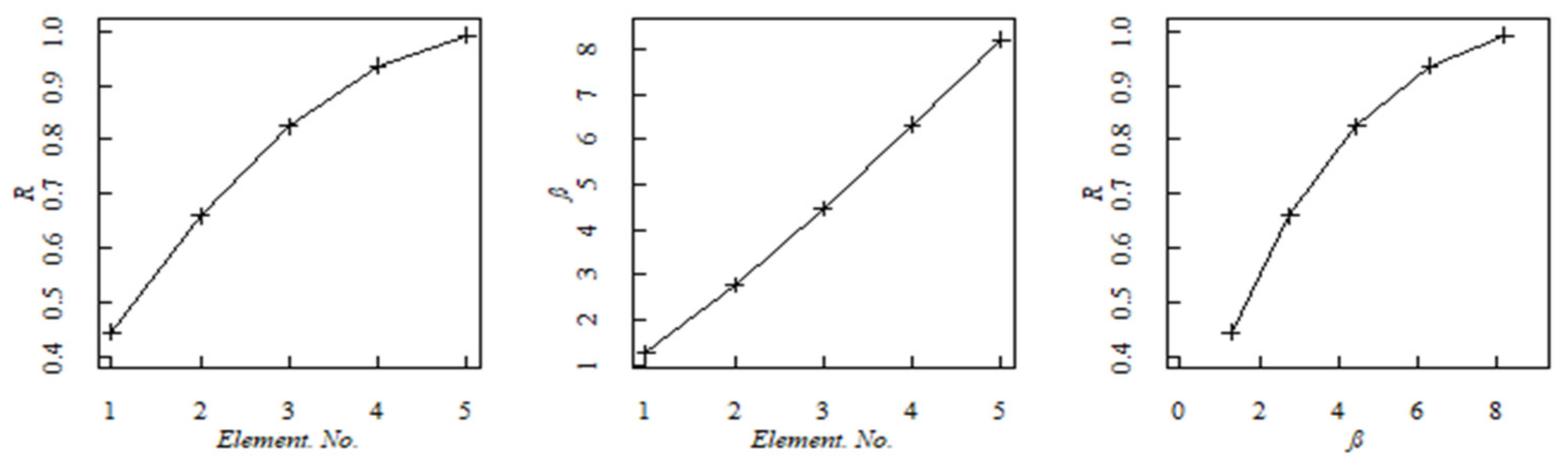

**Figure 4.**Structural robustness evaluation index ($R$), structural reliability index ($\beta $), and the fitting curve of the cantilever beam (

**Left**: $R$ vs. Element No.,

**middle**: $\beta $ vs. Element No., and

**right**: $R$ vs. $\beta $).

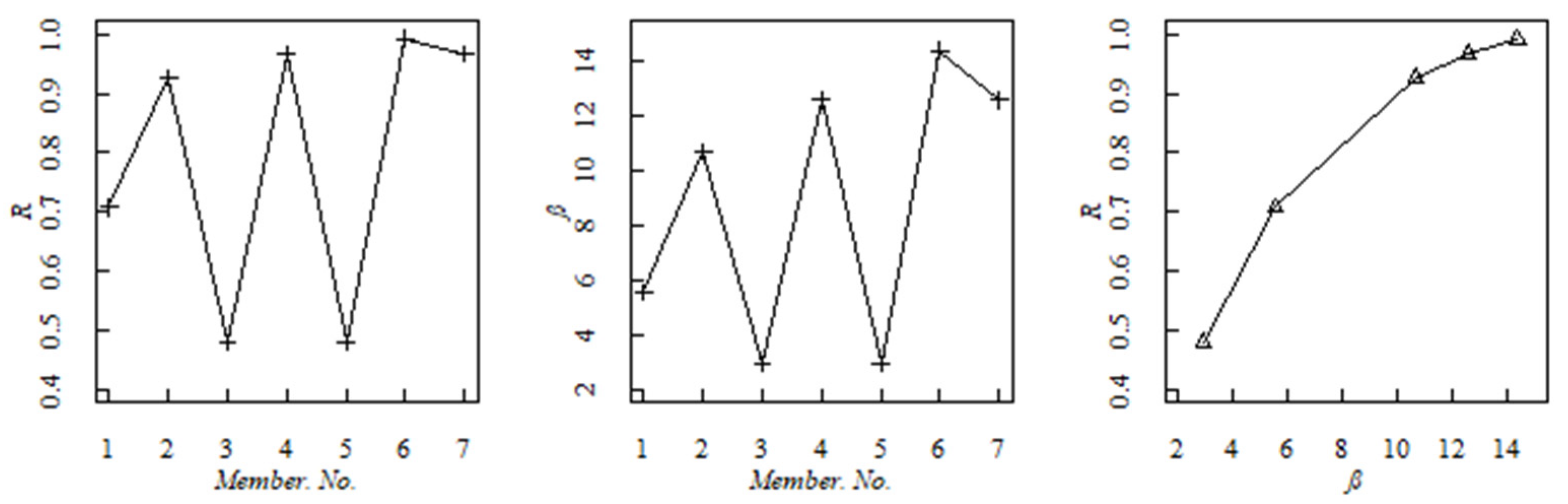

**Figure 5.**Structural robustness evaluation index ($R$), structural reliability index ($\beta $), and the fitting curve of the truss beam (

**Left**: $R$ vs. Member No.,

**middle**: $\beta $ vs. Member No., and

**right**: $R$ vs. $\beta $).

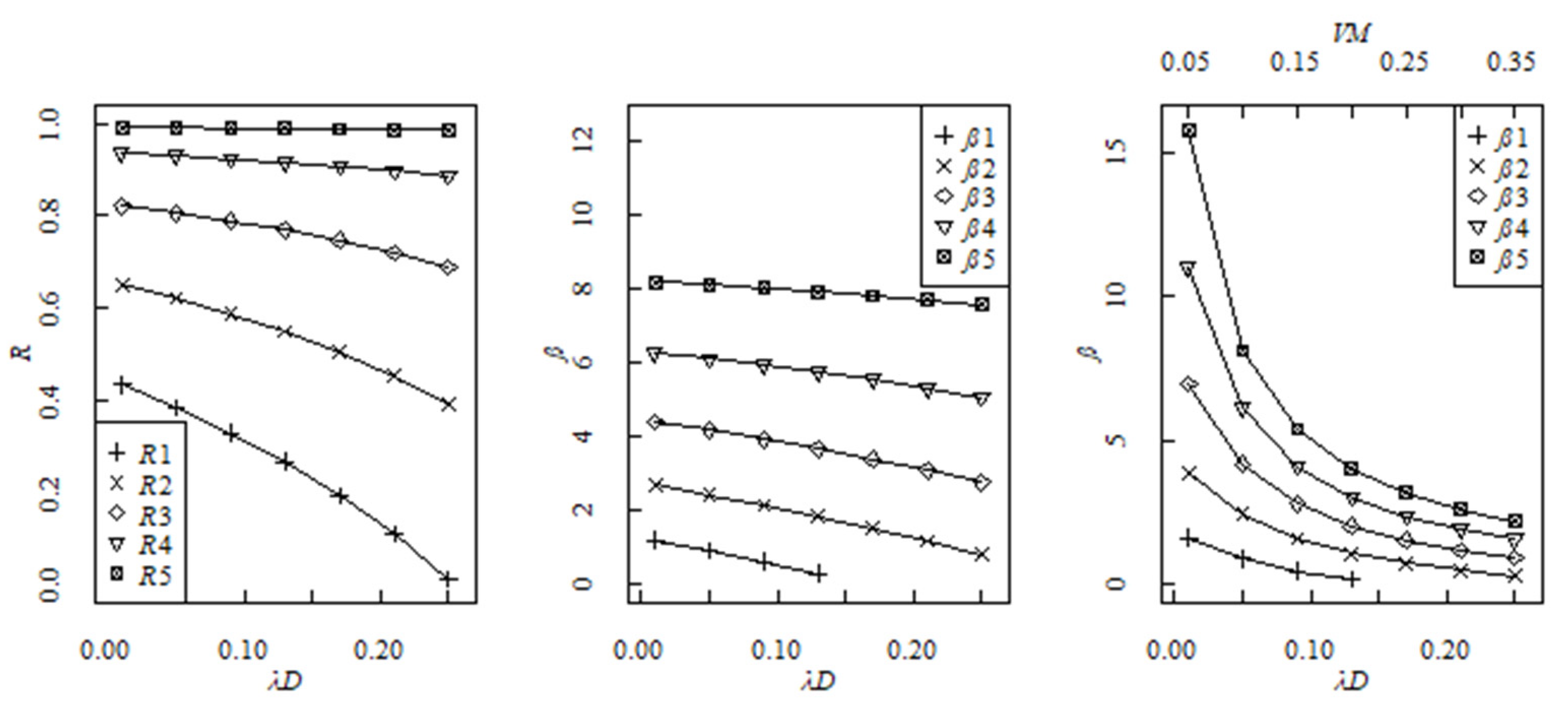

**Figure 6.**Different variation trends of structural robustness evaluation index ($R$) and structural reliability index ($\beta $) of the cantilever beam subjected to damage effect ($\lambda D$) and variation factor ($VM$) (

**Left**: $R$ vs. $\lambda D$,

**middle**: $\beta $ vs. $\lambda D$,and

**right**: $\beta $ vs. $\lambda D$).

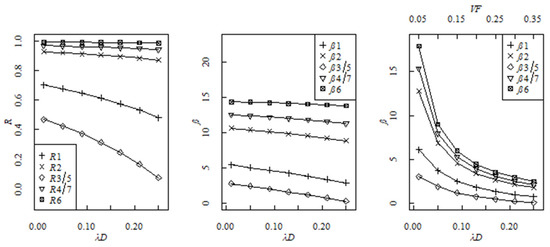

**Figure 7.**Structural robustness evaluation index ($R$) and structural reliability index ($\beta $) of the truss beam subjected to damage effect ($\lambda D$) and variation factor ($VF$) (

**Left**: $R$ vs. $\lambda D$,

**middle**: $\beta $ vs. $\lambda D$, and

**right**: $\beta $ vs. $\lambda D$).

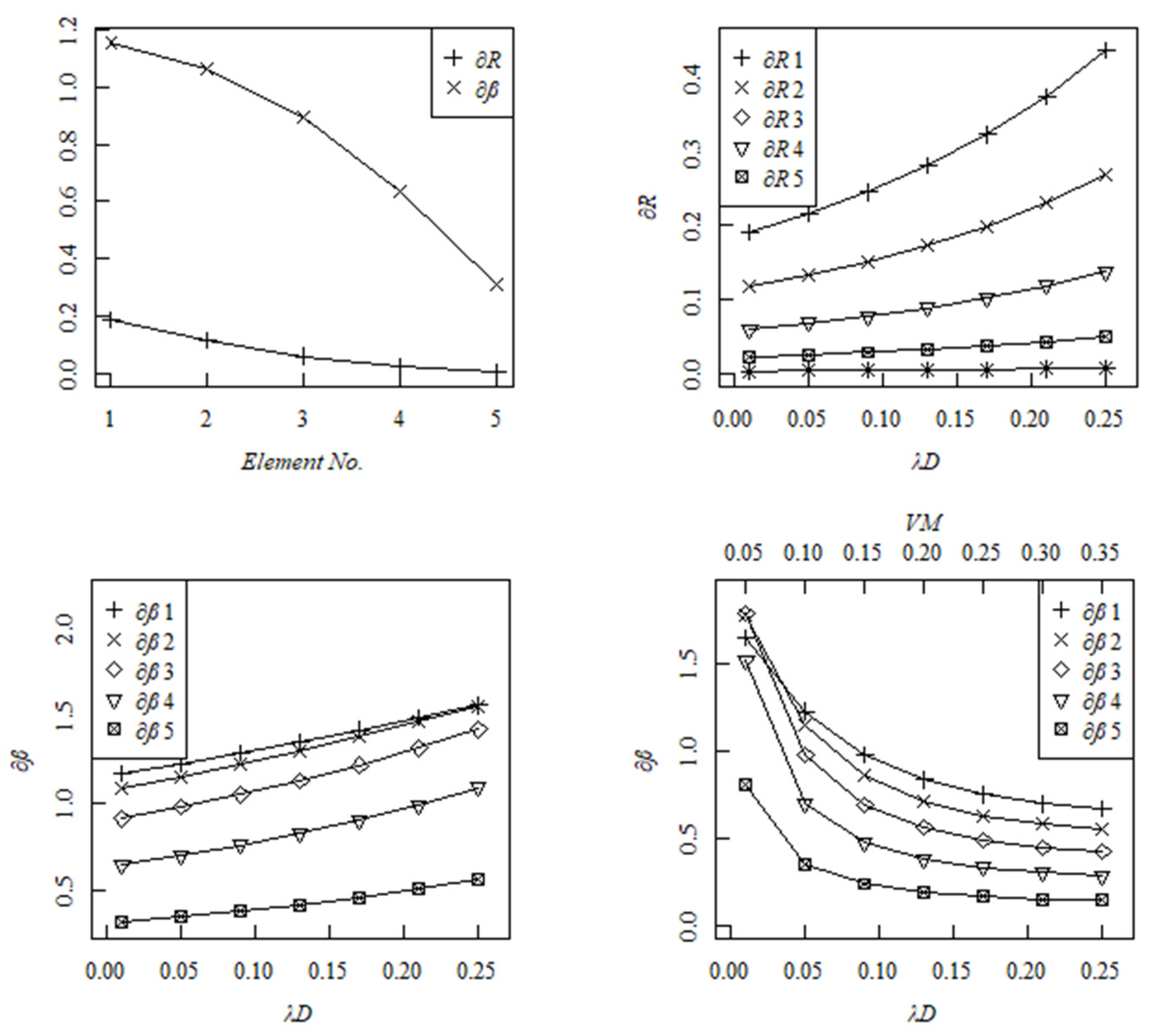

**Figure 8.**Different sensitivities of the structural robustness evaluation index ($\partial R$) and structural reliability index ($\partial \beta $) of the cantilever beam subjected to damage effect ($\lambda D$) and variation factor ($VM$) (

**Top Left**: $\partial R$ and $\partial \beta $ vs. Element No.,

**top right**: $\partial R$ vs. $\lambda D$.

**Bottom left**: $\partial \beta $ vs. $\lambda D$,

**bottom right**: $\partial \beta $ vs. $\lambda D$ and $VM$).

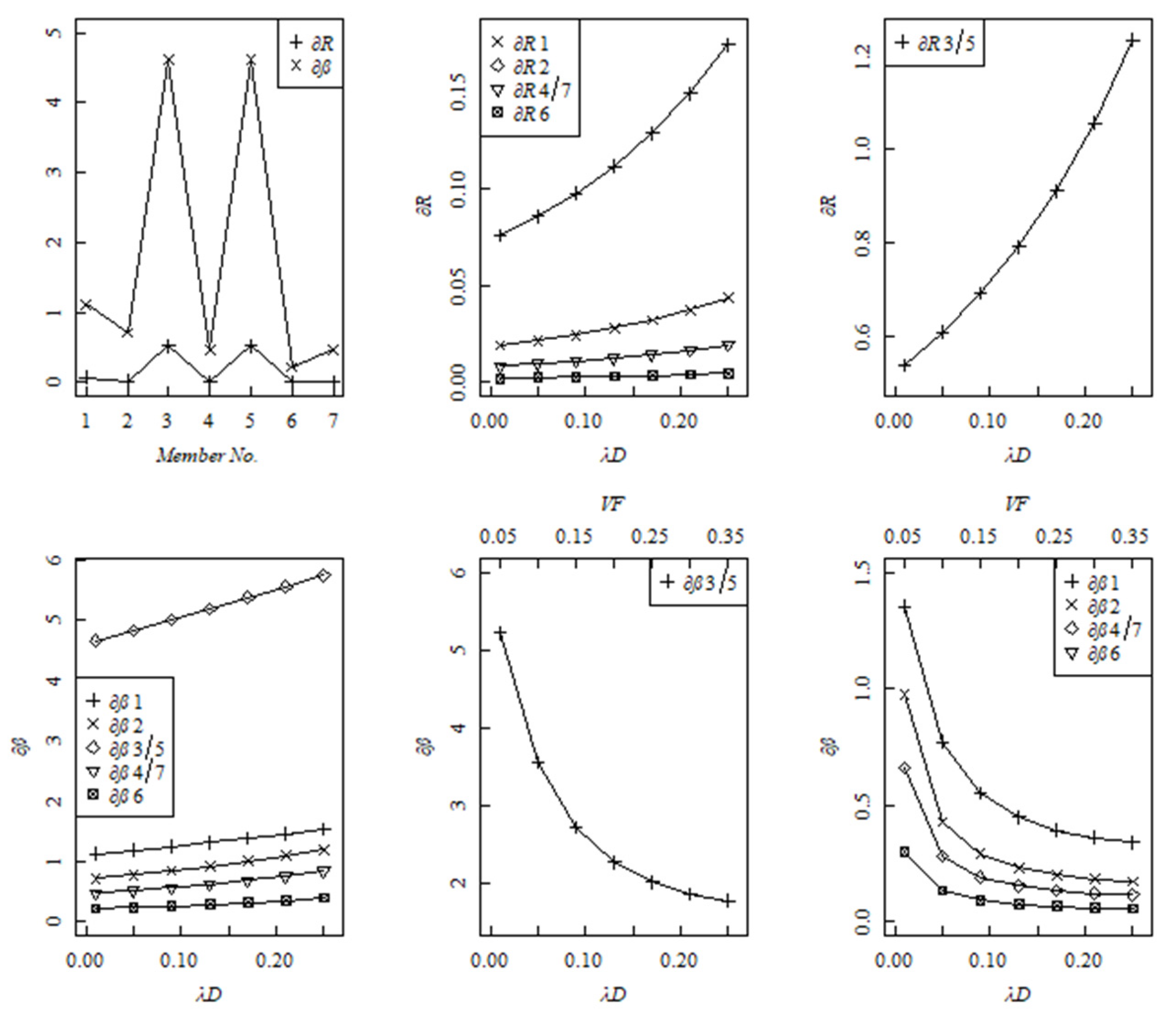

**Figure 9.**Different sensitivities of the structural robustness evaluation index ($\partial R$) and structural reliability index ($\partial \beta $) of the truss beam subjected to damage effect ($\lambda D$) and variation factor ($VM$) (
