Eco-Friendly Reduced Graphene Oxide Nanofilter Preparation and Application for Iron Removal

Abstract

In this paper, the green synthesis of reduced graphene oxide (r-GO) nanomaterials using Callistemon viminalis leaf extract as a reducing and stabilizing agent is reported for the first time. The synthesized r-GO nanomaterials were characterized using UV–Vis, XRD, FE-SEM, TEM, and energy dispersive X-ray (EDX) analyses. The nanofilter membrane was prepared by varying the amounts of r-GO nanomaterials in a Polysulfone-N,N-dimethyl formamide (DMF) solution. The nanofilter membrane was characterized by the contact angle, atomic force microscopy (AFM), UV–Vis, and FTIR. The results confirm the formation of r-GO nanomaterials. Higher amounts of r-GO nanomaterials in the membrane show a lower contact angle, thus confirming their hydrophilic nature. Iron water filtration was performed with different amounts of r-GO nanomaterials in the membrane filter, and the water flux was smooth over an increased time period. Inductively Coupled Plasma (ICP) analysis showed a higher percentage of iron rejection (95.77%) when higher amounts (0.10 g) of r-GO nanomaterials were used in a mixed membrane (i.e., sample C). In conclusion, the findings illustrate that Callistemon viminalis mediates the synthesis of r-GO nanomaterials, which is useful in water filtration, and can be incorporated into membrane filters, since it removes iron.

1. Introduction

Pure drinking water is essential for human health. Health can be negatively affected by the contaminants present in drinking water [1]. Heavy metals have a higher density than water, and various heavy metals that are present in the earth’s crust mix with water and affect human health after consumption. Toxic heavy metals’ effects on genetic materials alter normal body metabolism [2]. Heavy metals, such as chromium, lead, manganese, mercury, zinc, cadmium, and iron, have more toxic effects on human health [3]. An overdose of iron causes hemochromatosis. The World Health Organization (WHO) reported the growth of iron bacteria and 0.3 mg/L as an unnoticeable amount of iron concentration present in underground well-water that causes health issues, mostly in developing countries [4]. Contaminants from industrial waste and wastewater from households connected to rivers pose a major challenge in water management. The standard filtration method of ionic removal of toxic heavy metal from is inefficient [5], but small pore sizes in membrane filtration were shown to be effective in water filtration [6].

A literature review shows that graphene is a single-layered sheath derived from graphite. Graphene oxide (GO), containing an oxygen group, is hydrophilic [7]; during heavy metal removal from water, graphene filters bind with metal ions, thus blocking large molecules and solving drinking water problems [8]. Conventionally, reduced graphene oxide (r-GO) nanomaterials are produced using physical and chemical methods, which costly for mass production and hazardous to the environment. In the present situation, an eco-friendly and cost-effective method is needed to manage environmental pollution and reduce the cost of the mass production of reduced graphene oxide nanomaterials for use in water filtration. Therefore, in this study, reduced graphene oxide was biologically synthesized from Callistemon viminalis plant leaf extract and used as a membrane filter for the removal of iron metal ions from water.

The reduced graphene oxide nanomaterial was synthesized following a biological method. Reduced graphene oxide nanomaterial surface morphology was analysed using FE-SEM, chemical composition using FTIR, and particle size using XRD. The efficiency of the reduced graphene oxide membrane was measured for water permeability and heavy metal removal. The reduced graphene oxide nanomaterial, with high amounts of membrane filters, was found to be more efficient. The r-GO membrane might be used for heavy metal removal with a low-pressure driving force and a more hydrophilicity membrane to obtain better water flux.

2. Materials and Methods

2.1. Materials

We purchased a 4 g/L graphene oxide solution from Graphenea, San Sebastián, Spain. Iron nitrate Fe(NO₃)₃ and N, N-dimethylformamide were supplied by Ajax Finechem Pty Ltd., Auckland, New Zealand. Sodium hydroxide pallet was purchased from Loba Chemie Pvt. Ltd., Mumbai and polysulfone pallets (UDEL P-1700) were supplied by Solvay, Beijing, China.

2.2. Biosynthesis of Reduced Graphene Oxide Nanomaterials

We mixed 30 g of Callistemon viminalis leaf with 250 mL of de-ionized water and boiled the mixture at 70 °C for 20 min. After boiling, the leaf extract was filtered using Whatman filter paper no.1 and cooled.

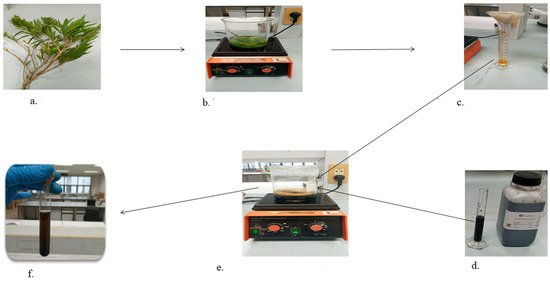

We mixed 10 mL of graphene oxide (GO) concentration solution with 100 mL of Callistemon viminalis leaf extract, and 25 mL of 0.1 N sodium hydroxide (NaOH) was added. The solution was stirred at 60 °C for 2 h until a dark-brown color formed (Figure 1). Next, it was centrifuged at 14,000 rpm for 15 min, and the paste was collected and dried [9].

2.3. Preparation of Membrane Filter

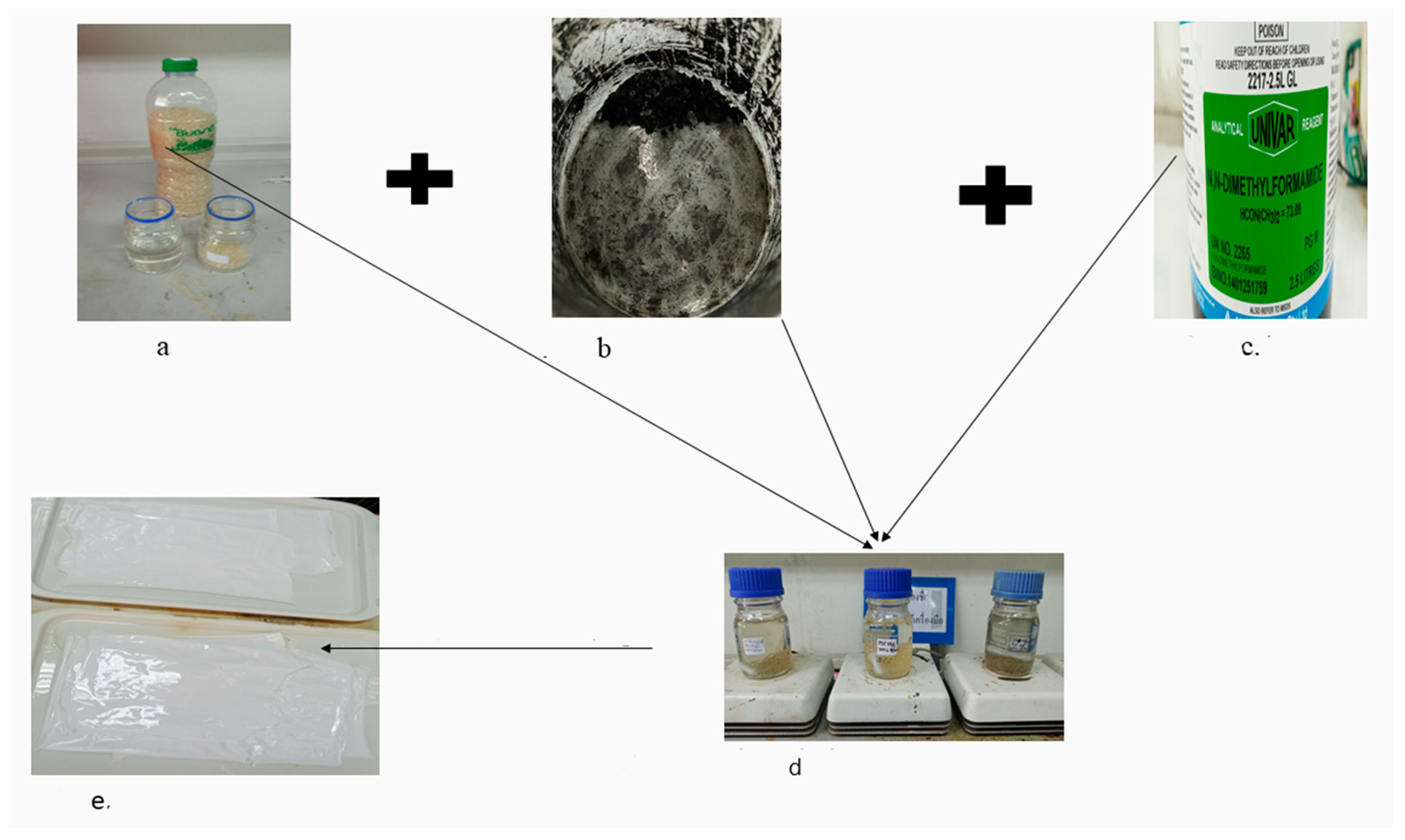

Different types of nano-membrane were prepared by adding 0.0150 g (i.e., sample B) or 0.10 g (i.e., sample C) of r-GO powder mixed with 15 g of polysulfone (PSF) and 85 mL of N,N-dimethyl formamide (DMF) in separate bottles. One normal membrane (i.e., sample A) was prepared without adding r-GO powder in polysulfone (PSF) and N,N-dimethyl formamide (DMF). Vigorous stirring for 24 h and casting were performed to create a membrane layer (Figure 2) [10].

2.4. Characterizations

UV–Vis analysis was carried out between the wavelengths of 200 and 800 nm using UV–Vis spectroscopy (model number DR 6000, Envi Science company limited). The surface morphology and elemental compositions were examined using FE-SEM (Apreo-energy dispersive X-ray (EDX)). TEM analysis was carried out using an electron probe X-ray microanalyzer (JXA 8900R). The functional groups attached on the surface of the nanoparticles were analyzed by Attenuated Total Reflection (ATR) and KBr pallet technique using a Fourier transform infrared spectrometer (VERTEX 70, Bruker, Bremen, Germany). Surface roughness was analyzed by atomic force microscopy (AFM-flex). XRD Empyrean was used to identify peaks intensity (counts). GC-MS analysis was carried using instrument of Agilent Technologies, USA. Automatic Liquid Sampler (ALS) taking injection volume 1 μL. The chromatographic column was an Agilent CP9205 (30 m × 250 μm × 0.25 μm), with high-purity helium as the gas carrier, at a flow rate of 1 mL per minute and average velocity 36.796 cm/s. The injector temperature range 20 °C to 250 °C and it was with a splitless injector. The temperature was set initially to 70 °C hold for 5 min and rate was 10 °C per minute. The MS ion source temperature was 230 °C and maximum 250 °C with electron energy 70 eV. The scan range was 35–650 amu, threshold 150 and the solvent delay time was 4.5 min.

Contact angle analysis was carried out using optical contact analyzer data physics, Germany. Test condition was at temperature 23 ± 2 °C and standards method WI-RES-contact angle-001 performed using 7 micro liter of deionized water as test liquid. Inductively coupled plasma atomic emission spectroscopy (ICP-OES) (Perkin Elmer Instruments, Shelton, CT, USA) was used for iron detection. The wavelength was 238 nm to 239.562 nm for iron determination. Parameter was axial view mode, RF power 1300 (W), nebulizer gas flow rate 0.8 L per minute, auxiliary gas flow rate 0.2 L per minute, plasma gas flow rate 15 L minute and sample flow rate 1.5 mL per minute.

3. Results

3.1. GC-MS Analysis

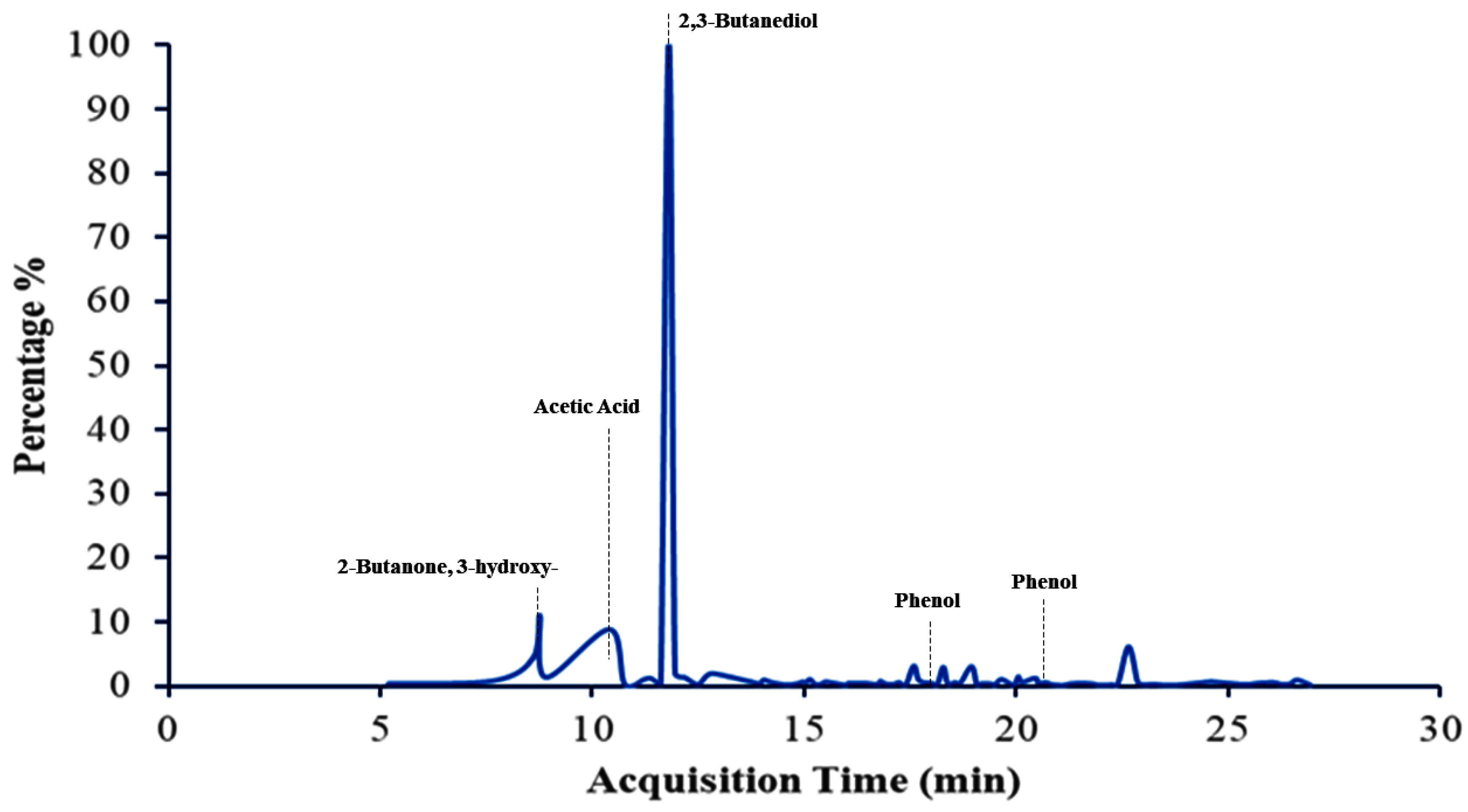

GC-MS analysis showed the presence of higher amounts of 2,3-butanediol, 2-butanone, 3-hydroxy- and acetic acid, catechol, 3-cyclohexene-1-methanol, and alpha, alpha,4-trimethyl (Figure 3,

Table 1. Peak percentage having more than 90% match with chemical compounds.

Acquisition Time (min)	Peak Percentage (%)	Compound
8.76	11	2-Butanone, 3-hydroxy-
10.40	8.8	Acetic acid
10.76	0.2	1,6-Octadien-3-ol, 3,7-dimethyl-
11.36	1.2	2,3-Butanediol
11.81	100	2,3-Butanediol
12.86	1.9	3-Cyclohexene-1-methanol, alpha,alpha,4-trimethyl-
14.18	0.6	1,3-Cyclohexadiene, 2-methyl-5-(1-methylethyl)-, monoepoxide
14.71	0.2	Benzenemethanol, alpha,alpha,4-trimethyl-
15.51	0.6	Phenylethyl alcohol
16.75	0.2	Furaneol
17.99	0.4	Phenol, 2-methoxy-3-(2-propenyl)-
20.46	1.2	Benzoic acid
21.27	0.3	Phenol, 2,6-dimethoxy-4-(2-propenyl)-
22.66	6.1	Catechol
24.40	0.5	Benzenemethanol, 3,4,5-trimethoxy-

) [11].

3.2. UV–Vis Spectroscopy Analysis

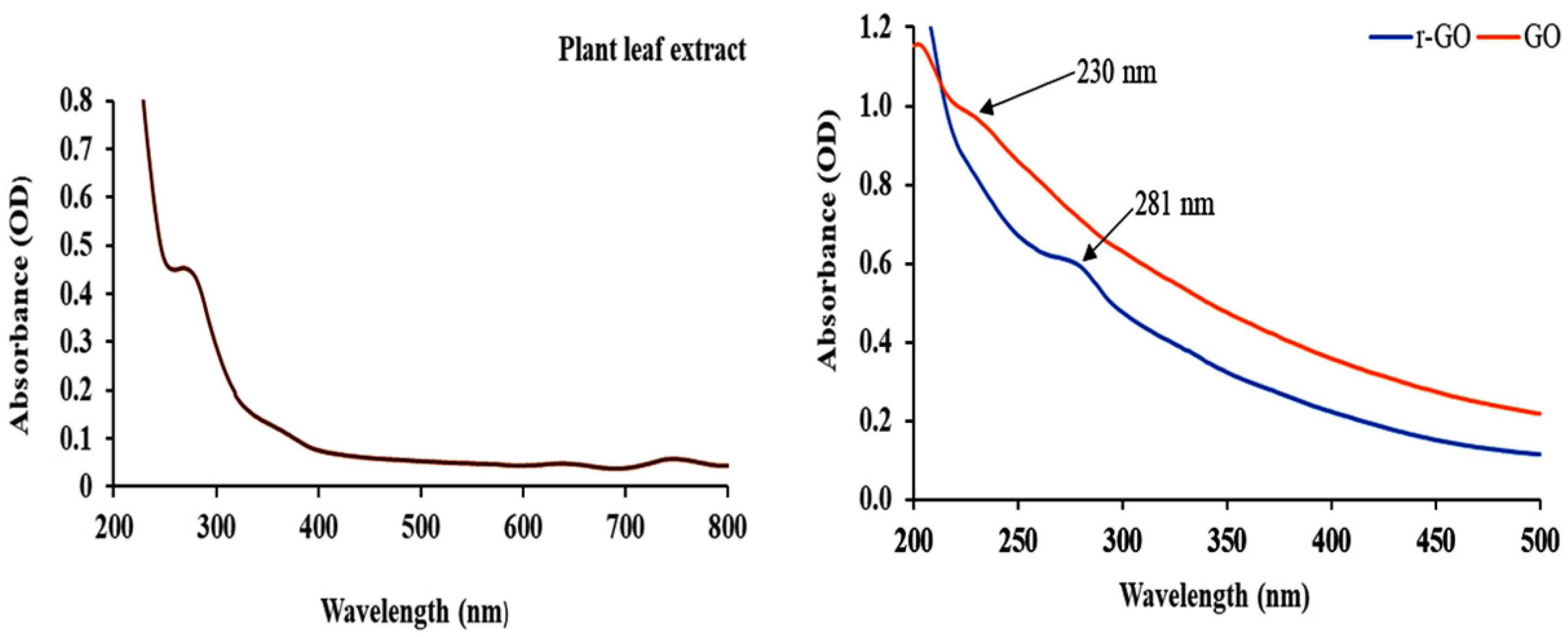

The UV–Vis absorbance of graphene oxide and reduced graphene oxide nanomaterials occurred at 230 and 281 nm, respectively (Figure 4), thus confirming the formation of reduced graphene oxide nanomaterial [12].

3.3. X-ray Diffraction (XRD) Analysis

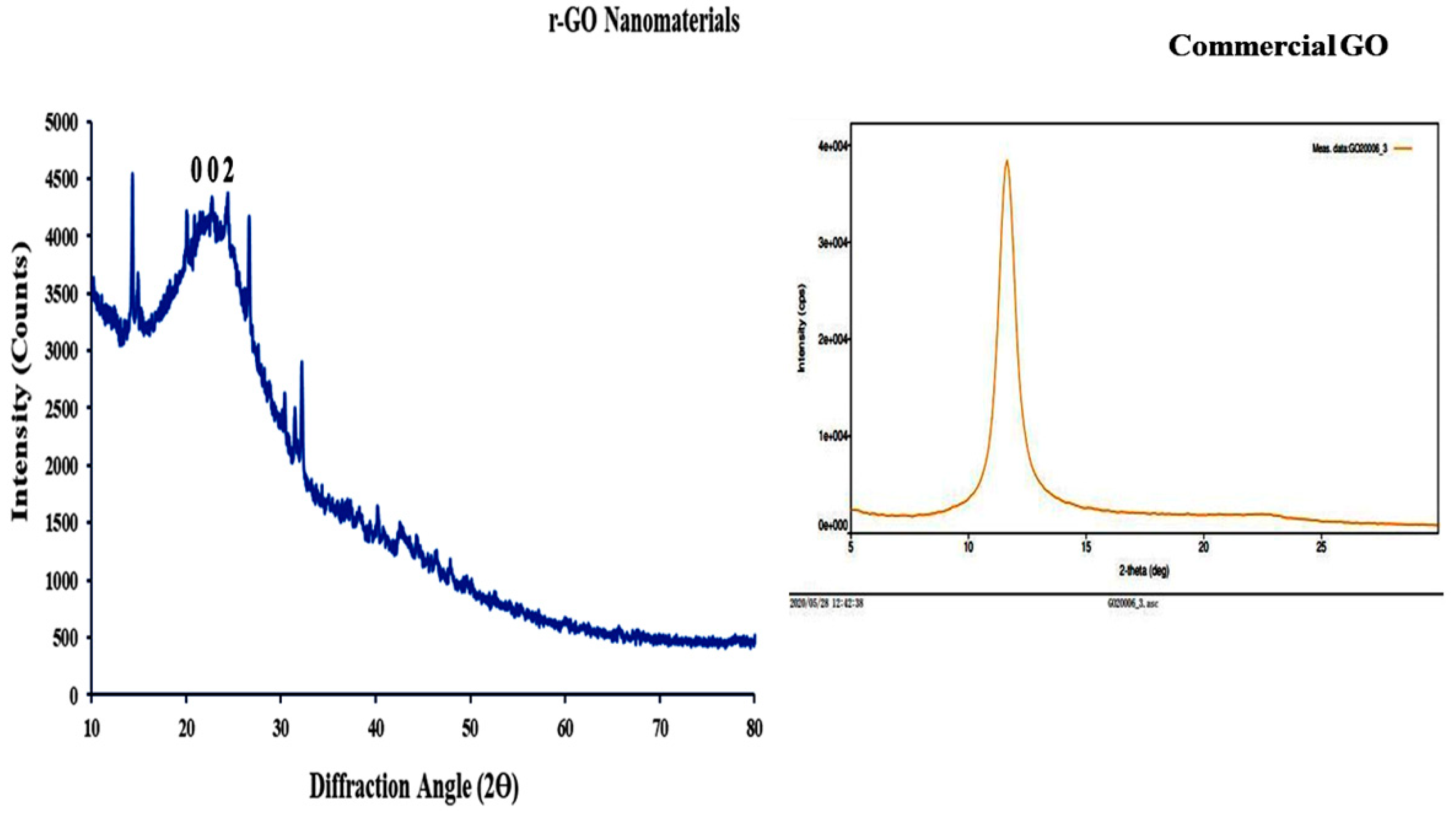

XRD analysis was performed using CuKα radiation with a wavelength (λ) of 1.5406 Å and scans in the 2ϴ range of 10° to 80°. The XRD peak arms ranged from 15.6° to 30.1°, confirming r-GO nanomaterial formation at a peak 2ϴ of 22° with a Muller index value (h, k, l) of 0 0 2 and lattice spacing of 0.4072 nm. (Figure 5). An increase in lattice spacing showed the deoxygenation and separation of each graphene oxide sheet formed [13]. Commercial graphene oxide has an XRD peak at a 2ϴ of 11.613°.

3.4. Contact Angle (CA) Analysis

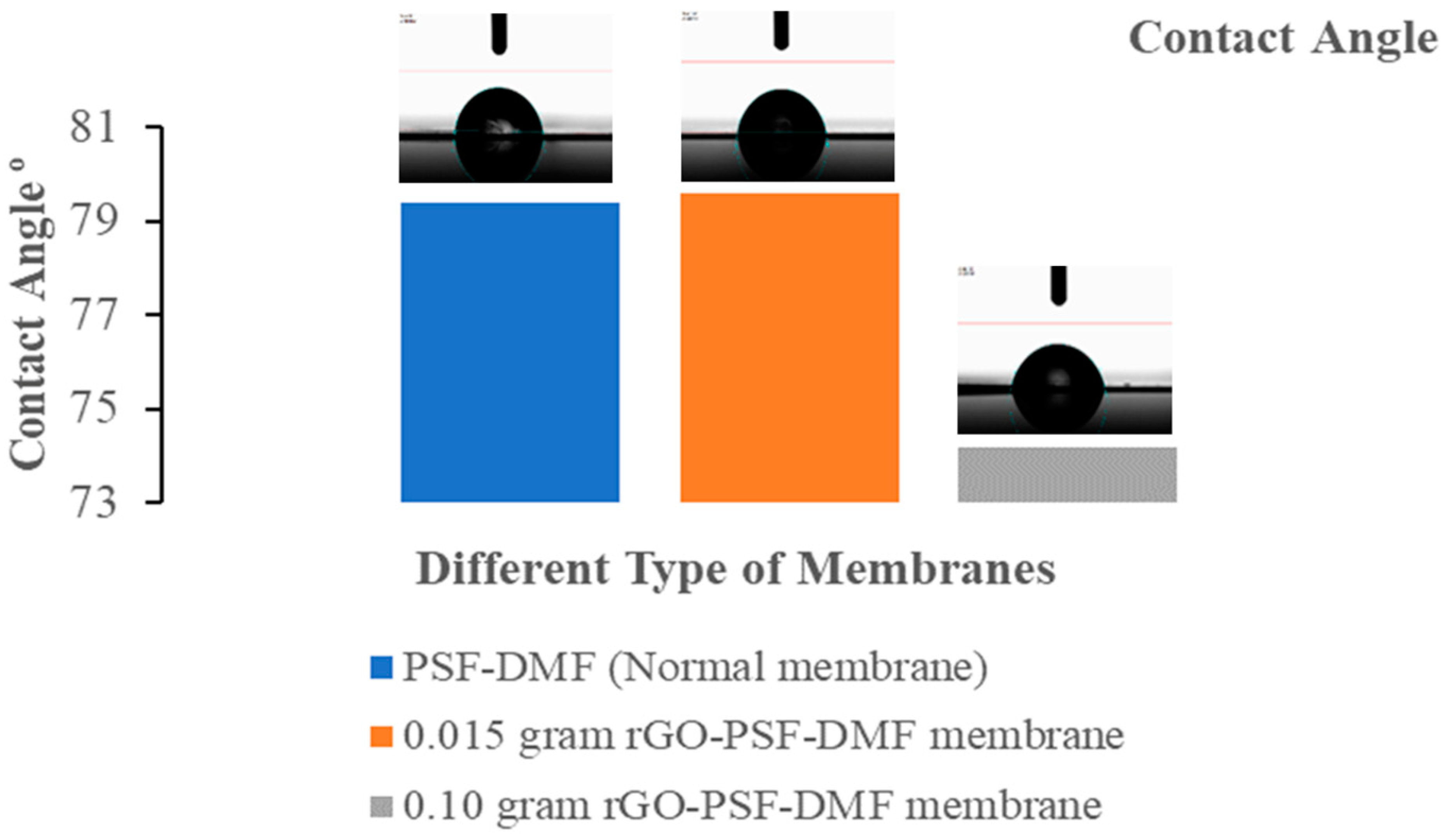

An optical contact angle analyzer (Data Physics, Germany) was used to analyze the contact angle for different membranes. The average contact angles for samples A, B, and C were 79.4°, 79.6°, and 74.2°, respectively, thus confirming the hydrophilic nature of the membrane. The 0.1 g (i.e., sample C) reduced graphene oxide nanomaterial mixed membrane had the lowest contact angle and showed a more hydrophilic nature (Figure 6) [14].

3.5. Atomic Force Microscopy (AFM) Analysis

The front and back side roughness of different membranes was analyzed at 1.2 μm using nanosurface software and according to the formula,

$${\mathrm{R}}_{\mathrm{RMS}}=\sqrt{1}/n{{\displaystyle \sum }}_{i=1}^n\left|Z^{2}i\right|$$

(1)

where ‘n’ is integral number, ‘Zi’ is deviation from mean line of the roughness and RMS is Root Mean Square.

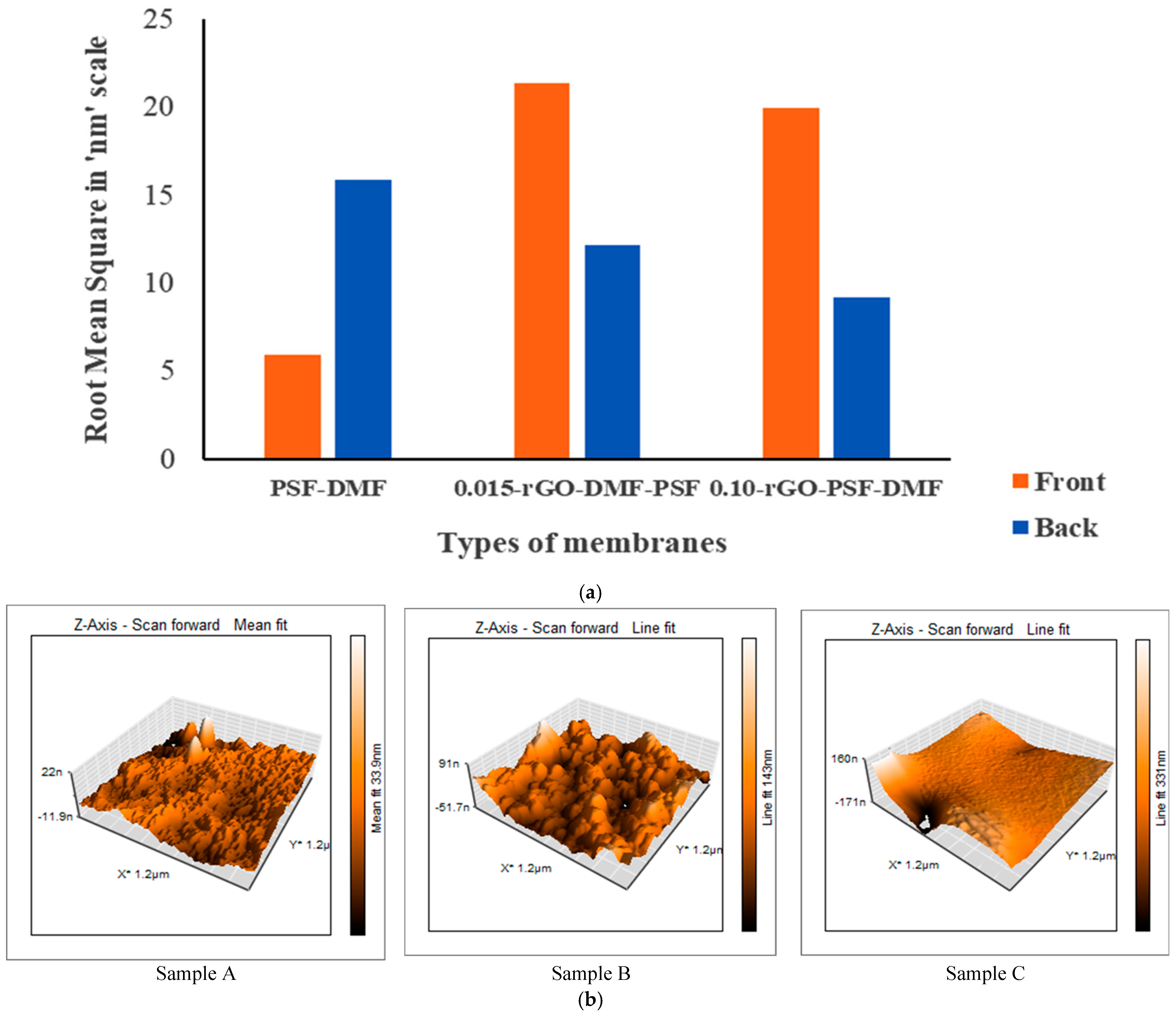

Back side roughness was also analyzed to determine the potential of the membrane for future application in reverse osmosis. The root mean square roughness of sample A was 5.9053 and 15.885 nm for the front and back sides of the membrane, respectively; root mean square roughness of sample B was 21.422 and 12.183 nm for the front and back sides, respectively. The root mean square roughness of sample C was 19.991 and 9.1771 nm for the front and back sides, respectively (Figure 7a,b) [15].

3.6. Field Emission Scanning Electron Microscopy (FE-SEM) Analysis

The FE-SEM image analysis before water filtration of reduced graphene oxide nanomaterials (Figure 8a) showed a separated layer of sheets. Before iron water filtration, FE-SEM analysis for different membranes was performed. The surfaces of sample A membrane showed numerous pores with an average size of 26.57 nm. Figure 8b shows a cross-section view with an average membrane thickness of 95.21 μm.

FE-SEM image analysis after iron filtration for different membranes showed that sample A and sample B membranes had a low content of iron particles on the surface.

In Figure 8c, the sample C membrane shows a high content of iron particles on the surface and the top layer of the cross-section view [16].

3.7. TEM Image and Selected Area Electron Diffraction (SAED) Analysis

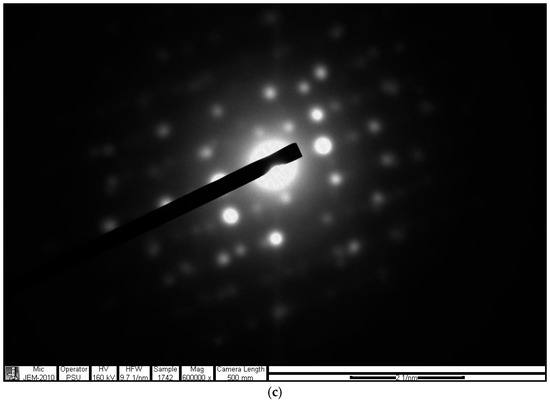

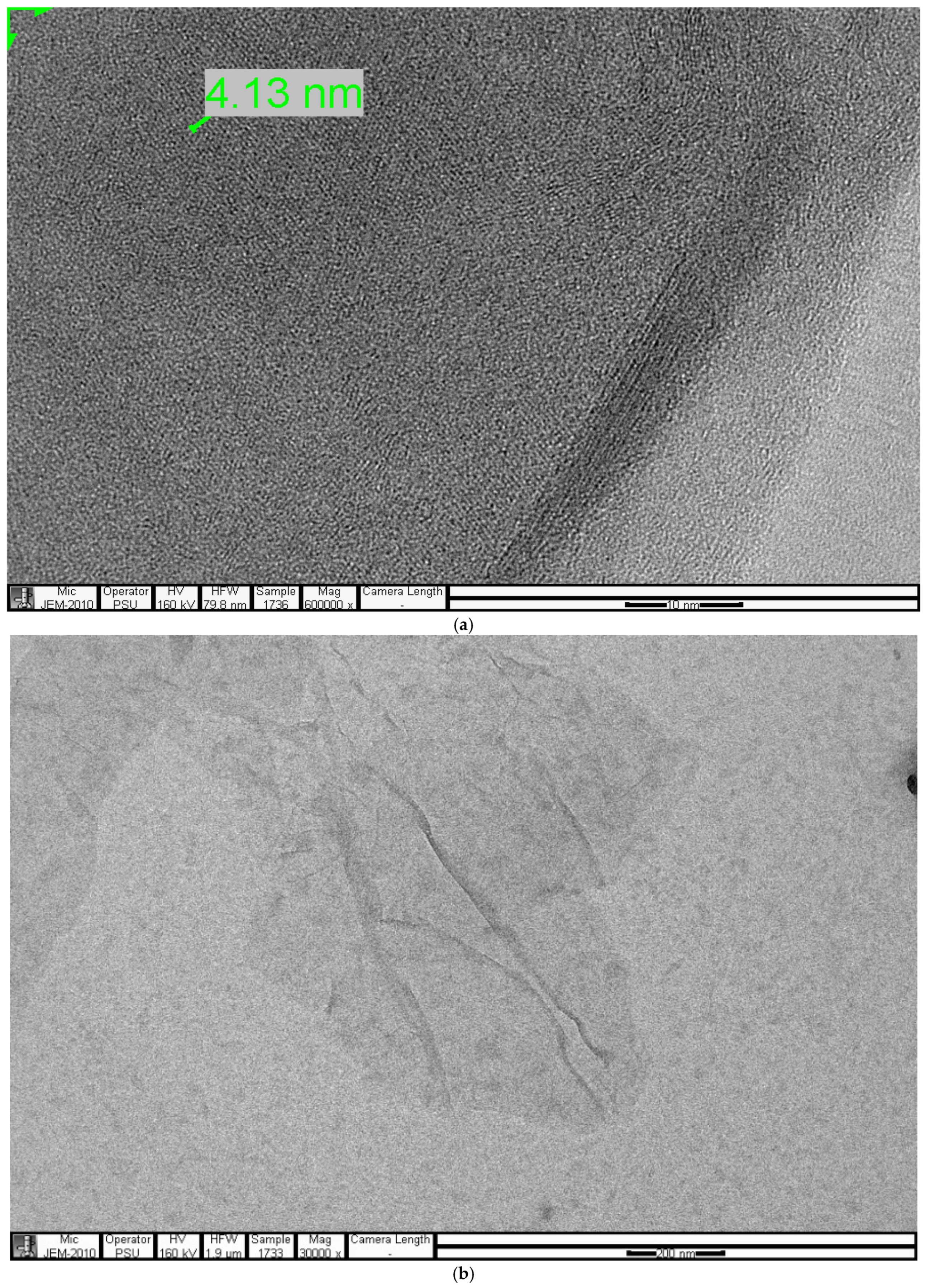

The TEM image shows a reduced graphene oxide formation. Lattice spacing was 4.13 nm for 10 lattice spaces. Each lattice space was calculated at 0.413 nm (Figure 9a). SAED pattern image analysis was performed using the formula,

$$\left(d\right)=\frac{1}{R}$$

(2)

where d is the lattice space and R is the radius between the first opposite two spots confirming the lattice space (Figure 9c) [17].

3.8. Energy Dispersive X-ray (EDX) Analysis

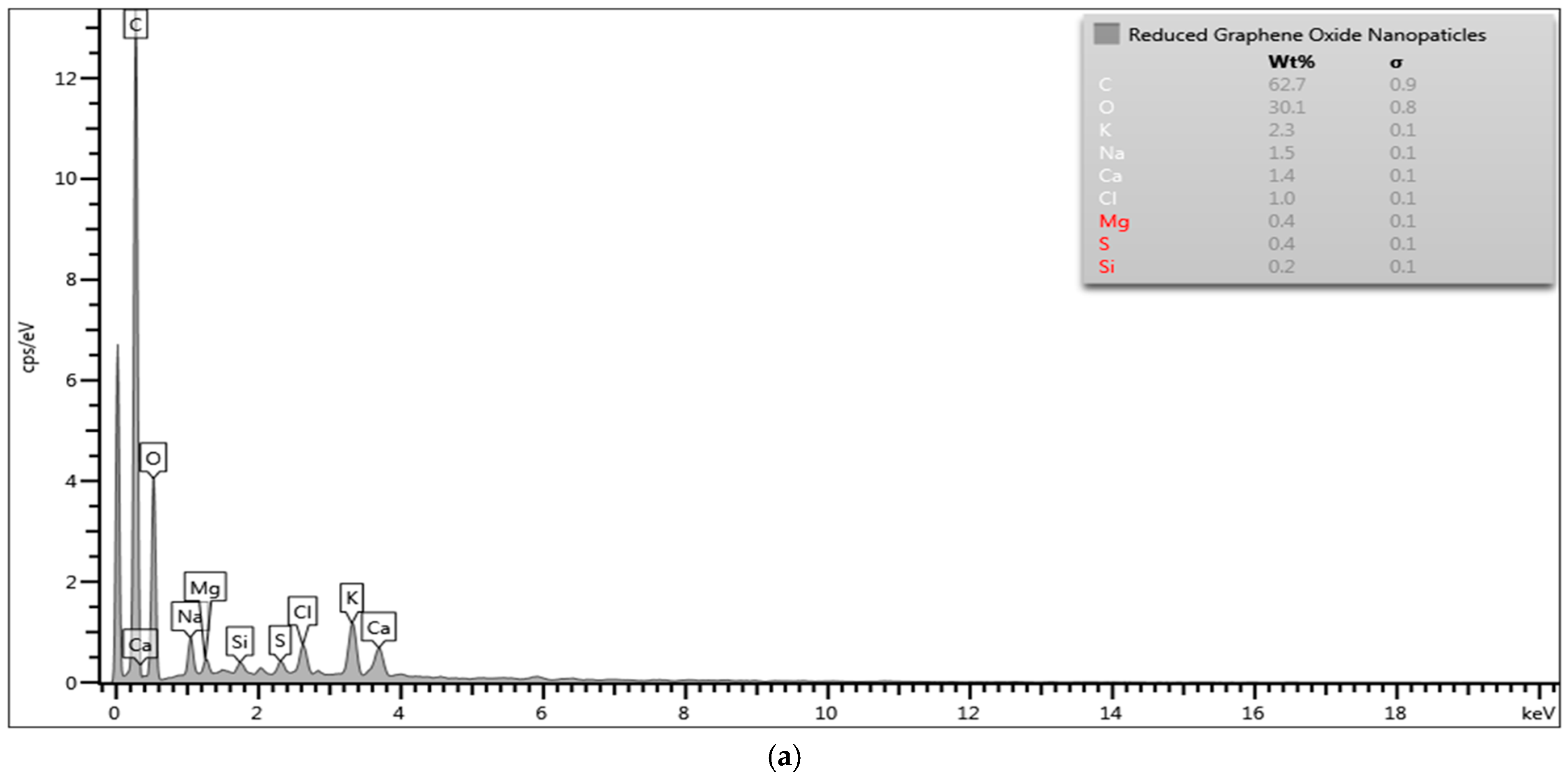

EDX analysis showed a 62.7 wt % of carbon (C) and 30.1 wt % of oxygen (O) in the reduced graphene oxide nanomaterial (Figure 10a).

EDX analysis of the sample B membrane before iron water filtration showed an absence of iron particles.

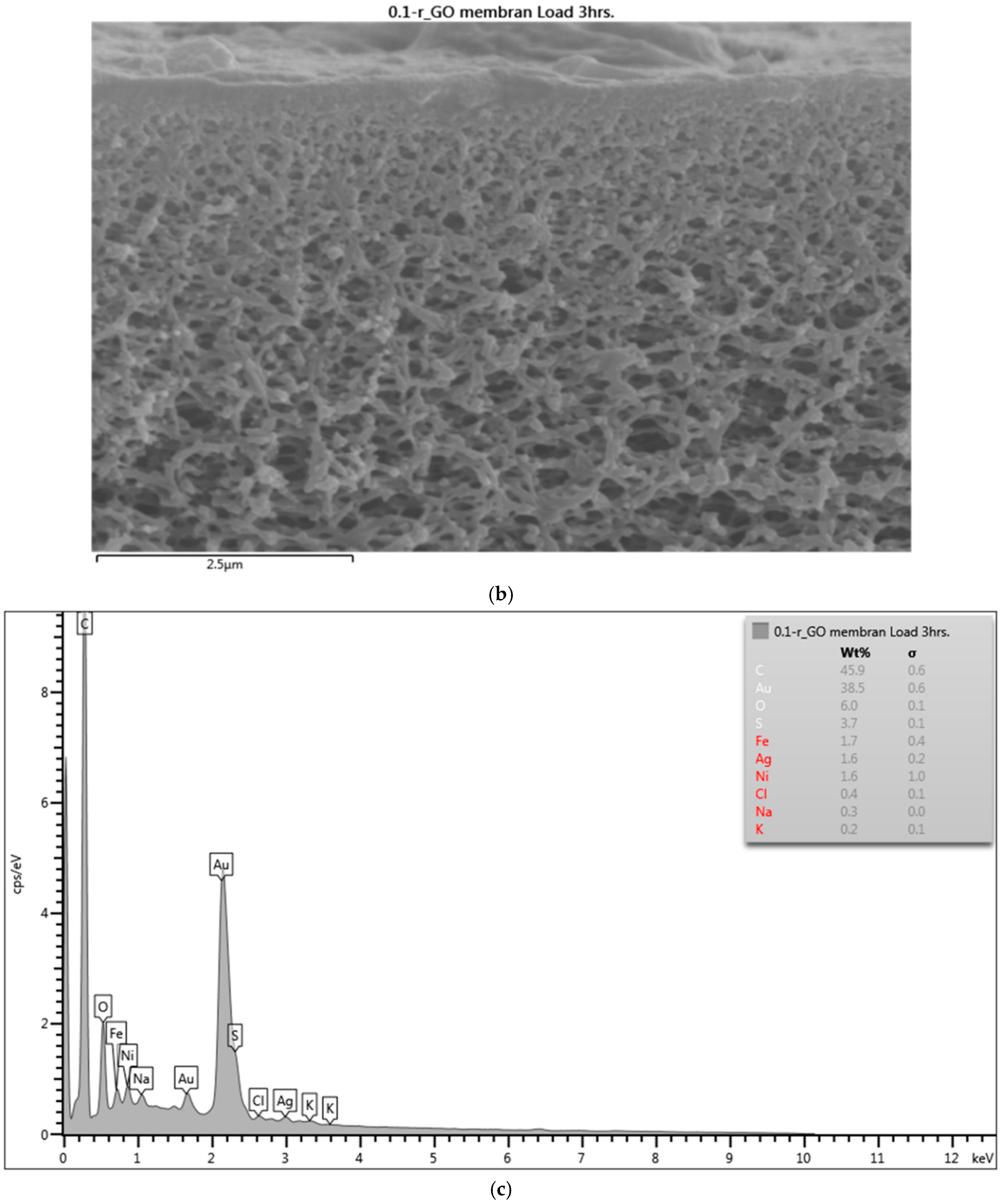

After iron water filtration, EDX analysis showed a 0.2 wt % iron content in the sample B membrane. Similarly, the sample C membrane showed a 1.7 wt % iron content (Figure 10c) [18].

3.9. Fourier Transform Infrared Spectroscopy (FTIR) Analysis

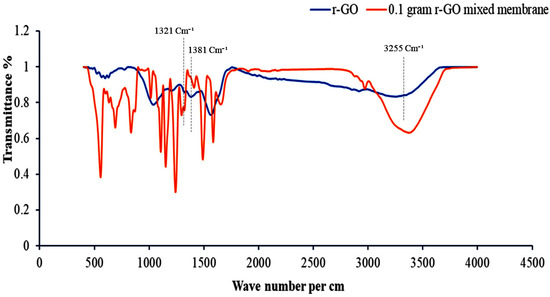

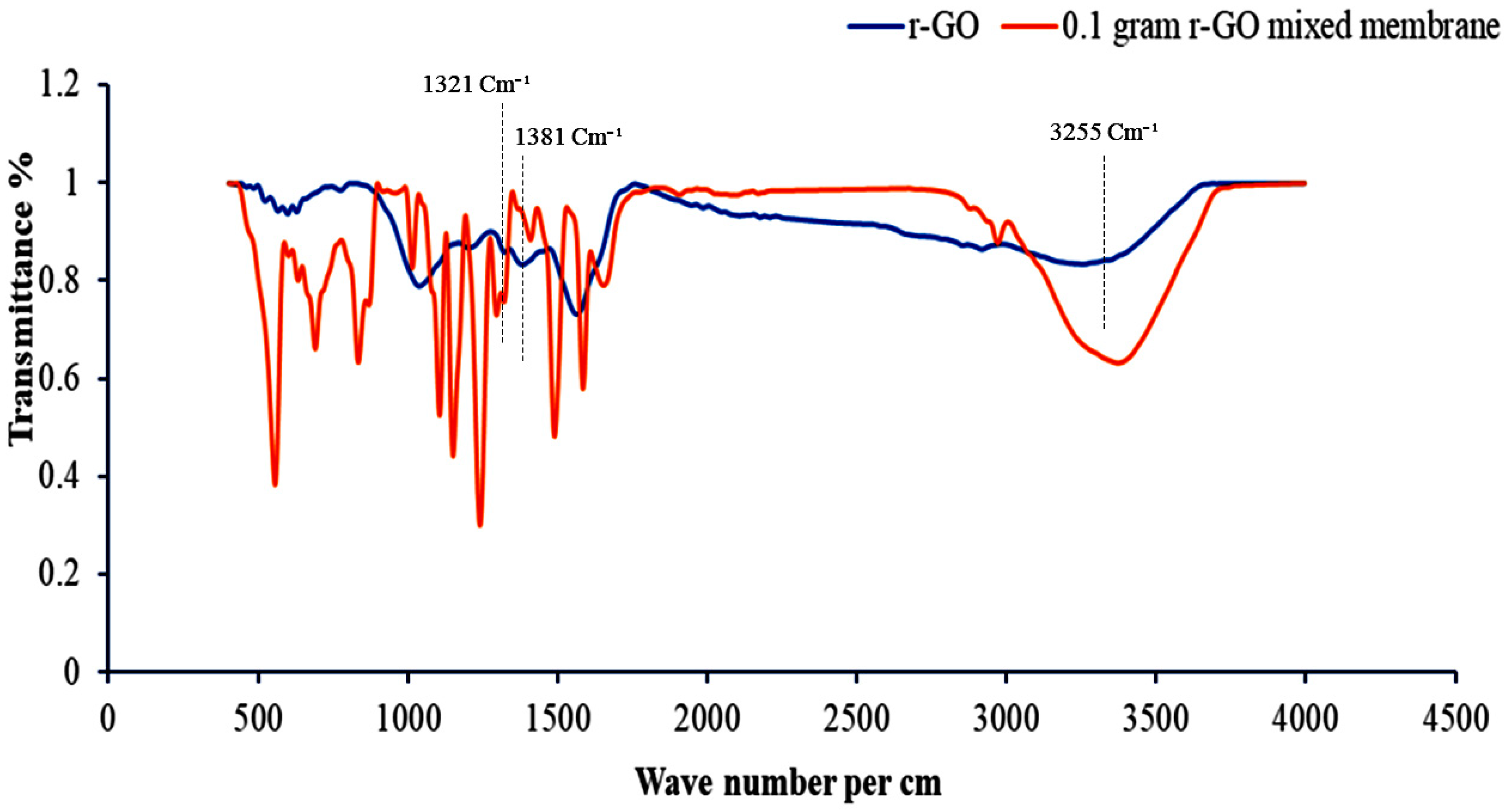

FTIR analysis showed the change in bond angle and bond length, and confirmed the functional groups that are attached to the r-GO nanomaterial and sample C membrane (Figure 11).

Wave numbers 1321 and 1381 cm⁻¹ confirmed the presence of phenolic compounds and wave number 3255 cm⁻¹ confirmed the presence of carboxylic acid on the surface of the r-GO nanomaterial. The functional groups attached to the sample C membrane were found to be similar to those attached to reduced graphene oxide nanomaterial, confirming the presence of reduced graphene oxide nanomaterials in the membrane [19].

3.10. Water Permeability (Pure Water Flux)

Water permeation was tested using prepared membranes at different pressures (1, 2, 3, 4, and 5 bar) that were held constant for five minutes.

Water permeation or pure water flux was calculated from the formula,

$$Flux \left(J\right)=\frac{V}{At}$$

(3)

where J is water flux, V is the volume of water in liters, A is the area of membrane in meters square, and t is time in hours.

The water permeation (L) of the different membranes was calculated using the following formula,

L_P = Slope (m) × 2.77 × 10⁻¹⁰ M S⁻¹ Pa⁻¹

(4)

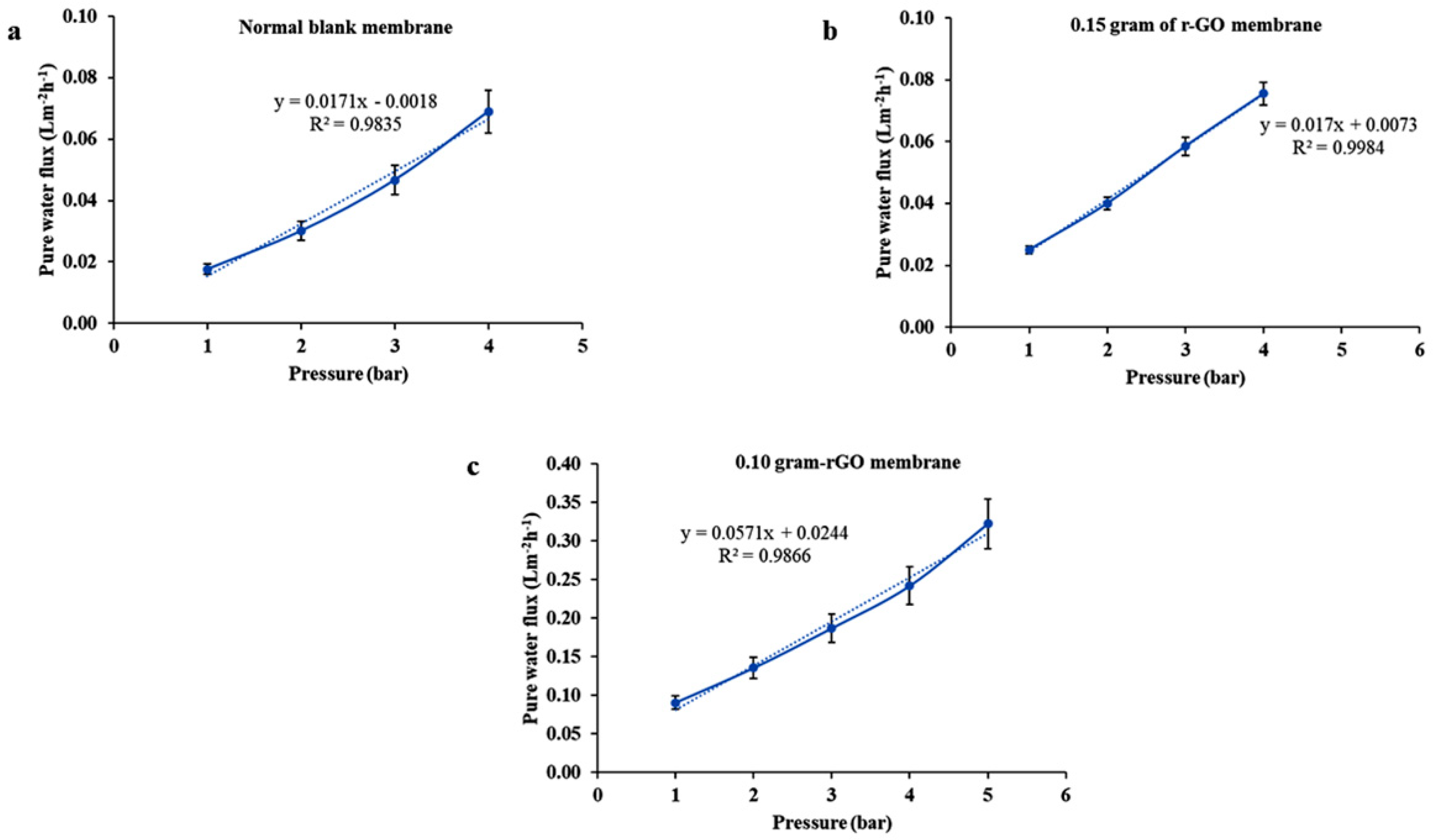

where m is the slope of the line from the graph of water flux versus pressure (Figure 12,

Table 2. Normal deionized water permeability.

Membranes	Slope (m)	Permeation (M S−1 Pa−1)
Sample A	0.0171	4.7367 × 10−12
Sample B	0.017	4.709 × 10−12
Sample C	0.0571	1.58167 × 10−11

) [20].

3.11. Rejection

The percentage of iron rejection (R) for different membranes was calculated from the formula,

$$R=\left(1-\frac{C^1}{C^2}\right)100\%$$

(5)

where C¹ is concentration after permeation and C² is concentration before permeation.

For this, 0.025 g of iron nitrate was mixed with 2000 mL of de-ionized water and stirred for 20 min. Iron rejection was performed for 240 min at a constant 5 bar pressure. At each 10 min interval, filtered water was weighed to calculate water flux and observe fouling.

ICP testing identified the presence of iron before rejection as 1.799 mg/L. After rejection, the sample A membrane had an iron presence 0.100 mg/L. Similarly, iron rejection using sample B membrane produced an iron presence of 0.110 mg/L and sample C, 0.076 mg/L.

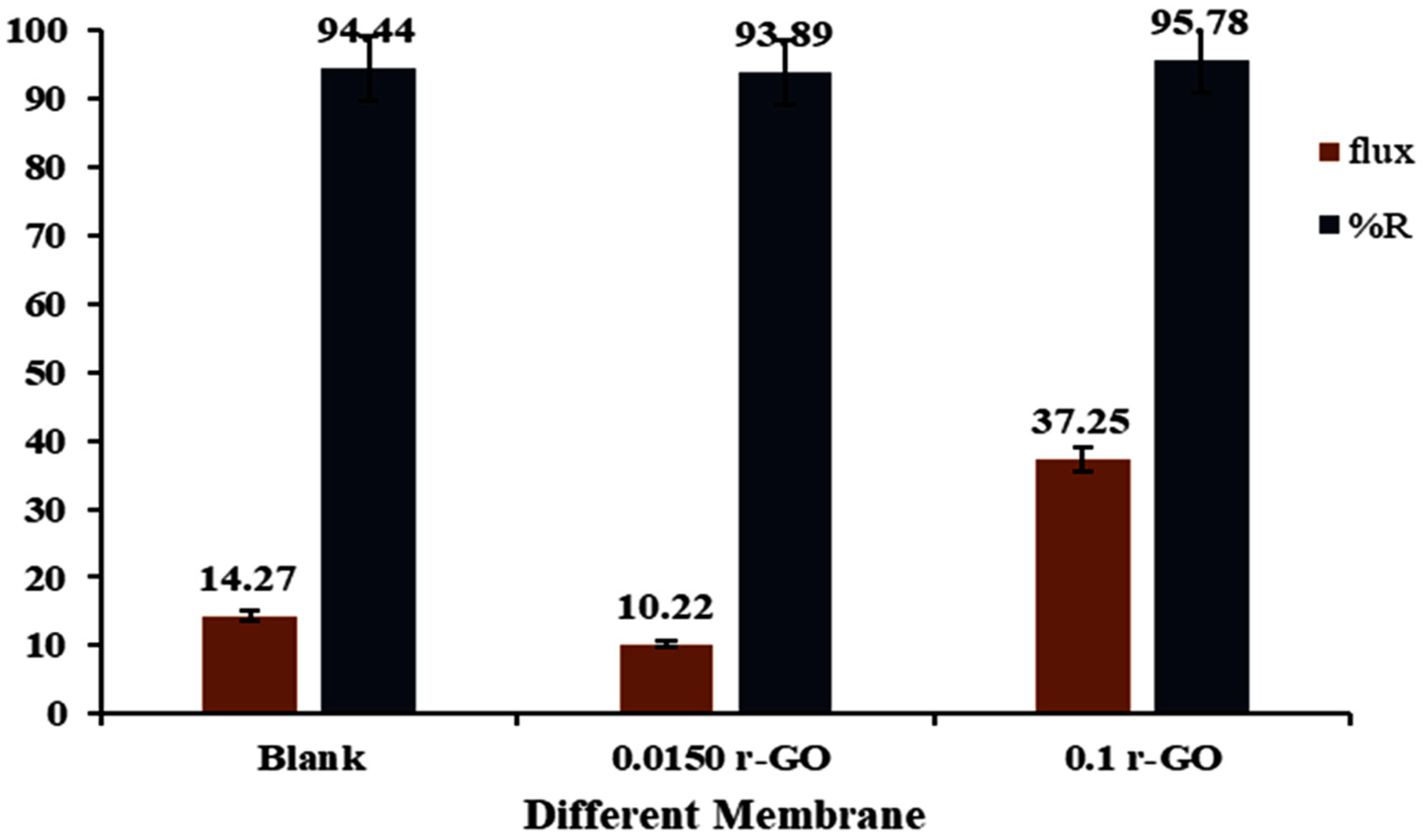

The percentage of rejection by the sample A, B, and C membranes was 94.44%, 93.88%, and 95.77%, respectively (Figure 13) [21].

4. Discussion

The mass production of reduced graphene oxide sheets using physical methods, such as pulse laser ablation (PLA) or physical vapor deposition (PVD), at a low cost is extremely challenging. Chemical methods, such as chemical vapor deposition (CVD), are hazardous to the environment and human health. Nowadays, reduced graphene oxide nanomaterials are of interest to researchers in water filtration applications due to their nanosized pores; however, a cost-effective and eco-friendly synthesis method is still required.

In this water filtration study, reduced graphene oxide nanomaterials were biologically synthesized using Callistemon viminalis leaf extract. Here, the phenolic compounds and carboxylic acid present in leaf extract act as single-sheet separation and capping agents in the graphene oxide. Reduced graphene oxide nanomaterials are more hydrophilic in nature and can be used for iron metal removal from drinking water. Higher iron rejection and water flux were obtained with higher amounts of reduced graphene oxide in the membrane, which predicts that a higher volume of water can be obtained at the time of nanofiltration. At the nanoscale level, nanofiltration guarantees iron removal due to nanoscale pores present in membrane, but more research is needed to cost-effectively commercialize this process. To understand the stability of membrane after several times of use, further research is required, but all commercially available membranes have drawbacks after reuse. Our findings show that mass production of reduced graphene oxide nanomaterials could be possible in the near future for eco-friendly heavy metals removal from drinking water at a low cost, thereby overcoming the challenges posed by physical and chemical methods in mass production for reduced graphene oxide nanomaterials.

5. Conclusions

In this research, the biosynthesis of reduced graphene oxide nanomaterials from Callistemon viminalis leaf extract was discussed. Reduced graphene oxide nanomaterials were analyzed using FE-SEM-EDX, X-RD, FTIR, TEM, and SAED diffraction patterns, confirming its biological synthesis. FTIR confirmed the presence of phenolic compounds at 1321 and 1381 cm⁻¹ wave numbers and the presence of carboxylic acid at 3255 cm⁻¹. Reduced graphene oxide membrane filters were prepared by varying the content of reduced graphene oxide nanomaterials in PSF-DMF membranes. The contact angle with a high content of reduced graphene oxide nanomaterials (i.e., sample C) was 74.2°, whereas that for the PSF-DMF membrane (i.e., sample A) and the one with a low content of reduced graphene oxide nanomaterials (i.e., sample B) were 79.4° and 79.6°, respectively, demonstrating the hydrophilicity of increasing the reduced graphene oxide nanomaterials content in the membrane. Atomic force microscopy showed far less surface roughness on the front side for the PSF-DMF (i.e., sample A) membrane than with a higher content of reduced graphene oxide (i.e., sample C) and lower content of reduced graphene oxide (i.e., sample B). However, surface roughness on the back side of the sample A membrane was higher than that of samples B and C. EDX analysis showed a 0.2 wt % of iron in the sample with a lower content of reduced graphene oxide nanomaterials after iron rejection compared with a 1.7 wt %of iron in the sample with a higher content reduced graphene oxide nanomaterials after iron rejection. Iron rejection of the sample with a higher content of reduced graphene oxide nanomaterials was highest at 95.77%.
