Electrochemical Reduction of CO₂ to CO on Hydrophobic Zn Foam Rod in a Microchannel Electrochemical Reactor

Abstract

Due to CO₂ mass transfer limitation as well as the competition of hydrogen evolution reaction in electroreduction of CO₂ in the aqueous electrolyte, Zn-based electrodes normally exhibit unsatisfying selectivity for CO production, especially at high potentials. In this work, we introduced a zinc myristate (Zn [CH₃(CH₂)₁₂COO]₂) hydrophobic layer on the surface of zinc foam electrode by an electrodeposition method. The obtained hydrophobic zinc foam electrode showed a high Faradaic efficiency (FE) of 91.8% for CO at −1.9 V (vs. saturated calomel electrode, SCE), which was a remarkable improvement over zinc foam (FE_CO = 81.87%) at the same potentials. The high roughness of the hydrophobic layer has greatly increased the active surface area and CO₂ mass transfer performance by providing abundant gas-liquid-solid contacting area. This work shows adding a hydrophobic layer on the surface of the catalyst is an effective way to improve the electrochemical CO₂ reduction performance.

1. Introduction

The electrochemical conversion of CO₂ to industrially valuable compounds under mild conditions has been considered as a promising way to turn wastes into treasures [1,2]. Therefore, the transformation and utilization of CO₂ has become the focus of research for researchers. Numerous materials have been identified to be able to reduce CO₂ in liquid electrolytes, whereas how to improve catalyst activity and product selectivity still needs to be explored in depth. The activity is usually restricted by inefficient catalysts and low CO₂ solubility in neutral pH electrolytes. The inferior product selectivity is the result of multiple proton-coupled multiple-electron transfer (PCET) processes and the competitive hydrogen evolution reaction (HER) [3]. Based on that, finding a catalyst with excellent performance, suppressing HER, and improving CO₂ mass transfer have been the directions for many researchers.

Some researchers [4,5,6,7] have found that Au and Ag possess high CO selectivity in the CO₂ electrochemical reduction reaction (CO₂ERR), however, these two metals are not suitable for widespread industrial application due to their high price. Zn-based materials as a non-precious metal get a lot of attention due to good CO selectivity from CO₂ [3,8,9]. Many studies get highly efficient catalysts by changing the surface structure of the Zn-based catalyst [3,10,11,12]. Yu et al. [11] prepared a porous Zn electrode on zinc flake using an electrodeposition method from Zn(NO₃)₂, and this catalyst exhibited a good CO₂ electroreduction performance with a CO Faradaic efficiency (FE_CO) of about 80% at −1.1 V (vs. RHE). Guo et al. [13] fabricated a fiber zinc-like catalyst, achieving high electrochemical activity and a FE_CO of 73% at −1.2 V (vs. RHE).

The CO₂ mass transfer limitation leads to the low current density and poor efficiency of CO₂ reduction [14]. Researchers have made a lot of efforts on how to weaken the mass transfer limitation of CO₂. For example, the gas diffusion electrode was designed to enhance the mass transfer between the gas-liquid-solid interface [15]. Not only that, adding the hydrophobic layer on the surface of catalyst is also an effective way to increase the CO₂ mass transfer [16,17].

Recently, the microchannel reactor has obtained the attention of many scientific researchers due to its remarkable mass and heat transfer performance [18,19]. The application of the microchannel reactor in the CO₂ERR can increase the mass transfer of CO₂, thereby increasing the selectivity of the required products [20].

In this work, we prepared a hydrophobic zinc foam to improve the activity of the electrode. Inspired by Liu et al. [21], the cerium myristate superhydrophobic layer was added to magnesium alloy to enhance corrosion resistance and Yang et al. [22] improved corrosion inhibition by preparing a super-hydrophobic nickel film on copper substrate. After electrodepositing for different time (0.5, 5, and 10 min), we get catalysts with different degrees of hydrophobicity. CO₂ERR is a gas-consumption reaction, and occurs at the liquid-solid interface, where the transfer of proton, electrons, and CO₂ molecules is carried out [23,24,25]. Hydrophobic zinc foam can therefore increase the concentration of CO₂ at the electrode interface, improve the mass transfer of CO₂ [16], and weaken the hydrogen evolution reaction [26].

2. Materials and Methods

2.1. Materials and Chemicals

Zinc rod (99.99%, 1.0 mm in diameter), potassium Bicarbonate (99.99%, Macklin, Shanghai, China), sulfuric acid (95.0~98.0%, Sinopharm Reagent, Shanghai, China), ethanol (99.5%, Sinopharm Reagent), ammonium sulfate (≥99.0%, Sinopharm Reagent, Shanghai, China), zinc sulfate heptahydrate (99.995%, Aladdin, Shanghai, China), myristic acid (≥99.5%, Macklin, Shanghai, China), and zinc nitrate hexahydrate (≥99.0%, Damas-beta, Shanghai, China). Platinum gauze (Pt315) and sandpaper (5000 mesh) were purchased from Tianjin ida. Saturated calomel electrode (CHI150, SCE) was acquired from CH instruments. All of the solutions were prepared using ultrapure water. A CHI660E electrochemical workstation (CH Instruments, Shanghai, China) was used to conduct all of the electrochemical processes.

2.2. Preparation of Zinc Foam and Hydrophobic Zinc Foam

Two high-purity zinc rods were first mechanically polished utilizing sand paper, followed by sonication in 0.5 M H₂SO₄, ethanol and pure water in sequence for 10 s, 5 min, and 5 min, respectively, to remove surface impurities. Then, the two zinc rods as work electrode and counter electrode were immersed in the electrolyte, which contains 1.5 M (NH₄)₂SO₄ and 0.1 M ZnSO₄·7H₂O. Later, the electrodeposition was conducted at −1 A cm⁻² for 0.5 min under a DC workstation. Then, the obtained zinc foam electrodes were rinsed with deionized water and put in a vacuum drying oven to dry overnight.

Zinc foam was used as anode and zinc rod was used as cathode to prepare the hydrophobic zinc foam (denoted as “HPB/Zn”). Additionally, 0.04 M myristic acid (CH₃(CH₂)₁₂COOH) and 0.01 M Zn (NO₃)₂·6(H₂O) as surface chemical modifier were added to the anhydrous ethanol under constant stirring until dissolved. Then, a DC voltage of −30 V was applied to the two electrodes. The electrodeposition time was set to 0.5, 5, and 10 min to prepare the HPB/Zn−1, HPB/Zn−2, HPB/Zn−3, respectively. After that, the electrodes were rinsed with distilled water and dried in a vacuum oven to dry the whole night. Schematic diagrams of the electrodeposition process of zinc foam and hydrophobic zinc foam were shown in Figure 1.

2.3. Electrocatalytic Tests and Product Inspection

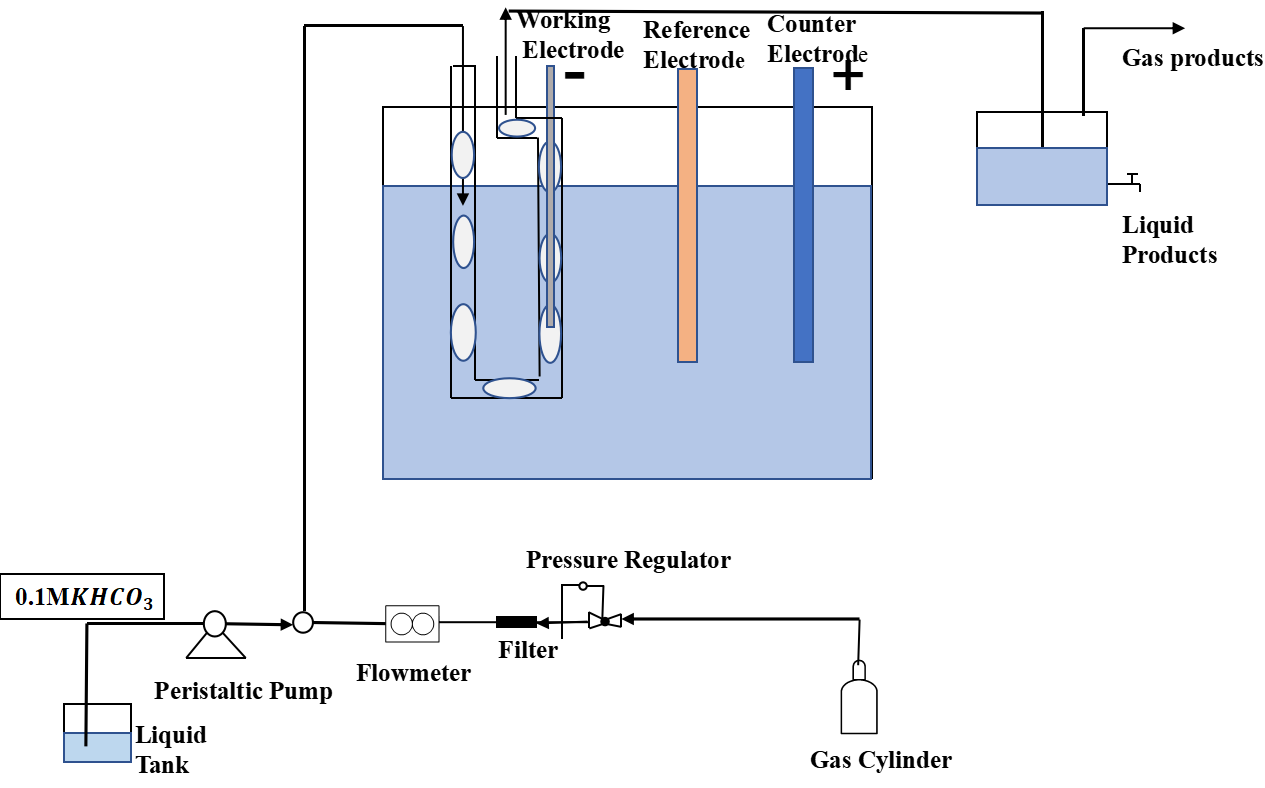

CO₂ERR was conducted in a single-chamber and three-electrode membrane microchannel reactor consisting of a pre-mixing section (5.0 m circular microchannels with an inner diameter of 1.0 mm used to pre-saturate CO₂ in the electrolyte) and a reaction section (cylindrical cation exchange membrane tube, Nafion 117) with the working electrode located in the center of the Nafion 117 membrane tube (Figure 2). The electrolyte, which acts as both catholyte and anolyte at the same time, was separated by the Nafion 117 membrane tube (Dupont). The Nafion117 membrane was selected in this research due to its high proton conductivity, good mechanical strength, electrochemical and chemical stability. The function of the membrane is to separate the anode and cathode chambers, prevent cathode reduction products from being oxidized, prevent the mixing of the gas products of the anode and the cathode, carry out the proton transfer to make the reaction between the poles proceed smoothly, and maintain the battery circuit. The SCE and Pt gauze worked as the reference electrode and counter electrode, respectively. Before each experiment with Zn-based catalysts, the CO₂ from a gas cylinder was mixed with 0.1 M KHCO₃ and then passed into a 5-m-long polyethylene pre-mixing tube for full pre-saturation (gas and liquid flow rate were 20 and 10 mL min⁻¹, respectively. Then, the pre-saturated electrolyte was passed into the microchannel for the electrochemical test, the carbon dioxide bubbles directly contact the catalyst in the microchannel to reduce the contact distance and improve the mass transfer. The experiments were performed under a constant pressure condition with a potential range of −1.5 to −2.5 V, the potentials were measured against SCE. Gaseous products were detected by an online gas chromatograph (Synpec M3000) equipped with a thermal conductivity detector (TCD).

3. Results and Discussion

3.1. Characterization of the Electrode

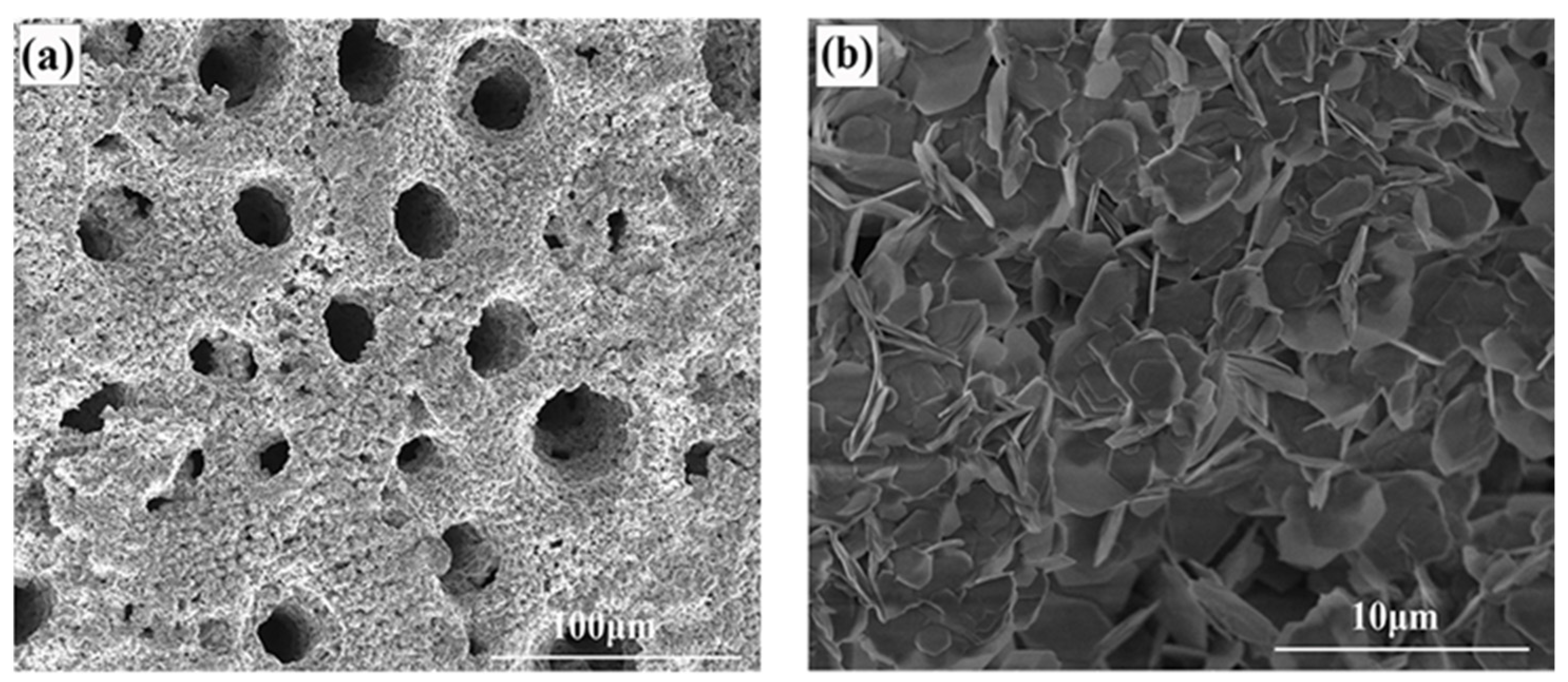

The scanning electron microscopy (SEM) images of zinc foam were shown in Figure 3. As shown in the images, the zinc foam showed numerous honeycomb holes. After magnifying the pore wall, it can be found that the pore wall was composed of many crisscrossed sheet-like Zn. This rough surface structure can increase the active surface area of the catalyst, which was in favor of accelerating the rate of CO₂ERR at low potential [20].

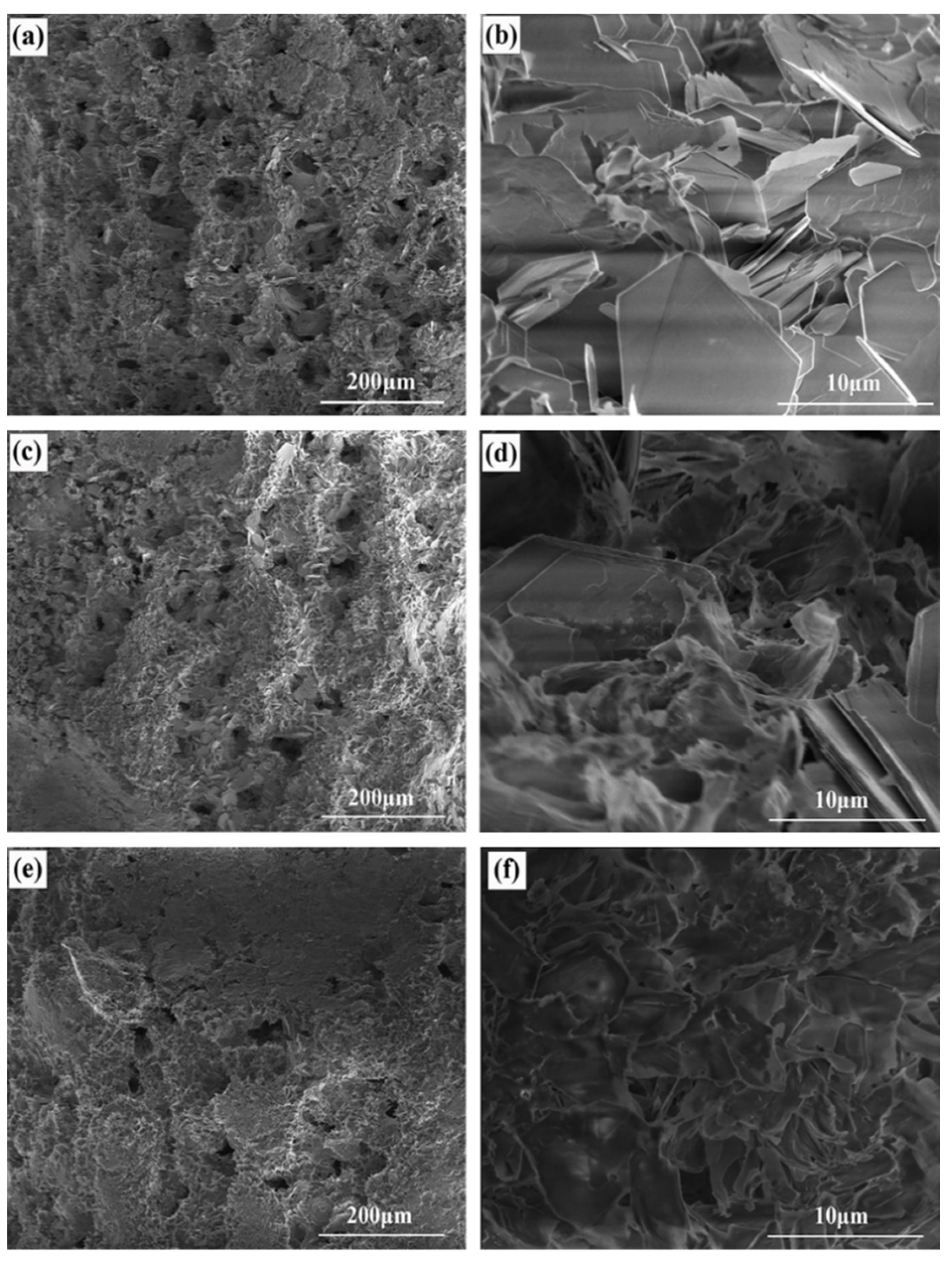

Figure 4 showed the SEM image of the HPB/Zn electrodes with different electrodeposition times, which demonstrated that the hydrophobic layer was successfully grown on the zinc foam electrode, and gradually increased with the increasing deposition time. In the picture, it is not difficult to find that the pore size of HPB/Zn−3 was smaller than that of HPB/Zn−1. Judging from the law that has been obtained, we can guess that if the electrodeposition time continues to increase, the pore size of the electrode will continue to decrease, resulting in a reduction in active surface area, which ultimately leads to a lower selectivity of the CO product. Therefore, this work did not continue to study the electrode obtained with a longer deposition time.

However, the smaller pore size may mean a lower CO₂ERR reaction rate and poorer CO product selectivity. Under high magnification, it could be seen that the HPB/Zn and the zinc foam had the same internal structure.

Table 1. Hydrophobic results of catalysts for different electrodeposited times.

Electrodeposition Time	0	0.5 min	5 min	10 min
Hydrophobic result	All infiltrated
Water contact angle	Almost zero	136°	141°	149°

showed the contact angles (CA) for different hydrophobic electrodes. The zinc foam reached a hydrophilic state, with the CA of almost zero. The HPB/Zn−3 showed the largest CA of 147° compared with HPB/Zn−1 and HPB/Zn−2. The CA results proved that just a small part of the hydrophobic surface was wetted by the electrolyte, thus the CO₂ gas was trapped between the surface of the hydrophobic electrode and electrolyte, forming a large number of three-phase interfaces [26], which is consistent with the results displayed in the SEM images.

3.2. The Formation Mechanism of the Hydrophobic Layer

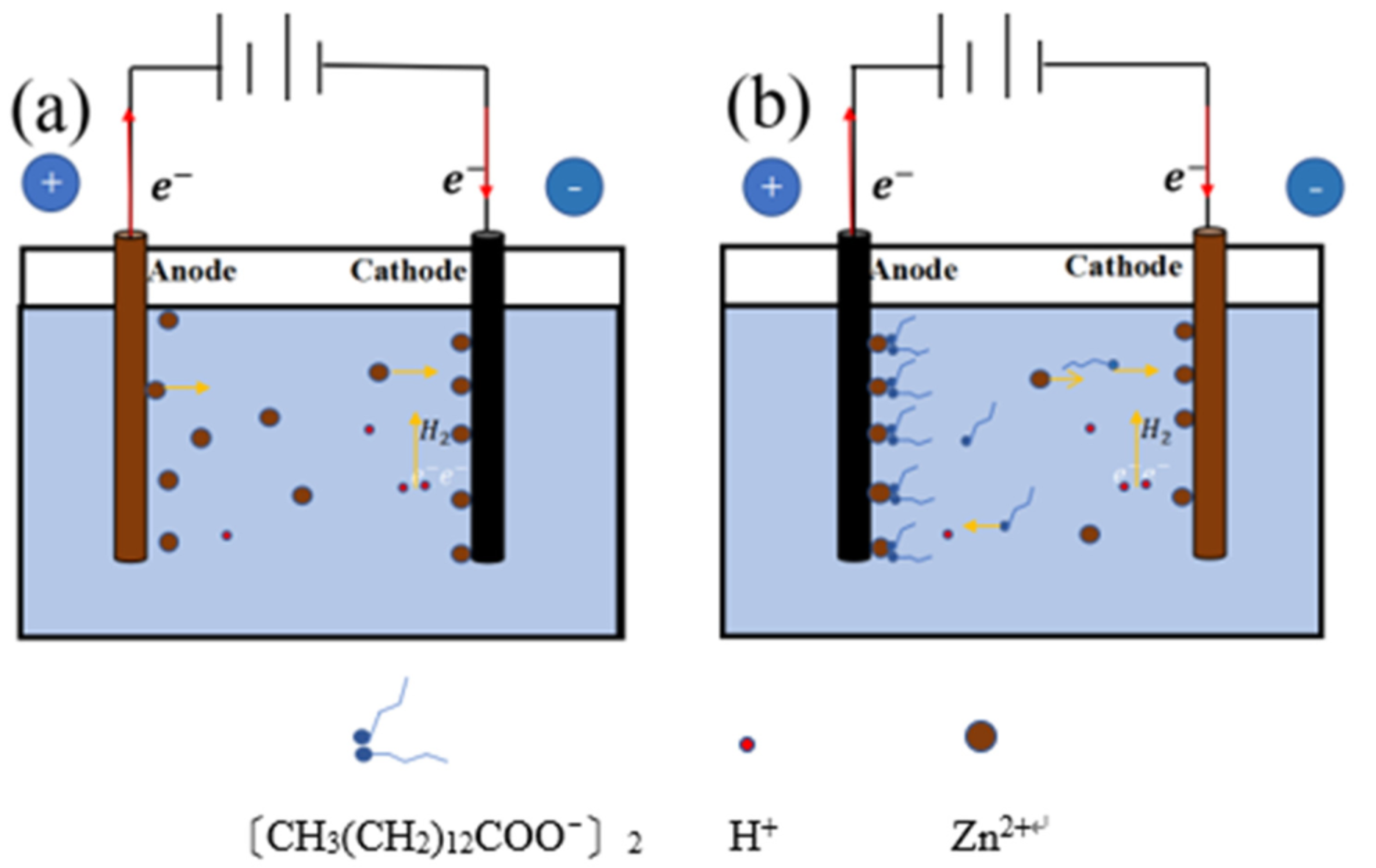

Figure 1a showed the formation mechanism of zinc foam. After power up, zinc ions moved to the cathode and were reduced to zinc on the zinc rod. At the same time, the free H⁺ ions near the cathode discharged to form H₂ made the zinc foam have a loose and porous structure. The reaction formulas of the cathode are as follows:

Zn²⁺ + 2e⁻ → Zn

(1)

H⁺ + 2e⁻ → H₂↑

(2)

Figure 1b showed the formation mechanism of hydrophobic zinc foam. At first, the CH₃(CH₂)₁₂COOH ionized to form lots of free H⁺ ions and CH₃(CH₂)₁₂COO⁻ ions. At the same time, the free H⁺ ions around the surface of cathode got electrons to produce H₂ and then separated from the system, leaving abundant CH₃(CH₂)₁₂COO⁻ [21]. CH₃(CH₂)₁₂COO⁻ moved to the anode under the imposed DC voltage between the two electrodes and reacted with the zinc ions (Zn²⁺) to generate the zinc myristate (Zn(CH₃(CH₂)₁₂COO)₂) on zinc foam electrode. The presence of low-free-energy functional groups of -CH₂ and -CH₃, and the loose morphology led to the hydrophobic zinc foam with excellent hydrophobic property [22]. The reaction formula of the anode is as follows:

Zn − 2e⁻ → Zn²⁺

(3)

Zn²⁺ + 2CH₃(CH₂)₁₂COOH → Zn(CH₃(CH₂)₁₂COO)₂ + 2H⁺

(4)

3.3. Performance on CO₂ Reduction

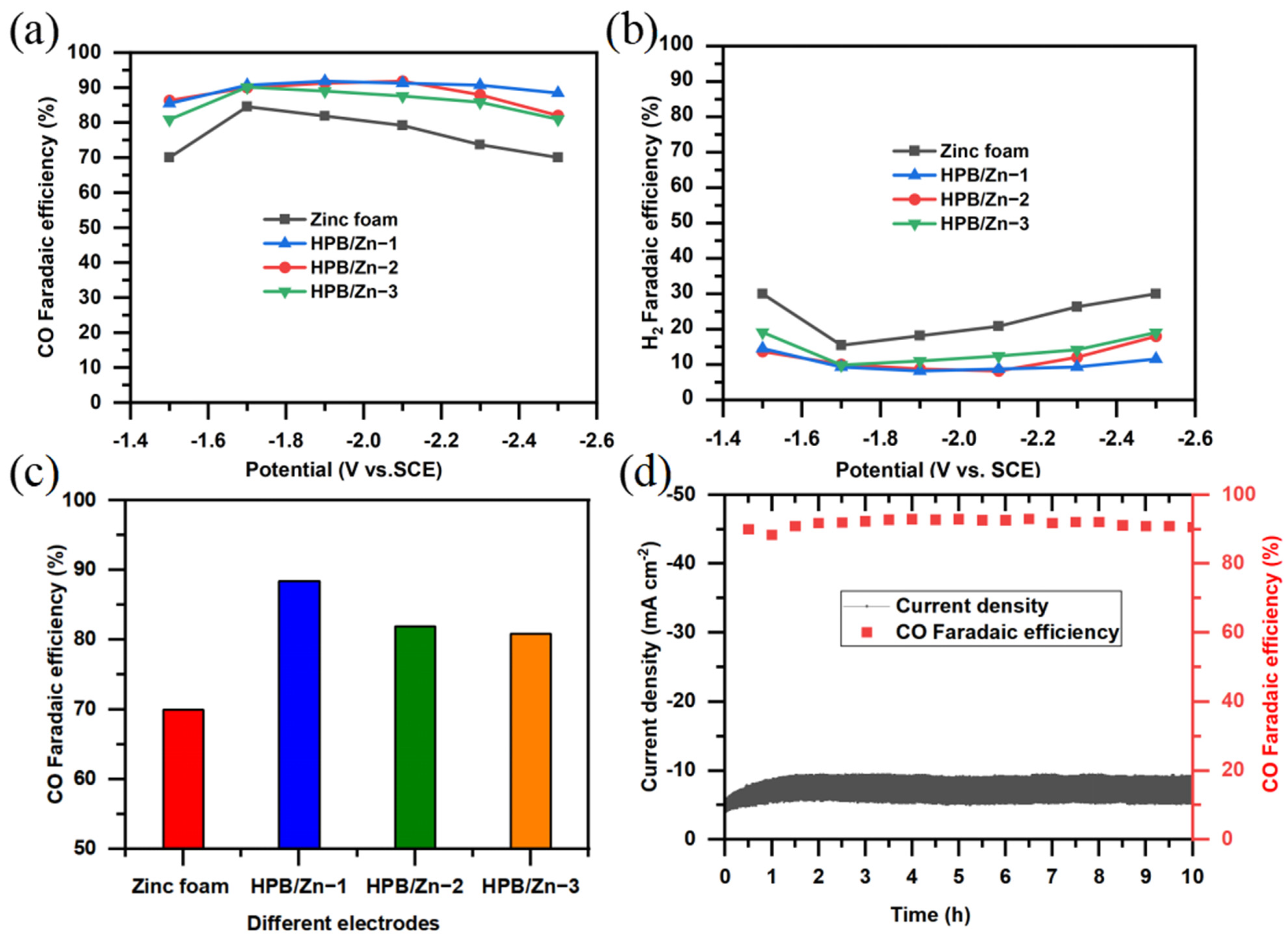

To find out the influence of electrodes wettability on the CO₂ERR performance, the performance of zinc foam and HPB/Zn were experimented in a microchannel electrochemical device. As shown in Figure 5a, the HPB/Zn showed a higher selectivity for CO production (FE_CO > 80%) at −1.5~−2.5 V (vs. SCE) compared with zinc foam. The highest FE_CO of HPB/Zn−1, HPB/Zn−2, and HPB/Zn−3 were 91.8%, 91.8%, and 90.12%, respectively, at −1.9 V (vs. SCE). However, the zinc foam electrode showed a lower selectivity for CO production (FE_CO = 81.87%, at −1.9 V vs. SCE). When the potential was below −1.7 V (vs. SCE), FE_CO of zinc foam began to decrease, but the hydrophobic zinc foam still maintained relatively stable at high potential. The hydrophobic zinc foam improved the selectivity of CO as it can facilitate the transport of CO₂ gas to the catalyst layer through the gas phase, reduce the distance of the liquid electrolyte required for the diffusion of CO₂ gas to the catalyst layer, which accelerated the transport of CO₂ to the catalyst and increased the steady concentration of CO₂ near the catalyst [27]. The decreased selectivity of CO on zinc foam electrode at high potential may be ascribed to the insufficient supply of CO₂. The ${\mathrm{FE}}_{{\mathrm{H}}_2}$ of HPB/Zn−1, HPB/Zn−2, and HPB/Zn−3 were shown in Figure 5b. The lower ${\mathrm{FE}}_{{\mathrm{H}}_2}$ compared to the zinc foam electrode, which means that the hydrogen evolution reaction was greatly suppressed after hydrophobic modification. HPB/Zn−1 showed the highest FE_CO compared with the other three catalysts at a potential range between −1.5 and −2.5 V (vs. SCE) (Figure 5c). The high efficiency of HPB/Zn−1 can be probably ascribed to its unique morphology and excellent hydrophobic effect. The hydrophobic surface inhibited the HER and created rich three-phase contact points that provided sufficient CO₂ [23].

For hydrophilic electrodes, the side reaction of hydrogen reduction is dominant at high current density, as the direct HER is more kinetically favorable than CO₂ reduction and the concentration is much larger than the dissolved CO₂ [28]. As shown in Figure 5c, the hydrophobic zinc foam successfully suppressed the hydrogen evolution reaction at a relatively high current density. The FE_CO was 88.46% at −13 mA cm⁻², whereas FE_CO of zinc foam was only 69.98%, which further illustrated the beneficial effects of hydrophobic modification. To assess the long-term performance of HPB/Zn−1 electrode, a 10 h stability test was conducted at −1.9 V (vs. SCE). As shown in Figure 5d, the current density was stable at ~6 mA cm⁻² and the FE_CO (~91%) remained essentially unchanged over 10 h. This result showed that the catalyst layer is stable throughout the long-term test.

Let us assume the presence of gaseous reactant inside the electrode layer, leading to an insufficient electrical contact between the HPB/Zn electrode and the electrolyte solution. To verify this guess, we compared the electrochemically active surface area (ECSA) of zinc foam and hydrophobic zinc foam. The ECSA and the electrochemical double-layer capacitance is in proportion, which represents the area of an electrode that is wetted and accessible to the electrolyte [27] and can be measured by cyclic voltammetry (CV) [29]. The experiment was carried out in the N₂-saturated 0.1 M KHCO₃ electrolyte solution. The scan rates were 25, 50, 75, 100, 125, 150, 175, and 200 mV/s, respectively. The scanning voltage range was −1.15~−1.3 V (vs. Ag/AgCl). In this voltage range, there is no redox reaction and electron transfer, only the charge and discharge of the electric double layer on the electrode surface occurs. The results of CV were shown in Figure 6.

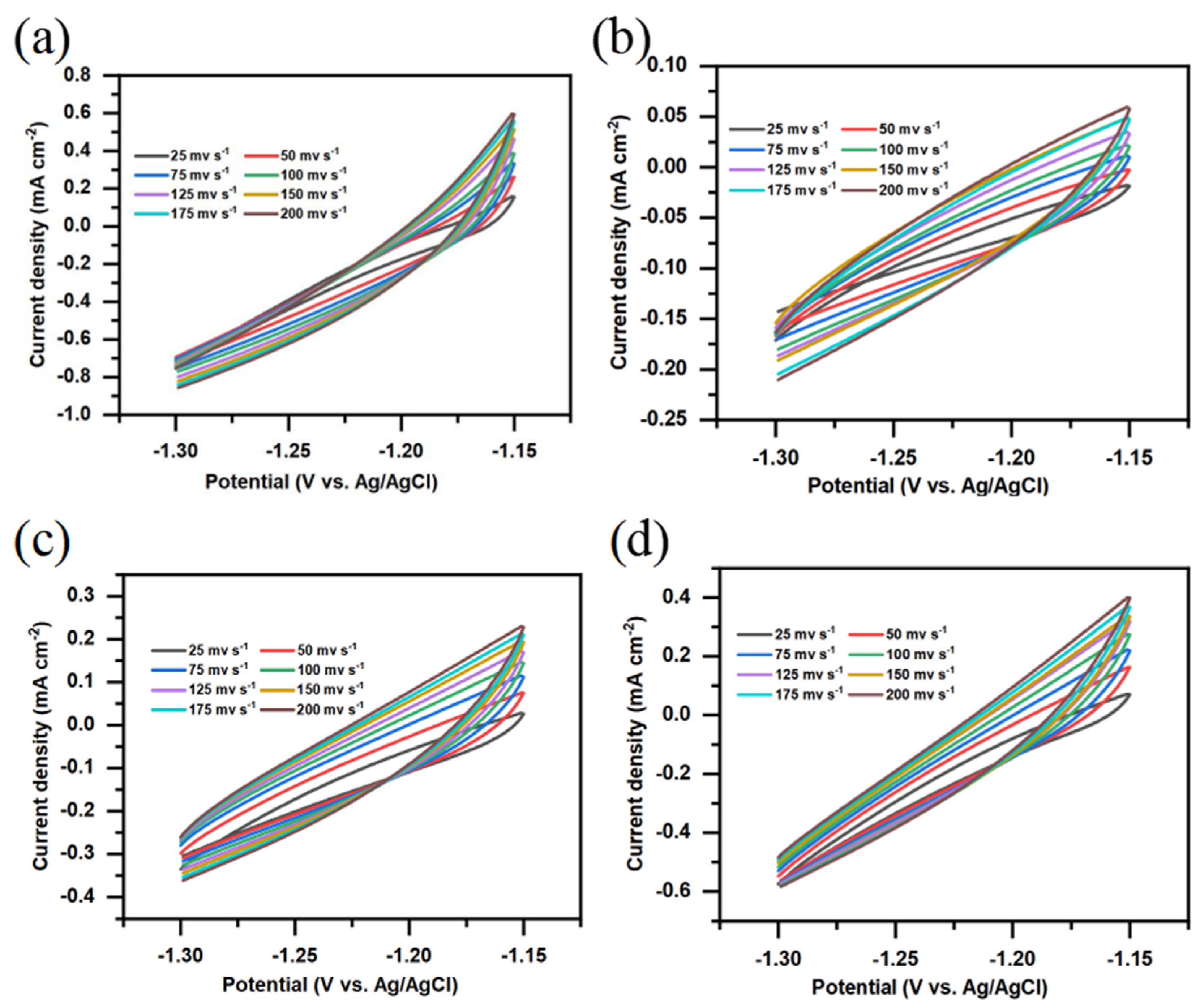

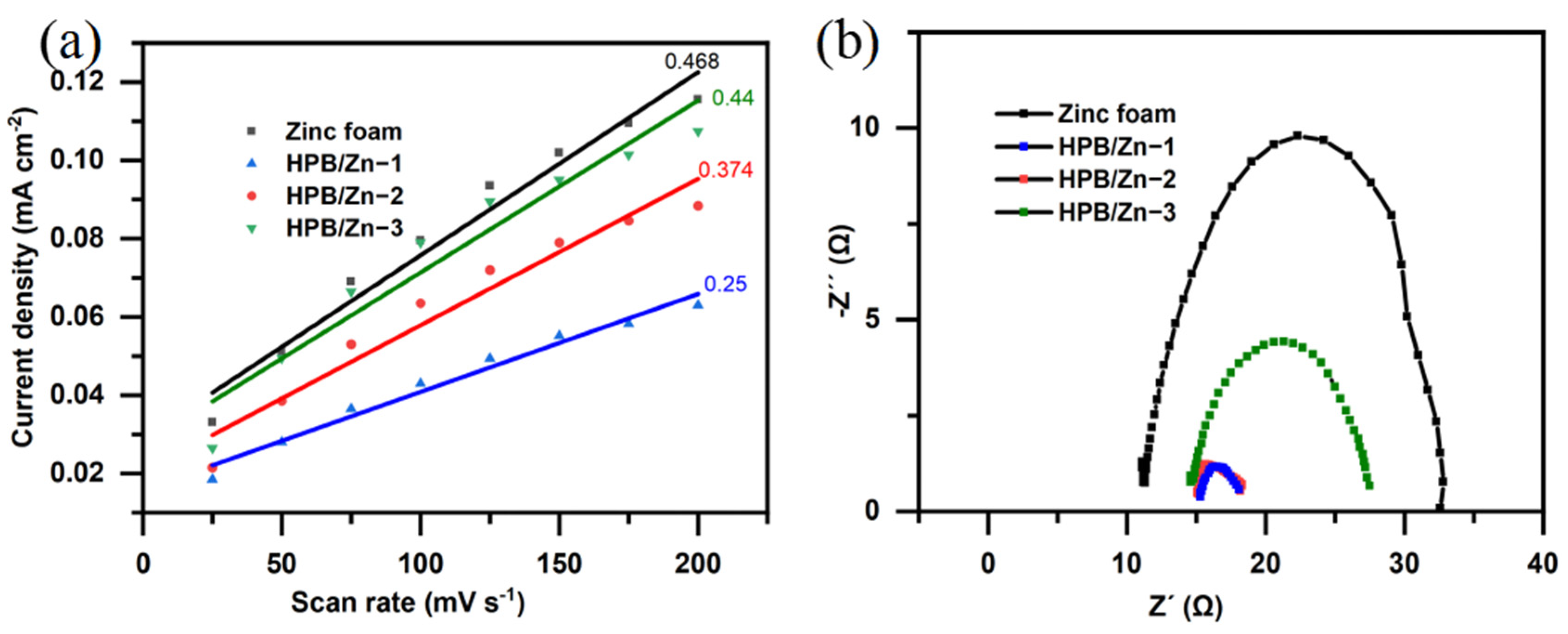

The double-layer charging current was plotted against the scan rate and the slope of the linear regression gave the double-layer capacitance, as shown in Figure 7a. The capacitances of the hydrophobic zinc foam were all lower than the zinc foam, for example, the capacitance of HPB/Zn−1 is 0.25 mF cm⁻², which was almost half of the zinc foam (0.468 mF cm⁻²). These decreased capacitances were attributed to the reduced interfacial area between the solid catalytic surface and liquid electrolyte solution, supporting the idea of its increased triple-phase reaction interfaces. Figure 7b indicates that the HPB/Zn electrodes had a smaller charge-transfer resistance (R_ct), the R_ct order of these electrodes was 2.8 Ω (HPB/Zn−1) < 3.1 Ω (HPB/Zn−2) < 12.9 Ω (HPB/Zn−3) < 21.5 Ω (zinc foam). This conclusion was in connection with a faster mass transfer of the CO₂, which was consistent with former results [26].

4. Conclusions

To sum up, we successfully prepared hydrophobic zinc foam electrodes by the electrodeposition method, which exhibited high CO selectivity. The FE_CO can reach 91.8% at a potential of −1.9 V (vs. SCE) with a current density of −5.16 mA cm⁻². Under relatively higher current density (−13 mA cm⁻²), it could still achieve high FE_CO of 88.46%. A long-term stability test on the hydrophobic electrode found that the current density kept steady over 10 h in −1.9 V vs. SCE. The improved electrocatalytic selectivity of electrode was due to the enlarged number of triple-phase active sites at the electrode-eletrolyte interface. This study provides a feasible way to improve the selectivity of CO₂ electrochemical reduction by tuning the wettability.
