Numerical Study of Electrostatic Desalting Process Based on Droplet Collision Time
Abstract
:1. Introduction
2. Materials and Methods

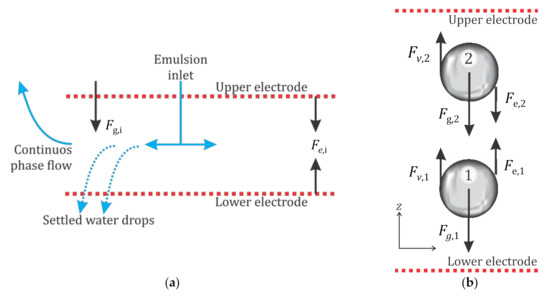

2.1. Force Balance
2.2. Mathematical Modeling
2.2.1. Assumptions
- Isothermal system, i.e., there are no gradients of temperature.
- Constant physical properties, each fluid phase is Newtonian and incompressible.
- Non-slip and impermeable conditions were applied for all the internal walls and standard wall functions were used.
- Oil liquid phase is considered as a continuous primary phase and water is considered as the dispersed secondary phase.
- The multiphase system is modeled with a mixture approach which solves a single set of equations: the continuity, the turbulent Navier–Stokes equations and the realizable turbulence model, which showed the best convergence behavior and that is being used recently in many complex flow systems.
- A conservation equation for interfacial area concentration is used as an approximation to take into account the coalescence and break up of droplets due to the electrostatic and turbulence effects to compute a droplet t diameter distribution.
- Coalescence terms depend on the frequency of collision, which is taken as the inverse of the time between collisions, which in turn is obtained from the previous droplet collision study.
2.2.2. Governing Equations
2.2.3. Interfacial Area Concentration Model
2.2.4. Realizable Turbulence Model
2.2.5. Boundary Conditions and Solution

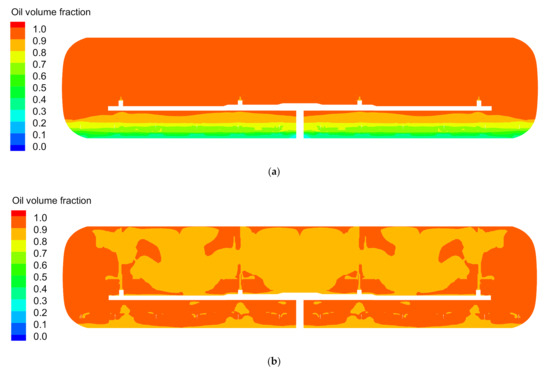

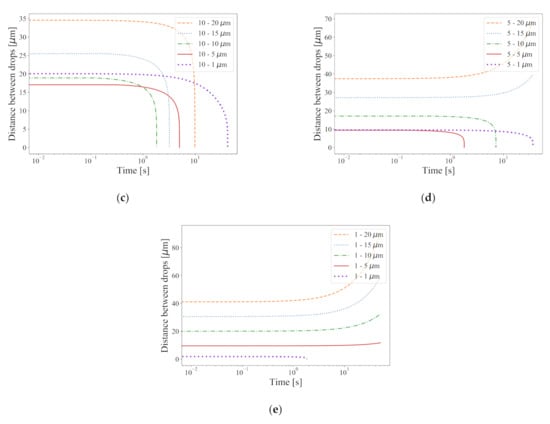

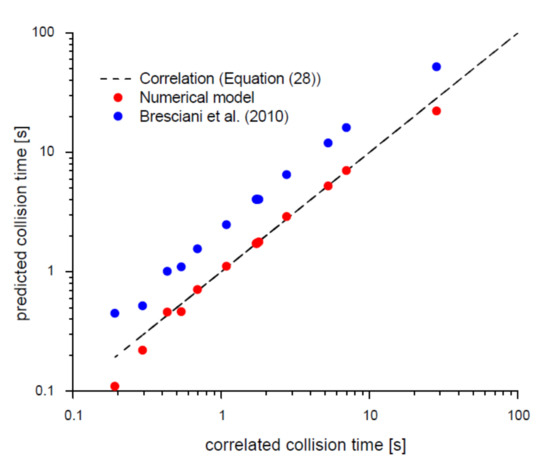

3. Results and Discussion
4. Conclusions

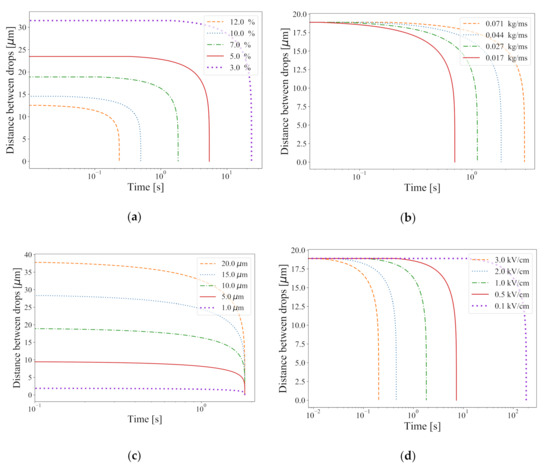

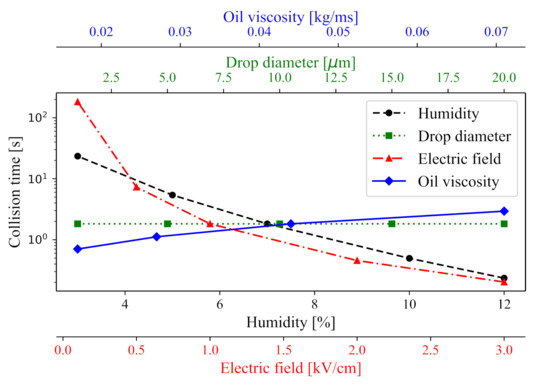

- The time of collision varies with an inverse relationship to the third power of the water content, which indicated to be the most significant variable, valid in the range of water content of 3–12%.
- The time of collision varies inversely to the square of the electrostatic field (0.1 < E < 3 kV/cm), while it has a proportional nearly linear relationship to the oil viscosity (0.017 < µo < 0.071 Pa s).
- The droplet size has no influence on the time of collision within the range of droplet sizes analyzed in this work (1 µm up to 20 µm).
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Abdel-Aal, H.K.; Aggour, M.; Fahim, M. Petroleum and Gas Field Processing, 1st ed.; Marcel Dekker, Inc.: New York, NY, USA, 2003. [Google Scholar]
- Al-Otaibi, M.B.; Elkamel, A.; Nassehi, V.; Abdul-Wahab, S.A. A Computational Intelligence Based Approach for the Analysis and Optimization of a Crude Oil Desalting and Dehydration Process. Energy Fuels 2005, 19, 2526–2534. [Google Scholar] [CrossRef]
- Check, G.R.; Mowla, D. Theoretical and experimental investigation of desalting and dehydration of crude oil by assistance of ultrasonic irradiation. Ultrason. Sonochem. 2013, 20, 378–385. [Google Scholar] [CrossRef] [PubMed]
- Daniel-David, D.; Pezron, I.; Dalmazzone, C.; Noïk, C.; Clausse, D.; Komunjer, L. Elastic properties of crude oil/water interface in presence of polymeric emulsion breakers. Colloids Surf. A Physicochem. Eng. Asp. 2005, 270–271, 257–262. [Google Scholar] [CrossRef]
- Mahdi, K.; Gheshlaghi, R.; Zahedi, G.; Lohi, A. Characterization and modeling of a crude oil desalting plant by a statistically designed approach. J. Pet. Sci. Eng. 2008, 61, 116–123. [Google Scholar] [CrossRef]
- Lake, L.W.; Fanchi, J.R.; Society of Petroleum Engineers (U.S.). Petroleum Engineering Handbook; Society of Petroleum Engineers: Richardson, TX, USA, 2006. [Google Scholar]
- Bresciani, A.E.; Alves, R.M.B.; Nascimento, C.A.O. Coalescence of Water Droplets in Crude Oil Emulsions: Analytical Solution. Chem. Eng. Technol. 2010, 33, 237–243. [Google Scholar] [CrossRef]
- Sams, G.; Zaouk, M. Emulsion Resolution in Electrostatic Processes. Energy Fuels 2000, 14, 31–37. [Google Scholar] [CrossRef]
- Bresciani, A.E.; Mendonça, C.F.X.; Alves, R.M.B.; Nascimento, C.A.O. Modeling the kinetics of the coalescence of water droplets in crude oil emulsions subject to an electric field, with the cellular automata technique. Comput. Chem. Eng. 2010, 34, 1962–1968. [Google Scholar] [CrossRef]
- Abdul-Wahab, S.; Elkamel, A.; Madhuranthakam, C.R.; Al-Otaibi, M.B. Building inferential estimators for modeling product quality in a crude oil desalting and dehydration process. Chem. Eng. Process. Process Intensif. 2006, 45, 568–577. [Google Scholar] [CrossRef]
- Abdel-Aal, H.K.; Zohdy, K.; Abdelkreem, M. Waste Management in Crude Oil Processing: Crude Oil Dehydration and Desalting. Int. J. Waste Resour. 2018, 8, 326. [Google Scholar] [CrossRef]
- Aryafard, E.; Farsi, M.; Rahimpour, M.R. Modeling and simulation of crude oil desalting in an industrial plant considering mixing valve and electrostatic drum. Chem. Eng. Process. Process Intensif. 2015, 95, 383–389. [Google Scholar] [CrossRef]
- Aryafard, E.; Farsi, M.; Rahimpour, M.R.; Raeissi, S. Modeling electrostatic separation for dehydration and desalination of crude oil in an industrial two-stage desalting plant. J. Taiwan Inst. Chem. Eng. 2016, 58, 141–147. [Google Scholar] [CrossRef]
- Kakhki, N.A.; Farsi, M.; Rahimpour, M.R. Effect of current frequency on crude oil dehydration in an industrial electrostatic coalesce. J. Taiwan Inst. Chem. Eng. 2016, 67, 1–10. [Google Scholar] [CrossRef]
- Vafajoo, L.; Ganjian, K.; Fattahi, M. Influence of key parameters on crude oil desalting: An experimental and theoretical study. J. Pet. Sci. Eng. 2012, 90–91, 107–111. [Google Scholar] [CrossRef]
- Bansal, H.; Ameensayal. CFD analysis of horizontal electrostatic desalter influence of header obstruction plate design on crude-water separation. In Proceedings of the International Conference on Research in Electrical, Electronics & Mechanical Engineering, Dehradun, India, 26 April 2014. [Google Scholar]
- Shariff, M.M.; Oshinowo, L.M. Debottlenecking water-oil separation with increasing water flow rates in mature oil fields. In Proceedings of the 5th Water Arabia 2017 Conference and Exhibition, Al-Khobar, Saudi, 17–19 October 2017. [Google Scholar]
- Ilkhaani, S. Modeling and Optimization of Crude Oil Desalting. Master’s Thesis, University of Waterloo, Waterloo, ON, Canada, 2009. [Google Scholar]
- Xu, X.; Yang, J.; Gao, J. Effects of Demulsifier Structure on Desalting Efficiency of Crude Oils. Pet. Sci. Technol. 2006, 24, 673–688. [Google Scholar] [CrossRef]
- Mohammadi, M. Numerical and experimental study on electric field driven coalescence of binary falling droplets in oil. Sep. Purif. Technol. 2017, 176, 262–276. [Google Scholar] [CrossRef]
- Alnaimat, F.; Alhseinat, E.; Banat, F.; Mittal, V. Electromagnetic–mechanical desalination: Mathematical modeling. Desalination 2016, 380, 75–84. [Google Scholar] [CrossRef]
- Ascher, U.M.; Petzold, L.R. Computer Methods for Ordinary Differential Equations and Differential-Algebraic Equations, 1st ed.; SIAM: Philadelphia, PA, USA, 1 August 1998; ISBN 0898714125. [Google Scholar]
- Manninen, M.; Taivassalo, V.; Kallio, S. On the mixture model for multiphase flow. Tech. Res. Cent. Finl. 1996, 288, 67. [Google Scholar]
- Hibiki, T.; Ishii, M. One-group Interfacial Area Transport of Bubbly Flows in Vertical Round Tubes. Int. J. Heat Mass Transf. 2000, 43, 2711–2726. [Google Scholar] [CrossRef]
- Azbel, D.; Athanasios, I.L. A mechanism of liquid entrainment. In Handbook of Fluids in Motion, 1st ed.; Cheremisino, N., Ed.; Ann Arbor Science Publishers: Ann Arbor, MI, USA, 1983. [Google Scholar]
- Shih, T.H.; Liou, W.W.; Shabbir, A.; Yang, Z.; Zhu, J. A New K-epsilon Eddy-Viscosity Model for High Reynolds Number Turbulent Flows—Model Development and Validation. Comput. Fluids 1995, 24, 227–238. [Google Scholar] [CrossRef]
- Dutta, A.; Ekatpure, R.; Heynderickx, G.; de Broqueville, A.; Marin, G. Rotating fluidized bed with a static geometry: Guidelines for design and operating conditions. Chem. Eng. Sci. 2010, 65, 1678–1693. [Google Scholar] [CrossRef]
- Chen, L.; Wu, S.; Lu, H.; Huang, K.; Zhao, L. Numerical Simulation and Structural Optimization of the Inclined Oil/Water Separator. PLoS ONE 2015, 10, e0124095. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Mouketou, F.; Kolesnikov, A. Modelling and Simulation of Multiphase Flow Applicable to Processes in Oil and Gas Industry. Chem. Prod. Process Model. 2018, 14, 1–16. [Google Scholar] [CrossRef]
Reference | Correlation/Ranges | Notable Results |
---|---|---|
Bresciani et al. [7] Bresciani et al. [9] | tc = 3:57 lµo−2a−5 l0 = (1.613x−1/3 − 2) a E[0 0.1−3 kV/cm], x[0.02−0.08], a[1−100 µm] | Increase in operational variables promotes desalting |
Abdul-Wahab et al. [10] | η1 = β0 + β1X1 + β2X2 + β3X3 + β4X4 + β5X5 + β12X1X2 + β13X1X3 + β14X1X4 + β15X1X5 + β23X2X3 + β24X2X4 + β25X2X5 + β34X3X4 + β35X3X5 + β45X4X5 + β1212X1X2(X1 − X2) + β1313X1X3(X1 − X3) + β1414X1X4(X1 − X4) + β1515X1X5(X1 − X5) + β2323X2X3(X2 − X3) + β2424X2X4(X2 − X4) + β2525X2X5(X2 − X5) + β3434X3X4(X3 − X4) + β3535X3X5(X3 − X5) + β123X1X2X3 η1 = 50.277 + 8.040X2 + 1.863X3 + 0.679X5 (R2 = 0.7) µo[0.017–0.048 Pa s], X1[55–70 °C], X2[1–3 min], X3[1–9 min], X4[1–15 mg/kg ], X5[1–10%] | Depends on settling time, mixing time and rate of dilution |
Al-Otaibi et al. [2] | N/A | Increase in operational variables promotes desalting |
Aryafard et al. [12] | No correlation Δp[137.895–206.843 Pa] E[1–2 kV/cm] x[0.03–0.06] | Decrease in pressure drop, increase in electric field and inlet rate of fresh water promote desalting |
Mohammadi [20] | E[1.4–2.8 kV/cm], a[600 µm], µo[0.015 Pa s] | Strong electric field Small distance of separation of droplets |
Kakhki et al. [14] | No correlation T[50 °C], x[0.03−0.05], f[50−400 Hz] | Increase in frequency promotes desalting |
Alnaimat et al. [21] | No correlation, no ranges given | Low flow and charged particle velocities High electric and magnetic fields |
Process Variable | Quantity |
---|---|
Electric field | 1 kV/cm |
Lower droplet radius | 10 |
Upper droplet radius | 10 |
Water density | 943 kg/m3 |
Oil density | 892 kg/m3 |
Gravitational constant | 9.81 m/s2 |
Oil viscosity | 0.044 Pa s |
Water volume fraction | 0.07 |
Oil dielectric constant | 2.2 ε0 |
Process Variable | Quantity | Units |
---|---|---|
Water volume fraction | 0.03, 0.05, 0.07, 0.10, 0.12 | - |
Electric field | 0.1, 0.5, 1, 2, 3 | kV/cm |
Oil viscosity | 0.017, 0.027, 0.044, 0.071 | Pa s |
Lower droplet and upper droplet let radii | 1, 5, 10, 15, 20 |

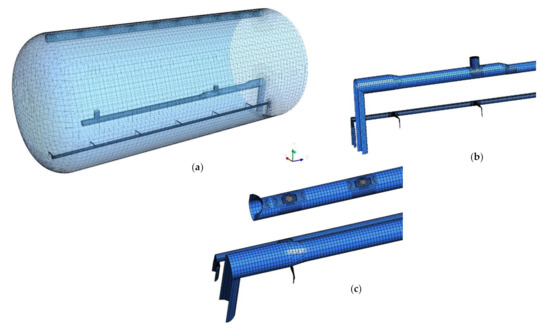

Process Variable | Quantity |
---|---|
Length | 15.24 m |
Internal diameter | 3.66 m |
Water volume fraction | 0.10 |
Emulsion flow at inlet | 0.126 m3/s |
Electric field | 1 kV/cm |
Oil viscosity | 0.044 Pa s |
Interfacial tension | 4 mN/m |

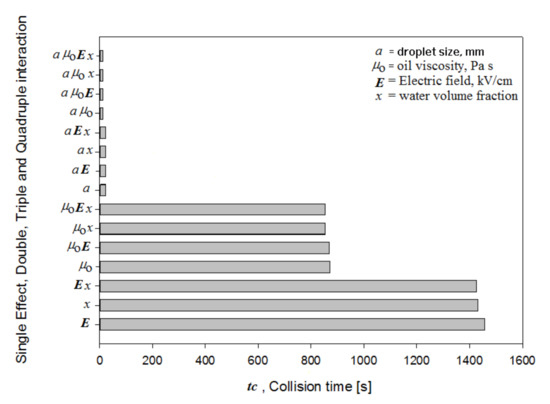

Term | |
---|---|
Droplet size, a | −29.250 ± 733.2 |
Viscosity of oil, µo | 878.900 ± 733.2 |
Electric field, E | −1463.200 ± 733.2 |
Water content, x | −1436.200 ± 733.2 |
Double interaction, aµo | −17.528 ± 733.2 |
Double interaction, aE | 29.180 ± 733.2 |
Double interaction, ax | 28.640 ± 733.2 |
Double interaction, µoE | −877.000 ± 733.2 |
Double interaction, µox | −860.800 ± 733.2 |
Double interaction, Ex | 1433.100 ± 733.2 |
Triple interaction, aµoE | 17.490 ± 733.2 |
Triple interaction, aµox | 17.168 ± 733.2 |
Triple interaction, aEx | −28.580 ± 733.2 |
Triple interaction, µoEx | 858.9 ± 733.2 |
Quadruple interaction, aµoEx | −17.130 ± 733.2 |
