Physical and Mechanical Characterization of Fibrin-Based Bioprinted Constructs Containing Drug-Releasing Microspheres for Neural Tissue Engineering Applications

Sharma, Ruchi; Kirsch, Rebecca; Valente, Karolina Papera; Perez, Milena Restan; Willerth, Stephanie Michelle

doi:10.3390/pr9071205

Submit to this Journal Review for this Journal Edit a Special Issue

Article Menu

...

Open AccessFeature PaperArticle

Physical and Mechanical Characterization of Fibrin-Based Bioprinted Constructs Containing Drug-Releasing Microspheres for Neural Tissue Engineering Applications

Ruchi Sharma

¹,

Rebecca Kirsch

¹,

Karolina Papera Valente

¹,

Milena Restan Perez

and

Stephanie Michelle Willerth

^1,2,3,4,5,*

Department of Mechanical Engineering, University of Victoria, Victoria, BC V8W 2Y2, Canada

Department of Biomedical Engineering, University of Victoria, Victoria, BC V8W 2Y2, Canada

Division of Medical Sciences, University of Victoria, Victoria, BC V8W 2Y2, Canada

⁴

Centre for Biomedical Research, University of Victoria, Victoria, BC V8W 2Y2, Canada

⁵

School of Biomedical Engineering, University of British Columbia, Vancouver, BC V6T1Z3, Canada

Author to whom correspondence should be addressed.

Academic Editor: Shreyas Kuddannaya

Processes 2021, 9(7), 1205; https://doi.org/10.3390/pr9071205

Received: 6 June 2021 / Revised: 2 July 2021 / Accepted: 9 July 2021 / Published: 13 July 2021

(This article belongs to the Special Issue Advances in Hydrogel Scaffolding of Stem Cells)

View Full-Text Download PDF

Browse Figures

Citation Export

Abstract

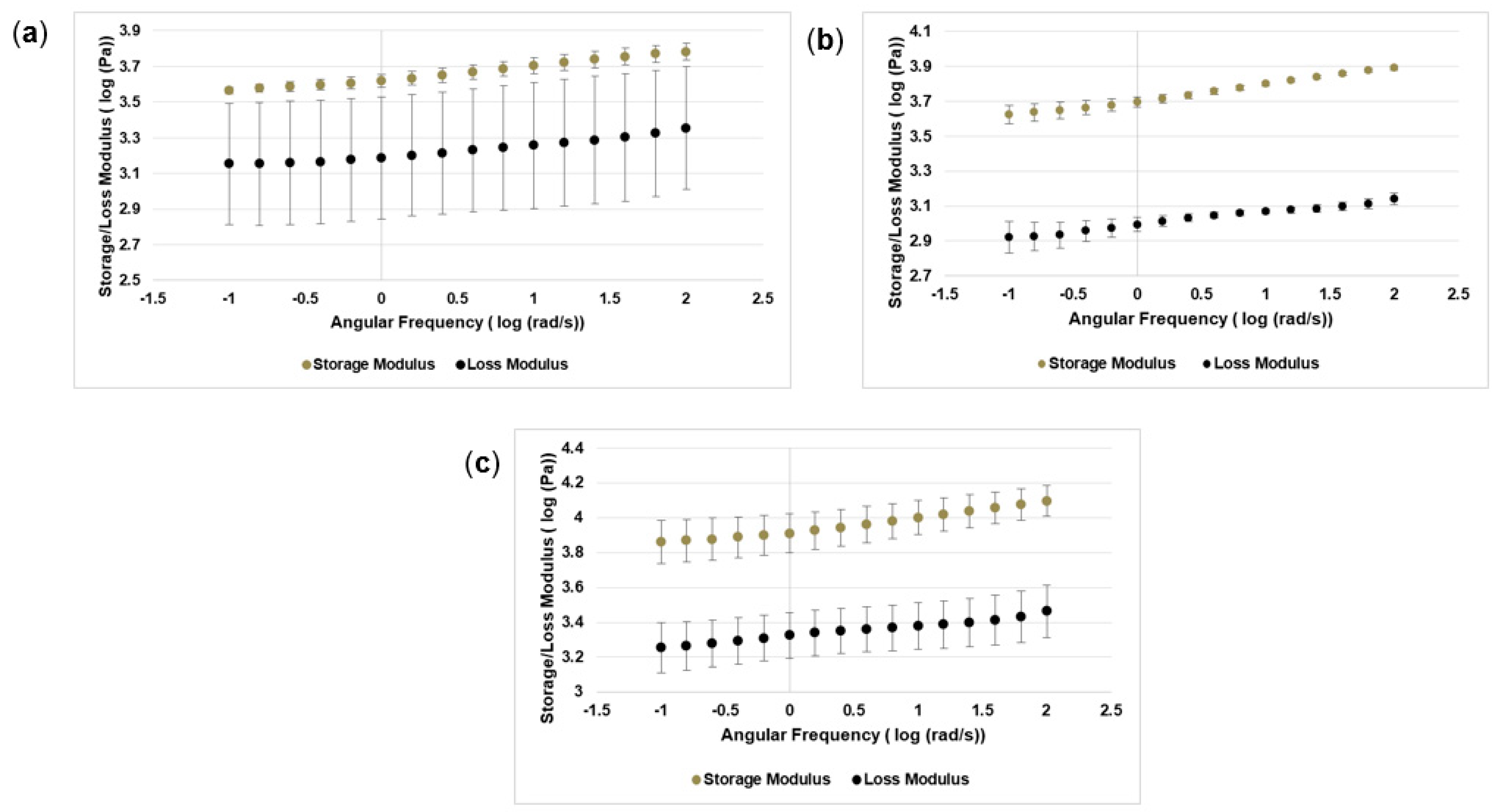

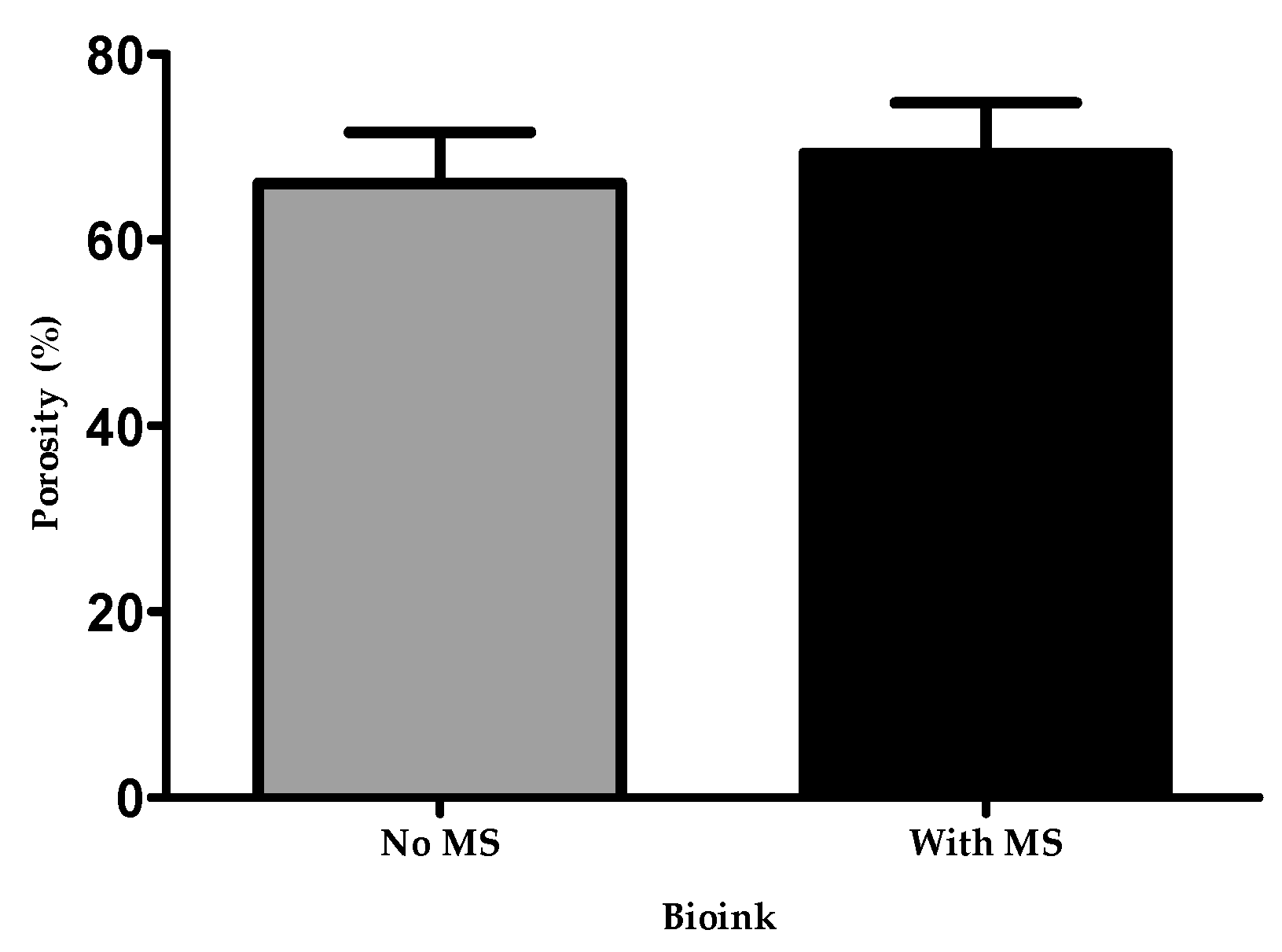

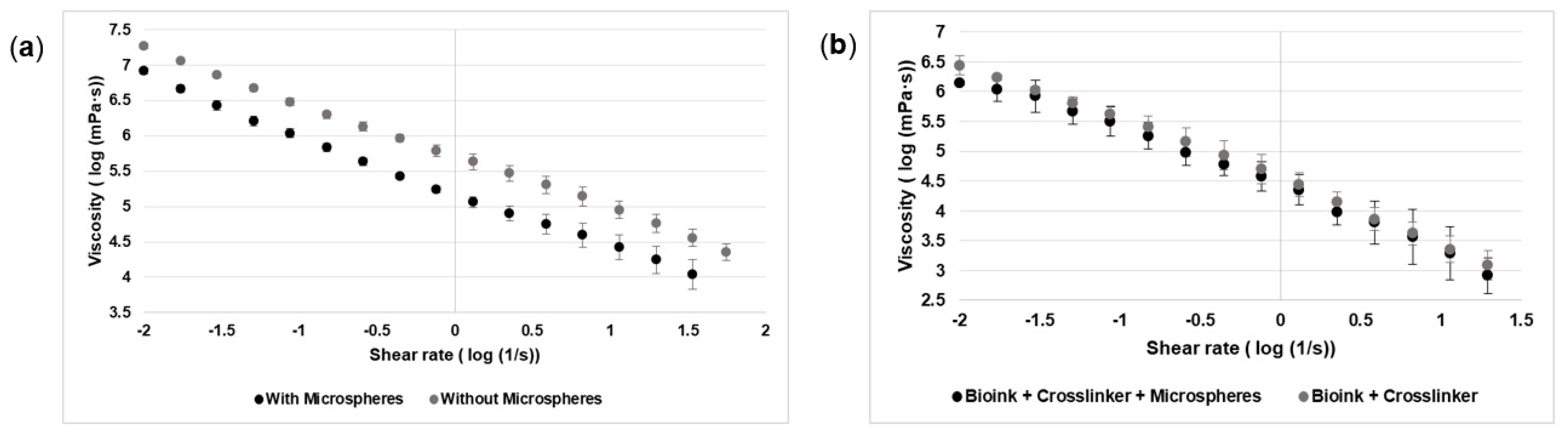

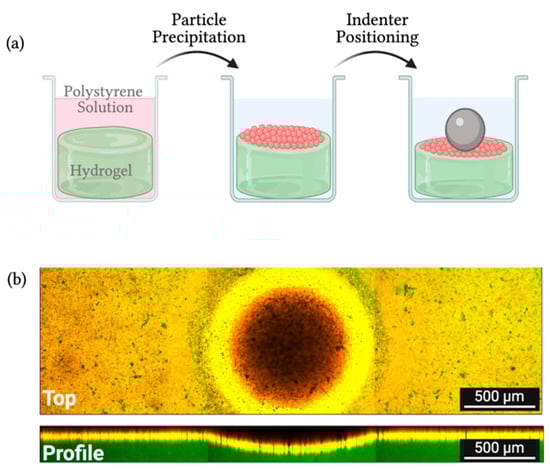

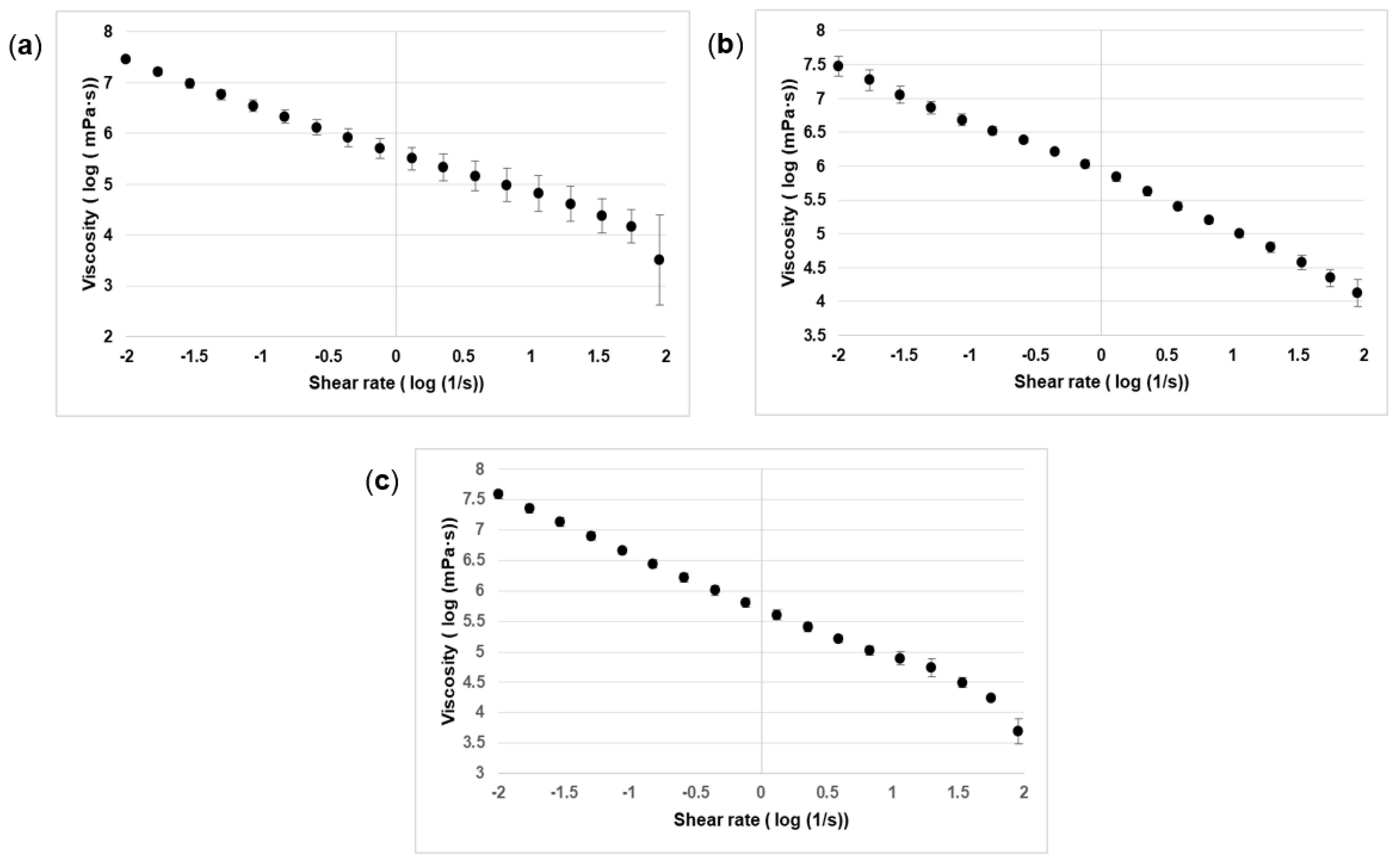

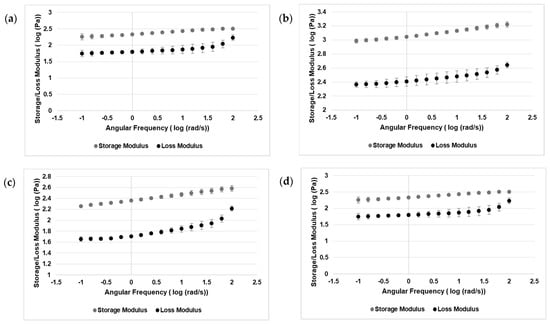

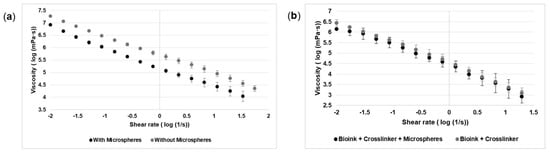

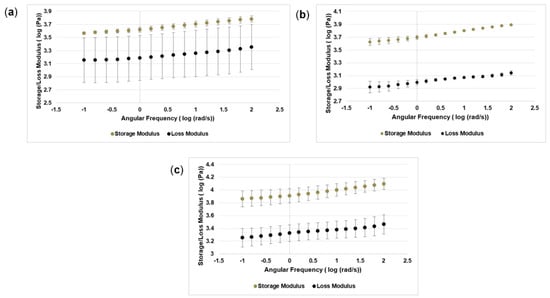

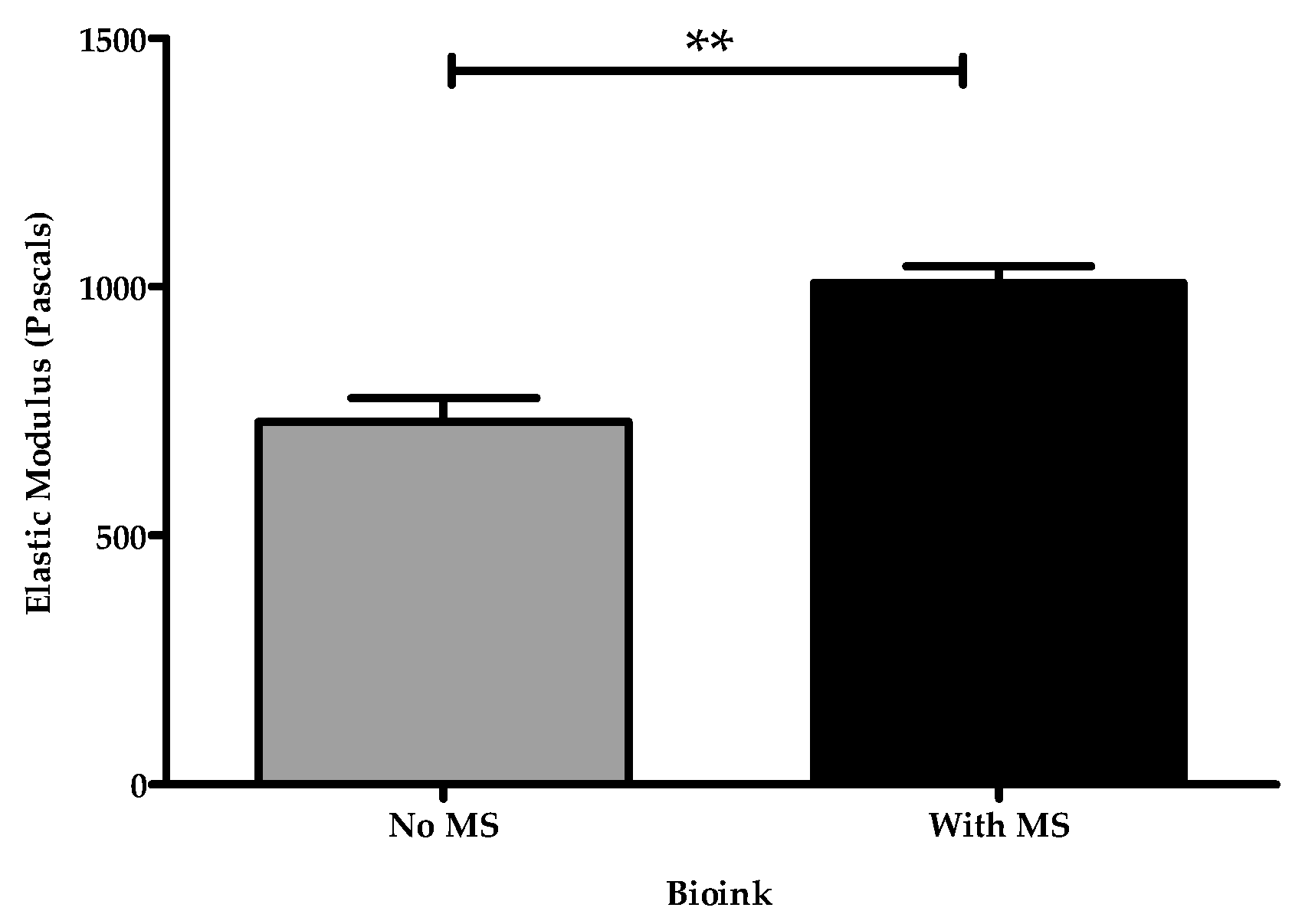

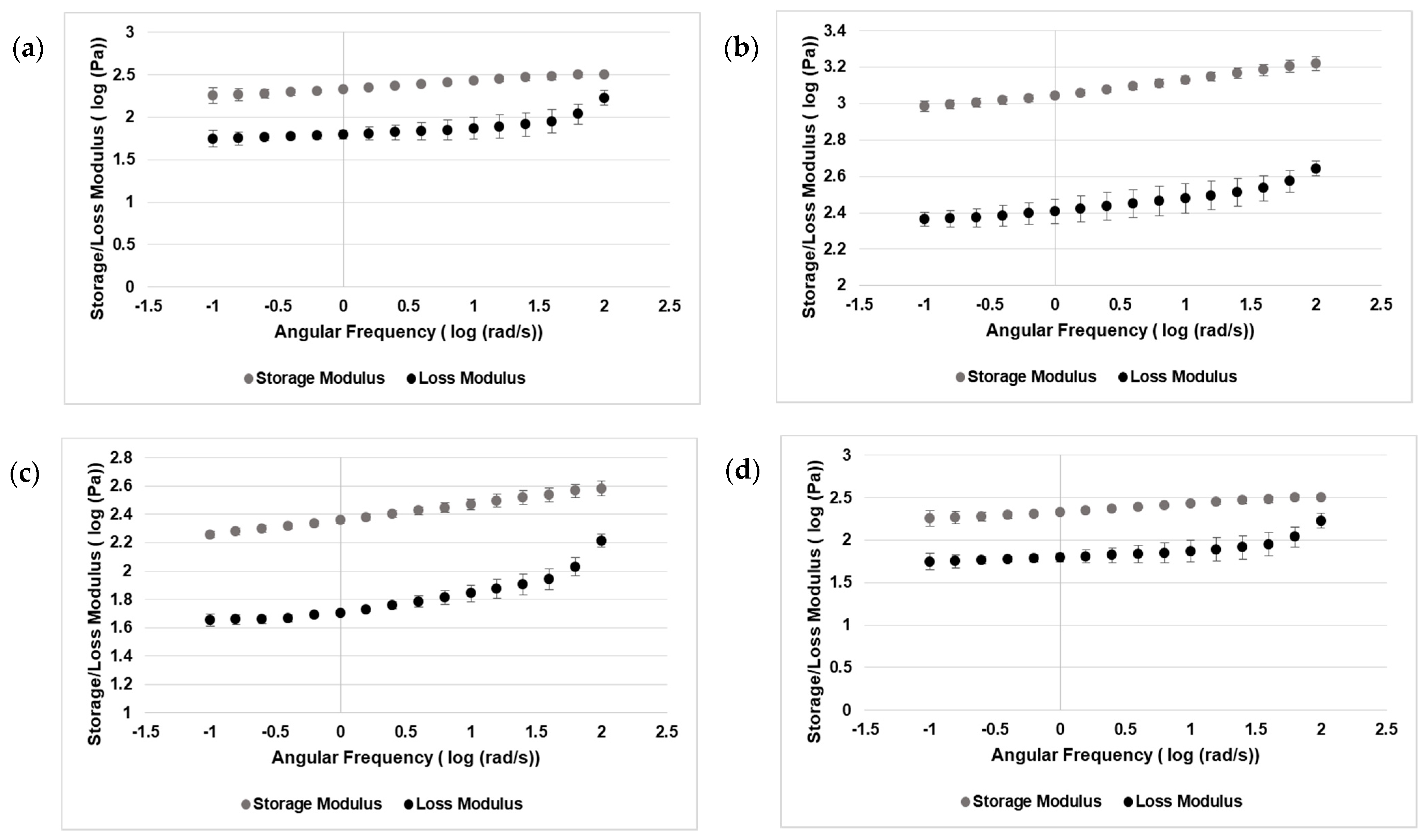

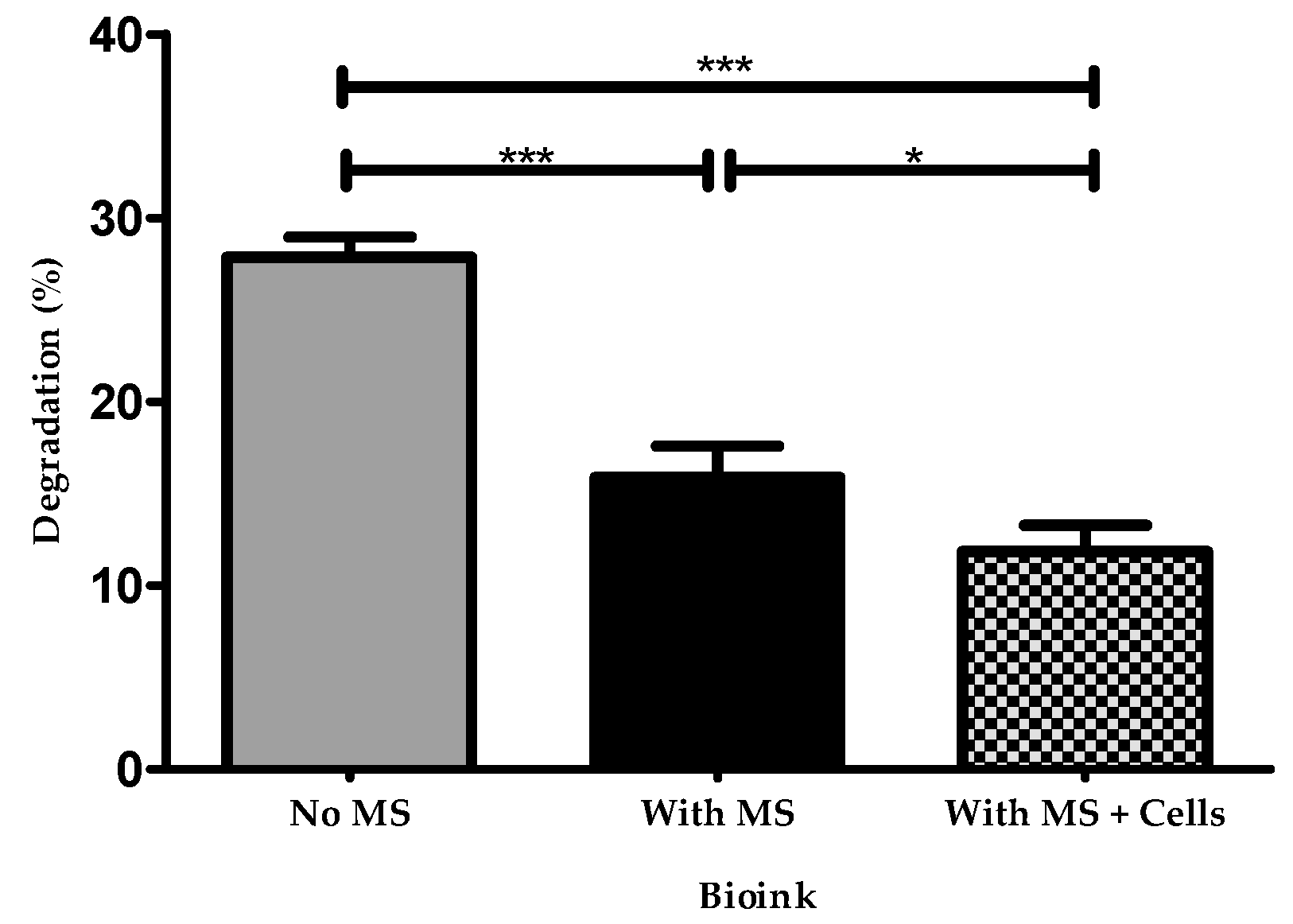

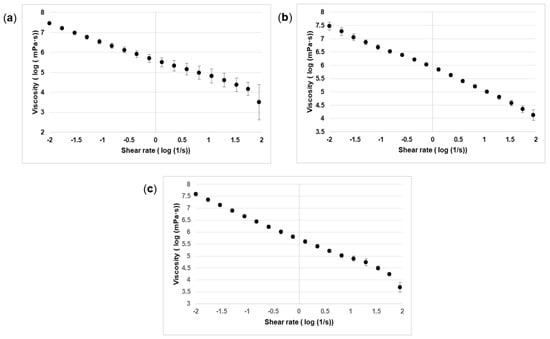

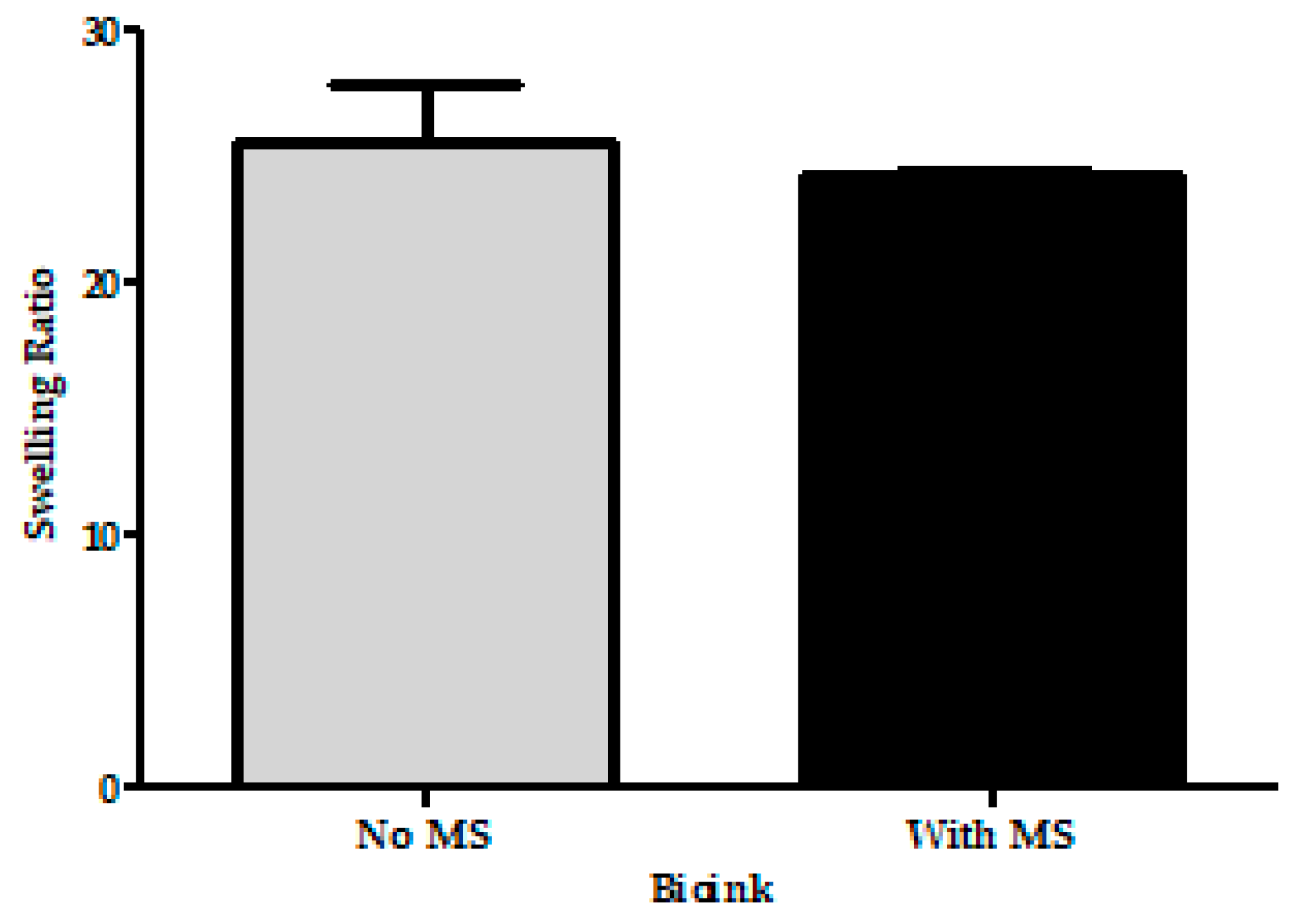

Three-dimensional bioprinting can fabricate precisely controlled 3D tissue constructs. This process uses bioinks—specially tailored materials that support the survival of incorporated cells—to produce tissue constructs. The properties of bioinks, such as stiffness and porosity, should mimic those found in desired tissues to support specialized cell types. Previous studies by our group validated soft substrates for neuronal cultures using neural cells derived from human-induced pluripotent stem cells (hiPSCs). It is important to confirm that these bioprinted tissues possess mechanical properties similar to native neural tissues. Here, we assessed the physical and mechanical properties of bioprinted constructs generated from our novel microsphere containing bioink. We measured the elastic moduli of bioprinted constructs with and without microspheres using a modified Hertz model. The storage and loss modulus, viscosity, and shear rates were also measured. Physical properties such as microstructure, porosity, swelling, and biodegradability were also analyzed. Our results showed that the elastic modulus of constructs with microspheres was 1032 ± 59.7 Pascal (Pa), and without microspheres was 728 ± 47.6 Pa. Mechanical strength and printability were significantly enhanced with the addition of microspheres. Thus, incorporating microspheres provides mechanical reinforcement, which indicates their suitability for future applications in neural tissue engineering. View Full-Text

Keywords: 3D bioprinting; neural tissues; rheology; indentation; elastic modulus
