Article

Continuous Biodiesel Production from Waste Soybean Oil Using a Nano-Fe3O4 Microwave Catalysis

by
Ching-Hsing Lin
1,
Yi-Tang Chang
2,
Mei-Chou Lai
3,
Tai-Ying Chiou
4,* and
Chien-Sen Liao
5,*
1
Center of General Education, National Taitung Junior College, Taitung 95045, Taiwan
2
Department of Microbiology, Soochow University, Taipei 11102, Taiwan
3
Department of Pharmacy and Master Program, Collage of Pharmacy and Health Care, Tajen University, Pingtung 90741, Taiwan
4
School of Regional Innovation and Social Design Engineering, Kitami Institute of Technology, Koen-cho, Kitami, Hokkaido 090-8507, Japan
5
Department of Biological Science and Technology, I Shou University, Kaohsiung 82445, Taiwan
*
Authors to whom correspondence should be addressed.
Processes 2021, 9(5), 756; https://doi.org/10.3390/pr9050756
Submission received: 25 January 2021 / Revised: 21 April 2021 / Accepted: 23 April 2021 / Published: 26 April 2021
(This article belongs to the Special Issue Recent Advances in Chemical Pretreatment Methods for Biofuel Production Processes)
Browse Figures
Versions Notes

Abstract

:
In this study, we conducted an efficient microwave-assisted transesterification process combining homogeneous and heterogeneous catalytic phases to produce biodiesel from waste soybean oil. A cylindrical quartz reactor packed with nanoparticles of Fe3O4 as a co-catalyst was applied to improve the reaction. The process was carried out with a methanol-to-oil molar ratio of 6:1, power of 560 W, and residence time of 30 s. The specifications of the biodiesel produced in this study were compared with two standards, i.e., ASTM D6751 and EN 14214. We found that the continuous conversion of waste soybean oil to methyl ester was approximately 95%. The biodiesel showed a higher flash point and a higher carbon residue content than that of both standards, and the viscosity (5.356 mm2/s) and density (898.1 kg/m3) were both at a high level. Compared to a conventional heating plate, the energy consumption was significantly reduced by nearly 93%. It is expected that these findings will provide useful information for green and sustainable processes for the regeneration and reuse of oil.

1. Introduction

Due to the shortage of petroleum products, biodiesel has become more and more attractive as an alternative fuel resource. The advantages of biodiesel include renewability, biodegradability, environmental friendliness, low emissions, and a lack of toxicity; furthermore, biodiesel can be used in normal diesel engines [1,2,3].
Transesterification is a well-established chemical reaction whereby vegetable oils and animal fats react with an alcohol to form fatty acid alkyl esters and glycerol [4,5,6]. The biodiesel yield via a transesterification reaction depends on many parameters such as the concentration of catalyst, the presence of water and soap formation, the presence of free fatty acids (FFAs), and separation of glycerol [7]. Transesterification is also known as alcoholysis, and methanol and ethanol are the most common alcohols used in the reaction. A stoichiometrically alcohol-to-oil molar ratio of 3:1 is required to complete the reaction. Since the transesterification reaction is a reversible reaction, excess alcohol is used in practice to shift the equilibrium to the product side, and, therefore, increase the biodiesel yield. A lower alcohol-to-oil molar ratio affects the conversion of the triglycerides to the methyl esters, while a higher molar ratio reduces the yield [8,9,10].
The amount of FFAs present also affects the fuel properties and biodiesel yield [11,12,13]. Several methods for producing biodiesel have been developed, and the transesterification process can be carried out in either the presence or the absence of a catalyst. A catalyst is used to accelerate the reaction and to produce biodiesel of a higher quality [14]. Both alkaline and acid catalysts have been used depending on the characteristics of a feedstock. Alkaline catalysts are preferred because they require a lower reaction temperature and pressure, have a higher reaction speed, and give a higher conversion efficiency as compared with acid catalysts [15,16,17]. When a feedstock with an FFA content greater than 1% is used, acid catalysts are better than alkaline catalysts because they are insensitive to the presence of FFAs [8], and product recovery becomes complicated in an alkali-catalyzed transesterification reaction because of the saponification that occurs [18,19].
In general, transesterification is carried out by conventional heating using either a carbon-based fuel or electrical power for the heating process. Thus, to produce a high yield of biodiesel the large amount of energy consumed, and the long reaction time required makes this method inefficient. Microwave heating is unique and offers a number of advantages over conventional heating including non-contact heating, efficient energy transfers rather than heat transfer, rapid heating, material selective heating, heating from interior of the material body, a higher level of safety, and the ability to automate the process. Therefore, heat transfer using microwaves is more effective than conventional heating and in such circumstances the reaction can be completed within a shorter time period [20,21,22].
The microwave-assisted transesterification of various feedstocks such as soybean oil [23], cotton seed oil [24], Pongamia pinnata seed oil [25], algal oil [26], and waste frying palm oil [27] has been reported by several studies [28]. These studies have shown that the chemical reactions can be accelerated by microwave radiation and high product yields can be achieved within a short time. In the transesterification process, the mixture of feedstock oil, methanol, and metal hydroxide contains both polar and ionic components, therefore, rapid heating is observed under microwave irradiation and because the energy interacts with the sample at the molecular level, very efficient heating is obtained [29]. Various technologies that use a microwave-assisted technique have been developed to reduce the production costs for biodiesel. These studies have focused on transesterification by different catalysts and using different reaction conditions with the microwave heating system. In a 2016 study, researchers used NaOH, KOH, CH3ONa, and CH3OK as the homogeneous alkali catalysts for biodiesel production from soybean oil. At a methanol-to-oil molar ratio of 6:1 and catalyst concentration of 1% at 60 °C, they found that alkali metal alkoxides were more active transesterification catalysts than hydroxides. In addition, they found that sodium methoxide was the most efficient catalyst, and about 98.93% conversion of soybean oil was obtained [30]. Standish and Worner reported that particle size was also an important factor during microwave heating but did not necessarily have to be consistent [31]. They observed that the heating rate of fine particles was faster than that of coarse particles of Al2O3, but that coarse particles of Fe3O4 were heated faster than fine particles. Their results also showed that microwave heat treatment enhanced the reduction rates and they estimated that the cost of microwave heating was 15–50% lower than conventional methods. In our previous study, we reported that Fe3O4, as a microwave co-catalyst, performed effectively for reducing energy consumption during the heating process [32]. The nano surface of particles can be used to produce catalysts with extremely high activity, selectivity, and high stability to obtain a high yield of the reaction product, by changing the surface functionality, elemental composition, or number of atoms in the particles [19]. Lipase immobilized on Fe3O4 magnetic nanoparticles has the integrated advantages of traditional immobilized lipase and free lipase for its rather fast reaction rate. A biodiesel yield of 81–89% has been achieved by lipase immobilized on Fe3O4 compounds’ magnetic nanoparticles [33].
In this study, we used a microwave catalytic system as a fixed bed to produce biodiesel from waste soybean oil using an alkaline microwave-assisted transesterification process. The nano surface of Fe3O4 particles was used as the microwave co-catalyst and the surface morphology of Fe3O4 was analyzed by a scanning electron microscopy (SEM). Using an ethanol-to-oil molar ratio of 6:1, the reaction time, microwave power, properties of biodiesel, and energy consumption were compared to results obtained using a conventional heating plate.

2. Materials and Methods

2.1. Microwave Catalytic Reactor Design

A quartz column (50 mm I.D. by 53 mm O.D. by 27.5 cm L) was used as the microwave co-catalyst packed column (approximately 120 mL) and filled with granules of Fe3O4 (50 g, approximately 40 mL in volume). A domestic microwave oven (RE-079R, Sampo, Taoyuan, Taiwan), with a frequency of 2450 MHz, was modified to contain the co-catalyst-filled quartz column and was used as the microwave catalytic reactor.

2.2. Manufacturing of the Fe3O4 Microwave Co-Catalyst

FeCl3 (1.4 g, 97%, Sigma-Aldrich, St. Louis, MO, USA) and FeCl2·H2O (0.86 g, 97%, Sigma-Aldrich, St. Louis, MO, USA) were added to a solution of oleic acid and acetone and stirred for 3 min at 56 °C. Then, ammonia (NH4OH) (5 mL, 5 N, Hayashi Pure Chemical, Osaka, Japan) and oleic acid (1 mL) were added and stirred for 5 min to produce Fe3O4 precipitate. After washing with a solution (10 mL) of acetone (99%, Kyotowako Pure Chemical, Kyoto, Japan) and methanol (99.5%, Hayashi Pure Chemical, Osaka, Japan) (volume ratio 1:2) three times, the Fe3O4 was dried at 60 °C for 2 h. Finally, the Fe3O4 precipitate was sintered at 800 °C for 10 min, and then sintered at 1050 °C for 4 h with a temperature increase of 1 °C/min in order to form the solid catalyst. In addition, the metal oxide of Fe3O4 microwave co-catalyst was analyzed by scanning electron microscopy (S-3000H, Hitachi High-Tech, Tokyo, Japan) in order to observe its surface morphology.

2.3. Performance Testing of the Microwave Catalytic Reaction System

2.3.1. Processes in Batch Mode

A schematic of the microwave catalytic reaction system is shown in Figure 1. The waste soybean oil used in this study was expired salad oil (unopened) obtained from the Taiwan Sugar Corporation, Taiwan. A catalytic and non-catalytic temperature analysis was carried out in batch mode at different levels of microwave power (266, 532, and 800 W) in order to compare the temperatures in the microwave reactor with and without Fe3O4 co-catalyst using the same volume of 80 mL.

2.3.2. Processes in Continuous Mode

A microwave catalytic continuous test was carried out at a power of 560 W with a methanol-to-oil molar ratio of 6:1 using a 1.0% NaOH-methanol solution. The flow rate was set at 170 mL/min, with an effective volume of the quartz reaction tube to fill the catalyst of 80 mL, and with a hydraulic retention time of 30 s. A peristaltic pump (MasterFlex Replacement motor model 7553-80, Cole Parmer, Vernon Hills, IL, USA) was used to quantitatively pump the soybean oil (700 g) and NaOH-methanol solution (7 g NaOH dissolved in 200 g methanol) in order to control the hydraulic retention time. A thermometer was set up at the outflow port of the reactor to ensure that the reaction temperature reached 60 °C. After the reaction, the upper layer of the sample was separated and collected using a separating funnel, and then washed with distilled water (at a volume ratio of 1:1) for several times to remove residual glycerol. Finally, the washed sample was put into an oven (60 °C) for further refining.

2.4. Analysis of the Physical and Chemical Properties of the Biodiesel

An analysis of the physical and chemical properties of biodiesel was carried out based on the standard test methods supplied by ASTM International [34], which included density (at 15 °C, ASTM D4052), flash point (ASTM D93), viscosity (at 40 °C, ASTM D445), sulfur ash (ASTM D5453), copper strip corrosion (ASTM D130), cetane number (ASTM D613), water and sediment content (ASTM D2709), distillation temperature (90% and 95%, ASTM D86), and carbon residue (ASTM D4530). The parameters of the American Standard Specification for Biodiesel (ASTM D6751) and the European Standard for Biodiesel (EN 14214) were used as the standards compared with the biodiesel made by this study [3,11,13].

3. Results and Discussion

3.1. Surface Morphology of the Fe3O4 Co-Catalyst

The Fe3O4 metal oxide co-catalyst used in this study consisted of circular granules with a diameter of approximately 0.3 cm (Figure 2) and was adopted as the microwave heating co-catalyst. The surface morphology of the Fe3O4 co-catalyst was analyzed by SEM, since particle size is an important factor in microwave heating [31,33,35]. Before being loaded into the SEM chamber, the Fe3O4 co-catalyst was coated with a film of Au for 120 s to avoid electron accumulation and discharge due to its low electrical conductivity. The surface morphology of the Fe3O4 co-catalyst is shown in Figure 2. In the SEM microphotograph (Figure 2B), it can be observed that the Fe3O4 nanoparticles are mostly uniform with a size of approximately 100 nm.

3.2. Temperature Comparisons of the Microwave Process with and without Fe3O4 Co-Catalyst

A batch test of microwave heating was carried out with and without Fe3O4 co-catalyst at a methanol-to-oil molar ratio of 6:1 using a 1.0% NaOH–methanol solution [25,30,36]. Since the reaction was carried out in a closed system, the volatilization of methanol could be ignored. As shown in Figure 3, the temperature increased with time over a period of 20 to 80 s at microwave powers of 266, 532, and 800 W. The increase in the temperature of the feedstock added with Fe3O4 co-catalyst was higher than that without Fe3O4 co-catalyst added in the batch microwave heating test. When tested without Fe3O4 co-catalyst and heating for 80 s at a microwave power of 266 W, the temperature increased from 25 to 47 °C, whereas the temperature increased from 25 to 58 °C when the Fe3O4 co-catalyst was present under the same conditions. At the microwave power levels of 532 and 800 W without Fe3O4 co-catalyst, the temperature increased from 25 to 67 °C and from 25 to 75 °C, respectively. At microwave powers of 532 and 800 W with the Fe3O4 co-catalyst applied, greater temperature increases from 25 to 78 °C and from 25 to 98 °C were observed, respectively. These results indicate that microwave heating could be further improved with the application of Fe3O4 co-catalyst. The highly effective increase in temperature in the microwave heating system could be attributed to the direct adsorption of the microwave radiation by the metal oxide [37].

3.3. The Performance of Fe3O4 Microwave Catalysis during Continuous Biodiesel Production

The continuous microwave catalytic system was operated with a reaction time of 0.5 min at a microwave power of 560 W, and the results are shown in Figure 4. Without the addition of Fe3O4 co-catalyst, the temperature increased up to 45 °C after 4 min and remained almost constant thereafter. Obviously, the temperature at 45 °C was not sufficient to complete the transesterification reaction. On the other hand, when the Fe3O4 nanoparticles were used, the temperature rapidly increased to above 60 °C in only 2 min at the same microwave power of 560 W, and then remained at approximately 61 °C after 4 min. These results indicate that a microwave catalytic heating process with the addition of Fe3O4 nanoparticles shortens the reaction time and provides better efficiency in transmethylation.
In this efficient system, which combined the heterogeneous Fe3O4 co-catalyst with the homogeneous catalyst CH3ONa, the feedstock conversion rate for glyceride transesterification was estimated to be approximately 95%. The heat transfer with high efficiency could be attributed to the absorbance of microwaves by Fe3O4 nanoparticles [37]. Some experimental factors applied in microwave-assisted transesterification processes were summarized in Table 1. The system used in the study applied a relatively short reaction time (30 s) and a moderate microwave power (560 W) for the process. Since the continuous biodiesel production was only carried out in a short-time test and 1.0 L-scale, further persistent tests with a longer period of time and scale-up tests should be carried out to confirm for industrial application.

3.4. Analysis of the Physical and Chemical Properties of the Biodiesel

The parameters of the ASTM D6751 and EN 14214 were used to evaluate whether the biodiesel produced in this study meets the specifications of diesel fuel, and the results are shown in Table 2 [39,40,41]. When biodiesel was produced using Fe3O4 microwave co-catalytic converter technology, the cetane index was 51.1, the flash point was 182 °C, the sulfur content was 0.18 ppm, the distillation temperature was 345–346 °C, the density was 0.8981 g/mL, the water and sediment content was 0.05 vol%, the kinematic viscosity was 5.356 mm2/s, the copper strip corrosion was a mild color, the pour point was 0 °C, and the amount of carbon residue was 0.60 wt%. The water and sediment content and carbon residue of the biodiesel produced in this study show higher levels than those of both the ASTM D6751 and EN 14214 standards. The cetane number of the biodiesel is slightly over the minimum level of the EN 14214 standard, i.e., by 0.1. Although the density fits the range of the EN 14214 standard, it shows a rather high level. The viscosity of the biodiesel fits the range of the ASTM D6751 standard, however, it is over the maximum level of the EN 14214 standard by 0.356. Moreover, the lower limit of ester content (or methanol fatty acid methyl esters, %FAME) according to the EN 14214 standard is 96.5%, the biodiesel in this study had a lower level of 95% (estimated by glyceride transesterification). Above all, the biodiesel produced in this study cannot be regarded as an ideal biodiesel ready for use, and further modifications (such as elongation of reaction time in the process) is necessary. Nevertheless, the Fe3O4 microwave catalytic heating system proposed in this study was convenient for processing and has the potential to become a good practice that could reduce the cost of producing biodiesel.

3.5. Comparisons in Terms of Energy Consumption

An energy consumption comparison between the traditional hot plate approach and the microwave catalytic heating method approach was carried out at the same conversion rate of 95%. The measurements and calculations were based on electricity consumption at a laboratory scale. An amount of 1.0 L soybean oil at a methanol-to-oil molar ratio of 6:1 using a 1.0% NaOH-methanol solution was applied as a benchmark. We found that the conventional heating plate method at a power of 420 W took 120 min to complete the reaction, whereas the continuous test of the new Fe3O4 microwave catalytic heating system at a power of 560 W, took only 6 min to reach the same conversion rate, that is, to reach the same conversion rate, the conventional heating plate method consumed 0.84 kWh while the new Fe3O4 microwave catalytic heating system consumed 0.056 kWh. In other words, the power consumption ratio between the Fe3O4 microwave catalytic heating system in this study and a conventional heating plate method was about 1 to 15. At a scale of a 1.0 L sample, the production cost of the nano-Fe3O4 microwave catalytic heating system was significantly reduced in terms of energy input by nearly 93% as compared with a traditional heating plate method. Chang et al. reported about 56% reduction in energy consumption by using an Fe3O4 co-catalyst with a microwave heating process [31]. Patil et al. also discovered that around 95% of energy was saved using a microwave heating method as compared with a conventional method [42]. The results based on the microwave heating method showed high energy efficiency as compared with conventionally heated reactors, which was similar to the results described by Moseley and Woodman at the meso scale (from 1 L to 3 L) for organic reactions [43].

4. Conclusions

In summary, this study demonstrated that biodiesel can be produced from waste soybean oil using a microwave-assisted transesterification system. The system was modified and improved by the addition of Fe3O4 nanoparticles, and the heat transfer with better efficiency was confirmed by the tracing of heating temperature. In the batch system, after heating for 80 s with the Fe3O4 co-catalyst applied, the temperature increases were enhanced from 47 to 58, 67 to 78, and 75 to 98 °C at microwave powers of 266, 532, and 800 W, respectively. In the continuous system, it took only 2 min to reach the steady temperature of 60 to 61 °C at the power of 560 W, and the feedstock conversion rate for glyceride transesterification was estimated to be approximately 95%. As for the specifications of biodiesel, the biodiesel produced in this study showed a higher level of viscosity than that of the EN 14214 standard and fit the range of the ASTM D6751 standard. Since the water content and sediment and carbon residue content were higher than that of both standards, the biodiesel produced in this study cannot be regarded as an ideal fuel ready for use. To improve the qualities of the biodiesel, further modifications of the process are necessary. Nevertheless, this study proposed an efficient biodiesel production process that reduced energy input by nearly 93% as compared with that for a conventional heating plate method. These findings could promote the development of green and sustainable processes for the effective utilization of reusable resources.

Author Contributions

Methodology, C.-H.L.; formal analysis, C.-H.L.; investigation, Y.-T.C. and M.-C.L.; data curation, C.-H.L., Y.-T.C. and T.-Y.C.; writing—original draft preparation, C.-H.L. and Y.-T.C.; writing—review and editing, T.-Y.C. and C.-S.L.; supervision, T.-Y.C. and C.-S.L.; project administration, C.-S.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ren, Y.; He, B.Q.; Yan, F.; Wang, H.; Cheng, Y.; Lin, L.; Feng, Y.H.; Li, J.X. Continuous biodiesel production in a fixed bed reactor packed with anion-exchange resin as heterogeneous catalyst. Bioresour. Technol. 2012, 113, 19–22. [Google Scholar] [CrossRef] [PubMed]
  2. Hajjari, M.; Tabatabaei, M.; Aghbashlod, M.; Ghanavatia, H. A review on the prospects of sustainable biodiesel production: A global scenario with an emphasis on waste-oil biodiesel utilization. Renew. Sustain. Energy Rev. 2017, 72, 445–464. [Google Scholar] [CrossRef]
  3. Gebremariam, S.N.; Marchetti, J.M. Economics of biodiesel production: Review. Energy Convers. Manag. 2018, 168, 74–84. [Google Scholar] [CrossRef]
  4. Sinha, S.; Agarwal, A.K.; Garg, S. Biodiesel development from rice bran oil: Transesterification process optimization and fuel characterization. Energy Convers. Manag. 2008, 49, 1248–1257. [Google Scholar] [CrossRef]
  5. Leung, D.Y.C.; Wu, X.; Leung, M.K.H. A review on biodiesel production using catalyzed transesterification. Appl. Energy 2010, 87, 1083–1095. [Google Scholar] [CrossRef]
  6. Jain, S.; Sharma, M.P.; Rajvanshi, S. Acid base catalyzed transesterification kinetics of waste cooking oil. Fuel Process Technol. 2011, 92, 32–38. [Google Scholar] [CrossRef]
  7. Bajpai, D.; Tyagi, V.K. Biodiesel: Source, production, composition, properties and its benefits. J. Oleo Sci. 2006, 55, 487–502. [Google Scholar] [CrossRef] [Green Version]
  8. Ma, F.; Hanna, M.A. Biodiesel production: A review. Bioresour. Technol. 1999, 70, 1–15. [Google Scholar] [CrossRef]
  9. Verma, P.; Sharma, M.P. Review of process parameters for biodiesel production from different feedstocks. Renew. Sustain. Energy Rev. 2016, 62, 1063–1071. [Google Scholar] [CrossRef]
  10. Veljković, V.B.; Biberdžić, M.O.; Banković-Ilić, I.B.; Djalović, I.G.; Tasić, M.B.; Nježić, Z.B.; Stamenković, O.S. Biodiesel production from corn oil: A review. Renew. Sustain. Energy Rev. 2018, 91, 531–548. [Google Scholar] [CrossRef]
  11. Freedman, B.; Butterfield, R.; Pryde, E. Transesterification kinetics of soybean oil. J. Am. Oil Chem. Soc. 1986, 63, 1375–1380. [Google Scholar] [CrossRef]
  12. Shahid, E.M.; Jamal, Y. Production of biodiesel: A technical review. Renew. Sustain. Energy Rev. 2011, 15, 4732–4745. [Google Scholar] [CrossRef]
  13. Go, A.W.; Sutanto, S.; Ong, L.K.; Tran-Nguyen, P.L.; Ismadji, S.; Ju, Y.H. Developments in in-situ (trans) esterification for biodiesel production: A critical review. Renew. Sustain. Energy Rev. 2016, 60, 284–305. [Google Scholar] [CrossRef] [Green Version]
  14. Meher, L.C.; Sagar, D.V.; Naik, S.N. Technical aspects of biodiesel production by transesterification-a review. Renew. Sustain. Energy Rev. 2006, 10, 248–268. [Google Scholar] [CrossRef]
  15. Demirbas, A. Importance of biodiesel as transportation fuel. Energy Policy 2007, 35, 4661–4670. [Google Scholar] [CrossRef]
  16. Wang, Y.; Ou, P.L.S.; Zhang, Z. Preparation of biodiesel from waste cooking oil via two-step catalyzed process. Energy Convers. Manag. 2007, 48, 184–188. [Google Scholar] [CrossRef]
  17. Casas, A.; Fernandez, C.M.; Ramos, M.J.; Perez, A.; Rodriguez, J.F. Optimization of the reaction parameters for fast pseudo single-phase transesterification of sunflower oil. Fuel 2010, 89, 650–658. [Google Scholar] [CrossRef]
  18. Padhi, S.K.; Singh, R.K. Optimization of esterification and transesterification of Mahua (Madhuca Indica) oil for production of biodiesel. J. Chem. Pharm. Res. 2010, 2, 599–608. [Google Scholar]
  19. Thangaraj, B.; Solomon, P.R.; Muniyandi, B.; Ranganathan, S.; Lin, L. Catalysis in biodiesel production—A review. Clean Energy 2019, 3, 2–23. [Google Scholar] [CrossRef] [Green Version]
  20. Azcan, N.; Yilmaz, O. Microwave assisted transesterification of waste frying oil and concentrate methyl ester content of biodiesel by molecular distillation. Fuel 2013, 104, 614–619. [Google Scholar] [CrossRef]
  21. Quirino, M.R.; Oliveira, M.J.C.; Keyson, D.; Lucena, G.L.; Oliveira, J.B.L.; Gama, L. Synthesis of zinc oxide by microwave hydrothermal method for application to transesterification of soybean oil (biodiesel). Mater. Chem. Phys. 2017, 185, 24–30. [Google Scholar] [CrossRef]
  22. Milano, J.; Ong, H.C.; Masjuki, H.H.; Silitonga, A.S.; Chen, W.H.; Kusumo, F.; Dharma, S.; Sebayang, A.H. Optimization of biodiesel production by microwave irradiation-assisted transesterification for waste cooking oil-Calophyllum inophyllum oil via response surface methodology. Energy Convers. Manag. 2018, 158, 400–415. [Google Scholar] [CrossRef]
  23. Lin, Y.C.; Lin, J.F.; Hsiao, Y.H.; Hsu, K.H. Soybean oil for biodiesel production assisted by a microwave system and sodium methoxide catalyst. Sustain. Environ. Res. 2012, 22, 247–254. [Google Scholar]
  24. Azcan, N.; Danisman, A. Alkali catalyzed transesterification of cottonseed oil by microwave irradiation. Fuel 2007, 86, 2639–2644. [Google Scholar] [CrossRef]
  25. Kumar, R.; Kumar, G.R.; Chandrashekar, N. Microwave assisted alkali-catalyzed transesterification of Pongamia pinnata seed oil for biodiesel production. Bioresour. Technol. 2011, 102, 6617–6620. [Google Scholar] [CrossRef]
  26. Patil, P.D.; Gude, V.G.; Mannarswamy, A.; Cooke, P.; Nirmalakhandan, N.; Lammers, P.; Deng, S. Comparison of direct transesterification of algal biomass under supercritical methanol and microwave irradiation conditions. Fuel 2012, 97, 822–831. [Google Scholar] [CrossRef]
  27. Lertsathapornsuka, V.; Pairintrab, R.; Aryusukb, K.; Krisnangkura, K. Microwave assisted in continuous biodiesel production from waste frying palm oil and its performance in a 100 kW diesel generator. Fuel Process. Technol. 2008, 89, 1330–1336. [Google Scholar] [CrossRef]
  28. Khedri, B.; Mostafaei, M.; Safieddin Ardebili, S.M. A review on microwave-assisted biodiesel production. Energy Sources Part A Recovery Util. Environ. Eff. 2019, 41, 2377–2395. [Google Scholar] [CrossRef]
  29. Refaat, A.A. Different techniques for the production of biodiesel from waste vegetable oil. Int. J. Environ. Sci. Technol. 2010, 7, 183–213. [Google Scholar] [CrossRef] [Green Version]
  30. Saydut, A.; Kafadar, A.B.; Aydin, F.; Erdogan, S. Effect of homogeneous alkaline catalyst type on biodiesel production from soybean [Glycine max (L.) Merrill] oil. Indian J. Biotechnol. 2016, 15, 596–600. [Google Scholar]
  31. Standish, N.; Worner, H. Microwave application in the reduction of metal oxides with carbon. J. Microwave Power Electromagn. Energy 1990, 25, 177–180. [Google Scholar] [CrossRef]
  32. Chang, C.Y.; Lin, C.H.; Hwa, M.Y.; Lee, Y.C.; Tseng, W.M. Microwave catalytic process for the production of biodiesel. J. Biobased Mater. Bioenergy 2013, 7, 198–201. [Google Scholar] [CrossRef]
  33. Thangaraj, B.; Jia, Z.; Dai, L.; Liu, D.; Du, W. Lipase NS81006 immobilized on Fe3O4 magnetic nanoparticles for biodiesel production. Ovidius Univ. Ann. Chem. 2016, 27, 13–21. [Google Scholar] [CrossRef] [Green Version]
  34. ASTM International. Available online: https://www.astm.org/ (accessed on 21 April 2021).
  35. Reddy, A.N.R.; Saleh, A.A.; Isalm, M.S.; Hamdan, S.; Maleque, M.A. Biodiesel production from crude Jatropha oil using a highly active heterogeneous nanocatalyst by optimizing transesterification reaction parameters. Energy Fuels 2016, 30, 334–343. [Google Scholar]
  36. Shahbazi, M.R.; Khoshandam, B.; Nasiri, M.; Ghazvini, M. Biodiesel production via alkali-catalyzed transesterification of Malaysian RBD palm oil-Characterization, kinetics model. J. Taiwan Inst. Chem. Energy 2012, 43, 504–510. [Google Scholar] [CrossRef]
  37. Zhong, G.; Xu, S.; Chen, C.; Kline, D.J.; Giroux, M.; Pei, Y.; Jiao, M.; Liu, D.; Mi, R.; Xie, H.; et al. Synthesis of metal oxide nanoparticles by rapid, high-temperature 3D microwave heating. Adv. Funct. Mater. 2019, 29, 1904282. [Google Scholar] [CrossRef]
  38. Zhang, S.; Zu, Y.G.; Fu, Y.J.; Luo, M.; Zhang, D.Y.; Efferth, T. Rapid microwave-assisted transesterification of yellow horn oil to biodiesel using a heteropolyacid solid catalyst. Bioresour. Technol. 2010, 101, 931–936. [Google Scholar] [CrossRef] [PubMed]
  39. Moser, B.R. Biodiesel production, properties, and feedstocks. In Vitro Cell. Dev. Biol. Plant 2009, 45, 229–266. [Google Scholar] [CrossRef]
  40. Sakthivela, R.; Rameshb, K.; Purnachandrana, R.; Mohamed Shameera, P. A review on the properties, performance and emission aspects of the third generation biodiesels. Renew. Sustain. Energy Rev. 2018, 82, 2970–2992. [Google Scholar] [CrossRef]
  41. Jham, G.N.; Moser, B.R.; Shah, S.N.; Holser, R.A.; Dhingra, O.D.; Vaughn, S.F.; Berhow, M.A.; Winkler-Moser, J.K.; Isbell, T.A.; Holloway, R.K.; et al. Wild Brazilian mustard (Brassica juncea L.) seed oil methyl esters as biodiesel fuel. J. Am. Oil Chem. Soc. 2009, 86, 917–926. [Google Scholar] [CrossRef]
  42. Patil, P.D.; Gude, V.G.; Camacho, L.M.; Deng, S. Microwave-assisted catalytic transesterification of Camelina sativa oil. Energy Fuels 2010, 24, 1298–1304. [Google Scholar] [CrossRef]
  43. Moseley, J.D.; Woodman, E.K. Energy efficiency of microwave- and conventionally heated reactors compared at meso scale for organic reactions. Energy Fuels 2009, 23, 5438–5447. [Google Scholar] [CrossRef]
Processes 09 00756 g001 550

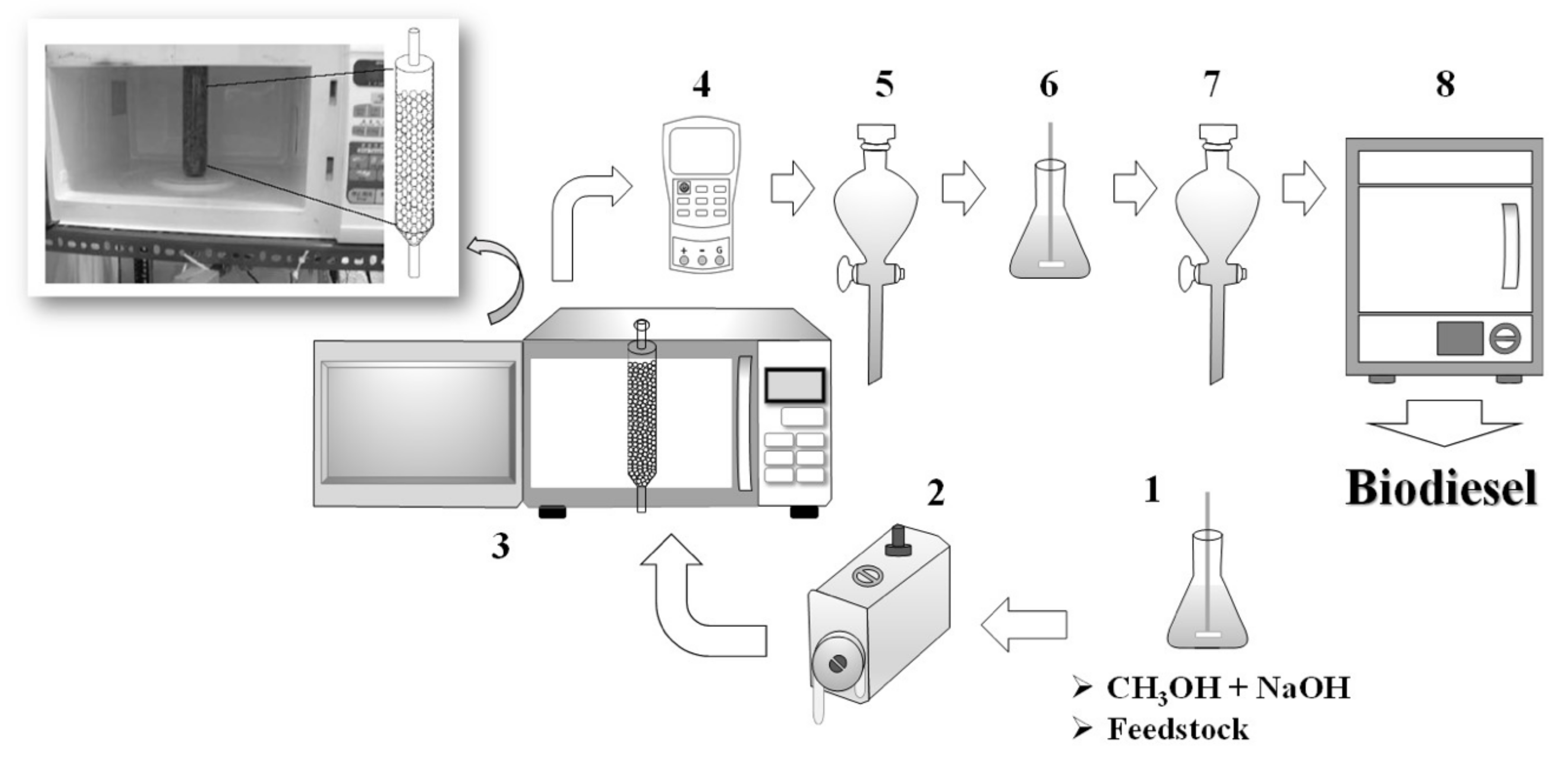

Figure 1. Schematic diagram of the microwave catalytic system. (1) mixing flask; (2) peristaltic pump; (3) microwave reactor; (4) thermometer; (5) separating funnel; (6) washing flask; (7) separating funnel; (8) oven.
Figure 1. Schematic diagram of the microwave catalytic system. (1) mixing flask; (2) peristaltic pump; (3) microwave reactor; (4) thermometer; (5) separating funnel; (6) washing flask; (7) separating funnel; (8) oven.
Processes 09 00756 g001
Processes 09 00756 g002 550

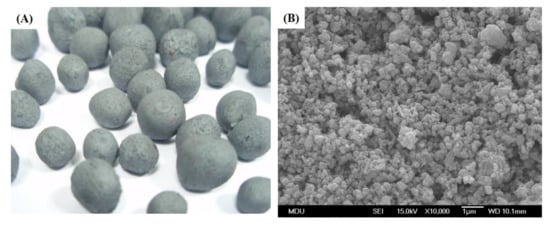

Figure 2. (A) exterior image of the Fe3O4 catalyst; (B) SEM microphotograph (10,000×) of the Fe3O4 catalyst taken in secondary electron imaging (SEI) mode with a working distance (WD) of 10.1 mm.
Figure 2. (A) exterior image of the Fe3O4 catalyst; (B) SEM microphotograph (10,000×) of the Fe3O4 catalyst taken in secondary electron imaging (SEI) mode with a working distance (WD) of 10.1 mm.
Processes 09 00756 g002
Processes 09 00756 g003 550

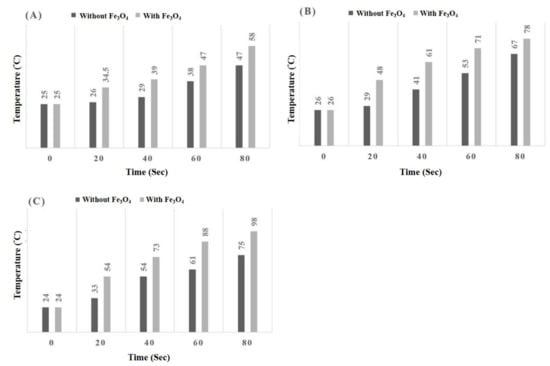

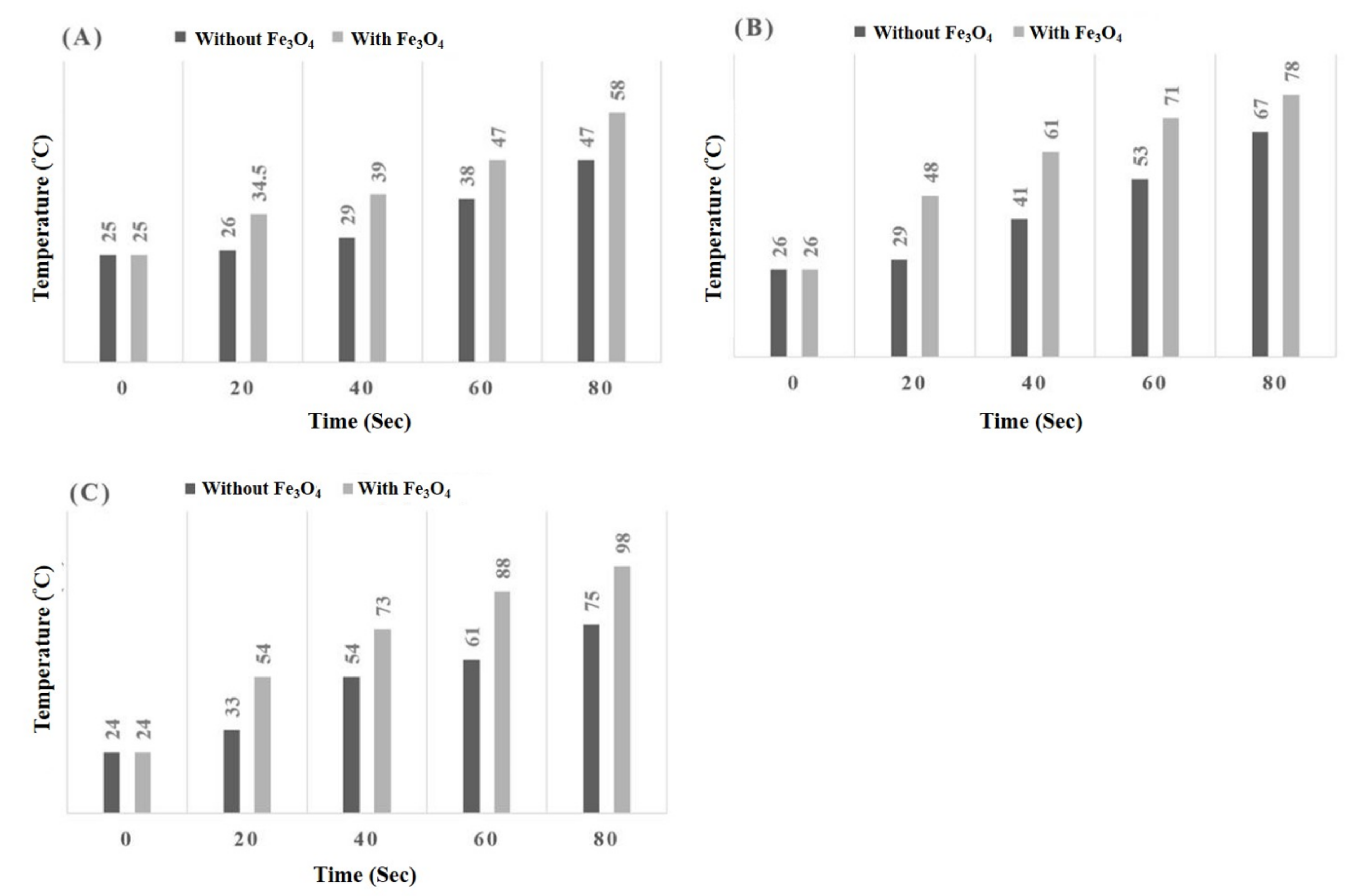

Figure 3. Comparisons of the co-catalytic and non-co-catalytic temperatures at microwave powers of (A) 266 W, (B) 532 W, and (C) 800 W for various batch tests (presence or absence of 50 g of Fe3O4 catalyst with a feedstock oil volume of 80 mL).
Figure 3. Comparisons of the co-catalytic and non-co-catalytic temperatures at microwave powers of (A) 266 W, (B) 532 W, and (C) 800 W for various batch tests (presence or absence of 50 g of Fe3O4 catalyst with a feedstock oil volume of 80 mL).
Processes 09 00756 g003
Processes 09 00756 g004 550

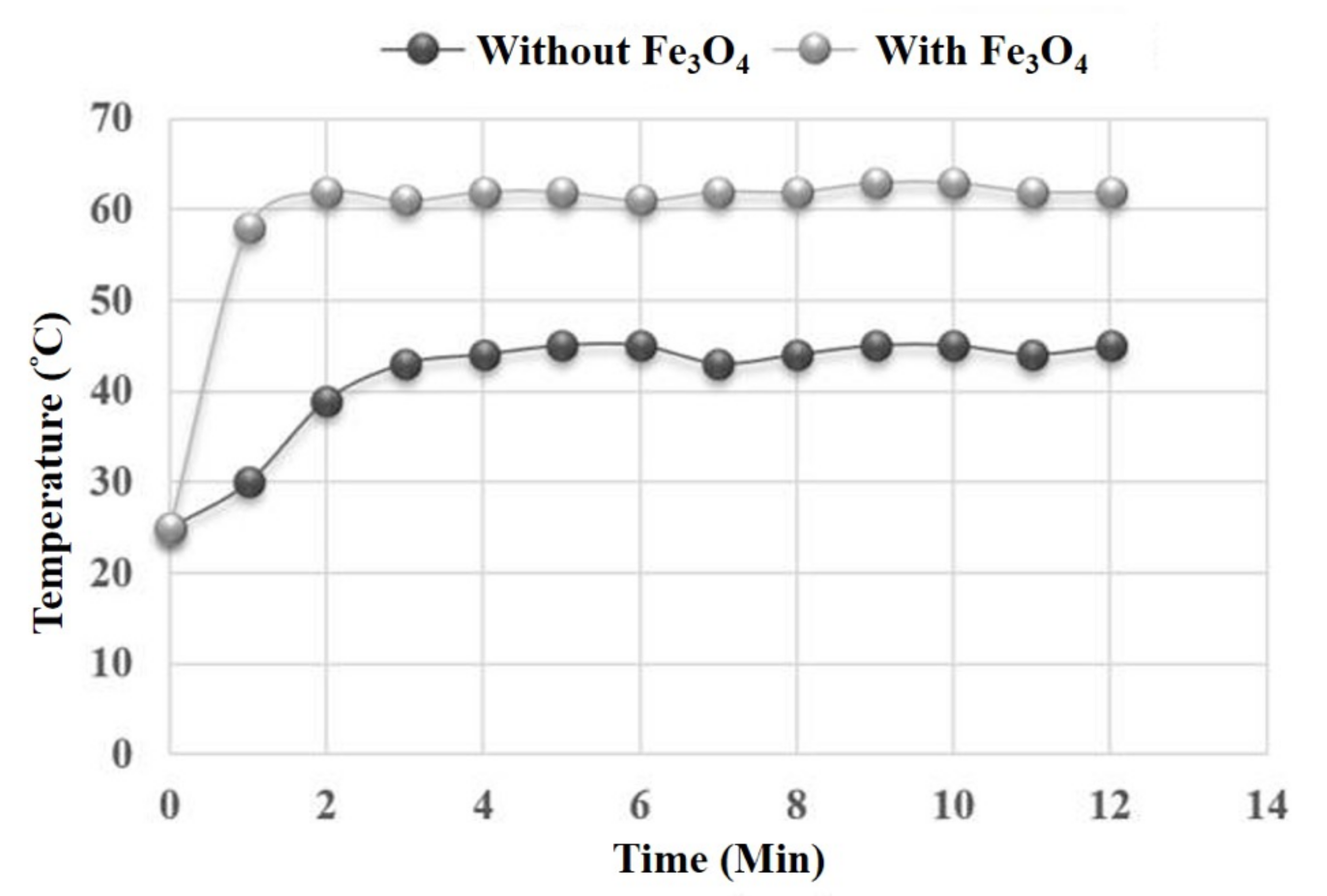

Figure 4. The temperature curve changes during continuous testing at a microwave power of 560 W with or without Fe3O4 co-catalyst. The reaction was carried out in triplicate, and the average is shown in the figure.
