Open AccessFeature PaperArticle

A Decision Support Tool for Water Supply System Decentralization via Distribution Network Sectorization

1
Instituto de Ingeniería del Agua y Medioambiental, Universitat Politècnica de València, CP 46022 Valencia, Spain
2
Instituto Mexicano de Tecnología del Agua, Paseo Cuauhnáhuac 8532 Progreso, CP 62550 Jiutepec, Mexico
*
Author to whom correspondence should be addressed.
Academic Editor: Chicgoua Noubactep
Processes 2021, 9(4), 642; https://doi.org/10.3390/pr9040642
Received: 20 February 2021 / Revised: 31 March 2021 / Accepted: 31 March 2021 / Published: 7 April 2021
Many water supply systems, conceived to operate in centralized manner, face difficulties to adapt to dynamic changes, such as population growth, city extension, and industrial development. Decentralization of these systems may be an effective solution. Known techniques for distribution network sectorization design can help to achieve such a goal, but this has not been recognized in the literature. None of those known techniques considers the conversion of a centralized system to a decentralized one. In this paper, two new distinct yet complementary methodologies for water supply system decentralization by distribution network sectorization are proposed and implemented in a software decision support tool freely available on internet. The first methodology identifies the main flow paths from water sources to some strategic nodes and considers the nodes in these paths as new potential sources for dividing the rest of the network. The second methodology sectorizes the network according to the contribution of sources to the consumption at nodes, based on mass balance equations for the transport of a hypothetical conservative constituent in a steady state. Both methods were applied to two real network models. The results obtained were better, for decentralizing the supply, compared to those obtained by other methodologies proposed in the literature. View Full-Text
Keywords: decentralized water systems; district metered areas; graph theory search algorithms; water distribution network sectorization; water distribution system decentralized water systems; district metered areas; graph theory search algorithms; water distribution network sectorization; water distribution system
Show Figures

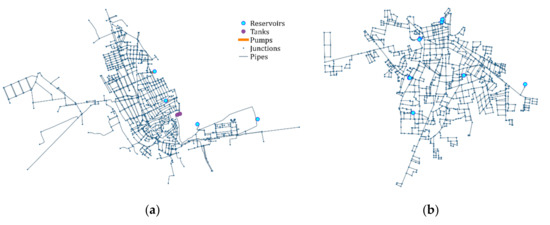

Figure 1

  • Externally hosted supplementary file 1
    Doi: 10.3390/pr9040642
    Link: https://bit.ly/3j1i3nB
    Description: iDistricts. A tool to propose or identify hydraulic sectors
  • Externally hosted supplementary file 2
    Doi: 10.3390/pr9040642
    Link: https://bit.ly/37jqkho
    Description: CheckPressure. Herramienta para evaluar las presiones en múltiples escenarios de Epanet
  • Externally hosted supplementary file 3
    Doi: 10.3390/pr9040642
    Link: http://bit.ly/2KdoN20
    Description: Reverse-Pipes. Herramienta para cambiar la orientación de tuberías en modelos de Epanet
MDPI and ACS Style

Vegas Niño, O.T.; Martínez Alzamora, F.; Tzatchkov, V.G. A Decision Support Tool for Water Supply System Decentralization via Distribution Network Sectorization. Processes 2021, 9, 642. https://doi.org/10.3390/pr9040642

AMA Style

Vegas Niño OT, Martínez Alzamora F, Tzatchkov VG. A Decision Support Tool for Water Supply System Decentralization via Distribution Network Sectorization. Processes. 2021; 9(4):642. https://doi.org/10.3390/pr9040642

Chicago/Turabian Style

Vegas Niño, Oscar T.; Martínez Alzamora, Fernando; Tzatchkov, Velitchko G. 2021. "A Decision Support Tool for Water Supply System Decentralization via Distribution Network Sectorization" Processes 9, no. 4: 642. https://doi.org/10.3390/pr9040642
