Evaluation of Thermal Hazard Properties of Low Temperature Active Azo Compound under Process Conditions for Polymer Resin in Construction Industries

Abstract

The application of polymerization initiators in a process can improve reaction efficiency and reduce energy loss. Azo compounds (azos) provide the required energy and promote polymerization for construction due to the heat release in the decomposition reaction. However, the heat release also brings related thermal hazards due to the lack of proper control. To reduce and avoid possible future hazards, the new azo initiators, 2,2′-Azobis(2-methylpropionamide)dihydrochloride (AIBA) is selected to explore the related thermal properties that are less studied by past literature. For the chemical process, its chemical reaction mechanism is extremely essential. In addition to being an influential foundation for process control, it is also used as a calculation basis for subsequent thermal hazard parameters, which is suitable for evaluating the degree of thermal hazard and emergency response. The assessment program includes kinetic model simulations and consecutive calculation on thermal safety parameters, such as TMR_ad and TCL for process operations. This study combines the thermogravimetric data with the nonlinear kinetics fitting on thermogram. The fitting results are derived back to the analysis formula which corresponds to the reaction mode to obtain the elementary reaction parameters and establish the kinetics process. The runaway mode and consequent thermal hazard parameters can also be obtained.

1. Introduction

Long-term technological improvements and related research in the polymer manufacturing industry have led to the application of various materials in the polymer area [1]. Azo compounds (azos) were originally used as the mainstream on applied solutions of dye areas, which have relied on consideration from scientific research due to its highly energetic properties.

The high energetic properties of azos facilitates the initiation of the polymerization reaction. This property is attributed to the thermal decomposition of azo compounds and the formation of radicals. Energy released helps to meet the threshold of reaction, and the reactivity of the generated free radicals has a significant role in promoting the polymerization of different types of monomers [2], such as to facilitate the fabrication of plastics for construction and water-absorbent resins. The reaction characteristic of the decomposition brings heat release accompanied by temperature rise and a large amount of gas products, which may cause equipment deformation, and if the situation is ignited after a leak occurs, it will cause a fire and explosion [3,4,5].

Reaction hazard characteristics [6] can be developed on the basis of real past cases; the thermal hazard [7,8,9] that occurred on 12 May 2016 is one example. A warehouse storing azo dyes caused a fire and damaged related facilities due to improper temperature and ignition source control. There is a large amount of evidence that in the azo processing program, in the initial high temperature condition caused by mis-operation or cooling failure, even if only a small part of the material generates a decomposition reaction due to its self-reaction characteristics, the heat generated with the temperature rise is enough to induce the rest of the surrounding materials to react. Therefore, temperature control to circumvent thermal runaway is an essential basis [10] for avoiding similar process disasters, and relevant safety studies should be performed. Although the thermal safety of azo compounds has been discussed in the existing literature, the progress of the manufacturing process has resulted in the pre-research of new azos for production and application. To improve the efficiency and energy saving of the process, the new initiator focuses on the lower temperature to start the polymerization reaction. However, the decomposition feature at low temperatures represents low thermal stability, the thermal safety needs to be determined. The related research on initiators that have recently been employed into practical processes is still lacking and most of the reported research in the previous literature are concentrated on the application of azo dyes. The azo initiators 2,2′-Azobis(2-methylpropionamide)dihydrochloride (AIBA) as Figure 1 used for lower temperature range which generated the decomposition reaction below 60 °C [9,11,12], represented hazardous feature, is selected for a pioneering methodology to demonstrate the kinetics explanation in a real situation.

The analysis is based on the experimental data obtained by thermogravimetric analysis and the nonlinear fitting method which is used to conform with the experimental curve. The data points corresponding to the curve can be substituted into the formula to obtain the basic parameters and establish the corresponding kinetic analysis mode to connect the heat transfer of the reaction simulation. The thermal hazard of a substance is directly related to the acquisition of reaction kinetics [13]. The description of the reaction mechanism and the comprehension of parameter values [14] will be used to calculate the heat exchange between the substance itself and the external environment. The characterization of the reaction kinetics depends mostly on the activation energy (E_a), pre-exponential factor (A), and the reaction equation (f(α)) [15]. The heat release mode of the substance that confirms the safety temperature parameters is then calculated, which is used to evaluate the efficiency of the cooling system and the response time for emergency measures [16]. The overall research process is shown in Figure 2.

2. Materials and Methods

2.1. Samples

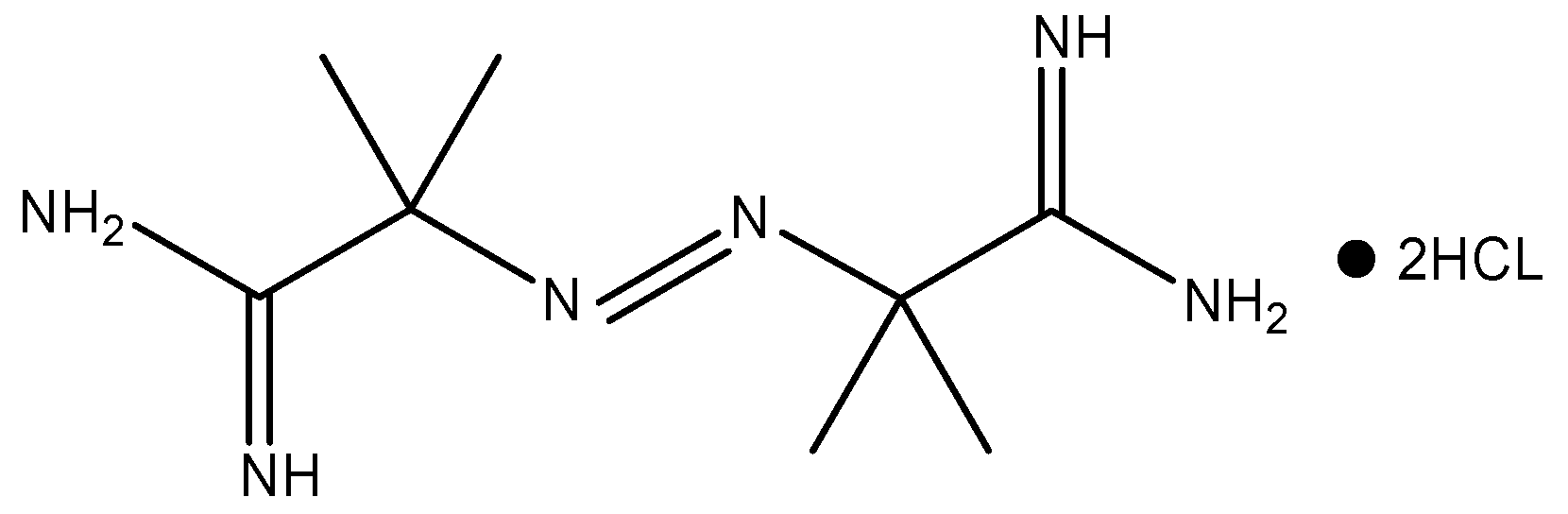

AIBA samples were obtained as 99.0 mass % white powdery solid from ACE Chemical Corp., Shanghai, China. The samples were refrigerated at a low temperature and kept dry to prevent self-reaction from decomposition and deliquescence.

2.2. Thermogravimetric Analyzer

The Thermogravimetric analysis (TGA) from Mettler Toledo is a quantitative analysis technique that derives the transformation, kinetics, and mechanism of the overall process of the reaction through changes in sample quality under isothermal or non-isothermal heating environments. For reactive substances, combining with software technology can monitor and record changes in the quality of the sample affected by the temperature program over time. The overall testing program consisted of a furnace chamber as 0.5, 1.0, 2.0, 4.0, and 8.0 °C/min [17,18] from 25.0 to 400.0 °C for a heating rate which vented with nitrogen (50 mL/min) and a microbalance. The microbalance recorded the mass changes of the samples (3.0 ± 0.1 μg) on the balance through the programmer and controller.

2.3. Basic Theory of Kinetic Model

The E_a and A have a variety of widely recognized methods under the verification of various empirical formulas and studies. However, it is relatively complicated to establish the f(α) [19], especially for substances with multi-stage reactions. To evaluate the f(α) and make the calculated results consistent with the experimental results as much as possible and simplify the calculation hypothesis, the fitting model [20] is considered the reaction process (a) as it is a variable which can substitute various reaction equations for calculations to obtain the specific reaction rate (da/dt) as a characterization. The experimental reaction mass loss (TG) and the specific mass loss rate (dTG) caused by the reaction can be manifested as a nonlinear fitting process between the curve calculated by the numerical method and the experimental data line in the actual calculation [21]. The thermal safety software [22] combined with kinetic analysis was used to determine the decomposition characteristics of thermal hazard parameters. The thermal safety software performed nonlinear fitting TGA data based on kinetic model to calculate the hazard parameters corresponding to reaction rate under adiabatic conditions.

The reaction mode can be divided into single stage or multi-stage reaction [16,23,24]. The basic reaction mode can be expressed as:

$$\frac{\mathrm{d}\alpha }{\mathrm{d}\mathrm{t}}=k\exp (-\frac{E}{RT})f(\alpha )$$

(1)

The basic f(α) can be characterized by nth and autocatalytic reactions:

$$f(\alpha )=\left\{\begin{array}{l}{(1-\alpha )}^n\\ {(1-\alpha )}^{n1}({\alpha }^{n2}+z)\end{array}\right.\begin{array}{l}\mathrm{nth}\mathrm{model}\hfill \\ \mathrm{autocatalysis}\mathrm{model}\hfill \end{array}$$

(2)

Exploring the multi-stage reaction can generalize the mode that does not affect each other (A → B → C) or opposite (A → B +… or A + B → 2B), which can be expressed as Equations (3) and (4), respectively:

$$\frac{\mathrm{d}{\alpha }_1}{\mathrm{d}\mathrm{t}}=k_1\exp (-\frac{E_1}{RT})f_1(1-\alpha );\frac{\mathrm{d}{\alpha }_2}{\mathrm{d}\mathrm{t}}=k_2\exp (-\frac{E_2}{RT})f_2(\alpha -{\alpha }_2)$$

(3)

$$\frac{\mathrm{d}\alpha }{\mathrm{d}\mathrm{t}}=k_1\exp (-\frac{E_1}{RT}){(1-\alpha )}^{n1}+k_2\exp (-\frac{E_2}{RT}){\alpha }^{n2}(1-\alpha )$$

(4)

2.4. Extending from the Analysis of Material Dynamics to the Thermal Balance of the System

Reaction kinetics can continue to be extended to the thermal equilibrium of systems containing substances, such as vessels. For the accumulation of many substances with self-reaction characteristics, the self-decomposition heat from a small part of the substances cannot release to outside systems, which results in temperature rise. If this phenomenon can be diluted by the heat conduction on the surface of the system, it can be avoided that other unreacted substances in the system are introduced into the reaction by high temperature. Otherwise, many substance reactions are triggered to form the runaway reactions. This situation of rapid temperature rise in a short time must be avoided in hazard control. The basic system heat conduction equation can be expressed as:

$$\rho C_{\mathrm{p}}\frac{\partial T}{\partial t}=\mathrm{div}(\lambda \left(\mathrm{grad}\left(T\right)\right)+W)$$

(5)

where $\rho$ is the density, C_p is the specific heat capacity, λ is the thermal conductivity coefficient, T is the temperature, and W is the heat generation due to reaction.

The basic assumption is that the initial temperature inside the system is evenly distributed with the setting of boundary conditions:

$$\left\{\begin{array}{l}\mathrm{1st}\mathrm{kind:}{T}_{\mathrm{s}}=T_{\mathrm{e}}\\ \mathrm{2nd}\mathrm{kind:}-\lambda \frac{\partial T}{\partial X}{|}_{\mathrm{s}}=q_{\mathrm{e}}\\ \mathrm{3rd}\mathrm{kind:}\lambda \frac{\partial T}{\partial X}{|}_{\mathrm{s}}=U\left(T_{\mathrm{s}}-T_{\mathrm{e}}\right)\end{array}\right.$$

(6)

where x is the outer unit normal on the boundary, subscripts s and e denote the surface and environment, respectively, and U is the heat transfer coefficient.

2.5. Safety Operation and Related Evaluation Parameters of Actual Manufacturing Process

The reaction rate is always a crucial factor for efficiency in the chemical process. However, the reaction rate still has its limits due to safety considerations. Process deviations, such as incorrect operations causing the process temperature to exceed the tolerance limit, and the rapid increase in reaction rate, drives a large amount of heat release with temperature rise and will eventually lead to process equipment damage, leakage, and even fire and explosion. In the above-mentioned classic thermal runaway scenario chemical process, if the initial heat can be effectively ventilated or cooled by the process staff or system which can appropriately respond by adequate time, the process can be adjusted in normal operation. Sufficient respond time also means that if heat accumulation is formed in the initial stage, under safety measures, the hazard can still be eliminated in the early stage. Therefore, the reaction process and time efficiency related parameters are extremely significant in the normal operation and the emergency response process, which can be characterized by the current time required for the estimated substance to reach the maximum reaction rate (TMR_ad And TMR_iso).

TMR_ad and TMR_iso can be obtained through adiabatic and isothermal experiments, but the experimental equipment is expensive, and the procedures are complicated. To improve the efficiency in industrial applications, the TGA, which is convenient and widely approved by research, can be analyzed by the changes in pattern of reactions with time to the actual process situation from numerical methods. TMR_ad was discussed by Kossoy and Akhmetshin’s thermodynamic measurement [25] where the influence of reaction rate on hazard was evaluated. As seen in Wang et al. [26], TMR_ad can provide a basis for initiating emergency measures to reduce the rate of thermal runaway reactions. Therefore, TMR_ad is a useful indicator for determining response time. TMR_ad can be evaluated from the following calculation modes [27]:

When a substance is decomposed or reacted in a batch reactor, the heat balance can be conveyed as Equation (7).

$$\stackrel{•}{Q_{\text{in}}}-\stackrel{•}{Q_{\text{out}}}+\stackrel{•}{Q_{\mathrm{r}}}=\frac{\Delta Q}{\Delta t}$$

(7)

The thermal equilibrium of the exothermic reaction obtained by calorimetry from Equation (7) is derived as Equation (8).

$$UA\left(T_{\mathrm{e}}-T_{\mathrm{s}}\right)+M_{\mathrm{s}}\left(-\Delta H_{\mathrm{d}}\right)\frac{\mathrm{d}\alpha }{\mathrm{d}\mathrm{t}}=M_{\mathrm{s}}{C}_{\mathrm{p},\mathrm{s}}\frac{\mathrm{d}{T}_{\mathrm{s}}}{\mathrm{d}\mathrm{t}}+M_{\mathrm{c}}{C}_{\mathrm{p},\mathrm{c}}\frac{\mathrm{d}{T}_{\mathrm{c}}}{\mathrm{d}\mathrm{t}}$$

(8)

where U, A, T_e, T_s, T_c, M_s, C_p,s, and C_p,c are heat transfer coefficient, wetted surface area, environment temperature, sample temperature, test cell temperature, sample’s heat capacity, and test cell’s heat capacity, respectively.

Equation (9) indicates that the sample and the test cell are in thermal equilibrium.

$$\frac{\mathrm{d}{T}_{\mathrm{c}}}{\mathrm{d}\mathrm{t}}=\frac{\mathrm{d}{T}_{\mathrm{s}}}{\mathrm{d}\mathrm{t}}=\frac{\mathrm{d}T}{\mathrm{d}\mathrm{t}}$$

(9)

Assume that the value of λ of the sample generating heat in adiabatic environment is equal to 0. The relationship between time and temperature in adiabatic system is constructed by integrating Equations (8) and (9).

$$\frac{\mathrm{d}T}{\mathrm{d}\mathrm{t}}=\frac{M_{\mathrm{s}}{C}_{\mathrm{p},\mathrm{s}}}{M_{\mathrm{c}}{C}_{\mathrm{p},\mathrm{s}}+M_{\mathrm{s}}{C}_{\mathrm{p},\mathrm{s}}}\frac{-\Delta H_{\mathrm{d}}}{C_{\mathrm{p},\mathrm{s}}}\frac{\mathrm{d}\alpha }{\mathrm{d}\mathrm{t}}$$

(10)

In addition, the phi value (Φ) and ΔT_ad can read as Equations (11) and (12).

$$\Phi =\frac{M_{\mathrm{s}}{C}_{\mathrm{p},\mathrm{s}}+M_{\mathrm{s}}{C}_{\mathrm{p},\mathrm{s}}}{M_{\mathrm{c}}{C}_{\mathrm{p},\mathrm{s}}}$$

(11)

$$\Delta T_{\mathrm{a}\mathrm{d}}=\frac{-\Delta H_{\mathrm{d}}}{C_{\mathrm{p},\mathrm{s}}}$$

(12)

Then, Equation (11) can be rearranged as Equation (13).

$$\frac{\mathrm{d}T}{\mathrm{d}\mathrm{t}}=\frac{1}{\Phi }\Delta T_{\mathrm{a}\mathrm{d}}\frac{\mathrm{d}\alpha }{\mathrm{d}\mathrm{t}}$$

(13)

Therefore, when the initial temperature and Φ are defined, the numerical integration of dT/dt can be used to predict TMR_ad.

2.6. Thermal Stability on Storage Condition

Based on the assessment of the reactive hazard of the substance, the subsequent determination of storage and transportation hazard can be observed. According to the United Nations standard “Recommendation on the Transport of Dangerous Goods” (TDG) [28], the packaging of a substance is related to its heat sensitivity and stability. The evaluation method can be based on self-accelerating temperature on decomposition for process control and emergency. However, the test methods proposed by TDG [29] all have their use consideration requirements and a large cost [30]. Combining the material dynamics and the system heat exchange model, the temperature parameters, which the additional actual evaluation measures is not required, can be constructed [31,32,33,34]:

$$\frac{\mathrm{d}T}{\mathrm{d}\mathrm{t}}=\frac{\lambda }{\rho C_{\mathrm{p}}}\left(\frac{{\partial }^{2}T}{\partial x^2}+\frac{g}{r}\frac{\partial T}{\partial x}\right)+\frac{-\Delta H_{\mathrm{d}}}{C_{\mathrm{p}}}\frac{\mathrm{d}\alpha }{\mathrm{d}\mathrm{t}}$$

(14)

where C_p is the sample heat capacity, λ is the thermal conductivity, ρ is the density of AIBA, x is the package radius, and g is a geometry factor that varies by the type of packaging. ΔH_d and dα/dt are described by TGA and kinetics model [30,32], respectively. The thermal hazard on runaway reaction and enhancement process can be defined by the possible hazardous properties corresponding to changes in the temperature range by decomposition [30]. When the temperature exceeds the decomposition temperature at the initial stage of runaway reaction, the temperature increases continuously with the release of reaction heat, which is not suitable for storage and transportation. As more substances participate in the reaction, the temperature increases in a short time and shows a sharp upward trend of the inflection point on the temperature versus time curve, which is required for emergency measures to deal with possible thermal hazards. In addition, from the impact of reaction rate on process hazards, if a large number of substances decompose in a short time, the possibility of process hazards will increase. When the reaction consumes the reactant within a specific temperature range, use the estimated time (TCL) to consume a certain amount of material as the basis for evaluating the thermal hazard.

3. Results

3.1. Experiment Data Curve Fitting and Derivation of Related Reaction Kinetic Parameters

The experimental data curve is non-linearly fitted by applying reaction kinetic simulation. The fitted scenario is divided into TG and dTG signal curve and the calculated result is shown in Figure 3. From the mass loss shown by the experimental curve, it can be seen that AIBA has three stages of reaction, caused in different intervals of material consumption where the reaction temperature is listed in

Table 1. Non-isothermal data by TGA tests for 98 mass % AIBA at 0.5, 1.0, 2.0, 4.0, and 8.0 °C /min.

AIBA	β(°C/min)	T0 for 1st Reaction (°C)	T0 for 2nd Reaction (°C)	T0 for 3rd Reaction (°C)
	0.5	146	158	276
	1.0	150	166	289
	2.0	152	180	306
	4.0	156	181	308
	8.0	158	186	319

. On this foundation, the reaction kinetics is deduced, and the experimental curves are fitted by the multi-stage model. Comparing the calculated values with the actual experimental results and gradually optimizing the degree of fitting, the evaluation results are beneficial to determine the operation mode of the process and the temperature control. The reaction parameters, such as reaction rate and activation energy, can be used as the basis for verifying the actual operation and as the source for estimating the mode of the overall reaction system, which are shown in Figure 4 and Figure 5 and

Table 2. Thermokinetic parameters evaluation results of the AIBA.

Substance	Reaction Form	Parameter	ln (k0)	Ea	n1	n2	TG
		Units	ln (1/s)	kJ/mol	Dimensionless		%
AIBA	Auto	1st stage	47.43 ± 0.1	188.32 ± 0.03	1.70 ± 0.01	0.69 ± 0.01	17.92 ± 0.5
		2nd stage	36.42 ± 0.1	155.17 ± 0.03	7.35 ± 0.01	7.18 ± 0.01	34.81 ± 0.5
		3rd stage	21.18 ± 0.1	122.73 ± 0.03	0.75 ± 0.01	0.08 ± 0.01	46.35 ± 0.5

.

3.2. Thermal Hazard Evaluation

The safety characteristics of storage, transportation, and reaction are shown in Figure 6. From the change of TCL value, when the temperature is >110 °C, the consumption of AIBA is >60% due to reaction within 1 day. In the actual storage process operation, the awareness of external fire prevention and firefighting measures should be taken, but additional cooling or rigorous temperature control are less needed.

The analysis result between reaction rate and time is shown in Figure 6. In the actual process, there needs to be a trade-off between the reaction rate to improve efficiency and the balance between the safe control process. The higher reaction rate speeds up the process, while contrarily, the temperature and pressure rise caused by the heat and gas products released by the reaction in the system must be restrained to a certain extent to avoid runaway reactions. In addition, corresponding safety measures must be taken at the development stage of potential hazards, such as: excessive reaction rate, large amounts of substances participating in the reaction, and the resulting rapid temperature rise. According to TMR_ad analysis, when the temperature is >119 °C, the TMR_ad of AIBA is shorter. If the process can be kept in a temperature environment with a long TMR_ad, it means that there is enough time to modify and stabilize the process, and to define the conditions for the influence of instability or thermal runaway on the process.

3.3. Runaway Reaction of AIBA

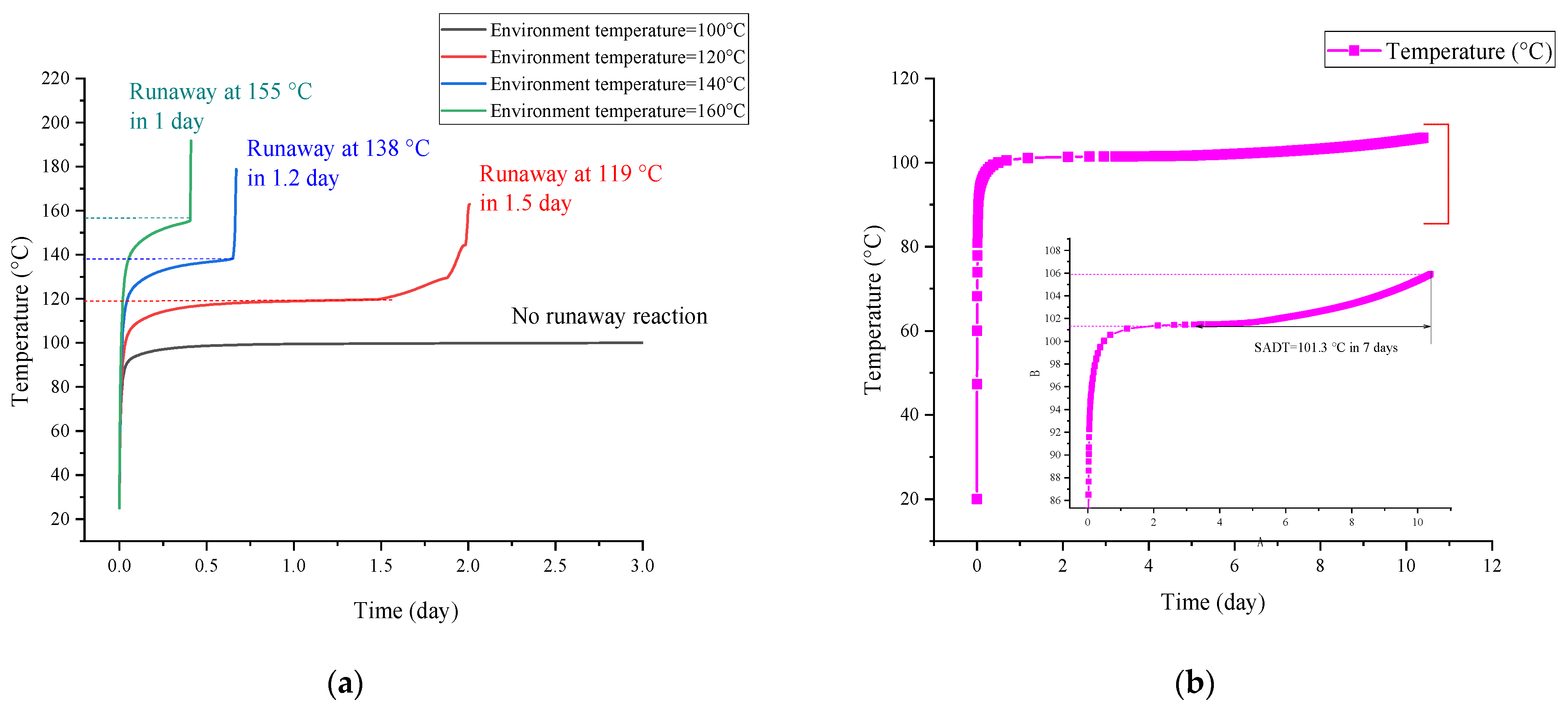

The description of kinetics combined with the calculation of the system’s external heat exchange is used to evaluate the heat release behavior of a substance at a specific external temperature. The setting scenarios of the external environment were divided into process temperature that were high or the fire source was far away, and 120, 140, and 160 °C when the process temperature continued to rise or the heat source was connected until temperatures reached the onset temperature. The temperature parameter evaluation mode can be used for the hazard analysis of the process reaction, which was used to ensure safe process conditions and establish the safety system design of the process. The basic parameters of AIBA and external packaging are described in

Table 3. Physical parameters of AIBA and packages for AIBA.

Material	Size (cm)	Shell Thickness (mm)	Filling Height (cm)	Density (g/cm)	Specific Heat Capacity (J/(g K))	Thermal Conductivity Coefficient (W/(m K))	Heat Transfer Coefficient (W/(m2·K))
AIBA	-	-	-	0.735	2.0	0.95	10
25 kg Box	L × W × H 29 × 39 × 46	5.0	35	0.75	1.7	0.3	2.2

.

AIBA under different temperature circumstances from the set external environment temperature due to heat transfer to the inside of the system caused the temperature to continue to grow and eventually caused the temperature change when runaway reaction was shown in Figure 7. When the temperature exceeded 120 °C, the decomposition reaction led to the occurrence of runaway reaction. However, AIBA did not produce runaway reactions at temperatures <100 °C. The simulation showed that the packaging form has little effect on the thermal safety of AIBA, and the environmental temperature had a deeper influence on the thermal safety. In the actual process, the storage of AIBA did not require additional cooling, but fire alarms need to be guarded to prevent heat from promoting uncontrolled reactions. The AIBA had the characteristics of active decomposition reaction for high temperature environment which the temperature monitoring required for the reaction process. The fast reaction speed will still cause AIBA to generate thermal runaway when the temperature changes slightly. The time required for thermal runaway in high temperature environments is reduced. In the actual production process, AIBA recommends refrigeration and prevention of deterioration. The active decomposition reaction process in the chemical industry is usually carried out in a high-temperature environment. If the progress of the reaction is not adequately monitored, due to the extremely fast reaction speed, even slight temperature changes may cause thermal runaway.

4. Discussion

The non-isothermal TGA experiment pointed out the potential reaction mode of AIBA and used it as a basis for numerical analysis. The nonlinear fitting calculation kinetic model curve is compared with the experimental data of AIBA, and the kinetic parameters are inversely deduced to predict the exothermic behavior of large-scale substances and the related heat transfer. Simulation analysis is aimed to reduce tedious and expensive experiments. Calculating the reaction behavior of substances in different external environments in simulation is completed by the prediction of thermal hazards which provided safety measures in actual situations.

Mathematical methods to analyze the thermal decomposition parameters of AIBA, such as TCL and TMR_ad show that if the temperature reaches 110 °C the thermal stability of AIBA will be affected, and when it exceeds 100 °C the thermal stability of storage condition will further decrease. Therefore, it is a necessary measure and equipment requirement for AIBA to deal with fire protection during application.
