One-Pot Synthesis of Ni_0.05Ce_0.95O_2−δ Catalysts with Nanocubes and Nanorods Morphology for CO₂ Methanation Reaction and in Operando DRIFT Analysis of Intermediate Species

Abstract

The valorization of CO₂ via renewable energy sources allows one to obtain carbon-neutral fuels through its hydrogenation, like methane. In this study, Ni_0.05Ce_0.95O_2−δ catalysts were prepared using a simple one-pot hydrothermal method yielding nanorod and nanocube particles to be used for the methanation reaction. Samples were characterized by XRD, BET, TEM, H₂-TPR, and H₂-TPD experiments. The catalytic activity tests revealed that the best performing catalyst was Ni_0.05Ce_0.95O_2−δ, with nanorod morphology, which gave a CO₂ conversion of 40% with a selectivity of CH₄ as high as 93%, operating at 325 °C and a GHSV of 240,000 cm³ h⁻¹ g⁻¹. However, the lower activation energy was found for Ni_0.05Ce_0.95O_2−δ catalysts with nanocube morphology. Furthermore, an in operando diffuse reflectance infrared Fourier transform spectroscopy (DRIFTS) analysis was performed flowing CO₂:H₂ or CO:H₂ mixture, showing that the main reaction pathway, for the CO₂ methanation, is the direct hydrogenation of formate intermediate.

1. Introduction

A reduction of carbon emissions from industry and energy production by avoiding, capturing, or recycling carbon is urgently needed to limit the ever-increasing concentration of CO₂ in the atmosphere, the leading cause of global warming. The utilization of CO₂ as a C1 building block in organic synthesis to produce chemicals is limited to the production of urea, salicylic acid, and polycarbonates, and utilizes only a small percentage of the largely available feedstock [1]. Recycling CO₂ to produce fuels such as methane, methanol, dimethyl ether, or higher alcohols could be a convenient alternative that has not been thoroughly investigated yet. Research in this field may leads to reduced consumption of carbon-based fossil fuels, avoiding the introduction of new CO₂ to the atmosphere [2,3]. The hydrogenation of CO₂ to produce methane and water, (CO₂ + 4H₂ → CH₄ + 2H₂O), known as Sabatier reaction or methanation, is exothermic (ΔH° = –164 kJ mol⁻¹), and thermodynamically favored (ΔG⁰ = –131 kJ/mol), but with kinetic barriers that require the presence of a catalyst. CO₂ methanation is currently attracting much attention due to its potential application in the power to gas process (PtG), where the intermittent excess electricity, generated from renewable sources, can be used for the sustainable production of synthetic natural gas (SNG), which contributes to the reduction of greenhouse gas emissions by replacing natural fossil methane [4,5].

In the presence of a catalyst, CO₂ methanation occurs above 200 °C, and is generally exploited below 400 °C, to limit the endothermic side reactions that occur at high temperatures: the reverse-water-gas shift (RWGS: CO₂ + H₂ → CO + H₂O, ΔH° = 41 kJ mol⁻¹), which produces CO instead of methane, and the reforming of methane with CO₂ (CH₄ + CO₂ → 2CO + 2H₂, ΔH° = 247 kJ mol⁻¹). Noble and transition metals of the VIII-X groups (Ru, Rh, Ir, Pd, Ni, Fe, Co), are active and selective for methanation. They have been supported on oxides (γ-Al₂O₃, TiO₂, SiO₂, ZrO₂, CeO₂), and extensively studied, as summarized in some recent reviews [2,4,6,7,8,9,10,11]. The order of the metal elements for the specific activity or selectivity may differ in published papers, depending on the methanation conditions and on the metal/support interactions; anyhow, ruthenium is generally the most active. Nonetheless, Ni metal is the most commonly used for commercial applications, due to its high activity, high selectivity, and very low cost. However, Ni-based catalysts are more active at higher temperatures than noble metal, and are prone to deactivation by carbon deposition due to the Boudouard reaction and the reduction by H₂ of CO₂ and CO to carbon. The catalytic performances of Ni-based catalysts depend markedly on the properties of the support, which affect the dispersion of the catalytic phase, the reducibility of the metal, and the metal-support interactions.

The mechanism of CO₂ methanation over nickel-based catalysts has been extensively studied using theoretical and experimental approaches, but many aspects of the mechanism remain controversial, and are still debated among researchers. Three main possible reaction mechanisms have been proposed [11,12,13]: the first pathway involves the associative adsorption of CO₂ with a surface H*, forming a formate intermediate (CHOO*), which is subsequently hydrogenated to CH*, and then to CH₄ (formate pathway). The other mechanisms both start with the dissociative adsorption of CO₂ onto CO* and O*, followed by the hydrogenation of CO_ad to form methane after direct cleavage of the C-O bond, or via an HCO* intermediate. However, in the last two routes, the intermediate is the adsorbed CO. The properties of the support and the operating conditions appear to influence the preferred reaction pathway and the rate-determining step. The methanation mechanisms on Ni supported on CeO₂ catalysts are still under investigation and can be deepened by analyzing the involved intermediates, using in operando DRIFT experiments [12,14]

CeO₂ is one of the most studied catalyst carriers, due to its redox properties, and to its ability to store and release oxygen (oxygen storage capacity, OSC) through the Ce³⁺/Ce⁴⁺ couple on the surface, and due to its oxygen vacancies. CeO₂-based catalysts showed excellent performances in the oxidation of CO [15] or alcohols [16], combustion of methane in the lean state [17], dry reforming [18,19,20], hydrogenation [21], and CO₂ methanation [14,22]. The redox properties and the ability to highly disperse Ni have been suggested as responsible for the excellent catalytic activity and stability for CO₂ methanation [23,24].

CeO₂ can be prepared in different nano-shapes, such as nano-rod, nano-cubic or nano-octahedra. The morphology affects the catalytic performances of Me/CeO₂ catalysts for various reactions: i.e., CO₂ methanation over Ni [3,25], methane combustion over Pd [17], water gas shift reaction over Cu [26], dry reforming of methane or methanol over Ni [27,28], hydrogenation of ethyl levulinate over Ru [21]. The nano-rod morphology appears the most active and stable for all these reactions, whereas the order of activity for nano-cubes and nano-octahedra may be reversed.

The difference in activity of Me/CeO₂ catalysts with different nano-shapes is ascribed to differences in the specific exposed crystallographic facets that affect the metal/support interactions [3,27,29], the amount of oxygen vacancies [3,17,21,25,27,28,29], or acid-basic sites [28]. Experimental and theoretical studies on well-defined nanocrystals have established that the control of exposed facets in ceria is a promising way to direct the activity and selectivity of many reactions [29].

In light of these considerations and perspectives, it is interesting to further investigate the role of most active nanoshapes for the CO₂ methanation, i.e., rods and cubes.

Recently, we studied a series of Ni/nanorod-CeO₂ catalysts with different Ni loading (2–13 wt%) [22] and a Pd (2 wt%)/nanorod-CeO₂ [16], prepared by one-pot hydrothermal synthesis, founding that this preparation method allows one to obtain the high and homogeneous dispersion of supported metals, good stability of metal dispersion and support morphology after treatments at high temperatures.

In this work, we investigated the influence of morphology on catalytic activity for the CO₂ methanation of samples Ce_0.95Ni_0.05O_2−d, with nanorod or nanocube shape prepared by one-pot hydrothermal synthesis. This rapid and straightforward method ensures a high dispersion of nickel and a strong Ni-support interaction. The central core of this research is the study of the nature of reaction intermediates, and the dependence of their nature on the specific ceria nano-shape, through in operando DRIFT analysis.

2. Materials and Methods

2.1. Catalysts Synthesis

Ce_0.95Ni_0.05O_1.95 nanorods (Ni-nR): 2.97 g of Ce(NO₃)₃ × 6H₂O and 0.10 g of Ni(NO₃)₂ × 6H₂O were dissolved in 20 mL of distilled water. A NaOH solution (48 g of NaOH in 100 mL of distilled water) was added dropwise, with vigorous stirring for 30 min. After precipitation, the suspension was transferred to a Teflon-lined cylinder and kept in a hot oven for 24 h at 100 °C. The precipitate was washed to neutral pH, dried overnight at 80 °C, and ground in an agate mortar; the powder thus obtained was calcined at 500 °C for 5 h. CeO₂ nanorods (nR) were synthesized in the same way without a Ni reagent.

Ce_0.95Ni_0.05O_1.95 nanocubes (Ni-nC): 3.56 g of Ce(NO₃)₃ × 6H₂O and 0.13 g of Ni(NO₃)₂ × 6H₂O were dissolved in 20 mL of distilled water. A NaOH solution (29 g of NaOH in 100 mL of distilled water) was added dropwise with vigorous stirring for 30 min. After precipitation, the suspension was transferred to a Teflon-lined cylinder and kept in a hot oven for 24 h at 180 °C. The precipitate was washed to neutral pH, dried overnight at 80 °C, and ground in an agate mortar; the powder thus obtained was calcined at 500 °C for 5 h. CeO₂ nanocubes (nC) were synthesized in the same way without Ni reagent.

The chemical composition was checked using the EDAX technique integrated with the device TEM. The nominal composition was guaranteed with an error of ±5% regarding the different areas studied, confirming the nominal nickel content and, therefore, the accuracy of the hydrothermal synthesis method.

2.2. Catalysts Characterization

Powder X-ray diffraction patterns were recorded using a Scintag X1 diffractometer equipped, with a Cu Kα (λ = 1.5418 Å) source and the Brag-Brentano θ–θ configuration in the 2θ range 20–80°, with 0.05 step size and 3 s acquisition time. The NiO crystallite sizes were estimated by Scherrer Equation (1), where: D is the crystallite size in nm, K is the crystallite-shape factor, λ is the X-ray wavelength, β_D is the full-width at half maximum in radians, and ϑ is the Bragg angle.

$$D=\frac{K\lambda }{{\beta }_{D}cos \theta }$$

(1)

The lattice constant (α) of CeO₂ was calculated by the following Equation (2):

$$\alpha =\frac{\lambda }{2sin \theta }\sqrt{h^2+k^2+l^2}$$

(2)

The supports and catalysts XRD patterns were further elaborated by the Williamson plot to obtain the effects of size and strain in the CeO₂ crystals. The full width at half maximum ${\beta }_T$ of the diffraction peak is ascribed to the broadening effect of both the crystallite size ${\beta }_D$ and the lattice strain ${\beta }_s$, arising from strain-induced broadening ε, according to the following Equations (3) and (4)

$${\beta }_T={\beta }_D+{\beta }_S=\frac{K\lambda }{Dcos \theta }+4\epsilon tan \theta$$

(3)

$${\beta }_{T}cos \theta =\frac{K\lambda }{D}+4\epsilon sin \theta$$

(4)

The N₂ adsorption-desorption isotherms of the samples were obtained at −196.1 °C using a Micromeritics Gemini V apparatus. Prior to measurement, the samples were heated at 300 °C for 4 h in He. The specific surface area (SSA) was calculated by the Brunauer–Emmet–Teller (BET) method in the equilibrium pressure range of 0.05 < p/p° < 0.3. The pore size distribution was obtained from the branch of the desorption isotherm using the Barrett–Halenda (BJH) method. The total pore volume was calculated from the maximum adsorption point at p/p° = 0.98.

Temperature-programmed reduction (TPR) and temperature-programmed desorption (TPD) of H₂ were performed using a Thermo Scientific TPDRO1100 flow-through apparatus. Before the experiments, the calcined sample was placed into a quartz reactor, and pre-treated flowing 20 cm³ min⁻¹ of 5% O₂/He gas mixture at 500 °C for 1 h, and cooled down to 50 °C. TPR was conducted by flowing 30 cm³ min⁻¹ of 5% H₂/Ar gas mixture, raising the temperature up to 1000 °C, with a heating rate of 10 °C min⁻¹. For TPD experiment, the calcined sample was pre-reduced flowing 30 cm³ min⁻¹ of 5% H₂/Ar gas mixture up to 500 °C for 1 h, then cooled down to 50 °C. The H₂ physisorbed was removed flowing 30 cm³ min⁻¹ of Ar for 1 h, then the temperature was increased up to 500 °C, with a heating rate of 10 °C min⁻¹. The H₂ consumption/chemisorption was measured by a TCD detector, calibrated by reducing a known amount of CuO (99.99% purity from Sigma Aldrich). A trap removed the H₂O generated in the reduction before flowing into the TCD detector. The Ni dispersion (D%) and the particle size of Ni (d) were calculated by Equations (5) and (6), respectively:

$$D(\%)=\frac{\eta SM}{W}\times {10}^2$$

(5)

$$d\left(\mathrm{nm}\right)=\frac{fW}{\rho \eta N_{A}SA}\times {10}^5$$

(6)

in these equations, f is the geometric shape factor (6 for spherical particles), W is the weight percentage of Ni (1.75%), ρ is the density of Ni (8.9 g/cm³); η is the desorbed H₂ (mol/g), N_A is the Avogadro number (6.023 × 10²³), S is the stoichiometric factor for H₂ chemisorption (metal mole/gas mole = 2), A is the area occupied by the Ni surface atom (6.51 × 10⁻¹⁶ cm²), M is the atomic mass of Ni (58.69 g/mol).

For the calculations of the theoretical hydrogen consumption to be compared with the experimental, the oxidation state of Ni = +2 and that of Ce = +4, was assumed. From the reaction: 20Ni_0.05Ce_0.95O_1.95 + 10.5H_2(g) = Ni⁰ + 9.5Ce₂O₃ + 10.5H₂O_(g), per gram of catalyst, the mmol of H₂ consumed for Ni is 0.30 mmol H₂/g, while that required for the reduction of CeO₂ to Ce₂O₃ is 2.84 mmol H₂/g.

A Tecnai G2 F20 s-twin instrument operating at 200 kV performed transmission electron microscopy (TEM) analysis.

Diffuse reflectance infrared Fourier transform spectroscopy (DRIFT) analysis was carried out using a Thermo-electron Corporation Nicolet 4700-FTIR spectrometer coupled to a reaction cell. The reactor unit was embedded with two 6 × 90° off-axis ellipsoidal mirrors arranged to discriminate specularly reflected radiation. Spectra were acquired with 256 scans in the flow of gases controlled by mass flow controllers. The sample was reduced in situ by flowing 50 cm³ min⁻¹ of 50% H₂/He gas mixture, heating up to 500 °C at a rate of 10 °C min⁻¹, and maintaining this temperature for 30 min. The DRIFT spectra of the reduced samples were acquired as background in the 100‒500 °C temperature range at intervals of 100 °C. The methanation reaction mixture CO₂:H₂:He = 5:20:25 cm³ min⁻¹ or CO:H₂:He = 5:15:30 cm³ min⁻¹ flowed on the sample, and the spectra were recorded in the same temperature range of the backgrounds.

2.3. Fixed-Bed Catalytic Test

The CO₂ methanation reaction was performed in a fixed-bed quartz reactor, with an internal diameter of 6 mm and a length of 300 mm, inserted into a cylindrical oven. The reactive mixture was fed by three independent mass flow controllers with a CO₂:H₂:N₂ ratio of 1:4:5 and a total flow of 100 cm³ min⁻¹, and a weight hourly space velocity (WHSV) of 60,000 cm³g⁻¹h⁻¹. Before the catalytic test, the sample was reduced in situ with a 50% H₂/N₂ stream (50 cm³ min⁻¹), raising the temperature from RT to 500 °C, and held isothermally at this temperature for 60 min. The catalytic test was performed in the temperature range from 500 °C to 250 °C, with 25 °C decrements. A cold trap and a dryer removed H₂O from the flow before the analysis. The dry gas was analyzed by Agilent 7820 gas chromatograph. The conversion of CO₂ $(X_{C{O}_2})$ the selectivity of CH₄ $(S_{C{H}_4})$ and the yields of CH₄ $\left(Y_{C{H}_4}\right)$ and CO $(Y_{CO})$ were calculated by Equations (7)–(9), where $C{O}_{2,out}$, $C{H}_{4,out}$ and $C{O}_{out}$ are the gas volume concentrations in the effluent:

$$X_{C{O}_2}(\%)=\frac{C{H}_{4, out}+C{O}_{out}}{C{O}_{2, out}+C{H}_{4, out}+C{O}_{out}}\times {10}^2$$

(7)

$$S_{C{H}_4}(\%)=\frac{C{H}_{4, out}}{C{H}_{4, out}+C{O}_{out}}\times {10}^2$$

(8)

$$Y_{C{H}_4} or Y_{ CO}(\%)=\frac{C{H}_{4, out} or C{O}_{out}}{C{O}_{2, out}+C{H}_{4, out}+C{O}_{out}}\times {10}^2$$

(9)

The turn over frequency TOF (s⁻¹) was calculated using Equation (10), where: $F_{C{O}_{2, in}}$ is the CO₂ flux in the reactor, $X_{C{O}_2}(\%)$ is the CO₂ conversion, $M_{Ni}$ is the Ni molar mass, $m_{cat}$ is the catalyst mass, $W_{Ni}(\%)$ is the Ni weight percentage, $D(\%)$ is the Ni dispersion obtained by the H₂-TPD technique.

$$TO{F}_{C{O}_2} \left({\mathrm{s}}^{-1}\right)=\frac{F_{C{O}_{2, in}} X_{C{O}_2}(\%)M_{Ni}}{m_{cat}{W}_{Ni}(\%)D(\%)}=\frac{-r_{C{O}_2}{M}_{Ni}}{W_{Ni}(\%)D(\%)}$$

(10)

3. Results

3.1. Structural and Morphological Characterization

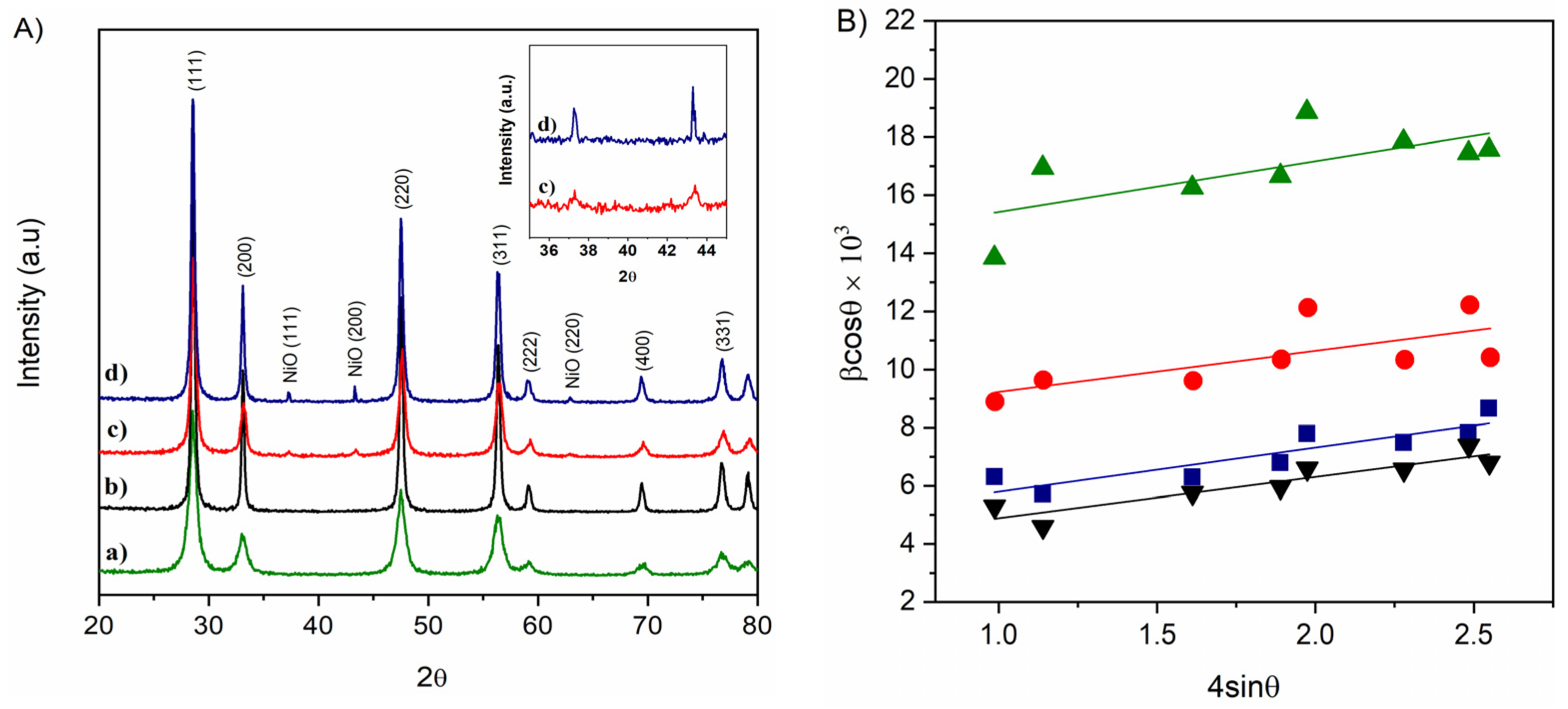

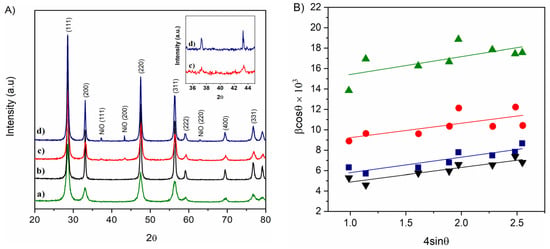

The XRD patterns of the nR and nC supports and the Ni-nR and Ni-nC catalysts are shown in Figure 1A, and the corresponding Williamson–Hall (W-H) plots are given in Figure 1B. The main structural features are listed in

Table 1. Structural parameters of as prepared samples.

Sample	DW-H (nm) a	ε	a (Å)	DNiO (nm) b
nC	40	1.4 × 10−3	5.41
Ni-nC	32	1.5 × 10−3	5.41	71
nR	10	1.7 × 10−3	5.41
Ni-nR	18	1.4 × 10−3	5.40	20

^a Calculated by the Williamson–Hall plot method. ^b Calculated by the Scherrer equation.

. After calcination at 550 °C, the nR and nC supports showed the peaks corresponding to the diffraction planes (111), (200), (220), (311), (400), and (331) of the cubic structure with Fm3-3m space group (JCPDS 34-0394). The diffraction angle of these peaks was similar for both samples. However, the FWHM was much larger in the nR support, indicating a smaller crystallites size. In fact, from the intercept with the y-axis of the W-H plot, a crystallite size of 10 nm was calculated for the nR, compared to a much larger size, of 40 nm, obtained for the nC. The ε strain, resulting from the slope of the line, was also slightly different, being 1.7 × 10⁻³ and 1.4 × 10⁻³ for the nR and nC supports, respectively. Confirming a larger crystalline imperfection for the nanorod morphology, even if these defects did not change the lattice parameter, which was equal to 5.41 Å in both supports.

Introducing Ni during the synthesis significantly changed the crystallographic patterns of the catalysts calcined at 550 °C. Peaks at 2θ angles 37.3°, 43.3°, and 62.9° corresponding to diffraction planes (111), (200), and (220) of the cubic NiO phase with space group Fm3-3m (JCPDS 47-1049) were clearly visible, albeit with very low intensity due to the small amount of Ni in the catalysts (1.75 wt%). The width of these peaks was much larger in Ni-nR than in Ni-nC, and the crystallite sizes, estimated by the Scherrer equation, were 20 and 71 nm, respectively. From W–H diagrams of CeO₂ phase, crystallites of 18 nm and 32 nm with the strain of 1.4 ×10⁻³ and 1.5 ×10⁻³ were obtained for the Ni-nR and Ni-nC catalysts, respectively. The Ni-nR lattice parameter of 5.40 Å was slightly lower than that of Ni-nC, which was 5.41 Å. Thus, the introduction of Ni seems to reduce the crystallographic differences between the two morphologies. However, as reported by several authors [30,31], it cannot be ruled out that some of the Ni has been incorporated into the CeO₂ lattice to form a solid Ce-O-Ni solution.

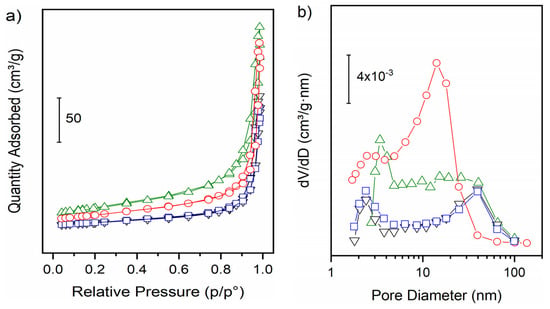

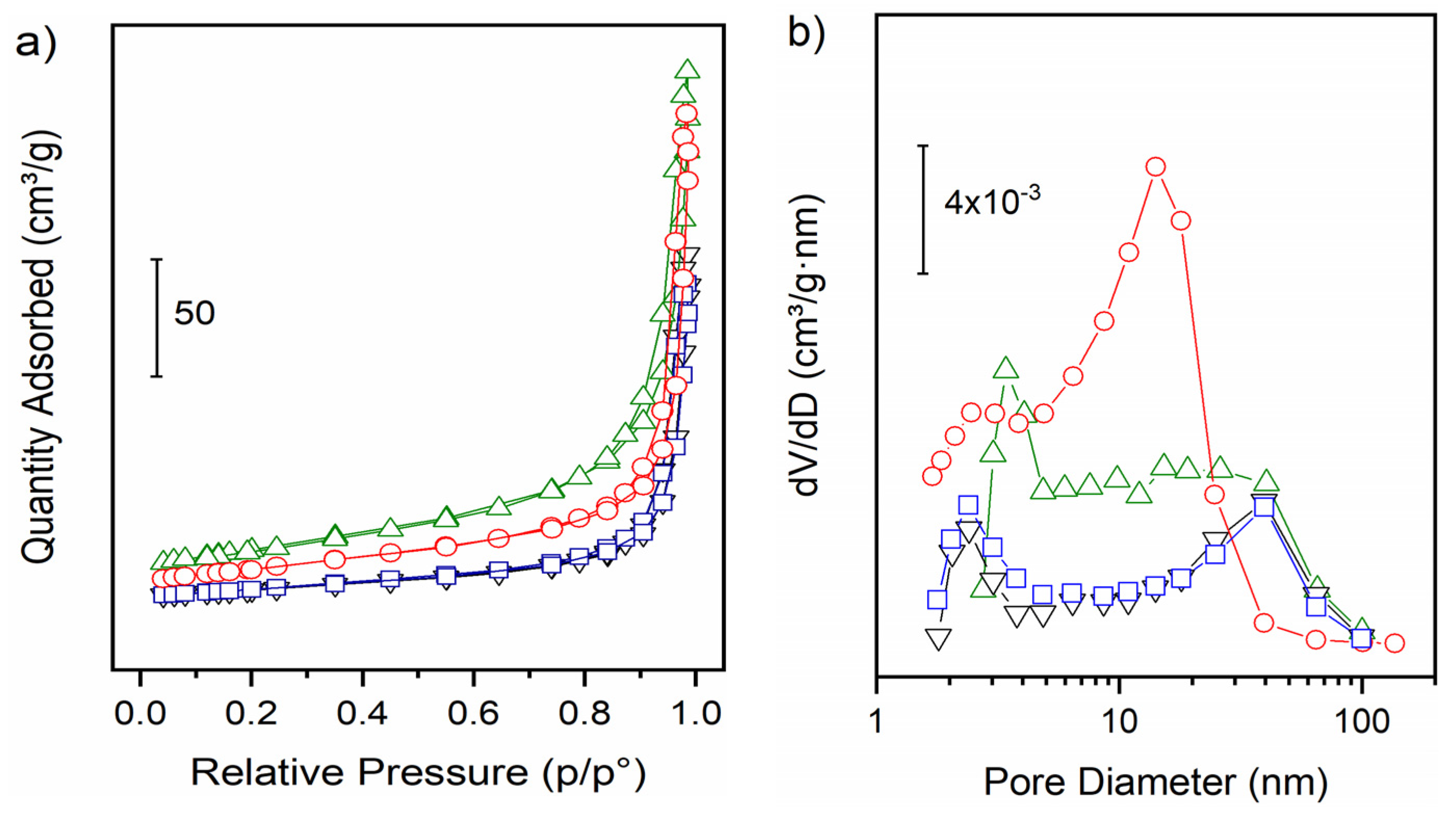

The N₂ adsorption/desorption isotherms and the corresponding pore size distributions of the materials are shown in Figure 2, and the main textural properties are summarized in

Table 2. Textural properties of as-prepared samples.

Sample	SSA (m2g−1)	Pore Volume (cm3g−1)	Average Pore Diameter (nm)
nC	32	2.4 × 10−1	25
Ni-nC	33	2.2 × 10−1	21
nR	92	3.6 × 10−1	19
Ni-nR	62	3.3 × 10−1	20

. All samples showed II-type adsorption–desorption curves, with H2-type hysteresis loop (IUPAC classification [32]), characteristic of macroporous materials. The specific surface area (SSA) of pure ceria was 32 m²g⁻¹ for nC morphology, and 92 m²g⁻¹ for nR morphology, agreeing with the different crystallite dimensions measured by XRD analysis. The addition of nickel led to a decrease in SSA of about 30% (62 m²g⁻¹) only for the nR morphology, whereas it did not affect the surface area for the nanocube morphology. Bare nC and nR supports showed a Barrett–Joyner–Halenda (BJH) total pore volume equal to 0.24 and 0.36 cm³ g⁻¹, respectively. The addition of nickel caused an identical slight pore volume decrease of 8.3% in both samples (Table 2). The pore size distributions (PSD) for both structures showed a bimodal distribution with two maxima; one in the mesopores region (<10 nm), and another in the meso-macropores region (>50 nm). For the nC morphology, the maximum of the mesopores was centered at 2.5 nm, and that of the meso-macropores maximum at around 40 nm. The addition of nickel did not affect the overall distribution, probably due to a lower interaction between the metal and the support. Quite the opposite was true for the nR morphology, where the introduction of nickel drastically changed the pore size distribution. In the as-is support, the mesopores maximum was at 3.5 nm. A much broader distribution of meso-macropores, between 10 nm and 70 nm, was detected, whereas, in the Ni-nR sample, the PSD of the small mesopores moved at a slightly smaller size of about 2.5 nm but, significantly, a narrower distribution of mesopores with a center around 14 nm was detected; additionally, few pores with sizes larger than 30 nm were found.

3.2. Temperature-Programmed Reduction (TPR) and Desorption (TPD) Characterization

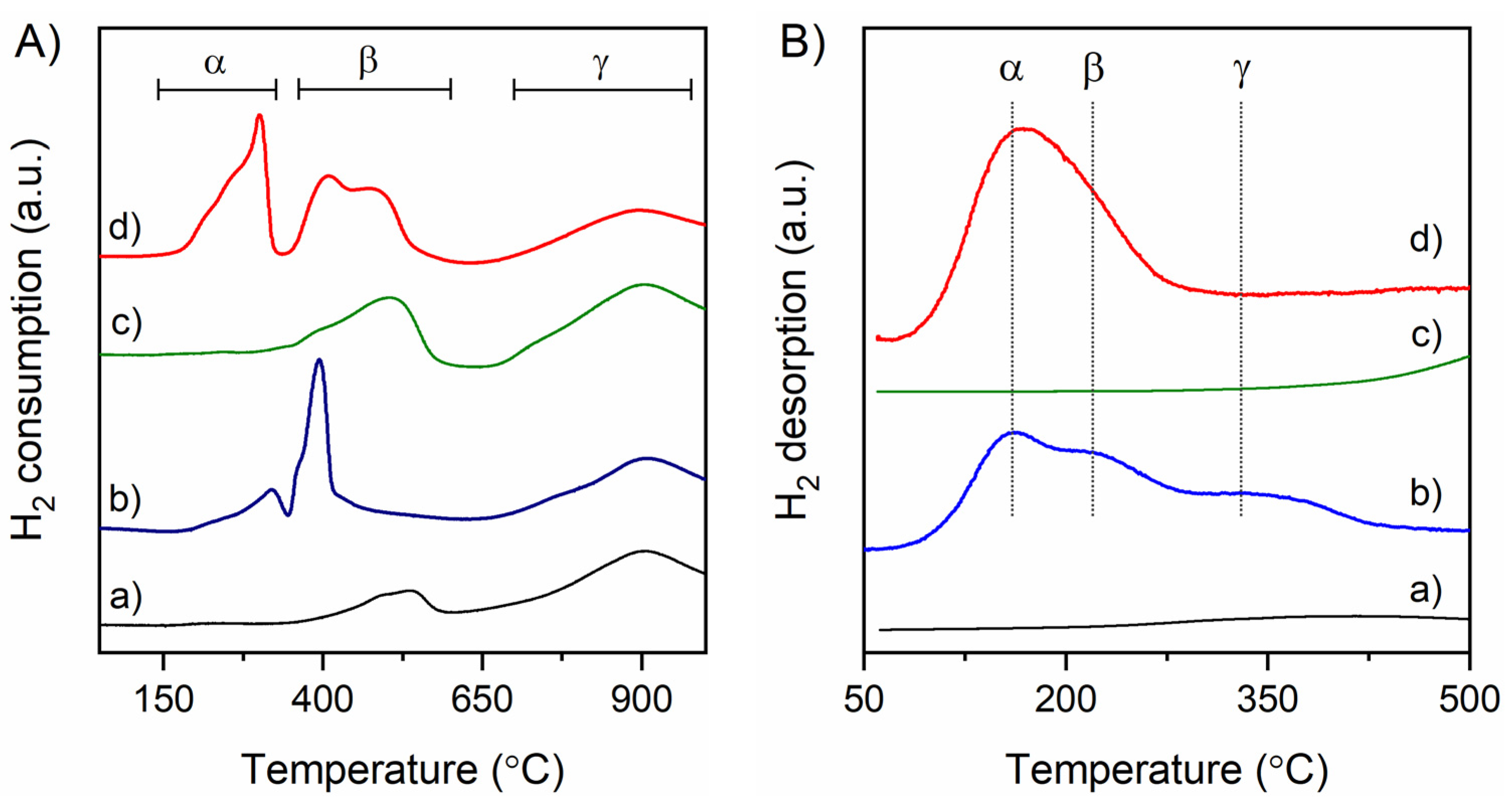

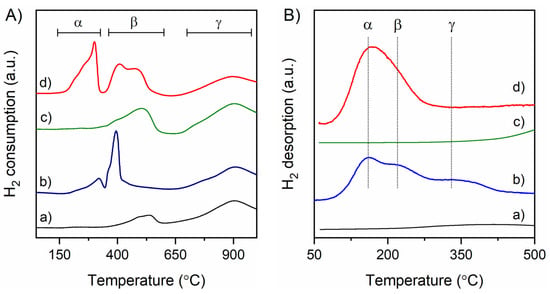

The reducibility of the supports and associated Ni catalysts at increasing temperature (TPR) is shown in Figure 3A and the measured hydrogen consumption is listed in

Table 3. Amount of hydrogen consumed during TPR measurements. Ni dispersion, D (%), and the active Ni sites dimension, d (nm), determined from TPD analyzes..

Sample	Hydrogen Consumption/mmol g−1				D (%)	d (nm)
	α	β	γ	Total
nC		0.16	1.05	1.20
Ni-nC	0.12	0.32	1.03	1.47	14	7
nR		0.38	0.79	1.17
Ni-nR	0.44	0.53	0.67	1.64	20	5

. The nC and nR carriers had two reduction regions labeled β and γ, respectively. The β region of the nC support (Figure 3A(a)) was characterized by two overlapping peaks, with the maximum at temperatures of 495 and 538 °C. For the nR support (Figure 3A(c)), the reduction occurred at lower temperatures and showed a much more intense peak, with the maximum at 507 °C, and a weak shoulder at 400 °C. Besides, a slightly negative signal was highlighted at about 620 °C due to the concomitant reduction of carbonates that were not removed with the pretreatment. The measured hydrogen consumption was proportional to the specific surface area, i.e., nR > nC. According to the literature, these peaks are attributable to the reduction in the first layers of the ceria surface [33]. It also depends on the exposed crystallographic planes [34], which are different for cubic and nanorod morphology. In the γ region, reduction began with a remarkably similar trend for both supports; a single large peak with the maximum at about 900 °C was evident, which did not go up to the highest temperature of 1000 °C. This peak was due to the reduction in the bulk of ceria, which was similar for both supports, not depending on the exposed surface. The intensity was lower in the nR than in the nC, due to a more significant proportion of ceria being reduced at lower temperatures [35].

The TPR profiles of the Ni-catalysts depended on the morphology of the CeO₂ support. The reduction of Ni²⁺ occurred in two temperature ranges, between 130–340 °C, called the α region, and between 350–450 °C, i.e., superimposed on the reduction temperature of the bare CeO₂ surface in the β region. The α region of the Ni-nC catalyst (Figure 3A(b)) consisted of two weak overlapping peaks at 280 °C, while the Ni-nR one (Figure 3A(d)) showed three more intense and overlapping peaks with a maximum at 270 °C. According to the literature, the α peaks corresponded to the reduction of O₂²⁻chemisorbed on the vacancies formed by some Ni²⁺ ions in solid solution with CeO₂ [36]. However, a high hydrogen consumption was evident in the Ni-nR sample (0.44 mmol·g⁻¹), which was more significant than the reduction of Ni loading itself (0.30 mmol·g⁻¹), suggesting a remarkable reduction of the CeO₂ surface, as previously reported in the literature [37]. Peaks in the β region were assigned to the simultaneous reduction of NiO and the CeO₂ surface, the latter in a temperature range not different from that observed in the bare support. The hydrogen consumption of the Ni-nC sample (0.44 mmol·g⁻¹) in the α and β regions was very similar to what would be expected from the reduction of NiO and the CeO₂ surface of the bare support, indicating a lower interaction of NiO, with CeO₂ having a nanocube morphology. Instead, in the case of Ni-nR the consumption was significantly higher (0.97 mmol·g⁻¹), confirming a strong interaction of NiO with the CeO₂ surface with nanorod morphology, favouring the Ce⁴⁺ → Ce³⁺ reduction. Indeed, the percentage of Ce³⁺ of the Ni-nR catalyst was about 23%, much higher than that of the nR support, which was about 13%, while, for the Ni-nC catalyst and the nC support, the percentage of Ce³⁺ was essentially the same, about 5%. On the other hand, the reduction of ceria bulk was not significantly affected by the introduction of Ni, and it occurred in the same temperature range (γ region).

The temperature-programmed desorption trend of chemisorbed hydrogen (TPD) with respect to the supports and the Ni catalysts are shown in Figure 3. From this analysis, the dispersion D (%) and the particle size d (nm) of the active Ni sites was determined, and reported in Table 3. The TPD profile of the nC support showed a very weak peak at about 400 °C, while the nR one revealed a more intense peak that started at temperatures higher than 400 °C without ending until 500 °C. These labile peaks were due to the release of chemisorbed H₂ from the CeO₂ surface. The TPD of the Ni-nC catalyst showed three peaks at about 160, 220, and 330 °C, which were due to the desorption of H₂ from the Ni⁰ surface with different H-binding strength. From the peak area, the D (%) was 14%, and the dimension of the catalytically active Ni sites was d (nm) = 7. The Ni-nR catalyst exhibited a different TPD profile, with a single large peak, which was much more intense with a maximum at about 165 °C, indicating a more homogeneous H-binding strength over the Ni active surface; the D (%) was 20%, and the size of the active sites was d (nm) = 5.

3.3. TEM Characterization of the Synthesized Catalysts

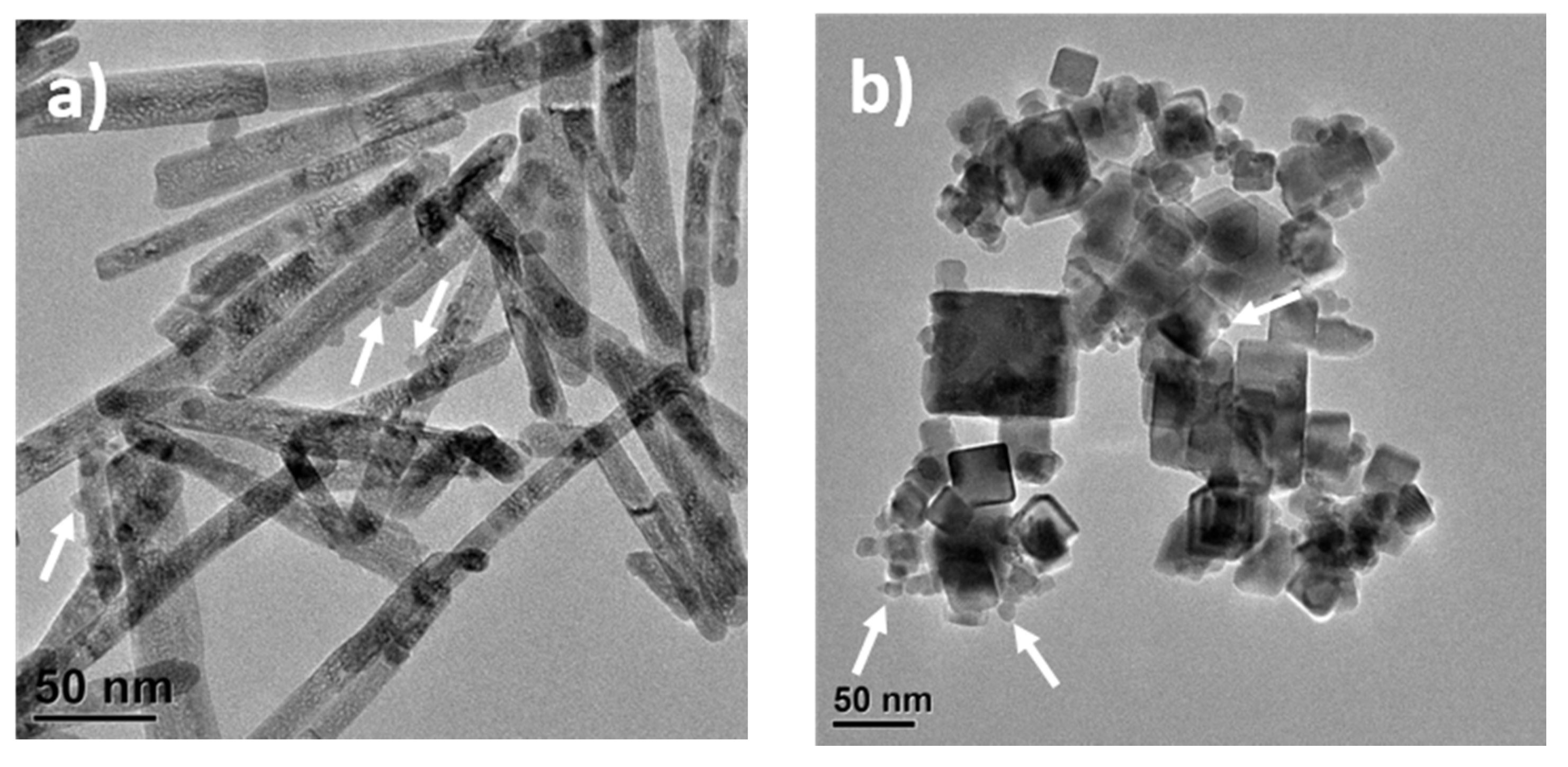

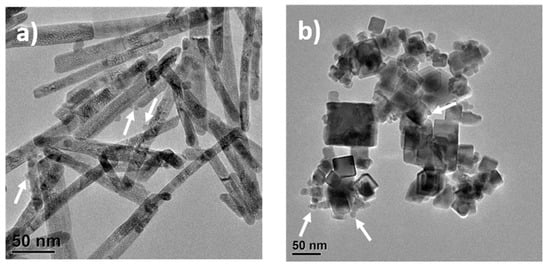

TEM images of the synthesized catalysts are shown in Figure 4, and the size distributions are shown in Figure S1. Ni-nR showed the characteristic morphology of the nanorods, with mean CeO₂ width and length values of 14 ± 4 and 169 ± 68 nm, respectively. Some NiO particles with spherical morphology and an average size of 7 ± 4 nm were observed. Ni-nC showed CeO₂ particles with nanocube morphology, with quite heterogeneous dimensions of 27 ± 12 nm. Moreover, significantly smaller NiO particles were seen with an average dimension of 10 ± 3 nm, larger than those observed for Ni-nR. The NiO particle size distribution was in agreement with the crystallite size determined by XRD analysis using the Scherrer equation.

These results are consistent with the reports of several authors. The morphology of CeO₂ varies from nanorods to nanocubes, as the temperature increases in the hydrothermal process [38]. For NiO, a strong effect of the temperature used in the hydrothermal process on the morphology and particles size was also demonstrated. In general, an increase in the nanoparticles size was obtained at higher temperatures [39,40].

3.4. Catalytic Activity

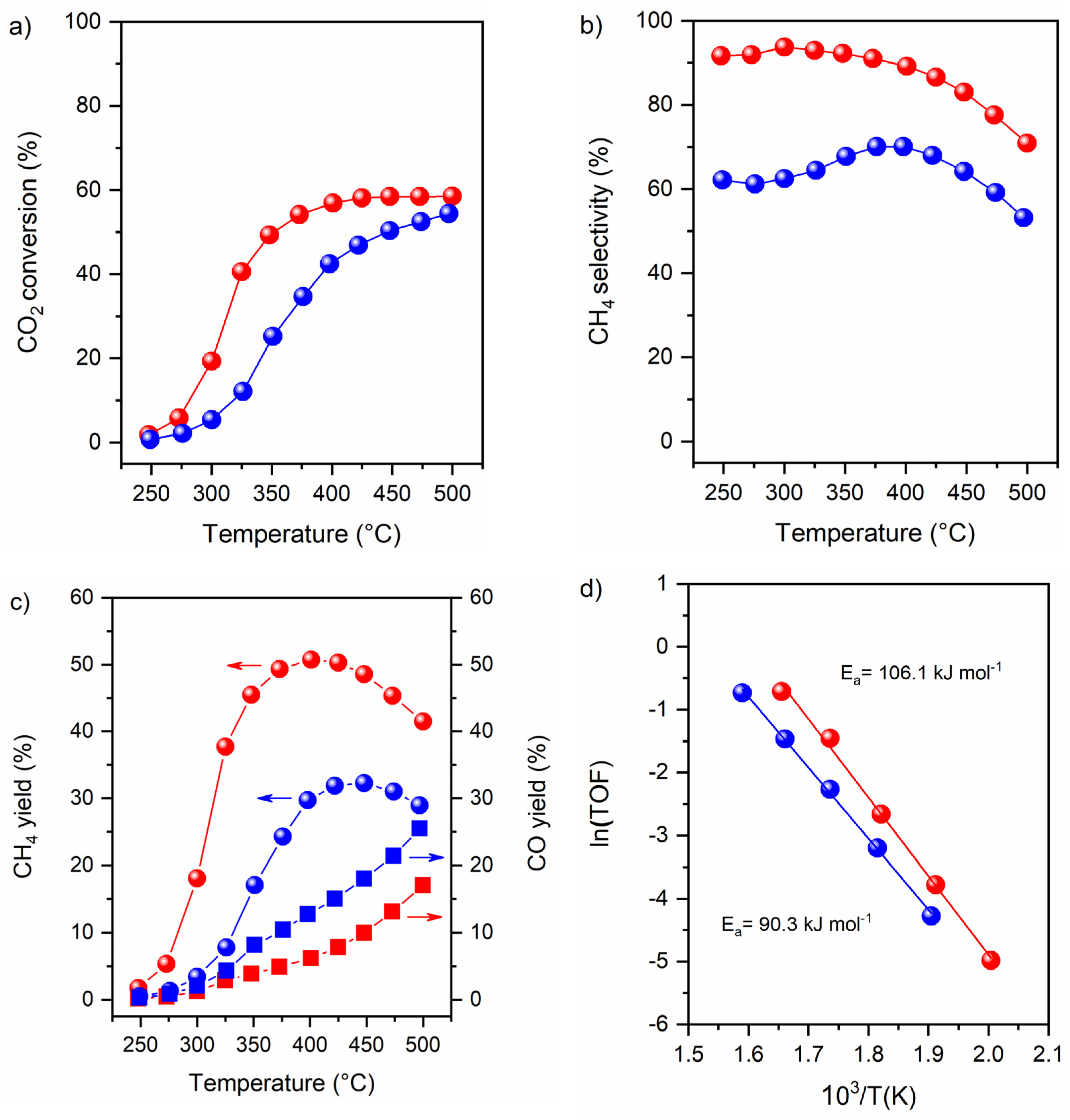

The catalytic activity performances were evaluated in the temperature range of 200–500 °C, as shown in Figure 5a. Although CO₂ methanation is strongly exothermic and thermodynamically favored at low temperatures, the conversion threshold for both catalysts began above 275 °C. The CO₂ conversion light-off curve of the Ni-nR catalyst increased rapidly to a maximum of about 55% at 400 °C, and then remained constant until 500 °C. The Ni-nC catalyst showed a much lower conversion. For example, at 325 °C, the conversion was 12%, while it reached a value of 40% for the Ni-nR catalyst. However, due to the progressively increasing trend, a conversion of about 48% was obtained at 500 °C, which is not different from that obtained with the nanorod morphology. It is essential to mention that the CeO₂ supports did not exhibit any catalytic activity under the assumed conditions. Only the nanorod form conversion of about 2%, mainly to CO, was observed at the highest temperature of 500 °C.

The selectivity to methane is plotted in Figure 5b. It was significantly higher for the Ni-nR, starting from 90% at 250 °C, and gradually decreasing to 70% at the highest temperature of 500 °C, while a particular trend was observed for the Ni-nC, where the selectivity started from 62% at 250 °C, and reached a maximum of 70% at 370 °C, and then decreased again to 53% at 500 °C. The yields of methane and carbon monoxide are reported in Figure 5c. The CH₄ yield had an increasing trend, reaching a maximum of 51% at 400 °C for the Ni-nR and 32% at 450 °C for the Ni-nC, and decreased again at higher temperatures. On the other hand, the yield of CO increased exponentially for both catalysts, but it was significantly lower for the Ni-nR, reaching 17% at 500 °C in contrast to a value of 25% observed for the Ni-nC one.

From the Arrhenius plot of TOF for CO₂ reduction rate shown in Figure 5d, the apparent activation energies were 90.3 and 106.1 kJ mol^—1 for the Ni-nC and Ni-nR catalysts, respectively. The slight difference in the activation energy can be attributed to the exposed crystallographic plane of ceria, involved in CO₂ activation, and the Ni particle size’s effect on the interaction with H₂ and CO₂. In particular, the surface of CeO₂, with the nanocube morphology, exposes only the (100) faces, while the nanorod morphology exposes both the (110) and (100) faces [34,41]. The effect of such exposed faces on the formation of oxygen vacancies is not fully defined [42]. The role of Ni particle sizes on the reaction mechanism, affecting the selectivity to CH₄, may also significantly alter the apparent activation energy [43]. Moreover, the TOF increased for smaller metal size, e.g., the TOF of the Ni-nR sample with a Ni⁰ particle size of 5 nm was 0.23 s⁻¹ at 300 °C, while the TOF of the Ni-nC sample with a Ni⁰ size of 7 nm decreased significantly to 0.10 s⁻¹. This confirms a positive effect of the nanorod morphology on the catalytic activity, also due to the larger dispersion of the active Ni sites.

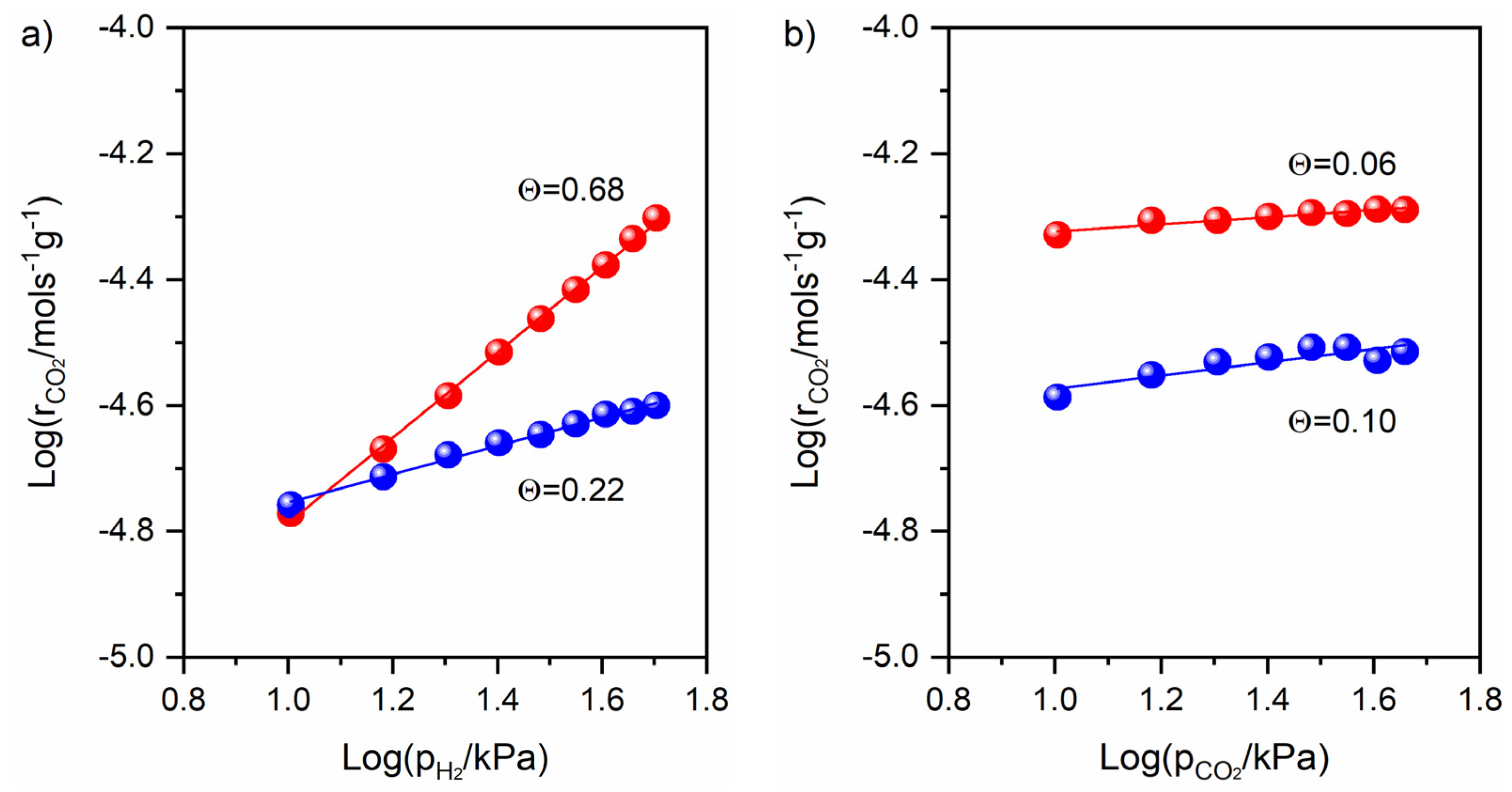

To further highlight the differences among the Ni-nR and Ni-nC, the kinetic rate expressed by a power-low model $-r_{C{O}_2}=k·P_{H_2}^x·P_{C{O}_2}^y$ was determined at 350 °C at different reactant partial pressures with a WHSV of 240,000 cm³g⁻¹h⁻¹, ensuring reactant conversions of less than 15%. The logarithmic dependence of the kinetic rate on the partial pressure of the reactants is shown in Figure 6. Although the different reactive steps involved in the kinetics were not highlighted, this was an essential method to compare the two catalysts. The Ni-nR catalyst showed a clear dependence of the CO₂ conversion rate on the increase of the H₂ partial pressure, resulting in an apparent reaction order of $x_{H_2}=0.68$, while the effect of the CO₂ partial pressure was negligible and the apparent reaction order was $y_{C{O}_2}=0.06$. Therefore, the rate equation could be approximated as a near first-order dependence on H₂ pressure: $-r_{C{O}_2}=k·P_{H_2}^{0.68}·P_{C{O}_2}^{0.06} \approx k·P_{H_2}^{0.68}$. For the Ni-nC catalyst, the influence of the H₂ partial pressure on the CO₂ conversion rate was much less pronounced with a value $x_{H_2}=0.22$, and the contribution of CO₂ pressure was even smaller, showing an apparent reaction order $y_{C{O}_2}=0.10$, which was only slightly higher than that observed for the Ni-nR catalyst. For Ni-nC, the following rate equation was expressed: $-r_{C{O}_2}=k·P_{H_2}^{0.22}·P_{C{O}_2}^{0.10}$. The negligible dependence of the reaction rate on the partial pressure of CO₂ suggests that CO₂ is primarily activated by the exposed surface of the CeO₂ supports, having proper surface basicity [38]. Indeed, in previous work [44], a negative dependence of the CO₂ conversion rate on Ni/YSZ catalyst was observed, indicating that both reactants should be activated on the Ni catalytically active surface.

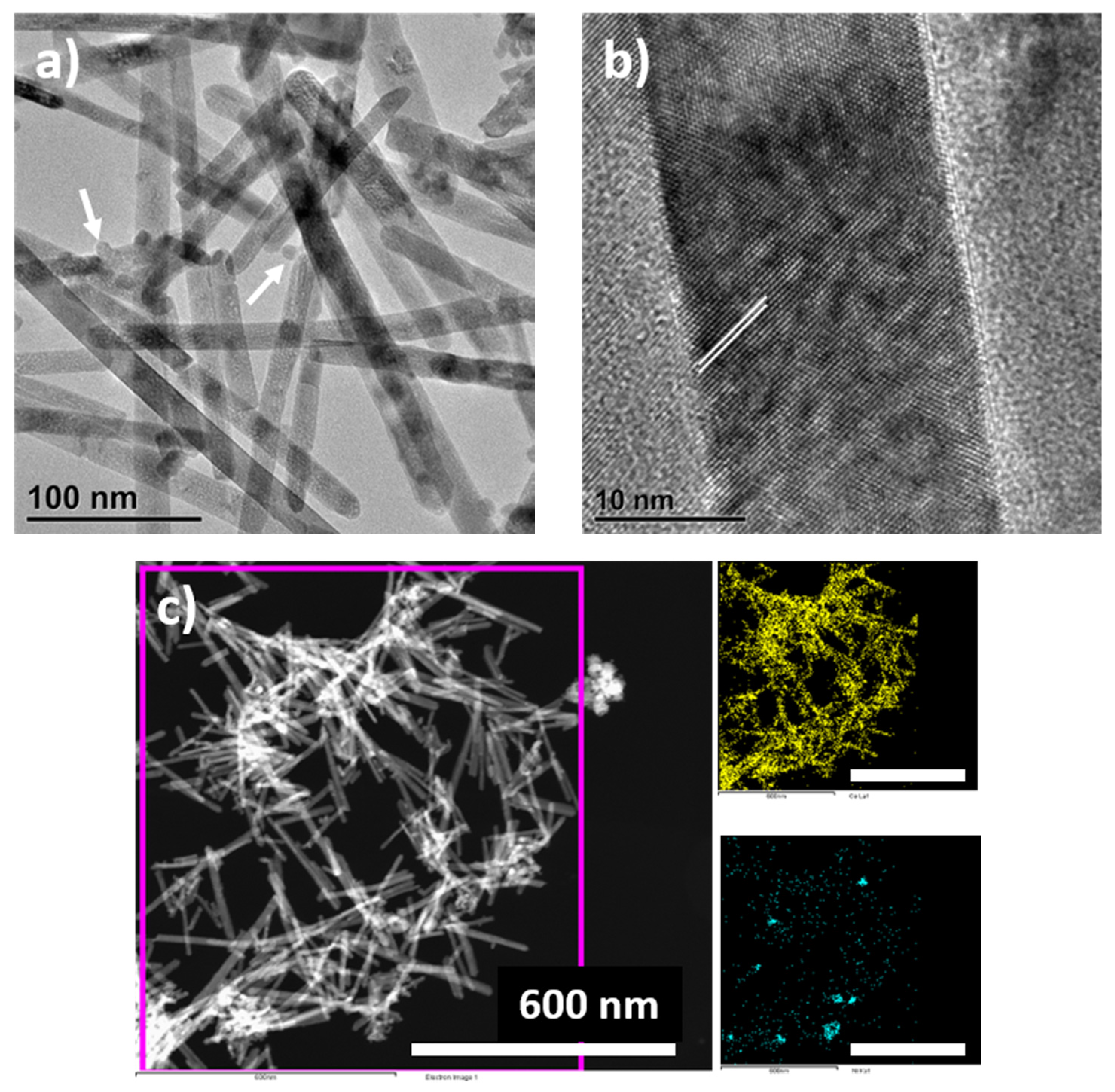

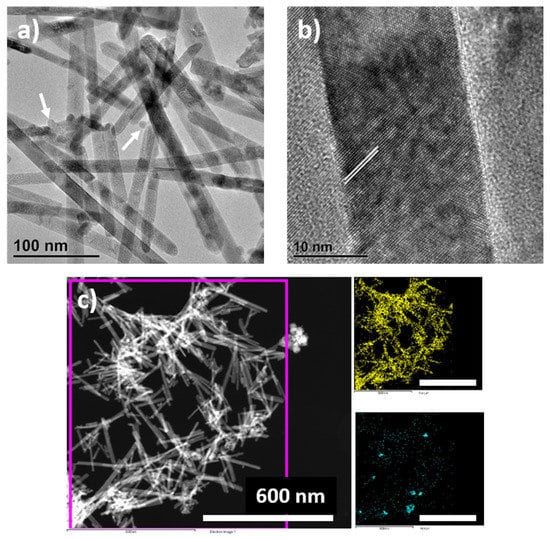

After the catalytic test, which had a total duration of 10 h, the best performing Ni-nR catalyst was characterized by HR-TEM, as shown in Figure 7. The CeO₂ particles remained with a rod-like morphology without sintering or morphological changes, and the average dimensions were 13 ± 3 nm for the diameter and 236 ± 43 nm for the length (Figure 7a). The Ni⁰ showed particles with sizes of 8.6 ± 1.5 nm, thus in good agreement with the dimensions of the catalytically active Ni sites (5 nm) determined by the TPD of H₂. Higher magnification (Figure 7b) revealed that the actual distance between CeO₂ (111) planes was 3.5 Å, consistent with the value of calcined catalysts. The STEM analysis (Figure 7c) showed that the Ni particles were evenly distributed, although some aggregation could be seen in some parts, indicating their partial sintering. Carbon deposits were not observed, since, feeding an H₂/CO₂ ratio of 4, they were thermodynamically unfavorable [45].

3.5. DRIFT

To elucidate the reaction pathway, the nR and the Ni-nR samples were analyzed using the DRIFT technique. The significant species detected on the surface are listed in

Table 4. Assignments and wavenumbers (cm⁻¹) of the prominent DRIFT bands formed during the CO₂ and CO methanation.

Bidentate bicarbonate	Bidentate carbonate	Monodentate carbonate	Carboxylate	Bidentate formate	Monodentate formate
1612 νa(CO3) 1390 νs(CO3) 1216 δ(OH)	1562 νa(CO3) 1272 νs(CO3)	1462 νa(CO3) 1293 νs(CO3)	1465 νa(CO2)	2931 νa(CO2) + δ(CH) 2845 ν(CH) 1569 νa(CO2) 1352 νs(CO2) + δ(CH)	1602 νa(CO2)

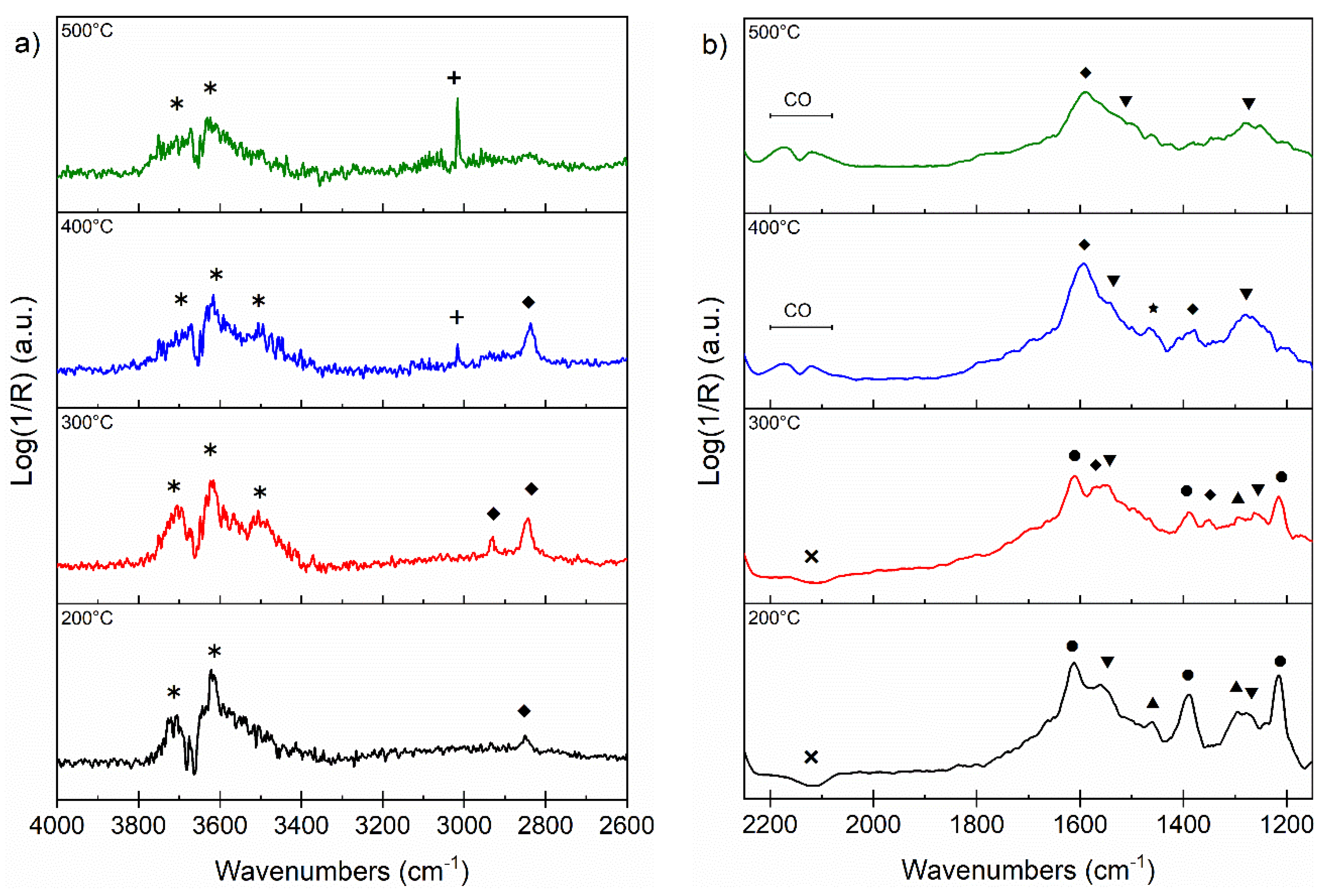

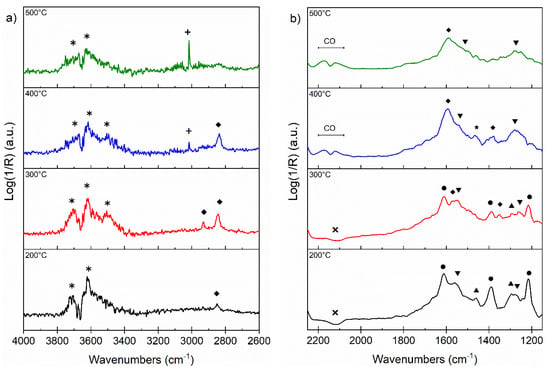

. The DRIFT spectra of nR are seen in the range between 4000 and 2600 cm⁻¹ (Figure 8a) and between 2100 and 1150 cm⁻¹ (Figure 8b). Two bands around 3710 and 3618 cm⁻¹ were identified in the hydroxide vibrational region due to mono-coordinated ‒OH (type I) and bridged ‒OH (type II) vibrations on Ce^δ+ site [46,47,48,49]. These bands occurred at all temperatures but were most intense at 300 °C. At this distinct temperature, a further signal at 3507 cm⁻¹ was also uncovered, which could be due to vibrations of triple-bridged ‒OH on Ce^δ+ site or to the hydroxyl group of bicarbonate species [50,51]. As the temperature increased, the intensity of this band gradually decreased and, at 500 °C, it was difficult to detect.

The interaction of CO₂ in combination with H₂ over the CeO₂ surface was already evident at 200 °C by the appearance of a weak band at 2845 cm⁻¹, due to ν(CH) vibrations of formate species [52,53]. This band increased in intensity with a temperature up to 400 °C, and was accompanied by another less intense band at 2931 cm⁻¹, due to the corresponding ν_a(CO₂) + δ(CH) vibrations [52,53]. As the temperature continued to rise, the intensity of these bands decreased rapidly. Other bands appeared from 400 °C onwards due to the formation of methane (band at 3015 cm⁻¹) and carbon monoxide (see bands at 2117 and 2174 cm⁻¹ in Figure 8b).

In the region between 2200 and 1150 cm⁻¹, the observed bands are mainly due to the interaction of CO₂ with the CeO₂ surface. It is important to emphasize that pre-reduction up to 500 °C guarantees a Ce³⁺ containing layers (surface-subsurface), as evidenced by a negative, although not very intense, peak at 2114 cm⁻¹ corresponding to the Ce³⁺ electronic transition, a phenomenon also observed on CeO₂ solid solutions with aliovalent elements, such as Gd³⁺ or Sm³⁺ by M. Grünbacher et al. [54]. At 200 °C, intense bands appeared at 1612, 1390, and 1216 cm⁻¹ assigned to the ν_a(CO₃), ν_s(CO₃) and δ(OH) vibrations of bicarbonate species chemisorbed on reduced CeO₂ [12,52,55,56]. Numerous other bands have been discovered that are not yet clearly resolved, but we can focus on the most important ones: the bands at 1562 and 1272 cm⁻¹ are due to the ν_a(CO₃) and ν_s(CO₃) vibrations of bidentate carbonate; whereas the bands at 1462 and 1293 cm⁻¹ should come from the ν_a(CO₃) vibrations of monodentate carbonate [55,56,57].

In agreement with the spectra in Figure 8a, as the temperature increased, the vibrations associated with formate species became more intense, and the signal from the bands associated with bicarbonates (1612, 1390, and 1216 cm⁻¹) gradually decreased. The formate species, probably in a bidentate configuration, showed characteristic bands at 1569 and 1352 cm⁻¹ due to the ν_a(CO₂) and ν_s(CO₂)+ δ(CH) vibrations, respectively. These bands were most pronounced up to the highest temperature of 500 °C, but the interaction of CO₂ on the CeO₂ surface remained evident through other bands at ~1562 and ~1272 cm⁻¹ associated with bidentate carbonate. In addition, a band at 1465 cm⁻¹ was detected at 400 °C that could be due to the ν_a(CO₂) vibration of carboxylate [58,59]. This species was observed at the same temperature at which the CO bands were detected, so it was attributed to a possible reactive intermediate of its own formation. On the other hand, the CO bands can occur by the decomposition of the formate, or even by the CO₂ splitting as a result of a redox process involving the oxygen gap present on the reduced CeO₂ (CO₂ + Ce‒☐‒Ce → CO + Ce‒O‒Ce) [20].

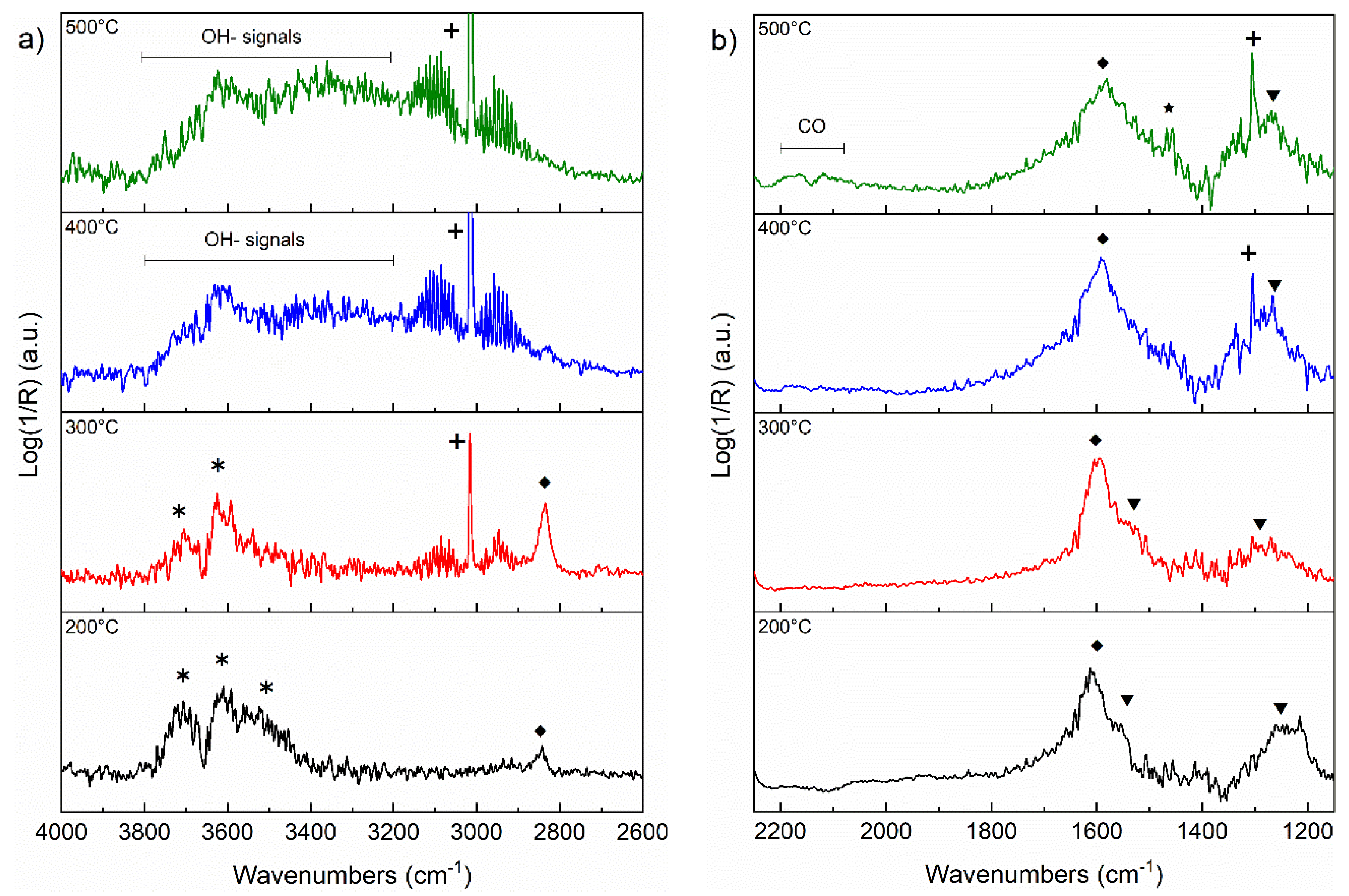

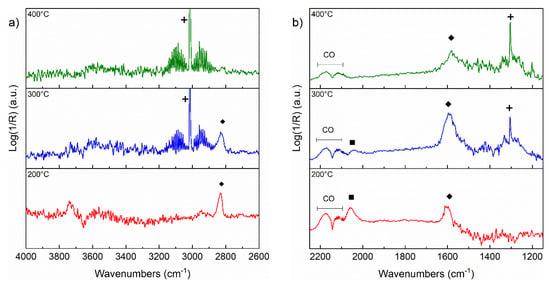

The introduction of Ni significantly changed the intermediate species detected by the DRIFT technique in the Ni-nR sample compared to the nR support. As can be seen in Figure 9a, the peaks characteristic of Ce‒OH species, due to mono-coordinated (type I, 3710 cm⁻¹), bridged (type II, 3611 cm⁻¹) and triple-bridged (type III, 3541 cm⁻¹) hydroxyl bands, were very intense already at 200 °C, while especially the latter could only be detected in the support at the highest temperature; between 300–400 °C. As the temperature increased, the intensity of Ce‒OH species decreased rapidly, and the band at 3641 cm⁻¹ was no longer detected at 300 °C. From 400 °C, a significant increase in the absorption of the hydroxyl bands at lower wavenumbers indicated the presence of H-bonds due to the formation of H₂O [49]. The labile peak at 2847 cm⁻¹, associated with the ν(CH) vibration of formats, was already present at 200 °C, and increased significantly in intensity, up to 300 °C. At this temperature, the peak due to methane began to appear at 3016 cm⁻¹. With increasing temperatures, the ν(CH) oscillation of formates decreased abruptly and was barely detected from 400 °C, while the peak due to CH₄ was the most important up to the highest temperature of 500 °C.

As reported in Figure 9b, between 2200 and 1100 cm⁻¹, there were intense peaks around 1590 cm⁻¹, due to the ν_a(CO₂) oscillation of mono- and bidentate formates, with a shoulder at ~1541 cm⁻¹ due to the ν_s(CO₃) of bidentate carbonates, and a broad peak at 1279 cm⁻¹ corresponding to the ν_s(CO₃) of bidentate carbonate bands. Significantly, other carbonate species were undetectable, even at the lowest temperature of 200 °C, but were observed instead in the nR carrier. With increasing temperature, the presence of formates and bidentate carbonates on the surface persisted, but with a progressive decrease in intensity. In addition, a sharp band was observed at 1304 cm⁻¹ from 400 °C onwards, corresponding to the ν₃(CH) vibrations of methane. At the highest temperature of 500 °C, the ν_a(CO₂) vibration due to carboxylates appeared at ~1462 cm⁻¹, together with faint peaks of CO, which, as in the case of the nR support, can be formed by the dissociation of CO₂ at this high temperature. In addition, it is essential to emphasize that no bands associated with Ni‒(CO)_x species were detected throughout the temperature range studied.

From the chemical species that can act as the main reaction intermediates on the nR and Ni-nR systems, the following reaction steps during the CO₂ methanation can be hypothesized: (i) H₂ favors the formation of oxygen vacancies and Ce- OH species; (ii) CO₂ is chemisorbed on the “basic” CeO_2−δ surface forming carbonates (mainly bidentate); (iii) the conversion of carbonates to formates, is obtained at high temperatures on the CeO_2−δ support; (iv) Ni⁰ plays a crucial role in the activation of the H₂ molecule through its dissociation into reactive H*, and thus its spillover on the CeO_δ surface; (v) the hydrogen spillover by Ni⁰ favors the formation of formates at low temperature and their hydrogenation to CH₄.

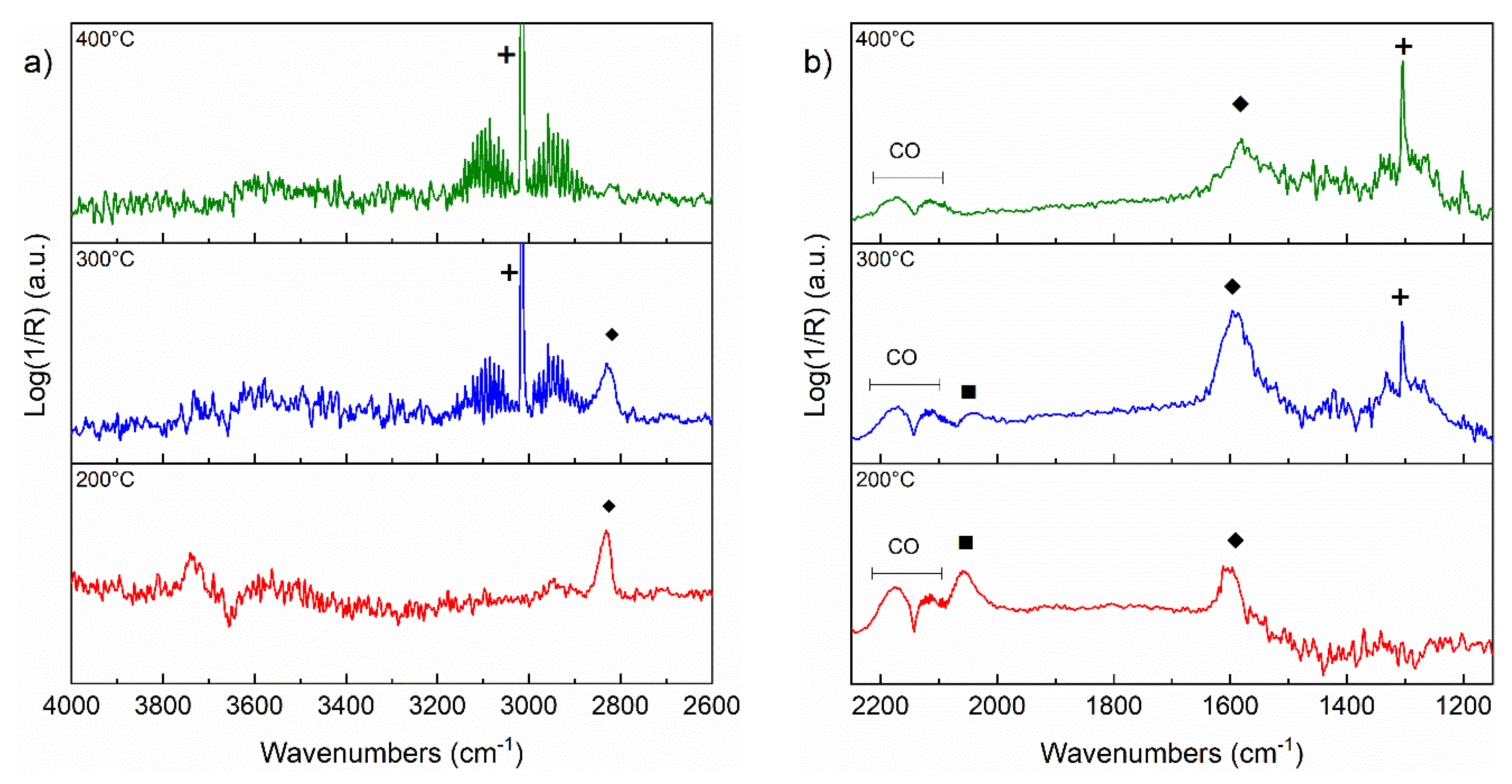

To better clarify the methanation reaction pathway, we also performed an in operando DRIFT during CO hydrogenation. The characterization was carried out up to the maximum temperature of 400 °C. Figure 10a shows a magnification between 4000–2600 cm⁻¹ and Figure 10b in the interval 2150 and 1150 cm⁻¹. At the temperature of 200 °C, very labile bands assigned to Ce-OH were observed, whereas monodentate formate was already evident with the ν(CH) and ν_a(CO₂) vibrations at 2831 and 1602 cm⁻¹, respectively. In addition to the bands associated with gaseous CO, there was an intense peak at 2059 cm⁻¹ assigned to ν(CO-Ni) of linear nickel carbonyl and other unresolved bands between ~1960 and ~1680 cm⁻¹, probably due to bridged nickel carbonyl vibrations. Increasing the temperature to 300 °C favored a significant methane formation, with characteristic bands at 3016 and 1305 cm⁻¹. Moreover, the intensity of the formate bands, mainly the bidentate type at 2830 and 1596 cm⁻¹, increased alongside a significant decrease in the CO and Ni‒CO bands. At the maximum temperature of 400 °C, there was a marked decrease in all formate bands, the absence of Ni‒CO species, and the prominent bands were only those of CH₄ gas. In general, the presence of carbonates was not observed at any temperature. The CO was never oxidized by an oxygen storage process through the CeO₂, as no band of CO₂ was observed, clearly indicating that the surface was always maintained in a CeO_δ reduced state.

It has been shown that the hydrogenation of CO can follow a mechanism involving formates [60]. In this case, they were also formed by exploiting the hydroxyl and the oxygen vacancy formed upon Ce⁴⁺→Ce³⁺ reduction by H₂. Indeed, the low intensity of the Ce‒OH species observed in Figure 10 could be a confirmation of this. The formates were then converted to CH₄ thanks to the spillover effect of H* generated by the dissociation of H₂ chemisorbed on the Ni⁰ surface, as stated before. The CO chemisorbed on Ni could act as a spectator and not be directly hydrogenated to methane.

Thus, to summarize the results obtained with the DRIFT technique, it is possible to define Ni-nR as a bifunctional system, in which Ni plays a fundamental role in the activation of H₂, while CeO_2−δ acts on CO₂. Obviously, in our catalyst with a low Ni loading, the exposed surface is mainly that of CeO_δ. Therefore, the activation of CO₂ (carbonates, formates) is kept “constant” over a wide range of CO₂ partial pressure. This hypothesis is confirmed by the dependence of the reaction rate equation, exclusively on the partial pressure of H₂, as mentioned above, i.e., $-r_{C{O}_2}=k·P_{H_2}^{0.68}·P_{C{O}_2}^{0.06} \approx k·P_{H_2}^{0.68}$.

4. Conclusions

Ni_0.05Ce_0.95O_2−δ catalysts, with nanorod and nanocube morphologies, were synthesized by hydrothermal methods. The most active catalyst for CO₂ methanation was the one with nanorod morphology, due to its strong metal–support interaction and its high reducibility, which favors the presence of oxygen vacancies. A high methane selectivity of about 90% was achieved over a wide temperature range up to 400 °C. No carbon residues were detected after the catalytic tests. The reaction rate essentially depended on the partial pressure of hydrogen. The DRIFT characterization showed that CeO_2−δ strongly interacted with the CO₂ molecule, adsorbed as various carbonates, while Ni⁰ participated in the H₂ spillover. The absence of metal carbonyls and the considerable formation of chemisorbed formates on the CeO_2−δ support indicate a direct formate-type reaction mechanism. Ni_0.05Ce_0.95O_2−δ is thus a bifunctional system. At high temperatures (i.e., above 400 °C), CO can be formed by the dissociation of CO₂ → CO + 1/2O₂, with a redox mechanism involving the oxygen vacancies of CeO_2−δ. The presence of formate was also observed in the hydrogenation of CO, together with the formation of carbonyls absorbed on Ni. This finding suggests an important role of formate species also in the hydrogenation of CO.
