Cold Plasma Deposition of Polymeric Nanoprotrusion, Nanoparticles, and Nanofilm Structures on a Slide Glass Surface

Abstract

In this study, we coated the surface of glass slides with nanoprotrusion, nanoparticles, and nanofilm structures by one-step plasma deposition of three vinyl monomers. Three functional vinyl monomers with symmetrical polarity sites were used: methyl methacrylate (MMA), trifluoro methylmethacrylate (TFMA), and trimethylsilyl methyl methacrylate (TSMA). The TSMA/MMA (80/20, mol-%) nanoprotrusion-coated surface of slide glass was superhydrophobic, with a 153° contact angle. We also evaluated the transmittance (%) of the slide glass with nanoprotrusions in the infrared (IR) (940 nm), ultraviolet (365 nm) and visible light (380–700 nm) regions. The obtained nanoprotrusion structure surface of slide glass created by plasma deposition transmits more than 90% of visible light.

1. Introduction

Materials with superhydrophobic properties are in extremely high demand because they have various potential applications, which include anti-corrosion coatings, microfluidic devices, oil/water separation, anti-icing coatings, nanoparticle assembly, liquid-repellent textiles, printing techniques, optical devices, highly sensitive sensors and batteries [1,2,3,4,5,6,7,8]. In many of these applications, having a layer of air trapped inside a rough surface can reduce liquid penetration (oil/water separation, anti-fogging), ion penetration (anti-corrosion, water desalination, batteries), or heat transfer (anti-icing), while surface roughness can improve the inherent properties of a material (electrical, optical, and catalytic properties). It is also very important that the superhydrophobic coating is robust, which means that the materials maintain their properties even under high pressures. A relatively simple way to create these properties is to imitate nature to create synthetic materials.

In addition, cold plasma deposition has recently received a lot of attention for its ability to grow plasma-polymer films on different substrates [9,10,11]. In previous papers, we successfully prepared a metal-polymer catalytic electrode by a cold plasma process in the presence of acrylic acid as a binder [12]. The prepared metal-polymer catalytic electrode was characterized by Fourier transform infrared (FT-IR) spectroscopy, scanning electron microscopy (SEM), contact angle, X-ray photoelectron spectroscopy (XPS) and energy-dispersive X-ray spectroscopy (EDS). The results indicate that vinyl monomers are easily and simply polymerized on the surface during the cold plasma process.

In the realm of functional materials, superhydrophobic coatings are often used to produce clear screens and anti-fingerprint effects in display fields such as mobile phones and TVs. Since such coatings are expected to have cleaning and anti-corrosion effects hydrophobic surfaces are being developed in various fields.

In this study, we coated slide glass surfaces with vinyl polymers with nanoprotrusion structures via cold plasma deposition to obtain superhydrophobic properties. We used three functional vinyl monomers, methyl methacrylate (MMA), trifluoro methylmethacrylate (TFMA), and trimethylsilyl methyl methacrylate (TSMA), in various mixtures. The fabricated polymer-coated slide glasses were evaluated for water contact angle, morphology via SEM, and transmittance in the infrared (IR) (940 nm), ultraviolet (365 nm) and visible light (380–700 nm) regions. Given the results, we discuss the the superhydrophobic properties of plasma-polymer coated slide glass with nanoprotrusions.

2. Materials and Methods

2.1. Reagents

We purchased MMA, TFMA, and TSMA from Sigma Aldrich Co. Slide glass (76 × 26 × 1.0 mm) as a substrate was obtained from Matsunami Co., Ltd., Osaka, Japan. Before plasma coating, we washed the substrate three times using water, methanol and acetone solvents sequentially.

2.2. Instrumentation

We characterized the surface properties with contact angle measurements (PHOENIX 300, Surface Electro Optics Co., Ltd., Gyeonggi-do, Korea), scanning electron microscopy (FE-SEM, S 4800, Hitachi, Tokyo, Japan), X-ray photoelectron spectroscopy (XPS, K-alpha, Thermo Scientific Inc., Waltham, MA, USA) and a spectrum transmission meter (LS183, Shenzhen Linshang Technology Co., Ltd., Shenzhen, China).

Plasma devices have to be small, simple, and portable to be useful in a wide variety of applications. We chose a cold plasma device that meets these requirements [12]. The plasma equipment was directly obtained from Applied Plasma Inc. (model 3D+iCVC SINGLE) at Gumi City, Korea. The plasma equipment has voltage of input 220 V and output 15 KV rms, amphare with input 5 A and output 70 mA, frequency with input 60 Hz and output 30–40 KHz, phase with input single and output single, and air pressure with input 0.5 Mpa and output 0.025 Mpa, respectively. The device’s power can be controlled in the range of 200 to 250 W. Most experiments were conducted at approximately 200 W. The torch used in this experiment was conical and the diameter of the torch tip was 2.0 mm. Nitrogen was supplied as a working gas in a tank connected to the plasma generator, with a flow controller inside. The plasma generator was used to maintain a constant pressure level. Polymer stock solution was injected into the cold plasma jet by a syringe pump in the downstream region. The slide glass substrate was placed under the cold plasma jet at a distance of 1 cm and manually moved during the deposition process.

2.3. Plasma Coating of the Slide Glass Surface

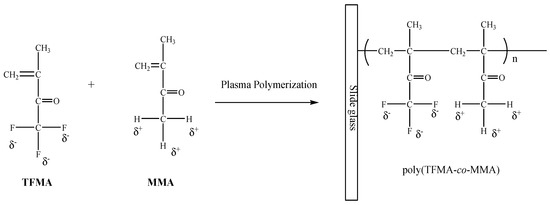

Figure 1 schematically illustrates the process of poly(TFMA-co-MMA) deposition on the slide glass surface; the formation of dipole moments was prevented by symmetric polarity in the plasma polymerization process. First, the coating solution was prepared by mixing of MMA, TFMA and TSMA according to the experimental conditions. Plasma polymerization was accomplished by injection of a solution through a syringe pump at 0.1 mL/s for a total amount of 5.0 mL using cold plasma equipment [12].

3. Results

3.1. Plasma Polymerization of Poly(TFMA-co-MMA) on the Slide Glass Surface

Table 1. Physical properties of glass slides plasma-coated with poly(TFMA-co-MMA) coatings.

Exp. No	TFMA/MMA (mol-%)	Contact Angle (°)	Transmittance (%)
			UV (365 nm)	IR (940 nm)	VL (380 nm~700 nm)
1	100/0	51.0°	91.0	89.1	92.3
2	80/20	56.6°	91.3	88.6	92.8
3	60/40	78.2°	91.4	88.7	92.8
4	40/60	40.1°	93.4	89.3	92.7
5	20/80	34.7°	93.0	89.1	92.5
6	0/100	42.6°	91.3	88.4	90.6
7	Glass surface	18.5°	99.0	99.0	99.0

shows the results of measuring the water contact angles (°) and transmittance (%) of the plasma-coated polymer-coated slide glass three times according to the molar ratio of TFMA/MMA. The water contact angle (°) of the untreated slide glass surface was 18.5°, and the transmittance (%) was 99% for ultraviolet (UV) at 365 nm, IR at 940 nm, and visible light (VL) from 380–700 nm. After plasma polymerization, the water contact angle increased because of the increased hydrophobicity of the coated poly(TFMA-co-MMA) surface.

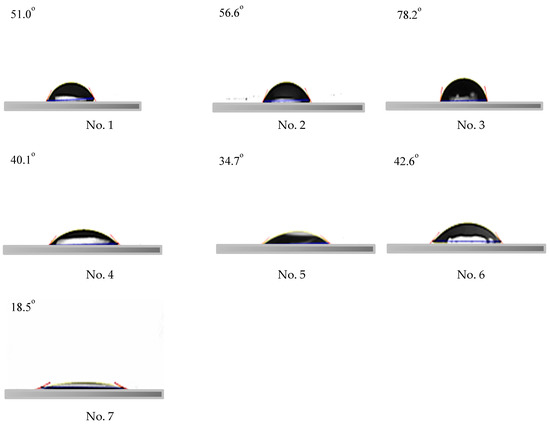

Figure 2 shows water contact angle images of the slide glass surfaces coated with poly(TFMA-co-MMA) prepared by plasma polymerization. The vinyl monomers TFMA and MMA were selected because the vinyl group can induce formation of free radicals which then polymerize; also, the side groups containing trifluromethyl and methyl groups have symmetrical polarity, as shown in Figure 1. The hydrophobic properties of the coated poly(TFMA-co-MMA) could result from low dipole moment-induced symmetrical polarity.

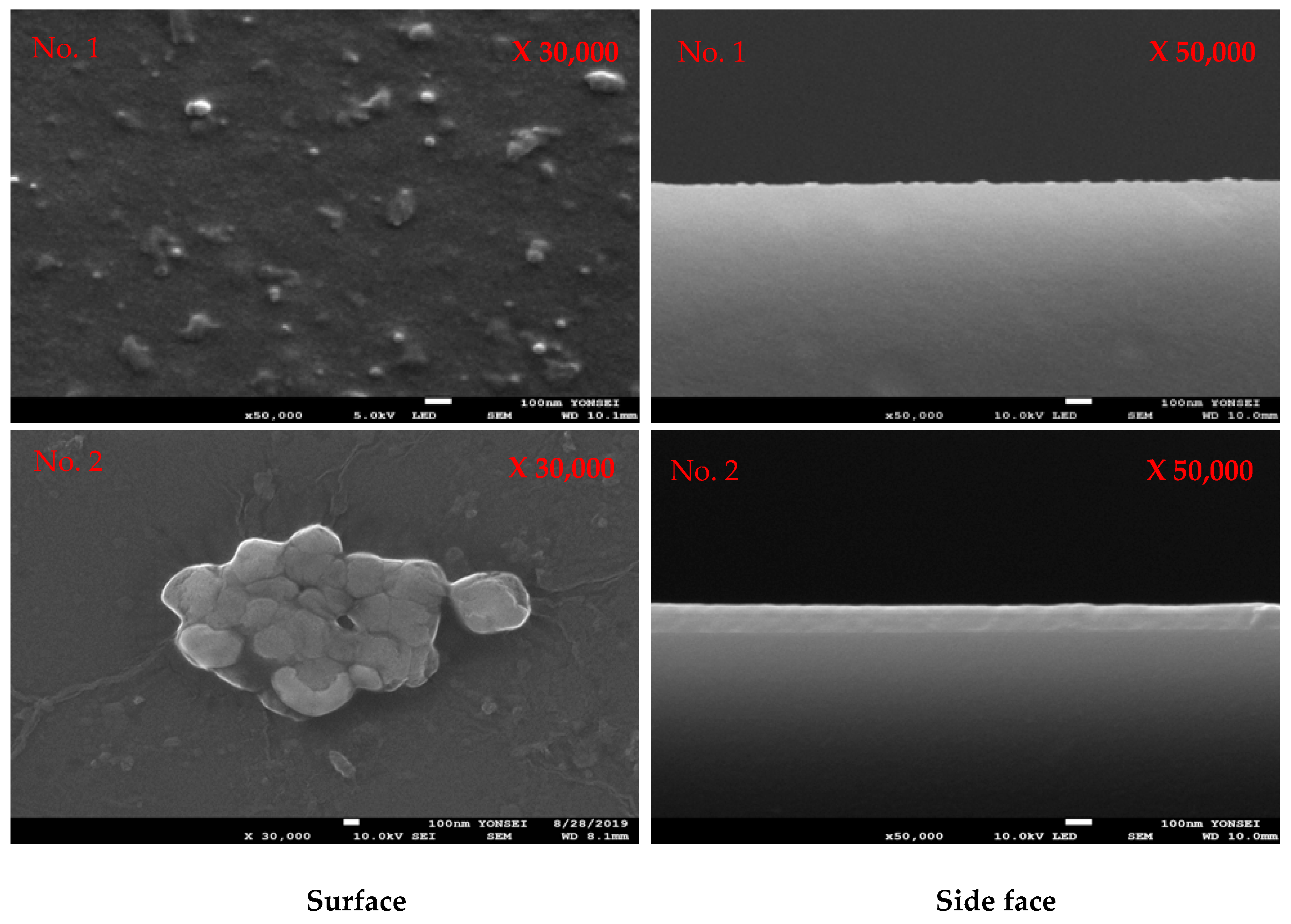

Figure 3 shows SEM images of the plasma-coated glass surfaces and side faces of the first two specimens (TFMA-co-MMA, No. 1 and 2 in Table 1). The coated poly(TFMA) specimen showed an amorphous morphology, as film structure; it is No. 1 in Table 1. Small polymer islands of poly(TFMA) were found on the surface of the slide glass surface. In the side face SEM image of the poly(TFMA)-coated slide glass, the poly(TFMA) coating appeared to be thin due to low polymerization yields during the plasma process. The surface morphology of poly(TFMA-co-MMA, 80/20 mol-%) also appeared to be amorphous, with some aggregation, as shown in surface SEM image No. 2. The film thickness of poly(TFMA-co-MMA) was dramatically increased compared to that of poly(TFMA) (No. 2 in Figure 3).

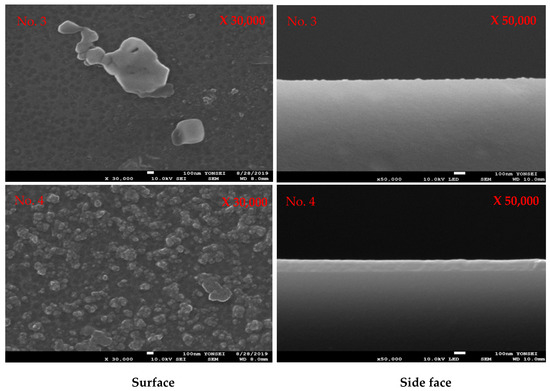

Figure 4 shows SEM images of the plasma-coated glass surfaces and side faces of the third and fourth specimens (TFMA-co-MMA, No. 3 and 4 in Table 1). The surface morphology of poly(TFMA-co-MMA, No. 3 and No. 4 in Table 1) also appeared to be amorphous. The surface SEM image of No. 3 showed aggregation, while the aggregates disappeared above a mol ratio of 60% with the addition of MMA. The film thickness of poly(TFMA-co-MMA) was dramatically increased on the surface of the slide glass. When the amount of MMA increased in poly(TFMA-co-MMA), the polymer aggregates disappeared.

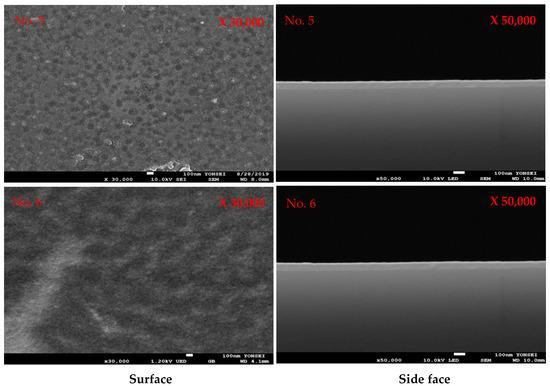

Figure 5 shows SEM images of the fifth and sixth plasma-coated glass surfaces and side faces (TFMA-co-MMA, No. 5 and 6 in Table 1). When a great deal of MMA was added to the feed solution, no aggregated polymeric particles were present, while amorphous film-type polymers were coated on the surface of the slide glass, as shown in Figure 5. On the poly(MMA)-coated surface, an amorphous film surface was observed. These results show that plasma polymerization is an easy means of surface modification to produce special functional properties. However, we could not create a superhydrophobic surface by plasma copolymerization of the TFMA/MMA feed solution.

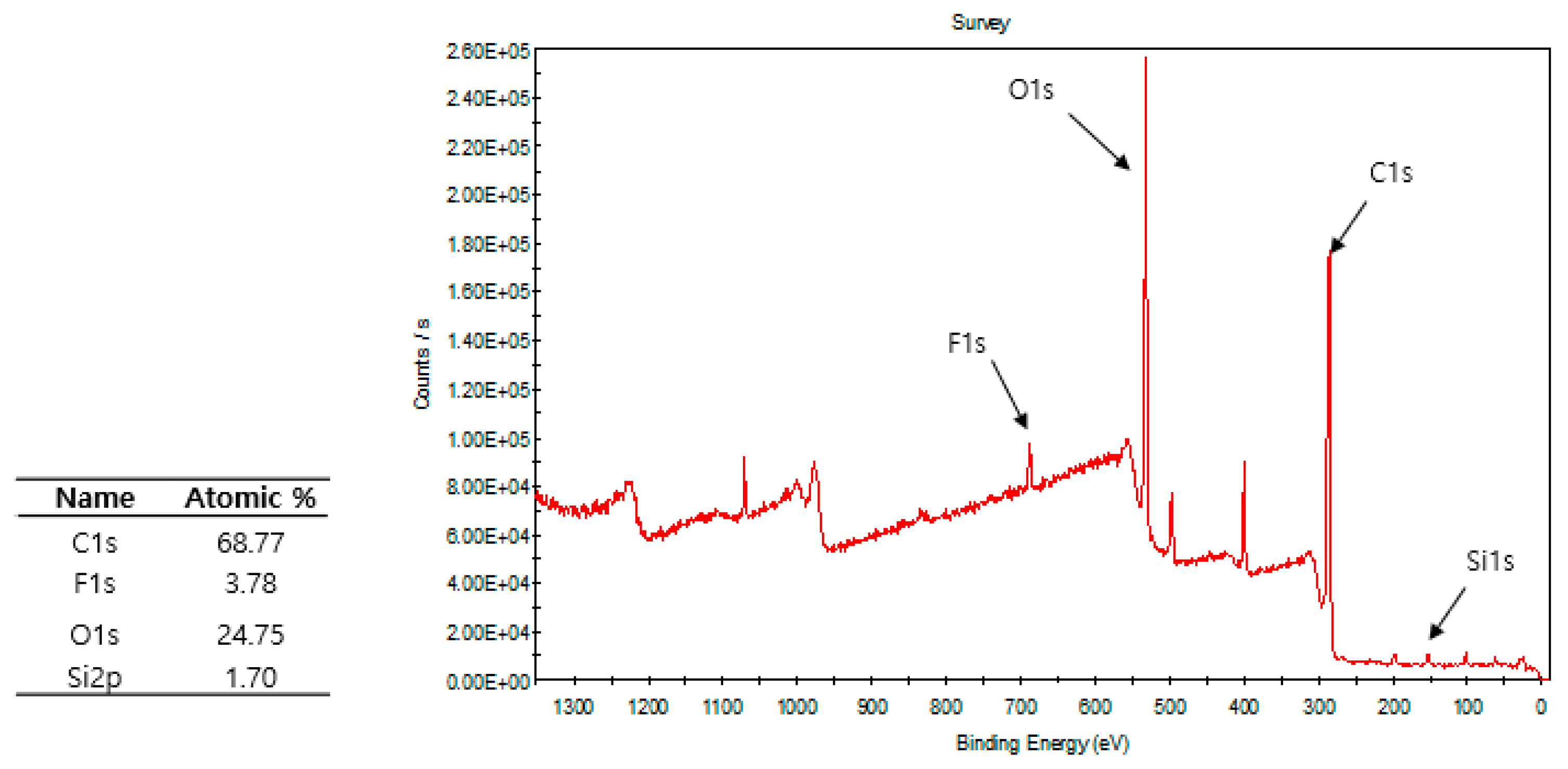

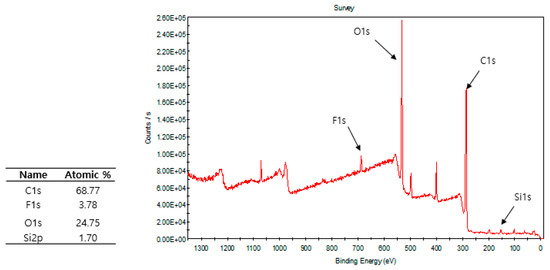

In order to confirm successful coating of poly (TFMA-co-MMA, No. 3) which had the highest water contact angle, we performed XPS analysis. Figure 6 shows the XPS spectra of the slide glass surface coated with poly(TFMA-co-MMA), No. 3 in Table 1, prepared by plasma polymerization. A fluorine peak was observed at ~690 eV, which is ascribed to poly(TFMA). Given these results, we can conclude that plasma polymerization is an easy and simple mechanism of surface modification of functional vinyl monomers on the surface of glass slides.

3.2. Plasma Polymerization of Poly(TSMA-co-MMA) on a Slide Glass Surface

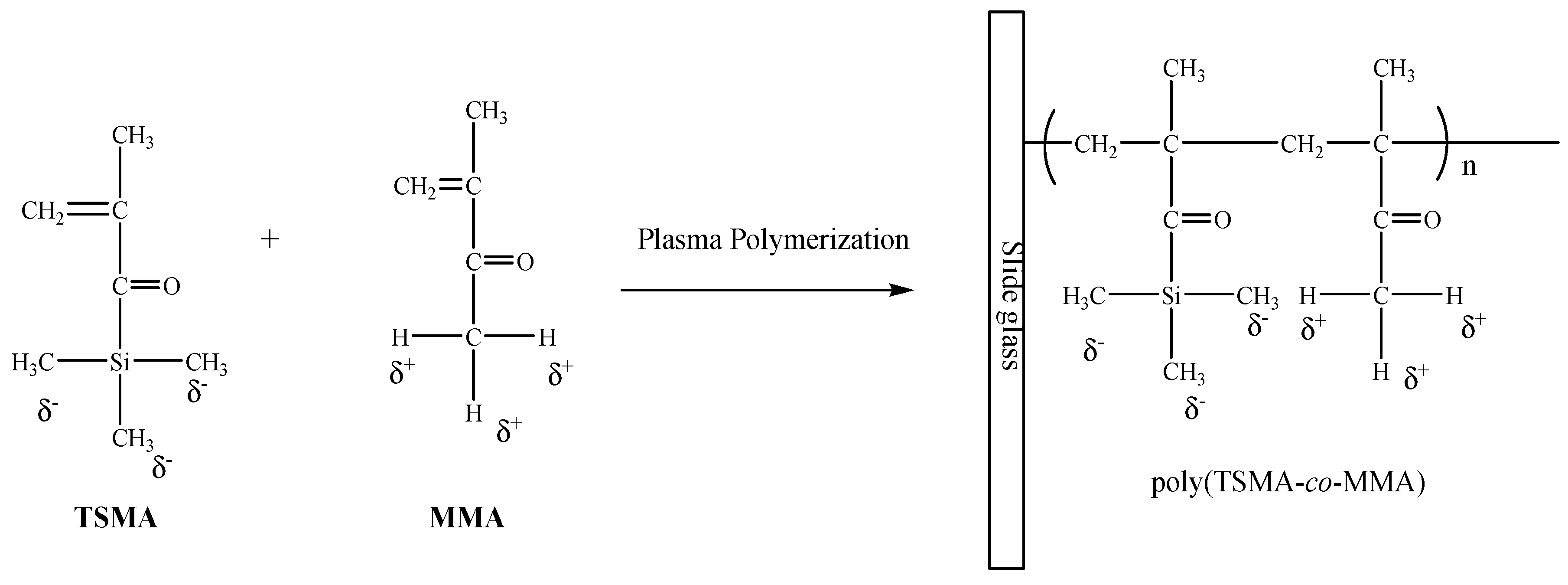

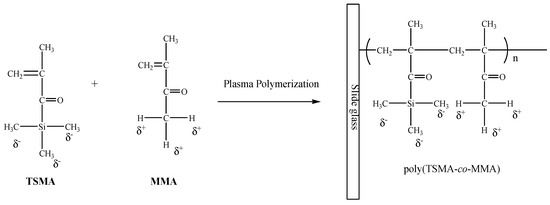

In order to obtain superhydrophobic properties, we selected two vinyl monomers with polar side groups, TSMA and MMA. Figure 7 shows a schematic illustration of poly(TSMA-co-MMA) deposition on the glass slide surface by plasma polymerization. We expected that the specimen would be superhydrophobic due to a lack of dipole moments from the sum of symmetric polarity. Also, we think hydrophobicity is rather expected because of -CH₃ groups, which are known for their capacity to induce hydrophobicity.

Table 2. Physical properties of glass slides with poly(TSMA-co-MMA) coatings prepared by plasma polymerization.

Exp. No.	TSMA/MMA (mol-%)	Contact Angle (°)	Transmittance (%)
			UV (365 nm)	IR (940 nm)	VL (380~700 nm)
1	100/0	110	58.4	87.9	84.1
2	80/20	153	77.1	90.0	85.0
3	60/40	123	69.3	88.7	88.2
4	40/60	115	55.5	89.7	84.2
5	20/80	95.0	54.4	86.9	84.1

represents the physical properties of the glass slide coated with poly(TSMA-co-MMA) by plasma polymerization. The water contact angle of TSMA/MMA at 80/20 mol-% was 153° representing its superhydrophobicity. The transmittance (%) in the UV (365 nm), IR (940 nm), and VL (380–700 nm) regions was very high, as shown in Table 2. When we compared the transmittance of the poly(TFMA-co-MMA)- and poly(TSMA-co-MMA)-coated glass slides, the transmittance of the poly(TSMA-co-MMA)-coated slide was less than that of the poly(TFMA-co-MMA)-coated slide because of the Si(CH₃) group, which is an inorganic element with lower transmittance [13].

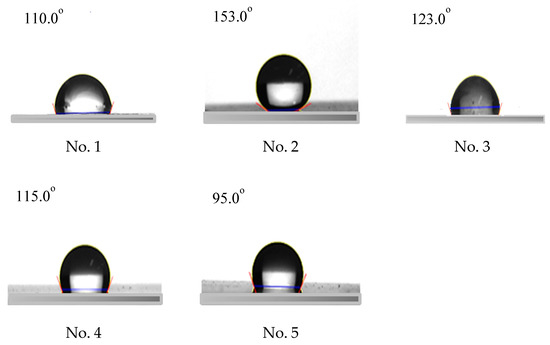

Figure 8 shows water contact angle images of the slide glass surfaces coated with poly(TSMA-co-MMA) prepared by plasma polymerization. It is evident that the surface coated with poly(TSMA-co-MMA) at 80/20 mol-% was superhydrophobic, with a water contact angle of 153°. The water contact angles of the poly(TSMA-co-MMA)-coated slide was greater than that of the poly(TFMA-co-MMA)-coated slide because of the nanostructure of the coated polymers.

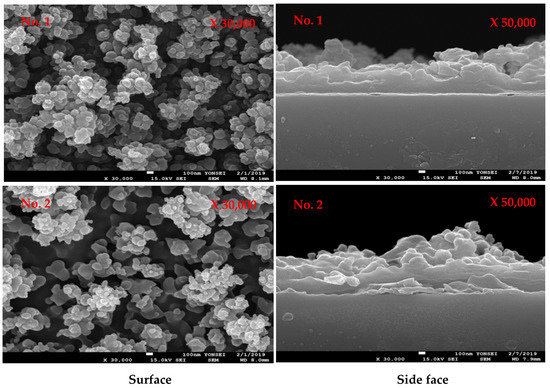

Figure 9 shows SEM images of the plasma-coated glass surface and side face of poly(TSMA-co-MMA (No. 1 and No. 2 in Table 2). The nanoprotrusion structure of the poly(TSMA) on the surface of the slide is shown in No. 1 in Figure 9. In the poly(TSMA-co-MMA, 80/20 mol-%) specimen, a nanoprotrusion structure formed on the surface of the slide glass, as shown in No. 2 in Figure 9. These nanoprotrusions contribute to the superhydrophobic properties of the specimen.

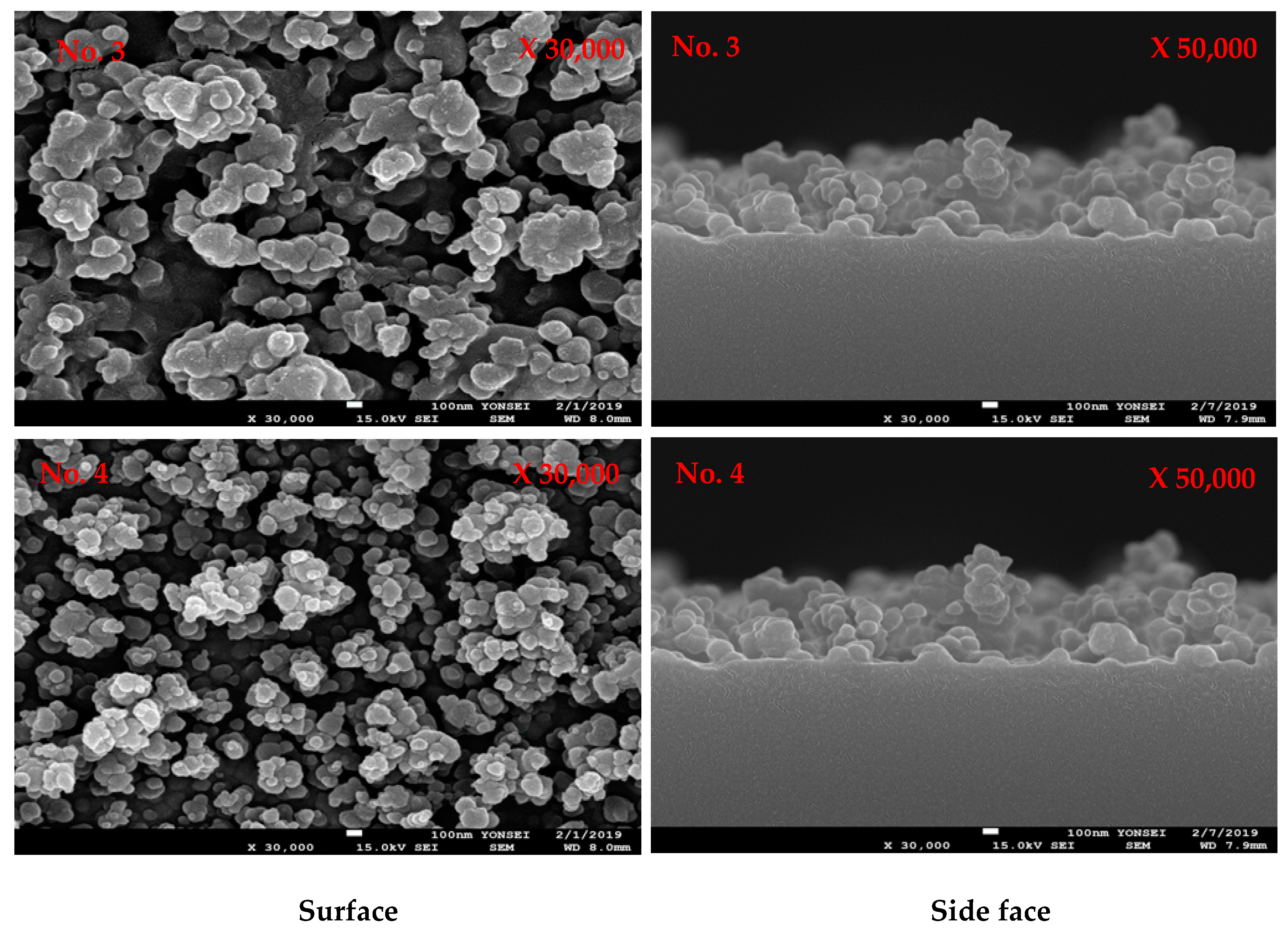

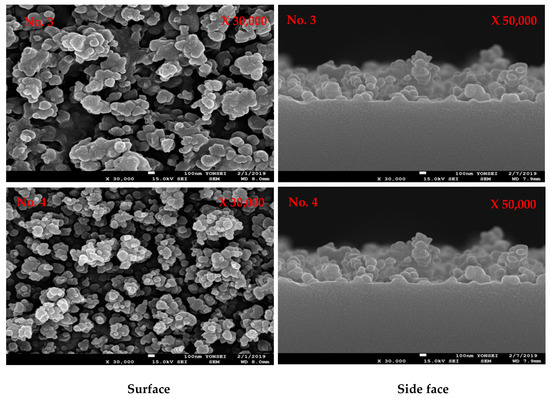

Figure 10 shows SEM images of the plasma-coated glass surfaces and side faces of poly(TSMA-co-MMA) (No. 3 and No. 4 in Table 2). When we used TSMA monomers, a nanoprotrusion structure-coated layer was observed on the surface of the slide glass following plasma polymerization, as shown in Nos. 3 and 4 in Table 2. These nanoprotrusion structures contribute to the superhydrophobic properties of the specimens.

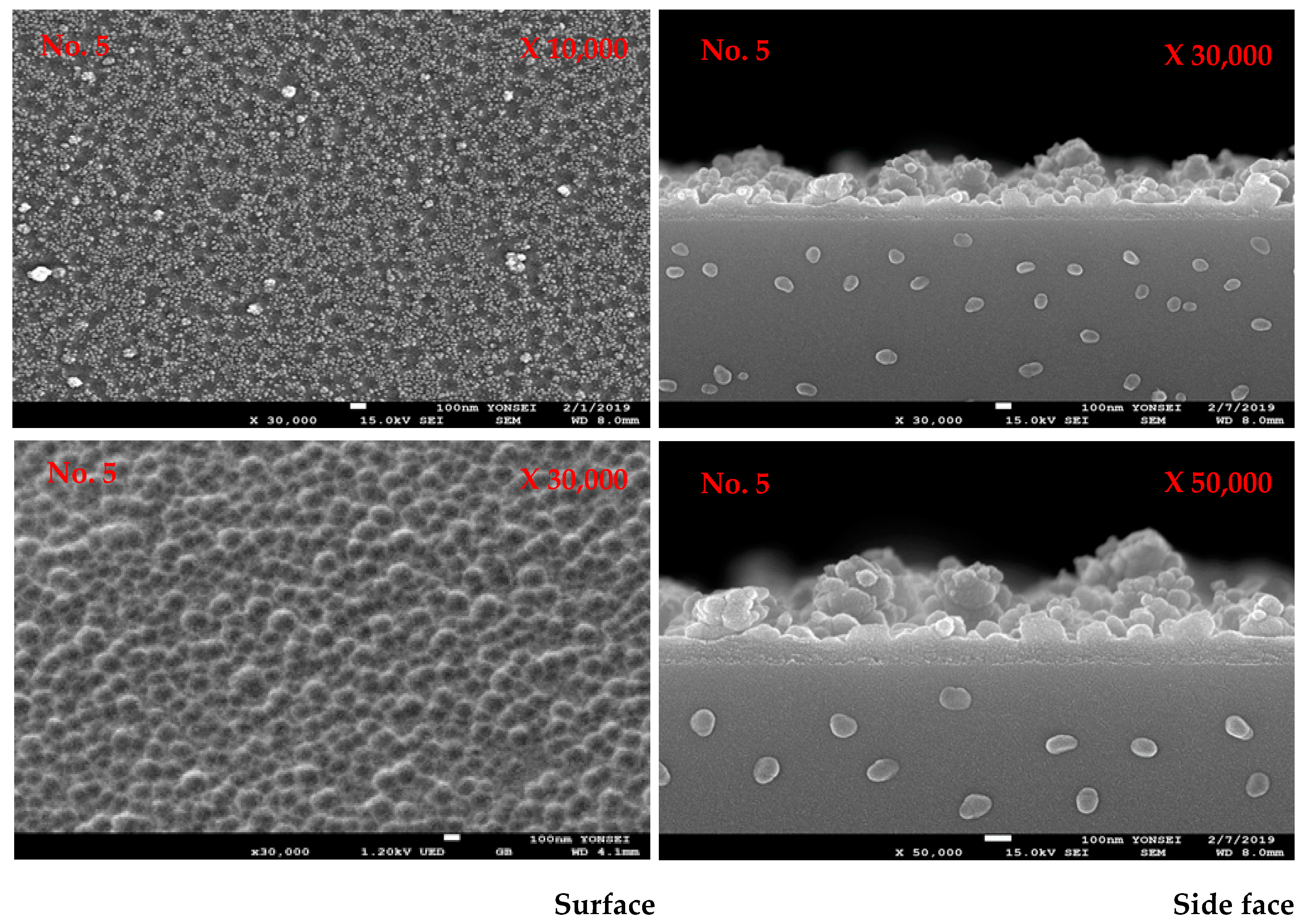

Figure 11 displays SEM images of the plasma-coated glass surface and side face of poly(TSMA-co-MMA), No. 5 in Table 2. Small nanoprotrusions were observed on the surface of the slide glass and side face, which is attributable to the poly(TSMA-co-MMA) polymer film, as shown in the picture. When a large amount of MMA was added to the feed solution, the coated poly(TSMA-co-MMA) formed a flat film, as shown in No. 5 in Figure 9, due to the poly(MMA). These results suggest that poly(TSMA) contributed to the nanoparticle structure and poly(MMA) made the nanofilm structure.

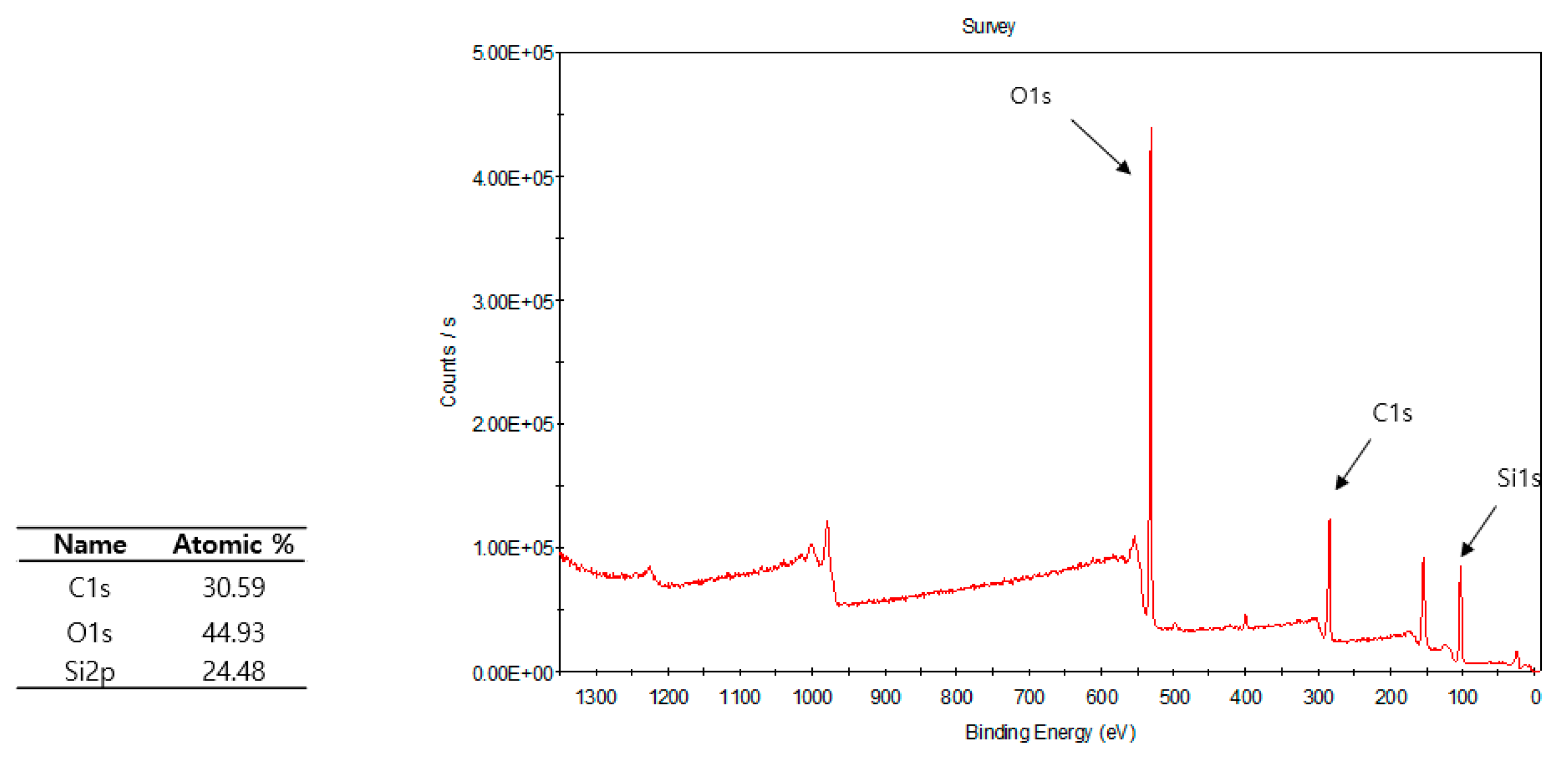

Figure 12 displays the XPS spectra of the slide glass surface with poly(TSMA-co-MMA), No. 2 in Table 2, prepared by plasma polymerization. Si_2p and Si_2s peaks were seen at binding energies of 100 eV and 150 eV due to poly(TSMA) prepared by plasma polymerization. These results show that we are able to make a poly(TSMA-co-MMA) coating with a nanoprotrusion structure by plasma polymerization.

4. Discussion

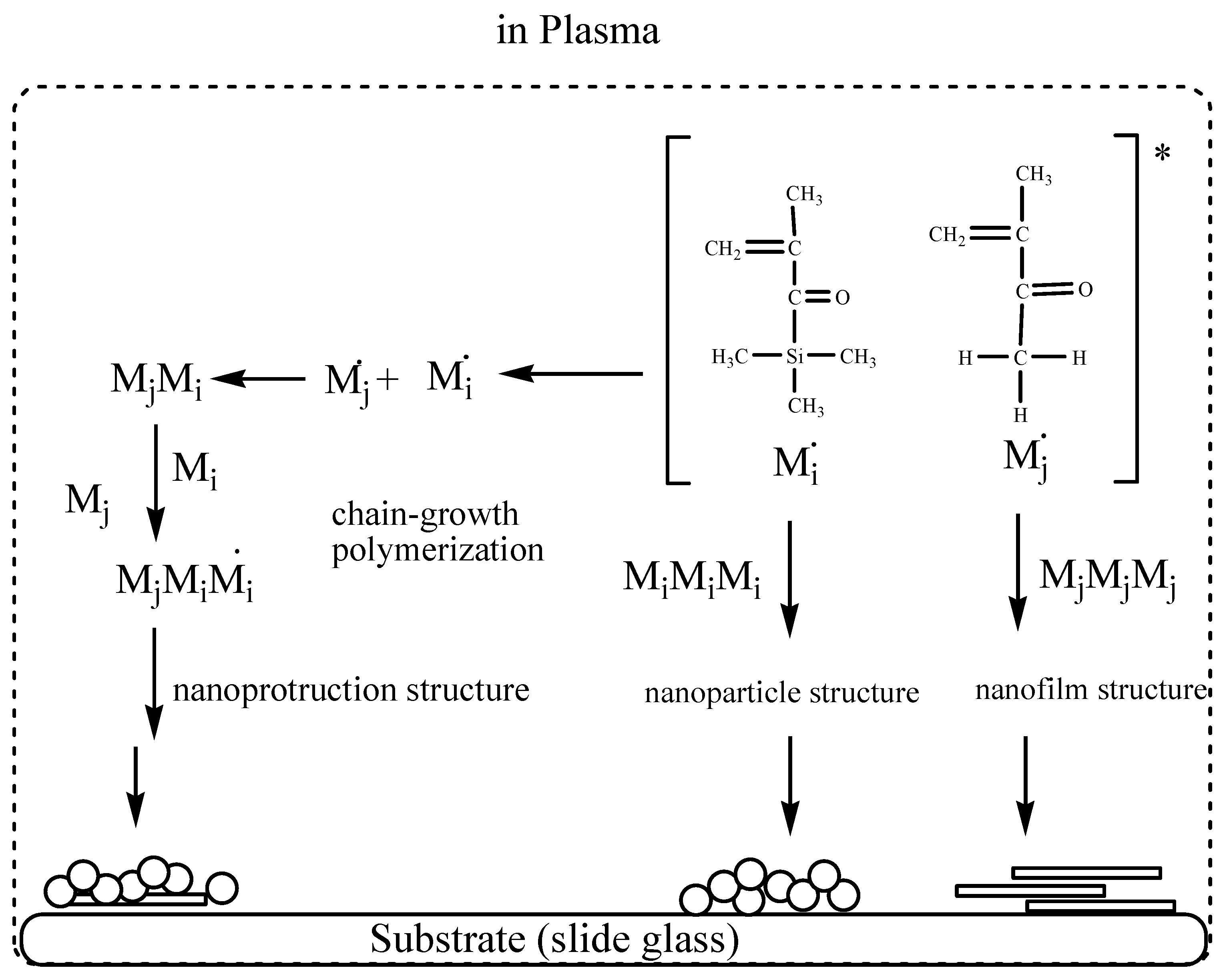

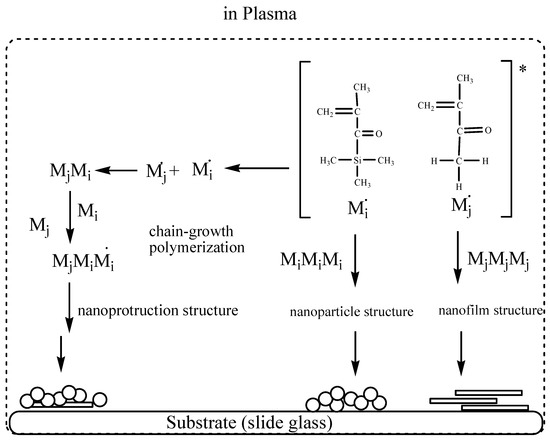

Figure 13 illustrates the plasma process by which poly(TSMA-co-MMA) is coated on a glass surface. When vinyl monomers with TSMA and MMA were inserted into the plasma flame, activated monomers with free radicals were generated [12,14], and chain-growth polymerization occurred in the plasma flame; these chains of polymers then dropped onto the surface of the glass, as shown in Figure 13. Polymeric nanoparticles were generated using TSMA vinyl monomers through the plasma process, and polymeric films were produced using MMA vinyl monomers in the plasma process. Polymeric nanoprotrusions were also synthesized using mixtures of TSMA and MMA monomers and a cold plasma process, as shown in Figure 13.

5. Conclusions

In order to create superhydrophobic coatings, vinyl polymer coatings were formed on the surface of glass slides through a plasma process. Functional vinyl monomers, such as TFMA, TSMA and MMA, that contain side groups with symmetrical polarity, were used. The vinyl polymer-coated slide glass was analyzed via water contact angle measurement, SEM, XPS and transmittance to assess their superhydrophobicity. Given these results, we can draw the following conclusions.

(1)

Polymeric nanoparticles can be coated onto the surface of slide glass using TSMA through a plasma process.

(2)

Polymeric nanofilms can be coated onto the surface of slide glass using TFMA, MMA and a mixture of TFMA and MMA.

(3)

Polymeric nanoprotrusions can be deposited onto the surface of slide glass using a mixture of TSMA and MMA through a plasma process.

(4)

The relative magnitude of the hydrophobic properties produced are as follows. Polymeric nanoprotrusions > polymeric nanoparticles > polymeric nanofilm.

(5)

Superhydrophobicity (153° contact angle) was obtained on the poly(TSMA/MMA) (80/20, mol-%)-coated slide glass surface.

(6)

The transmittance (%) in the UV, IR, and VL regions was very high.
