Analyzing Renewable Energy Sources of a Developing Country for Sustainable Development: An Integrated Fuzzy Based-Decision Methodology
Abstract
:1. Introduction
2. Related Studies
2.1. Applications of MCDA Methods Used in Sustainable Energy Planning

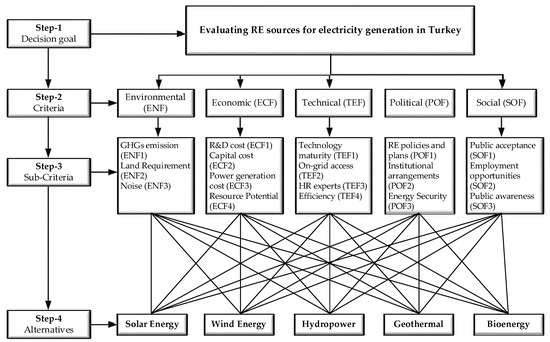

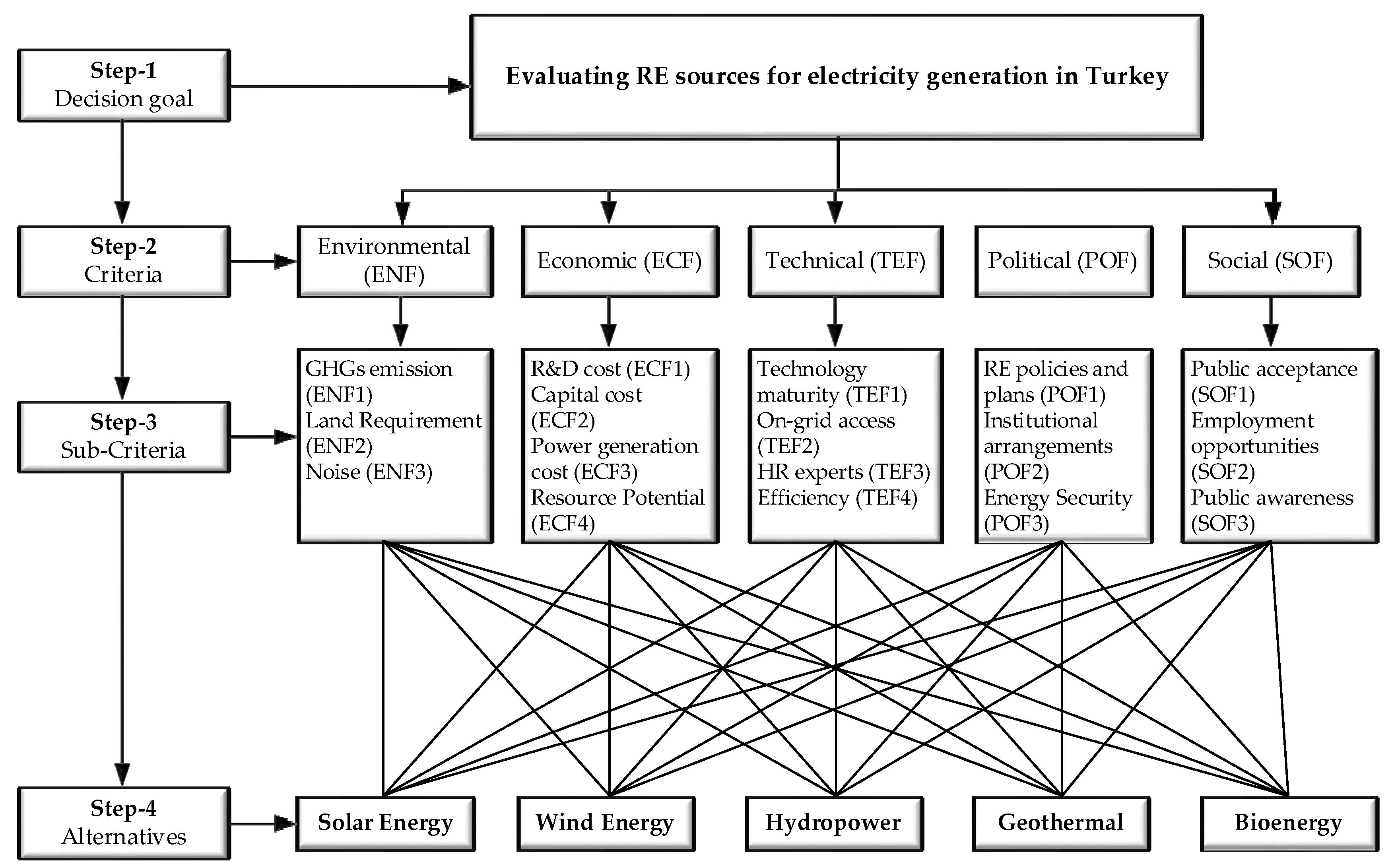

2.2. Identification of Main-Criteria and Sub-Criteria
3. Overview of Renewable Energy Sources in Turkey
3.1. Solar Energy
3.2. Wind Energy
3.3. Hydropower
3.4. Geothermal Energy
3.5. Bioenergy

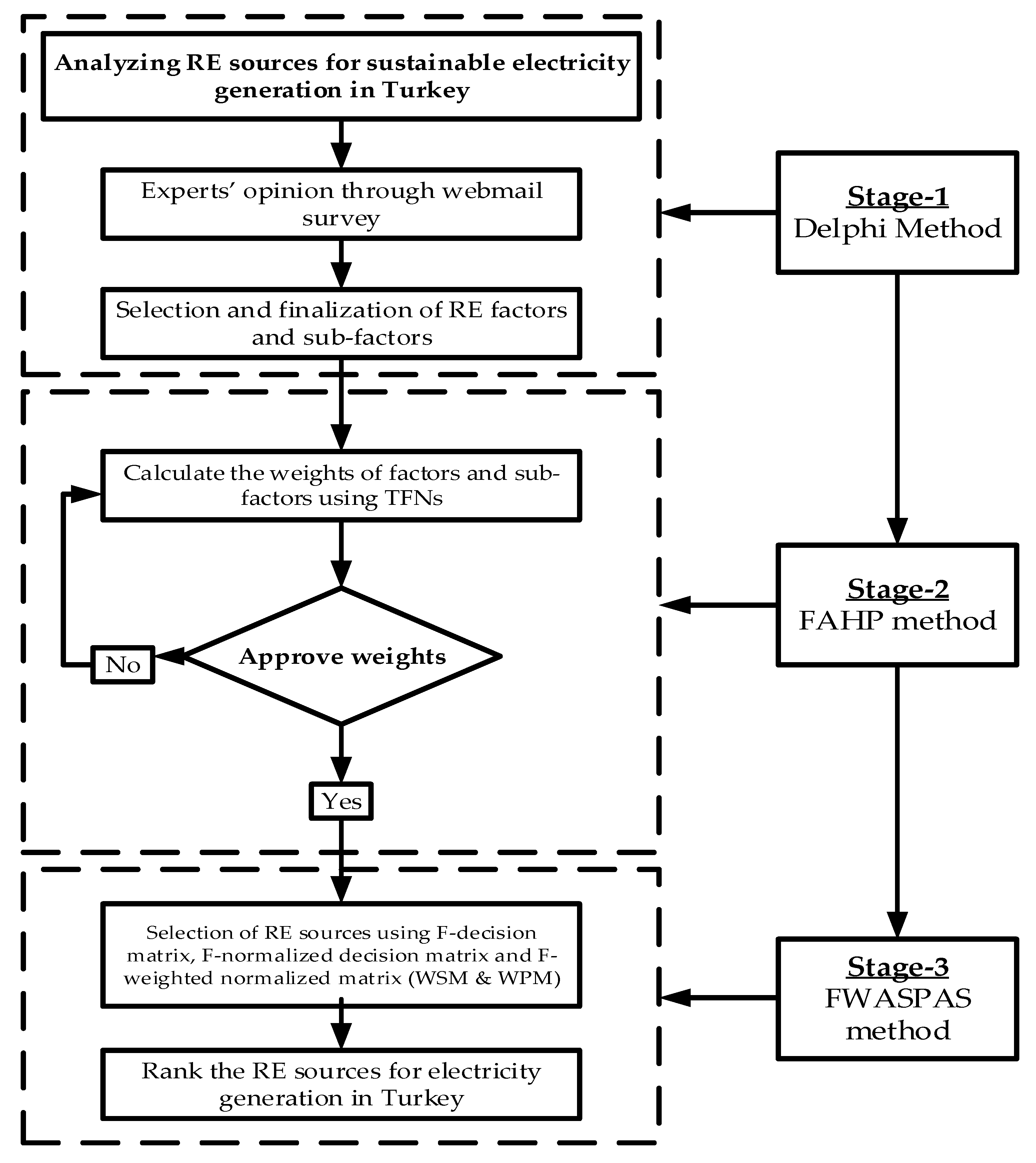

4. An Integrated Decision Methodology
4.1. The Delphi Method
4.2. FAHP Method
4.3. FWASPAS Method
5. Results and Discussion
5.1. Results of FAHP Method
5.1.1. Ranking of Main-Criteria and Sub-Criteria
5.1.2. Ranking of Overall Sub-Criteria

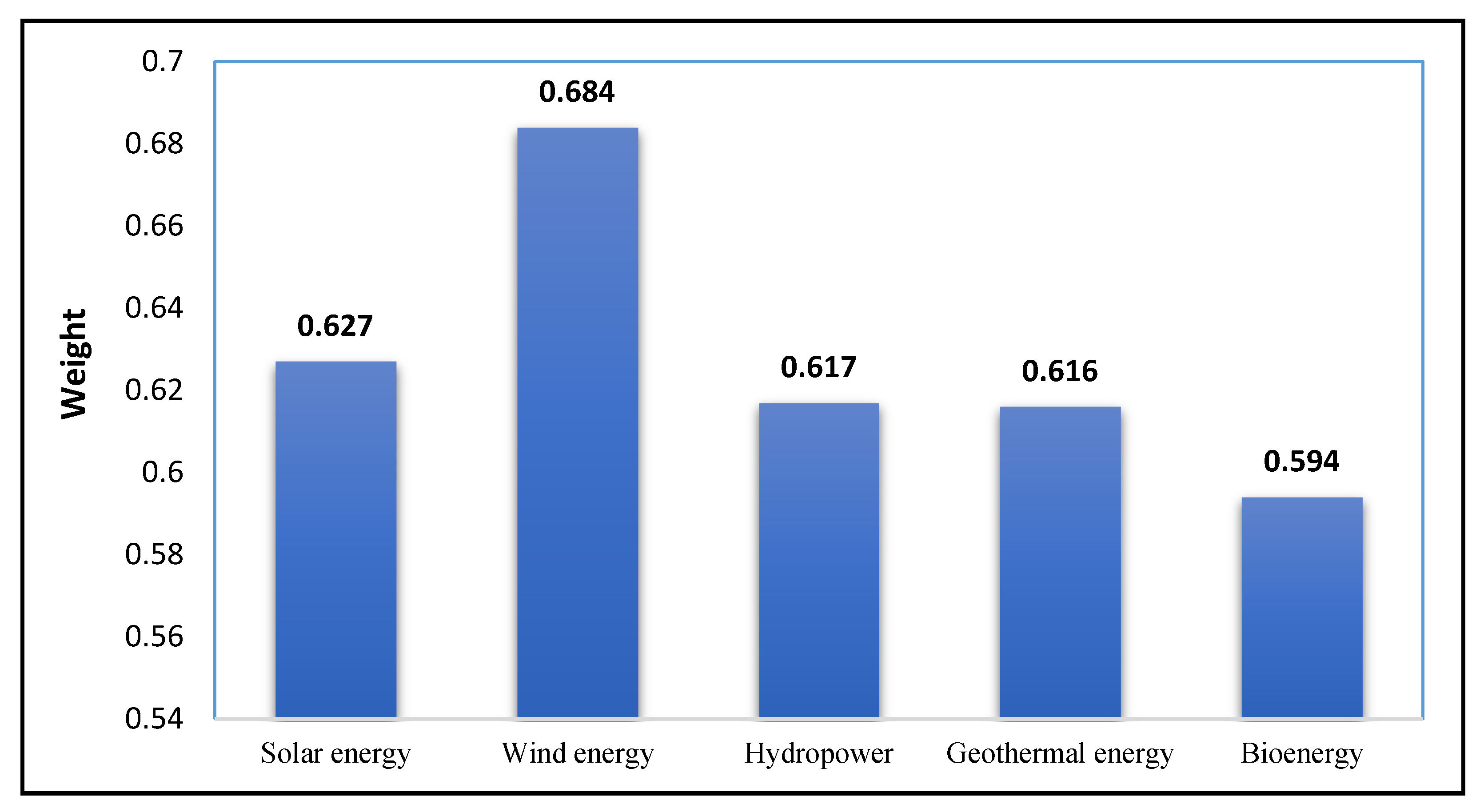

5.2. Results of FWASPAS Method
5.3. Discussion
6. Conclusions
Author Contributions
Acknowledgments
Conflicts of Interest
Appendix A. Questionnaire Survey on “Analyzing RE Sources for the Electricity Generation in Turkey”
Criteria | Extremely Important | Very Important | Neutral | Low Important | Not at all Important |
---|---|---|---|---|---|
5 | 4 | 3 | 2 | 1 | |
Environmental criteria (ENF) | |||||
GHGs emissions (ENF1) | |||||
Land Requirement (ENF2) | |||||
Noise (ENF3) | |||||
Economic criteria (ECF) | |||||
R&D cost (ECF1) | |||||
Capital cost (ECF2) | |||||
Power generation cost (ECF3) | |||||
Resource Potential (ECF4) | |||||
Technical criteria (TEF) | |||||
Technology maturity (TEF1) | |||||
On-grid access (TEF2) | |||||
HR experts (TEF3) | |||||
Efficiency (TEF4) | |||||
Political criteria (POF) | |||||
RE policies and plans (POF1) | |||||
Institutional arrangements (POF2) | |||||
Energy Security (POF3) | |||||
Social criteria (SOF) | |||||
Public acceptance (SOF1) | |||||
Employment opportunities (SOF2) | |||||
Public awareness (SOF3) |
Serial Number | Designation | Gender | Qualification | Age | Organization |
---|---|---|---|---|---|
1 | Professor | Male | Ph.D. | 55 | Gazi University |
2 | Associate Professor | Female | Ph.D. | 39 | Istanbul Technical University |
3 | Professor | Male | Ph.D. | 53 | Ankara University |
4 | Economist | Male | Ph.D. | 50 | Department of Trade |
5 | Economic Analyst | Female | Masters | 42 | Economic Development Department |
6 | Senior Manager | Male | Ph.D. | 45 | Alarko Energy Group |
7 | Project Manager | Male | Ph.D. | 40 | Ankara Turkish Electric Power |
8 | Deputy Secretary | Female | Masters | 42 | Ministry of Foreign Affairs |
9 | Manager | Male | Masters | 45 | Turkish Electricity Transmission Corporation |
10 | Director | Male | Ph.D. | 46 | Turkish Electricity Transmission Corporation |
11 | Stakeholder | Male | Masters | 54 | Onur Energy, Izmir |
12 | Stakeholder | Male | Masters | 50 | Park Green Energy, Ankara |
Appendix B. Fuzzy AHP Results
ENF | ECF | TEF | POF | SOF | |
---|---|---|---|---|---|
ENF | (1.000,1.000,1.000) | (0.250,0.490,1.000) | (0.333,0.707,1.000) | (0.250,0.357,1.000) | (1.000,1.413,3.000) |
ECF | (1.000,2.041,4.000) | (1.000,1.000,1.000) | (0.333,1.259,3.000) | (0.333,0.891,1.000) | (1.000,2.450,4.000) |
TEF | (1.000,1.414,3.003) | (0.333,0.794,3.003) | (1.000,1.000,1.000) | (0.333,0.500,1.000) | (0.333,1.513,4.000) |
POF | (1.000,2.801,4.000) | (1.000,1.122,3.003) | (1.000,2.000,3.003) | (1.000,1.000,1.000) | (2.000,3.429,6.000) |
SOF | (0.333,0.708,1.000) | (0.250,0.408,1.000) | (0.250,0.661,3.003) | (0.167,0.292,0.500) | (1.000,1.000,1.000) |
ENF1 | ENF2 | ENF3 | |
---|---|---|---|
ENF1 | (1.000,1.000,1.000) | (0.250,0.742,4.000) | (0.250,1.259,4.000) |
ENF2 | (0.250,1.348,4.000) | (1.000,1.000,1.000) | (0.333,1.543,4.000) |
ENF3 | (0.250,0.794,4.000) | (0.250,0.648,3.003) | (1.000,1.000,1.000) |
ECF1 | ECF2 | ECF3 | ECF4 | |
---|---|---|---|---|
ECF1 | (1.000,1.000,1.000) | (0.200,0.589,3.000) | (0.250,0.891,4.000) | (0.250,1.259,5.000) |
ECF2 | (0.333,1.698,5.000) | (1.000,1.000,1.000) | (1.000,1.413,3.000) | (0.333,1.944,7.000) |
ECF3 | (0.250,1.122,4.000) | (0.333,0.708,1.000) | (1.000,1.000,1.000) | (0.333,1.732,4.000) |
ECF4 | (0.200,0.794,4.000) | (0.143,0.514,3.003) | (0.250,0.577,3.003) | (1.000,1.000,1.000) |
TEF1 | TEF2 | TEF3 | TEF4 | |
---|---|---|---|---|
TEF1 | (1.000,1.000,1.000) | (1.000,2.000,5.000) | (0.250,1.348,4.000) | (0.250,1.586,4.000) |
TEF2 | (0.200,0.500,1.000) | (1.000,1.000,1.000) | (0.333,0.891,3.000) | (0.250,0.779,4.000) |
TEF3 | (0.250,0.742,4.000) | (0.333,1.122,3.003) | (1.000,1.000,1.000) | (0.250,0.874,5.000) |
TEF4 | (0.250,0.631,4.000) | (0.250,1.284,4.000) | (0.200,1.144,4.000) | (1.000,1.000,1.000) |
POF1 | POF2 | POF3 | |
---|---|---|---|
POF1 | (1.000,1.000,1.000) | (0.333,1.347,4.000) | (1.000,2.038,4.000) |
POF2 | (0.250,0.742,3.003) | (1.000,1.000,1.000) | (1.000,1.619,4.000) |
POF3 | (0.250,0.491,1.000) | (0.250,0.618,1.000) | (1.000,1.000,1.000) |
SOF1 | SOF2 | SOF3 | |
---|---|---|---|
SOF1 | (1.000,1.000,1.000) | (0.333,1.070,4.000) | (0.333,1.375,4.000) |
SOF2 | (0.250,0.935,3.003) | (1.000,1.000,1.000) | (1.000,1.348,4.000) |
SOF3 | (0.250,0.727,3.003) | (0.250,0.742,1.000) | (1.000,1.000,1.000) |
Appendix C. Fuzzy WASPAS Results
ENF1 | ENF2 | ENF3 | ECF1 | ECF2 | ECF3 | ECF4 | TEF1 | TEF2 | TEF3 | TEF4 | POF1 | POF2 | POF3 | SOF1 | SOF2 | SOF3 | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A1 | 4.66,6.66,8.33 | 5.33,7.16,8.5 | 1.83,3.33,5.16 | 3.91,5.83,7.58 | 4.66,6.33,7.75 | 3,4.83,6.66 | 2.91,4.66,6.50 | 4.16,6,7.83 | 1.83,3.33,5.16 | 5.66,7.50,8.91 | 4,6,7.83 | 2.75,4.41,6.16 | 3,4.83,6.66 | 4.16,6,7.66 | 4.66,6.33,7.75 | 4,6,7.75 | 3.66,5.50,7.25 |
A2 | 5.08,6.75,8 | 4.58,6.41,8 | 5.83,7.58,8.75 | 2.25,3.91,5.83 | 5.83,7.58,8.75 | 1.58,3,4.83 | 4,6,7.75 | 6.66,8.33,9.33 | 3.83,5.66,7.41 | 3.33,5.16,7 | 3.66,5.41,7.08 | 5.33,7.16,8.58 | 3.33,5.16,7 | 5.66,7.50,8.91 | 5.33,7.16,8.58 | 3,5,7 | 4.66,6.58,8.16 |
A3 | 4.66,6.50,8 | 3.33,5.08,6.83 | 3.66,5.41,7.08 | 5,6.75,8.08 | 2.25,4,6 | 4,6,7.75 | 5.66,7.33,8.50 | 2.91,4.66,6.50 | 3.33,5.08,6.83 | 3.08,4.83,6.66 | 2.16,3.66,5.50 | 4,5.8,7.58 | 6.16,7.83,9 | 1.75,3.50,5.50 | 4.33,6.25,7.83 | 3.33,5.08,6.83 | 3.33,5.08,6.83 |
A4 | 2.58,4.25,6 | 2.41,4.08,5.83 | 4.33,6,7.41 | 1.25,2.83,4.83 | 2.50,4.33,6.16 | 4.16,5.83,7.33 | 2.25,4,6 | 6.50,8.25,9.41 | 5,6.58,7.83 | 4.75,6.41,7.83 | 6.33,8,9.08 | 2.41,4.08,5.83 | 4.66,6.41,7.75 | 2.41,4.16,6 | 5,6.75,8.08 | 2.75,4.41,6.16 | 6.50,8.16,9.25 |
A5 | 3.75,5.41,7.08 | 4.16,6.16,7.91 | 3.50,5.25,7 | 4.83,6.66,8.08 | 1.58,3,4.83 | 6,7.75,9 | 3.25,5,6.75 | 2.25,4,6 | 1.83,3.33,5.16 | 2.66,4.16,5.83 | 4.08,5.83,7.41 | 1.75,3.08,4.75 | 4.16,6.16,7.91 | 2.41,4.16,6.16 | 5.50,7.25,8.50 | 4.66,6.66,8.33 | 4.16,6.16,7.91 |
ENF1 | ENF2 | ENF3 | ECF1 | ECF2 | ECF3 | ECF4 | TEF1 | TEF2 | TEF3 | TEF4 | POF1 | POF2 | POF3 | SOF1 | SOF2 | SOF3 | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A1 | 0.56,0.80,1 | 0.62,0.84,1 | 0.20,0.38,0.59 | 0.48,0.72,0.93 | 0.53,0.72,0.88 | 0.33,0.53,0.74 | 0.34,0.54,0.76 | 0.44,0.63,0.83 | 0.23,0.42,0.65 | 0.63,0.84,1 | 0.44,0.66,0.86 | 0.32,0.51,0.71 | 0.33,0.53,0.74 | 0.46,0.67,0.85 | 0.54,0.73,0.90 | 0.48,0.72,0.93 | 0.39,0.59,0.78 |
A2 | 0.61,0.81,0.97 | 0.53,0.75,0.94 | 0.66,0.86,1 | 0.27,0.48,0.72 | 0.66,0.86,1 | 0.17,0.33,0.53 | 0.47,0.70,0.91 | 0.70,0.88,0.99 | 0.48,0.72,0.94 | 0.37,0.57,0.78 | 0.40,0.59,0.77 | 0.62,0.83,1 | 0.37,0.57,0.77 | 0.63,0.84,1 | 0.62,0.83,1 | 0.36,0.60,0.84 | 0.50,0.71,0.88 |
A3 | 0.56,0.78,0.96 | 0.39,0.59,0.80 | 0.41,0.61,0.80 | 0.61,0.83,1 | 0.25,0.45,0.68 | 0.44,0.66,0.86 | 0.66,0.86,1 | 0.30,0.49,0.69 | 0.42,0.64,0.87 | 0.34,0.54,0.74 | 0.23,0.40,0.60 | 0.46,0.67,0.88 | 0.68,0.87,1 | 0.19,0.39,0.61 | 0.50,0.72,0.91 | 0.40,0.61,0.82 | 0.36,0.54,0.73 |
A4 | 0.31,0.51,0.72 | 0.28,0.48,0.68 | 0.49,0.68,0.84 | 0.15,0.35,0.59 | 0.28,0.49,0.70 | 0.46,0.64,0.81 | 0.26,0.47,0.70 | 0.69,0.87,1 | 0.63,0.84,1 | 0.53,0.71,0.87 | 0.69,0.88,1 | 0.28,0.47,0.67 | 0.51,0.71,0.86 | 0.27,0.46,0.67 | 0.58,0.78,0.94 | 0.33,0.53,0.74 | 0.70,0.88,1 |
A5 | 0.45,0.65,0.85 | 0.49,0.72,0.93 | 0.40,0.60,0.80 | 0.59,0.82,1 | 0.18,0.34,0.55 | 0.66,0.86,1 | 0.38,0.58,0.79 | 0.23,0.42,0.63 | 0.23,0.42,0.65 | 0.29,0.46,0.65 | 0.44,0.64,0.81 | 0.20,0.35,0.55 | 0.46,0.68,0.87 | 0.27,0.46,0.69 | 0.64,0.84,0.99 | 0.56,0.80,1 | 0.45,0.66,0.85 |
ENF1 | ENF2 | ENF3 | ECF1 | ECF2 | ECF3 | ECF4 | TEF1 | TEF2 | TEF3 | TEF4 | POF1 | POF2 | POF3 | SOF1 | SOF2 | SOF3 | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A1 | 0.032,0.046,0.058 | 0.036,0.048,0.058 | 0.012,0.022,0.034 | 0.028,0.041,0.054 | 0.030,0.042,0.051 | 0.019,0.031,0.043 | 0.019,0.031,0.044 | 0.025,0.037,0.048 | 0.013,0.024,0.038 | 0.036,0.048,0.058 | 0.025,0.038,0.050 | 0.018,0.029,0.041 | 0.019,0.031,0.043 | 0.027,0.039,0.049 | 0.031,0.042,0.052 | 0.027,0.041,0.053 | 0.023,0.034,0.045 |
A2 | 0.035,0.047,0.056 | 0.031,0.043,0.054 | 0.038,0.050,0.058 | 0.016,0.028,0.041 | 0.038,0.050,0.058 | 0.010,0.019,0.031 | 0.027,0.040,0.052 | 0.041,0.051,0.057 | 0.028,0.042,0.054 | 0.021,0.033,0.045 | 0.023,0.034,0.045 | 0.036,0.048,0.058 | 0.021,0.033,0.045 | 0.036,0.048,0.058 | 0.036,0.048,0.058 | 0.020,0.034,0.048 | 0.029,0.041,0.051 |
A3 | 0.032,0.045,0.055 | 0.022,0.034,0.046 | 0.024,0.035,0.047 | 0.035,0.048,0.058 | 0.014,0.026,0.039 | 0.025,0.038,0.049 | 0.038,0.050,0.058 | 0.018,0.028,0.040 | 0.024,0.037,0.050 | 0.020,0.031,0.043 | 0.013,0.023,0.035 | 0.027,0.039,0.051 | 0.039,0.050,0.058 | 0.011,0.022,0.035 | 0.029,0.042,0.052 | 0.023,0.035,0.047 | 0.020,0.031,0.042 |
A4 | 0.018,0.029,0.041 | 0.016,0.027,0.039 | 0.028,0.039,0.049 | 0.009,0.020,0.034 | 0.016,0.028,0.040 | 0.026,0.037,0.047 | 0.015,0.027,0.040 | 0.040,0.050,0.058 | 0.037,0.048,0.058 | 0.030,0.041,0.051 | 0.040,0.051,0.058 | 0.016,0.027,0.039 | 0.030,0.041,0.049 | 0.015,0.027,0.039 | 0.033,0.045,0.054 | 0.019,0.030,0.042 | 0.040,0.051,0.058 |
A5 | 0.026,0.037,0.049 | 0.028,0.042,0.054 | 0.023,0.034,0.046 | 0.034,0.047,0.058 | 0.010,0.019,0.032 | 0.038,0.049,0.058 | 0.022,0.034,0.046 | 0.013,0.024,0.037 | 0.013,0.024,0.038 | 0.017,0.027,0.037 | 0.026,0.037,0.047 | 0.011,0.020,0.032 | 0.026,0.039,0.051 | 0.015,0.027,0.040 | 0.037,0.049,0.057 | 0.032,0.046,0.058 | 0.026,0.038,0.049 |
ENF1 | ENF2 | ENF3 | ECF1 | ECF2 | ECF3 | ECF4 | TEF1 | TEF2 | TEF3 | TEF4 | POF1 | POF2 | POF3 | SOF1 | SOF2 | SOF3 | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A1 | 0.966,0.987,1 | 0.973,0.990,1 | 0.913,0.945,0.969 | 0.958,0.981,0.996 | 0.964,0.981,0.993 | 0.938,0.964,0.982 | 0.939,0.965,0.984 | 0.953,0.974,0.989 | 0.919,0.951,0.976 | 0.974,0.990,1 | 0.953,0.976,0.991 | 0.936,0.962,0.981 | 0.938,0.964,0.982 | 0.956,0.977,0.991 | 0.965,0.982,0.994 | 0.958,0.981,0.995 | 0.947,0.970,0.986 |
A2 | 0.971,0.987,0.998 | 0.964,0.983,0.996 | 0.976,0.991,1 | 0.928,0.958,0.981 | 0.976,0.991,1 | 0.904,0.938,0.964 | 0.957,0.980,0.994 | 0.980,0.992,0.999 | 0.959,0.981,0.996 | 0.944,0.968,0.986 | 0.948,0.970,0.985 | 0.972,0.989,1 | 0.944,0.968,0.985 | 0.974,0.990,1 | 0.972,0.989,1 | 0.942,0.970,0.989 | 0.961,0.980,0.992 |
A3 | 0.966,0.985,0.997 | 0.947,0.970,0.987 | 0.950,0.972,0.987 | 0.972,0.989,1 | 0.924,0.955,0.978 | 0.954,0.976,0.991 | 0.976,0.991,1 | 0.934,0.960,0.978 | 0.951,0.975,0.992 | 0.940,0.965,0.983 | 0.920,0.948,0.971 | 0.956,0.977,0.992 | 0.978,0.992,1 | 0.909,0.947,0.972 | 0.961,0.981,0.994 | 0.948,0.971,0.988 | 0.942,0.965,0.982 |
A4 | 0.934,0.961,0.981 | 0.929,0.958,0.978 | 0.960,0.978,0.990 | 0.897,0.941,0.970 | 0.929,0.960,0.979 | 0.956,0.975,0.988 | 0.925,0.957,0.980 | 0.978,0.992,1 | 0.974,0.990,1 | 0.964,0.981,0.992 | 0.979,0.992,1 | 0.929,0.957,0.977 | 0.962,0.980,0.991 | 0.927,0.956,0.977 | 0.969,0.986,0.996 | 0.937,0.963,0.982 | 0.979,0.992,1 |
A5 | 0.954,0.975,0.990 | 0.959,0.981,0.995 | 0.948,0.970,0.987 | 0.970,0.988,1 | 0.905,0.939,0.966 | 0.976,0.991,1 | 0.945,0.969,0.986 | 0.920,0.951,0.974 | 0.919,0.951,0.976 | 0.932,0.956,0.975 | 0.954,0.974,0.988 | 0.911,0.942,0.966 | 0.956,0.978,0.992 | 0.927,0.956,0.978 | 0.974,0.990,0.999 | 0.966,0.987,1 | 0.954,0.976,0.991 |
References
- Wang, Y.; Xu, L.; Solangi, Y.A. Strategic Renewable Energy Resources Selection for Pakistan: Based on SWOT-Fuzzy AHP Approach. Sustain. Cities Soc. 2020, 52. [Google Scholar] [CrossRef]
- Mastrocinque, E.; Ramírez, F.J.; Honrubia-Escribano, A.; Pham, D.T. An AHP-Based Multi-Criteria Model for Sustainable Supply Chain Development in the Renewable Energy Sector. Expert Syst. Appl. 2020, 150, 113321. [Google Scholar] [CrossRef]
- The European Commission. The 2020 Climate and Energy Package; The European Commission: Brussels, Belgium, 2014. [Google Scholar]
- Baležentis, T.; Streimikiene, D. Multi-Criteria Ranking of Energy Generation Scenarios with Monte Carlo Simulation. Appl. Energy 2017, 185, 862–871. [Google Scholar] [CrossRef]
- Kotciolu, I. Clean and Sustainable Energy Policies in Turkey. Renew. Sustain. Energy Rev. 2011, 15, 5111–5119. [Google Scholar] [CrossRef]
- Atilgan, B.; Azapagic, A. Renewable Electricity in Turkey: Life Cycle Environmental Impacts. Renew. Energy 2016, 89, 649–657. [Google Scholar] [CrossRef] [Green Version]
- Simsek, H.A.; Simsek, N. Recent Incentives for Renewable Energy in Turkey. Energy Policy 2013, 63, 521–530. [Google Scholar] [CrossRef]
- Solangi, Y.A.; Tan, Q.; Mirjat, N.H.; Ali, S. Evaluating the Strategies for Sustainable Energy Planning in Pakistan: An Integrated SWOT-AHP and Fuzzy-TOPSIS Approach. J. Clean. Prod. 2019, 236, 117655. [Google Scholar] [CrossRef]
- Wu, Y.; Xu, C.; Zhang, T. Evaluation of Renewable Power Sources Using a Fuzzy MCDM Based on Cumulative Prospect Theory: A Case in China. Energy 2018, 147, 1227–1239. [Google Scholar] [CrossRef]
- Kassem, A.; Al-Haddad, K.; Komljenovic, D.; Schiffauerova, A. A Value Tree for Identification of Evaluation Criteria for Solar Thermal Power Technologies in Developing Countries. Sustain. Energy Technol. Assess. 2016, 16, 18–32. [Google Scholar] [CrossRef]
- Shen, Y.C.; Chou, C.J.; Lin, G.T.R. The Portfolio of Renewable Energy Sources for Achieving the Three E Policy Goals. Energy 2011, 36, 2589–2598. [Google Scholar] [CrossRef]
- Ahmad, S.; Nadeem, A.; Akhanova, G.; Houghton, T.; Muhammad-Sukki, F. Multi-Criteria Evaluation of Renewable and Nuclear Resources for Electricity Generation in Kazakhstan. Energy 2017, 141, 1880–1891. [Google Scholar] [CrossRef]
- Haddad, B.; Liazid, A.; Ferreira, P. A Multi-Criteria Approach to Rank Renewables for the Algerian Electricity System. Renew. Energy 2017, 107, 462–472. [Google Scholar] [CrossRef]
- Ahmad, S.; Tahar, R.M. Selection of Renewable Energy Sources for Sustainable Development of Electricity Generation System Using Analytic Hierarchy Process: A Case of Malaysia. Renew. Energy 2014, 63, 458–466. [Google Scholar] [CrossRef]
- Luthra, S.; Mangla, S.K.; Kharb, R.K. Sustainable Assessment in Energy Planning and Management in Indian Perspective. Renew. Sustain. Energy Rev. 2015, 47, 58–73. [Google Scholar] [CrossRef]
- Tasri, A.; Susilawati, A. Selection among Renewable Energy Alternatives Based on a Fuzzy Analytic Hierarchy Process in Indonesia. Sustain. Energy Technol. Assess. 2014, 7, 34–44. [Google Scholar] [CrossRef]
- Karatas, M.; Sulukan, E.; Karacan, I. Assessment of Turkey’s Energy Management Performance via a Hybrid Multi-Criteria Decision-Making Methodology. Energy 2018, 153, 890–912. [Google Scholar] [CrossRef]
- Papapostolou, A.; Karakosta, C.; Doukas, H. Analysis of Policy Scenarios for Achieving Renewable Energy Sources Targets: A Fuzzy TOPSIS Approach. Energy Environ. 2017, 28, 88–109. [Google Scholar] [CrossRef]
- Ligus, M.; Peternek, P. Determination of Most Suitable Low-Emission Energy Technologies Development in Poland Using Integrated Fuzzy AHP-TOPSIS Method. Energy Procedia 2018, 153, 101–106. [Google Scholar] [CrossRef]
- Solangi, Y.A.; Tan, Q.; Khan, M.W.A.; Mirjat, N.H.; Ahmed, I. The Selection of Wind Power Project Location in the Southeastern Corridor of Pakistan: A Factor Analysis, AHP, and Fuzzy-TOPSIS Application. Energies 2018, 11, 1940. [Google Scholar] [CrossRef] [Green Version]
- Ren, J.; Sovacool, B.K. Prioritizing Low-Carbon Energy Sources to Enhance China’s Energy Security. Energy Convers. Manag. 2015, 92, 129–136. [Google Scholar] [CrossRef]
- Zhang, C.; Wang, Q.; Zeng, S.; Baležentis, T.; Štreimikienė, D.; Ališauskaitė-Šeškienė, I.; Chen, X. Probabilistic Multi-Criteria Assessment of Renewable Micro-Generation Technologies in Households. J. Clean. Prod. 2019, 212, 582–592. [Google Scholar] [CrossRef]
- Solangi, Y.A.; Shah, S.A.A.; Zameer, H.; Ikram, M.; Saracoglu, B.O. Assessing the Solar PV Power Project Site Selection in Pakistan: Based on AHP-Fuzzy VIKOR Approach. Environ. Sci. Pollut. Res. 2019, 26, 30286–30302. [Google Scholar] [CrossRef] [PubMed]
- Troldborg, M.; Heslop, S.; Hough, R.L. Assessing the Sustainability of Renewable Energy Technologies Using Multi-Criteria Analysis: Suitability of Approach for National-Scale Assessments and Associated Uncertainties. Renew. Sustain. Energy Rev. 2014, 39, 1173–1184. [Google Scholar] [CrossRef]
- Shakouri, G.H.; Aliakbarisani, S. At What Valuation of Sustainability Can We Abandon Fossil Fuels? A Comprehensive Multistage Decision Support Model for Electricity Planning. Energy 2016, 107, 60–77. [Google Scholar] [CrossRef]
- Shmelev, S.E.; Van Den Bergh, J.C.J.M. Optimal Diversity of Renewable Energy Alternatives under Multiple Criteria: An Application to the UK. Renew. Sustain. Energy Rev. 2016, 60, 679–691. [Google Scholar] [CrossRef]
- Santos, M.J.; Ferreira, P.; Araújo, M.; Portugal-Pereira, J.; Lucena, A.F.P.; Schaeffer, R. Scenarios for the Future Brazilian Power Sector Based on a Multi-Criteria Assessment. J. Clean. Prod. 2018, 167, 938–950. [Google Scholar] [CrossRef]
- Çolak, M.; Kaya, İ. Prioritization of Renewable Energy Alternatives by Using an Integrated Fuzzy MCDM Model: A Real Case Application for Turkey. Renew. Sustain. Energy Rev. 2017, 80, 840–853. [Google Scholar] [CrossRef]
- Şengül, Ü.; Eren, M.; Eslamian Shiraz, S.; Gezder, V.; Sengül, A.B. Fuzzy TOPSIS Method for Ranking Renewable Energy Supply Systems in Turkey. Renew. Energy 2015, 75, 617–625. [Google Scholar] [CrossRef]
- Wang, J.J.; Jing, Y.Y.; Zhang, C.F.; Zhao, J.H. Review on Multi-Criteria Decision Analysis Aid in Sustainable Energy Decision-Making. Renew. Sustain. Energy Rev. 2009, 13, 2263–2278. [Google Scholar] [CrossRef]
- Brand, B.; Missaoui, R. Multi-Criteria Analysis of Electricity Generation Mix Scenarios in Tunisia. Renew. Sustain. Energy Rev. 2014, 39, 251–261. [Google Scholar] [CrossRef] [Green Version]
- Kang, D.; Lee, D.H. Energy and Environment Efficiency of Industry and Its Productivity Effect. J. Clean. Prod. 2016, 135, 184–193. [Google Scholar] [CrossRef]
- Shen, Y.C.; Lin, G.T.R.; Li, K.P.; Yuan, B.J.C. An Assessment of Exploiting Renewable Energy Sources with Concerns of Policy and Technology. Energy Policy 2010, 38, 4604–4616. [Google Scholar] [CrossRef]
- Shah, S.A.A.; Solangi, Y.A. A Sustainable Solution for Electricity Crisis in Pakistan: Opportunities, Barriers, and Policy Implications for 100% Renewable Energy. Environ. Sci. Pollut. Res. 2019, 26, 29687–29703. [Google Scholar] [CrossRef]
- Wang, C.N.; Huang, Y.F.; Chai, Y.C.; Nguyen, V.T. A Multi-Criteria Decision Making (MCDM) for Renewable Energy Plants Location Selection in Vietnam under a Fuzzy Environment. Appl. Sci. 2018, 8, 2069. [Google Scholar] [CrossRef] [Green Version]
- Marinakis, V.; Doukas, H.; Xidonas, P.; Zopounidis, C. Multicriteria Decision Support in Local Energy Planning: An Evaluation of Alternative Scenarios for the Sustainable Energy Action Plan. Omega 2017, 69, 1–16. [Google Scholar] [CrossRef]
- Kahraman, C.; Kaya, I.; Cebi, S. A Comparative Analysis for Multiattribute Selection among Renewable Energy Alternatives Using Fuzzy Axiomatic Design and Fuzzy Analytic Hierarchy Process. Energy 2009, 34, 1603–1616. [Google Scholar] [CrossRef]
- Amer, M.; Daim, T.U. Selection of Renewable Energy Technologies for a Developing County: A Case of Pakistan. Energy Sustain. Dev. 2011, 15, 420–435. [Google Scholar] [CrossRef]
- Shah, S.A.A.; Solangi, Y.A.; Ikram, M. Analysis of Barriers to the Adoption of Cleaner Energy Technologies in Pakistan Using Modified Delphi and Fuzzy Analytical Hierarchy Process. J. Clean. Prod. 2019, 235, 1037–1050. [Google Scholar] [CrossRef]
- Zhao, X.; Feng, T.; Lu, C.; Feng, X. The Barriers and Institutional Arrangements of the Implementation of Renewable Portfolio Standard: A Perspective of China. Renew. Sustain. Energy Rev. 2014, 30, 371–380. [Google Scholar]
- Shah, A.A.; Qureshi, S.M.; Bhutto, A.; Shah, A. Sustainable Development through Renewable Energy-The Fundamental Policy Dilemmas of Pakistan. Renew. Sustain. Energy Rev. 2011, 15, 861–865. [Google Scholar] [CrossRef]
- Sahir, M.H.; Qureshi, A.H. Specific Concerns of Pakistan in the Context of Energy Security Issues and Geopolitics of the Region. Energy Policy 2007, 35, 2031–2037. [Google Scholar] [CrossRef]
- Rani, P.; Mishra, A.R.; Mardani, A.; Cavallaro, F.; Alrasheedi, M.; Alrashidi, A. A Novel Approach to Extended Fuzzy TOPSIS Based on New Divergence Measures for Renewable Energy Sources Selection. J. Clean. Prod. 2020, 257, 120352. [Google Scholar] [CrossRef]
- Solangi, Y.A.; Tan, Q.; Mirjat, N.H.; Valasai, G.D.; Khan, M.W.A.; Ikram, M. An Integrated Delphi-AHP and Fuzzy TOPSIS Approach toward Ranking and Selection of Renewable Energy Resources in Pakistan. Processes 2019, 7, 118. [Google Scholar] [CrossRef] [Green Version]
- Kabak, M.; Daǧdeviren, M. Prioritization of Renewable Energy Sources for Turkey by Using a Hybrid MCDM Methodology. Energy Convers. Manag. 2014, 79, 25–33. [Google Scholar] [CrossRef]
- Deveci, K.; Güler, Ö. A CMOPSO Based Multi-Objective Optimization of Renewable Energy Planning: Case of Turkey. Renew. Energy 2020, 155, 578–590. [Google Scholar] [CrossRef]
- Dinçer, F. Overview of the Photovoltaic Technology Status and Perspective in Turkey. Renew. Sustain. Energy Rev. 2011, 15, 3768–3779. [Google Scholar] [CrossRef]
- Anser, M.K.; Mohsin, M.; Abbas, Q.; Chaudhry, I.S. Assessing the Integration of Solar Power Projects: SWOT-Based AHP—F-TOPSIS Case Study of Turkey. Environ. Sci. Pollut. Res. 2020. [Google Scholar] [CrossRef]
- SOLARGIS. Solar Resource Maps and GIS Data for 180+ Countries|Solargis. Available online: https://solargis.com/maps-and-gis-data/download (accessed on 9 September 2019).
- IEA. Energy Policies of IEA Countries—Turkey. 2009. Available online: https://webstore.iea.org/energy-policies-of-iea-countries-turkey-2009-review (accessed on 11 July 2020).
- Ilkiliç, C.; Aydin, H.; Behçet, R. The Current Status of Wind Energy in Turkey and in the World. Energy Policy 2011, 39, 961–967. [Google Scholar] [CrossRef]
- Melikoglu, M. Vision 2023: Feasibility Analysis of Turkey’s Renewable Energy Projection. Renew. Energy 2013, 50, 570–575. [Google Scholar] [CrossRef]
- International Hydropower Association. Hydropower Status Report; International Hydropower Association: London, UK, 2018; Available online: https://www.hydropower.org/publications/2018-hydropower-status-report (accessed on 11 July 2020).
- Akpinar, A.; Kömürcü, M.I.; Önsoy, H.; Kaygusuz, K. Status of Geothermal Energy amongst Turkey’s Energy Sources. Renew. Sustain. Energy Rev. 2008, 12, 1148–1161. [Google Scholar] [CrossRef]
- Amponsah, N.Y.; Troldborg, M.; Kington, B.; Aalders, I.; Hough, R.L. Greenhouse Gas Emissions from Renewable Energy Sources: A Review of Lifecycle Considerations. Renew. Sustain. Energy Rev. 2014, 39, 461–475. [Google Scholar] [CrossRef]
- Toklu, E. Biomass Energy Potential and Utilization in Turkey. Renew. Energy 2017, 107, 235–244. [Google Scholar] [CrossRef]
- Mahajan, V.; Linstone, H.A.; Turoff, M. The Delphi Method: Techniques and Applications. J. Mark. Res. 1976, 13, 317. [Google Scholar] [CrossRef]
- Skulmoski, G.J.; Hartman, F.T. The Delphi Method for Graduate Research. J. Inf. Technol. Educ. 2007, 6, 1–21. [Google Scholar] [CrossRef]
- Gordon, T.; Pease, A. RT Delphi: An Efficient, “Round-Less” Almost Real Time Delphi Method. Technol. Forecast. Soc. Chang. 2006, 73, 321–333. [Google Scholar] [CrossRef]
- Phonphoton, N.; Pharino, C. Multi-Criteria Decision Analysis to Mitigate the Impact of Municipal Solid Waste Management Services during Floods. Resour. Conserv. Recycl. 2019, 146, 106–113. [Google Scholar] [CrossRef]
- Kaganski, S.; Majak, J.; Karjust, K. Fuzzy AHP as a Tool for Prioritization of Key Performance Indicators. Procedia CIRP 2018, 72, 1227–1232. [Google Scholar] [CrossRef]
- Gogus, O.; Boucher, T.O. Strong Transitivity, Rationality and Weak Monotonicity in Fuzzy Pairwise Comparisons. Fuzzy Sets Syst. 1998, 94, 133–144. [Google Scholar] [CrossRef]
- Turskis, Z.; Goranin, N.; Nurusheva, A.; Boranbayev, S. A Fuzzy WASPAS-Based Approach to Determine Critical Information Infrastructures of EU Sustainable Development. Sustainability 2019, 11, 424. [Google Scholar] [CrossRef] [Green Version]
- Chakraborty, S.; Zavadskas, E.K.; Antucheviciene, J. Applications of WASPAS Method as a Multi-Criteria Decision-Making Tool. Econ. Comput. Econ. Cybern. Stud. Res. 2015, 49, 5–22. [Google Scholar]
- Turskis, Z.; Zavadskas, E.K.; Antucheviciene, J.; Kosareva, N. A Hybrid Model Based on Fuzzy AHP and Fuzzy WASPAS for Construction Site Selection. Int. J. Comput. Commun. Control 2015, 10, 873–888. [Google Scholar] [CrossRef]
Research Focus | Research Method | Region | Reference |
---|---|---|---|
Portfolio of RE sources for accomplishing the 3-E policy goals | AHP | Taiwan | [11] |
RE and nuclear sources selection for electricity generation | AHP | Kazakhstan | [12] |
Evaluating and selecting RE sources for electricity generation | AHP | Algeria | [13] |
RE sources selection for sustainable electricity generation | AHP | Malaysia | [14] |
Evaluating sustainable energy planning and management | Fuzzy AHP | India | [15] |
The selection of RE alternatives for electricity production | Fuzzy AHP | Indonesia | [16] |
Analyzing energy performance for sustainable development | AHP–Technique for Order of Preference by Similarity to Ideal Solution (TOPSIS) and VlseKriterijumska Optimizcija I Kaompromisno Resenje (VIKOR) | Turkey | [17] |
Assessing the RE sources to accomplish policy scenario goals | Fuzzy TOPSIS | Europe | [18] |
Analyzing and ranking the most efficient low-emission energy technologies | Fuzzy AHP-Fuzzy TOPSIS | Poland | [19] |
Selection of wind power project locations | AHP-Fuzzy TOPSIS | Pakistan | [20] |
Ranking the low-carbon energy sources | AHP and TOPSIS | China | [21] |
Multi-criteria assessment of renewable micro-generation technologies | TOPSIS, Evaluation Based on Distance from Average Solution (EDAS) and WASPAS | Lithuania | [22] |
Main-Criteria | Sub-Criteria | Description | Reference |
---|---|---|---|
Environmental criteria (ENF) | GHGs emissions (ENF1) | This sub-criteria presents that every energy technology produces some GHGs emissions. Therefore, the RE technology, which generates less or zero GHGs emissions is the preferable option. | [14,24] |
Land Requirement (ENF2) | The area of land is required for every RE project. Thus, the technology which occupies less area or the land can be used for cultivation is considered as the most vital option. | [14,16,25] | |
Noise (ENF3) | This environmental sub-criteria indicates noise pollution due to the installation of the low-carbon energy project. Therefore, RE technology that has less or zero noise pollution is a preferable option. | [26,27] | |
Economic criteria (ECF) | R&D cost (ECF1) | This indicates the research and development (R&D) costs incurred in installing the RE project. Thus, the RE technology, which least R&D cost is considered as suitable for electricity generation. | [9,28,29] |
Capital cost (ECF2) | The capital cost refers to the cost that occurs for the purchases of material and supplementary material in the utilization of the RE project. | [10,30,31] | |
Power generation cost (ECF3) | This sub-criteria refers to the expected cost of the power generated from the RE project. Thus, sustainable or low-carbon energy technology with low power generation cost is considered a significant option. | [24,31,32] | |
Resource Potential (ECF4) | This economic sub-criteria presents the availability of locally RE resources in the country. This is vital in order to generate cheap electricity. | [14,33,34] | |
Technical criteria (TEF) | Technology maturity (TEF1) | This technical sub-criteria indicates that the RE technology that is commercially and economically available is considered as more reliable for installing the RE project. | [10,14,24] |
On-grid access (TEF2) | This indicates that the availability of on-grid access to generate electricity. Thus, the RE technology, which eases to access into the grid, is considered a suitable option. | [28,35,36] | |
HR experts (TEF3) | The availability of HR experts for each RE technology is crucial to install, operate, and maintain the RE plant. | [37,38,39] | |
Efficiency (TEF4) | This sub-criteria shows that RE technology with improved efficiency is more feasible in order to generate sustainable electricity. | [14,29,32] | |
Political criteria (POF) | RE policies and plans (POF1) | This sub-criteria shows that the government policies regarding each RE technology. Thus, the government should establish effective energy policies and plans for sustainable development. | [28,35,36] |
Institutional arrangements (POF2) | This sub-criteria refers to the institutional arrangements for the implementation of RE technologies. Therefore, the higher authorities should develop institutes in order to deploy sustainable energy technologies. | [40,41] | |
Energy Security (POF3) | This is a vital political sub-criteria, which displays that energy security could enhance and increase the future energy supply requirements by implementing RE technologies. | [31,38,42] | |
Social criteria (SOF) | Public acceptance (SOF1) | This sub-criteria shows that whether the public is interested in deploying RE technology in the region. Therefore, the public attitude towards each technology is essential for installing the RE project. | [10,14,24] |
Employment opportunities (SOF2) | This is a significant social criterion that indicates that the deployment of a RE project produces employments for the local people. | [10,14,28] | |
Public awareness (SOF3) | Public awareness refers to the general information and implementation of RE technologies in the region. | [1,28,43] |
RE Source | By the End of 2018 (MW) | 2023 Target (MW) | Resource Availability (MW) |
---|---|---|---|
Solar PV | 5062 | 10,000 | 50,000 |
Wind | 6925 | 20,000 | 48,000 |
Hydropower | 27,912 | 34,000 | 36,000 |
Geothermal | 1261 | 1000 | 2000 |
Bioenergy | 526 | 1500 | 2000 |
Number | Linguistic Variable | TFNs |
---|---|---|
1 | Equally important | (1,1,1) |
2 | Equally to average important | (1,2,3) |
3 | Averagely important | (2,3,4) |
4 | Averagely to strongly important | (3,4,5) |
5 | Strongly important | (4,5,6) |
6 | Strongly to very strongly important | (5,6,7) |
7 | Very strongly important | (6,7,8) |
8 | Very strongly to tremendously important | (7,8,9) |
9 | Tremendously important | (9,9,9) |
1 | 0 | 1 |
2 | 0 | 2 |
3 | 0.48 | 0.17 |
4 | 0.79 | 0.26 |
5 | 1.07 | 0.35 |
6 | 1.19 | 0.38 |
7 | 1.28 | 0.40 |
8 | 1.34 | 0.41 |
9 | 1.37 | 0.43 |
10 | 1.40 | 0.44 |
Number | Linguistic Scale | TFNs |
---|---|---|
1 | Equal | (1,1,1) |
1 | Low | (1,1,3) |
3 | Moderate | (1,3,5) |
5 | High | (3,5,7) |
7 | Very high | (5,7,9) |
9 | Extreme | (7,9,9) |
Criteria | Main-Criteria Weight | Main-Criteria Rank | Sub-Criteria | Sub-Criteria Weight | Sub-Criteria Rank |
---|---|---|---|---|---|
Environmental (ENF) | 0.155 | 4 | GHGs emission (ENF1) | 0.332 | 2 |
Land requirements (ENF2) | 0.349 | 1 | |||
Noise (ENF3) | 0.319 | 3 | |||
Economic (ECF) | 0.234 | 2 | R&D cost (ECF1) | 0.247 | 3 |
Capital cost (ECF2) | 0.268 | 1 | |||
Power generation cost (ECF3) | 0.250 | 2 | |||
Resource Potential (ECF4) | 0.235 | 4 | |||
Technical (TEF) | 0.206 | 3 | Technology maturity (TEF1) | 0.268 | 1 |
On-grid access (TEF2) | 0.233 | 4 | |||
HR experts (TEF3) | 0.248 | 3 | |||
Efficiency (TEF4) | 0.251 | 2 | |||
Political (POF) | 0.266 | 1 | RE policies and plans (POF1) | 0.394 | 1 |
Institutional arrangements (POF2) | 0.362 | 2 | |||
Energy Security (POF3) | 0.244 | 3 | |||
Social (SOF) | 0.139 | 5 | Public acceptance (SOF1) | 0.348 | 1 |
Employment opportunities (SOF2) | 0.343 | 2 | |||
Public awareness (SOF3) | 0.309 | 3 |
Code | Sub-Criteria | Final Weight | Rank |
---|---|---|---|
ENF1 | GHGs emissions | 0.0514 | 11 |
ENF2 | Land Requirement | 0.0540 | 9 |
ENF3 | Noise | 0.0494 | 13 |
ECF1 | R&D cost | 0.0577 | 6 |
ECF2 | Capital cost | 0.0627 | 4 |
ECF3 | Power generation cost | 0.0585 | 5 |
ECF4 | Resource Potential | 0.0549 | 8 |
TEF1 | Technology maturity | 0.0552 | 7 |
TEF2 | On-grid access | 0.0479 | 15 |
TEF3 | HR experts | 0.0510 | 12 |
TEF4 | Efficiency | 0.0517 | 10 |
POF1 | RE policies and plans | 0.1048 | 1 |
POF2 | Institutional arrangements | 0.0962 | 2 |
POF3 | Energy Security | 0.0649 | 3 |
SOF1 | Public acceptance | 0.0483 | 14 |
SOF2 | Employment opportunities | 0.0476 | 16 |
SOF3 | Public awareness | 0.0429 | 17 |
Code | RE Source | Rank | |||
---|---|---|---|---|---|
A1 | Solar energy | 0.628 | 0.626 | 0.627 | 2 |
A2 | Wind energy | 0.687 | 0.681 | 0.684 | 1 |
A3 | Hydropower | 0.619 | 0.615 | 0.617 | 3 |
A4 | Geothermal energy | 0.621 | 0.611 | 0.616 | 4 |
A5 | Bioenergy | 0.599 | 0.589 | 0.594 | 5 |
© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
Solangi, Y.A.; Longsheng, C.; Shah, S.A.A.; Alsanad, A.; Ahmad, M.; Akbar, M.A.; Gumaei, A.; Ali, S. Analyzing Renewable Energy Sources of a Developing Country for Sustainable Development: An Integrated Fuzzy Based-Decision Methodology. Processes 2020, 8, 825. https://doi.org/10.3390/pr8070825
Solangi YA, Longsheng C, Shah SAA, Alsanad A, Ahmad M, Akbar MA, Gumaei A, Ali S. Analyzing Renewable Energy Sources of a Developing Country for Sustainable Development: An Integrated Fuzzy Based-Decision Methodology. Processes. 2020; 8(7):825. https://doi.org/10.3390/pr8070825
Chicago/Turabian StyleSolangi, Yasir Ahmed, Cheng Longsheng, Syed Ahsan Ali Shah, Ahmed Alsanad, Munir Ahmad, Muhammad Azeem Akbar, Abdu Gumaei, and Sharafat Ali. 2020. "Analyzing Renewable Energy Sources of a Developing Country for Sustainable Development: An Integrated Fuzzy Based-Decision Methodology" Processes 8, no. 7: 825. https://doi.org/10.3390/pr8070825
APA StyleSolangi, Y. A., Longsheng, C., Shah, S. A. A., Alsanad, A., Ahmad, M., Akbar, M. A., Gumaei, A., & Ali, S. (2020). Analyzing Renewable Energy Sources of a Developing Country for Sustainable Development: An Integrated Fuzzy Based-Decision Methodology. Processes, 8(7), 825. https://doi.org/10.3390/pr8070825
