Novel Deep Eutectic Solvent Based on Levulinic Acid and 1,4-Butanediol as an Extraction Media for Bioactive Alkaloid Rutaecarpine

1
Department of Natural Medicine and Pharmacognosy, School of Pharmacy, Qingdao University, Qingdao 260021, China
2
Department of Drug Metabolism and Analysis, School of Pharmacy, Qingdao University, Qingdao 260021, China
*
Author to whom correspondence should be addressed.
Processes 2019, 7(3), 171; https://doi.org/10.3390/pr7030171
Submission received: 4 March 2019 / Revised: 20 March 2019 / Accepted: 21 March 2019 / Published: 24 March 2019
(This article belongs to the Special Issue Green Separation and Extraction Processes)

Abstract

:
Deep eutectic solvents (DESs) are increasingly receiving interest as a new type of green and sustainable alternative to hazardous organic solvents. In this work, a novel DES based on levulinic acid (La) and 1,4-butanediol (Buta) as an extraction media was developed for extracting the bioactive alkaloid rutaecarpine from the unripe fruits of Tetradium ruticarpum. 24 different DESs consisting of choline chloride, betaine, sugar alcohols, organic acids, amides, and sugars were prepared and tailored to test their extraction efficiency. After initial screening, a hydrophilic DES composed of La and Buta with 1:0.5 molar ratio containing 25% water was tailored for the highest extraction efficiency, followed by the optimizations of molar ratio and water content. The interaction between the molecules of La-Buta DES was investigated by nuclear magnetic resonance spectroscopy in order to confirm its deep eutectic supermolecular structure feature. The extraction conditions were optimized by single-factor experiments, including extraction temperature, extraction time, and solid-liquid ratio. The developed La-Buta DES extraction procedure was successfully applied for the analysis of rutaecarpine in Chinese patent medicines containing the unripe fruits of T. ruticarpum. The excellent property of La-Buta DES indicated its potential as a promising green solvent instead of conventional organic solvent for the extraction of rutaecarpine from the unripe fruits of T. ruticarpum, and that it can used as a sustainable and safe extraction media for other applications.

1. Introduction

Alkaloids are defined by the presence of a heterocyclic nitrogen atom, and have been increasingly attracting pharmaceutical researchers to develop therapeutic agents as lead compounds [1,2,3]. Indole alkaloids are characterized by the presence of a structural moiety of indole, and have been extensively studied as they possess important biological properties such as antihypertension [4], antihistamine [5], anticonvulsant [6], anti-leishmanial [7], antidiabetic [8], anti-HIV-1, anti-inflammatory [9], anticancer [10], and antibacterial activities [11]. They are present in several plant families as secondary metabolites, including the Strychnaceae, Apocynaceae, Rutaceae, and Rubiaceae [10]. Rutaecarpine is an indolopyridoquinazolinone alkaloid with diverse biological activities which is one of the main components isolated from the unripe fruits of the traditional Chinese medicine Tetradium ruticarpum (A. Jussieu) T. G. Hartley (synonym: Euodia ruticarpa) (Figure 1) [12,13,14,15]. The beneficial properties of rutaecarpine have led to a high demand for extracts containing rutaecarpine in the pharmaceutical industry. One of the critical and preliminary steps before any application lies in the extraction [16]. Because of the low solubility of rutaecarpine in water, organic solvents and their aqueous solutions have been widely used as solvents for the extraction of rutaecarpine in combination with various extraction methods [17,18,19,20]. Nevertheless, the consumption of massive amounts of these hazardous and volatile organic solvents may contribute to environmental pollution, and leave objectionable solvent residues in extracts [21]. Supercritical fluid extraction with carbon dioxide was used to extract rutaecarpine from the unripe fruits of T. ruticarpum [22]. Supercritical carbon dioxide is relatively safe, but pure supercritical carbon dioxide does not have sufficient solvation power, and thus a polar co-solvent methanol has to be added to carbon dioxide in order to increase rutaecarpine’s solubility. Deep eutectic solvents (DESs) are considered to be a novel class of green solvent because they are formed by simply mixing two or more components with some advantages such as negligible volatility, non-flammability, non-toxicity, biodegradability, and thermal stability [23]. Furthermore, DESs possess high solubilization power strength for a wide range of compounds, especially poorly water-soluble compounds [24]. All these properties make them of interest for applications in health-related areas such as pharmaceuticals, foods, and cosmetics. Jiang et al. studied the extraction of rutaecarpine from the unripe fruits of T. ruticarpum using DESs consisted of choline chloride (ChCl) and hydrogen bond donors (HBDs), such as organic acids (lactic acid (Laa) and levulinic acid (La)), amides (acetamide (Ace) and urea (Ur)), sugar alcohols (ethylene glycol (Eg) and glycerol (Gly)), and sugars (d-glucose (Glu) and maltose (Mal)). Unfortunately, the results showed that only ChCl-La DES produced similar extraction efficiency for rutaecarpine with methanol [25]. More research is required to make tailor-made DESs as green solvents to extract rutaecarpine from the unripe fruits of T. ruticarpum. Following the work of Jiang et al., we prepared a series of betaine(Bet)-based and organic acid-based DESs and measured a number of properties of these DESs. Utilization of the prepared DESs for the extraction of rutaecarpine from the unripe fruits of T. ruticarpum was explored. After initial screening, La and 1,4-butanediol (Buta) with 2:1 molar ratio containing 25% water was tailored for the highest extraction efficiency, followed by the optimization of molar ratio and water content. The supermolecular structure of La-Buta DES was investigated with nuclear magnetic resonance (NMR) spectroscopy. The extraction conditions, including extraction temperature, time, and solid-liquid ratio, were further optimized by single-factor experiments. The developed La-Buta DES extraction procedure was successfully applied for the analysis of rutaecarpine in Chinese patent medicines containing the unripe fruits of T. ruticarpum.

2. Materials and Methods

2.1. Reagents and Materials

Compounds used for DESs preparation including ChCl, Bet, La, xylitol (Xyl), and d-sorbitol (Sor) were acquired from Energy Chemical Company (Shanghai, China), and Eg, Buta, Gly, oxalic acid (Ox), dl-malic acid (Ma), citric acid (Ca), Ur, Ace, and Glu were from Aibi Chemical Reagent Company (Shanghai, China). The reference compound of rutaecarpine was obtained from DESITE Biotech (Chengdu, China). The purity reference compound was determined to be >98% by high-performance liquid chromatography (HPLC) analysis, and its structure was shown in Figure 1. For pH and polarity measurements, Nile red (Sigma-Aldrich, St. Louis, MO, USA) and a series of standard pH buffers (Shanghai INESA & Scientific Instrument, Shanghai, China) were used. HPLC-grade acetonitrile was bought from Thermo Fisher Scientific (Waltham, MA, USA). Analytical-grade methanol and pH 0–14 universal pH-indicator strips were supplied by Beijing Chemical Industry Group (Beijing, China). Deionized water was purified by a Milli-Q water purification system from Millopore (Bedford, MA, USA). The dried unripe fruits of T. ruticarpum were purchased from a local traditional Chinese medicine marker (Qingdao, China), and authenticated by Prof. Yingxia Li, School of Pharmacy, Qingdao University. The Chinese patent medicines were obtained at the local drugstore, including Zuojin Wan (Hubei Xianglian Pharmaceutical Co., Ltd., Lichuan, China) and Wuji Wan (Li Shizhen Pharmaceutical Group Co., Ltd., Qichun, China).

2.2. Preparation and Physicochemical Properties Tests of DESs

All the DESs were prepared using the heating and stirring method according to previous studies [26,27]. Different components in a proper molar ratio were mixed in the round-bottomed flask with magnetic agitation using a DF-101S collector-type constant temperature heating magnetic stirrer (Yuhua Instruments, Gongyi, China) at 85 °C until a stable homogeneous liquid was formed. All the prepared DESs were allowed to cool to room temperature. The physicochemical properties of DES solutions were tested as mixtures that were prepared by mixing the produced DES with additional water 75:25 (w/w). Solvent pH was measured using a PHS-3C pH benchtop meter (Shanghai INESA & Scientific Instrument, Shanghai, China) calibrated using a series of standard pH buffers prior to use. Viscosity was obtained with a Brookfield DV-III Ultra rheometer (Brookfield, Middleboro, MA, USA) at 25 °C. Polarity testing was done with Nile red as a solvatochromatic probe to estimate polarity of DES in the form of molar transition energy (ENR). A Nile red solution was prepared at 10 μg/mL in ethanol, and added to the reference solvent and DES solution, after which the samples were placed in a 1 cm3 quartz cuvette. The absorption maxima of the solution (λmax) was recorded on a Shimadzu UV2600 UV-Visible spectrophotometer (Shimadzu, Kyoto, Japan) and the molar transition energy was calculated using the following formula: ENR (kcal/mol) = hcNAmax = 28,591/λmax, where h is Planck’s constant, c is the speed of light in a vacuum, and NA is the Avogadro constant [24,28,29].

2.3. Extraction Procedure Using Different Solvents

The dried unripe fruits of T. ruticarpum were ground into powder using an FW177 electric disintegrator (Tianjin Taisite Instruments, Tianjin, China), and sieved by a 60 mesh stainless steel sieve. Samples of 0.5 g of powdered plant material were soaked in 25 mL of different solvents (methanol, 80% aqueous methanol, v/v, water, and DESs) for 60 min, and then extracted with a KQ-500E ultrasonic bath (500 W, 20 kHz, Kushan Ultrasonic Instrument, Kushan, China) at 35 °C for 40 min. After the above treatment, all extracts were filtered through a 0.45 μm membrane filter (Jinteng Nylon 66, Tianjin Jinteng Experimental Equipment, Tianjin, China) before HPLC analysis. All the experiments were carried out in triplicate.

2.4. Opimization of Extraction Conditions

After initial screening of extraction solvents, La-Buta DES was chosen to optimize the extraction conditions. The conditions included each extraction temperature (25, 35, 45, 55, and 65 °C), extraction time (10, 20, 30, 40, 50, and 60 min), and solid-liquid ratio (1:10, 1:20, 1:30, 1:40 and 1:50). The effect of ultrasonic power was not investigated, and 500 W, 20 kHz was directly adopted.

2.5. HPLC-UV Analysis for Quantification of Rutaecarpine

Quantitative HPLC analysis was performed on an Agilent 1260 system equipped with a G1311C quaternary pump, a G1329B autosampler, a G1314F variable wavelength detector coupled with an analytical workstation, a 1316A thermostated column compartment, and separation on a Zorbax SB-C18 column (250 mm × 4.6 mm, 5 μm) at 35 °C (Agilent technologies, Santa Clara, CA, USA). The mobile phase consisted of water with 0.2% phosphoric acid (A) and acetonitrile (B). The gradient elution program was as follows: 0–20 min, 10–30% B; 20–60 min, 30–70% B; 60–70 min, 70% B at a constant flow rate of 1.0 mL/min. The detection wavelength was monitored at 345 nm. The chromatographic peak of rutaecarpine was confirmed by comparing its retention time with that of the reference compound. The injection volume was set at 10 μL. The standard stock solution of rutaecarpine was prepared by dissolving a weighted amount in methanol to give a final concentration of 708.8 μg/mL. The standard working solutions were prepared by diluting the stock solution with methanol to obtain a concentration range of 1.4176 to 24.0992 μg/mL. Quantitative determination was performed by the external standard method. The data are present as the mean value ± standard deviation of three replicated samples.

2.6. NMR Spectroscopy

The 1H NMR and 1H-1H nuclear overhauser enhancement spectroscopy (NOESY) spectra of the diluted La-Buta DES with deuterated dimethyl sulfoxide were performed at 27 °C on a Bruker AV-500 FT-NMR spectrometer (500.13 MHz proton frequency, Burker Daltonics, Bremen, Germany). For the 1H NMR spectrum, a total of 65,536 data points were recorded, covering a spectral window of 13,020.8 Hz; 32 scans of a standard one-pulse sequence with 90° flip angle for excitation and presaturation during 2.0 s of relaxation delay. An exponential window function with a line-broadening factor of 0.3 Hz was applied prior to a Fourier transformation. The resulting spectrum was manually phased and baseline corrected. The NOESY spectrum was obtained with presaturation (B1 = 50 Hz) during a relaxation delay of 2.0 s. A data matrix with 1024 × 1024 points covering 6068.0 × 6068.0 Hz was recorded with 32 scans for each increment. Data were zero filled to 2048 × 2048 points prior to State-TPPI type 2D Fourier transformation and a sine bell-shaped window function was applied in both dimensions. Mixing time was 80 ms.

3. Results and Discussion

3.1. Evaluation of Analytical Method

To obtain better separation between the peak of rutaecarpine and other peaks, the chromatographic conditions were optimized. Different types of columns [ZORBAX Eclipse XDB-C18, ZORBAX Extent-C18, ZORBAX SB-C18 (250 mm × 4.6 mm, 5 μm, Agilent technologies, Santa Clara, CA, USA), and Generall-M C18 (250 mm × 4.6 mm, 5 μm, Guangzhou Yanchuang Biotechnologies, Guangzhou, China)], column temperatures (25, 30, 35, and 40 °C), flow rates (0.8. 1.0, and 1.2 mL/min), mobile phases (methanol-water and acetonitrile-water), types of acid (formic acid, acetic acid, and phosphoric acid), and concentrations of additive (0.05%, 0.1%, and 0.2%) were optimized. The optimum HPLC conditions acquired a proper separation between the peak of rutaecarpine and other peaks. The HPLC chromatograms of the reference compound of tutecarpine and the typical extract sample of T. ruticarpum were shown in Figure 2.
To evaluate the proposed analytical method, a series of experiments were designed to access the linearity, limit of quantification, limit of detection, precision, and recovery. The calibration curve contained eight concentrations, and was established with a range of 1.4176 to 24.0992 μg/mL. The linear regression equation was established as y = 5062.2x + 3.0 with a good linear correlation coefficient (R2) of 0.9996, in which y was the peak area of the analyte, and x was the mass of the analyte. Based on the signal to noise ratio (S/N) of 10 and 3, the limit of quantification and limit of detection were 3.54 ng and 0.71 ng, respectively. For inter-day precision, the typical sample was determined six times on the same day, and the RSD was 0.87%. For intra-day precision, the sample was measured on three different days, and the RSD was 1.94%. The recovery was assessed by a spiking standard solution of rutaecarpine at three different concentration levels into the sample method. The higher recoveries of rutaecarpine in the range of 97.2–103.5% were obtained.

3.2. Preparation of Various Types of DESs

DESs have been applied for extraction of bioactive flavonoids, terpenes, saponins, anthraquinones, alkaloids, and phenolic acids [23,24,30]. Heating and stirring, evaporating, and freeze-drying techniques that could be adjusted with some temperature and time modifications are available for DES preparation [16]. In this work, the heating and stirring method was used, since several DESs can be prepared simultaneously, and its procedure is simple. In principle, DESs can result from the right combination of hydrogen bond acceptors (HBAs) and HBDs that are capable of hydrogen bond interactions. One of the most widely used HBAs is ChCl, which is a non-toxic, inexpensive, and biodegradable quaternary ammonium. Bet has a similar structure to ChCl, and can be used as the HBA.
Based on the previous reports [27,30,31], ChCl and Bet were chosen as the HBAs to prepare DESs with 15 HBDs including five sugar alcohols (Eg, Buta, Gly, Xyl, and Sor), four organic acids (Ox, La, Ma, Ca), two amides (Ace and Ur), and one sugar (Glu) at various molar ratios (Table 1 and Table 2). Recent discoveries showed that many combinations of primary plant metabolites, such as organic acids, sugars, and sugar alcohols with adjusted proportions change their state from solid to liquid [32]. In this study, we prepared nine organic acid-based DESs, composed of primary plant metabolites, including four DESs, La-Buta, La-Gly, Ma-Gly, and Ca-Glu reported for the first time. Although the literature reported a number of organic acid-based DESs, however, unlike HBAs, ChCl and Bet-based DESs, no physicochemical properties were found for the formed liquids. Herein, the preliminary physicochemical characterizations including solvent pH, viscosity, and polarity of the nine prepared organic acid-based DESs were measured (Table 3). Totally, 24 DESs were prepared as homogeneous liquids without crystal precipitation. After preparation, the DESs were stored in sealed vials for several days before use.

3.3. Supermolecular Structure of La-Buta DES

DESs are generally produced by mixing two or more components that are capable of self-association to form a eutectic mixture with a melting point that is below that of the individual compounds [33]. Hydrogen-bonding interactions are the main diving force of this phenomenon [34]. Up to now, a large number of DESs with different composition and molar ratio have been reported in the literatures. However, no melting points were found for the formed liquids. Instead, all of them were showing a much lower glass-transition temperature than expected [35]. Francisco, van den Bruinhorst, and Kroon named them “low-transition-temperature mixtures”, and not DESs. So, it is very important to check whether a hydrogen-bonding network via intermolecular interactions in the supermolecular structure of DESs is formed. NOESY was applied to investigate molecular interactions between the components of these DESs. Dai and co-worker observed strong interactions between the protons on the hydroxyl groups from ChCl-1,2-propanediol-water and proline-Ma-water [32]. In our study, the interaction between the molecules of La-Buta DES was investigated by NOESY in order to confirm its deep eutectic supermolecular structure feature. The correlations between the protons on the carboxyl group of La, the hydroxyl group of Buta, and water, were observed in the NOESY spectrum, implying that hydrogen bonds are formed between these carboxyl groups and hydroxyl groups, and water might also participate in the supermolecular structure of DES (Figure 3).

3.4. Selection of Initial Extraction Condition

One of the criteria for green extraction is to reduce energy consumption by using innovative technologies such as microwave- and ultrasound-assisted extractions [36]. Herein, this ultrasound-assisted extraction method was applied in the screening procedure. Based on previous studies [19,37], three solvents, including methanol, 80% aqueous methanol (v/v), and water were evaluated as reference extraction solvents.
Comparison of methanol and 80% aqueous methanol (v/v) revealed that 80% aqueous methanol (v/v) was more effective for rutaecarpine extraction, although the differences were not statistically significant (p > 0.05, n = 3). The methanol and 80% aqueous methanol (v/v) were significantly superior to water (p < 0.0001, n = 3). As a result, 80% aqueous methanol (v/v) was selected as the reference extraction solvent for any subsequent comparison of extraction efficiencies of various DESs. Compared to conventional solvents, the major disadvantage of DESs is their inherent high viscosity. To solve this problem, all of the DESs were tested as mixtures that were prepared by mixing the produced DES with additional water 75:25 (w/w). The addition of water to the DESs at this ratio facilitated solvent handing by significantly reducing their viscosity, while still maintaining the supermolecular structures of the DESs [27,28]. It was reported that DESs prepared by heating and stirring, evaporating, and freeze-drying methods contained small amounts (5–10%, w/w) of water [28,38]. For convenience, it must be noted that these DESs were used as extraction media without considering themselves water content in this study.

3.5. DESs Selection for Extraction

To find the best extraction solvent for rutaecarpine, the prepared DESs with different properties were examined in this study. The content of rutaecarpine determined by HPLC was employed to assess the extraction efficiency of DESs. As shown in Figure 4 and Figure 5, the capacities of the prepared DESs for extracting rutaecarpine varied considerably, depending on their chemical compositions. For ChCl and Bet-based DESs, sugar alcohols, sugars, and amides in combination with them, exhibited relatively low extraction capacity, whereas those associated with La allowed extracting rutaecarpine at higher yields. For example, ChCl-La produced similar extraction efficiency for rutaecarpine compared with 80% aqueous methanol (v/v), which is in agreement with the previous report [24]. It must be noted that the extraction yield obtained with ChCl-Ox was higher than that obtained with ChCl-La. Among the carboxylic acid-based DESs, it could be found that DES made of La and Buta for rutaecarpine possessed the highest extraction yield than others. The high extraction yield may be related to its viscosity, polarity, and pH values. In our study, since the water-diluted carboxylic acid-based DESs had polarity values ranging from 47 to 49 kcal/mol, which are similar to that of water [27], the relationship between the polarity of the DES and the extractability of rutaecarpine cannot be found. Similarly, it was not possible to find any correlation with the basic and acid nature of the DES solutions and their extraction yields. Ma-Gly and Ca-Gly solutions have the same pH values, but different extractabilities. On the other hand, Ma-Glu and Ma-Bet solutions have the different pH values but similar extraction yields of rutaecarpine. The viscosity of the DESs containing sugar alcohols or carboxylic acids is mainly affected by the hydrogen bonding interaction, which increases with numbers of hydroxyl and carboxyl groups. Therefore, the order of the viscosities is correlated with the number of hydroxyl and carboxyl groups in chemical compositions of DESs (La < Ma < Ca and Buta < Gly < Xyl). Our results showed some clear inverse correlations of the extraction yield and viscosity. For Ca-Gly, Ma-Gly, and La-Gly solutions, the viscosities decrease from Ca-Gly to La-Gyl, which increase the extractabilities. However, we also observed some contradictory facts of the extraction yield and viscosity. For La-Buta, La-Gly, and La-Xyl solutions, the viscosities increase from La-Buta to La-Xyl, but La-Xyl presents similar efficiency comparable to La-Buta. So, our results also indicate that the rutaecarpine extraction efficiencies of DESs appear to be affected by multiple factors [27].

3.6. Effect of the Molar Ratio of La and Buta

Different molar ratios of the components of DES may differ in physiochemical properties and extraction capacities. The effects of different molar ratios of La and Buta in 1:0.5, 1:1, and 1:2 on the extraction yield of rutaecarpine were tested. As depicted in Figure 6, the molar ratio of La to Buta increasing from 1:0.5 to 1:1 would lead to a decrease in extraction efficiency. However, the extraction yield increased, with the molar ratio increasing from 1:1 to 1:2. Comparatively speaking, the highest extraction yield was achieved by a molar ratio of 1:0.5, and thus was chosen for further study.
In order to attain more insight into the supermolecular structures of different molar ratios of La and Buta, 1H NMR spectrum was used to analyze the relative numbers of detected protons on the carboxyl group and hydroxyl group (relative to the protons on the methyl group for La and unoxygenated methylene for Buta). As shown in Table 4, the highest integral areas of hydroxyl groups were integrated in the 1H NMR spectrum of La and Buta with 1:0.5 molar ratio, which was in good agreement with the extraction yield of rutaecarpine. It is possible to speculate that a high number of hydrogen bonds have a positive influence on extraction efficiency.

3.7. Effect of Water Content in La-Buta DES

La-Buta DESs (1:0.5, molar ratio) with different concentrations of water (5%, 10%, 15%, 20%, 25%, 50%, 75%, w/w) were evaluated for the extraction capacity of rutaecarpine. As can be seen in Figure 7, the extraction yields increased gradually among the percentages of water from 5% to 25%, and declined suddenly when the percentages of water exceed 25%. The addition of water to the DES system at a certain level improved the extraction efficiency, because this reduces the viscosity of DES, and therefore allows a better mass-transfer rate. However, excessive water in DES could decrease the hydrogen bond interconnection resulting in the decrease in extraction of the target compound [29,39]. The yield of rutaecarpine was the highest when the water addition was 25% in La-Buta DES with 1:0.5 molar ratio.

3.8. Effect of Extraction Temperature

General trends indicate that the extraction efficiency can be enhanced by increasing the operating temperature appropriately, which is due to the decrease of the viscosity and surface tension of DESS, thus improving the solubility and coefficient of the target compound. To obtain a higher extraction efficiency, the extraction temperature was optimized between 25 °C and 65 °C. Rutaecarpine extraction yields obtained in the present study at different extraction temperatures can be seen in Figure 8. The results indicate that the extraction yield of 0.742 ± 0.018 mg/g was obtained at the lowest temperature 25 °C, and the extraction efficiency was enhanced with increasing temperature from 25 °C to 55 °C; however no further increase took place at the higher temperature 65 °C. Thus, 55 °C was chosen as the suitable extraction temperature.

3.9. Effect of Solid-Liquid Ratio

The solid-liquid ratio is another important operating factor affecting the efficiency of an extraction method. The target compound might not be fully extracted when a low ratio of solid to liquid is used, but an excessively high solid-liquid ratio will cause solvent waste, and increase the process cost. The experiment study with five different solid-liquid ratios of 1:10, 1:20, 1:30, 1:40, and 1:50 were conducted. The influence of this solid-liquid ratio is shown in Figure 9.
Increasing the solid-liquid ratio from 1:30 to 1:50 slightly increases the extraction yield; however, for the solid-liquid ratio from 1:10 to 1:30, the change in the extraction yield is very remarkable, as the extraction yield of rutaecarpine increases from 0.625 ± 0.053 mg/g to 1.105 ± 0.009 mg/g, which can be ascribed to favorable mass transfer effects. The use of higher amounts of solvent may not be economically viable, therefore 1:30 was chosen as the optimum ratio to increase extraction efficiency.

3.10. Effect of Extraction Time

In consideration of efficient extraction and saving energy, the extraction duration was investigated over a time range 10–60 min. As shown in Figure 10, the amount of rutaecarpine extracted into the DES solution increased rapidly within 40 min. Further prolonging the extraction time lead to no significant change in the extraction efficiency, as dissolution was essentially complete after 40 min. Based on these results, a La-Buta DES aqueous solution with a 1:0.5 molar ratio containing 25% water used as a solvent to extract at a solid-liquid ratio of 1:30 with ultrasound at 55 °C and 500 W for 40 min, was employed.

3.11. Comparison of Current Extraction Method with Other Extraction Procedures

The conventional organic solvents, including methanol and 80% aqueous methanol (v/v), and water ultrasound-assisted extraction, and boiling reflux extraction methods, were chosen to compare with the method developed in this work. The results show in Table 5. The developed ultrasound-assisted extraction conditions that used La-Buta DES aqueous solution with 1:0.5 molar ratio containing 25% water as the solvent produced the highest extraction yield (sample 1), which was higher than that of the same solvent ultrasound-assisted extraction at 35 °C (sample 3). Because of the low solubility of rutaecarpine in water, a very low extraction yield of 0.080 ± 0.001 mg/g was obtained (sample 4). The conventional organic solvent ultrasound-assisted extraction and boiling reflux extraction methods gave relatively higher extraction yields (samples 5–8). Among them, the 80% aqueous methanol (v/v) was more effective for rutaecarpine extraction under ultrasound-assisted extraction at 35 °C, which was little lower than that used for the La-Buta DES aqueous solution with 1:0.5 molar ratio containing 25% water as solvent under the same extraction conditions, and similar to that of the same solvent reflux extraction. Further, with La-Buta DES aqueous solution with 1:0.5 molar ratio containing 25% water as the solvent, the magnetic stirring method was adopted to extract rutaecarpine at 55 °C for 40 min (sample 2). An extraction yield of 1.037 ± 0.026 mg/g was obtained, which was little lower than that of the ultrasound-assisted extraction under the same extraction conditions. Analyzing the above results, it could be concluded that the enhancement of extraction yield mainly resulted from the use of La-Buta DES as the solvent, and suitable extraction conditions.

3.12. Application of rutaecarpine Extraction in Chinese Patent Medicines

To extend the application scope of La-Buta DES on the extraction of rutaecarpine, the extraction efficiencies of La-Buta DES on the analytical sample preparation of rutaecarpine in Zuojin Pill and Wuji Pill were investigated. Zoujin Pill, comprising the powders of Coptidis Rhizoma and Euodiae Fructus in the ratio of 6:1 using water as an excipient, and Wuji Pill, comprising the powders of Coptidis Rhizoma, Euodiae Fructus, and Paeoniae Radix Alba in the ratio of 6:1:6, using water as the excipient, are famous Chinese patent medicines that have been recorded in the Chinese Pharmacopeia, and employed in treating gastrointestinal disorders. Several procedures with conventional organic solvents have been applied for the extraction of rutaecarpine to determine the amount thereof in these Chinese patent medicines Zuojin Pill and Wuji Pill [40,41,42,43]. In this study, the proposed extraction method was used to analyze rutaecarpine in the Zuojin Pill and Wuji Pill made by pharmaceutical manufacturers and available at the drugstore. Representative HPLC chromatograms of extracts from both the Zuojin Pill and Wuji Pill are shown in Figure 11. The samples were also analyzed after conventional solvent boiling reflux extraction using ethanol as the solvent and the ultrasound-assisted extraction using methanol as the solvent for comparison. The contents of rutaecarpine in different samples are summarized in Table 6. For both the Zuojin Pill and the Wuji Pill, La-Buta DES as solvent exhibited a higher extraction efficiency than that using ethanol or methanol as the solvent. Moreover, the proposed extraction method based upon La-Buta DES is an environmentally friendly extraction technique.

4. Conclusions

A novel and environmentally friendly DESs-based ultrasound-assisted extraction method was developed for extracting the bioactive indolopyridoquinazolinone alkaloid rutaecarpine from the unripe fruits of T. ruticarpum. Among the DESs tested here, La-Buta DES, which was prepared for the first time, with 1:0.5 molar ratio containing 25% water, was tailor-made to provide a higher extraction efficiency than any conventional organic solvent for the extraction of rutaecarpin. Optimization of the operational conditions improved the extraction efficiency, and the final optimized conditions were as follows: Solid-liquid ratio: 1:30; extraction temperature: 55 °C; extraction time: 40 min in a sonicator bath. The proposed method was successfully applied for the extraction of rutaecarpine from Chinese patent medicines containing the unripe fruits T. ruticarpum with satisfactory extraction efficiency, indicating that the developed method is a promising tool using a sustainable and safe extraction media for the analytical sample preparation of rutaecarpine in complex samples.

Author Contributions

The contributions of the respective authors are as follows: Y.-Y.S. and Y.L. performed the preparation and physicochemical properties tests of DESs. H.-L.S. and J.W. carried out the HPLC analysis of rutaecarpine. K.Z. engaged in NMR experiments. S.-W.S. and K.L. contribute to checking and confirming all of the procedures of the preparation and analysis. This study was performed based on the design of W.W., the corresponding author. All the authors read and approved the final manuscript.

Funding

This research was funded by Shandong Provincial Natural Science Foundation, China, grant numbers ZR2018BD030 and ZR2016HB22.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Piska, K.; Gunia-Krzyżak, A.; Koczurkiewicz, P.; Wójcik-Pszczoła, K.; Pękala, E. Piperlongumine (piplartine) as a lead compound for anticancer agents—Synthesis and properties of analogues: A mini-review. Eur. J. Med. Chem. 2018, 156, 13–20. [Google Scholar] [CrossRef] [PubMed]
  2. Khan, H.; Hadda, T.B.; Touzani, R. Diverse therapeutic potential of nitidine, a comprehensive review. Curr. Drug Metab. 2018, 19, 986–991. [Google Scholar] [CrossRef] [PubMed]
  3. Sharma, V.; Sharma, P.C.; Kumar, V. A mini review on pyridoacridines: Prospective lead compounds in medicinal chemistry. J. Adv. Res. 2015, 6, 63–71. [Google Scholar] [CrossRef] [PubMed]
  4. Ding, J.S.; Gao, R.; Li, D.; Peng, J.; Ran, L.L.; Li, Y.J. Solid dispersion of rutaecarpine improved its antihypertensive effect in spontaneously hypertensive rats. Biopharma. Drug Dispos. 2008, 29, 495–500. [Google Scholar] [CrossRef]
  5. Borrelli, F.; Campagnuolo, C.; Capasso, R.; Fattorusso, E.; Taglialatela-Scafati, O. Iodinated indole alkaloids from Plakortis simplex—New plakohypaphorines and an evaluation of their antihistamine activity. Eur. J. Org. Chem. 2004, 2004, 3227–3232. [Google Scholar] [CrossRef]
  6. Shao, H.; Yang, Y.; Mi, Z.; Zhu, G.X.; Qi, A.P.; Ji, W.G.; Zhu, Z.R. Anticonvulsant effect of rhynchophylline involved in the inhibition of persistent sodium current and NMDA receptor current in the pilocarpine rat model of temporal lobe epilepsy. Neuroscience 2016, 337, 355–369. [Google Scholar] [CrossRef]
  7. De Castro Cunha, A.; Chierrito, T.P.C.; De Carvalho, G.M.; Leon, L.L.P.; da Silva, C.C.; Tanaka, J.C.; de Souza, L.M.; Gonçalves, R.A.C.; de Oliveira, A.J.B. Anti-leishmanial activity of alkaloidal extracts obtained from different organs of Aspidosperma ramiflorum. Phytomedicine 2012, 19, 413–417. [Google Scholar] [CrossRef]
  8. Nandini, H.S.; Naik, P.R. Antidiabetic, antihyperlipidemic and antioxidant effect of vincamine, in streptozotocin-induced diabetic rats. Eur. J. Pharmacol. 2019, 843, 233–239. [Google Scholar] [CrossRef]
  9. Liu, Y.P.; Liu, Q.L.; Zhang, X.L.; Niu, H.Y.; Guan, C.Y.; Sun, F.K.; Xu, W.; Fu, Y.H. Bioactive monoterpene indole alkaloids from Nauclea officinalis. Bioorg. Chem. 2019, 83, 1–5. [Google Scholar] [CrossRef]
  10. Huang, Y.X.; Tan, H.X.; Guo, Z.Y.; Wu, X.X.; Zhang, Q.L.; Zhang, L.; Diao, Y. The biosynthesis and genetic engineering of bioactive indole alkaloids in plants. J. Plant Biol. 2016, 59, 203–214. [Google Scholar] [CrossRef]
  11. Yang, Y.; Zuo, W.J.; Zhao, Y.X.; Dong, W.H.; Mei, W.L.; Dai, H.F. Indole alkaloids from Kopsia hainanensis and evaluation of their antimicrobial activity. Planta Med. 2012, 78, 1881–1884. [Google Scholar] [CrossRef] [PubMed]
  12. Son, J.; Chang, H.W.; Jahng, Y. Progress in studies on rutaecarpine. II.—Synthesis and structure-biological activity relationships. Molecules 2015, 20, 10800–10821. [Google Scholar] [CrossRef]
  13. Wang, C.H.; Hao, Z.Y.; Zhou, J.; Zhang, L.; Sun, Y.X.; Liang, C.Z. Rutaecarpine alleviates renal ischemia reperfusion injury in rats by suppressing the JNK/p38 MAPK signaling pathway and interfering with the oxidative stress response. Mol. Med. Rep. 2017, 16, 922–928. [Google Scholar] [CrossRef] [PubMed]
  14. Yang, Y.M.; Chen, Q.Q.; Jia, S.J.; He, L.M.; Wang, A.P.; Li, D.; Li, Y.J.; Li, X.H. Involvement of TRPV1 in the expression and release of calcitonin gene-related peptide induced by tutaecarpine. Mol. Med. Rep. 2018, 17, 5168–5174. [Google Scholar] [CrossRef]
  15. Tian, K.M.; Li, J.J.; Wu, S.W. Rutaecarpine: A promising cardiovascular protective alkaloid from Evodia Rutaecarpa (Wu Zhu Yu). Pharmacol. Res. 2019, 141, 541–550. [Google Scholar] [CrossRef] [PubMed]
  16. Ruesgas-Ramón, M.; Figueroa-Espinoza, M.C.; Durand, E. Application of deep eutectic solvents (DES) for phenolic compounds extraction: Overview, challenges, and opportunities. J. Agric. Food Chem. 2017, 65, 3591–3601. [Google Scholar] [CrossRef] [PubMed]
  17. Yang, W.T.; Huang, S.X.; Xu, W.G.; Wu, S.J. Optimization of ultrasonic-assisted extracting of evodiamine and rutaecarpine. Food Res. Dev. 2016, 37, 54–57. [Google Scholar] [CrossRef]
  18. Lu, S.F.; Wang, Y.R. Optimization of the extraction procedure of Evodia fruits by the uniform design and orthogonal design. J. Beijing Univ. Tradit. Chin. Med. 2004, 27, 66–70. [Google Scholar] [CrossRef]
  19. Pellati, F.; Benvenuti, S.; Yoshizaki, F.; Melegari, M. Development and validation of HPLC methods for the analysis of phenethylamine and indoloquinazoline alkaloids in Evodia species. J. Sep. Sci. 2006, 29, 641–649. [Google Scholar] [CrossRef]
  20. Tang, X.L.; Huang, Z.F.; Chen, Y.; Liu, Y.H.; Liu, Y.H.; Zhao, J.N.; Yi, J.H. Simultaneous determination of six bioactive compounds in Evodiae Fructus by high-performance liquid chromatography with diode array detection. J. Chromatogr. Sci. 2014, 52, 149–156. [Google Scholar] [CrossRef]
  21. Takla, S.S.; Shawky, E.; Hammoda, H.M.; Darwish, F.A. Green techniques in comparison to conventional ones in the extraction of Amaryllidaceae alkaloids: best solvent selection and parameters optimization. J. Chromatogr. A 2018, 1567, 99–110. [Google Scholar] [CrossRef]
  22. Liu, B.; Guo, F.; Chang, Y.L.; Jiang, H.L.; Wang, Q. Optimization of extraction of evodiamine and rutaecarpine from fruit of Evodia rutaecarpa using modified supercritical CO2. J. Chromatogr. A 2010, 1217, 7833–7839. [Google Scholar] [CrossRef]
  23. Su, E.Z.; Yang, M.; Cao, J.; Lu, C.; Wang, J.H.; Cao, F.L. Deep eutectic solvents as green media for efficient extraction of terpene trilactones from Ginkgo biloba leaves. J. Liq. Chromatogr. Relat. Technol. 2017, 40, 385–391. [Google Scholar] [CrossRef]
  24. Dai, Y.T.; Witkamp, G.J.; Verpoorte, R.; Choi, Y.H. Tailoring properties of natural deep eutectic solvents with water to facilitate their applications. Food Chem. 2015, 187, 14–19. [Google Scholar] [CrossRef] [PubMed]
  25. Jiang, Z.M.; Wang, L.J.; Gao, Z.; Zhuang, B.; Yin, Q.; Liu, E.H. Green and efficient extraction of different types of bioactive alkaloids using deep eutectic solvents. Microchem. J. 2019, 145, 345–353. [Google Scholar] [CrossRef]
  26. Tang, W.Y.; Li, G.Z.; Chen, B.Q.; Zhu, T.; Row, K.H. Evaluating ternary deep eutectic solvents as novel media for extraction of flavonoids from Ginkgo biloba. Sep. Sci. Technol. 2017, 52, 91–99. [Google Scholar] [CrossRef]
  27. Zhuang, B.; Dou, L.L.; Li, P.; Liu, E.H. Deep eutectic solvents as green media for extraction of flavonoid glycosides and aglycones from Platyladi Cacumen. J. Pharm. Biomed. 2017, 134, 214–219. [Google Scholar] [CrossRef]
  28. Jeong, K.M.; Ko, J.; Zhao, J.; Jin, Y.; Yoo, D.E.; Han, S.Y. Mult-functioning deep eutectic solvents as extraction and storage media for bioactive natural products that are readily applicable to cosmetic products. J. Clean. Prod. 2017, 151, 87–95. [Google Scholar] [CrossRef]
  29. Huang, Y.; Feng, F.; Jiang, J.; Qiao, Y.; Wu, T.; Voglmeir, J.; Chen, Z.G. Green and efficient extraction of rutin from tartary buckwheat hull by using natural deep eutectic solvents. Food Chem. 2017, 221, 1400–1405. [Google Scholar] [CrossRef] [PubMed]
  30. Duan, L.; Dou, L.L.; Guo, L.; Li, P.; Liu, E.H. Comprehensive evaluation of deep eutectic solvents in extraction of bioactive natural products. ACS Sustain. Chem. Eng. 2016, 4, 2405–2411. [Google Scholar] [CrossRef]
  31. Craveiro, R.; Aroso, I.; Flammia, V.; Carvalho, T.; Viciosa, M.T.; Dionísio, M.; Barreiros, S.; Reis, R.L.; Duarte, A.R.C.; Paiva, A. Properties and thermal behavior of natural deep eutectic solvents. J. Mol. Liq. 2016, 215, 534–540. [Google Scholar] [CrossRef]
  32. Dai, Y.; van Spronsen, J.; Witkamp, G.J.; Verpoorte, R.; Choi, Y.H. Natural deep eutectic solvents as new potential media for green technology. Anal. Chim. Acta 2013, 766, 61–68. [Google Scholar] [CrossRef]
  33. Wang, M.; Wang, J.Q.; Zhou, Y.Y.; Zhang, M.Y.; Xia, Q.; Bi, W.T.; Chen, D.D.Y. Ecofriendly mechanochemical extraction of bioactive compounds from plant with deep eutectic solvents. ACS Sustain. Chem. Eng. 2017, 5, 6297–6303. [Google Scholar] [CrossRef]
  34. Liu, Y.; Friesen, J.B.; McAlpine, J.B.; Lankin, D.C.; Chen, S.N.; Pauli, G.F. Natural deep eutectic solvent: Properties applications, and perspectives. J. Nat. Prod. 2018, 81, 679–690. [Google Scholar] [CrossRef]
  35. Francisco, M.; van den Bruinhorst, A.; Kroon, M.C. Low-transition-temperature mixtures (LTTMs): A new generation of designer solvent. Angew. Chem. Int. Ed. 2013, 52, 3074–3085. [Google Scholar] [CrossRef] [PubMed]
  36. Bubalo, M.C.; Ćurko, N.; Tomašević, M.; Ganić, K.K.; Redovniković, R. Green extraction of grape skin phenolics by using deep eutectic solvents. Food Chem. 2016, 200, 159–166. [Google Scholar] [CrossRef]
  37. Zhang, P.T.; Pan, B.Y.; Liao, Q.F.; Yao, M.C.; Xu, X.J.; Wan, J.Z.; Liu, D.; Xie, Z.Y. Simultaneous quantification of limonin, two indolequinazoline alkaloids, and four quinolone alkaloids in Evodia rutaecarpa (Juss.) Benth by HPLC-DVD method. J. Anal. Methods Chem. 2013, 2013, 827361. [Google Scholar] [CrossRef] [PubMed]
  38. Nam, M.W.; Zhao, J.; Lee, M.S.; Jeong, J.H.; Lee, J. Enhanced extraction of bioactive natural products using tailor-made deep eutectic solvents: Application to flavonoid extraction from Flos sophorae. Green Chem. 2015, 17, 1718–1727. [Google Scholar] [CrossRef]
  39. Cui, Q.; Peng, X.; Yao, X.H.; Wei, Z.F.; Luo, M.; Wang, W.; Zhao, C.J.; Fu, Y.J.; Zu, Y.G. Deep eutectic solvent-based microwave-assisted extraction of genistin, genis–tein and apigenin from pigeon pea roots. Sep. Purif. Technol. 2015, 150, 63–72. [Google Scholar] [CrossRef]
  40. Zhang, J.; Zhang, F.; Jiang, L.; Jiang, R.; Tan, S.J. Determination of evodiamine and rutaecarpine in Wiji Wan by HPLC. Chin. J. Chin. Mater. Med. 2003, 38, 1193–1194. [Google Scholar] [CrossRef]
  41. Zhang, X.F.; Qiu, F.R.; Jiang, J.; Gao, C.L.; He, M. Simultaneous determination of 6 alkaloids in Zuojin Pill and Xianglian Pill by LC-MS/MS. Chin. Traditi. Pat. Med. 2010, 32, 597–600. [Google Scholar] [CrossRef]
  42. Tan, S.J.; Zhao, B.C.; Wang, H.T.; Li, J.L.; Chu, F. Determination of evodiamine and rutaecarpine in Wiji Wan by HPLC. Pharm. J. Chin. P. L. A. 2002, 18, 201–204. [Google Scholar] [CrossRef]
  43. Luo, D.L.; Xi, X.R.; Gao, Y.M.; Qi, Y.D.; Huang, P. Determination of evodiamine and rutaecarpine in Wiji Wan by micellar electrokinetic capillary chromatography. Chin. J. Chin. Mater. Med. 2007, 32, 1936–1938. [Google Scholar] [CrossRef]
Figure 1. The structure of rutaecarpine.
Figure 1. The structure of rutaecarpine.
Processes 07 00171 g001
Figure 2. Typical HPLC chromatograms of (A) the reference compound of rutaecarpine, and (B) the extract of T. ruticarpum. HPLC conditions: Column, Zorbax SB-C18 250 mm × 4.6 mm I.D.; column temperature, 35 °C; mobile phase, water with 0.2% phosphoric acid (A) and acetonitrile (B); gradient program, 0–20 min, 10–30% B; 20–60 min, 30–70% B; 60–70 min, 70% B; flow rate, 1.0 mL/min, detection wavelength, 345 nm.
Figure 2. Typical HPLC chromatograms of (A) the reference compound of rutaecarpine, and (B) the extract of T. ruticarpum. HPLC conditions: Column, Zorbax SB-C18 250 mm × 4.6 mm I.D.; column temperature, 35 °C; mobile phase, water with 0.2% phosphoric acid (A) and acetonitrile (B); gradient program, 0–20 min, 10–30% B; 20–60 min, 30–70% B; 60–70 min, 70% B; flow rate, 1.0 mL/min, detection wavelength, 345 nm.
Processes 07 00171 g002

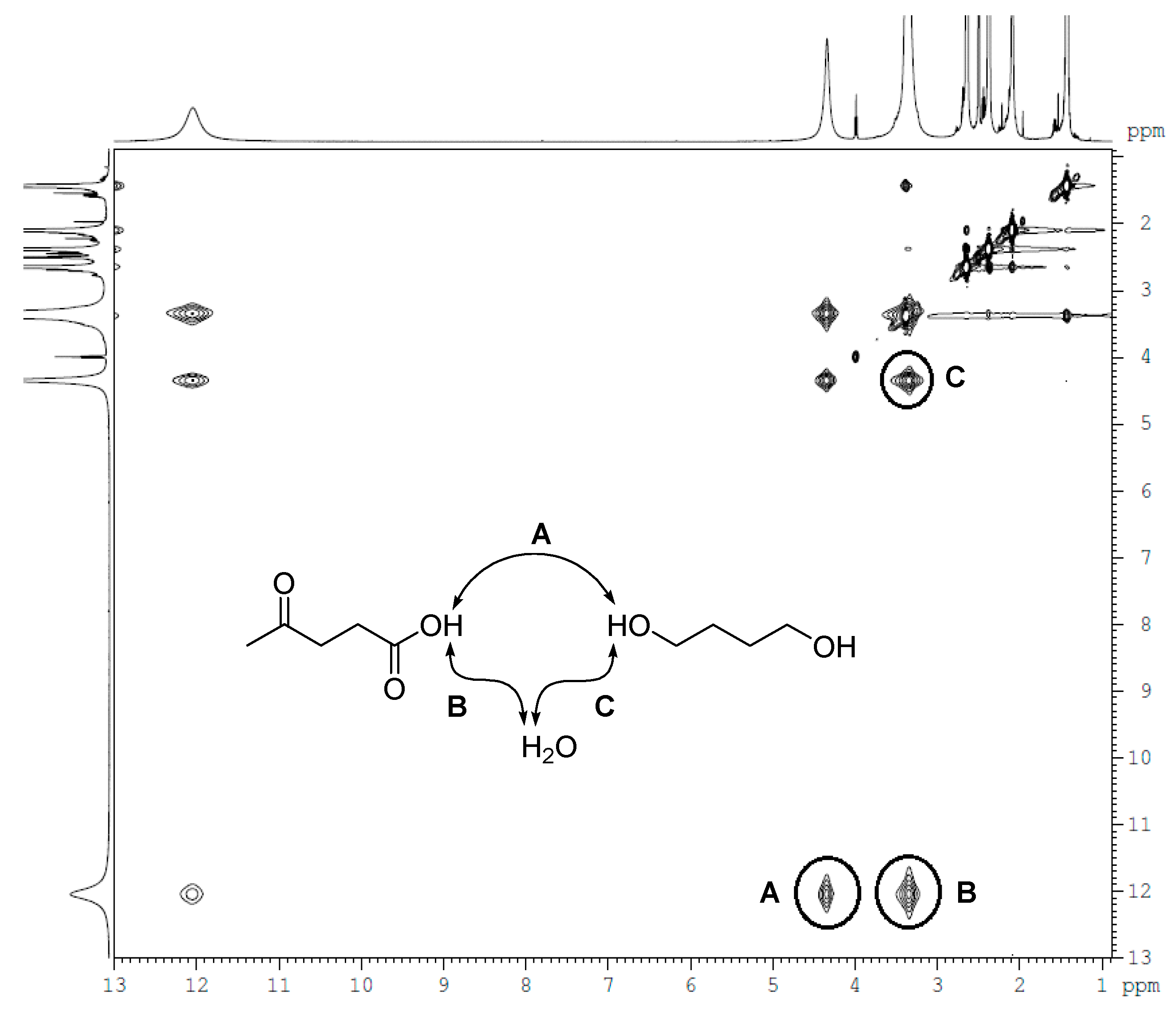

Figure 3. NOESY spectrum of La-Buta DES. (A) correlation between the protons on the carboxyl group of La, and the hydroxyl group of Buta; (B) correlation between the protons on the carboxyl group of La and water, and; (C) correlation between the protons on the hydroxyl group of Buta and water.
Figure 3. NOESY spectrum of La-Buta DES. (A) correlation between the protons on the carboxyl group of La, and the hydroxyl group of Buta; (B) correlation between the protons on the carboxyl group of La and water, and; (C) correlation between the protons on the hydroxyl group of Buta and water.
Processes 07 00171 g003
Figure 4. Rutaecarpine extraction yields of 75% ChCl and Bet-based DESs solutions, and the reference solvent 80% aqueous methanol (v/v) for comparison. Varied DES aqueous solution was used as a solvent to extract at a solid-liquid ratio of 1:50 with ultrasound at 35 °C and 500 W for 40 min. Data represent mean ± S.D. of triplicated experiments.
Figure 4. Rutaecarpine extraction yields of 75% ChCl and Bet-based DESs solutions, and the reference solvent 80% aqueous methanol (v/v) for comparison. Varied DES aqueous solution was used as a solvent to extract at a solid-liquid ratio of 1:50 with ultrasound at 35 °C and 500 W for 40 min. Data represent mean ± S.D. of triplicated experiments.
Processes 07 00171 g004

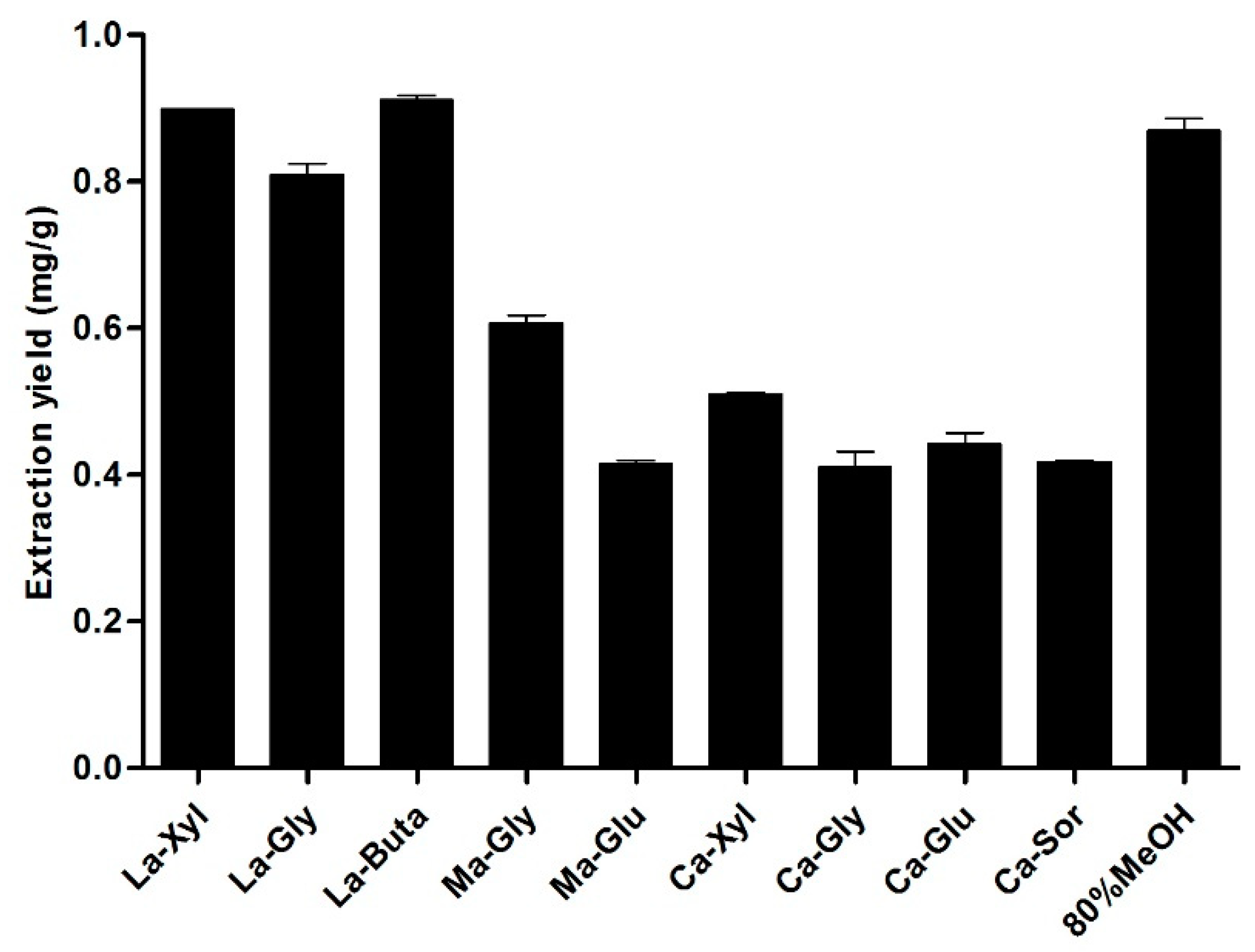

Figure 5. Rutaecarpine extraction yields of 75% organic acid-based DESs solutions and reference solvent 80% aqueous methanol (v/v) for comparison. Varied DES aqueous solution was used as solvent to extract at a solid-liquid ratio of 1:50 with ultrasound at 35 °C and 500 W for 40 min. Data represent mean ± S.D. of triplicated experiments.
Figure 5. Rutaecarpine extraction yields of 75% organic acid-based DESs solutions and reference solvent 80% aqueous methanol (v/v) for comparison. Varied DES aqueous solution was used as solvent to extract at a solid-liquid ratio of 1:50 with ultrasound at 35 °C and 500 W for 40 min. Data represent mean ± S.D. of triplicated experiments.
Processes 07 00171 g005
Figure 6. Rutaecarpine extraction yields of La-Buta DESs with different molar ratios. La-Buta DES aqueous solution with different molar ratios was used as the solvent to extract at a solid-liquid ratio of 1:50 with ultrasound at 35 °C and 500 W for 40 min. Data represent mean ± S.D. of triplicated experiments.
Figure 6. Rutaecarpine extraction yields of La-Buta DESs with different molar ratios. La-Buta DES aqueous solution with different molar ratios was used as the solvent to extract at a solid-liquid ratio of 1:50 with ultrasound at 35 °C and 500 W for 40 min. Data represent mean ± S.D. of triplicated experiments.
Processes 07 00171 g006

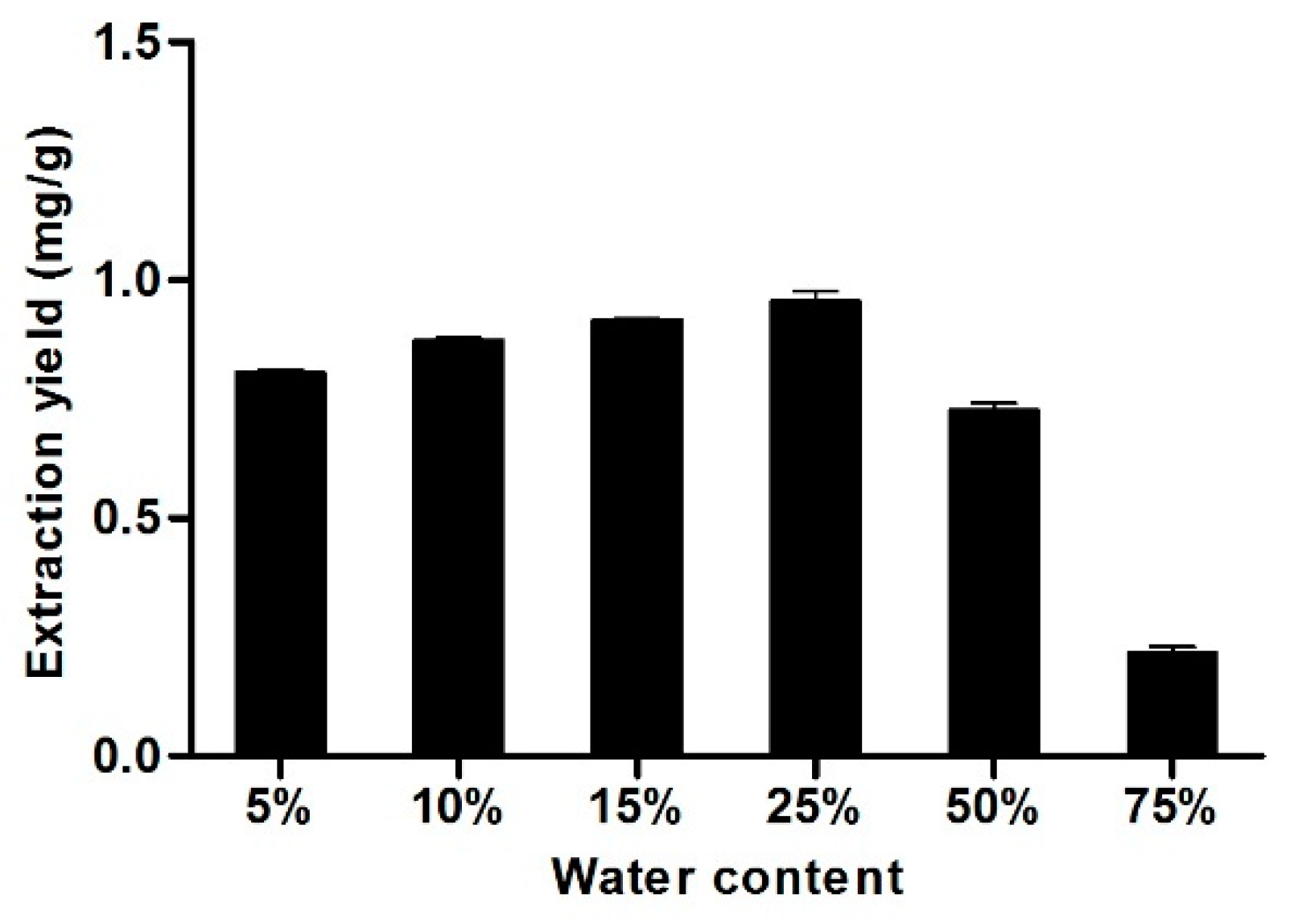

Figure 7. Rutaecarpine extraction yields of La-Buta DESs (1:0.5, molar ratio) diluted with different percentages of water. La-Buta DES aqueous solution (1:0.5, molar ratio) diluted with different percentages of water was used as a solvent to extract at a solid-liquid ratio of 1:50 with ultrasound at 35 °C and 500 W for 40 min. Data represent mean ± S.D. of triplicated experiments.
Figure 7. Rutaecarpine extraction yields of La-Buta DESs (1:0.5, molar ratio) diluted with different percentages of water. La-Buta DES aqueous solution (1:0.5, molar ratio) diluted with different percentages of water was used as a solvent to extract at a solid-liquid ratio of 1:50 with ultrasound at 35 °C and 500 W for 40 min. Data represent mean ± S.D. of triplicated experiments.
Processes 07 00171 g007

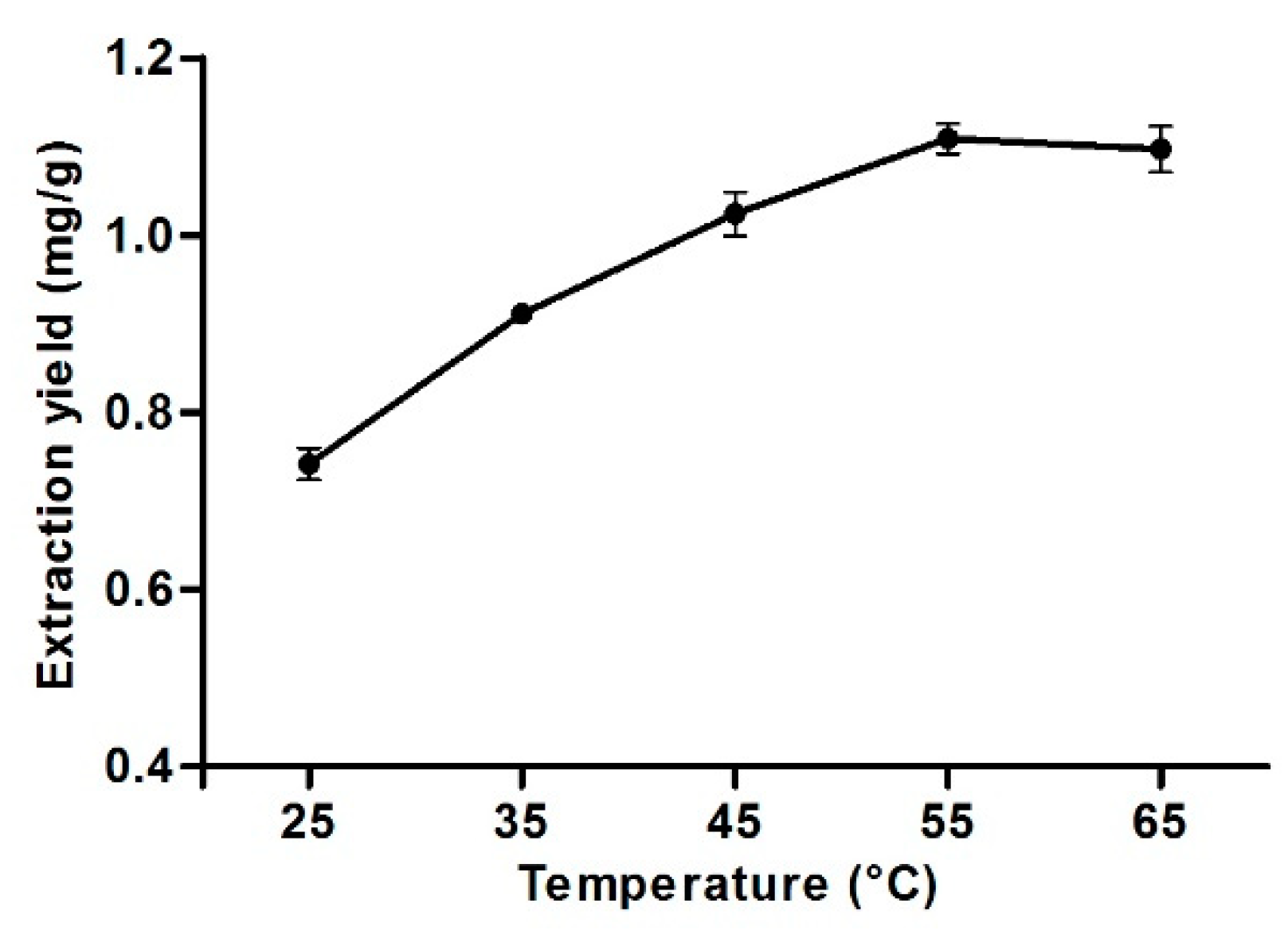

Figure 8. Effect of temperature on the extraction yield of rutaecarpine. La-Buta DES aqueous solution with 1:0.5 molar ratio containing 25% water was used as a solvent to extract at a solid-liquid ratio of 1:50 with ultrasound at different temperatures and 500 W for 40 min. The data represent mean ± S.D. of triplicated experiments.
Figure 8. Effect of temperature on the extraction yield of rutaecarpine. La-Buta DES aqueous solution with 1:0.5 molar ratio containing 25% water was used as a solvent to extract at a solid-liquid ratio of 1:50 with ultrasound at different temperatures and 500 W for 40 min. The data represent mean ± S.D. of triplicated experiments.
Processes 07 00171 g008
Figure 9. Effect of solid-liquid ratio on the extraction yield of rutaecarpine. La-Buta DES aqueous solution with 1:0.5 molar ratio containing 25% water was used as the solvent to extract at different solid-liquid ratios with ultrasound at 55 °C and 500 W for 40 min. The data represent mean ± S.D. of triplicated experiments.
Figure 9. Effect of solid-liquid ratio on the extraction yield of rutaecarpine. La-Buta DES aqueous solution with 1:0.5 molar ratio containing 25% water was used as the solvent to extract at different solid-liquid ratios with ultrasound at 55 °C and 500 W for 40 min. The data represent mean ± S.D. of triplicated experiments.
Processes 07 00171 g009

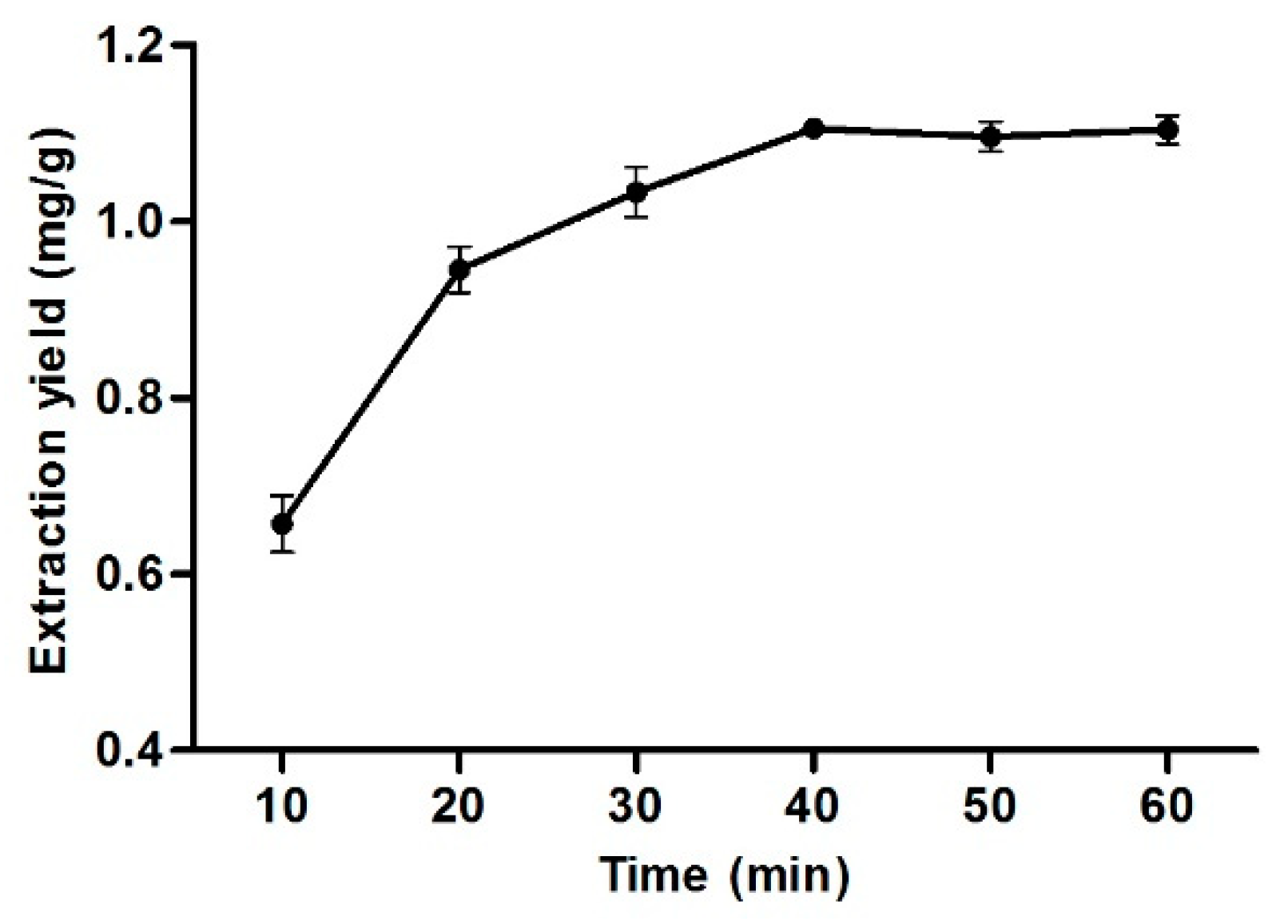

Figure 10. Effect of the solid-liquid ratio on the extraction yield of rutaecarpine. La-Buta DES aqueous solution with 1:0.5 molar ratio containing 25% water was used as a solvent to extract at a solid-liquid ratio of 1:30 with ultrasound at 55 °C and 500 W for different times. The data represent mean ± S.D. of triplicated experiments.
Figure 10. Effect of the solid-liquid ratio on the extraction yield of rutaecarpine. La-Buta DES aqueous solution with 1:0.5 molar ratio containing 25% water was used as a solvent to extract at a solid-liquid ratio of 1:30 with ultrasound at 55 °C and 500 W for different times. The data represent mean ± S.D. of triplicated experiments.
Processes 07 00171 g010

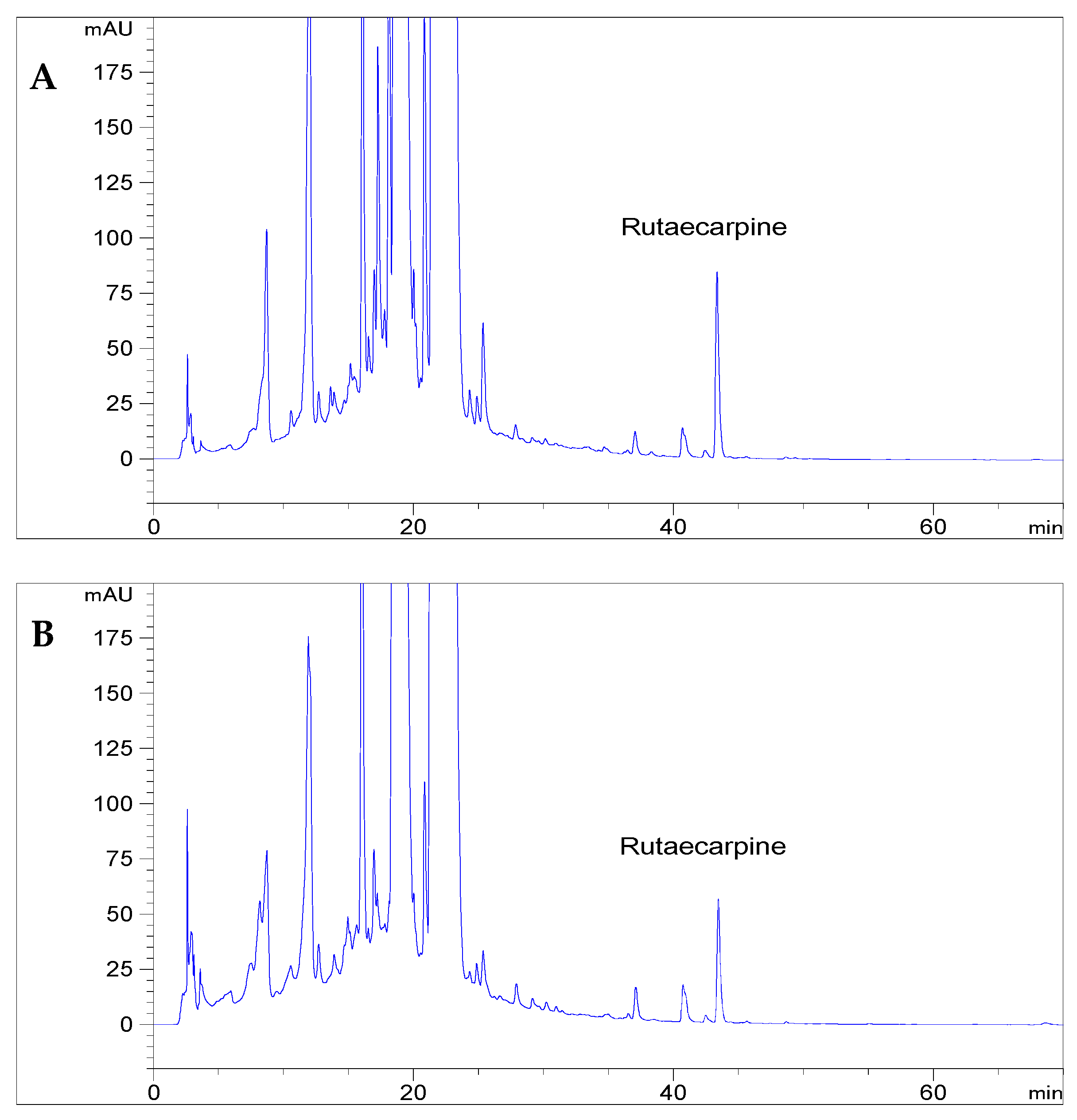

Figure 11. Typical HPLC chromatograms of (A) extract of Zuojin Pill and (B) extract of Wuji Pill. HPLC conditions: Column, Zorbax SB-C18 250 mm × 4.6 mm I.D.; column temperature, 35 °C; mobile phase, water with 0.2% phosphoric acid (A) and acetonitrile (B); gradient program, 0–20 min, 10–30% B; 20–60 min, 30–70% B; 60–70 min, 70% B; flow rate, 1.0 mL/min, detection wavelength, 345 nm.
Figure 11. Typical HPLC chromatograms of (A) extract of Zuojin Pill and (B) extract of Wuji Pill. HPLC conditions: Column, Zorbax SB-C18 250 mm × 4.6 mm I.D.; column temperature, 35 °C; mobile phase, water with 0.2% phosphoric acid (A) and acetonitrile (B); gradient program, 0–20 min, 10–30% B; 20–60 min, 30–70% B; 60–70 min, 70% B; flow rate, 1.0 mL/min, detection wavelength, 345 nm.
Processes 07 00171 g011
Table 1. 75% ChCl-based DESs solutions tested for extraction.
Table 1. 75% ChCl-based DESs solutions tested for extraction.
AbbreviationHBAHBDMolar RatioWater Content (%)
ChCl-Egcholine chlorideethylene glycol1:225
ChCl-Butacholine chloride1,4-butanediol1:225
ChCl-Glycholine chlorideglycerol1:225
ChCl-Oxcholine chlorideoxalic acid1:125
ChCl-Lacholine chloridelevulinic acid1:225
ChCl-Macholine chloridedl-malic acid3:225
ChCl-Cacholine chloridecitric acid2:125
ChCl-Urcholine chlorideurea1:225
ChCl-Acecholine chlorideacetamide1:225
ChCl-Glucholine chlorided-glucose1:125
Table 2. 75% Bet-based DESs solutions tested for extraction.
Table 2. 75% Bet-based DESs solutions tested for extraction.
AbbreviationHBAHBDMolar RatioWater Content (%)
Bet-Glybetaineglycerol1:225
Bet-Xylbetainexylitol1:125
Bet-Sorbetained-sorbitol5:625
Bet-Labetainelevulinic acid1:225
Bet-Mabetainedl-malic acid1:225
Table 3. Abbreviations and properties of 75% organic acid-based DES solutions tested for extraction.
Table 3. Abbreviations and properties of 75% organic acid-based DES solutions tested for extraction.
AbbreviationMolar RatioWater Content (%)pHViscosity (25 °C)
(mm2/s)
ENR
(kcal/mol)
La-Xyl1:1252.0247.5949.13
La-Gly1:1251.8311.0049.29
La-Buta1:1252.239.6049.47
Ma-Gly1:1251.0545.3947.89
Ma-Glu1:1250.82107.2048.46
Ca-Xyl1:1250.74160.0047.65
Ca-Gly1:2251.0663.7947.89
Ca-Glu1:1250.62157.0048.21
Ca-Sor1:1251.13196.0047.81
Table 4. Chemical shifts and relative numbers of some protons in the 1H NMR spectra of La-Buta DESs with different molar ratios (500 MHz, DMSO-d6, δ in ppm).
Table 4. Chemical shifts and relative numbers of some protons in the 1H NMR spectra of La-Buta DESs with different molar ratios (500 MHz, DMSO-d6, δ in ppm).
Molar RatioLevulinic Acid1,4-Butanediol
COOH
1
CH2
2
CH2
3
CH3
4
CH2OH
1
CH2OH
2
CH2
3
1:0.512.05 a2.652.382.094.343.381.43
(1.08H) b (3H)(1.09H) c (2H)
1:112.082.642.382.094.353.381.43
(0.80H) (3H)(0.89H) (2H)
1:212.042.652.382.094.343.381.43
(0.98H) (3H)(0.98H) (2H)
a The chemical shift of the proton underlined. b The relative integrated area of the proton in the carboxyl group (relative to the protons on the methyl group). c The relative integrated area of the proton in the hydroxyl group (relative to the protons on the unoxygenated methylene).
Table 5. Comparison of the method developed in this work with other extraction procedures for extraction of rutaecarpine in the unripe fruits of T. ruticarpum.
Table 5. Comparison of the method developed in this work with other extraction procedures for extraction of rutaecarpine in the unripe fruits of T. ruticarpum.
SampleSolventMethodExtraction Yield (mg/g)Relative Recovery (%) a
1La-Buta DES aqueous solution with 1:0.5 molar ratio containing 25% waterUltrasound-assisted extraction at 55 °C for 40 min1.105 ± 0.009100
2La-Buta DES aqueous solution with 1:0.5 molar ratio containing 25% waterMagnetic stirring extraction at 55 °C for 40 min1.037 ± 0.02693.8
3La-Buta DES aqueous solution with 1:0.5 molar ratio containing 25% waterUltrasound-assisted extraction at 35 °C for 40 min0.911 ± 0.01182.4
4WaterUltrasound-assisted extraction at 35 °C for 40 min0.080 ± 0.0017.2
5Methanol [19]Ultrasound-assisted extraction at 35 °C for 40 min0.847 ± 0.01076.6
680% Aqueous methanol (v/v)Ultrasound-assisted extraction at 35 °C for 40 min0.869 ± 0.00278.6
7MethanolSolvent boiling reflux extraction for 30 min0.852 ± 0.00677.1
880% Aqueous methanol (v/v) [20]Solvent boiling reflux extraction for 30 min0.858 ± 0.01377.6
a Relative recovery to that of La-Buta DES aqueous solution with 1:0.5 molar ratio containing 25% water used as a solvent to extract at a solid-liquid ratio of 1:30 with ultrasound at 55 °C and 500 W for 40 min.
Table 6. Comparison of the method developed in this work with other extraction procedures for extraction of rutaecarpine in the Zuojin Pill and Wuji Pill.
Table 6. Comparison of the method developed in this work with other extraction procedures for extraction of rutaecarpine in the Zuojin Pill and Wuji Pill.
EntrySampleSolventMethodExtraction Yield (mg/g)Ref.
1Zuojin PillLa-Buta DES aqueous solution with 1:0.5 molar ratio containing 25% waterUltrasound-assisted extraction at 55 °C for 40 min0.346 ± 0.006This work
2Zuojin PillEthanolSolvent boiling reflux extraction for 60 min0.204 ± 0.031[40]
3Zuojin PillMethanolUltrasound-assisted extraction at 25 °C for 45 min0.256 ± 0.002[41]
4Wuji PillLa-Buta DES aqueous solution with 1:0.5 molar ratio containing 25% waterUltrasound-assisted extraction at 55 °C for 40 min0.146 ± 0.006This work
5Wuji PillEthanolSolvent boiling reflux extraction for 60 min0.065 ± 0.006[42]
6Wuji PillMethanolUltrasound-assisted extraction at 25 °C for 45 min0.052 ± 0.002[43]

Share and Cite

MDPI and ACS Style

Si, Y.-Y.; Sun, S.-W.; Liu, K.; Liu, Y.; Shi, H.-L.; Zhao, K.; Wang, J.; Wang, W. Novel Deep Eutectic Solvent Based on Levulinic Acid and 1,4-Butanediol as an Extraction Media for Bioactive Alkaloid Rutaecarpine. Processes 2019, 7, 171. https://doi.org/10.3390/pr7030171

AMA Style

Si Y-Y, Sun S-W, Liu K, Liu Y, Shi H-L, Zhao K, Wang J, Wang W. Novel Deep Eutectic Solvent Based on Levulinic Acid and 1,4-Butanediol as an Extraction Media for Bioactive Alkaloid Rutaecarpine. Processes. 2019; 7(3):171. https://doi.org/10.3390/pr7030171

Chicago/Turabian Style

Si, Yue-Yue, Shi-Wei Sun, Kun Liu, Yang Liu, Hai-Lin Shi, Ke Zhao, Jin Wang, and Wei Wang. 2019. "Novel Deep Eutectic Solvent Based on Levulinic Acid and 1,4-Butanediol as an Extraction Media for Bioactive Alkaloid Rutaecarpine" Processes 7, no. 3: 171. https://doi.org/10.3390/pr7030171

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
