The Influence of O2 on Decomposition Characteristics of c-C4F8/N2 Environmental Friendly Insulating Gas

School of Electrical Engineering, Wuhan University, BaYi Street No. 299, Wuhan 430072, China
LAPLACE (Laboratoire Plasma et Conversion d’Energie), UPS, INPT, Université de Toulouse, 118 route de Narbonne, F-31062 Toulouse CEDEX 9, France
Authors to whom correspondence should be addressed.
Processes 2018, 6(10), 174;
Received: 5 August 2018 / Revised: 9 September 2018 / Accepted: 19 September 2018 / Published: 29 September 2018
(This article belongs to the Special Issue Modeling, Simulation and Control of Chemical Processes)


The c-C4F8 gas is considered to have great potential as a gaseous medium for gas-insulated equipment, due to its good insulation properties and its relatively low greenhouse gas potential (GWP) relative to SF6. However, the decomposition is an important indicator of its use in equipment. In this paper, the decomposition characteristics of c-C4F8 and the influence by oxygen have been explored through experiments and theoretical calculations. Firstly, the breakdown test of mixed gas was carried out and the precipitated elements of the electrodes and breakdown products of gas mixture were analyzed by X-ray photoelectron spectroscopy (XPS) and gas chromatography mass spectrometry (GC-MS). At the same time, the differences in decomposition products have also been studied when a small amount of O2 was present. The path and mechanism of c-C4F8 decomposition is then discussed, based on density functional theory (DFT). The results show that the black powdery substance descends on the electrode surface after the breakdown of the mixture of c-C4F8/N2 gas containing O2, and its main constituent elements are C, O and F. O2 can promote the decomposition of c-C4F8. The mixture with O2 produced a large number of additional toxic and corrosive COF2 in addition to generating more CF4, C2F4, C2F6, C3F6 and C3F8. The GWP values of the products are lower than SF6. Comprehensive insulation properties and decomposition characteristics, c-C4F8 should not be mixed with dry air for use, and the oxygen content should be strictly controlled in c-C4F8 mixed gas.

Graphical Abstract

1. Introduction

Sulfur hexafluoride (SF6) has been widely used in the power industry due to its excellent insulation and arc extinguishing properties. A total of 80% of the SF6 is used in high voltage circuit breakers and other high-pressure gas insulation equipment [1]. However, SF6 was listed as one of the six major greenhouse gases with a GWP (Global Warming Potential) of 23,500 and an atmospheric lifetime of 3200 years in the 1972 Kyoto Protocol [2,3]. Although the atmospheric concentration of SF6 is relatively low, contributing to 0.1% of the total anthropogenic radiative forcing, the concentration is growing continuously because of the compound’s long lifetime of ~3200 years [4,5]. Over the past five years, the content of SF6 in the global atmosphere has increased by 20% [6]. California proposed that the use of SF6 in the electrical field should be reduced annually from 2020 and the European Union plans to reduce SF6 emissions to 2/3 between 2014 and 2030 [7]. In order to ensure the sustainable development of the power industry, reducing the use of SF6 has become an important task in the current production and use of power equipment. In addition, SF6 could generate a variety of harmful gases such as SO2, SOF2, SO2F2, S2F10, under partial discharge, spark discharge or arc discharge [8,9,10]. Therefore, looking for an environmentally friendly and safe gas as an alternative insulation medium in power equipment, has become a sought-after solution.
In the current research, the ideal substitutes for SF6 include perfluorocarbons (PFCs), trifluoroiodomethane (CF3I), and other gases. Among them, the C-I bond of CF3I can easily be broken to produce iodine solid, which produces toxic gases such as CH3I, COF2 after discharge, which is not conductive to the long-term safe operation of the equipment [11,12]. Of course, the adsorbent can adsorb by-products, but finding a suitable adsorbent and whether the adsorbent has an effect on the insulation is also a problem. PFCs mainly include C2F6, C3F8, c-C4F8, among which c-C4F8 is the most excellent insulating property (about 1.18 times that of SF6). It is non-toxic to humans and the environment with the GWP of 8700 and the liquefaction temperature of −6 °C [13]. Although c-C4F8 also has greenhouse effect, its global warming potential is much lower than SF6 (23,000). Replacement of SF6 with c-C4F8 in power equipment will significantly reduce the greenhouse effect. So far, there are still many scholars to study the possibility of replacement SF6.
Concerning the new environmentally friendly insulation gas produced by 3M, apart from the C5F10O (Novec 5110) mentioned by reviewers, there is also C4F7N (Novec 4710) [14,15]. Both of these gases are hot in the current stage of research. We do not deny the superior performance of these two gases. However, gas liquefaction temperatures such as C5F10O are too high to be suitable for all types of gas-insulated equipment. In recent years, many researchers have studied the insulation performance of c-C4F8 with N2, CO2 and other mixed gases under DC, AC and lightning impulse voltage. It is concluded that the electrical strength of c-C4F8-N2 mixtures can only reach approximately 0.57 times that of pure SF6 at 0.5 MPa with c-C4F8 concentrations of 20% [16], but 15–20% c-C4F8 gas mixture meets the requirements of electrical equipment, and mixtures can greatly reduce the impact of insulating gas on the environment [17,18,19]. Li et al. calculated the mixtures between c-C4F8 and variety of gases in order to determine the mixed gas insulation. For example, the critical breakdown strength of c-C4F8-N2 and c-C4F8-air are similar and significantly higher than other mixed gases. When the content of c-C4F8 exceeds 80%, the insulation property of mixture can reach the level of pure SF6 but there is a lack of experimental data for validation [20]. Some studies on the decomposition characteristics of c-C4F8 have achieved some results. Li et al. [21] explored the decomposition products of c-C4F8 under various typical faults based on the gas chromatograph-mass spectrometer test. It was found that the decomposition of c-C4F8 mainly produced CF4, C2F6 and C2F4, C3F8, C3F6. Hayashi et al. [22] discussed the main pathways for the dissociation of c-C4F8 to generate free radicals CF2 based on the density functional theory (DFT), providing guidance for further investigation of the decomposition mechanism of c-C4F8. As the core insulating gas, c-C4F8 may need to be mixed with other gases due to the liquefaction temperature, and dry air is the common buffer gas. The theoretical calculations and experimental studies have shown that c-C4F8-N2 has good insulation properties. Potential alternative environmentally-friendly alternative gas and dry air often are mixed as an insulating medium. Additionally, in order to promote the recovery after the arc, O2 often appears in the arc medium. However, the related research is lacking, and the toxicity and environmental safety of the decomposition products after mixing with oxygen are urgent to be investigated. Oxygen introduction is divided into passive introduction and active introduction. Passive introduction mainly refers to the introduction of trace amounts of oxygen introduced by the equipment during operations such as transportation, assembly, maintenance, and ventilation. Generally, it will not exceed 1%, which is similar to the problems faced by SF6 gas insulation equipment [23]. The other is active introduction, because the environment-friendly insulation gas may be mixed with dry air to fill the equipment. In addition to nitrogen and CO2, dry air mainly contains O2. The safety of the other two gases has been verified in many studies [24]. Therefore, the influence of O2 on the insulation performance and decomposition properties of c-C4F8 also needs to be studied, and it is very urgent.
The influence of oxygen on the decomposition of mixed gas can provide the basis for exploring c-C4F8-air and the performance analysis of the decomposition products is also an important indicator of evaluation gas application. In order to obtain a new insulation formula for environmental safety and to study the possible causes of hazardous products, it is necessary to test and analyze the physical and chemical processes of oxygen gas mixture discharge.
In this paper, the decomposition products of pure c-C4F8 and the c-C4F8/N2 mixed gas are explored experimentally and the influence of oxygen are also considered. N2 is just the buffer gas added in order to reduce the liquefaction temperature, because its physical and chemical properties are stable and not easy to decompose. After several frequency breakdown experiments, the decomposition products and electrode precipitation elements were obtained by GC-MS (gas chromatography mass spectrometry) and XPS (X-ray photoelectron spectroscopy). Based on the density functional theory, the structural characteristics of c-C4F8 were calculated firstly, the stability of the molecular structure and the reactive sites were analyzed. The possible dissociation pathways of c-C4F8 and the formation mechanism of the decomposition products were discussed. The purpose of this paper is to study the changes of decomposition products with the participation of oxygen and explore the safety and environmental protection of products. The comprehensive evaluation of the influence of oxygen on the decomposition characteristics of c-C4F8 provides a reference for the research of SF6 alternative gas.

2. Experimental Setup

The test was carried out at a 50 Hz AC voltage gas insulation performance test platform. In the experiment, N2, which is stable chemically gas, was used as the buffer gas.
Before the experiment, the airtightness of the gas chamber was checked, and the sealed gas chamber was evacuated using a vacuum pump (BECKER/VT4.16, BECKER, Wuppertal, Germany) and was allowed to stand still for 60 min (less than 10 Pa). N2 gas is used to clean the gas chamber. The above steps are repeated 2 to 3 times in order to avoid the influence of impurity gases. After cleaning, the mixed gas is introduced into the gas chamber. The ball-ball electrode was used in the experiment. The diameter of the copper ball was 50 mm with the electrode spacing of 5 mm. The range of applications for mixed gases may be medium-voltage gas-insulated devices such as switch cabinets. Because the key part of the conductivity in these devices is made of copper, it is used as the electrode material. The purity level of the c-C4F8 and N2 is 99.999%.
According to the literature [24], it has been shown that the breakdown behavior of c-C4F8/N2 mixture (the mixing ratio of c-C4F8 is 5%~20%) under uniform electric field is similar to that of SF6/N2 with the same mixing ratio. The Corona discharge performance of c-C4F8/N2 is better than the same mixing ratio SF6/N2. If the c-C4F8/N2 gas mixture is not liquefied at −30 °C, the content of c-C4F8 in the gas mixture is at most about 15% [25]. Therefore, the pure c-C4F8, 15% c-C4F8/N2 and with 3% O2 were selected as samples in this paper. The test was carried out by a step-and-step method, and the gas mixture was broken down 50 times to detect decomposition products. The details are shown in Figure 1.
GC-MS is used for detection of gas mixture components after the breakdown discharge. CP Sil 5CB was selected as the column. GC analysis, the high purity He (the purity of gas is above 99.999%) gas is used as a carrier gas, and carrier gas filters (including He filter and RP oil filter) are used to filter out the impurities, which may affect the column and interfere with the experimental results. Inlet temperature is 220 °C and inlet pressure is 56.1 kPa. The injection mode uses a split flow method with a split ratio of 10:1 and an injection volume of 1 mL. The column flow rate is 1.2 mL/min, and the purge flow rate is 3.0 mL/min. The heating rate of gas into the oven is shown in Figure 2. The oven had an initial temperature of 35 °C, a final temperature of 150 °C, and a temperature increase rate of 40 °C/min. The column temperature was maintained at 35 °C for 0~8 min, and after 8 min, the temperature rose steadily to 150 °C, and the temperature rising rate was kept at 40 °C/min. MS analysis, the ion source temperature is 200 °C, the chromatographic mass spectrometry interface temperature is 220 °C, ionization mode is Electronic ionization (EI). The solvent delay time was 0.1 min; the detector voltage threshold was 100 and the voltage was 0.1 kV. The specific steps can be found in [26,27,28,29,30].

3. Experimental Results

3.1. Electrode Precipitate Component Analysis

Figure 3 shows the surface of the ball electrode before and after breakdown of pure c-C4F8, c-C4F8/N2 gas without O2 and with 3% O2. It can be seen that the surface of the copper ball electrode is covered with a layer of black powdery solid. Compared to pure gas, the mixed gas deposits are significantly less. However, the addition of oxygen increases the production of solid products while there only was a clear trace of ablation on the electrode surface at absence of O2 in mixture. The ESCALAB 250Xi photoelectron spectrometer (Thermo Scientific Corp., Waltham, MA, USA) was used to scan the black surface of the electrode by XPS. It was found that it consisted of C, F, O and N elements. Table 1 shows the content of each component in the black material, in which the C content is 58.44%, which is the main constituent element, the content of O is 17.32%, the N element content is 0.75% and the F element content is 23.49%. Figure 4 shows the C photoelectron scanning.
As shown in Figure 4, the maximum intensity of the corresponding C element binding energy is about 285 eV, corresponding to the chemical structure of the C–C single bond structure, which constitutes the C elemental elements. With C element loss of electrons, the binding energy can increase to 290 eV, corresponding to the chemical structure of O–C=O, which may constitute a variety of carbon oxides. Through XPS analysis, the black surface of the electrode may show a single element of C and various oxyfluorides of carbon. The test results are consistent with the literature [21].

3.2. Experimental Analysis of the Decomposition Products of c-C4F8 under Micro-Oxygen Condition

In order to further verify the accuracy of the experimental results, the gas-insulated test platform was used to conduct continuous, 50 rounds of pure c-C4F8, c-C4F8/N2 mixed gas with 0% and 3% O2 content breakdown tests and analysis of discharge breakdown components. The breakdown test was conducted on the mixed gas and the decomposition components of the mixed gas were detected. Figure 5a,b shows the GC-MS chromatograms(Varian Medical Systems, Inc., Palo Alto, CA, USA) of the two mixed gases after breakdown. Qualitative analysis is carried out using the combined methods of the United States National Institute of Standards and Technology (Nist14.0) database, and standard gas chromatography scanning.
The mass-to-charge ratio M/Z = 1 was selected as the base peak. As shown in Figure 5a, the chromatograms of the two mixed gases showed the characteristic peaks of CF4, C2F6, C2F4 and C3F6. The characteristic peak of COF2 also appears with O2 of 3%. COF2 is a highly toxic gas with a strong irritating effect on the skin and respiratory mucosa. It is also corrosive and can irreversibly damage equipment insulation. In order to display all products containing CF3· groups, the results of the scan were analyzed using M/Z = 69 as the base peak, as shown in Figure 5b. Chromatogram in addition to CF4, C2F6, C2F4, C3F6, C3F8 also appeared characteristic peaks. From the test results, the main decomposition products are from the c-C4F8 molecules, and N2 in the mixed gas did not participate in the chemical reaction.
Test results show that pure gas is more likely to decompose and the intensity of each decomposition product monitored was higher than that of c-C4F8/N2. In order to investigate the effect of O2 on the decomposition of c-C4F8/N2 gas mixture in more detail, Table 2 shows the peak intensities of the decomposition components of c-C4F8/N2 gas mixture at 0% and 3% O2. It can be seen that with the addition of O2, the peak intensities of CF4, C2F6, C3F8 and C2F4 all have large changes, and the peak intensity of CF4 produced by c-C4F8/N2 with 3% O2 increased by 275.34%, C2F6 relative increase of about 200%, C2F4 and C3F8 relative growth of about 140%. The growth rate of CF4 and C2F6 is higher than that of C3F8. The above analysis shows that the decomposition of c-C4F8 is more likely to produce small molecule products and the mixed gas containing O2 generates extra COF2. The presence of O2 promotes the decomposition of c-C4F8/N2.

4. Discussion

In order to explore the discharge decomposition path of c-C4F8 and the effect of O2 on its decomposition, a thermodynamic and kinetic combination method was used to analyze the orientation and mechanism of the reaction based on density functional theory (DFT). With regard to theoretical knowledge of calculations, it has been described in detail in our previous work [30,31]. The Dmol3 package was used to process exchange-related interactions using a local density approximation (LDA-PWC) approach to optimize the structure of c-C4F8 and O2 [25]. To model the possible reaction path, the stable molecular configuration with the lowest energy is needed for selection. By calculating the energy of reactants and products, we can get the energy change before and after the reaction, and judge the difficulty of the reaction from the thermodynamic point of view. In addition, the constructed non-decomposing reaction path needs to be searched for transition state [32]. Because during the process of chemical bond breaking and rearrangement, the intermediate activated complexes will be absorbed by the reactants to produce a certain amount of energy, and the process of generating activated complexes often determines the reaction rate. Therefore, the transition state structure and the corresponding activation energy are helpful to evaluate the reaction from the kinetic point of view. Finally, combined with the test results, the dynamic equilibrium process of particles during the decomposition of c-C4F8 with O2 was analyzed.

4.1. The Basic Properties of c-C4F8

Figure 6 shows the geometry of optimized c-C4F8 molecule structure, where the bond length is Å and the bond angle is °. The c-C4F8 molecule has a high degree of symmetry. The C-C bond length is 1.583 Å and the C-F bond length is 1.350 Å. The F-C-F bond angle is 110.150° and the F-C-C bond angle is 113.587°.
The bond level is a physical quantity that describes the bond strength between adjacent atoms in the molecule, indicating the relative strength of the bond. In the collision of electrons and other particles or under high temperature conditions, the chemical bond may be broken, wherein the strength of the chemical bond relative to the strength of the smaller chemical bonds more difficult to break. Figure 7 shows the calculated chemical bond levels for the c-C4F8 and SF6 molecules. According to the calculation results, the C-C bond in the c-C4F8 molecule has a bond level value of 0.924 and the C-F bond with a value of 0.896. The intensity of the C-F bond in the c-C4F8 molecule is weaker than that of the C-C bond. Therefore, the C-F bond is more likely to dissociate than the C-C bond. In the SF6 molecule, the S-F bond level value of the four co-planar F atoms and the S atom is 0.826, and the other the S-F bond level value is 0.829. Overall, the bond level of the chemical bonds in the SF6 molecule is smaller than the bond order of the chemical bonds in the c-C4F8 molecule, indicating that the stability of the molecular structure of the SF6 is inferior to that of the c-C4F8 molecule, which explains the c-C4F8 gas dielectric strength is superior to SF6 gas.
The distribution of the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) of c-C4F8 is calculated from the orbital distribution of the molecules, as shown in Figure 8. The corresponding energies are −0.298645 Ha and −0.086768 Ha, respectively. The energy difference between LUMO and HOMO characterizes the stability of the gas involved in the chemical reaction. The larger the difference is, the larger the energy required for the electron transition in the molecule is and the more stable the molecule is.

4.2. The Decomposition Path of c-C4F8 and the Main Product Generation Mechanism

Electrons are the main factors that cause collision ionization and dissociation in the electric field. Under the high-energy electric field or local overheating, the chemical bonds in the molecular structure of c-C4F8 will be cleaved, generating various types of free radicals, thereby damaging the insulation structure. In combination with the molecular structure of c-C4F8, Table 3 shows the major pathways for the decomposition during the discharge process.
The decomposition pathway (1) refers to the process of two C-C bonds that located at the relative positions of the c-C4F8 molecule being disconnected to form free radicals. The pathway (2) refers to the disconnecting process of C-C bonds which are adjacent in the C-C4F8 molecule. The absorption energy required for pathway (1) is 173.8539 kJ/mol, which is lower than the 342.3815 kJ/mol required for pathway (2). The pathway (3) refers to the process of c-C4F8 which cleaves the C-F bond to produce C4F7· and F· free radicals, and the process need to absorb energy of 434.8436 kJ/mol, higher than pathway (1) and pathway (2).
Figure 9 shows the change trend of reaction energy of three decomposition paths (in Table 3) with temperature. As the temperature increases, the energy required for molecular decomposition decreases gradually, and the increase of temperature is in favor of the reaction. The effect of temperature is considered mainly because the temperature changes during the discharge. In particular, there will be a significant increase in the temperature at the moment of breakdown, and the temperature at the center of the breakdown arc may reach 1000 k.
All kinds of free radicals generated by ionization or dissociation of c-C4F8 molecules can produce a series of new products by secondary reactions, mainly CF4, C2F6, C3F8, C2F4 and C3F6. Figure 10 shows the molecular model of the above decomposition product after optimization, and the bond length bond angle parameter is basically the same as that given in [30].
Table 4 shows the chemical equations of decomposition products, energy changes and activation energy. Among them, the processes of free radical recombination are exothermic reactions to generate CF4, C3F8, C2F4, C3F6 and C2F6. From a thermodynamic point of view, CF4, C2F6, C2F4 are relatively easy to form, and C3F8 generation is more difficult.
According to the kinetic analysis, the path B1 to B5 reaction without energy barrier, are the processes of free radical complex into molecules, without activation spontaneously. The formation process of C2F6 release more energy, and the reaction is more prone to occur. The path B2 needs to release 83.7318 kJ/mol, which is the most difficult to occur with the least energy. Figure 11 shows the energy changes of reactions with temperature. With the increase of temperature, the absolute value of the reaction enthalpy showed a different degree of decline. That is, the temperature is conducive to the reaction.
Path B6 reaction requires the formation of an activated complex transition state (TS). The reactant absorbs energy of 80.97188 kJ/mol, and then the activated complex TS releases energy to form the final product. The progress of the reaction is shown in Figure 12. Small molecule product formation process releases more energy, so it can be concluded that free radicals such as F·, CF2:, CF3· generated by the decomposition of c-C4F8 molecules tend to recombine into small molecules, resulting in a large content of small molecule products, which is in good agreement with the previous experimental results.
In order to study the effect of O2 on the decomposition of c-C4F8, the discharge decomposition path of O2 must be studied first. In [20], the main pathways for generating O· are given by O2→2O· and O2 + e→O· + O. It is also pointed out that the free radicals CF2: and C2F4 are oxidized to COF2 under O2 conditions. Figure 12 shows the geometrically optimized COF2 molecular structure model. Table 5 shows the reaction equations and energy changes for the free radical binding to COF2 produced by c-C4F8 [20]. The reaction is an exothermic reaction. O2 can oxidize CF2: to form COF2 and O· oxidize C2F4: to generate COF2 and CF2:. The structure of COF2 is shown in Figure 13.

4.3. The Basic Properties of the Main Products

According to the experimental measurement and calculation results, it can be seen that the main decomposition products are CF4, C2F4, C2F6, C3F6 and C3F8, and COF2 is produced when O2 is involved. Figure 14 shows the molecular orbital energies of the main product. Based on the molecular orbital gap value, the main decomposition products have good stability. The C2F4, C3F6 and COF2 containing double bonds are poorly stable in the chemical reaction.
At the same time, the relative insulation properties of the decomposition products were compared. The environmental values and ecological toxicity are shown in Table 6.
The insulation strength of CF4 gas is about 39% of that of SF6 and the insulation performance of C2F6 is about 76% of that of SF6. The insulation performance of C3F8 is close to that of SF6, and the C4F10 has better insulation performance than SF6. The resulting decomposition products basically maintain the original mixed gas insulation properties. The GWP of all the products are lower than that of SF6, and the concentration of the product is very small, so the product could be considered as not harmful to the environment. However, when oxygen is involved in the mixed gas discharge process, COF2 will be generated, which is toxic and corrosive and harmful to the insulation equipment and operators. Therefore, oxygen content should be strictly controlled in the equipment.

5. Conclusions

During the breakdown process of the c-C4F8/N2 mixed with O2 included, a large amount of black powdery substance precipitates on the surface of the ball electrode, which are mainly composed of C, O, F, and O element content accounted for 17.32%.
The main products produced by c-C4F8 discharge decomposition are CF4, C2F4, C2F6, C3F6 and C3F8 and small molecules such as CF4, C2F4 and C2F6 are generated more easily. The addition of N2 weakened the decomposition of c-C4F8 gas. The decomposition products mainly come from c-C4F8 and N2 in the mixed gas does not participate in the chemical reaction. The product has good insulation properties. The presence of O2 causes the promotion of c-C4F8 decomposition and produces COF2. The increase of temperature can promote the reaction.
The main products produced by c-C4F8 discharge have good insulation properties, and the products basically maintain the insulation properties of the original mixed gas. However, when O2 was involved, COF2 gas was detected, which is toxic and corrosive and would be hazardous to insulation equipment and operators.
In summary, c-C4F8 should not be mixed with dry air. In order to ensure the safe and reliable operation of equipment, the oxygen content in the c-C4F8 mixed gas should be strictly controlled.

Author Contributions

Conceptualization, S.T. and S.X.; Methodology, S.T.; Software, Z.D.; Validation, Y.C.; Writing-Original Draft Preparation, S.T.; Writing-Review and Editing, S.T.; Visualization, Y.L.; Supervision, X.Z.; Project Administration, J.T.


This work is supported by the Natural Science Foundation of China (Program No. 51707137) and China Postdoctoral Science Foundation Grant (Program No. 2017M612502).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Tsai, W.-T. The decomposition products of sulfur hexafluoride (SF6): Reviews of environmental and health risk analysis. J. Fluor. Chem. 2007, 128, 1345–1352. [Google Scholar] [CrossRef]
  2. Reilly, J.; Prinn, R.; Harnisch, J.; Fitzmaurice, J.; Jacoby, H.; Kicklighter, D.; Melillo, J.; Stone, P.; Sokolov, A.; Wang, C. Multi-gas assessment of the Kyoto Protocol. Nature 1999, 401, 549–555. [Google Scholar] [CrossRef]
  3. Zhang, X.; Li, Y.; Tian, S.; Xiao, S.; Chen, D.; Tang, J.; Zhou, R. Decomposition mechanism of the C5-PFK/CO2 gas mixture as an alternative gas for SF6. Chem. Eng. J. 2018, 336, 38–46. [Google Scholar] [CrossRef]
  4. Lindley, A.A.; McCulloch, A. Regulating to reduce emissions of fluorinated greenhouse gases. J. Fluor. Chem. 2005, 126, 1457–1462. [Google Scholar] [CrossRef]
  5. Ravishankara, A.R.; Solomon, S.; Turnipseed, A.A.; Warren, R.F. Atmospheric lifetimes of long-lived halogenated species. Science 1993, 259, 194–199. [Google Scholar] [CrossRef] [PubMed]
  6. Kieffel, Y.; Irwin, T.; Ponchon, P.; Owens, J. Green gas to replace SF6 in electrical grids. IEEE Power Energy Mag. 2016, 14, 32–39. [Google Scholar] [CrossRef]
  7. Mota-Babiloni, A.; Navarro-Esbrí, J.; Barragán-Cervera, Á.; Molés, F.; Peris, B. Analysis based on EU Regulation No 517/2014 of new HFC/HFO mixtures as alternatives of high GWP refrigerants in refrigeration and HVAC systems. Int. J. Refrig. 2015, 52, 21–31. [Google Scholar] [CrossRef][Green Version]
  8. Zhang, X.; Xiao, H.; Tang, J.; Cui, Z.; Zhang, Y. Recent advances in decomposition of the most potent greenhouse gas SF6. Crit. Rev. Environ. Sci. Technol. 2017, 47, 1763–1782. [Google Scholar] [CrossRef]
  9. Vijk, A.K. The nature of metal-electrodes/SF6 reactions in SF6 decomposition due to direct-current interruption under simulated circuit-breaker conditions. IEEE Trans. Electr. Insul. 1976, EI-11, 157–160. [Google Scholar] [CrossRef]
  10. Wock, S. On the toxicity of SF6 insulating gas. IEEE Trans. Electr. Insul. 1984, EI-19, 156. [Google Scholar] [CrossRef]
  11. Mitchell, A.D. Genetic Toxicity Evaluation of Iodotrifluoromethane (CF3I). Volume I: Results of Salmonella Typhimurium Histidine Reversion Assay (Ames Assay); Genesys Research Inc.: Research Triangle Park, NC, USA, 1995. [Google Scholar]
  12. Zhang, X.; Xiao, S.; Han, Y.; Dai, Q. Analysis of the feasibility of CF3I/CO2 used in C-GIS by partial discharge inception voltages in positive half cycle and breakdown voltages. IEEE Trans. Dielectr. Electr. Insul. 2015, 22, 3234–3243. [Google Scholar] [CrossRef]
  13. Hyrenbach, M.; Hintzen, T.; Müller, P.; Owens, J. Alternative gas insulation in medium-voltage switchgear. In Proceedings of the 23rd International Conference on Electricity Distribution, Lyon, France, 15–18 June 2015. [Google Scholar]
  14. Andersen, M.P.S.; Kyte, M.; Andersen, S.T.; Nielsen, C.J.; Nielsen, O.J. Atmospheric chemistry of (CF3)2CF–CN: A replacement compound for the most potent industrial greenhouse gas, SF6. Environ. Sci. Technol. 2017, 51, 1321–1329. [Google Scholar] [CrossRef] [PubMed]
  15. Li, Y.; Zhang, X.; Xiao, S.; Chen, Q.; Tang, J.; Chen, D.; Wang, D. Decomposition properties of C4F7N/N2 gas mixture: An environmentally friendly gas to replace SF6. Ind. Eng. Chem. Res. 2018, 57, 5173–5182. [Google Scholar] [CrossRef]
  16. Zhao, H.; Li, X.; Lin, H. Insulation characteristics of c-C4F8-N2 and CF3I-N2 mixtures as possible substitutes for SF6. IEEE Trans. Power Deliv. 2017, 32, 254–262. [Google Scholar] [CrossRef]
  17. Kang, L.; Wenhao, N.; Guoqiang, Z.; Haijiang, X. Investigation of voltage and potential gradient of arc column in fluorocarbon gas and its gas mixtures. In Proceedings of the 2013 IEEE International Conference on Electrical Machines and Systems (ICEMS), Busan, Korea, 26–29 October 2013; pp. 2255–2258. [Google Scholar]
  18. Liu, X.; Wang, J.; Wang, Y.; Zhang, Z.; Xiao, D. Analysis of the insulation characteristics of c-C4F8/CO2 gas mixtures by the Monte Carlo method. J. Phys. D Appl. Phys. 2007, 41, 015206. [Google Scholar] [CrossRef]
  19. Christophorou, L.G.; Olthoff, J.K.; Green, D.S. Gases for Electrical Insulation and Arc Interruption: Possible Present and Future Alternatives to Pure SF6; Technical Note (NIST TN)-1425; NIST: Gaithersburg, MD, USA, 1997.
  20. Li, X.; Zhao, H.; Jia, S.; Murphy, A.B. Prediction of the dielectric strength for c-C4F8 mixtures with CF4, CO2, N2, O2 and air by Boltzmann equation analysis. J. Phys. D Appl. Phys. 2014, 47, 425204. [Google Scholar] [CrossRef]
  21. Kang, L.; Wenhao, N.; Tao, L.; Guoqiang, Z.; Haijiang, X. Study of the decomposition of c-C4F8 and its mixture with N2 under 50 Hz ac corona discharge. In Proceedings of the Electrical Insulation and Dielectric Phenomena (CEIDP), Shenzhen, China, 20–23 October 2013; pp. 1229–1232. [Google Scholar]
  22. Hayashi, T.; Ishikawa, K.; Sekine, M.; Hori, M.; Kono, A.; Suu, K. Dissociation channels of c-C4F8 to CF2 radical in reactive plasma. Jpn. J. Appl. Phys. 2011, 50, 036203. [Google Scholar] [CrossRef]
  23. Graber, L. Improving the accuracy of SF6 leakage detection for high voltage switchgear. IEEE Trans. Dielectr. Electr. Insul. 2011, 18, 1835–1846. [Google Scholar] [CrossRef]
  24. Yamamoto, O.; Takuma, T.; Hamada, S.; Yamakawa, Y.; Yashima, M. Applying a gas mixtures containing c-C4F8 as an insulation medium. IEEE Trans. Dielectr. Electr. Insul. 2001, 8, 1075–1081. [Google Scholar] [CrossRef][Green Version]
  25. Navarrini, W.; Venturini, F.; Tortelli, V.; Basak, S.; Pimparkar, K.P.; Adamo, A.; Jensen, K.F. Direct fluorination of carbon monoxide in microreactors. J. Fluor. Chem. 2012, 142, 19–23. [Google Scholar] [CrossRef]
  26. Chu, F.Y. SF6 decomposition in gas-insulated equipment. IEEE Trans. Electr. Insul. 1986, EI-21, 693–725. [Google Scholar] [CrossRef]
  27. Tang, J.; Liu, F.; Zhang, X.; Meng, Q.; Zhou, J. Partial discharge recognition through an analysis of SF6 decomposition products part 1: Decomposition characteristics of SF6 under four different partial discharges. IEEE Trans. Dielectr. Electr. Insul. 2012, 19, 29–36. [Google Scholar] [CrossRef]
  28. Tang, J.; Yang, D.; Zeng, F.; Tang, B.; Li, K.; Yao, Q.; Miao, Y. Correlation characteristics between gas pressure and SF6 decomposition under negative DC partial discharge. IET Gener. Transm. Distrib. 2017, 12, 1240–1246. [Google Scholar] [CrossRef]
  29. Liu, C.; Palanisamy, S.; Chen, S.; Wu, P.; Yao, L.; Lou, B.S. Mechanism of formation of SF6 decomposition gas products and its identification by GC-MS and electrochemical methods: A mini Review. Int. J. Electrochem. Sci. 2015, 10, 4223–4231. [Google Scholar]
  30. Zhang, X.; Tian, S.; Xiao, S.; Deng, Z.; Li, Y.; Tang, J. Insulation strength and decomposition characteristics of a C6F12O and N2 gas mixture. Energies 2017, 10, 1170. [Google Scholar] [CrossRef]
  31. Xiao, S.; Li, Y.; Zhang, X.; Tang, J.; Tian, S.; Deng, Z. Formation mechanism of CF3I discharge components and effect of oxygen on decomposition. J. Phys. D Appl. Phys. 2017, 50, 155601. [Google Scholar] [CrossRef]
  32. Perdew, J.P.; Wang, Y. Accurate and simple analytic representation of the electron-gas correlation energy. Phys. Rev. B Condens. Matter 1992, 45, 13244. [Google Scholar] [CrossRef] [PubMed]
  33. Wada, J.; Ueta, G.; Okabe, S.; Hikita, M. Dielectric properties of gas mixtures with per-fluorocarbon gas and gas with low liquefaction temperature. IEEE Trans. Dielectr. Electr. Insul. 2016, 23, 838–847. [Google Scholar] [CrossRef]
  34. Devins, J.C. Replacement gases for SF6. IEEE Trans. Electr. Insul. 1980, EI-15, 81–86. [Google Scholar] [CrossRef]
  35. Deng, Y.; Xiao, D. Analysis of the insulation characteristics of CF3I gas mixtures with Ar, Xe, He, N2, and CO2 using Boltzmann equation method. Jpn. J. Appl. Phys. 2014, 53, 096201. [Google Scholar] [CrossRef]
  36. Takahashi, K.; Itoh, A.; Nakamura, T.; Tachibana, K. Radical kinetics for polymer film deposition in fluorocarbon (C4F8, C3F6, and C5F8) plasmas. Thin Solid Films 2000, 374, 303–310. [Google Scholar] [CrossRef]
  37. Ivy, D.J.; Rigby, M.; Baasandorj, M.; Burkholder, J.B.; Prinn, R.G. Global emission estimates and radiative impact of C4F10, C5F12, C6F14, C7F16 and C8F18. Atmos. Chem. Phys. 2012, 12, 7635–7645. [Google Scholar] [CrossRef][Green Version]
  38. Surhone, L.M.; Timpledon, M.T.; Marseken, S.F. Novec 1230. Landolt Börnstein Group IV Phys. Chem. 2010, 26, 263–291. [Google Scholar]
  39. Eden, S.; Limão-Vieira, P.; Kendall, P.A.; Mason, N.J.; Delwiche, J.; Hubin-Franskin, M.J.; Tanaka, T.; Kitajima, M.; Tanaka, H.; Cho, H.; et al. Electronic excitation of tetrafluoroethylene, C2F4. Chem. Phys. 2004, 297, 257–269. [Google Scholar] [CrossRef]

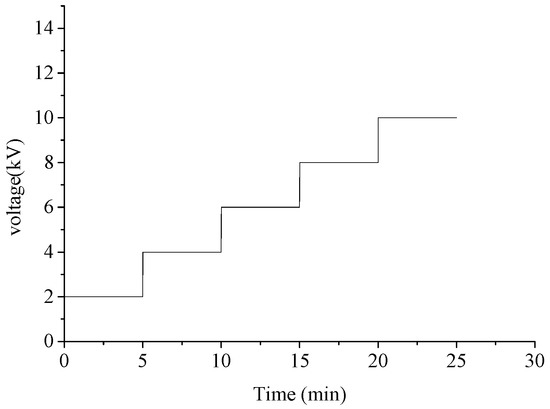

Figure 1. The step method.
Figure 1. The step method.
Processes 06 00174 g001
Figure 2. Oven temperature of GC-MS (gas chromatography mass spectrometry).
Figure 2. Oven temperature of GC-MS (gas chromatography mass spectrometry).
Processes 06 00174 g002

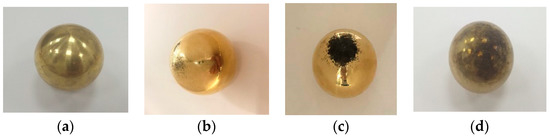

Figure 3. The spherical electrode before and after breakdown of c-C4F8/N2 gas. (a) the ball electrode before breakdown; (b) 15% c-C4F8/85% N2; (c) 100% c-C4F8; (d) 15% c-C4F8/82% N2/3% O2.
Figure 3. The spherical electrode before and after breakdown of c-C4F8/N2 gas. (a) the ball electrode before breakdown; (b) 15% c-C4F8/85% N2; (c) 100% c-C4F8; (d) 15% c-C4F8/82% N2/3% O2.
Processes 06 00174 g003

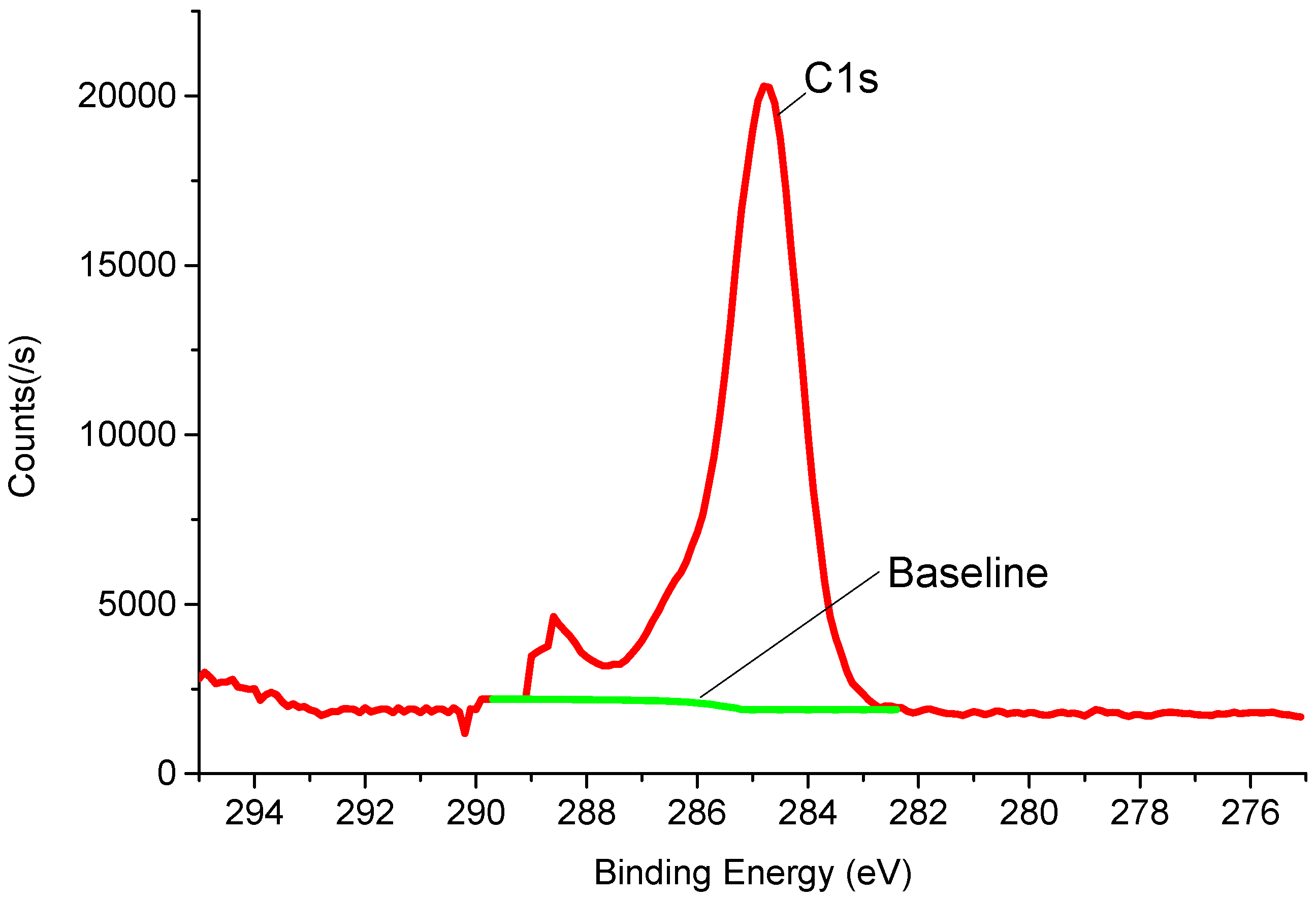

Figure 4. C element photoelectron scanning.
Figure 4. C element photoelectron scanning.
Processes 06 00174 g004

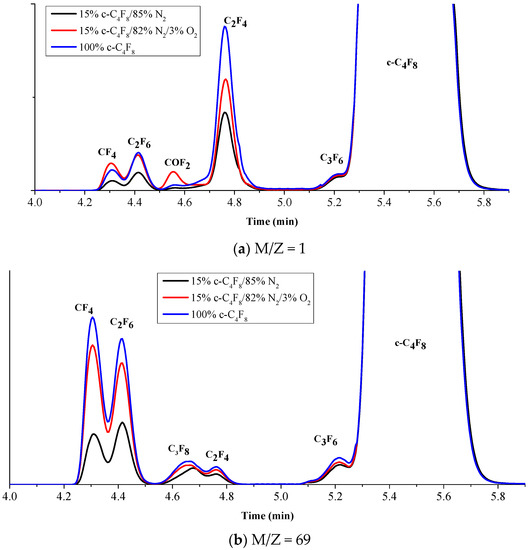

Figure 5. Chromatogram analysis of GC-MS (The ordinate indicates the relative peak intensity).
Figure 5. Chromatogram analysis of GC-MS (The ordinate indicates the relative peak intensity).
Processes 06 00174 g005

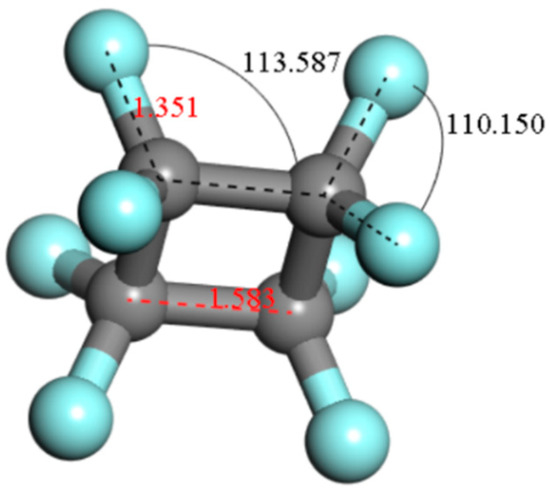

Figure 6. Molecular structure of c-C4F8.
Figure 6. Molecular structure of c-C4F8.
Processes 06 00174 g006

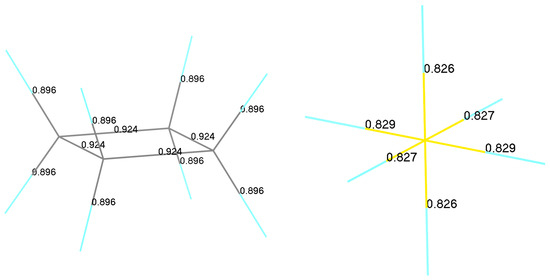

Figure 7. c-C4F8 and SF6 bond-level distribution.
Figure 7. c-C4F8 and SF6 bond-level distribution.
Processes 06 00174 g007

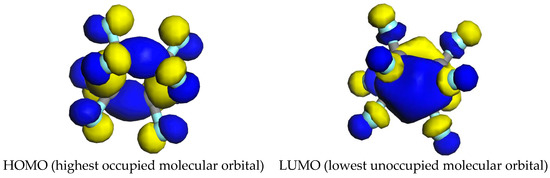

Figure 8. c-C4F8 molecular orbital distribution.
Figure 8. c-C4F8 molecular orbital distribution.
Processes 06 00174 g008

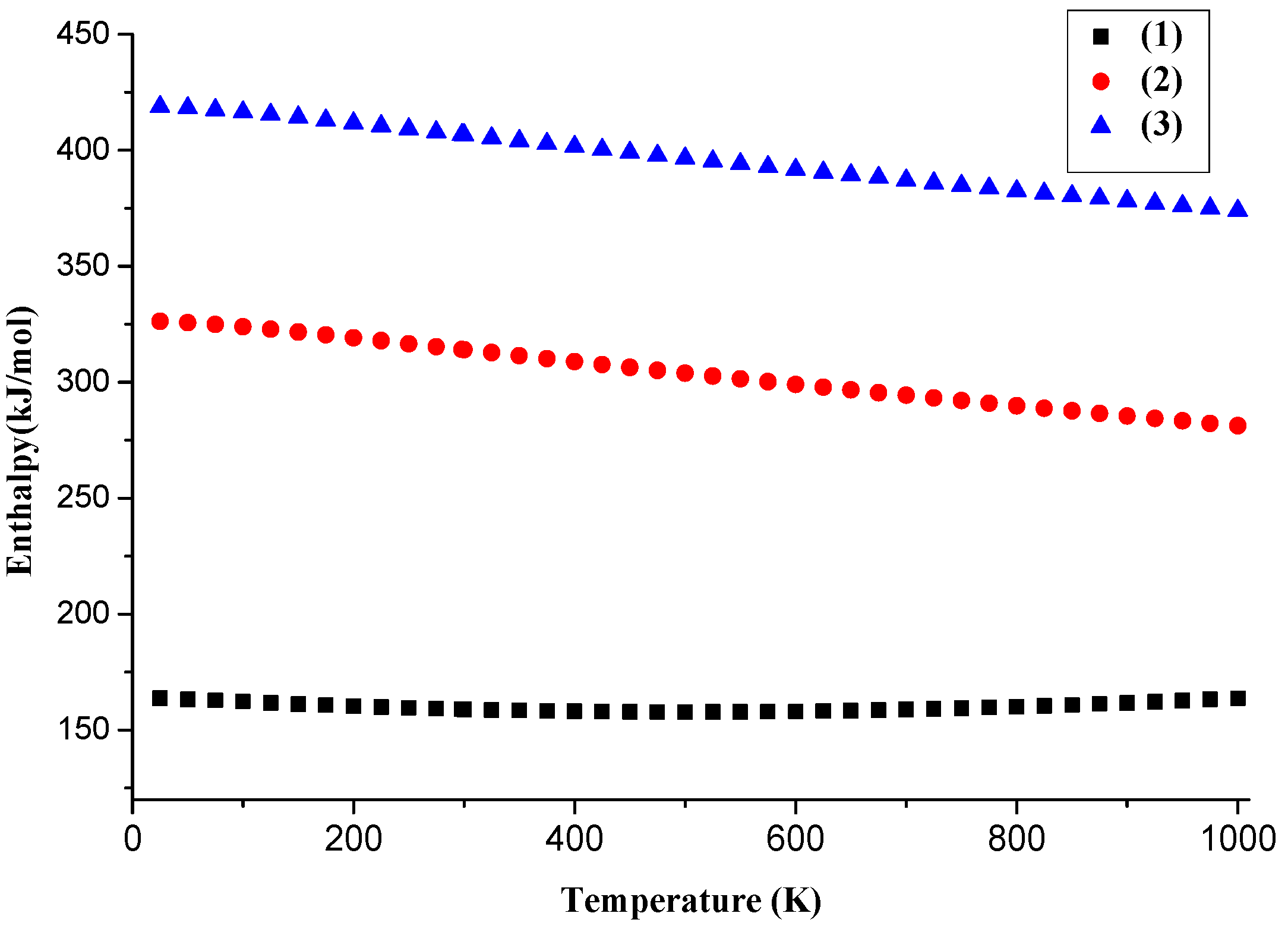

Figure 9. The reaction energy of decomposition paths with temperature.
Figure 9. The reaction energy of decomposition paths with temperature.
Processes 06 00174 g009

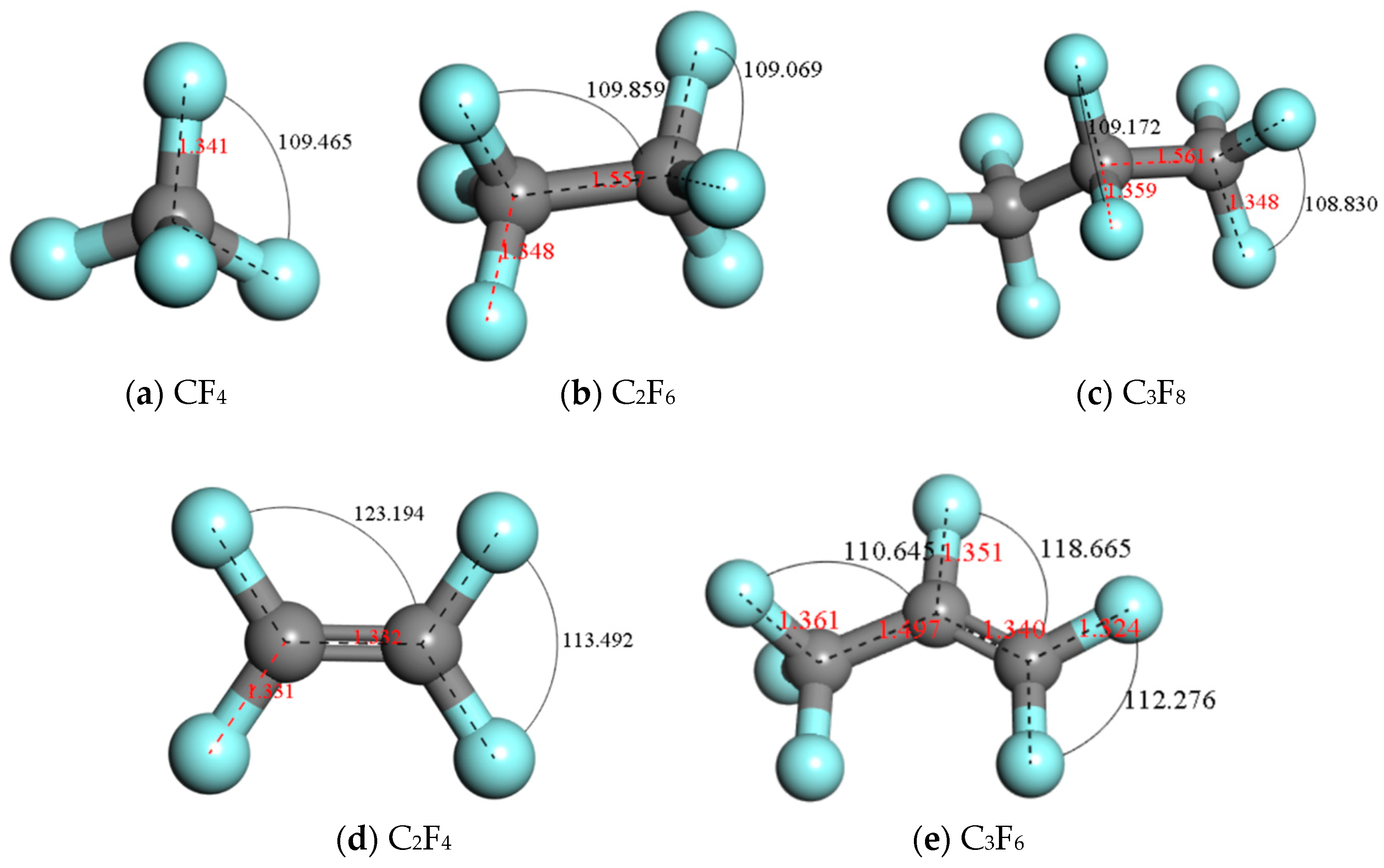

Figure 10. Molecular model of decomposition products and structural parameters.
Figure 10. Molecular model of decomposition products and structural parameters.
Processes 06 00174 g010

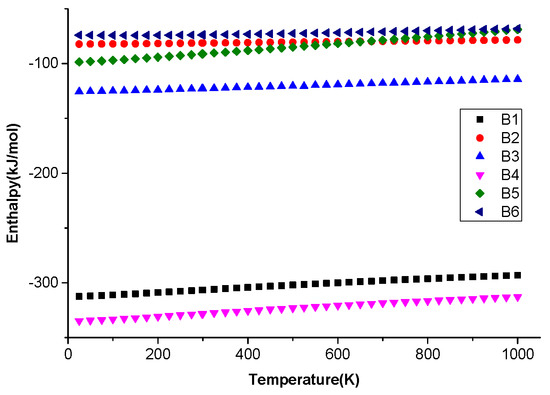

Figure 11. The energy changes of reactions with temperature.
Figure 11. The energy changes of reactions with temperature.
Processes 06 00174 g011

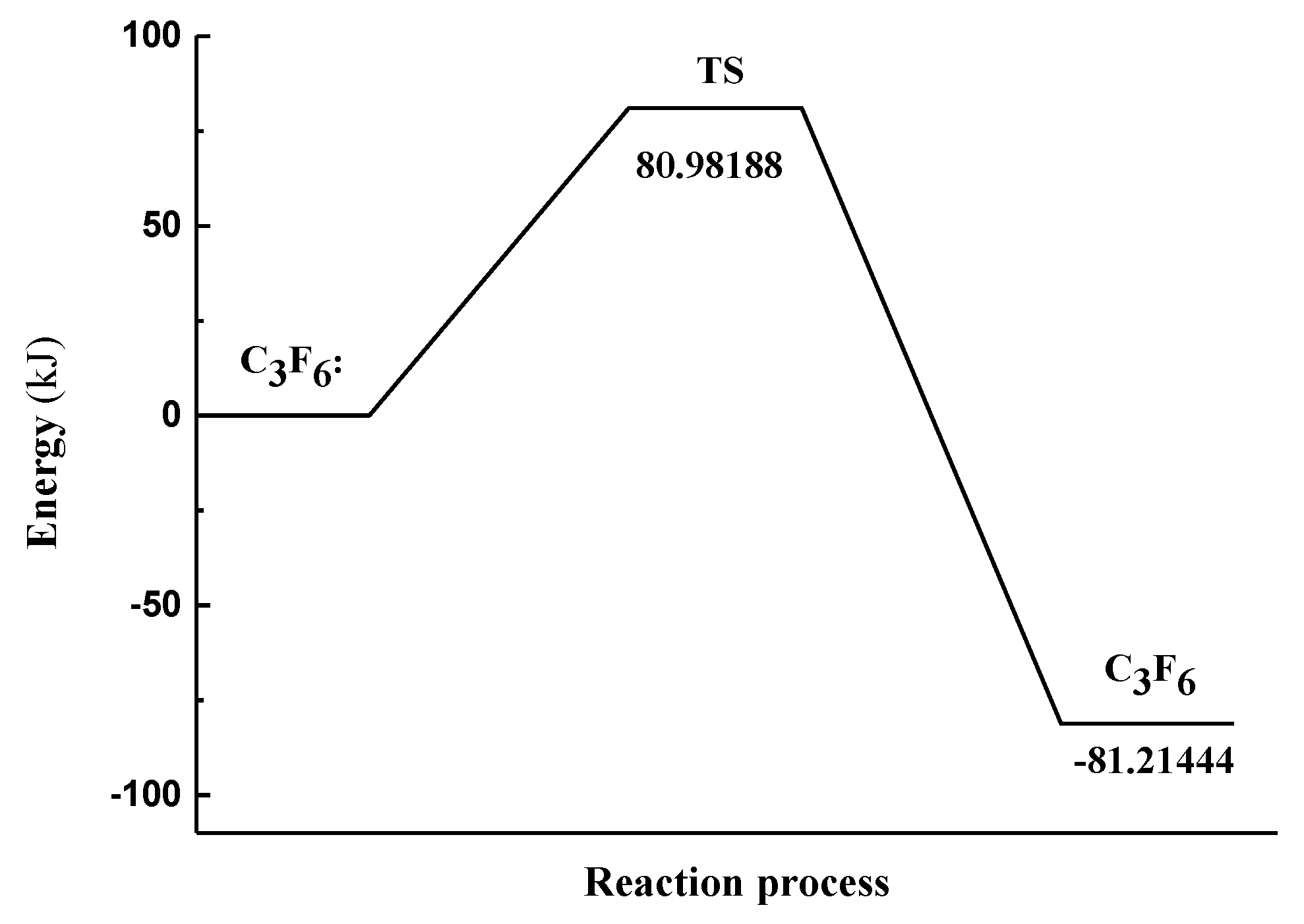

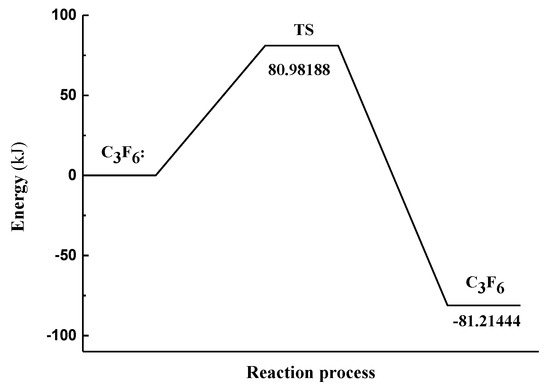

Figure 12. Reaction process of pathway B6 (TS: transition state).
Figure 12. Reaction process of pathway B6 (TS: transition state).
Processes 06 00174 g012

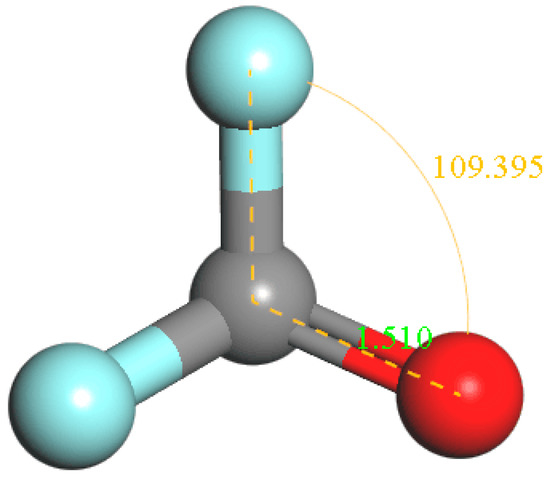

Figure 13. COF2 molecular structure model.
Figure 13. COF2 molecular structure model.
Processes 06 00174 g013

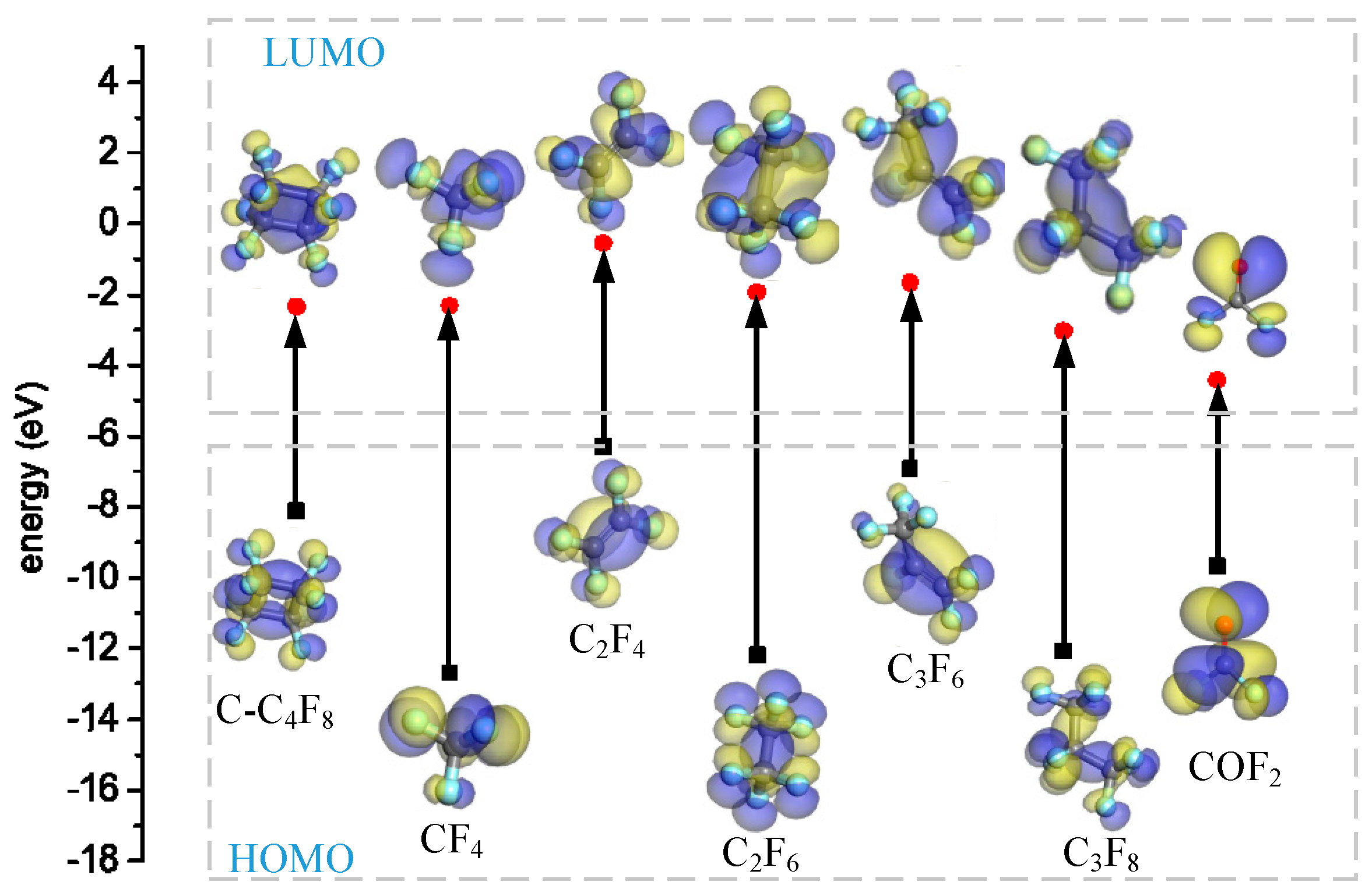

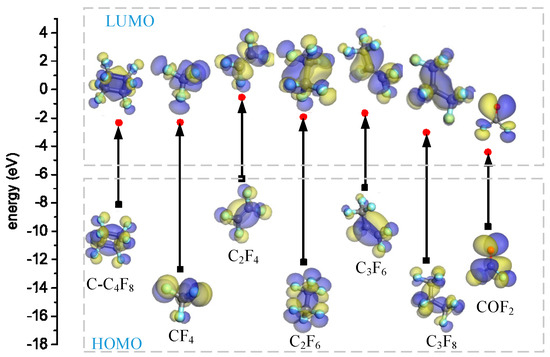

Figure 14. Molecular orbital gap values of decomposition products.
Figure 14. Molecular orbital gap values of decomposition products.
Processes 06 00174 g014
Table 1. Element content of precipitates on spherical electrode surface.
Table 1. Element content of precipitates on spherical electrode surface.
ElementConcentration (%) (Precision: 0.01%)
Table 2. Peak strength of c-C4F8/N2 mixed gas decomposition products under different O2 contents.
Table 2. Peak strength of c-C4F8/N2 mixed gas decomposition products under different O2 contents.
Products0% O23% O2The Growth Rate (%)
Table 3. c-C4F8 discharge decomposition path.
Table 3. c-C4F8 discharge decomposition path.
PathwayChemical EquationReaction Energy (kJ/mol)
(1)c-C4F8 C 2 F 4 · · + C 2 F 4 · · 173.8539
(2)c-C4F8 C 3 F 6 · · + C F 2 · · 342.3815
(3)c-C4F8 → C4F7⋅ + F⋅434.8436
Table 4. Decomposition products and energy change.
Table 4. Decomposition products and energy change.
NoChemical EquationEnergy Changes (kJ·mol−1)Activation Energy (kJ·mol−1)
B1 CF 2 · · + F · CF 3 · −307.37
B2 C 3 F 6 · · + 2 F · C 3 F 8 −83.7318
B3 CF 3 · + F · CF 4 −190.262
B4 2 CF 2 · · C 2 F 4 −332.313
B5 2 CF 3 · C 2 F 6 −373.811
B6 C 3 F 6 · · C 3 F 6 −81.2144480.97188
Table 5. Reaction path and energy change.
Table 5. Reaction path and energy change.
NoChemical EquationEnergy Changes (kJ·mol−1)Activation Energy (kJ·mol−1)
C1 CF 2 · · + O2→COF2 + O·−138.52180.18
C2 C 2 F 4 · · + O·→COF2 + CF 2 · · −112.64184.61
Table 6. Parameters of decomposition products.
Table 6. Parameters of decomposition products.
GasDielectric Strength Relative to SF6 [33,34,35,36]Boiling Point (°C) [29,30,31,32,33,34,35,36,37]GWP (100-Year) [5,36]Lifetime (Year) [36,37,38,39]Acute Toxicity
SF61−6323,9003200>500,000 ppm/4 h, LC50
c-C4F81.12−68700260078 pph/2 h, LCLo
CF40.39−186.8630050,000895,000 ppm/15 min, LCLo
C2F60.78–0.79−78920010,000>20 pph/2 h, LC
C3F80.96–0.97−3770002600750 ppm/4 h, LC50
C3F6−28<10750 ppm/4 h, LC50
C2F4−76.301.9 days40,000 ppm/4 h, LC50
COF2−840---270 mg/m3, 4 h, LC50
Note: GWP—global warming potential; LCLo—Lowest published lethal concentration; LC50—Lethal concentration, 50 percent kill; LC—Lethal concentration; The measurement of acute toxicity in the table is the test value of rat inhalation.
