Effects of Catalysts and Membranes on the Performance of Membrane Reactors in Steam Reforming of Ethanol at Moderate Temperature

Miyamoto, Manabu; Yoshikawa, Yuki; Oumi, Yasunori; Yamaura, Shin-ichi; Uemiya, Shigeyuki

doi:10.3390/pr4020018

Submit to this Journal Review for this Journal Edit a Special Issue

Article Menu

...

Open AccessArticle

Effects of Catalysts and Membranes on the Performance of Membrane Reactors in Steam Reforming of Ethanol at Moderate Temperature

^1,*,

²,

³,

⁴ and

^1,*

Department of Chemistry and Biomolecular Science, Gifu University, 1-1 Yanagido Gifu 501-1193, Japan

Department of Materials Science and Technology, Gifu University, 1-1 Yanagido Gifu 501-1193, Japan

Division of Instrument Analysis, Life Science Research Center, Gifu University, 1-1 Yanagido Gifu 501-1193, Japan

⁴

Institute for Materials Research, Tohoku University, 2-1-1 Katahira, Aoba, Sendai 980-8577, Japan

Authors to whom correspondence should be addressed.

Academic Editors: Angelo Basile and Catherine Charcosset

Processes 2016, 4(2), 18; https://doi.org/10.3390/pr4020018

Received: 20 April 2016 / Revised: 17 May 2016 / Accepted: 26 May 2016 / Published: 3 June 2016

(This article belongs to the Special Issue Membrane Separation Processes)

View Full-Text Download PDF

Browse Figures

Citation Export

Abstract

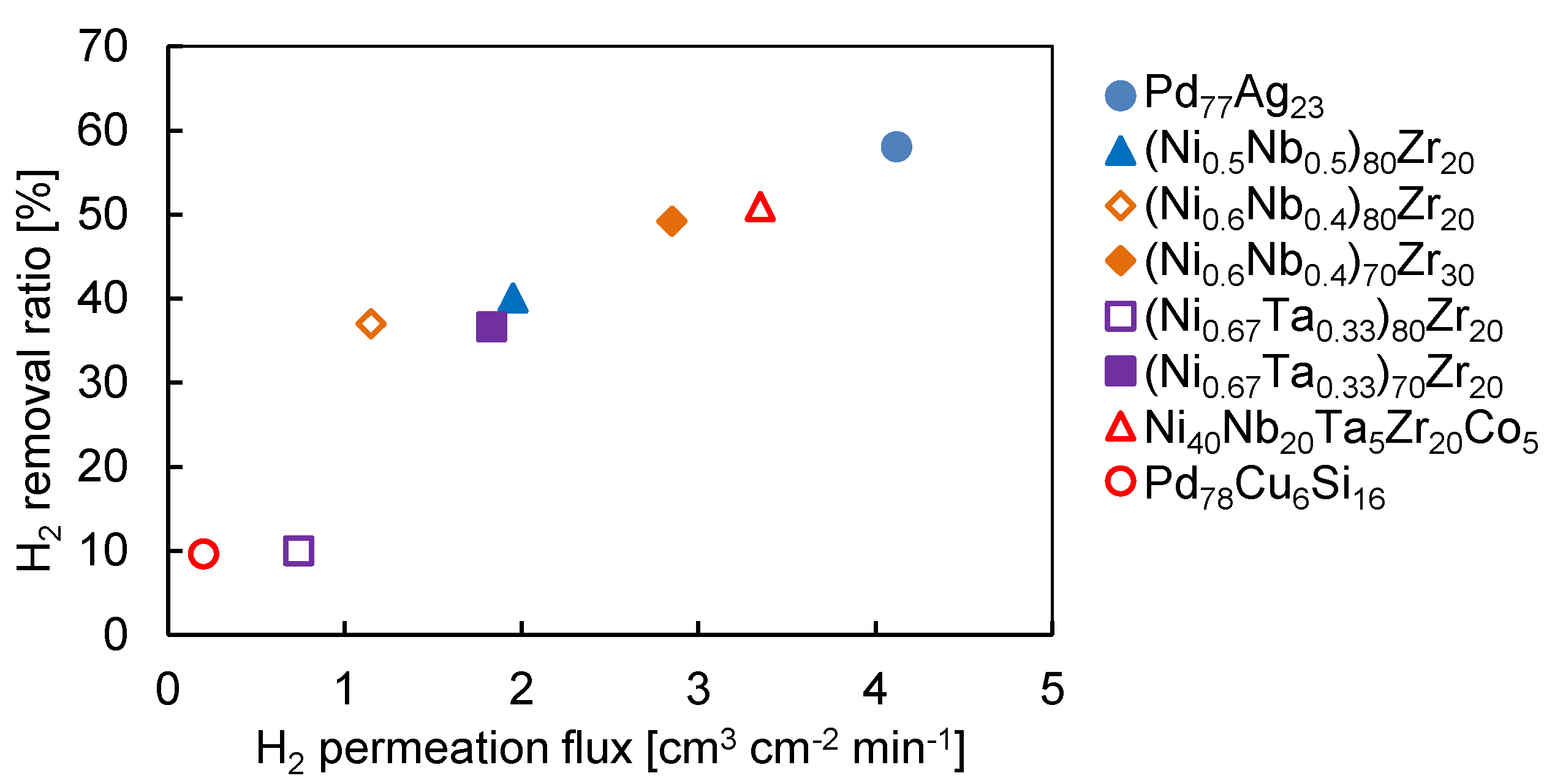

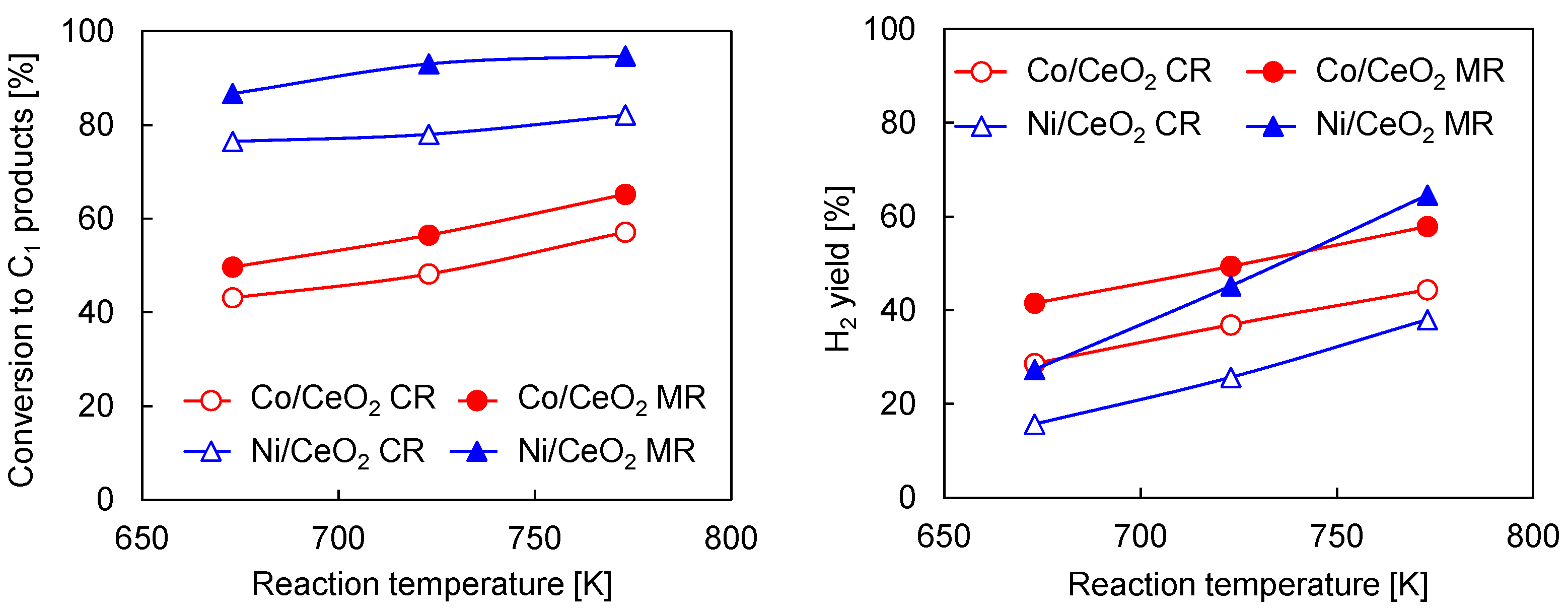

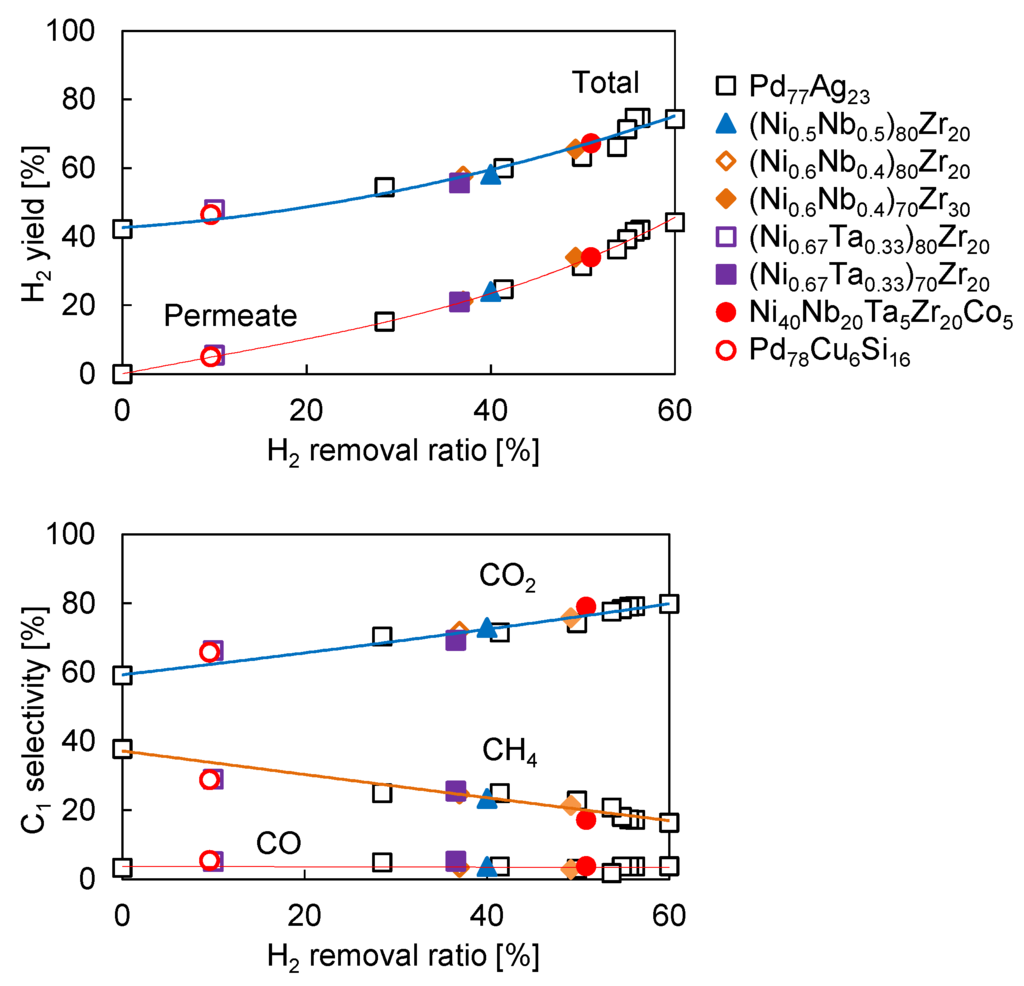

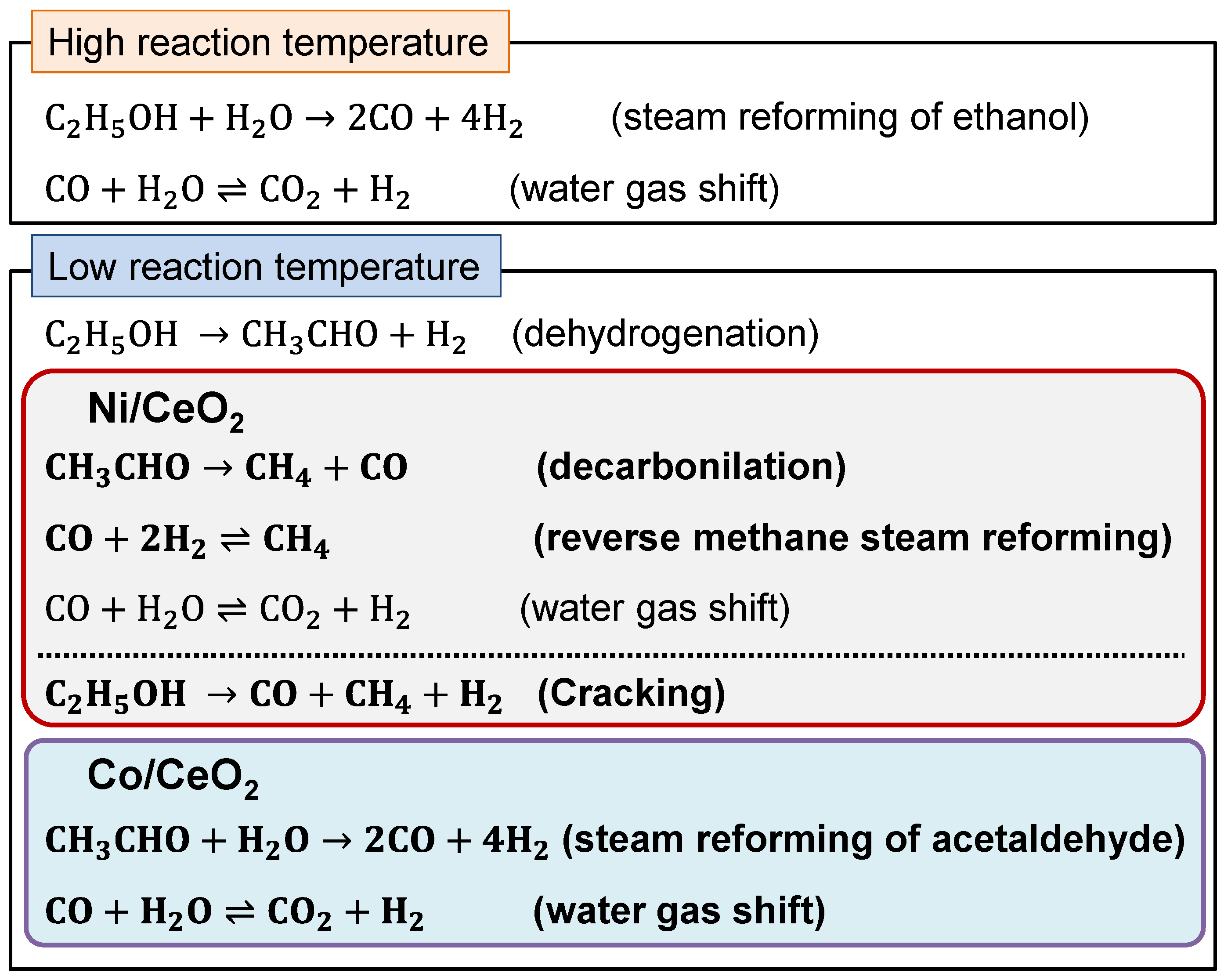

Steam reforming of ethanol in the membrane reactor using the Pd₇₇Ag₂₃ membrane was evaluated in Ni/CeO₂ and Co/CeO₂ at atmospheric pressure. At 673 K, the H₂ yield in the Pd₇₇Ag₂₃ membrane reactor over Co/CeO₂ was found to be higher than that over Ni/CeO₂, although the H₂ yield over Ni/CeO₂ exceeded that over Co/CeO₂ at 773 K. This difference was owing to their reaction mechanism. At 773 K, the effect of H₂ removal could be understood as the equilibrium shift. In contrast, the H₂ removal kinetically inhibited the reverse methane steam reforming at low temperature. Thus, the low methane-forming reaction rate of Co/CeO₂ was favorable at 673 K. The addition of a trace amount of Ru increased the H₂ yield effectively in the membrane reactor, indicating that a reverse H₂ spill over mechanism of Ru would enhance the kinetical effect of H₂ separation. Finally, the effect of membrane performance on the reactor performance by using amorphous alloy membranes with different compositions was evaluated. The H₂ yield was set in the order of H₂ permeation flux regardless of the membrane composition. View Full-Text

Keywords: amorphous alloy membranes; membrane reactor; steam reforming; ethanol

▼ Show Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
