Modeling, Simulation, Optimization, and Experimental Verification of Mercury Removal onto Natural and Sulfur-Impregnated Zeolite Clinoptilolite—Assessment of Feasibility for Remediation of Mercury-Contaminated Soil

Abstract

In this paper, a series of equilibrium and kinetic experiments of Hg(II) removal in a single-stage batch reactor on natural (NZ) and sulfur-impregnated zeolite (SZ) were performed. Batch sorption of Hg(II) on zeolites was studied using different isothermal and kinetic models. It was found to be best described by the Brouers-Sotolongo isotherm and the Vermeulen’s approximation, which were applied in optimizing the mass and contact time in two-stage cross-current and counter-current flow batch reactors based on the desired criterion of 99.9% removal efficiency. Mathematical models for minimizing zeolite mass and contact time were developed and experimentally verified. The optimum minimum masses of NZ and SZ were calculated for all systems, and a significant saving in SZ consumption was found when the counter-current design was applied. The toxicity characteristic leaching procedure (TCLP) was applied to mercury contaminated soil from the Idrija mine region in Slovenia to evaluate potential soil toxicity. The results showed that the soil is extremely contaminated and represents hazardous waste. The addition of zeolites significantly reduced the concentration of leached Hg, with the most satisfactory results obtained with SZ. It was found that at the lowest dose of 0.25 g of SZ, the leached Hg concentration was reduced below the maximum concentration criterion of 0.2 mg/L according to the TCLP test. This study revealed that SZ could be a potential sorbent for in situ remediation of mercury contaminated soil.

1. Introduction

Water is undoubtedly the most important and invaluable natural resource that human utilize from nature. The main source of fresh water for food and industrial production, human consumption, etc., is mostly groundwater [1]. However, groundwater is vulnerable because it is often the target of pollution from natural and, in particular, anthropogenic sources. Some of the anthropogenic activities such as inadequate disposal of solid waste, discharge of insufficiently treated industrial wastewater, use of fertilizers, and mining cause the release of contaminants into the environment. Among the mentioned, mining activities have significant negative impact on the environment. Namely, during the excavation and ore processing, waste material is generated in addition to mine tailings, which are most often disposed of near the mine. Moreover, under the influence of environmental conditions (wind or water runoff), pollution is transported kilometers to more distant places from the source of pollution [1,2,3].

One such example is the Idrija mine in Slovenia, which ceased operations in 1995 due to low mercury content in the ore, and thus lack of profitability, as well as awareness of mercury toxicity effects and the mass poisonings that occurred in Minamata (in 1953, 1956, and 1965) and Iraq (in 1971/1972) [4,5,6]. Despite the fact that mining activities in the Idrija mine have been discontinued for almost 27 years, investigations have shown that the mentioned area is extremely polluted with mercury, which is transported through watersheds to more distant areas and even to the Gulf of Trieste via the Idrijca and Soča-Isonzo rivers [7,8]. Investigations of the mercury content in the vicinity of the Idrija mine revealed that the amount of mercury in the soil in some locations was over 10,000 mg/kg. It was found that mercury is present in the form of cinnabar in the amount of 35–50%, which indicates a large presence of potentially mobile mercury [9,10]. Although the mercury is present mainly in inorganic form, it can also make complexes with organic matter which increases its mobility, or it can abiotically or biotically transform into an organic form. Among the organic mercury compounds, methylmercury is the most toxic because it can be easily uptaken to phytoplankton, representing the starting point for its bioaccumulation and biomagnification within the food web [6,11,12]. Therefore, remediation of the soil in surrounding areas of the Idrija mine in Slovenia is of significant interest in order to prevent or reduce the formation of methylmercury, as well as spreading of pollution and negative impacts on the entire ecosystem. Moreover, remediation is of crucial interest since Teršić et al. [8] estimate the leaching of soluble mercury in the period of at least the next 100 years.

For this purpose, different in situ and ex situ remediation methods could be applied, whereby the first ones based on sorption processes are more easily feasible [13,14,15]. For in situ remediation such as soil sprinkling with a sorbent, it is very important that the mercury is stabilized within the sorbent with minimal or no re-sorption, since sorbent is permanently left in the environment. In case the sorbent is used for ex situ remediation, the saturated sorbent must be disposed of in appropriate manner [13,15]. Regardless of the physico-chemical remediation method, for removal of extremely toxic mercury, the sorbent must have high selectivity and capacity. According to the available literature, the most common sorbents for mercury sorption are activated carbon [16,17,18] and biochar [19,20,21,22,23]. However, due to the high cost of their preparation, they are often replaced by other natural sorbents such as zeolites [24,25,26,27] and clays [28,29,30]. Among them, zeolites as naturally occurring materials are already recognized as highly efficient in environmental remediation. Moreover, they are compatible with nature, i.e., non-toxic, eco-friendly, cost effective, widespread, and easily available. Natural zeolites belong to the group of aluminosilicate minerals with a three-dimensional framework consisting of SiO₄ and AlO₄ tetrahedra. They have a negative charge due to the isomorphous substitution of Si⁴⁺ with Al³⁺, which is compensated by cations, mostly Na⁺, K⁺, Ca²⁺ and Mg²⁺. These cations have the ability to participate in the ion exchange process with heavy metal cations in the surrounding media [31,32]. Additionally, modifications of zeolites usually improve their sorption capacity and make them capable of removing of not only cationic, but also anionic and organic compounds [33].

Since it is well-known that sulfides are the most common scavengers of mercury in nature, materials impregnated with sulfur species are most commonly used as mercury-binding sorbents due to the high affinity of sulfur for mercury according to the HASAB theory (hard and soft Lewis acids and bases) [13]. Recently, various modification methods have been applied, mainly with sodium sulfide [16,17,19,20,21,27,34], potassium sulfide [35], carbon disulfide [19,36,37], dimethyl disulfide [18], sulfuric acid [17,19], sulfur powder [18], sulfur dioxide [18,38], and cystamine hydrochloride [25]. Investigations have shown increased sorption properties of the modified sorbents compared to the starting materials. Namely, the modifications contribute to the change of the sorbent physico-chemical properties as well as the incorporation of sulfide species, which are primarily responsible for the improved mercury capture. Therefore, zeolite impregnated with sulfur species should be an extremely selective and promising sorbent for the Hg species removal due to the high affinity of sulfur for mercury, forming sparingly soluble HgS (K_sp = 3.9∙× 10⁻⁵³) [39]. Its application does not introduce additional contamination into the environment, since sulfide species are natural constituents of the hydrogeological layer, making it environmentally friendly.

Despite the requirement for additional preparation, natural sorbents can be considered as low-cost, as long as their improved sorption capacity can compensate the incurred cost. Furthermore, it is important to consider the treatment efficiency in parallel with the costs involved in the process [40]. Thus, it is necessary to take into consideration sorption optimization in terms of minimizing sorbent mass and contact time while achieving maximum sorption efficiency. In this sense, two batch reactor design approaches that include the processing of equilibrium or kinetic data are used. If the sorption process allows sufficient contact time, as in the case of in situ remediation, then an optimization method based on equilibrium data is applied using the mass balance equation and the appropriate isotherm model. This achieves mass optimization in the so-called single-stage sorption process, which can be effective for remediation of environments loaded with low mercury concentrations. For higher concentrations, a single stage is often not enough to reduce the concentration to the desired level, therefore multi-stage operations are desirable. This requires the application of ex situ remediation methods, which are economically more demanding than those performed in situ. Furthermore, with the increase in the number of stages, both capital and operating costs increase. Therefore, in practical application, it is considered that sorption treatment in more than two stages is not economically profitable [41,42]. Two-stage sorption optimization implies minimization of the sorbent mass required to achieve high sorption efficiency within sufficient contact time, or minimization of contact time with a fixed mass of sorbent in each stage. The first approach enables the maximum sorbent utilization in each stage, i.e., its complete saturation, while the second is preferred for shortening the sorption process when equilibrium is not achieved in a short time. Previous studies have focused on the optimization of mass and contact time separately, taking into account in the first case the maximization of sorbent utilization, while in the second case the minimization of contact time with achieving high efficiency [41,43,44,45].

This paper investigates Hg(II) sorption on natural and sulfur-impregnated zeolite. The obtained equilibrium and kinetic data will be fitted according to selected isotherm and kinetic models. By applying the appropriate isotherm model and mass balance equation, mass optimization in a two-stage cross-current and counter-current flow batch process will be considered together with contact time with the aim of maximum sorbent utilization in the shortest possible operating time. Finally, the results will serve to predict the minimum zeolite mass for remediation of mercury-contaminated soil from the area of the Idrija mine, Slovenia, using a toxicity characteristic leaching procedure.

2. Materials and Methods

2.1. Sample Preparation

Natural zeolite (NZ) clinoptilolite was collected from the Zlatokop deposit (Vranjska Banja, Serbia). The sample was milled and sieved, and a particle size fraction of 0.6 to 0.8 mm was separated. The sample was then washed in ultrapure water and dried at 60 °C. Sulfur-impregnated zeolite (SZ) was prepared by immersing NZ in 1 mol/L Na₂S for 4 h at 150 °C according to a previously published procedure [27]. The systematic physico-chemical characterization of the NZ and SZ samples is described in detail in previously published papers [27,46].

Briefly, the fine distribution of sulfide species over the entire surface of the SZ was confirmed by SEM-EDS analysis, indicating successful impregnation of the NZ surface with sulfide species. The deposition of sulfide species on the inner and outer zeolite surfaces was confirmed by the decrease of the specific surface area of the SZ, which partially block the zeolite pores and channels. XRPD analysis of the NZ revealed that clinoptilolite is the main zeolite mineral (minimum 80%), as well as a slight decrease in the crystallinity of the SZ. Namely, the alkaline medium contributes to desilication of the zeolite structure, an increase in the negative surface charge and basicity of the SZ, which was confirmed by determining the total basicity and zeta potential. The point of zero charge for NZ is established at pH_pzc = 1.84, and for SZ at pH_pzc = 1.31. Above pH_pzc, both zeolites have a negative charge, whereby SZ possesses a more negative one, which is a consequence of the modification and thus shifting pH_pzc towards lower pH values compared to NZ. Therefore, above pH_pzc, an increase in pH will result in a favored electrostatic attraction between the positive Hg(II) species and the negative zeolite surface. The resulting negative lattice charge is compensated by sodium cations, which represent the dominant exchangeable cations. Accordingly, the obtained sulfur-impregnated zeolite poses improved sorption properties toward mercury species due to (I) the presence of sulfur in its structure, (II) a high amount of exchangeable sodium cations, and (III) a significant increase in the negative surface charge [28].

2.2. Sorption Experiments

The Hg(II) stock solution of 14 mmol/L was prepared by dissolving the Hg(NO₃)₂·H₂O salt in ultrapure water of initial pH_o = 2, which was adjusted by adding 1 mol/L HNO₃. The Hg(II) solutions of lower concentrations were prepared by diluting the stock solution. All experiments were performed in batch mode and at optimal conditions, pH_o = 2 to prevent Hg(II) precipitation and a solid/liquid ratio of 10 g/L. The Hg(II) concentrations before and after sorption were determined by using an Atomic Absorption Spectrophotometer PinAAcle 900F (AAS).

2.2.1. Equilibrium Study

Equilibrium sorption experiments were performed in a single-stage batch reactor by mixing 100 mL of Hg(II) solution with initial concentrations in the range 0.460–12.260 mmol/L with 1.0 g of NZ or SZ. The suspensions were placed in glass vials with stoppers and oscillated on an incubator shaker at 230 rpm for 24 h at room temperature. After equilibration, the suspensions were filtered and subjected to residual Hg(II) concentration analysis.

2.2.2. Kinetic Study

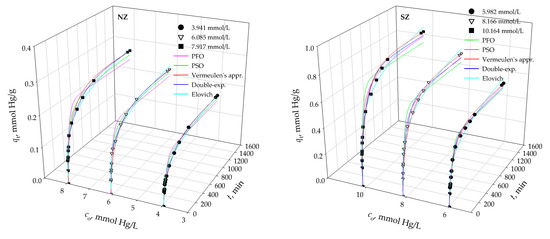

Kinetic sorption experiments were performed in a single-stage batch reactor by mixing 20 g of NZ or SZ with 2 L of Hg(II) solution. The initial concentrations of Hg(II) for sorption on NZ were 3.941, 6.085, and 7.917 mmol/L, and 5.982, 8.166, and 10.164 mmol/L for sorption on SZ. The suspensions were stirred in a 3 L glass beaker at 550 rpm using a centrifugal stirrer with two flexible blades driven by a Heidolph RZR 2041 variable speed motor. Samples were collected at selected time intervals within 24 h, centrifuged, and supernatants were subjected to analysis of the residual Hg(II) concentration. In order not to disrupt the process, the total sampled volume was less than 5–6% of the total suspension volume.

2.2.3. Kinetic Study in the Two-Stages Reactors

Based on the obtained equilibrium and kinetic data described in Section 2.2.1 and Section 2.2.2, the predicted results of mass and contact time optimization of Hg(II) sorption on SZ in two-stage cross-current and counter-current flow batch reactors were experimentally verified.

To verify the predicted results in two-stage cross-current flow batch reactor, initial solutions of Hg(II) in the range 0.046–12.260 mmol/L were prepared and the predicted masses of SZ for each stage were weighed. The zeolite-Hg(II) solution contact time for each stage was defined based on prediction and optimization.

To verify the predicted results in the two-stage counter-current flow batch reactor, initial solutions of Hg(II) in the range 0.460–12.260 mmol/L were prepared for the first stage and intermediate concentrations in the range 0.016–0.520 mmol/L for the second stage. The predicted masses of SZ were weighed and the zeolite-Hg(II) solution contact time for each stage was defined based on prediction and optimization. Initial, intermediate, and final Hg(II) concentrations were determined as previously explained by means of AAS. In order to easily understand the implementation of experiment, the detailed procedure of both experiments is explained in Section 3.3.

2.3. Experiments with a Mercury-Contaminated Soil

2.3.1. Soil Sample Preparation

The soil sample was taken in the area of the Idrija mine, at the location of the Frbejžene trate. The sample was dried at 35 °C to a constant mass, and then ground in a ceramic mortar, homogenized, and sieved through a 2 mm pore size mesh. Thereafter, the sample was additionally pulverized in an agate mill to fine grain size (<0.075 mm) and stored in a polyethylene bag. The total Hg content in the homogenized soil sample was measured after aqua regia digestion for 3 h at 160 °C by using the inductively coupled plasma emission spectrometry (ICP-ES) method.

2.3.2. Leaching Experiments According to the Toxicity Characteristic Leaching Procedure

The toxicity characteristic leaching procedure (TCLP) is the most commonly used single extraction test [47]. The TCLP test involves the extraction of harmful substances from a milled sample with an extraction solution of pH values of 2.88 and 4.93 prepared according to the detailed procedure described [47], by mixing 1 mol/L NaOH and/or 0.1 mol/L glacial acetic acid. The TCLP prescribes a solids/liquids ratio of 1:20, a leaching time of 18 ± 2 h, with shaking at 30 rpm. According to the TCLP procedure, waste material is classified as hazardous if the concentration of leached Hg exceeds the prescribed limit value of 0.2 mg/L.

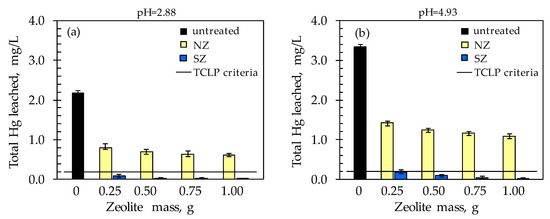

First, leaching of Hg from mercury-contaminated soil was carried out by mixing 15 g of raw soil with 300 mL of extraction solution of pH = 2.88 and pH = 4.93 for 20 h and at 30 rpm. After the end of the extraction time, the soil suspensions were centrifuged, the liquid phase was separated, and one part was taken for the analysis of total leached soluble Hg concentrations using the LECO’s AMA254 Mercury Analyzer, and the residual part was used for the subsequent sorption experiment.

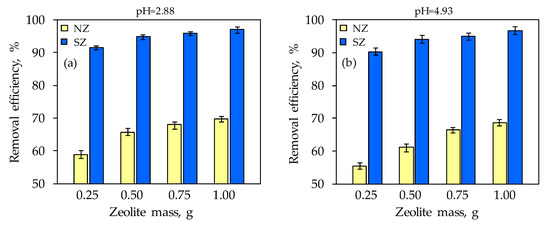

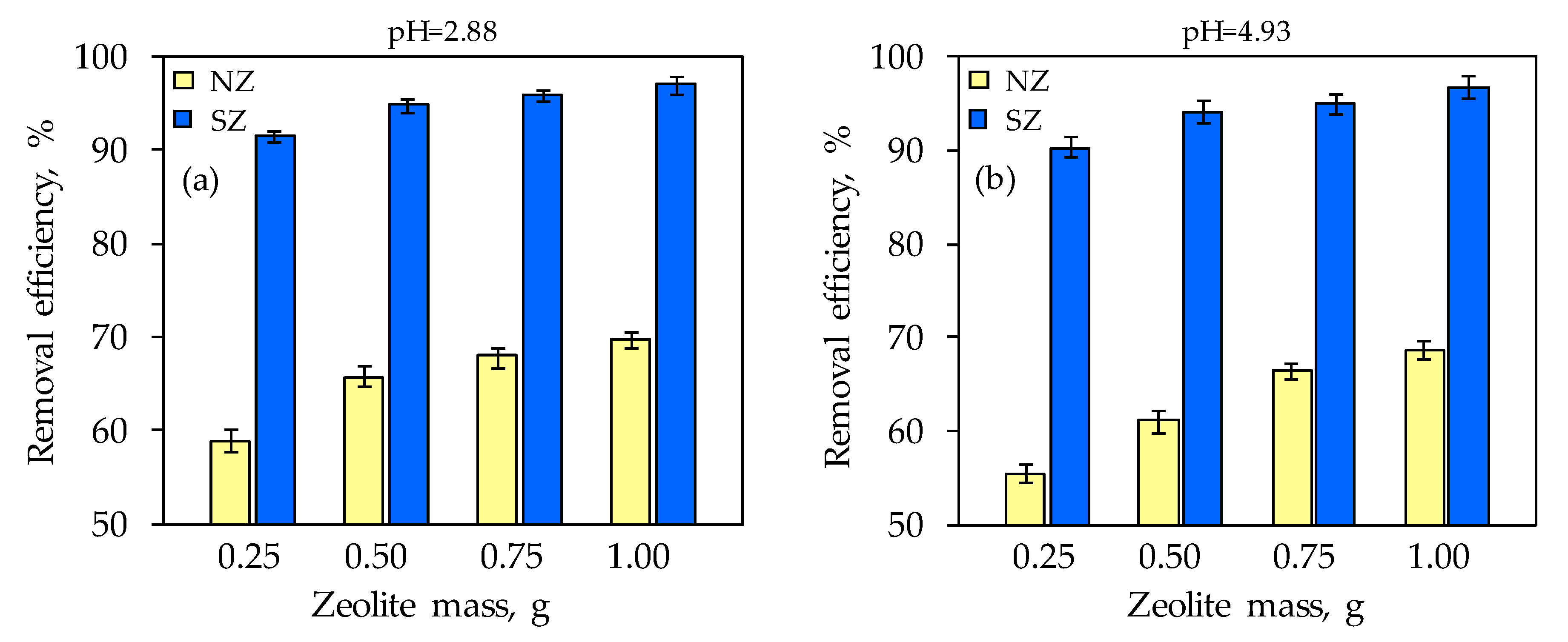

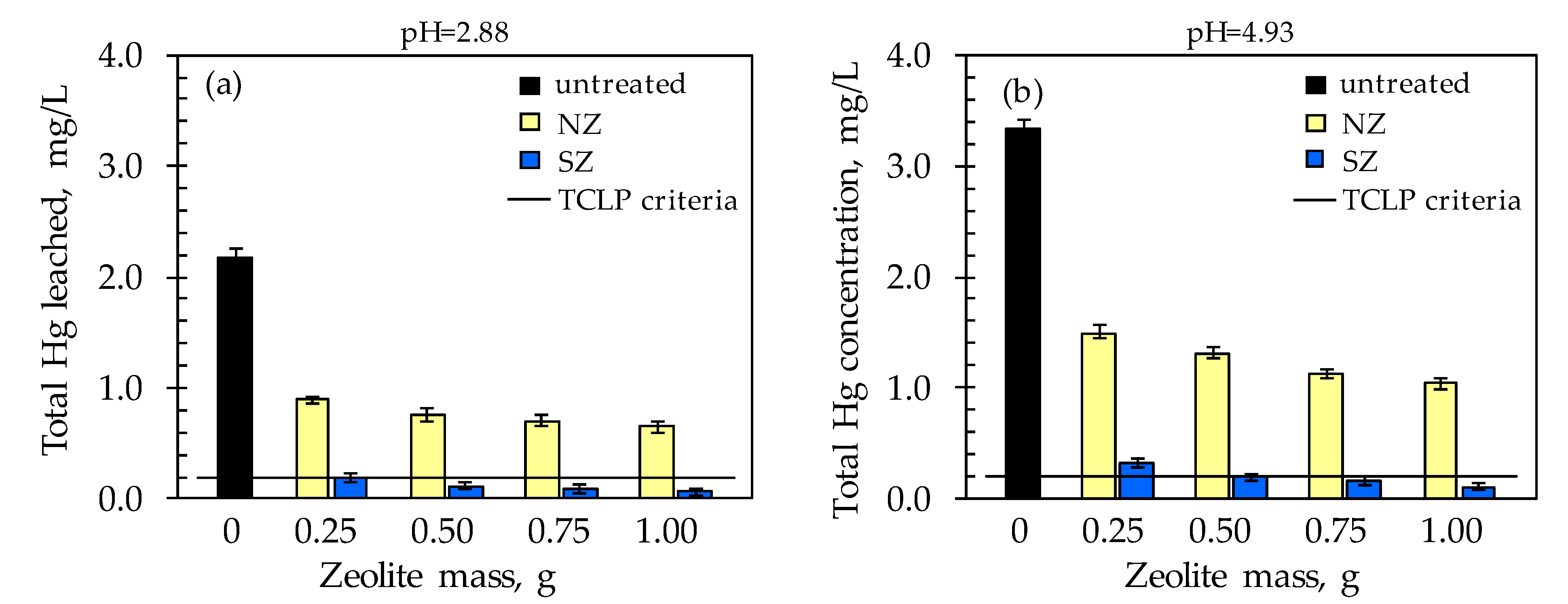

Afterwards, different amounts of NZ and/or SZ ranging from 0.25 to 1.00 g were added to a fixed volume of 50 mL of the separated liquid phase (mercury leachate) obtained at pH = 2.88 and pH = 4.93 and were oscillated on an incubator shaker for 24 h at 230 rpm. This experiment represents a simulation of ex situ remediation.

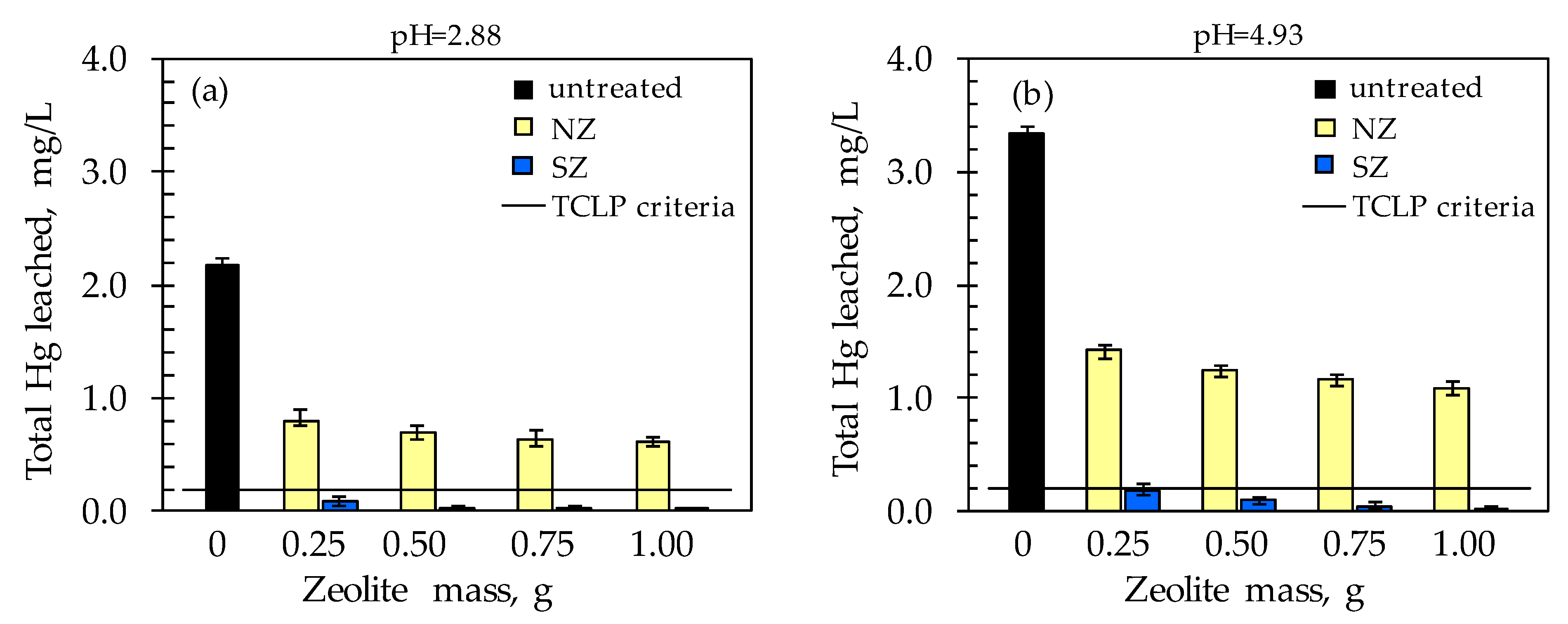

In addition, simultaneous leaching and sorption was carried out in such a way that a mass of 2.5 g of a mercury-contaminated soil was leached with 50 mL of extraction solutions of pH = 2.88 and/or pH = 4.93 (solid/liquid ratio was 1:20) with the addition of NZ and/or SZ in an amount of 10 wt.–40% wt. (0.25–1.00 g) relative to the mass of the soil during 20 h at 30 rpm. As already mentioned, the Hg concentration in the suspension was determined on the LECO’s AMA254 Mercury Analyzer. This experiment represents a simulation of in situ remediation.

2.4. Calculation of Sorption and Leaching Parameters

The amount of mercury sorbed on zeolites in equilibrium, q_e (mmol/g), and sorption efficiency in equilibrium, α_e (%) was calculated using Equations (1) and (2):

$$q_{\mathrm{e}}=\left({\mathrm{c}}_{\mathrm{o}}-c_e\right)\cdot \frac{\mathrm{V}}{\mathrm{m}}$$

(1)

$${\alpha }_{\mathrm{e}}=\frac{\left(c_{\mathrm{o}}-c_{\mathrm{e}}\right)}{c_{\mathrm{o}}}\cdot 100$$

(2)

where c_o and c_e are the initial and equilibrium Hg(II) concentrations (mmol/L), V is the volume of treated solution (L) and m is the mass of zeolite (g).

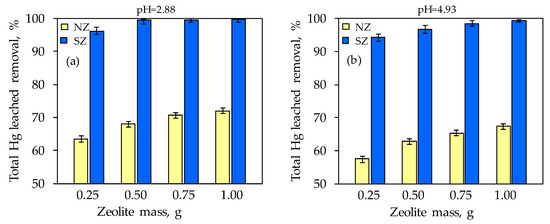

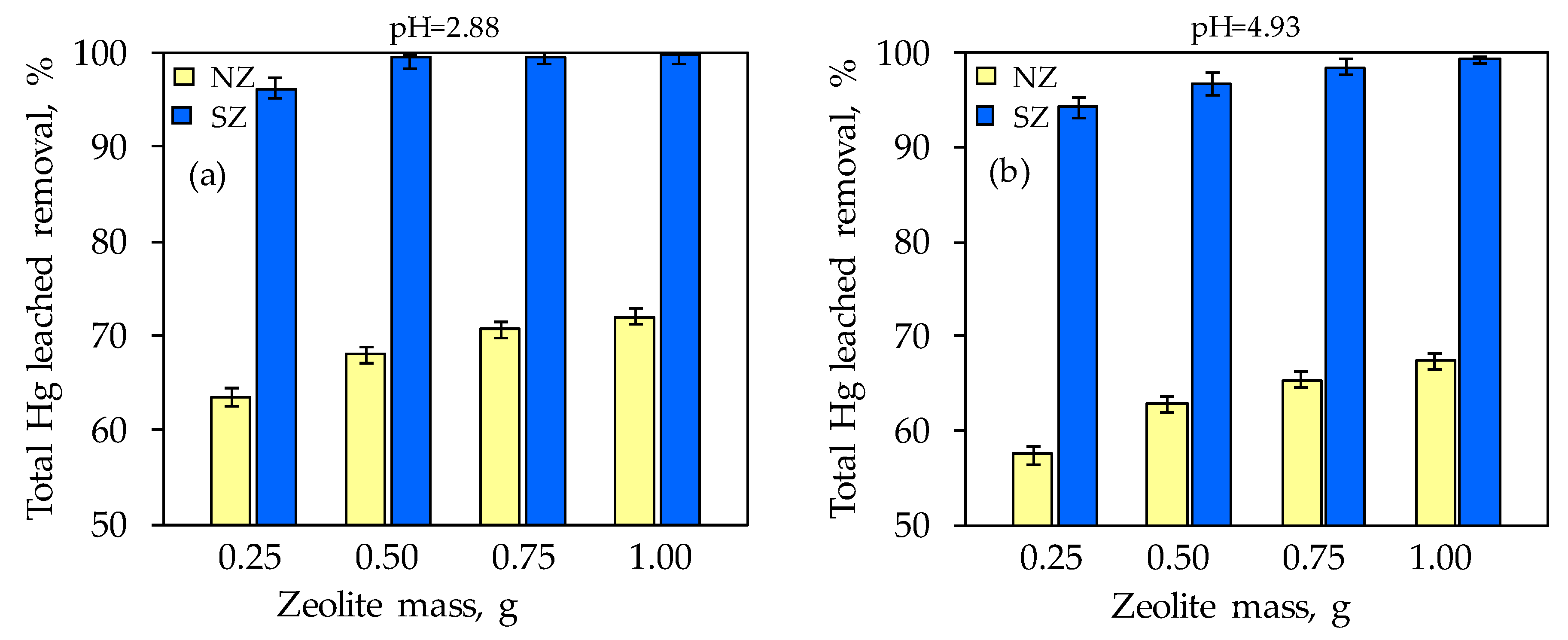

The removal efficiency of leached Hg, α_leach (%) in the zeolite-treated soil samples was calculated according to the Equation (3):

$${\alpha }_{\mathrm{leach}}=\frac{\left(c_{\mathrm{Hg}, \mathrm{raw} \mathrm{soil}}-c_{\mathrm{Hg}, \mathrm{treated} \mathrm{soil}}\right)}{c_{\mathrm{Hg}, \mathrm{raw} \mathrm{soil}}}\cdot 100$$

(3)

where: c_{Hg, raw soil} is the concentration of total leached Hg from the raw soil sample (mg/L) while c_{Hg, treated soil} is the concentration of total leached Hg from the raw soil sample treated with zeolites (mg/L).

2.5. Isotherm and Kinetic Sorption Models

2.5.1. Isotherm Models

The equilibrium in the suspension, zeolite–aqueous solution of Hg(II) can be described by adsorption isotherms whose parameters provide insight into the sorption mechanism and surface properties of zeolite. For this purpose, different two-parameter (Langmuir, Freundlich, Temkin, Dubinin-Raduskevich) and three-parameter (Langmuir-Freundlich, Khan, Brouers-Sotolongo) isotherms were applied as follows [48,49,50,51,52,53,54,55,56,57,58,59,60,61]:

The Langmuir isotherm empirical model describes monolayer sorption on an energetically homogeneous surface with fixed number of active sites that has the same affinity for the sorbates. Non-linear form of isotherm is given by Equation (4) [51,52]:

$$q_{\mathrm{e}}=\frac{q_{\mathrm{m}}\cdot K_{\mathrm{L}}\cdot c_{\mathrm{e}}}{1+K_{\mathrm{L}}\cdot c_{\mathrm{e}}}$$

(4)

where q_m is the maximum sorption capacity obtained from the model and K_L is the Langmuir constant related to the sorbent’s affinity for metal cations (L/mmol).

The value of K_L is connected with the dimensionless constant, the Langmuir separation factor, R_L according to the Equation (5) [48,49,50]:

$$R_{\mathrm{L}}=\frac{1}{1+K_{\mathrm{L}}\cdot c_{\mathrm{o}}}$$

(5)

R_L values indicate the type of sorption: unfavorable (R_L > 1), linear (R_L = 1), favorable (0 < R_L < 1), and irreversible (R_L = 0).

The Freundlich isotherm empirical model assumes multilayer sorption on a heterogeneous surface with various sorts of active sites and is given by non-linear Equation (6) [53]:

$$q_{\mathrm{e}}=K_{\mathrm{F}}\cdot c_{\mathrm{e}}{}^{1/n_{\mathrm{F}}}$$

(6)

where K_F is the Freundlich constant (L/mmol) and n_F is the constant indicative to the intensity of sorption and heterogeneity of the surface. A higher value of n_F indicates a more heterogeneous sorbent surface, and for n_F > 1 sorption is favorable [47,48,49].

The Temkin isotherm model assumes that the heat of sorption decreases linearly with increasing coverage taking into consideration sorbent–sorbate interactions. The non-linear form of the Temkin isotherm as well as the heat of sorption is given by the following Equations [50,54,55]:

$$q_{\mathrm{e}}=\frac{R\cdot T}{{\beta }_{\mathrm{T}}}\cdot \ln K_{\mathrm{T}}\cdot c_e$$

(7)

$$B_T=\frac{R\cdot T}{{\beta }_T}$$

(8)

where K_T is the equilibrium binding constant (L/mmol), β_T is the Temkin constant, R is the gas constant [8.314·10⁻³ kJ/(K mol)], T is the absolute temperature (K), and B_T is related to the heat of sorption (kJ/mol).

The Dubinin-Radushkevich isotherm empirical model describes sorption mechanism with Gauss energy distribution onto a heterogeneous surface based on potential theory. The non-linear form as well as meaning of ε and E is given by Equations (9)–(11) [56,57,58]:

$$q_{\mathrm{e}}=q_{\mathrm{m}}\cdot {\mathrm{e}}^{-K_{\mathrm{D}\mathrm{R}}\cdot {\epsilon }^2}$$

(9)

$$\epsilon =R\cdot T\cdot \mathrm{l}\mathrm{n}\left(1+\frac{1}{c_{\mathrm{e}}}\right)$$

(10)

$$E=\frac{1}{\sqrt{2K_{\mathrm{R}\mathrm{D}}}}$$

(11)

where K_DR is the Dubinin-Raduskevich isotherm constant (mol²/kJ²), ε is the Polany potential (kJ/mol), and E is the mean free sorption energy (kJ/mol). Distinguishing the nature of the sorption process could be predicted based on the E value. If E < 8 kJ/mol, the sorption is of a physical nature, for 8 < E < 16 kJ/mol, the sorption takes place by ion exchange, while for E > 8 kJ/mol, the sorption is of a chemical nature.

The Langmuir-Freundlich isotherm empirical model is derived from Langmuir and Freundlich isotherm which describes sorption on a heterogeneous surface and non-linear Equation (12) is given as follow [48,49,50]:

$$q_{\mathrm{e}}=\frac{q_{\mathrm{m}}\cdot {\left(K_{\mathrm{L}\mathrm{F}}\cdot c_{\mathrm{e}}\right)}^{{\beta }_{\mathrm{L}\mathrm{F}}}}{1+{\left(K_{\mathrm{L}\mathrm{F}}\cdot c_{\mathrm{e}}\right)}^{{\beta }_{\mathrm{L}\mathrm{F}}}}$$

(12)

where K_LF is the Langmuir-Freundlich isotherm constant (L/mmol) and exponent β_LF is the heterogenous parameter with value in the range 0–1. Higher parameter values indicate a higher degree of heterogeneity. Additionally, if β_LF = 1, the model has the form of a Langmuir isotherm.

The Khan isotherm model describes sorption of bi-sorbate onto sorbent and is given by Equation (13) [48,49,50,59,60]:

$$q_{\mathrm{e}}=\frac{q_{\mathrm{m}}\cdot K_{\mathrm{K}}\cdot c_{\mathrm{e}}}{{\left(1+K_{\mathrm{K}}\cdot c_{\mathrm{e}}\right)}^{{\beta }_{\mathrm{K}}}}$$

(13)

where K_K is the Khan isotherm constant (L/mmol) and β_K is the Khan isotherm exponent.

The Brouers-Sotolongo isotherm model describes sorption on a heterogeneous surface that has a fixed number of active sites of equal energy. The mathematical form represents a deformed exponential function as follows [50,60,61]:

$$q_{\mathrm{e}}=q_{\mathrm{m}}\cdot {\left[1-{\mathrm{e}}^{\left(-K_{\mathrm{B}\mathrm{S}}\cdot c_{\mathrm{e}}^{{\beta }_{\mathrm{B}\mathrm{S}}}\right)}\right]}^{}$$

(14)

where K_BS is the Brouers-Sotolongo isotherm constant (L/mmol) and β_BS is the parameter related with energy distribution and surface heterogeneity.

2.5.2. Kinetic Models

In order to discern the rate-controlling step among mass transfer, diffusion or chemical reactions, different reaction, and diffusion kinetic models are applied to test experimental data.

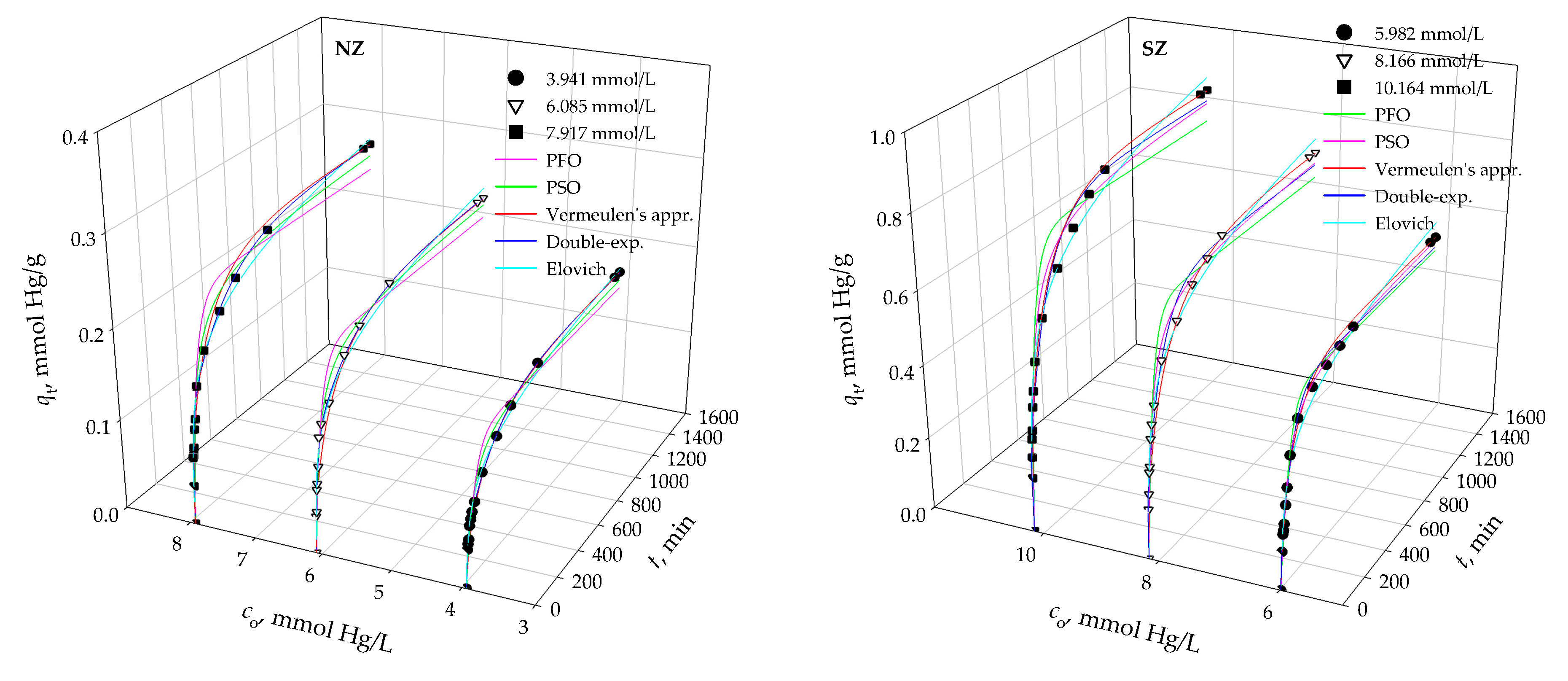

Three reaction kinetic models, pseudo-first order, PFO (Lagergren), pseudo-second order, PSO (Ho), and Elovich model are most commonly used to confirm whether a chemical reaction is the limiting step. The non-linear equation of pseudo-first order is expressed as follows [62,63]:

$$q_{\mathrm{t}}=q_{\mathrm{m}}\cdot (1-{\mathrm{e}}^{-k_1\cdot t})$$

(15)

where q_t is the amount of sorbate sorbed on sorbents in time t (mmol/g) and k₁ is the rate constant of the PFO (1/min) and t is the time (min).

The non-linear form of the pseudo-second order is represented by the Equation (16) [62,63]:

$$q_{\mathrm{t}}=\frac{k_2\cdot q_{\mathrm{m}}^2\cdot t}{1+k_2\cdot q_{\mathrm{m}}\cdot t}$$

(16)

in which k₂ is the rate constant of the PSO [g/(mmol∙min)].

The Elovich model was originally employed to describe the chemisorption of gases on a solid surface. The model describes the predominantly chemical sorption of sorbate on the heterogeneous surface of the sorbent. The non-linear form of the Elovich model is represented by the Equation (17) [64,65,66]:

$$q_{\mathrm{t}}=\frac{1}{{\beta }_E}\cdot \ln \left(1+{\alpha }_{\mathrm{E}}\cdot {\beta }_{\mathrm{E}}\cdot t\right)$$

(17)

where α_E is the initial chemisorption rate [mmol/(g·min)] and β_E is related to the surface coverage (g/mmol).

Since zeolites are micro and mesoporous materials, sorption is often limited by mass transfer to active sites within the zeolite particle through cavities and pores. The rate-limiting step in well-stirred systems is most commonly attributed to film or intraparticle diffusion since the resistance to mass transfer from the bulk to the particle surface has no effect. Whether film or intraparticle diffusion is the slowest step in the overall sorption process can be determined by applying different diffusion kinetic models.

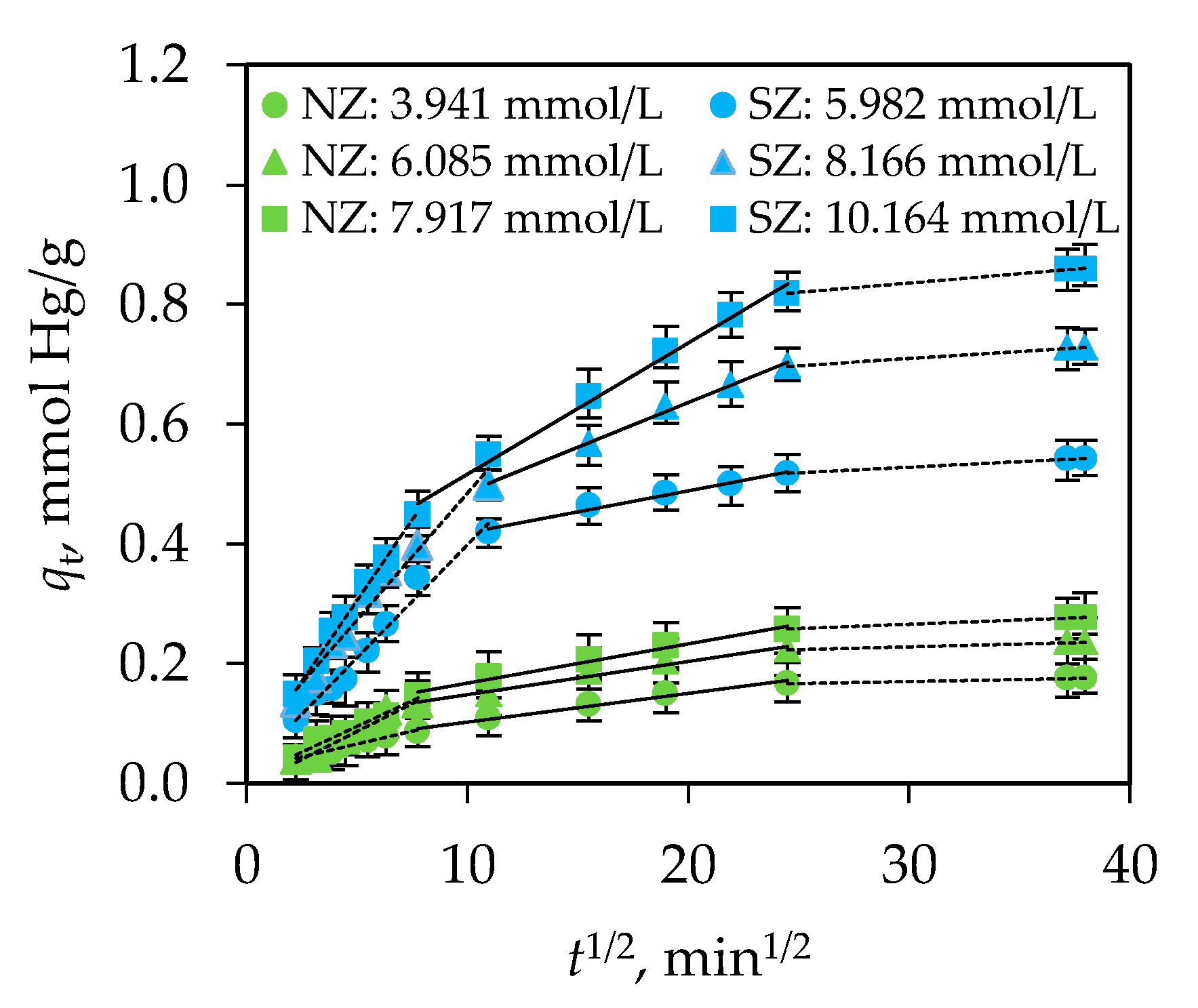

The film or intraparticle diffusion as the sorption rate-limiting step can be established using the linear equation of the Weber-Morris model as follows [67]:

$$q_{\mathrm{t}}=k_{\mathrm{W}\mathrm{M}}\cdot t^{1/2}+I$$

(18)

where k_WM is the Weber-Morris diffusion constant [mmol/(g∙min^1/2)] and I represent the thickness of the boundary layer (mmol/g).

In the case that I = 0, film diffusion is the only rate-limiting step, otherwise both film and intraparticle diffusion play a role in mass transfer. The contribution of film or intraparticle diffusion can be calculated according to the Equation (19) [67]:

$$RC=\frac{I}{q_{\mathrm{e}}}\cdot 100$$

(19)

where RC represents the relative coefficient expressed in %. Lower RC values indicate that film diffusion has a lower contribution in the overall mass transfer process.

By calculating the Weber-Morris diffusion constant, k_WM from Equation (18), the diffusion coefficient D_WM (cm²/min) can be calculated using the following equation:

$$D_{\mathrm{W}\mathrm{M}}=\pi \cdot \left(\frac{d_{\mathrm{p}}\cdot k_{\mathrm{W}\mathrm{M}}}{12\cdot q_{\mathrm{e}}}\right)$$

(20)

where d_p is the sorbent particle diameter (cm).

The two-step sorption kinetics are described by a Double-exponential non-linear model as follows [68,69,70]:

$$q_{\mathrm{t}}=q_{\mathrm{m}}-\frac{B_1}{m_{\mathrm{z}}}\cdot {\mathrm{e}}^{\left(-k_{B_1}\cdot t\right)}-\frac{B_2}{m_{\mathrm{z}}}\cdot {\mathrm{e}}^{\left(-k_{B_2}\cdot t\right)}$$

(21)

where B₁ and B₂ are the concentrations of the sorbed sorbate in the rapid and slow steps (mmol/L), while k_B1 and k_B2 are the rapid and slow rate constants (1/min), respectively.

The overall sorption rate, r in [mmol/(g∙min)] is a sum of the rapid, r₁ and slow, r₂ steps [68,69,70]:

$$r=r_1+r_2=\frac{B_1}{m_{\mathrm{z}}}\cdot k_{B_1}+\frac{B_2}{m_{\mathrm{z}}}\cdot k_{B_2}$$

(22)

Additionally, the proportion of sorbate sorbed in rapid (RF) and in slow (SF) steps expressed in percentage can be calculated as follows [68,69,70]:

$$RF=\left(\frac{B_1}{B_1+B_2}\right)\cdot 100$$

(23)

$$SF=\left(\frac{B_2}{B_1+B_2}\right)\cdot 100$$

(24)

The Vermeulen’s approximation implies intraparticle diffusion as the rate limiting step and is represented by Equation (25) [71]:

$$q_{\mathrm{t}}=q_{\mathrm{m}}\cdot {\left[1-{\mathrm{e}}^{\left(\frac{4\cdot D_{\mathrm{V}}\cdot {\pi }^2\cdot t}{r_{\mathrm{p}}^2}\right)}\right]}^{\frac{1}{2}}$$

(25)

where D_V is the intraparticle diffusion coefficient (cm²/min) and r_p is the sorbent particle radius (cm).

2.6. Statistical Data Analysis

The fitting of the experimental data to the isotherm and kinetic models by non-linear regression analysis was performed using the mathematical tool MathCad 14, except for the Weber-Morris model, which is originally linear. Non-linear forms of the model were used, since it was observed that the transformation to a linear form increases the parameter estimation error [43].

In order to compare the applicability of each model, the linear, R² and non-linear, r² correlation coefficients were used in addition to two error functions, non-linear chi-square test (χ²) and root mean square error (RMSE) [72]:

$${\mathsf{\chi }}^2={\displaystyle \sum _{i=1}^n\frac{{\left(q_{\mathrm{m}}-q_{\mathrm{e}}\right)}^2}{q_{\mathrm{m}}}}$$

(26)

$$\mathrm{R}\mathrm{M}\mathrm{S}\mathrm{E}=\sqrt{{\displaystyle \sum _{i=1}^n\frac{{\left(q_{\mathrm{m}}-q_{\mathrm{e}}\right)}^2}{n}}}$$

(27)

Smaller error function values are an indication of better correlation between experimental, q_e and calculated, q_m values. Quantitative estimation of the fit accuracy is crucial to select the best model since the best fitting model will be used in the design of the two-stage batch reactors.

3. Results and Discussion

3.1. Modeling of Equilibrium Data

The equilibrium in an aqueous solution of the Hg(II)-zeolite system is described by different two-parameter (Langmuir, Freundlich, Temkin, Dubinin-Raduskevich) and three-parameter (Langmuir-Freundlich, Khan, Brouers-Sotolongo) isotherm models, whose parameters will provide insight into the sorption mechanism and surface properties of the zeolite as well as determining the maximum sorption capacity. To predict sorption under other conditions, such as different solid/liquid ratios in single-stage or the design of two-stage systems, requires the implementation of an isotherms model testing procedure based on which the best fitting isotherm will be selected. Accordingly, the comparison of experimental data and predicted isotherms using non-linear regression analysis for Hg(II) sorption onto NZ and SZ is depicted in Figure 1. The calculated isotherms parameters, the non-linear regression coefficient, r², and the error functions are listed in

Table 1. Two and three parameter isotherm models constants and error analysis for Hg(II) sorption onto NZ and SZ.

Isotherm Model	Parameters	NZ	SZ
	qe (mmol/g)	0.282	1.024
Langmuir	qm (mmol/g) KL (L/mmol) RL r2 RMSE χ2	0.325 0.761 0.279 0.996 6.322∙10−3 4.839∙10−5	1.227 1.710 0.168 0.998 0.026 1.669∙10−3
Freundlich	KF (L/mmol) nF r2 RMSE χ2	0.138 2.760 0.959 0.018 2.863∙10−3	0.673 2.848 0.960 0.102 0.018
Temkin	KT (L/g) βT BT (kJ/mol) r2 RMSE χ2	12.157 40.586 0.061 0.983 0.011 2.269·10−4	31.882 11.643 0.213 0.971 0.094 2.131·10−4
Dubinin-Radushkevich	qm (mmol/g) E (kJ/mol) KDR (mol2/kJ) r2 RMSE χ2	0.264 1.623 0.190 0.940 0.025 1.640∙10−3	1.017 2.711 0.068 0.991 0.041 8.334∙10−4
Langmuir-Freundlich	qm (mmol/g) KS (L/mmol) βS r2 RMSE χ2	0.352 0.626 0.762 0.997 4.940∙10−3 2.128∙10−4	1.124 2.466 0.911 0.999 0.015 3.205∙10−4
Khan	qm (mmol/g) KK (L/mmol) βK r2 RMSE χ2	0.271 1.001 0.929 0.995 6.044∙10−3 2.169∙10−4	1.010 1.326 0.847 0.994 9.012∙10−3 4.091∙10−4
Brouers-Sotolongo	qm (mmol/g) KBS (L/mmol) βBS r2 RMSE χ2	0.297 0.627 0.738 0.998 3.492∙10−3 6.552∙10−5	1.025 1.558 0.950 0.999 0.011 4.776∙10−4

.

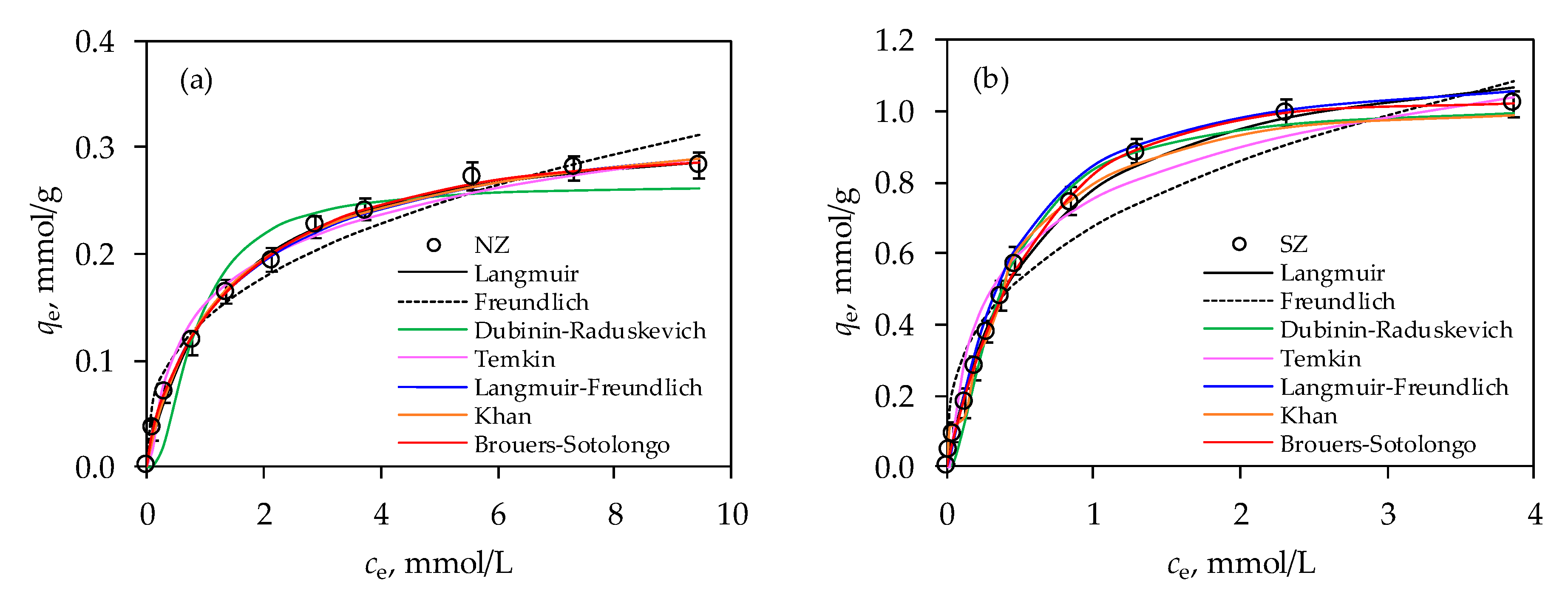

To begin with, it can be seen from Figure 1a,b that the sorption capacity was achieved in the amount of 0.282 mmol Hg/g for the NZ and 1.024 mmol/g for the SZ. The 3.6 times higher sorption capacity of SZ compared to NZ firstly justifies the sulfur impregnation procedure, and then also indicates its possible application for remediation purposes.

Several researchers have reported that impregnation of sorbents with sulfur species contributes to the improvement of Hg sorption. Thus, Cai et al. carried out the modification of activated carbon with KOH and SO₂ at 600–900 °C, whereby the produced KOH-SO₂-activated carbon showed a sorption capacity in the range 0.210–0.360 mmol Hg/g [38]. Asasaian and Kaghazchi fabricated three types of sulfurized activated carbon using dimethyl disulfide, elemental sulfur, and sulfur dioxide at 30–700 °C. The optimal sorption kinetic results obtained at different temperatures of the three sorbents were 1.087 mmol/g, 0.702 mmol/g, and 0.869 mmol/g, respectively [18]. Al-Ghouti et al. calculated that the maximum sorption capacity obtained from the Langmuir isotherm for sulfur-modified roasted date pits was 1.39 mmol Hg/g, which is comparable to the starting material, roasted date pits [36]. Gupta et al. obtained a maximum sorption capacity of 0.755 mmol Hg/g on sulfur functionalized carbon nanotubes using CS₂ as a modifying agent [37]. The maximum sorption capacity of 0.025 mmol Hg/g of Na₂S-modified biochar was found by Tan et al. [20]. Wajima et al. reported a sorption capacity of 0.856 mmol Hg/g at 25 °C on sulfur-impregnated coal obtained by modification with K₂S at 800 °C [35]. Abdelouahab-Reddam et al. performed the impregnation of activated carbon with different doses of Na₂S at 25 and 140 °C and determined the sorption capacity in the range 0.018–0.02 mmol Hg/g [17]. Zhu et al. found a noticeable improvement in the sorption capacity of sulfur-modified chitosan, which is 0.935 mmol Hg/g [73]. Investigation by Gebremedhin-Haile et al. showed that treatment of zeolite with cysteinamine hydrochloride and cysteinamine dihydrochloride results in a sorption capacity in the range of 0.011–0.051 mmol Hg/g [25]. A comparison of the sorption capacities of sulfur-modified sorbents indicated that a relatively simple modification of the natural zeolite proposed in this paper achieves a significant sorption capacity towards Hg. The obtained sorption capacity is comparable to those obtained on sulfur-modified activated carbons. The realization that the preparation of activated carbon requires high temperatures, and thus increases the cost of the entire preparation procedure of sulfur-impregnated sorbents, justifies the modification of natural zeolite.

Furthermore, for the lowest initial concentration of 0.460 mmol/L, 76% of Hg(II) was removed on NZ and 96% on SZ. It is clear that for c_o > 0.460 mmol/L, it will be necessary to conduct the sorption process in two stages for achieving the removal efficiency of 99.9%, while for lower concentrations a single stage will be quite acceptable. These results are valuable in the preliminary assessment of determining the number of batches in reactor design if the remediation is carried out in the ex situ mode or for the assessment of the minimum zeolite mass in the case of in situ remediation. Accurate answers can be obtained by analyzing the experimental data according to the isotherm models as follows.

According to the calculated values of the non-linear regression correlation coefficients, r² shown in Table 1, it can be seen that all isotherm models could be applicable to the experimental results, since the minimum value of r² is 0.940. Therefore, apart from r², the q_m parameter and error analysis will be taken into account for estimation of fitting the experimental data with those of models. For the two-parameter models, the highest value of r² was obtained for the Langmuir model for both NZ and SZ, while the best agreement of the parameters q_e and q_m was obtained for the Dubinin-Raduskevich isotherm. Therefore, all two-parameter isotherms can contribute to the assessment of the sorption mechanism and surface properties of zeolites. The value of the Langmuir parameter, K_L is higher for SZ, compared to NZ, indicating a higher affinity of SZ towards Hg(II). This was further confirmed by the lower R_L value for SZ than for NZ, whereby both values were in the range 0 < R_L < 1 indicating favorable sorption of Hg(II) onto zeolites. Since there are no similarities between experimental and calculated sorption capacity, this indicates that sorption of Hg(II) onto both zeolites did not occur in the monolayer. Thus, according to the Freundlich isotherm, sorption could be multilayer, where SZ showed greater surface heterogeneity and higher sorption intensity for Hg(II) than NZ. For both zeolites, the value of n_F was higher than 1, which indicates a favored sorption process, which is in agreement with the Langmuir isotherm. Higher values of equilibrium binding constant were obtained from the Temkin model, K_T for SZ compared to NZ, indicating its greater selectivity towards Hg(II) ions, which is evident from the 3.6-fold higher sorption capacity. Furthermore, this model can be helpful for elucidating the nature of the sorption process based on the heat of sorption. In the case of physical sorption, the activation energy is no higher than 4.184 kJ/mol (1 kcal/mol), while in the case of chemical sorption it is above 41,840 kJ/mol (10 kcal/mol) [74,75]. Between these two values, physical and chemical sorption is included. Thus, the values of the parameter B_T (Table 1) suggest that the sorption of Hg(II) onto both NZ and SZ is of a physical nature. The Dubinin-Raduskevich isotherm is very useful for distinguishing the nature of the sorption process based on the E value. The value of E for both zeolites was <8 kJ/mol which is attributed to the physical sorption of Hg(II) onto zeolites.

In order to obtain better data agreement, three-parameter isotherms were also applied. Langmuir-Freundlich isotherm model fits well with the experimental data based on r² and error functions than that of Khan model, indicating the higher heterogeneity surface of SZ compared to the NZ. The value of q_m for both models differs in relation to q_e, which shows that these isotherms are not suitable for description of experimental data.

The Brouers-Sotolongo isotherm model is the most appropriate based on q_m, r², and error functions, compared to all applied models, suggesting that Hg(II) sorption on both NZ and SZ occurs on a heterogeneous surface which possess a fixed number of active sites with equal energy. Since the Brouers-Sotolongo isotherm showed the best fit, it can be applied to predict the optimal zeolite mass to achieve the desired removal efficiency in a single or two-stage batch reactor using the mass balance equation.

In a well-mixed system with a certain volume of Hg(II) solution, V of the c_o initial concentration is contacted with a certain zeolite mass for sufficient time to reach equilibrium, then the amount of Hg(II) removed from the solution must equal the amount of Hg(II) sorbed on the zeolite. Thereby, the mass balance equation at equilibrium states as follows [42]:

$$V\cdot \left(c_{\mathrm{o}}-c_{\mathrm{e}}\right)=m\cdot \left(q_{\mathrm{e}}-q_{\mathrm{o}}\right)$$

(28)

Since fresh zeolite is used, q_o = 0, then Equation (28) can be rearranged as follows:

$$q_{\mathrm{e}}=\left(c_{\mathrm{o}}-c_{\mathrm{e}}\right)\cdot \frac{V}{m}$$

(29)

The required mass to achieve the desired efficiency can be predicted by inserting the Brouers-Sotolongo isotherm Equation (14) into Equation (29) as follows:

$$m=\frac{\left(c_{\mathrm{o}}-c_{\mathrm{e}}\right)\cdot V}{q_{\mathrm{m}}\cdot \left[1-e^{\left(-K_{\mathrm{BS}}\cdot c_{\mathrm{e}}^{{\beta }_{\mathrm{BS}}}\right)}\right]}$$

(30)

The required mass of NZ and SZ for 99.9% removal efficiency at a constant volume of 1 L in a single-stage system for the same selected initial concentrations at which the experiment was carried out at S/L = 10, are listed in

Table 2. Predicted NZ and SZ masses for 99.9% Hg(II) removal efficiency in a single-stage system for selected initial Hg(II) concentrations at a constant volume of 1 L.

co [mmol/L]	ce × 102 [mmol/L]	NZ	SZ
		mtotal [g]	mtotal [g]
0.460	0.046	717.30	426.27
1.000	0.100	879.87	443.40
1.950	0.195	1049.39	458.90
3.000	0.300	1176.15	469.39
4.060	0.406	1274.55	477.04
5.150	0.515	1357.89	483.25
6.140	0.614	1423.17	487.98
8.280	0.828	1541.92	496.34
10.100	1.010	1626.65	502.14
12.260	1.226	1714.15	508.04

.

It is worth noting again that at c_o = 0.460 mmol Hg/L, Hg(II) removal efficiency of 76% was achieved on NZ and 96% on SZ at S/L = 10 g/L. For the same initial concentration, a 72 times higher mass of NZ, i.e., 43 times higher mass of SZ, is required to achieve the removal efficiency of 99.9%. For higher concentrations, the required mass of both zeolites increases drastically, especially for NZ. At this point, the question of the economic sustainability of the performance of a single-stage system in order to achieve high removal efficiency is clearly raised.

Hence, mass optimization using a two-stage batch reactor can enhance the zeolite efficiency, minimize its total amount, and make the process more economic. The schematic representation of the two-stage cross-current flow batch reactor is shown in Figure 2.

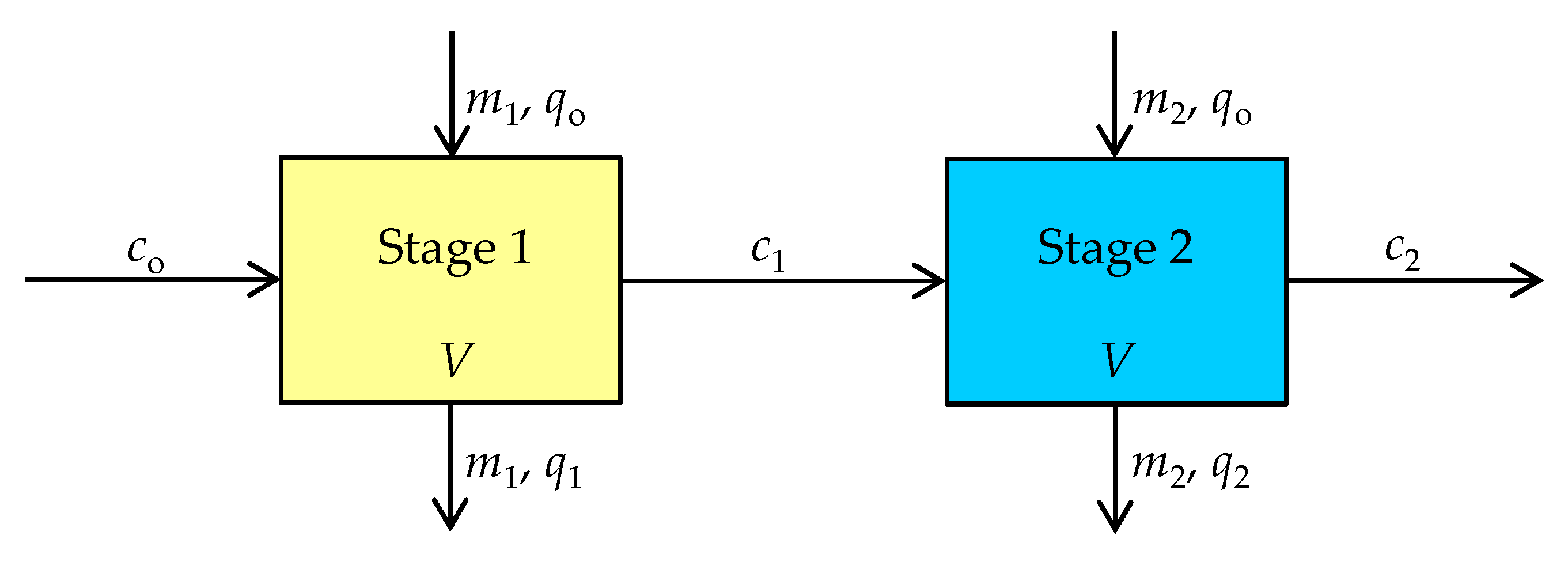

In a two-stage system, each stage is analyzed in the same way, whereby the same volume of solution is treated in each stage with different zeolite mass, m₁ and m₂. The amount of fresh zeolite was used in each stage to reduce the Hg(II) in suspension from c_o to c₁ in the first stage and from c₁ to c₂ in the second stage, thus the quantity of sorbed Hg(II), q, increases from q_o to q₁ in the first stage, and from q_o to q₂ in the second stage. The Hg(II) uptake process can be represented by a mass balance equation for each stage [42]:

$$V\cdot \left(c_{\mathrm{o}}-c_1\right)=m_1\cdot \left(q_1-q_{\mathrm{o}}\right)$$

(31)

$$V\cdot \left(c_1-c_2\right)=m_2\cdot \left(q_2-q_{\mathrm{o}}\right)$$

(32)

When fresh zeolite is used at each stage (q_o = 0), the quantity of Hg(II) sorbed on zeolite for desired removal efficiency in the first and second stages can be obtained by rearranging Equations (31) and (32) as follows:

$$q_1=\frac{V}{m_1}\cdot \left(c_{\mathrm{o}}-c_1\right)$$

(33)

$$q_2=\frac{V}{m_2}\cdot \left(c_1-c_2\right)$$

(34)

Since the Hg(II) sorption on NZ and SZ follows the Brouers-Sotolongo isotherm, the zeolite mass required to achieve the desired removal efficiency in each stage for a given c_o can be predicted by inserting the Brouers-Sotolongo isotherm, Equation (14), into Equations (33) and (34) as follows:

$$m_1=\frac{V}{q_{\mathrm{m}}\cdot \left[1-e^{\left(-K_{\mathrm{BS}}\cdot c_1^{{\beta }_{\mathrm{BS}}}\right)}\right]}\cdot \left(c_{\mathrm{o}}-c_1\right)$$

(35)

$$m_2=\frac{V}{q_{\mathrm{m}}\cdot \left[1-e^{\left(-K_{\mathrm{BS}}\cdot c_2^{{\beta }_{\mathrm{BS}}}\right)}\right]}\cdot \left(c_1-c_2\right)$$

(36)

The total required zeolite mass for both stages can be calculated by summing Equations (35) and (36) as follows:

$$\frac{m_1+m_2}{V}=\frac{1}{q_{\mathrm{m}}}\cdot \left\{\frac{\left(c_{\mathrm{o}}-c_1\right)}{\left[1-e^{\left(-K_{\mathrm{BS}}\cdot c_1^{{\beta }_{\mathrm{BS}}}\right)}\right]}+\frac{\left(c_1-c_2\right)}{\left[1-e^{\left(-K_{\mathrm{BS}}\cdot c_2^{{\beta }_{\mathrm{BS}}}\right)}\right]}\right\}$$

(37)

If $\frac{d\left[\left(m_1+m_2\right)/V\right]}{d{c}_1}$ is set equal to zero, then the extremum of the function corresponding to the total minimum required mass is sought as follows:

$$q_{\mathrm{m}}\cdot \left\{e^{K_{\mathrm{BS}}\cdot c_1^{{\beta }_{\mathrm{BS}}}}\cdot \left[K_{\mathrm{BS}}\cdot c_1^{{\beta }_{\mathrm{BS}}-1}\cdot \left(c_{\mathrm{o}}+c_1\right)+1\right]+e^{K_{\mathrm{BS}}\cdot c_2^{{\beta }_{\mathrm{BS}}}}\right\}=0$$

(38)

Since all parameters except intermediate concentration, c₁ are known in Equation (38), the value of c₁ is determined by trial and error using the Microsoft Excel solver add-in. Then, the total zeolite mass is analytically determined using Equation (37), that is, the required minimum zeolite mass for each stage using Equations (35) and (36).

Table 3. Calculated predicted intermediate Hg(II) concentration, c₁ and minimum masses of NZ and SZ with 99.9% Hg(II) removal efficiency in two-stage cross-current flow batch system, based on different selected initial Hg(II) concentrations at a constant volume of 1 L.

co [mmol/L]	c2 × 102 [mmol/L]	NZ				SZ
		c1 [mmol/L]	m1 [g]	m2 [g]	mtotal [g]	c1 [mmol/L]	m1 [g]	m2 [g]	mtotal [g]
0.460	0.046	0.021	41.55	32.06	73.61	0.016	14.35	14.41	28.76
1.000	0.100	0.045	52.20	38.75	90.95	0.034	15.50	14.65	30.15
1.950	0.195	0.090	62.25	47.43	109.68	0.066	16.54	15.09	31.63
3.000	0.300	0.140	70.48	53.76	124.24	0.100	17.64	15.19	32.83
4.060	0.406	0.190	77.51	58.43	135.94	0.140	17.88	15.99	33.87
5.150	0.515	0.258	80.07	66.60	146.67	0.170	19.34	15.48	34.82
6.140	0.614	0.280	90.79	63.54	154.33	0.200	20.22	15.42	35.64
8.280	0.828	0.370	102.47	67.43	169.90	0.280	20.99	16.30	37.29
10.100	1.010	0.450	110.61	70.92	181.53	0.340	22.24	16.41	38.65
12.260	1.226	0.550	118.80	75.26	194.06	0.410	23.73	16.50	40.23

shows the calculated intermediate concentrations, c₁ and optimized masses of NZ and SZ for each stage in a two-stage cross-current flow batch system assuming 99.9% removal efficiency at a constant volume of 1 L.

Table 3 shows an increase in the required mass of NZ and SZ with an increase in c_o in the first and second stages. In the first stage, a higher mass of both zeolites is needed than in the second stage, due to the lower outlet concentration compared to the initial one and thus a higher amount of sorbed Hg(II). The total required mass to achieve 99.9% removal efficiency is smaller using SZ than NZ, whereby a drastic difference is observed with increasing c_o, which justifies the zeolite impregnation with sulfur species.

It can also be seen from Table 3 that the inlet concentration in the second stage, c₁ for all initial concentrations is about 22 times lower than the inlet concentration in the first stage, c_o. Furthermore, although the concentration after the first stage treatment has significantly decreased, the amount of zeolite required in the second stage to achieve the required removal efficiency is quite high, which is a consequence of the lower driving force of the process. On the other hand, although the required removal efficiency was achieved in the two-stage system, the zeolite from the second batch was not fully utilized since it was partially saturated. Therefore, from an economic point of view, it is crucial to consider both the maximum zeolite utilization, in addition to achieving the desired removal efficiency. This can be supported by the implementation of two-stage counter-current flow batch sorption process as illustrated in Figure 3.

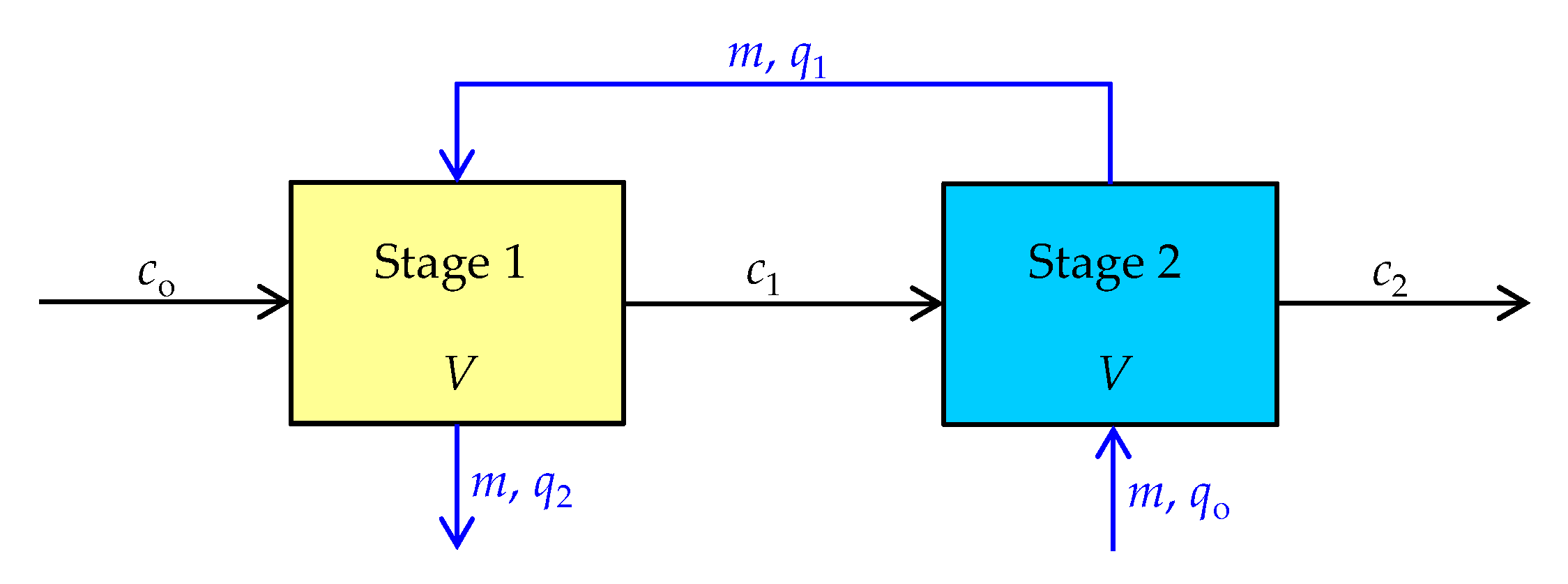

In the counter-current flow process design, the liquid and solid phases are moved in opposite directions. Namely, the fresh zeolite first comes into contact in second stage with a low Hg(II) concentration, c₁, which comes out of the first stage. After attaining equilibrium, the partially saturated zeolite is transferred to the first stage, where it is re-saturated with a solution of higher Hg(II) concentration, c_o. Accordingly, the amount of sorbed Hg(II) on the zeolite increases from q_o to q₂ from second to first stage, and in the opposite direction, the Hg(II) concentration decreases from c_o to c₂.

Provided that the zeolite mass and the volume of the Hg(II) solution are constant in both stages, then the mass balance for each stage of the counter-current flow batch system is given as follows [42]:

$$V\cdot \left(c_{\mathrm{o}}-c_1\right)=m\cdot \left(q_2-q_1\right)$$

(39)

$$V\cdot \left(c_1-c_2\right)=m\cdot \left(q_1-q_{\mathrm{o}}\right)$$

(40)

Inserting the Brouers-Sotolongo isotherm Equation (14) into the Equations (39) and (40) yields:

$$\frac{m}{V}=\frac{\left(c_{\mathrm{o}}-c_1\right)}{q_{\mathrm{m}}\cdot \left[1-e^{\left(-K_{BS}\cdot c_1^{{\beta }_{BS}}\right)}\right]}-q_{\mathrm{m}}\cdot \left[1-e^{\left(-K_{BS}\cdot c_2^{{\beta }_{BS}}\right)}\right]$$

(41)

$$\frac{m}{V}=\frac{\left(c_1-c_2\right)}{q_{\mathrm{m}}\cdot \left[1-e^{\left(-K_{BS}\cdot c_2^{{\beta }_{BS}}\right)}\right]}$$

(42)

Equating Equations (41) and (42), we get:

$$\frac{\left(c_{\mathrm{o}}-c_1\right)}{q_m\cdot \left[1-e^{\left(-K_{BS}\cdot c_1^{{\beta }_{BS}}\right)}\right]}-q_m\cdot \left[1-e^{\left(-K_{BS}\cdot c_2^{{\beta }_{BS}}\right)}\right]=\frac{\left(c_1-c_2\right)}{q_m\cdot \left[1-e^{\left(-K_{BS}\cdot c_2^{{\beta }_{BS}}\right)}\right]}$$

(43)

Since c_o and c₂ are always known, whereas the intermediate concentration, c₁ is unknown, its value is estimated by trial and error using Equation (43) and Microsoft Excel solver add-in. Then, the total required zeolite mass for the counter-current flow system is determined with respect to c₁ by applying the Equations (41) or (42), since the same zeolite mass is used in both stages.

Table 4. Calculated predicted intermediate Hg(II) concentration, c₁ and minimum masses of NZ and SZ with 99.9% Hg(II) removal efficiency in two-stage counter-current flow sorption system, based on different selected initial Hg(II) concentrations at a constant volume of 1 L.

co [mmol/L]	c2 × 102 [mmol/L]	NZ		SZ
		c1 [mmol/L]	mtotal [g]	c1 [mmol/L]	mtotal [g]
0.460	0.046	0.025	38.32	0.016	14.65
1.000	0.100	0.055	47.42	0.036	15.37
1.950	0.195	0.108	57.30	0.070	16.14
3.000	0.300	0.169	65.03	0.110	16.78
4.060	0.406	0.231	71.31	0.151	17.33
5.150	0.515	0.296	76.84	0.195	17.86
6.140	0.614	0.357	81.33	0.243	17.88
8.280	0.828	0.491	89.92	0.329	19.28
10.100	1.010	0.608	96.46	0.414	20.09
12.260	1.226	0.752	103.53	0.520	21.07

summarizes the calculated intermediate Hg(II) concentration, c₁ and the minimum mass of NZ and SZ for different initial Hg(II) concentrations applying counter-current flow sorption system with 99.9% removal efficiency at a constant volume of 1 L.

From Table 4, it can be seen that the total required mass of SZ in the counter-current flow design is smaller compared to NZ, for 2.6 to 4.9 times, and increase with increasing initial concentration. Calculated intermediate concentrations, c₁ are higher for NZ than for SZ after the first stage, even though a higher mass of NZ was used. This can be explained by the fact that SZ has a higher number of active sites and thus a higher selectivity towards Hg(II), which consequently leads to a more pronounced decrease in concentration after the first stage. On the other hand, a higher concentration difference is realized in the first stage for SZ, which indicates a higher driving force of the sorption process, i.e., a higher achieved sorption capacity. In addition, with a significantly lower dose of SZ compared to NZ, the same outlet concentration, c₂ is achieved, with 99.9% Hg(II) removal efficiency. This implies that SZ achieves a higher overall utilization per unit mass than NZ. Since the driving force is higher in the first stage, predictions indicate that the partially saturated zeolite in second stage can be reused. i.e., that it is really unnecessary to use fresh zeolite in the first stage.

Finally, comparing all three sorption process designs, it was observed that ≈10-fold NZ and ≈15-fold SZ savings were achieved using the cross-current flow design compared to the single-stage design. Furthermore, by applying the counter-current flow design, the consumption of both NZ and SZ is reduced twice compared to the cross-current flow design. Comparing the total consumed mass of NZ and SZ in single and two-stage systems, it was observed that by breaking the system into two stages, the total required zeolite mass to achieve the desired removal efficiency is drastically reduced. In summary, it is obvious that the counter-current flow batch system is more effective in terms of zeolite consumption and utilization than all other designs.

3.2. Modeling of Kinetic Data

Kinetic sorption data were analyzed using two reactions (pseudo-first order, pseudo-second order) and three diffusions (Weber-Morris, double exponential, Vermeulen’s approximation) kinetic models. Comparison of experimental data and predicted curves by kinetic models are shown in Figure 4 and Figure 5. Calculated kinetic parameters as well as agreement indicators (r², R², RMSE, χ²) are tabulated in

Table 5. The kinetic parameters and error analysis for Hg(II) sorption on NZ and SZ.

Kinetic Model/Parameters	NZ			SZ
co [mmol/L] qe [mmol/g]	3.941 0.176	6.085 0.235	7.917 0.277	5.982 0.542	8.166 0.727	10.164 0.859
Pseudo-first order model (PFO) qm [mmol/g] k1 [1/min] r2 RMSE χ2 × 103	0.157 0.018 0.899 0.019 2.205	0.213 0.018 0.952 0.019 2.353	0.248 0.016 0.945 0.025 3.414	0.504 0.020 0.977 0.033 2.888	0.658 0.020 0.950 0.060 7.326	0.773 0.017 0.946 0.075 9.522
Pseudo-second order model (PSO) qm [mmol/g] k2 [g/(mmol∙min)] r2 RMSE χ2 × 104	0.171 0.138 0.961 0.013 5.428	0.234 0.097 0.985 0.010 3.060	0.273 0.073 0.981 0.014 6.697	0.547 0.048 0.992 0.018 1.604	0.718 0.035 0.985 0.032 1.182	0.849 0.025 0.982 0.043 1.637
Elovich model αE [mmol/(g·min)] βE [g/mmol] r2 RMSE χ2 × 104	0.016 37.736 0.989 0.017 7.925	0.017 26.247 0.982 0.011 4.717	0.018 22.523 0.979 0.019 7.637	0.050 11.507 0.971 0.033 30.080	0.063 8.718 0.980 0.026 19.020	0.062 7.236 0.972 0.030 14.230
Weber-Morris intra-particle diffusion model kWM1 [mmol/(g∙min1/2)] DWM1 × 107 [cm2/min] I RC [%] R2 kWM2 × 108 [mmol/(g∙min1/2)] DWM2 [cm2/min] R2	0.009 2.563 0.023 3.927 0.962 0.008 2.445 0.976	0.019 6.743 0.007 3.016 0.968 0.006 6.047 0.976	0.017 4.165 0.009 3.140 0.973 0.007 5.879 0.986	0.058 1.236 0.038 7.046 0.994 0.018 1.126 0.987	0.050 5.129 0.066 9.101 0.999 0.020 8.403 0.986	0.040 2.398 0.084 9.828 0.994 0.016 3.617 0.976
Double exponential model qm [mmol/g] kB1 [1/min] B1 [mmol/L] kB2 × 103 [1/min] B2 [mmol/L] r1 × 103 [mmol/(g∙min)] r2 × 104 [mmol/(g∙min1/2)] r × 103 [mmol/(g∙min1/2)] RF [%] SF [%] r2 RMSE χ2∙103	0.175 0.039 0.552 3.447 1.181 2.153 4.071 2.560 31.852 68.148 0.997 0.660 3.684	0.236 0.048 1.074 3.648 1.249 5.155 4.556 5.611 46.233 53.767 0.995 0.717 7.666	0.277 0.059 1.006 3.738 1.683 5.935 6.291 6.564 37.412 62.588 0.994 0.194 2.757	0.514 3.454 0.854 6.259 4.286 294.972 26.830 297.655 16.615 83.385 0.991 0.018 1.542	0.693 3.694 1.622 8.421 5.309 599.167 44.710 603.638 23.402 76.598 0.982 0.033 1.711	0.830 3.671 1.935 8.446 6.360 710.339 53.720 715.711 23.327 76.673 0.985 0.036 1.003
Vermeulen’s approximation qm [mmol/g] DV × 107 (cm2/min) r2 RMSE χ2 × 104	0.176 5.391 0.987 0.119 1.485	0.235 5.981 0.988 0.162 1.134	0.277 6.352 0.993 0.185 1.008	0.542 5.677 0.992 0.398 0.541	0.727 6.801 0.992 0.519 0.726	0.858 8.184 0.994 0.598 0.857

.

Kinetic sorption data were analyzed using three reactions (pseudo-first order, pseudo-second order, Elovich) and three diffusions (Weber-Morris, double exponential, Vermeulen’s approximation) kinetic models. Comparison of experimental data and predicted curves by kinetic models are shown in Figure 4 and Figure 5. Calculated kinetic parameters as well as agreement indicators (r², R², RMSE, χ²) are tabulated in Table 5.

Two-stage sorption kinetic is observed for both zeolite samples and all initial Hg(II) concentrations (Figure 4). The first faster stage, up to 240 min, corresponds to the Hg(II) sorption to easily available active sites, followed by a slower stage of Hg(II) sorption to less available sites until equilibrium is established. With an increase in the initial Hg(II) concentration, the driving force of the process increases, and thus the achieved sorption capacity increases in the range 0.176–0.277 mmol Hg/g for NZ and 0.542–0.859 mmol Hg/g for SZ.

A comparison of the agreement indicators for PFO, PSO, and the Elovich model shows that PSO better describes the experimental data for NZ and SZ. The obtained parameters of the Elovich model indicate that with an increase in the Hg(II) concentration, the initial sorption rate, α_E, and surface coverage, β_E increases, i.e., the available active sites decrease. The results are in agreement with the assumptions of the model and the experimentally obtained sorption capacity. However, the disadvantage of this model is the inability to predict the sorption capacity, unlike PFO and PSO. The calculated values of q_m from PSO are closer to the experimentally obtained values, q_e in relation to PFO. However, according to the PSO model, the reaction rate constant is independent of the initial concentration, which is not the case for NZ and SZ. This finding does not deny the existence of chemisorption but suggests that the chemical reaction is not the limiting step of the sorption process. Namely, sorption most likely includes both physical and chemical sorption mechanisms, whereby the Hg(II) sorption on NZ took place by ion exchange [76], while on SZ it included a more complex mechanism, mainly ion exchange, then electrostatic attraction and surface complexation followed by co-precipitation in the form of HgS [27]. This indicates that physical sorption could be a more dominant mechanism of Hg(II) sorption on NZ, while it is chemisorption on SZ. In the following, by applying the diffusion models, it is necessary to clarify whether the control step is film or intraparticle diffusion.

For this purpose, the kinetic data were first fitted using the Weber-Morris model, since it can be used to reveal whether film diffusion alone or a combination of both film and intraparticle diffusion are the limiting steps. Figure 5 shows a plot of q_t as a function of t^1/2 from which multilinearity can be observed. The first two linear parts correspond to fast and slow sorption, while the third part corresponds to the establishment of an equilibrium state. In addition to the observed multilinearity, the values of intercept I are greater than zero (Table 5), which suggests that both film and intraparticle diffusion are involved in the sorption of Hg(II) on NZ and SZ. The calculated values of the parameters shown in Table 5 indicate that k_WM1 > k_WM2, as well as D_WM1 > D_WM2, confirming faster mass transfer through the film than that through macro and micro pores. Since the values of the relative coefficient, RC, are in the range of 3–10% for NZ and SZ, the influence of film diffusion is negligible compared to the influence of intraparticle diffusion.

The double exponential model, in contrast to the Weber-Morris model, implies that diffusion through the film and through the particle is involved in mass transfer. According to the calculated parameters listed in Table 5, the values k_b1 > k_b2, B₁ > B₂, and r₁ > r₂ confirm the two-stage sorption of Hg(II) on NZ and SZ. Thereby, the first stage controlled by film diffusion is faster than the second, which is controlled by intraparticle diffusion. Model parameters k and B for both stages and both zeolite samples increase with increasing Hg(II) concentration due to a higher concentration gradient and thus a higher driving force of the process. The mentioned parameters are significantly higher for SZ compared to NZ, which indicates a faster sorption of Hg(II) on SZ due to its more pronounced selectivity to Hg(II), as well as a higher amount of removed Hg(II) in the second, slower stage (SF > RF). Statistical indicators of correlation as well as comparable values of q_m and q_e indicate a good agreement between the experimental data and the model, confirming the dominant mechanism of mass transfer by intraparticle diffusion accompanied by film diffusion.

Furthermore, the experimental data were fitted according to the Vermeulen’s approximation since this model considers intraparticle diffusion as the only rate controlling step. A highly significant fit of the experimental data was observed from the beginning to the equilibrium of the process. The values of the diffusion coefficients are of the same order of magnitude, indicating the application of the mentioned model in the examined concentration range. Compared to other models, the calculated q_m values are almost identical to those obtained experimentally, q_e. The results of statistical indicators demonstrate the Vermeulen’s approximation provides the best correlation between the experimental results and the model, suggesting that the dominant limiting step of mass transfer is intraparticle diffusion. Thus, the Vermeulen’s approximation will be used to optimize the contact time in the design of two-stage batch reactors.

The procedure for designing a two-stage batch reactor, in addition to mass optimization in both stages, also includes contact time optimization with the aim of achieving the target outlet effluent concentration. Therefore, the optimization of mass and contact time for each stage can significantly contribute to improving the economic profitability of the two-stage process.

For this purpose, contact time optimization will be performed for both cross-current and counter-current flow two-stage batch reactors for different initial Hg(II) concentrations under the condition of achieving 99.9% Hg(II) removal efficiency. Contact time prediction for both stages will be performed based on the calculated optimum masses for cross-current (Table 3) and counter-current flow two-stage batch reactor (Table 4) achieving 99.9% removal efficiency.

Based on the schematic diagram shown in Figure 2 and the mass balance equation for the two-stage cross-current flow batch process, by substituting the parameters q₁ and q₂ in Equations (33) and (34) with the Vermeulen’s approximation model, Equation (25), the following equations were obtained for the first and second stages:

$$\left(c_{\mathrm{o}}-c_1\right)=\frac{m_1}{V}\cdot q_{\mathrm{m}1}\cdot {\left(1-e^{\frac{-D_{\mathrm{V}}{}_1\cdot {\pi }^2\cdot t_1}{r_{\mathrm{p}}^2}}\right)}^{\frac{1}{2}}$$

(44)

$$\left(c_1-c_2\right)=\frac{m_2}{V}\cdot q_{\mathrm{m}2}\cdot {\left(1-e^{\frac{-D_{\mathrm{V}2}\cdot {\pi }^2\cdot t_2}{r_{\mathrm{p}}^2}}\right)}^{\frac{1}{2}}$$

(45)

The percentage of Hg(II) removal in each stage, R₁ and R₂, is calculated as follows:

$$R_1=\left(c_{\mathrm{o}}-c_1\right)\cdot \frac{100}{c_{\mathrm{o}}}$$

(46)

$$R_2=\left(c_1-c_2\right)\cdot \frac{100}{c_1}$$

(47)

By substituting Equation (44) into (46), as well as Equation (45) into (47) and isolating time to one side, the parameters t₁ and t₂ can be calculated as follows:

$$t_1=-\frac{r_{\mathrm{p}}^2}{D_{\mathrm{V}1}\cdot {\pi }^2}\cdot \ln \left[1-{\left(\frac{R_1\cdot c_{\mathrm{o}}\cdot V}{100\cdot m_1\cdot q_{\mathrm{m}1}}\right)}^2\right]$$

(48)

$$t_2=-\frac{r_{\mathrm{p}}^2}{D_{\mathrm{V}2}\cdot {\pi }^2}\cdot \ln \left[1-{\left(\frac{R_2\cdot c_1\cdot V}{100\cdot m_2\cdot q_{\mathrm{m}2}}\right)}^2\right]$$

(49)

Since the parameters q_m and D_V are a function of c_o, their relationship for NZ is expressed as follows:

$$q_{\mathrm{m}}=0.0721\cdot c_{\mathrm{o}}{}^{0.6517}$$

(50)

$$D_{\mathrm{V}}=4\cdot {10}^{-7}\cdot c_{\mathrm{o}}{}^{0.2355}$$

(51)

that is, for the SZ:

$$q_{\mathrm{m}}=0.1143\cdot c_{\mathrm{o}}{}^{0.8738}$$

(52)

$$D_{\mathrm{V}}=2\cdot {10}^{-7}\cdot c_{\mathrm{o}}{}^{0.6826}$$

(53)

Thus, by inserting the expressions (50) and (51) into (48) as well as (52) and (53) into (49) for selected initial Hg(II) concentration in the range 0.46–12.26 mmol/L and pre-calculated optimal masses m₁ and m₂ (see Table 3) for the desired removal efficiency of 99.9% at a constant volume of 1 L, calculated predicted optimal values of contact time t₁ and t₂ for NZ and SZ in the two-stage cross-current batch reactor are presented in

Table 6. Calculated predicted t₁, t₂ and total contact time (t₁ + t₂) based on predefined optimal NZ masses to achieve 99.9% removal efficiency at a constant volume of 1 L for two-stage cross-current flow batch reactor.

co [mmol/L]	c1 [mmol/L]	c2 × 102 [mmol/L]	m1 [g]	m2 [g]	mtotal [g]	t1 [min]	t2 [min]	t1 + t2 [min]
0.460	0.021	0.046	41.55	32.06	73.61	22.71	9.42	32.13
1.000	0.045	0.100	52.20	38.75	90.95	20.67	9.17	29.84
1.950	0.090	0.195	62.25	47.43	109.68	19.81	8.44	28.25
3.000	0.140	0.300	70.48	53.76	124.24	18.87	8.06	26.93
4.060	0.190	0.406	77.51	58.43	135.94	17.94	7.86	25.80
5.150	0.258	0.515	80.07	66.60	146.67	18.71	6.98	25.69
6.140	0.280	0.614	90.79	63.54	154.33	15.85	7.95	23.80
8.280	0.370	0.828	102.47	67.43	169.90	14.29	8.02	22.31
10.100	0.450	1.010	110.61	70.92	181.53	13.44	7.94	21.38
12.260	0.550	1.226	118.80	75.26	194.06	12.73	7.74	20.46

and

Table 7. Calculated predicted t₁, t₂ and total contact time (t₁ + t₂) based on predefined optimal SZ masses to achieve 99.9% removal efficiency at a constant volume of 1 L for two-stage cross-current flow batch reactor.

co [mmol/L]	c1 [mmol/L]	c2 × 102 [mmol/L]	m1 [g]	m2 [g]	mtotal [g]	t1 [min]	t2 [min]	t1 + t2 [min]
0.460	0.016	0.046	14.35	14.41	28.77	73.43	36.56	109.99
1.000	0.034	0.100	15.50	14.65	30.15	71.65	35.86	107.51
1.950	0.066	0.195	16.54	15.09	31.63	70.71	35.33	106.04
3.000	0.100	0.300	17.64	15.19	32.83	67.70	37.11	104.81
4.060	0.140	0.406	17.88	15.99	33.87	69.01	34.01	103.02
5.150	0.170	0.515	19.34	15.48	34.82	61.63	38.47	100.10
6.140	0.200	0.614	20.22	15.42	35.64	58.52	40.59	99.11
8.280	0.280	0.828	20.99	16.30	37.29	58.39	39.52	97.91
10.100	0.340	1.010	22.24	16.41	38.65	54.09	41.12	95.21
12.260	0.410	1.226	23.73	16.50	40.23	49.28	42.81	92.09

.

From Table 6 and Table 7 it is obvious that the contact time in the first stage is longer than in the second stage. The reason for this is the higher decrease in concentration in the first stage compared to the second stage since m₁ > m₂. Although the driving force of the process in the first stage is higher due to the higher concentration gradient, the zeolite mass in the second stage is therefore quite high in order to achieve a rather low outlet concentration, c₂ despite the lower driving force of the process. This is supported by the almost approximate values of the SZ masses in both stages. Furthermore, for both zeolites, it is observed that with an increase in the initial Hg(II) concentration, the total contact time is shortened, which can be attributed to an increase in the driving force of the process as well as to a higher zeolite mass. In addition, the total contact time is less for NZ than for SZ for 3.5 to 5 times with an increase in initial concentration. On the other hand, by shortening the contact time by 3.5–5 times, it is necessary to increase the mass of NZ in relation to SZ by the same amount. Therefore, the results indicate that the optimization of the contact time based on using calculated NZ and SZ masses from equilibrium data with the assumption of 24-h contact is significant, because the time required to achieve 99.9% removal efficiency is significantly reduced. Although the total contact time is less in the system with NZ, the substantially smaller mass of SZ justifies its application with a relatively short contact time in the range of 92–110 min.

In the case of two-stage counter-current process design (Figure 3), the path of the Hg(II) concentration will be taken into consideration, which means that the fixed zeolite mass is first saturated in second stage, which corresponds to the contact time t₂, the diffusion coefficient, D_V2, the achieved sorption capacity, q_e1, and the removal efficiency, R₂. Then, the partially saturated zeolite is re-saturated with a higher inlet Hg(II) concentration c_o in the first stage, which corresponds to the contact time t₁, the diffusion coefficient, D_V1, the achieved sorption capacity, q_e2, and the removal efficiency, R₁.

By substituting the parameters q₁ and q₂ in Equations (39) and (40) with the equation of the Vermeulen’s approximation model, Equation (25), the Equations for the first and second stage are obtained:

$$\left(c_{\mathrm{o}}-c_1\right)=\frac{m}{V}\cdot q_{\mathrm{m}2}\cdot {\left(1-e^{\frac{-D_{\mathrm{V}1}\cdot {\pi }^2\cdot t_1}{r_{\mathrm{p}}^2}}\right)}^{\frac{1}{2}}-\frac{m}{V}\cdot q_{\mathrm{m}1}\cdot {\left(1-e^{\frac{-D_{\mathrm{V}2}\cdot {\pi }^2\cdot t_2}{r_{\mathrm{p}}^2}}\right)}^{\frac{1}{2}}$$

(54)

$$\left(c_1-c_2\right)=\frac{m}{V}\cdot q_{\mathrm{m}1}\cdot {\left(1-e^{\frac{-D_{\mathrm{V}2}\cdot {\pi }^2\cdot t_2}{r_{\mathrm{p}}^2}}\right)}^{\frac{1}{2}}$$

(55)

By inserting Equation (54) into the equation of the Hg(II) percentage of removal in the first stage (46) and Equation (55) into the equation of the percentage of the Hg(II) removal in the second stage (47), and separating the contact times for the first and second stages, t₁ and t₂ to one side, the following equations are obtained:

$$t_1=-\frac{r_{\mathrm{p}}^2}{D_{\mathrm{V}1}\cdot {\pi }^2}\cdot \ln \left\{1-\left[{\left(\frac{R_1\cdot c_{\mathrm{o}}\cdot V+100\cdot m\cdot q_{\mathrm{m}1}\cdot {\left(1-e^{\frac{-D_{\mathrm{V}2}\cdot {\pi }^2\cdot t_2}{r_{\mathrm{p}}^2}}\right)}^{\frac{1}{2}}}{100\cdot m\cdot q_{\mathrm{m}2}}\right)}^2\right]\right\}$$

(56)

$$t_2=-\frac{r_{\mathrm{p}}^2}{D_{\mathrm{V}2}\cdot {\pi }^2}\cdot \ln \left[1-{\left(\frac{R_2\cdot c_1\cdot V}{100\cdot m_2\cdot q_{\mathrm{m}1}}\right)}^2\right]$$

(57)

When the functional dependence of parameters q_m and D_V on c_o, which is shown by Equations (50) and (51) for NZ and by Equations (52) and (53) for SZ is inserted into Equations (56) and (57), the contact time t₁ and t₂ can be calculated for the selected initial Hg(II) concentration in the range 0.46–12.26 mmol/L and a pre-calculated optimum NZ and SZ mass, m for both stages (see Table 4) for a desired removal efficiency of 99.9% at a constant volume of 1 L. The calculated predicted optimal values of contact time t₁ and t₂ for NZ and SZ in a two-stage counter-current flow batch reactor are shown in

Table 8. Calculated predicted t₁, t₂, and total contact time (t₁ + t₂) based on predefined optimal NZ masses to achieve 99.9% removal efficiency at a constant volume of 1 L for two-stage counter-current flow batch reactor.

co [mmol/L]	c1 [mmol/L]	c2 × 102 [mmol/L]	m1 = m2 [g]	1st Stage t1 [min]	2nd Stage t2 [min]	t1 + t2 [min]
0.460	0.025	0.046	38.32	22.11	7.19	29.30
1.000	0.055	0.100	47.42	20.70	6.75	27.45
1.950	0.108	0.195	57.30	19.31	6.34	25.64
3.000	0.169	0.300	65.03	18.27	6.04	24.31
4.060	0.231	0.406	71.31	17.45	5.81	23.26
5.150	0.296	0.515	76.84	16.75	5.61	22.37
6.140	0.357	0.614	81.33	16.19	5.46	21.65
8.280	0.491	0.828	89.92	15.15	5.18	20.33
10.100	0.608	1.010	96.46	14.39	4.97	19.36
12.260	0.752	1.226	103.53	13.61	4.76	18.37

and

Table 9. Calculated predicted t₁, t₂, and total contact time (t₁ + t₂) based on predefined optimal SZ masses to achieve 99.9% removal efficiency at a constant volume of 1 L for two-stage counter-current flow batch reactor.

co [mmol/L]	c1 [mmol/L]	c2 × 102 [mmol/L]	m1 = m2 [g]	1st Stage t1 [min]	2nd Stage t2 [min]	t1 + t2 [min]
0.460	0.016	0.046	14.65	69.66	37.36	107.02
1.000	0.036	0.100	15.37	71.03	34.51	105.54
1.950	0.070	0.195	16.14	71.43	31.67	103.10
3.000	0.110	0.300	16.78	71.40	30.27	101.67
4.060	0.151	0.406	17.33	70.79	29.29	100.08
5.150	0.195	0.515	17.86	70.64	29.45	100.09
6.140	0.243	0.614	17.88	74.00	31.29	105.29
8.280	0.329	0.828	19.28	67.46	28.86	96.32
10.100	0.414	1.010	20.09	64.66	28.14	92.80
12.260	0.520	1.226	21.07	60.91	27.08	87.99

.

Similar to the case of the cross-current flow two-stage design, the contact time of the counter-current design, for both NZ and SZ, is longer in the first stage, where a higher concentration reduction is achieved, than in the second stage. The total contact time is shortened by 3.5–5 times for NZ compared to SZ with increasing initial Hg(II) concentration. On the other hand, the required mass of NZ is 2.5–5 times higher than that of SZ. However, comparing the total contact time for both NZ and SZ in the cross-current and counter-current flow designs, it is clearly observed that the desired removal efficiency of 99.9% for any initial Hg(II) concentration requires approximately similar total contact time.

The counter-current design is more demanding because the zeolite transfers from the second stage and the treated solution from the first stage are not simultaneous. However, since the total contact time is almost similar for both cross-current and counter-current flow designs, the results suggest that the counter-current flow design is more desirable because it enables a more complete utilization of the zeolite with a significantly lower amount required compared to the cross-current flow design.

Therefore, the determination of sufficient contact time to achieve the desired removal efficiency, while at the same time completely saturating the sorbent enables the implementation of several batches per day, contributing to a more economically favorable process.

3.3. Experimental Verification of the Model Application

In order to confirm the accuracy of the design of the two configurations of the two-stage reactors, it is essential to carry out experimental verification of the predicted parameters. Furthermore, according to the design criterion of 99.9% Hg(II) removal efficiency, a significantly higher consumption saving was achieved for SZ than for NZ. Hence, the theoretical design of both two-stage cross and counter-current flow batch sorption systems will be verified only for Hg(II) removal on SZ.

For this purpose, the experimental testing of the predicted results shown in Table 7 and Table 9, as well as the validation of the developed mathematical models were carried out.

To verify the design of the two-stage cross-current flow batch reactor, the predicted masses of SZ for each stage were weighed and solutions of initial concentrations were prepared as shown in Table 7. For each initial solution, the experiment was conducted according to precisely defined predicted contact times for each stage (Table 7). Hence, for example, for the lowest concentration of 0.460 mmol Hg/L, a mass of 1.435 g of SZ was mixed with 100 mL of the mentioned solution for 73.43 min (i.e., 74 min). The liquid phase was then separated and mixed with 1.441 g of SZ for 36.56 min (i.e., 37 min) under the same conditions.

To verify the design of the two-stage counter-current flow batch reactor, the masses of SZ were weighed and the initial, c_o and intermediate, c₁ Hg(II) concentrations were prepared as listed in Table 9. The experiment was carried out with respect to the SZ pathway, which is the opposite of the solution pathway. For example, for the initial concentration of Hg(II), c_o = 0.460 mmol/L, a mass of 1.465 g of SZ was first saturated with 100 mL of Hg(II) concentration, c₁ = 0.016 mmol/L for 37.36 min (i.e., 38 min), which corresponds to the second stage. Thereafter, the partially saturated SZ was separated and transferred to the first stage and saturated with a solution of Hg(II) concentration, c_o = 0.460 mmol/L for 69.66 min (i.e., 70 min).

The predicted and experimentally determined values of Hg(II) concentrations for each stage, the total removal efficiency, as well as the percentage deviation are shown in

Table 10. Comparison of predicted and experimentally obtained values of total removal efficiency obtained for both stages of Hg(II) sorption on SZ in a two-stage cross-current flow batch reactor for selected different initial concentrations.

co [mmol/L]	c1 [mmol/L]		c2 × 102 [mmol/L]		Total Removal [%]		Percentage Deviation [%]
	Model	Exp.	Model	Exp.	Model	Exp.
0.460	0.016	0.031	0.046	0.978	99.90	97.87	2.03
1.000	0.034	0.052	0.100	0.891	99.90	99.11	0.79
1.950	0.066	0.093	0.195	0.821	99.90	99.58	0.32
3.000	0.100	0.141	0.300	1.019	99.90	99.66	0.24
4.060	0.140	0.208	0.406	0.908	99.90	99.78	0.12
5.150	0.170	0.214	0.515	1.470	99.90	99.71	0.19
6.140	0.200	0.294	0.614	1.510	99.90	99.75	0.15
8.280	0.280	0.336	0.828	2.040	99.90	99.75	0.15
10.100	0.340	0.441	1.010	2.750	99.90	99.73	0.17
12.260	0.410	0.497	1.226	2.861	99.90	99.77	0.13

for the two-stage cross-current and in

Table 11. Comparison of predicted and experimentally obtained values of total removal efficiency obtained for both stages of Hg(II) sorption on SZ in a two-stage counter-current flow batch reactor for selected different initial concentrations.

co [mmol/L]	c1 [mmol/L]		c2 × 102 [mmol/L]		Total Removal [%]		Percentage Deviation [%]
	Model	Exp.	Model	Exp.	Model	Exp.
0.460	0.016	0.019	0.046	0.952	99.90	97.93	1.97
1.000	0.036	0.039	0.100	0.859	99.90	99.14	0.76
1.950	0.070	0.076	0.195	0.948	99.90	99.51	0.39
3.000	0.110	0.151	0.300	0.966	99.90	99.68	0.22
4.060	0.151	0.193	0.406	0.713	99.90	99.82	0.08
5.150	0.195	0.226	0.515	1.640	99.90	99.68	0.22
6.140	0.243	0.269	0.614	1.321	99.90	99.78	0.12
8.280	0.329	0.363	0.828	1.938	99.90	99.77	0.13
10.100	0.414	0.428	1.010	2.206	99.90	99.78	0.12
12.260	0.520	0.532	1.226	2.433	99.90	99.80	0.10

for the two-stage counter-current flow design.

The results shown in Table 10 and Table 11 indicate that the predicted and experimental values of total removal efficiency are closely aligned, indicating that the disparity between predicted and actual results was mostly not significant. For both configurations of the two-stage reactors, the highest percentage of deviation was observed for the lowest initial Hg(II) concentration, while for the other concentrations it was below 1%. The reason for the higher deviation at the lowest concentration could be attributed to the lower driving force of the process, which indicates the need for either a higher SZ mass or a longer contact time. For the stated reason, the removal of extremely low concentrations of Hg(II), which corresponds to the second stage of a two-stage reactor, is often challenging.

Taking everything into consideration, the results both theoretically and experimentally demonstrated that the developed mathematical models by applying the mass balance equation and Brouers-Sotolongo isotherm to the equilibrium results, i.e., the Vermeulen’s approximation to the kinetic results, enable the estimation of the minimum required mass and contact time for Hg(II) sorption on SZ in both cross and counter-current flow batch designs. In summary, the two-stage counter-current flow design was confirmed and recommended for the sorption of Hg(II) onto SZ.

3.4. Mercury Leaching from the Mercury-Contaminated Soil and Its Sorption onto Natural and Sulfur-Impregnated Zeolite

Before implementing an often expensive and long-term soil remediation program, it is necessary to know the amount and form of mercury in the soil, as well as to conduct laboratory tests using both synthetic solutions and a real soil sample. For this purpose, prior to implementing the toxicity characteristic leaching procedure (TCLP), the total Hg content in the soil sample collected at the location of Frbejžene trate was determined in the amount of 1347 mg/kg. This indicates that the Idrija mine area is extremely polluted, and it would be desirable to apply an appropriate remediation program. Then, leaching experiments were carried out with raw soil at pH = 2.88 and pH = 4.93 according to the TCLP test as described in Section 2.3.2. The obtained leachates were then subjected to subsequent sorption, that is, treated with different dosages of NZ and SZ. A comparison of the total leached Hg from the raw soil at pH = 2.88 and pH = 4.93, with the residual Hg concentration after sorption onto NZ and SZ is shown in Figure 6. Figure 7 shows the removal efficiency of total leached Hg after subsequent sorption with different dosages of NZ and SZ at pH = 2.88 and pH = 4.93.

From Figure 6a,b, the higher total leached Hg concentration from raw soil at pH = 4.93 (3.345 mg/L) compared to pH = 2.88 (2.178 mg/L) is observed. This finding differs from the expected, since usually at lower pH, the solubility of the metal increases. However, in a soil sample, the presence of mineral components as well as organic matter, especially humic and fulvic acids, could affect the solubility of bound Hg. Unlike fulvic acids which are soluble under all pH conditions, co-precipitation of humic acids at pH < 3 occurs, while an increase in pH facilitates their dissolution [77,78]. At a pH = 2.88, dissolution of eventually present soil mineral components should also take place. However, a higher concentration of total leached Hg at pH = 4.93 indicates that dissolution of Hg from humic acids dominates. Therefore, it could be assumed that the binding of Hg to humic substances is predominant in the investigated soil. This further suggests that humic acids should be most responsible for the higher Hg retention in this soil at pH = 2.88.

The total leached Hg concentration from the raw soil at both pH values is above the prescribed value according to the TCLP criterion for Hg, which is 0.2 mg/L (black line in Figure 6). According to the TCLP test, raw soil is an extremely hazardous waste that needs adequate remediation or preventing the leaching of toxic Hg, and thus the spreading of pollution. On the other hand, after the implementation of subsequent sorption, which actually represents ex situ remediation, total Hg concentrations did not exceed 1.490 mg/L when NZ was used and 0.330 mg/L when SZ was used (Figure 6). A decrease in total residual Hg concentration is observed with an increasing zeolite dose, which is significantly more pronounced for SZ compared to NZ. The TCLP maximum concentration criterion of 0.2 mg/L was achieved exclusively for SZ with a minimum dose of 0.25 g at pH = 2.88 and 0.5 g at pH = 4.93. By linear interpolation of the prediction results of the SZ mass from Table 2, the SZ mass of 0.49 g for the Hg concentration of 2.178 mg/L (pH = 2.88) and 0.78 g for the concentration of 3.345 mg/L (pH = 4.93) should be sufficient to achieve a removal efficiency of 99.9%. Results shown in Figure 7 indicate that the removal efficiency increases with an increasing zeolite dose for both pH values and is in the range 55–70% for NZ and 90–97% for SZ. The results indicate that the SZ sample immediately achieved high efficiency even at the lowest dose, which could be attributed to the number of available active sites that differ compared to NZ due to the modification method. In addition, the results of minimum mass estimation based on mathematical modeling indicate that the prediction of minimum SZ mass has an acceptable correlation with the obtained results and that prediction and optimization is a good tool for minimum mass estimation to achieve the desired efficiency.

Leaching of Hg from raw soil samples with a simultaneous addition of various doses of NZ or SZ was carried out with the aim of simulating in situ remediation. Namely, the TCLP test was used to monitor Hg mobility in treated samples with NZ and SZ at pH = 2.88 and pH = 4.93. The TCLP test results of untreated and treated raw soil are compared in Figure 8, while Figure 9 compares the total leached Hg removal with the addition of NZ and SZ at both tested pH values.

Compared to the untreated sample, at both pHs, the mobility of total leached Hg was reduced with the addition of NZ, while a drastic reduction in mobility was noticed with SZ. At both pHs, total leached Hg concentrations did not exceed 1.420 mg/L in the soil sample with NZ addition, i.e., 0.189 mg/L with SZ addition (Figure 8). With an increase in NZ dose, the total leached Hg concentration slightly decreases, while a drastic decrease was observed even with the lowest SZ dose added. In relation to the TCLP test criterion (<0.2 mg Hg/L), only the soil sample treated with SZ meets this value even at the smallest dosage of 0.25 g at both pH values. The obtained results indicate that SZ is a promising material for in situ remediation of mercury-contaminated soil, since its minimum dose significantly reduces Hg leaching from contaminated soil at both examined pH values. The total removal of leached Hg increased with increasing zeolite dosage and is in the range of 57–72% for NZ, and 94–99% for SZ at both pHs. Unlike NZ, where a maximum removal efficiency of 72% is achieved at the highest dose, for SZ a minimum removal efficiency of 94% is achieved even at the lowest dose.

Namely, the sorption of mercury species from soil onto zeolites is presumably very complex and involves a multi-sorption mechanism. The most pronounced decrease in total leached Hg in the presence of the SZ can be a consequence of the formation of sparingly soluble HgS on the SZ surface, since it is well known that Hg exhibits a strong affinity for sulfur species. Moreover, the formation of HgS is desirable since it is the least toxic form of mercury due to its stability, low solubility, and relative immobility, which thus reduces the bioavailability of Hg for methylation in deeper soil layers. This once again confirms SZ as a preferential sorbent for Hg compared to NZ.

According to the aforementioned predicted SZ masses obtained by linear interpolation to achieve a removal efficiency of 99.9%, the results show that for the leached Hg concentration of 2.171 mg/L at pH = 2.88, an SZ mass of 0.5 g was sufficient, and for the leached Hg concentration of 3.345 mg/L, an SZ mass of 0.75 g was sufficient. The obtained results are in good agreement with the predicted ones, which indicates that by mathematical modeling, simulation, and verification of the results, the required mass of SZ can be reliably predicted to achieve the desired efficiency.

Comparing the results obtained by subsequent and simultaneous sorption on zeolites, slightly better removal efficiency can be observed using simultaneous sorption, that is, in situ remediation. Finally, this study has shown that the developed mathematical models are applicable for estimating the required amount of SZ for in situ remediation of mercury-contaminated soil in the area of the Idrija mine, Slovenia. A previous study confirmed that the SZ saturated with mercury at the end of its life can be safely left in the environment since Hg binds strongly to SZ [27]. Thus, SZ could be a potential option to reduce Hg leaching emissions, thereby reducing the negative impact on the entire ecosystem.

4. Conclusions

Modeling, simulation, and optimization of Hg(II) sorption equilibrium and kinetics data is an important tool in environmental engineering that enables the minimizing of zeolite consumption and contact time while simultaneously increasing sorption efficiency and zeolite utilization. Analysis of equilibrium and kinetic data indicated that physical and chemical sorption are responsible for Hg(II) uptake in NZ and SZ. It could be that physical sorption is probably more dominant for NZ, while chemical sorption is for SZ. The overall rate of mass transfer is controlled by intraparticle diffusion which is in accordance with the Vermeulen’s approximation that best describes the experimental results. Mathematical models for predicting the optimal zeolite mass and contact time required to remove 99.9% of Hg(II) were developed using the mass balance equation, the Brouers-Sotolongo isotherm, and the Vermeulen’s approximation. The results showed that optimization is a reliable tool for batch reactor design based on verification of the predicted parameters. In relation to the single-stage reactor, both two-stage designs contribute significantly to the reduction of the amount of zeolite, thereby the counter-current design takes the lead. For all proposed designs, the consumption savings is substantially higher for the SZ than for the NZ. Likewise, a significant saving on the SZ mass is achieved in the counter-current rather than in the cross-current design. Although the two-stage design has a higher investment cost compared to the single-stage design, the savings in mass and operating contact time in principle justify its application.

The TCLP results clearly showed that a higher pH favors the leaching of Hg from contaminated soil. Moreover, the tested pH of 4.93 corresponds to the real pH of rainwater, indicating that the leaching of Hg in real conditions takes place continuously. Therefore, the need for topsoil remediation is necessary in order to reduce/prevent this phenomenon. The results of subsequent and simultaneous sorption of leached Hg from raw soil at pH = 2.88 and pH = 4.93 showed that SZ was more effective in reducing Hg mobility than NZ. In addition, at a minimum SZ mass of 0.25 g, an extremely high removal efficiency of 94% is achieved with a reduction of the leached Hg concentration below the TCLP criterion of 0.2 mg/L, making SZ a promising material for in situ remediation of mercury-contaminated soils. This research could help reduce the risk of spreading extremely toxic mercury near the Idrija mine in Slovenia, primarily by performing in situ remediation with an optimal dose of environmentally acceptable SZ.
